Graphene oxide modulates dendritic cell ability to promote T cell activation and cytokine production

Abstract

An important aspect of immunotherapy is the ability of dendritic cells (DCs) to prime T cell immunity, an approach that has yielded promising results in some early phase clinical trials. However, novel approaches are required to improve DC therapeutic efficacy by enhancing their uptake of, and activation by, disease relevant antigens. The carbon nano-material graphene oxide (GO) may provide a unique way to deliver antigen to innate immune cells and modify their ability to initiate effective adaptive immune responses. We have assessed whether GO of various lateral sizes affects DC activation and function in vitro and in vivo, including their ability to take up, process and present the well-defined model antigen ovalbumin (OVA). We have found that GO flakes are internalised by DCs, while having minimal effect on their viability, activation phenotype or cytokine production. Although adsorption of OVA protein to either small or large GO flakes promoted its uptake into DCs, large GO interfered with OVA processing. In terms of modulation of DC function, delivery of OVA via small GO flakes significantly enhanced DC ability to induce proliferation of OVA-specific CD4⁺ T cells, promoting granzyme B secretion in vitro. On the other hand, delivery of OVA via large GO flakes augmented DC ability to induce proliferation of OVA-specific CD8⁺ T cells, and their production of IFN-γ and granzyme B. Together, these data demonstrate the capacity of GO of different lateral dimensions to act as a promising delivery platform for DC modulation of distinct facets of the adaptive immune response, information that could be exploited for future development of targeted immunotherapies.

---

Dendritic cells (DCs) are important innate antigen (Ag) presenting cells (APCs) that patrol tissues for foreign organisms and materials, which they have potent ability to recognise, capture and process for presentation to, and activation of, T cells.^1,2 The composition of such Ags, and environmental signals present during their uptake, directly impacts DC activation and function, conferring immunogenic or tolerogenic ability.^3–6 Pathogens, microbial or danger associated molecular patterns (PAMPs, MAMPs or DAMPs), and Ags containing or contaminated with such (including endotoxins), can enable DCs to promote the activation and differentiation of T cells into diverse effector states (T_eff).⁷ These cues usually trigger DC activation, termed ‘maturation’, whereby Ag processing is enhanced, expression of peptide major histocompatibility complexes (MHCII/MHCI) and co-stimulatory molecules is increased, and cytokines necessary for T_eff polarisation are produced.⁸ DCs also possess the ability to induce tolerance to innocuous signals,⁹ in part by promoting the differentiation of naïve T cells into immunosuppressive regulatory T cells (T_regs). Thus, how DCs encounter and respond to Ag plays a pivotal role in shaping their capacity to modify the character of T cell responses.^5,10

The central ability of DCs to induce and direct Ag specific T cell responses has highlighted the potential effectiveness of these specialised immune cells in immunotherapy of cancer, autoimmune diseases and transplant rejection.^11–14 DC based immunotherapy has yielded promising results in early phase clinical trials for conditions such as breast cancer, rheumatoid arthritis, multiple sclerosis and solid organ rejection after transplant.^15–18 However, candidate Ags can be poorly immunogenic, and the efficacy of methods employed to boost protective responses, such as adjuvants, can be variable.^19,20 Therefore, more refined approaches are needed to enhance DC ability to generate appropriate immune responses against candidate therapeutic Ags.

A variety of nanomaterials are finding applications in the therapy of cancer. Functionalised carbon nanoparticles can be used as molecular carriers for drug delivery, due to their ability to enhance cellular uptake of Ags.^21,22 More recently, graphene has also attracted increasing interest with regards to its biomedical applications. Graphene has a variety of physiochemical characteristics relevant to biomedical application, including a very large surface area and high mechanical strength and flexibility, that play a critical role in determining their interactions with biological matter.^23,24 Graphene oxide (GO), an oxidised derivative of graphene, is rich in oxygen groups that significantly increase its hydrophilicity and biocompatibility, while its large surface area and functional groups allow for efficient conjugation and loading of bioactive molecules.²⁵ This high loading capacity has started to be exploited for the delivery of anti-cancer genes, tumour Ags and chemotherapeutics.²⁶ However, limited information is available regarding the inherent immunogenicity of GO, as well as its impact on the ability of DCs to initiate and direct immune responses.

Although various carbon nanoparticles, including GO, are readily taken up by DCs,²⁷ current evidence on how GO influences DC activation and function is somewhat conflicting.^28,29 One recent study demonstrated that GO loaded with the glioma Ag survivin induces a potent DC-mediated anti-glioma response in vitro.³⁰ However, an earlier study suggested that GO inhibits DC presentation of the model Ag OVA, dependent on down regulation of the immunoproteasome Ag processing subunit LMP7, responsible for MHCI presentation.²⁷ Further, GO lateral dimensions may be a crucial factor in material uptake and innate cell activation, with large GO (LGO) able to promote more pro-inflammatory polarisation in a murine macrophage cell line, as well as in in vivo murine models.³¹ In contrast, small GO (sGO) flakes appear to elicit activation of human monocytes, when compared to large.³² It is becoming increasingly clear that it is vital to understand whether conflicting reports of GO inflammatory potential are a result of material production method variability, including possible levels of endotoxin contamination.³³

We have carefully investigated the immunogenicity of endotoxin-free GO of different lateral dimensions and defined its impact on DC activation and function in vitro and in vivo, including ability to take up, process and present OVA to CD4⁺ and CD8⁺ T cells. We found that sGO flakes were readily internalised by DCs, while having minimal effect on their viability, activation phenotype or cytokine production. LGO flakes were found to predominantly interact with the plasma membrane of DCs, while displaying a similarly muted impact on DC viability or activation. Although adsorption of OVA protein to either small or LGO flakes promoted its uptake into DCs, LGO interfered with its processing. In terms of modulation of DC function, delivery of OVA via sGO flakes significantly enhanced DC ability to induce proliferation of OVA-specific CD4⁺ T cells in vitro. On the other hand, delivery of OVA via LGO flakes augmented DC ability to induce proliferation of OVA-specific CD8⁺ T cells, and their production of IFN-γ and granzyme B. These data establish that endotoxin-free GO of different lateral dimensions displays minimal inherent ability to induce DC maturation. Despite this, they also show that GO flake lateral dimension governs DC ability to promote Ag-specific CD4⁺ or CD8⁺ T cell activation, proliferation and cytokine secretion. This information increases fundamental understanding of the biological effects of GO derivatives on immune response induction, which could enable future development of novel immunotherapies for diverse conditions in which the modulation of cellular immunity is critical.

Results

Synthesis and characterisation of small and large GO flakes

In order to synthesise thin (one to two layers thickness), highly pure and endotoxin-free GO of different lateral dimensions for biomedical applications, we have optimised the modified Hummers’ method.³⁴ Exhaustive characterisation of sGO and LGO was performed as previously described³⁴ and is summarised in Table S1 and Fig. S1, S2.† Aqueous suspensions of GO were well-dispersed, brownish in colour, stable at room temperature, and of no endotoxin content (using a TNF-α expression assay) (Table S1 and Fig. S1†).

GO affects DC viability in lateral size and dose dependent manner

To explore the potential of GO as an immunomodulator for targeting of DCs in biomedical applications, as well as a potential platform for DC mediated immunotherapies, we assessed the effect of LGO and sGO on DCs in culture, initially focussing on viability. Variable concentrations of LGO and sGO were incubated with murine bone marrow derived DCs (BMDCs) for 18 h, and their viability assessed by flow cytometry. LGO or sGO at lower concentrations exhibited negligible toxicity against DCs (Fig. 1A), with significantly reduced viability only evident at the higher doses of LGO, and the highest dose of sGO (Fig. 1A and B). Based on these data, 5 μg ml⁻¹ sGO or LGO was employed in subsequent experiments.

Fig. 1 Effects of GO lateral size on bone marrow derived dendritic cell viability and internalisation pattern. (A and B) BMDCs were incubated with sGO or LGO at a range of concentrations or LPS (100 ng ml⁻¹) for 18 h. (A) Cellular viability was assessed via Zombie UV dye exclusion in CD11c⁺ DCs. (B) A representative flow cytometry histogram demonstrating Zombie UV negative DCs after 50 μg ml⁻¹ GO. (C–F) BMDCs were incubated with media, sGO (5 μg ml⁻¹) or LGO (5 μg ml⁻¹) for 18 h and GO localisation was assessed. (C) Raman mapping allowed for localisation of GO relative to DCs following GO challenge. Raman mapping (λ = 633 nm, 0.4 mW, area size = 0.3 mm², spatial resolution = 1 μm) of DCs challenged with media only (control), sGO or LGO. Representative images are provided for each condition (insets provide higher magnification for each sample). GO abundance is measured in counts per second (cps) of Raman scattered photons per second (n = 9). Scale bar: 200 μm. (D) Representative ultra-structural interactions of dendritic cells with sGO and LGO shown using TEM, at high magnification (scale bar: 200 nm for control, 500 nm for sGO and LGO). (E) Representative selected area electron diffraction (SAED) pattern of each sample were obtained in respective regions circled in (D) to evidence the crystalline nature of the material probed, hence confirming presence or absence of GO (small peak in orange profile). For clarity, the profiles of the SAED patterns are given relative to the reference resin SAED profile, here in black. The region of the reciprocal distance of 4.7 nm⁻¹ has been highlighted in yellow. At this reciprocal distance, from the centre of the SAED pattern, the lattice reflection of graphene [10, 10] innate to this carbon crystal is expected to result in a peak, as can be observed in both sGO and LGO treated samples. (F) Uptake of GO (excitation at 594 nm/emission at 620–690 nm, red) was imaged using a confocal microscope. DC plasma membranes were stained with CellMask Green plasma membrane stain (excitation at 488 nm/emission max at 520 nm, green). Scale bars represent 10 μm. (A) The data are shown as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Data were analysed using two-way ANOVA with Bonferroni's post hoc test, *p < 0.05 **p < 0.01 ***p < 0.001. (B) * above symbols versus control.

Internalisation of sGO and LGO by DCs

To identify how effectively GO flakes were internalized, BMDCs were cultured with 5 μg ml⁻¹ sGO or LGO for 18 h. An overlay of confocal DIC images with Raman spectroscopy 2D mapping showed definitive co-localisation of the typical GO Raman shift with BMDCs (Fig. 1C). However, it was not possible to conclude definitively from these images whether GO was located intracellularly or attached to the surface membrane of the cells. Transmission electron microscopy (TEM) was therefore performed on cell sections and showed that sGO was clearly located in intracellular regions of the BMDCs, whilst LGO was aligned with the plasma membrane (Fig. 1D). In these TEM images, the nature of the materials found in cells (sGO) or their close vicinity (LGO) was confirmed using Selected Area Electron Diffraction (SAED), which highlighted the typical electron diffraction of graphene crystals absent in non exposed cells (Fig. 1E). Consistent with the TEM images (Fig. 1D), live cell confocal microscopy exploiting the autofluorescent properties of GO showed that sGO was readily taken up by BMDCs and localised to an intracellular vesicular compartment, whereas LGO was more associated with the extracellular plasma membrane (Fig. 1F).

GO has minimal impact on DC activation

DCs can express a wide range of surface proteins that reflect their activation phenotype and function.³⁵ Immature BMDCs were cultured for 18 h with sGO (5 μg ml⁻¹), LGO (5 μg ml⁻¹), medium alone as a negative control or LPS (100 ng ml⁻¹) as a positive control and expression of maturation markers CD86, CD80, CD40, CD83, MHCII and MHCI were evaluated by flow cytometry. sGO or LGO had little effect on expression of CD86, CD80, CD40 or MHCII, when compared to medium alone (Fig. 2A, B and Fig. S3†). However, both sGO and LGO significantly increased expression of the putative costimulatory molecule CD83 (Fig. 2A, B and Fig. S3†).³⁶ LGO also caused a small, but significant, increase in the expression of MHCI and MHCII (Fig. 2B and Fig. S3†). Similar to maturation marker expression, GO had little measurable effect on DC cytokine secretion. sGO failed to stimulate production of the inflammatory mediators TNF-α, IL-6, IL-12p40, IL-12p70, or regulatory IL-10, when compared to medium alone (Fig. 2C). In contrast, LGO induced a small but significant increase in DC production of TNF-α, IL-6 and nitric oxide (NO) (Fig. 2C). Together, these data indicate that neither sGO nor LGO dramatically activate BMDCs in terms of surface phenotype or cytokine production.

Fig. 2 Graphene oxide has minimal effect on BMDC activation and cytokine production. BMDCs were incubated with medium alone, sGO (5 μg ml⁻¹), LGO (5 μg ml⁻¹) or LPS (100 ng ml⁻¹) for 18 h and (A) phenotypic activation analysed by flow cytometry. (B) % of CD11c⁺ cells expressing CD86, CD80, CD40, CD83, MHCII and MHCI, as assessed by flow cytometry (C) Levels of cytokines TNF-α, IL-6, IL-12p40, IL-10, IL-12p70, and nitric oxide (NO), secreted into the media, as analysed by ELISA. Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test, *p < 0.05, **p < 0.01, ***p < 0.001 (above bars versus control).

GO modifies DC Ag uptake and processing

A key function of DCs is the Ag-specific activation of T cells, a process that relies on efficient protein uptake, intracellular processing and presentation of antigenic peptides via MHC/peptide complexes to T cells via their surface receptors (TCRs).^35,37 To determine how GO might alter Ag-presenting activity of DCs, we first assessed whether GO could affect initial uptake of OVA. Taking advantage of the physicochemical properties of GO, which allow for efficient loading of bioactive proteins, we adsorbed OVA conjugated to the pH insensitive fluorophore AlexaFluor 647 to sGO or LGO. BMDCs were incubated with OVA_AF647 or GO–OVA_AF647 complexes, and uptake of fluorescent OVA assessed by flow cytometry (Fig. 3A). Approximately 2–3 times more DCs internalised Ag when bound to sGO or LGO than soluble OVA alone (Fig. 3B and C). Live cell confocal microscopy showed that OVA_AF647 localised to an intracellular compartment when DCs were incubated with OVA_AF647 alone or sGO–OVA_AF647 complexes (Fig. 3D). However, less uptake was observed upon treatment with LGO–OVA_AF647 (Fig. 3D), which correlated with the histogram in Fig. 3B highlighting fluorescence on a per cell basis. Next, we investigated the effect of GO on OVA processing using a pH-insensitive self-quenching OVA conjugate (OVA_DQ), which fluoresces upon lysosomal proteolysis (Fig. 3E). OVA_DQ was adsorbed to sGO or LGO, then DCs incubated with OVA_DQ or GO–OVA_DQ complexes, and degradation of OVA assessed by flow cytometry. DC uptake of OVA_DQ alone resulted in its degradation, as expected (Fig. 3F), with adsorption of OVA_DQ to sGO having no measurable effect on this. However, adsorption to LGO significantly attenuated OVA degradation when compared to OVA_DQ alone (Fig. 3F). Processing of OVA_DQ was assessed by live cell confocal microscopy, which corroborated the uptake and processing kinetics determined by flow cytometry (Videos S1–S4†). Together, these results reveal that size is an important factor in determining GO influence over DC internalisation and/or degradation of protein Ags.

Fig. 3 sGO and LGO enhance DC Ag uptake, while LGO impairs antigen processing. (A) Schematic illustrating the phagocytosis of fluorescently labelled OVA_AF647 into BMDCs. (B–D) BMDCs were incubated with 10 μg ml⁻¹ OVA-AlexaFluor647 or GO–OVA_AF647 complexes (5 μg : 10 μg) for 30 min. (B and C) Uptake of OVA was quantified by flow cytometry. (D) Uptake of OVA_AF647 (excitation at 633 nm/emission max at 665 nm, red) was imaged by confocal micros copy, with CellMask Green plasma membrane stain (excitation at 488 nm/emission max at 520 nm, green). Scale bar: 20 μm. (E) Schematic illustrating the processing of OVA in BMDCs. (F) BMDCs were incubated with 10 μg ml⁻¹ OVA-DQ or GO–OVA_DQ complexes (5 μg : 10 μg) for 30 min, then OVA processing quantified by flow cytometry, with % OVA_DQ⁺ calculated by subtracting 4 °C values from 37 °C values. (C and F) Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni post hoc test, ***p < 0.001.

GO Ag delivery modifies DC activation of CD4⁺ T cells

To determine the influence of GO on DC ability to provide surface MHC-restricted Ag and costimulation for T cell activation, OVA alone, or OVA adsorbed to sGO or LGO (Fig. S2†), was added to immature BMDCs, which were then co-cultured with CFSE-labelled OT-II CD4⁺ T cells (Fig. 4A). T cell proliferation was then assessed by flow cytometry (Fig. 4B and C). Although co-culture with naïve DCs or DCs pulsed with soluble OVA protein induced limited T cell proliferation, OVA adsorbed to sGO or LGO resulted in comparatively more T cell division (Fig. 4B and C). Notably, sGO–OVA DCs induced significantly more CD4⁺ T cell proliferation than LGO–OVA DCs (Fig. 4B and C). In contrast to the enhanced DC induction of CD4⁺ T cell proliferation evident with GO adsorbed to OVA protein, GO adsorbed to MHCII-restricted OVA peptide (OVA₃₂₃; OVA_323–339; ISQAVHAAHAEINEAGR) interfered with DC induction of OT-II proliferation (Fig. 4D and E).

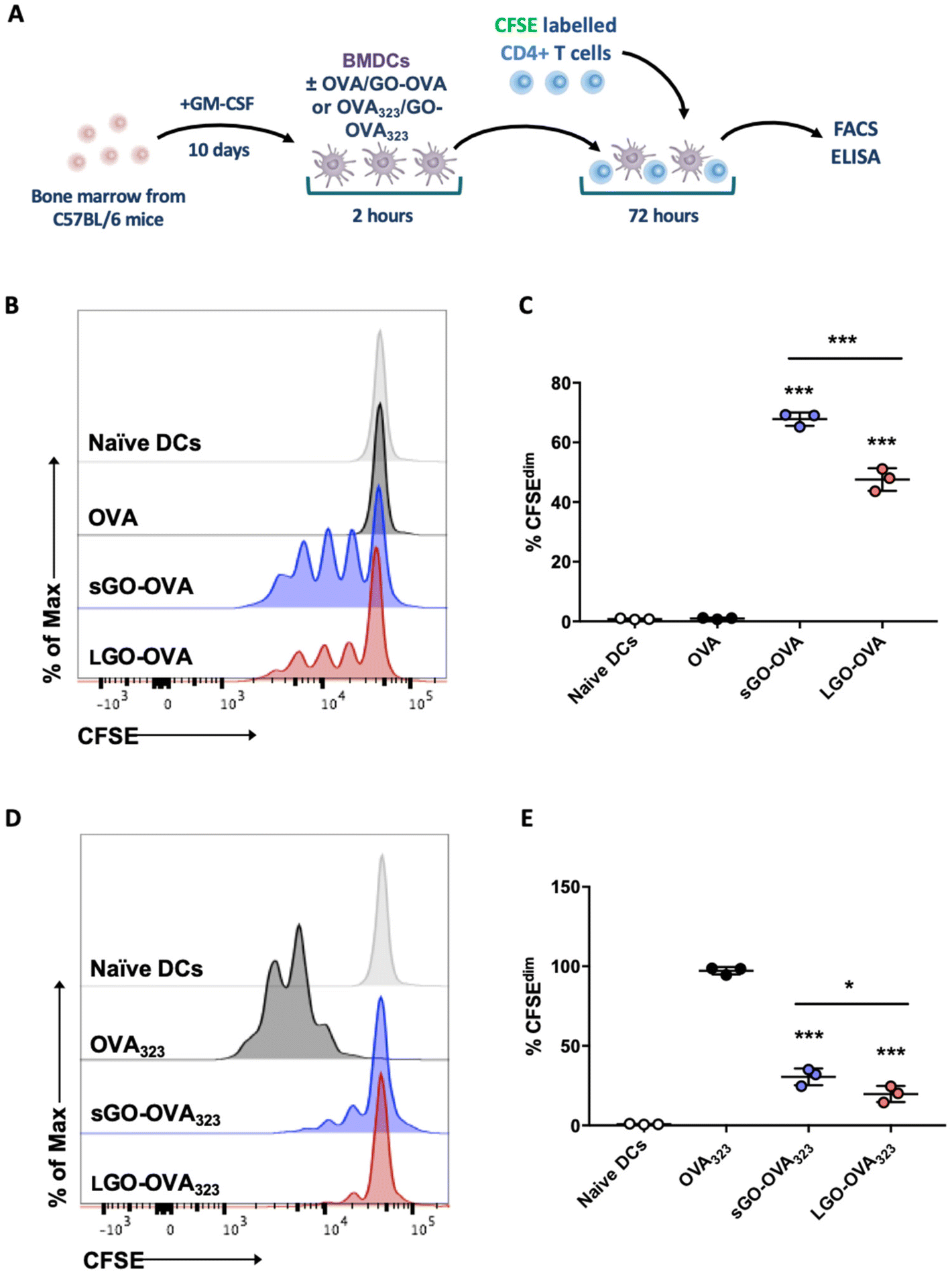

Fig. 4 GO modifies DC induction of proliferation by CD4⁺ T cells. (A) BMDCs were pulsed for 2 h with 10 μg OVA protein or GO–OVA complexes (5 μg : 10 μg). BMDCs were then washed and co-cultured with CFSE labelled OT-II CD4⁺ T cells for 72 h. (B and C) Proliferation of OT-II CD4⁺ T cells was analysed via flow cytometry. (B) Representative flow cytometry histogram showing proliferation based on CFSE expression in CD4⁺ T cells. (C) Proliferation was assessed by CFSE dilution. (A) BMDCs were pulsed for 2 h with 0.05 μg OVA peptide (323–339) or GO–OVA peptide complexes (5 μg : 0.05 μg). (D and E) BMDCs were then co-cultured with CFSE labelled OT-II CD4⁺ T cells for 72 h. (D) Representative flow cytometry histogram showing proliferation based on CFSE expression in CD4⁺ T cells. (E) Proliferation was assessed by CFSE dilution. (C and E) Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test. ***p < 0.001 (above bars versus OVA alone control or OVA₃₂₃ alone control).

In terms of cytokines, the level of IL-2, responsible for proliferation and differentiation of CD4⁺ T cells into effector T cells (T_eff), regulatory T cells (T_reg) and memory T cells,³⁸ was significantly upregulated in DC/OT-II co-cultures containing sGO–OVA DCs, compared to DCs exposed to OVA alone or LGO–OVA (Fig. 5A). Th1 associated IFN-γ, Th2 associated IL-4, IL-5 and IL-13, Th17 associated IL-17A or T_reg associated IL-10 were all undetectable, regardless of culture conditions. However, the level of secreted granzyme B, a cytotoxic protease typically released by CD8⁺ T cells,³⁹ was also found to be significantly increased in co-cultured OT-II cells with sGO–OVA or LGO–OVA treated DCs (Fig. 5A). In addition to modulating OVA-specific proliferation and cytokine secretion, GO when adsorbed to OVA significantly increased DC induction of the IL-2 receptor alpha chain CD25 on OT-II cells, and increased expression of Foxp3 on dividing OT-II cells (Fig. S4A and B†). In keeping with impaired proliferation (Fig. 4D and E), OT-II cells cultured with sGO–OVA₃₂₃ or LGO–OVA₃₂₃ DCs showed reduced cytokine production in comparison to those cultured with OVA₃₂₃DCs (Fig. 5B).

Fig. 5 GO modifies DC induction of cytokine production by CD4⁺ T cells. (A) BMDCs were pulsed for 2 h with 10 μg OVA protein or GO–OVA complexes (5 μg : 10 μg). BMDCs were then washed and co-cultured with CFSE labelled OT-II CD4⁺ T cells for 72 h. The levels of IL-2 and granzyme B were assessed in supernatants. (B) BMDCs were pulsed for 2 h with 5 ng OVA peptide (323–339) or GO–OVA peptide complexes (5 μg : 5 ng). BMDCs were then co-cultured with CFSE labelled OT-II CD4⁺ T cells for 72 h and levels of IL-2 and granzyme B assessed in supernatants. Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test. ***p < 0.001 (above bars versus naïve DCs).

Together, these data indicate that GO, and sGO in particular, can enhance the ability of DCs to process and/or present protein Ag to activate CD4⁺ T cells. In notable contrast, they also suggest that either sGO or LGO impair DC ability to present exogenous peptides to CD4⁺ T cells.

GO Ag delivery modifies DC activation of CD8⁺ T cells

We next examined the ability of DCs cultured with GO–OVA complexes to stimulate CD8⁺ T cells. OVA alone or adsorbed to sGO or LGO was added to immature BMDCs, which were then co-cultured with CFSE-labelled OT-I CD8⁺ T cells (Fig. 6A). BMDCs were able to cross-present exogenous OVA Ag via MHCI, as measured by induction of OT-I proliferation (Fig. 6B and C). Although sGO–OVA had little influence over the ability of DCs to induce OT-I proliferation compared to OVA alone, LGO–OVA significantly increased this aspect of CD8⁺ T cell activation (Fig. 6B and C). In contrast, LGO adsorbed to the MHCI-restricted peptide OVA₂₅₇ (OVA_257–264; SIINFEKL) had little effect on DC induction of OVA₂₅₇ specific proliferation, whereas sGO significantly impaired this process (Fig. 6D and E).

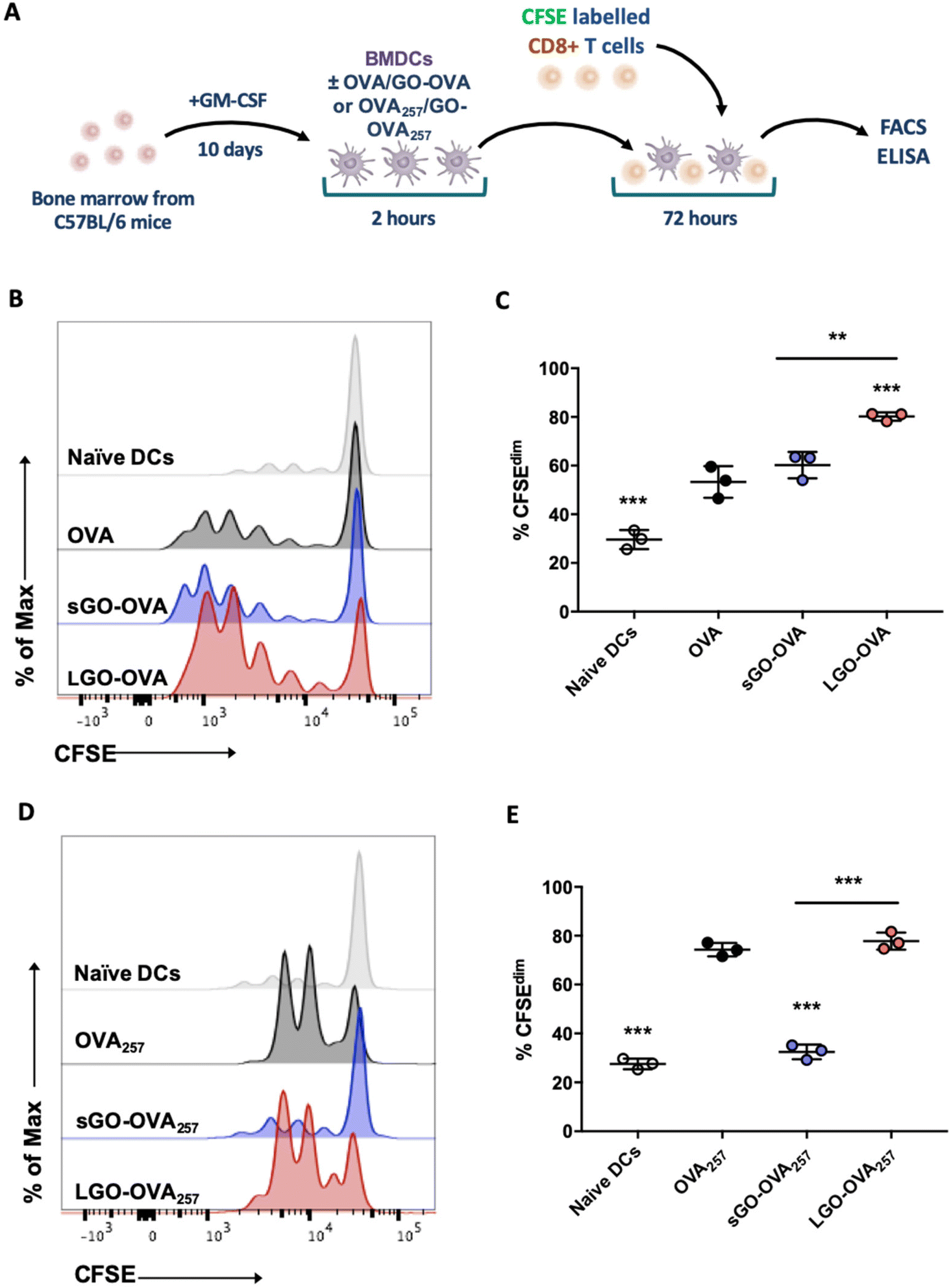

Fig. 6 GO modifies DC induction of proliferation by CD8⁺ T cells. (A) BMDCs were pulsed for 2 h with 10 μg OVA protein or GO–OVA complexes (5 μg : 10 μg). BMDCs were then washed and co-cultured with CFSE labelled OT-I CD8⁺ T cells for 72 h. (B and C) Proliferation of OT-I CD8⁺ T cells was analysed via flow cytometry. (B) Representative flow cytometry histogram showing proliferation based on CFSE expression in OT-I CD8⁺ T cells. (C) Proliferation was assessed by CFSE dilution. (A) BMDCs were pulsed for 2 h with 5 ng OVA peptide (257–264) or GO–OVA peptide complexes (5 μg : 5 ng). BMDCs were then co-cultured with CFSE labelled OT-I CD8⁺ T cells for 72 h. (D and E) Proliferation of OT-I CD8⁺ T cells was analysed via flow cytometry. (D) Representative flow cytometry histogram showing proliferation based on CFSE expression in CD8⁺ T cells. (E) Proliferation was assessed by CFSE dilution. (C and E) Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test. **p < 0.01, ***p < 0.001 (above bars versus OVA alone control or OVA₂₅₇ alone control).

In terms of cytokines, the level of IL-2, which is also important for CD8⁺ T cell proliferation,⁴⁰ was significantly upregulated in LGO–OVA DC/OT-I co-cultures, compared to DCs exposed to OVA alone or sGO–OVA (Fig. 7A). IFN-γ and granzyme B levels were also dramatically increased in co-cultures containing LGO–OVA, but not sGO–OVA, DCs (Fig. 7A). In comparison, neither sGO nor LGO had a major beneficial or detrimental impact on DC ability to induce OVA peptide-specific cytokine production by OT-I cells, with marginally more effect of LGO than sGO in this regard (Fig. 7B).

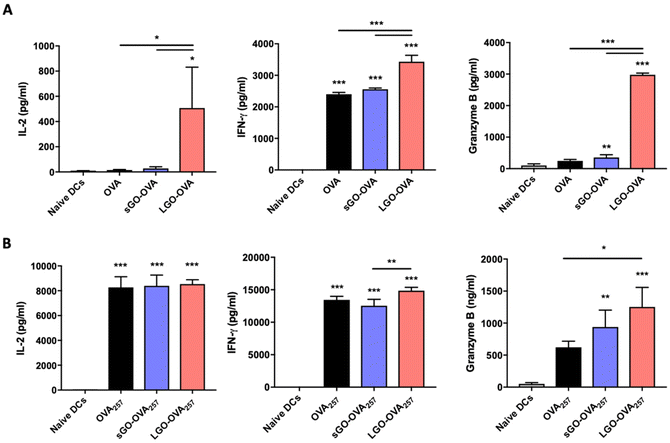

Fig. 7 GO modifies DC induction of cytokine production by CD8⁺ T cells. (A) BMDCs were pulsed for 2 h with 10 μg OVA protein or GO–OVA complexes (5 μg : 10 μg). BMDCs were then washed and co-cultured with CFSE labelled OT-I CD8⁺ T cells for 72 h. The levels of IL-2, IFN-γ and granzyme B were assessed in supernatants. (B) BMDCs were pulsed for 2 h with 5 ng OVA peptide (257–264) or GO–OVA peptide complexes (5 μg : 5 ng). BMDCs were then co-cultured with CFSE labelled OT-I CD8⁺ T cells for 72 h. The levels of IL-2, IFN-γ and granzyme B were assessed in supernatants. Data are presented as mean ± STDEV (data is representative of 1 of 3 independent experiments each with 3 intra experimental replicates). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test. ***p < 0.001 (above bars versus naïve DCs). The levels of IL-4, IL-5, IL-17A, IL-10 and IL-13 were undetectable.

The presentation of the MHCI-restricted peptides by either direct loading of DCs with OVA_257–264, or cross-presentation of peptide derived from processed OVA protein, is a critical signal for effective CTL activation.⁴¹ BMDC expression of SIINFEKL/H-2Kb complexes (pMHC-I) was assessed using an antibody that recognises SIINFEKL bound to H2-Kb of MHCI, following overnight DC culture with OVA protein or OVA₂₅₇ peptide, alone or complexed to GO. DC culture with OVA protein, sGO–OVA or LGO–OVA failed to significantly increased detectable MHCI-restricted SIINFEKL, compared to DCs alone (Fig. S5A and B†). However, sGO adsorption to OVA₂₅₇ peptide resulted in significantly reduced levels of SIINFEKL/H-2Kb complexes, compared to DCs cultured with OVA₂₅₇ alone (Fig. S5C and D†).

Together, these data show that LGO can enhance the ability of DCs to process and/or present protein or peptide Ag to activate CD8⁺ T cells towards a CTL phenotype, while sGO has minimal effect on these events. In comparison, both sGO and LGO can enhance protein Ag specific CD4⁺ T cell proliferation and cytokine production, but interfere with peptide Ag induction of these outcomes.

GO Ag delivery has minimal effect on DC activation and CD4⁺ T cell expansion in vivo

GO–OVA was administered intravenously to C57BL/6 mice to assess the impact of GO–Ag delivery on DCs in vivo. There was a small but significant increase in the percentage and total number of XCR1⁺ cDC1s 24 h post administration of sGO and sGO–OVA (Fig. 8A and B). However, no significant change in cDC1 activation was observed, with the intensity of CD80 remained unchanged between groups (Fig. 8C). A similar trend was observed for CD11b⁺ cDC2s, with the total number of cDC2s significantly increased upon administration of sGO–OVA when compared to all other groups (Fig. 8E), but no change to activation as indicated by intensity of CD80 (Fig. 8F).

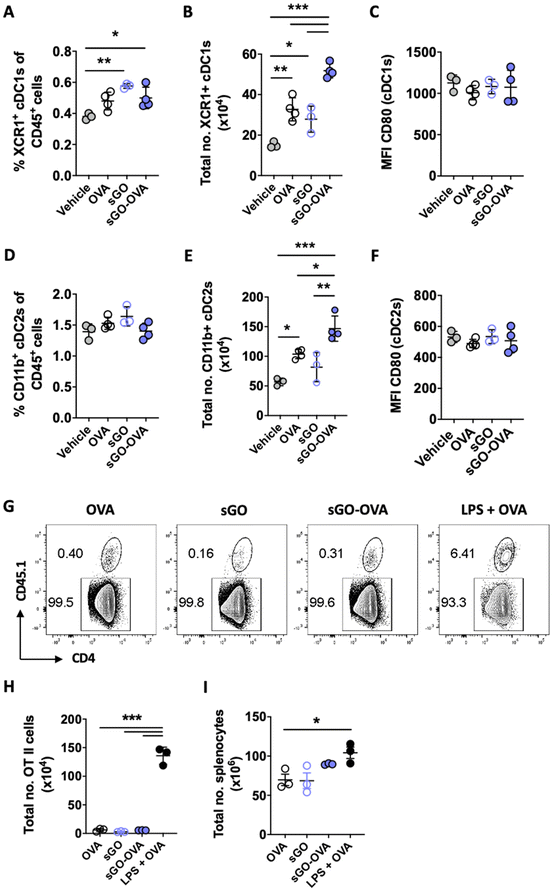

Fig. 8 GO has minimal effect on DC and T cell activation in vivo. (A–F) C57BL/6J mice were intravenously administered vehicle, OVA, sGO or sGO–OVA (50 μg GO and 100 μg OVA). After 24 h spleens were harvested and splenic dendritic cell activation assessed by flow cytometry. (A–C) Percentage, total number and CD80 expression of XCR1⁺ cDC1s. (D–F) Percentage, total number and CD80 expression of CD11b⁺ cDC2s. (G–I) OVA responsive CD4⁺ T cells (OT-IIs) were transferred to C57BL/6J mice, the following day mice were intravenously administered OVA, sGO, sGO–OVA or LPS + OVA (250 μg LPS). After 5 days spleens were harvested and OT-II proliferation assessed by flow cytometry. (G) Representative flow cytometry plots of antigen specific and polyclonal CD4⁺ T cell populations. (H) Total number of antigen specific OT-II cells. (I) Total number of splenocytes. Data are presented as mean ± STDEV (n = 3–4). Statistical analysis was performed by one-way ANOVA with Bonferroni's post hoc test. *p < 0.05, **p < 0.01, ***p < 0.001.

To determine whether GO affects surface MHCII-restricted Ag and subsequent T cell activation in vivo, the effect of sGO–OVA on antigen specific T cell expansion was assessed. CD4⁺ T cells isolated from OT-II Rag1^−/− × Pep3 were transferred to C57BL/6J mice, prior to immunisation with OVA alone, sGO alone, sGO–OVA or LPS + OVA. Five days post immunisation, spleens were harvested and the level of antigen specific T cell expansion assessed by flow cytometry. Although the relative proportion of CD45.1⁺ OT-II cells increased upon immunisation with LPS + OVA as expected, no proportional change in OT-II cells was observed upon immunisation with sGO–OVA, when compared to OVA alone (Fig. 8G). This trend was confirmed by quantification of the total number of CD4⁺ CD45.1⁺ OT-II cells, where sGO–OVA induced no expansion of OVA specific T cells while LPS + OVA induced a significant expansion of T cells (Fig. 8H), likely due to the significant increase in total number of splenocytes observed with LPS + OVA (Fig. 8I). These data suggest that sGO has minimal ability to activate splenic DC subsets or antigen specific CD4⁺ T cell expansion in vivo.

Discussion

With ever-increasing interest in the potential therapeutic application of GO in disease settings, it is crucial to understand how it affects immune cells, especially those which play a central role in orchestrating adaptive immunity and inflammation. This study aimed to determine the effect of GO of different lateral dimensions on DC maturation and ability to influence CD4⁺ and CD8⁺ T cell proliferation and cytokine production. Using murine primary BMDCs and in vivo immunisation, we found that GO has little effect on DC viability, and limited impact on DC phenotypic activation or cytokine production. Nevertheless, GO was able to modify DC function, increasing uptake of the model Ag OVA, and modulating their ability to induce Ag-specific CD4⁺ and CD8⁺ T cell proliferation and cytokine production in vitro.

Understanding whether GO displays toxicity for immune cells was an important first question, central to determining the therapeutic potential of such materials. Consistent with previous reports,²⁸ we observed negligible cytotoxic effects from exposure of sGO or LGO on BMDC viability, with some effect only evident at high concentrations and most apparent with LGO (Fig. 1A and B). This low-level toxicity, in keeping with similar observations of the same material in macrophages⁴² and neutrophils⁴³ suggests that low concentrations of either s- or LGO minimally impact viability of these important innate immune cells.

In terms of localisation, we were able to visualise sGO in membrane enclosed intracellular vesicles within the cytoplasm (Fig. 1D and F), which are likely part of the endo/lysosomal system. In support of this suggestion, others have performed transmission electron microscopy and confocal microscopy, which indicated that GO (similar in size to our sGO) may localise to endosomal/phagosomal compartments within murine BMDCs or human monocyte-derived macrophages.^27,33,44 In contrast to sGO, we observed LGO localisation at the plasma membrane, suggesting it was inefficiently engulfed (Fig. 1F). GO flakes with large lateral dimensions (similar to the LGO in our study) have previously been shown to associate with the plasma membrane of macrophages, with larger GO flakes showing stronger adsorption to the plasma membrane of a murine macrophage-like cell line, whereas smaller GO flakes were readily internalised.^31,45,46

Formation of a biomolecular corona on the surface of nanomaterials has been shown to modulate their cellular uptake, raising the question as to whether coating GO in Ag or therapeutic drugs may affect such processes.⁴⁷ A recent study determined that proteins present in the corona are retained on nanoparticles until they reach the lysosome in murine and human primary DCs, which may be beneficial for MHCII dependent Ag processing and presentation, but may disrupt cross-presentation via MHCI.⁴⁸ This suggests that Ag processing and presentation may be dependent on the properties of the graphene based material in use, which could help explain why GO of different dimensions displayed differential ability to influence CD4⁺ or CD8⁺ T cell proliferation and cytokine production in our work.

During maturation, DCs can upregulate a wide range of surface and costimulatory molecules (including MHCI and II, CD40 and CD80) and secrete a variety of cytokines, the combination of which dictates the character of the subsequent adaptive T cell response.^35,37 We have shown that neither sGO nor LGO induced marked DC maturation, with both failing to trigger dramatic upregulation of MHCI, MHCII, or co-stimulatory molecules, which is in contrast to some previous reports,^27,29 but in agreement with others.^28,30,44,49 These contrasting reports may relate to the purity of the GO used, as DCs are exquisitely sensitive to even trace amounts of contaminants such as endotoxin.⁵⁰ As GO also has an innate ability to interfere with the detection wavelength of chromogenic LAL assays, we used a TNF-α expression test (TET) to give a more sensitive, quantitative method for assessing endotoxin contamination in graphene based materials.⁵¹ We would suggest that this kind of sensitive approach to determine endotoxin levels is critical for studies assessing the impact of GO on highly endotoxin-sensitive innate immune cells. In addition to endotoxin, experimental factors that might explain conflicting reports about DC activation by GO include the size and thickness of the materials, their surface chemistry such as the type and amount of oxygen containing surface groups, the concentration added to culture, the type of culture used (primary vs. cell line) or the length of exposure, all of which could influence viability and/or activation of DCs.

Although we observed little evidence of DC activation by low-endotoxin GO, we did identify a significant increase in CD83 expression by DCs exposed to GO, independent of its lateral dimensions (Fig. 2A, B and S2†). CD83 is a member of the immunoglobulin (Ig) superfamily, blockade of which can inhibit CD4⁺ T cell responses both in vitro and in vivo.^52,53 In this way, up-regulation of CD83 expression by both sGO and LGO could help explain why DCs exposed to GO–OVA complexes were able to induce such strong proliferation of CD4⁺ OT-II cells (Fig. 2A, B and 4B, C). CD83 deficient mice show defective CD4⁺ T cell development, with CD8⁺ T cells unaffected,⁵⁴ which may relate to why we observed less influence of GO–OVA complexes on CD8⁺ OT-I cell proliferation. However, it has been suggested that CD83 can provide an important co-stimulatory signal for human CD8⁺ T cells, and down regulation of CD83 on human monocyte derived DCs results in reduced activation of human CD8⁺ T cells.^55,56 Thus GO upregulation of CD83 could provide an important costimulatory signal for full activation of Ag-specific CD4⁺ and/or CD8⁺ T cells, which may prove useful in cancer and infectious diseases. However, the mechanism by which GO induces DC CD83 expression, independent of lateral dimension and cellular localisation, remains unknown. Further, given this indication that some aspects of DC activation can be initiated by GO, it would be interesting to undertake a broader assessment of DC activation by sGO and LGO using a more objective approach, such as RNA sequencing.

The varying functions of CD4⁺ T cells are achieved through the differentiation of naïve CD4⁺ T cells into specialised phenotypes.⁵⁷ There are four dominant phenotypes: IFN-γ producing Th1 cells, IL-4 producing Th2 cells, IL-17 producing Th17 cells and regulatory T cells. DCs pulsed with GO–OVA induced significant Ag specific expansion of CD4⁺ OT-II cells (Fig. 4B and C). Unexpectedly, we identified a Foxp3⁺ population within proliferating (CFSE^dim) cells (Fig. S3B†). This transcription factor is often associated with the development of conventional regulatory T cells.⁵⁸ This lack of CD4⁺ T cell effector activation alongside the induction of T_regsin vitro is most likely a reflection of minimal DC maturation in response to GO.^59–61 We were however unable to detect IL-10, a cytokine commonly associated with these cells,⁵⁷ instead identifying their production of granzyme B. Although granzyme B and cytotoxic granules are typically associated with CD8⁺ CTLs, cytolytic activity of CD4⁺ T cells during infection has been suggested in recent years.⁶² Other studies have also shown that the activity of ‘CD4⁺ CTLs’ is enhanced when naïve T cells are incubated under neutral (Th0) conditions, similar to those observed with GO–OVA.⁶³ Additionally, IL-2 signalling is essential for CD4⁺ CTL induction, as well as Eomes expression, which in turn promotes granzyme B and perforin production.⁶⁴ In our experiments, GO–OVA activated DCs significantly induced CD4⁺ T cell IL-2 production, suggesting that adsorption of Ag to GO may promote a CD4⁺ CTL cell population that unconventionally expresses the regulatory transcription factor Foxp3. It remains to be determined whether these CD4⁺ T cells possess cytotoxic or regulatory ability.

Harnessing the ability of DCs to induce Ag-specific CD8⁺ T cell immunity via cross-presentation is required for development of effective vaccines or therapies against many infectious diseases and cancer.^65,66 Our data suggests that LGO may possess the ability to enhance DC ability to induce OVA-specific CD8⁺ T cell activation (Fig. 6B, C and 7A). This has been seen with treatment of DCs with other nanomaterials – γ-PGA nanoparticles,⁶⁷ PLGA nanoparticles,⁶⁸ polyethyleneimine nanoparticles⁶⁹ or poly(propylene sulphide) nanoparticles⁷⁰ promoting OVA cross-presentation in DCs. However, GO has the added benefit of being easily functionalised, with the advantage of biologics adhering to the surface of the material as opposed to being encapsulated, likely allowing more efficient APC uptake. With regards to graphene based materials as Ag carriers, it has been shown that OVA adsorbed to GO can efficiently be internalised by the murine DC cell line DC2.4 and induce OT-I CD8⁺ T cell proliferation and cytokine secretion.⁴⁴ We observed that LGO was beneficial for inducing CD8⁺ T cell responses, whereas sGO promoted CD4⁺ T cell responses, likely due to the efficiency of cross presentation being negatively affected by rapid lysosomal degradation of antigens.⁷¹ In contrast, Tkach and colleagues showed that GO suppresses OVA presentation to CD8⁺ T cells, with GO pre-treatment inhibiting DC activation of OVA-specific B3Z T cells, dependent on DC down regulation of the immunoproteasome subunit LMP7, which is responsible for Ag processing for MHCI presentation.²⁷ It is possible that pre-treatment with GO prior to Ag exposure may affect DC maturation and MHCI Ag-processing machinery. The effect of GO on Ag cross-presentation remains to be fully understood.

Although all of our work was carried out with pure, low-endotoxin GO, its remarkable adsorbance features may provide a tractable system for modification of DC functionality in a bespoke manner. For example, GO functionalisation with adjuvants such as the TLR agonists CpG-oligodeoxynucleotides and poly(I:C) could further enhance the Th1 and CTL promoting ability of DCs, while use of tolerogenic substances such as vitamin D3 or dexamethasone could favour DC regulatory ability.^72–75 Two recent studies have suggested that GO with adjuvant is able to modulate adaptive immunity more readily. The first of these showed that, when decorated with carnosine and OVA, GO is able to significantly induce an OVA-specific antibody response, as well as increasing splenic populations of polyclonal T cells when compared to GO–OVA alone.⁷⁶ The second study focussed on Alum, an aluminium-base adjuvant. When complexed to GO–OVA, Alum was able to induce robust T cell responses and inhibit tumour growth in an E.G7 lymphoma model.⁴⁹ These studies suggest that GO may be able to not only boost Ag specific responses, but modulate the adjuvanticity of various biologics. Further work is required to systematically address the full potential of GO functionalisation to provoke immunogenic vs. tolerogenic DC ability and its downstream effects on adaptive immunity.

In summary, these novel data provide a foundation for future work to define the impact of GO on other DC types in vitro, or following direct administration of GO–Ag complexes in vivo. We have identified that low-endotoxin GO, irrespective of its lateral dimensions, induces minimal phenotypic activation of, or cytokine secretion by, DCs. However, GO dimensions influence its uptake by DCs, and differentially affect DC processing and/or presentation of Ag to CD4⁺ and CD8⁺ T cells. When complexed with sGO, the model protein Ag OVA could still be effectively processed and presented by DCs to CD4⁺ OT-II cells, inducing proliferation, Foxp3 expression and granzyme B secretion. In contrast, LGO–OVA complexes were able to promote CD8⁺ T cell activation and cytokine production. Of note, GO had different effects on DC ability to present peptide Ag to CD4⁺vs. CD8⁺ T cells. While CD8⁺ T cell peptide-specific proliferation and cytokine production were generally only marginally influenced by GO, CD4⁺ T cell peptide-specific responses were dramatically impaired. This indicates that, while GO enhances DC processing and/or presentation of protein Ag to either CD4⁺ or CD8⁺ T cells, it has little impact on presentation of peptides via MHCI, and actively interferes with presentation of peptides via MHCII. Whether this interference occurs intra- or extra-cellularly remains to be determined. Irrespective, these data will be important to consider for future vaccines or therapies incorporating GO, strongly suggesting that protein, not peptide, Ags will be most effective for CD4⁺ and CD8⁺ T cell activation.

Overall, our data show that GO can play a fundamental role in DC activation and ability to influence diverse aspects of T cell effector function, likely dependent on lateral size, concentration, endotoxin contamination and cellular localisation, all of which need to be taken into account when assessing the effect of GO on immune competent cells. Together, these results promote the use of GO for development of novel protein Ag-based vaccines and therapies that could be beneficial for diverse diseases, infections and cancer.
