Ferroelectric bismuth-titanate nanoplatelets and nanowires with a new crystal structure

Abstract

Two different morphologies of ferroelectric bismuth titanate (Bi₄Ti₃O₁₂) nanoparticles, i.e., nanoplatelets and nanowires, were synthesized by changing the concentration of NaOH during a hydrothermal treatment of precipitated Ti⁴⁺ and Bi³⁺ ions. The nanoparticles’ crystal structures were characterized using atomic-resolution imaging with a C_S-probe-corrected scanning-transmission electron microscope in combination with X-ray diffractometry and Raman spectroscopy. The nanoplatelets (10 nm thick and from 50 nm to 200 nm wide) exhibit the Aurivillius-type layered-perovskite crystal structure that is characteristic of Bi₄Ti₃O₁₂, whereas the nanowires (from 15 nm to 35 nm wide and from several hundreds of nm to several μm long) exhibit an entirely new structure with an orthorhombic unit cell (a = 3.804(1) Å, b = 11.816(3) Å, and c = 9.704(1) Å). The nanowire structure is composed of two structural layers alternating along the orthorhombic c-direction: a structural layer composed of two parallel layers of Bi atoms that resembles the (Bi₂O₂)²⁺ layer of the Aurivillius structure, and a structural layer composed of two parallel layers of Ti atoms, where every sixth Ti is replaced with Bi. Observations of the ferroelectric domains with transmission electron and piezo-response force microscopy indicated the ferroelectric nature of both nanostructures. The nanowire structure is a metastable polymorph of the bismuth titanate stabilized at the nanoscale. With annealing at temperatures above 500 °C the nanowire structure topotactically transforms into the Aurivillius structure.

---

Introduction

Bismuth titanate (Bi₄Ti₃O₁₂, BIT) is the most studied and exploited member of a large family of ferroelectric Aurivillius mixed oxides that are characterized by a layered structure composed of bismuth-oxide layers alternating with perovskite-like layers. The BIT structure can therefore be described in terms of two layers: a (Bi₂O₂)²⁺ layer and a perovskite (Bi₂Ti₃O₁₀)²⁻ layer stacked along the pseudo-tetragonal c-axis. Below the Curie temperature (T_C ∼ 675 °C) BIT adopts the monoclinic P1a1 unit cell.^1,2 The ferroelectric BIT exhibits a modest spontaneous polarization with the larger component of ∼50 μC cm⁻² oriented along the a-direction and the smaller component of ∼4 μC cm⁻² along the c-direction, a high coercive field, and an excellent fatigue resistance. As a bulk material, BIT is promising for ferroelectric random-access-memory devices and lead-free, high-temperature piezoelectric and pyroelectric devices.^3,4 Also, in its nano form, BIT is becoming increasingly important for different applications, including nanogenerators for biomechanical energy harvesting,⁵ sensing,^6,7 visible-light photocatalysis,^8–10 electrocatalysis,⁷ and piezocatalysis.^11,12

BIT nanoparticles can be synthesized using a simple hydrothermal treatment of precipitated Bi³⁺ and Ti⁴⁺ ions in an aqueous alkali hydroxide at moderate concentrations.^{6–9,11–17} Because of their layered structure the bismuth titanate nanoparticles tend to grow predominantly in the a/b plane to form 2-D rectangular platelet crystals, i.e., nanoplatelets and nanosheets, with the large surfaces parallel to the (001) crystal planes.^{7,8,13,14,16,17} However, numerous other nanostructures including 1-D nanocrystals (e.g., nanowires, nanobelts, nanobundles, nanorods),^7,8,15 and 3-D nanostructures assembled from 1-D or 2-D nanoparticles,^{6,9,11,12,15,16} were synthesized using the hydrothermal method. The morphology of the BIT nanoparticles can be controlled by selecting the synthesis conditions, e.g., source of titania, type of mineralizer, reactant concentrations, reaction temperature and time, and use of surfactants.^7,8,15,17

In this investigation we synthesized BIT nanoplatelets (NPLs) and nanowires (NWs) just by changing the concentration of the NaOH during the hydrothermal treatment of precipitated Bi³⁺ and Ti⁴⁺ ions. Their characterization showed that both nanostructures are ferroelectric, but they differ in their crystal structure: the NPLs exhibit the Aurivillius-type structure characteristic for BIT, whereas the NWs exhibit an entirely new layered structure, not described before.

Experimental

Bismuth-titanate nanoparticles were synthesized with a hydrothermal treatment of separately precipitated Ti⁴⁺ and Bi³⁺ ions. In a typical experiment, 1.0 g of titanium butoxide was dissolved in 20 mL of tert-butanol. The Ti⁴⁺ ions were precipitated with the addition of 40 mL of water under vigorous stirring. The white precipitate was separated with centrifugation and washed two times with water and finally with NaOH at the same concentration as used for the subsequent hydrothermal treatment (0.5 mol L⁻¹ or 2 mol L⁻¹). In parallel, a stoichiometric amount of Bi(NO₃)₃ (Bi/Ti = 4/3) was dissolved in diluted HNO₃ (0.68 wt%). The Bi³⁺ ions were precipitated with the addition of aqueous ammonia (0.94 wt%) under vigorous stirring to set the final pH to ∼8. The white precipitate was separated with centrifugation and washed two times with water and finally with NaOH. After washing with NaOH, the colour of the precipitate turned yellow. Finally, both precipitates were quantitatively transferred to a 70 mL Teflon-lined autoclave and filled with a NaOH aqueous solution (0.5 mol L⁻¹ or 2 mol L⁻¹) to a final volume of 45 mL. The autoclave was closed and heated for 38 hours at 200 °C. The white product was thoroughly washed with water and dried at 60 °C. The materials used are listed in the ESI.†

The BIT nanostructures were characterized with a transmission electron microscope (TEM; Jeol 2010F) and a C_S-probe-corrected scanning-transmission electron microscope (STEM; Jeol ARM 200CF). X-ray powder diffraction (XRD) patterns were recorded with a PANalytical X'Pert Pro MPD diffractometer. The Raman spectra of the samples were recorded with a NT-MDT model Integra Spectra for Materials Science equipped with a confocal microscope. The chemical compositions of the samples were measured with inductively coupled plasma (ICP-OES) using a Varian 715-ES ICP optical emission spectrometer after lithium metaborate fusion digestion. The topography and piezo-response force microscopy (PFM) images were recorded using an atomic force microscope (AFM; Jupiter XR, Asylum Research, CA). Details of the characterization methods are given in the ESI.†

Results

Morpho-structural properties

The hydrothermal treatment of the mixture of Bi and Ti precipitates resulted in the formation of BIT in the form of NPLs at the higher NaOH concentration of 2 mol L⁻¹, whereas the NWs grew at the lower NaOH concentration of 0.5 mol L⁻¹, as evident from the TEM images in Fig. 1(a) and (b). The NPLs were approximately 10 nm thick and from 50 nm to 200 nm wide, whereas the NWs were from 15 nm to 35 nm wide and from several hundreds of nm to several μm long. Quantification of the energy-dispersive X-ray spectra (EDXS) taken from the NPLs and the NWs in the TEM showed similar compositions, with the Bi/Ti atomic ratio being 1.3 ± 0.1 and 1.2 ± 0.1 for the NPLs and the NWs, respectively, matching the composition of the Bi₄Ti₃O₁₂. Sodium, which can be incorporated into the nanoparticles due to the synthesis in NaOH, was not detected.

Fig. 1 TEM images (a and b) and XRD patterns (c) of NPLs (a) and NWs (b).

The compositions of the two morphologies were also confirmed with ICP-OES. The Bi/Ti atomic ratio was close to the theoretical value for Bi₄Ti₃O₁₂ of 1.33. The measurement showed Bi/Ti = 1.34 for the NPLs and Bi/Ti = 1.40 for the NWs. The concentration of Na in the samples with NPLs and NWs was low, i.e., 0.4 wt% and 0.1 wt%, respectively. Here, it should be noted that we cannot exclude the presence of a small quantity of secondary phases in the analysed samples.

The XRD pattern of the NPLs (Fig. 1(c)) showed broad peaks that match with the Aurivillius (AU) Bi₄Ti₃O₁₂ phase. However, the XRD of the nanowires is completely different. A comprehensive search showed no match with the XRD data for any known phase, suggesting a new crystal structure. A similar XRD pattern was previously reported for BIT nanowires, which the authors ascribed to a mixture of Bi₂O₃, TiO₂, and K₂Ti₆O₁₃.¹⁷ However, electron diffraction and atomic-resolution imaging with a STEM (discussed below) showed that the material contains just one phase, having an orthorhombic unit cell with the approximate dimensions a ∼ 3.8 Å, b ∼ 12.0 Å, c ∼ 9.5 Å. Based on this information it was possible to find an unit cell that gave a satisfactory LeBail fit to the observed powder pattern (see Fig. SI1 in the ESI†).¹⁸ The refined unit-cell parameters were a = 3.804(1) Å, b = 11.816(3) Å, and c = 9.704(1) Å.

The Raman spectroscopy also revealed significant differences in the structure of the two morphologies of bismuth titanate. The bands of internal vibrational modes of the TiO₆ octahedron occur for the NWs at significantly higher frequencies than for the NPLs (Fig. SI2†). The difference in the position of bands is most likely related to the difference in the TiO₆ octahedra's connectivity, which is corner sharing in the NPLs and edge sharing in the NWs (see the ESI† for details).^19,20

Atomic-resolution STEM imaging

Differences in the crystal structures of the two bismuth-titanate morphologies were revealed using direct atomic-resolution STEM imaging. Special care was taken during the STEM imaging to avoid excessive degradation of the nanostructures under the electron beam (see the ESI† for details). However, evaporation of the bismuth could not be entirely avoided. The STEM images clearly show the main characteristics of the two different structures. Fig. 2(a) and (b) show STEM images of the NPLs oriented along the [001]_AU direction and the [110]_AU direction, respectively.

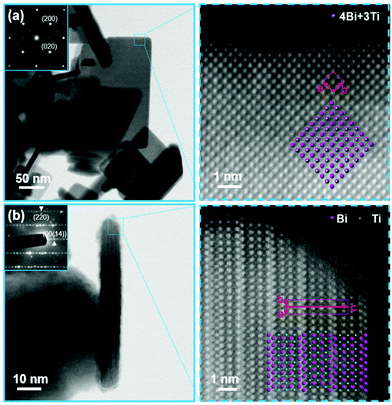

Fig. 2 BF STEM images (insets: corresponding electron-diffraction patterns) and HAADF STEM images of bismuth-titanate NPLs oriented along [001]_AU direction (a) and [110]_AU direction (b). The projected structural models are superimposed over the images to illustrate the positions of the Bi³⁺ and Ti⁴⁺ ions. The unit cell of the BIT Aurivillius structure is marked with red rectangles on the HAADF images.¹

The atomic-resolution high-angle annular dark-field (HAADF) STEM images of the NPLs clearly correspond to the layered, Aurivillius-type (AU) structure of Bi₄Ti₃O₁₂. Since the intensity of the individual atomic column in the “Z-contrast” HAADF images depends on the column's average atomic number Z (∼Z^α with α slightly lower than 2)²¹ the positions of the various columns in the BIT AU structure can be identified by their brightness. Generally, the columns containing the heavier Bi³⁺ ions (Z = 83) appear much brighter than the columns containing only the Ti⁴⁺ ions (Z = 22), while the O²⁻ (Z = 6) columns are too light to be detected in the HAADF images. Along the [001]_AU orientation the brightness of the spots in the HAADF image (Fig. 2(a)) remains constant throughout the image because all the cationic columns have the same composition (4Bi + 3Ti). When the NPL is oriented along the [110]_AU direction, we can clearly distinguish the columns that contain the Bi atoms from the much weaker Ti columns (Fig. 2(b)). The two alternating structural layers, i.e., a (Bi₂O₂)²⁺ layer and a (Bi₂Ti₃O₁₀)²⁻ perovskite-like layer, can be clearly resolved (Fig. 2(b)). Interestingly, the NPLs always terminate at the large (001) surfaces with the (Bi₂O₂)²⁺ structural layer. The nanoparticles with layered structures, such as the Aurivillius-type structure, normally adopt a specific structure defined by a termination at surfaces with a specific, low-energy atomic layer.²²

The structure of the NWs is very different to that of the NPLs. An analysis of the electron-diffraction patterns suggested an orthorhombic unit cell. Along the [001]_NW direction, the electron-diffraction pattern (Fig. 3(b)) consists of stronger reflections that match with the pattern of the Aurivillius structure in the [001]_AU zone axis (see inset of Fig. 2(a)) and the weaker, superstructural reflections in the direction perpendicular to the NW. The a-direction of the new structure was set along the length of the NW with the a-parameter of the unit cell being ∼3.8 Å. Interestingly, the superstructural reflections are not periodic, as evident from the corresponding intensity profile in Fig. 3(c). They consist of groups composed of the primary reflections (marked with red arrows in Fig. 3(c)) with a set of weaker satellite reflections characteristic of a multiple diffraction (marked with lines of different colours). The superstructural reflections originate from the structural modulation clearly visible in the corresponding HAADF image (Fig. 3(d)). In the thinner part, near the rim of the NW, every sixth row of spots along the [010]_NW direction is much stronger (marked on Fig. 3(d) with red arrows), suggesting a larger proportion of Bi atoms. The b-parameter of the unit cell was measured to be ∼12 Å. In the thicker part of the NW, usually two rows have a stronger intensity (marked with blue arrows), or the stronger intensity is distributed over three rows (marked with green arrows). This uneven contrast is a consequence of the stacking faults, i.e., antiphase boundaries, lying perpendicular to the electron beam (visible in the HAADF images taken along the [100]_NW direction, see below).

Fig. 3 TEM image (a), electron-diffraction pattern (b) and HAADF STEM image (d) of a bismuth-titanate NW oriented along [001]_NW direction. Fig. 3(c) shows an intensity profile across the row of reflections marked on (c) with a yellow rectangle. The projected model proposed for the NW structure is superimposed over the image (d) to illustrate the positions of the Bi³⁺ and Ti⁴⁺ ions. The unit cell of the NW structure is marked with a red rectangle on the HAADF image (d).

The HAADF image of the NW oriented along the [010]_NW direction (Fig. 4(c)) shows a layered structure with two cationic layers alternating along the c-direction: a layer composed of two parallel rows of brighter spots (marked in Fig. 4(c) with “B”), which resembles the (Bi₂O₂)²⁺ layer from the Aurivillius structure (see Fig. 2(b) for the comparison), and a layer of two parallel rows of weaker spots (marked with “T”). One row of the Ti atoms in the T layer is brighter than the other, suggesting that it contains a proportion of the Bi atoms. The c-parameter of the unit cell was found to be ∼9.5 Å.

Fig. 4 TEM image (a), electron-diffraction pattern (b) and HAADF STEM image (c) of a bismuth-titanate NW oriented along [010]_NW direction. The projected model proposed for the NW structure is superimposed over the image (c) to illustrate the positions of the Bi³⁺ and Ti⁴⁺ ions. The unit cell of the NW structure is marked with a red rectangle on the HAADF image (c).

For the STEM imaging of the structure along the [100]_NW direction (i.e., along the nanowire) the NWs were incorporated into a polymer and cut with an ultramicrotome (see the ESI† for details). Also in the [100]_NW zone, the two cationic layers alternating along the c-direction, i.e., the B layer and the T layer, are clearly resolved in the HAADF images (Fig. 5(a) and (b)). At the (001) surfaces the NW structure always terminates at the B layers. In a zig-zag arrangement of the two rows of spots representing the T layer every sixth weak spot is replaced by a much brighter spot, consistent with the exchange of Ti atoms for Bi atoms. As can be expected from the non-periodic weak reflections in the diffraction pattern of the [001]_NW zone axis (Fig. 3(c)), stacking faults are frequently observed in the (010) planes. Due to the random and partial insertion of extra layers of Ti⁴⁺/Bi³⁺ ions, the periodicity of the brighter spots in the T layers locally change to 7, i.e., locally, every seventh weaker spot is exchanged with a brighter spot (indicated by the blue arrows in Fig. 5(b) and Fig. 6).

Fig. 5 (a) and (b): HAADF STEM images of a bismuth-titanate NW oriented along [100]_NW direction (inset of (a): a corresponding FFT pattern). The projected model proposed for the NW structure is superimposed over the image (b) to illustrate the positions of the Bi³⁺ and Ti⁴⁺ ions. The unit cell of the NW structure is marked with a red rectangle. Blue arrows indicate some random faults where an extra Ti⁴⁺ ion is inserted in the T layer, changing the periodicity of brighter spots from 6 to 7 layers in the [010]_NW direction.

Fig. 6 Cation arrangement in a proposed, tentative model along the [100]_NW direction. Blue dashed line marks a stacking fault where an extra Ti⁴⁺ ion (marked with blue arrow) is inserted in a T layer of the structure.

Based on HAADF STEM images taken along the three axes we propose a tentative arrangement of the cations in the orthorhombic unit cell of NW structure (Fig. 6). This tentative model of the cation sublattice was superimposed over the HAADF images to illustrate the positions of Bi³⁺ and Ti⁴⁺ ions along all three zone axes (see Fig. 3(e), 4(c) and (b) for [001]_NW, [010]_NW, and [100]_NW zone axes, respectively).

Topotactic transformation of the nanowire structure to the Aurivillius structure

During annealing at temperatures above 500 °C the bismuth-titanate NWs transform to the Aurivillius structure. XRD did not show any significant changes after annealing of the NWs for 2 hours at 500 °C, whereas after the annealing for 2 hours at 550 °C the NWs completely transformed into the AU structure (XRD patterns are given in the ESI, Fig. SI3†). After the transformation the particles with the AU structure grow in the form of platelets (Fig. SI4†). When the NWs were annealed for 2 hours at 525 °C, they only partially transformed into the AU structure. Fig. 7 shows HAADF STEM images of a particle from the NW sample annealed at 525 °C. The particle is composed of a NW sandwiched between two lamellas with the AU structure (oriented along ([010]_NW||[110]_AU zone axes). The coherent interface between the two phases ((100)_NW||(110)_AU, (001)_NW||(001)_AU), (010)N_W||(−110)_AU) shows a topotactic NW-to-AU transformation. Projected models are superimposed over the atomic-resolution HAADF image of Fig. 5(b) to illustrate the different arrangements of the Bi³⁺ and Ti⁴⁺ cations in the two structures. Note that no precipitation of any secondary phases during the topotactic transformation of the NWs was detected, strongly suggesting that the NWs have the same composition as the Bi₄Ti₃O₁₂ Aurivillius phase.

Fig. 7 HAADF STEM images of a BIT particle from the NW sample annealed for 2 hours at 525 °C. The particle is composed of a NW sandwiched between two lamellas with the AU structure ([010]_NW||[110]_AU). Projected models of the AU structure and the NW structure are superimposed over Fig. 7(b) to illustrate the positions of the Bi²⁺ and Ti⁴⁺ ions.

Ferroelectric properties of the nanoplatelets and the nanowires

Observation of domain structure. The diffraction patterns taken from the NPLs oriented along [001]_AU (see inset of Fig. 2(a)) show [010]_AU-type reflections, which are consistent with a ferroelectric, monoclinic P1a1 phase.² The main component of the polarization for the monoclinic BIT is along the a-direction. By following the orientation of the a-direction in different parts of an individual NPL 90°-domains were observed (see Fig. SI5†).

In the 1-D ferroelectric particles the polarization vector P is usually oriented along their longest dimension. For the ferroelectric NWs the polarization is therefore expected along the [100]_NW direction. The polarity of the crystal structure can be revealed using dark-field (DF) imaging with TEM based on a failure of Friedel's law in the kinematical diffraction. According to Friedel's law a difference in the contrast should be observed when DF images of a non-centrosymmetric structure are formed with +g and −g, where the diffraction vector g lies in the direction of P.²³ Consequently, the contrast of a DF image will reverse across a 180°-domain boundary. Fig. 8 shows BF and DF images of a NW. The DF images were formed with (200) and (2̄00) reflections. The contrast in the DF images is alternating along the NW and it is reversed from (200) to (2̄00) for the same area of the NW, in accordance with the existence of 180°-ferroelectric domains, from approximately 50 to 100 nm in size. Note that the contrast doesn't change significantly when the DF images are formed with the diffraction vectors g and −g oriented perpendicular to the NW (see Fig. SI6†).

Fig. 8 BF TEM image of a NW oriented along [001]_NW direction with corresponding DF images formed with (200) and (2̄00) reflections. Dashed lines mark approximate positions of domain boundaries.

Piezoresponse force microscopy. PFM images of the NPLs inserted into a polymer are shown in Fig. 9(a)–(f). A bundle of overlapping nanoplatelets is marked with a dotted blue arrow in panel (b). The boundary of a single nanoplatelet positioned parallel to the scan plane is marked by a dotted red line. Comparing the AFM height and deflection images (Fig. 9(a) and (b)) with the PFM out-of-plane and in-plane amplitude images of this single plate (Fig. 9(c) and (e)), it is clear that the PFM signal enhancements (bright regions) are observed in the in-plane PFM amplitude signal, indicating a strong polarization in the lateral direction. Moreover, ferroelectric domains are visible in the PFM in-plane amplitude and phase images (Fig. 9(e) and (f)). Similar ferroelectric domains were previously observed in BaTiO₃ plates prepared by molten-salt synthesis.²⁴ The switching of the ferroelectric domains and the induction of new domains in the in-plane direction could also be observed in the PFM switching spectroscopy experiment,²⁵ as shown in the ESI (Fig. SI7†).

Fig. 9 (a) AFM height and (b) AFM deflection images, (c) PFM out-of-plane amplitude, (d) PFM out-of-plane phase, (e) PFM in-plane amplitude, and (f) PFM in-plane phase images of NPLs. (g) AFM height and (h) AFM deflection images, (i) PFM out-of-plane amplitude, (j) PFM out-of-plane phase, (k) PFM in-plane amplitude, and (l) PFM in-plane phase images of the NWs.

PFM images of the NW inserted into the polymer are shown in Fig. 9(g)–(l). The boundary of a single nanowire parallel to the scan plane is marked by a dotted red line. Also in this case, the enhancement of the piezoelectric response is observed in the in-plane PFM amplitude image, indicating a strong polarization towards the longer axis of the nanowire.

Discussion

The new structure of the NW can be viewed as a metastable polymorph of BIT stabilized at the nanoscale. According to the empirical Ostwald step rule, crystallization occurs in steps in such a way that a thermodynamically unstable phase (i.e., the new nanowire structure) often occurs first because it has a lower nucleation barrier than the stable phase (i.e., the Aurivillius structure). The metastable polymorph remains stable as long as it stays small, if the surface energy of the metastable phase is lower to that of the stable phase.²⁶ The polymorphism is well known in simple oxides. Many technologically important nanomaterials, e.g., magnetic maghemite (γ-Fe2O3) nanoparticles, photocatalytic anatase nanoparticles, ε-Fe2O3 nanoparticles with a giant coercivity, various iron oxide hydroxide pigments, etc., are all metastable phases stabilized at the nanoscale. Recently, we also demonstrated polymorphism in strontium hexaferrite, a technologically important oxide material widely used for magnets exhibiting a complex, layered structure.²⁷

During the topotactic transformation of the NWs to the equilibrium Aurivillius structure no secondary phases were precipitated, strongly suggesting that the two phases have the same Bi₄Ti₃O₁₂ composition. Both structures consist of two alternating structural layers. The B layer of the NW structure is composed of two parallel rows of Bi atoms in a zig-zag arrangement and resembles the (Bi₂O₂)²⁺ layer of the Aurivillius structure. The T layer of the NW structure is much thinner than the perovskite layer of the Aurivillius structure. It contains only two parallel rows of cations, whereas the perovskite layer is composed of 5 rows of cations (3 Ti and 2 Bi). The T layer can be presented as the two rows of Ti ions in a zig-zag arrangement, where every sixth Ti is exchanged with Bi (Fig. 5(b) and 6). The arrangement of the Ti atoms in the T layer is consistent with two layers of edge-sharing (TiO₆)²⁻ octahedra, as opposed to the corner-sharing (TiO₆)²⁻ octahedra of the perovskite layers in the AU structure, where the Ti⁴⁺ ions are stacked one above each other. Such an arrangement of the Ti⁴⁺ ions in the two structures is consistent with the results of the Raman spectroscopy.

The proposed cation arrangement in the NW structure predicts a Bi : Ti ratio of 7 : 5, which is only slightly richer in Bi (58.33 at% of cations) than 4 : 3 (57.14 at% of cations). The excess Bi, predicted by the model, is compensated by a random partial insertion of the Ti layers parallel to the (010) planes, visible along the [100] direction (Fig. 5(b) and explained there).

Both BIT nanostructures, the NPLs and the NWs, are piezoelectric. An enhancement of the piezoelectric signal in the in-plane direction is observed for both NPLs and NWs, indicating a strong polarization in the longitudinal direction of the particles. Some tens-of-nanometres ferroelectric domains are clearly visible in the NPLs. Moreover, switching and the inducing of new domains were observed. On the other hand, the domain structure of NWs was not visible in the PFM scans, probably because the resolution of the technique is above 20 nanometres. However, the 180°-domains were clearly visible on the DF TEM images of the NWs (Fig. 8).

Conclusions

Bismuth titanate (Bi₄Ti₃O₁₂) nanowires and nanoplatelets were synthesized with a hydrothermal treatment of the precipitated Ti⁴⁺ and Bi³⁺ ions in aqueous NaOH with the concentration of 0.5 mol L⁻¹ and 2 mol L⁻¹, respectively. The nanoplatelets (10 nm thick and from 50 nm to 200 nm wide) exhibit the Aurivillius-type layered-perovskite crystal structure characteristic of Bi₄Ti₃O₁₂, whereas the nanowires (from 15 nm to 35 nm wide and from several hundreds of nm to several μm long) exhibit an entirely new structure, not described before. X-ray diffractometry showed an orthorhombic unit cell of the new nanowire structure (a = 3.804(1) Å, b = 11.816(3) Å, and c = 9.704(1) Å). Atomic-resolution, high-angle annular dark-field imaging with a C_S-probe-corrected scanning-transmission electron microscope showed the cation arrangement in two structural layers alternating along the orthorhombic c-direction: a structural layer composed of two parallel layers of Bi atoms that resembles the (Bi₂O₂)²⁺ layer of the Aurivillius-type structures, and a structural layer composed of two parallel layers of the Ti atoms, where every sixth Ti is replaced by Bi. Such an arrangement of cations in the nanowire structure is consistent with a Bi : Ti ratio of 7 : 5. This discrepancy in the composition is compensated by a random partial insertion of the Ti layers. The basic arrangement of Ti in the structural layer is consistent with two layers of edge-sharing (TiO₆)²⁻ octahedra, also suggested by the results of the Raman spectroscopy. With annealing at temperatures above 500 °C the nanowire structure topotactically transforms into the Aurivillius structure without the precipitation of any secondary phases, proving that the nanowire structure is a metastable polymorph of the Bi₄Ti₃O₁₂ stabilized at the nanoscale. The observation of ferroelectric domains with transmission electron microscopy and piezo-response force microscopy suggested the ferroelectric nature of both bismuth-titanate polymorphs.

Author contributions

D. M., G. D., A. M. and H. U. designed the experimental work programme, methodology, supervised the research and drafted the manuscript. N. K. synthesized the nanoparticles. S. G. and R. K. prepared TEM samples using ultramicrotome. D. M. carried out electron microscopy, G. D. analysed the STEM results. A. M. conducted XRD structure determination and proposed the tentative structural model. S. G. conducted Raman analysis. H. U. carried out the PFM measurements. M. Š. performed ICP-OES analysis. All authors discussed and revised the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors acknowledge the financial support from the Slovenian Research Agency (ARRS) for research core funding No. P2-0089, J2-3041, P1-0034, P2-0105, and the support of Infrastructural Centre “Microscopy of Biological Samples” at Biotechnical faculty, University of Ljubljana. The authors thank B. Anželak, V. Fišinger and J. Cilenšek for help in the laboratory.
