Highly insulating thermoplastic nanocomposites based on a polyolefin ternary blend for high-voltage direct current power cables

Azadeh Soroudi a, Yingwei Ouyang a, Fritjof Nilsson bc, Ida Östergren a, Xiangdong Xu d, Zerui Li a, Amir Masoud Pourrahimi a, Mikael Hedenqvist b, Thomas Gkourmpis e, Per-Ola Hagstrand e and Christian Müller *a
aDepartment of Chemistry and Chemical Engineering, Chalmers University of Technology, 41296 Göteborg, Sweden
bDepartment of Fibre and Polymer Technology, School of Engineering Sciences in Chemistry, Biotechnology and Health, KTH Royal Institute of Technology, 10044 Stockholm, Sweden
cFSCN research centre, Mid Sweden University, 85170 Sundsvall, Sweden
dDepartment of Electrical Engineering, Chalmers University of Technology, 41296 Göteborg, Sweden
eInnovation & Technology, Borealis AB, 44486 Stenungsund, Sweden. E-mail: christian.muller@chalmers.se

Received 15th December 2021 , Accepted 11th May 2022

First published on 20th May 2022


Abstract

Octyl-silane-coated Al2O3 nanoparticles are found to be a promising conductivity-reducing additive for thermoplastic ternary blends comprising low-density polyethylene (LDPE), isotactic polypropylene and a styrenic copolymer. The ternary blend nanocomposites were prepared by compounding the blend components together with an LDPE-based masterbatch that contained the nanoparticles. The nanoparticles did not affect the superior stiffness of the ternary blends, compared to neat LDPE, between the melting temperatures of the two polyolefins. As a result, ternary blend nanocomposites comprising 38 wt% polypropylene displayed a storage modulus of more than 10 MPa up to at least 150 °C, independent of the chosen processing conditions. Moreover, the ternary blend nanocomposites featured a low direct-current electrical conductivity of about 3 × 10−15 S m−1 at 70 °C and an electric field of 30 kV mm−1, which could only be achieved through the presence of both polypropylene and Al2O3 nanoparticles. This synergistic conductivity-reducing effect may facilitate the design of more resistive thermoplastic insulation materials for high-voltage direct current (HVDC) power cables.


Introduction

High-voltage direct current (HVDC) power cables are an important component of future power grids that seamlessly integrate renewable sources of energy. The most common type of extruded HVDC cables comprise a polymeric insulation layer composed of crosslinked polyethylene (XLPE). The XLPE insulation layer is obtained by peroxide curing of low-density polyethylene (LDPE), which has a melting temperature of TLDPEm ≈ 110 °C. Peroxide curing requires a degassing step to remove volatile by-products that arise from the crosslinking reaction.1 Alternative insulation materials that do not require degassing, such as polymer blends crosslinked via a click-chemistry type curing reaction2 and thermoplastic materials based on, e.g., blends or copolymers comprising polypropylene (PP),3–5 receive considerable attention. The high melting temperature of PP materials, which can be as high as TPPm ≈ 170 °C, alleviates the need for crosslinking.6–8 In addition, materials with a higher melting temperature may allow the design of HVDC cables that could endure higher operating temperatures than the 70 to 90 °C, which are common for HVDC cables.6,9

Significant academic research efforts are currently dedicated to the development of materials concepts that permit to reduce the direct-current (DC) electrical conductivity σDC of insulation materials at high electric fields. A reduction in σDC may allow the design of HVDC cables that can operate at a higher transmission voltage and hence incur lower losses. LDPE and XLPE feature values of σDC ≥ 10−14 S m−1 at 30 kV mm−1 and 70 °C,10 which are common design parameters for the highest electric field stress and operating temperature that the insulation layer of an HVDC cable may experience.8 Conductivity-reducing additives such as metal oxide nanoparticles,11 organic semiconductors including fullerenes12 and conjugated polymers,13 aromatic voltage stabilizers,14–16 as well as high-density polyethylene (HDPE)10 can be added to the polyethylene-based insulation material to achieve a further reduction in σDC. Moreover, the combination of different additives such as Al2O3 nanoparticles and HDPE can give rise to a synergistic conductivity-reducing effect.17

PP grades developed for capacitor type applications display excellent electrical properties18 and an electrical conductivity as low as σDC ≈ 10−15 S m−1 at 30 kV mm−1 and 70 °C has been reported for isotactic PP.3 A number of studies have recently investigated nanocomposites of polyolefin-based insulation materials and metal oxide nanoparticles composed of MgO,19–21 ZnO,21–23 TiO2,21,24 SiO225,26 or Al2O3.21,27,28 The strongest conductivity-reducing effect is typically observed if the metal oxide nanoparticles are surface-modified with, e.g., silane coupling agents terminated with an alkyl chain.19,29

We have recently explored blends of PP and LDPE to which we added a linear triblock copolymer, polystyrene-b-(ethylene-co-butylene)-b-polystyrene (SEBS),3 which modifies the interface between domains of the two immiscible polyolefins. Ternary blends with a sufficiently high content of both PP and SEBS displayed a high storage modulus of more than 10 MPa at temperatures up to TPPm, which may allow the design of insulation materials with higher operating temperatures. Moreover, the addition of PP to LDPE considerably reduced the electrical conductivity.30

Here, we show that the addition of Al2O3 nanoparticles surface-modified with n-octyltriethoxysilane allows to further reduce the electrical conductivity of SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blends without affecting the high-temperature dimensional stability. Al2O3 nanoparticles are a commonly used additive for plastics because they are fairly inert, odourless, inexpensive and white. Furthermore, they can be surface-functionalized for good dispersion in molten LDPE and for improving its insulating properties.17,31 The presence of both Al2O3 nanoparticles and PP has a synergistic conductivity-reducing effect, reaching an electrical conductivity close to neat PP, which may aid the design of highly insulating materials.

Experimental

Materials

LDPE with a melt flow index MFI ≈ 2 g per 10 min (190 °C/2.16 kg), number-average molecular weight Mn ≈ 13 kg mol−1, polydispersity index PDI ≈ 9 and number of long-chain branches ≈ 1.9 as well as PP with an Mn ≈ 40 kg mol−1, PDI ≈ 9 and isotacticity > 90% were obtained from Borealis AB. Polystyrene-b-(ethylene-co-butylene)-b-polystyrene (SEBS) with an MFI < 1 g per 10 min (230 °C per 2.16 kg) and a polystyrene content of 18.5–22.5% was obtained from Kraton Corporation (Kraton G1642 HU). Al2O3 nanoparticles (Nanodur; density ρ = 3.97 g cm−3) were obtained from Nanophase Inc. N-Octyltriethoxysilane and the antioxidant Irganox 1076 were obtained from Sigma-Aldrich and Ciba Speciality Chemicals, respectively.

Sample preparation

Al2O3 nanoparticles with an average diameter of (50 ± 25) nm were surface-modified with n-octyltriethoxysilane according to a previously described procedure.17 After surface modification, the nanoparticles were dried for 20 h at 80 °C in a vacuum oven and then dispersed in n-heptane (0.3 ml n-heptane per 1 g polymer) through ultrasonication for 5 minutes, followed by the addition of Irganox 1076 and LDPE, resulting in a solid content of 3 wt% Al2O3 nanoparticles, 97 wt% LDPE and 0.02 wt% Irganox 1076. The LDPE[thin space (1/6-em)]:[thin space (1/6-em)]nanoparticle slurry was shaken for 1 h and dried overnight at 80 °C. The dried powder was shaken for another 30 min and then compounded for 6 min at 150 °C and 100 rpm with a MC15 twin-screw microcompounder from Xplore. The LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 extrudate was cut into 2–3 mm long granules. Neat LDPE, the LDPE nanocomposites, ternary blends and the ternary blend nanocomposites were prepared by compounding different amounts of SEBS, PP, LDPE and the LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 masterbatch (dried for 17 h at 80 °C in a vacuum oven) with a MC5 twin-screw microcompounder from Xplore under nitrogen gas for 4 min at 200 °C and 70 rpm followed by extrusion using a die temperature of 210 °C. Extrudates were compression molded into 0.3 mm thick films for electrical measurements and 1.9 mm thick films for mechanical analysis using a LabPro 200 Fontijne press at 200 °C by applying a pressure of 3800 kPa for 1 min followed by cooling at a rate of −10 °C min−1, unless indicated otherwise. PP and SEBS pellets were used as received and compression molded at the same conditions. To prepare XLPE, milled LDPE was dispersed in a solution of dicumyl peroxide (DCP) in methanol at 40 °C and stirred for 1 h, followed by solvent evaporation. The resulting milled LDPE infused with 1 wt% DCP was compression molded at 120 °C for 5 min, followed by annealing at 180 °C for 10 min to facilitate crosslinking. The resulting XLPE had a gel content of 72%, determined according to a previously described procedure.32

Scanning electron microscopy (SEM)

Samples for SEM were cryofractured and subsequently etched for 45 min using a solution of 1 wt% potassium permanganate in a mixture of sulfuric acid, ortho-phosphoric acid, and water, followed by cleaning in hydrogen peroxide, water and methanol. The etched surfaces were sputtered with palladium and imaged with a LEO Ultra 55 SEM instrument, using an acceleration voltage of 3 kV.

Differential scanning calorimetry (DSC)

DSC measurements were carried out under nitrogen between −25 and 200 °C at a scan rate of 10 °C min−1, using a Mettler Toledo DSC2 calorimeter equipped with a HSS7 sensor and a TC-125MT intercooler. The sample weight was 4–8 mg.

Wide angle X-ray scattering (WAXS)

Transmission WAXS diffractograms were obtained under ambient atmosphere using a Mat:Nordic instrument from SAXSLAB equipped with a Rigaku 003+ high brilliance micro focus Cu-radiation source (wavelength = 1.5406 Å) and a Pilatus 300 K detector placed at a distance of 126 mm from the sample.

Dynamic mechanical analysis (DMA)

DMA was carried out using a TA Q800 DMA in tensile mode on 35 mm times 6 mm large pieces cut from 1.9 mm thick melt-pressed films. Variable-temperature measurements were done at a heating rate of 3 °C min−1, with a maximum strain of 0.05% and a frequency of 0.5 Hz.

DC conductivity measurements

The DC conductivity test cell consisted of a three-electrode system, a high voltage electrode, a guard ring electrode and a measuring electrode with Ø = 60 mm. Prior to the measurements, the samples were dried for 24 h at 70 °C in a vacuum oven together with the test cell. The high voltage electrode was connected to a high-voltage power supply (Glassman FJ60R2). A DC electric field of 30 kV mm−1 was applied across a 0.3 mm thick specimen for 19 h and its volume leakage current was recorded with a Keithley 6517B electrometer and a LabView based dynamic average software. σDC was calculated based on the leakage currents obtained after 18 h.

Results and discussion

We chose to work with a masterbatch of LDPE that contained 3 wt% of octyl-silane-coated Al2O3 nanoparticles with an average diameter of 50 nm, prepared according to a previously described procedure (see Experimental for details).17 Nanocomposites were prepared by compounding the LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 masterbatch with either neat LDPE to prepare LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 nanocomposites or SEBS and PP to prepare SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 ternary blend nanocomposites (see Table 1 and Table S1 for compositions of the prepared formulations). The extrudates were cut and then compression molded into films at 200 °C (Fig. 1).3 We chose to focus our study on ternary blend nanocomposites with a formulation of 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 because we have previously observed that ternary blends with a comparable PP content display both excellent mechanical and electrical properties, which are not overly affected by changes in processing conditions.30
image file: d1nr08255h-f1.tif
Fig. 1 Processing scheme used for the preparation of ternary blend nanocomposite films.
Table 1 Composition of the investigated formulations as well as their storage modulus E′ and DC electrical conductivity σDC measured at 70 °C and 30 kV mm−1
  LDPE (wt%) PP (wt%) SEBS (wt%) Al2O3 (wt%) E′ at 150 °C (MPa) σ DC at 70 °C (10−15 S m−1)
a Single measurement, a relative error of Δx = 10% is assumed. b Mean of two measurements of two separately compounded samples, error calculated according to Δx = (xmaxxmin)/2. c Data from ref. 30.
LDPE 100 n.a. 43.0 ± 4.3a
LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 98.7 1.3 n.a. 9.6 ± 1.5b
PP 100 220 1.4 ± 0.1c
SEBS 100 2 10.1 ± 1.0a
SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE 42 38 20 15 4.3 ± 0.4a
SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 40.7 38 20 1.3 19 2.6 ± 0.4b


Scanning electron microscopy (SEM) on cryofractured, etched and sputtered surfaces was carried out to examine the microstructure of the nanocomposites. SEM images of a 98.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 nanocomposite feature distinct Al2O3 nanoparticles embedded in the LDPE matrix (Fig. 2a; SEM images of the same LDPE grade can be found in ref. 10). The 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend displayed a heterogeneous microstructure (Fig. 2b). The etching process that was employed predominately removes amorphous material, resulting in voids where the SEBS copolymer used to reside. Hence, we assign the regions that contain voids to SEBS, intermixed with PP, which are interspersed with domains of LDPE (Fig. 2b). The regions composed of PP and SEBS (voids in the SEM image shown in Fig. 2b) appear continuous, which is consistent with a previous study.30 SEM images of the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 ternary blend nanocomposite feature a comparable microstructure with continuous PP[thin space (1/6-em)]:[thin space (1/6-em)]SEBS domains interspersed with LDPE domains (Fig. 2c). The Al2O3 nanoparticles were added via an LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 masterbatch and hence can be expected to predominately reside within LDPE domains, as confirmed by SEM images of the ternary blend nanocomposite (Fig. 2c). We also investigated LDPE-rich ternary blend nanocomposites with a formulation of 5[thin space (1/6-em)]:[thin space (1/6-em)]24[thin space (1/6-em)]:[thin space (1/6-em)]68.9[thin space (1/6-em)]:[thin space (1/6-em)]2.1 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3, which featured a microstructure composed of SEBS:PP droplets in a continuous LDPE matrix (Fig. S1). Again, the Al2O3 nanoparticles were located within LDPE.


image file: d1nr08255h-f2.tif

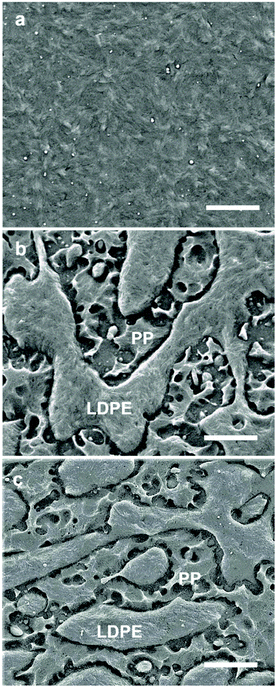

Fig. 2 SEM micrographs of the cryofractured, etched and sputtered surfaces of (a) the LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 nanocomposite, (b) the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend, and (c) the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 ternary blend nanocomposite (all scale bars correspond to 2 μm).

Differential scanning calorimetry (DSC) was carried out to explore whether some of the Al2O3 nanoparticles have entered PP domains during compounding. A comparison of DSC cooling thermograms of the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend and 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE:Al2O3 ternary blend nanocomposite indicate that the peak crystallization temperature of PP shifts from T0c ≈ 112 °C to Tnucc ≈ 115 °C, which we ascribe to the presence of Al2O3 nanoparticles that nucleate PP (Fig. 3a and Table S2). Since the two materials feature a similar microstructure, we propose that some of the nanoparticles have entered PP domains (or reside at the PP domain interface) and act as a nucleating agent (note that TPEc also increased from 96 °C to 98 °C, which would again be consistent with a nucleation type effect). To investigate the ability of Al2O3 to nucleate PP in more detail we calculated the nucleating efficiency of Al2O3 with respect to optimally self-seeded material according to ηnuc = (TnuccT0c)/(TmaxcT0c) where Tnucc, T0c and Tmaxc are the peak crystallization temperatures of nucleated material, non-nucleated material and optimally nucleated material, respectively.33Tmaxc can be obtained through self-seeding where the material is only allowed to melt in part, which yields Tmaxc ≈ 141 °C for PP in case of the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend (Fig. S2). Hence, we obtain ηnuc ≈ 10% for PP, which is low compared to nucleating agents such as dimethyldibenzylidene sorbitol (DMDBS).34


image file: d1nr08255h-f3.tif
Fig. 3 (a) DSC cooling thermograms and (b) WAXS diffractograms of LDPE (grey), PP (brown), 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE (blue) and the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 nanocomposite (sky blue).

The crystallinity of PP and PE was not overly affected by the Al2O3 nanoparticles (Table S2), in agreement with previous reports.17,27 Wide angle X-ray scattering (WAXS) diffractograms of the ternary blend and ternary blend nanocomposite (Fig. 3b) indicate that in case of the ternary blend, only PP α-polymorph crystallites are present. Instead, the presence of Al2O3 nanoparticles promotes the formation of a fraction of β-polymorph crystallites as evidenced by the emergence of a clear peak at q = 1.16 Å−1, which is consistent with a nucleation type effect.35

In a further set of experiments, we used dynamic mechanical analysis (DMA) to record the storage modulus E′ of the investigated materials as a function of temperature (Fig. 4). The DMA thermograms of neat LDPE and the 98.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 nanocomposite show comparable behavior and a strong reduction in modulus above TLDPEm ≈ 110 °C. Likewise, the DMA thermograms recorded for the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend and the corresponding nanocomposite follow a similar trend (Fig. 4), which is consistent with the comparable microstructure inferred from SEM (see Fig. 2) and similar crystallinity (Table S2). Gratifyingly, both materials feature a relatively high modulus in the temperature range TLDPEm < T < TPPm, with a value of E′ = 15 MPa at 150 °C above which PP starts to melt (Table 1). In this temperature range the storage modulus of the ternary blend is about two orders of magnitude higher than the rubber plateau value of XLPE, which is today widely used as an HVDC insulation material. Furthermore, we observed a comparable thermomechanical behaviour independent of the cooling rate used for sample preparation, ranging from −1 to −20 °C min−1 (Fig. S3), which indicates that the here investigated formulations are not sensitive to slight changes in processing conditions.


image file: d1nr08255h-f4.tif
Fig. 4 Top: Storage modulus E′ measured with DMA for LDPE (grey), 98.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 LDPE:Al2O3 (black), 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE (blue), 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 (sky blue) and XLPE (olive); bottom: DSC heating thermograms of 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP:LDPE (blue) and 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 (sky blue).

We went on to investigate the impact of the octyl-silane-coated Al2O3 nanoparticles on the electrical conductivity (Fig. 5). For neat LDPE we measure a value of σDC ≈ 43 × 10−15 S m−1 at 70 °C and 30 kV mm−1 (Table 1), which is in agreement with previous studies where we have investigated the same LDPE grade.3,32 The presence of 1.3 wt% Al2O3 nanoparticles reduced the electrical conductivity to 9.6 × 10−15 S m−1, which confirms that the here employed nanoparticles have a clear conductivity-reducing effect. The mechanism behind the reduced DC conductivity displayed by nanocomposites is not yet fully established. However, several hypotheses have been proposed. Dispersed nanoparticles in an LDPE matrix can absorb polar molecules or ions, which act as charge carriers,36,37 they can introduce deep trapping sites for electrons or holes located in the vicinity of the nanoparticle surface38–42 and they can lead to recombination of charge carriers.43


image file: d1nr08255h-f5.tif
Fig. 5 Leakage current at 70 °C and 30 kV mm−1 as a function of time of neat LDPE (black-dash), 98.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 (black-solid), 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE (blue-dash), and 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE : Al2O3 (blue-solid).

The 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blend displayed a conductivity of σDC ≈ 4.3 × 10−15 S m−1 at 70 °C and 30 kV mm−1, which is 10-times lower than the value measured for neat LDPE (Table 1). We ascribe the strong reduction in σDC to the presence of PP, which thanks to its high degree of cleanliness has a conductivity of only σDC ≈ 1.4 × 10−15 S m−1. The addition of 1.3 wt% Al2O3 nanoparticles results in a further reduction in σDC to 2.6 × 10−15 S m−1 at 70 °C and 30 kV mm−1, measured for the 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 ternary blend nanocomposite. A similar trend is also observed at 50 °C, i.e. the addition of Al2O3 nanoparticles to the ternary blend results in a material that has a lower σDC than the ternary blend without Al2O3 (Fig. S4). SEM images indicate that the SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP regions are continuous (see Fig. 2), and therefore it can be anticipated that charge conduction involves SEBS:PP regions. Al2O3 nanoparticles are present in LDPE domains (see Fig. 2c) as well as in PP domains, inferred from the nucleating effect observed with DSC (see Fig. 3). We argue that Al2O3 nanoparticles function as a conductivity-reducing additive also in case of the ternary blend nanocomposite.

In a last set of experiments, we measured σDC of a ternary blend with a composition of 5[thin space (1/6-em)]:[thin space (1/6-em)]24[thin space (1/6-em)]:[thin space (1/6-em)]71 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE, which features isolated SEBS:PP regions embedded in a continuous LDPE matrix (see Fig. S1), as well as a corresponding binary blend with a composition of 25[thin space (1/6-em)]:[thin space (1/6-em)]75 PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE. For this LDPE-rich ternary blend we recorded a value of σDC ≈ 11.6 × 10−15 S m−1, which was reduced to 2.9 × 10−15 S m−1 in the case of the corresponding ternary blend nanocomposite containing 2.1 wt% of Al2O3 nanoparticles (Fig. S5 and Table S1), again prepared by compounding the LDPE:Al2O3 masterbatch with SEBS and PP (see Fig. 1). We argue that also for the more LDPE-rich ternary blend nanocomposite, the Al2O3 nanoparticles function as a conductivity-reducing additive, resulting in a 4-fold reduction in σDC.

A comparison of the DC electrical conductivity measured for materials with different LDPE contents reveals that in case of formulations that do not contain any nanoparticles there is a gradual reduction in σDC with increasing amount of the foreign phase (PP or SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP) with the lowest value obtained for neat PP (Fig. 6). In contrast, the materials that contain Al2O3 nanoparticles display a much lower σDC of about 3 × 10−15 S m−1, largely independent of the LDPE content. In case of LDPE-rich nanocomposite formulations, the reduction in σDC is more pronounced compared to corresponding formulations with a similar LDPE content but no Al2O3 nanoparticles. Evidently, the use of Al2O3 nanoparticles as a conductivity-reducing additive is a viable strategy for the design of highly resistive insulation materials, in particular in case of formulations that contain a large amount of LDPE.


image file: d1nr08255h-f6.tif
Fig. 6 DC electrical conductivity σDC at 70 °C and 30 kV mm−1 as a function of LDPE content in wt% (indicated in bold) of formulations without Al2O3 (black squares) including neat PP (0), neat LDPE (100), 25[thin space (1/6-em)]:[thin space (1/6-em)]75 PP:LDPE, 5[thin space (1/6-em)]:[thin space (1/6-em)]24[thin space (1/6-em)]:[thin space (1/6-em)]71 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE and 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]42 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE, as well as with Al2O3 (red stars) including 98.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 LDPE:Al2O3, 97.7[thin space (1/6-em)]:[thin space (1/6-em)]2.3 LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3, 25[thin space (1/6-em)]:[thin space (1/6-em)]72.8[thin space (1/6-em)]:[thin space (1/6-em)]2.2 PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3, 5[thin space (1/6-em)]:[thin space (1/6-em)]24[thin space (1/6-em)]:[thin space (1/6-em)]68.9[thin space (1/6-em)]:[thin space (1/6-em)]2.1 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 and 20[thin space (1/6-em)]:[thin space (1/6-em)]38[thin space (1/6-em)]:[thin space (1/6-em)]40.7[thin space (1/6-em)]:[thin space (1/6-em)]1.3 SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3.

Conclusions

Octyl-silane-coated Al2O3 nanoparticles are a promising conductivity-reducing additive for SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blends. The addition of Al2O3 nanoparticles through compounding of an LDPE[thin space (1/6-em)]:[thin space (1/6-em)]Al2O3 masterbatch with SEBS and PP does not alter the domain size and shape as compared to SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP[thin space (1/6-em)]:[thin space (1/6-em)]LDPE ternary blends with a comparable composition. As a result, the ternary blend nanocomposite, which features continuous SEBS[thin space (1/6-em)]:[thin space (1/6-em)]PP regions, displays a high storage modulus of more than 10 MPa between the melting temperatures of LDPE and PP. Some of the Al2O3 nanoparticles appear to enter the PP domains (or PP domain interface) during compounding, as evidenced by a nucleation type effect. Importantly, ternary blend nanocomposites feature a DC electrical conductivity as low as 2.6 × 10−15 S m−1 at 70 °C and 30 kV mm−1, which for the investigated formulation can only be achieved through the simultaneous presence of highly insulating PP and Al2O3 nanoparticles. Further work should focus on an in-depth characterization of the dielectric properties, such as space charge accumulation and breakdown strength of the ternary blend nanocomposite, including thermally aged material. In addition, it is feasible that also other types of metal oxide nanoparticles can be used as conductivity-reducing additives for polyolefin blends.
