Wood-based composite materials for ultralight lens antennas in 6G systems

Abstract

Extremely high frequencies used in future wireless communication systems such as 6G require low loss materials to avoid wasting power and maintain acceptable efficiency. Furthermore, especially in the internet of things (IoT) applications, low weight and the possibility to focus the radiation pattern in the desired direction would also improve the communication between units and reduce the required signal power. Radio frequency (RF) lenses for signal focusing can be made from low loss and low relative permittivity materials. In this work, the development of sustainable composites with a relative permittivity of ∼1.15 and loss tangents in the range of 10⁻³ is presented. The composites were fabricated at the exceptionally low temperature of 95 °C and were based on hollow micron-sized glass spheres and three different types of cellulose nanofibers as the water-soluble binder. A simple manufacturing method through casting and drying is presented. The surface properties of the composites were investigated with surface profile analysis and the dielectric properties by SPDR and terahertz spectroscopy. The weight of the fabricated lens was 0.6 g and the transmittance was 99.85%. The lens improved the antenna gain by 14–18 dBi depending on the surface smoothening. Also, coating the lens with a moisture protecting agent did not alter the lens performance.

---

1. Introduction

The frequencies used in wireless communication systems are constantly increasing and will soon reach the THz band (0.1–1 THz).¹ At these high frequencies, new, low relative permittivity (ε_r), very low dielectric loss (tan δ), lightweight and sustainable materials are needed. One of the radio frequency (RF) components that benefits from new materials is the RF lens used as in optics to focus the radiation thus increasing the antenna gain.² RF lenses are commonly made from materials such as high resistivity silicon (ε_r ∼ 11.9)^3–5 and polymers (ε_r ∼ 2.3).^3,6–8 The use of materials with low ε_r and low tan δ allows higher signal speeds and improved efficiency.⁹ However, polymers and silicon are heavy materials that in turn increase the relative weight of the lens compared to the highly integrated RF electronics. There is a need to develop lightweight and sustainable materials for RF use.

In order to further reduce the relative permittivity of the polymeric materials, both structural porosity^10–12 and low permittivity functional groups^13–15 have been employed. Utilization of porosity has resulted in permittivity values as low as 1.05 with excellent dielectric losses in the polyethylene and polyurethane foams used in radomes.^16,17 On the other hand, hollow glass microspheres (HGMS) offer an inexpensive solution to reduce the dielectric permittivity and losses of circuit boards,¹⁸ thick film devices¹⁹ or EM-shielding.^20,21 Recently, they have been used to produce ultra-low permittivity substrate materials²² and RF lenses.²³ In addition to this, cellulose nanofiber (CNF) suspension can be used as a bio-based binder just by mixing it with filler materials without the use of additional pressure or a strong shearing force. This enables the use of HGMS as a porosity-adding material without the risk of crushing the microspheres during mixing and further processing steps. Typically extrudable materials are thermoplastic polymers, which require high >160 °C temperatures. In this work, one of the aims was to develop a suspension which could be extruded in room temperature.

In this work, the RF lenses were made by casting different CNF–HGMS suspensions into molds. The combination of CNFs and HGMS could form a composite, which is a lightweight, non-plastic, sustainable, and environmentally friendly composite. Dielectric values (ε_r, tan δ) of the samples were measured with the split post dielectric resonator method (SPDR) at 2.5 and 5.2 GHz. The dielectric properties in the THz band (0.1–1 THz) were measured with terahertz spectroscopy. The performance of the RF lenses was evaluated with a lens measurement system (at 300 GHz). Their surface quality was analyzed with a laser scanning microscope. Also, the feasibility of different nanocellulose materials, i.e. cellulose nanofibers possessing inherent cellulose structure without any additional functional groups, TEMPO oxidized CNF containing carboxylates, and wood nanofibers (WNF) having a lignin containing surface, fabricated in this work was compared against two common lens materials, silicon and Teflon.

2. Experimental

A. Materials and chemicals

HGMS were purchased from Kevra Oy (Finland). According to the manufacturer's datasheet the spheres were C-type glass with 50–75% SiO₂ and had an average particle size of 40–80 μm, a volumetric density of 0.1–0.15 g cm⁻³ and a temperature resistance of up to 650 °C. According to the field emission scanning electronic microscope with energy dispersive spectroscopy (FESEM-EDS) analysis carried out in the previous work,²² the HGMS contained 72 wt% SiO₂, 14 wt% Na₂O and 14 wt% CaO. 2,2,6,6-Tetramethylpiperidinyl-1-oxy radical (TEMPO) and choline chloride (>98.0%) were both obtained from TCI (Germany). Urea (NH₂CONH₂; >99.0%), sodium bromide (NaBr), and lithium chloride (LiCl) were ordered from Sigma-Aldrich (Finland).

B. Preparation of three different types of cellulose nanofibers

Three different types of cellulose nanofibers (CNF) were utilized. The CNF was obtained from either deep eutectic solvent (DES) treatment (DES CNF), TEMPO oxidized CNF (TO-CNF) or wood nanofiber (WNF). In brief, the DES CNF had an inherent cellulose structure without any additional functional groups,²⁴ TO-CNF contained carboxylates,²⁵ while WNF had a lignin containing surface and had a surface charge density of close to zero.²⁶

DES-treated CNF was synthesized from bleached birch-wood pulp (Betula Pendula) using a non-derivatizing DES pre-treatment based on urea-choline chloride.²⁴ First, the DES system was formed by heating 324 g choline chloride and 244.5 g urea in a round-bottom flask at 100 °C in an oil bath to obtain a clear, colorless liquid, after which the cellulose pulp (5.65 g of ripped small pieces of dry pulp sheets) was introduced into the liquid at 100 °C over 2 hours. After the DES pre-treatment, 500 ml of deionized water was added while mixing and the cellulose fibers were filtered (Whatman 413) and washed with deionized water (2000 ml). The pretreated sample with a concentration (0.5% w/w) was then passed five times through 400 μm and 200 μm diameter chambers at a pressure of 1000 bar using a microfluidizer (Microfluidics M-110EH-30, USA). The obtained viscous cellulose nanofiber suspension was stored in a cold environment (+4 °C).

Anionic TO-CNF was prepared according to a previously reported method.²⁷ 10 g of bleached birch pulp was suspended in water (1000 ml) containing TEMPO (0.16 g, 0.1 mmol) and sodium bromide (1 g, 1 mmol). 10.0 mmol of NaClO solution was added as drops to the cellulose suspension, and the mixture was stirred at room temperature and kept at pH 10 for 4 h. The oxidation was stopped by adding 10 ml of ethanol, and the oxidized fibers were completely washed by filtration with deionized water. The oxidized cellulose fiber suspension with a solid content of 1% w/w was passed through a pair of chambers (400 μm and 200 μm diameter) under a pressure of 1000 bar using a microfluidizer (Microfluidics M-110EH-30, USA) to obtain TEMPO-oxidized cellulose nanofibers (TO-CNF).

WNF was produced using a previously reported procedure with slight modifications.²⁶ In short, unbleached spruce groundwood pulp (1.5% w/w) was ground using a Masuko Super MassColloider (MKCA6-2 J CE; Masuko Sangyo, Japan) at ∼90 °C. The distance between the grinding stones was gradually decreased while the pulp was repeatedly fed through the grinder to obtain WNF.

Chemical characteristics of CNF samples were determined using Diffuse reflectance infrared Fourier transform (DRIFT) spectroscopy. For WNF, the lignin content was measured with a The TAPPI T 222 om-02 (GWP27.4 wt%, BP 0.2 wt%); the acetone-soluble extractives with a TAPPI T 280 pm-99 (GWP2.2 wt%, BP 0.1 wt%); and the hemicellulose and degraded cellulose with a TAPPI T 212 om-02 (GWP 13.0 wt%, BP 3.9 wt%). The charge density of CNFs were revealed by the electric conductivity titration method using a method described by Rattaz et al.²⁸ The diameter of nanocelluloses were analyzed from transmission electron microscope (TEM) images of >100 individual nanoparticles. The properties of CNF samples have been summarized in Table 1.

Table 1 Characteristics of CNF samples

CNF grade	Surface chemistry	Anionic surface charge density (meq g^−1)	Average diameter (nm)
DES	Pristine cellulose	<0.1	5–15
TO	Carboxylated	1.0	5 ± 2
WNF	Lignin containing (27.4 wt%)	—	7–20

---

C. Preparation of the CNF/HGMS lenses

Mixtures of different CNF suspensions and HGMS were made by adding the HGMS powder into CNF suspensions until the suspension was thick enough to barely pass through the nozzle of a 2 ml syringe. Due to the similar water contents of CNF suspension and HGMS, this proved to be roughly 50 : 50 by volume, i.e., 2.0 grams of HGMS and 12.0 g of CNF suspension.

The quantity of CNF in suspension was as follows: TO-CNF = 1 wt%, DES CNF = 1.96 wt%, WNF = 2.5 wt%. As the viscosity of each CNF suspension was similar, they were used in similar volumetric ratios with HGMS to achieve similar extrudability. resulting the TO-CNF/HGMS suspension to contain 0.6 vol% dried CNF, DES CNF/HGMS suspension 1.2 vol% dried CNF and WNF/HGMS suspension 1.5 vol% dried CNF. Volume of the CNF in suspensions was calculated on the basis of estimated density of 1.63 g cm⁻³ by Aulin et al.²⁹

This also resulted in relatively small shrinkage of the resulting samples. Samples for 2.5 and 5.2 GHz SPDR measurements were made by applying the HGMS/CNF paste into a 2 mm thick, 60 mm diameter mold. Samples were dried in the mold overnight at 95 °C, removed and kept for 2 hours at 105 °C. Samples for higher frequency measurements and for the RF lenses were made by applying the HGMS/CNF pastes into silicone molds made into the desired shape, either a 30 mm hemisphere or a 35 × 35 × 5 mm square. The samples were dried at room temperature for 24 hours, followed by 16 hours at 95 °C and 2 h at 105 °C. Examples of the resulting samples are shown in Fig. 1. An ultralight weight (∼0.6 g) was measured for the lens.

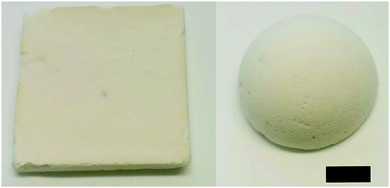

Fig. 1 Example of square and lens shaped samples. Binder: WNF. Scale bar: 1 cm.

The lenses had tiny holes which formed during the drying process because of trapped air bubbles. The surface roughness was reduced by filling these pores with a thin layer of HGMS–CNF paste made with TEMPO -oxidized CNF and HGMS with 1 : 1 volumetric proportion. The coated and dried surface was finally manually smoothed with 2000-grit sandpaper while keeping the original shape of the lens.

D. Dielectric and surface measurements

The dielectric measurements at 2.5 and 5.2 GHz were carried out with a vector network analyzer (VNA) (Rhodes & Schwarz ZVB20, Germany) with SPDR (QWED, Poland) at 2.475 GHz and 5.180 GHz. The measurement results were calculated using QWED analysis software developed for the resonators. The dielectric measurements for 0.1–1 THz were conducted with terahertz spectroscopy (TeraPulse 4000 (teraview, UK)). The surface of the lenses was measured with a 3D laser scanning microscope (Keyence VK-X200, USA).

3. Results and discussion

A. Dielectric measurements for low and high frequency

The measured dielectric values at 2.5 and 5.2 GHz are shown in Table 2. All the composite samples had very similar relative permittivity values (in the range of 1.14 ± 0.01) at both frequencies, indicating that the surface chemistry or charge density of CNFs had only a minor effect on performance of lenses (Table 1). Presumably, the most important parameter was the dimensions of CNFs, which were revealed to be similar with all samples. The loss tangents of the TEMPO-type CNF binder were lower than others, possibly due to the lower CNF content. The CNF content of suspensions was determined by gravimetric method, i.e. evaporating the CNF film dry and measuring the weight difference.

Table 2 Dielectric properties at 2.5 and 5.2 GHz

Binding material	2.5 GHz		5.2 GHz
	ε r ± 0.01	tan δ ± 2E − 5	ε r ± 0.01	tan δ ± 2E − 5
Permittivity of nanocelluloce HGMS composite
DES CNF	1.14	0.0026	1.14	0.0026
WNF	1.15	0.0026	1.15	0.0025
TO-CNF	1.13	0.0019	1.13	0.0019
Permittivity of cellulose nanofibers as dried film
DES CNF	3.73	0.1	3.63	0.1
WNF	3.85	0.1	3.78	0.1
TO-CNF	4.93	0.1	4.72	0.1

---

Terahertz time-domain spectroscopy (THz-DTS) was used to measure the real and imaginary parts of the ε_r for the higher frequency (Fig. 2). The DES CNF sample had slightly higher permittivity than the TO-CNF and WNF, whereas the imaginary values were close to each others. At 600 GHz and above the resonance effect from the glass spheres was seen in the higher permittivity. The permittivity values (Table 3) at 150 GHz were 1.16 for DES CNF, 1.15 for WNF and 1.15 for TO-CNF, and for 300 GHz values were 1.15 for DES CNF, 1.15 for WNF and 1.15 for TO-CNF. tan δ values were between 0.002–0.003 at 150 GHz and slightly higher (0.003–0.004) at 30 GHz. These loss values are sufficient for RF applications.

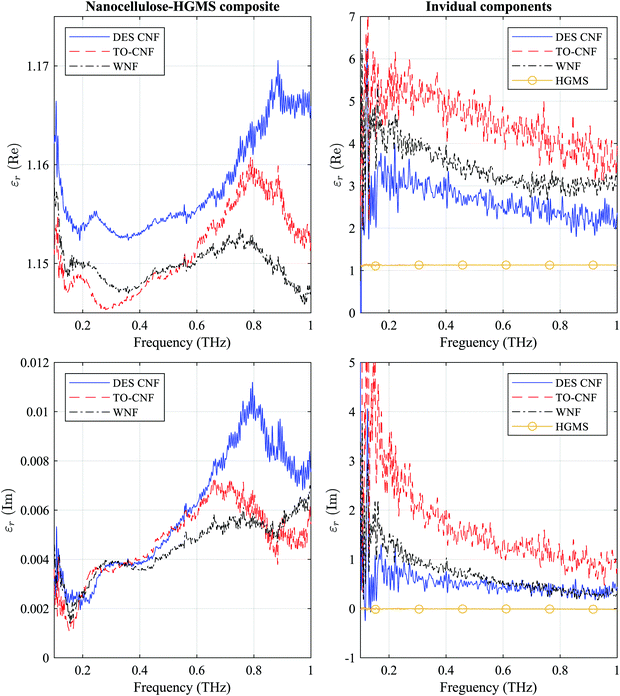

Fig. 2 (at left) Dielectric real (Re) and imaginary (Im) values of different types of cellulose nanofibers (CNF) hollow glass microspheres (HGMS) composites. (at right) Invidual components (CNFs measured from thin film < 100 μm thickness).

Table 3 Dielectric properties at 150 and 300 GHz

Binding material	150 GHz			300 GHz
	Re εr ± 0.01	Im εr ± 0.001	tan δ ± 0.01	Re εr ± 0.01	Imεr ± 0.001	tan δ ± 0.01
Permittivity of nanocelluloce HGMS composite
DES CNF	1.16	0.003	0.003	1.15	0.004	0.004
WNF	1.15	0.002	0.002	1.15	0.004	0.004
TO-CNF	1.15	0.002	0.002	1.15	0.004	0.003
Permittivity of invidual components
DES CNF	3.59	0.544	0.152	2.97	0.88	0.296
WNF	5.09	2.15	0.422	4.00	0.96	0.240
TO-CNF	6.34	5.56	0.877	5.14	2.13	0.414
HGMS	1.13	−0.005	0.004	1.13	−0.003	0.003

---

The permittivity of the individual CNFs ranges from 3 to 5 and they have a high losses. HGMS had permittivity of ∼1.13 and losses ∼0.004 making it an excelent component to lower the permittivity and losses of the proposed composite.

B. Evaluating the lens performance through the S₂₁

The lens measurement system is shown in Fig. 3. The setup consisted of a VNA (PNA-X 68 GHz Keysight, USA), and a pair of frequency extenders (220–330 GHz, Virginia diodes, USA) which had either a waveguide (transmitter side) or horn antenna (receiver side) connected. The lens was positioned at 90 mm distance from the transmitter, at the point with the highest S₂₁ dB reading. The measurement was conducted by moving the lens in y- and z- directions to create a 20 × 20 grid where each point represented 1 mm of movement together with the recorded received signal (S₂₁). The lens was moved by using MATLAB controlled positioners based on stepper motors.

Fig. 3 Measurement setup to measure electric field deflected by the lens. The lens is inside a foam holder which is supported by a rod which can be moved in x-, y-, z -directions by stepper motors between the transmitter (Tx) and receiver (Rx). As the lens is the only moving part, the recorded intensity of the S₂₁ does not have false readings (i.e., intensity changes) caused by cable movements.

Overall, six measurements were conducted and the results at 300 GHz are presented in Fig. 4. Each ring represents 1 dB transition, and the darkest red ring represents the highest measured value. Also, to have comparable results, the maximum dB value from Fig. 4a was used as a 0 dB reference point for Fig. 4b–f. Five lenses were measured which were as follows:

Fig. 4 Measured S₂₁ response from fabricated lenses at 300 GHz. (a) Smoothed and (b) unsmoothed WNF type lenses which were kept at room humidity (∼25% RH). (c) Smoothed and (d) unsmoothed TO-CNF type lenses which were kept in humidity chamber (1.5 days, 85% RH). (e) Uncoated and (f) coated WNF type lens; lens was coated with a moisture protection (glaco³⁰).

Two lenses smoothed and unsmoothed (kept at room humidity) to measure the effect of the lens smoothing.

Two lenses smoothed and unsmoothed (kept 1.5 days in a humidity chamber (85% RH)) to measure the effect from long term moisture exposure on the unsmoothed and smoothed lenses.

One unsmoothed lens which was coated with a moisture protective layer (glaco³⁰). The lens was measured with and without the coating to study its effect on the lens performance.

The results showed that without smoothing (Fig. 4(b and d)) the lens did not have a clear focus spot at the center but rather a ununiform “splash” of high and low dB areas. With smoothing (Fig. 4(a and c)), the focus spot formed to the center of the “splash”. Improvement from the smoothing was ∼4 dB.

To study the effect of humidity on the performance of the lenses the following experiments were performed. Two lenses were kept in the humidity chamber (85% RH, 1.5 days) to allow as much moisture as possible to accumulate into the lens. The lenses were removed from the humidity chamber, installed to the measurement setup, and the measurement was conducted in minutes. The accumulated moisture was expected to reduce the performance of the lens by many dB (Fig. 4(c and d)). However, this effect was not observed, and the maximum intensity of the focal spot remained similar to that of the lens which was kept in room humidity comparing the smoothed lenses (Fig. 4(a and c)). This mean that the moisture exposure did not alter the performance of the proposed lens antenna at 300 GHz, despite the cellulose nanomaterials may have promoted the moisture adsorption of lenses.

As the electronics are typically protected from the moisture, the effect from the moisture protecting agent was also measured. The moisture protection agent glaco³⁰ was used and there were no indications that the lens performance was either degraded or improved due to the addition of the moisture protection layer (Fig. 4(e) and (f)). Also, waterproofing efficiency of the coating layer was investigated by dropping water droplets on to the lens. It was noted that without the protective layer, the droplets were absorbed into the lens but with the coating the droplets were observed to roll off the lens surface (there is a supplementary video of this droplet experiment).

C. Simulated radiation pattern

Simulations were conducted with a CST microwave studio,³¹ lens distance to the waveguide (WR3.4) was 90 mm as in the measurements. The measured dielectric parameters such as 1.15 ε_r and 0.0035 tan δ at 300 GHz were used for the simulated lens.

Radiation patterns of the waveguide and the proposed lens antenna are shown in Fig. 5. The waveguide has gain of ∼7 dBi and wide main lobe. With the lens the main lobe has been narrowed to 1.5-degree and the gain was ∼25 dBi and side lobe level (SLL) of ∼12 dB. Similar gain improvement (∼ + 18 dBi) was observed in the measurements with the smoothed lens.

Fig. 5 Simulated radiation patterns of WR3.4 waveguide and proposed lens antenna at 300 GHz. Scale is in dBi.

D. Roughness of the lens surface

Topography was used to study the surface quality of the lenses. The surface images were taken from the tip of the smoothed, unsmoothed, and coated lenses (Fig. 6). The unsmoothed lens (Fig. 6(a)) had a very rough surface (Ra 29.6 ± 6.5 μm) which explained its degraded RF performance. The Fig. 6(b) showed that the smoothing improved the R_a value to 8.8 ± 1.6 μm. The coated lens had an Ra of 35.3 ± 6.6 μm, which was close to the value measured with the nonsmoothed lens, and indicated that the coating layer was spread uniformly to some extent and did not act as a smoothing agent.

Fig. 6 Surface topography images of the (a) unsmoothed (b) smoothed and (c) coated lens. Without the smoothing lens surface has a large height deviation i.e., large Ra value.

E. Comparison of the wood composite lenses with other commonly used lenses

A radio lens can be made from almost any material if its properties are suitable for the radio use. As the most common materials are silicon and plastic materials (Teflon), Table 4 shows their electrical properties at 300 GHz against the nanocellulose used in this work. The calculated weight of silicon and Teflon lenses were quite similar and relatively high when compared to the nanocellulose ones. Thus, by using the nanocellulose the weight of the lens can be reduced by ∼97% making it ultralight. This can potentially reduce the overall weight of the transceivers, especially in highly integrated sensor devices and drones.

Table 4 Comparison of nanocellulose lenses to common lens materials at 300 GHz

Material	Density g cm^−3	Weight^b g	ε r	tan δ, E-3	Power loss in material^c %	Reflectance %	Total transmittance %
a Different CNF/HGMS composite made in this work. b Calculated for 30 mm half spherical lens. c Simulated via CST microwave studio.
Silicon	2.33	16.5	11.90	0.2	0.024	30.31	69.67
Teflon	2.22	15.6	2.10	0.2	0.005	3.36	96.63
DES CNF^a	0.08	0.6	1.15	3.5	0.023	0.12	99.85
WNF^a	0.08	0.6	1.15	3.5	0.023	0.12	99.85
TO-CNF^a	0.08	0.6	1.15	3.5	0.023	0.12	99.85

---

As the materials have different loss tangent and permittivity, the power loss in the material was simulated. As the wave travels through the lens, some of the wave power is lost based on the following equation,³²

Basically, the power loss P in the material depends on the frequency f of the traveling wave, the permittivity ε_r and the loss tangent tan δ of the material and the on the square of the absolute value of the electric field inside the volume of the lens V. As the nanocellulose composite has such a high loss tangent it experiences a similar power loss in the material as silicon (∼0.02%).

The signal not only travels inside the lens but also needs to enter and exit the lens as well. For entering and exiting, physical properties such as reflectance and transmittance become relevant. Since the silicon lens has a high permittivity, 30% of the exiting or entering signal becomes lost (I.e., it is reflected from the lens surface). To reduce this reflection loss, an anti-reflection coating can be used (I.e., impedance matching) and the physical requirement for such a layer is as follows; it has to be of a certain thickness, typically odd multiple of , and the permittivity of the antireflection layer should be related to the previous layer permittivity.³³

To have a smooth transition to the air, single or multiple anti-reflection layers might be needed which increases the complexity of the lens structure, makes fabrication more difficult and ultimately raises the cost of the lens. With low permittivity lenses there is no need to use a matching layer to reduce the back reflection which makes the lens easier to manufacture and cheaper. It is also worthwhile to note that the nanocellulose lenses show very high total transmittance (∼99.9%).

4. Conclusion and perspectives

A method with only three processing steps for manufacturing extremely lowε_r and low tan δ composite materials and RF lenses at very low temperature is presented. The sustainable composite with TEMPO-type CNF binder (TO-CNF) exhibited ε_r and tan δ values of 1.13 and 0.0019 at 5 GHz, respectively. At 300 GHz ε_r was slightly higher (1.15) and tan δ slightly lower (0.0017). The simulated power loss in the material was 0.023% which could be improved even further in the future by reducing the dielectric losses with a lower alkali content of HGMS.

The proposed method is also environmentally friendly due to its low energy consumption achieved by the low fabrication temperature of 95 °C. Moreover, since only a low fabrication temperature and pressure are used, no special devices with high investment costs are required. The manufactured lenses were also ultralight (0.6 g) and high transmittance (>99%). Ultralight lens antennas for 6G systems could improve antenna gain by 14–18 dBi depending on the smoothing level of the lens surface.

In future, new sustainable and environmentally friendly materials should be developed for radio technology.
