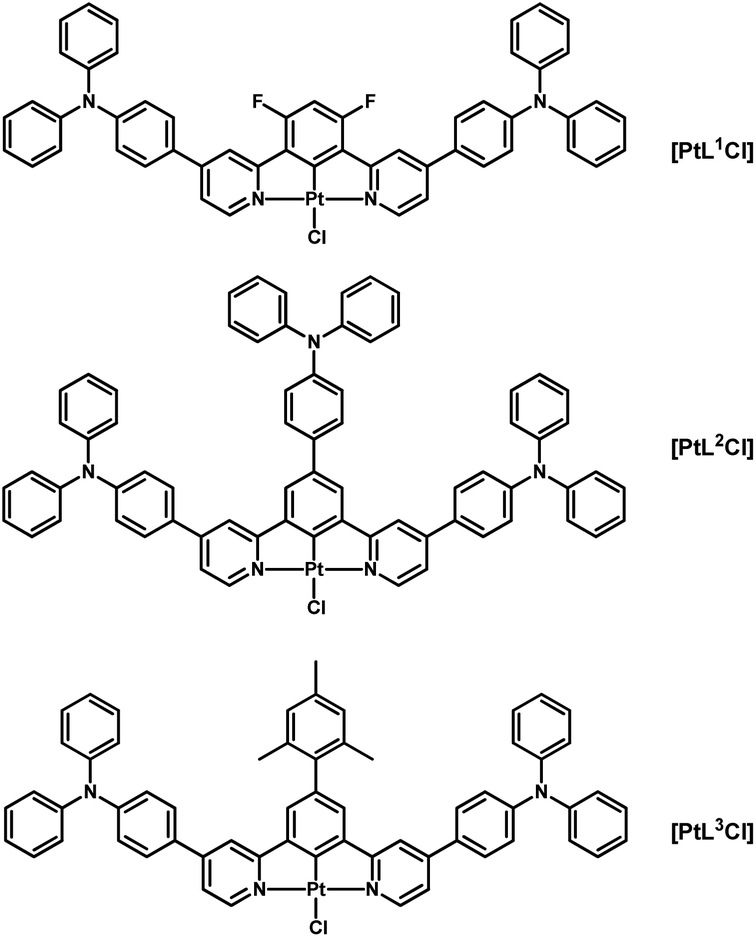

The preparation and characterization of three new complexes, namely [Pt(1,3-bis(4-triphenylamine-pyridin-2-yl)-4,6-difluoro-benzene)Cl] ([PtL1Cl]), [Pt(1,3-bis(4-triphenylamine-pyridin-2-yl)-5-triphenylamine-benzene)Cl] ([PtL2Cl]), and [Pt(1,3-bis(4-triphenylamine-pyridin-2-yl)-5-mesityl-benzene)Cl] ([PtL3Cl]), is reported. All of them are highly luminescent in dilute deaerated dichloromethane solution (Φlum = 0.88–0.90, in the yellow-green region; the λmax,em in nm for the monomers are: 562, 561 and 549 for [PtL1Cl], [PtL2Cl] and [PtL3Cl], respectively).[PtL1Cl] is the most appealing, being characterized by a very long lifetime (103.9 μs) and displaying intense NIR emission in concentrated deaerated solution (Φlum = 0.66) with essentially no “contamination” by visible light < 600 nm. This complex allows the fabrication of both yellow-green and deep red/NIR OLEDs; OLED emissions are in the yellow-green (CIE = 0.38, 0.56) and deep red/NIR (CIE = 0.65, 0,34) regions, for [PtL1Cl] 8 wt% (with 11% ph/e EQE) and pure [PtL1Cl] (with 4.3% ph/e EQE), respectively.
In the last two decades it turned out that platinum(II) chlorido complexes with a cyclometalated terdentate 1,3-bis(pyridin-2-yl)benzene ligand (bpyb), which permits a rigid N^C^N coordination environment, are among the best emitters.47–52 For example, in deaerated CH2Cl2, [Pt(bpyb)Cl] is characterized by an emission quantum yield (Φlum) of 0.60,47 a value much larger than that observed for [Pt(N^C-2-phenylpyridine)(N-2-phenylpyridine)Cl] or the parent N^N^C-coordinated isomer.49 Such a superiority has been attributed to the presence of the Pt–C bond, which causes a high ligand-field strength, and to the rigidity of the N^C^N ligand, which hinders distortions that would cause non-radiative decay.49
An appealing aspect of these platinum(II) chlorido compounds is that the introduction of suitable substituents, in the phenyl or pyridyl rings of the cyclometalated 1,3-bis(pyridin-2-yl)benzene ligand, allows to control the colour of the emission, keeping large quantum yields.14 As a matter of fact, time-dependent density functional theory (TD-DFT) calculations put in evidence that the frontier orbitals are localised on diverse portions of the molecule, such that their energies can be altered practically independently.53–55 Thus, in this kind of complexes in which the triplet state at lowest-energy has mainly HOMO → LUMO character, the phenyl ring makes the principal contribution to the HOMO whereas the pyridyl rings dominate in the LUMO. Accordingly, the introduction of electron-donating substituents in the phenyl ring (which raises the energy of the HOMO) and electron-accepting substituents in the pyridyl rings (which lowers the LUMO energy, especially in para of the N atoms) will allow to red-shift the emission, whereas electron-accepting substituents in the phenyl ring and electron-donating substituents in the pyridyl rings will lead to a blue-shift. The experimentally observed tendencies follow this design well.3
Thus, many derivatives of [Pt(1,3-bis(pyridin-2-yl)-5-R-benzene)Cl] (R = H) have been prepared and well characterized. For example, incorporation of an ester substituent at the 5 position of the central benzene ring leads to a blue-shift of the monomer emission (from 491 to 481 nm) whereas there is a progressive red-shift on going from R = mesityl (501 nm) to CH3 (505 nm), tolyl (516 nm), thienyl (548) or dimethylaminophenyl (588 nm).48 The study of the effect of the nature of the substituents at the 4 position of pyridyl rings has been mainly carried out with [Pt(1,3-bis(4-R-pyridin-2-yl)-4,6-difluoro-benzene)Cl] (R = H) as parent complex; as expected, there is a blue-shift of the monomer emission energy on going from R = CF3 (496 nm)15 to H (472 nm)50 and NMe2 (453 nm).56 All these complexes are usually characterized by high quantum yields (Φlum = 0.50–0.87) and relative long lifetimes (τ = 5–10 μs).
In this context, we were curious to see the effect of the introduction of a polarizable π-delocalized bulky substituent on the phosphorescence properties of the [Pt(1,3-bis(pyridin-2-yl)-4,6-difluoro-benzene)Cl] complex. Therefore, we prepared the complex with a triphenylamine substituent at the 4 position of each pyridine [PtL1Cl] (Scheme 1). This new complex is even more emissive than its known parent derivatives, in the yellow-green or deep red/NIR region depending on its concentration in solution. It is characterized by an unexpected long lifetime and can be used to prepare efficient yellow-green and deep red/NIR OLEDs. The related new complexes with a cyclometalated 5-triphenylamine-benzene [PtL2Cl] or 5-mesityl-benzene [PtL3Cl], prepared for comparison, are also highly emissive leading to a new fascinating brightly luminescent family of cyclometalated 1,3-di-(2-pyridyl)benzene platinum(II) complexes.
The current–voltage characteristics were measured with a Keithley Source-Measure unit, model 236, under continuous operation mode, while the light output power was measured with an EG&G power meter, and electroluminescence (EL) spectra recorded with a StellarNet spectroradiometer. All measurements were carried out at room temperature under argon atmosphere and were reproduced for many runs, excluding any irreversible chemical and morphological changes in the devices.

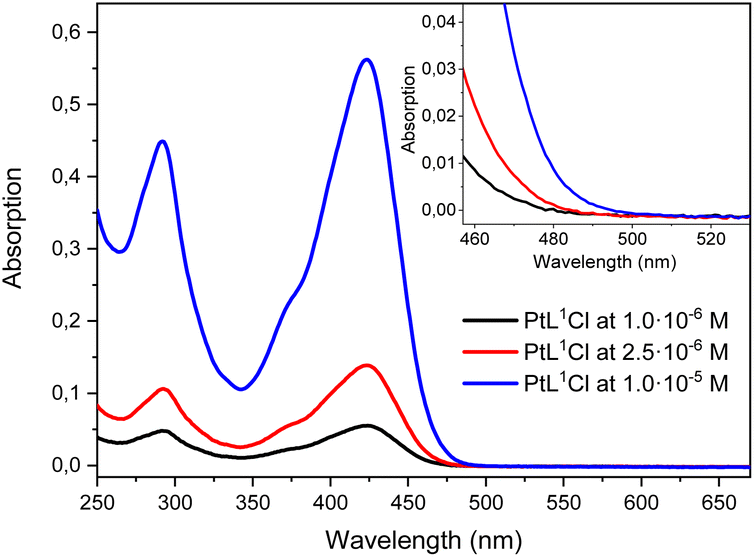

Fig. 1 Absorption spectra at different concentrations of [PtL1Cl], [PtL2Cl] and [PtL3Cl] in CH2Cl2 at 298 K. The weak bands at longer wavelengths are shown on an expanded scale for clarity. |
Complex | λ max,abs/nm [ε/M−1 cm−1] | λ max,em/nmb | ϕ lum | τ/μs |
---|---|---|---|---|
Monomer [excimer/aggregate] | Degassed [aerated] | |||
a At 2 × 10−6 M. b Excitation at 422 nm. c Excimer and Aggregate at 2.4 × 10−4 M. | ||||
[PtL1Cl] | 293 [4.5 × 104] | 562 [696]c | 0.90 [0.059] | 103.9 |
423 [5.6 × 104] | ||||
[PtL2Cl] | 296 [7.5 × 104] | 561 [704]c | 0.88 [0.051] | 6.6 |
425 [7.1 × 104] | ||||
502 [0.7 × 103] | ||||
[PtL3Cl] | 295 [5.9 × 104] | 549 [727]c | 0.89 [<0.01] | 50.0 |
424 [8.0 × 104] | ||||
495 [1.0 × 103] |
All three complexes show intense absorption bands at 260–320 nm which can be attributed to intraligand 1π–π* transitions of the N^C^N ligand by analogy with related Pt(II) complexes;57 moreover, intense bands are observed at around 350–470 nm which are attributed, by comparison with related cyclometalated Ir(III) complexes,58 to an intraligand charge transfer (ILCT) from the triphenylamine moiety to the pyridyl rings; these strong latter bands cover the absorption bands (350–460 nm) of the charge-transfer transitions involving the cyclometalated ligand and the metal.57 In addition, very weak absorption bands at lower energy (485–520 nm) are distinguishable in the absorption spectra of [PtL2Cl] and [PtL3Cl] complexes which are connected to direct population of 3π–π* states facilitated by the high spin–orbit coupling associated with the Pt(II) center. Although a similar transition is also expected for the [PtL1Cl] complex, no absorption band is detected up to 5 × 10−5 M, probably due to its low molar extinction coefficient (see Fig. S4 in ESI†).
Complexes [PtL1Cl], [PtL2Cl] and [PtL3Cl] are highly luminescent in dilute deaerated dichloromethane solution (2.5 × 10−6 M), with a luminescence quantum yield of 0.90, 0.88 and 0.89, respectively. [PtL1Cl] displays a luminescence quantum yield which is similar or superior to that reported for the parent [Pt(1,3-bis(4-R-pyridin-2-yl)-4,6-difluoro-benzene)Cl] complexes with different R groups in para of the pyridine rings (Φlum = 0.80, 0.59, 0.87, 0.71, and 0.60, for R = H,50 CF3,15 Me,38 OMe54 and NMe2,56 respectively). Besides, [PtL3Cl] has a higher luminescence quantum yield than the related [Pt(1,3-bis(pyridin-2-yl)-mesityl-benzene)Cl] complex (Φlum = 0.62).48
The three complexes, at room temperature in dilute aerated dichloromethane solution, are very efficiently quenched by oxygen: the quantum yields of [PtL1Cl], [PtL2Cl] and [PtL3Cl] are 15, 17 and at least 89 times lower in air-equilibrated dichloromethane, respectively (Table 1); given the efficacy of oxygen quenching, efficient production of singlet oxygen – the 1Δg state of O2 – can be anticipated.
Upon excitation at around 422 nm, dilute dichloromethane solutions (1.0 × 10−6–2.5 × 10−6 M) of complexes [PtL1Cl], [PtL2Cl] and [PtL3Cl] show intense phosphorescent bands in the yellow-green region with a maximum wavelength at 562, 561 and 549 nm (Fig. 2), respectively.

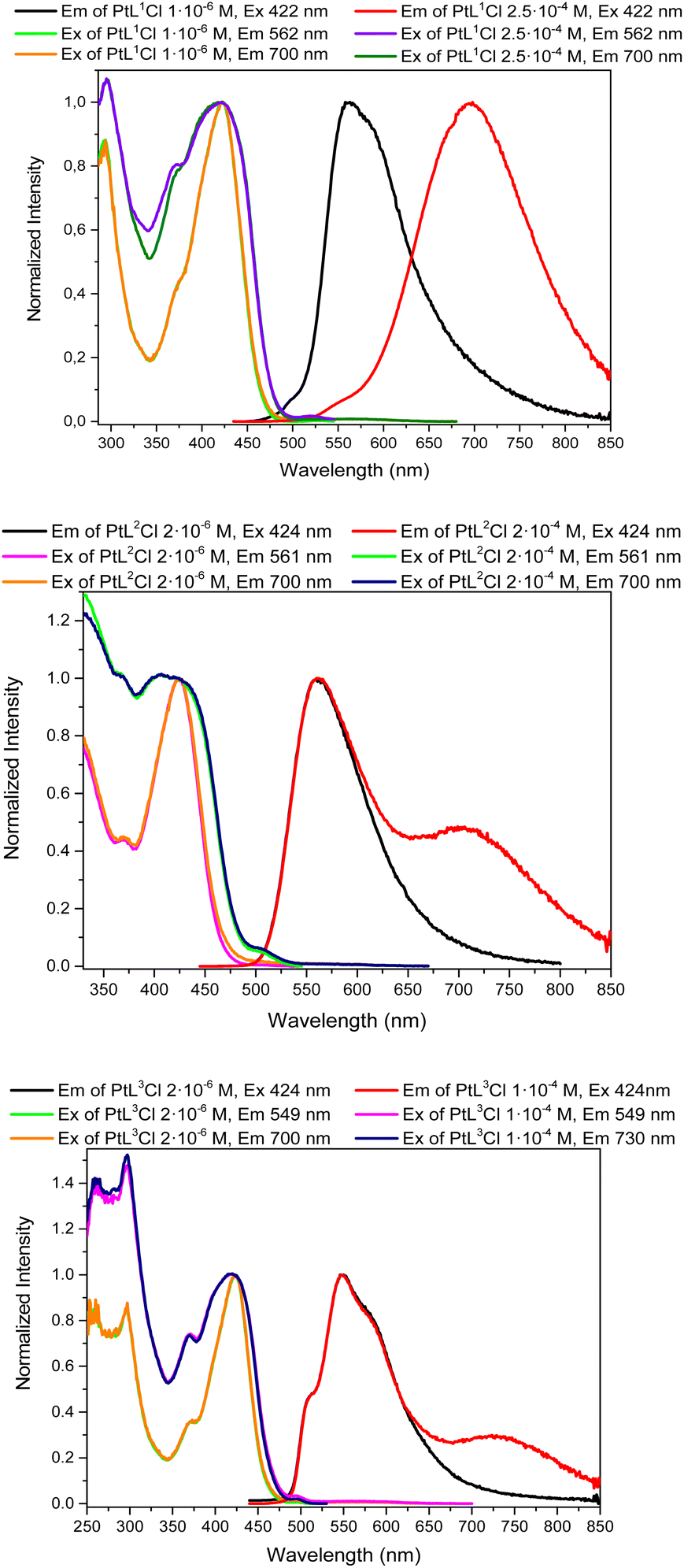

Fig. 2 Normalized emission and excitation spectra of diluted and concentrated solutions of [PtL1Cl], [PtL2Cl] and [PtL3Cl] in CH2Cl2 at 298 K. |
Thus, the substitution with the triphenylamine at the 4 position of each pyridine causes a strong red shift in the emission of complexes [PtL1Cl] and [PtL3Cl] with respect to the related [Pt(1,3-bis(4-R-pyridin-2-yl)-4,6-difluoro-benzene)Cl] (R = H) (472 nm)50 and [Pt(1,3-bis(pyridin-2-yl)-5-R-benzene)Cl] (R = mesityl) (501 nm)48 complexes, the strongest shift (90 nm) being observed for [PtL1Cl].
When the concentration of the [PtL1Cl], [PtL2Cl] and [PtL3Cl] complexes is increased up to around 2.4 × 10−4 M, new broad structureless emission bands arise at 696, 704 and 727 nm, respectively. These bands at lower energy can be ascribed to the emission from bi-molecular emissive excited states (excimers and aggregates) of the platinum(II) complexes, as previously reported.52,57,59 Remarkably, the [PtL1Cl] complex displays intense deep red/NIR emission (Φlum = 0.66) in concentrated deaerated solution with essentially no “contamination” by visible light < 600 nm. To our knowledge this represents the highest quantum yield in the deep red/NIR region reported for a platinum(II) complex in solution.
It is interesting to point out that an increase of the concentration of the three complexes doesn't lead to a strong decrease of the luminescence quantum yield in deareated dichloromethane solution (see Tables S1, S2 and S3 in the ESI†), in contrast to the behavior of other N^C^N-platinum(II) complexes.52 Such a superior performance could be reasonably attributed to the presence of the sterically hindered triphenylamine substituents.
Lifetime measurements were performed on dilute deareated dichloromethane solutions at room temperature at the maximum emission wavelength of the [PtL1Cl], [PtL2Cl] and [PtL3Cl] complexes, exciting around 424 nm. Whereas [PtL2Cl] has a lifetime (6.6 μs) in the typical range reported for N^C^N-platinum(II) complexes, [PtL1Cl] and [PtL3Cl] are characterized by an unexpected very long lifetime. Thus [PtL1Cl] has a lifetime (103.9 μs) 16 times longer than that of the related [Pt(1,3-bis(pyridin-2-yl)-4,6-difluoro-benzene)Cl] complex (τ = 6.6 μs),50 while the lifetime of [PtL3Cl] (50.0 μs) is 7 times longer than that of [Pt(1,3-bis(pyridin-2-yl)-5-mesityl-benzene)Cl] (τ = 7.2 μs).48
The longer lifetimes of [PtL1Cl] and [PtL3Cl] with respect to [PtL2Cl] can be associated to the structural variation of the substituent at the central aryl ring; in particular, we note that increasing the electron deficiency of the substituent (Ph3N < mesityl < F2Ph) makes the lifetime of the complex longer. These large lifetimes are of particular relevance, being desirable for many applications such as bioimaging.1–8
Of the three new complexes analysed in solution at room temperature, [PtL1Cl] is particularly appealing for its interesting photophysical properties such as high luminescent quantum yield, long lifetime and an emission that strongly depends on its concentration. Therefore, we decided to characterize the photophysical properties of the [PtL1Cl] complex both in solution at low temperature (77 K, Fig. S15–S18†) and in the solid state as: blend in a polymethyl methacrylate (PMMA) matrix (0.5% w/w), neat thin film and powder; the preparation of the films can be found in the general information section of the ESI.†Table 2 reports the luminescence data for complex [PtL1Cl] at the solid state.
The normalized emission and excitation spectra at 77 K of the [PtL1Cl] complex at 2.4 × 10−4 M are shown in Fig. S15 (ESI†). The emission spectra of the [PtL1Cl] display a structured phosphorescent band with a maximum wavelength at 546 nm (τ = 79.1 μs) and a broad structureless emission band at 684 nm (τ = 1.4 μs) which increases up to 730 nm (τ = 1.1 μs) by varying the excitation wavelength from 442 to 560 nm. The structured band is attributed to the monomers of the complex and, by comparison to the room temperature measurements (see Fig. S13†), it increases in intensity with respect to the broad structureless emission band at 684 nm. This behavior of the monomer signal is generally related to presence of excimers (emission at 684 nm); in fact, at low temperature the monomers have a reduced mobility and therefore a lower probability of excimer formation. The emission band at 730 nm is attributed to aggregates of the complex, as confirmed from the different excitation spectra recorded at 546 nm and 730 nm. It is interesting to note that the excitation spectrum at 546 nm and 684 nm are not equal in shape because the emission band at 730 nm partially overlaps to the excimer emission band.
The normalized absorption spectra of the neat and blend in PMMA thin films are shown in Fig. S19 (ESI†). The absorption spectrum of the thin film in PMMA is quite similar to that observed in solution. This is probably due to the weak intermolecular interactions felt by the [PtL1Cl] molecules into the polymeric matrix. On the other hand, the neat film displays a broader absorption spectrum, due to the presence of excimers/aggregates.
The normalized emission and excitation spectra of the [PtL1Cl] complex in PMMA film are given in Fig. S20 (ESI†). Upon excitation at 421 nm, the blend of [PtL1Cl] in PMMA matrix shows intense phosphorescent bands with a maximum emission wavelength at 541 nm (τ = 35.0 μs), blue-shifted by ca. 21 nm with respect to the dilute dichloromethane solution. Moreover, a new band is observed at lower energy (ca. 670–740 nm) that increases by varying the excitation wavelength from 421 to 480 nm. This latter band can be ascribed mainly to the emission from aggregates of the [PtL1Cl] complex, because of the limited mobility of the molecules into PMMA matrix, which prevents a high excimer formation. Furthermore, in support of this assignment, we note as the excitation spectra recorded at 541 nm and 700 nm are different in shape.

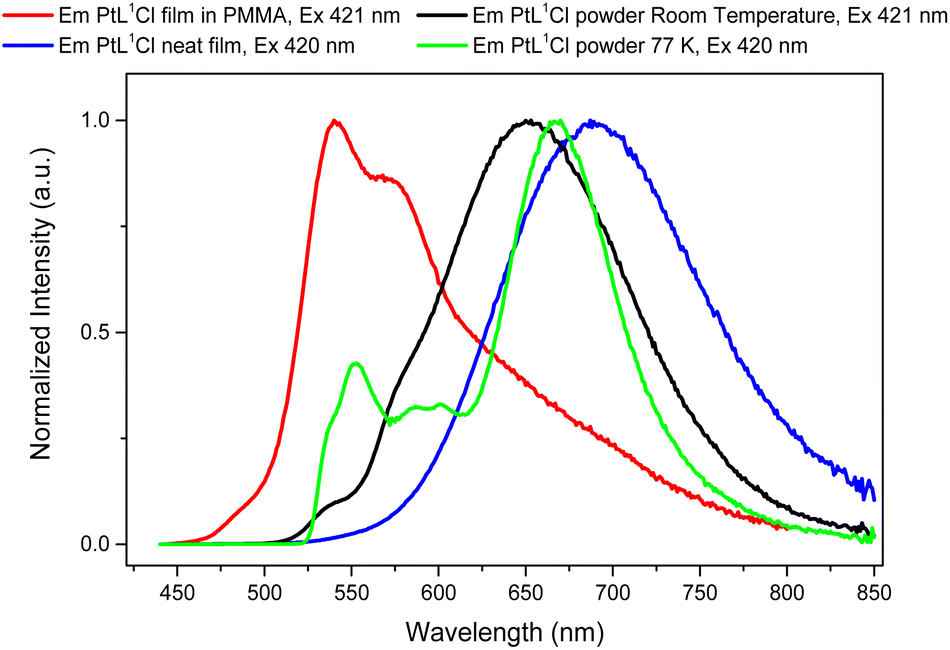

The normalized emission and excitation spectra of [PtL1Cl] as neat film are given in Fig. S23 (ESI†). Regardless of the excitation wavelength, the neat film shows only one phosphorescent band with a maximum emission wavelength at 688 nm. The spectral position of this band is similar to that observed in solution at 2.5 × 10−4 M at room and low temperature (see Fig. 2 and S15), therefore, it can be ascribed to the emission from bi-molecular emissive excited states (excimers and aggregates) of the [PtL1Cl] complex. Moreover, lifetime measurements performed at 691 nm, exciting at 404 nm, show two values: τ1 = 94.71 ns and τ2 = 342.27 ns (see ESI†).
The normalized emission and excitation spectra of the powder of the [PtL1Cl] complex at room temperature and 77 K are shown in Fig. S25 and S29 (ESI†), respectively. The emission spectra at room temperature are characterized by a broad structureless band at 652 nm (τ = 0.74 μs) with shoulders at 535 (τ = 0.56 μs) and 580 nm (τ = 0.87 μs) that decrease in intensity by varying the excitation wavelength from 460 to 500 nm.
At 77 K, the emission spectra of the powder shown a more intense structured band at 552 nm (τ = 33.7 μs) and a structureless band at 667 nm (τ = 0.99 μs), which is red-shifted by ca. 15 nm with respect to the powder at room temperature, (see Fig. 3). The peaks at 552 and 580 nm can be attributed to the monomer excitonic states of the complex by comparison to the emission spectra of the [PtL1Cl] in PMMA film (see Fig. 3). Interestingly, the emission spectra have a very similar behavior to these observed for a concentrated solution (2.4 × 10−4 M) at 77 K (see Fig. S33, ESI†); therefore, it is reasonable to assume that peak at 667 nm is mainly composed by excimer emission. However, since the excitation spectra at 552 nm and 667 nm are different from each other, it is not possible to exclude the presence of aggregates.
The luminescent quantum yield of the neat and PMMA thin film is 0.05 and 0.56, respectively, while is 0.11 for the powder. Clearly, although a significant quantum yield is maintained in the PMMA film, the higher presence of excimers and aggregates in the neat film and powder causes a strong quenching of the quantum yield.
Substitution of the methyl groups with electron-donating dimethylamino substituents causes a blue-shift of the monomer emission, allowing the preparation of blue (3–5 wt% complex within the emitting layer), white (20 wt%) and amber (100 wt%) OLEDs.56 Similar results were obtained with less donor methoxy groups in para of the pyridines54 whereas the use of electron-withdrawing CF3 groups allows to prepare green-yellow OLEDs, at the concentration of 5 wt% in the emitting layer, and deep red OLEDS, when used as neat-film emitter.15
In the present work, OLEDs were fabricated using as emitting layer either a matrix of BCPO matrix hosting the [PtL1Cl] complex (8 wt%) or a film of pure [PtL1Cl]. Holes were injected from the indium tin oxide anode and passed through a 50 nm thick transporting layer made of 4,4′,4′′-tris(N-carbazolyl)triphenylamine TCTA.
Electrons were injected from an Al/LiF cathode and transported to the emitting layer (EML) by means of a layer of 2,2′,2′′-(1,3,5-benzinetriyl)-tris(1-phenyl-1-H-benzimidazole) (TPBi, 30 nm thick). Charges recombined in the 30 nm thick EML made of pure [PtL1Cl] or of a BCPO matrix hosting the [PtL1Cl] (8 wt%). EL spectra of the OLEDs are shown in Fig. 4. OLED emissions are in the yellow-green (CIE = 0.38, 0.56) and deep red (CIE = 0.65, 0.34) regions, for [PtL1Cl] 8 wt% and pure [PtL1Cl], respectively.
There is no substantial contribution to the EL emission bands from the electron-transporting (hole-blocking) or TCTA binder layers, in accordance with a good charge carrier confinement within the EML and complete energy transfer from the excited states of BCPO (formed by charge carrier recombination) to the Pt complex.
The luminance and external EL efficiency as function of current density and applied voltage of both OLEDs are shown in Fig. 4a. The EL efficiency shows the typical roll-off at high currents due to exciton–exciton and/or exciton/charge interaction and to high field induced exciton dissociation.60 Nevertheless, for [PtL1Cl] pure film as EML the efficiency remains in excess of 1.5% for all range of current density while EL efficiency drops off an order of magnitude when [PtL1Cl] has been employed as the emitting dopants (inset of Fig. 4a). Clearly, the shorter luminescence lifetime of aggregate [PtL1Cl] (high concentration) compared to [PtL1Cl] monomer (low concentration) ensures that there is a lower probability of the excited state being quenched. Although the maximum brightness of 1750 cd m−2 achieved for [PtL1Cl] pure film as EML is apparently less than the value of 5610 cd m−2 for [PtL1Cl] as dopant in BCPO (see Table 3), it should be noted that this is a photometric (as opposed to radiometric) measurement of brightness factors in the eye's sensitivity, which falls to zero beyond 700 nm. In fact, EL intensity of OLED based on [PtL1Cl] pure film reaches 10 mW cm−2, a good result compared to the best deep red/NIR OLEDs (see Table 3).61–65
PtL1 Cl | Turn-on voltage (V) | Maximum elettroluminescence efficiencies @max @100 cd m−2 @1000 cd m−2 | Maximum elettroluminescence intensity | Color paramiters | |||||
---|---|---|---|---|---|---|---|---|---|
EQE (%ph/e) | Current efficiency (cd/A) | Power efficiency (lm/W) | B (cd m−2) | P (mW cm−2) | CIE (x;y) | Dominat wavelength (nm) purity (%) | CCT (°K) | ||
8% | 3.0 | 11.0 | 35.5 | 37.3 | 5610 | 3.8 | (0.38;0.56) | 563 | 5860 |
8.1 | 26.0 | 18.6 | 84 | ||||||
4.0 | 12.9 | 6.8 | |||||||
100% | 2.6 | 4.3 | 1.3 | 1.4 | 1750 | 10.0 | (0.65;0.34) | 607 | 1000 |
4.1 | 1.3 | 1.0 | 99 | ||||||
2.5 | 0.8 | 0.4 |
