HgBrI: a possible tecton for NLO molecular materials?

Abstract

Mixed mercury(II) halogenides have been known for a long time as good NLO (non-linear optic) materials. The NLO properties are due to the halogen disposition in the solid state and the electron distribution among the bonds formed by soft elements. We investigated the possibility of using HgBrI as a asymmetric tecton in the preparation of noncentrosymmetric crystalline compounds, by exploiting the coordinating power of Hg(II) toward N-donor ligands, and seven coordination complexes have been obtained. To unravel the nature of these complex systems we combined the data from different techniques: Raman spectroscopy, SC-XRD and Second Harmonic Generation, supported by a periodic DFT computational approach. In HgBrI crystalline products with low symmetry, the presence of substitutional disorder leads to a lack of the inversion center conferring NLO activity, which is absent in analogous complexes of Hg(II) halogenides. These results indicate HgBrI as an interesting tecton to obtain metallorganic NLO materials.

---

Introduction

Mercury halogenides have been known for a very long time. The antiseptic properties of corrosive sublimate (HgCl₂) have been widely exploited in surgery interventions and the study of solid state mixtures of different mercury halogenides attracted great interest at the beginning of the XX century.¹ This pioneering research allowed the description of reliable phase diagrams of the HgBr₂–HgI₂ mixed system which show a eutectic point at 59% of HgBr₂ and 216.1 °C. Mercury(II) bromide iodide (HgBrI) was first reported in 1869 by Oppenheimer, and was obtained by a reaction between HgBr₂ and ethyl iodide.² Later studies observed the formation of HgBrI as a component of the equilibrium HgBr₂ + HgI₂ ⇄ 2HgBrI either in the gas³ or molten⁴ phase or in solution,⁵ and the formation constants in different solvents were studied.^6–8 The first diffraction data were reported only in 1969, when a crystalline powder was obtained from a solid state reaction between Hg₂Br₂ and I₂, suggesting the existence of pure HgBrI.⁹ In 1974 Ammlung and Brill¹⁰ carefully examined the literature about mixed mercury(II) halogenides and collected the Raman spectra of the products obtained by different synthetic routes and dissolved in different solvents. On the basis of these data, the authors indicate that a ternary solid solution (HgBr₂–HgBrI–HgI₂) is always formed, also as a crystalline product. A contemporary paper of Nakashima et al.¹¹ reveals in detail the Raman scattering of (HgBr₂)_1−x(HgI₂)_x mixed crystals: the bands observed in the experimental spectrum were assigned to the ternary solid solution and a correlation was observed between the band intensity and the composition of the mixture.

In the 1990s attention was again focused on mixed HgBr_xI_2−x crystals, proposed as candidate materials for the fabrication of X- and γ-ray detectors. Crystals of a stable phase (HgBr_1.16I_0.86, the same composition of eutectic) have been synthesised by Bridgman growth, with interesting photodetection properties.¹² At the beginning of the new century, mercury halogenides and chalcogenides received renewed attention as possible infrared nonlinear optic (NLO) materials suitable for use in the MIR spectral region because: (i) they crystallise in noncentrosymmetric space groups; (ii) show a wide IR transparency; and (iii) possess a large band gap, which can improve the laser-induced damage thresholds.¹³ Three different compounds have been reported (HgBrI, Hg₂BrI₃ and Hg₂Br₃I)¹⁴ and the structural parameters of the obtained phases are quite similar. HgBrI crystallises in the noncentrosymmetric Cmc2₁ space group, and the experimental intensity of Second Harmonic Generation (SHG) of the powder samples was 1.4 times stronger than that of potassium titanyl phosphate (KTiOPO₄), a common standard material in NLO devices.^14a The NLO properties of HgBrI have been examined by means of a plane-waves periodic computational approach that allowed the characterisation of the second-order susceptibility tensor (χ²).¹⁵ The large NLO response of the HgX₂ and HgBrI systems drove us to investigate the possibility of employing HgBrI as a tecton to prepare asymmetric molecules, with the goal to obtain noncentrosymmetric crystals.¹⁶ The four criteria for organometallic NLO compounds are: (i) highly polarisable π systems; (ii) easily polarisable metal atoms; (iii) asymmetric metal coordination giving rise to an asymmetric electronic distribution at the metal centre; (iv) intense low-energy MLCT (metal-to-ligand charge-transfer) bands.¹⁷ Mercury(II) is a d¹⁰ easily polarisable metal ion and its mixed halogenides exhibit asymmetric coordination, matching with three of the previous criteria. With the aim of understanding the effects of HgBrI as a building block, we decided to employ as π systems seven unsubstituted polypyridyl ligands: 2′-bipyridine (bpy); 4,4′-dimethyl-2,2′-bipyridine (dmbpy); 1,10-phenanthroline (phen); 2,9-dimethyl-1,10-phenathroline (dmphen); 2,2′;6′,2′′-terpyridine (terpy); 2,2′-bipyrimidine (bpym); 2-(2′-pyridyl)-1,8-naphthyridine (pyNP) (shown in Fig. 1). Mononuclear [Hg(L)X₂] complexes with these ligands have been reported^18–27 and complexes [Hg(phen)Br₂] (9) and [Hg(terpy)Br₂] (10) have been synthesised and characterized in this work. The use of the bpym ligand resulted in the formation of coordination polymers, as previously described.²⁸ All the compounds of Hg(II) halogenides with the employed ligands crystallise in centrosymmetric space groups (see Table 1).

Fig. 1 Pyridyl based ligands L and their corresponding Hg(II) complexes [Hg(L)BrI].

Table 1 Space group of the Hg(II) halogenide complexes with the employed pyridyl based-ligands

a General formula [Hg2(bpym)X4]n. b From experimental results (SHG).
L	[Hg(L)Cl2]	[Hg(L)Br2]	[Hg(L)I2]	[Hg(L)BrI]
bpy	C2/c^18	P1̄^19	P1̄^20	P1^b
dmbpy	—	P1̄^21	Pbca ^22	Pbca
phen	—	P1̄	P1̄^20	P1^b
dmphen	P21/c^23	P21/c^24	C2/c^20	C2/c
terpy	P21/c^25	I2/a	C2/c^26	I2/a
pyNP	P21/c^27	P1̄^27	P1̄^27	P1^b
bpym	P21/n^28	P21/n^28	Pnma ^28	P21/c

---

In this paper, we propose an alternative preparation of HgBrI (1) by means of a mechano-chemical synthesis approach followed by a recrystallization from acetone, and employed pyridyl based ligands to obtain seven coordination complexes: [Hg(bpy)BrI] (2); [Hg(dmbpy)BrI] (3); [Hg(phen)BrI] (4); [Hg(dmphen)BrI] (5); [Hg(terpy)BrI] (6); [Hg(bpym)BrI] (7) and [Hg(pyNP)BrI] (8). All [Hg(L)BrI] complexes appear to be a solid solution with [Hg(L)Br₂] and [Hg(L)I₂], as observed in HgBrI. To reach a proper description of these systems it was necessary to combine structural SC-XRD characterization with Raman spectroscopy and SHG measurements, supported by a periodic DFT computational study. We tried to evaluate the relationship between the structure and the second order properties thanks to a NLO microscopy procedure.²⁹

Experimental

Materials and methods

All chemicals are commercial products of reagent-grade purity and were used without further purification. HgBr₂ was prepared and purified according to the literature procedure.³⁰ The ligand pyNP was synthesized according to the published method.³¹ All products have been characterised by SC-XRD, Raman and ATR-FTIR spectroscopy and elemental analyses. SHG emission was measured using two different methods: a NLO multimodal microscope to get the SHG signal from a single crystal at different excitation angles with a tested procedure,²⁹ and a specific excitation geometry over the powder samples. Periodic simulations on the experimental supercells were carried out with the CRYSTAL17 code.³² Details of the employed procedures are described in the ESI.†

(1) HgBrI. HgBr₂ (100 mg, 0.28 mmol) and HgI₂ (126 mg, 0.28 mmol), in a molar ratio of 1 : 1, were ground in an agate mortar for 10 minutes, and then some drops of acetone were added. Kneading proceeded for about 60 minutes to allow for completion of the reaction. A yellow crystalline powder was finally obtained. The product was purified by sublimation, but no difference with respect to the ground products was observed. Powder diffraction data were recorded to check the absence of starting reagents and the purity of the ground and sublimed products by comparing the experimental and calculated powder patterns (shown in Fig. S1†). Crystals suitable for SC-XRD were obtained from slow evaporation of the acetone solution.

(2) [Hg(bpy)BrI]. According to the reported synthesis of HgX₂ complexes,³³ ethanol solutions of HgBrI (30.0 mg, 0.073 mmol in 20 ml) and bpy (11.5 mg, 0.073 mmol in 2 ml) were mixed under stirring, with the immediate precipitation of a white powder. The product was separated by decantation from the mother solution and dissolved in warm ethanol. From slow evaporation colourless crystals were obtained after some days, suitable for SC-XRD. Elemental analysis (%): calc. for HgBrIC₁₀N₂H₈: C, 21.3; H, 1.4; N, 5.0; found: C, 22.1; H, 1.8; N, 4.7. ATR-FTIR (cm⁻¹): 1627 w, 1617 w, 1598 m, 1582 s, 1524 s, 1470 s, 1433 s, 1011 w, 993 w, 760 vs, 732 m, 721 m.

(3) [Hg(dmbpy)BrI]. Solutions in acetonitrile of HgBrI (26.8 mg, 0.066 mmol) and dmbpy (12.0 mg, 0.066 mmol) were mixed under stirring. Immediately, a coalescent white precipitate was formed. The product was separated by decantation from the mother solution and dissolved in warm MeCN. From slow evaporation after some days colourless crystals were obtained, suitable for SC-XRD. Elemental analysis (%): calc. for HgBrIC₁₂N₂H₁₂: C, 24.4; H, 2.0; N, 4.7; found: C, 25.1; H, 2.5; N, 5.0. ATR-FTIR (cm⁻¹): 1599 m, 1584 w, 1568 m, 1498 w, 1477 vs, 1443 m, 1250 s, 1231 m, 1160 s, 1140 w, 1040 s, 831 vs, 727 m.

(4) [Hg(phen)BrI] and (9) [Hg(phen)Br₂]. Ethanol solutions of HgBrI (41.0 mg, 0.10 mmol) or HgBr₂ (36.0 mg, 0.10 mmol) and phen monohydrate (20.0 mg, 0.10 mmol) were allowed to react under stirring, following a known procedure for HgX₂.³³ A pinkish powder immediately precipitated. The product was collected by decantation and dried. Colourless crystals of 4 and 9 suitable for SC-XRD were obtained from slow evaporation of an acetone and ethanol solution, respectively. Elemental analysis (%): calc. for HgBrIC₁₂N₂H₈ (4): C, 24.5; H, 1.4; N, 4.8; found: C, 23.1; H, 1.2; N, 3.8. ATR-FTIR (cm⁻¹): 1618 m, 1588 m, 1570 m, 1511 s, 1493 m, 1425 s, 1409 m, 992 w, 861 m, 849 vs, 725 vs, 721 s(sh). Elemental analysis (%): calc. for HgBr₂C₁₂N₂H₈ (9): C, 26.7; H, 1.5; N, 5.2; found: C, 27.1; H, 1.9; N, 4.8. ATR-FTIR (cm⁻¹): 1620 m, 1589 m, 1572 m, 1513 s, 1495 m, 1427 s, 1410 m, 1142 m, 1099 m, 861 w, 849 vs, 723 vs, 637 m.

(5) [Hg(dmphen)BrI]. Solutions in acetonitrile of HgBrI (30.0 mg, 0.074 mmol) and dmphen (15.3 mg, 0.074 mmol) were mixed under stirring. Immediately, a coalescent white precipitate was formed. The product was separated by decantation from the mother solution and dissolved in warm ethanol. From slow evaporation after some days colourless crystals were obtained, suitable for SC-XRD. Elemental analysis (%): calc. for HgBrIC₁₄N₂H₁₂ (5): C, 27.3; H, 2.0; N, 4.5; found: C, 27.9; H, 2.9; N, 4.9. ATR-FTIR (cm⁻¹): 1617 m, 1591 s, 1557 m, 1499 vs, 1437 sh, 1428 s, 1367 vs, 1290 w, 1249 w, 1223 m, 1150 s, 863 vs, 846 m, 770 s, 728 s.

(6) [Hg(terpy)BrI] and (10) [Hg(terpy)Br₂]. According to the literature procedure,³⁴ ethanol solutions of HgBrI (26.0 mg, 0.064 mmol) or HgBr₂ (23.1 mg, 0.064 mmol) and terpy (15.0 mg, 0.064 mmol) were mixed under stirring. Immediately, a white precipitate was formed. The product was separated by decantation and dried. Colourless crystals suitable for SC-XRD were obtained after some days from DMSO solutions. Elemental analysis (%): calc. for HgBrIC₁₅N₃H₁₁ (6): C, 28.1; H, 1.7; N, 6.6; found: C, 29.1; H, 2.3; N, 6.8. ATR-FTIR (cm⁻¹): 1596 m, 1587 m, 1580 s, 1556 sh, 1491 w, 1475 s, 1450 vs, 1435 m, 1310 m, 1295 w, 1267 w, 1252 m, 1010 s, 995 w, 768 vs. elemental analysis (%): calc. for HgBr₂C₁₅N₃H₁₁ (10): C, 30.4; H, 1.9; N, 7.1; found: C, 31.1; H, 2.8; N, 7.8. ATR-FTIR (cm⁻¹): 1618 w, 1595 m, 1580 s, 1552 sh, 1512 w, 1493 w, 1476 s, 1451 vs, 1436 m, 1312 m, 1296 w, 1267 w, 1253 m, 1012 s, 994 vw, 772 vs.

(7) [(HgBrI)₂(bpym)]. Acetonitrile solutions of HgBrI (30.0 mg, 0.074 mmol) and bpym (11.6 mg, 0.074 mmol) were mixed under stirring. A crystalline product was obtained from slow evaporation of the mother solution that was collected by filtration. Elemental analysis (%): calc. for Hg₂Br₂I₂C₉N₄H₆ (7): C, 11.0; H, 0.6; N, 5.7; found: C, 11.5; H, 1.1; N, 6.3. ATR-FTIR (cm⁻¹): 1609 m, 1581 w, 1559 vs, 1525 sh, 1431 w, 1403 vs, 1088 m, 1002 m, 983 sh, 819 m, 758 s, 684 m, 650 s.

(8) [Hg(pyNP)BrI]. According to our previous study,²⁷ in order to obtain a crystalline product, acetonitrile solutions of HgBrI (47.0 mg, 0.11 mmol) and pyNP (12.0 mg, 0.058 mmol), in a molar ratio of 2 : 1, were mixed and allowed to slowly evaporate. Magenta crystals suitable for SC-XRD were obtained after a few days. Elemental analysis (%): calc. for HgBrIC₁₃N₃H₉ (8): C, 25.4; H, 1.5; N, 6.8; found: C, 26.1; H, 2.1; N, 6.4. ATR-FTIR (cm⁻¹) 1602 s, 1591 s, 1574 m, 1551 s, 1534 sh, 1467 m, 1453 s, 1421 m, 1384 w, 1171 m, 1143 m, 1130 m, 1114 w, 1007 m, 999 sh, 846 s, 640 m.

Results and discussion

Identification of the complexes by Raman spectroscopy

For the synthesis of HgBrI (1) we propose an exchange reaction in the solid state between HgBr₂ and HgI₂, promoted by grinding: a homogeneous product has been obtained in about 60 minutes. This mechano-chemical procedure is able to produce 100% yield, to reduce reaction times, to limit solvent use and to avoid waste. The progress of the reaction can be observed by colour change: the starting orange mixture, made by white HgBr₂ and red HgI₂ (α phase), which turned gradually to a yellowish homogeneous powder. Raman spectroscopy was used to verify the progress of the reaction, by recording their spectra after 10–20 minutes of grinding. The Raman spectrum of crystalline HgBrI has been investigated in detail.^10,11 Five bands are detected in the Raman spectra at 42, 140, 156, 181 and 226 cm⁻¹ that have been interpreted by attributing the signals to a ternary solid solution HgBr₂–HgBrI–HgI₂: signals at 156 and 226 cm⁻¹ are ascribed to symmetric and asymmetric Br–Hg–I stretching modes, the bands at 181 and 140 cm⁻¹ respectively to HgBr₂ and HgI₂ (β phase, yellow polymorph) symmetric stretching and the band at 42 cm⁻¹ to librational modes. The intensity of the bands in the range from 140 to 190 cm⁻¹ has been correlated with the composition of the HgBr₂–HgBrI–HgI₂ mixture.¹¹ As shown in Fig. 2, in the spectrum of the starting mixture characteristic signals of reagents are detectable: at 114 cm⁻¹ for HgI₂ (α phase, red polymorph)³⁵ and at 187 cm⁻¹ for HgBr₂.³⁵ Gradually, the strong iodide peak decreases in intensity and disappears, while the solid solution signals increase in intensity. It is interesting to notice that, in agreement with the formation of HgBrI, the polymorphic transformation of HgI₂ is observed, suggesting a correlation between these two reactions. Grinding was continued until no more change was observed in the consecutive Raman spectra. The spectra of the ground product are compatible with x = 0.50 composition, suggesting that HgBrI is the most abundant compound in the obtained solid solution. The spectra of the sublimed product (obtained to check purity and stability) show a variation of band intensities, especially of the 156 cm⁻¹ band, and a little shift of the band position, that can be explained with a compositional variation of the mixture as a consequence of the sublimation (see Fig. S2†). The attribution of the 156 and 226 cm⁻¹ signals to the Br–Hg–I component is confirmed also by a periodic DFT computation of the vibrational spectra of a pure HgBrI phase. As shown in Fig. S2,† two main Raman features are computed: a strong band centred at 142 cm⁻¹ (A1 asymmetric Br–Hg–I stretching mode) and a weak band at 218 cm⁻¹ (A1 symmetric Br–Hg–I stretching).

Fig. 2 Raman spectra recorded at different times during the mechano-chemical synthesis of HgBrI (1): in blue the starting mixture and in red the final product.

Using HgBrI as the starting material, a series of N donor-based complexes have been synthesised. After mixing the solutions of HgBrI and L (see Fig. 1), a crystalline product precipitates immediately, while for [Hg₂(bpym)Br₂I₂] (7) and [Hg(pyNP)BrI] (8) single crystals were obtained after a few days. Reactions have been carried out at room temperature to favour the formation of HgBrI complexes, with the equilibrium HgBr₂ + HgI₂ ⇄ 2HgBrI being exothermic.⁸ Identical products have been obtained using ground, sublimed or crystalline HgBrI as the reagent.

Raman spectroscopy was employed not only to confirm the product formation, but also to understand the nature of the synthesised complexes on the basis of the analysis of Hg–X modes (Fig. S4–S10†). Compared to the spectra of the corresponding ligands,^27,36 ring stretching modes (1600–1450 cm⁻¹) are usually slightly shifted to higher wavenumbers by the rigidity imposed by metal coordination.³⁷ The breathing modes of aromatic fragments (around 1000 cm⁻¹ for py fragment) show a shift of 20 cm⁻¹ in 2–10 with respect to the corresponding ligand (see Table S1†), thus suggesting the formation of a chelating ring. Below 300 cm⁻¹ it is possible to observe the stretching of Hg–X and Hg–N bonds. As shown in Table 2, the ligand coordination does not significantly affect the ν(Hg–X) modes of HgBrI. The complexes with bpy (2), phen (4), and pyNP (8) show a strong ν_asym(HgBrI) signal and both the ν(HgBr₂) and ν(HgI₂) modes, suggesting the preservation of the HgBr₂–HgBrI–HgI₂ mixture also in the crystalline structure of these compounds. Similar signals are observed for [Hg(dmbpy)BrI] (3), [Hg(dmphen)BrI] (5) and [Hg(bpym)BrI] (7). A more sensible shift of Hg–X modes is detected in the [Hg(terpy)BrI] complex (6), the only one with tri-coordinated Hg(II).

Table 2 Assignment of stretching modes in 1–10

	ν(HgI2)	ν asym (HgBrI)	ν(HgBr2)	ν(Hg–N)
HgBrI (1)	141 vs	156 vs (142 calc)	181 m
HgBr2			188 vs
HgI2 (β)^11	141 vs
Hg(bpy)BrI (2)	144 s, sh	155 vs	188 m	218 w
Hg(bpy)Br2			187 vs	220 w
Hg(bpy)I2	143 vs			220 w
Hg(dmbpy)BrI (3)	139 s	152 s	178 m
Hg(phen)BrI (4)	139 vs	153 vs	179 m	214 vw
Hg(phen)Br2 (9)			177 vs	215 vw
Hg(phen)I2	138 vs			216 vw
Hg(dmphen)BrI (5)	137 s	151 s	178 m	218 vw
Hg(terpy)BrI (6)		145 vs	170 s	228 w
Hg(terpy)Br2 (10)			169 vs	232 w
Hg(terpy)I2	138 vs			224 w
Hg(pyNP)BrI (8)	141 vs	153 vs	181 s	198 w
Hg(pyNP)Br2^27			180 vs	200 vw
Hg(pyNP)I2^27	139 vs			196 vw
Hg2(bpym)Br2I2 (7)	142 vs	156 vs	183 m	215 w
				230 w
[Hg2(bpym)Br4]n^28			183 vs	209 m
				229 m
[Hg2(bpym)I4]n^28	137 vs			216 m
	145 m			239 m

---

Analysis of the substitutional disorder

All crystal structures of the obtained complexes of HgBrI show Br/I positional disorder. SC-XRD data of the solid solution are nominally indistinguishable from those of pure molecular [Hg(L)BrI] with a 50%–50% disordered composition of the two sites, but the Raman spectra of the crystals support the formation of a ternary solid solution [Hg(L)Br₂]–[Hg(L)BrI]–[Hg(L)I₂].

We obtained the crystals of 1 from an acetone solution to evaluate the similarities and differences in the positional disorder between the complexes and HgBrI phase. HgBrI (1) crystallises in the noncentrosymmetric Cmc2₁ space group. Merohedral twinning for the inversion centre has been detected and considered in resolution. The structure is similar to those of the corresponding isomorphic HgBr₂³⁸ and HgI₂ (β).³⁹ There are four Hg–X bonds, two of which are shorter, determining a characteristic coordination number of 2 with a linear geometry (I2/Br1–Hg1–I1/Br2 = 179.27(17)°) and a bisfenoidic effective coordination number of 4 ([2 + 2] coordination number), according to Grdenić⁴⁰ (see Fig. 3a). However, differently from crystal structures recently reported,¹⁴ there is no site preference for iodide and bromide: different crystallographic clues support that axial mercury coordination sites show a 50%–50% Br/I composition. First, the electron densities detected in the two positions are very similar, and do not fit with the presence of iodide or bromide alone, but are intermediates between them. In fact, by replacing only iodide or bromide in the two sites, the R parameters are much higher and the thermal ellipsoids are too big or too small compared to Hg1. In addition, the presence of a substitutional disorder in these sites is supported by the distance between Hg1 and the two sites: the modeled long range value obtained by SC-XRD is a weighted average of the Hg–I and Hg–Br distances. As shown in Fig. 4, there is a linear dependence of the Hg–X distance versus the fraction of iodide. On the basis of the Raman spectra and of the Hg–X distances, we suggest that also the previously reported phases (HgBrI, Hg₂Br₃I, and Hg₂BrI₃)¹⁴ should be better described as ternary solid solutions, with different proportions of the three components. Similarly, in the crystals of the complexes the Hg–X intermediate distances and the intermediate Br/I electron density demonstrate the presence of a substitutional disorder. XRD data indicate that for all compounds there is a 50% occupancy for each halogenide, and no difference is observed between inorganic and metallo-organic compounds. The Raman spectra indicate that HgBrI is the more abundant compound in our product and to simplify the description of the crystalline structure, the molecular unit will be indicated as HgBrI. In the crystal lattice of 1, we can observe that the HgBrI molecules interact through long Hg⋯X contacts (d(Hg1⋯I2/Br1) = 3.387(3) Å, in Fig. 3a) forming an hexagonal net in the (001) plane (see Fig. 3b), while the apical I1/Br2 site outside of the plane interacts weakly with opposite Hg atoms (d(Hg1⋯I1/Br2) = 3.411(3) Å). The planes are stacked along the [001] direction (see Fig. 3b) and are weakly connected by dispersion forces. The crystal of 1 was analysed at different temperatures: passing from 299 K to 200 K all distances are shortened, especially the weaker equatorial contacts that became lower than the sum of VdW radii, so the coordination sphere of HgBrI at 200 K became [2 + 4] (see Fig. 3c). A compression effect is evident between the layers: the distance between them, perpendicular to the [001] axis, changes from 6.686 Å at 299 K to 6.324 Å at 200 K. This indicates that the c axis is more sensitive to temperature effects with respect to the other two (dc/dT = 7.3 × 10⁻³vs. da/dT = 8 × 10⁻⁴ and db/dT = 2.5 × 10⁻³). This is due to the absence of strong directional interactions between the layers, similarly to the case of layers of mica minerals.⁴¹

Fig. 3 HgBrI (1): chemical environment around the disordered HgBrI molecular unit in the asymmetric unit at room temperature (a) and at 200 K (c) and packing along the [100] direction (b) (violet: iodine; grey: mercury; brown: bromide – ORTEP plot 50%).

Fig. 4 Dependence of the Hg–X distance versus iodine fraction in the crystal structures of HgBrI (1) and reported Hg(II) mixed halogenides.

The impossibility to resolve the disorder by SC-XRD data drove us to perform DFT periodic simulations to evaluate the effect of substitutional disorder in the Raman spectrum of solid HgBrI (1) and [Hg(bpy)BrI] (2), simulated as pure phases. Raman scattering is a versatile and efficient tool for probing long- and short-wavelength lattice vibrations. It is known that there is a composition dependence of optical modes in the presence of substitutional disorder, that randomly affects the periodic arrangement, and a relationship has been observed between disorder and the line shape of the Raman bands (as width and asymmetry).⁴² Different models have been proposed to explain this behaviour,⁴³ and a description of these systems as a weighted average of ordered configurations has provided promising results.⁴⁴ All the possible permutations on bromide and iodide positions were taken into account when calculating the Raman spectra of the disordered solution. The spectra were merged together, rescaling the intensities by the proper Boltzmann factor, calculated from the corresponding enthalpies of each configuration. In the final spectrum of HgBrI the ν_asym(BrHgI) mode shows an asymmetric broadening, with an evident shoulder. Nakashima et al.¹¹ found that mixed crystals (HgBr₂)_1−x(HgI₂)₂ show a two-mode behaviour, in which the zone-centre optical phonons of each end member are present in intermediate compositions. To explain this behaviour, a model based on the nearly free approximation was proposed, with very weak intermolecular forces, which seems to be valid for the A1 mode. This model is supported by the SC-XRD data of 1 recorded at different temperatures, which indicate the presence of weak intermolecular forces and weak interlayer interactions. It is known that substitutional disorder results in broad spectra and the effect is more evident for composition x = 0.5 (in AB_xC_1−x system) that shows the maximum disorder.^43a A study of positional disorder of GaAs_xP_1−x (x = 0.5), using a linear chain model, was performed using five different models (random chain, disordered chain, ordered chain, virtual ion, and isodisplacement) to calculate the reflectance IR spectrum. The results indicate that the numbers of bands increase with the increase of disorder in the model.^43b Our periodic calculation also presents a major number of signals when the disorder is simulated in the systems, giving rise to the broad asymmetric band in the average spectrum (see Fig. S3†). No evident asymmetric broadening is observed in the experimental spectra recorded at room temperature. A behaviour more similar to the calculated one could be observed at lower temperature.

For [Hg(bpy)BrI] (2) the disorder of halogenide atoms in the crystallographic cell gives rise to four different permutations and their Raman patterns at low wavenumbers are quite different. Focusing on vibrational modes involving Hg atoms, all the signals related to the four permutations (at 130, 145, 155 and 176 cm⁻¹) are present in the experimental spectrum (the black line in Fig. 5), suggesting that the halogenide atoms have a random disposition in the crystalline lattice. The preservation of a solid solution in the coordination product is suggested by signals attributable to the bromide and iodide complexes (at 143 and 188 cm⁻¹, indicated with a star in Fig. 5) that are not present in the calculated spectra: in particular, ν(HgBr₂) is not superimposed to any HgBrI mode. So the Raman intensities and XRD data suggest that [Hg(L)BrI] is the dominant component of the ternary solid solutions of metallo-organic derivatives.

Fig. 5 (a) Calculated Raman spectra of modes involving Hg in different permutations of the dimeric [Hg(bpy)BrI] unit cell (centrosymmetric in red and noncentrosymmetric in blue) and the experimental spectrum of [Hg(bpy)BrI] (2) in black; (b) centrosymmetric (p1 and p4, in the red boxes) and noncentrosymmetric (p2 and p3, in the blue boxes) permutation views along the ac plane; dashed and dotted lines are related to lines in the Raman spectrum. (Violet: iodine; yellow: mercury; green: bromide; grey: carbon; blue: nitrogen; white: hydrogen.)

Symmetry of the crystals

As shown in Table 1, most of the obtained complexes crystallised in centrosymmetric space groups. In the compounds with lower symmetry ([Hg(bpy)BrI] (2), [Hg(phen)BrI] (4), and [Hg(pyNP)BrI] (8)) the choice of the correct space group has been very ambiguous. P1̄ shows better results in least squares refinement with respect to P1. In P1 space group resolution, the thermal ellipsoids and the distances show very high errors, and in the case of 4 and 8 no stable solution can be found with both a very high redundance and completeness of the data. Mercury(II) halogenides with similar ligands usually form dimers,^20,45 and the dimeric interactions result always in the presence of the inversion centre, as shown in Fig. 6a. In the centrosymmetric model, the presence of the Br/I disorder in 2, 4 and 8 makes some of the cells noncentrosymmetric and so the crystal can be described as “not fully centrosymmetric”. Considering the possible disposition of disordered halogenides in the dimers, only 50% of the cells of the crystal (see Fig. 6b and c) still exhibit an inversion centre. However, this situation is made even more complicated by the solid solution formed with respective [Hg(L)I₂] and [Hg(L)Br₂], that can make dimers with all the complexes present in the crystals, exhibiting or not an inversion centre.

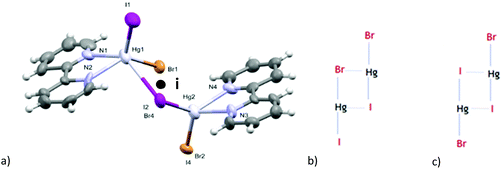

Fig. 6 (a) Example of (pseudo)-centrosymmetric dimeric interaction in [Hg(bpy)BrI] (2); models of noncentrosymmetric (b) and centrosymmetric (c) local disposition. (Violet: iodine; grey: mercury; orange: bromide; grey: carbon; blue: nitrogen; white: hydrogen – ORTEP plot 50%.)

Being sometimes very complex to determine the correct symmetry between P1̄ and P1 from diffraction results alone, we decided to measure a property that inherently resolves this problem: SHG.⁴⁶ Since only crystals with a lack of the inversion centre can show NLO properties, the experimental measurement of SHG demonstrates unambiguously the noncentrosymmetry of the crystal structures.⁴⁷ SHG can occur with good efficiency only if a standard phase matching condition is satisfied (to compensate the dispersion due to the frequency dependence of the refractive indices), and this can often be done by using a birefringent material. To find out the transmission range the UV–Vis optical diffuse reflectance spectra were recorded and are shown in Fig. S11.† HgBrI (1) shows a relatively wide transparency in the visible region down to about 460 nm. Complexes 2, 4 and 8 are transparent above about 390 nm, but 8 shows a low absorption also in the visible region due to the intense magenta colour of its crystals. Qualitative measures have shown that the crystals of 2, 4 and 8 are birefringent and 8 in particular is pleochroic. SHG emission was detected on the powder crystalline samples of 1, 2, 4 and 8 (see Fig. S12†). This experimental evidence suggests that the average disposition in crystallographic cells is noncentrosymmetric. The great difficulty in obtaining a noncentrosymmetric model, notwithstanding its exactness, can be explained using the crystallographic orbit theory: the heaviest atoms (Hg and the I/Br positions) and most of the lightest atoms of the dimers are disposed in the unit cell in a way that simulates almost perfectly the presence of an inversion centre (belonging in pairs to a common crystallographic orbit in the P1̄ supergroup).⁴⁸ As a consequence, XRD intensities are not affected enough by the deviation from centrosymmetry to ensure a clear noncentrosymmetric structure resolution, as found and confirmed in similar cases by the in-depth studies of Marsh.^46a For these reasons, we decided to maintain the higher P1̄ symmetry in 4 and 8, for which no enough good refinement results have been obtained in P1, following the literature.^46a,49 In this supergroup description, the resulting geometrical data are averaged between the non-equivalent molecules in the correct subgroup model.

With the aim of obtaining a more stable and more accurate noncentrosymmetric model of 2, two measurements at 200 K and at 299 K (both with resolution of 0.5 Å) have been performed on the same crystal. The effects due to the quasi-singularity in the least squares refinement have not been resolved, neither at low temperature nor at a high resolution limit, and the centrosymmetric model continued to be the best one on the basis of SC-XRD data. At low temperature there is a better resolution of the Br/I disorder in two stable distinct sites (d(Hg–Br) = 2.528(9) Å, d(Hg–I) = 2.659(5) Å).

Also for [Hg(dmbpy)BrI] (3) and [Hg(dmphen)BrI] (5) the dimeric disposition of the molecules in the crystal structure introduces a symmetry inversion centre, but previous considerations on the actual symmetry suggest the possibility of a lower space group symmetry associated with the disappearance of some symmetry elements. A centrosymmetric description has been preferred because the refinement in noncentrosymmetric space groups, considering all the possibilities derived by deleting the inversion centre, has been unsuccessful, and no anomalous behaviour of systematic absences has been observed (under the experimental conditions of measurements).

In the obtained compounds, we can observe that when the bromide and the iodide complexes are not isomorphous, solid solutions crystallise in one of the space groups of the analogous complexes, usually the iodide one, as observed for 3, 5 and [Hg(terpy)BrI] (6), but it can also show a different crystal packing with respect to the other halides, as in [Hg₂(bpym)Br₂I₂] (7). When [Hg(L)Br₂] and [Hg(L)I₂] are isomorphous, the substitutional disorder leads to a lack of the inversion centre, thus conferring NLO activity, as observed for 2, 4 and 8. A similar behaviour is observed also in 1 that crystallises in the same space group of HgBr₂, stabilising the isomorphous high temperature polymorph of HgI₂.

Crystalline structures

The molecular structures of ([Hg(bpy)BrI] (2), [Hg(phen)BrI] (4), and [Hg(pyNP)BrI] (8) (in Fig. 7) are very similar to those of HgX₂ (X = Cl, Br, and I) derivatives of the same ligands,^18–20,27 with the exception of the Hg–X distance in the range of 2.550–2.590 Å that reflects the Br/I disorder. The crystal packing of these molecules can be usually considered an average of the characteristics of the iodide and bromide derivatives. It has been demonstrated that upon moving from the chloride to the iodide, the bridging behaviour is reduced and the bridging interactions are weaker.²⁸ In the case of bpy complexes, the chloride forms a true 1D-coordination polymer,¹⁸ while the bromide and iodide form dimers that interact through spodium bonding,⁵⁰ giving dimeric molecular entities¹⁹ and very weakly interacting dimers,²⁰ respectively. The packing of 2 is an intermediate between that of bromide and iodide: very long spodium bonding interactions connect the molecules of the dimers, at the edge of the VdW sum (d(Br/I⋯Hg) = 3.404(8) Å and 3.377(8) Å, respectively). This distance is slightly shortened at low temperature, changing from 3.376(7) Å at 299 K to 3.364(6) Å at 200 K (in the centrosymmetric model). Dimers interact with each other through parallel π⋯π stacking between the bpy ligands (see Fig. 7d, an interplanar distance of 3.577(10) Å, a displacement of ca. 2.6 Å, and an intercentroid distance of 3.997(10) Å).

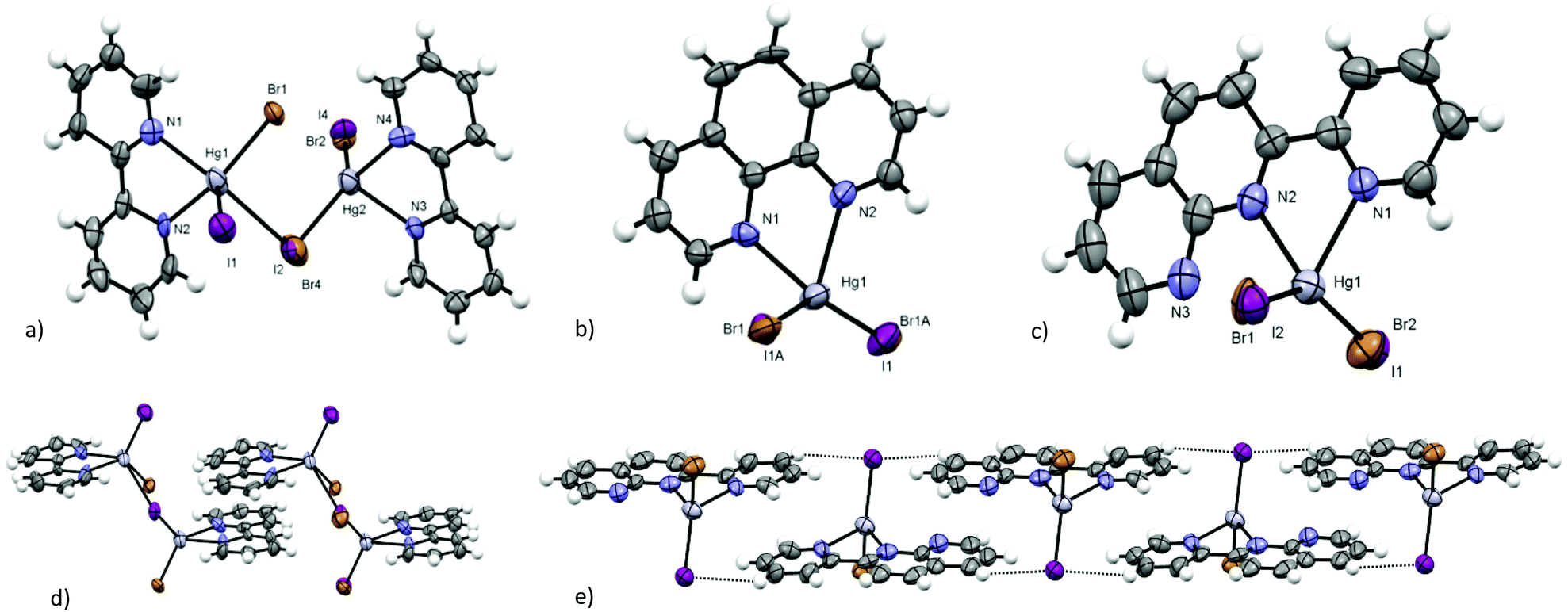

Fig. 7 (a) Asymmetric unit and (d) crystal packing between dimers in the crystal structure of [Hg(bpy)BrI] (2); (b) asymmetric unit of [Hg(phen)BrI] (4); (c) asymmetric unit and (e) details of the structure of [Hg(pyNP)BrI] (8). (Violet: iodine; grey: mercury; brown: bromide; grey: carbon; blue: nitrogen; white: hydrogen – ORTEP plot 50%.)

We have obtained the crystal structure of [Hg(phen)Br₂] (9), isomorphous to [Hg(phen)I₂],²⁰ with the same space group, but with shorter intermolecular spodium interaction, as can be expected (d(Br⋯Hg) = 4.055(6) Å vs. d(I⋯Hg) = 4.400(6) Å). Also in the case of 4, the crystal packing is very similar to that of iodide analogues,²⁰ although the dimeric spodium interaction is much shorter ( d(Br/I⋯Hg) = 4.247(7) Å). The differences in the Hg–Br and Hg–I bonds are in agreement with the weighted average in the case of Hg–(Br/I). All phen derivatives form π⋯π stacked dimers displaced of more than 3.6 Å, and place one of the lateral rings of an upper molecule on the top of the central one of a lower complex, with all ligands being disposed on parallel planes. Compound 4 shows one of the smaller values of the interplanar distance in the series of the synthesised complexes (an interplanar distance of 3.369(10) Å and an intercentroid distance of 3.671(10) Å).

Looking at the pyNP derivatives, the crystal packing of [Hg(pyNP)Cl₂] is different from those of bromide, iodide and BrI analogues.²⁷ [Hg(pyNP)Cl₂] has a monoclinic structure, with the columns of inverted chloride complexes that stack together by placing the naphthyridine (NP) ring of the upper complex on the top of NP ring of the lower complex, and the same for the py substituent (an interplanar distance of 3.608(10) Å, a displacement of 1.38 Å, and an intercentroid distance of 3.602(10) Å). No intermolecular interactions can be observed, with the Cl⋯Hg contacts being very long (d(Cl⋯Hg) = 4.755(7) Å). In 8, isomorphous to the triclinic bromide and iodide derivatives, the ribbons of inverted molecules are π⋯π stacked and overlap along the ribbons of the NP ring of a molecule with one of the nearest molecules, and the same for py (see Fig. 7e, an interplanar distance of 3.489(9) Å; a displacement of 2.35 Å for the overlapping NP rings and of 1.39 Å for the overlapping py). The ribbons are stabilized by weak C–H⋯Br/I interactions (d(C–H⋯Br/I) = 3.164(9) Å). These interaction distances are intermediates between the values of the bromide and iodide derivatives.

[Hg(dmbpy)BrI] (3) and [Hg(dmphen)BrI] (5) show a higher reticular symmetry, and orthorhombic and monoclinic space groups respectively, due to the more symmetric disposition of the complexes in the crystal environment. In the crystal structure of 3, the π⋯π and the C–H⋯π aromatic interactions between parallel or perpendicular molecules determine a perpendicular herringbone packing motif isomorphic to that found in [Hg(dmbpy)I₂],²² with similar interaction distances (see Fig. 8c, an interplanar distance of 3.715(9) Å, an intercentroid distance of 3.715(8) Å, and a displacement of 0.7 Å, d(CH₃⋯π) = 3.601(8) Å). In [Hg(dmbpy)Br₂], different from iodide and 3, a dimeric disposition is observed²¹ and the crystal packing is very similar to that of [Hg(bpy)X₂] (X = Br, I). The crystal structure of 5 is isomorphic to that of [Hg(dmphen)I₂]²⁰ (C2/c space group), with diagonal columns of inverted dimers displaced on π⋯π stacked molecules (see Fig. 8d, an interplanar distance of 3.360(9) Å, an intercentroid distance of 3.605(9) Å and a displacement of 3.682(8) Å). The chloride and bromide complexes show a more opened crystal packing and a herringbone pattern,^23,24 while in the iodide derivative and in 5, the ligands are disposed on parallel planes.

Fig. 8 (a) Asymmetric unit and (c) packing interactions between molecules in the crystal structure of [Hg(dmbpy)BrI] (3); (b) asymmetric unit and (d) packing interactions between dimers of [Hg(dmphen)BrI] (5). (Violet: iodine; grey: mercury; brown: bromide; grey: carbon; blue: nitrogen; white: hydrogen – ORTEP plot 50%.)

[Hg(terpy)BrI] (6) (see Fig. 9a) and [Hg(terpy)Br₂] (10) are isomorphous to iodide analogues²⁶ and crystallise in the I2/a space group. In 6 the Hg–X distance is longer than those found for the previous synthesised compounds (d(Hg–Br/I) = 2.657(5) Å), but is fairly shorter than the Hg–I bond reported for [Hg(terpy)I₂]²⁶ (d(Hg–I) = 2.697(5) Å) and longer than Hg–Br in 10 (d(Hg–Br) = 2.556(3) Å). In 6 the disorder is constrained to 50%–50% Br/I for symmetry reasons, excluding any preconcentration of one of the two halides or a pseudosymmetry nature of the twofold axis passing through Hg, but the Raman spectra and Hg–X distance support the presence of both halogenides. The crystal packing of 6 is similar to that of the iodide and bromide complexes but differs from the chloride one.²⁵ [Hg(terpy)Cl₂] shows a lower symmetry (P2₁/c space group) and a herringbone disposition similar to those of [Hg(dmphen)X₂] (X = Cl, Br), while the heavier halogenides show diagonal columns of the overlapped but slightly shifted terpy ligands on parallel planes (see Fig. 9b for 6, interplanar distances of 3.540(9) Å, an intercentroid distance of 3.736(9) Å and a displacement of 4.203(8) Å, similar to those of iodide and bromide complexes).

Fig. 9 (a) Asymmetric unit and (b) dimeric interaction of [Hg(terpy)BrI] (6); (c) asymmetric unit and (d) crystal packing interactions of [(Hg₂(bpym)Br₂I₂] (7). (Violet: iodine; grey: mercury; brown: bromide; grey: carbon; blue: nitrogen; white: hydrogen – ORTEP plot 50%.)

The dinuclear [Hg₂(bpym)Br₂I₂] (7) (see Fig. 9c) differs strongly from bromide and iodide analogues,²⁸ adding further demonstration of the greater percentage of the HgBrI derivatives in the ternary mixture, and of its influence in crystal packing. Homo-halogen compounds are coordination polymers (staggered in the case of bromide and chloride and ribbon-like for iodide), while 7 crystallises in the molecular form without any bridging Hg⋯X or π⋯π interactions, forming a herringbone packing motif (see Fig. 9d) stabilised only by C–H⋯Br/I weak contacts (d(C–H⋯Br/I) = 3.042(9) Å and 3.081(10) Å).

SHG on single crystals

The measurement on the powder samples shows that the efficiency of SHG emission of the [Hg(L)BrI] complexes decreases with respect to 1 (see Fig. S12†). This may be attributed to different factors. First, it is known that the SHG response depends on band gaps, and lower band gaps generate higher hyperpolarizability.⁵¹ The calculated band gap for (1) (3.14 eV, similar to reported experimental value^12e) is lower than that in (2) (3.73 eV). Second, as discussed previously, the noncentrosymmetric local disposition related to the Br/I disorder can be correlated to SHG emission. A recent study revealed that centrosymmetric crystals can generate the Second Harmonic, in the presence of twinning by inversion or local asymmetry.⁵² The components of hyperpolarizability and the second order susceptibility matrix have been calculated for HgBrI (1) and [Hg(bpy)BrI] (2), according to Kleinman's symmetry. The assumptions for Kleinman's symmetry are always valid for SHG.⁵¹ The β third rank tensor has 27 matrix components. Kleinman's symmetry demonstrates that the same indices of the matrix can be permuted and so the matrix is reduced to 10 components. The periodical simulation performed on 2 indicates that only for noncentrosymmetric permutations the components of hyperpolarizability and the second order susceptibility matrix are not zero (see Table S2†). This suggests that the noncentrosymmetry in these systems is related to the substitutional disorder that generates noncentrosymmetric local disposition.

Further analysis on SHG emission has been performed along seven angles using a NLO microscope procedure²⁹ on a crystal of 2, with the aim to correlate the crystalline structure and second order NLO properties. The single crystal of 2 gives an intense signal at the arbitrary angle 0 and two less intense emissions by rotating the crystal of 45 degrees in both directions, meaning that signals can be observed only in one specific direction (see Fig. S13†). The elaboration of the SHG signal through the microscopy technique allowed us to acquire an image of the emission and to highlight the crystal face responsible for that emission. The crystal faces of the measured sample have been determined with the metrical tensor derived from an XRD experiment, using the CrysAlisPro software.⁵³ Therefore, it is possible to verify that the crystal emitted on the crystal face (010), as shown in Image S1.† Trying to understand the correlation between the structure and hyperpolarizability tensor, the crystal morphology was obtained with the BFDH approach, by using the Mercury software.⁵⁴ By combining the morphological and microscopy data, it is possible to observe that the signal is detected in the direction parallel to π⋯π stacking, as shown in Fig. S14a.† Only the experimental data on the powder sample of 1 are available, but the periodic simulation suggests that only components along the z axis are not zero (xxz, yyz, zzz) and these components are parallel to the HgBrI molecular fragment (see Fig. S14b and Table S3†).

These results suggest that the direction of propagation of the Second Harmonic is different between pure inorganic HgBrI and its complex. HgBrI gives a signal in the direction of the molecular fragment, while in [Hg(bpy)BrI] (2) the signal is propagated in the direction parallel to the π⋯π stacking. According to Levine's bond charge model and to anionic group theory, the bulk second-order susceptibility of a noncentrosymmetric crystal is additive, and is the vector sum of the microscopic second-order susceptibilities of the constituent basic structural units.⁵⁵ According to these models, the anharmonicity results from electronegativity and size differences between bonded atoms, so in complex 2 we can presume that hyperpolarizability originates from the HgBrI unit. Thanks to the employed NLO microscope procedure we can observe that the main direction of propagation of SHG emission in a single crystal of 2 is along π⋯π stacking interactions. It is known that the aromatic molecules conjugated by means of the π-orbital may exhibit microscopic SHG effects larger than the σ-type molecules of the same size. Thus it is not surprising that the strongest signal has been detected in the π⋯π more polarisable direction. Considering that [Hg(bpy)X₂] (X = Br, I) do not show NLO activity, we can affirm that the HgBrI unit is responsible for this phenomenon.

Conclusions

The non-conformity of the nature of mixed mercury(II) halogenides in the literature is related to the challenging characterisation of these systems. In this work, we proved that HgBrI (1) obtained from mechano-chemical synthesis has the same characteristics of the previously reported phases, and we provided further evidence of the formation of a ternary solid solution HgBr₂–HgBrI–HgI₂. The interesting physico-chemical properties of HgBrI, especially its large NLO response, drove us to explore its coordination chemistry toward N-donor ligands. We prepared the first coordination compounds of HgBrI, whose characterisation was as challenging as that of the starting material. The Raman spectra confirmed that ternary solid solutions [Hg(L)Br₂]–[Hg(L)BrI]–[Hg(L)I₂] are formed as single crystal and powder crystalline products. SC-XRD data indicate that substitutional disorder is present in the crystal structures, resulting in Hg–X distances intermediate between those of the two halogenides. Due to this disorder, the assignment of the correct space group was very ambiguous, especially for compounds with the less symmetric space group. The crystalline powder of these compounds generates the Second Harmonic, confirming that the average crystalline structure is better described as noncentrosymmetric. The NLO activity could be related to the presence of substitutional disorder that generates local asymmetry, as supported by DFT periodic calculations.

Although the products are solid solutions, they are reproducible and with a constant composition. The inorganic ternary solid solution, due to the presence of HgBrI, shows properties that are different from those of its components: for example it is the stabilised one of its component (HgI₂) in its high temperature polymorph, isomorphic to HgBr₂. In the coordination complexes, solid solutions are obtained as well, and they show properties different from those of the isolate component: in particular, [Hg(bpy)BrI] (2), [Hg(phen)BrI] (4) and [Hg(pyNP)BrI] (8) emit SHG.

These results suggest that HgBrI could represent an interesting tecton for NLO materials. In fact, the intrinsic disorder in the crystalline structures can generate local asymmetry and enhance the NLO activity, if derivatives have suitable ligands.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

S. P. acknowledges the Italian Space Agency for co-funding the Life in Space Project (ASI N. 2019-3-U.O).

References

1. (a) W. Reinders, Über die Bildung und Umwandlung der Mischkrystalle von Quecksilberbromid und quecksilbeijodid, Z. Phys. Chem., 1900, 32, 494–536; (b) L. Losana, Sull'allotropia dello joduro mercurico, Gazz. Chim. Ital., 1900, 56, 301–331.
2. A. Oppenheim, Ueber Jod-Brom-quecksilber, Berquem, 1869, 2, 1571–1573.
3. A. Malt'sev, G. Selivanov, V. Yampolsky and N. I. Zavalishin, Far Infrared Absorption Spectra of Mercury Dihalide Vapours, Nat. Phys., 1971, 231, 157–158.
4. J. H. R. Clarke and C. Solomons, Raman Spectra of Mercuric Iodide, Iodochloride, and Iodobromide in the Molten State, J. Chem. Phys., 1968, 48, 528–529.
5. M. L. Delwaulle, Quantitative study of chemical equilibrium using the Raman effect, in Proceedings of the Colloquium Spectroscopicum Internationale VI, ed. W. van Tongeren, et al., Pergamon Press, London, 1957, pp. 565–567.
6. Y. Marcus, Mercury(II) halide mixed complexes in solution, Acta Chem. Scand., 1957, 11, 329–339.
7. T. G. Spiro and D. N. Hume, The Uncharged Mixed Halides of Mercury(II). Equilibrium Constants and Ultraviolet Spectra, J. Am. Chem. Soc., 1961, 83, 4305–4310.
8. T. R. Griffiths and R. A. Anderson, Computer-Based Study of the Electronic Absorption Spectra of Neutral Mercury(II) Mixed Halides in Methanol: Equilibrium Constants and Band Assignments, Inorg. Chem., 1979, 18(9), 2506–2511.
9. (a) R. P. Rastogi and B. L. Dubey, Solid-State Reaction between Iodine and Mercurous Halides, J. Am. Chem. Soc., 1967, 89(2), 200–209; (b) R. P. Rastogi and B. L. Dubey, Crystal structure of HgBrI, J. Inorg. Nucl. Chem., 1969, 31, 1530–1531.
10. R. L. Ammlung and T. B. Brill, The Nature of the Mixed Halides of Mercury(II), Inorg. Chim. Acta, 1974, 11, 201–205.
11. S. Nakashima, H. Mishima and H. Tai, Raman scattering from mixed crystals (HgBr₂)_1−x (HgI₂)_x, J. Phys. Chem. Solids, 1974, 35, 531–536.
12. (a) K. S. Shah, L. P. Moy, J. Zhang, F. Olscher, J. C. Lund and M. R. Squillante, HgBr_xI_2−x photodetectors for use in scintillation spectroscopy, Nucl. Instrum. Methods Phys. Res., Sect. A, 1992, 322, 509–513; (b) M. Veleva, M. M. Gospodinov, M. Daviti, A. N. Anagnostopoulos, K. Paraskevopoulos, E. K. Polychroniadis and I. Yanchev, Dielectric Behavior Of Mixed HgBr_xI_2−x Single Crystals, J. Mater. Sci. Lett., 2000, 19, 1019–1020; (c) V. Marinova, S. Shurulinkov, M. Daviti, K. Paraskevopoulos and A. Anagnostopoulos, Refractive index measurements of mixed HgBr_xI_2−x single crystals, Opt. Mater., 2000, 14, 95–99; (d) V. Marinova, I. Yanchev, M. Daviti, K. Kyritsi and A. N. Anagnostopoulos, Electron- and hole-mobility of Hg(Br_xI_1−x)₂ crystals (x = 0.25, 0.50, 0.75), Mater. Res. Bull., 2002, 37(12), 1991–1995; (e) M. Daviti and K. M. Paraskevopoulos, Temperature dependence of the fundamental absorption edge of HgBr₂ and HgBrI single crystals, Mater. Res. Bull., 1999, 34, 381–388.
13. (a) Y. Li, W. Wang, H. Wang, H. Lin and L. Wu, Mixed-Anion Inorganic Compounds: A Favorable Candidate for Infrared Nonlinear Optical Materials, Cryst. Growth Des., 2019, 19, 4172–4192; (b) H. Lin, W. Wei, H. Chen, X. Wu and Q. Zhu, Rational design of infrared nonlinear optical chalcogenides by chemical substitution, Coord. Chem. Rev., 2020, 406, 213150; (c) H. Chen, W. Wei, H. Lin and X. Wu, Transition-metal-based chalcogenides: A rich source of infrared nonlinear optical materials, Coord. Chem. Rev., 2021, 448, 214154; (d) M. Li, Z. Ma, B. Li, X. Wu, H. Lin and Q. Zhu, HgCuPS₄: An Exceptional Infrared Nonlinear Optical Material with Defect Diamond-like Structure, Chem. Mater., 2020, 32, 4331–4339.
14. (a) Q. Wu, Y. Li, H. Chen, K. Jiang, H. Li, C. Zhong, X. Chen and J. Qin, HgBrI: A promising nonlinear optical material in IR region, Inorg. Chem. Commun., 2013, 34, 1–3; (b) Y. Huang, X. Meng, L. Kang, Y. Li, C. Zhong, Z. Lin, X. Chen and J. Qin, Hg₂Br₃I: a new mixed halide nonlinear optical material in the infrared region, CrystEngComm, 2013, 15, 4196–5000; (c) Y. Li, M. Wang, T. Zhu, X. Meng, C. Zhong, X. Chen and J. Qin, Synthesis, crystal structure and properties of a new candidate for nonlinear optical material in the IR region: Hg₂BrI₃, Dalton Trans., 2012, 41, 763–766.
15. X. Shi, Z. Ma, C. He and K. Wu, Strong SHG responses predicted in binary metal halide crystal HgI₂, Chem. Phys. Lett., 2014, 608, 219–223.
16. K. Y. Suponitsky and A. E. Masunov, Supramolecular step in design of nonlinear optical materials: Effect of π⋯π stacking aggregation on hyperpolarizability, J. Chem. Phys., 2013, 139, 094310.
17. O. R. Evans and W. Lin, Crystal engineering of NLO materials based on metal-organic coordination networks, Acc. Chem. Res., 2002, 35, 511–522.
18. H. L. Chen, W. T. Chen, Q. Y. Luo and Y. P. Xu, A One-Dimensional Compound [HgCl₂(2,2′-bipy)]_n (bipy = bipyridine): Synthesis and Crystal Structure, Asian J. Chem., 2015, 27, 2005–2007.
19. D. C. Craig, Y. Farhangi, D. P. Graddon and N. C. Stephenson, Cryst. Struct. Commun., 1974, 155, 3–5.
20. E. Freire, S. Baggio, R. Baggio and L. Suescun, Mercury(II) halide complexes with N-donor organic ligands: crystal and molecular structure of HgI₂R, R = 1,10-phenanthroline, 2,9-dimethyl-1,10-phenanthroline, bipyridine, J. Chem. Crystallogr., 1999, 29(7), 825–830.
21. R. Alizadeh, V. Amani, A. A. Farshady and H. R. Khavasi, Synthesis, characterization, and crystal structure determination of two mercury(II) dimer complexes with 4,7-diphenyl-1,10-phenanthroline, 5,5′-dimethyl-2,2′-bipyridine and bromide, J. Coord. Chem., 2010, 63, 2122–2131.
22. N. Tadayon Pour, A. Ebadi, A. Abedi, V. Amani and H. R. Khavasi, (5,5′-Dimethyl-2,2′-bipyridine-к²N,N′)-diiodidomercury(II), Acta Crystallogr., Sect. E: Struct. Rep. Online, 2008, 64, m1305.
23. I. Warad, M. Al-Noaimi, S. F. Haddad and R. Othman, Dichlorido(2,9-dimethyl-1,10-phenanthroline-к²N,N′) mercury(II), Acta Crystallogr., Sect. E: Struct. Rep. Online, 2013, 69, m109.
24. R. Alizadeh, A. Heidari, R. Ahmadi and V. Amani, Dibromido(2,9-dimethyl-1,10-phenanthroline-к²N,N′)mercury(II), Acta Crystallogr., Sect. E: Struct. Rep. Online, 2009, 65, m483–m484.
25. D. Matkovic-Calogovic, N. Davidovic, Z. Popovic and Z. Zugaj, Dichloro(2,2′: 6′,2′′-terpyridyl-N,N′,N′′)mercury(II), Acta Crystallogr., Sect. C: Cryst. Struct. Commun., 1998, 54, 1766–1768.
26. C. Yan, Q. Chen, L. Chen, R. Feng, X. Shan, F. Jiang and M. Hong, Crystal Structures and Luminescence Behaviour of d¹⁰ Metal-Organic Complexes with Multipyridine Ligands, Aust. J. Chem., 2011, 64, 104–118.
27. A. Giordana, E. Priola, E. Bonometti, P. Benzi, L. Operti and E. Diana, Structural and spectroscopic study of the asymmetric 2-(2′-pyridyl)-1,8-naphthyridine ligand with closed-shell metals, Polyhedron, 2017, 138, 239–248.
28. E. Priola, E. Bonometti, V. Brunella, L. Operti and E. Diana, Luminescent coordination polymers of 2,2′-bipyrimidine and mercury(II) salts: a structural and computational study, Polyhedron, 2016, 104, 25–36.
29. D. Marabello, P. Antoniotti, P. Benzi, C. Canepa, E. Diana, L. Operti, L. Mortati and M. P. Sassi, Non-linear optical properties of β-D-fructopyranose calcium chloride MOFs: an experimental and theoretical approach, J. Mater. Sci., 2015, 50, 4330–4341.
30. G. Brauer, Handbook of preparative inorganic chemistry, Academic Press, New York London, 2nd edn, 1963, vol. 2.
31. (a) S. K. Patra, N. Sadhukhan and J. K. Bera, Effects of Axial Coordination on the Ru−Ru Single Bond in Diruthenium Paddlewheel Complexes, Inorg. Chem., 2006, 45, 4007–4015; (b) C. S. Campos-Fernández, L. M. Thomson, J. R. Galán-Mascarós, X. Ouyang and K. R. Dunbar, Homologous Series of Redox-Active, Dinuclear Cations [M₂(O₂CCH₃)₂(pynp)₂]²⁺ (M = Mo, Ru, Rh) with the Bridging Ligand 2-(2-Pyridyl)-1,8-naphthyridine (pynp), Inorg. Chem., 2002, 41, 1523–1533.
32. (a) R. Dovesi, A. Erba, R. Orlando, C. M. Zicovich-Wilson, B. Civalleri, L. Maschio, M. Rerat, S. Casassa, J. Baima and B. Salustro, et al., CRYSTAL17 User Manual, Int. J. Quantum Chem., 2014, 114(19), 1287–1317; (b) R. Dovesi, A. Erba, R. Orlando, C. M. Zicovich-Wilson, B. Civalleri, L. Maschio, M. Rérat, S. Casassa, J. Baima and S. Salustro, et al., Quantum-Mechanical Condensed Matter Simulations with CRYSTAL, Wiley Interdiscip. Rev.: Comput. Mol. Sci., 2018, 8(4), 1–36.
33. G. J. Sutton, Some Studies in Inorganic Complexes. V. Mercury(II), Aust. J. Chem., 1959, 12, 637–642.
34. J. E. Douglas and C. J. Wilkins, Terpyridyl complexes of zinc, cadmium, and mercury, Inorg. Chim. Acta, 1969, 3(4), 635–638.
35. J. R. Ferraro, Low frequency vibration of Inorganic and coordination compounds, Plenum Press, New York, 1971.
36. (a) L. Ould-Moussa, M. Castellà-Ventura, E. Kassab, O. Poizat, D. P. Strommen and J. R. Kincaid, Ab initio and density functional study of the geometrical, electronic and vibrational properties of 2,2′-bipyridine, J. Raman Spectrosc., 2000, 31, 337–390; (b) M. Reiher, G. Brehm and S. Schneider, Assignment of Vibrational Spectra of 1,10-Phenanthroline by Comparison with Frequencies and Raman Intensities from Density Functional Calculations, J. Phys. Chem. A, 2004, 108, 734–742; (c) N. Neto, G. Sbrana and M. Muniz-Miranda, Vibrational analysis and molecular structure of 2,2′-bipyrimidine, Spectrochim. Acta, Part A, 1990, 46, 705–715.
37. K. Burger, F. E. Wagner, A. Vértes, É. Bencze, J. Mink, I. Labàdi and Z. Nemes-Vetéssy, Structural study of terpyridine and o-phenanthroline complexes of iridium(III), J. Phys. Chem. Solids, 2001, 62, 2059–2068.
38. V. I. Pakhomov, A. V. Goryunov, A. A. Boguslavskii, R. S. Lotfullin and I. N. Ivanova-Korfini, Refinement of HgBr₂ structure, Zh. Neorg. Khim., 1990, 35, 2476–2478.
39. M. Hostettler, H. Birkedal and D. Schwarzenbach, The yellow polymorphs of mercuric iodide HgI₂, Helv. Chim. Acta, 2003, 86, 1410–1422.
40. D. Grdenić, The structural chemistry of mercury, Q. Rev., Chem. Soc., 1965, 19, 303–328.
41. P. Z. Zanazzi and A. Pavese, Behavior of Micas at High Pressure and High Temperature, Rev. Mineral. Geochem., 2002, 46, 99–116.
42. L. Y. Lin, C. W. Chang, W. H. Chen, Y. F. Chen, S. P. Guo and M. C. Tamargo, Raman investigation of anharmonicity and disorder-induced effects in Zn_1−xBe_xSe epifilms, Phys. Rev. B: Condens. Matter Mater. Phys., 2004, 69, 075204.
43. (a) S. Sahoo, S. Dhara, V. Sivasubramanian, S. Kalavathi and A. K. Arora, Phonon confinement and substitutional disorder in Cd_1−xZn_xS nanocrystals, J. Raman Spectrosc., 2009, 40, 1050–1054; (b) A. S. BarkerJr and A. J. Sievers, Optical studies of the vibrational properties of disordered Solids, Rev. Mod. Phys., 1975, 47(2), 1–179; (c) K. Hayashi, N. Sawaki and I. Akasaki, Raman Scattering in ZnS_xSe_1−x alloys, Jpn. J. Appl. Phys., 1991, 30(3), 501–505; (d) P. Dean, Vibrational Properties of Disordered Systems: Numerical Studies, Rev. Mod. Phys., 1972, 44(2), 127–168.
44. P. D'Arco, S. Mustapha, M. Ferrabone, Y. Noël, M. De La Pierre and R. Dovesi, Symmetry and Random Sampling of Symmetry Independent Configurations for the Simulation of Disordered Solids, J. Phys.: Condens. Matter, 2013, 25, 355401.
45. (a) W. T. Chen, M. S. Wang, X. Liu, G. C. Guo and J. S. Huang, Investigations of Group 12(IIB) Metal Halide/Pseudohalide-Bipy Systems: Syntheses, Structures, Properties, and TDDFT Calculations (Bipy = 2,2′-bipyridine or 4,4′-bipyridine), Cryst. Growth Des., 2006, 6(10), 2289–2300; (b) A. J. Canty, C. L. Raston, B. W. Skelton and A. H. White, Structural studies of mercury(II) halide pyridine complexes [HgX₂(py)₂], X=Cl, Br, or I, J. Chem. Soc., Dalton Trans., 1982, 15–18.
46. (a) R. E. Marsh, Some thoughts on choosing the correct space group, Acta Crystallogr., Sect. B: Struct. Sci., 1995, 51, 897–907; (b) F. H. Herbstein and R. E. Marsh, More Space-Group Corrections: From Triclinic to Centred Monoclinic and to Rhombohedral; Also From P1 to P-1 and From Cc to C2/c, Acta Crystallogr., Sect. B: Struct. Sci., 1998, 54, 677–686; (c) R. E. Marsh, P1 or P-1? Or something else?, Acta Crystallogr., Sect. B: Struct. Sci., 1999, 55, 931–936.
47. B. Boulanger and J. Zyss, International Tables for Crystallography, 2013, vol. D, pp. 181–222.
48. L. Suescun and M. Nespolo, From patterns to space groups and the eigensymmetry of crystallographic orbits: a re-interpretation of some symmetry diagrams in IUCr Teaching Pamphlet No. 14, J. Appl. Crystallogr., 2012, 45, 834–837.
49. D. Watkins, The control of difficult refinements, Acta Crystallogr., Sect. A: Found. Crystallogr., 1994, A50, 411–437.
50. (a) A. Bauzá, I. Alkorta, J. Elguero, T. J. Mooibroek and A. Frontera, Spodium Bonds: Noncovalent Interactions Involving Group 12 Elements, Angew. Chem., Int. Ed., 2020, 59, 17482–17487; (b) G. Ciancaleoni and L. Rocchigiani, Assessing the Orbital Contribution in the “Spodium Bond” by Natural Orbital for Chemical Valence–Charge Displacement Analysis, Inorg. Chem., 2021, 60(7), 4683–4692; (c) T. Xia, D. Li and L. Cheng, Theoretical analysis of the spodium bonds in HgCl₂⋯L (L = ClR, SR₂, and PR₃) dimers, Chem. Phys., 2020, 539, 1109782; (d) G. Mahmoudi, E. Zangrando, B. Miroslaw, A. V. Gurbanov, M. G. Babashkin, A. Frontera and D. A. Safin, Spodium bonding and other non-covalent interactions assisted supramolecular aggregation in a new mercury(II) complex of a nicotinohydrazide derivative, Inorg. Chim. Acta, 2021, 519, 120279.
51. R. W. Boyd, Nonlinear Optics, 3th edn, 2008.
52. T. Y. Tou and S. W. Ng, SHG in a centrosymmetric crystal – can it be possible?, Acta Crystallogr., Sect. C: Struct. Chem., 2021, 77, 586–590.
53. CrysAlis PRO 1.171.38.46, Rigaku OD, 2015.
54. (a) C. F. Macrae, I. J. Bruno, J. A. Chisholm, P. R. Edgington, P. McCabe, E. Pidcock, L. Rodriguez-Monge, R. Taylor, J. van de Streek and P. A. Wood, J. Appl. Crystallogr., 2008, 41, 466–470; (b) C. F. Macrae, P. R. Edgington, P. McCabe, E. Pidcock, G. P. Shields, R. Taylor, M. Towler and J. van de Streek, J. Appl. Crystallogr., 2006, 39, 453–457; (c) I. J. Bruno, J. C. Cole, P. R. Edgington, M. K. Kessler, C. F. Macrae, P. McCabe, J. Pearson and R. Taylor, Acta Crystallogr., Sect. B: Struct. Sci., 2002, 58, 389–397; (d) R. Taylor and C. F. Macrae, Acta Crystallogr., Sect. B: Struct. Sci., 2001, 57, 815–827.
55. (a) C. Chen, Y. Wu and R. Li, The anionic group theory of the non-linear optical effect and its applications in the development of new high-quality NLO crystals in the borate series, Int. Rev. Phys. Chem., 1989, 8(1), 65–91; (b) D. Xue and S. Zhang, Chemical bond analysis of the correlation between crystal structure and nonlinear optical properties of complex crystals, Phys. B, 1999, 262, 78–83.

---

Footnotes

† Electronic supplementary information (ESI) available. CCDC 2086278–2086292. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/d2dt00201a

‡ CriSDi, Interdepartmental Center for Crystallography, Via Pietro Giuria 7, 10125, Torino, Italy.

---
