Thermodynamic study of crown ether–lithium/magnesium complexes based on benz-1,4-dioxane and its homologues

Abstract

The synthesis and characterization of benz-1,4-dioxane crown ethers (CEs) and some of its homologues are described and analyzed. The effect of added C-atom within the CE ring (increasing the hydrophobicity of the CE ring by increasing the number of CH₂-units) on the Li⁺ and Mg²⁺ complexation within a liquid–liquid extraction (LLE) is investigated and thermodynamically analyzed. The complex stability constant K, the change of entropy ΔS and enthalpy ΔH, and the Gibbs energy ΔG are determined. The enhanced hydrophobicity of the CE ring results in stronger complexation stability of the Mg²⁺ complex, while the Li⁺ complexes are less favored. This effect mainly occurs due to the increased entropy term with improved hydrophobicity of the CE. These results indicate a stronger extraction of Li⁺ in Mg²⁺-containing aqueous resources if more hydrophilic CEs are used.

---

1. Introduction

Crown ethers (CE) are well-known for binding metal cations due to their cyclic cavities and electron donor features.¹ CEs are macrocyclic ligands containing ethyleneoxy units, so-called polyethers. Since the name of these compounds is quickly complicated if larger rings are considered, Pedersen suggested the family name crown ether. This definition results from the molecular models and the ability to crown metal cations.^2,3 The general structure of the CE is shown in Fig. 1, where X labels the total number of atoms and Y the total number of heteroatoms within the ring. If the CE arises from an arene catechol compound, the structure is named benzo-X-crown-Y.

Fig. 1 Illustration of different CE structures.

The interaction of a CE with a cation is mainly based on the interaction of charge (the metal cation) and dipole (donor atom within the CE ring), which can be influenced by the orientation of the donor atom, cavity size of the CE, type of donor atom (according to the HSAB principle), the substitution of electron-donating and withdrawing compounds and solvent.⁴ The large variability of the CE structures and their properties is why they are used in many different applications such as isotope separations,⁵ ion determination sensors,⁶ phase transfer catalysts,⁷ and ion transport through membranes.^8,9

The application of CEs in solvent extraction is particularly noteworthy since it presents several benefits such as high selectivity, fast extraction rates, and easy application due to simple equipment on a laboratory and industrial scale. Especially in applications with polymers, improved adsorption properties and product recovery are more straightforward.^10–12 The solvent extraction with CEs has been widely used to recover alkali and alkaline-earth metal ions such as Li⁺, Na⁺, K⁺, Mg²⁺, and Ca²⁺.^10,13–16 Different cavity sizes, heteroatoms within the ring such as nitrogen or sulfur, substituents, and complex stoichiometries have been investigated.^17–20 To remove the metal ions from the CE–metal complex, a temperature increase in the system releases the ions from this complex, as shown in the work of Warshawsky and Kahana.²¹

In this work, we synthesized different CEs based on benz-1,4-dioxane by increasing the cavity with an increased alkane chain (increasing the hydrophobicity of the CE). The effect of changing the ring size and increasing hydrophobicity surroundings on metal ion complexation is studied without incorporating other factors such as donor atoms or attached substituents. In this work, we will focus on the complexation stability of benz-1,4-dioxane-based CEs with the alkali metal ion Li⁺ and the alkaline-earth metal ion Mg²⁺. In terms of Li⁺ recovery from brines or seawater, the often-higher Mg²⁺ concentration leads to significant issues due to its similar behavior. Lithium and its compounds are widely used in industrial applications due to their physical and chemical properties and are therefore highly required.²² Especially in the electric vehicle industry, the demand has increased tremendously. The annual global lithium use was estimated to be 57 700 tons in 2019 and 2020, an 18% increase from 49 100 tons in 2018.²³ Numerous CE adsorbers have been tested for Li⁺ recovery. For example, the complex stability with benzo-15-crown-5, 12-crown-4, and 14-crown-4 CEs adsorbers have shown excellent complexation properties with Li⁺; however, complexations with Mg²⁺ and Na⁺ were also possible.^18,24–32 To selectively extract Li⁺ from aqueous resources, the complexation behavior of Li⁺ and the other metal ions is of great importance. Especially the complexation properties of Li⁺ and Mg²⁺ are of great interest since they have almost the same ion diameter in aqueous solution.^33,34

In this work the introduced benzo-6-crown-2 (B6C2), benzo-7-crown-2 (B7C2), and benzo-8-crown-2 (B8C2) structures (Fig. 2) are investigated regarding metal ion complex stability since, as far as we know, such adsorbers have not yet been studied. Moreover, the influence of the hydrophobic environment within the ring on the respective ions will be tested and discussed. The thermodynamic properties of Li⁺ and Mg²⁺ complexes will be further investigated by determining the enthalpy and entropy change during the complexation process.

Fig. 2 Benz-1,4-dioxane-based CEs with an increased alkali chain.

2. Results and discussion

2.1. Synthesis of benz-1,4-dioxane crown ethers and homologues

One of the most widely used methods for the syntheses of CEs is the Williamson ether synthesis, which was introduced by Alexander William Williamson.³⁵ The Williamson ether synthesis is a variant of the nucleophilic substitution second-order reaction (S_N2), characterized by a transition state. An alcohol, here: catechol 1, is converted into an dialcoholate 2 with the aid of a non-nucleophilic base K₂CO₃ (Fig. 3).³⁶ It is worth mentioning that the alkoxides exhibit a higher nucleophilicity than alcohols, due to their increased electron density at the partially negatively charged oxygen atom, which accelerates the speed of the reaction. Due to their high base strength, ether synthesis is limited to the use of primary alkyl halides, since otherwise side-reactions would occur from the competing bimolecular elimination reaction (E2). It is worth mentioning that the use of phenoxides principally can lead to another side reaction, the C-alkylation. However, this can be prevented by using inert solvents such as benzene, toluene, xylene or polar aprotic solvents such as dimethylformamide (DMF) and dimethylsulfoxide (DMSO) to favor the oxygen alkylation.³⁶ In the next step, the dialcoholate 2 reacts with a primary dihalogenide 3 (here: 1,3-dibromopropane) via a concerted, five-membered transition state 4 to form a new ether bond. An alkyl dibromide was chosen as an alkyl dihalide since the leaving capacity of the leaving group correlates with its ability to stabilize the negative charge and increases within the group F < Cl < Br < I due to increasing polarization capacity. In a further S_N2 reaction, the oxygen nucleophile intramolecularly attacks the electrophilic center of the C–Br bond 5 and forms the seven-membered B7C2 CE ring 6 with two oxygen donor atoms. The synthesis of B8C2 follows the same reaction mechanism. For this, 1,4-dibromobutane was used as an alkyl dihalogenide. The synthetic routes were adapted/modified from the work of Y.-F. Ji et al.³⁷ and H.-L. Zhu.³⁸ Since these CEs have not been previously considered as ligands, sufficient analysis of these structures is performed by nuclear magnetic resonance (NMR) spectroscopy (Fig. 4) and infrared (IR) spectroscopy (Fig. S3 and S7, ESI†), differential scanning calorimetry (DSC) measurements (Fig. S4 and S8, ESI†), and mass spectrometry (MS) (Fig. 5). The ¹H NMR data before purification of the products and the ¹³C NMR spectra are also documented in the ESI.† The data of the ¹H- and ¹³C spectra are in good agreement with the data from the literature. To the best of our knowledge, the gas chromatography-MS (GC-MS), IR spectroscopy, and DSC data of these compounds have not been reported before.

Fig. 3 Illustration of the reaction mechanism of dipotassium catecholate with 1,3-dibromopropane under S_N2 conditions to synthesize B7C2.

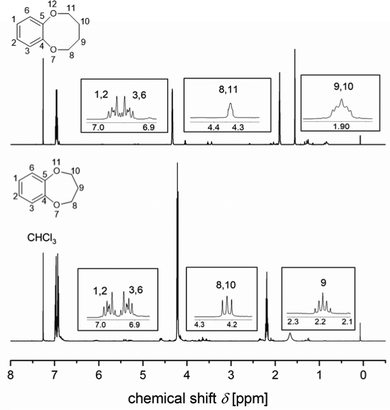

Fig. 4 ¹H NMR spectrum of the B7C2 (bottom) and B8C2 (top). The spectrum was recorded in CDCl₃ and shows the significant signals and their multiplicities on larger scale.

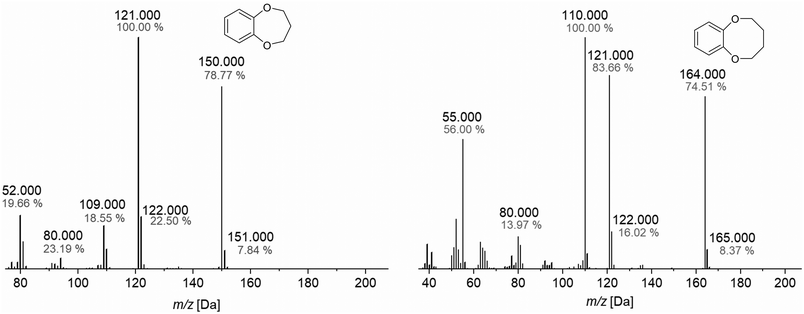

Fig. 5 GCMS spectrometry of B7C2 (left) and B8C2 (right).

The molecular ion peak found at 151 000 m/z agrees with the calculated molecular weight for approximately B7C2 (M = 151.178 g mol⁻¹). The main fragmentation reactions consist of a benzyl cleavage. The delocalized π-electron system of the aromatic compound favors the formation of a stable benzyl ion (80 000 m/z). The possible minor cleavage product is 1,3-cyclobutadiene (52 000 m/z), formed by re-ionization. The peak at 121 000 m/z shows a fragmentation based on a benzyl cleavage and hydrogen rearrangement, followed by McLafferty rearrangement and fragmentation. Instead of the McLafferty rearrangement, direct fragmentation of the radical cation is possible, whose quinoid cleavage product leads to the peak at 109 000 m/z. The GC-MS spectrum of the B8C2 shows a molecular ion peak at 164 000 m/z, which is in good agreement with the calculated molecular weight of M = 164 080 m/z. The cleavage product of the McLafferty rearrangement at 121 000 m/z has a lower intensity than B7C2. Thus, it can be assumed that the formation of this molecule ion peak decreases with the increasing ring size of the CE, which is most likely due to the steric relief caused by the chain breakage.

2.2. Pre-extraction experiments

In the following, the extraction properties of the newly synthesized B8C2 and B7C2 CEs and B6C2 (commercially available) with Li⁺ and Mg²⁺ in a liquid-liquid extraction (LLE) are investigated and the effect of ring size and hydrophobicity environment of the ring are discussed. To ensure that the CEs remain in the organic phase during the LLE, blank tests were performed. For this purpose, the CE was dissolved in an organic phase (here: DCM) and LiCl in the aqueous phase. The two-phase mixture was shaken vigorously, and the aqueous phase was subsequently analyzed by UV-vis spectroscopy. Since LiCl shows no absorption in the UV-vis spectrum, any visible signal should refer to the CE. Fig. S13 (ESI†) clearly shows that no absorption maximum is observed in the aqueous phase after extraction for the B7C2 and B8C2 CE structures. The B6C2 shows a small signal (black curve) below 1% and thus one can conclude that the CE–cation complex remains mainly in the organic phase.

2.3. Determination of the thermodynamic complex constant K

The extractability of the metal salts by B6C2, B7C2, and B8C2 was investigated using a reference series of the respective cation. To determine the complexing properties of the CEs, the complex constant K was determined. To ensure UV-vis spectroscopic evaluation of salt complexation, counterions were used that allow π–π* excitation in the ultraviolet to visible spectral range through conjugated double bond systems and (anti-)auxochromic groups. The chosen metal salt dyes and their corresponding UV-vis spectrum can be found in the ESI† (Fig. S9–S12).

For the LLE of the CE and cation dye, a molar ratio of CE to metal ion ranging from 25 : 1 to 11 : 1 was used. The reaction can be described as shown in eqn (1).

where m and x are the stoichiometric factors of the cation M of charge z₊, and the corresponding counterion X of charge v₋, and n as the equivalents of the CE obligatory for complexation. For all cations m = 1 applies, while x = 1 applies for Li⁺ and x = 2 applies for Mg²⁺. A calibration curve of each salt solution was performed before extraction to determine the concentration in the aqueous phase using the Lambert–Beer law. The calibration was performed shortly before the measurement series and conducted using the same stock solution as the extraction experiments to guarantee the most precise data. The complex constant K of the extraction process was calculated according to the law of mass (eqn (2)):^10,39with the mean activity coefficients γ_± and the stoichiometric coefficient Q. Due to the electroneutrality condition, only the activity of the entire system can be determined. Therefore, the mean activity coefficient γ_± is applied for γ₋ and γ₊, which can be calculated according to the Debye–Hückel-equation (see eqn (3)).I_a is the ionic strength and A is a dimensionless factor, which has a value of 0.509 at 25 °C.⁴⁰ The ionic strength I_a can be calculated according to eqn (4):With c_i, the molar concentration of the ion (mol L⁻¹) and z_i the charge number of the ions. The stoichiometric coefficient Q can be calculated according to eqn (5).

2.4. Extraction studies of B6C2, B7C2 and B8C2 with Li⁺ and Mg²⁺

In the following, the complex stability of B6C2, B7C2, and B8C2 at different concentrations with Li⁺ and Mg²⁺ at 25 °C is determined. The complexation constant K was calculated for a single and a sandwich-type cation–CE complexation. An illustration of the newly formed structure is exemplarily presented in Fig. 6 for the B7C2 with Li⁺ and Mg²⁺ and the corresponding anions. Since Li⁺ and Mg²⁺ are preferentially complexed in coordination number (CN) 4,^41,42 a sandwich complex can be assumed (two CE ligands crown one metal ion). Furthermore, the cavity size of the CE might be too small for the metal ions to fit into the CE cavity.³⁴ Therefore, the data presented here are calculated based on the assumption of a sandwich-type complexation.

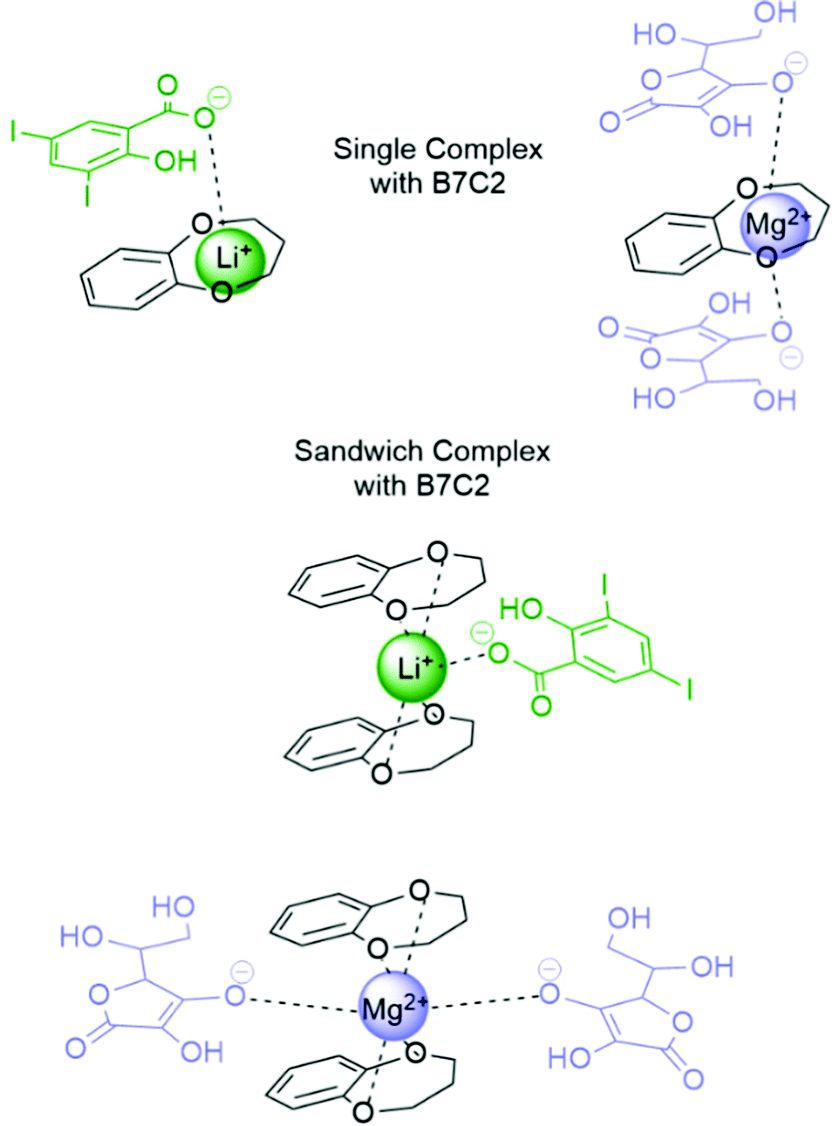

Fig. 6 Schematic illustration of the B7C2–Li and Mg single and sandwich-type complex with corresponding anions.

In the complexation process of metal ions from aqueous solutions, the formation of the hydration shell plays an essential role. The hydration shell must first be removed from metal ions to be complexed. The strength of the hydration shell depends on the charge and the size of the metal ion. The energy freed when one mole of ions undergoes hydration is called the hydration enthalpy ΔH_hyd, which is the highest for Mg²⁺ (−1922 kJ mol⁻¹), followed by Li⁺ (−521 kJ mol⁻¹).⁴³ The evaluated complex stability constants K for the molar ratio of CE to metal ion ranging from 25 : 1 to 11 : 1 for single and sandwich-type complexation can be found in Fig. S14 and Table S1 (ESI†). A graphical illustration of the complexation constants K of the respective complexes is shown in Fig. 7 (values refer to the more likely sandwich-type complexation). It is already known that the substitution of the oxygen donor atoms with less electronegative atoms such as nitrogen favors the complexation of Mg²⁺ (as expected according to the HSAB principle). However, the influence of a more hydrophobic environment with a simple alkyl chain has not been studied yet. The introduction of a more hydrophobic ring shows a stronger complex stability constant K for Mg²⁺ which is indicated by the following trend B8C2 = B7C2 > B6C2. For Li⁺, on the other hand, the trend is vice versa showing an increased log K in the following trend: B6C2 ≈ B7C2 > B8C2 and thus decreasing with higher hydrophobicity of the ring. According to the HSAB principle Li⁺ (hardness η = 35.12) is a harder base than Mg²⁺ (η = 32.55),^44,45 which could explain the obtained trend.

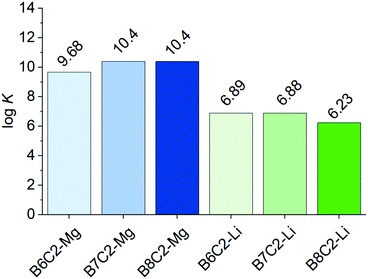

Fig. 7 log K of the CE : metal ion complexes with B6C2, B7C2, and B8C2 with Mg²⁺ and Li⁺ at a constant molar ratio of CE : metal ion of 14 : 1.

2.5. Temperature-dependent extraction studies of B6C2, B7C2 and B8C2 with Li⁺ and Mg²⁺

In the following, enthalpic and entropic values are determined experimentally by temperature-dependent LLE to clarify the differences of complex stability for the B6C2, B7C2 and B8C2 CEs more precisely. The relation between the complex constant K and temperature is described by the Van’t Hoff equation (VH, eqn (6)) assuming that ΔH and ΔS are temperature independent.

The VH equation arises from the combination of the Gibbs energy of reaction and the Gibbs energy isotherm equation, which is described in eqn (7) and (8). R labels the molar gas constant (8.314 J mol⁻¹ K⁻¹).

ΔG = ΔH − TΔS (7)

ΔG = −RT ln K (8)

The so-called VH plot results from eqn (6). The natural logarithm ln K is a linear function of the reciprocal temperature 1/T. The plot of the values results in a linear regression, where the slope gives and the intercept . The VH plots are shown in Fig. S15 (ESI†) and the corresponding values to determine ΔS and ΔH can be found in Table S2 (ESI†). The data of the enthalpy and entropy changes ΔH and ΔS after complexation of B6C2, B7C2, and B8C2 with Li⁺ and Mg²⁺ are shown in Fig. 8. The green bar labels ΔH and the blue bar labels ΔS.

Fig. 8 Enthalpy and entropy changes after complexation of the CE with the metal ions Li⁺ and Mg²⁺ at a constant molar ratio of CE : metal ion of 14 : 1. The green bars represent the change in enthalpy ΔH after extraction and the blue bars the change in entropy ΔS, respectively.

Generally, an enthalpy gain occurs if new interactions proceed between the metal ion and the donor atoms of the CE. On the other hand, the anion interacts less pronounced in the organic phase compared to the aqueous phase, resulting in an enthalpy loss.³⁹ The enthalpy change ΔH is highest for the B6C2 for Li⁺ and decreases rapidly when the ring size as well as the hydrophobicity increases. In fact, negative values are obtained for the B7C2 and B8C2 CEs, which might be due to the weaker ΔH_hyd of Li⁺ compared to Mg²⁺, making the desolvation less energy-consuming and, therefore, enthalpic change more favorable. However, this is not the case for B6C2–Li. The energy contributions are significantly higher for the Mg²⁺ complexes, which is most likely due to the stronger bonding of the water molecules to the Mg²⁺ in the aqueous phase. In addition, two anions have to be freed from the hydration shell compared to the Li complex to form the CE–Mg complex (compare with Fig. 6). In addition, ΔH increases for the more hydrophobic CE rings such as B7C2 and B8C2 in comparison to B6C2.

The change of Gibbs energy of a system is an interplay between ΔH and ΔS. The change of entropy ΔS is almost identical for Li⁺ complexes and increases only slightly with increasing hydrophobicity of the CE. On the other hand, ΔS increases with growing hydrophobicity for the CE–Mg complexes, which is most likely the reason for the higher complex stability K (Fig. 7). The higher ΔS of Mg²⁺ complexes compared to Li⁺ ones most-probably result from the released water molecules, which were strongly bound to the Mg²⁺ ion before complexation. As previously mentioned, the hydration enthalpy ΔH_hyd is almost four times larger than the enthalpy that would be required to desolvate lithium. Accordingly, the water molecules are much more strongly bound to the Mg²⁺. In addition, in the case of the Mg²⁺ complexes, two anions are attached to the complex so that twice the amount of water molecules are released. In contrast, the formation of complexes in the organic phase also leads to entropy loss since the CEs lose mobility. The larger the complex, the greater this loss. The entropy loss is thus more significant for a sandwich-type complex compared to a single complex. The change in entropy ΔS is, therefore an interplay between the gain in entropy due to the release of water molecules in the aqueous phase and the loss of entropy due to the binding of the ligands and anions to the metal ion in the organic phase.

To describe the energy of a system and its voluntariness of the complex formation, the Gibbs energy ΔG is used. Fig. 9 shows the calculated ΔG values calculated according to eqn (7) by performing extraction at room temperature (grey bar) and by eqn (8) conducting temperature-dependent extractions using the VH equation (ΔG (VH), orange bar). Both ΔG values agree well with each other. All reactions are exergonic and proceed voluntarily, with the Mg²⁺ complexes being more favorable. This effect is more pronounced with increasing hydrophobicity of the CE ring.

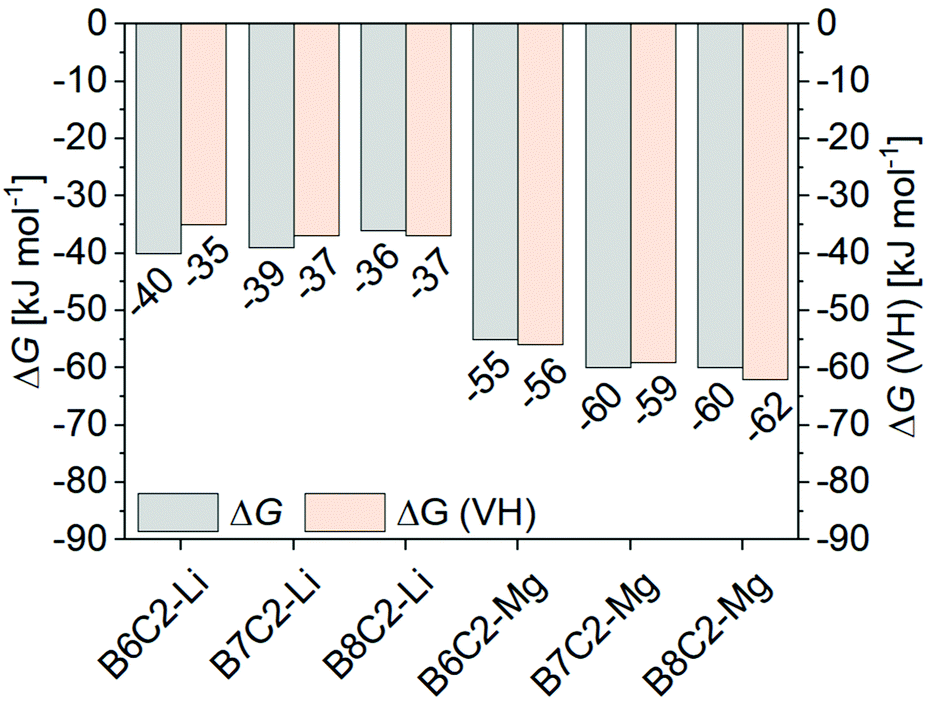

Fig. 9 Gibbs energy calculated by the Gibbs–Helmholtz equation (ΔG), grew bars and from the Gibbs energy isotherm equation based on the Van’t Hoff plot (ΔG (VH), orange bars at a constant molar ratio of CE : metal ion of 14 : 1). The data represent the values for T = 25 °C.

The CEs prepared in this work are new adsorbers for lithium isolation that have not been previously considered in the group of benz-1,4-dioxane homologues with an increasing alkane chain. In addition, CE B7C2 in particular is less expensive in comparison to the commercially available 12-crown-4 and 15-crown-4 CEs that are commonly used for lithium isolation and since it is less soluble in water, the yield of complexed lithium is larger.

3. Conclusions

B7C2 and B8C2 CEs were synthesized and compared with B6C2 in LLE to investigate the Li⁺ and Mg²⁺ extractability from aqueous solution. Thermodynamic parameters such as the complex stability constant K, the Gibbs energy ΔG (calculated from room temperature and temperature-dependent extractions), and the change in entropy ΔS and enthalpy ΔH were determined and discussed. The increase of the number of C atoms within the CE ring (higher hydrophobicity) leads to higher Mg²⁺ complex stability, while the Li⁺ complex stability is decreased. The higher stability of Mg²⁺ complexes is most likely based on a greater change in change of entropy ΔS with increasing hydrophobicity. In summary, the data reported here show that the effect of hydrophobicity has brought us much closer to the selective extraction of Li⁺ over Mg²⁺ and that these results can further narrow the choice of future adsorbents for lithium extraction to find a suitable material.

4. Experimental

4.1 Materials

1,4-Benzdioxane (98%, Sigma-Aldrich, Schnelldorf, Germany), (+)-Mg-(L)-ascorbate (98%, Sigma-Aldrich, Schnelldorf, Germany), lithium 3,5-diiodosalicylate (>99%, LIS, Sigma-Aldrich, Schnelldorf, Germany), potassium carbonate (99%, Sigma-Aldrich, Schnelldorf, Germany), catechol (99%, Sigma-Aldrich, Schnelldorf, Germany), dichloromethane (DCM) (>99%, Acros, Schwerte, Germany), petrol ether (technical grade), ethyl acetate (technical grade), 1,3-dibromopropane (>99%, Sigma-Aldrich, Schnelldorf, Germany), 1,4-dibromobutane (>99%, Sigma-Aldrich, Schnelldorf, Germany), 2-propanol (>99%, Sigma-Aldrich, Schnelldorf, Germany) n-hexane (95%, VWR Chemicals, Darmstadt, Germany), chloroform-d₁ (>99%, EurisoTop, Saarbrücken, Germany) were used as received without further purification unless noted otherwise. Deionized water was purified with a Milli-Q® integral water purification system.

4.2 Methods

Fourier transform infrared spectroscopy (FTIR). The ATR-FTIR spectra were taken on powders of ground dry interpenetrating network gel samples with a Bruker IFS 66V/S FTIR, with a wide-band Mercury Cadmium Telluride (MCT) detector, KBr mid-IR beam splitter, and Pike diamond-ATR module. Each spectrum was averaged over 64 scans at a resolution of 2 cm⁻¹.

Nuclear resonance spectroscopy (NMR). ¹H NMR and ¹³C NMR spectra were recorded at ambient temperature using a 500 MHz Bruker AVANCE II spectrometer in CDCl₃. The residual signals at δ = 7.26 for CDCl₃ were used as an internal standard for the chemical shifts.

UV/Vis spectroscopy. The UV-Vis spectra were recorded with a spectrophotometer UV5 from METTLER TOLEDO at room temperature using a scan time of 10 s.

Gas chromatography (GC) with mass spectrometry (MS) coupling. The measurements were carried out in a Thermo ISQ LT EI coupled to a Thermo Trace 1300.

Differential scanning calorimetry. DSC measurements were conducted on a DSC 204 F1 Phoenix from Netzsch. The experiments were run with a scanning rate of 10 K min⁻¹ at different temperature ranges and conducted under an inert nitrogen atmosphere. A sample between 5–10 mg was weighed into a 40 μL aluminum crucible which was capped afterward using a pierced lid. The data processing was performed by the Netzsch software Protheus analysis.

4.3 Synthetic procedures

In this work, the preparation of the crown ethers was carried out in a modified form according to a prescription of Huang et al.³⁷ The reactions took place under a nitrogen atmosphere.

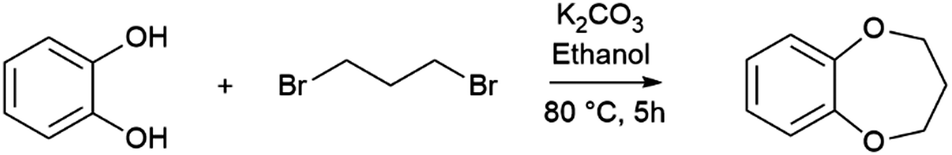

Synthesis of benzo-7-crown-2.
Catechol (5.6 g, 51 mmol, 1.0 eq.), 1,3-dibromopropane (14 g, 7.1 mL, 69 mmol, 1.4 eq.) and potassium carbonate (25 g, 0.18 mol, 3.5 eq.) were dissolved in ethanol (27% (v/v), 150 mL). The green mixture was heated under reflux for 5 h at 80 °C and turned into an orange mixture. The reaction was cooled to room temperature and filtrated under reduced pressure. The crude product was purified two times with column chromatography on silica gel with a mobile phase of petrol ether and ethyl acetate (30 : 1 v/v) and (25 : 1 v/v). The product was obtained as a colorless oil (4.1 g, 54%). ¹H NMR (500 MHz, CDCl₃, 25 °C): δ [ppm] = 7.00–6.91 (m, Ar-H, 4H), 4.22 (t, ³J (H, H) = 3 Hz, O–CH₂, 4H), 2.19 (quint., ³J (H,H) = 3 Hz, –CH₂, 2H); ¹³C NMR (500 MHz, CDCl₃, 25 °C): δ [ppm] = 152 (C₄), 124 (C₄–CH–CH), 122 (C₄–CH–CH), 70.9 (O–CH₂–), 32.2 (–CH₂); GC-MS (EI): m/z (%): [M]⁺ calcd for C₉H₁₀O₂⁺: 151.08, found 151.00 (8) [M⁺], 121.00 (100) [C₇H₇O₂⁺], 109.00 (19) [C₆H₄O₂⁺], 80.00 (23) [C₆H₆⁺], 51.02 (20) [C₄H₃⁺]; IR (KBr): [small nu, Greek, tilde] [cm⁻¹] = 3037 (w), 2950 (m), 2866 (w), 1580 (m), 1490 (s), 1246 (s), 1048 (s), 751 (s).

Synthesis of benzo-8-crown-2.
Catechol (6.7 g, 61 mmol, 1.0 eq.) was dissolved in 2-propanol (14% (v/v), 170 mL). After adding potassium carbonate (29.5 g, 214 mmol, 3.5 eq.), 1,4-dibromobutane (7.65 mL, 14 g, 64 mmol, 1.0 eq.) was added dropwise to the reaction mixture. The turbid reaction mixture was heated under reflux for 15 h at 90 °C. The red solution was cooled to room temperature and subsequently extracted 5 times with dichloromethane. The eluate was washed with water and brine. Any residue of solvent was removed under reduced pressure. The orange residue was purified two times with column chromatography on silica gel with a mobile phase of n-hexane and ethyl acetate (8 : 1 v/v) and (10 : 1 v/v). The product was obtained as a light-yellow-colored oil (0.3 g, 3%). ¹H NMR (500 MHz, CDCl₃, 25 °C): δ [ppm] = 6.98–6.93 (m, Ar-H, 4H), 4.34–4.32 (m, O–CH₂, 4H), 1.91–1.89 (m, –CH₂, 4H); ¹³C NMR (500 MHz, CDCl₃, 25 °C): δ [ppm] = 150 (C₄), 124 (C₄–CH–CH), 123 (C₄–CH–CH), 72.8 (O–CH₂–), 27.1 (–CH₂); GC-MS (EI): m/z (%): [M]⁺ calcd for C₁₀H₁₂O₂⁺: 165.09, found 165.00 (8) [M⁺], 121.00 (84) [C₇H₇O₂⁺], 110.00 (100) [C₆H₄O₂⁺], 80.00 (14) [C₆H₆⁺], 55.00 (56) [C₄H₃⁺]; IR (KBr): [small nu, Greek, tilde] [cm⁻¹] = 3069 (w), 2931 (m), 2870 (w), 1578 (m), 1490 (s), 1242 (s), 972 (s), 753 (s).

4.4 Liquid–liquid extraction

The organic phase was prepared by dissolving appropriate amounts of CE (m ≈ 3 mg) in 3 mL dichloromethane (concentration of the CE cCE ranging from 6.0 × 10⁻³ to 8.0 × 10⁻³ mol L⁻¹). The aqueous phase was prepared by diluting salts in water at CE : salt molar ratio between 25 : 1 to 11 : 1 (concentration of the salts cSalt ranging from 2.0 × 10⁻⁴ to 8.0 × 10⁻⁴ mol L⁻¹). For all extraction experiments, the volume ratio of dichloromethane–water was 1 : 1. The extraction proceeded by vigorously shaking the vial for 45 min at 500 rpm at specific temperatures. Phase separation was guaranteed by waiting 30 min after extraction. The aqueous phase was adequately diluted, and the remaining concentration of the metal ion was measured by a UV-vis spectrometer.

4.5 Temperature-dependent liquid–liquid extraction

Temperature-dependent extractions were performed with a constant molar concentration of CE : salt = 14 : 1. The extraction conditions were carried out analogously to the conditions described above, with only the temperature being changed in a range between 10 and 30 °C. For the temperature setting, a cooling and heating thermomixer MKR13 (DITABIS) was used, which has a temperature accuracy of ±0.1 °C. The thermomixer was used for the temperature adjustment. To additionally determine the temperature in the solution, a water sample was placed into the thermomixer in which an additional thermometer permanently measured the temperature.
