Adsorption of NO, NO₂ and H₂O in divalent cation faujasite type zeolites: a density functional theory screening approach

Abstract

Emissions of diesel exhaust gas in confined work environments are a major health and safety concern, because of exposition to nitrogen oxides (NO_x). Removal of these pollutants from exhaust gas calls for engineering of an optimum sorbent for the selective trapping of NO and NO₂ in the presence of water. To this end, periodic density functional theory calculations along with a recent dispersion correction scheme, namely the Tkatchenko–Scheffler scheme coupled with iterative Hirshfeld partitioning TS/HI, were performed to investigate the interactions between NO, NO₂, H₂O and a series of divalent cation (Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Fe²⁺, Cu²⁺, Zn²⁺, Pd²⁺, and Pt²⁺) faujasites. This enabled the identification of the optimum zeolites to selectively capture NO_x in the presence of H₂O, with respect to two important criteria, such as thermodynamic affinity and regeneration. Our results revealed that Pt²⁺ and Pd²⁺ containing faujasites are the best candidates for effective capture of both NO and NO₂ molecules, which paves the way towards the use of these sorbents to address this challenging application.

---

1. Introduction

Air quality is currently a major environmental concern. The concentration of pollutants, such as carbon oxides (CO and CO₂), ozone (O₃), volatile organic compounds (VOCs), nitrogen monoxide (NO) and nitrogen dioxide (NO₂), released by thermal motors needs to be reduced,^1,2 since these chemicals are known to be highly toxic and responsible for serious health problems, e.g. chronic obstructive pulmonary disorder, respiratory infections and lung cancer among others.² According to the World Health Organization (WHO), 90% of the world population breathe polluted air, and seven million people die each year from diseases caused by air pollution.³ Since humans spend more than 80% of their life indoors, including living and working places where pollutant levels are estimated to be typically 5 to 10 times higher than outdoor, they are particularly exposed to the typical indoor pollutants including NO, NO₂, CO and VOCs.⁴

Along with ozone (O₃), NO_x (both NO and NO₂) are amongst the most harmful indoor air pollutants.⁵ NO gas is a colorless and odorless gas, while NO₂ is a reddish-brown gas with a strong smelly odor, and its toxicity is five times higher than that of NO.^6,7

Moreover, NO_x released by engines (300–1000 ppm for both NO and NO₂) in a confined work environment lacking ventilation and exhaust treatment represents a major health and safety problem.^8,9 In France, almost 800 000 workers are exposed to such emissions. As a result, European Union regulatory requirements have attempted to address these concerns through EU Directive 2017/164, which set an occupational exposure level limit value for NO and NO₂ emitted from engines in a working environment of 2 and 0.5 ppm, respectively.¹⁰ Therefore, the reduction of NO_x emissions in exhaust gases of off-road vehicles is a current priority in occupational risk prevention. This calls for the development of efficient technologies to comply with these health standards and for improving health and safety in confined work environments.

Several strategies such as NO_x storage-reduction (NSR) and selective catalytic reduction (SCR) have been proposed in the last decade, in order to limit NO_x release in lean-burn engines.^11–13 Being efficient at high temperatures, they have already been implemented in light vehicles where the engine temperature quickly increases thanks to their continuous run. However, these techniques face several problems.¹⁴ In particular, their efficiency for NO_x reduction becomes limited in construction site machinery running discontinuously and therefore subjected to several cold starts, leading to low exhaust temperature.¹⁵

Therefore, an effective sorbent for the selective capture of low concentrations of NO and NO₂ in the presence of water ¹⁶ needs to be engineered by paying attention that residual H₂O can react with NO₂ for producing NO and nitric acid.^16,17 In the context of ecological transition, adsorbent regeneration also appears crucial. Thus, a subtle balance between high selectivity and easy regeneration is required.

Recent studies revealed that inorganic sorbents such as zeolites can address the capture of NO_x.^17,18 Indeed, on the basis of 200 existing zeolites,^19–21 mordenite (MOR),^22,23 MFI (ZSM5),^24,25 and faujasite (FAU) architectures have been proposed as promising candidates for NO_x removal.^17,26 However, the identification of the most efficient zeolite in terms of topology, nature and concentration of extra-framework cations requires many experiments. To circumvent this limitation, molecular modeling is a powerful tool to narrow down the list of potential adsorbents.^27,28 Specifically, molecular simulations can assess accurately the adsorption energies and capacities for a large number of sorbents/sorbate pairs and therefore becomes a reliable screening tool for identifying the most efficient sorbents for the selective trapping of a target sorbate.

Herein, we present a screening approach based on density functional theory (DFT) calculations to assess the efficiency and the selectivity of zeolite materials for the target applications.^29–32 Typically, faujasites are good candidates for NO_x trapping, thanks to the presence of the extra framework cations that can act as strong adsorption sites combined with their large supercages that enable to optimize the amount adsorbed.^13,17,33,34 Furthermore, the structure composition (Si/Al ratio) can be fine-tuned from one up to infinite³⁵ by modifying the hydrothermal synthesis (ratios 1 to 3) or by applying post-synthetic modifications (ratio 3 onwards).

Among this family of faujasites, the Y version³⁶ was first synthesized with a Si/Al ratio of about 2.5, exhibiting a good chemical/thermal stability and high cation exchange capacity, and therefore became industrially widely used as a molecular sieve and an adsorbent.^37,38 In addition, the Si/Al ratio of Y zeolites can be further increased and adjusted through stream and/or acid treatments,³⁵ yet still maintaining crystallinity. As a result, a zeolite featuring improved hydrothermal stability “Ultra Stable Y” (USY) was conceived and labeled for all structures with a Si/Al ratio of about 6 and above. Y and USY zeolites have shown remarkable promise in many industrial applications.^39–41

More specifically, the objectives of the present work are to investigate the preferential adsorption configurations of NO, NO₂ and H₂O in a series of divalent cation faujasite Y and to assess the associated interaction energies and the host/guest charge transfer. To this purpose, our periodic DFT investigations focused on a series of ten divalent cation faujasite Y (Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Zn²⁺, Cu²⁺, Fe²⁺, Pd²⁺ and Pt²⁺) with a model Si/Al ratio equal to 23. The optimal divalent cation Pt²⁺ was further incorporated in the common zeolite Y (Si/Al = 2.4) and its adsorption behavior with respect to the 3 molecules mentioned above was predicted to confirm the potential of this zeolite for a selective capture of NO_x. The bond activation upon adsorption of the studied molecules was later analyzed to gain insight into the regeneration of these materials.

2. Computational and structural details

2.1 Structural model

Faujasite is a three-dimensional network belonging to the wide-pored zeolites (Fig. 1a). Its structure consists of 6.6 Å diameter sodalite cages (β cages) connected through hexagonal prisms (D6R) with an opening of 2.3 Å. By other windows, these β cages are connected to 12.4 Å diameter supercages (α cages) which are also linked together by a 7.4 Å diameter hexagonal window (12MR) leading to the formation of a porous network.⁴²

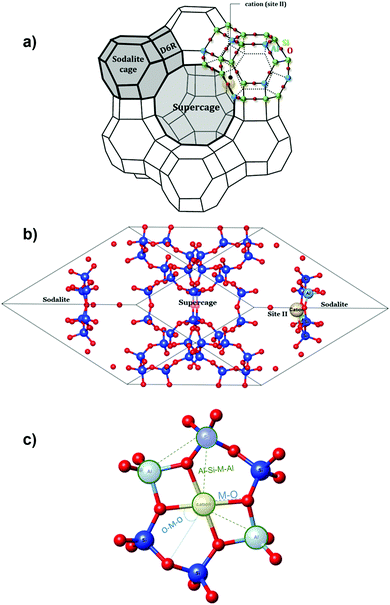

Fig. 1 (a) Scheme of the conventional cell of the faujasite with three types of cavities. The hexagonal prism (D6R), the sodalite cage (β cage) and the supercage (α cage). (b) The FAU zeolite primitive cell is displayed using balls and sticks. (c) Representation of the site II and its geometrical parameter considered during this study (i.e., the angle O–M–O).

The purely siliceous structure of faujasite belongs to the Fd3m symmetry space group,⁴³ with the standard cubic lattice containing 576 atoms (Si₁₉₂O₃₈₄) and characterized by a lattice constant of 25.028 Å.^44,45 In the present study, to minimize computational efforts, only a 144 atom rhombohedral primitive cell was considered containing 8 hexagonal windows linking the two supercages to the sodalite cages and characterized by the following cell dimensions: a = b = c = 17.3432 Å, α = β = γ = 60° and V = 3688.68 ų.

To obtain a Si/Al ratio equal to 23, two Si atoms were exchanged by two Al atoms in the primitive cell (Fig. 1c). Therefore, the molecular formula of the investigated cell is M₁Al₂Si₄₆O₉₆, with M = Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Zn²⁺, Sn²⁺, Fe²⁺, Pt²⁺ or Pd²⁺. In zeolites, the Loewenstein rule which governs Al–O interactions excludes the sharing of one oxygen atom by two AlO₄ tetrahedra.⁴⁶ This means that the Al–O–Al bond formation is excluded from the zeolite framework and that the distance between two aluminum cations in a 6MR (SiO₂/Al₂O₃) ring needs to be as large as possible (Fig. 1c).⁴⁴

Several crystallographic investigations have shown that for a Si/Al ratio greater than five, site II (Fig. 1) is the most favorable to be occupied by cations.^47,48 This site is situated within the supercage, more particularly upon the hexagonal window connecting the sodalite cage to the supercage. In addition, this site is known to be accessible to most of the adsorbates.^49,50 Therefore, in our study, only site II was considered for the location of the different envisaged divalent cations, consistent with previous studies.^51,52

2.2 DFT adsorption calculations

The adsorption modes and energies of NO_x and H₂O on site II of exchanged cationic zeolites were studied through periodic DFT calculations^53,54 using the code VASP (Vienna Ab Initio Simulation).⁵⁵ The functional of Perdew, Burke, Ernzerhof (PBE) of the generalized gradient approximation was applied (GGA).⁵⁶ The electron–ion interactions were described using the projector augmented plane wave (PAW) method developed by Blöchl⁵⁷ and adjusted later by Kresse and Joubert.⁵⁸ The plane wave cutoff energy was set to 450 eV and the Brillouin zone sampling at the Γ-point. The Kohn–Sham self-consistent total energy differences were converged within 10⁻⁶ eV.⁵⁴ A 0.1 eV Gaussian smearing was applied and the atomic positions were fully relaxed until all forces were below 0.02 eV Å⁻¹ per atom.⁵⁹

To describe the adsorption of the different guest molecules in the faujasite with a high accuracy, van der Waals (vdW) interactions have to be accounted for.^60–63 For this, the Tkatchenko–Scheffler scheme with iterative Hirshfeld partitioning (TS/HI) was considered. This vdW correction method was demonstrated to accurately describe the dispersion interactions of small molecules over exchange zeolites.⁶⁴

Spin-polarized (collinear) calculations were performed for all the cations. Fe²⁺ with a 3d⁶ orbital was found to be 1.74 eV more stable in the high spin state compared to the low spin state. To further treat the strong correlation effects of Fe, the GGA + U method of Hubbard⁶⁵ was applied with an effective Hubbard parameter U_eff of 4.0.

The interaction energies between the guest molecules and the cation containing faujasites were calculated at 0 K using the following equation:

ΔE_int = E_(FAU+guest) − (E_FAU + E_guest) (1)

where E_FAU+guest is the total energy of the zeolite with the adsorbate and E_FAU and E_guest are the total energies of the zeolite and the gaseous phase of the isolated molecule, respectively.

In a similar procedure, the dispersion force contribution ΔE_disp to the interaction energy is given by

ΔE_disp = E_{disp(FAU+guest)} − E_disp(FAU) − E_disp(guest) (2)

In order to further improve our understanding and to look at the effect of the interaction of the adsorbed molecule with the zeolite, both the charge density difference (Δρ) and Bader charge difference (ΔQ) were determined.^66–68

The charge density difference can be calculated taking the superposition (obtained from the initial condition of the self-consistency cycle) of non-interacting atoms (or isolated) as the reference. The visualization of the charge density difference (Δρ) upon the adsorption of NO_x and H₂O into exchanged FAU requires three calculations as shown in the equation below:

Δρ = ρ_FAU+guest − ρ_FAU − ρ_+guest (3)

where ρ_FAU+guest stands for the charge density of the full system, ρ_FAU is the charge density of the empty faujasite and ρ_guest is the charge density of the isolated adsorbate in the gas phase.

On the other side, the Bader approach consists of exploiting the topological properties of the charge density to partition the space in several regions, and the boundary of each Bader volume is defined as the surface through which the charge density gradient has a zero flux. Thus, the partial charge and polarization of single atoms are determined. To obtain the difference in an electronic charge ΔQ, the following equation was used:

ΔQ = Q_FAU-guest − (Q_FAU + Q_guest) (4)

where Q _FAU-guest is the Bader charge of all the atoms upon adsorption and Q_FAU and Q_guest are the Bader charges of the clean zeolite and the isolated molecule in the gaseous phase, respectively.

3. Results and discussion

3.1. Geometry of the cation exchanged FAU zeolites

The locations of all tested cations (M = alkali metals and transition metals) in the empty and guest-loaded faujasites were determined by calculating different geometric parameters such as M–O distances (determined as the mean distance between M and the nearest 6MR oxygens), O–M–O angles (determined as the angle between the cation and two neighboring oxygens) and Al–Si–M–Al dihedral angles between M and the 6MR window plane (Fig. 1c). All distances and angles values are listed in Tables 1 and 2, respectively.

Table 1 M–O distances (Å) of the alkaline earth metal and transition metal exchanged bare zeolites and loaded with NO, NO₂ and H₂O

Cations	Be^2+	Mg^2+	Ca^2+	Sr^2+	Ba^2+	Zn^2+	Cu^2+	Fe^2+	Pd^2+	Pt^2+
Ionic Radii (pm)	45	72	100	118	135	74	73	78	86	80
Bare zeolite	1.66	2.06	2.35	2.53	2.70	1.97	2.03	2.19	2.07	2.06
NO	1.69	2.10	2.39	2.53	2.71	2.00	2.05	2.09	2.22	2.24
NO2	1.70	2.10	2.40	2.54	2.71	1.99	2.05	2.23	2.07	2.07
H2O	1.73	2.12	2.41	2.55	2.73	2.04	2.05	2.08	2.07	2.07

---

Table 2 O–M–O angles (°) of the alkaline earth metal and transition metal exchanged bare zeolites and loaded with NO, NO₂ and H₂O

Cations	Be^2+	Mg^2+	Ca^2+	Sr^2+	Ba^2+	Zn^2+	Cu^2+	Fe^2+	Pd^2+	Pt^2+
Ionic Radii (pm)	45	72	100	118	135	74	73	78	86	80
Bare zeolite	63.8	74.0	67.2	63.2	59.7	66.8	77.1	72.0	75.0	74.5
NO	65.0	72.9	67.0	63.1	59.3	67.4	67.3	69.1	71.0	70.4
NO2	64.7	73.0	66.9	63.0	59.6	67.6	76.9	70.0	74.8	74.4
H2O	67.4	72.3	66.5	62.8	59.5	65.5	76.8	71.4	75.1	74.6

---

3.1.1 Bare empty faujasites. The energy minimization of all bare empty faujasites revealed a significant increase of the dihedral angles between the cation and the 6MR windows, from 1.05° to 30.87° when going from the smallest to the biggest cation (i.e., from Be²⁺ to Ba²⁺). This clearly indicates that the smallest cations are positioned within the plane of the 6MR windows whereas the biggest cations are rather out of the plane as shown in Fig. 2.

Fig. 2 An illustration of how the cation size influences its initial position regarding the 6MR windows plane: (a) alkaline earth family and (b) transition metal series.

Furthermore, upon increasing the cation radius from Be²⁺ to Ba²⁺, we noticed an increase in the M–O distance from 1.64 Å to 2.70 Å, respectively. Moreover, a decrease in the O–M–O angle from 74.0° to 59.7° can be observed when switching from magnesium to barium. This result is in agreement with a recent work which showed that more the cations are out of the zeolite windows plane, lower are the values of the O–M–O angle.⁶⁹ Variations of these three geometrical parameters, in line with the ionic radius of the cation reported in Table 1, indicate that the cation position affects the interactions with the adsorbates.

Similarly, to alkaline earth metals, the relative positions of metal cations (Zn²⁺, Cu²⁺, Fe²⁺, Pd²⁺ and Pt²⁺) within the zeolite structure were also described by the determination of the M–O distances and O–M–O angles (Tables 1 and 2). In addition, the calculations of the dihedral angles revealed values ranging from 2.5° to 5.5° which are illustrated in Fig. 2. These results clearly confirm that the most planar geometry between M and the 6MR window is obtained with Zn²⁺ and contradicts the fact that the cation position in the 6MR windows plane varies in the same way as its ionic radius. Similar trends were previously observed using the ZSM-5 zeolite structure.⁷⁰

3.1.2 NO, NO₂ and H₂O loaded faujasites. Adsorption of NO_x or H₂O on alkaline earth metal-exchanged zeolites induces no significant change in the position of the cations (Fig. 3a). The cations remain mostly attached to the FAU zeolite through strong covalent bonds with the nearest oxygen atoms, except for water adsorption where a slight elongation of the O–M bond (with an average of 0.05 Å) was observed (Table 1).

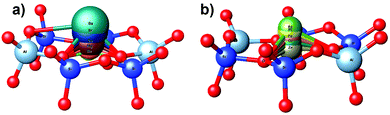

Fig. 3 Illustration of the cation shift upon NO adsorption on the alkaline earth, calcium (a) and transition metal, platine (b) zeolites.

Determination of the O–M–O angles (Table 2) for alkaline earths showed that Be²⁺ is the most adsorption-sensitive cation, as its corresponding angle increased from 3.6°, 1.2° and 1° after adsorption of H₂O, NO and NO₂, respectively.

Similar trends were also observed for transition metal exchanged zeolites. Zn²⁺ was found to be sensitive to water as the O–M bond slightly increased from 1.95 Å to 2.04 Å (Table 1). Pt and Pd cations were found to be affected by NO adsorption as their O–M bonds significantly increased by 0.18 and 0.15 Å, respectively. In contrast to alkaline earth metals, for transition metals, the O–M–O angle decreases as the O–M bond increases, which could be due to the cation shift towards the side of the 6MR windows (near the Al atom) (Fig. 3b), while, with alkaline-earth metals, the cations remain in the 6MR windows plane (Fig. 3a).

These different geometric features of the two categories of cation–faujasites suggest distinct adsorption behavior and an associated interaction energy.

3.2. Energetics and iso-surface electron density

To investigate the ability of the cation exchanged FAUs to capture NO_x, several adsorption modes were considered, and the most stable ones were selected (Fig. 4). Calculated energies ΔE_int (kJ mol⁻¹) together with their associated dispersion contribution ΔE_disp (kJ mol⁻¹) are reported in Table 3.

Fig. 4 Different adsorption modes for (a) NO, (b) NO₂ and (c) H₂O in FAU exchanged with divalent cations.

Table 3 Interaction energies ΔE_int (kJ mol⁻¹) and, in brackets, dispersion energies ΔE_disp (kJ mol⁻¹) calculated at the PBE + TS/HI theory level for NO, NO₂ and H₂O molecules

	Be^2+	Mg^2+	Ca^2+	Sr^2+	Ba^2+	Zn^2+	Cu^2+	Fe^2+	Pd^2+	Pt^2+
NO	−37.6 (−11.8)	−44.5 (−10.2)	−39.0 (−10.9)	−35.0 (−11.1)	−26.6 (−10.7)	−48.7 (−10.3)	−107.8 (−9.9)	−155.5 (−9.1)	−168.7 (−16.3)	−145.6 (−15.9)
NO2	−33.8 (−16.6)	−53.2 (−12.7)	−49.9 (−13.6)	−42.4 (−12.5)	−21.8 (−12.9)	−42.1 (−13.3)	−27.2 (−14.4)	−53.7 (−14.2)	−74.2 (−13.0)	−84.7 (−15.4)
H2O	−114.8 (−10.8)	−112.0 (−7.7)	−98.9 (−8.6)	−88.7 (−8.6)	−74.6 (−7.3)	−105.3 (−9.1)	−81.6 (−8.8)	−56.3 (−9.4)	−48.2 (−19.0)	−33.2 (−16.7)

---

Fig. 4 shows that NO is adsorbed through its nitrogen atom, whereas NO₂ displays three different adsorption modes depending on whether it interacts through nitrogen or through one or two oxygen atoms. Moreover, water adsorbs preferentially through its oxygen atom although an additional interaction can occur with one of its hydrogen atoms.

3.2.1 Adsorption of NO.
3.2.1.1 Alkaline earth metals Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, and Ba²⁺. Among the three adsorbates, NO shows the weakest affinity for the alkaline earth metal-exchanged faujasites with a calculated interaction energy for beryllium predicted to be −37.6 kJ mol⁻¹, including −11.8 kJ mol⁻¹ vdW contribution, i.e. 31% of the total interaction energy (Table 3). Furthermore, the NO interaction energy decreases progressively from −44.5 kJ mol⁻¹ with Mg²⁺ to −26.6 kJ mol⁻¹ with Ba²⁺, including an average of −10 kJ mol⁻¹ vdW contribution, i.e. 27%. These low values indicate a decrease in the interaction force between NO and the alkaline earth series, which is correlated with an increase in the ionic radius of this group of metals. Such results indicate that increasing the electropositivity of the charge-compensating cation leads to weaker adsorption.
3.2.1.2 Transition metals Zn²⁺, Fe²⁺, Cu²⁺, Pd²⁺ and Pt²⁺. The interaction energy of NO significantly increases from Zn²⁺ exchanged faujasite to Pt²⁺ exchanged faujasite (Table 3). The values of the Zn²⁺ exchanged faujasites are close to those observed for faujasites exchanged with alkaline earth metals. Higher interaction energies, such as −107.8 kJ mol⁻¹, −155.5 kJ mol⁻¹, −168.7 kJ mol⁻¹ and −145.6 kJ mol⁻¹, have been calculated for Cu²⁺, Fe²⁺, Pd²⁺ and Pt²⁺, respectively. The corresponding dispersion contributions are −9.9 kJ mol⁻¹, −9.1 kJ mol⁻¹, −16.3 kJ mol⁻¹ and −15.9 kJ mol⁻¹, respectively, representing an average of only 7% of the total interaction energy. These results are in line with those of Kanougi et al.⁷¹ who computed an interaction energy of −112.6 kJ mol⁻¹ for NO in ZSM-5 exchanged with Pd²⁺.

Similar findings were also reported by Wang et al.⁷² and Sun et al.⁷³ for the adsorption of NO and N₂O on Fe-BEA and H-BEA zeolites on the one hand, and NO and CO on Fe/ZSM-5 on the other hand. Wang et al. revealed that Fe(III) exchanged BEAs show the highest affinity for NO with an interaction energy of −123 kJ mol⁻¹, very close to the value we found for Fe(II)–FAU. However, Sun et al. obtained a much higher energy of −258 kJ mol⁻¹ for the ZSM-5 exchanged with Fe(II) most probably due to the location of the Fe(II) on the 8MR site. Many studies reported that cations located in the 8MR sites lead to higher interaction energies compared to the cations located in the 6MR site.^74,75 Furthermore, these previous studies revealed that, in all investigated zeolites, NO molecules preferentially adsorb via their nitrogen rather than their oxygens, in agreement with our findings reported in Fig. 4.

Fig. 5 represents the negative and positive iso-surfaces between Ba–NO and Pt–NO. The high electrostatic interactions between nitrogen and Pt²⁺ were confirmed through the high charge transfer, together with the Bader method based computed ΔQ (0.14 e; −0.17 e) for Pt and N, respectively. It is not the case with the Ba cation where its Bader charge was almost unaffected by the adsorption of NO. The calculated distance between the Pt atom and N atom of NO (d_Pt-N =1.92 Å) confirmed this result, indicating a chemical bond formation between the cations and the nitrogen atom of NO, with the formation of complexes.^76,77

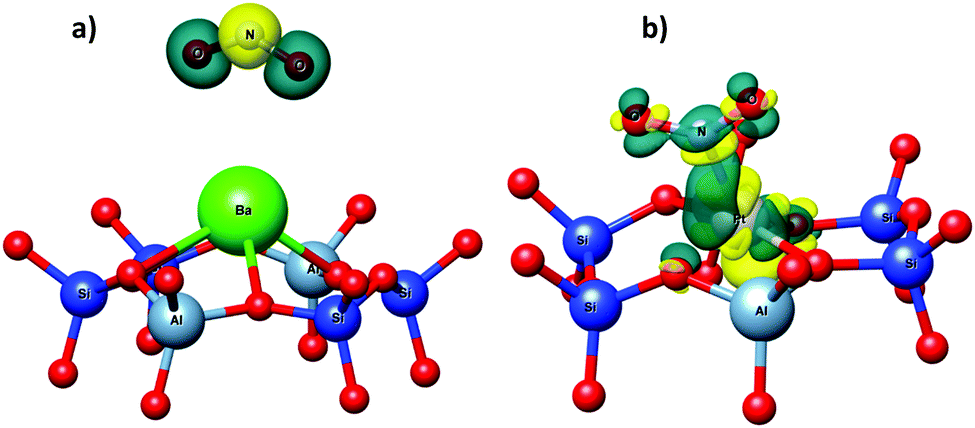

Fig. 5 Iso-surface electron density for two cations: first, with a weak interaction energy between Ba²⁺ and NO and second with a strong interaction energy between Pt²⁺ and NO. Yellow and blue colors represent the negative and positive iso-surfaces corresponding to +0.003 and −0.003 electron Å⁻³, respectively.

3.2.2 Adsorption of NO₂.
3.2.2.1 Alkaline earth metals Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, and Ba²⁺. The NO₂ interaction energy varies between −53.2 kJ mol⁻¹ and −21.8 kJ mol⁻¹ from Mg²⁺ to Ba²⁺ (Table 3). This relatively weak interaction is in line with the absence of the charge transfer between Ba²⁺ and NO₂ (Fig. 6a). The significant decrease of the interaction energy along this family of cations follows the decrease in the hardness of the cation, leading to a weaker interaction with hard base molecules, i.e. HSAB theory (Hard Soft Bases and Acids) introduced by Parr Pearson.⁷⁸

Fig. 6 Iso-surface electron density for NO₂ interaction with Ba–FAU (a), and for the most stable configuration of NO₂ interaction with Pt–FAU (b). Yellow and blue colors stand for the negative and positive iso-surfaces mapped from +0.003 to −0.003 electron Å⁻³, respectively.

3.2.2.2 Transition metals Zn²⁺, Fe²⁺, Cu²⁺, Pd²⁺ and Pt²⁺. For faujasites exchanged with transitions metals, Table 3 shows that NO₂ is less strongly adsorbed as compared with NO and preferentially interacts through its oxygen atoms for most of the cations as shown in Fig. 4b. The total interaction energy reaches a maximum of −53.7 kJ mol⁻¹ for Fe²⁺, which is similar to the value observed for Mg²⁺ (−53.2 kJ mol⁻¹), reflecting the same interaction mode of NO₂ with these two cations. Zinc and copper show the lowest interaction values of −42 and −27 kJ mol⁻¹ with NO₂, respectively.

Benco⁷⁹ used DFT to study the adsorption of a set of diatomic and triatomic probe molecules on [Zn–Zn]²⁺ particles in a ferrierite zeolite. NO and H₂O molecules were found to interact with a single Zn atom, resulting in interaction energies of −48.8 and −100 kJ mol⁻¹, respectively, very similar to our findings (Table 3). However, the NO₂ molecule was found to interact with both Zn atoms of the [Zn–Zn]²⁺ particle, indicating the 54 kJ mol⁻¹ higher adsorption as compared to our results.

Pt²⁺ and Pd²⁺ are the only cations that interact with NO₂ through its nitrogen atom and, thus again, they revealed the highest adsorption values of −84.7 and −74.2 kJ mol⁻¹, respectively. The corresponding vdW contribution was estimated to −15.4 kJ mol⁻¹ for Pt²⁺. The strong interaction of NO₂ with the Pt cation was confirmed by the iso-surface electron density presented in Fig. 6b.

3.2.3 Adsorption of H₂O.
3.2.3.1 Alkaline earth metals Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, and Ba²⁺. As shown by their high interaction energy with water around −98 kJ mol⁻¹ (Table 3), all studied cations display a high affinity for this guest, with a vdW contribution of 9%. According to the HSAB theory,⁷⁸ alkaline earth metals are considered as hard acids, showing a high affinity for hard bases such as H₂O, which is confirmed by the iso-surface electron density (Fig. 7a). These results are in accordance with the theoretical work of Benco and Tunega⁶⁹ on mordenite.

Fig. 7 Iso-surface electron density for the most stable configuration of water adsorption on Ba–FAU (a) and Pt–FAU (b). Yellow and green colors represent the negative and positive iso-surfaces corresponding to +0.003 and −0.003 electron Å⁻³, respectively.

3.2.3.2 Transition metals Zn²⁺, Fe²⁺, Cu²⁺, Pd²⁺ and Pt²⁺. With interaction values of −105.3 kJ mol⁻¹ and −81.6 kJ mol⁻¹, Zn²⁺ and Cu²⁺ display the strongest interactions with water (Table 3). These values are close to those calculated for alkaline earth metals (Table 3). Considering the HSAB theory, Zn²⁺ and Cu²⁺ are the hardest acids amongst all transition metals tested.

On the other hand, Pd²⁺ and Pt²⁺ exhibit weak interactions with water as indicated by the low interaction energies observed, of −48.2 kJ mol⁻¹ and −33.2 kJ mol⁻¹, respectively. Indeed, located below Zn²⁺ and Cu²⁺ in the periodic table, Pd²⁺ and Pt²⁺ are softer cations. The iso-surface electron-density representation (Fig. 7b) confirms the weak interaction between Pt and water.

Recently, Mandal et al.⁸⁰ provided insights into the molecular structure of Pd cations in SSZ-13 zeolites and their interaction with H₂O and NO using experimental and computational analyses. The most stable position of Pd was found to be equal to the site II used here (Fig. 1), in which the six-membered ring has two aluminum atoms on opposite sides. Once again, the interaction energies of −42 and −123 kJ mol⁻¹ for H₂O and NO₂ molecules, respectively, agree with the values listed in Table 3.

3.3. Selection of the most effective cation to selectively capture NO_x

3.3.1 Thermodynamic selectivity of cation-exchanged faujasites. Here, our objective was to identify the most effective charge-compensating cation for the selective trapping of NO_x in the presence of water by comparing the interaction energies of NO, NO₂ and H₂O in the different cation-exchanged faujasite zeolites (Fig. 8). Knowing that, in diesel exhaust gas, the concentrations of NO_x (300–1000 ppm)^8,9 are much lower than those of water (10 000 ppm),⁸¹ the adsorbent will have to show a much higher affinity for NO and NO₂ than for water.

Fig. 8 Total interaction energies of NO, NO₂, and H₂O with divalent cation-exchanged faujasites, calculated using the PBE + TS/HI level of theory.

Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺ Zn²⁺, and Cu²⁺-exchanged FAUs exhibit a higher or equivalent affinity for water than that for NO_x (Fig. 8). NO and NO₂ have almost the same interaction energy on a given cation, and their interaction decreases in absolute value from Mg²⁺ (49 kJ mol⁻¹) to Ba²⁺ (23.5 kJ mol⁻¹). This indicates that these materials will be poor sorbents for NO_x and unsuitable for the intended pollution control application.

As shown in Fig. 8, Fe²⁺-exchanged FAU exhibits a similar affinity for water and NO₂ (−56.3 and −53.7 kJ mol⁻¹, respectively), but much higher affinity for NO (−155 kJ mol⁻¹). This means that water is expected to play a detrimental role on NO₂ adsorption. However, the NO₂ molecule appears to be highly reactive with water in zeolites, leading to NO formation;⁸² therefore, Fe²⁺ could be an appropriate cation for selectively trapping NO_x in the presence of water owing to its high affinity for NO.

Palladium and platinum are the only cations showing a higher affinity for NO and NO₂ compared to water (Fig. 8 and Table 3). NO shows a high affinity for both cations (−145.6 and −168.7 kJ mol⁻¹, respectively) followed by NO₂ (−84.7 and −74.2 kJ mol⁻¹). These interaction energies are significantly higher than those of water (−33.2 and −48.2 kJ mol⁻¹ for Pd²⁺ and Pt²⁺, respectively). Therefore, water is not expected to inhibit the adsorption of NO_x in these zeolites. These results reveal that in terms of thermodynamic selectivity, Pd²⁺, Pt²⁺ and in a lesser extend Fe²⁺ forms are clearly the most interesting faujasites for the selective capture of NO_x from water.

3.3.2 Regeneration of the faujasites. One further requirement of the adsorbent is to prevent chemical reactions and by-product development that would limit the reliability of the trapping process and the regeneration of the sorbent.^83,84 This can be performed by a full comparative analysis of bond lengths before and after adsorption, and the less the bond is activated (i.e., stretched) the more the cation-faujasite is efficient for our purpose.

For alkaline earth cations, the bond length analysis for the pristine and loaded faujasites (Fig. 9) revealed that the NO bond length slightly decreases (from 0.006 to 0.008 Å for most cations). The “N–O1” bond length with the first oxygen atom in NO₂ is almost unaffected but the “N–O2” bond with the second oxygen is stretched with an average variation of 0.02 Å. Concerning H₂O, the distances of the two water bonds (O–H) are barely changed. In terms of regeneration, alkaline earth cations can safely be used for NO removal. However, NO₂ may develop undesirable by-product formation by chemically reacting with these cations and other molecules. One additional observation in Fig. 9 is that beryllium has the most noticeable differences in bond lengths (both stretched and retracted); this may be attributed to its small ionic radius (Table 1). Therefore, we can suggest that the smaller the radius, the higher the probability of activating the bond length becomes.

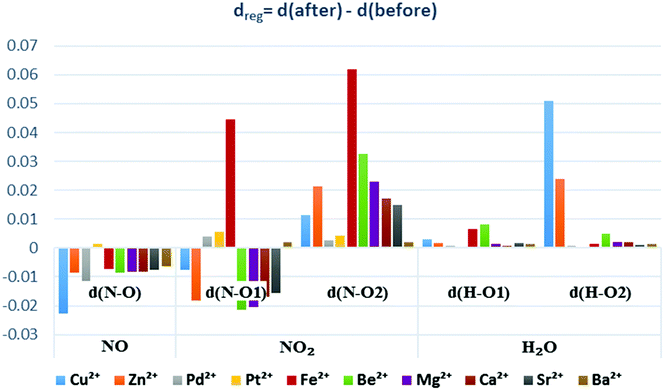

Fig. 9 Variation of the bond lengths of molecules between the gas phase and once adsorbed in faujasites. N–O (in the NO molecule), N–O1 with the first oxygen atom, and N–O2 with the second oxygen atom (in the NO₂ molecule) and O–H1 and O–H2 (in water).

Looking at transition metals, all five cations can be safely used to trap NO, as their (N–O) bond lengths become shorter than those in the gas phase (Fig. 9). For NO₂, the significant activation of both N–O1 and N–O2 bonds occurs for Fe²⁺, Cu²⁺ and Zn²⁺, while only a slight variation in the bond length from 0.004 and 0.005 Å is observed for Pd²⁺ and Pt²⁺, respectively. These variations are too small for affecting the regeneration process and are therefore negligible. Concerning water adsorption, a minor variation in the H–O bond length was observed for all cations, except for zinc and copper where the variation in the O–H bond of water was significant (Fig. 9).

Indeed, the analysis of the bond activation shows that only Pd²⁺ and Pt²⁺ can be effectively used for NO_x trapping. In the following, we will evaluate the potential of Pt²⁺, which is less costly than Pd²⁺, when embedded in a realistic faujasite Y structure characterized by a Si/Al ratio of 2.4.

3.4. Evaluation of Pt(II)–NaY for NO_x capture

To obtain a Pt(II)–NaY structure (Si/Al ratio = 2.4), 14 Si atoms were substituted by 14 Al atoms in the primitive cell (Fig. 10). The distribution of platinum cations in the zeolitic Y-structure may have an impact on the adsorption mechanisms of NO_x. Numerous experimental and, more recently, simulation methods have been reported on the location of cations in the faujasite. Frising and Leflaive⁴⁷ have gathered and presented in an extensive review, all the different results that have been published in the literature over the years.

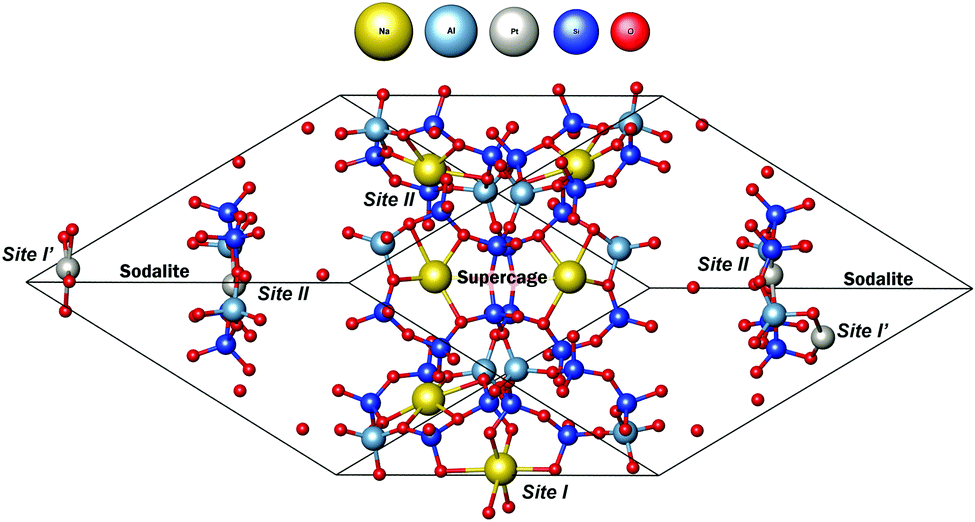

Fig. 10 The Pt–NaY zeolite primitive cell displayed in balls and stick cells, with three accessible sites. Site II (supercage), site I (hexagonal prism) and site I’(sodalite cage).

For platinum, only one reference was found where the Na–Y zeolite was partially Pt-exchanged.⁸⁵ Therefore, the molecular formula of the investigated cell is Pt₄Na₆Al₁₄Si₃₄O₉₆. In this cell, unexchanged Na⁺ cations seem to prefer site II (supercage) followed by site I (at the center of the hexagonal prism), while Pt²⁺ cations tend to occupy site II and site I’ (in the sodalite cage) (Fig. 10).

3.4.1 Thermodynamic selectivity of cation-exchanged faujasites. The interaction energies calculated for NO, NO₂ and H₂O in Pt–Y zeolites (Fig. 11) follow the same trend that presented above for USY (Fig. 8). NO_x molecules interact strongly with the zeolite with associated interaction energies of −269.0 kJ mol⁻¹ and −199.8 kJ mol⁻¹ for NO and NO₂, respectively, which are higher than the value obtained for H₂O (−38.4 kJ mol⁻¹). Therefore, upon increasing the Pt concentration (i.e., Si/Al ratio = 2.4), the affinity towards NO_x molecules is enhanced, while the adsorption of water molecule shows no change related to the concentration of the cation.

Fig. 11 Total interaction energies of NO, NO₂, and H₂O with platinum exchanged Na–Y zeolites, calculated using the PBE + TS/HI level of theory.

By contrast, the difference in interaction energies of NO_x with increasing the cation concentration is surprisingly relatively high, especially since in both cases the adsorption takes place on the same cation position (site II). These observations tend to be driven by the location stability of the cation.

Comparing the [Pt–O] distance between the Pt(II) cation and the D6R oxygens on both Si/Al ratios, it was found that, for the pristine bare zeolite, the platinum cation located on the D6R plane binds strongly to four oxygens, with an average distance of 2.07 Å. Upon adsorption, Pt on zeolite Y was found to be more sensitive to NO_x adsorption. The platinum in zeolite Y is displaced from its original position and slightly elevated from the D6R plane with 2.04 Å (Fig. 13e and f) compared to 1.08 Å for USY (Fig. 5).

This higher mobility of the Pt cations in zeolite Y compared to zeolite USY seems to be related to the influence of neighboring cations in the sodalite cage. As shown in Fig. 12, the sodalite cage is strongly perturbed upon NO_x adsorption, and the site II Pt cation is pulled out from its original position, subsequently followed by a displacement of the site I' Pt cation towards this vacant site II. This cation confinement effect leads to a greater exposure of the site II Pt cation to the probe molecule compared to the USY zeolite.

Fig. 12 Displacement of site I’ and site II Pt cations upon NO_x adsorption in Y-type zeolites.

The migration of cations from site II to the supercage in zeolite Y has been discussed in many studies: Typically, some of us⁸⁶ demonstrated by molecular dynamics combined with complex impedance spectroscopy measurements that methanol perturbs the Na–Y zeolite, moving cations from site II to the center of the supercage, followed by hopping of SI’ cations from the sodalite cage into the supercage to fill the vacant SII sites. Klier⁸⁷ also mentioned that a CO molecule induces the displacement of Cu(I) from less accessible to more accessible positions in Y-type zeolites.

As a result, this leads to a higher interaction energy along with 0.21 and 0.19 |e| charge transfer (eqn (4)) for Pt–NO and Pt–NO₂, respectively (Fig. 13e and f), compared to 0.14 and 0.09 |e| (eqn (4)) found previously for the USY zeolite. In contrast, a slight perturbation of the Pt position is observed upon H₂O adsorption, demonstrating the low interaction energy and a charge transfer of 0.05 |e| (eqn (4)) (Fig. 13g).

Fig. 13 Iso-surface electron density for the most stable configurations of NO, NO₂ and H₂O adsorption on Na–Y (a–c) and Pt–NaY (e–g) zeolites. Yellow and green colors represent the negative and positive iso-surfaces corresponding to +0.01/+0.003 and −0.01/−0.003 electron Å⁻³ for Pt and Na, respectively.

Similarly, the presence of residual sodium from the partially exchanged zeolite may affect our NO_x trapping and should therefore be investigated. Adsorption of NO_x on these cations revealed very low interaction energies of −24 and −20 kJ mol⁻¹ for NO and NO₂, respectively (Fig. 11). While a strong affinity towards water has been achieved at an interaction energy of −55 kJ mol⁻¹ (Fig. 11), in agreement with the HSAB principle.⁷⁸ These results indicate that the NO_x trapping efficiency would be improved in tandem with a high Pt exchange in the Na–Y zeolite.

The reported high NO_x interaction energies with Pt cations along with the low interaction energies for Na cations can be understood by studying the differences in the electron density (Δρ) induced by adsorption. In this context, we found that the interactions between N and Pt atoms display a significant electron transfer (Fig. 13e and f), the green density around the NO_x molecules reflecting the loss of charges towards the yellow area of the Pt cation. For Na cations, a poor charge transfer can be observed upon adsorption of NO_x (Fig. 13a and b), and the water molecule, however, showed a higher charge transfer but mainly in the form of hydrogen bonding with the D6R oxygen atom (Fig. 13c).

3.4.2 Regeneration of Pt(II)–NaY faujasites. A comprehensive comparative analysis of the bond lengths of the pristine and loaded zeolites has been achieved.

For USY (Fig. 4a), the NO molecule was found to be adsorbed by its nitrogen atom on the Y zeolite (Fig. 13e). This adsorption configuration maintained the same bond length, preventing it from activation (Fig. 14), similarly to what has been observed on USY (Fig. 9).

Fig. 14 Variation of the bond lengths of the molecules before the adsorption on cation-exchange faujasites (gas phase) and after the adsorption. N–O (in the NO molecule), N–O1 with the first oxygen atom, and N–O2 with the second oxygen atom (in the NO₂ molecule) and O–H1 and O–H2 (in water).

For NO₂, due to the large displacement of the cation position, π interactions were observed between the Pt of the Y zeolite and the molecule (Fig. 13f). This adsorption configuration led to a significant stretching of the non-interactive (N–O) bond (Fig. 14). In contrast, for USY, the NO₂ molecule was adsorbed only via its nitrogen (Fig. 4b), resulting in no change in its bond length (Fig. 14).

Concerning water, due to the weak hydrogen bonding that occurred during adsorption (Fig. 13g), the bond length of the molecule was negligibly stretched (Fig. 14).

To summarize, the binding analysis shows that Pt(II)–NaY can be safely used for NO removal in the presence of water. However, because of the significant increase of NO₂ bond lengths, Pt(II)–NaY appears to be unsuitable for NO₂ removal, as it can lead to the formation of undesirable by-products, resulting from the dissociation and the chemical reaction of NO₂ with platinum and other molecules. In addition, the revealed high interactions between NO_x and Pt may leave the latter difficult to regenerate. Therefore, future studies are needed to investigate the desorption properties of the most promising zeolites to determine the optimal regeneration temperature.

4. Conclusion

In summary, in the context of the prevention of harmful emissions from diesel engines, DFT simulations using the van der Waals correction have been conducted to study the effect of water on the NO_x capture by cation containing faujasites. Several divalent cation (alkaline earth metals (Be²⁺, Mg²⁺, Ca²⁺, Sr²⁺, and Ba²⁺) and transition metals (Fe²⁺, Cu²⁺, Zn²⁺, Pd²⁺, and Pt²⁺)) exchanged faujasites were tested to identify the most selective sorbents toward NO and NO₂ contaminants.

Overall, when considering thermodynamic selectivity criteria, our interaction energy calculations show that alkaline earth metals, as well as Cu²⁺ and Zn²⁺, exhibit a higher affinity for water than for NO_x, indicating their unsuitability for the target application, whereas the remaining charge-compensating cations (Fe²⁺, Pd²⁺ and Pt²⁺) behave more efficiently, since all of them show a greater affinity for NO, leaving water with no expected detrimental effect on NO_x adsorption, with the exception of Fe²⁺ that presents a similar affinity for water and NO₂.

Nevertheless, the bond activation analysis discarded Fe²⁺ from the suitable cations list, since a significant activation of the N–O1 and N–O2 bonds is observed for the adsorption of NO₂ on Fe²⁺, resulting in undesired by-product formation, whereby a negligible variation in the bond length is observed for Pd²⁺ and Pt²⁺.

The Pt²⁺cation was then incorporated and studied within the Y zeolite (Si/Al = 2.4). The results highlight that Pt²⁺ faujasite Y is an interesting material for the removal of NO_x from diesel engine exhaust.

This screening method transferable to the adsorption study of other contaminants by zeolite sorbents, including ammonia gas and formaldehyde among others, is expected to guide the experimental effort towards the synthesis of the optimum sorbents to avoid tedious and time-consuming trial-error approach.
