J-Driven dynamic nuclear polarization for sensitizing high field solution state NMR

Abstract

Dynamic nuclear polarization (DNP) is widely used to enhance solid state nuclear magnetic resonance (NMR) sensitivity. Its efficiency as a generic signal-enhancing approach for liquid state NMR, however, decays rapidly with magnetic field B₀, unless mediated by scalar interactions arising only in exceptional cases. This has prevented a more widespread use of DNP in structural and dynamical solution NMR analyses. This study introduces a potential solution to this problem, relying on biradicals with exchange couplings J_ex of the order of the electron Larmor frequency ω_E. Numerical and analytical calculations show that in such J_ex ≈ ±ω_E cases a phenomenon akin to that occurring in chemically induced DNP (CIDNP) happens, leading to different relaxation rates for the biradical singlet and triplet states which are hyperfine-coupled to the nuclear α or β states. Microwave irradiation can then generate a transient nuclear polarization build-up with high efficiency, at all magnetic fields that are relevant in contemporary NMR, and for all rotational diffusion correlation times that occur in small- and medium-sized molecules in conventional solvents.

---

1. Introduction

Higher NMR sensitivity could bring transformative breakthroughs to analytical, pharmaceutical and biophysical chemistry. NMR sensitivity can be enhanced by higher external magnetic fields B₀, but this is a slow, expensive approach. An alternative arises if electron magnetization is transferred, from a stable radical, to the nuclei to be detected. By irradiating electrons with microwaves a their Larmor frequency, ω_E, the so-called Dynamic Nuclear Polarization (DNP) effect can then enhance NMR sensitivity up to the ratio between the gyromagnetic constants of the electron and the nucleus: γ_E/γ_N. Based on the irradiation of a stable organic monoradical, such effect can enhance the Boltzmann equilibrium nuclear magnetization by factors of hundredfold, thereby transforming the analytical potential of NMR. Predicted by Overhauser in 1953¹ and thereafter confirmed by Carver and Slichter,² DNP has revolutionized solid state NMR;^3–6 it has also made inroads into in vivo spectroscopy, based on rapid melting approaches.^7,8 DNP, however, has not yet impacted what is arguably the widest of NMR realms – high-field solution-state studies. This longstanding problem arises from an Overhauser DNP efficiency, that in liquids depends on the electron-nuclear cross-relaxation rate σ_E,N:The typical rotational correlation time τ_c of a radical/nucleus dipolar-coupled spin pair is τ_c ≈ 0.1–1 ns, while typical electron and nuclear Larmor frequencies in mid- to high-field scenarios are ω_E ≥ 200 GHz and ω_N ≥ 300 MHz. This leads to (ω_E ± ω_N)²τ_C² ≫ 1; i.e., negligible cross-relaxation rates in eqn (1) for most cases of practical analytical interest, and Overhauser DNP efficiencies that decrease quadratically with B₀. Consequently – and unless aided by the contact couplings that can arise for certain radicals and solutes^9–13 – typical ¹H DNP enhancements drop from a maximum of ≈330× when B₀ ≤ 0.4 T, to ≈1.001× at the ≥7 T fields were contemporary NMR is done.^11,14–17 We recently discussed a way to bypass this bottleneck, proposing a cross-correlated (CC) DNP strategy involving biradicals as polarization sources.¹⁸ CCDNP, however, required significant coincidences between nuclear/electron spin interaction tensors, and long-term stability in the nuclear-electron geometry; for optimal conditions, it then provided steady-state NMR enhancements that approached ≈10–20×. This study reports a further investigation into the physics of a three-spin biradical/nuclear system, revealing a new polarization transfer possibility. Unlike CCDNP, the mechanism that is here introduced: (i) does not put stringent conditions on multiple independent coupling tensors; (ii) can lead to nuclear polarization enhancements of ≈100–200× for B₀ ranging from ≤1 T to ≥20 T and for rotational correlation times in the 0.1–1 ns range; and (iii) does not result from a steady state arising upon electron saturation, but rather from transient phenomena. At the centre of this proposal are two electrons interacting through an exchange coupling J_ex in the order of ω_E, a chemically tuneable condition that can be fulfilled by many biradicals known to have exchange couplings in the 0 ≤ J_ex ≤ 1 THz range.^19–21 Under such conditions we found that moderate microwave fields can lead to the DNP enhancement improvements shown in Fig. 1. The present study demonstrates and explains the basis of this J-driven (J-DNP) mechanism based on Liouville space numerical simulations, and on analytical calculations using Redfield's relaxation theory.^22–26 The latter serve to highlight similarities between the roles that the electronic singlet and triplet states play in polarizing nuclei in J-DNP, and those played by singlet and triplet states arising in chemically-induced DNP (CIDNP) experiments.^27–30

Fig. 1 On the left: Comparison between the maximal enhancements delivered by the Overhauser and by J-driven DNP, as function of B₀. On the right: Models of the biradical/nuclear system assumed for simulating J-DNP (A) and of the monoradical/nuclear system used for Overhauser DNP (B). The only nucleus in the system (a proton) was assumed in the “solvent” molecule; the red arrows represent dipolar interactions between the electron(s) placed in the centre of the radical and the proton in this “solvent”. No other protons/nuclei were assumed. The J-DNP simulation was performed using a biradical/proton dipolar-coupled triad (A) with a τ_c = 500 ps rotational correlation time, a J_ex = +(ω_E + ω_N) at each field strength, and other parameters as given in Table 1. The Overhauser DNP simulation was performed for a monoradical/proton dipolar-coupled pair (B) with τ_c = 157 ps (typical of trityl³¹) and other parameter as given in Table 1 – but with one of the electrons in the table absent. The enhancement in the J-DNP was calculated after 20 ms of microwave irradiation; the Overhauser DNP enhancements were calculated vs. field at the steady state (Overhauser enhancements slightly larger than those predicted in the Fig. 1 were observed in water solutions at 1.4 T and 3.4 T;^32,33 this likely arises due to translational diffusion effects, which were not consider in this work).

2. Spin system and theoretical methodology

The system examined in this work was a biradical interacting with a proton exclusively through dipolar (aka anisotropic hyperfine) couplings. Hyperfine couplings were assumed between both electrons and the proton, the inter-particle distances were assumed fixed. These distances between the two unpaired spin-1/2 electrons (belonging to the radical) and the spin-1/2 proton (belonging to the solvent) were 8.6 Å and 11.1 Å respectively (see Table 1 for the actual proton and electron Cartesian coordinates). Scalar electron-nuclear couplings were set to zero. The J-DNP mechanism described in this study was assumed driven by a rotational dynamics, modulating the relaxation of the three-spin system with a rotational correlation time, τ_c, as shown in Fig. 1. The two electrons were assumed to have identical g-tensors, assumed anisotropic for the sake of realism (even if the ESI† 6, shows that neither nuclear shielding anisotropy nor g-anisotropy are required for the J-DNP enhancement). The most important variable in the system is the isotropic inter-electron exchange coupling J_ex, which was modelled on the basis of trityl-based symmetric biradicals for which such couplings have been observed.^19,20 These parameters were used to create the spin Hamiltonian, and to calculate the evolution subject to microwave irradiation and relaxation as per Redfield's theory^22,25 (see ESI† 1, for additional discussion of these radicals, including their estimated solution-state T₁s and T₂s^34,35).

Table 1 Biradical/proton parameters used in the simulations shown in Fig. 1–5. B₀, J_ex and τ_c were set as described in the figures; all other coupling parameters relied on the inter-spin distances

Parameter	Value
a Simulations used identical Zeeman interaction tensors, that were made axially symmetric along the main molecular axis (corresponding the linker connecting the two trityls).
^1H chemical shift tensor, ppm	[5 10 20]
g-tensor^a for electrons 1 and 2, Bohr magneton	[2.0032 2.0032 2.0026]
^1H coordinates, [x y z], Å	[−3 0.5 1.3]
Electron 1 coordinates, [x y z], Å	[0 0 −9.37]
Electron 2 coordinates, [x y z], Å	[0 0 9.37]
Scalar relaxation modulation depth, GHz	3
Scalar relaxation modulation time, ps	1
Microwave nutation frequency, ωμw, MHz	1
Temperature, K	298

---

The bulk of this study focuses on a J_ex ≫ ω_Δe scenario, where ω_Δe = ω_e1 − ω_e2 is the difference between the Larmor frequency of the two electrons. In such cases the electron Zeeman eigenstates |α_e1β_e2〉 and |β_e1α_e2〉 are no longer eigenfunctions of the spin Hamiltonian; the relevant Hamiltonian was therefore treated in the singlet/triplet electron basis set {Ŝ^(e1,e2)₀,T̂^(e1,e2)₀,T̂^(e1,e2)_±1}. As shown in ESI† 2, this leads to a microwave rotating frame Hamiltonian:

Ĥ_rot = Ĥ^S₀T₀ + Ĥ^{T₊₁T₋₁} + Ĥ_μw (2)

where Ĥ^S₀T₀ is a Hamiltonian acting in the Ŝ₀T̂₀ sub-space, Ĥ^{T₊₁T₋₁} acts in the T̂₊₁T̂₋₁ sub-space, and Ĥ_μw is the microwave operator (see ESI† 2, for further definitions). With this Hamiltonian, Liouville-space time domain calculations were performed based on the equation of motion:where [small rho, Greek, circumflex](t) is the state vector of the system, and is the Liouvillian containing the rotating frame Hamiltonian superoperator plus the relaxation superoperator accounting for the stochastic rotation of all anisotropies. The latter was computed according to the Bloch–Redfield–Wangsness relaxation theory^22,36 both by analytical²⁴ and numerical^25,26 means, including all possible longitudinal, transverse and cross-correlated pathways. Since the spin system was considered at room temperature, Di-Bari–Levitt thermalization was used.³⁷ Considering that the exchange coupling has the same order of magnitude as the electron Larmor frequency, these calculations incorporated into the relaxation superoperator a scalar relaxation of the first kind.³⁸ This did not have an effect on the DNP enhancement, since in the ω_Δe → 0 case in question, the exchange coupling, , commutes with the Zeeman interaction, Ê_1Z+ Ê_2Z. Time evolution Ô(t) of multiple spin state populations was calculated by taking their scalar products with the state vector [small rho, Greek, circumflex](t) at each time.

3. Features of J-DNP

Fig. 2 shows how the isotropic exchange coupling modulates the maximum nuclear enhancement achievable by J-DNP upon on-resonance irradiation at the electron Larmor frequency of the biradicals, as a function of magnetic field B₀. These numerically simulated plots³⁹ predict that, for every field strength, there are two J_ex = ±(ω_E + ω_N) values for which microwave irradiation leads to a nuclear enhancement close to the maximum γ_E/2γ_N achievable value.

Fig. 2 Simulated DNP enhancement achieved within 20 ms of microwave irradiation as a function of J_ex and B₀. The plots arise from time domain simulations using the parameters in Table 1, a biradical/proton dipolar-coupled triad τ_c = 500 ps, and an on-resonance irradiation at the electron Larmor frequency of the biradicals. In this and other graphs shown below, DNP enhancements denote the achieved nuclear polarization, normalized by its Boltzmann counterpart at the same temperature and field.

Unlike Overhauser DNP and CCDNP enhancements,¹⁸ where nuclear polarization enhancements are observed at the steady state, the nuclear polarization enhancements shown in Fig. 2 and arising at the J_ex = ±(ω_E + ω_N) conditions, are transient phenomena. This is illustrated in Fig. 3, which shows the enhancement's time-dependence for different rotational correlation times and magnetic fields, for spin systems with an optimally chosen J_ex = +(ω_E + ω_N) coupling. These graphs show a nuclear polarization that rapidly builds up and then decays into steady states which, at the usual NMR fields used in analytical/biophysical studies, are essentially the Boltzmann equilibrium nuclear magnetization. However, in all cases, substantial transient enhancements are observed after 10–50 ms of continuous microwave irradiation, with precise timings and maximal values that depend on B₀ and on the correlation time τ_c of the biradical/proton triad. In fact, notice that these transient enhancements improve slightly with both higher B₀s and slower τ_cs of the biradical/proton triad. Additional differences between the behaviours of Overhauser and J-DNP are discussed in Fig. S3 of ESI† 1, which compares expectations from a two-spin proton/electron system (Overhauser DNP), and the changes arising when a second electron is added to form a three-spin proton/biradical system, where the two electrons interact with J_ex = +(ω_E + ω_N). Upon introducing such second electron, weak steady-state nuclear polarization values similar to those arising in Overhauser DNP are reached – but on the way to those steady states, there are strong transient enhancements of the nuclear polarization.

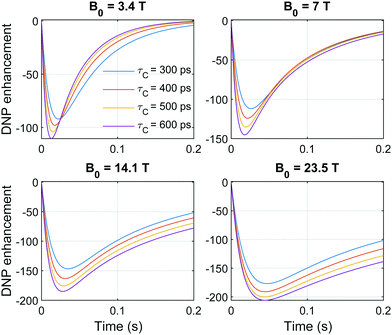

Fig. 3 Time domain simulations showing the evolution of the DNP enhancement observed under continuous microwave irradiation of the electrons, for an array of B₀ and of τ_c values of the biradical/proton dipolar-coupled triad. For all fields J_ex was set to +(ω_E + ω_N); other simulation parameters were as given in Table 1.

4. The physics of J-DNP

The physics that drives the J-DNP effects summarized in Fig. 2 and 3, is reminiscent of the cross-correlations arising in the CIDNP mechanism. According to the radical pair theory,^28,29,40 nuclear magnetization enhancement in CIDNP proceeds from three processes: (i) singlet/triplet interconversion within a spin-correlated biradical; (ii) a modulation of the rate of this interconversion by hyperfine couplings (i.e., different fates of the electron states depending on whether the nuclear spin state is α or β); and (iii) a rapid nuclear spin relaxation of the unreacted triplet biradical, acting as a nuclear spin state filter. In the J-DNP case, the biradical is not (photo)chemically produced and does not recombine after a transient action; still, the singlet–triplet behaviour vis-à-vis the nuclear spin once again becomes relevant. In the J-DNP case, it is microwaves (rather than a laser) that drive the system away from the thermal equilibrium. As in CIDNP, it is essential that the nucleus is differentially hyperfine-coupled to the two electrons for the J-DNP enhancement to occur (the effect disappears otherwise, see ESI† 6). It is then the different relaxation characteristics of the two-electron singlet/triplet states when facing the nuclear α or β states, that build up the nuclear polarization. Fig. 4a–d further clarify this, by showing the time dependencies of the three-spin population operators Ô_α/β,^41,42 computed from direct-product of two-electron triplet/singlet states with a nuclear spin state in Zeeman basis, that can be in either the α or β state. These states are represented as T̂_±1,α/β,T̂_0,α/β and Ŝ_0,α/β (see ESI† 3, for the expressions of these Ô_α/β as Cartesian operators). Fig. 4e shows the states arising from the difference between Ô_α and Ô_β, defined as:where Ô^(e1e2) denotes the two-electron singlet and triplet, and N̂_Z is the longitudinal nuclear magnetization. Fig. 4f shows the overall N̂_Z amplitude calculated upon summing the amplitudes of Ŝ₀N̂_Z, T̂₀N̂_Z and T̂_±1N̂_Z, normalized to the equilibrium nuclear magnetization.

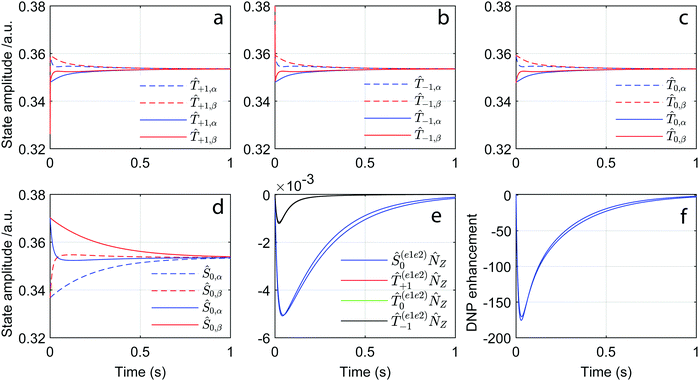

Fig. 4 Time evolution of the three-spin population operators: T̂_±1,α/β, T̂_0,α/β and Ŝ_0,α/β (a–d), and of the N̂_ZŜ₀, N̂_ZT̂_±1 and N̂_ZT̂₀ states (e) arising from the difference between the various Ô_α and Ô_β. Time evolution of the overall longitudinal nuclear magnetization N̂_Z (f), showing the sum of all N̂_Z-related contributions, normalized by the thermal nuclear magnetization under the same conditions. Plots (a–d) are normalized to a total electron spin population of one, as defined in ESI† 3. J_ex = +(ω_E + ω_N) was used for the dashed lines calculations, and J_ex = −(ω_E + ω_N) was used for the continuous lines. In (e), the red and green traces are barely seen as they fall underneath an overlapping black trace. The slightly different curves in (f) reflect J_ex = ±(ω_E + ω_N) conditions, respectively. For all these calculations B₀ = 14.08 T, τ_c = 500 ps for the biradical/proton dipolar-coupled triad; all other parameters as given in Table 1.

Fig. 5 Numerically computed (Redfield theory) self-relaxation rates of the three-spin population operators as a function of J_ex and B₀. Rates of Ŝ_0,β, T̂_0,β and T̂_±1,β are on the left, and rates of Ŝ_0,α, T̂_0,α and T̂_±1,α are on the right. Calculations relied on the parameters of Table 1 and on τ_c = 500 ps for the biradical/proton dipolar-coupled triad.

At time zero, the system is at thermal equilibrium, and negligible differences arise between the populations of the α and β nuclear states – even if singlet and triplet electron state populations differ. When the microwave irradiation is turned on, the electron spin is taken out of the thermal equilibrium and electron saturation sets in, the triplet states are mixed, and their populations start to converge to similar amplitudes (Fig. 4a–c). However, at the J_ex = ±(ω_E + ω_N) condition, the rates at which electron states settle into this new equilibrium are different for α and β nuclear components: when J_ex = +(ω_E + ω_N) the α component of the triplets (Fig. 4, blue dashed line) reaches the steady state faster than the β component (red dashed line), while the β component of the singlet (red dashed line) reaches steady state faster than the α component of the singlet (blue dashed line).⁴³ The opposite α/β behaviour arises when J_ex = −(ω_E + ω_N). Still, because different initial conditions exist when J_ex = ±(ω_E + ω_N), both situations lead to similar transient nuclear polarization build-ups, as shown in Fig. 4e. Consequently, due to the different self-relaxation rates of the α and β nuclear components of the triplet and singlet electron states, a sizable nuclear polarization N̂_Z builds up. As can be appreciated in Fig. 4f, this polarization is only weakly dependent on the sign of J_ex. Also note that, as eventually all electron/nuclear states reach the same populations, this J-DNP build up is transient: no nuclear polarization gains are predicted when the steady-state conditions examined in conventional Overhauser DNP analyses, are considered.

The plots shown in Fig. 4 were computed assuming continuous microwave irradiation. To avoid the decay of the enhancement – dominated by the nuclear T₁ decay draining the N̂_ZŜ₀ state – microwaves could be turned off when nuclear magnetization has reached a maximum; the electron population operators would then relax back to thermal equilibrium, and the build-up could be “pumped” again by repeated irradiation. However, in an actual J-DNP enhancement experiment, the polarizing proton would not be covalently bound; rather, it would be randomly diffusing at rates of ca. 1 μm ms⁻¹.³¹ The interaction with the polarizing biradical would thus be short-lived, and the proton pool would get repeatedly polarized by different transient encounters with different biradicals; a certain “pulsing” of the effect will therefore occur spontaneously.^13,44,45

5. Analysis of the self-relaxation rates driving J-DNP

Fig. 5 examines another facet of J-DNP, by showing how the self-relaxation rates of the T̂_±1,α/β,T̂_0,α/β and Ŝ_0,α/β population operators driving the population decays of the various nuclear spin states, change over a range of magnetic fields B₀ and exchange couplings J_ex. Notice the marked differentials arising whenever J_ex matches ±(ω_E + ω_N), between the self-relaxation rates of various Ô_α and Ô_β operators. It is these differential decays that drive the enhancements shown in Fig. 1–4.

The numerical trends in Fig. 5 can be explained by considering the analytical expressions for the relaxation rates of singlet and the triplet states, as derived from Redfield's relaxation theory.^24,36 As long as this theoretical model is valid (which for the present scenario we estimate at τ_c ≤ 2 ns), these rates will be given by sums of terms involving products of second-rank norms squared and/or other quadratic products,⁴⁶ times spectral density functions. For the Ŝ_0,α/β operators these rates can be summarized as:

and

For the T̂_+1,α/β operators, the self-relaxation rates are:

andFor the T̂_0,α/β operators, the self-relaxation rates are:andand for T̂_−1,α/β operators, the self-relaxation rates:andwhere ΔG = G₁ – G₂ and ΔHF = HFC₁–HFC₂ are anisotropies associated to the differences between the two g- and electron/nuclear hyperfine coupling tensors, respectively; CSA is the chemical shift anisotropy tensor; and, as is usual in spin relaxation theory,^22,23 all rates contain combinations of second-rank norms squared Δ_A² for all the aforementioned tensors A,⁴⁶ and second-rank scalar products of tensors A and B. The “…” in eqn (5)–(12) denote terms that contribute equally to Ô_α and Ô_β and thus are not relevant for the J-DNP effect; full analytical expressions for all the self-relaxation rates in eqn (5)–(12) are given in ESI† 4, and the definitions of second-rank norm squared and of scalar product are given in ESI† 5.

As mentioned for the Overhauser DNP, at high B₀ fields, the contribution of terms J(ω_E) ≈ 0, to the rates in eqn (5)–(12), can be disregarded. Exceptions, however, will arise when a spectral density's ω-argument is ω_N, or when it can be made zero by J_ex – such spectral density functions will no longer be negligible and the terms cannot be disregarded. Eqn (5)–(12) reveal many of such potential terms; as a result of them, large differences will arise between the self-relaxation rates of the Ô_α and Ô_β population operators under J_ex ≈ ±ω_E conditions, leading to the transient generation of non-zero N̂_ZŜ₀, N̂_ZT̂_±1 states, as shown in Fig. 4. This can be most easily appreciated for the Ŝ_0,α and Ŝ_0,β relaxation rates: the latter will be dominated by the J(J_ex + ω_E + ω_N) term if J_ex = +(ω_E + ω_N), and the former by the J(J_ex − ω_E − ω_N) if J_ex = −(ω_E + ω_N). In either case, such J_ex condition will result in large differences between −R[Ô_α] and −R[Ô_β], due to the cancellation of ω_E by J_ex. Similar differences can be observed in Fig. 5 also for T̂_±1,α and T̂_±1,β; ESI† 4 provides additional information about these self-relaxation rates. Note as well that, even though the absolute values of these rates decrease with B₀ and τ_c, their differences actually remain present (Fig. S4 and S5, ESI†). This helps to understand the increased efficiencies that J-DNP enhancements exhibit as a function of B₀ and τ_c, leading to the sizable transient longitudinal nuclear magnetizations shown in Fig. 1–4.

It is also instructive to consider the maximum enhancement expected from the differences between the −R[Ô_α] and the −R[Ô_β] relaxation rates. Assuming for simplicity that one of the states relaxes infinitely fast while the other has no relaxation, an assumption of complete microwave-driven electron saturation will lead to a nuclear polarization reaching a 0.5 value – i.e., the NMR signal would be enhanced by |γ_E/2γ_N|. The data in Fig. 1–4 show N̂_Z enhanced to a significant fraction of this “back-of-the-envelop” upper bound.

6. Conclusions and outlook

The present study introduced a new proposal for enhancing signals in solution state NMR, that could provide substantial sensitivity gains for a wide range of magnetic fields and rotational correlation times. The J-DNP mechanism underlying this proposal uses biradicals, it is transient, and it emerges in the hitherto unexplored J_ex = ±(ω_E + ω_N) regimes. This requires exchange couplings in the order of the electron Larmor frequencies; i.e., ranging between ≈200–700 GHz for NMR measurements in 7–23.5 T fields. Such J_ex values are not out of the ordinary: radical monomers connected by conjugated linkers having inter-electron exchange couplings in this order, have been reported in the literature.^19–21 Under such conditions, both numerical and analytical simulations provide coinciding predictions of significant NMR polarization build-ups. These enhancements require irradiation times lasting a fraction of a second and, if implemented at the right electron Larmor frequency, they can proceed efficiently with microwave nutation fields ≤1 MHz (see ESI† 1 for additional details). ESI† 6 demonstrates that similar enhancements are reached with zero g- and shielding tensor anisotropies; the enhancements are also preserved if the two electrons have different but isotropic g-tensors. Much like the radical pair mechanism of CIDNP, the mechanism of J-DNP requires different hyperfine coupling to the two electrons; this drives nuclear state dependent electron relaxation which disappears if the nucleus is symmetrically placed between the two electrons. The enhancement is also quenched if the two electrons have different anisotropic g-tensors, as the resulting Δg-driven electron relaxation would then, at high magnetic fields, overtake the weaker differential relaxation mechanism arising from distinct intermolecular nuclear hyperfine couplings to the two electrons. Likewise, the enhancement goes to zero if the nucleus remains too distant from the biradical: for instance, a proton placed 20 Å away from the biradical may require over 1 s to achieve significant polarization gains – a time by which the DNP effect will lose against competing relaxation pathways.

Despite its encouraging conclusions, the present study also made a number of strong assumptions. It assumes that the non-Redfield relaxation terms in monoradicals resembled those acting in biradicals (ESI† 1); it remains to be seen how realistic this assumption is. Another major approximation was assuming a fixed electron/electron/nuclear geometry over the course of the DNP process: as the latter requires 10–100 ms and molecules in regular liquids diffuse tens of microns over such times, this fixed molecular geometry assumption is clearly unrealistic. On the other hand, a similar fixed-geometry assumption is successfully used and leads to realistic predictions in Overhauser DNP, where it works by virtue of DNP's independence on maintaining specific cross-correlations (a requirement present in our previous CCDNP proposal). Likewise, we hypothesize that the different −R[Ô_α/β] rates required for J-DNP will be preserved regardless of the transient contact that a specific nucleus makes with an ensemble of biradicals over the course of its spin polarization process. Experiments are in progress to evaluate the correctness of these assumptions.

Author contributions

LF and MGC discovered the J-DNP effect and, jointly with IK, provided a theoretical description of its mechanism. IK has written Spinach kernel code and the symbolic processing engine. MGC wrote the simulation scripts to perform analytical and numerical simulations, and derived the analytical expressions of the relaxation rates. All authors discussed and wrote the paper.

Conflicts of interest

The authors declare no competing interests.

Acknowledgements

This project was funded by the Weizmann-UK Joint Research Programme, the Israel Science Foundation (ISF 965/18), the Perlman Family Foundation, and the US National Science Foundation (grants numbers CHE-1808660, DMR-1644779). MGC acknowledges Weizmann's Faculty of Chemistry for a Dean Fellowship. LF holds the Bertha and Isadore Gudelsky Professorial Chair and Heads the Clore Institute for High-Field Magnetic Resonance Imaging and Spectroscopy, whose support is acknowledged.
