Design and synthesis of new luminescent coordination networks of sql topology showing the highest degrees of interpenetration

Abstract

A new β-diketone ligand of nanometric length (HL), whose crystal structure shows a distance of 23 Å between two peripheral nitrile groups, has been employed with silver(I) to assemble 2D sql coordination networks (CNs) showing the highest degree of interpenetration (Z) reported so far of 7- and 8-fold. Reacting HL with silver triflate and nitrate allowed isolation and characterization of the new compounds [Ag(HL)₂](CF₃SO₃) (1) and [Ag(HL)₂](NO₃)·3H₂O (2) in which only nitrile groups coordinate to tetrahedral silver atoms. X-ray diffraction analyses show the presence in both compounds of similar sql networks whose large rhombic windows (Ag⋯Ag edge length of more than 26 Å) allow Z values of 7 and 8 for 1 and 2, respectively. Among the two species, the different degree of interpenetration is correlated to the conformational steric hindrance of the ligand rather than the size of the rhombic windows, and it is ultimately a consequence of the nature of the counterions. A Cambridge Structural Database (CSD) screening by ToposPro software shows that 1 and 2 are unique and, to the best of our knowledge, have the highest Z among interpenetrated sql 2D coordination networks (753 structures, for which the highest Z value is 5). The topologies of entanglement in the two structures have also been analysed and identified by their extended ring net (ERN) as the new patterns 28L1 for 1 and 32L1 for 2. We propose a correlation between Z and the diagonal length of the 4-rings by comparing 1 and 2 with 168 further structures showing the same type of interpenetration. Finally, the two CNs show interesting emissive properties at room temperature that are related to their different degrees of interpenetration.

---

Introduction

Since the exfoliation of graphite to graphene there has been an ever-growing interest in two-dimensional (2D) materials.^1,2 Among them, layered metal–organic frameworks (MOFs) and coordination networks (CNs) are of particular interest due to their high degree of chemical and structural tunability. With respect to 3D CNs, layered structures show a higher degree of flexibility suitable for more sophisticated applications. Recently, Vittal and co-workers published a comprehensive review on the topic.³

Particularly interesting are 2D CNs showing dynamic behaviour such as pressure-induced gate opening under gas adsorption conditions.⁴ This phenomenon has been characterized in both interdigitated^5–8 and stacked layers^9–12 in which the inter- and intralayer void space is regulated by the different weak interactions established among the layers or between layers and guest molecules. Remarkably, such flexibility can be successfully exploited in gas separation applications.^13–15

Functionalization of the layers is another important aspect in 2D CNs that greatly affects and improves gas adsorption properties and selectivity in gas separation.^16–18

More recently, the possibility to prepare MOF nanosheets (MONs) has attracted a great deal of interest towards 2D CNs.^19,20 MONs show different and improved properties with respect to the corresponding bulk materials and can be prepared by bottom-up or top-down procedures.^21,22 Particularly attractive is the top-down method for easier experimental conditions and for the large number of accessible 2D CNs that, in principle, can be exfoliated. Among top-down procedures, exfoliation by liquid-assisted sonication of bulk samples is very commonly used for the preparation of materials to be applied in different fields, such as catalysis, separation, sensing and electronics.²³ Candidates for exfoliation can be found among already known 2D CNs (27 850 structures) as well as new structures tailored for specific applications. Therefore, the search for new 2D CNs is still an interesting topic.

Of particular interest in 2D CNs is also the entanglement, which is richer than that observed for 3D CNs.^24,25 In addition to interpenetration, different types of polycatenation are possible and have been found in real structures.^26,27

Entanglement is a way to fill the void space within a single network. For 2D CNs, it occurs only in about 8% of structures (2140 over 27 850). Its low occurrence is related to the necessity for a single network to conform to the final entangled array by fulfilling the topological, geometrical, and interaction-related requirements needed for its formation.^24–27

Within entangled 2D CNs, interpenetrated structures constitute about half of the sample. At variance with 3D networks, for which high degrees of interpenetration are common, most 2D networks are only 2- and 3-fold interpenetrated, while examples of 4-, 5-, and 6-fold interpenetration are rarely occurring. The 6-fold maximum of Z has been found only in structures of hcb topology, while only four structures of sql topology show the maximum value of 5-fold.^28–31 Obtaining a higher degree of interpenetration for sql networks seems to be difficult and larger rings in the 2D network (thus longer linkers) are obviously necessary to overcome the present limit of 5-fold. However, the whole set of geometrical and topological conditions for interpenetration is still unclear.

In our previous work, we used the ligand 1,3-bis(4′-cyanophenyl)-1,3-propanedione to prepare heterometallic networks by reacting the corresponding M²⁺ and M³⁺O,O-chelated complexes with silver cations, exploiting their coordination to the exo-oriented nitrile groups.^32,33 Taking into account the good affinity of silver atom for the nitrile group and its propensity to give tetrahedral coordination geometry, we thought to extend the length of the β-diketone ligand in order to realize sql 2D networks with larger square windows, possibly leading to a higher degree of interpenetration. Therefore, here we report the synthesis of the new β-diketone ligand HL of nanometric length (Scheme 1) and its reaction with silver triflate and nitrate to give 2D coordination networks of sql topology. Interestingly, the large square windows allow 7- and 8-fold interpenetrations, which are the highest values realized up to now among sql layers.

Scheme 1 (a) K₂CO₃, 10% Pd/C, EtOH_aq, reflux; (b) EtOH, H₂SO₄, reflux; (c) ^tBuOK, DMF, 80 °C.

Moreover, we extracted from the Cambridge Structural Database (CSD) a dataset of interpenetrated 2D coordination networks with sql topology to perform a statistical analysis according to structural, geometrical and topological features. The aim of this analysis is to individuate the factors affecting the degree of interpenetration in sql networks and to justify the origin of the record values found for the two new compounds reported herein.

Experimental section

Materials and methods

All commercial reagents and solvents employed (Merck–Aldrich) were of high-grade purity and were used as supplied without further purification. All manipulations were performed under aerobic conditions unless standard Schlenk techniques were required. Anhydrous tetrahydrofuran was freshly distilled under nitrogen from sodium/benzophenone. The ligand HL was prepared following the synthetic pathway reported in Scheme 1via reagents R1 and R2.

NMR spectra were recorded on a Bruker AC300 or AC400 instrument; δ values are given in ppm relative to tetramethylsilane. Infrared spectra were collected on a Perkin-Elmer Frontier FTIR spectrometer in ATR mode.

Steady-state emission and excitation spectra were obtained using an FLS 980 (Edinburgh Instruments Ltd) spectrofluorimeter. Steady-state measurements were recorded by excitation with a monochromated 450 W xenon arc lamp and the spectra were corrected for the instrument response. Absolute photoluminescence quantum yields were measured using a C11347 Quantaurus spectrometer (Hamamatsu Photonics K.K.).

Thermogravimetric analyses (TGAs) were acquired using a Perkin-Elmer TGA 4000 instrument under a dynamic nitrogen flow (20 mL min⁻¹) and performing a single heating cycle from 30 to 600 °C at 10 °C min⁻¹. Powder patterns were recorded on a Rigaku Miniflex diffractometer (Cu Kα radiation, λ = 1.5405 Å) in the 5°–55° 2θ range (0.015 and 1 s per step). Elemental analyses were carried out at the Microanalytical Laboratory of the University of Milan with a PerkinElmer 2400 instrument.

Synthesis of 4′-acetyl-(1,1′-biphenyl)-4-carbonitrile (R1)

In a round-bottomed flask equipped with a magnetic stirrer, a thermometer, and a reflux condenser, 4-bromobenzonitrile (1.82 g, 10 mmol), 4-acetylphenylboronic acid (2.46 g, 15 mmol), and K₂CO₃ (2.76 g, 20 mmol) were dissolved in aqueous ethanol (50 mL, EtOH : H₂O 1 : 1 v/v). After the addition of palladium on charcoal (500 mg, 10% Pd/C) the mixture was heated to reflux (external temperature 85 °C) and left with stirring for 2.5 hours. After cooling, AcOEt (100 mL) was added and the mixture was filtered over a plug of Celite and washed with AcOEt (80 mL) and water (20 mL). The phases were separated, and the organic phase was washed with brine (50 mL), dried over MgSO₄, filtered and the solvent removed under vacuum. The crude material was purified by chromatography (silica gel, hexane : AcOEt 6 : 4) to give the title compound as a white solid (2.10 g, 95% yield). Physical and spectroscopic data agree with those reported in the literature.³⁴

¹H-NMR (400 MHz, CDCl₃) δ = 8.06 (d, J = 8.4 Hz, 2H), 7.81–7.64 (m, 6H), 2.65 (s, 3H).

Synthesis of ethyl 4′-cyano-(1,1′-biphenyl)-4-carboxylate (R2)

In a round-bottomed flask equipped with a magnetic stirrer, a thermometer, and a reflux condenser 4-bromobenzonitrile (1.82 g, 10 mmol), 4-carboxyphenylboronic acid (1.66 g, 10 mmol), and K₂CO₃ (2.76 g, 20 mmol) were dissolved in aqueous ethanol (50 mL, EtOH : H₂O 1 : 1 v/v). After the addition of palladium on charcoal (500 mg, 10% Pd/C) the mixture was heated to reflux (external temperature 85 °C) and left with stirring for 18 hours. After cooling, the mixture was filtered over a plug of Celite, washed with water (80 mL) and ethanol (30 mL). The ethanol was removed under reduced pressure and the aqueous phase was acidified to pH 2 (litmus paper) with 10% aqueous HCl to produce a white precipitate. The solid material was filtered under vacuum, washed with water (15 mL) and dried in air up to constant weight.

The product obtained was suspended in absolute ethanol (60 mL) and after the addition of concentrated sulfuric acid (1 mL) the mixture was refluxed under stirring for 16 hours. After removal of the solvent, the residue was taken in diethyl ether (200 mL) and the organic phase was washed successively with water (150 mL) and a 5% aqueous solution of NaHCO₃ (150 mL). The organic phase was dried over MgSO₄, filtered and the solvent removed under vacuum. The crude material was purified by chromatography (silica gel, hexane : AcOEt 9 : 1) to give the title compound as a white solid (2.08 g, 82.6% yield over two steps). Physical and spectroscopic data agree with those reported in the literature.³⁵¹H NMR (400 MHz, CDCl₃) δ = 8.18 (d, J = 8.4 Hz, 2H), 7.80–7.67 (m, 6H), 4.44 (q, J = 7.1 Hz, 2H), 1.45 (t, J = 7.1 Hz, 3H).

Synthesis of (Z)-4′,4′′′-(1-hydroxy-3-oxoprop-1-ene-1,3-diyl)bis(([1,1′-biphenyl]-4-carbonitrile)) (HL)

In a Schlenk tube under inert atmosphere, R1 (750 mg, 3 mmol) and R2 (664 mg, 3 mmol) were introduced and dissolved in dry DMF (15 mL). After the addition of potassium tert-butylate (560 mg, 5 mmol) the mixture was heated at 80 °C and left with stirring overnight (18 h). After cooling, water (120 mL) was added, observing the formation of an orange suspension; the mixture was acidified up to pH 2–3 (litmus paper) by the addition of a 10% aqueous solution of HCl. A yellow solid formed that was filtered, washed with MeOH and dried under vacuum up to a constant weight. The yellow solid was dissolved in DCM (50 mL), filtered to remove insoluble material and the filtrate was used to charge a silica gel column that was eluted with DCM. The title compound was obtained as a pale-yellow solid (750 mg, 58.6% yield). ¹H NMR (400 MHz, DMSO) δ = 17.20 (s, 1H), 8.34 (d, J = 8.8 Hz, 4H), 8.05–7.95 (m, 12H), 7.52 (s, 1H). ¹³C NMR (101 MHz, DMSO) δ = 185.0, 143.8, 133.4, 128.8, 128.4, 127.9, 119.2, 111.3, 94.2.

Synthesis of [Ag(HL)₂](CF₃SO₃) (1)

The ligand HL (29.4 mg, 0.07 mmol) was first dissolved under heating in 10 mL of toluene and then AgCF₃SO₃ (9 mg, 0.035 mmol) was added. The resulting solution was left to reflux at 95 °C under stirring for 7 h, allowing the formation of a yellow precipitate. The mixture was then cooled to room temperature and filtered through a Büchner funnel to isolate compound 1 as a yellow microcrystalline solid. This solid was washed twice with 5 mL of toluene and dried in air to give pure 1 (91% yield). The purity of the sample was confirmed by X-ray powder diffraction (Fig. S1‡), while TGA analysis showed that compound 1 is stable up to about 300 °C (Fig. S2‡). Anal. calcd for C₅₉H₃₆AgF₃N₄O₇S (%): C, 63.85; H, 3.27; N, 5.05. Found: C, 64.66; H, 3.55; N, 4.52. The IR spectrum is shown in Fig. S3.‡

Dark-yellow single crystals of 1, suitable for X-ray diffraction analysis, were obtained at room temperature by slow diffusion of an acetone solution of the ligand into a toluene solution of silver triflate in a few days.

Synthesis of [Ag(HL)₂](NO₃)·3H₂O (2)

An aqueous solution (2 mL) of AgNO₃ (8 mg, 0.0024 mmol) was added dropwise to an acetone solution (26 mL) of HL (20.0 mg, 0.0046 mmol). The mixture was left under stirring at room temperature for 24 h, observing the precipitation of a yellow solid after only 10 minutes. At the end of the reaction, compound 2 was recovered as a yellow solid by filtration on a Büchner funnel, washing with water (5 mL) and acetone (5 mL), and drying in air (60% yield). The purity of the bulk sample was confirmed by comparison of its X-ray diffraction powder pattern with that collected on crushed single crystals manually selected under the microscope (Fig. S4‡). TGA analysis showed a weight loss of 4.92% in the temperature range 160–215 °C corresponding to three clathrate water molecules followed almost immediately by decomposition (Fig. S2‡). Anal. calcd for C₅₈H₄₂AgN₅O₁₀ (%): C, 64.69; H, 3.93; N, 6.50. Found: C, 64.87; H, 3.88; N, 6.06. The IR spectrum is shown in Fig. S5‡ and is in agreement with the presence of water molecules and nitrate anions in the crystals.

Dark-yellow single crystals of 2, suitable for X-ray diffraction analysis, were obtained at room temperature by slow diffusion of an acetone solution of the ligand into an ethanolic solution of silver nitrate.

Crystal structure analysis

Single-crystal X-ray diffraction data for the three species HL, 1 and 2 were collected at room temperature on a Bruker APEX II CCD area detector diffractometer, using graphite-monochromated Mo Kα radiation (λ = 0.71073 Å). A full sphere of reciprocal space was scanned by 0.5° ω steps, collecting 2160 frames in six different regions of the reciprocal space. After integration, an empirical absorption correction was made on the basis of the symmetry-equivalent reflection intensities measured.³⁶

The structures were solved by direct methods (SIR 2014³⁷) and subsequent Fourier synthesis; they were refined by full-matrix least-squares on F² (SHELX 2014³⁸) using all reflections. Weights were assigned to individual observations according to the formula w = 1/[σ²(F_o²) + (aP)² + bP], where P = (F_o² + 2F_c²)/3; a and b were chosen to give a flat analysis of variance in terms of F_o². Anisotropic parameters were assigned to all non-hydrogen atoms but those of the disordered trifluoromethanesulfonate anion in 1. All the hydrogen atoms were placed in idealized positions and refined riding on their parent atom with an isotropic displacement parameter 1.2 (or 1.5) times that of the pertinent parent atom. Enolic hydrogen atoms were refined as equally disordered over two positions.

In the structure of 1, the trifluoromethanesulfonate anion is disordered over a twofold axis. The two overlapping images were refined by applying soft restraints on bond distances and bond angles, on the basis of the mean values obtained from a survey of the Cambridge Structural Database,³⁹ employing isotropic parameters for all the atoms. Attempts to refine the anion employing anisotropic displacement parameters led only to negligible improvements in the R factors at the expense of a significant increase in the number of refined parameters and in their correlation and were therefore discarded.

In the structure of 2, the nitrate anion and three water molecules are found to be heavily disordered into the channels running along the c axis. Since it was impossible to recognize and refine a discrete model for the disorder components, their contribution to the calculated structure factors has been determined according to the SQUEEZE procedure.⁴⁰

The final difference electron density map showed no features of chemical significance, with the largest peaks lying close to the center of bonds in the structure of HL and in the proximity of the silver atoms in the structures of 1 and 2.

Crystal data, data collection and refinement details of the structural analyses are summarized in Table S1,‡ while parameters describing the coordination geometry of the silver atoms in 1 and 2 are reported in Table S2.‡ CCDC 2128966–2128968 contain the supplementary crystallographic data for HL, 1 and 2. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre.

Analysis of interpenetration

The algorithms of the program package ToposPro^26,41,42 and the CSD (version 5.42, release February 2021)^39,43 were used to replenish the dataset of interpenetrating networks of sql topology up to 753 structures. The ToposPro program package was also used to calculate geometrical and topological parameters describing the structures. The overall procedure adopted for screening and analysis was as follows:

1. Conversion of cif files from CSD to ToposPro database. Calculation of covalent bonds between atoms using the domains method as described in ref. 44. Reduction of the connectivity of the networks by cutting weak covalent bonds: e.g. metal–metal interactions between Cu, Ag, Au, and Zn, and coordination bonds to Na, K, Ca, Sr, and Ba.

2. Determination of coordination network periodicity for all structures and selection of 27 850 structures showing only 2D periodicity of coordination networks with organic ligands. Construction of their 2D underlying nets in standard and cluster representations and classification into their topological types as described in ref. 24. Selection of 14 652 structures with only underlying nets of sql topology.

3. Search for catenations of 4-rings in sql nets and selection of entangled nets. Construction of Hopf ring net (HRN) and extended ring net (ERN) as described in ref. 42. Selection of those structures with 2D ERN that unambiguously define interpenetration (753 structures).²⁶

4. Calculation of geometrical and topological descriptors for the selected 753 structures with interpenetrating 2D coordination networks of sql topology. The calculated parameters were (Fig. S6 and S7‡) chemical composition, coordination geometry of secondary building units, linkers, and 4-ring shapes, edge and diagonal lengths of 4-rings, distance from the center to the vertices of 4-rings, thickness and type of undulation of 2D layers; number of interpenetrating nets in the array (Z), number of catenations of a ring, Hopf ring net, extended ring net, interpenetration mode. These descriptors are reported in Table S3‡ for 170 structures (see below) as a separate xlsx file in the ESI.‡

5. Selection among the 753 interpenetrated structures of those with a catenation pattern for pairs of layers in the whole entangled array which is the same as that observed in compounds 1 and 2 (211 structures), further restriction to those structures where interpenetration occurs along a diagonal of the 4-ring (170 structures, Table S3‡). This common catenation pattern is denoted as 8-c ERN (4,4)IV (Fig. S8‡) and indicates that the number of catenations per one ring is 4 and that the interpenetration vector is collinear with a diagonal of the 4-ring.

Results and discussion

Crystal structure descriptions

Crystal structure of the ligand HL. The ligand HL crystallizes in the acentric space group Cc of the monoclinic crystal system with the asymmetric unit containing one molecule in its enolic form, which is stabilized by an intramolecular hydrogen bond (see Fig. 1).

Fig. 1 Crystal structure of the ligand HL. View of the enolic form of the molecule showing atom labelling. Ellipsoid at 50% level of probability. Only one hydrogen atom of the enol fragment is shown.

The distance between the two oxygen atoms in the molecule is 2.444(3) Å with the hydrogen atom equally disordered on the two oxygen atoms. Apart from the twisting between the phenyl groups, the molecule is quite rigid, showing a distance between the two nitrile nitrogen atoms of 22.649(4) Å. Considering the three donor groups (the central diketone and the two peripheral nitrile groups), the ligand has a V-shape characterized by a mean distance between the two external nitrogen atoms (N1 and N2) and the diketone central carbon atom (C15) of 11.994(4) Å, and an angle between these three atoms of 141.53(3)°. The central diketone fragment, defined by the O1C14C15C16O2 atoms is planar with a mean deviation from planarity of 0.008 Å. To minimize steric interactions between C–H bonds, the phenyl groups and the diketone fragment are twisted with respect to each other, giving a helical conformation to the molecule. Torsion angles defining the molecular conformation are given in Table S4.‡ The unit cell contains four molecules whose arrangement is defined by the c glide plane (see Fig. S9‡).

The molecular packing can be described by zig-zag chains running along the [4 0 1] direction, which are sustained by electrostatic interactions between carbon and nitrogen atoms belonging to antiparallel nitrile groups of adjacent molecules, as shown in Fig. 2.^45,46

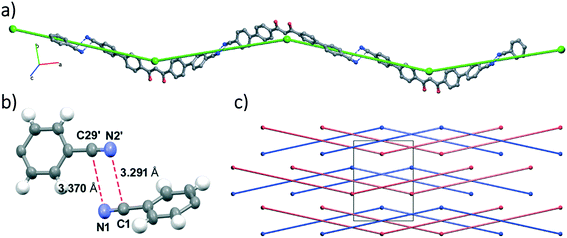

Fig. 2 Crystal structure of HL: a view of the molecular zig-zag chain built by –CN⋯NC– interactions with its simplified superimposed representation shown in green (a), a detail of the –CN⋯NC– interaction (b), and the view along c of the simplified zig-zag chains built by –CN⋯NC– interactions (c). In blue and red are shown the different helicities of the chains. Symmetry code (′): x − 2; −y + 1, z − 1/2.

Intermolecular interaction analysis does not show π–π stacking but only C–H⋯O and C–H⋯N short contacts.

Crystal structure of [Ag(HL)₂](CF₃SO₃) (1). Crystals of compound 1 were obtained by slow diffusion of an acetone solution of HL into a toluene solution of silver triflate. The crystals are small yellow needles and have been analysed by X-ray diffraction. Crystal structure determination reveals that compound 1 crystallizes in the Fdd2 space group of the orthorhombic crystal system. The asymmetric unit contains one silver atom located on a twofold rotation axis as the disordered triflate anion, and one ligand molecule lying in general position. The silver atoms are coordinated to four ligand molecules through nitrile groups [Ag–N = 2 × 2.271(12) Å and 2 × 2.304(14) Å] in a distorted tetrahedral geometry [N–Ag–N in the range 98.9(5)–129.5(6)°], giving rise to a 2D coordination network. The ligand uses only the nitrile groups to coordinate to the metal, while the neutral diketone group preserves its enolic form stabilized by an intramolecular O–H⋯O hydrogen bond. The 2D networks have the sql topology in which the silver atoms are 4-coordinated nodes, and the ligands span on the four edges of the rhombic windows, all having an Ag⋯Ag distance of 26.345(3) Å. The sql windows have Ag⋯Ag diagonals of 41.347(3) and 32.660(2) Å (ratio 1.26), and Ag⋯Ag⋯Ag angles of 2 × 103.39(1) and 2 × 76.61(1)°. The bent shape of the ligand gives a thickness to the layer, and ligands on opposite edges of the rhomboidal windows orient their ketone groups in opposite directions with respect to the mean plane containing the silver atoms (see Fig. 3).

Fig. 3 Crystal structure of 1: a single molecular layer showing four square windows (a); lateral view of a single molecular layer (b); the helical arrangement of the ligand HL within a single layer (c); view down b of the 7-fold interpenetrated layer showing the triflate anions in the channels as spacefill (d).

The ligand has a helical conformation and the layers can be seen as composed of helices of the same helicity and composition {Ag(HL)} which run along the crystallographic b direction sharing the silver atoms (Fig. 3c). This arrangement forms a chiral thick layer which is decorated on both sides by protruding β-diketone groups (Fig. 3b). The layers are perpendicular to the a direction and extend in the bc plane; the large window of a single layer is interpenetrated with 6 other layers to give a chiral 7-fold interpenetrated array of class Ia with a translational vector of module 5.9067(4) Å, corresponding to the crystallographic b axis. These 7-fold interpenetrated layers have a thickness of about 17.34 Å, calculated as the span between the most distant atoms from the middle plane and taking into account their van der Waals radii. The layers are stacked along the crystallographic a direction according to an ABCDABCD sequence so that the protruding part of one layer fits with the groove of adjacent layers. The chirality of adjacent 7-fold layers is inverted by a glide perpendicular to a. Within the 7-fold interpenetrated array there are channels running along b which are delimited by seven coaxial helices, each belonging to one of the seven interpenetrated networks. In these channels, the disordered triflate anions are located (Fig. 3d).

Crystal structure of [Ag(HL)₂](NO₃)·3H₂O (2). Compound 2 crystallizes in the Pban space group of the orthorhombic crystal system with the asymmetric unit containing one silver atom and a half-molecule of the ligand HL. As for compound 1, the silver atoms are coordinated to four nitrile groups of four ligands and adopt a distorted tetrahedral geometry [Ag–N = 4 × 2.2800(18) Å; N–Ag–N in the range 104.61(9)–113.44(10)°], giving rise to a 2D sql coordination network very similar to that observed in 1 (Fig. S10a‡). The 2D network is perpendicular to b and extends in the ac plane. In this structure, the four edges of the rhombic windows are all equal to 26.4034(16) Å, the long and short diagonals are, respectively, 40.170(2) and 34.277(2) Å (ratio 1.17), and the Ag⋯Ag⋯Ag angles are 2 × 80.95(1) and 2 × 99.05(1)°. A comparison between the geometrical parameters describing the sql layers in the two structures shows only minor differences consisting in a less elongated window for 2. As already observed in compound 1, the large rhomboidal windows are interpenetrated. However, in this case, a topological analysis of the interpenetration reveals an 8-fold framework of class Ia with a translational vector of 5.0213(3) Å corresponding to the crystallographic c axis. The 8-fold layer has a thickness of about 17.39 Å, calculated as the span between the most distant atoms from the middle plane and taking into account their van der Waals radii (Fig. S10b‡). This value is similar to that found in 1, while the 8-fold layers stack along b according to an ABAB sequence. As in 1, along the interpenetration direction there are channels hosting the heavily disordered nitrate anions and water molecules (Fig. S10b and c‡).

Similar to what is found in 1, also for 2 the eight interpenetrated layers have the same chirality, which is inverted in adjacent 8-fold layers through an inversion centre (Fig. S10d and e).

The 7- and 8-fold degrees of interpenetration for 1 and 2, respectively, is the substantial difference between the two species. The amount of void comprising the monodimensional parallel channels (running along b in 1 and along c in 2) has been computed after removal of the anions and water molecules.⁴⁷ The percentage of void is similar, being 12.8% and 9.7% of the unit cell volume for 1 and 2. This corresponds to a void volume (per [Ag(HL)₂] moiety) of 157 and 114 ų for 1 and 2.

Crystal analysis of the two structures put in evidence that the different degrees of interpenetration are not simply related to the size of the windows, which are not too much different in the two structures, but more reliably to the conformation of the ligands as described by molecular twist angles (see Table S4‡). The larger twist angles in 1 lead to a single layer being more sterically hindered and more space demanding along the interpenetration direction, which results in a larger interpenetration vector (see Fig. 4). Obviously, the observed differences in the two structures must be a consequence of the different nature of the counterions, in particular their volume, shape and capability to be involved in secondary interactions. However, even if the structure-directing role of the nature of counterions in CNs is well documented, in this case it appears to play a minor role since changing the anion does not affect network topology. The observed difference in the degree of interpenetration can be thus attributed to the necessity of filling the space within a single square window, while leaving the space to accommodate counterions in the resulting monodimensional channels.

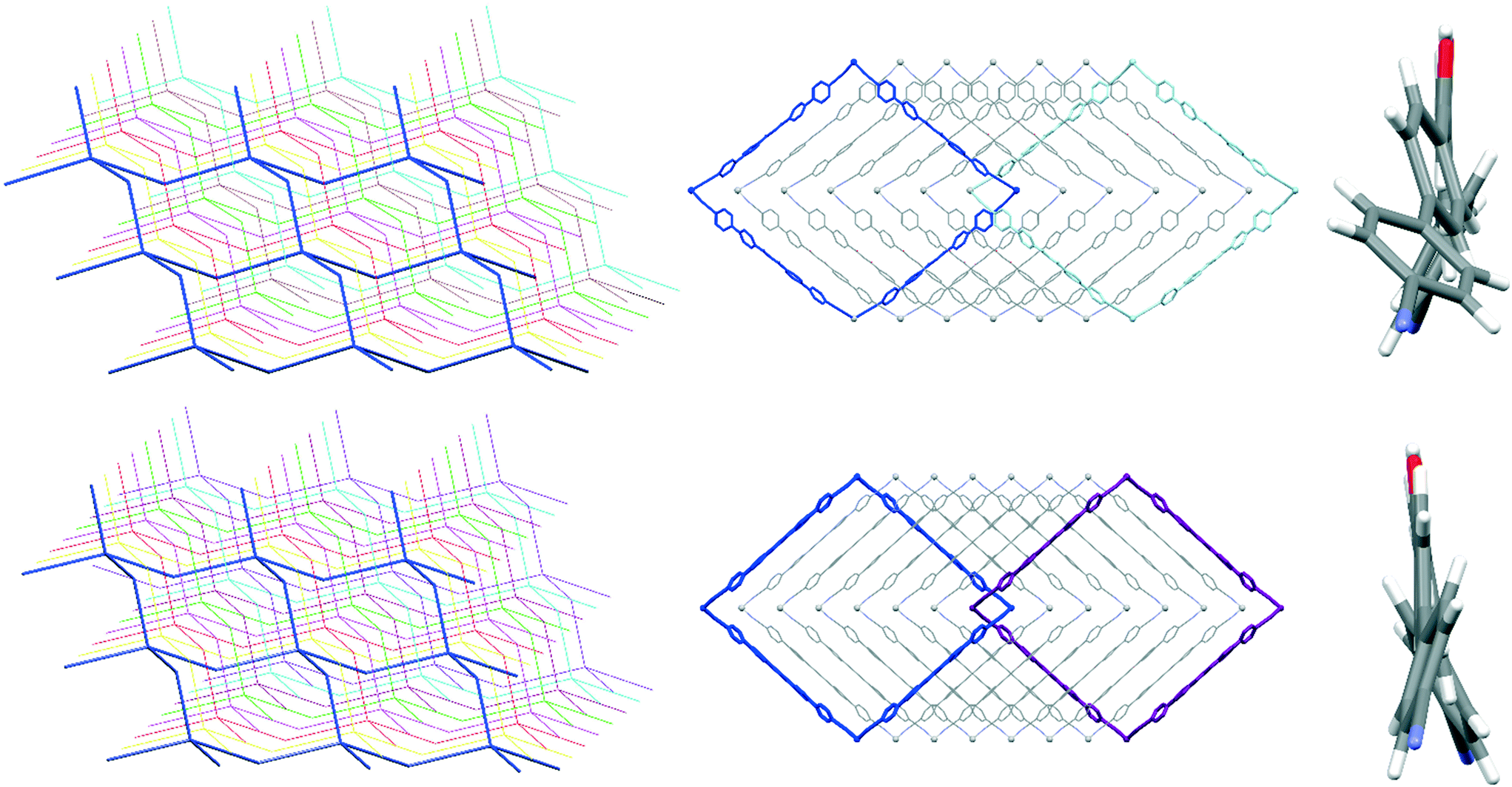

Fig. 4 Description of interpenetration in 1 (top) and 2 (bottom). Simplified views of the 7-fold and 8-fold interpenetrated layers for 1 and 2, respectively (left); catenation of a single rhombic window within the two structures (middle); views of the ligands showing their different conformations within the two structures (right).

Synthesis and characterization

The synthesis of HL, which contains two different coordination sites that are the two terminal nitrile groups and the central β-diketone, is reported in Scheme 1. Starting from commercially available p-bromobenzonitrile, a Suzuki–Miyaura cross-coupling reaction with commercially available p-acetylphenyl boronic acid gave methyl ketone R1 in good yield. Using the same reaction conditions, p-bromobenzonitrile was reacted with commercially available p-carboxyphenyl boronic acid to give the corresponding carboxylic acid that was transformed in ethyl ester R2. The condensation reaction between R1 and R2 was conducted in DMF in the presence of potassium tert-butylate as a base, affording the target diketone HL in 56% yield.

Compounds 1 and 2 have been obtained as microcrystalline powders by reacting the neutral form of the ligand HL with silver triflate in toluene under reflux for several hours and with silver nitrate in acetone at room temperature for 24 h, respectively. Yellow single crystals suitable for X-ray diffraction analyses were isolated for both compounds by a slow diffusion method: layering an acetone solution of the ligand on a toluene solution of silver triflate for 1 and an ethanolic solution of silver nitrate for 2 in a few days. The two species have been characterized by X-ray single-crystal and powder diffraction, IR spectroscopy, and thermogravimetric and elemental analyses. The two compounds are stable in the solid state, while they are quite soluble in water and in different common organic solvents (methanol, acetone and tetrahydrofuran).

The purity of the bulk samples of compound 1 has been confirmed by comparison of the experimental XRPD patterns with that calculated from single-crystal X-ray data. However, for compound 2, given the lack of molecules inside the channels in the structural model, the purity of the bulk samples was confirmed by Le Bail refinement of the experimental X-ray powder pattern (see Fig. S4‡).

In the IR spectra of both compounds, acquired by ATR technique on bulk materials and selected single crystals, the nitrile groups show only one ν(CN) band at ca. 2241 cm⁻¹ which is shifted to a higher wavenumber with respect to that of the free ligand (2225 cm⁻¹), confirming their coordination to the silver cation. The IR spectra of the two compounds are almost superimposable in the region corresponding to the carbonyl groups, while differences are due to the presence of the different anions. Characteristic bands of the triflate anion at 1258 and 1026 cm⁻¹ are present in the spectrum of 1 while the spectrum of 2 shows a broad band at ca. 1347 cm⁻¹ attributable to the nitrate anion. Moreover, the presence of a broad band at about 3475 cm⁻¹ in the spectrum of compound 2 supports the presence of clathrate water molecules in this species only. These findings are confirmed by the thermogravimetric analyses (TGAs) performed on the two compounds (see Fig. S2‡). For 2, the initial loss of water adsorbed on the crystal surface is followed by a weight loss of 4.92% between 160 and 215 °C, corresponding to three water molecules per formula unit, after which the compound almost immediately starts to decompose. At variance, compound 1 appears to be more stable since no weight loss can be detected up to 300 °C, after which decomposition starts. Further support to the presence of water molecules in compound 2, and its absence in 1, comes from the elemental analyses for the two species (see Experimental section).

Interpenetration in sql networks: CSD screening and topological analysis

The screening of the Cambridge Structural Database (CSD) for sql interpenetrated networks, according to the procedure described in the Experimental section, produced a dataset of 753 structures. Interpenetration can occur through different ways of catenation of rings in the sql networks, and determination of the extended ring net (ERN²⁶) for all structures using ToposPro software allowed their classification over 39 different patterns of entanglement. The description of all observed patterns of interpenetration would take too much space here and would be more appropriate for a review manuscript. Hence, the description is limited to interpenetrated sql networks which have features in common with compounds 1 and 2. In particular, in 1 and 2 the catenation between pairs of 2D networks is identified by the 8-c ERN of type (4,4)IV²⁶ and the 4-c nodes are arranged over the long diagonals of the rhombic windows.^48–50 Selecting structures with the same 8-c ERN for pairs of interpenetrated layers and having the 4-c nodes disposed along one diagonal of the windows further restricted the dataset to 170 structures comprising 1 and 2 (Table S3‡). In this type of entanglement, each ring of a network is catenated with four rings of every other network from the interpenetrated array. As a result, the number of catenations for each ring is 4 in 2-fold arrays, 8 in 3-fold (that is, one ring of the first network catenates 4 rings of the second and 4 rings of the third one), 12 in 4-fold, 16 in 5-fold, 20 in 6-fold, 24 in 7-fold and 28 in 8-fold (Fig. S8‡). It follows that the number of catenations per ring (N) for Z-fold interpenetrated arrays is given by the general formula N = 4(Z − 1). However, within the analyzed dataset of 170 structures, this type of catenation is observed only for interpenetrated sql networks with Z = 2, 3, 4 and 7, 8 (compounds 1 and 2, respectively), while no examples are found for Z = 5 and 6. Moreover, each pattern of catenation on increasing Z for the 170 structures is unambiguously defined by the topological types of corresponding ERNs, which are 8-c (4,4)IV (Z = 2), 12-c 12L14 (Z = 3), 16-c 16L1 (Z = 4), 28L1 (Z = 7) and 32L1 (Z = 8).

In 1 and 2 as well as for the other 108 structures of the analyzed dataset, interpenetration occurs through the curvature of the V-shaped linker while all 4-c nodes lie on the same plane. If the curvature of the linkers is ignored and the edges are all considered straight, the rings for the 110 structures have the formal shapes of square (14), rectangle (4), rhombus (59), parallelogram (29) and kite (4) (Fig. S7‡). In the remaining 60 structures, the 4-c nodes are not coplanar and lie on opposite sides of the mean plane of the 2D network. In all these structures, only an envelope shape is found for the rings (Fig. S7‡).

Most of the sample of 170 structures consists of 2-fold interpenetrated arrays (146), while 3-fold (19) and larger (5) represent only 14% of the sample. Moreover, structures with Z = 3 or larger are found only for rhombic and envelope shapes of the rings. Considering only structures with rhombic rings, it is found that only 16 structures have the nodes on the long diagonal, having Z of 2 (2 structures), 3 (11), 4 (1), 7 (compound 1) and 8 (compound 2). The disposition of nodes on the short diagonal was found in 3 structures (all with Z = 3) and in the center in 40 structures (all with Z = 2). Regardless of the shape of the rings, the number of interpenetrating networks (Z) for all the 170 structures with nodes on a diagonal of the rings have been plotted against the length of such diagonal (d), as reported in Fig. 5.

Fig. 5 Correlation between the diagonal length (d) and the number of interpenetrating networks (Z). The red line of the equation d = 4.45 × Z denotes the borderline, on the right side of which the interpenetration with a given Z is possible (d ≥ 4.45 × Z). For example, Z = 5 and 6 are possible for d larger than 22.25 Å and 26.70 Å, respectively.

The correlation between Z and d is affected by many factors such as the size of SBUs and linkers, the presence of guest molecules/counterions, or the occurrence of weak interactions in the structures, among others; therefore, unique trends are difficult to find. However, given the length of the interpenetrating diagonal (d), Z depends on the spacing (l) between the nodes belonging to adjacent interpenetrating networks on this diagonal; thus differences may be found on the base of the variation of l. Close networks have values of l in the range of about 4.45–10 Å. Shortest distances are in the range of 4.45–6.26 Å, which are found in the 3-fold interpenetrating structures of DAMZOJ,⁵¹ VABNIW,⁵² VABNOC,⁵² DOFQUL⁵³ and DOFRAS,⁵³ where, as in 1 and 2, nitrile groups of narrow ligands coordinate to Ag(I) (Fig. S11‡). Within this pattern of catenation, the degree of interpenetration is equal to Z = d/l and this would allow prediction of the minimal diagonal length necessary to obtain a given Z. If 4.45 Å is taken as the minimal value of l, being the shortest distance found among the 170 structures (and, in particular, among the silver dinitrile compounds seen before), the calculated d for the not yet found Z = 5, 6 and 9 are 22.25, 26.70 and 40.05 Å, respectively. If the given formula is also used to calculate d for Z = 7 and 8, the found values (31.15 and 35.60 Å) are indeed lower than those actually found in compounds 1 and 2 (41.35 and 40.77 Å). Discrepancies in the linear trend put in evidence the action of different factors in determining the degree of interpenetration, which in our case are mainly due to different steric demands of the ligand determined by its conformation.

The presence of voluminous linkers and SBUs, guest molecules and/or counterions, or stronger interactions between different layers increases the value of l, reducing Z for a given value of the diagonal d. For example, six compounds with nitrile groups coordinated to Ag(I) (TUMBIO,⁵⁴ NEYRAK,⁵⁵ NEYREO,⁵⁵ NEYRIS,⁵⁵ OBELEN⁵⁶ and XOMGUC⁵⁷) have diagonal lengths of 15–20 Å, similar to other 3-fold interpenetrating dinitrile compounds, but they are only 2-fold and, consequently, have larger l of about 7.3–10 Å (Fig. S12‡). The increase of l provides voids within the interpenetrated array which can be filled by solvate molecules (DEPHIQ⁵⁸), counterions (FAGCEW⁵⁹), or ligands from neighboring interpenetrated arrays by interdigitation (NIDFAJ⁶⁰) (Fig. S13‡). Large distances between the nodes also occur for structures with voluminous linkers or SBUs (HAJMOX⁶¹) (Fig. S14‡). The largest value of l (16.6 Å) is found in the 2-fold structure ROMPAN⁶² in which the node is a large cluster. For rectangular and parallelogram rings, the limiting size can be related to the length of one of the two variable edges. For example, the isophthalate linker in ARUCEX⁶³ provides a short edge of only 10.16 Å in the parallelogram ring, which is more than twice shorter than both the long edge (23.24 Å) and the diagonals (25.23 and 25.50 Å) (Fig. S15‡).

Photophysical properties

The photophysical properties of coordination compounds of closed shell d¹⁰ metals, such as coinage M(I) metals, are of particular interest and exploitable for diverse applications.^64,65 In comparison to coordination compounds of Cu(I) and Au(I), those of Ag(I) are less studied, mainly because of their photoinstability, although several luminescent silver(I) complexes have been reported.^66,67

Based on these premises, we investigated the emissive properties of the free ligand HL and of CNs 1 and 2 in the solid state at room temperature. Emission spectra are shown in Fig. 6, while excitation spectra are reported in Fig. S16.‡ The free ligand HL shows an emission peak at about 530 nm which could be attributed to a π–π* transition. Coordination of HL to Ag(I) causes a blue-shift of the emission in both cases: CNs 1 and 2 show peaks with maxima at about 465 and 482 nm (with a shift of 65 and 48 nm with respect to HL, respectively). All three compounds display featureless bands, which are less broadened for the two CNs than for the free ligand. The emission of the two silver derivatives could also be probably assigned to intraligand excited states.

Fig. 6 Emission spectra for the free ligand HL and the two coordination networks 1 and 2, measured in the solid state at room temperature. The excitation wavelength is 447 nm for HL and 330 nm for 1 and 2.

Coordination to a metal centre usually results in a red shift of the emission maxima of the π–π* transition with respect to that of the free ligand. However, coordination networks showing, in contrast, a blue-shift of these maxima are well documented in the literature.^68–70 In these cases, the observed blue shift induced by metal coordination can be attributed to a higher rigidity of the ligand constrained in the network that prevents the π–π* excited state from reaching an optimal (typically more planar) conformation. The different blue-shift observed for 1 and 2 is in agreement with this interpretation. The conformation adopted by the ligand in 1 is less planar than that adopted in 2 (see Table S4‡) and, as a consequence, the reduced conjugation in 1 leads to a higher energy of the transition for this species.

Absolute quantum yields of 7.3%, 12%, and 17% have been measured in the solid state at room temperature for HL, 1 and 2, respectively. The observed trend can be interpreted taking into account the volume accessible to the chromophore in the three crystal structures (547, 525 and 518 ų for HL, 1 and 2, respectively) since a confinement in a smaller space, derived also from an increase of the degree of interpenetration moving from 1 to 2, hampers deactivation of the excited states through non-radiative pathways.

Conclusions

In this work we described the preparation of two new interpenetrated 2D coordination networks, [Ag(HL)₂](CF₃SO₃) (1) and [Ag(HL)₂](NO₃)·3H₂O (2), which have sql topology and show degrees of interpenetration of 7- and 8-fold. These are the highest degrees of interpenetration found among 2D networks, since only Z equal to 5 and 6 have been reported up to now for sql and hcb networks, respectively. We succeeded in reaching these record values by using a new tailored V-shaped 1,3 substituted β-diketone ligand of nanometric length, possessing nitrile groups as donors. The self-assembly of the new ligand with silver triflate and nitrate occurs through coordination of the nitrile groups to tetrahedral silver ions to give very similar chiral cationic sql layers with large rhombic windows. The presence of the large windows and the undulation of the layers allow in both cases interpenetration alongside the long diagonal of the rhombic windows to give the 7-fold (triflate) and 8-fold (nitrate) arrays. The enolic form of the β-diketone fragment is not involved in the coordination and functionalizes both sides of the arrays. Interpenetration generates monodimensional channels within the arrays, whose shape and dimension must host the different anions and clathrate solvent present in the two CNs. Structural analysis highlights that the different degrees of interpenetration are associated with the different conformation adopted by the long ligand. Indeed, the ligand is flatter and less space-demanding in 2, allowing a higher number of networks aligned along the rhombic diagonal.

Interpenetration is an entanglement phenomenon very common in CNs and its understanding and control are of great interest. The analysis of 168 interpenetrated sql networks, selected from the Cambridge Structural Database (CSD) and sharing features in common with compounds 1 and 2, enabled individuating the minimal distance between interpenetrating networks (found to be 4.45 Å), and accordingly, predicting the minimal length of the diagonal needed to achieve a given Z.

The successful preparation of similar networks 1 and 2, sharing the same nodes, linkers and topology, and differing only in the degree of interpenetration, allows studying the effect of this latter parameter on their physical properties. In particular, the characterization of the luminescence behaviour of 1 and 2 in the solid state at room temperature shows a blue shift of the emission wavelength with respect to that of the uncoordinated ligand, accompanied by an increase of the quantum yield. These results could be interpreted in terms of the different volume accessible to the chromophore in the three crystal structures, which affects the possibility for the excited state to reach an optimal conformation and deactivate through non-radiative decay. This work thus proves the possibility of modulating some of the luminescence properties by embedding a chromophore in different environments generated by different degrees of interpenetration of a network.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank Università degli Studi di Milano for financial support (PSR2019_DIP_005_PI_LCAR), Dr. Daniele Marinotto for the photophysical measurements by means of the instrumentation purchased through the Regione Lombardia–Fondazione Cariplo joint SmartMatLab Project, and Dr. Marco Aldo Ortenzi for the thermal analyses. EVA is grateful to the Russian Science Foundation for supporting topological methods of crystal structure analysis within the project “Methods of topological design of coordination polymers” (grant number 18-73-10116).
