Supramolecular interaction of inositol phosphates with Cu(II): comparative study of InsP₆–InsP₃

Abstract

myo-inositol phosphates are an important group of biomolecules that are present in all eukaryotic cells. The most abundant member of this family in nature is InsP₆ (H₁₂L¹), which interacts strongly with inorganic and organic cations. This interaction is essential for determining the possible functions of this biomolecule. A few crystal structures containing InsP₆, and a divalent cation, have been reported showing a great versatility of this bioligand. Ins(1,2,3)P₃ (H₆L²) is another important member of the group, usually thought as a safe cellular iron ligand. No crystal structures showing the interaction of L² with metal ions can be found in the literature. In this work we characterized by X-ray diffraction two polynuclear complexes, [Cu₃(H₆L¹)(phen)₅] (phen = 1,10-phenanthroline) (1) and [Cu₂(H₂L²)(H₂O)(terpy)₂] (terpy = 2,2′:6′,2′′-terpyridine) (2). The crystal structure of 2 furnishes, for the first time, a picture of the coordination ability of Ins(1,2,3)P₃ against a divalent metal ion. In addition, a PDB survey was performed on all InsPs to frame the coordination modes derived from our small-molecule supramolecular approach within a more realistic biological context.

---

Introduction

myo-inositol phosphates (InsPs) are a wide range of biomolecules derived from the phosphorylation of myo-inositol. This group contains many metabolically related species, differing only in the number and position of the phosphate groups attached to the inositol ring. Even though they are ubiquitous and abundant in eukaryotic cells, their functions are still poorly understood, and many authors agree that their biochemistry will increasingly become clear from future work.^1–4 Together with inositol pyrophosphates, they are involved in numerous cellular processes, including insulin signaling and cell migration.⁵ For example, myo-inositol 1,4,5-trisphosphate has reached the textbooks with a specific biological function related to intracellular calcium mobilization.⁶

The presence of phosphate groups in these molecules with easily ionisable protons produces highly negatively charged molecules in aqueous solution, even under pH values close to neutrality.^7–9 As a consequence, the interaction of those species with metal cations has been recognized as a crucial point to understand the behaviour of inositol phosphates in biological media. The advances in the biochemistry of inositol phosphates go together with the study of their interaction with cations.

myo-inositol hexakisphosphate (InsP₆, H₁₂L¹, also called phytate, Fig. 1) is the most abundant member of the family, with intracellular concentrations ranging from 10 to 60 μM in animal cells,^10,11 and up to 350–500 μM in slime moulds.^12,13 It is commonly believed that InsP₆ must be somehow important to cell function,¹ and has been associated with the regulation of many important processes.^14–23 The interaction of phytate with cations has been studied in the last years, including the elucidation of some crystal structures of compounds with Na(I),²⁴ K(I),²⁵ Zn(II),²⁶ Mn(II),²⁷ and Cu(II)^28–30 complexes.

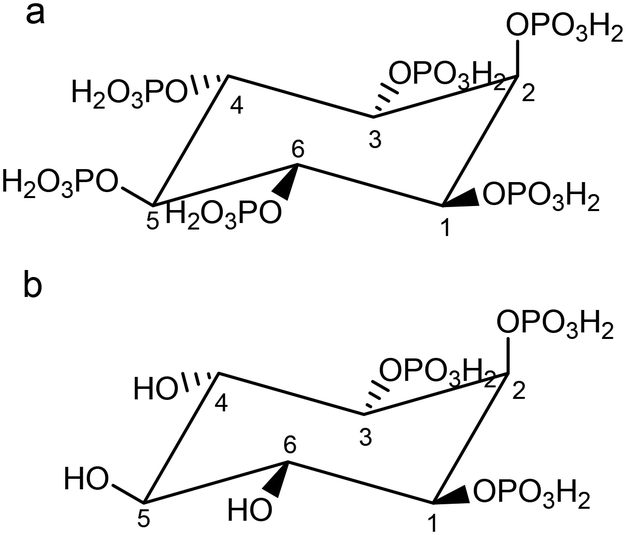

Fig. 1 Structure of a) fully protonated InsP₆ (H₁₂L¹) and b) fully protonated Ins(1,2,3)P₃ (H₆L²). Compounds are shown in the conformation 1 axial-5 equatorial (1a5e). They can also exist in the 5 axial-1 equatorial (5a1e) conformation. Numbering of P atoms follows that of C atoms.

We recently reviewed the versatility of this natural product as a ligand in different coordination compounds, either in solution as in solid state.³¹ An overview of its behaviour shows the notorious predominance of 1 : 1 (metal to ligand) species, together with some other polynuclear species in solution, and the formation of polymetallic compounds in the solid state. In both scenarios, solid state and solution, a combination of supramolecular interactions, dominated by the six phosphate groups, are clearly responsible for the assembling processes.

Other members of the family, with one to five phosphate groups have not been so deeply studied from a structural coordination chemistry point of view. One of them, myo-inositol 1,2,3-trisphosphate (Ins(1,2,3)P₃, H₆L²) (Fig. 1) is also a natural product found in cells in concentration below 10 μM.^32,33 It has attracted huge attention because is a potent iron chelator and antioxidant, completely inhibiting the iron-catalysed hydroxyl radical (HO˙) formation.^34,35 The Fe(III)–Ins(1,2,3)P₃ interaction is remarkably strong in comparison with other InsP₃. In fact, pFe (negative logarithm of the Fe(III) concentration left free by complexing agents under the conditions [InsP₃] = [Fe³⁺] = 10 μM, pH 7.4) is 11.5 for Ins(1,2,3)P₃, 6.35 for Ins(1,3,5)P₃, 7.66 for Ins(1,2,6)P₃, and 6.05 for Ins(2,4,6)P₃.⁸ The reason for this seems to be the presence of a preformed negative box – containing three contiguous phosphate groups – specially adapted for this ion. DFT calculations on the main species [Fe^IIIL²]³⁻ at pH values under 6, account for this fact.³⁶

The elucidation of crystal structures containing InsPs and different cations set up the basis for explaining some physicochemical and biological properties of these molecules. Moreover, it is with this tool that molecular recognition at cell level can be rationalized. In this work, we present the structures of two new compounds, [Cu₃(H₆L¹)(phen)₅] (phen = 1,10-phenanthroline) (1) and [Cu₂(H₂L²)(H₂O)(terpy)₂] (terpy = 2,2′:6′,2′′-terpyridine) (2). Compound 2 represents the first one containing Ins(1,2,3)P₃ and a metal cation ever reported. A comparison of both structures, together with previously reported ones allows to furnish a picture of the influence of phosphorylation degree on the molecular recognition of cations by InsPs. Furthermore, in order to place our structural information in the framework of a more realistic biological context, we performed a survey of all the InsPs complexes in the Protein Data Bank (PDB).

Experimental

Chemicals and equipment

All common laboratory chemicals were reagent grade, purchased from commercial sources and used without further purification. The phytate dipotassium salt (K₂H₁₀L¹·2.5H₂O) was obtained from Sigma-Aldrich and the purity was rechecked by elemental and thermogravimetric analyses. Cu₆L¹·14H₂O and the tetrasodium salt of Ins(1,2,3)P₃, Na₄H₂L²·2H₂O were prepared as previously reported.^8,28

Infrared spectrum of 1 was carried out on a Shimadzu IR Prestige-21 instrument, with samples present as KBr (1%) pellets. In the case of 2, spectrum was recorded on single crystals in attenuated total reflectance (ATR) mode with a Shimadzu IRAffinity-1S.

Synthesis

[Cu₃(H₆L¹)(phen)₅]·14H₂O (1·14H₂O). 6 mg of CuCO₃ (0.05 mmol) were dispersed in 1 mL water. Then, 3 mL of a solution of phen (9 mg, 0.05 mmol) in methanol was slowly added with stirring. The mixture was acidified adding dipotassium phytate (K₂H₁₀L¹·2.5H₂O, 0.008 mmol) until pH = 4.3 to promote the conversion of carbonate into CO₂. Finally, water was added to give a total volume of 10 mL. A portion of this solution (4 mL) was poured into a 10 mL screw cap test tube. A few sky-blue crystals of compound 1 were obtained upon diffusion of acetonitrile into this solution at room temperature, collected by filtration and air-dried. Some of them were suitable for X-ray diffraction. ν_max cm⁻¹ 3428 (O–H), 3070–2852 (C–H), 1520 (C=C), 1429 (C=N) and 1190–929 (P–O); δ_max cm⁻¹ 1627 (H₂O) and 511 (O–P–O); ρ_max cm⁻¹ 851 and 721 (C–H).

[Cu₂(H₂L²)(H₂O)(terpy)₂]·10.5H₂O (2·10.5H₂O). 28 mg of copper(II) phytate (Cu₆L¹·14H₂O, 0.019 mmol) were dissolved in a 10 mL aqueous solution of Ins(1,2,3)P₃ (Na₄H₂L²·2H₂O, 0.342 mmol) acidified by adding dipotassium phytate (K₂H₁₀L¹·2.5H₂O, 0.095 mmol). Then, 5 mL of a solution of terpyridine (20 mg, 0.086 mmol) in methanol was slowly added with stirring. The pH of the solution was adjusted to 6.1 with NMe₄OH. A portion of this solution (ca. 4 mL) was poured into a 10 mL screw cap test tube. A few blue crystals were obtained upon diffusion of acetonitrile into this solution at room temperature. They were collected by filtration and air-dried. Some of them were suitable for X-ray diffraction. ν_max cm⁻¹ 3365 (O–H), 3103–2609 (C–H), 1598 and 1576 (C=C), 1448 (C=N) and 1115–1018 (P–O); δ_max cm⁻¹ 1657 (H₂O); ρ_max cm⁻¹ 828–770 (C–H).

X-ray structure analysis

Crystals of 1·14H₂O and 2·10.5H₂O were used for single-crystal X-ray diffraction analysis. The integrated intensities were corrected for Lorentz and polarization effects and an empirical absorption correction was applied.³⁷ The structures were solved by using direct methods SIR-97 software.³⁸ Refinements were performed by means of full-matrix least-squares using SHELXL Version 2014/7.³⁹ All non-hydrogen atoms were anisotropically refined. Some cocrystallized water molecules were disordered and have been refined using partial occupancy factors. In 2·10.5H₂O, hydrogen atoms belonging to the coordinated water molecule and to one of the phosphate groups were localized in the ΔF map and their coordinates were freely refined. Mercury software⁴⁰ was employed for visual inspection and presentation of data.

A summary of the crystallographic data is reported in Table S1.†

Computational calculations

The molecular geometry of compound 2 was optimized by employing the Gaussian 09 package.⁴¹ Density functional theory (DFT) geometry optimization runs were performed by means of the B3LYP⁴² functional and the effective core potential LANL2DZ basis set.⁴³ An ultrafine integration grid was employed. The initial structural input was built from the crystallographic information, and the L² protonation pattern was fixed according to the relative position of the ionisable groups. Water molecules were placed to complete the metal coordination spheres. High- and low-spin states were considered and the most stable geometries were selected. The optimum geometries corresponded to energetic minima according to the frequency analysis.

Additionally, an in-depth analysis of the electron density was carried out by means of the noncovalent interaction (NCI) method,⁴⁴ as implemented in the program Multiwfn (version 3.7).⁴⁵ The values of the product sign(λ₂)ρ (λ₂ = second largest eigenvalue of the Hessian matrix of electron density; ρ = electron density) were represented with different colours and mapped on a reduced density gradient (RDG) isosurface (isovalue = 0.35). The weak interactions were represented with different colours: H-bonds (blue), van der Waals (green) and steric repulsion (red). The energy of the hydrogen bonds was estimated starting from the electron density at the bond critical point (ρ_BCP) and using the approach reported by Emamian et al.⁴⁶ The results were rendered with Discovery Studio Visualizer⁴⁷ and VMD 1.9.3.⁴⁸

Results and discussion

Syntheses of the complexes

The synthetic route to obtain single crystals of 1 and 2 follows our previous works. The formation of highly insoluble complexes between bivalent cations and InsPs, in particular Cu(II), has been a major obstacle for obtaining single crystals and thus for performing a full characterization. An alternative approach is the use of a second ligand which partially blocks the coordination sphere of Cu(II) and limits the nuclearity increase of the final complex. In addition, if this blocking ligand has an aromatic character, it can promote the process of crystallization by means of π-stacking interactions. Then, the synthesis included phen (1) or terpy (2) as crystallization-promoting coligands.

In the case of complex 1, the system has been previously studied in solution through potentiometric titrations at 37.0 °C in 0.15 M Me₄NCl.²⁹ Protonation constants of L¹ and phen, and stability constants of the systems phen–L¹, Cu(II)–phen, Cu(II)–L¹, and Cu(II)–L¹–phen have been precisely determined. In the case of ternary systems containing phen, L¹ and copper(II), protonated species with the 1 : 1 : 1 molar ratio are among the most important complexes in solution. They can be generally formulated as [Cu(H_xL¹)(phen)]^(10−x)−. Some other polynuclear species with molar ratios 3 : 1 : 3 and 4 : 1 : 4 (phen : L¹: copper) are detected. These polynuclear species become more abundant as the relative concentration of L¹ is lowered, i.e., under molar excess of Cu(II) and phen.²⁹ Based on these data, it is possible to analyse the system in solution under conditions which resemble the synthesis of 1. This is shown in Fig. 2.

Fig. 2 Species distribution diagram for phen : L¹ : Cu(II) system, in 0.15 M Me₄NCl at 37.0 °C calculated from thermodynamic data reported in ref. 29. Concentration of reactants follows those of the synthesis, [phen] = [Cu(II)] = 5 mM, [L¹] = 0.8 mM. The vertical dashed line represents the pH of synthesis.

At a pH value of 4.3, 3 : 1 : 3 species are predominant, with three or four protons added. A view of the system from phen side (Fig. S1†) shows that an excess of the fragments [Cu(phen)]²⁺ and [Cu(phen)₂]²⁺ are still present in solution. Self-assembling of anionic species [Cu₃(H₄L¹)(phen)₃]²⁻ or [Cu₃(H₃L¹)(phen)₃]³⁻ with cationic Cu(II)–phen species (for example [Cu(phen)₂]²⁺) could yield the neutral compound [Cu₃(H₆L¹)(phen)₅] (1), then releasing one Cu(II). This self-assembling mechanism has been proposed in similar compounds containing M(II) and L¹.^27,29

A similar pathway to get compound 2 was unsuccessful. We were able to obtain a few crystals only by starting from Cu₆L¹ (a slightly soluble compound in water), terpy, and a large excess of Na₄H₂L²·2H₂O at pH 6.1.

Crystal structures

The crystal structure of 1·14H₂O consists of [Cu₃(H₆L¹)(phen)₅] trinuclear complex units and cocrystallized water molecules. The complex unit is shown in Fig. 3, while coordination bond lengths and angles are listed in Table S2.†

Fig. 3 [Cu₃(H₆L¹)(phen)₅] trinuclear complex. P2 phosphate is affected by rotational disorder, only the major conformer is shown. 40% thermal ellipsoid for non-hydrogen atoms.

The three metal ions are five-coordinated with different coordination environments. Cu2 shows the most regular one, which can be described as square pyramidal: two oxygen atoms of two phosphate groups (P5 and P6, respectively) and two nitrogen atoms of a phenanthroline molecule define the basal plane. The apical position is occupied by a water molecule (OW1). Instead, Cu1 and Cu3 are each coordinated by a single oxygen atom of different phosphate groups: phosphate 5 (P5) in the case of Cu1 and phosphate 4 (P4) in the case of Cu3. Each coordination sphere is then completed by two phen units, the overall geometries being intermediate between a trigonal bipyramid and a square pyramid. The two phenanthroline molecules are arranged around each metal ion as two propeller blades forming dihedrals of 80° (Cu3) and 57° (Cu1). These angular values denote a higher distortion of the coordination geometry of Cu1, relative to that of Cu3. Actually, as shown in Fig. 4a, one of the phenanthroline molecules coordinated to Cu1 gives rise to an intra-molecular π-stacking interaction (interplanar distance of 3.3 Å) with the phenanthroline coordinated to Cu2. In addition, the phosphate 5 (P5) bridges Cu1 and Cu2, which are at the shortest intermetallic distance (3.9574(9) Å) within the complex. As a result, the two phen units have slightly differently arrangements around Cu1 and Cu3. Values calculated for the τ parameter, which describes the coordination spheres of the two metal centres, indicate equivalent contributions of trigonal bipyramid and square pyramid for Cu1 while the bipyramidal character is only 30% for Cu3 (τ = 0.55 and 0.32 for Cu1 and Cu3, respectively, to be compared with τ = 0.02 for Cu2).

Fig. 4 Columns of [Cu₃(H₆L¹)(phen)₅] units growing along the a axis (a). Crystal packing featuring walls of [Cu₃(H₆L¹)(phen)₅] columns (b), with interspaces filled by cocrystallized water molecules (c). Inter- and intracolumn π-stacking contacts shown as dashed lines.

The (H₆L¹)⁶⁻ anion has the 1a5e conformation, as usually found for partially protonated phytate. It connects the three metal centres by means of three adjacent equatorial phosphate groups (P4, P5 and P6). The axial phosphate P2, as well the nearby P1 and P3, are not involved in metal coordination but participate in a dense network of H-bonds with the numerous cocrystallized water molecules.

Interestingly, the crystal packing features parallel columns, growing along the a axis. The overall structure is stabilized by π-stacking interactions occurring, intracolumn, between Cu3(phen) and Cu1(phen), and, intercolumn, between the Cu1(phen)–Cu2(phen) couple of one column and a Cu3(phen) of an adjacent column (Fig. 4a, interplanar distance of about 3.4 Å). In adjacent columns, the three not coordinated phosphate groups point toward opposite sides, so that the resulting crystal packing features the undulating walls shown in Fig. 4b. The interspace between these walls is filled by the cocrystallized water molecules (Fig. 4c).

The crystal structure of 2·10.5H₂O consists of (H₂L²)⁴⁻ anion joining two five-coordinated copper ions whose coordination spheres are completed by terpy ancillary ligands and a water molecule. The overall binuclear complex is shown in Fig. 5 and Table S3† lists coordination bond distances and angles. The coordination environments of both metals are distorted square pyramids (τ = 0.07 and 0.14 for Cu1 and Cu2, respectively), with the apical positions occupied by an oxygen atom from phosphate 1 (Cu2) and phosphate 3 (Cu1). The basal planes are constituted by the three nitrogen atoms of each terpyridine unit and a water molecule (Cu2) or an oxygen atom from phosphate 2 (Cu1).

Fig. 5 [Cu₂(H₂L²)(H₂O)(terpy)₂] unit (50% thermal ellipsoid for non-hydrogen atoms).

To the best of our knowledge, only another crystal structure has been previously reported for L²,⁴⁹i.e. the sodium tetra(cyclohexylammonium) salt of the monoprotonated (HL²)⁵⁻ anion. The conformation adopted by L² in this structure is almost the same as that found in our crystals. Actually, the C₆ ring has the chair conformation with the phosphate ester on C2 in an axial position while all the other oxygen atoms are equatorial. In the Schwalbe's structure, only one phosphate group is protonated. Accordingly, the only HO–P distance (1.56 Å) is longer than all the other P–O bonds (1.49–1.51 Å), which clearly evidence delocalized multiple bond character.

Analysis of the asymmetric unit content for our structure led us to hypothesize two possible formulas for the crystallized compound, [Cu₂(H₂L²)(H₂O)(terpy)₂]·10.5H₂O or [Cu₂(H₃L²)(OH)(terpy)₂]·10.5H₂O, both containing an L² anion more protonated than (HL²)⁵⁻ in the Schwalbe's structure. The first formula corresponds to the presence of the diprotonated (H₂L²)⁴⁻ anion, whose negative charge is balanced by the two Cu²⁺ cations, while, in the second formula, the L² anion would be triprotonated [(H₃L²)³⁻] and the oxygen atom coordinated to Cu2 should belong to a hydroxyl group to balance the charge of cations. This doubt about the correct formulation arose from the fact that we were able to clearly localize only one H atom on phosphate groups, specifically on O33 related to C3 of the inositol ring. A second hydrogen atom (HW2) was found to be shared between the coordinated water molecule and the phosphate group on C2 of a centrosymmetric molecule (Fig. 6a), but no other acidic H atom was found in the Fourier difference map. HW2 was freely refined, and its ADP at the end of refinement was high, but still acceptable for a shared hydrogen. It is equidistant from OW1 and the symmetry related O22 phosphate oxygen (O22–HW2, 1.4(2) Å; HW2–OW1, 1.3(2) Å; Fig. 6a), thus defining a three-centre four-electrons (3c–4e) bond. Therefore, this special binding situation does not help to assign the correct formula of the compound and establishing the protonation degree of the L² anion in our structure.

Fig. 6 (a) Lateral and (b) top views of the centrosymmetric pair of [Cu₂(H₂L²)(H₂O)(terpy)₂] complexes.

Nevertheless, we can make assumptions based on the analysis of the distances of the P–O bonds in each phosphate group. The certainly protonated phosphate has, as expected, the P3–O33H bond length significantly longer than those with O32 and O34 (1.567(4) Å vs. 1.505(4) Å (O32) and 1.495(7) Å (O34)). The same trend of bond distances (P1–O13 1.565(6) Å, P1–O12 1.495(6) Å, P1–O14 1.501(4) Å) was found for the phosphate linked to C1, while the remaining phosphate group (P2) shows a set of P–O distances (P2–O22, 1.503(6) Å; P2–O23, 1.531(4) Å; P2–O24, 1.507(4) Å) in agreement with the P–O bond lengths (1.49–1.51 Å) reported by Schwalbe for the totally deprotonated phosphate groups in his L² structure. On this basis, we chose the [Cu₂(H₂L²)(H₂O)(terpy)₂]·10.5H₂O formula for our crystallized compound, with the doubly protonated (H₂L²)⁴⁻ anion and a water molecule coordinated to Cu2. The O13 oxygen, which is protonated, according to the P–O bond distances, is likely involved in an intramolecular hydrogen bond interaction with O23 from the phosphate on C2, thus mitigating the charge–charge repulsion due to the short O13⋯O23 distance (2.488 (9) Å – Fig. 5). Interestingly, the same H-bond contact involves phosphates on C1 and C2 in the Schwalbe's structure.

It is worth noting the role that the HW2 hydrogen plays in the overall crystal structure, as centrosymmetric [Cu₂(H₂L²)(H₂O)(terpy)₂] units are strongly coupled in pairs by the 3c–4e bonds formed by HW2 with O22 and OW1. As shown in Fig. 6a and b, in each pair, the interaction between the two [Cu₂(H₂L²)(H₂O)(terpy)₂] complexes is reinforced by two additional H-bonds (OW1–HW1⋯O23 1.88(9) Å) and by the π–π stacking interaction established by the terpy units (interplanar distances about 3.5 Å). These complex pairs are then organized in columns, developing along the b axis, and joined by π-stacking interactions given by terpyridine units from adjacent columns (Fig. 7a). Columnar channels are thus formed that are filled by cocrystallized water molecules (Fig. 7b).

Fig. 7 (a) Columns formed by pairs of [Cu₂(H₂L²)(H₂O)(terpy)₂]complexes growing along the b axis; (b) columnar channels along the b axis filled by cocrystallized water molecules.

Infrared spectra

Infrared spectrum of 1·14H₂O (Fig. S2†) follows the general pattern of the previously reported complex containing L¹, phen and Cu.²⁹ The spectrum shows a wide and strong absorption band in the range of 3500–2800 cm⁻¹, with maximum absorbance at 3412 cm⁻¹. This mainly corresponds to the sum of the O–H stretching modes of coordinated and crystal water molecules. The protonated phosphate groups also contribute to the ν(O–H) band, extending it down to 1800 cm⁻¹. The ν(C–H) normal modes of both ligands are superimposed onto this band, giving rise to shoulders at 3057 (phen), 2924 (phytate) and 2853 cm⁻¹ (phytate). Interestingly, the spectral profile in this frequency range changes slightly for the reported analogous complex,²⁹ for which only the first two of those peaks appear at 3061 and 2920 cm⁻¹. Below 1800 cm⁻¹, and apart from the water bending vibration (1890–1558 cm⁻¹), two strong peaks at 1520 and 1429 cm⁻¹ are registered, ascribed to C=C and C=N stretching modes of phen. Phen C–H bending and phytate C–H deformation modes appear superimposed as a broad band in the same frequency range. The IR frequencies attributed to the phosphate groups are observed below 1280 cm⁻¹ as broad and intense spectral bands: ρ(PO–H) (1312–930 cm⁻¹), ν(PO–H) (1190 cm⁻¹), ν(P=O) and δ(PO–H) (1076 cm⁻¹), ν(PO–C) and ν(O–P–O) (1076 and 930 cm⁻¹), ν(P–OC) (559 cm⁻¹) and ν(O–P–O) (511 cm⁻¹). The relative intensity of those peaks changes slightly with respect to the one registered for the analogous Cu–phen–phytate complex.²⁹ Finally, sharp intense peaks ascribed to wagging C–H deformation of phen moieties are observed at 851 and 721 cm⁻¹.

We were able to perform a detailed assignation of the most relevant infrared bands of compound 2·10.5H₂O by comparing the wavenumber and relative intensity of the experimental (complex 2, the ligands terpy and sodium salt of L²) and DFT predicted IR peaks. This is shown in Fig. S3 and S4.† The wide and strong absorption band in the range of 3500–3000 cm⁻¹ corresponds to different O–H and C–H stretching vibrations originated in water molecules (coordinated and crystallized) and terpyridine ligand. These vibrations for P–O–H groups appear at 2966 cm⁻¹ with low intensity. Double bonds C=C and C=N belonging to terpyridine vibrate in the zone 1620–1360 cm⁻¹, giving rise to two intense bands whose profile changes substantially upon complexation (compare the spectra for terpy and compound 2). Close to this region, δ(H₂O) is evident at 1657 cm⁻¹. At lower energy values, around 1230 cm⁻¹, different signals of phosphate groups (ν(PO–H), δ(PO–H), ν(PO–C)) are present as shown in Fig. S4.† They appear superimposed to sharp medium-intensity peaks brought about by the bending and deformation of terpy C–H bonds.

Electronic structure calculations

The structure of 2, as we previously mentioned, is the first ever reported of a coordination compound containing L². Intramolecular interactions, including H bonds, contributes to the stability of this species as well as to determine the conformation of the organic ligand. This is a well-known fact also in the case of complexes with L¹.³¹ With this in mind, we performed DFT calculations in vacuum on the neutral species [Cu₂(H₂L²)(H₂O)(terpy)₂].

The most remarkable features of the structure are well reproduced by the calculations. The high-spin gas phase optimized geometry of 2 is structurally similar to that found in the crystalline structure (Fig. S5†). In particular, the presence of a strong intradimer H-bond as shown in Fig. 8 and S5.† The shared H atom is located between O13 and O23, as deduced from the analysis of the crystal structure. Theoretical O13–O23 distance is 2.543 Å, in line with that found in the crystal structure, 2.534(7) Å. The Wiberg bond order is 0.08 (even higher than that found in strong OH⋯F bonds⁵⁰), and the bond energy estimated through the electronic density in the bond critical point is −23.7 kcal, midpoint in the interval for strong H-bonds.⁵¹ Both results points to the presence of a strong intramolecular H-bond.

Fig. 8 Gas phase DFT-optimized geometry of compound 2. The weak interactions are depicted with different colours using the noncovalent interaction (NCI) method.

To gain insights into the electronic and structural determinants behind the molecular geometry adopted by 2, we identified the non-bonding intramolecular forces by means of the noncovalent interaction method. The results, depicted in Fig. 8, indicate that an important number of attractive intramolecular interactions stabilize the complex conformation, including strong H-bonds between phosphate groups, CH–O H-bonds between the terpy and phosphate moieties and CH–π and anion–π interactions between the terpy and phytate ligands.

PDB search

InsP₆ structural information has been recently gathered in a comprehensive review addressing CSD (Cambridge Structural Database) information.³¹ Since no structures of InsP₃ complexes are reported, we have expanded our studies to the PDB in order to check InsP₃ presence in the database and/or to frame the coordination modes derived from our small-molecule supramolecular approach with binding motif observed for the same, or related ligands, within a more realistic biological context.

Main findings can be summarized as follows:

1) No other Ins(1,2,3)P₃ structure is reported, neither free nor metal-bound;

2) Several binding features are common among InsPs;

3) PDB information is somewhat different from CSD one, as in the former discrete metal-complexes rather than coordination polymers are mostly encountered;

4) Coordinative versatility of the class of InsPs ligands goes beyond CSD-reported binding modes, thanks to the blocking of metal cation's and/or InsPs donors with exogenous ligands commonly found in a biological setting;

5) Mimicking of these ancillary ligands with synthetic ones appears an effective way to elucidate relevant binding modes.

Our PDB survey took into consideration all InsPs with a number of phosphate groups comprised between 1 and 6, which do not contain polyphosphate groups attached to the inositol core. This resulted in a dataset of 241 PDB entries, scattered across 21 isomers (Fig. S6, Table S4†). No crystal structures containing Ins(1,2,3)P₃ were found.

InsPs are not equally abundant, neither in terms of phosphate groups present, nor, phosphorylation being equal, in terms of isomer representation (Fig. S6 and S7†): InsP₆ (IHP in PDB standard nomenclature), being vastly predominant. Of the 241 InsPs containing structures, 135 (56%) also contain metal cations. Of these 135 structures, 42 (17% of the total, 31% of metal-containing ones) present InsPs coordinated to the metal cation. Crystal structures of mono- (11 structures) and hexakisphosphate isomers (19 structures) constitute 71% of the metal-coordinated subset.

Variety of encountered metal cations is also significant, ranging from alkaline and alkaline-earth metal ions, transition metal ions naturally occurring in enzymes, as well as some heavy (post-)transition or rare-earth ions (whose introduction is instrumental for some techniques).

Metal by metal binding success, reported in Fig. S8† as percentage of structures containing a certain metal ion bound to InsPs over the total number of structures containing both InsPs and the considered metal ion, vastly varies. It should be noted that this offers statistical insights without any stringent meaning about InsPs intrinsic ability to coordinate a target ion. This is because many metal ions (notably Zn(II) and K(I)) are found in enzymes' active sites and/or in protein metal binding groups from where they cannot be easily extracted. Protein demetallation is not expected in the presence of biologically-occurring ligands such as InsPs. Lack of coordination to Fe(II) and Ni(II) is also easily explained by the fact that, in our subset, such ions are only found as protoporphyrin IX complexes, again not intended by nature for interaction with InsPs. Conversely, small naturally-occurring hard ions such as Na(I), Mg(II), Ca(II), are frequently bound, together with exogenous metals.

In terms of general features of the complexes (Fig. S9†) in most structure InsPs behave as bidentate ligands (56%), although simple monodentate character is also common (41%). This is in line with what we observed in the novel InsP₃ complex herein presented. Conversely, it is not exactly congruent with other small molecules reports: in the CSD phytate is also observed to frequently form complexes with denticity greater than 2.

PDB metal complex nuclearity (Fig. S9†) is also lower than observed in the CSD: in the former case, mononuclear complexes predominate (71%), with some binuclear ones (27%) and a single representative of trinuclear complexes. Coordination polymers are absent. In the CSD instead it is also relatively common to observe both superior nuclearity and coordination polymers.

A common feature that emerges, is the prominence of further stabilization of InsPs metal complexes through H bonding involving InsPs phosphate groups and water molecules coordinated to the metal cation. This is documented in the novel InsP₃ structure as well as in 49% of PDB structures featuring metal coordination (Fig. S9†), appearing as a commonplace interaction for InsPs.

Since no further structural information is found in the PDB about InsP₃, we focused on crystal structures of InsPs featuring 3 adjacent phosphate groups (i.e., appropriate tetrakis-, pentakis- and hexakisphosphate isomers), looking for relevant similarities.

As discussed above, our supramolecular route to crystallization of InsPs exploits exogenous ligands partially blocking metal cation coordination sphere, especially with rigid ligands which may further help crystal growing. Some metal ions, e.g. Zn(II), are essentially never InsPs-bound in the PDB, as their coordination is blocked by protein metal binding sites, inaccessible to InsPs. For Zn(II), the only exception, 6B4H⁵² (Fig. 9), demonstrates that InsPs, and namely InsP₃ fragments, have the possibility to form polynuclear complexes.

Fig. 9 6B4H structure,⁵² showing two InsP₆ using the “negative box” formed by three adjacent phosphates (InsP₃ fragment) to form a dinuclear Zn(II) complex where both cations achieve tetrahedral coordination.

The 6B4H crystal structure shows the intriguing possibility of forming a 2 : 2 M : L species instead. In the case of Zn(II) both ions effectively achieve tetrahedral coordination environment. CSD small molecules examples seldomly offer the opportunity to observe non-polymeric arrangements of this kind. In fact, Zn(II) is known instead to form the [Zn₁₀(H₂L)₂]·14H₂O MOF-like coordination polymer.²⁶ In general, in the absence of secondary ligands, metal cation sharing among neighbouring InsPs, leading to polymeric structures, is commonly observed ([Na₁₂L]·38H₂O being the only notable exception²⁴).

Our supramolecular strategy to obtain InsPs crystals, allowing to elucidate their coordination properties, involves secondary ligands. PDB, where non-InsPs ligands are plenty and wide-ranging, appears as an intriguing ground to establish whether coordination geometries and conformations observed in our molecular model are relevant to describe InsPs behaviour in a biological setting.

PDB data show that metal cations and/or InsPs are bound to further molecular partners. For metal cations, polyphosphate groups, e.g. from ADP, are relatively common in InsPs crystal structures, i.e. some position on the cations are indeed blocked in vivo. In a sense, introduction of ancillary ligands in our crystallization experiments mimics the role of protein and naturally occurring small molecules ligands. For this reason, similar binding modes are encountered.

A wonderful example of similarity with small molecules reports is offered by the Na(I) complex in 3EEB (Fig. 10).⁵³ Sodium ion is bound to a protein residue and two water molecules, defining a ligand plane, much like terpy does in 2, with IHP acting like a bidentate ligand with a fourth in-plane O donor, plus a fifth, axial one, closely resembling structure 2 arrangement.

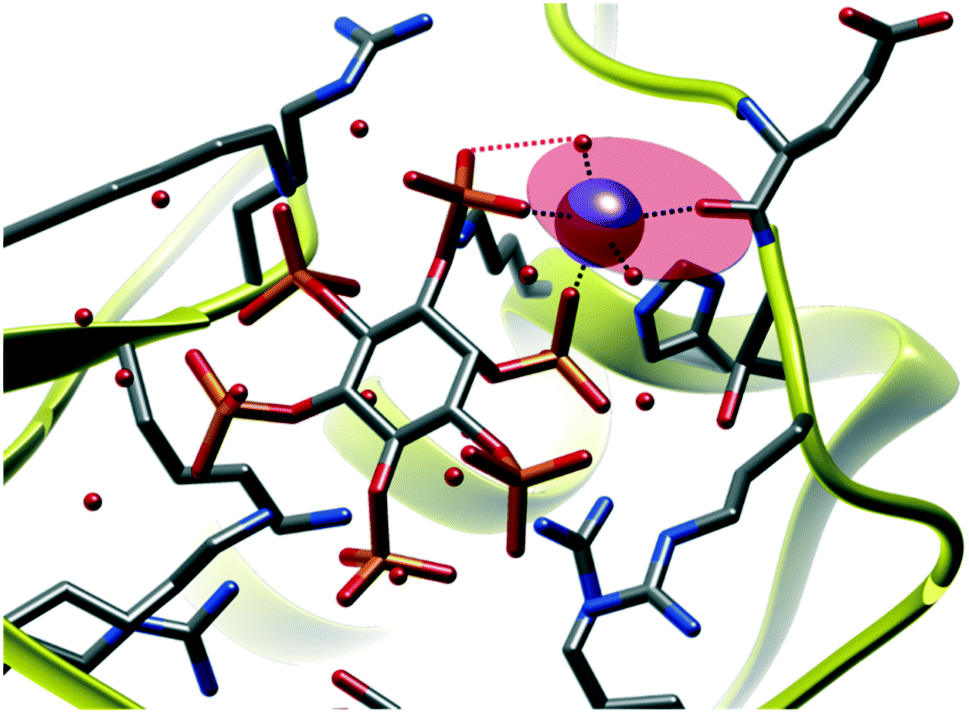

Fig. 10 Pentacoordinated sodium ion, featuring three in-plane O exogenous ligands and InsP₆ acting as a bidentate ligand providing the fourth in-plane donor and an axial one. Stabilizing phosphate-coordinated H₂O contacts are also found (pink). PDB refcode: 3EEB.⁵³

It should be mentioned that abundance of biologically occurring secondary ligands can be such to force InsPs to behave as merely monodentate ligands, as bidentate ones using just one phosphate groups, or even to form dinuclear or trinuclear complexes using only a single phosphate group.

These binding modes are not frequently encountered in available small molecule data, although InsP₆ monodentate coordination to Mn(II) has indeed been observed²⁷ in the presence of excess secondary ligand (terpy).

It should also be noted that in PDB instances also participation of InsPs in a network of H-bonds (e.g. in protein binding sites) might reduce availability of their phosphate groups for coordination. This allows for the detection of additional binding modes such as coordination with inositol –OH or even bidentate binding by two adjacent inositol hydroxyl groups. Both modes are not represented in the CSD also because the mostly represented InsP₆ does not even feature such groups at all. Sometimes the protein blocking of InsPs coordinating ability allows to examine otherwise hard to access situations. A significant example is the Ca(II) complex in the 3PEE structure⁵⁴ (Fig. 11a), where two InsPs are bound to the same Ca(II) ion, demonstrating the formation of a trans-diaquo octahedral complex: this species defies the prevalent 1 : 1 solution stoichiometry for Ca(II) : InsP₆ system and is not directly accessible due to precipitation of insoluble species. 3PA8 effectively demonstrate that Ca(II) binding does not exhaust InsPs coordinating capabilities, hence larger adducts incorporating further metal cations can be formed (Fig. 11b).⁵⁵ Both systems are further stabilized by H bonding among phosphates and coordinated water molecules.

Fig. 11 a) 3PEE:⁵⁴ sample 1 : 2 distorted octahedral trans-diaquo coordination mode for Ca(II) to InsP₆. b) 3PA8:⁵⁵ expansion to such complex to larger aggregates incorporating further metal cations (Na(I)).

Participation of InsPs in H bonding with metal-coordinated water molecules, a prime feature of 2, is a recurring characteristic. As discussed above for Ca(II), water-coordinated molecules remain quite close to phosphate groups and H bonding interaction easily arise. For the smaller Mg(II), such interactions must be so strong that a recognizable motif is found (examples in Fig. 12). In all cases, InsPs tend to occupy two trans positions, providing one in-plane and one axial donor, as in 2.

Fig. 12 Role of H bonding to coordinated water molecules in Mg(II) complexes. Top: 6WOD (disordered 6WOE is analogous, both structures contain the same Homo sapiens hydrolase);⁵⁶ bottom: 7AUU.⁵⁷ Octahedral coordination mode is almost unchanged from structure to structure (yeast hydrolase).

In some PDB rare instances, where enough metal centres are close together and hydration spheres overlap, it is also possible for coordinated water molecules to become bridging ligands upon deprotonation: this is most likely the case for the μ₃-water bound to 3 Mg(II) centres found in 6WOF⁵⁶ (Fig. 13). In this case the ability of InsPs to stabilize and work as capping agent towards metal ion clusters can be observed. Binding mode to individual metal ions remains similar to what observed on small molecules, including the role of additional stabilizing H-bonds with coordinated water molecules.

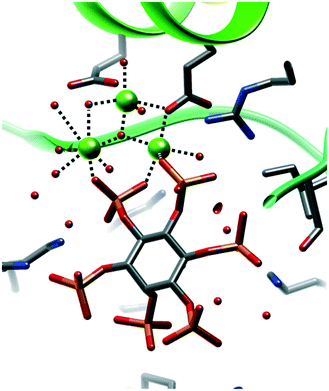

Fig. 13 6WOF:⁵⁶ InsP₆-stabilized Mg₃ cluster featuring a μ₃-hydroxide.

Conclusions

The two novel structures presented in this work reinforce the general concepts learned from other few structures containing InsPs and metal ions. The high negative charge that InsPs anions can reach in aqueous solution and the chelating nature of their phosphate groups make them strong ligands to metal ions. Both factors would contribute to the molecular recognition of metal ions by these biomolecules, characterized by a multifaceted coordination ability. At solid state, these inositol phosphates show a great tendency to act as polytopic ligands forming polynuclear complexes.

It was proposed, based on DFT calculations, that soluble mononuclear species Fe(III)-Ins(1,2,3)P₃ contain a sort of “chelating box” in which three oxygen atoms from different phosphate groups bond Fe(III).³⁶ In the case of complex 2, the situation is different. A polynuclear compound is formed at solid state. Phosphate groups of Ins(1,2,3)P₃ join different [Cu(terpy)]²⁺ units, and the ligand is ditopic. Strong intramolecular H-bonds also contribute to restrict the participation of phosphates in coordination. From this point of view, Ins(1,2,3)P₃ resembles the coordination characteristic of InsP₆.

According to our PDB survey, the secondary rigid bi- and tri-dentate ligands (phen and terpy in the structures reported here and elsewhere^27–30) mimic binding groups available in vivo and help simulate a more realistic supramolecular environment in small molecules crystallization experiments. In their absence, quick and irreversible precipitation of InsPs coordination polymers is prevalent. PDB-observed interaction modes are indeed relatable to our model systems.

While PDB structures are more bio-oriented and exert a crucial role in assessing natural relevance of InsPs as cofactors and substrates, the small-molecule supramolecular approach is best fitted for elucidation of binding modes and metal complex geometry, as it allows for atomic resolution and potential elucidation of finest details. Given the structure–function relationship paradigm, both aspects effectively complement each other in clarifying the biological role of InsPs. Given the paucity of information available, especially for the naturally occurring Ins(1,2,3)P₃, whose first crystal structure is herein reported, further studies remain of high interest.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank the financial support by CSIC (Programa de Apoyo a Grupos de Investigación, Uruguay).

Notes and references

1. R. H. Michell, Nat. Rev. Mol. Cell Biol., 2008, 9, 151–161.
2. S. B. Shears, Cell. Signalling, 2001, 13, 151–158.
3. A. Saiardi, Life, 2017, 7, 24–36.
4. Biology of Inositols and Phosphoinositides, ed. A. L. Majumder and B. B. Biswas, Springer, 2006.
5. M. Wu, L. S. Chong, D. H. Perlman, A. C. Resnik and D. Fiedler, Proc. Natl. Acad. Sci. U. S. A., 2016, 113, E6757–E6765.
6. M. J. Berridge, P. Lipp and M. D. Bootman, Nat. Rev. Mol. Cell Biol., 2000, 1, 11–21.
7. J. Torres, S. Domínguez, M. F. Cerdá, G. Obal, A. Mederos, R. F. Irvine, A. Díaz and C. Kremer, J. Inorg. Biochem., 2005, 99, 828–840.
8. N. Veiga, J. Torres, D. Mansell, S. Freeman, S. Domínguez, C. J. Barker, A. Díaz and C. Kremer, J. Biol. Inorg. Chem., 2009, 14, 51–59.
9. N. Veiga, J. Torres, H. Y. Godage, A. M. Riley, S. Domínguez, B. V. L. Potter, A. Díaz and C. Kremer, J. Biol. Inorg. Chem., 2009, 14, 1001–1013.
10. B. S. Szwergold, R. A. Graham and T. R. Brown, Biochem. Biophys. Res. Commun., 1987, 149, 874–881.
11. D. Pittet, W. Schlegel, D. P. Lew, A. Monod and G. W. Mayr, J. Biol. Chem., 1989, 264, 18489–18493.
12. F. Pisani, T. Livermore, G. Rose, J. R. Chubb, M. Gaspari and A. Saiardi, PLoS One, 2014, 9, e85533.
13. A. J. Letcher, M. J. Schell and R. F. Irvine, Biochem. J., 2008, 416, 263–270.
14. S. B. Shears, Subcell. Biochem., 1996, 26, 187–225.
15. O. Larsson, C. J. Barker, A. Sjoholm, H. Carlqvist, R. H. Michell, A. Bertorello, T. Nilsson, R. E. Honkanen, G. W. Mayr, J. Zwiller and P. O. Berggren, Science, 1997, 278, 471–474.
16. X. Zi, R. P. Singh and R. Agarwal, Carcinogenesis, 2000, 21, 2225–2235.
17. A. M. Efanov, S. V. Zaitsev and P. O. Berggren, Proc. Natl. Acad. Sci. U. S. A., 1997, 94, 4435–4439.
18. H. Ji, K. Sandberg, A. J. Baukal and K. J. Catt, J. Biol. Chem., 1989, 264, 20185–20188.
19. M. J. Berridge and R. F. Irvine, Nature, 1989, 341, 197–205.
20. F. S. Menniti, K. G. Oliver, J. Putney and S. B. Shears, Trends Biochem. Sci., 1993, 18, 53–56.
21. J. D. York, A. R. Odom, R. Murphy, E. B. Ives and S. R. Wente, Science, 1999, 285, 96–100.
22. M. Yunmei and M. R. Lieber, J. Biol. Chem., 2002, 277, 10756–10759.
23. M. R. Macbeth, H. L. Schubert, A. P. Vandemark, A. T. Lingam, C. P. Hill and B. L. Bass, Science, 2005, 309, 1534–1539.
24. G. E. Blank, J. Pletcher and M. Sax, Acta Crystallogr., Sect. B: Struct. Crystallogr. Cryst. Chem., 1975, 31, 2584–2592.
25. S. Pramanik, V. W. Day and K. Bowman-James, Chem. Commun., 2020, 56, 3269–3272.
26. K. Cai, F. Sun, X. Liang, C. Liu, N. Zhao, X. Zou and G. Zhu, J. Mater. Chem. A, 2017, 5, 12943–12950.
27. D. Quiñone, N. Veiga, J. Torres, C. Bazzicalupi, A. Bianchi and C. Kremer, ChemPlusChem, 2017, 82, 721–731.
28. N. Veiga, J. Torres, C. Bazzicalupi, A. Bianchi and C. Kremer, Chem. Commun., 2014, 50, 14971–14974.
29. D. Quiñone, N. Veiga, J. Torres, J. Castiglioni, C. Bazzicalupi, A. Bianchi and C. Kremer, Dalton Trans., 2016, 45, 12156–12166.
30. D. Quiñone, S. Martínez, F. Bozoglián, C. Bazzicalupi, J. Torres, N. Veiga, A. Bianchi and C. Kremer, ChemPlusChem, 2019, 84, 540–552.
31. C. Kremer, J. Torres, A. Bianchi, M. Savastano and C. Bazzicalupi, Coord. Chem. Rev., 2020, 419, 213403.
32. C. J. Barker, P. J. French, A. J. Moore, T. Nilsson, P. O. Berggren, C. M. Bunce, C. J. Kirk and R. H. Michell, Biochem. J., 1995, 306, 557–564.
33. F. M. McConnell, S. B. Shears, P. J. L. Lane and M. S. Scheibel, Biochem. J., 1992, 284, 447–455.
34. I. D. Spiers, C. J. Barker, S.-K. Chung, Y.-T. Chang, S. Freeman, J. M. Gardiner, P. H. Hirst, P. A. Lambert, R. H. Michell and D. R. Poyner, Carbohydr. Res., 1996, 282, 81–99.
35. I. D. Spiers, S. Freeman, D. R. Poyner and C. H. Schwalbe, Tetrahedron Lett., 1995, 36, 2125–2128.
36. N. Veiga, J. Torres, F. Cerdá, G. González, K. Gómez, D. Mansell, S. Freeman, S. Domínguez and C. Kremer, J. Mol. Struct., 2011, 994, 343–349.
37. L. Krause, R. Herbst-Irmer, G. M. Sheldrick and D. Stalke, J. Appl. Crystallogr., 2015, 48, 3–10.
38. A. Altomare, M. C. Burla, M. Camalli, G. L. Cascarano, C. Giacovazzo, A. Guagliardi, A. G. G. Moliterni, G. Polidori and R. Spagna, J. Appl. Crystallogr., 1999, 32, 115–119.
39. G. M. Sheldrick, Acta Crystallogr., Sect. C: Struct. Chem., 2015, 71, 3–8.
40. C. F. Macrae, I. Sovago, S. J. Cottrell, P. T. A. Galek, P. McCabe, E. Pidcock, M. Platings, G. P. Shields, J. S. Stevens, M. Towler and P. A. Wood, J. Appl. Crystallogr., 2020, 53, 226–235.
41. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, B. Mennucci, G. A. Petersson, H. Nakatsuji, M. Caricato, X. Li, H. P. Hratchian, A. F. Izmaylov, J. Bloino, G. Zheng, J. L. Sonnenberg, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, J. Montgomery, J. E. Peralta, F. Ogliaro, M. J. Bearpark, J. Heyd, E. N. Brothers, K. N. Kudin, V. N. Staroverov, R. Kobayashi, J. Normand, K. Raghavachari, A. P. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, N. Rega, N. J. Millam, M. Klene, J. E. Knox, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, R. L. Martin, K. Morokuma, V. G. Zakrzewski, G. A. Voth, P. Salvador, J. J. Dannenberg, S. Dapprich, A. D. Daniels, Ö. Farkas, J. B. Foresman, J. V. Ortiz, J. Cioslowski and D. J. Fox, Gaussian 09, 2009.
42. C. Lee, W. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter, 1988, 37, 785–789.
43. P. J. Hay and W. R. Wadt, J. Chem. Phys., 1985, 82, 299–310.
44. E. R. Johnson, S. Keinan, P. Mori-Sánchez, J. Contreras-García, A. J. Cohen and W. Yang, J. Am. Chem. Soc., 2010, 132, 6498–6506.
45. T. Lu and F. Chen, J. Comput. Chem., 2012, 33, 580–592.
46. S. Emamian, T. Lu, H. Kruse and H. Emamian, J. Comput. Chem., 2019, 40, 2868–2881.
47. Discovery Studio Visualizer, 2009.
48. W. Humphrey, A. Dalke and K. Schulten, J. Mol. Graphics, 1996, 14, 33–38.
49. I. D. Spiers, S. Freeman and C. H. Schwalbe, J. Chem. Soc., Chem. Commun., 1995, 2219–2220.
50. M. D. Struble, C. Kelly, M. A. Siegler and T. Lectka, Angew. Chem., Int. Ed., 2014, 53, 8924–8928.
51. G. Gilli and P. Gilli, The nature of the hydrogen bond, Oxford University Press, 2009.
52. D. H. Lin, A. R. Correia, S. W. Cai, F. M. Huber, C. A. Jette and A. Hoelz, Nat. Commun., 2018, 9, 2319.
53. P. J. Lupardus, A. Shen, M. Bogyo and K. C. Garcia, Science, 2008, 322, 265–268.
54. A. Shen, P. J. Lupardus, M. M. Gersch, A. W. Puri, V. E. Albrow, K. C. Garcia and M. Bogyo, Nat. Struct. Mol. Biol., 2011, 18, 364–371.
55. A. W. Puri, P. J. Lupardus, E. Deu, V. E. Albrow, K. C. Garcia, M. Bogyo and A. Shen, Chem. Biol., 2010, 17, 1201–1211.
56. G. Zong, N. Jork, S. Hostachy, D. Fiedler, H. J. Jessen, S. B. Shears and H. Wang, FASEB J., 2021, 35, e21275.
57. M. A. Márquez-Moñino, R. Ortega-García, M. L. Shipton, E. Franco-Echevarría, A. M. Riley, J. Sanz-Aparicio, B. V. L. Potter and B. González, Sci. Adv., 2021, 7, eabf6744.

---

Footnote

† Electronic supplementary information (ESI) available: Tables of crystal data, refinement parameters, bond distance and angles, PDB identifiers and respective chemical names; species distribution diagram for phen : L¹ : Cu(II) system; experimental and calculated IR spectra; DFT-optimized geometries; figures showing details of PDB-survey results. CCDC 2129733 and 2129734 For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/d1ce01733k

---
