Reeling them in: Ph₂PSiMe₃ in the sequential formation of InP magic-sized clusters

Abstract

Indium phosphide magic-sized clusters (MSCs) have been identified as a key step in the growth of InP quantum dots (QDs). However, the need for elevated temperatures to form QDs from MSCs has limited our understanding of this transformation. Herein, we utilize Ph₂PSiMe₃ to identify additional MSC intermediate species, which absorb from 365 nm to 490 nm. Excitingly, particle growth was carried out at 100 °C without the use of acidic surfactants. We show that despite being discrete, stable, and isolable sizes of MSCs, they form a reaction continuum, thus providing further insight into the growth mechanism of InP.

---

The quantum dot (QD) market is forecast to grow exponentially in the coming years with an expected value of $8.1 billion by 2026.¹ Driving growth in this area is the versatility of these nanomaterials with applications ranging from the conventional (display and lighting solutions) to the innovative (photovoltaics, biomedicine).² The high commercial interest, coupled with environmental and health concerns associated with the use of heavy metals in traditional QDs,^3,4 has accelerated the necessity for alternatives. InP QDs are promising candidates as they exhibit similar optical properties to their Cd counterparts whilst being composed of relatively cheap, sustainable, and earth-abundant elements.⁴

However, the exacting synthesis of InP QDs has hampered their widespread adoption.⁵ P(SiMe₃)₃, the phosphorus precursor of choice, is rapidly consumed during the nucleation phase to form the QD core. Thus, the ensuing growth phase is forced to adhere to an Ostwald ripening process, where nuclei absorb other centers at uneven growth rates. The resultant polydisperse range of QDs absorbs and emits light over a broad range of wavelengths, with limited control.

Previous efforts to temper this reactivity have been met with limited success. Notable examples include changing the alkyl group on the silicon moiety,^7–9 fine-tuning the sequence of chemical addition,¹⁰ using species that are in the wrong oxidation state [e.g., P(NEt₂)₃],¹¹ or employing flow chemistry.^6,12 Recent mechanistic studies, however, have cast doubt on the importance of precursor conversion rate as QD size distribution did not improve for many of these examples.^13–15

Alternatively, a strategy of particular promise involves the physical separation of nucleation and growth by employing so-called magic-sized clusters (MSC), which are believed to be intermediates in the reaction pathway between In–P monomers and bulk InP QDs.^13,16–19 In these protocols, a lower temperature (60–150 °C) hot injection reaction leads to the formation of stable MSCs (10s–100s of atoms) which are purified and isolated. Subsequently, these are employed as single-source precursor (SSP) seeds to form QDs at higher temperatures. Xie et al. pioneered this technique for III-V semiconductors by utilizing InAs and InP MSCs as kinetic probes for QD formation.²⁰ Major inroads were made by the Cossairt group who isolated and crystallographically characterized the [In₃₇P₂₀(O₂CR)₅₁] (R = CH₂Ph) MSC.²¹ Other groups have expanded the scope to other indium sources and identified additional MSC sizes. Notably, when MSCs are applied as single-source precursors for QD synthesis a narrower size distribution is observed in comparison to classical molecular precursors.¹⁷

All the examples mentioned above relied upon the use of In carboxylates, precursors notorious for being sources of oxygen contaminants.²² These acids are incompatible with the archetypal P³⁻ precursor, P(SiMe₃)₃ as deleterious side reactions with carboxylic acids are widely reported. Replacing the carboxylate ligand set with a phosphonate-based one was recently proposed as a solution.²³ However, the resultant MSCs proved extremely thermally stable (up to 400 °C) thus increasing the cost and difficulty of large-scale production. Furthermore, to colloidally stabilize QDs, fatty acids are commonly introduced into the reaction mixture. At elevated temperatures they are susceptible to ketonization reactions which release H₂O.^24,25

Consequently, surface oxidation of the highly reactive surface P³⁻ occurs, an irrepressible side reaction. In turn, reaction reproducibility, product homogeneity, and nanoparticle size all suffer, which are some of the core tenets MSCs were developed to govern.²⁶ Therefore, our group has been searching for ways to remove oxygen-containing species from the reaction mixture completely.

To address these concerns, herein we present a reaction protocol free from acidic reactants. The inclusion of commercially available Ph₂PSiMe₃ as a dopant, conferred sharp excitonic features upon the MSCs. Altering the ratio of Ph₂PSiMe₃ to P(SiMe₃)₃ (1–5 equiv.) or the InX₃ source (X = Cl, I, OAc) enabled precise control over the optical properties of the MSCs. Indeed, select examples mirrored the UV signatures of QDs. Remarkably, the above system was receptive to growth at 100 °C using volatile toluene as the reaction solvent. Crucially, the results achieved add another layer of control over InP QD growth under mild reaction conditions.

Our initial experimental studies utilized the hot injection protocol at 100 °C in toluene with excess oleylamine (OAm) as the surfactant and no Ph₂PSiMe₃ present. These conditions were chosen to mimic typical conditions of QD growth at lower temperatures. Upon injection of P(SiMe₃)₃ to the InCl₃/OAm suspension, a very weak shoulder around λ = 430 nm was barely discernible. Protracted heating failed to resolve further this species (ESI,† Fig. S2).

Previous reports have highlighted the ability of dopants to improve the optoelectronic properties of InP nanoparticles. Taking this into account, the post-synthetic addition of 1 equivalent of Ph₂PSiMe₃ at 100 °C led to a noticeable, albeit weak, size selection effect over the course of 30 minutes (ESI,† Fig S2.6). Encouraged by this result, we repeated the reaction this time co-injecting an equimolar solution of Ph₂PSiMe₃ and P(SiMe₃)₃ to the hot InCl₃/OAm suspension. This adjustment provided a markedly improved UV spectrum enabling monitoring of the reaction by UV-vis spectroscopy. At the start of the reaction, a short-lived intermediate was present at 386 nm (386-InP), the wavelength previously associated with the Cossairt crystal.²¹ Within 15 min a new shoulder gradually emerged at 430 nm (430-InP) and came to dominate the spectrum (Fig. 1). This species proved thermodynamically persistent as no further UV shoulders were observed despite 48 hours of continuous heating at 100 °C.

Fig. 1 An equimolar mixture of Ph₂PSiMe₃/P(SiMe₃)₃ was added to a 100 °C solution of InCl₃ and oleylamine in toluene. The initial formation of 386-InP was followed by conversion to 430-InP which remained stable despite protracted heating.

One of the established hallmarks of MSCs is their thermal stability, with a previous 386-InP example being stable to 400 °C thanks to its phosphonate ligand set.²² We probed the reactivity of our system by reducing the injection temperature to 70 °C, which proved sufficient to impede conversion to 430-InP. Instead, the absorption peak remained at 386 nm for at least 48 hours at this temperature (ESI,† Fig. S2.6). Pleasingly, upon raising the temperature to 100 °C, a gradual conversion to 430-InP occurred. The process was completed within twenty minutes. The absorption associated with 430-InP grows at the expense of that of 386-InP suggesting these species exist on a continuum of reactivity rather than comprising discrete unrelated species.

Most importantly, to the best of our knowledge, this is the first instance of an InP MSC with a UV-vis signature near the 450 nm threshold forming at 100 °C. Consequently, its structure and composition warrant special attention. To this end, the PXRD diffractogram corresponds to bulk InP powder (ESI,† Fig. S2.1), but with some line broadening present due to the small size of the cluster. No In₂O₃ was detectable. We next sought to ascertain if Ph₂PSiMe₃ was incorporated into our MSC. Surface-sensitive attenuated total reflection fourier transform infraRed spectroscopy (ATR-FTIR) measurements of the 430-InP were conducted and compared to oleylamine and Ph₂PSiMe₃ (Fig. 2). A characteristic aryl stretch at 1500–1580 cm⁻¹ indicates the inclusion of a diphenylphosphine moiety on the surface of our MSC. To add further credence to this postulate we investigated the clusters through ¹H and NOESY NMR spectroscopy, which demonstrate the presence of broad signals corresponding to the presence of both the diphenylphosphine moiety and the oleylamine ligands (ESI,† Fig. S2.7 and S2.8).

Fig. 2 ATR-FTIR spectra of 430-InP, Ph₂PSiMe₃ and oleylamine (top to bottom) showcasing the presence of an arylphosphine species on the surface of the cluster.

With insights into the location of Ph₂PSiMe₃ in our cluster, we turned our attention to the mechanistic role of the indium and phosphorus precursors. To begin with, we postulated that adding additional equivalents of Ph₂PSiMe₃ would further redshift the UV signatures. Literature precedence does exist, with the Cossairt group able to continuously redshift their 386-InP MSC to λ = 404 nm with increasing equivalents of arylamines.²⁸ In this instance, we failed to observe a similar effect despite adding 5 equivalents of Ph₂PSiMe₃ and extended heating for 3 hours. Our system does not appear receptive to post-synthetic modification at 100 °C.

The situation differs when Ph₂PSiMe₃ is included at the start of the reaction. Three new separate reactions were set up with incremental increases of 1.75, 3 and 5 equivalents of Ph₂PSiMe₃. The ratio of all other reaction components was maintained. Pleasingly, new shoulders emerged at 450 nm (1.75 equiv.), 470 nm (3 equiv.) and 490 nm (5 equiv.) respectively (Fig. 3). Most excitingly, absorption at 490 nm is indicative of a QD material, which is unusual to form under such mild conditions. In each case, the MSCs rapidly move through the various smaller-sized MSCs that we have been able to isolate (ESI,† Fig. S2.2). On the other end of the spectrum, reducing the molar ratio of Ph₂PSiMe₃ to 0.1 or 0.5 equivalents does not yield any new species between 386-InP and 430-InP. Instead, it results in slowed-down growth over a longer period (ESI,† Fig. S2.3). Notably, this redshifting of the 430-InP could not be replicated by adding excess PSiMe₃ rather than Ph₂PSiMe₃. Instead, the particles crashed out of solution.

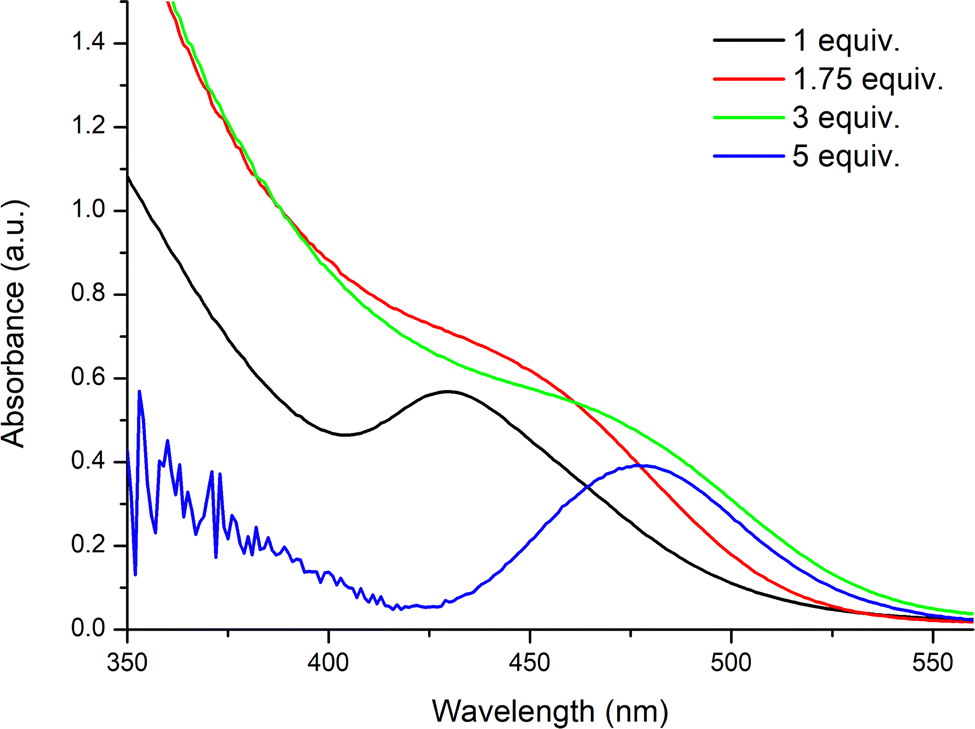

Fig. 3 Increasing the equivalents of Ph₂PSiMe₃ in the reaction mixture facilitates the redshifting of UV signatures.

We next examined the influence of the indium precursor on the optoelectronic signature. InCl₃ was replaced with InI₃, InF₃ and In(OAc)₃ in a series of three separate reactions. All other reaction parameters were kept constant. Fig. 4 displays the results obtained. InF₃ was not amenable to this transformation with little apparent dissolution of InF₃ and no MSCs observed even after 48 hours. On the other hand, InI₃ and In(OAc)₃ both yielded MSCs. For In(OAc)₃ a single shoulder was visible at 430 nm after 1 h. In contrast, InI₃ developed 2 observable shoulders at 365 and 386 nm in a discontinuous manner and grew no further. The rate of conversion was slower compared to the chlorinated congener, with the 365-InP clusters enduring for several minutes prior to converting to the thermodynamically stable product 386-InP. Our findings provide the first tangible link between the 365-InP and 386-InP MSCs, which have separately been reported previously.^19,23,27 Notably, these literature clusters used different precursors and surfactants to our protocol. This growth in discrete jumps is a familiar concept in the more established II–VI QD systems.²⁹ The sequential conversion of 365-InP to 386-InP (InI₃) and 386-InP to 430-InP for InCl₃ extends this principle to InP MSCs for the first time.

Fig. 4 Altering the indium source to (a) In(OAc)₃ gives 430-InP, whilst the use of (b) InI₃ initially gives 365-InP, before leading to clean growth to 386-InP.

Reviewing our experimental observations in their totality has allowed us to put forward a mechanistic hypothesis for our system (Fig. 5). In formulating our understanding, we have taken into account (a) the inclusion of Ph₂PSiMe₃ dramatically improves the excitonic features of InP-430 nm (b) the effect is strongly diminished/non-existent when Ph₂PSiMe₃ is added post synthetically (c) Ph₂PSiMe₃ is present on the surface of the nanoparticles (d) excess PSiMe₃ does not promote growth to InP-490 but rather particle precipitation (e) on the other hand excess Ph₂PSiMe₃ added in situ continuously redshifts the UV signatures up to λ = 490 nm and (f) the indium source also affects the absorption characteristics of our MSCs.

Fig. 5 Increasing the [M1]/[M2] ratio alters the growth phase of MSC formation by providing a well of less reactive monomer species.

It is widely accepted that monomer formation precedes nanoparticle growth in InP systems. We postulate that Ph₂PSiMe₃ forms an InP species (M1) alongside the traditional P(SiMe₃)₃–In monomer (M2). The two phosphorus precursors are in direct competition for the same finite Indium source. The more Ph₂PSiMe₃ present at the start of the reaction, the more balance shifts towards M1 formation. The Indium in M1 is far less accessible than free Indium precursor. Thus, it provides temporal segregation between nucleation and growth as it acts as a ‘slow-release’ reservoir of Indium. Slow diffusion of M1 on the surface of the nanoparticles, as per the La Mer model, leads to the sharper excitonic features and redshifting reported.³⁰

Having developed a reproducible protocol for MSC growth, we applied the same technique to direct QD growth using octadecene as the reaction solvent and a hot injection temperature of 200 °C (detailed experimental in ESI†). An equimolar solution of PPh₂SiMe₃/PSiMe₃ was utilised. All other reaction parameters remained unchanged. Pleasingly, a shoulder appeared at 580 nm after 30 minutes (ESI,† Fig. S2.4). In an identical manner to the MSCs (vide supra), the FTIR spectrum denotes the presence of diphenylphosphine groups on the surface of the QD. Interestingly, repeating the protocol in the absence of Ph₂PSiMe₃ leads to a colloidally unstable precipitate, strongly suggesting the surface-bound Ph₂P groups are aiding in the solvation of the QD. No doubt remains as to the importance of Ph₂PSiMe₃ in our system.

In summary, we have explored the role of Ph₂PSiMe₃ in InP MSC growth at low temperatures. We identified six isolable MSCs and proved their formation proceeds in a sequential fashion. These include literature-reported examples at 365 and 386 nm as well as novel examples at 430 nm, 450 nm, 470 nm, and 490 nm. Control over the observed UV signatures could be exerted by simply tuning the ratio of Ph₂PSiMe₃ to precursors, a desirable feature for industry-based syntheses of QDs. Subsequent studies to better understand the mechanism and role of phosphine dopants in our system are ongoing within our group.
