NOAH-(¹⁵N/¹³C)-CEST NMR supersequence for dynamics studies of biomolecules

Abstract

An NMR supersequence is introduced for the rapid acquisition of ¹⁵N-CEST and methyl-¹³C-CEST experiments in the same pulse sequence for applications to proteins. The high sensitivity and accuracy allows the simultaneous quantitative characterization of backbone and side-chain dynamics on the millisecond timescale ideal for routine screening for alternative protein states.

---

Conformational dynamics in biomolecules can occur on a wide range of timescales from picosecond to milliseconds and beyond and they often play a key role for protein function. Over the years, NMR has proven to be extraordinarily powerful to monitor and quantify the conformational dynamics of biomolecules at atomic detail.^1,2 An increasingly popular method is the Chemical Exchange Saturation Transfer (CEST) experiment, in which the spin magnetization is selectively saturated by a relatively long, weak radio-frequency (rf) pulse while conformational exchange occurs, providing detailed information about lowly populated conformational states along with their Boltzmann population, chemical shifts, and kinetic exchange rates k_ex (typically from 20 to 200 s⁻¹).^3,4

For biomolecular applications, CEST is performed as a pseudo-3D NMR experiment where the direct detection F2 dimension is along ¹H, the indirect F1 dimension is along the heteronucleus, such as ¹⁵N or ¹³C, and the pseudo-dimension is the frequency offset of the saturation field that is systematically sampled across the spectral range of interest. Hence, a CEST experiment involves the acquisition of many 2D ¹H–¹⁵N or ¹H–¹³C HSQC spectra, each of them being acquired with a saturation field applied using a variable frequency offset. The number of frequency offsets used along the pseudo-dimension can be rather large, usually in the hundreds, leading to prolonged measurements that can last between a day and a week per experiment depending on the sample concentration and NMR hardware used. Therefore, new approaches that substantially shorten this process are needed.

Recently, a strategy to acquire multiple NMR experiments in sequence has been introduced, known as “NMR by Ordered Acquisition using ¹H detection” or NOAH.⁵ NOAH combines multiple homo- and hetero-nuclear 2D NMR experiments in a single pulse sequence resulting in a “supersequence” where a single recovery delay is placed between sets of scans, thereby significantly reducing the experimental time when compared with the standalone pulse experiments that require a recovery delay after each scan (see also Fig. 1).^5–9 So far, NOAH has been mostly applied to small organic molecules in concentrated purified samples combining sets of experiments used for resonance assignments and molecular structure elucidation.⁶ NOAH has also been extended to complex metabolomics mixture analysis.^10,11 For proteins, sequential acquisition of correlation spectra has been reported for resonance assignments.^12,13 As of now, the NOAH strategy has not been utilized to benefit protein dynamics experiments.

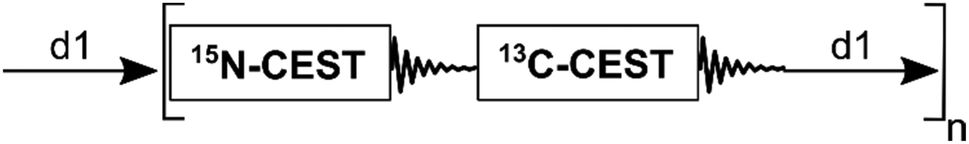

Fig. 1 Modular representation of the NOAH-(¹⁵N/¹³C)-CEST supersequence. Delay d1 is the recovery delay and n is the number of times the sequence is repeated. The ¹⁵N-CEST module starts with ¹H magnetization, while the ¹³C-CEST module starts with thermal ¹³C magnetization, which remains largely unperturbed during the first module. The complete pulse sequence is depicted in Fig. S1 (ESI†).

A critical prerequisite for NOAH is the need to preserve magnetization for the immediately succeeding pulse sequence inside the supersequence in order to guarantee good sensitivity.⁵ Applications of NOAH to small organic molecules have been conducted at ¹³C natural abundance. For example, using 1.1% of ¹H magnetization bound to a ¹³C nucleus for an HSQC-type experiment and using the remaining 98.9% ¹H magnetization for a homonuclear experiment such as TOCSY, as the second experiment, will result in a HSQC/TOCSY supersequence. In addition, specific pulse sequence elements, such as ZIP¹⁰ and ASAP,¹⁴ are useful to preserve or recover magnetization in NOAH sequences used as starting points in subsequent experiments.⁶ An advantage of NOAH is that each individual standalone sequence typically requires only minor modifications inside the supersequence resulting in spectra that closely resemble those of the corresponding standalone sequences. Another advantage is that most NMR pulse sequence parameters remain unchanged when a sequence is incorporated into a supersequence, thereby facilitating both testing and application.

Here, we introduce a new supersequence, which was created by concatenating a ¹⁵N-CEST and a ¹³C-CEST for the purpose of studying protein dynamics in biomolecules along the backbone (¹⁵N-CEST) and in the methyl groups of amino-acid side-chains (¹³C-CEST) (Fig. 1 and Fig. S1, ESI†). We refer to this supersequence as NOAH-(¹⁵N/¹³C)-CEST. Results of the standalone ¹⁵N-CEST and ¹³C-CEST experiments are first presented and compared against a supersequence built from these individual sequences for the colicin E7 immunity protein (Im7) and ubiquitin. Since protein NMR samples are prepared in uniformly ¹⁵N and ¹³C-labeled form, some of the NOAH strategies successfully used for small organic molecules at natural abundance do not apply. Here, we start with the ¹⁵N-CEST experiment during which ¹³C magnetization is preserved and used as starting magnetization for the following ¹³C-CEST during the 2nd half of the supersequence. We show that both ¹⁵N-CEST and the ¹³C-CEST have good sensitivity despite using thermal ¹³C starting magnetization for the second part of the sequence when compared to a regular standalone ¹³C-CEST using ¹H starting magnetization. The resulting CEST profiles and CEST fitting results are then compared with those of the standalone sequences.

By preserving ¹³C magnetization during ¹⁵N-CEST, the ¹³C-CEST can immediately follow without a separate recovery delay as implemented in the supersequence scheme of Fig. 1. The ¹³C magnetization employed is at thermal equilibrium and proportional in size to the gyromagnetic ratio (compared to ¹H, γ_C/γ_H = 1/4). It therefore does not originate from ¹H magnetization by an INEPT-type transfer used in standard ¹³C-CEST. In the context of NOAH, this has the advantage that the starting ¹³C magnetization of the 2nd experiment is not affected by depletion of ¹H magnetization during the course of the 1st experiment. To assess the sensitivity of this “¹³C-start” ¹³C-CEST with the standard ¹³C-CEST, we measured it both as a standalone experiment and as the 2nd part of the supersequence of Fig. 1. All NMR experiments were performed with a recovery delay d1 of 2 s on an 850 MHz Bruker Ascend magnet equipped with an Avance III HD console and a triple resonance inverse cryoprobe and processed using NMRPipe.¹⁵ The standalone direct ¹³C-CEST and direct ¹³C-CEST in the supersequence have on average, based on mean cross-peak amplitudes determined by cross-peak fitting for ubiquitin and Im7, a 16% and 11% lower sensitivity than the standard ¹³C-CEST experiment, respectively. The loss of sensitivity for the ¹⁵N-CEST when being part of the supersequence was on average 12% and 7% for ubiquitin and Im7, respectively, compared to the standalone ¹⁵N-CEST. For Im7, the ¹⁵N-CEST experiment was acquired in 38 hours and the ¹³C-CEST experiment in 36 hours, for a total of 74 hours for both experiments together. By comparison, the NOAH-(¹⁵N/¹³C)-CEST experiment, including both ¹⁵N-CEST and ¹³C-CEST, was acquired in 45 hours. Therefore, the supersequence produced both experiments, but in 29 hours less time corresponding to 39% saving of spectrometer time. Even if the supersequence is ran longer to have ¹³C-CEST sensitivity equivalent to that of the standalone sequence, there is still a substantial net gain in experiment time, while the ¹⁵N-CEST experiment will have better sensitivity than the reference experiment. The average signal-to-noise ratios along with the experiment times of each sequence are summarized in Table 1.

Table 1 Signal-to-noise ratios of ¹⁵N-CEST, ¹³C-CEST and NOAH-(¹⁵N/¹³C)-CEST experiments, and their individual measurement time for Im7

Experiment	S/N^c	Individual measurement time (hr)	Combined measurement time (hr)
a Standard ^13C-CEST with starting ^1H magnetization. b Modified ^13C-CEST with starting ^13C magnetization and additional ^1H decoupling pulses. c Average S/N for all non-overlapping protein cross-peaks.
^15N-CEST	205	38
^13C-CEST^a	179	36	74
^13C-CEST^b	156	42	80
NOAH ^15N-CEST	191	—	45
NOAH ^13C-CEST	160

---

The standalone ¹³C-CEST with starting ¹³C magnetization has the same sensitivity as the one in the supersequence, which shows that the addition of heat compensation pulses, implemented as decoupling pulse trains applied to ¹H, results in an increase in sensitivity when using the ¹³C magnetization as starting magnetization. This is likely caused by the concurrent heteronuclear Overhauser effect (hetNOE) enhancement via cross-relaxation of ¹H to ¹³C magnetization within the methyl groups during the heat compensation pulses. As can be seen in Table 1, the addition of ¹H decoupling pulses to the modified ¹³C-CEST with ¹³C starting magnetization leads to a similar sensitivity as the ¹³C-CEST in the supersequence and it is not far below the signal-to-noise ratio obtained with a regular ¹³C-CEST with ¹H starting magnetization. This enhancement is notable as it opens the possibility of incorporating other methyl-¹³C-start pulse sequences into new types of supersequences.

After having established that the new supersequence for ¹⁵N-CEST and ¹³C-CEST saves experiment time with only minor sensitivity loss, we tested whether the information obtained by these NOAH-(¹⁵N/¹³C)-CEST profiles is identical to what is obtained by the standalone experiments. Fig. 2 compares CEST profiles of selected residues of Im7 for ¹⁵N-CEST with no conformational exchange (top) or two-site exchange (bottom). It demonstrates that the CEST profiles obtained by the two methods are identical. Even small features, such as the shoulder peak of Arg61 (around 121 ppm) on the left of the main dip can be accurately reproduced.

Fig. 2 Representative ¹⁵N-CEST profiles for Im7 residues A13, E12, Y55, and R61 from the supersequence (red, solid line) and the standalone sequence (blue, dashed line). Top panels show residues without exchange and the bottom panels show residues that undergo two-site exchange with a 2nd minimum or “shoulder” feature visible in the profile.

The analogous comparison is shown for ¹³C-CEST in Fig. 3. As for ¹⁵N-CEST, the profiles are identical for the standalone experiment vs. supersequence. Small decoupling sidebands can be seen in the bottom panels, which slightly vary since different decoupling sequences were used. Moreover, it can be seen in the bottom panels that the supersequence is able to highly accurately reproduce two-site exchange features manifested as shoulder peaks.

Fig. 3 Representative ¹³C-CEST profiles for Im7 residues V27C_γ, A28C_β, V42C_γ, and L3C_δ from the supersequence (red, solid line) and the standalone sequence (blue, dashed line). Top panels show residues without exchange and the bottom panels show residues that undergo two-site exchange with a 2nd minimum or “shoulder” feature clearly visible in the profile.

From the CEST profiles, relaxation and exchange model parameters were extracted using ChemEx (https://www.github.com/gbouvignies/chemex)³ by non-linear least squares fitting and quantitatively compared with the model parameters between the sequences. The parameters extracted are the longitudinal and transverse relaxation rates R₁ and R₂ of the major state and in the case of two-site exchange also ΔΩ (chemical shift difference between the two states), p_A (population of major state) and the exchange rate constant k_ex = k_forward + k_reverse. Fig. 4 shows a correlation plot between the fitting results for ΔΩ, R₁ and R₂ of the major state based on the standalone ¹⁵N-CEST and the NOAH ¹⁵N-CEST for Im7. Residues with strong overlap were not included in the analysis. Linear regression yields a slope close to 1 with a very small intercept and a high correlation coefficient reflecting the equivalence between the fitting results for the standalone and the supersequence. For the 2-site exchange model applied to the CEST profiles obtained with the standalone ¹⁵N-CEST, the fitted p_A and k_ex values were 0.99 and 853 s⁻¹, respectively, while for the NOAH ¹⁵N-CEST, these parameters were 0.99 and 757 s⁻¹, respectively. For the standalone ¹³C-CEST, the fitted p_A and k_ex values were 0.99 and 664 s⁻¹, respectively, while for the NOAH ¹³C-CEST, these parameters were 0.99 and 644 s⁻¹, respectively. In practice, by measuring CEST profiles at a second B₁ field, as is frequently done, robustness of the fitting results should improve and thereby further decrease the difference between the fitted model parameters.

Fig. 4 Correlation plots between standard standalone and the NOAH-(¹⁵N/¹³C)-CEST supersequence for Im7, (A) ΔΩ standalone ¹⁵N-CEST vs. ΔΩ NOAH ¹⁵N-CEST, (B) ΔΩ standalone ¹³C-CEST vs. ΔΩ NOAH ¹³C-CEST, (C) R₁ standalone ¹⁵N-CEST vs. R₁ NOAH ¹⁵N-CEST, (D) R₁ standalone ¹³C-CEST vs. R₁ NOAH ¹³C-CEST, (E) R₂ standalone ¹⁵N-CEST vs. R₂ NOAH ¹⁵N-CEST, (F) R₂ standalone ¹³C-CEST vs. R₂ NOAH ¹³C-CEST. The linear regression relationships together with Pearson correlation coefficients R² are displayed in each panel.

In principle, the experimental parameters used to run a NOAH-(¹⁵N/¹³C)-CEST experiment in a ¹⁵N and ¹³C-labeled protein are the same as those when each sequence is executed as a standalone sequence, which facilitates the implementation of the CEST supersequence introduced here. A constraint of this experiment is that both ¹⁵N and ¹³C-CEST supersequence blocks use the same number of rf offsets. Alternatively, it is possible to perform one CEST block with half (or one third) the number of rf offsets compared to the other by repeating for one CEST block the same offset twice (or three times). In practice, however, this limitation should be immaterial as it is outweighed by the substantial time saving allowing one to obtain the entire ¹³C-CEST experiment essentially for free. Average ¹³C-T₁ relaxation times of Im7 and ubiquitin were 0.62 ± 0.33 s. Larger proteins with longer T₁‘s will require a longer recovery delay d1 (Fig. 1), but the relative time saving with respect to standalone CEST experiments will remain.

An attractive application of the NOAH-(¹⁵N/¹³C)-CEST supersequence is the high-throughput screening of protein dynamics, for example, to analyze proteins in the absence vs the presence of ligands (complex) or wild-type vs a mutant protein,¹⁶ where it will substantially reduce the NMR time when both backbone and side-chain properties are of interest. Furthermore, it has been shown that using CEST-derived ¹⁵N R₁ and R₂ exchange parameters a lean model-free approach (L-MFA) can be applied for the extraction of S² order parameters with high accuracy.¹⁷ Considering that the supersequence results are equivalent to those of standalone CEST, the supersequence not only provides information about conformational substates exchanging on the ms time scale, but also on the ps–ns timescale reflected in S² order parameters. This promises to further speed up NMR measurement time for the comprehensive characterization of protein dynamics on time scales from ps to ms for both the protein backbone and side-chains.¹⁷

In summary, extended experiment times, which poses a significant bottleneck for pseudo-3D NMR experiments to study biomolecular dynamics of both backbone and side-chain moieties, has been addressed here using the NOAH strategy by combining the ¹⁵N-CEST and ¹³C-CEST into one supersequence. This allows time savings of about 39%, or more than an entire day, when compared to running these sequences in their traditional standalone mode. This new supersequence makes CEST experiments amenable for the screening of protein dynamics under variable experimental conditions, such as temperature, buffer, ligands, or pressure, for the more rapid identification of mutants or substrates of interest involving dynamics changes along the backbone and the side-chains. Furthermore, we showed that the resulting CEST profiles obtained from standalone and NOAH-(¹⁵N/¹³C)-CEST experiments are identical (Fig. 2 and 3), leading to accurate CEST fitting results both in the absence and presence of exchange (Fig. 4). Given the nature of some biomolecules to degrade over time, the application of NOAH for CEST experiments could prove to be a valuable alternative for measuring backbone and side-chain dynamics in significantly less time. Moreover, longer acquisition times can also be more affected by temperature variations, shimming effects, and other fluctuations, which the supersequence could help mitigate. The combination of NOAH-(¹⁵N/¹³C)-CEST with other time-saving techniques, such as multi-frequency excitation,^18,19 and non-uniform²⁰ and absolute minimal sampling²¹ should result in even faster acquisition times. For NOAH experiments of small organic molecules, the computer-assisted generation of supersequences from a library of common NMR experiments has recently been introduced.²² As NOAH experiments start being explored for biomolecular applications, this type of approach may be also feasible for the modular, customized design of new protein NMR experiments.
