Reduction of N₂O with hydrosilanes catalysed by RuSNS nanoparticles

Abstract

A series of RuSNS nanoparticles, prepared by decomposition of Ru(COD)(COT) with H₂ in the presence of an SNS ligand, have been found to catalyse the reduction of the greenhouse gas N₂O to N₂ employing different hydrosilanes.

---

Nitrous oxide (N₂O) is a potent ozone-depleting, greenhouse gas, with a climate warming impact three hundred times that of carbon dioxide.^1,2 The increasing concentration of this gas in the Earth's atmosphere is attributed to human activities involving the use of fertilizers, the large-scale combustion of fossil fuels and biomass, and industrial chemical processes that produce it as a by-product.³ Therefore, there is a significant interest in the development of chemical transformations for the degradation of N₂O into non-harmful species,⁴ as well as for its revalorization as a chemical feedstock in the context of a circular economy.⁵ A procedure for N₂O mitigation consists of the hydrogenation of this molecule to innocuous nitrogen gas (N₂) and water, which can be carried out using heterogeneous catalysts operating under relatively harsh conditions.⁶ Moreover, transition metal complexes have also been recently demonstrated to catalyse the hydrogenation^7,8 and the hydroboration⁹ of N₂O.

Although lacking the future prospects of clean, large-scale production of H₂ from renewable sources, hydrosilanes are commonly employed as reducing agents in both academic laboratories and industrial settings since reduction of a large diversity of compounds, including small gas molecules such as CO₂,¹⁰ can be efficiently performed.¹¹ Advantages associated with the use of silanes as reducing agents include their low cost, easy handling and for some derivatives, as in the case of poly(methylhydrosiloxane) (PMHS), their attributed low environmental impact. However, the reduction of N₂O with silanes has only been briefly investigated. In 2017, Milstein et al. made use of a Ru-PNP pincer complex in the reduction of N₂O with PhMe₂SiH, Ph₂MeSiH and ^tBuMe₂SiH.⁷ Reactions were carried out using 1–2 mol% Ru at 65 °C under 3.4 bar of N₂O for 36–72 h. Recently, Cantat et al. reported a metal-free reduction of N₂O using disilanes.¹² It is also worth noting that oxidation of hydrosilanes with N₂O leads to the formation of technologically important Si–O containing derivatives, such as silanols and siloxanes, with applications in the synthesis of silicon-based polymeric materials as well as reagents in organic synthesis.¹³ This process could contribute to the use of waste N₂O in the context of a circular economy, and complement current methods for silane oxidation based on the use of H₂O, H₂O₂ and O₂.¹⁴

Metal nanoparticles (NPs) have been widely employed in a diverse range of catalytic processes due to their particular electronic configurations and much larger surface areas when compared with bulk metals.¹⁵ The preparation of NPs through the decomposition of an organometallic precursor with H₂ in the presence of substoichiometric amounts of a ligand, as pioneered by Chaudret, Philippot et al., provides materials possessing well-controlled size, shape and surface state.¹⁶ Herein, we report on the synthesis and characterization of a series of Ru NPs stabilized with readily available SNS ligands. More interestingly, based on the known reactivity of related NPs in hydrosilylation reactions,¹⁷ these nanocatalysts have been tested in the reduction of N₂O with hydrosilanes.

Ru·L NPs were easily synthesized by exposing THF solutions of Ru(COD)(COT), (1,5-cyclooctadiene)(1,3,5-cyclooctatriene)ruthenium(0), to 3 bar of H₂ in the presence of the SNS ligands L1–L4¹⁸ (Scheme 1). Different ligand/metal ratios were explored to obtain well-controlled metal nanoparticles. Thus, a series of colloids were prepared using 0.5 equiv of L1–L4. In all the cases, small and well-dispersed crystalline nanoparticles exhibiting mean sizes between 1.5 and 1.9 nm were obtained, as revealed by TEM (Fig. 1 and Fig. S1–S6, ESI†). The metal content (32–47% Ru) in the nanoparticles was determined by inductive coupled plasma (ICP) analysis of the purified materials. Attempts to obtain monodispersed nanoparticles using lower amounts of ligand, i.e. 0.2 equiv, yielded agglomerated metal, with the exception of L4 that led to the main formation of small and monodispersed nanoparticles (mean size: 2.3 (0.4) nm) along with slight metal agglomeration, as observed on the TEM grid (Fig. S7 and S8, ESI†). As observed previously for Ru NPs, the mean size of the particles slightly decreases upon using higher ligand/metal ratios.¹⁹

Scheme 1 Preparation of Ru·L NPs, and SNS ligands employed as stabilizers.

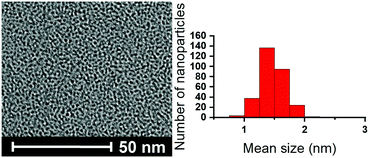

Fig. 1 TEM image with the corresponding size distribution histogram for Ru·L1^0.5.

The crystalline character of the Ru·L NPs thus prepared is clearly demonstrated by HRTEM observations for Ru·L2^0.5 (Fig. S11, ESI†) and Ru·L4^0.5 (Fig. 2). The fast Fourier transform (FFT) analysis of the micrographs shows interplanar spacings and angles that correspond to a ruthenium hexagonal close-packed (hcp) structure. In addition, the observation of some NPs along the [10−10] and [0001] zone axis clearly reveals the presence of (0001), {01−11} and {01−10} crystal facets.

Fig. 2 Top: HRTEM images of single Ru·L4^0.5. Bottom: Fast Fourier transforms with the extracted interplanar distances and angles characteristic of the Ru hcp structure. In (b), the Ru NPs are viewed along the [10−10] and [0001] zone axis, respectively.

For samples Ru·L2^0.5 and Ru·L4^0.5, the Ru composition of the NPs was confirmed by the EDX spectra and elemental map (Fig. S12 and Fig. 3, respectively). EDX also reveals (more particularly for the Ru·L2^0.5 sample) the presence of S expected to come from the SNS ligands, and O that could indicate oxidation of the NP surface. Although mostly detected in the NP regions, S and O signals are also spotted in between the NPs which could be explained by decomposition under the electron beam.

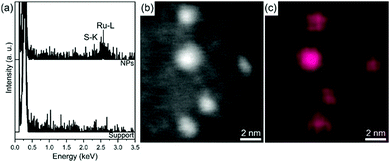

Fig. 3 STEM-EDX results for the Ru·L4^0.5 NPs: (a) EDX spectra recorded over various NPs and over the support (for reference). (b) STEM-HAADF image. (c) Ru·L4^0.5 intensity map using the Ru–L line.

The nature and composition of the Ru·L nanoparticle surfaces were analysed using XPS (see ESI†). As is well known, the main photoemission peak for ruthenium atoms is the Ru3d signal, although this peak is very close and partially overlaps with the C1s peak. For this reason, the Ru3p photoemission signal is preferred for analysis.²⁰Fig. 4 shows the high-resolution spectra for the Ru3p, N1s, and S2p regions for the Ru·L1^0.5 and Ru·L2^0.5 nanoparticles. For the Ru·L1^0.5 and Ru·L2^0.5 samples, high-resolution N1s peaks were found around 400 eV in binding energy (BE) and the S2p photoemission signal shows a wide peak centered at 163.5 eV. The Ru3p signal of Ru·L1^0.5 exhibits two peaks centered at 462.1 and 484.2 eV BE corresponding to 3p_3/2 and 3p_1/2 photoemission peaks, respectively. Ru·L2^0.5 shows these peaks at 462.5 and 484.6 eV BE. As shown in Fig. 5a, the high-resolution Ru 3p_3/2 region for Ru·L1^0.5 is well-fitted with two components at 461.9 and 465.1 eV, corresponding to the Ru(0) and Ru(IV) oxidation states, respectively.^20,21 Likewise, the Ru·L2^0.5 species shows the Ru(0) 3p_3/2 signal at 462.3 eV, and at 465.7 eV for Ru(IV) (Fig. 5b). The surface oxidation ratio of the nanoparticles Ru·L1^0.5 and Ru·L2^0.5 was found to be very similar, i.e. 9% of Ru(IV). Finally, the separation between the major peaks due to spin–orbit splitting took a value of 22.3 eV, in both analyzed species. These results are in agreement with those previously observed in similar size Ru(0) nanoparticles.²²

Fig. 4 High-resolution spectra for Ru3p, N1s and S2p of Ru·L1^0.5 and Ru·L2^0.5.

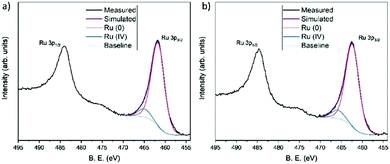

Fig. 5 Experimental and fitted XPS spectra of the Ru3p_3/2 regions for samples Ru·L1^0.5 (a) and Ru·L2^0.5 (b).

The quantification of Ru, N, and S atoms on the surface of the nanoparticles was estimated by means of the relative intensities of the corresponding photoemission signals (Table 1). The N/S ratio is similar and very close to that expected for the stoichiometry of both ligands. This fact enables us to rule out adverse effects during the XPS analysis, such as fragmentation or decomposition of organic compounds. The value of the Ru/N ratio can be correlated to the degree of coverage of the nanoparticle surface by the N-coordinating ligands. Moreover, it could depend on the size of the Ru nanoparticles, although in these cases we have found very similar sizes as determined by TEM. Ru·L2^0.5 is less covered than Ru·L1^0.5, i.e. a higher Ru/N ratio, and this could explain its higher observed catalytic activity since it leaves more metal exposed to the reactants (vide infra).

Table 1 Quantitative analysis of the surface composition of nanoparticles Ru·L1^0.5 and Ru·L2^0.5 (percentage in atomic concentration, % At)

Ru·L	Ru (% At)	N (% At)	S (% At)	N/S ratio	Ru/N ratio
Ru·L1^0.5	31.6	21.8	45.3	0.48	1.5
Ru·L2^0.5	37.8	19.7	42.5	0.46	1.9

---

The SNS-stabilized Ru nanoparticles were tested in the reduction of N₂O with silanes. Initial experiments were performed using 1.0 mol% of Ru at 55 °C under 1 bar of N₂O, employing PhMe₂SiH (1a) (Table 2). While the nanoparticles synthetic precursor Ru(COD)(COT) provided a low silane conversion (entry 1), the reaction with Ru·L1^0.5 took place with 76% conversion (based on silane), leading to a mixture of the corresponding silanol (2a) and siloxane (3a) in a 4 : 6 ratio, respectively (entry 2). Testing of other catalysts prepared using Ru/L ratios of 0.5 led to complete silane conversions with silanol:siloxane ratios ranging between 12 : 88 and 25 : 75 (entries 3–5); meanwhile, the Ru·L4^0.2 nanoparticles showed a decreased conversion (entry 6). TEM analysis of the reaction with Ru·L4^0.5 reveals that the size of the Ru NPs remains practically constant after the catalytic reactions (mean size 1.5 (0.3) nm; Fig. S9 and S10, ESI†).

Table 2 Reduction of N₂O with PhMe₂SiH using Ru·L nanoparticles

Entry	Ru cat.	SiH conv. [%]	2a : 3a ratio
Reaction conditions: 1.0 mol% Ru, 1 bar N2O, 55 °C, THF. Reaction time: 24 h. Conversion and selectivity were determined by ^1H NMR spectroscopy using mesitylene as the internal standard. N2 formation was detected by GC-MS analysis of the headspace gas (see ESI).
1	Ru(COD)(COT)	<5	—
2	Ru·L1^0.5	76	40 : 60
3	Ru·L2^0.5	>99	12 : 88
4	Ru·L3^0.5	>99	25 : 75
5	Ru·L4^0.5	>99	20 : 80
6	Ru·L4^0.2	28	50 : 50

---

Next, other hydrosilanes were tested as reductants using Ru·L4^0.5 as a representative catalyst (Table 3). Complete silane conversion and a high selectivity towards the formation of the silanol 2b were observed in the reaction with Ph₂MeSiH (1b) (entry 1). In marked contrast, the use of dimethylphenethylsilane (1c) led to the opposite product distribution, with the siloxane 3c formed with >99% selectivity. In addition, the reaction of N₂O with tripropylsilane (1d) proceeded with a conversion of 95% with the formation of 2d and 3d in a 6 : 4 ratio, respectively; whereas no conversion was observed upon using bulky ⁱPr₃SiH (1e). Finally, the reaction with triethoxysilane (1f) took place with a high conversion leading to the corresponding silanol and siloxane derivatives in a 6 : 4 ratio (entry 5).

Table 3 Reduction of N₂O with hydrosilanes using Ru·L4^0.5

Entry	Silane	SiH conv. [%]	2 : 3 ratio
Reaction conditions, unless otherwise noted: 1.0 mol% Ru, 1 bar N2O, 65 °C, THF. Reaction time: 24 h. Conversion and selectivity were determined by ^1H NMR spectroscopy using mesitylene as the internal standard.a Reaction time: 48 h.
1	Ph2MeSiH (1b)	>99	>99 : 1
2^a	(PhCH2CH2)Me2SiH (1c)	98	>1 : 99
3	^nPr3SiH (1d)	95	58 : 42
4	^iPr3SiH (1e)	0	—
5	(EtO)3SiH (1f)	98	63 : 37

---

To get insight into the formation of the siloxane derivatives 3, a series of control experiments were performed (Scheme 2). We hypothesized that siloxane formation could take place through: (i) the ruthenium catalysed condensation of two silanol molecules (silanol dehydration),²³ (ii) the oxidation of disilane formed through the dehydrogenative coupling of the hydrosilane,^24,25 and/or (iii) the dehydrogenative coupling of silanol and silane.²⁶ While no reaction was observed when a solution of PhMe₂SiOH (2a) in THF was heated to 55 °C in the presence of Ru·L4^0.5 (Scheme 2a) or the disilane PhMe₂SiSiMe₂Ph (4a) was made to react with N₂O (Scheme 2b), the reaction of 2a with silane 1a under these conditions proceeded with 60% conversion (Scheme 2c). These results are in agreement with the formation of 3a taking place through a Ru catalysed coupling of silanol and hydrosilane with concomitant H₂ release.

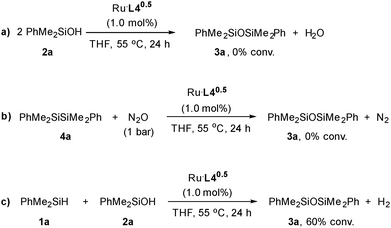

Scheme 2 Control reactions for the formation of the siloxane product 3a.

In conclusion, a series of narrowly-dispersed Ru nanoparticles stabilized by tridentate SNS ligands have been prepared and characterized. These materials are able to catalyse the reduction of N₂O, a relevant harmful greenhouse and ozone-depleting gas, with hydrosilanes under relatively mild reaction conditions (1 bar N₂O, 55–65 °C) to yield innocuous N₂ and potentially useful Si–O containing derivatives.
