Fluoroponytailed ionic liquids as co-porogens for poly(butyl methacrylate-co-ethylene dimethacrylate) monolithic supports for thin layer chromatography

Abstract

Porous layered monolithic substrates of poly(butyl methacrylate-co-ethylene dimethacrylate) were synthesized via UV initiated free radical polymerization in the presence of fluoroponytailed ionic liquids as co-porogenic constituents. The effects of the type and the amount of selected fluorous ionic liquids on various properties of the monolithic support, e.g. porosity, specific surface area and chromatographic performance, in particular for their usability in reversed phase TLC, were examined. Porosity was characterized by means of mercury porosimetry and scanning electron microscopy. The monolithic stationary phases with different layer thickness were successfully applied in the separation of three curcuminoids, namely curcumin, demethoxycurcumin and bisdemethoxycurcumin. Relative retention factor, theoretical plates and resolution were used for the evaluation of the monolithic support's performance. To verify the feasibility of the monoliths, the method was employed for the discrimination between the plant species Curcuma longa and Curcuma xanthorrhiza.

---

1. Introduction

Over the past decades, porous polymeric monoliths sustained remarkable progress, in terms of stationary phase development for chromatographic separations. The ease of preparation, tuneable porous structure, available surface chemistry and task specific tailoring expanded their scope of applications.^1,2 Several parameters can influence the porous structure including porogens, monomer composition, polymerization time, initiator type and reaction temperature.³

Porogens, pore generating solvents, are the most important components of the polymerization mixture affecting the surface area, porosity and morphology of the resulting monolithic structure. The porogens used for the preparation of porous monoliths by in situ free radical polymerization mostly consist of a mixture of solvating and non-solvating diluents. Solvating porogens are mostly responsible for the generation of micro-/mesopores, whereas non-solvating types are attributed to generate macropores.⁴ The choice of porogen depends on the polarity and solubility of monomers, polymer and co-porogens. Owing to the different characteristics of porogens, they generate different pore architectures within the polymeric structure. The solvating porogens are miscible with the monomers as well as the initially formed oligomers, resulting in late-stage phase separation at higher conversion of monomer to polymer. As a result, a scaffold with interconnected individual microglobules is formed. Conversely, non-solvating porogens are responsible for early-stage phase separation at lower conversion, due to their poor miscibility in the polymerization system. This process causes the aggregation of the microglobules and the formation of a scaffold with low surface area.

Organic solvents and organic polymers are commonly used porogens.⁵ The main factors governing the choice of suitable porogens are their molecular size, alkyl chain length and solubility profiles.⁶ Most organic liquids can be used in monolith fabrication, even volatile solvents can be employed in the preparation through photoinitiated polymerization. During the last decade, ionic liquids (ILs) attracted growing attention as porogens or co-porogens.^7–9 The most widely used porogen ILs are 1-butyl-3-methylimidazolium salts, in particular with BF₄⁻, PF₆⁻, HSO₄⁻ anions.⁵ They offer numerous advantages, including negligible volatility as well as highly tuneable solubility profiles. ILs may even significantly enhance the polymerization rate, through acceleration of the rate of monomer propagation.¹⁰ Expectedly, the presence of ILs also affects the morphology of the monolith by altering swelling and shrinking behaviour of the monolith. However, the benefit of ILs on the chromatographic separations in thin layer format is not reported.

In our previous work, we demonstrated the thin layer chromatographic separation of peptides and proteins on poly(butyl methacrylate-co-ethylene dimethacrylate) (poly(BMA-EDMA)) monoliths followed by MALDI-TOF MS detection. The monoliths were prepared by photoinitiated free radical polymerization using dodecanol and cyclohexanol as porogens.¹¹ The resulting monoliths were successfully used for the separation of peptides and proteins. However, their application for the separation of small molecules was not satisfactory. Svec's group improved the efficiency for the separations of small molecules by hypercrosslinking poly(4-methylstyrene-co-chloromethylstyrene-co-divinylbenzene) via Friedel–Crafts alkylation.¹² Maksimova et al., studied the separation low molecular weight dyes and dinitrophenol amino acids using a series of methacrylate based monolithic support. Several functional monomers were used including glycidyl methacrylate, butyl methacrylate, aminoethyl methacrylate, 2-hydroxyethyl methacrylate and 2-cyanoethyl methacrylate.¹³ Later on, Yin et al. demonstrated the application of macroporous poly HIPE monolithic layers based on poly(styrene-butyl acrylate-divinylbenzene) for the identification of Chinese herbal medicinal components.¹⁴ Recently, Korzhikova-Vlakh et al. summarizes the current achievement on the application of microporous polymer monolithic layers for thin layer chromatography.¹⁵

In this work, we focused on the development of planar monoliths with optimized porosity for the separation of small molecules based on poly(BMA-EDMA) using specific ILs, mainly fluoroponytailed room temperature ILs (FILs), as co-porogens. The selected FILs were synthesized using efficient and cost-effective procedures developed by Schottenberger's group.^16,17 The monolithic supports were prepared using ternary porogenic solvents consisting of cyclohexanol, 1-dodecanol or 1-decanol, and 2-(1H,1H,2H,2H-perfluorooctylthio)-1-methylimidazolium with varying counter ions (Fig. 1). The effect of FILs concentration on the porous structure of monolithic support was studied. The resulting monoliths were morphologically characterized by scanning electron microscopy and mercury porosimetry. The performance of the developed monoliths was assessed for their suitability to separate three curcuminoids by thin layer chromatography. Furthermore, the monolithic plates were applied for discrimination between two Curcuma species.

Fig. 1 Chemical structure of the utilized FILs, 2-(1H,1H,2H,2H-perfluorooctylthio)-1-methylimidazolium: iodide (a), triflimide (b), perfluoro-3,6,9-trioxatridecanoate (c).

2.Materials and methods

2.1 Materials

Butyl methacrylate (BMA) (99%, containing hydroquinone monomethyl ether (MEHQ) as inhibitor); ethylene glycol dimethacrylate (EDMA) (98%, containing 90–110 ppm MEHQ as inhibitor); 2,2′-dimethoxy-2-phenylacetophenone (DMPA) (99%); 1-decanol (98%); 1-dodecanol (98%); cyclohexanol 99%; acetic acid (96%); ethanol (EtOH) (96%); 3-(trimethoxysilyl) propyl methacrylate (98%); curcumin (99.5%); curcuminoids (≥94% curcuminoid content, ≥80% curcumin), methyl red (indicator ACS, Reag. Ph Eur), methylene blue (Reag. Ph Eur) and 2,5-dihydroxybenzoic acid (DHB) (puriss. p.a) were purchased from Sigma Aldrich (Vienna, Austria). Acrylate monomers were passed through basic Aluminium oxide packed cartridges to remove inhibitors. Chloroform (anhydrous, contains amylene as stabilizer, ≥99%) (Attention: carcinogenic); dichloromethane (anhydrous, ≥99.8%, contains 40–150 ppm amylene as stabilizer); HPLC grade acetonitrile (ACN) and trifluoroacetic acid (TFA) (≥99.5); were purchased from Merck (Vienna, Austria). Five samples of curcuma species i.e. Curcuma longa (3 samples) and Curcuma xanthorrhiza (2 samples) were collected from different areas in the middle of Java, Indonesia. Water was purified by a Milli-Q unit (Merck Millipore, Darmstadt, Germany) and was used for all experiments. Glass plates 76 × 26 × 1 mm form MEnzel-Glaeser (Braunschweig, Germany). Photoinitiated polymerization was performed using an UV Crosslinker CX-2000 UVP (Jena, Germany).

2.2 FILs synthesis

The selected FILs (Fig. 1) were prepared as described by M. Hummel et al.¹⁷ Briefly, 100.0 g of 1-methyl-1,3-dihydro-2H-imidazole-2-thione (methimazole) and 500.0 g of 1H,1H,2H,2H-perfluorooctyl iodide were dissolved in 500 ml of ethanol under gentle heating (≈ 45 °C). Following complete dissolution, the reaction mixture was refluxed for 36 h; after cooling, the solution was concentrated to about half of its initial volume. To this warm saturated solution, 700 ml of diethyl ether was added quickly under stirring, which caused the product to precipitate as a yellowish, chunky solid. The resulting mixture was shaken for several minutes, after which the product was filtered off and washed with another 700 ml of diethyl ether. Finally, the obtained white, waxy product was dried in high vacuum overnight. Afterwards, the counter ion metathesis of the fluoroponytailed methimazolium iodide was carried out to obtain the bis(trifluoromethanesulfonyl)imide (triflimide) and perfluoro-3,6,9-trioxatridecanoate salts, respectively.

2.3 Preparation of the monolithic layer

The synthesis of the monolith was performed in two steps using our previously developed procedures.¹¹ In the first step, the surfaces of the glass supports were modified in order to enable the covalent attachment of the monolith. Glass plates were washed with acetone and water and treated with 1 M sodium hydroxide for 30 min, washed with water and subsequently with 1 M HCl for 30 min, then finally rinsed with water and acetone. The plates were dried at 65 °C for 1 h. Afterwards, the surfaces were treated using a 20% solution of 3-(trimethoxysilyl)propyl methacrylate in 95% ethanol, adjusted to pH 5 using 96% acetic acid for 2 h at room temperature. The modified plates were washed with ethanol and dried at 65 °C for 12 h. The monomer, crosslinker, porogenic solvents and photoinitator (DMPA) were mixed in a glass vial and ultrasonicated for 10 min. The detailed compositions of the polymerization mixtures are listed in Table 1. The polymerization mixtures were poured onto a rectangular mould consisting of two treated glass plates and a Teflon gasket with thickness ranging from 25–200 μm and clamped. The mould assembly was exposed to UV light at 254 nm for 30 min. After completion of polymerization, the mould was disassembled. The glass plate, with firmly attached monolithic layer, was immersed in EtOH overnight to remove the porogens, and then the plates were dried at 60 °C for 2 h.

Table 1 Composition of monolithic plates

Monolith	Monomer	Crosslinker	Porogenic solvent
	BMA (%w/w)	EDMA (%w/w)	1-Decanol (%w/w)	1-Dodecanol (%w/w)	Cyclohexanol (%w/w)	FILs (%w/w)
a Iodide. b Triflimide. c Perfluoro-3,6,9-trioxatridecanoate.
I	24.0	16.0	40.0		20.0
II	24.0	16.0	40.0		10.0	10.0^a
III	24.0	16.0	40.0		10.0	10.0^b
IV	24.0	16.0	40.0		10.0	10.0^c
V	18.0	12.0	46.7		11.7	11.6^a
VI	24.0	16.0		40	10.0	10.0^a
VII	24.0	16.0		40	20.0

---

2.4 Samples and matrix solutions

Curcuminoids standard solutions were prepared in 80 vol% EtOH (1 mg ml⁻¹). The stock solutions were further diluted as required. Methylene blue and methyl red solutions with a concentration of 0.3 mg ml⁻¹ were prepared by dissolution in 80 vol% EtOH. A solution of 20 mg ml⁻¹ of DHB in 1 : 1 ACN : H₂O, containing 0.1% TFA, was prepared. 100 mg of curcuma powder was extracted with 50 ml of EtOH 80 vol% by ultrasonication for 10 min, followed by filtration. The filtrates were diluted as required.

2.5 TLC separation of curcuminoids

A sample (0.5 μL) was spotted onto the monolithic plate and 1% TFA in chloroform was used as mobile phase. The developing tank was conditioned for 30 min before plate development. After development the plates were air-dried and visualized by UV illumination at 366 nm. For MALDI analysis the spots were scratched off, transferred to 1.5 ml Eppendorf vials and extracted with methanol. MALDI-TOF MS measurements were carried out using an Ultraflex I MALDI-TOF/TOF instrument (Bruker Daltonics). For the acquisition of the mass spectra, 100 laser shots were typically applied at several positions. Only positively charged compounds were analyzed, and 500 single-shot spectra were accumulated to obtain an appropriate signal-to-noise ratio. Spectra were recorded in reflector mode. The Flex Analysis version 2.4 software packages provided by the manufacturer were used for data processing.

2.6 Characterization methods

SEM images of the monolith were recorded on a Jeol JSM-6010LV instrument (Tokyo, Japan) by applying an acceleration voltage of 10 kV. The monolithic polymer was scraped off the glass support, and then dried under vacuum. Then a small part of the monolith sprinkled with gold for SEM. Mercury intrusion porosimetry was used to evaluate the pore size distribution and specific surface area of the polymeric monolith, therefore a Pascal 140 (Thermo Fisher Scientific, I-Milano) and a Porosimeter 2000 (Carlo Erba, I-Milano) were applied. The FT-IR method was used to confirm the chemical composition of the monolith and that the FILs are not incorporated in the polymeric structure. Before measurement, the monolith was scraped off and washed several times with ACN then dried for 24 h. The spectra were obtained with a Bruker ALPHA-P FT spectrometer in ATR mode.

2.7 Chromatographic calculations

Retardation factor (R_f), resolution (R_s), and number of theoretical plates were used to evaluate the chromatographic performance of the thin layer plates according to equations:¹⁸where M and L are the migration lengths of the mobile phase and analyte, and W is the peak or spot width of the analyte.

3. Results and discussion

3.1 Preparation and characterization of the monolithic plates

Utilizing FILs as co-porogens, a set of poly(BMA-EDMA) monolithic plates were prepared according to the conditions listed in Table 1 under an irradiation wavelength of 254 nm for 30 min.

As mentioned introductorily, the effect of FILs on the pore morphology of the monolithic layers can vividly be elucidated by microscopy. Fig. 2I shows the SEM images of porous structure of monoliths with conventional (generic) composition exhibiting its typical porous features (monolith I). However, the monoliths (II–IV) prepared using 10% w/w FILs as co-porogen with 40% w/w 1-decanol and 10% cyclohexanol exhibit denser porous structures (Fig. 2II–IV). The denser porous structure can be attributed to the good solvating properties of the FILs towards the monomers. Therefore, the local concentration of monomers in FILs is higher than that in the precipitated, insoluble “gel-like” species (nuclei), leading to individualized small globules. Additionally, the large number of nuclei competing for the remaining monomers results in high numbers of small globules that aggregate with small pores, as can be seen in Fig. 2II–IV.¹⁹ Additionally, it can be noticed that changing the anion of the FILs has a remarkable effect on pore architecture and polymeric backbone density. The use of the triflimide FIL causes a non-uniform monolithic structure, in contrast to the monoliths prepared utilizing iodide and perfluoro-3,6,9-trioxatridecanoate FILs. However, the flow channels are wider with triflimide and perfluoro-3,6,9-trioxatridecanoate (monolith III and IV), compared to monolith II prepared with iodide. Furthermore, decreasing the ratio of monomer to porogen from 40% to 30%, as is the case for monolith V, resulted in wider flow channels with larger globule size (Fig. 2V). On the other hand, the incorporation of 1-dodecanol instead of 1-decanol (monolith VI) into the monomeric mixture effected a remarkable change in morphology (Fig. 2II and VI). 1-Dodecanol has less solvating power for the polymer chains in comparison to 1-decanol, resulting in earlier phase separation. As can be noticed from Fig. 2VI, the porous scaffold is less dense and possesses larger globule sizes with homogenous through-pores and polymer clusters, in comparison to monolith II. Consequently, the change in morphology was reflected in the changes in the specific surface area of the monoliths. The utilization of the FILs as co-porogens resulted in approximately 100% increase in specific surface area, since the nuclei retain their individuality. Monolith VII, prepared without FILs, possesses a surface area of 16 m² g⁻¹. Conversely, the use of 10% FILs resulted in monoliths with surface areas up to 33 m² g⁻¹ (monolith VI). This increase in the surface area can be attributed to the increase of clusters with smaller size. As mentioned before, the presence of the ILs accelerates the polymerization rates accompanied with late phase separation, which would produce microglobules.¹⁰

Fig. 2 Scanning electron microscope images of monoliths (VI and VII) prepared according to composition summarized in Table 1.

Furthermore, the influence of the incorporation of FILs as co-porogens on the pore size distribution of the developed monolithic supports was examined using mercury porosimetry. Pore size distribution indicates the accessible fraction of total pore volume. As can be shown in Fig. 3, both monolithic plates VI and VII possess monomodal pore size distribution. Monolith VI, prepared using 10% iodide FIL, 1-dodecanol and cyclohexanol as porogens, displays a comparatively broad pore size distribution profile with total intrusion volume of 1.62 ml g⁻¹ and average pore radius of 0.360 μm, resulting in a total porosity of 63.0%. However, monolith VII, prepared without FILs, exhibits a pore size distribution with total intrusion volume of 1.81 ml g⁻¹ at a pore radius of 1.5 μm, with a total porosity of 65.7% (Fig. 3).

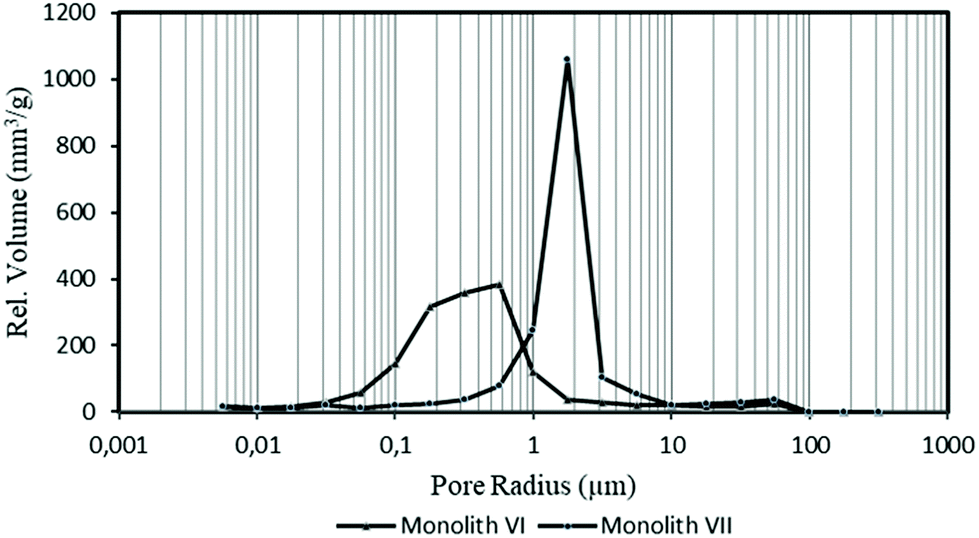

Fig. 3 Pore size distribution of poly(BMA-EDMA) monoliths VI (with 10% FIL-iodide) and VII (without FIL).

FT-IR was utilized to confirm that the FILs were not incorporated into the formed monolith. The FT-IR spectrum of e.g. monolith VI did not show any evidence towards the presence of any FIL-specific IR bands. The spectra of plates I and VI are identical in regard to the polymer's characteristic absorption bands (ESI1†).

3.2 Permeability of the monolithic plates and velocity constant of the mobile phase

Permeability of the monolithic plates is a decisive property for their application as separation media. The migration of the mobile phase is controlled by capillary forces, which is due to the decrease in free energy of the solvent as it goes through the porous structure of the monolithic layer.²⁰ Migration of the mobile phase is a function of the distance between the front and the solvent level in the developing chamber. The porous stationary phase can be described as a bunch of very fine capillaries where the mobile phase more likely coheres rather than adheres to the capillary wall. This capillary flow is dependent on the characteristics of the stationary phase and the viscosity and surface tension of the selected mobile phase.²¹ It can be determined from the time required for the mobile phase to move between fixed points marked on the TLC plate. The velocity constant can be calculated according to the following equation:^22,23

(Z_f)² = kt (4)

where Z_f is the distance between the solvent front and the solvent source, t is the required time and k is the velocity constant.

Table 2 summarizes the velocity constant of the developed monoliths with 150 μm thickness using ACN/H₂O (60/40) with 0.1% TFA. The plates are used for reasonable distances ranging from 30–60 mm. Monolith I exhibits a velocity constant of approximately 2.67 mm² s⁻¹, whereas monoliths II–IV show velocity constants ranging from 0.49 to 1.30 mm² s⁻¹. The results are following SEM images, whereas monolith I demonstrates wider flow-channel compared to monoliths II–IV. Monolith V, prepared with only 30% monomer content, possesses a highly porous scaffold and shows the highest permeability with a velocity constant of 6.08 mm² s⁻¹.

Table 2 Chromatographic parameters of the monoliths using 60/40 v/v ACN/H₂O mixture containing 0.1%TFA as mobile phase

Monolith	Methylene blue		Methyl red		R s	Velocity constant mm^2 s^−1
	R f	Spot width mm	R f	Spot width mm
I	0.88	0.2	0.77	0.35	0.40	2.66
II	0.66	0.4	0.32	0.55	0.72	0.49
III	0.87	0.6	0.70	0.55	0.29	0.83
IV	0.93	0.5	0.58	0.5	0.70	1.29
V	0.89	0.18	0.65	0.3	1.13	6.08
VI	0.87	0.2	0.60	0.2	1.20	2.01

---

3.3 Chromatographic performance of the developed monolith

Complementarily, the chromatographic behaviour of the monolithic plates was examined using dye mixtures of methylene blue and methyl red, and applying a mobile phase consisting of a 60/40 v/v ACN/H₂O mixture containing 0.1%TFA. The impact of polymer composition on the separation of the two dyes is summarized in Table 2. The separation can be achieved on all polymeric plates with a resolution ranging from 0.29 and 1.2. The resolution R_s is a practised criterion of the separation degree to two analytes and R_s > 1.0 is necessary for a basic separation and R_s > 1.5 for baseline separation. As shown in Table 2, monolith VI presents better resolution of 1.8 with reduced spot width of 0.10 and 0.20 mm for methylene blue and methyl red respectively, in comparison to other monoliths. Therefore, for all subsequent experiments monolith VI was chosen in order to obtain high performance.

Furthermore, to evaluate the feasibility of the developed plates for the separation of small molecules, curcumin (CurI), demethoxycurcumin (CurII) and bisdemethoxycurcumin (CurIII) are selected as model analytes (ESI2†). Firstly, the mobile phase applied for chromatographic separation was optimized. Different mobile phase compositions were tested, using monoliths VI and VII, namely ACN/H₂O 60/40, CH₂Cl₂ and CHCl₃ to obtain good resolution and reproducible separation. With ACN/H₂O, no separation could be achieved on both monoliths. Using CH₂Cl₂ and CHCl₃, the three curcuminoids could not be separated on monolith VII, prepared without FILs. A yellow smear was obtained for CurI und CurII. However, employing monolith VI good separation could be obtained, with CHCl₃ giving superior results in terms of resolution and spot width. These results showed that, the incorporation of FILs in monolith synthesis improved notably of the separation efficiency of the monolithic plates.

Table 3 summarizes the data obtained by using CHCl₃ and CH₂Cl₂ as mobile phases on monolith VI. For example, the spot width for curcumin using CHCl₃ was 1.7 mm, whereas with CH₂Cl₂ it was 6.7 mm. The plates are used for distances and speeds ranging from 3–6 cm in 8–9 min, since longer distances resulting in impaired separation because of diffusion in the layer. The highest number of theoretical plates, namely 2539.69, was obtained with CurI using CHCl₃ as mobile phase.

Table 3 Chromatographic performance of poly(BMA-EDMA) monolithic plate (monolith VI), with 150 μm thickness, using curcuminoids, applying CHCl₂ and CHCl₃ as mobile phases

Mobile phase	R f (±SD)	Spot width (mm)	N	R s
Analyte
CHCl 2
CurI	0.18 ± 0.006	3.2	336.91	5.67
CurII	0.67 ± 0.137	2.6	1878.10	1.41
CurIII	0.88 ± 0.002	6.7	375.05
CHCl 3
CurI	0.17 ± 0.048	2.4	209.02	5.85
CurII	0,65 ± 0.044	1.7	1666.44	3.33
CurIII	0.87 ± 0.036	1.6	2539.69

---

Fig. 4 demonstrates a representative separation of curcuminoids standard solution on monolith VI using CHCl₃ as mobile phase. The plates were visualized using UV light with a wavelength of 365 nm. However, since clear identification of spots is not possible by visualization or staining, the spots were scraped off the TLC plate and extracted with methanol. The extracted curcuminoids were loaded on the MALDI target combined with DHB matrix. MALDI-MS offers a soft ionization technique for a fast and simple method for identification of the separated spots. MALDI-MS spectra of the 3 curcuminoids shown in Fig. 4(b–d) indicate the good separation behaviour of the monolithic plates. As can exemplified by Fig. 4b, the m/z of 369 Da clearly corresponds to the [M + H]⁺-peak of CurI. In Fig. 4c, the m/z of 339 Da correlates to CurII, and the m/z of 309 Da corresponds to CurIII (Fig. 4d). Coupling of TLC and MALDI-MS is one of the promising hybrid analytical methods. It opens broad possibilities regarding identification, screening, methods development for the analysis of wide range of analytes.²⁴

Fig. 4 TLC separation of curcuminoids mixture on 150 μm thick poly(BMA-EDMA) monolithic layer (monolith VI) attached to a glass plate using CHCl₃ as mobile phase; sample volume 1.0 μL, viewed under UV 365 nm (A). MALDI-TOF MS spectra of extracted spots of CurIII (B), CurII (C), and CurI (D) using DHB as matrix.

The effect of monolithic layer thickness on the chromatographic separations of curcuminoids was investigated. Several monolithic plates were prepared with a thickness between 25 and 200 μm. Using monolithic plates with a thickness of 25 and 50 μm, no separation of the three curcuminoids could be obtained due to the low capacity of the monolith. However, the good separation was obtained using a monolithic layer with 150 μm thickness. Additionally, the reusability of the monolithic plates was examined by repeated use after washing with ethanol and drying at 60 °C. A reproducible separation of the three curcuminoids was achievable even after five times.

3.4 Discrimination between Curcuma longa and Curcuma xanthorrhiza

Conclusively, the monolithic plates were applied to differentiate between Curcuma longa and curcuma xanthorrhiza, based on the presence of CurI, CurII, and CurIII (Fig. 5). Four samples from different regions of Indonesia were pulverized, extracted with 80% EtOH and loaded onto the monolithic plates. Fig. 5A illustrates the plates with Curcuma longa (C.L.1 and C.L.2) exhibiting fluorescence spots of CurI, CurII, and CurIII, with R_f of 0.121, 0.623 and 0.848 respectively. The separation was accomplished in 7 min. In case of curcuma xanthorrhiza (C.X.1 and C.X.2) (Fig. 5B) only two curcuminoids could be detected namely CurI and CurII, with R_f of 0.77 and 0.81, respectively (Table 4). From these results, it is evident that by using the monolithic plates it was possible to qualitatively discriminate between the two species of curcuma in a fast and simple manner. The separation employing the developed plates is in accordance with the results previously published using commercially available silica TLC plates.^25,26

Fig. 5 TLC images of the separation of Curcuma longa (A) and curcuma xanthorrhiza (B) roots extract on 150 μm thick poly(BMA-EDMA) monolithic layer (monolith VI) using CHCl₃ as mobile phase, viewed under 365 nm UV lamp.

Table 4 Chromatographic performance of Curcuma roots extract on monolith VI, applying CHCl₃ as mobile phase

Plant	Origin	CurI (±SD)	CurII (±SD)	CurIII (±SD)
Cur.L.: Curcuma Lunga; Cur.Xan.: Curcuma Xanthorriza; curI: bisdemethoxycurcumin; CurII: demethoxycurcumin; CurIII: curcumin.
Cur.L.1	Sleman	0.12 ± 0.032	0.62 ± 0.093	0.85 ± 0.014
Cur.L.2	Playen	0.21 ± 0.001	0.66 ± 0.045	0.90 ± 0.001
Cur.Xan.1	Naggulan		0.65 ± 0.035	0.85 ± 0.042
Cur.Xan.2	Girimulyo		0.67 ± 0.020	0.85 ± 0.060

---

4. Concluding remarks

Porous polymers with controlled porous properties have been successfully produced by photoinitiated free radical polymerization under additional utilisation of FILs. The porosity of the resulting polymers is mainly dependent on the concentration of porogens. While the conventional poly(BMA-EDMA) monolith could be successfully used for the separation of peptides and proteins, its application for the separation of small molecules was not satisfactory. Therefore, we altered the developed plates using FILs as co-porogens for the separation of small molecules. The utilization of FILs resulted in reduced permeability and formation of denser porous scaffolds in comparison to the monoliths prepared in absence of FILs. The positive effect of FILs on the separation performance of the monolithic plates could be noticed in the separation of curcuminoids and is comparable with separation using conventional thin layer plates. The novel FIL-modified plates illustrated their potential in the differentiation of closely related medicinal plants for identification and authentication, e.g. to identify adulteration. The simplicity of layer formation via in situ photoinitiated polymerization represents the great advantage for the application of flat monoliths as TLC support. Additionally, hydrophobic/hydrophilic properties and chemical reactivity of polymer material can be easily tuned by variation of functional monomer(s) and crosslinkers.
