Optical pressure sensing in vacuum and high-pressure ranges using lanthanide-based luminescent thermometer–manometer

Marcin Runowski *ab, Przemysław Woźny a and Inocencio R. Martín b
aAdam Mickiewicz University, Faculty of Chemistry, Uniwersytetu Poznańskiego 8, 61-614 Poznań, Poland. E-mail: runowski@amu.edu.pl
bDepartamento de Física, Instituto de Materiales y Nanotecnología (IMN), Universidad de La Laguna, Apdo. Correos 456, E-38200 San Cristóbal de La Laguna, Santa Cruz de Tenerife, Spain

Received 12th February 2021 , Accepted 5th March 2021

First published on 8th March 2021


Abstract

Pressure is a fundamental physical parameter, so its monitoring is crucial for various industrial and scientific purposes. However, the available optical sensors allow monitoring in either low pressure or high pressure ranges. In this work, different concepts of pressure sensing are combined, and the first luminescent pressure sensor working within 9-orders of magnitude (from 10−4 to 105 bar) is developed, allowing both low (vacuum) and high pressure sensing. This sensor is based on the inorganic, upconverting material (YPO4:Yb3+–Er3+) emitting in the visible and near-infrared (NIR) ranges. For vacuum detection, the recently discovered sensing method is applied, which is based on the conversion of a luminescent thermometer into the pressure sensor. This is because of the effect of light-to-heat conversion, which is greatly enhanced under vacuum conditions, and manifested as a change in the intensity ratio of Er3+ thermally-coupled bands (525/550 nm). Whereas for high-pressure sensing, the emission line shift of Er3+ (induced by materials compression), located in the NIR spectral range, is used.


Introduction

Pressure and temperature are crucial parameters in most of the scientific research and industrial processes.1–9 That is why, their rapid, accurate and contactless determination has attracted more and more attention from the researchers.3–7,10,11 For non-contact determinations of pressure and temperature, optical methods based on the luminescence of lanthanides, d-block metal ions and organic complexes are commonly applied.3–7,10–14

Lanthanide (Ln) ions have many favourable spectroscopic properties, such as narrow emission lines, long luminescence lifetimes, broad range multicolour emission, large Stokes shifts, etc., which are related to their 4f–4f electronic transitions.3–7,15–18 Many inorganic materials doped with Ln2+/3+ ions have well-defined temperature and pressure responses, so they can work as luminescent thermometers and manometers.3–7,10–13 For temperature sensing, the materials containing Er3+, Tm3+ and Nd3+ are predominantly used as luminescent thermometers, due to the presence of thermally-coupled levels (TCLs), separated by a small energy difference (≈50–2000 cm−1), hence their emission follows Boltzmann type distribution.3,4,6,7,10–13,19–22 For high-pressure sensing, usually Sm2+ or Eu2+ ions embedded in inorganic matrices are used, because they have either narrow emission lines or their emission characteristics are very sensitive to pressure changes, respectively.23–26 Such materials are an alternative to the well-established and commonly used ruby-based (Al2O3:Cr3+) fluorescent sensor, whose emission, unfortunately, is highly temperature-dependent.27–29 Whereas for low-pressure, i.e., vacuum sensing, either the organic complexes (dyes) exhibiting oxygen-dependent emission quenching or the inorganic materials exhibiting a pressure-modulated light-to-heat conversion phenomenon (heating–cooling processes monitored via luminescence thermometry) are used.10,11,30,31 However, the oxygen-sensitive organic dyes allow sensing in a very limited pressure range, typically from ≈0.05 to 2 bar.31

Considering temperature, currently there are various approaches in luminescence thermometry, allowing the development of micron-sized and nano-sized optical thermometers, operating in a broad temperature range, from cryogenic to high-temperatures (above 1000 K).6,12,13,19–22,32–34 They usually use a band intensity ratio of two thermalized levels or changes in luminescence lifetimes for temperature determination.6,12,13,20,32–38 Whereas in the case of optical pressure sensors, they work either in the vacuum range or in the high-pressure range.3–5,7,10,11,36 This is because of their totally different operating principles, namely sensors working in the high-pressure range are based on materials compression, leading to changes in spectroscopic properties of the optically active ions, e.g., line shift, changes in band intensity ratios, emission line width or luminescence lifetimes.2–5,7,36 Whereas luminescent sensors working in the vacuum range (below 1 bar) are based predominantly on the changes in the concentration of the surrounding gas molecules, resulting either in the mentioned luminescence quenching (variations of emission intensity) or elevation of the local temperature (the recently discovered method allows the conversion of luminescent thermometers/heaters into vacuum sensors).10,11,30,31 The last approach, utilizes the effect of laser-induced heating of the materials, enhanced under vacuum conditions.10,11

Here we show, for the first time how to combine two different approaches of pressure sensing, i.e., high-pressure materials compression and vacuum-enhanced light-to-heat conversion, and develop the first multi-range optical pressure sensor (see Scheme 1). The developed sensor can operate in the very broad pressure range, from vacuum (10−4 bar) up to high-pressure range (105 bar). The luminescent probe is an upconverting material based on inorganic phosphate doped with ytterbium(III) and erbium(III) ions, showing a well-defined thermal and pressure responses, and resistance to treatment under extreme conditions.


image file: d1tc00709b-s1.tif

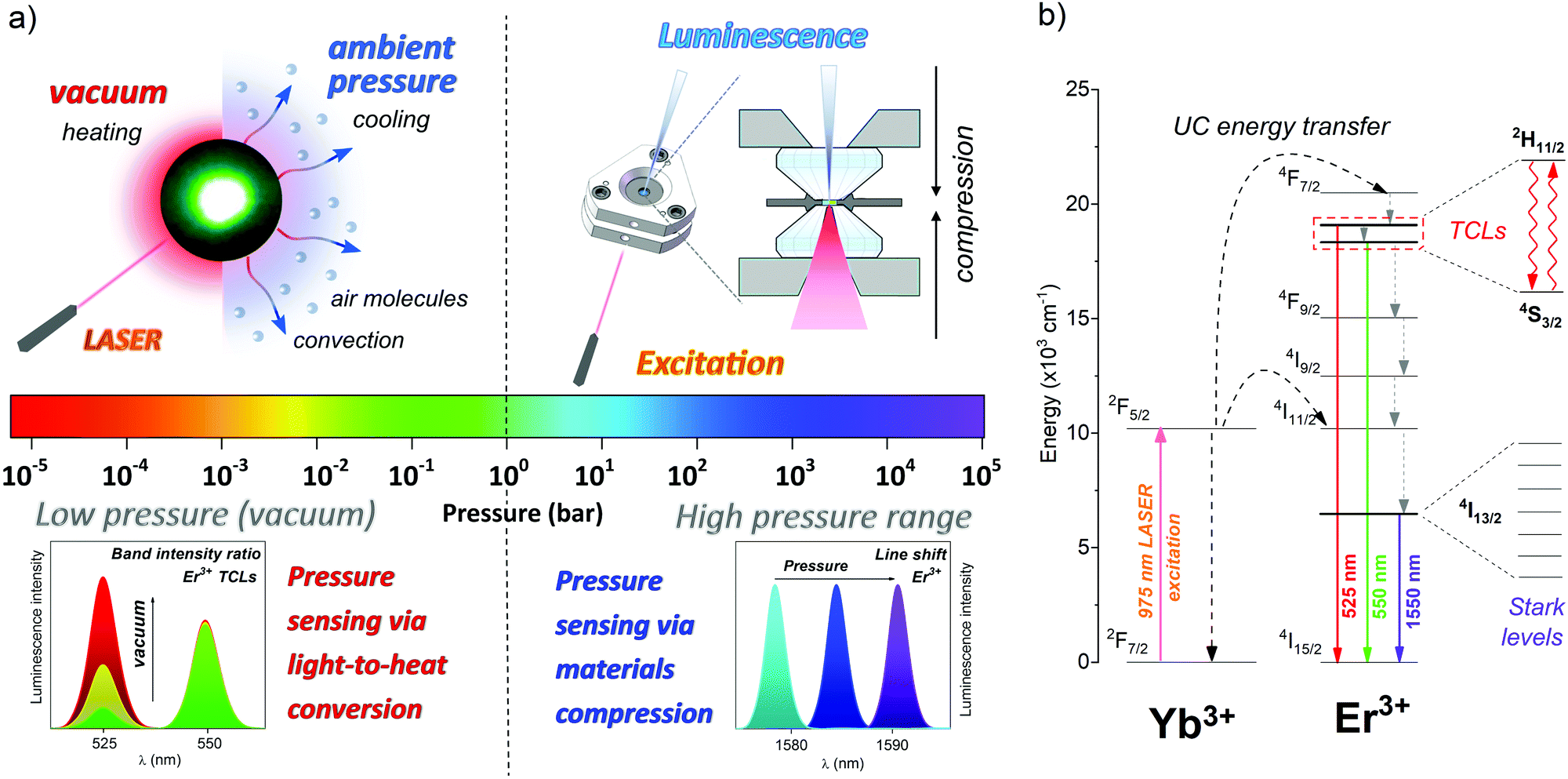

Scheme 1 (a) Two different concepts of pressure sensing combined in a single, Er3+-doped luminescent material, working as a multi-range pressure sensor; (left) low pressure, i.e., vacuum sensing via light-to-heat conversion, and (right) high pressure sensing via materials compression. (b) Energy level diagram showing the main radiative and non-radiative processes taking place in the investigated Yb3+–Er3+ system, focusing on Er3+ TCLs 2H11/2 and 4S3/2 (for vacuum sensing) and Stark sublevels, i.e., crystal field components of the 4I13/24I15/2 transition (for high-pressure sensing).

Results and discussion

Characteristics of the pressure sensor material

The luminescent low (vacuum) and high pressure sensor used in this work is based on YPO4 doped with 15 mol% of Yb3+ and 2 mol% of Er3+ micron-sized (≈0.5–1 μm) inorganic particles, with a relatively high phonon energy of around ≈1100 cm−1,7 crystallizing as tetragonal YPO4, in the I41/amd space group (see Fig. S1–S4 that confirm the structure, morphology, and elemental composition of the sensor material, ESI). The material studied is stable under high-pressure conditions, preserving its tetragonal structure up to ∼14 GPa, with a bulk modulus (B0) of ∼186(5) GPa.7,39 The synthesized material is optically active, i.e., it can generate a two-photon upconversion (UC) luminescence, namely the anti-Stokes emission of Er3+ under near-infrared (NIR) laser irradiation (≈975 nm), which is commonly observed in various inorganic materials doped with Yb3+–Er3+ ions. In such a system, Yb3+ (“light harvesting ions”) effectively absorb the incident NIR laser radiation, and transfer it to the neighbouring Er3+ ions (emitters), mostly via energy transfer UC processes (see the energy level diagram in Scheme 1b).4,10,35

Low pressure (vacuum) sensing

In order to calibrate the optical response of the developed upconverting vacuum sensor YPO4:Yb3+–Er3+, we have measured a series of UC emission spectra as a function of temperature (≈300–850 K), using a continuous wave (CW) 975 nm NIR laser (2 W mm−2). The normalized spectra presented in Fig. 1a, clearly show temperature dependence of the thermalized bands of Er3+, corresponding to the radiative transitions 2H11/24I15/2 (≈525 nm) and 4S3/24I15/2 (≈550 nm). Based on the recorded spectra, we have determined the band intensity ratio of 525/550 nm, integrating the area under the mentioned bands. The determined values are plotted in Fig. 1b as a function of temperature, showing an almost linear dependence, which is typical of Er3+ TCLs 2H11/2 and 4S3/2. Because these energy levels of Er3+ are thermally coupled, with ΔE ≈ 866 ± 4 cm−1 (value determined from the spectra), they follow Boltzmann type distribution, so we could easily fit them with the following function:

image file: d1tc00709b-t1.tif(1)
where LIR is the band (luminescence) intensity ratio (525/550 nm); ΔE is the energy difference between the band centroids; kB is the Boltzmann constant; T is the absolute temperature; and B is a constant, which depends on the states degeneracies, branching ratio of the transitions in relation to the ground state, and rates of total spontaneous emission and energy of the transitions.6 The fitting performed using eqn (1), resulted in the ΔE ≈ 739 ± 3 cm−1 (slightly lower compared to the value derived from the spectra, most plausibly due to band overlapping), B ≈ 5.81 and R2 ≈ 0.999. This contactless, ratiometric method is commonly used in luminescence thermometry, ensuring good sensitivity, accuracy and repeatability of optical determination of the local temperature values. The detailed characteristics of the luminescent thermometer performance, including thermal cycling experiments, temperature sensitivity and resolution, as well as comparison with different optical thermometers from other reports are given in the ESI (see Fig. S5–S7 and Table S1, respectively).

image file: d1tc00709b-f1.tif
Fig. 1 UC emission as a function of temperature and pump power. (a) Normalized UC luminescence spectra of the YPO4:Yb3+–Er3+ material as a function of temperature, measured at λex = 975 nm and ≈2 W mm−2. (b) determined band intensity ratios, i.e., Er3+ LIR of 525/550 nm as a function of temperature. (c) Normalized UC emission spectra as a function of pump power. (d) Determined Er3+ LIR of 525/550 nm as a function of pump power and the corresponding local temperature values (dashed lines) calculated using eqn (1).

With the temperature response of the sensor in hand, in the next step we irradiated the sample with an increasing laser power (1–220 W mm−2), to determine the light-to-heat conversion efficiency under ambient conditions. Similarly like in the case of heating experiments, the discussed band intensity ratio (LIR; 525/550 nm) of Er3+ increases as a function of laser power (Fig. 1c and d), indicating the local temperature elevation, up to around 1000 K at ≈200 W mm−2 (see Fig. 1d).

In the next step, we have recorded the UC emission spectra as a function of laser power (≈0.5–18 W mm−2) under vacuum conditions (≈10−5 bar). The band intensity ratio of 525/550 nm increases significantly at a much lower pump power (Fig. 2a), compared to the laser-heating experiments performed under ambient conditions. The heating rate, i.e., the light-to-heat conversion efficiency is much higher under vacuum compared to ambient pressure (see Fig. 2b), resulting in the elevation of the local temperature up to ≈1000 K, at a laser power of <20 W mm−2. This indicates more than 10-times enhancement of the light-to-heat conversion under vacuum conditions. The observed enhancement of local heating of the sample is associated with less efficient heat dissipation (convection) in vacuum, where the amount of air molecules is significantly limited. Whereas under ambient pressure, abundant air molecules (cooling gas) transfer the generated heat into the surroundings. That is why, the determined LIR parameter (which is directly related to the local temperature of the sample) has much higher values in a vacuum, compared to the ambient pressure. Additionally, in Fig. 2c we present temporal evolution of the determined LIR parameter as a function of irradiation time, indicating stabilization of the local temperature after 1 s (top; red) and 0.1 s (bottom; blue) of laser irradiation (≈15 W mm−2), under vacuum and ambient conditions, respectively. Longer stabilization time (equilibrium between the competing heating–cooling processes) under vacuum conditions is due to different heat dissipation mechanisms, as in the case of ambient pressure the dominant role in the cooling process is played by air molecules (convection process), whereas under vacuum conditions the slower process of heat conduction within the sample dominates. Nonetheless, the temporal resolution of this phosphate-based sensor is much better, compared to our previous vanadate-based vacuum sensor, which reaches equilibrium after about 5 s.10


image file: d1tc00709b-f2.tif
Fig. 2 UC luminescence under vacuum conditions. (a) Normalized UC emission spectra of the YPO4:Yb3+–Er3+ material, measured as a function of pump power (λex = 975 nm) under vacuum conditions. (b) Comparison of the determined band intensity ratios, i.e., Er3+ LIR of 525/550 nm under vacuum (red) and at atmospheric pressure (blue), recorded as a function of pump power, and the corresponding local temperature values (dashed lines) calculated using eqn (1). (c) Temporal evolution of the determined LIR parameter as a function of irradiation time (≈15 W mm−2), recorded under vacuum (red) and at atmospheric pressure (blue).

Finally, in order to develop the luminescent low pressure sensor, we have measured a series of UC emission spectra at fixed laser power (≈15 W mm−2) and different vacuum levels (see Fig. 3a). It is clear that the band intensity ratio (525/550 nm) associated with the discussed TCLs of Er3+ significantly increases with the vacuum level of the system (1000–0.03 mbar), confirming the light-to-heat conversion enhancement under vacuum conditions. We have plotted the determined LIR parameter in Fig. 3b in the logarithmic representation, and using a simple linear fit (LIR = −0.3601P + 1.4999) we correlated the LIR values with the vacuum level of the system, from 0.2 to 1000 mbar (R2 = 0.99). Most importantly, in contrast to the vanadate-based sensor (allowing sensing in a limited vacuum range, from ≈10−1 to 101 mbar), the measured sensing parameter, i.e., LIR, exhibits a significant and monotonic change over 4 orders of magnitude, i.e., from 10−1 to 103 mbar. This is the reason it also allows vacuum sensing close to the atmospheric pressure range, which is important from the point of view of science and industry. Fig. 3c presents the relative pressure sensitivity – Sr(P) and resolution of pressure sensing − δP, determined based on the following equations:


image file: d1tc00709b-t2.tif(2)
and

image file: d1tc00709b-t3.tif(3)
where δLIR is the uncertainty of determination of the band intensity ratio (525/550 nm). The Sr(P) decreases with pressure, from ≈50% mbar−1 (at around 0.2 mbar), down to ≈0.04% mbar−1 at atmospheric pressure. Whereas the pressure resolution, i.e., δP changes from 0.02 mbar to ≈27 mbar at ambient pressure, respectively. The obtained resolution is similar to the vanadate-based sensor, in the comparable pressure ranges.10 Additionally, the reliability of our method is confirmed by cycling the sample between atmospheric pressure and vacuum, and the repetitive determination of the LIR parameter (the band intensity ratio 525/550 nm of Er3+), which is fully reversible, as expected (see Fig. S8, ESI).


image file: d1tc00709b-f3.tif
Fig. 3 Low-pressure, i.e., vacuum, sensing. (a) Normalized UC emission spectra of the YPO4:Yb3+–Er3+ material (λex = 975 nm; ≈15 W mm−2), measured as a function of low-pressure, i.e., vacuum. (b) Determined band intensity ratios, i.e., Er3+ LIR of 525/550 nm as a function of vacuum, and the corresponding local temperature values (dashed lines) calculated using eqn (1); the continuous line corresponds to the applied linear fit. (c) Relative pressure sensitivity, i.e., Sr(P), and pressure resolution, i.e., δP, plotted as a function of vacuum.

High pressure sensing

In order to optically monitor high pressure with our sensor, we have determined the spectral shift rate of one of the Stark sublevel of the Er3+ emission band located in the NIR region, namely the 4I13/24I15/2 transition, centred at around 1550 nm (λex = 975 nm; 2 W mm−2). This band (4I13/24I15/2) splits into several crystal-field components (Stark sublevels), starting from ≈1500 nm and ending at ≈1600 nm. It is worth noting that in the case of high-pressure measurements we did not focus on the transitions located in the visible range, because they are generally less sensitive to pressure changes compared to the lower-energy transitions.3–7 The emission spectra recorded as a function of high-pressure (up to 112 kbar, i.e., ≈11 GPa) are presented in Fig. 4a. Due to the increasing crystal-field strength under high-pressure conditions, caused by the shortening of interionic distances (Er3+–O2−) and stronger interactions between the ions in the compressed crystal lattice, the splitting of the observed Stark sublevels is enhanced with increasing pressure.5,7,26,40 That is why the left part of the band (Stark sublevels located at shorter wavelengths) exhibits a blue-shift, whereas the right part of the band (higher wavelengths) red-shifts.3,5,7 This effect superimposes with the commonly reported decreasing energy difference between the ground and excited states of lanthanide ions (in this case Er3+), leading to the red-shift of their emission bands under high-pressure conditions, which is related to the increased bonding covalency of the compressed material (enhanced nephelauxetic effect).5,7,26,40 That is why, the Stark sublevel located at the longest wavelength shifts more, compared to the one located at the opposite side of that transition. Fig. 4b and Fig. S9–S11 (ESI) present the determined spectral positions and the corresponding shift rates for the most intense Stark sublevels, namely 0.0539 nm kbar−1 (at 1589 nm), 0.0199 nm kbar−1 (at 1565 nm), −0.0459 nm kbar−1 (at 1542 nm) and −0.0297 nm kbar−1 (at 1508 nm), respectively. The observed spectral shifts are reversible, as confirmed by the decompression data. For the Stark sublevel exhibiting the greatest spectral shift and good linear fitting, with R2 ≈ 0.99 (see Fig. 4b), we have also determined the relative pressure sensitivity (Sr(P)) and pressure resolution, which are plotted as a function of pressure in Fig. 4c. Please note that to calculate the mentioned sensitivity and resolution values we have used the same equations as those for low-pressure sensing, i.e., eqn (2) and (3), applying the determined spectral position of the emission line as a measured parameter (instead of LIR). Because the relative changes of the measured parameter, i.e., line shifts are typically smaller compared to the LIR, the determined Sr(P) values are small, being around ≈3.4 × 10−3% mbar−1 in the whole high-pressure range. However, most importantly, the resulting pressure resolution is quite good, i.e., δP ≈ 2 kbar at around 50 kbar, which is crucial for pressure sensing purposes.
image file: d1tc00709b-f4.tif
Fig. 4 High-pressure sensing. (a) Normalized NIR emission spectra of the YPO4:Yb3+–Er3+ material (λex = 975 nm), measured as a function of high-pressure. (b) Determined spectral positions of the 4I13/24I15/2 band (Stark sublevel) of Er3+ as a function of high-pressure; the continuous line corresponds to the applied linear fit; the filled symbols represent the compression and the empty ones decompression data. (c) Relative pressure sensitivity, i.e., Sr(P), and pressure resolution, i.e., δP, plotted as a function of high-pressure.

Additionally, we have measured the emission spectra of Er3+ in the same NIR spectral range, as a function of temperature, and determined the spectral positions of the Stark sublevels of Er3+ (4I13/24I15/2 transition), in order to verify the potential temperature drift/correction for the sensor (see Fig. S12 and S13, ESI). Fortunately, up to ≈500 K, there is almost no change in the spectral position of the measured bands (Fig. S13, ESI), which is typical of lanthanide (Ln3+) emission.6 This result is of great importance from the point-of-view of the researchers/engineers performing the experiments, simultaneously under high-pressure/high-temperature conditions.4

Finally, we have compared in Table 1 the performance of the developed luminescent pressure sensor with the available literature data. Please note, that for the vacuum sensors we compared the relative sensitivity and resolution, but for the high-pressure sensors we mainly used the line shift and the corresponding temperature correction. This is because most of the high-pressure sensors are based on the emission line shift, hence there are no literature data available about their relative sensitivity and resolution. In the case of luminescent vacuum sensors operating in the very low pressure range, i.e., from about 0.1 mbar, the data are very limited. Depending on the pressure range of interest, the sensitivity of the developed sensor varies significantly, i.e., at a pressure of around 1 mbar, Sr(P) ≈ 10% mbar−1, which is lower compared to the vanadate-based sensor, but higher compared to the perovskite-based sensor (microsphere). However, at a pressure of around 10 mbar, Sr(P) ≈ 1% mbar−1, which is the same for the vanadate sensor (perovskite sensor do no operate in this range). Resolution of the developed sensor also depends on the pressure range, however, at pressure around 10 mbar (i.e., in the middle of the operating pressure range) it is the same for the developed phosphate sensor and for the already reported vanadate sensor, i.e., δP ≈ 1 mbar. Whereas comparing the performance of the high-pressure sensors, our material exhibits one of the largest spectral shift, i.e., 0.0539 nm kbar−1, which is much larger than that of the commonly used ruby-based sensor. Nonetheless, it is worth noting that this is the first time that a single optically active material is used for sensing in an unprecedentedly broad pressure range, encompassing vacuum and high-pressure regions.

Table 1 Comparison of low (vacuum) and high-pressure sensitivities of different luminescent manometers used for optical pressure sensing
Low-pressure (vacuum) sensors
Host Emitting ion Sensitivity Sr(P) (% mbar−1) Resolution δP (mbar) Transitions λ (nm) Ref.
YPO4 Er3+ 10 (at 1 mbar) 0.1 (at 1 mbar) 2H11/24I15/2/4S3/24I15/2 525/550 This work
1 (at 10 mbar) 1 (at 10 mbar)
YVO4 Er3+ 40 (at 1 mbar) 0.025 (at 1 mbar) 2H11/24I15/2/4S3/24I15/2 525/550 10
1 (at 10 mbar) 1 (at 10 mbar)
YAlO3 (microsphere) Nd3+ <0.1 (at 1 mbar) 0.015 (at 1 mbar) 4F3/24I9/2 914 11
PtTFPL Organic complex ∼0.1 Triplet–singlet 740 41
PtTFPP ∼0.1 650 42

High-pressure sensors
Host Emitting ion Sensitivity – line shift (nm kbar−1) T-shift (nm K−1) Transitions λ (nm) Ref.
YPO4 Er3+ 0.0539 −1.78 × 10−3 4I13/24I15/2 (Stark) 1589 This work
Al2O3 (ruby) Cr3+ 0.0365 6.8 × 10−3 2E → 4A2 694 27
YAlO3 Cr3+ 0.070 7.6 × 10−3 2E → 4A2 723 43
YF3 Er3+ 0.01855 −3 × 10−4 4F9/24I15/2 (Stark) 665 4
NaBiF4 Er3+ −0.08 4I13/24I15/2 (Stark) 1503 3
YAlO3 Nd3+ −0.013 1 × 10−6 4F3/24I9/2 (Stark) 875 43
Gd3Sc2Ga3O12 Nd3+ ∼0.0632 4F3/24I9/2 (Stark) 935 44
Y3Al5O12 Eu3+ 0.0197 −5.4 × 10−4 5D07F1 591 45
EuPO4 Eu3+ ∼0.027 5D07F0 580 46
Y3Al5O12 Sm3+ 0.030 2.3 × 10−4 4G5/26H7/2 (Stark) 618 47
SrFCl Sm2+ 0.110 −2.3 × 10−3 5D07F0 690 48
SrB4O7 Sm2+ 0.0255 −1 × 10−4 5D07F0 685 49
SrB2O4 Sm2+ 0.0244 −1 × 10−4 5D07F0 685 25
BaLi2Al2Si2N6 Eu2+ 0.158 5d → 4f 532 26
KMgF3 Eu2+ ∼0.013 5d → 4f 360 50
CeN–PVDF Ce3+ 0.028 5d → 4f 327 51
CeS–PVDF Ce3+ 0.01 5d → 4f 340 51
LaPO4 Tm3+ 0.01 −2 × 10−3 1G43H6 475 7
0.8% (band ratio) 3H43H6/1G43H6 800/475
Y6Ba4(SiO4)6F2 Ce3+ 0.063 2DJ2FJ (5d → 4f) emission 466 52
0.15% (FWHM) 2FJ2DJ (4f → 5d) excitation 342
0.25% (FWHM)
SrF2 Er3+ 0.77% 4F9/24I15/2 653 53
0.64% 4S3/24I15/2 538
0.62% (lifetimes) 2H11/24I15/2 516


Conclusions

In this work, we have shown for the first time the possibility of optical sensing of low and high pressure values, utilizing a single, lanthanide-doped upconverting material. The active material used for sensing is based on the YPO4:Yb3+–Er3+ luminophore, exhibiting UC luminescence in the visible range and down-shifting emission of Er3+ in the NIR range, observed under 975 nm excitation. The sensing concept in the vacuum range is based on the laser-induced heating of the upconverting material, enhanced under vacuum conditions, and the use of Er3+ band intensity ratio (525/550 nm) as a pressure-dependent sensing parameter. Whereas for sensing in the high-pressure range we used the spectral shift of the Er3+ emission line (around 1590 nm), observed during materials compression in a diamond anvil cell (DAC). The developed sensing methods provide good pressure resolution, both in a vacuum and in the high-pressure ranges (uncertainty of about ≈3–4% of the measured pressure value), ensuring accurate pressure determination in the unprecedentedly broad pressure range, i.e., from ≈10−4 to 105 bar. Another very important advantage of the presented luminescence manometry technique is its non-invasive character (optical detection), allowing pressure sensing in various environments.

Experimental section

The starting materials Y2O3, Yb2O3, and Er2O3 (Alfa Aesar, 99.99%) were dissolved in excess chloric acid (Sigma-Aldrich, ASC 37%). The solutions were evaporated 3-times to dispose of HCl. The obtained YCl3, YbCl3, and ErCl3 solutions were diluted with deionized water, and 0.5 M solutions were prepared. 0.198 g (25% excess) of (NH4)H2PO4 (Sigma-Aldrich, ACS, >98%) was dissolved in 30 ml of glycerol (POCH, >99.5%) and 90 ml of deionized water. The prepared solution was mixed at 323 K for 30 min. Next, a stoichiometric amount (calculated on the basis of the formula Y1−xyYbxEryPO4 where x = 0.15; y = 0.02) of YCl3, YbCl3 and ErCl3 solutions were added dropwise. White material starts to precipitate at the time of mixing. Finally, the prepared solution was stirred continuously at 323 K for 30 min. The synthesized material was collected by centrifugation and washed with water five times. The obtained material was dried at 353 K for 24 h in air, and then ground in an agate mortar. Next, the sample was annealed at 1273 K for 2 h. The elemental composition, i.e., chemical formula of the synthesized material, determined by the energy-dispersive X-ray (EDX) analysis is found to be YPO4:16 mol% Yb3+,2.7 mol% Er3+.

Characterization

Scanning electron microscopy (SEM) and EDX analyses were performed using a Scanning Electron Microscope FEI Quanta 250 FEG, and an EDAX detector. The Powder X-ray diffraction (XRD) pattern was recorded with a Bruker AXS D8 Advance diffractometer, using Cu Kα1 radiation (λ = 0.15406 nm). The FT-IR spectrum was measured in a KBr pellet (transmission mode) using a FT-IR spectrophotometer JASCO 4200. UC emission spectra in the visible range and the emission spectra in the NIR range were recorded using an Andor Shamrock 500 spectrometer, coupled to the silicon (visible range detection) and InGaAs (NIR range detection) CCD cameras from Andor. The excitation source was a tunable CW Ti:Sapphire laser system, Spectra Physics 3900-S pumped with a 15 W 532 nm Spectra Physics Millenia, adjusted at 975 nm. The procedures of luminescence measurements in a vacuum chamber and under high-pressure conditions (in a DAC) are described in detail in our previous publications.4,7,10

DAC loading procedure and high-pressure detection

High-pressure measurements were carried out in a DAC (400 μm culet size) made at Universität Paderborn (Germany), where the pressure is adjusted by the use of four metal screws. Stainless steel sheets (200 μm thick) were used as gaskets. The gaskets were pre-indented down to ∼50 μm thickness, and then drilled with an electro-driller, to form a hole of ∼100 μm diameter. After mounting the metal gasket on the diamond cell, a small sphere of ruby and the sample (white powder) were placed in the gasket hole, and filled with a methanol[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]water (16[thin space (1/6-em)]:[thin space (1/6-em)]3[thin space (1/6-em)]:[thin space (1/6-em)]1) pressure transmitting medium (hydrostatic up to ∼10 GPa). The high-pressure values were determined using the R1 ruby florescence line shift, excited by a 532 nm laser, and using a ruby calibration curve available elsewhere.54

Low-pressure (vacuum) measurements

Luminescence measurements in a low-pressure range were performed for the material (∼100 μm thick) placed on a small glass plate, in the centre of the vacuum chamber. The low-pressure values were monitored using a digital vacuum sensor. For all experiments, the material was used in the form of a fine powder. More technical details can be found in ref. 10.
