Facile one-step synthesis and enhanced photocatalytic activity of a WC/ferroelectric nanocomposite

Abstract

The development of noble-metal-free co-catalysts is seen as a viable strategy for improving the performance of semiconductor photocatalysts. Although the photocatalytic efficiency of ferroelectrics is typically low, it can be enhanced through the incorporation of a co-catalyst into nanocomposites. Here, we demonstrate the influence of ferroelectricity on the decolorization of rhodamine B under simulated solar light using RbBi₂Ti₂NbO₁₀ and compared the performance with that of non-ferroelectric RbBi₂Nb₅O₁₆. The decolorization rate for RbBi₂Ti₂NbO₁₀ was 5 times greater than that of RbBi₂Nb₅O₁₆. This behaviour can be explained in terms of ferroelectric polarization, which drives the separation of charge carriers. The photocatalytic activity of RbBi₂Ti₂NbO₁₀ was further enhanced to over 30 times upon preparing a nanocomposite with tungsten carbide (WC) through high energy ball milling. This enhancement was attributed not only to the increased specific surface area, but also to the incorporated WC co-catalyst, which also serves as a source of plasmonic hot electrons and extends the photocatalytic activity into the visible light range. The WC/RbBi₂Ti₂NbO₁₀ nanocomposite shows interesting water oxidation properties and evolves O₂ with a rate of 68.5 μmol h⁻¹ g⁻¹ and a quantum yield of 3% at 420 nm. This work demonstrates a simple route for preparing WC containing nano-ferroelectric composites for solar energy conversion applications.

---

1. Introduction

The development of low cost photocatalyst materials with high photocatalytic efficiency which are also environmentally benign is viewed as a matter of global urgency.¹ In this respect, the direct use of natural solar energy through photocatalysts represents an important area of technology. When refined, the approach could be used to provide useful chemicals,² reduce CO₂ in the atmosphere³ or produce fuels using narrow band-gap materials.⁴ Despite abundant studies on semiconductors, including a variety of inorganic metal oxides (such as TiO₂, ZnO, WO₃ and SnO)^5–9 and sulfides (ZnS and CdS)^10–14 and the development of a variety of structures,¹⁵ their photocatalytic efficiency is still far from satisfactory. A key challenge for efficiency improvement is suppressing the recombination of photo-induced charge carriers and prolonging their lifetime.^10,16–18 One important strategy to address this problem is to use ferroelectric materials. Their switchable spontaneous polarization produces internal electric fields,^19–22 resulting in the spatial separation of photo-induced electron–hole pairs.^23,24

Morris et al.²⁵ tested the charge carrier lifetime in films of cubic (paraelectric) and tetragonal (ferroelectric) BaTiO₃ using transient absorption spectroscopy and found that the charge carrier lifetime in ferroelectric BaTiO₃ was four orders of magnitude longer than that in paraelectric BaTiO₃. A prolonged charge carrier lifetime is also reported in the Aurivillius ferroelectric, Bi_6−xSr_xTi_3+xFe_2−xO₁₈.²⁶ This clearly demonstrates that the presence of internal fields can reduce the recombination of charge carriers, leading to enhanced photocatalytic efficiency. Moreover, the ferroelectric domains cause band bending of the electronic states and induce spatially selective reactivity for photochemical reactions, as demonstrated in perovskites, such as BiFeO₃,²⁷ BaTiO₃,²⁸ and Pb(Zr_0.3Ti_0.7)O₃.²⁹ Among various ferroelectric photocatalysts with a perovskite-like structure, bismuth-containing niobates are reported as promising candidates,^30–32 due to the high energy of the Nb 4d conduction band³² and the O 2p orbitals hybridized by Bi 6s in the valence band.^33,34 Moreover, depending on the Bi/Nb ratio, these compounds can adopt complex crystal structures, such as pyrochlore, layered perovskite or fluorite related structures, and thus exhibit different dielectric properties.³⁵ Although previous studies have reported the ferroelectricity of bismuth-containing niobates with layered perovskite structures, the effect of their polarization on photocatalysis has been barely studied.³⁶

Loading a co-catalyst onto a ferroelectric material has been proved to be an effective strategy to further boost the photocatalytic efficiency.^37–39 The co-catalyst not only provides catalytic sites, but also suppresses the recombination of photo-induced charge carriers in the photocatalyst.^40,41 The most popular co-catalysts are noble metals, such as Au, Pt, Rh, and Ru. However, their high cost and scarcity hamper large-scale commercial applications, and thus the development of earth-abundant and inexpensive alternatives is essential. Both tungsten (W) and carbon (C) are earth-abundant, while tungsten carbide (WC) exhibits high electronic conductivity and has Pt-like d-band electronic density states.⁴² Since Levy and Boudart's first report on WC in the catalysis of hydrogenolysis,⁴³ it has been intensively studied as an electrocatalyst support for methanol oxidation, oxygen reduction, nitrophenol oxidation and hydrogen evolution.^44,45 Hence, it is extremely desirable to prepare nanocomposites of ferroelectric photocatalyst particles with WC to enhance the photocatalytic activity. An intimate interfacial contact between WC and ferroelectric particles maximizes the reaction active sites and facilitates the charge transfer between the different phases. Different processing routes have been employed to produce WC particles,^46,47 such as direct carburization of tungsten powder, solid-state metathesis, reduction carburization,⁴⁸ mechanical grinding,⁴⁹ thermal pyrolysis of tungsten-containing organic acid,⁴⁷ polymeric precursor routes using metal alkoxides, hydrothermal methods,⁵⁰etc. However, these processing routes are limited due to complicated apparatus and procedures, long processing times, high temperatures, and high-energy consumption.⁵¹ Depending on the processing conditions, the obtained nanocomposites can have an inhomogeneous distribution of constituent phases, uncontrollable size, and weak interactions between the semiconductor and WC phases.⁵² Thus, the efficient production of WC containing nanocomposites using low cost approaches remains a scientific and technological challenge.

Traditionally, the ball-milling method is used to prepare sub-micron sized particles, and high energy ball milling can be used to prepare nano-sized particles. Using the high energy ball milling approach, the ball milled material, for instance, the photocatalyst, could be coated with a secondary or foreign material which can be introduced from both the milling balls and milling jar. In this study, two Rb- and Bi-containing niobates, ferroelectric RbBi₂Ti₂NbO₁₀ (ref. 53) and non-ferroelectric RbBi₂Nb₅O₁₆ (ref. 54) materials, were prepared to investigate the impact of ferroelectric polarization on photocatalytic properties. To enhance the photocatalytic performance of ferroelectric RbBi₂Ti₂NbO₁₀, a WC co-catalyst was loaded onto the RbBi₂Ti₂NbO₁₀ nanopowder by a facile one-step high-energy ball milling processing technique.

The ferroelectric RbBi₂Ti₂NbO₁₀ has a larger bandgap (3.25 eV) with a lower specific surface area (7.72 m² g⁻¹) compared to the values (3.02 eV and 13.85 m² g⁻¹) of non-ferroelectric RbBi₂Nb₅O₁₆. However, the decolorization rate for RbBi₂Ti₂NbO₁₀ was 5 times greater than for RbBi₂Nb₅O₁₆. The prepared WC/RbBi₂Ti₂NbO₁₀ nanocomposite, produced using a facile route in only 40 min, showed over 30 times higher photocatalytic activity than the non-ferroelectric RbBi₂Nb₅O₁₆. Overall, this work demonstrates a novel approach to produce noble-metal-free co-catalyst loaded nanocomposites in an efficient and ultra-fast way for photocatalytic applications.

2. Results and discussion

Fig. 1a and b show the fitted room temperature X-ray diffraction (XRD) patterns of the calcined RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders. These two materials appear to be single phases with no detectable impurities. The atomic coordinates for RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ as reported by Kim et al.⁵³ and Ehlert et al.⁵⁴ were selected as the initial models for refinement. RbBi₂Ti₂NbO₁₀ is a 3-layer Dion–Jacobson phase, with orthorhombic symmetry and a polar space group of Ima2.⁵³ The peak splitting of (002) and (020) planes is related to the orthorhombic ferroelectric lattice distortion (Fig. 1a inset). RbBi₂Nb₅O₁₆ has a cubic defect pyrochlore structure with a non-polar space group of Fd3̄m. Fig. 1c and d show the schematic crystal structures of the studied compounds. RbBi₂Ti₂NbO₁₀ consists of 3 layers of corner sharing Ti/NbO₆ octahedra with Bi³⁺ cations in the A-sites. These perovskite blocks are separated by a layer of Rb⁺ cations. On the other hand, RbBi₂Nb₅O₁₆ consists of a 3-dimensional network of corner sharing NbO₆ octahedra. While Bi³⁺ cations sit at the normal 8-coordinate pyrochlore sites (the actual coordination is lowered due to the partial occupancy of one of the oxygen sites), the Rb⁺ cations are located in oxygen vacancies allowing these cations to adopt an octahedral geometry with oxygen. The fitting parameters and unit cell parameters for the samples are summarized in Table 1.

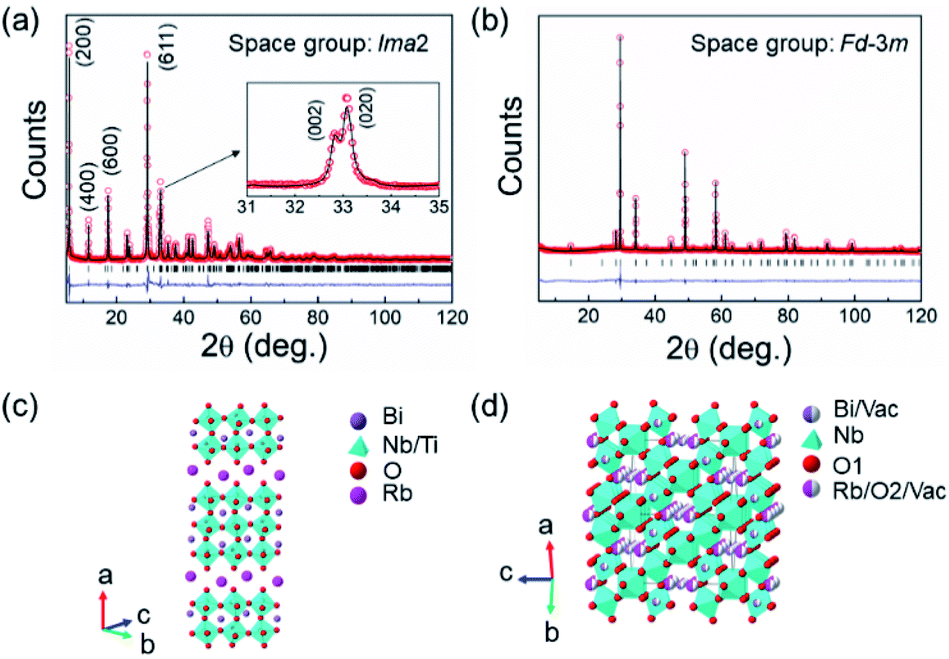

Fig. 1 Fitted X-ray diffraction patterns for (a) RbBi₂Ti₂NbO₁₀ and (b) RbBi₂Nb₅O₁₆. The observed and calculated profiles are represented by red open circles and a black solid line, respectively. The difference profile (blue line) and reflection positions (black markers) are also shown. Crystal structures of (c) RbBi₂Ti₂NbO₁₀ and (d) RbBi₂Nb₅O₁₆.

Table 1 Crystal and refinement parameters for RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆

Composition	Crystal parameters	Refinement parameters
RbBi2Ti2NbO10	Orthorhombic (Ima2)	χ ^2 = 3.92
	a = 30.5499 (1) Å	R wp = 0.0987
	b = 5.4255 (3) Å	R p = 0.072
	c = 5.4656 (3) Å	R ex = 0.0502
	V = 905.9 (1) Å^3	R F2 = 0.1292
RbBi2Nb5O16	Cubic (Fd3̄m)	χ ^2 = 4.286
	a = 10.5268 (1) Å	R wp = 0.1032
	V = 1166.52 (1) Å^3	R p = 0.08
		R ex = 0.0500
		R F2 = 0.1003

---

The relative densities of the sintered RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ ceramics were 92% and 95%. The morphological characterization of RbBi₂Ti₂NbO₁₀ ceramic shows plate-like grains (Fig. S1a†), whereas RbBi₂Nb₅O₁₆ ceramic was observed to have densely arranged grains in a polygonal pattern (Fig. S1b†). The temperature dependence of the dielectric permittivity and loss of RbBi₂Ti₂NbO₁₀ ceramic is presented for the first time (Fig. 2a). A frequency independent peak is observed at around 506 °C in the dielectric permittivity plots, implying that RbBi₂Ti₂NbO₁₀ is ferroelectric with a Curie point (T_c) at this temperature. The loss peak appears a few degrees below T_c, which has been attributed to ferroelectric domain wall movement.⁵⁵ Although ferroelectric polarization–electric field loops have been reported,⁵³ there was no evidence to show domain switching in the loops. The published loops show a dominant contribution from conductivity and the highest polarization was less than 0.3 μC cm⁻¹. It is considered a requirement of ferroelectricity to have a measured switchable polarization loop. As such our measured loops are the first definitive evidence of ferroelectricity in the system.

Fig. 2 (a) Temperature dependencies of dielectric permittivity (ε_r) and loss (tan δ) for RbBi₂Ti₂NbO₁₀; I–E and D–E loops of (b) RbBi₂Ti₂NbO₁₀ ceramic at 100 °C and (c) RbBi₂Nb₅O₁₆ ceramic at room temperature.

The current–electric field (I–E) and displacement–electric field (D–E) loops of RbBi₂Ti₂NbO₁₀ were first measured at room temperature at a frequency of 20 Hz. At this temperature, ferroelectric domain switching was not observed due to a large coercive field. The measurement was then carried out at 100 °C at the same frequency to facilitate domain switching at a reduced coercive field, as shown in Fig. 2b. The current peaks associated with ferroelectric domain switching are clearly observed in the I–E loop.^56,57 Moreover, when the RbBi₂Ti₂NbO₁₀ ceramics were poled at 100 °C, a piezoelectric constant (d₃₃) value of 14.7 ± 0.2 pC N⁻¹ was detected. All these dielectric, ferroelectric, and piezoelectric property results provide powerful evidence for the existence of ferroelectricity in RbBi₂Ti₂NbO₁₀. Similarly, I–E and D–E loops were tested for RbBi₂Nb₅O₁₆ at room temperature and 20 Hz (Fig. 2c). In contrast to RbBi₂Ti₂NbO₁₀, no current peaks were observed in the I–E loop of RbBi₂Nb₅O₁₆ ceramic, suggesting that this material has linear dielectric behaviour.^56,57 This is consistent with its non-polar structure.

The as-calcined RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders were first milled in nylon milling jars at 180 rpm for 24 h to obtain sub-micron sized powders (Fig. S2†). The sub-micron sized RbBi₂Ti₂NbO₁₀ powder is ferroelectric in nature, as confirmed by the PFM images shown in Fig. S3.† The specific surface areas of the sub-micron sized RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders were 7.72 and 13.85 m² g⁻¹ (Table 2). The light absorption properties of both powders were characterized by UV-Vis spectroscopy (Fig. 3a). It is assumed that RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ are direct band gap materials, based on an analogy with the 2-layer Dion–Jacobson phase CsBi_1−xEu_xNb₂O₇.⁵⁸ The band gaps (E_g) of RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆, which were calculated by using the Tauc equation,⁵⁹ are 3.25 eV and 3.02 eV (Fig. 3b).

Table 2 Properties of sub-micron sized RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders

Catalyst	RbBi2Ti2NbO10	RbBi2Nb5O16
Band gap (eV)	3.25	3.02
Specific surface area (m^2 g^−1)	7.72	13.85
Decolorization rate (min^−1)	3.8 × 10^−3	7.4 × 10^−4

---

Fig. 3 Light absorption and photocatalytic property characterisation of sub-micron sized RbBi₂Ti₂NbO₁₀ (red curves) and RbBi₂Nb₅O₁₆ powders (blue curves): (a) UV-Vis absorption spectra; (b) illustration of (αhγ)²versus photon energy (the optical bandgaps can be determined by the extrapolation of the linear portion); (c) photodegradation efficiencies of RhB as a function of irradiation time under simulated sunlight, where the lines serve as a guide to the eye.

The photocatalytic activity of the RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders was tested through the photodecomposition of RhB and the degradation profiles are shown in Fig. 3c. It can be seen that the ferroelectric RbBi₂Ti₂NbO₁₀ degrades about 60% of the dye within 4 h, whereas the non-ferroelectric RbBi₂Nb₅O₁₆ degrades about 12% over the same time period. The decolorization rate was calculated according to the following equation:

where C₀ and C_t are the concentration of RhB at times 0 and t, respectively, and k_obs is the observed pseudo-first-order reaction rate constant.⁶⁰ The ratio C₀/C_t = A₀/A_t corresponds to the measured absorbances. As shown in Table 2, the decolorization rate constants of sub-micron sized RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders are 3.8 × 10⁻³ and 7.4 × 10⁻⁴ min⁻¹, respectively. Although the RbBi₂Ti₂NbO₁₀ powder has a slightly larger bandgap and a smaller specific surface area, it shows a 5 times higher decolorization rate compared to RbBi₂Nb₅O₁₆. The higher photocatalytic activity shown by RbBi₂Ti₂NbO₁₀ can be attributed to its ferroelectric nature^60,61 and the internal field generated by spontaneous polarization which promotes the separation of charge carriers and reduces their recombination. It should be noted that the orthorhombic phase of RbBi₂Ti₂NbO₁₀ provides an additional opportunity to support charge separation by anisotropic surface potentials in the layered structure.⁶²

It was reported by Levy and Boudart⁴³ that WC has platinum-like behaviour and facilitates redox reactions. In order to study the effect of WC on the photocatalytic activity of the RbBi₂Ti₂NbO₁₀ material, the calcined RbBi₂Ti₂NbO₁₀ powder was ball milled at a higher rotation speed of 600 rpm for 40 min using the same ZrO₂ milling balls. For this control experiment, two different types of milling jars, made of ZrO₂ and WC, were used in an attempt to introduce WC into the surface of RbBi₂Ti₂NbO₁₀ powder. The ZrO₂ jar was used for comparison. The XRD patterns of the ball milled powders are shown in Fig. S4.† Diffraction peaks for both RbBi₂Ti₂NbO₁₀ and ZrO₂ are present, which indicates the introduction of ZrO₂ from the milling balls into the RbBi₂Ti₂NbO₁₀ powder due to intense collision between the milling balls/jar and the ceramic powder. The photocatalytic degradation of RhB under simulated solar light irradiation using these two composite powders was studied and the results are shown in Fig. S5† and Table 3. Although the composite powder ball milled in the ZrO₂ jar has a larger specific surface area (Table 3), a lower photodegradation rate was observed. The composite prepared in the WC jar shows almost 100% dye degradation within 3 h, whereas the composite prepared in the ZrO₂ jar shows about 90% dye degradation in 4 h. Considering that the composite powders prepared in the WC jar and ZrO₂ jar have similar specific surface areas, the enhanced photocatalytic activity of the composite powder made in the WC jar is attributed to the contribution from WC. The control experimental results indicated a route to optimize the preparation conditions for further enhancing the photocatalytic activity of RbBi₂Ti₂NbO₁₀. As such, the calcined RbBi₂Ti₂NbO₁₀ powder was ball milled in a WC jar under different rotation speeds and durations, details of which are listed in Table S1.† The XRD patterns of the powder are shown in Fig. S6.† With increasing rotation speed and ball milling time, the diffraction peaks of the powders became broader, indicative of the decreasing particle size of the powder. The photodegradation of RhB was carried out to characterize the photocatalytic behaviour of the obtained powders (Fig. S7†). The ball milling parameters, specific surface areas, and photodegradation rate of RhB of the obtained nanocomposites are shown in Table S1.† For an easier comparison, the powder ball milled in a WC jar at 600 rpm for 40 min (Table 3) is also shown in Table S1.† It is clear that at 600 rpm, the degradation rate of RhB firstly increases and then decreases with increasing ball-milling time. The initial increase in the photodegradation rate is attributed to the increased specific surface area; however, further reduction in the particle size reduced the photocatalytic activity. This may be due to a blocking effect associated with the ZrO₂ from the milling balls and/or decreased polarization in powders with a smaller particle size, which is discussed below. The best photocatalytic activity was observed with a ball milling speed of 800 rpm and a 40 min milling time.

Table 3 Photocatalytic properties of RbBi₂Ti₂NbO₁₀ nanopowders prepared using different milling jars at 600 rpm for 40 min

Jar type	Specific surface area (m^2 g^−1)	Degradation rate (min^−1)
WC	19.47	0.016
ZrO2	21.99	0.009

---

The role of WC in the nanocomposite prepared under these conditions was studied in detail. The obtained nanocomposite consisted of three nanocrystalline phases (RbBi₂Ti₂NbO₁₀, ZrO₂, and WC), but as discussed below, ZrO₂ gives no contribution to the photocatalytic response under the irradiation conditions used here. Hence, we use the term “WC/RbBi₂Ti₂NbO₁₀ nanocomposite” for simplicity. Compared with the sub-micron sized powder, the width of the RbBi₂Ti₂NbO₁₀ diffraction peaks in the nanocomposite is broader, indicating that the average crystallite size is smaller. The introduction of WC from the WC milling jar into RbBi₂Ti₂NbO₁₀ could not be confirmed by XRD due to the lack of detectable diffraction peaks (Fig. S6†). Fig. 4a shows detail of the (002) and (020) peaks in the XRD patterns of sub-micron sized RbBi₂Ti₂NbO₁₀ and WC/RbBi₂Ti₂NbO₁₀ nanocomposites. These peaks were modelled using a simple pseudo-Voigt peak shape. The peak splitting is clearly discernible in the sub-micron sized sample and less clear in the nanocomposite due to the peak broadening. Nevertheless, asymmetry in the distribution is obvious and the two peaks were successfully fitted indicating that the ferroelectric distortion is maintained, albeit slightly reduced in magnitude in the nanocomposite. The spontaneous polarization P_s in RbBi₂Ti₂NbO₁₀ depends on the extent of orthorhombic distortion, which can be quantified from the orthorhombicity, (c − b)/b, where b and c are lattice parameters.

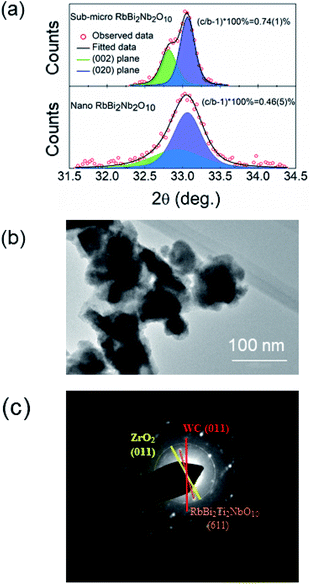

Fig. 4 (a) Details of the X-ray diffraction patterns for sub-micron RbBi₂Ti₂NbO₁₀ and WC/RbBi₂Ti₂NbO₁₀ nanocomposites showing pseudo-Voigt fit to (020) and (002) diffraction peaks; (b) TEM image of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite and (c) corresponding SAED pattern.

According to the fitting results, the orthorhombicity values for sub-micron sized RbBi₂Ti₂NbO₁₀ and WC/RbBi₂Ti₂NbO₁₀ nanocomposites are 0.74% and 0.46%, respectively. The smaller orthorhombicity value in the WC/RbBi₂Ti₂NbO₁₀ nanocomposite suggests that the P_s is reduced compared to that in the sub-micron sized powder.^24,63 This can be attributed to the size effect on the ferroelectric domain structure.^64,65 When the sizes of ferroelectric particles/grains are in the micrometre range, domain walls are generated to minimize the internal stresses induced by phase transition from the paraelectric to the ferroelectric phase at the Curie point. In this case, P_s and orthorhombicity are insensitive to changes in the particle/grain size. When the particle/grain size of ferroelectric powders is reduced to the nanometre range, the orthorhombic distortion reduces. Therefore, there is no necessity for domain wall formation to minimize the internal stresses, which are already reduced as the P_s is decreased.^66,67

Fig. 4b shows a TEM image of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite. Granular powders with an average particle size of ca. 80 nm can be observed. The specific surface area determined by the BET method was 19.77 m² g⁻¹ (Table S1†). The selected area electron diffraction (SAED) image (Fig. 4c) shows the diffraction spots from the (611) plane of RbBi₂Ti₂NbO₁₀. Although ZrO₂ and WC particles were not noticeable from the TEM images, the diffraction spots from the (011) plane of WC⁶⁸ and the (011) plane of ZrO₂ (ref. 69) are visible. This confirms the existence of WC and ZrO₂ nanoparticles within the nanocomposite.

UV absorption (Fig. 5a) and valence band X-ray photoelectron spectroscopy (XPS) (Fig. S9†) were used to determine the band structure of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite. ZrO₂ was expected to have no contribution to the photocatalytic response under simulated solar irradiation with a wavelength longer than 280 nm due to its large band gap (∼5.7 eV)⁷⁰ and therefore the discussion below is focused on the photocatalytically active components. The WC/RbBi₂Ti₂NbO₁₀ nanocomposite not only showed strong absorption at wavelengths shorter than 400 nm, but also showed weak but broad absorption in the longer wavelength range (Fig. 5a), which indicates the absorption of visible light. The band gap for the WC/RbBi₂Ti₂NbO₁₀ nanocomposite was calculated to be 3.25 eV (Fig. S8†), confirming that the powder particle size reduction in RbBi₂Ti₂NbO₁₀ does not alter the band gap value. The valence band XPS spectrum in Fig. S9a† confirms the metal like behaviour of WC.⁷¹ By comparing Fig. S9a and b,† it is concluded that the Fermi level of WC is lower than the conduction band level of RbBi₂Ti₂NbO₁₀ (Fig. S9c†). Morphological characterization via TEM reveals that the WC nanoparticles were homogeneously distributed within the WC/RbBi₂Ti₂NbO₁₀ nanocomposite (Fig. S10†).

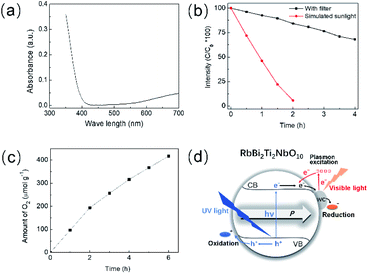

Fig. 5 (a) Light absorption and photocatalytic property characterisation of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite; (b) degradation of RhB with the WC/RbBi₂Ti₂NbO₁₀ nanocomposite under simulated sunlight (red) and visible light (black) (lines serve as a guide to the eye); (c) O₂ evolution from water (pH 7.0) using 30 mg of RbBi₂Ti₂NbO₁₀ containing 10 mM AgNO₃, as an electron scavenger under full arc conditions for 6 h; (d) schematic of the redox reaction on the surface of a WC/RbBi₂Ti₂NbO₁₀ nanocomposite particle.

The photodegradation of RhB using the WC/RbBi₂Ti₂NbO₁₀ nanocomposite under simulated sun light and visible light irradiations was investigated, and the results are shown in Fig. 5b. Almost 100% of the RhB dye was degraded at a rate of 2.3 × 10⁻² min⁻¹ (Table 4) within 2 hours while irradiated using simulated sunlight, which is 6 times higher than that with sub-micron sized RbBi₂Ti₂NbO₁₀ and over 30 times higher than that with non-ferroelectric RbBi₂Nb₅O₁₆. As discussed above, the driving force for charge carrier separation in RbBi₂Ti₂NbO₁₀ powders would reduce with decreasing particle size down to the nanoscale owing to the reduced orthorhombicity and P_s. The size reduction of RbBi₂Ti₂NbO₁₀ is expected to compromise the photocatalytic activity to some extent. However, the positive contribution from the greater specific surface area of the ferroelectric nanoparticles, the efficient charge separation and transport by the WC incorporation and possibly severe plastic deformation caused by high-speed ball milling⁷² overwhelm the decreased ferroelectric contribution in the WC/RbBi₂Ti₂NbO₁₀ nanocomposite and contribute to its enhanced photocatalytic activity.

Table 4 Comparison of the photocatalytic performance of ferroelectric photocatalysts

Photocatalyst	Band gap/eV	Catalytic conditions	Catalytic application	Catalytic activity	Ref.
KNbO3 nanowire	3.25	UV light	RhB degradation	K obs = 4.2 × 10^−3 min^−1	77
Au/KNbO3 nanowire	3.81	UV light	RhB degradation	K obs = 1.6 × 10^−2 min^−1	78
Bi2WO6 nanoparticle	2.9	Visible light	RhB degradation	K obs = 1.2 × 10^−2 min^−1	79
Ag/Bi2WO6 nanoparticle	2.9	Visible light	RhB degradation	K obs = 3.3 × 10^−2 min^−1	79
Ag/Bi4Ti3O12	2.9	UV light	RhB degradation	K obs = 1.3 × 10^−2 min^−1	80
Pt/Bi4Ti3O12	2.9	UV light	RhB degradation	K obs = 1.5 × 10^−2 min^−1	80
Ag/BaBi4Ti4O15	3.2	Simulated solar light	RhB degradation	Complete within 3.5 h	81
Ag/BaBi2Nb2O9	3.2	Simulated solar light	RhB degradation	Complete within 3 h	82
Ag/Ca2Bi4Ti5O18	3.2	Simulated solar light	RhB degradation	50% degradation within 4 h	83
Ag/RbBiNb2O7 nanosheet	3.45	UV-light	RhB degradation	K obs = 8.7 × 10^−3 min^−1	84
Ag/Ba0.8Sr0.2TiO3	3.24	Simulated solar light	RhB degradation	K obs = 0.18 min^−1	67
WC/RbBi2Ti2NbO10	3.25	Simulated solar light	RhB degradation	K obs = 2.3 × 10^−2 min^−1	This work
Pt/LiNbO3 nanowire	—	UV-light	O2 evolution	19 μmol g^−1 h^−1	85
WC/RbBi2Ti2NbO10	3.25	Simulated solar light	O2 evolution	68.5 μmol g^−1 h^−1	This work

---

To prove the above claim and determine the role of WC, we further characterized the nanocomposite of WC/RbBi₂Ti₂NbO₁₀. Under visible light irradiation, the WC/RbBi₂Ti₂NbO₁₀ nanocomposite photo-catalytically degrades 32% of RhB within 4 h (Fig. 5b), whereas sub-micron sized RbBi₂Ti₂NbO₁₀ shows no photocatalytic activity. These results suggest that the observed photocatalytic activity under visible light is originated from the WC. It is worth noting that the nanoparticles of WC show surface plasmon properties.⁷³ Various plasmonic properties such as plasmonic scattering, near-field coupling, and hot electrons have been reported for photocatalysis.^74,75 However, in the present case, we expect that the plasmonic hot electrons generated from the WC nanoparticles may transfer to the RhB molecule directly to degrade or enter into the conduction band (CB) of RbBi₂Ti₂NbO₁₀, which later reduces the RhB molecule. The broad visible absorption peak observed for WC/RbBi₂Ti₂NbO₁₀ (Fig. 5a), in the range of 500 nm to 700 nm, is attributed to the plasmonic WC particles with various sizes.^73,76

To verify the stability of the material, 3 cycles of RhB degradation were performed under simulated sunlight (Fig. S11†) and no significant changes were observed, suggesting that the WC/RbBi₂Ti₂NbO₁₀ nanocomposite is stable enough under the present experimental conditions.

The photocatalytic water oxidation activity of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite was studied in the presence of Ag as an electron scavenger under full arc (similar to solar light) conditions. A significant O₂ evolution was observed at pH 7.0 with an average gas evolution rate of 68.5 μmol h⁻¹ g⁻¹ (Fig. 5c). In the absence of a photocatalyst as well as in the absence of an electron scavenger, no O₂ evolution was observed, in addition to no activity under dark conditions. It can be seen from Fig. 5c that the rate of O₂ evolution was higher during the early hours of the reaction, which may be due to the prearrangements of the photocatalytic system to produce O₂ with a steady rate after 3 h of irradiation. It exhibits an apparent quantum yield (AQY) of 3% at 420 nm. This value is significant because the photocatalytic water oxidation using the present ferroelectric material is relatively new and competitive to conventional water oxidation photocatalysis. These results are encouraging for the use of such ferroelectric materials in solar-driven photocatalysis.

Fig. 5d schematically describes the redox reaction on the surface of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite. Under UV light, electrons produced from RbBi₂Ti₂NbO₁₀ participate in the degradation reactions with WC acting as a cocatalyst to enhance charge carrier separation and transfer. In addition, it is expected that the Fermi energy of WC with Pt-like electronic features would be lower than the conduction band of RbBi₂Ti₂NbO₁₀.⁷⁶ The plasmonic hot electrons generated in the WC nanoparticles contribute to photodegradation in the visible light range. The approach used here for enhanced semiconductor visible light photocatalysis using nano-sized WC could be applied to a broad range of semiconductor/co-catalyst materials for high performance photocatalysis.

Although the ferroelectric RbBi₂Ti₂NbO₁₀ material has a larger band gap, it can be used for photocatalytic applications using the present facile one step high speed ball milling method. Table 4 lists the photocatalytic properties of ferroelectric photocatalysts. The photodegradation rate of RhB and the O₂ production rate are much higher than those of reported ferroelectric photocatalysts.

3. Experimental

RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders were synthesized by a conventional solid-state reaction. Rb₂CO₃ (99.8%), Bi₂O₃ (99.9%), Nb₂O₅ (99.5%), and TiO₂ (99%) powders were mixed in a stoichiometric ratio (with 4 wt% excess of Rb₂CO₃) by planetary ball milling (Fritsch Pulverisette 6) in ethanol using nylon milling jars and ZrO₂ balls with a diameter of 10 mm for 4 h at a speed of 180 rpm. The resulting slurry was dried overnight at 80 °C. The dried powders were calcined at 920 °C for 4 h for RbBi₂Ti₂NbO₁₀ and 980 °C for 4 h for RbBi₂Nb₅O₁₆ followed by dry grinding using an agate mortar and pestle.

The calcination and grinding processes were carried out three times. Calcination at high temperature resulted in an agglomeration of powders. In order to reduce the agglomerate size and to facilitate subsequent sintering, the calcined powders were re-milled by planetary ball milling in ethanol for 4 h. The resulting powders were pressed into cylindrical discs of 10 mm diameter and ca. 2 mm thickness, with poly (ethylene glycol) (PEG) as a binder, at 200 MPa. The pressed pellets were sintered at 950 °C for RbBi₂Ti₂NbO₁₀ and 1050 °C for RbBi₂Nb₅O₁₆ for 2 h in air. The surfaces of the sintered ceramics were polished and coated with Pt paste for dielectric measurements and Ag paste for ferroelectric and piezoelectric measurements.

For photocatalytic studies, the calcined RbBi₂Ti₂NbO₁₀ and RbBi₂Nb₅O₁₆ powders were milled in ethanol using ZrO₂ milling balls with a diameter of 10 mm in nylon milling jars at a rotation speed of 180 rpm for 24 h, producing sub-micron sized powders. In order to investigate the effect of WC on the photocatalytic performance of RbBi₂Ti₂NbO₁₀, control experiments, which were designed to load the RbBi₂Ti₂NbO₁₀ powder with WC using high energy ball milling, were carried out. The high energy ball milling machine used is a Fritsch Premium line P7 planetary ball milling machine. The difference in the two parallel control experiments is the milling jars, with one experiment using a WC jar and the other using a ZrO₂ jar for comparison. The same amount of calcined RbBi₂Ti₂NbO₁₀ powder was loaded into the milling jar and ball milled at a speed of 600 rpm for 40 min. The milling medium is DI water and the milling balls were 1 mm ZrO₂ balls. Although attempts were made to use WC milling balls in the WC jar to get a better composition, they were not successful due to the limited commercial availability of small diameter WC milling balls (high rotation speed and hard milling balls with a small diameter are required for the production of nanopowders via planetary ball milling⁸⁶). Moreover, to optimize the properties of WC/RbBi₂Ti₂NbO₁₀ composite powder, the RbBi₂Ti₂NbO₁₀ powder was high energy ball milled in a WC jar for different durations (20 min and 120 min) and different rotation speeds (800 rpm).

Room temperature X-ray powder diffraction measurements were performed on a PANalytical X'Pert Pro diffractometer using Ni filtered Cu-Kα radiation (λ = 1.5418 Å). Data were collected in flat plate Bragg–Brentano geometry over the 2θ range of 5 to 120° in steps of 0.033°, with a count time of 200 s per step. Structure refinement was carried out by Rietveld analysis using the GSAS suite of programs.⁸⁷ The morphologies and microstructures of the samples were observed using scanning electron microscopy (FEI Inspect-F) and transmission electron microscopy [TEM, FEI Titan Themis (200 kV)], coupled with energy dispersive X-ray spectroscopy (EDX). Piezoresponse Force Microscopy (PFM) (NT-MDT, Ntegra systems, Russia) was used to characterize the domain structure. The specific surface area of the powders was determined using the Brunauer–Emmett–Teller (BET) (Gemini VII) method. The temperature dependencies of dielectric permittivity and loss were measured using an LCR meter (Agilent Technologies Ltd, 4284A, Kobe, Hyogo, Japan) connected to a furnace. The current–electric field (I–E) and displacement–electric field (D–E) loops were measured at selected temperatures using a ferroelectric hysteresis measurement tester (NPL, UK) at 20 Hz. A triangular voltage waveform was used. For piezoelectric measurements, ceramic samples were immersed in a silicone oil bath and poled under a DC field of 130 kV cm⁻¹ at 100 °C. The piezoelectric coefficient, d₃₃, was measured on a quasi-static d₃₃ meter (CAS, ZJ-3B) at room temperature.

The band structures of WC and RbBi₂Ti₂NbO₁₀ were measured using valence band X-ray photoelectron spectroscopy (Nexsa, XPS system). The photocatalytic activity of the samples was evaluated by photodegradation of Rhodamine B (RhB) under simulated sunlight with wavelengths longer than 280 nm and visible light using an AM 1.5 filter. 150 mg of catalyst was added to 50 ml of aqueous RhB solution (10 ppm). The suspension was stirred continuously in the dark for 0.5 h before it was exposed to a solar simulator (Newport, class ABB). Under irradiation, 2 ml of solution was collected at intervals of 30 min. The ceramic particles were removed from the solution using a centrifuge before testing the change in the concentration of RhB by recording the absorbance at 554 nm using a UV-vis spectrophotometer. Recyclability experiments were carried out to test the stability of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite. The quantity of the photocatalyst and RhB solution used was the same as that in previous photodegradation experiments. After 1.5 hours of the first photocatalytic test, the WC/RbBi₂Ti₂NbO₁₀ nanocomposite was washed and centrifuged three times for a second 1.5 hour cycle. This procedure was repeated a third time before being centrifuged and measuring the light absorbance.

Photocatalytic water splitting was carried out in a custom-made glass batch reactor with a quartz top window. 30 mg of the photocatalyst was dispersed in 70 ml of DI water containing 10 mM AgNO₃ using ultrasonication for 15 min. The reactor was sealed and purged with high purity argon gas for 1 h to remove the air/dissolved oxygen in the solution and headspace. The reactor was irradiated using a 300 W Xe lamp (Newport, USA). The reactor was placed in a water bath during irradiation to eliminate the influence of heat. The production of O₂ gas was quantified at regular intervals using a gas chromatograph (Varian 430-GC, TCD, and argon carrier gas) equipped with a molecular 5A column using Ar as the carrier gas. The apparent quantum yield (AQY) was determined by performing photocatalytic experiments using a 420 nm bandpass filter (λ ± 10 nm at 10% of peak height, Comar Optics). The AQY was calculated using the following equation:

where α = 4 for O₂ evolution.

4. Conclusions

In summary, we have successfully demonstrated a ferroelectric material, RbBi₂Ti₂NbO₁₀, for enhancing photocatalytic RhB degradation compared to non-ferroelectric RbBi₂Nb₅O₁₆. The observed higher activity is due to the effective charge carrier separation by the ferroelectric polarization induced internal field. Furthermore, the photocatalytic activity of RbBi₂Ti₂NbO₁₀ is increased significantly by incorporating WC, which also extended the activity to the visible range. The WC/RbBi₂Ti₂NbO₁₀ nanocomposite shows a 6 times higher RhB degradation rate under simulated solar light than the sub-micron sized RbBi₂Ti₂NbO₁₀. This is attributed to the greater specific surface area, and the better charge carrier separation by the WC co-catalyst. The visible light photocatalytic activity of the WC/RbBi₂Ti₂NbO₁₀ nanocomposite is due to plasmonic hot electron generation from WC. More importantly, the present nanocomposite shows water oxidation activity suggesting that it can be used for solar fuel synthesis applications. Our promising results indicate the feasibility to use the earth abundant WC as a competitive co-catalyst to replace expensive noble metals. The novel approach for the incorporation of WC into semiconductor materials is a facile and low-cost way of producing noble-metal-free photocatalyst composites, and the strategy could be readily adapted to other classes of materials for a variety of applications.

Author contributions

M. Zhang: conceptualization, data curation, formal Analysis, investigation, methodology, validation, visualization, and writing – original draft; Y. Wang: data curation, formal analysis, investigation, methodology, and writing – review & editing; J. Liu: data curation, formal analysis, and writing – review & editing; M. Thangamuthu: data curation, formal analysis, and writing – review & editing; Y. Yue: data curation, formal analysis, and writing – review & editing; Z. Yan: data curation, formal analysis, and writing – review & editing; J. Feng: data curation, formal analysis, and writing – review & editing; D. Zhang: supervision, funding acquisition, and writing – review & editing; H. Zhang: data curation, formal analysis, supervision, and writing – review & editing; S. Guan: data curation, formal analysis, and writing – review & editing; M. Titirici: data curation, formal analysis, and writing – review & editing; I. Abrahams: formal analysis, supervision, and writing – review & editing; J. Tang: data curation, formal analysis, and writing – review & editing; Z. Zhang: data curation, formal analysis, and writing – review & editing; S. Dunn: conceptualization, formal analysis, investigation, methodology, supervision, and writing – review & editing; H. Yan: conceptualization, formal analysis, investigation, methodology, funding acquisition, supervision, and writing – review & editing.

Conflicts of interest

The authors declare no competing interests.

Acknowledgements

The authors are grateful for financial support from the China Scholarship Council (CSC, 201706370172, and 201608060162) and Guangzhou Guangding Technology Group Co. Ltd. Dr Yaqiong Wang was partly funded by London South Bank University. The X-ray photoelectron (XPS) data collection was performed at the EPSRC National Facility for XPS (“HarwellXPS”), operated by Cardiff University and UCL, under Contract No. PR16195.
