Active binary switching of soft colloids: stability and structural properties

Abstract

We employ reactive dynamical density functional theory (R-DDFT) and reactive Brownian dynamics (R-BD) simulations to study the non-equilibrium structure and phase behavior of an active dispersion of soft Gaussian colloids with binary interaction switching, i.e., we consider a one-component colloidal system in which every particle can individually switch stochastically between two interaction states (here, sizes ‘big’ and ‘small’) at predefined rates. We consider the influence of switching activity on the inhomogeneous density profiles of the colloids confined by various external potentials, as well as on their pair structure and phase behavior in bulk solutions. For the latter, we extend the R-DDFT method to incorporate the Percus test-particle route. Our results demonstrate that switching activity strongly modifies the steady-state density profiles and structural (pair) correlations. In particular, the switching rate interpolates from a near-equilibrium binary colloidal mixture of two states at very low rates to a non-equilibrium, ‘one-state liquid’ at very high rates characterized by one, average interaction size. The latter limit can be described by an equivalent effective one-component (EOC) equilibrium system, for which the exact analytical expression for the effective pair potential is a diffusion-weighted superposition of the active systems' pair potentials. This leads to the interesting fact that under certain conditions an interacting switching system can behave like a non-interacting (ideal) gas in the limit of high switching rates. Moreover, for colloids that are unstable (i.e., demix) near equilibrium, we demonstrate that phase separation and micro-clustering in both confinement and bulk can be dynamically controlled by the switching rate, and vanish for high rates. All R-DDFT results are in excellent agreement with our R-BD simulations.

---

1 Introduction

Active matter systems are usually defined as collections of particles containing internal degrees of freedom with the ability to take in and dissipate energy and, in the process, execute systematic movement. Examples of active soft matter systems are self-propelled nanoparticles,^1,2 active Brownian particles,^3–6 active contractile biopolymers such as myosin II motors acting on actin filaments inside the cytoskeleton of living cells,^7,8 or biological systems such as bacteria.⁹ These non-equilibrium systems have drawn the attention of the soft matter scientific community in the recent years due to the very rich dynamic and phase behavior.¹⁰ By continually consuming energy, they circumvent the laws of equilibrium thermodynamics, leading to steady states that depend on kinetic parameters.¹¹

Biological activity, in particular mediated through fuel-driven changes of molecular properties and conformations, has been made responsible for liquid–liquid phase separation and condensation in cells, with large implications for physiology and disease.^12,13 Living cells contain distinct sub-compartments to facilitate spatiotemporal regulation of biochemical reactions where transient microstructuring is key for function. Recently, novel systems have been designed to achieve programmable transient conformational states fueled by chemical signals with a controlled lifetime.^14–16 All these applications can be included in a more ambitious project of discovering supramolecular systems with non-equilibrium transient morphologies for designing future active, adaptive and autonomous materials.¹⁷ The microscopic origins and features of non-equilibrium structuring, however, are not well understood. Theoretical frameworks for interacting reaction-diffusion systems have been linked so far only to microstructuring dynamics of non-active systems driven by chemical reactions^18–21 or virus infections.^22,23

In this work, in contrast to the well-studied motile activity,^11,24 we focus on a different kind of active system formed by colloids in which each individual particle can actively switch between two different states at some specific kinetic rate. These states, for example, can differ in the particle conformations and thus have a different interaction size. Such a system may represent a good model for mimicking the behavior of soft active hydrogels or vesicles switching (or ‘breathing’) between two states^14,25–27 or responsive, conformationally switching biopolymers.^12,28,29 Recent developments have provided also the opportunity to create soft micromachines with programmable morphology.³⁰

We note that such a system could also be viewed as a binary mixture of two different colloidal types, where each species switches into the other at some specific kinetic rate. Regarding the experimental realization, however, this would involve mass transfer and reversible chemical reactions between the colloidal particles or from some reservoir. Here, we have in mind autonomous soft particles, like hydrogels, vesicles, or artificial cells, etc., which are internally fueled and thus can actively change size or shape individually. For vanishing switching rates, such a system is in equilibrium, and a two-component colloidal mixture of two different species A and B represents the same system. These binary systems can also be unstable, i.e., demix in equilibrium, if particle types or states, A and B, are incompatible, as well known for colloidal mixtures.³¹ For infinite rates we will demonstrate that our actively switching system can be mapped to an effective one-component equilibrium system with equivalent structure.

In our paper we consider in particular soft colloids interacting through Gaussian pair potentials with binary switching between two sizes (referred as ‘big’ (b) and ‘small’ (s) from now on). These Gaussian pair potentials represent a generic model for polymers and soft colloidal hydrogels^32–34 and cells.³⁵ To investigate structural features of such an active colloidal dispersion, we make use of a reactive dynamical density functional theory (R-DDFT) previously used in similar problems^18–23,36 and solve it in the non-equilibrium steady-state. To check for the quality of the R-DDFT, which makes mean-field assumptions for spatiotemporal correlations, we complement our study with reactive Brownian dynamics (R-BD) computer simulations. These methods allows us to investigate the effects of active switching on the inhomogeneous density profiles of mixtures confined in various external potentials, such as slab geometry and inside an spherical cavity. To study the phase behavior and structure also of bulk systems, we generalize the R-DDFT to incorporate the Percus test-particle route.³¹ We also consider binary systems which are unstable and demix in equilibrium and investigate how they respond to switching interactions.

We demonstrate in our work that the switching rate has drastic effects on colloidal structure and phase behavior. In particular, we show that the rate interpolates between a system comparable to the corresponding equilibrium binary mixture at low rates and a non-equilibrium effective 'one-state' liquid for large rates, strongly affecting the structure and stability in bulk and confinement. Importantly, we show that sufficiently fast switching impedes the phase separation of an (in equilibrium) unstable fluid, allowing the control of the degree of demixing and local microstructuring by tuning the activity rate. The system also demonstrates a high degree of versatility, as the interaction parameters can be chosen to obtain, for instance, a purely ideal effective system in the limit of fast switching rates, even though particle interactions are non-negligible. The results are in excellent agreement with the reactive BD computer simulations, which further support all our data and the high quality of the R-DDFT approach. Hence, our work describes how active systems of switching particles modify the inhomogeneous properties in comparison to non-active systems, and how this may be exploited to control the structure and phase behavior.

2 Theory

We investigate an active system formed by colloids in binary states, i.e., a colloid has either a big (b) or a small (s) size. Particles of state b have the ability to spontaneously convert into state s at some fixed rate k_bs (units of time⁻¹), and similarly particles of state s switch into particles of state b at rate k_sb, . This kind of switching binary mixtures offers the possibility to study the role played by the switching activity on the non-equilibrium properties.

With the purpose of characterizing the effect of the activity on all these properties, we make use of a well-known model system formed by a binary mixture of soft Gaussian colloids, defined by the following pair interaction potentials³⁷

βu_ij = ε_ije^−r2/σ_ij2 with i,j = s,b, (1)

where r is the interparticle distance, β = 1/k_BT (k_B is the Boltzmann constant and T the absolute temperature), ε_ij > 0 denotes the strength of the i–j pair interactions, and σ_ij represents the range (we will denote σ_bb and σ_ss by σ_b and σ_s respectively, to simplify notation). These soft pair potentials remain finite for any interparticle distance, so particles can interpenetrate each other.

2.1 Stationary compositions of switching particles

Let first consider the time evolution of the particle concentrations for a homogeneous system (bulk) in which states b and s switch one into each other, b ⇌ s. We consider the binary system formed by N_b particles of state b and N_s particles of state s contained within a volume V, at fixed temperature T. The bulk number densities of species of each state are given by ρ_i = N_i/V (i = b,s). We denote the total number density by ρ_T = ρ_b + ρ_s, and the molar fractions by x_s = ρ_s/ρ_T and x_b = 1 − x_s. The first-order differential equations that rule the switching kinetics can be written as

In each case, the first term of the right hand represents the production, whereas the second one the disappearance of this component. These coupled differential equations are analytically solvable, starting from the initial conditions ρ_b(t = 0) = ρ_b0 and ρ_s(t = 0) = ρ_s0, leading to the following time dependent concentrations

where K ≡ k_bs + k_sb and ρ_T0 = ρ_b0 + ρ_s0. During the whole process, the total number of particles in the system is preserved, i.e. ρ_b(t) + ρ_s(t) = ρ_b0 + ρ_s0 = ρ_T. The composition x_i varies exponentially with time at the same rate to finally reach the stationary state, in which the concentrations become constant. The final steady-state compositions are given by x_b(t → ∞) = k_sb/(k_bs + k_sb) and x_s(t → ∞) = k_bs/(k_bs + k_sb). In particular, if the initial concentrations are adjusted to fulfill the condition k_bs/k_sb = ρ_s0/ρ_b0 = x_s/x_b, then the system is originally stationary at t = 0 and the integration of the kinetic equations (eqn (2)) leads to a time-independent solution, in which the compositions are constant: x_b(t) = x_b0 and x_s(t) = x_s0.

2.2 Reactive dynamical density functional theory (R-DDFT)

2.2.1 Basic formalism. We denote u^ext_i(r) (i = b,s) as the external potentials acting on the big and small colloids at position r. These potentials can be caused by applied external forces (such as electrostatic or gravitational fields) or simply represent the effect of confining walls. In the absence of switching activity, the time-dependent density profiles of the colloids affected by these external fields, {ρ_i(r,t)}, can be predicted by the dynamical density functional theory (DDFT), which represents an adaptation of the classical equilibrium density functional theory for fluids of Brownian particles to non-equilibrium conditions.^38,39 According to DDFT, the time evolution of the ensemble average density profiles obeys the following continuity equation^40,41where the net fluxes are given by

J_i = −D_i[∇ρ_i(r,t) + ρ_i(r,t)β∇(u^ext_i(r) + μ^ex_i(r,t))], (5)

with i = b,s. Here, D_i represents the diffusion constant of component i (which is assumed to be independent on the specific location of the particles), and . F^ex[{ρ_i(r,t)}] is the equilibrium excess free energy functional with the equilibrium density profiles replaced by the non-equilibrium ones ρ_i(r,t).

The equilibrium and non-equilibrium properties of soft Gaussian particles described by eqn (1) are well represented by a weakly correlated mean-field fluid over a surprisingly wide density and temperature range, being more accurate by increasing particle densities.³³ The mean-field free energy functional for colloidal mixtures of two states, i = b,s, reads as:

Using eqn (6) we find the mean-field non-equilibrium excess chemical potential

Starting from a non-equilibrium initial state, the time-dependent density profiles, {ρ_i(r,t)}, evolve towards the final equilibrium distribution, {ρ^eq_i(r)}, in which the diffusive fluxes of both species become zero at any point of the space, J_i = 0.

However, the DDFT method described before is restricted to the case of non-active systems. The question that naturally arises at this point is how the DDFT formulation can be generalized to active systems, in which each particle switches between two states b and s at some predefined rates. In this case, the time evolution of the particle concentrations is not only caused by the diffusive fluxes {J_i}, as they do not account for the production and disappearance of each component due to the switching activity, provided by eqn (2). This process occurs locally, so the conversion rate of big colloids into small ones and vice versa only depends on the local concentrations of both species. Therefore, the classical DDFT framework has to be extended to consider this new effect. This can be achieved by including into the continuity equation (eqn (4)) new terms to account for the production and disappearance of particles due to active switching, which follow the kinetic equations (eqn (2)). The resulting theoretical framework, called reactive dynamical density functional theory (R-DDFT), has been successfully applied to similar problems.^18–21,36 According to R-DDFT, the time evolution of the density profiles of big and small soft colloids is given by the following set of differential equations:

Eqn (8) together with eqn (5) and (7) represent a closed set of equations to predict the time evolution of the density profiles for a mixture of switching Gaussian particles.

If the external potentials u^ext_i(r) are time independent, then the system evolves in time until a steady state is eventually reached. However, this final (activity-present) state does not imply that the net fluxes are zero any more. Instead, the steady-state density profiles (∂ρ_i/∂t = 0) in the presence of switching activity are the solution to

so the net diffusive fluxes are balanced by the production and disappearance of particles due to the switching activity. Since J_i ≠ 0, this final steady regime reached at t → ∞ is not an equilibrium state. In particular, the density profiles or any other macroscopic properties as the pressure will be dependent on the dynamic properties, namely D_s, D_b, k_bs and k_sb.

2.2.2 Switching activity in stationary situations. In the following we will assume that the bulk concentrations (or the total number of particles of state b and s for confined systems) satisfy the stationarity condition

Therefore, the bulk properties (and so the composition of the mixture of states) will remain constant, even though the inhomogeneous properties induced by the presence of external potentials, confining walls or by phase separation will still be affected by the switching activity. As eqn (10) interconnects both kinetic rate constants, we can use only one of them, for instance k_bs, to characterize the switching rate. It can be written as the inverse of the characteristic big-to-small conversion time, k_bs = 1/τ. We can compare τ with the typical diffusion time for small particles, τ₀ = σ_s²/D_s. We therefore conveniently define the switching activity as

For a ≪ 1, the b ⇌ s conversion rate is so slow that the time evolution of the density profiles is dominated by the diffusion. In this case, any switching event at some specific location is rapidly compensated by diffusive fluxes of particles that balance the effect of the activity. In the limit a → 0 the classical (equilibrium) DFT of a true binary mixture is recovered. In this particular case, the density profiles converge to the equilibrium distribution for t → ∞. For a ≫ 1 the exchange rate is so large that the diffusion is not fast enough to compensate its effects, so switching events dominate over diffusion. Thus, in the final steady-state the particle states b and s can not be distinguished anymore because they do not have enough time to diffuse and reorganize according to the applied external potentials. Consequently, in every point of the space we have that both steady-state density profiles share the same shape. We elaborate on this in the next subsection.

2.2.3 The effective one-component (EOC) equilibrium system describes a ≫ 1. The microstructure, i.e., all the steady-state radial distribution functions, converges to the same function of the interparticle separation, g_ij(r) → g_eff(r), for a ≫ 1. Therefore, we can define an effective pair potential lim_a→∞u_ij(r) = u_eff(r) of an equivalent equilibrium system that describes the non-equilibrium active system in the limit a ≫ 1. For the same reason, the external potential acting on both species may also be expressed by an effective potential lim_a→∞u^ext_i(r) = u^ext_eff(r). It can indeed be shown mathematically (see Appendix) from the R-DDFT equations that the effective external potential can be written as an average of the individual external potentials³⁶

Similarly, the effective interparticle particle pair potential takes the following analytical form

These arguments show that the microstructure in the limit a → ∞ actually corresponds to the one of an effective one-component system (EOC) in equilibrium.

It is important to emphasize here some important points. First, eqn (12) and (13) for the effective external and interparticle interactions of the EOC equilibrium fluid are only correctly defined in the limit of very fast activity rates, a ≫ 1. If we are not in this limit, the non-equilibrium system cannot be mapped onto an non-active effective one-component fluid. Second, u_eff(r) depends on the assumptions made for the excess free energy in the DFT. The analytical form provided by eqn (13) represents a particular result for the binary mean-field fluid. Different prescriptions for F^ex will lead to different expressions for the effective pair potential. Finally, u^ext_eff(r) and u_eff(r) depend on the dynamic properties of the system. If we change the diffusion coefficients, the effective pair potential will be different too, and so the steady-state density profiles. Consequently, properties such as the bulk pressure of the fluid, obtained via integration of the compressibility equation, will depend on the particle diffusivities, which is a clear signature that the active system is not in equilibrium for a ≠ 0, even though it reaches the steady-state for t → ∞.

2.3 R-DDFT for Percus' test particle route

For a binary mixture of big and small colloids interacting with pair potentials that only depend on interparticle distance, r, the microstructure is fully determined by the big–big, big–small and small–small time-dependent radial distribution functions g_bb(r,t), g_bs(r,t) and g_ss(r,t) of the homogeneous bulk suspension (without confining external potential).

In order to calculate g_ij(r), we need to generalize the R-DDFT framework. For this purpose, we first make use of the Percus test particle route.^42,43 Within this method, in principle one should solve the R-DDFT equations in the presence of a test particle of state i located at the origin r = 0 that acts as an external potential for the mixture. The density profiles of particle of state j around this central particle, ρ_ij(r,t), normalized by the corresponding bulk density ρ^bulk_j, provide the radial distribution function, g_ij(r,t) = ρ_ij(r,t)/ρ^bulk_j. However, this procedure still lacks a very important feature of the real active switching mixture: the external potential exerted by the central particle is not fixed, but it fluctuates due to the switching of the central colloid.

To introduce the switching of the external potential, the two-state R-DDFT framework must be extended to a four-state R-DDFT that also takes the transition probability between the two possible states of the fluctuating central particle into account. We denote ρ^p_ij(r,t) as the probability density of finding a particle of state j located at a distance r from a central particle of state i at time t, and define the the vector ρ^p(r,t) as

ρ^p(r,t) = (ρ^p_bb(r,t),ρ^p_bs(r,t),ρ^p_sb(r,t),ρ^p_ss(r,t)). (14)

Analogously, we can define the vector including the four currents

J = (J_bb,J_bs,J_sb,J_ss). (15)

In the context of the mean-field approximation, the diffusive currents are given by

The time evolution of the probability densities ρ^p_ij(r,t) obeys the following set of four coupled Fokker–Planck equations, which include particle interactions (modeled through the mean-field approach)^44–46

The transition rate matrix takes into account not only the switching between both kind of colloids (b and s) distributed around the central potential, but also the switching of the fluctuating external potential in itself. It is given by

satisfies the required properties of any transition matrix, namely and .⁴⁷

2.4 Boundary conditions and numerical details

To solve the R-DDFT (eqn (8)), three boundary conditions are required. First, the initial density profiles (for t = 0) have to be specified: ρ_i(r,t = 0) = ρ_i0(r). The second and third condition involve the knowledge of the number densities in two different locations. For binary active mixtures confined between two planar walls separated by a distance L, these conditions impose zero diffusive fluxes at both confining walls: J_i(z = 0,t) = J_i(z = L,t) = 0. For mixtures confined inside a spherical cavity of radius R, we get J_i(r = 0,t) = 0 due to spherical symmetry at the center of the cavity and J_i(r = R,t) = 0 (closed confining spherical wall). Finally, to integrate the four-state R-DDFT (eqn (17)), we also have the condition J_ij(r = 0,t) = 0 (spherical symmetry), whereas the third condition imposes fixed probability densities far away from the central particle r → ∞, given by ρ^p_bb(∞,t) = k_sb²/(k_bs + k_sb)², ρ^p_ss(∞,t) = k_bs²/(k_bs + k_sb)² and ρ^p_bs(∞,t) = ρ^p_sb(∞,t) = k_bsk_sb/(k_bs + k_sb)². In this way, the composition of the mixture in the bulk is preserved.

In order to numerically integrate the R-DDFT and the stochastic R-DDFT equations, we use a spatial grid of Δz = Δr = 0.01σ_s. The time step has been fixed to Δt = 10⁻⁵τ₀, which is small enough to avoid the appearance of numerical instabilities (Δt < Δz²/(2D_s)). For the case of the calculation of the radial distribution functions, the integration extends over a distance larger that r_max = 80σ_s to avoid finite-size effects, using Fast Fourier Transforms to evaluate the convolution integrals appearing in eqn (16).

3 Reactive Brownian dynamics (R-BD) computer simulations

Complementary to the R-DDFT, all systems have been simulated using a reactive Brownian dynamics (R-BD) algorithm, which includes active switching between the two different states of colloids, b and s. The overdamped Langevin equation of motion for a particle i writes

ξ_iṙ_i = −∇U(r_i) + r(t), (19)

where ṙ_i and r_i denote velocity and position of the i-th particle, the drag coefficient ξ_i and the diffusion coefficient D_i are related as D_i = k_BT/ξ_i, and r(t) is the random force vector. The components of the random force vector fulfill the properties 〈R_α(t)〉 = 0 and 〈R_α(t)R_β(t′)〉 = 2ξ_i²D_iδ_αβδ(t − t′) with α and β denoting the spatial dimensions, and δ and δ_αβ as Dirac and Kronecker delta functions, respectively. The first term on the right hand side in eqn (19) yields the force acting on the i-th particlewhich consists of the contribution through the position-dependent external field and the pairwise interactions of all other neighbors found at distances r_ij. The positions of all N particles are updated using the Euler–Maruyama propagation scheme,⁴⁸ which writeswhere Δt is the integration time-step, which is 10⁻³τ₀ for systems M3 and M4 (Table 1), and 10⁻⁴τ₀ for the systems M1 and M2, respectively, and ζ_i is a vector consisting of random values following a standard normal distribution.

Table 1 Main parameters describing the particle interactions and concentrations for four different binary Gaussian systems. Systems M1 to M3 are stable mixtures in equilibrium, whereas system M4 is located inside the unstable region of the phase diagram in equilibrium

System	ε bb	ε ss	ε bs	σ b/σs	σ bs/σs	ρ T σ s ^3	x s	D s/Db
M1	2.0	2.0	2.0	2.0	1.5	0.191	0.5	2.0
M2	2.0	2.0	−2.0	1.0	1.0	0.76	0.5	1.0
M3	2.0	2.0	1.0	1.504	1.277	2.4	0.75	1.504
M4	2.0	2.0	1.888	1.504	1.277	2.4	0.75	1.504

---

The possibility of active switching between the particle states is checked after every integration step, and the probabilities of switching are defined as

p_bs = 1 − e^−k_bsΔt, p_sb = 1 − e^−k_sbΔt (22)

where k_bs = a/τ₀ and k_sb = x_ba/(x_sσ_s). In the active switching R-BD framework, properties of the i-th particle are switched, if the random variate following a uniform distribution between zero and one p_i(t) is below p_bs if the particle is of state b or is below p_sb if the particle is of state s.

These R-BD simulations for up to 8100 switching particles have been conducted using an own code for production times up to 25τ_B and the parameters presented in Table 1. The box sizes have been varied for the bulk simulations at the given densities to reduce finite size effects. For the cubic and spherical system, cut-off distances for the pairwise interactions have been set to values close to half of the respective box size ranging from 5.9 to 7.4σ_s for cubic box dimensions with edge lengths 12 and 15σ_s, respectively. For the bulk simulations of the systems M3 and M4, periodic boundary conditions (pbc) have been applied on the cubic simulation cells. In the simulations of the mixtures M1 and M2 confined between two walls, the pbc have been maintained in the two dimensions perpendicular to the separation vector of the walls with box sizes l_x = l_y = 10σ_s at a separation distance l_z = 2.5σ_s, using a cut-off distance of 3.5σ_s. The spherical cavity has radius 6.0σ_s (same for the potential cut-off).

4 Results and discussion

We explore two different conditions of confinement (i.e., between two parallel planar walls and inside a spherical compartment) as well as bulk solutions (without external potentials). Starting from an initial non-equilibrium configuration, the particle densities ρ_i(r,t) evolve in time until a final steady-state regime is reached. This final state depends on the switching activity rate, a. We use our mean-field R-DDFT to determine the inhomogeneous steady-state density profiles of confined colloids, ρ_i(r), and the four-state R-DDFT to calculate the steady-state radial distribution functions of the bulk suspension, g_ij(r). In all cases, theoretical results are compared with the R-BD simulations. We cover activities ranging from a = 0 (non-active equilibrium state) to a = 1000 (fast switching rate regime), which yields results comparable to a → ∞.

Table 1 shows the interaction parameters, number densities and state compositions of four different active systems of Gaussian colloids (systems M1 to M4) that will be matter of investigation. Systems M1 to M3 correspond to stable mixtures (they do not phase separate in equilibrium), whereas system M4 is located inside the unstable region of the phase diagram, so it undergoes fluid-fluid demixing.⁴⁹ In all cases, the kinetic rate constants have been chosen to fulfill the condition given by eqn (10) to preserve the composition of the mixture of states. The particle diffusivities are in all cases assumed to follow the Einstein relation, D_i = k_BT/(3πησ_i), so D_b = (σ_s/σ_b)D_s.

In addition to the active systems, we also explore the effective one-component (EOC) in equilibrium, which is equivalent to the active system in the limit a → ∞ where all external potentials and all particle–particle pair interactions converge to the same effective potentials, given by eqn (12) and by eqn (13), respectively.

4.1 Inhomogeneous properties and microstructure of stable mixtures

4.1.1 Symmetric slit-pore confinement. We first investigate the non-equilibrium steady-state density profiles of system M1 confined into a narrow slit pore. The total average density and composition of this system are ρ_Tσ_s³ = 0.191 and x_s = x_b = 0.5. We emphasize that ρ_T is a fixed quantity because the slit represents a closed system. The distance between both planar walls is L = 2.5σ_s. In order to confine the colloids, the same external auxiliary potential is applied to both components:

βu^ext_b(z) =βu^ext_s(z) = 10(e^−50z/σ_s + e^{−50(L−z)/σ_s}) (23)

for 0 < z < L, and u^ext_b(z) = u^ext_s(z) = ∞ for z < 0 or z > L.

The theoretical density profiles are obtained starting at time t = 0 from the equilibrium profiles of the non-active system (a = 0), and then turning on the activity at t > 0. The local densities evolve rapidly at short times and finally converge to the final steady state, in which the effect of the activity is exactly balanced by the diffusive currents. Black solid and red dashed lines in Fig. 1 show the steady-state profiles of big and small colloids for a = 0, 10, and 1000. As observed, activity modifies the density profiles near each wall, even though the average concentrations of each component remain unaltered. The adsorption peak of big particles decreases whereas the concentration peak of small particles close to the wall shows an increase coupled with a reduction of the depletion region.

Fig. 1 Steady-state density profiles of big and small soft colloids for system M1 confined within a narrow planar slit (wall separation L = 2.5σ_s), for activities (a) a = 0, (b) a = 10 and (c) a = 1000. Black solid and red dashed lines show R-DDFT predictions for ρ_b(z) and ρ_s(z), respectively. Black squares and red triangles denote the same profiles calculated from R-BD simulations results. Blue lines and symbols are R-DDFT and R-BD results obtained for the effective one-component system (EOC).

In addition to the theoretical calculations, we performed R-BD simulations in the same conditions to estimate the reliability of our mean-field R-DDFT method. Fig. 2(a) depicts a representative snapshot of system M1 confined betweeen two planar walls for a = 0. The nearly quantitative agreement between the R-DDFT theoretical predictions and the R-BD simulation data obtained in the steady-state regime (depicted as hollow symbols in Fig. 1) indicates that the reactive mean-field DDFT is able to capture the non-equilibrium structure of the active mixture of states of the soft colloids for any activity rate a. It should be remarked that the mean-field approach used in our theoretical model (eqn (6)) compares very well to the simulation data, even for the small values of the particle number densities of system M1.

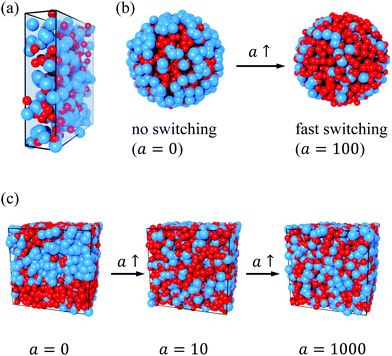

Fig. 2 Snapshots of Brownian dynamics simulation. (a) System M1 confined inside a narrow slit for a = 0. (b) System M4 confined inside a spherical compartment for a = 0 (equilibrium)and a = 100. Blue and red spheres represent colloids in the big and small states, respectively. (b) System M4 in bulk (box with periodic boundary conditions) for a = 0, 10 and 1000.

For very large activities, the system finally tends to a steady-state in which the density profiles of big and small particles converge to each other. This fact can be clearly observed in Fig. 1(c) where the density profiles for a = 1000 are shown. As the activity rate increases, particle switching enforces a decrease of the concentration of big colloids and an increase of small ones close to the walls. For a = 1000, both profiles converge to a common form, thus indicating that the binary system behaves as an effective one-component system (EOC) in the limit of large switching activity.

This result can be rationalized as follows: the switching activity introduces in the system a delocalization of the particle states (big and small), in the sense that a colloid of state b in certain location is suddenly converted into a particle of state s. If a ≪ 1 the switching events are rare and the diffusive currents are still able to preserve the distinction between both states. However, for a ≫ 1 many switching effects occur during the diffusive time τ₀, so particles do not move fast enough to rearrange their location by diffusion. Consequently, they tend to experience the same average interparticle effective interaction (u_ij(r) → u_eff(r) for a → ∞). In order to confirm this, we include in plot Fig. 1(c) the corresponding prediction from the equilibrium EOC, where the colloids are interacting through an average external and particle–particle pair potentials given by eqn (12) and (13), respectively (blue lines for theory and blue symbols for R-BD simulations). The agreement between the density profiles obtained for a = 1000 and the EOC confirms that the active system indeed converges to the EOC model in the limit of large switching rates.

It is important to emphasize again that the active system in the limit a → ∞ cannot be confound with a truly equilibrium system. Indeed, the effective potentials u_eff(r) and u^ext_eff(r) in contrast to the conventional ones, include the diffusion constants, which is a signature of the non-equilibrium nature of the underlying mixture. In fact, the component with a larger diffusivity contributes more to the average.

4.1.2 Asymmetric slit-pore confinement. In order to study a confined active system in which big and small colloids interact differently with the confining walls, we solve again the two-states R-DDFT differential equations using an asymmetric external field for small and big colloids in such a way that component b is attracted to the left wall and repelled from the right one, whereas component s is repelled from the left and attracted to the right wall. In particular, we selectwhere u_aux(z) is an auxiliary short-range potential included to avoid particle penetration inside the walls, given by βu_aux(z) = 10(e^−100z/σ_s + e^{−100(L−z)/σ_s}). For these conditions, the system confined inside both plates is the one identified in Table 1 as system M2. This system has a symmetrical composition, both components have the same particle size (σ_b = σ_s = σ_bs) and diffusion constants. Particles of the same state are repelled, whereas particles of different state are attracted (ε_bb = ε_bb = −ε_bs = 2). This combination of parameters tries to reproduce the typical screened electrostatic interactions appearing in a binary mixture of oppositely charged colloids confined inside two charged electrodes.

Fig. 3 depicts the steady-state density profiles of the active M2 system for a = 0 (equilibrium), 10 and 1000. The accordance between theory and simulation is very good in all cases. Differences are only observed around the adsorption peak close to the attractive wall for each component, where the theory overestimates the local density. This discrepancy can be attributed to the limitation of the mean-field approach when predicting the structure in regions with strong density variations.

Fig. 3 Steady-state density profiles for system M2 confined within a narrow planar slit (wall separation L = 2.5σ_s), for activities (a) a = 0, (b) a = 10 and (c) a = 1000. An external asymmetric potential is applied to both species. Black solid and dashed lines represent theoretical predictions for ρ_b(z) and ρ_s(z), respectively, obtained with R-DDFT. Black squares and red triangles show the same profiles obatined from R-BD simulations. Blue lines and symbols are R-DDFT and R-BD results for the EOC.

Again, the steady-state density profiles in the regime of very fast switching rates converge to the ones obtained for the corresponding EOC. For the particular choice of interaction parameters of system M2, the resulting effective pair interaction potential and external potential are given by u_eff(r) = 0 and u^ext_eff(z) = 0 (excluding the auxiliary short-range potential that prevents wall penetration). In other words, in the limit of fast switching activities, a ≫ 1, particle interactions are dynamically neutralized leading to a system that effectively behaves as an ideal system. This can clearly appreciated in Fig. 3(c), in which the density profiles of both components tend to a flat distribution typical of a non-interacting system. It is well known that ideal systems do not exist in nature; they are an idealization limit for diluted and weakly interacting systems. Consequently, these result points out a surprising property of potential practical interest of active switching systems: they can be designed to fully reproduce the behavior of a real ideal system, even though particle interactions are non-negligible.

4.1.3 Bulk. The switching activity not only has important implications on the inhomogeneous density profiles of confined systems, but also on the local ordering of the particles around each other, i.e. the microstructure in bulk. For an homogeneous bulk suspension, the microstructure of the mixture of states is characterized by means of the partial radial distribution functions, g_ij(r), so that ρ^bulk_jg_ij(r) is the number density of particle of state j at distance r from a central colloid of state i located at r = 0. Due to the condition given by eqn (10), bulk concentrations far away from the central particle (r → ∞) are not affected by activity. However, the shape of g_ij(r) can be significantly modified close to the central particle for two reasons: (1) switching events of the colloids around the central particle; (2) switching events of the central particle in itself, which behaves as a fluctuating external potential for the rest of the mixture due to the non-equilibrium activity.

To explore the role of the switching activity on the microstructure, we employed our four-state R-DDFT and R-BD simulations to determine g_ij(r) for increasing activity rates. We selected the system M3 of repulsive Gaussian colloids shown in Table 1. The interaction range of this system represents fairly well the simulation data for mixtures of linear flexible polymers with a number of monomers N_m = 200 (big) and 100 (small), immersed in a good solvent.³³ Since ε_bs < ε_bb = ε_ss, there is a decrease of energy penalty by placing unlike species as neighbors, which in turn favors mixing between both components. In fact, mixture M3 is a stable system that does not exhibit fluid-fluid demixing.

Lines in plots (a)–(d) of Fig. 4 show the steady-state radial distribution functions (g_bb(r), g_ss(r) and g_ss(r)) obtained from our theory for four different values of the switching activity rate, namely a = 0 (equilibrium), 1, 10 and 1000. The corresponding simulated radial distribution functions in the steady-state regime are shown as hollow symbols in Fig. 4. Excellent agreement is found between simulations and theoretical predictions, thus confirming that incorporating the test-particle route to the four-states R-DDFT represents a reliable method to predict the microstructure of non-equilibrium active switching mixtures. Since the mean-field approach involved in our model (see eqn (6)) becomes exact in the high density limit, this agreement is expected to improve even more by increasing the bulk total number density of the system, ρ_T.

Fig. 4 Plots (a)–(d) steady-state radial distribution functions g_bb(r) (black line and squares), g_ss(r) (red dashed line and circles), and g_bs(r) (green dashed line and triangles) for system M3 obtained from solving the 4-states R-DDFT equations (lines) and from R-BD simulations (symbols) in the bulk solution for activities a = 0 (equilibrium), a = 1, a = 10, and a = 1000. Blue squares and lines in (d) represent the g(r) of the EOC from R-DDFT and R-BD, respectively. Plot (e) number–number structure factor S_NN(q) for a = 0, 10, 1000 and the EOC.

All pair interactions in system M3 are purely repulsive, and thus the resulting g_ij(r) have a soft correlation hole at small interparticle distances, typically observed in this kind of soft repulsive potentials. The hole is smaller for g_bs(r) due to the weaker repulsion between big and small colloids. This soft correlation hole is gradually reduced as ρ_T increases, a behavior typical of finite core potentials, approaching the ideal-gas-like behavior in the high density limit. For a = 0, the three partial radial distribution functions are very different from each other, but increasing the switching activity leads to a progressive approach of the three distribution functions. In the limit of large a, the three functions converge to the same common profile, which in turn matches the corresponding g(r) for the EOC (u_eff(r) given by eqn (13)).

Fig. 4(e) depicts the theoretical and simulated number–number static structure factor for system M3 with a = 0, a = 1000 and the EOC. It is defined as S_NN(q) = 1 + ρ_Tĥ_ave(q), where ĥ_ave(q) is the Fourier transform of the average distribution function, . For a = 0, the correlation wells of g_bb(r) and g_ss(r) close to r = 0 are deeper than the one for g_bs(r), whereas for a = 1000 the three distribution functions have converged to the same functional form, leaving the average almost unaffected. In contrast to this behavior, we will show in the following section that S_NN(q) shows important changes with a for a system that phase-separates in equilibrium, so it becomes an excellent indicator of the onset of fluid–fluid demixing.

4.2 Phase separation dynamically controlled by interaction switching

4.2.1 Spherical cavity. We showed that switching activity plays a very important role determining the inhomogeneous properties and microstructure. These results suggest that the inhomogeneous distribution of a phase-separated mixture should be also deeply affected by the activity.³⁶

The conditions for stability and the phase diagrams of repulsive Gaussian mixtures have been extensively studied under the mean-field approach.^33,49 We select a particular mixture with the same interaction parameters than system M3, but shifting the big-small interaction to ε_bs = 1.888. Although this change seems to be small, it has a very relevant impact of the phase behavior since the system now phase separates into two solutions of different composition above the critical point, located at and = 0.7.^33,49 In order to ensure the phase separation of our Gaussian mixture of states, we chose a total number density given by ρ_Tσ_s³ = 2.4 and composition x_s = 0.75 (system M4 in Table 1). This binary mixture demixes spontaneously for a = 0, as shown in the R-BD simulation snapshot in Fig. 2(c).

To investigate the effect of the activity on the phase coexistence, we apply the method described by Archer,^40,50i.e. we confine the system inside a spherical cavity of radius R_cav = 6σ_s by means of repulsive spherically symmetric external potentials

where E_b = E_s = 20 and R = 5σ_s. The resulting steady-state density profiles for a = 0 are shown in Fig. 5(a) (lines for theoretical predictions ans symbols for R-BD simulations). We observe clear signatures of phase separation at equilibrium: big particles are mostly adsorbed close to the external wall of the cavity, whereas small ones are mainly distributed in the central region of the cavity. This particular segregation of particles is caused by the existence of an effective attraction between the wall and the larger component, which arises because the repulsion induced by the wall has a longer range on the scale of the small particles, leading to an enhanced depletion of small spheres and to an accumulation of big particles close to the external wall.⁵¹

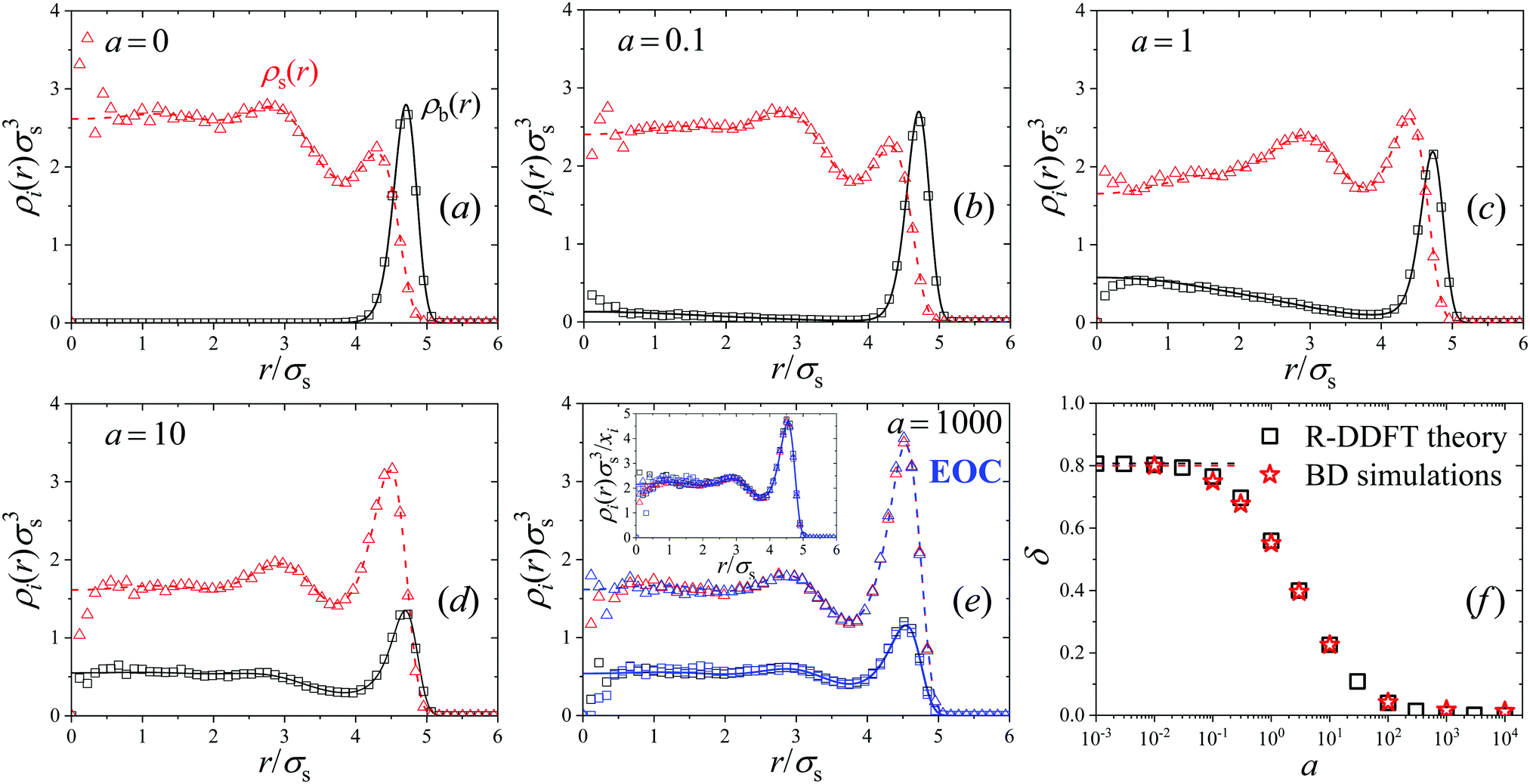

Fig. 5 Plots (a)–(e) steady-state density profiles of big (black) and small (red) soft colloids for the system M4 confined inside a spherical cavity by means of the external potential βu^ext_b(r) = βu^ext_s(r) = 20(r/(5σ_s))¹⁰, for activities from a = 0 (equilibrium) to a = 1000. The system is demixed in the equilibrium state (small particles in the center of the cavity; big colloids close to the external wall of the cavity). Increasing a forces the mixing of both phases. Solid and dashed lines represent R-DDFT predictions, whereas square and triangle symbols are profiles obtained from R-BD. Blue lines and symbols in plot (e) are R-DDFT and R-BD results obtained for the effective one-component system (EOC). Inset: Scaled density profiles ρ_i(r)/x_i collapsed onto a common form for a = 1000 and the EOC. Plot (f) demixing order parameter δ as a function of a obtained with R-DDFT (black squares) and R-BD (red stars). Dashed black and red lines are the corresponding values of δ for a = 0.

The degree of separation between both components can be quantified by means of the demixing order parameter δ, defined as

where N_b and N_s are the (fixed) total number of big and small particles inside the cavity. δ = 1 implies that big and small particles completely demix into two non-overlapping regions, whereas δ = 0 means that both components are fused together with exactly the same density profile. For a = 0 we find δ ≈ 0.8, indicating a high degree of demixing.

The new steady-state profiles with a non-zero activity are depicted as solid and dashed lines in plots Fig. 5(b)–(e) for a = 0.1 to 1, 10 and a = 1000, respectively. These plots show that increasing activity a enhances the density of big colloids in the center and the concentration of small particles at the outer layer, indicating activity-driven mixing. For small values of a the conversion of particles of state s inside the phase with larger concentration of particles of state b (and vice versa) is so slow compared to the characteristic diffusion time that the diffusive fluxes are able to restore both coexistent phases. However, for activities above a = 1, both density profiles approach to each other, so demixing becomes significantly suppressed. In addition, for a = 1000 both profiles adopt the same form, which means that the states in system are the same everywhere on average, which occurs as a mixed microstate. This can be appreciated by plotting the normalized density profiles ρ_i(r)/x_i (see inset in Fig. 5(e)), which converge to exactly the same common profile, described by the EOC. It should be noted that the normalized density profiles for a = 0 and a = 1000/EOC differ. Higher activities lead to an accumulation of the now rapidly switching particles at the outer layer at r ≈ 5.0σ_s, since the frequent switching between the two sizes leads to effectively bigger average particles sizes.

The dynamic transition from a phase-separated system to activity-enforced mixed microstates is clearly visible in the simulation snapshot of Fig. 2(b), obtained for system M4 in the steady state. For a = 0, big (blue) colloids are mainly located close to the external wall of the spherical compartment, whereas an even distribution is observed for a = 100. The corresponding simulated density profiles are shown as hollow symbols in plots (a)–(e) of Fig. 5. Also here we find excellent agreement between theoretical predictions and R-BD computer simulations. Fig. 5(f) shows the demixing parameter δ (eqn (26)) as a function of the activity. As observed, the transition is gradual and centered close to a = 1, which represents the inflection point separating mixed and demixed states. In the limit a → ∞, δ tends to zero, indicating that the binary system is totally mixed. These results indicate that switching the activity can be used as a tool to dynamically control the demixing state of mixtures.

4.2.2 Bulk. The demixing within a spherical cavity depends on a confining potential, which always will affect the way in which particles phase-separate. Thus, it does not allow the distinction between external effects caused by the boundary and intrinsic effects originating from active switching. Therefore, we make use of the four-state R-DDFT and the R-BD simulations to determine the microstructure and the structure factor S_NN(q) as a function of a now in a bulk suspension with no external fields applied. Fig. 6(a)–(d) show the radial distribution functions of the unstable system M4 for four different values of the switching activity: a = 0.1, 1, 10 and 1000 (please note that g_ij(r) cannot be defined for a = 0 because the system is (macro) phase-separated). For a = 1000, theory and simulation show an almost perfect agreement and the radial distributions match again the one for the EOC, thus indicating that activity compels the system to behave as a stable effective one-component system. By decreasing a, the three radial distributions depart from each other. In particular, g_bb(r) shows a significant increase for a = 0.1, indicating condensation of colloids in the big state into a single phase (in the R-BD simulations, activities below a = 0.1 have proven to be too computationally expensive due to the required large simulation boxes at high number densities).

Fig. 6 Plots (a)–(d) steady-state radial distribution functions g_bb(r) (black line and squares), g_ss(r) (red dashed line and circles), and g_bs(r) (green dashed line and triangles) for system M3 obtained from solving the four-states R-DDFT equations (lines) and from R-BD simulation (symbols) in the bulk solution for activities a = 0.1 to a = 1000. Blue squares and lines in (d) represent the g(r) of the EOC from R-DDFT and R-BD simulations, respectively. Plot (e) number–number static structure factor S_NN(q) for a ≥ 0.1 and the EOC. Plot (f) shows in a log scale the peak of S_NN(q) that arises by decreasing the switching activity, indicating that the unstable mixture is affected by phase separation.

The R-BD simulation snapshots in Fig. 2(c) indicate a transition from a phase separated system for a = 0 to a completely homogenous mixed microstate for a = 1000. Evidences of mixing can be also seen in Fig. 6(e) and (f), where S_NN(q) is plotted using linear and log scale from a = 0.048 to a = 1000 for the R-DDFT theory. It is well know that S_NN(q) tends to diverge at small q-vectors when approaching the fluid–fluid spinodal, e.g., by changing temperature or density. In our case we are not moving a thermodynamic equilibrium state variable, instead we are decreasing the activity, but we do observe a similar behavior. For a ≥ 10, the activity rate is large enough to prevent the phase separation of the mixture. Indeed, in this regime the static structure factor shows the typical smooth behavior of stable mixtures of Gaussian colloids. However, as we decrease a below this value, a peak develops in the region of small q-vectors. The height of this peak shows a significant increase as we decrease the activity below a = 1. For a = 0.048, we get large stable peaks at low q, which clearly indicates that the switching activity cannot stabilize the system, so it undergoes micro-phase separation. The peaks are roughly at q ≃ 0.5–1σ_s, indicating clusters of size of multiple colloidal sizes 2π/q ≃ 6–12σ_s. These sizes are one order of magnitude smaller that the size of the spherical cell size used to integrate the R-DDFT equations (of about l_max ≈ 80σ_s), so these predictions are not a consequence of finite size effects.

The agreement between theory and simulations is very good for a ≥ 10, but it worsens by decreasing a due to the limitation of the mean-field approximation in conditions where the system is affected by large density fluctuations due to phase separation. As observed, the R-BD simulation results also exhibit the appearance of a structure factor peak for small switching activities. Although we can not conclude from the simulation data the formation of finite-sized micro-clusters because the correlation length of the clusters is close to half of the simulation box size, simulation snapshots (see Fig. 2(c)) indicate that macroscopic phase separation is only recovered in the limit of (almost) total absence of switching. In addition, the peaks are located at a similar location than the R-DDFT predictions, which are not affected by finite size effects, which strongly supports the formation of micro-clusters as the switching activity decreases.

What is the physical origin of the activity-induced mixing? From a dynamical/mechanical perspective, one can argue that the non-additive forces that lead to demixing are only acting temporarily for the transient small-big pairs and, if switching is sufficiently fast, are counterbalanced by diffusive mixing of like pairs. That is the reason for micro-clustering and related to a typical finite diffusive length that is roughly the length a particle can travel before it changes its identity. Only during this time a demixed region of size l can be generated, before, on average, diffusive mixing sets in. In the range of a = 0.1 to 1, the length is about 3 to 8σ_s and thus indeed close to the correlation length calculated by R-DDFT.

From a thermodynamic perspective, it seems the power generated by the switching propagates into the system and produces useful entropy in terms of helping the system to mix again. However, a detailed study of this is out of scope of this work and is postponed to future work.

5 Conclusions

We used reactive mean-field dynamical density functional theory (R-DDFT) and Brownian dynamics (R-BD) simulations to investigate the structural properties and phase behavior of active, binary switching Gaussian colloids in the steady-state regime. Our results underline that switching activity has a important effect on the inhomogeneous density profiles of the binary mixture of states confined between planar walls with external potentials.

While average structures, e.g., mass density profiles, are surprisingly little affected by switching, the appearance of the distinct colloidal states can be localized and spatially controlled by the rate. This interesting finding may be important for controlling functionality of switching systems, such as in soft biorobotics.³⁰ For very large switching rates, we show that the active mixture of states can be mapped onto an equivalent effective one-component fluid in equilibrium because the diffusive fluxes are not fast enough to restore the particle positions during two consecutive switching events. The effective pair interaction of this EOC system depends on the dynamical properties of the active mixture such as the particle diffusion coefficient, so the latter also corresponds to a non-equilibrium system in the limit of infinitely fast switching. We expect also interesting physics for the diffusive behavior, where the long time diffusion constant (also accessible by DDFT⁴³) might interpolate between a mean diffusion for small a and the diffusion of a mean size for large activities.⁵² This limit also offers an additional property of potential practical interest, since the interaction parameters can be chosen to obtain, in the limit of fast switching activities, a purely ideal effective system, even though partial particle interactions are non-negligible.

The switching activity also has important effects on the phase behavior of the system. We show that increasing the activity suppresses the phase separation of an (in equilibrium) demixed system confined inside a spherical cavity, inducing a gradual spatial mixing of the two states. The same behavior is also observed in the microstructure of a bulk suspension, where the big-big radial distribution function g_bb(r) shows a progressive decrease in the region of small interparticle distances by increasing the switching activity, indicating the dissolution of aggregates of colloids in the big state. This peak disappears for large enough switching rates, showing that the switching rate can be exploited to dynamically control the degree of demixing, i.e., (in)homogenization of spatial state distributions by tuning the activity rate. Moreover, we note that the number–number static structure factor of the bulk system shows that the mean structure of the dispersion (averaged over both states) is only slightly affected from active switching, implying that activity can be used for spatial separation of properties and possibly connected to colloidal functionality, while mass distributions remain essentially conserved. This could be interesting in smart material design, e.g., for dispersions of ‘soft bioroboters’.³⁰

In all cases, R-DDFT predictions are in excellent agreement with R-BD computer simulations, thus confirming that R-DDFT constitutes a powerful tool to access the microstructure and phase behavior of active switching binary mixtures. We only find semi-quantitative agreement in the limit of small a, since the mean-field approach is not able to fully capture the density fluctuations induced by the phase separation.

In future investigations we are planning to study how interaction switching can be used to tune depletion forces between colloidal objects immersed in a mixture of soft active switching particles. Other possible direction is to investigate the coupling between the switching rates to local properties of the environment, such as colloidal density, for example, in bacterial quorum sensing.⁵³ Theoretically, this could benefit from the recently introduced models for responsive colloids.^52,54 Moreover, it will be interesting to investigate the non-equilibrium thermodynamics of actively switching colloids. Obviously, internal switching can perform useful work, e.g., mixing an in equilibrium demixed system. Future studies shall address the relations between power transfer, entropy production, and structure of the system, as in related active matter systems.^55,56 Activity-structure relationships should be useful for non-equilibrium-based material design. Finally, another interesting future study could be the inclusion of inertia, leading to Langevin (underdamped Brownian) dynamics of actively switching colloids. Here, it can be expected that inclusion of inertia will pump more kinetic energy into the system and a higher temperature steady-state will be reached, modifying distributions and the strength of demixing. In addition, inertia could affect the short- and intermediate time dynamics of the system. In particular, for less soft pair potentials, a sudden switch of interactions creates large forces and extended ‘memory’ in the short-time ballistic motions. Typical correlation lengths may be significantly affected by this, perhaps even the long-time dynamics as in Active Brownian Particles (ABPs),^57,58 and future studies will hopefully analyze and quantify these effects.

Conflicts of interest

There are no conflicts to declare.

Appendix

Determination of u_eff(r) and u^ext_eff(r)

In this Appendix we show that in the limit of very fast switching rates, a ≫ 1, the active mixture behaves as an effective one-component system (EOC), so particle–particle interactions are all given by lim_a→∞u_ij(r) = u_eff(r) (i,j = b,s). For the same reason, the external potential acting on both species also converges to the same effective potential lim_a→∞u^ext_i(r) = u^ext_eff(r). In our demonstration we are also able to deduce the explicit expressions for u^ext_eff(r) and u_eff(r). For this purpose, we need to make use of the condition given by eqn (10) relating the kinetic rate constants and the composition, which can be written as k_sb/(k_bs + k_sb) = x_b and k_bs/(k_bs + k_sb) = x_s. We remind that this condition guarantees that the relative compositions x_i (i = b,s) are preserved even through the local density profiles change due to the switching activity.

In the limit of very fast switching rates, a ≫ 1, switching events occur much faster that the rate of diffusion, k_bs ≫ D_s/σ_s², so there is a large separation between the typical time scales of switching and diffusion. For very short times, t ≪ σ_s²/D_s, the R-DDFT differential equations (eqn (8)) are dominated by switching events, so

which can be solved analytically, leading to the following short-time exponential behaviourwhere K = k_bs + k_sb and ρ_T(r,0) = ρ_b(r,0) + ρ_s(r,0). For time scales comprehended in k_bs⁻¹ ≪ t ≪ σ_s²/D_s the transient exponential dependence has already relaxed, leading to ρ_b(r,t) = (k_sb/K)ρ_T(r,0) = x_bρ_T(r,0) and ρ_s(r,t) = x_sρ_T(r,0). Once this regime has been reached, if we observe the evolution of the density profiles for longer times, the diffusive terms −∇·J_i start to contribute, leading again to a diffusive-controlled time dependence. However, as the switching kinetic term has already relaxed at a very short-time scale, both concentrations will satisfy this condition for all times, namely

ρ_s(r,t) = x_sρ_T(r,t), ρ_b(r,t) = x_bρ_T(r,t) ∀t ≫ k_bs⁻¹. (29)

These results can be physically interpreted in the following way: For a ≫ 1 and t ≫ k_bs⁻¹, the switching events are so fast that both particle states cannot be distinguished because colloids do not have enough time to diffuse and reorganize according to the applied external potentials. Consequently, both steady-state density profiles share the same shape.

If we evaluate the non-equilibrium production and disappearance of particles for t ≫ k_bs⁻¹ and employ the condition provided by eqn (10), we find that

Therefore, the R-DDFT equations for a ≫ 1 and t ≫ k_bs⁻¹ can be written as

Expanding the terms in eqn (31) we find

On the one hand, a closed equation for ρ(r,t) can be obtained by simply adding both expressions and using eqn (29), so . After some reorganization of terms, we obtain

On the other hand, the continuity equation for the effective (non-active) one-component mean-field fluid of density ρ_T(r,t) is

From the last two equations, we show that the time evolution of an active switching system with a ≫ 1 and t ≫ k_bs⁻¹ can be completely mapped to an effective non-active one-component system (EOC), for which lim_a→∞u_ij(r) = u_eff(r) and lim_a→∞u^ext_i(r) = u^ext_eff(r). Comparing both expressions, we deduce the effective diffusion coefficient of the one-component fluid as the mean diffusion, given by

D_eff = D_bx_b + D_sx_s. (35)

In addition, the effective external potential is

Finally, the effective interparticle particle pair potential is

Acknowledgements

The authors acknowledge support by the state of Baden-Württemberg through bwHPC and the German Research Foundation (DFG) through grant no INST 39/963-1 FUGG (bwForCluster NEMO). A. M.-J. thanks the program Visiting Scholars of the University of Granada (Project PPVS2018-08) and the Plan Andaluz de Investigación, Desarrollo e Innovación of the Junta de Andalucía (Project PY20_00241) for financial support.
