Rice husk biochar modified-CuCo₂O₄ as an efficient peroxymonosulfate activator for non-radical degradation of organic pollutants from aqueous environment

Abstract

A series of rice husk biochar (RHBC) modified bimetallic oxides were prepared using a simple pyrolysis method to activate peroxymonosulfate (PMS) for the degradation of acid orange G (OG). The results demonstrated that 50 mg L⁻¹ OG was completely decomposed by 1 mM PMS activated with 100 mg L⁻¹ RHBC–CuCo₂O₄ within 15 min at initial pH 3.4. The OG degradation rate constant k of RHBC–CuCo₂O₄/PMS (0.95 × 10⁻¹ min⁻¹) was five times greater than that of CuCo₂O₄/PMS (0.19 × 10⁻¹ min⁻¹), suggesting that the introduction of RHBC significantly improved the activity of bimetallic oxides. The effects of the initial pH, catalyst dosage, PMS concentration and reaction temperature on OG removal were also studied. The degradation products of OG were analysed using a gas chromatography-mass spectrometer (GC-MS). Electron paramagnetic resonance (EPR) and quenching experiments showed that singlet oxygen (¹O₂) was the main active species. The RHBC–CuCo₂O₄/PMS oxidation system is not only unaffected by inorganic anions (Cl⁻, NO₃⁻, HCO₃⁻) and humic acid (HA), but also could remove other typical pollutants of acetaminophen (ACT), sulfathiazole (STZ), rhodamine B (RhB), and bisphenol A (BPA). These findings show that RHBC–CuCo₂O₄ has great potential for practical applications in the removal of typical organic pollutants.

---

1. Introduction

In recent years, the problem of water pollution caused by rapid industrial development has become increasing significant and has attracted worldwide attention.^1,2 Recently, several works have considered the remediation of environmental water pollution. The Fenton method with hydroxyl radicals (˙OH) as the main active material and the advanced oxidation of persulfate (AOPs) with sulfate radicals as the main active material have attracted much attention. After in-depth study, it is found that the traditional advanced oxidation method with ˙OH as the main active substance cannot avoid some shortcomings of hydroxyl itself, such as short half-life (10⁻³ μs), narrow pH range (2–4) and that only part of the organic matter can be effectively degraded. The based advanced oxidation technology has a higher redox potential (E₀ = 2.5–3.1 V) than that of ˙OH (E₀ = 1.8–2.7 V), and has a longer half-life (30–40 μs) than that of ˙OH. The advantages of wider pH applicable range and more stable effect with organic matter.^3–7 However, peroxymonosulfate (PMS) is a mild oxidant, and its degradation efficiency of organic pollutants is not significant at room temperature. Therefore, it needs to be activated under heat, UV exposure, ultrasound or transition bimetallic oxides to produce with higher oxidation abilities, which then degrades the refractory organic compounds (POPs) in the environment.^8–12 Among the various studied methods, transition metal catalyst-activated PMS has been considered to be more feasible and effective. Among them, Co²⁺ is considered to be one of the best metal ions to activate PMS, but the environmental toxicity of dissolved Co limits its wide application.^13–15 Therefore, heterogeneous catalysts containing. Cobalt and its derivative complexes have been developed to activate PMS and avoid the potential leaching of metals. To date, CuCo₂O₄ bimetallic oxide with a spinel structure and general formula AB₂O₄ shows more potential in activating PMS because of its good chemical stability. Although these heterogeneous activation methods overcome the disadvantage of leached metal ions form homogeneous systems into the environment, there is still the problem of low reaction rates.¹⁶

To enhance the activity and stability of the catalyst, the composite materials of metal oxides and carbon-based catalysts used to activate PMS has attracted increasing attention.^17–19 Carbon-based materials usually include activated carbon (AC),^18,20 carbon nanotubes (CNT),^21,22 graphene oxide (GO)^23–25 and biochar (BC).^26,27 Some research reports have considered metal oxides as supported on carbon-based materials as catalysts to activate PMS. For example, CuCo₂O₄ doped AC was used to degrade the 3BF dye pollutant. The reaction rate (k) of CuCo₂O₄–AC was 5.2 times greater than that of CuCo₂O₄ alone, and the removal efficiency was still as high as 96% after 5 cycles.²⁰ GO supported CuCo₂O₄ was used to degrade bisphenol A (BPA), which showed that the BPA degradation rate reached 100% in 5 min with k value for CuCo₂O₄–GO that was 35.5 times that of CuCo₂O₄ alone.²³ Some studies reported the degradation of trimethoprim (TMP) from the sol–gel synthesis of CuFe₂O₄–MWCNT. One study showed that the degradation rate of TMP reached 90% in 24 min.²¹ Among all considered carbon-based materials, BC is widely used as a support or catalyst because of its high surface area, porous structure and rich functional groups which impact the surface, high cost-effectiveness and environmental friendliness.^28–30

For a long time, and ˙OH has been considered as the main way of persulfate oxidation to remove pollutants. However, in recent years, some studies have found that non-radical pathways, such as ¹O₂, play a dominant role in the activation of persulfate by carbon-based material. Compared with the radical oxidation pathway, the non-radical oxidation pathway is relatively stable and less disturbed by water matrix.^20,21,31 Therefore, the removal efficiency and mechanism of pollutants by RHBC–CuCo₂O₄ non-radical activated persulfate should be studied urgently.

An RHBC-modified CuCo₂O₄ was synthesized using a simple pyrolysis method as an activator of PMS to further improve its stability and catalytic activity. The OG is a typical azo dye and, has attracted much attention due to its toxicity, mutagenicity, carcinogenicity and refractory degradation.³² Therefore, OG was selected as the target pollutant to evaluate the catalytic performance of RHBC–CuCo₂O₄ on PMS. X-ray diffraction (XRD), scanning electron microscopy (SEM) and high-resolution transmission electron microscopy (HRTEM) were used to characterize the morphology and composition of the RHBC–CuCo₂O₄ catalyst. The effects of the catalyst dosage, PMS concentration, initial pH value and reaction temperature on the RHBC–CuCo₂O₄/PMS oxidation system were studied. The mechanism for the RHBC–CuCo₂O₄/PMS oxidation system was discussed based on radical quenching experiments and EPR analysis.

2. Experimental section

2.1 Chemicals and materials

The RHBC was purchased from Qinfeng Zhongcheng Biomass New Materials Co., Ltd (Nanjing). The PMS was purchased from Aladdin Biochemical Technology Co., Ltd. The cobalt nitrate hexahydrate (Co(NO₃)₂·6H₂O), copper nitrate trihydrate (Cu(NO₃)₂·3H₂O), anhydrous ethanol (EtOH, AR), sodium chloride (NaCl), sodium nitrate (NaNO₃), sodium bicarbonate (NaHCO₃), L-histidine (L-His, 99%), tert-butanol (TBA, 99%), p-benzoquinone (p-BQ, 99%), humic acid (HA, 99%), OG (96%), acetaminophen (ACT, 99%), rhodamine b (RhB, 99%) sulfathiazole (STZ, 99%), BPA (99%), and other reagents were purchased from Macklin Biochemical Technology Co., Ltd; The water used in the experiment was obtained from a Milli-Q ultrapure water machine (Millipore, USA).

2.2 Catalyst preparation

The catalyst was prepared using a pyrolysis method, in which the molar ratio of Co(NO₃)₂·6H₂O to Cu(NO₃)₂·3H₂O was 2 : 1, and the mass ratio of metal oxides to BC was 1 : 1. The initial temperature of the calcining process was 50 °C. The temperature was then increased to 150 °C at a rate of 10 °C min⁻¹, and kept for 60 min, Next, the temperature was increased to 300 °C at a rate of 10 °C min⁻¹, and kept for 240 min. The RHBC–CuCo₂O₄ catalyst was then allowed to naturally cool to room temperature, the prepared material is denoted as RHBC–CuCo₂O₄. The RHBC–CuO and RHBC–Co₃O₄ catalysts were prepared similarly.

2.3 Characterization of catalysts

The FEI F20TWINJEM-2100F TEM (FEI, USA) and FEI NANO450 SEM (FEI, USA) were used for morphological analysis of the samples. The microstructure of the samples was characterized using an XR-7000 for X-ray diffraction (XRD). An ESCALAB250XI was used for X-ray photoelectron spectroscopy (XPS) (Thermo Fisher Scientific, USA) to quantitatively analyse the element content and morphology of the materials. The N₂ sorption data were obtained using an ASAP2020 specific surface area (SSA) and a porosity analyser (Micromeritics, USA).

2.4 Experiment procedures

The degradation experiments were performed in a water bath shaker at 25 °C. A total of 100 mL of 50 mg L⁻¹ OG pollutant was added into a 250 mL conical flask, while the oxidant PMS and catalyst were subsequently added. The reaction system was sampled at a certain time and passed, through a 0.45 μm filter membrane. The analysis was performed after methanol quenching. The effects of different conditions (type and amount of catalyst, amount of PMS, reaction temperature, different ions and water quality) on the OG degradation were studied. In addition, experiments for catalyst recycling and free radical quenching were performed. In the experiments, the OG degradation can be described using pseudo-first order kinetics. As shown in the eqn (1) as below:where C_t is the OG concentration at time t, mM; C₀ is that initial OG concentration, mM; t is the reaction time, min; and k is the rate constant of the pseudo-first-order reaction, min⁻¹.

2.5 Analytical methods

The residual concentration of OG and RhB in the reaction system were detected using UV spectrophotometer, at detection wavelengths 475 nm and 554 nm, respectively. The residual concentrations of ACT, STZ and BPA were determined form high performance liquid chromatography (LC-20A, Shimadzu, Japan) with a photodiode array detector (SPDM20A). A Zorbax SB-C18 column (4.6 × 250 mm, 5 μm) (Agilent, USA) was used at a column temperature of 30 °C. A mixture of methanol (A)/0.3% formic acid solution (B) (30 : 70, v/v, for ACT and STZ; 70 : 30, v/v, for BPA) was used as the mobile phase at a flow rate of 1.0 mL min⁻¹. Total organic carbon (TOC) was determined using a TOC analyzer (Elementar, Germany). The degradation products were detected using a 7890B/5977C GC-MS (Agilent, USA). The reactive oxide species (ROS) generated form the system was detected using an EPR spectrometer (Bruker A320, USA).

3. Results and discussion

3.1 Characterization

The XRD characterization of the RHBC–CuCo₂O₄ is shown in Fig. 1. When preparing the RHBC–CuCo₂O₄, the RHBC characteristic peaks are not obvious due to its amorphous precursor. The 2θ peaks are 19.07°, 31.36°, 36.96°, 38.95°, 45.06° and 59.59°, which correspond to the characteristic peaks of CuCo₂O₄ (PDF # 01-1155).³³ This demonstrates the successful preparation of RHBC–CuCo₂O₄.

Fig. 1 XRD patterns of RHBC–CuCo₂O₄.

The morphologies of RHBC, CuCo₂O₄ and RHBC–CuCo₂O₄ were analysed via SEM and HRTEM, as shown in Fig. 2. In Fig. 2(A), the RHBC is an irregular blocky structure with a smooth surface, while Fig. 2(B) indicates the CuCo₂O₄ is composed of agglomerated nanoparticles.^33,34 When the CuCo₂O₄ is compounded with the RHBC, the nanoparticles of the CuCo₂O₄ are uniformly distributed on the surface of the RHBC (Fig. 2(C)), which indicates that the RHBC–CuCo₂O₄ was successfully synthesized. The RHBC, CuCo₂O₄, and RHBC–CuCo₂O₄ were further studied via HRTEM, as shown in Fig. 2(D), (E), and (F), respectively. The darker part in Fig. 2(D) is due to the multilayer bulk RHBC stack, the darker part in Fig. 2(E) is due to the opacity of the CuCo₂O₄ metal, and Fig. 2(F) shows the CuCo₂O₄ particles are uniformly distributed on the surface of the RHBC, which is consistent with the result of SEM images.^20,33

Fig. 2 SEM images of (A) RHBC, (B) CuCo₂O₄, and (C) RHBC–CuCo₂O₄; HRTEM images of (D) RHBC, (E) CuCo₂O₄, and (F) RHBC–CuCo₂O₄.

The collected EDX spectrum is shown in Fig. 3(A), which indicates that the catalyst is composed of Co, Cu, C and O elements. Further elemental analysis shows that all elements were homogeneously distributed in the catalyst (Fig. 3(B–E)).^19,20,33 In addition, the pore volume and Brunner–Emmett–Teller (BET) obtained by measuring the adsorption/desorption of N₂ gave the specific surface area as shown in Fig. S2 and, Table S1.†

Fig. 3 (A) EDX spectrum, and elemental mapping images for (B) RHBC–CuCo₂O₄, (C) Co, (D) Cu, and (E) C.

3.2 Performance comparison of different catalyst

The catalytic performance of the RHBC–CuCo₂O₄/PMS system was evaluated using OG as the target contaminant, as shown in Fig. 4. The degradation of OG by PMS alone can be neglected as the removal efficiency was only 5% after 30 minutes of reaction. When the RHBC, CuO, Co₃O₄, CuCo₂O₄, RHBC–CuO, RHBC–Co₃O_4, and RHBC–CuCo₂O₄ were individually added to the PMS–OG mixed solution, the OG removal efficiency improved significantly. After reacting for 15 min, the PMS was activated by the RHBC–CuCo₂O₄, and the OG degraded completely. In contrast, the other catalysts showed incomplete degradations for OG within 30 min (i.e., 6%, 27%, 17%, 60%, 97% and 80% OG removal by RHBC, CuO, Co₃O₄, CuCo₂O₄, RHBC–CuO and RHBC–Co₃O₄, respectively). These results show that the degradation performances of RHBC–CuO, RHBC–Co₃O₄, and RHBC–CuCo₂O₄ for OG are significantly improved compared with CuO, Co₃O₄, and CuCo₂O₄. The performance of RHBC–CuCo₂O₄ is improved by 40%, which indicates that the introduction of RHBC can enhance the catalyst activity to activate PMS and degrade OG.¹⁸ To quantitatively determine the catalytic activity of the above kinetic curves, the pseudo-first-order reaction rate constants k were calculated as 0.13 × 10⁻², 0.89 × 10⁻², 0.51 × 10⁻², 0.19 × 10⁻¹, 0.32 × 10⁻¹, 0.25 × 10⁻¹, and 0.95 × 10⁻¹ min⁻¹, indicating that RHBC–CuCo₂O₄ has an excellent catalytic activity to remove OG. Combined with the characterizations of Fig. 2 and Table S1,† this result may be due to the inhibition of CuCo₂O₄ agglomeration after loading RHBC, which results in a looser structure and a higher specific surface area (142.9 m² g⁻¹). This provides more active sites for more complete reactions, which is conducive to enhancing the catalytic activity of CuCo₂O₄.^20,23,24

Fig. 4 Degradation efficiency of OG in different oxidation system. Condition: [OG] = 50 mg L⁻¹, [catalyst] = 100 mg L⁻¹, [PMS] = 307 mg L⁻¹, and T = 25 °C.

3.3 Influencing factors of catalytic oxidation process

The effect of the RHBC–CuCo₂O₄ dosage on OG degradation is shown in Fig. 5(A), The removal rate of OG increased significantly as the RHBC–CuCo₂O₄ dosage increased from 0 to 200 mg L⁻¹. When the mass concentration of RHBC–CuCo₂O₄ is 0 mg L⁻¹, PMS alone could not degrade the OG. When the mass concentration increased to 25 mg L⁻¹, the removal rate of OG was approximately 93% after 30 min of reaction. When the mass concentration increased to 50, 100, and 200 mg L⁻¹, the times of complete removal for OG were shortened to 30, 15, and 10 min, respectively. The k value of RHBC–CuCo₂O₄ were 0.32 × 10⁻², 0.48 × 10⁻¹, 0.95 × 10⁻¹, and 1.86 × 10⁻¹ min⁻¹ at concentrations of 25, 50 100, and 200 mg L⁻¹, respectively. This may be due to the increased amount of RHBC–CuCo₂O₄ catalyst, which provides additional active sites in the oxidation system and accelerates the production of ROS from the activated PMS.^20,35

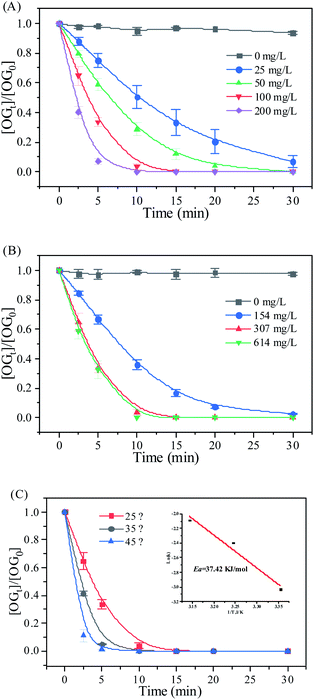

Fig. 5 (A) Dosage of RHBC–CuCo₂O₄, (B) dosage of PMS, and (C) effect of reaction temperature. Conditions: [OG] = 50 mg L⁻¹, [catalyst] = 0–200 mg L⁻¹, [PMS] = 0–614 mg L⁻¹, and T = 25–45 °C.

Fig. 5(B) illustrates the effect of the PMS dosage on OG removal. When the mass concentration of PMS was 154 mg L⁻¹, the OG could not be completely degraded. When the concentration of PMS was increased to 307 and 614 mg L⁻¹, the times for complete removal of OG were shortened to 15 and 10 min, and the k values increased from 3.39 × 10⁻² min⁻¹ to 0.95 × 10⁻¹ and 1.35 × 10⁻¹ min⁻¹, respectively. This is because when the PMS in the RHBC–CuCo₂O₄/PMS system is low, the generation rate of the ROS is limited. When the PMS dosage increases, the generation and rate of ROS increase, and the degradation rate of OG improves.³⁶

Fig. 5(C) shows the effect of different temperatures the OG removal in the RHBC–CuCo₂O₄/PMS system. When the temperature increased from 25 to 45 °C, the effect of OG removal improved, because thermal activation is one of the important ways to activate persulfate, and increasing the temperature is generally conducive to the production of ROS by PMS.⁸ At 25 °C, the degradation reaction was completed in 15 min. At 35 and 45 °C, the degradation reaction was shortened to 10 min. At 25, 35, and 45 °C, the k values of the oxidation system were 0.95 × 10⁻¹, 1.90 × 10⁻¹, and 1.98 × 10⁻¹ min⁻¹, respectively. According to the Arrhenius equation, the calculated activation energy (E_a) of the oxidation system was 37.42 kJ mol⁻¹, indicating that the catalytic activity for RHBC–CuCo₂O₄ was less affected by the reaction temperature. Meanwhile, the E_a was lower than that of the CuCo₂O₄/PMS oxidation system as reported in the literature,^20,37 which has a better applicability and operability in practical applications.

3.4 Reaction mechanism analysis

To determine the ROS for OG degradation in the RHBC–CuCo₂O₄/PMS system, radical quenching experiments were performed by adding 0.5 M EtOH, 0.5 M TBA, 10 mM p-BQ, and 10 mM L-His as ROS quenchers to the solution. The EtOH can quench both and ˙OH, TBA can quench ˙OH, p-BQ, and L-His can quench and ¹O₂. As shown in Fig. 6(A), when p-BQ and L-His were added to the RHBC–CuCo₂O₄/PMS system, the removal rates of OG were only 65% and 42%, indicating that and ¹O₂ may play major roles in OG degradation of. When EtOH and TBA were added, there was a slight effect on the OG degradation, indicating that and ˙OH may have minimal contributions.^32,35 The presence of significant ROS was further verified by EPR detection. As shown in Fig. 6(B) and (C), the signals for DMPO–OOH, DMPO–OH, DMPO–SO₄, and TEMP–¹O₂ were detected after PMS was activated by RHBC–CuCo₂O₄, which indicates the presence of , ˙OH, , ¹O₂ in the oxidation system.³⁸ Based on the results of the quenching experiments and EPR measurements, the sulphate, hydroxyl, superoxide, and singlet oxygen radicals coexist in the RHBC–CuCo₂O₄/PMS activation system. In addition, it is reported that , as a precursor, participates as ¹O₂, which may lead to playing an important role in OG degradation. It is also known that singlet oxygen radicals play a major role in OG degradation.^6,20,39,40

Fig. 6 Effect of different quenchers on the OG degradation by (A) RHBC–CuCo₂O₄/PMS; (B) DMPO–OOH, DMPO–OH, and DMPO–SO₄; (C) TEMP–¹O₂ complex; (D) Co 2p before and after the reaction; and XPS spectra of (E) Cu 2p and (F) O 1s. Conditions: [OG] = 50 mg L⁻¹, [catalyst] = 100 mg L⁻¹, [PMS] = 307 mg L⁻¹, T = 25 °C, [EtOH] = 0.5 M, [p-BQ] = [L-His] = 10 mM, and [DMPO] = [TEMP] = 50 mM.

The XPS spectra in Fig. 6(D–F), show the valence changes for Co and Cu and the oxygen content changes in the RHBC–CuCo₂O₄ catalyst before and after reactions to explore the activation mechanism of PMS. Five peaks (803.27, 795.39, 785.80, 780.87, and 779.46 eV) are shown in Fig. 6(D) for the XPS spectrum of Co 2p in RHBC–CuCo₂O₄ before the reaction.^17,41 Two obvious satellite peaks are located at 803.2 and 785.80 eV, respectively. 795.39 eV corresponds to the Co 2p_1/2 peak, while Co(II) and Co(III) are located at 780.87 and 779.46 eV, respectively. The Co(II) content decreased from 64.8% to 54.5% and the Co(III) content increased from 35.2% to 45.5%, suggesting that both Co(II) and Co(III) may be involved in the PMS activation.^23,33,42 In Fig. 6(E), the XPS spectrum of Cu 2p in RHBC–CuCo₂O₄ before reaction shows four peaks (961.93, 953.83, 941.95, and 933.88 eV), in which two obvious satellite peaks are located at 961.93 and 941.95 eV. The Cu 2p_1/2 peak position is at 953.83 eV, and Cu(II) is at 933.88 eV. After the reaction, Cu(I) increased from 0 to 50.98%, indicating that Cu(I) and Cu(II) may also be involved in the PMS activation.^21,42,43 In Fig. 6(F), the –OH increased from 29.08% to 40.39% after the reaction, which may be due to the surface hydroxylation of RHBC–CuCo₂O₄.^33,44 Therefore, a possible OG degradation mechanism by the RHBC–CuCo₂O₄/PMS oxidation system is proposed. First, Co(III) and Cu(II) in the RHBC–CuCo₂O₄ are reduced by HSO₅⁻ to Co(II) and Cu(I) simultaneously to produce (eqn (2)).^24,33,45 As cannot directly degrade OG due to the low redox potential, it may contribute to the formation of ¹O₂ (eqn (3) and (4)),⁴⁶ which is consistent with Fig. 6(F), as the lattice oxygen decreased from 40.31% before the reaction to 33.27% after the reaction. As E⁰_{Co(III)/Co(II)} (1.82 V) is higher than E⁰_Cu(II)/Co(I) (0.15 V), Co(III) and Cu(I) undergo electron transfer (eqn (5)), while Co(II) can react with H₂O to form surface hydroxylation, which is consistent with the increased –OH from 29.08% to 40.39% before the reaction in Fig. 6(F) (eqn (6)).^32,33 The O₂ generates through HSO₅⁻ transfer, before finally participating in the formation of ¹O₂ (eqn (7) and (8));^20,33,47 The EPR results indicate a small amount of and ˙OH also participate in the reaction, eqn (9) and (10). Consequently, the OG is efficiently degraded by ROS, including , ˙OH, , and ¹O₂ to CO₂ and H₂O as described in eqn (11). Meanwhile, the removal rate of TOC can reach 7.8% after 30 min degradation in this reaction system, which may be due to the small dosage of oxidant PMS. When the dosage of PMS is increased by 5 times, the removal rate of TOC in this reaction system can reach 89.1%. Besides, the intermediates in the degradation process of OG were analysed using an GC-MS, and the main intermediates were detected. It can be inferred that the degradation pathway of OG may be that , ˙OH, and ¹O₂ first oxidizes the azo bond in the OG structure, making it decolorized and degraded into aromatic compounds with benzene ring and naphthalene nucleus as the main structure. Then the aromatic compounds are oxidized into oxygen-containing organic matter, and then decomposed into small molecular acid substances, and finally mineralized into CO₂ and H₂O (Fig S3†).

2≡Cu(I)/≡Co(II) + 2SO⁻₅ → 2≡Cu(II)/≡Co(III) + 2SO²⁻₄ + ¹O₂ (4)

≡Cu(I) + ≡Co(III) → ≡Cu(II) + ≡Co(II) (5)

≡Co(II) + H₂O → ≡Co(II) –OH⁻ + H⁺ (6)

3.5 Environmental impact

Anions (Cl⁻, NO₃⁻, and HCO₃⁻) and dissolved organic matter such as humic acid (HA) are widely present in real water bodies.^8,35 Therefore, inorganic anions and HA were added to the solution to simulate water bodies, and the effect of the oxidation system on the OG removal was investigated. As shown in Fig. 7(A), 5 mM of inorganic anions (HCO₃⁻, Cl⁻, NO₃⁻) and 10 mg L⁻¹ of HA showed no significant inhibitory effect on the RHBC–CuCo₂O₄/PMS system.

Fig. 7 (A) Effect of water on OG removal, (B) reaction pH value on OG removal efficiency, (C) stability of RHBC–CuCo₂O₄. Conditions: [OG] = 50 mg L⁻¹, [catalyst] = 100 mg L⁻¹, [PMS] = 307 mg L⁻¹, T = 25 °C, [Cl⁻] = [NO₃⁻] = [HCO₃⁻] = 5 mM, and [HA] = 10 mg L⁻¹.

To further evaluate the effect of the RHBC–CuCo₂O₄/PMS oxidation system on removing pollutants in the actual water body, 50 mg L⁻¹ of OG solution was prepared using both filtered tap water and river water, and a degradation experiment was used under the same experimental conditions described above. The experimental results shown in Fig. 7(A), indicate that the RHBC–CuCo₂O₄/PMS system can still effectively remove OG from tap and river waters.

Experiments were carried out at different pH values (3.4–9.0) to further study the catalytic performance of the RHBC–CuCo₂O₄/PMS system on the OG. Fig. 7(B) shows the OG degradation form the RHBC–CuCo₂O₄/PMS system. The OG degradation rate was 100% and the k value was 0.95 × 10⁻¹ min⁻¹ at a pH of 3.4 and reaction time of 15 min. At pH values of 5, 7, and 9, the complete degradation time of OG was shortened to 10 min, and the k values were 0.16, 0.17, and 0.18 min⁻¹, respectively. The results showed that the degradation rate of OG increased with the pH. This may be due to the formation of interfacial repulsion between the PMS and the catalytic site (–OH) of the catalyst. This is caused by the connection of H⁺ with negatively charged superoxide bonds (O–O) for the PMS at acidic pH values, which affects the degradation rate.^6,20 At a larger pH, the degradation rate increases, which may be due to two factors. On the one hand, more surface ˙OH groups can enhance the electron density of transition metals and act as donor ligands to accelerate PMS activation.⁴⁸ On the other hand, alkali treatment is a way to activate PMS, which accelerates the production of ROS.^49,50

3.6 Reusability test of catalyst

The RHBC–CuCo₂O₄ was recovered from the aqueous solution via filtration after the reaction through a 0.45 μm organic membrane, washed three times with deionized water and ethanol, and then dried in a vacuum oven at 60 °C for 24 h. The stability of the RHBC–CuCo₂O₄ catalyst was then evaluated in the OG degradation experiment. Fig. 7(C) indicates that the OG degradation rate decreased slightly after 30 min of recycling, which decreased to 95% and 94% after the second and third uses, respectively. This may be due to the active sites being covered by the adsorbed organics, which results in the loss of active sites on the catalyst surface. Then, the catalytic performance for RHBC–CuCo₂O₄ was studied with four typical organic pollutants: ACT, STZ, BPA, and RhB. The reaction conditions were the same as the OG degradation process, and the degradation results are shown in Fig. S4.† After 30 min, the degradation rates of all pollutants reached 93–100%. Thus, RHBC–CuCo₂O₄/PMS, has the potential to degrade typical organic pollutants. In addition, RHBC–CuCo₂O₄ has a comparable catalytic performance with the other carbon–CuCo₂O₄ catalysts reported in the literatures (Table S2†).

4. Conclusion

The RHBC–CuCo₂O₄ prepared via pyrolysis has excellent performance when activating PMS to degrade OG. The results show that the OG degradation efficiency by RHBC–CuCo₂O₄/PMS was 40 times higher than that of CuCo₂O₄/PMS, which reached 100% in 15 min. In the RHBC–CuCo₂O₄/PMS system, anions (Cl⁻, NO₃⁻, and HCO₃⁻) and HA did not affect the degradation reactions. Combined with the results of radical quenching experiments and EPR, the catalytic degradation process in RHBC–CuCo₂O₄/PMS followed a non-self-radical pathway, with singlet oxygen ¹O₂ being the main active species. The results show that RHBC–CuCo₂O₄ has good stability and the OG degradation efficiency was still 94% after three cycles. In addition, the degradation rate of the RHBC–CuCo₂O₄ catalyst for the four typical pollutants (ACT, STZ, BPA and RhB) reached 93–100%, indicating that RHBC–CuCo₂O₄ has the potential to degrade typical organic pollutants. Therefore, RHBC–CuCo₂O₄ is a promising catalyst to activate PMS and degrade organic contaminants in aqueous solution.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This study was supported by the Zhejiang Provincial Natural Science Foundation of China (No. LY21B070007 and LY21B070008), the National Natural Science Foundation of China (No. 21607058), and the Public Welfare Research Project of Jiaxing (No. 2021AD10008 and 2020AY10005).
