New insight into the electrochemical reduction of different aryldiazonium salts in aqueous solutions

Abstract

Electrochemical reduction of different aryldiazonium salts in aqueous solution was studied in this work and it is shown that the aryldiazonium salts are converted to the corresponding aryl radical and aryl anion. The results of this research indicate that the reduction of aryldiazonium salts takes place in two single-electron steps. Our data show that when the substituted group on the phenyl ring is H, Cl, OH, NO₂, OCH₃ or SO₃⁻, the corresponding diazonium salt shows poor adsorption characteristics, but when the substituted group is methyl, the corresponding diazonium salt shows strong adsorption characteristics. In the latter case, the voltammogram exhibits three cathodic peaks. In addition, the effect of various substitutions on the aryldiazonium reduction was studied by Hammett's method. The data are show that with increasing electron withdrawing capacity of the substituent, the reduction of corresponding diazonium salt becomes easier.

---

Introduction

Diazonium salts are a large group of organic compounds with the general formula R–N₂⁺X⁻, where R can be alkyl or aryl and X is an organic or inorganic anion such as a halogen.¹ Diazonium salts are very important chemicals that have been used as versatile building blocks for the syntheses of a broad range of organic molecules. These compounds are able to perform two types of reactions: nitrogen-removal reactions and nitrogen-retention reactions.² In the first type, with the loss of the N₂ molecule, chemical bonds such as C–C, C–X, C–S, C–P and C–P are formed.^2–8 In the second type, the nitrogen atoms remain in the molecule as N=N or N–N bonds.^2,5,9,10

The high efficiency and high selectivity of these compounds have led to an increase in their use in the synthesis of organic compounds.^11,12 Despite the large number of published papers on the synthesis of organic compounds using diazonium salts, the electrochemical behavior of these salts has not been well studied. A literature survey on electrochemical reduction of diazonium salts show that the goal of most of these studies is the reduction of the diazonium salts to produce the corresponding radical in order to modify the electrode surface (Scheme 1).^13–21

Scheme 1 Modification of electrode surface by electrochemical grafting of diazonium salts.

These studies show that the reduction of aryldiazoniums involves a single-electron transfer from the cathode to the aryldiazonium salt, resulting in the release of a nitrogen molecule and the formation of an aryl radical followed by the bond formation between the electrode surface and the aryl group. Many researchers have worked on the grafting of aryldiazonium salts on different electrode surfaces, and obtained satisfactory results. Among them we can mention the interesting studies conducted by Pinson^22–31 and Downard et al.^32–41 In these published papers, the authors provided valuable information on the electrochemical reduction mechanism of aryldiazoniums in acetonitrile. Nevertheless, this study seeks to expand the frontiers of knowledge on some electrochemical properties of aryldiazonium salts in aqueous solutions. Therefore, in this paper, we want to provide some new information on the electrochemical behavior of aryldiazonium salts in water and investigate the effect of substituent groups on adsorption activity and electrochemical behavior of these compounds. This study will contribute to expand the understanding of electrochemical reduction of aryldiazonium salts in aqueous solutions.

Results and discussion

Mechanistic studies

Cyclic voltammograms of twelve aryldiazonium hydrogen sulfate salts (ADs) (10 mM) containing H, Cl, NO₂, OCH₃, SO₃⁻, OH and CH₃ substituent groups in aqueous solution (H₂SO₄, c = 1.0 M) at a temperature 4 ± 1 °C are shown in Fig. 1. The first common feature of these diazonium salts is their irreversibility. The absence of anodic peak even at high potential scan rates indicates the high reactivity of the electrode product and its participation in an irreversible fast chemical reaction. Most of these compounds (containing Cl, NO₂, OCH₃, SO₃H, H and OH substituent groups) have two cathodic peaks (C₁ and C₂) and some (containing CH₃ substituent group), have three cathodic peaks (C₀, C₁ and C₂).

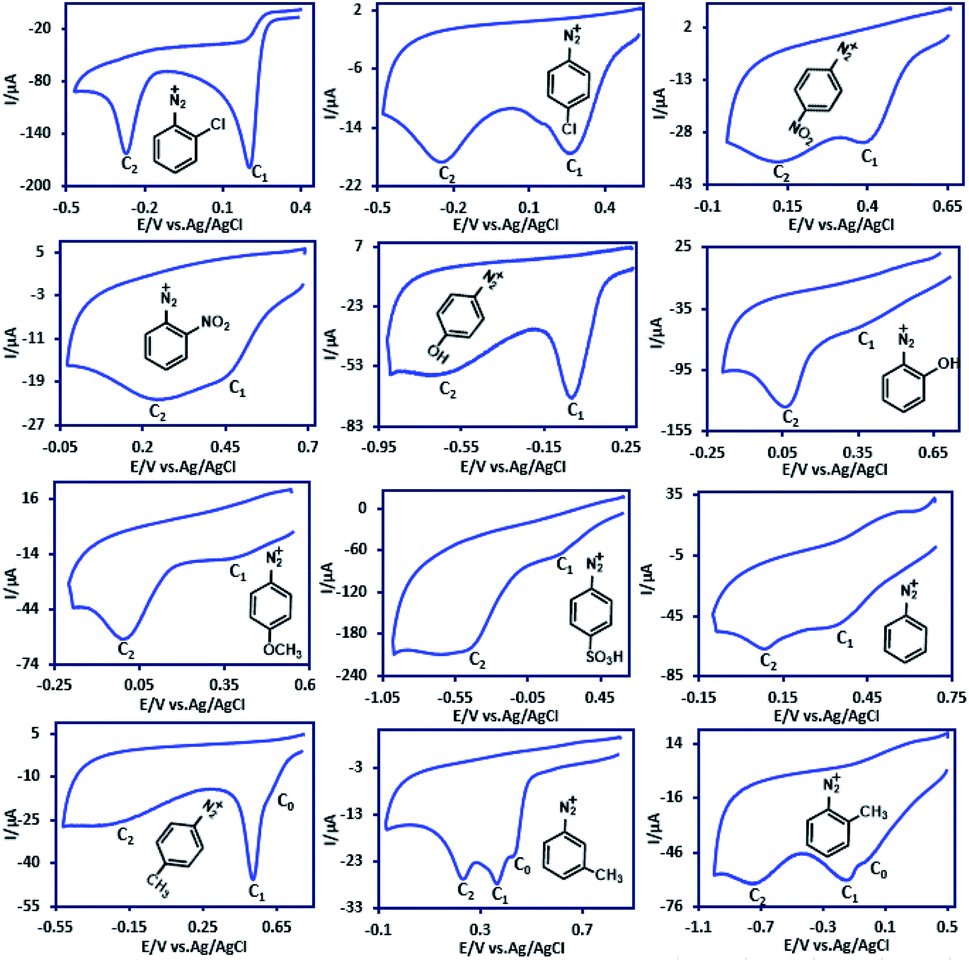

Fig. 1 Cyclic voltammograms of 10 mM of ADs in aqueous solution (H₂SO₄, c = 1 M) at glassy carbon electrode. Scan rate: 100 mV s⁻¹. Temperature: 4 ± 1 °C.

To explain this difference, the linear sweep voltammograms of 2-chlorobenzenediazonium (2ClAD) and 3-methylbenzenediazonium (3MeAD) were recorded at a temperature 4 ± 1 °C, at different scan rates (Fig. 2). As can be seen, in both compounds the peak current ratio (I_pC2/I_pC1) changes with increasing scan rates. This shows the unequal influence of the adsorption process on two single-electron transfer steps. The examination of 2ClAD voltammograms shows that while at a scan rate of 10 mV s⁻¹, the peak current ratio, I_pC2/I_pC1 is about 0.3 (log I_pC2/I_pC1 = −0.52), with the increase of potential scan rate to 4000 mV s⁻¹, the ratio increases sharply to about 2.4 (log I_pC2/I_pC1 = 0.38). These results indicate that the adsorption ability of the product of second electron transfer process is more than that of the first electron transfer process. To confirm this statement, the dependence of logarithm of the C₁ and C₂ peak currents (log I_pC1 and log I_pC2) on the logarithm of potential scan rate (log ν) were examined (Fig. 2, part VI). Under these conditions, the slope of the line for a pure diffusion controlled process is 0.5,^{42 (p. 236)} while this value is equal to 1 for a pure adsorption process.^{42 (p. 591)} The slope of log I_pC1 vs. log ν is 0.57. This value is higher than the theoretical value of 0.5 and is less than one, which indicate a partial adsorption for peak C₁. The slope of log I_pC2 vs. log ν is 0.92. This value is near to one which is the theoretical value for the adsorption-controlled process and confirms the greater adsorption ability of the product of second electron transfer process than that of the first electron transfer process.

Fig. 2 Parts I and II: linear sweep voltammograms of 10 mM of 2ClAD. Parts III and IV: linear sweep voltammograms of 10 mM of 3MeAD in aqueous solution (H₂SO₄, c = 1 M) in various scan rates at glassy carbon electrode. Scan rates from (a) to (j) are: 10, 25, 50, 100, 250, 500, 1000, 2000, 3000 and 4000 mV s⁻¹. Part V: plot of log I_pC2/I_pC1 values derived from linear sweep voltammograms of 2ClAD (parts I and II) vs. log v. Part VI: plot of log I_pC1 and I_pC2 values derived from linear sweep voltammograms of 2ClAD (parts I and II) vs. log v. Part V, inset: plot of log I_pC0 values derived from linear sweep voltammograms of 3MeAD (parts III and IV) vs. log v. Temperature: 4 ± 1 °C.

The voltammograms of 3MeAD however, show a more complex behavior. The linear sweep voltammogram of 3MeAD at a scan rate of 10 mV s⁻¹, shows three cathodic peaks (C₀, C₁ and C₂). At low scan rates, I_C0 and I_C1 are larger than the I_C2. As the potential scan rate increases, I_C0 increases linearly and its shape (peak C₀) becomes sharper and more symmetrical. Under these conditions, the slope of log I_pC0 vs. log ν is 0.96 (Fig. 2, part V, inset). This value confirms that peak C₀ is an adsorption peak which is separated by a 96 mV from peak C₁. This type of peak is observed when the electrode product is strongly adsorbed.^{42 (p. 596)} The response of peaks C₁ and C₂ to increasing potential scan rate is generally similar to that seen for 2ClAD.

The LSV of 3MeAD in aqueous solution (H₂SO₄, c = 1 M) is shown in Fig. 3a and has been compared with that of in acetonitrile solution containing HClO₄ (1 M) (Fig. 3b). The most important feature of Fig. 3b is the presence of two peaks. Based on our findings on the adsorption nature of peak C₀, this change in acetonitrile solution was predictable. The polarity of the solvent has a significant effect on the adsorption of organic compounds onto electrode surface. The higher solubility of the organic compounds in organic solvents decreases the adsorption process due to the higher affinity between organic compound and solvent.⁴³ Therefore, in acetonitrile solution, peak C₀ (a pre-peak) is removed and the voltammogram shows only peaks C₁ and C₂.

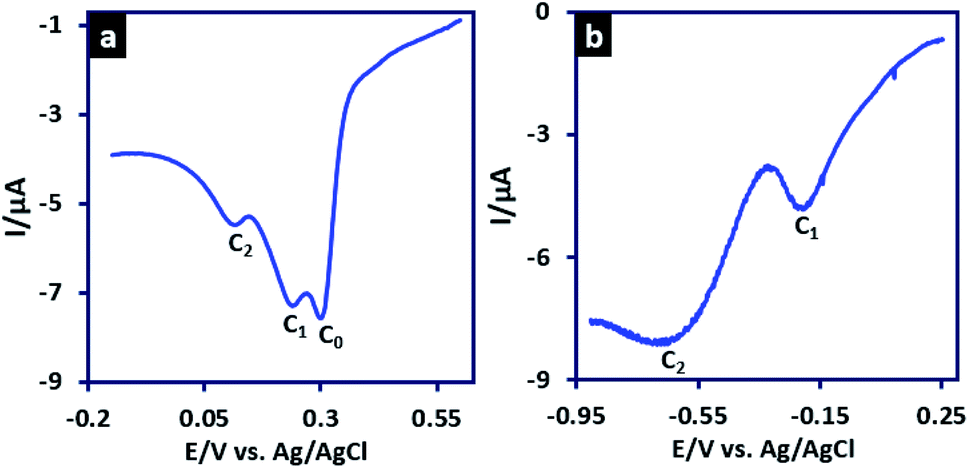

Fig. 3 (a) LSV of 3MeAD (10 mM) in aqueous solution (H₂SO₄, c = 1 M) and (b) LSV of 3MeAD (10 mM) acetonitrile solution (HClO₄, c = 1 M). Scan rate: 10 mV s⁻¹. Temperature: 4 ± 1 °C.

The presence of two peaks in the voltammograms of aryldiazoniums have also been reported in other studies.^{25,31,44–48} Downard and coworkers studied the electrochemical reduction of 4-nitrobenzenediazonium ion in [Bu₄N]BF₄–ACN and stated that the presence of two peaks in voltammograms is due to “a surface-catalyzed reduction step (proceeding at a clean surface only) followed by an uncatalyzed reduction at a more negative potential”.⁴⁸ Since our studies were conducted in aqueous solution (H₂SO₄, c = 1.0 M), but Downard's research in [Bu₄N]BF₄–ACN, there are some important differences in our results. In the voltammograms recorded by Downard et al.,⁴⁸ the ratio of the first cathodic peak to the second cathodic peak (I_pC1/I_pC2) increases with increasing potential scan rate, while our results are completely opposite (Fig. 2). Also in the case of some aryldiazonium salts such as 3MeAD, we clearly observed three cathodic peaks (C₀, C₁ and C₂) while such a case was not reported by Downard et al.

In connection with the observation of two cathodic peaks in the cyclic voltammogram of aryldiazonium salts, Pinson et al. reported that (in [Bu₄N]BF₄–ACN) the steric effect can limit or even suppress aryl radical grafting for aryldiazonium substituted in ortho position.⁴⁹ They reported that the cyclic voltammograms under these conditions show only one cathodic peak.⁴⁹ However, we observed that, the position of the substituted group on the phenyl ring has no effect on the number of peaks. As shown in Fig. 1 and 2, the cyclic voltammograms of aryldiazonium salts such as 2ClAD, 2MeAD and 2NO₂AD clearly show the presence of two cathodic peaks.

In this regard, Richard and co-workers investigated the electrochemical reduction of 4-nitrobenzenediazonium ion in water (0.1 M HCl) at GC electrode and announced that peak C₁ corresponds to the reduction of 4NO₂AD with concomitant grafting, and peak C₂ corresponds the reduction of the grafted nitro group.⁴⁶ This statement cannot be general, because, as shown in Fig. 1, there are two peaks in the cyclic voltammogram of aryldiazonium salts with other substituent groups, such as CH₃, Cl, H or OH.

Based on our results, it is clear that the data reported for the presence of two reduction peaks in acetonitrile solution cannot be used in water. According to our results, it can be concluded that in the case of 3MeAD, we are confronted with the strong adsorption of electrochemically generated aryl radicals. This strong adsorption causes peak C₀ to appear as a pre-peak in the CVs of 3MeAD.⁴² These data, along with the results of previously published results⁵⁰ can be used to propose the following pathway for the electrochemical reduction of ADs (Scheme 2). According to the proposed scheme, in the first stage an electron transfer concerted with the cleavage of dinitrogen⁵⁰ produces the aryl radical and in the second stage, the produced aryl radical is converted to related aromatic compound by taking one electron and one proton.

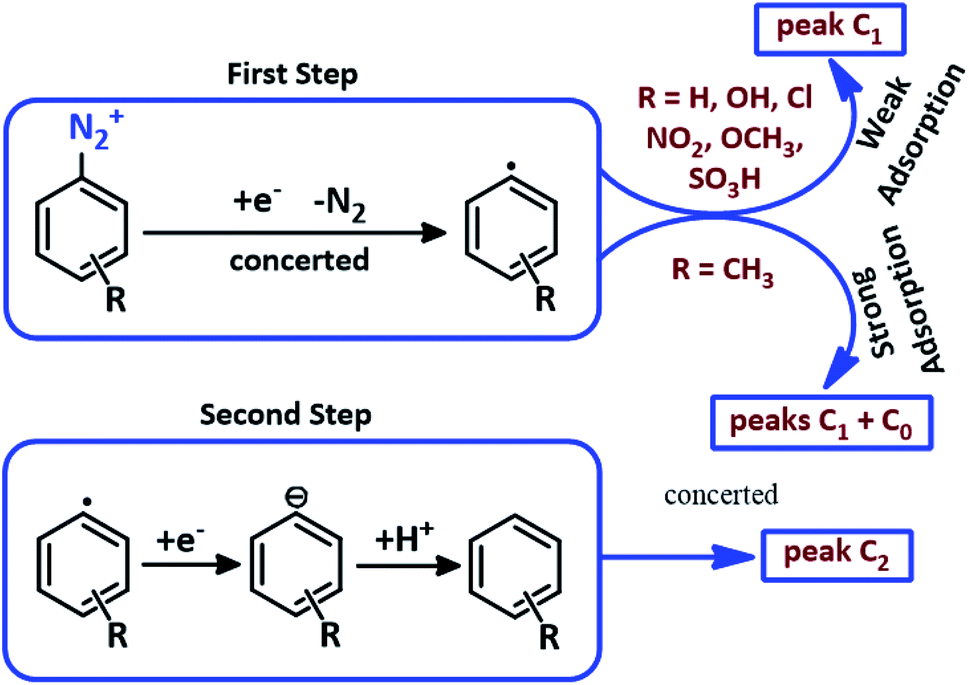

Scheme 2 Electrochemical reduction pathway of ADs.

Hammett studies

The effect of substituents on the reduction potential of AD compound is analyzed using the Hammett equation:⁵¹

log E_i = log E₀ + ρσ_p (1)

where, E_i is the reduction potential of substituted AD, E₀ is the reduction potential of AD when R = H, σ is the substituent constant (Hammett constant), which is dependent on the substituent group (in para position) and ρ is the slope of the log E_i–σ graph, reflecting the sensitivity of reduction potentials to the substituent effects. The Hammett plot for AD compounds is shown in Fig. 4. As can be seen, there is a relatively good linear relationship between reduction peak potential (E_pC2) and Hammett constant (σ). The slope of the line is 0.63. The positive slope indicates that the reduction potential of AD compounds is increased (easier reduction) significantly with increasing electron-withdrawing ability of the substituents. The results also show that the reduction potential of AD compounds to vary in the order 4NO₂AD (σ_p = 0.78 (ref. 52)) > 4ClAD σ_p = 0.23 (ref. 52)) > 4SO₃⁻AD (σ_p = 0.09 (ref. 53 and 54)) > 4MeAD (σ_p = −0.17 (ref. 52)) > 4OHAD (σ_p = −0.37 (ref. 52)). On the other hand, 4-methoxybenzenediazonium (4MeOAD) has a significant deviation from E_pC2–σ_p plot. This can be due to the dual properties OCH₃ group (resonance and inductive). The methoxide is inductively a withdrawing and resonantly a donating group. At the moment, we do not have a strong argument for diverting HAD from the E_pC2–σ_p plot. This linear relationship shows that reduction pathway of mentioned substituents are same together.

Fig. 4 Relationship between log E_pC2 and σ_p for AD derivatives in aqueous solution (H₂SO₄, c = 1 M) at glassy carbon electrode. Temperature: 4 ± 1 °C.

Conclusions

In this study electrochemical reduction of AD derivatives has been studied in aqueous solution (H₂SO₄, c = 1 M) and in temperature 4 ± 1 °C by cyclic voltammetry technique at a glassy carbon electrode. Our results show two irreversible cathodic processes which are attributed to the reduction of ADs to the corresponding aryl radical and reduction of aryl radical to aryl anion. Our data indicate that when the substituted group on the phenyl ring is H, Cl, OH, NO₂, OCH₃ or SO₃⁻, the corresponding diazonium salt shows poor adsorption characteristics. As a result, the voltammograms of these diazonium salts show only two reduction peaks (C₁ and C₂). But when the substituted group is methyl, the corresponding diazonium salts show strong adsorption characteristics. Therefore, the voltammograms of these diazonium salts, in addition to the peaks C₁ and C₂, show the adsorption peak C₀. The effect of substituent groups on the reduction of ADs was investigated by Hammett studies. The data are show that with increasing electron withdrawing capacity of the substituent, the reduction of corresponding diazonium salt becomes easier. In the end, according to Downard⁴⁸ “the origin of this intriguing behavior remains controversial”.

Experimental section

Apparatus and reagents

Cyclic voltammetry and linear sweep voltammetry were performed using an Autolab model PGSTAT 20 potentiostat/galvanostat equipped with NOVA 1.10 software. The working electrode used in the voltammetry experiments was a glassy carbon disc (2.6 mm diameter) and a platinum wire was used as the counter electrode. The working electrode potentials were measured vs. Ag/AgCl (3.0 mol L⁻¹ KCl) (all electrodes from AZAR electrodes). The glassy carbon electrode was polished using alumina slurry followed by washing with water and acetone. All anilines derivatives were obtained from commercial sources.

Aryldiazonium salts were synthesized by adding 0.1 mmol aniline derivatives in 10 ml aqueous solution containing 1.0 M of sulfuric acid. After cooling the temperature of the solution down to 4 ± 1 °C, 0.12 mmol of sodium nitrite was added to the mixture. In order to synthesize aryldiazonium salts suitable for study in organic solvents, follows the method already described and use only perchloric acid instead of sulfuric acid. The precipitate was separated by filtration and washed several times with cold distilled water. In the following, for voltammetry in acetonitrile, 0.1 mmol of the precipitate was dissolved in 10 ml acetonitrile containing 1.0 M perchloric acid.
