Synthesis, characterization and self-assembly of linear and miktoarm star copolymers of exclusively immiscible polydienes

Abstract

Linear and non-linear copolymers of the PB-b-PI sequence [PB: polybutadiene of high 1,4-microstructure (∼92%) and PI: polyisoprene of high 3,4-microstructure (∼55–60%)] and their corresponding miktoarm star copolymers of the PB(PI_3,4)₂ and PB(PI_3,4)₃ type were synthesized by combining anionic polymerization and selective chlorosilane chemistry. Molecular characteristics, thermal properties and structure/properties relationship are reported for the specific copolymers and especially the self-assembly is of major importance and interest due to the nature of the blocks. The identical electron densities between the two polydienes led to impossible morphological characterization through small angle X-ray scattering (SAXS) and only transmission electron microscopy results verify the adopted morphology for each copolymer, justifying the assumption that the segment–segment interaction parameter between the two polydienes of high 1,4-microstructure (∼92%) for the PB and ∼55–60% 3,4-microstructure for the PI is well above zero. The consistency of the bulk morphology results of this study compared with those of the extensively studied system of the PS(PI)_n=1,2,3 type (PS: polystyrene), were unexpectedly coherent. High chain flexibility provided by the two polydiene segments, leads to promising properties unattainable from corresponding thermoplastic triblock copolymers of these polydienes with PS (PS-b-PI-b-PS, PS-b-PB-b-PS), especially for rheological studies.

---

Introduction

Diblock copolymers constitute a highly investigated topic, due to their exceptional properties, rendering them suitable for various applications.^1–4 Their unique potential is attributed to their self-assembly in several nanostructures, which is determined by the value χN (χ: Flory–Huggins interaction parameter and N: degree of polymerization)⁵ and the volume fraction of at least one of the blocks (φ_A since φ_B = 1 − φ_A). Recently, linear diblock copolymers, exhibiting high segment incompatibility, have been thoroughly studied due to their prospective use in nanotechnology,^6,7 optoelectronics⁸etc. Advances on anionic and controlled/living radical polymerization techniques provide the opportunity of synthesizing complex architecture copolymers and terpolymers,^9–13 leading to enhanced properties of these materials when compared to their linear analogues.¹⁴ Microphase separation of miktoarm star copolymers particularly of the AB_n type (where n = 2, 3, etc.) results in differentiations on the expected self-assembly topologies, and unique morphologies are obtained, due to the restrictions imposed by the single junction point on which all chains are connected.^12,15,16

The morphologies adopted from miktoarm star copolymers depend on the total degree of polymerization (N), the volume fraction (φ), the A/B segment–segment Flory–Huggins interaction parameter (χ), the molecular architecture and the elasticity parameter (ε), which describes the effect of both chain architecture and elastic asymmetry in the strong-segregation regime.^17–19 Although, synthesis and microphase separation of complex architecture systems, containing a number of different dissimilar segments, have been analytically investigated in the literature,⁹ only a few cases involving elastomeric blocks and specifically polyisoprene (PI) and polybutadiene (PB) have been reported.^20–22 The possible segment microstructures for PB are: 1,4-cis, 1,4-trans and 1,2-, while for PI are: 1,4-cis, 1,4-trans, 3,4- and 1,2. When the 3,4-microstructure of PI is significantly increased (∼55–60%), then the 1,2-microstructure is increased as well (15–25%) leading to a small percentage for the 1,4 linear segments. In general, the possible combinations of microstructures for PB and PI in a diblock copolymer result in the following sequences: PB_1,4-b-PI_1,4, PB_1,2-b-PI_1,4, PB_1,2-b-PI_3,4 and PB_1,4-b-PI_3,4.^23,24

For block copolymers, the type and relative amount of the specific stereoisomers should always be taken into consideration, since local structure influences the segment–segment interaction parameter. The aforementioned combinations of polydiene chains, namely PB_1,4-b-PI_1,4, PB_1,2-b-PI_1,4 and PB_1,2-b-PI_3,4, have been explored, and the interaction parameters were found sufficiently low, concluding to mixed homogeneous phases, either for copolymers or even blends of the polydiene pairs in typical molecular weights. The χ interaction parameter of diblock copolymers of predominantly 1,4-PB and predominantly cis-1,4 PI with either or both of the corresponding linear homopolymers has been determined.²³ Cohen and Wilfong²⁴ calculated χ for different diene pairs, obtaining room temperature values of 0.081 and 0.048 for 1,4-PI/1,4-PB and 1,4-PI/1,2-PB sequences, respectively.

The synthesis and morphological characterization of linear terpolymers containing PS, PB and PI have been reported for the first time by Neumann et al.^25,26 The results of this study showed that the specific triblocks behaved mainly as two-phase systems, consisting of a mixed 1,4-PI/1,2-PB phase segregated by the polystyrene (PS) domains. Avgeropoulos et al.²⁷ reported for the first time anionically synthesized and morphologically characterized ABC triblock terpolymers with two polydiene blocks and one PS, where the difference lies in the 3,4-microstructure content of the PI (∼55% 3,4-content), whereas the PB block was of high 1,4-microstructure (∼92%). A three-component microphase separated system was adopted, leading to the conclusion that the 1,4-PB/3,4-PI polydiene combination has a comparatively higher interaction parameter χ than the other three possible combinations (1,4-PI/1,4-PB, 1,4-PI/1,2-PB and 3,4-PI/1,2-PB). Furthermore, altering the block sequence from PB-b-PS-b-PI to PS-b-PB-b-PI, but keeping the volume fraction ratio constant between the segments, resulted in identical morphologies (three-phase four-layer lamellae), leading to the conclusion that the adopted topologies were equilibrium structures [since the block sequence did not alter the morphology as already reported in PS-b-PI-b-P2VP²⁸vs. PI-b-PS-b-P2VP²⁹ respectively, where P2VP corresponds to poly(2-vinylpyridine)].

Additionally, Avgeropoulos’ group²² showed the coexistence of core–shell double gyroid and three-phase four-layer lamellar morphologies for similar PS-b-PB-b-PI triblock terpolymers, as verified by transmission electron microscopy. SAXS results led to the conclusion that the 3-phase 4-layer lamellae are most evident, despite the relatively long-range order and the observations of both structures by bright-field TEM images. Diblock copolymers of the PB_1,4-b-PI_3,4 type were also synthesized, in order to verify the microphase separation and immiscibility of these two polydienes with specific geometric isomerisms.²²

Further investigations were reported on more complex architecture materials, such as second-generation dendritic copolymers consisted of polydienic segments exclusively and terpolymers comprised of two polydiene blocks and one relatively rigid block (PS). These studies led to self-assembled two-phase and three-phase topologies, despite the complexity of these systems, indicating that the interaction parameter, especially between the two polydienes is well above zero.^30–32

Finally, an alternating gyroid morphology has been for the first time reported in the literature for an ABC miktoarm star terpolymer consisting of PS, PB and PI, where the two polydienes exhibited respective microstructures (∼92% 1,4-microstructure for PB and ∼55–60% 3,4-microstructure for PI).³³

Apart from their self-assembly capability, polymers consisted of at least one elastomeric unit exhibit interest in the field of rheology, due to their fatigue resistance and viscoelastic properties, rendering them appealing materials as adhesives for industrial applications.^34–40

In this study, we report the synthesis of four (4) linear diblock copolymers of the PB_1,4-b-PI_3,4 sequence, four (4) asymmetric miktoarm star copolymers of the PB_1,4(PI_3,4)₂, and four (4) of the PB_1,4(PI_3,4)₃ type. The synthesis procedure and properties of such non-linear copolymers have not been reported in the literature yet.

The molecular characterization of all samples was performed through size exclusion chromatography (SEC), to confirm the dispersity (Đ), and membrane osmometry (MO) to calculate the number average molecular weight, (M̄_n) values. Moreover, proton nuclear magnetic resonance spectroscopy (¹H-NMR) was employed to verify the characteristic ratios of stereochemical microstructures for the polydienes as well as to identify the composition of each segment. Thermal analysis via differential scanning calorimetry (DSC) was also performed to examine the glass transition temperatures (T_g) of the two blocks, their potential microphase separation when studied in bulk, and the dependence of the architecture on the T_g of each system.

Morphological characterization was carried out exclusively through bright-field transmission electron microscopy (TEM), to verify the microphase separation and provide significant information concerning the dependence of the complex architecture on the adopted morphology. It should be mentioned that the total average molecular weight of the PB block, as well as the volume fraction, remained almost identical in both linear and non-linear copolymers in order to compare their structure/properties relationship and verify the influence of non-linear architecture in the self-assembly of such systems.

Experimental

Materials

1,3-Butadiene (99%), trichloromethylsilane (CH₃SiCl₃) (99%), tetrachlorosilane (SiCl₄) (99%), and calcium hydride (CaH₂) (95%) were purchased from Sigma-Aldrich, isoprene (98%), sec-butyllithium, n-butyllithium and styrene (99%) from Acros Organics, benzene (99.7%) from Chem-Lab, tetrahydrofuran (THF) (99.9%) from Carlo Erba, toluene (99.7%) from Honeywell and methanol (99%) from Fluka. The purification methods of all reagents involved in the polymerizations were carried out based on the requirements of anionic polymerization and are well elaborated elsewhere.^41,42

Instrumentation

Size exclusion chromatography (SEC) measurements were carried out using a SpectraSystem P1000 equipped with an isocratic pump, column oven (LabAlliance) heated at 30 °C, three columns in series (PLgel 5 mm Mixed-C, 3007.5 mm), refractive index (RI, Shodex RI-101) and ultraviolet absorbance (UV, SpectraSystem UV1000) detectors. Tetrahydrofuran (THF) was the eluent at a flow rate of 1.0 mL min⁻¹ and the system was calibrated with eight PS standards (M_p: 4300 to 3 000 000 g mol⁻¹).

Membrane osmometry (MO) was adopted to determine the number average molecular weight by using a Gonotec Osmomat 090 in 35 °C using toluene as solvent.

Proton nuclear magnetic resonance (¹H-NMR) spectroscopy was carried out in CDCl₃ at 25 °C using Bruker AVANCE II spectrometers operating at 250 and 400 MHz and data were processed using UXNMR (Bruker) software.

Differential scanning calorimetry (DSC) measurements were performed on a Q20 TA instrument. The heating ramp was 5 °C min⁻¹ and the temperature range from −120 °C to 40 °C. A small amount of 5 mg was used from each sample. Two heating and one cooling cycles were performed and the results of the second heating were reported and analysed using Advantage v5.4.0 (TA instruments) software.

Transmission electron microscopy (TEM) experiments were performed in a JEOL 2100 TEM using 200 keV as the acceleration voltage. Cryo-ultramicrotoming of the as-cast films was performed in a Leica EM UC7 ultramicrotome, in order to obtain very thin sections (∼40 nm) at −100 °C (below the lowest T_g of both PB_1,4 and PI_3,4, being approximately −90 °C and −10 °C respectively) and the sections were picked up on 600 mesh copper grids. Since both blocks are exclusively consisting of carbon and hydrogen atoms, selective staining with vapors of OsO₄ 4% aqueous solution was employed for ∼60 minutes (based on the aging of the stainer solution).

Synthesis of linear and non-linear diblock copolymers

A thorough description of the synthetic protocol for the linear diblock copolymers of the PB_1,4-b-PI_3,4 type has already been mentioned in the literature by Zapsas et al.²² However, the novel synthesis of the miktoarm star copolymers consisting of only polydiene segments is documented for the first time. Specifically, four (4) miktoarm star copolymers of the PB_1,4(PI_3,4)₂ and four (4) of the PB_1,4(PI_3,4)₃ type were synthesized following the justified synthetic protocols of anionic polymerization and chlorosilane chemistry, under high vacuum conditions. The anionic polymerization and linking reactions were carried out in evacuated, n-BuLi washed custom-made glass reactors, at room temperature. Reagents were added via break-seals and aliquots for characterization were taken by heat-sealing of constrictions at all steps.

The analytical adopted synthetic procedure for the preparation of the miktoarm star copolymers of the PB_1,4(PI_3,4)_2,3 type belonging to set no. 1 is described: following the purification of 1,3-butadiene (15 g, 0.27 mol), the monomer was distilled in the apparatus, containing purified benzene (500 mL) and subsequently, sec-BuLi (0.34 mmol) was introduced to the solution leading to initiation of the 1,3-butadiene polymerization, which was completed after 24 hours at room temperature (Fig. 1a). A small aliquot was taken for the molecular characterization of the PB segment via SEC, MO and ¹H-NMR. The living PB_1,4 chains reacted instantly and under continuous stirring with excess (at least 500-fold excess ∼0.17 mol) of linking chlorosilane reagents (either CH₃SiCl₃ or SiCl₄), to exclusively substitute just one chlorine atom as shown in Fig. 1b for the case of CH₃SiCl₃ and in Fig. 1c for SiCl₄. After the complete removal of the excess of the linking reagent on the high vacuum line, a substantial amount of purified benzene was distilled in the apparatus to re-dilute the PB_1,4-Si-Cl₂ or the PB_1,4-Si-Cl₃ intermediate product. To a separate glass apparatus, an appropriate amount of isoprene (21.5 g, 0.31 mol) and sec-BuLi (0.6 mmol) in a mixture of non-polar solvent (benzene, 500 mL) and polar solvent (THF, 1 mL) were introduced under high vacuum and were left to react at room temperature for 24 hours (Fig. 1d) to synthesize the living PI_3,4⁽⁻⁾Li⁽⁺⁾ exhibiting the required 3,4-microstructure (∼55–60%). In the case of PB_1,4(PI_3,4)₃ different amount of isoprene was employed, specifically 14.5 g of monomer (0.21 mol) were reacted with 0.6 mmol sec-BuLi. An excess of the PI_3,4⁽⁻⁾Li⁽⁺⁾ (∼20% excess compared to the Si–Cl living ends of the PB_1,4-Si-Cl₂ or PB_1,4-Si-Cl₃) was introduced in the polymerization reactor substituting all remaining chlorine atoms evident in the PB_1,4-Si-Cl₂ or the PB_1,4-Si-Cl₃ intermediate products, leading eventually to the desired PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ miktoarm star copolymers respectively (Fig. 1e and f).

Fig. 1 Schematic illustration of the synthesis of the PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ miktoarm star copolymers. (a) Synthetic route for the living PB precursor, PB_1,4⁽⁻⁾Li⁽⁺⁾, (b) coupling reaction between trichloromethylsilane and PB_1,4⁽⁻⁾Li⁽⁺⁾, (c) coupling reaction between silicon tetrachloride and PB_1,4⁽⁻⁾Li⁽⁺⁾, (d) synthesis reaction of the living PI chains, PI_3,4⁽⁻⁾Li⁽⁺⁾, (e) linking reaction for the synthesis of miktoarm star copolymer of the PB_1,4(PI_3,4)₂ type and (f) corresponding linking reaction for miktoarm star copolymer of the PB_1,4(PI_3,4)₃ type.

Results and discussion

Molecular characterization results of linear diblock and non-linear miktoarm star copolymers

The molecular characterization results for all samples [linear diblock copolymers of the PB_1,4-b-PI_3,4 type and miktoarm star copolymers of the PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ type respectively] are presented in Table 1 indicating increased compositional and molecular homogeneity. The mass fraction, f, was calculated via¹H-NMR measurements. For comparison reasons, the samples were divided into 4 different sets, where each set includes one linear diblock copolymer with similar molecular characteristics to the corresponding PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ miktoarm stars. The glass transition temperatures for all final materials were determined via DSC. The dispersity indices were retrieved by SEC measurements and the number average molecular weights (M̄_n) for the individual blocks and the final copolymers were calculated by MO.

Table 1 Molecular and thermal characterization results for the linear diblock copolymers PB_1,4-b-PI_3,4 and the miktoarm star copolymers of the PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ types

Sample sets	Samples	(M̄n)PB ^a (kg mol^−1)	(M̄n)PI ^a (kg mol^−1)	(M̄n)total ^a (kg mol^−1)	Đ total ^b	f PB ^c	φ PB ^d	(Tg)PB ^e (°C)	(Tg)PI ^e (°C)
a MO in toluene at 35 °C. b SEC in THF at 30 °C. c ^1H-NMR measurements in CDCl3 at 25 °C. d From the equation . e DSC measurements.
Set no. 1	PB1,4-b-PI3.4-1	38.2	55.4	93.6	1.06	0.42	0.42	−91	−8
	PB1,4 (PI3.4)2-S1	43.1	35.3	107.3	1.08	0.41	0.41	−91	−7
	PB1,4 (PI3.4)3-S2	43.1	23.8	109.4	1.07	0.40	0.40	−91	−5
Set no. 2	PB1,4-b-PI3.4-2	65.1	27.3	92.4	1.05	0.71	0.71	−91	−7
	PB1,4 (PI3.4)2-S3	61.5	16.7	92.4	1.06	0.67	0.67	−91	−4
	PB1,4 (PI3.4)3-S4	61.5	9.8	88.2	1.08	0.69	0.69	−91	−6
Set no. 3	PB1,4-b-PI3.4-3	58.3	40.2	98.5	1.06	0.59	0.59	−91	−11
	PB1,4 (PI3.4)2-S5	55.2	22.8	98.1	1.06	0.57	0.57	−91	−11
	PB1,4 (PI3.4)3-S6	55.2	15.6	100.3	1.07	0.56	0.56	−91	−10
Set no. 4	PB1,4-b-PI3.4-4	35.5	72.4	107.9	1.07	0.32	0.32	−92	−18
	PB1,4 (PI3.4)2-S7	27.5	34.5	94.5	1.05	0.30	0.30	−92	−17
	PB1,4 (PI3.4)3-S8	27.5	25.7	101.6	1.05	0.28	0.28	−91	−15

---

All diblock copolymers were synthesized through anionic polymerization by using the sequential monomer addition method and high vacuum techniques, while for the non-linear copolymers, selective chlorosilane chemistry was employed. High 3,4-microstructure was adopted for all PI blocks by using a small amount (∼1 mL) of a polar additive (THF). The total number average molecular weight of the final copolymers, in all cases, was kept constant at approximately 100 kg mol⁻¹, to compare the molecular and morphological characteristics of the linear diblock copolymers with the respective miktoarm stars. Furthermore, such diblock copolymers with the specific segments and microstructure content have been sparsely synthesized and studied in bulk up to date.²² It is important to mention that these types of miktoarm star copolymers were synthesized for the first time and have never been reported in the literature. In all cases, PB was the first block (PB_1,4-b-PI_3,4 sequence) since it is not possible to synthesize well-defined PI_3,4-b-PB_1,4 taking into account that the presence of THF from the beginning of the polymerization (when PI is the first block) would increase the 1,2-microstructure of PB and no microphase separation would be observed.

As already reported in the literature, microphase separation between the two blocks is evident only when the 3,4-microstructure content of the PI is high (∼55–60%), and that of the PB block shows high 1,4-microstructure (∼92%).^22–24,31

The monomodal molecular weight distributions of the four linear diblock copolymers of the PB_1,4-b-PI_3,4 type, indicating high molecular and compositional homogeneity, as well as the absence of any undesired by-products during the synthetic procedure, are observed in Fig. 2a. In the ESI, (Fig. S1 and S2†), two representative chromatographs of the linear samples (PB_1,4-b-PI_3,4-3 and PB_1,4-b-PI_3,4-4) are depicted separately along with the initial PB precursors.

Fig. 2 SEC chromatographs of all the final synthesized materials of the PB_1,4(PI_3,4)_{n=1, 2, 3} type, corresponding: (a) to the linear diblock copolymers of the PB_1,4-b-PI_3,4 type, (b) to the PB_1,4(PI_3,4)₂ miktoarm star sequence and (c) to the PB_1,4(PI_3,4)₃ miktoarm star copolymers.

For all miktoarm star copolymer samples, the total number average molecular weight varied between 88–109 kg mol⁻¹, in agreement with the corresponding values mentioned already for the linear diblock copolymers. Additionally, the number average molecular weight of the PB arms for each set is kept constant. Accordingly, narrow dispersity indices for all miktoarm star copolymers are illustrated in Fig. 2b and c, respectively. In the ESI, (Fig. S3 and S4†) the SEC chromatographs of the PB and PI blocks, the unfractionated and the final fractionated miktoarm star copolymers of the PB_1,4(PI_3,4)₂-S₇ and PB_1,4(PI_3,4)₃-S₈ are shown separately. The solvent/non-solvent fractionation technique was used to remove the undesired products, which were formed during the linking reactions of the living blocks with the corresponding chlorosilane (CH₃SiCl₃ or SiCl₄). The molecular characterization via¹H-NMR spectroscopy was necessary to verify the composition results as revealed by SEC and MO, as well as to confirm the existence of the desirable 3,4-microstructure at high values (>55%) for the PI segments and the 1,4-microstructure for the PB blocks (∼92%) in all synthesized materials.

In Table S1,† the type and number of protons with the corresponding chemical shifts for protons incorporated in the monomeric units of polybutadiene and polyisoprene are presented. Three representative spectra corresponding to samples PB_1,4-b-PI_3,4-4, PB_1,4(PI_3,4)₂-S7, and PB_1,4(PI_3,4)₃-S8 (corresponding to set no. 4) are given in Fig. 3. For each sample, the corresponding ¹H-NMR spectrum of initial block PB_1,4, intermediate PI_3,4, and the final linear or non-linear copolymer is given for comparison reasons. The mass fractions and characteristic microstructure content of each arm (PB and PI), as calculated directly from the ¹H-NMR spectra, are shown in Table S2.† High 3,4-microstructure (57–62%) was obtained for all the PI blocks of the twelve (12) synthesized materials, while all PB blocks were enriched in 1,4-microstructure (90–92%).

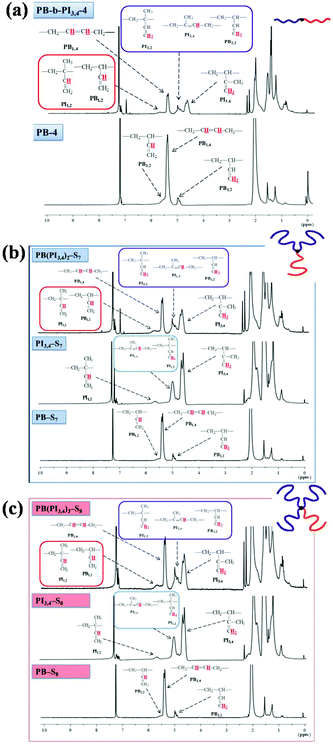

Fig. 3 ¹H-NMR spectra for the three samples of set no. 4, corresponding to: (a) the PB_1,4-b-PI_3,4-4 diblock copolymer and the initial PB-4 homopolymer, (b) the PB_1,4(PI_3,4)₂-S₇ miktoarm star copolymer and the respective PB-S₇, PI_3,4-S₇ blocks and (c) the PB_1,4(PI_3,4)₃-S₈ miktoarm star copolymer and the respective PB-S₈, PI_3,4-S₈ blocks.

Thermal characterization results of linear diblock and non-linear miktoarm star copolymers

Analysing the DSC results of all samples, two endothermic transitions were obtained, corresponding to the T_g of PB_1,4 and PI_3,4. Crystallization and melting temperatures (T_m) are not evident in any thermograph, since both PB and PI, as synthesized by anionic polymerization with the specific microstructures, exhibit T_m above 40 °C and the non-linear microstructures (−1,2 and −3,4) are mostly atactic with very low degree of crystallization. The existence of two T_g, similar to the T_g of the corresponding homopolymers²⁷ leads to the conclusion that the two different blocks are totally immiscible. All T_g of the miktoarm star copolymers and the corresponding linear diblock copolymers, along with their molecular characteristics are also presented in Table 1. A typical DSC thermograph including the PB_1,4-b-PI_3,4-4, PB_1,4(PI_3,4)₂-S₇ and PB_1,4(PI_3,4)₃-S₈ relevant to set no. 4 is given in Fig. 4. The three different DSC thermographs are presented in one plot for comparison reasons. The remaining DSC thermographs for the other three sets of samples (set no. 1, 2 and 3 respectively), are given in the ESI (Fig. S5–S7†).

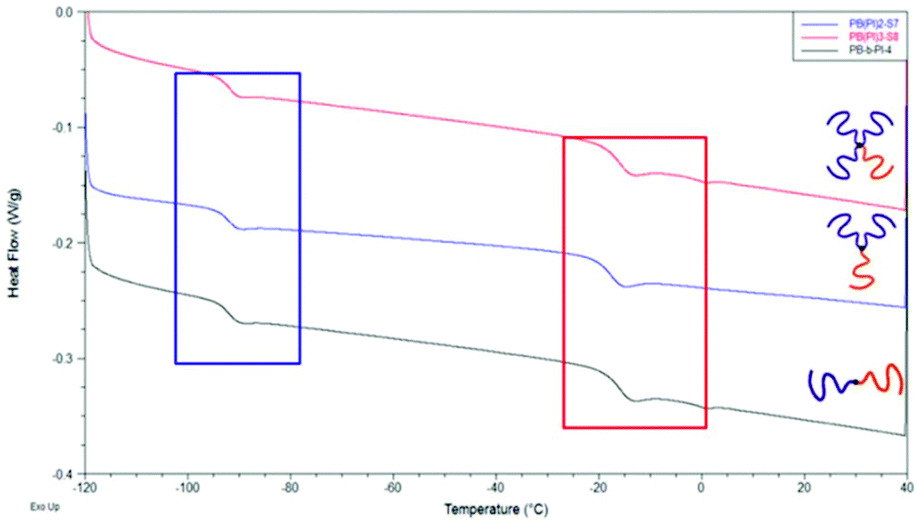

Fig. 4 DSC thermographs for samples constituting set no. 4, where PB_1,4-b-PI_3,4-4, PB_1,4(PI_3,4)₂-S₇ and PB_1,4(PI_3,4)₃-S₈ are the black, blue and red colour curves respectively. In the blue frame the glass transition temperatures for all the PB blocks are presented and in the red frame the glass transition temperatures of the PI block are depicted.

Morphological characterization results of linear diblock and non-linear miktoarm star copolymers

The morphological characterization of all synthesized polymers was accomplished exclusively by TEM studies. It should be noted that this type of copolymers cannot be studied with small angle X-ray scattering (SAXS) due to the similar and almost identical electron density of the two polydiene segments involved.^33,43

The sample preparation used to investigate the morphology of all final copolymers in bulk is a crucial and important procedure. The casting was performed in a non-selective solvent for several days to promote the formation of equilibrium morphologies.^22,44 Initially, for the preparation of the thin films, a 5% w/v solution of each sample in toluene was prepared. The samples were casted for approximately 5–7 days in a properly established saturated environment. Films with a thickness approximately 1 mm were formed and parts of them were placed in an oven for thermal annealing (50 °C) for 5 days. Afterwards, each film was removed from the annealing oven and immersed in liquid nitrogen for a few seconds to keep the adopted structure at a high annealing temperature. The quenched films were directly cryo-ultramicrotomed, and thin films of approximately 40 nm were collected on copper grids. In order to enhance the intrinsic difference in electron density between the PB and PI blocks, selective staining with aqueous solution of OsO₄ for approximately 1 hour, was employed. PI chains are stained less, since the double bonds of PI_3,4 segments are sterically hindered compared to those of PB_1,4 domains.^22,27,33

Another important aspect of the PB_1,4/PI_3,4 copolymers system is that the interaction parameter χ is yet unknown. Furthermore, the restrictions concerning the electron densities of both PB and PI, do not allow SAXS measurements in order to calculate the interaction parameter χ, by studying the order–disorder transition as a function of temperature.

Set no. 1

The TEM images obtained from the stained sections of PB_1,4-b-PI_3,4-1, PB_1,4(PI_3,4)₂-S₁ and PB_1,4(PI_3,4)₃-S₂ copolymers after being thermally annealed are presented in Fig. 5. As far as the PB_1,4-b-PI_3,4-1 diblock copolymer is concerned, alternating lamellae of the two different phases were adopted as illustrated in the TEM image (Fig. 5a). Alternating dark grey and white/grey layers are evident in which the dark layer (PB_1,4) is slightly smaller in dimensions when compared with the other layer, PI, verifying therefore the volume fraction (0.42 for PB_1,4) as calculated from ¹H-NMR. Moreover, no discrepancy is encountered with the morphology predicted by the phase diagram of the PS-b-PI diblock copolymer system.^45–47 In the TEM image (Fig. 5b) from thin sections of the annealed PB_1,4 (PI_3,4)₂S₁ sample with PB_1,4 volume fraction equal to 0.41, hexagonally close-packed cylinders of the dark grey phase (PB_1,4) in the white matrix (PI_3,4) are evident. The TEM image (Fig. 5c) from the annealed PB_1,4(PI_3,4)₃-S₂ sample, with PB_1,4 volume fraction equal to 0.40, indicates bcc spheres of the dark grey PB_1,4 domains in a white PI_3,4 matrix.

Fig. 5 Bright-field TEM images of the first set of the PB_1,4(PI_3,4)_{n=1, 2, 3} type samples after thermal annealing at 50 °C for 5 days followed by microtoming and staining with vapors of OsO₄ for approximately 1 hour corresponding to: (a) PB_1,4-b-PI_3,4-1 diblock copolymer, (b) PB_1,4(PI_3,4)₂-S₁ miktoarm star copolymer and (c) PB_1,4(PI_3,4)₃-S₂ miktoarm star copolymer.

The image does not show any alternating layers (as in the hcp cylinders), and since no SAXS experiments are possible, based on the phase diagram for non-linear copolymers of the PS/PI system, the TEM is significantly indicating bcc spheres of minority component (PB) in the matrix of the majority (PI).

Set no. 2

In Fig. 6 the TEM images obtained from the stained sections of samples PB_1,4-b-PI_3,4-2, PB_1,4(PI_3,4)₂-S₃ and PB_1,4(PI_3,4)₃-S₄, after being thermally annealed are presented. In all cases, the PB_1,4 domains are the majority component since the volume fractions (Table 1) for PB_1,4 are 0.71, 0.67 and 0.69, respectively. For the linear diblock copolymer PB_1,4-b-PI_3,4-2, hexagonally close-packed cylinders of the minority component (PI) in the matrix of the majority (PB) are evident (Fig. 6a). A cubic structure based on the G minimal surface (double gyroid) is expected at the SSL (strong segregation limit) for the PS-b-PI diblock copolymer for similar volume fraction (0.29 of the minority component) taking into consideration the relevant phase diagram χN vs. f(φ), where χ is the Flory–Huggins interaction parameter, N the total degree of polymerization and φ the volume fraction of the minority component.^45–47 For both annealed miktoarm star copolymers PB_1,4(PI_3,4)₂-S₃ and PB_1,4(PI_3,4)₃-S₄ alternating lamellar structures were observed, where the dark grey area corresponds to the PB_1,4 phase and the white to the PI_3,4 domains (Fig. 6b and c respectively).

Fig. 6 Bright-field TEM images of the second set of the PB_1,4(PI_3,4)_{n=1, 2, 3} type after thermal annealing at 50 °C for 5 days followed by microtoming and staining with vapors of OsO₄ for approximately 1 hour corresponding to: (a) PB_1,4-b-PI_3,4-2 diblock copolymer, (b) PB_1,4(PI_3,4)₂-S₃ miktoarm star copolymer and (c) PB_1,4(PI_3,4)₃-S₄ miktoarm star copolymer.

Set no. 3

Further TEM studies were conducted and are presented in Fig. 7, for the third set of copolymers, specifically for the PB_1,4-b-PI_3,4-3 PB_1,4(PI_3,4)₂-S₅ and PB_1,4(PI_3,4)₃-S₆ after thermal annealing at 50 °C for 5 days. Similar to the PB_1,4-b-PI_3,4-1, alternating lamellae of the two different phases was evident for sample PB_1,4-b-PI_3,4-3 (Fig. 7a). The only difference in the PB_1,4-b-PI_3,4-3 lies on the reversibility of the layer thickness where in this case the PB_1,4(φ_PB = 0.59) layer (dark grey) is slightly larger than the PI layer, verifying, the volume fraction from the molecular characterization studies. No discrepancy is encountered with the adopted morphology for sample PB_1,4-b-PI_3,4-3 from that expected for a PS-b-PI diblock copolymer sample with identical molecular characteristics and composition.^45–47 Similarly, TEM micrographs (Fig. 7b) from thin sections of the annealed PB_1,4(PI_3,4)₂-S₅ sample with PB volume fraction equal to 0.57 showcase alternating lamellae of the dark grey phase (PB_1,4) and the white phase (PI_3,4). The TEM (Fig. 7c) image of the annealed PB_1,4(PI_3,4)₃-S₆ sample with PB volume fraction equal to 0.56 illustrates hexagonally close-packed cylinders [dark grey phase (PB_1,4) in a white matrix (PI_3,4)]. For this sample, despite thermal annealing, no long-range order could be observed, as evident in the other related samples with different volume fractions. A possible explanation could be allocated to the fact that the thin sections were slightly mechanically deformed as taken from the microtome and were placed on the TEM grid. For all samples [except PB_1,4(PI_3,4)₃-S₆] the TEM images are indicating distinct and straightforward microdomains with relevant long-range order.

Fig. 7 Bright-field TEM images of the third set of the PB(PI_3,4)_{n=1, 2, 3} type after thermal annealing at 50 °C for 5 days followed by microtoming and staining with vapors of OsO₄ for approximately 1 hour corresponding to: (a) PB_1,4-b-PI_3,4-3 diblock copolymer, (b) PB_1,4(PI_3,4)₂-S₅ miktoarm star copolymer and (c) PB_1,4(PI_3,4)₃-S₆ miktoarm star copolymer.

Set no. 4

TEM results for samples PB_1,4-b-PI_3,4-4, PB_1,4(PI_3,4)₂-S₇ and PB_1,4(PI_3,4)₃-S₈, after thermal annealing, are presented in Fig. 8. These materials compose the last set of samples with the lowest volume fraction of PB (0.32, 0.30 and 0.28 respectively). For the linear diblock PB_1,4-b-PI_3,4-4, dark grey hexagonally packed cylinders of PB_1,4 in the white/grey matrix of the PI phase was the adopted morphology (Fig. 8a). Since the volume fraction of PB_1,4 is equal to 0.32, according to the morphological behaviour of the already studied PS-b-PI system, a cubic structure (double gyroid), with networks of the minority component (PB) in the matrix of the majority (PI) should be observed.^45–47

Fig. 8 Bright-field TEM images of the fourth set of the PB_1,4(PI_3,4)_{n=1, 2, 3} type after thermal annealing at 50 °C for 5 days followed by microtoming and staining with vapors of OsO₄ for approximately 1 hour corresponding to: (a) PB_1,4-b-PI_3,4-4 diblock copolymer, (b) PB_1,4(PI_3,4)₂-S₇ miktoarm star copolymer and (c) PB_1,4(PI_3,4)₃-S₈ miktoarm star copolymer.

Since PB_1,4 and PI_3,4 are very flexible chains, the adaptation of such a complex 3D morphology may not be possible due to entropic and enthalpic constrains, leading to a less thermodynamically demanding 2D topology. Therefore, hexagonally close-packed (hcp) cylinders of the minority phase (PB) in the matrix of the majority (PI) are preferred. In this case, it would be interesting to prepare binary blends of the diblock copolymers, with either homopolymer PB_1,4 or homopolymer PI_3,4 in order to explore whether the double gyroid morphology will appear in the volume fraction regime 0.25–0.32. If not, then the specific studied system indicates a major discrepancy with the microphase separation of the well-studied PS-b-PI^42–45 diblock copolymer system.

For the PB_1,4(PI_3,4)₂-S₇, the TEM image (Fig. 8b) clearly indicates hexagonally close-packed cylinders of the dark grey phase (PB_1,4) in the white matrix (PI_3,4), whereas the corresponding image of the annealed PB_1,4(PI_3,4)₃-S₈ shows bcc spheres of the dark grey phase (PB_1,4, φ_PB = 0.28) in a white matrix (PI_3,4). The image does not show any alternating layers (as in the hcp cylinders), and since no SAXS experiments are possible, we rely on the fact (by tilting) that the TEM micrograph in Fig. 8c indicates exclusively bcc spheres of the minority component (PB) in the matrix of the majority (PI).

In Table 2, the molecular characteristics, volume fractions, degree of polymerization (N), theoretically predicted morphologies based on PS(PI)_n (where n = 1, 2, 3) system,^42,44,45 and verification of the adopted morphology for all the linear and non-linear polydiene copolymers PB(PI)_n (where n = 1, 2, 3), are summarized.

Table 2 Molecular characteristics, volume fractions, degrees of polymerization (N), theoretically predicted morphologies and verification of morphology for all the copolymers synthesized (the symbol * indicates morphology of low long-range order)

Sample sets	Samples	(M̄n)total (kg mol^−1)	φ PB	φ PI	N PB1,4/PI3.4	Morphology from theory	Verified morphology
LAM, alternating lamellae; CYL, hexagonally packed cylinders; SPH, spheres; DG, double gyroid.
Set no. 1	PB1,4-b-PI3.4-1	93.6	0.42	0.58	1522	LAM	✓
	PB1,4(PI3.4)2-S1	107.3	0.41	0.59	1836	CYLPB	✓
	PB1,4(PI3.4)3-S2	109.4	0.40	0.60	1848	SPHPB	✓
Set no. 2	PB1,4-b-PI3.4-2	92.4	0.71	0.29	1606	DG	CYLPI
	PB1,4(PI3.4)2-S3	92.4	0.67	0.33	1631	LAM	✓
	PB1,4(PI3.4)3-S4	88.2	0.69	0.31	1571	LAM	✓
Set no. 3	PB1,4-b-PI3.4-3	98.5	0.59	0.41	1670	LAM	✓
	PB1,4(PI3.4)2-S5	98.1	0.57	0.43	1692	LAM	✓
	PB1,4(PI3.4)3-S6	100.3	0.56	0.44	1709	CYLPB	✓*
Set no. 4	PB1,4-b-PI3.4-4	107.9	0.32	0.68	1722	DG	CYLPB
	PB1,4(PI3.4)2-S7	95.5	0.30	0.70	1523	CYLPB	✓
	PB1,4(PI3.4)3-S8	101.6	0.28	0.72	1643	SPHPB	✓

---

It is straightforward from Table 2 that for each set of samples, copolymers with identical molecular characteristics (almost constant total number average molecular weight) have been synthesized in order to be compared based on the complexity of the architecture, as well as on the differentiation in adopted topology for identical samples indicating different volume fractions. It is the first time that such a study is being reported directly for linear and non-linear materials composed exclusively of immiscible polydienes (PB_1,4 and PI_3,4), which microphase separate.

The results between the theoretically predicted morphology^17,47 and the experimentally observed by TEM, did not lead to any discrepancies for the novel miktoarm stars, when compared with the corresponding results for similar linear and non-linear PS/PI systems, as evident from the last column of Table 2. It was expected that such an agreement would occur only for the linear diblock copolymers, or even for the least complex architecture [samples of the PB_1,4(PI_3,4)₂ type]. The fact that PB_1,4(PI_3,4)₃ type of copolymers also showed similar agreement is of great importance, since it verifies our assumption regarding identical Kuhn lengths between the two polydienes, leading to elasticity parameters (ε) exclusively dependant on the number of chains.

The only cases where different results were obtained from the relevant PS/PI system, was for two linear copolymers where in both samples, the expected morphology should have been the DG cubic structure (sample-2 and sample-4). In contrast, hexagonally close-packed cylinders of the minority component (PB or PI for φ_PB = 0.71 and 0.32 respectively) in the matrix (PI or PB) were observed.

As already described for the specific diblock copolymers, since PB_1,4 and PI_3,4 exhibit high chain flexibility, their ability to adopt such a complex architecture (DG) may not be possible due to entropic as well as enthalpic constrains. As a result, this leads to a less thermodynamically demanding topology such as the hcp cylinders of the minority phase in the matrix of the majority.

Moreover, rheological studies of the aforementioned synthesized materials would be of great scientific interest, since elastomers are materials which are capable of undergoing extremes on stress/strain mechanical properties studies and will provide further insight into polymer dynamics. We aim, in order to complete the structure property relationship of the specific copolymer system, to calculate the χ_eff with SANS and rheology experiments as well as conclude to a more detailed phase diagram by including the morphologies adopted from the binary blends of the pure linear and non-linear copolymers with corresponding homopolymers of hPB_1,4 or hPI_3,4 respectively.

Conclusions

A series of model linear and non-linear copolymers of the PB_1,4(PI_3,4)_n type (where n = 1, 2, 3) was successfully synthesized by employing anionic polymerization high-vacuum techniques in combination with selective chlorosilane chemistry. Specifically, twelve (12) samples were prepared and divided into four (4) different sets, where each set includes one linear diblock copolymer with similar molecular characteristics to the corresponding PB_1,4(PI_3,4)₂ and PB_1,4(PI_3,4)₃ miktoarm stars. Molecular characterization was performed through SEC, MO, and ¹H-NMR measurements, indicating a high degree of molecular and compositional homogeneity in all cases. DSC and TEM studies verified the microphase separation and provide significant information concerning the influence of the architecture (linear or non-linear) on the adopted topology. Morphological characterization studies also revealed the coherence of theoretical [for the PS(PI)_n system] and experimental [for the PB_1,4(PI_3,4)_n system] results for the complex architectures. The only discrepancies from the relevant PS/PI system were found for two linear copolymers, where in both samples, hcp cylinders of the minority phase in the matrix of the majority were observed, instead of the expected DG cubic structure morphology.
