Atomic force microscopy reveals the mechanical properties of breast cancer bone metastases

Abstract

Mechanically dependent processes are essential in cancer metastases. However, reliable mechanical characterization of metastatic cancer remains challenging whilst maintaining the tissue complexity and an intact sample. Using atomic force microscopy, we quantified the micro-mechanical properties of relatively intact metastatic breast tumours and their surrounding bone microenvironment isolated from mice, and compared with other breast cancer models both ex vivo and in vitro. A mechanical distribution of extremely low elastic modulus and viscosity was identified on metastatic tumours, which were significantly more compliant than both 2D in vitro cultured cancer cells and subcutaneous tumour explants. The presence of mechanically distinct metastatic tumour did not result in alterations of the mechanical properties of the surrounding microenvironment at meso-scale distances (>200 μm). These findings demonstrate the utility of atomic force microscopy in studies of complex tissues and provide new insights into the mechanical properties of cancer metastases in bone.

---

Introduction

Mechanics are widely agreed to play a critical role in cancer development, progression and metastasis.¹ Existing studies of cancer mechanics commonly measure either the micro-properties of single cultured cells, or the bulk properties of whole tumour tissues. Single cultured cancer cells have repeatedly been shown to be more compliant than their healthy counterparts,^2–6 whilst tumours (in vivo/ex vivo) are stiffer than their surrounding tissues.^1,7,8 This paradox has commonly been explained by tumours exhibiting stiff components (e.g. collagen) in the peripheral stroma.^1,9 A comprehensive mechanical study of primary breast tumours, using relatively intact human biopsies, reported that cancer progression is associated with a significant softening of tumour epithelial cells,¹⁰ but is not limited to the previously assumed matrix stiffening.⁹ This demonstrates the heterogeneity of the mechanical properties within the tumour microenvironment, and indicates the importance of bridging across length scales when performing mechanical measurements.

To improve our understanding of the role that mechanics play in the later stages of cancer development, reliable mechanical characterization of metastatic tumours and the surrounding microenvironment is essential, but currently there are few published studies. Bone is one of the most common metastatic sites for multiple cancers, including breast cancer,^11,12 with metastasis increasing patient morbidity and mortality. Once cancer has spread to the skeleton, it is considered incurable, so methods to characterize this process which allow the identification of effective therapeutic interventions need to be developed. Due to the complex nature of the multicellular bone microenvironment, interactions between tumour and bone cells have been widely explored as key to driving metastatic growth and therefore represent therapeutic targets (recently reviewed by Coleman et al.¹³). As it is impossible to carry out detailed analyses of tumour spread to bone in humans, murine model systems mimicking the different stages of bone metastasis have been developed.¹⁴ We and others have used these models to demonstrate how breast cancer cells colonize specific areas of bone (niches) that support their survival and progression, ultimately resulting in tumour-induced bone destruction in the form of lytic lesions that can be visualized using μCT analysis.^15–17 It is extremely challenging to access bone metastases without perturbation, due to the complex structure of bone (i.e. the hard shell surrounding the near liquid bone marrow). Meanwhile, where mechanical characterization on complex tumours has been performed as in the study by Plodinec et al.,¹⁰ the viscoelastic effects that occur during tumour progression^18,19 were not taken into account.

Here, we have quantified the micro-mechanical properties, including both elastic moduli and viscosity, of relatively intact breast cancer experimental bone metastases and the surrounding microenvironment in a mouse model^15,20 using colloidal probe atomic force microscopy (AFM).²¹ The results were compared to explanted subcutaneous breast tumours (grown in mice) and single 2D cultured breast cancer cells in a petri-dish, revealing significant differences in mechanical properties between simplified 2D in vitro models, non-orthotopic tumours (i.e. breast tumours grown under the skin) and metastatic tumours (both 3D). We also revealed, by comparison to the properties of normal tumour-free bone microenvironment, that in our model system there is minimal mechanical impact of the metastatic tumour on its surrounding environment at meso-scale distances (>200 μm).

Materials and methods

Animals

All experiments involving animals were conducted in accordance with UK Home Office Regulations (https://www.gov.uk/guidance/research-and-testing-using-animals, March 2013) and Guidelines for the welfare and use of animals in cancer research.²² Research was performed under Programme Project Licence authority (PPL70/8964) granted by the UK Home Office following approval by the Project Applications, Amendments and Ethics Committee, University of Sheffield, UK. Female BALB/c Nude [Foxn1-Crl] immunodeficient mice (Charles River, UK) (n = 27 in total) were housed in a controlled environment with 12 hours light/dark cycle, at 22 °C. Mice had access to food and water ad libitum.

Sample preparation for different cancer models

Green Fluorescent Protein (GFP) expressing triple negative breast cancer cells (MDA-MB-231^luc/^GFP) were cultured in RPMI-1640 GlutaMAX™ medium (Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% FCS, maintained at 37 °C and 5% CO₂. Cells harvested from the subculture were seeded into petri-dishes (TPP, Switzerland) (Fig. 1a) one day prior to mechanical measurements and maintained in the incubator. The medium was changed immediately prior to mechanical measurements to remove any dead cells.

Fig. 1 Illustrative optical images of the different cancer models. (a) Optical image of the MDA-MB-231^luc/GFP cells (darker areas) grown in 2D culture in a petri-dish. (b) Conventional and (c) the corresponding in situ fluorescent images of a subcutaneous tumour (SCT) surface (outlined by dashed lines) immobilised on substrate. Cancer cells in SCT express GFP and can be identified from the fluorescent image (arrows).

Subcutaneous tumours (SCT) (Fig. 1b and c) were established by injecting 1 × 10⁶ MDA-MB-231^luc/GFP into the hind flank. Mice were culled 4 to 5 weeks post-injection when palpable tumours were detected for analysis.

Experimental bone metastatic tumour (MT) were established in mice (6 weeks old) by injecting 5 × 10⁴ MDA-MB-231^luc/GFP cells into the left cardiac ventricle, as described previously.^15,20 The growth of bone metastases was monitored twice weekly post-injection by non-invasive bioluminescent imaging using an IVIS Lumina II imaging system (Fig. 2a). Mice were culled for analysis when a positive luciferase signal was monitored in the hind limbs (within 3 to 4 weeks post-injection). The size of tumours in bone was variable, but a mature tumour was observed in most cases if a strong bioluminescent signal was obtained on bones from which the attached soft tissues had been removed (Fig. 2b). Bones from the same strain of non-tumour bearing mice (6 to 8 weeks old) were used as the negative control (bones w/o tumour).

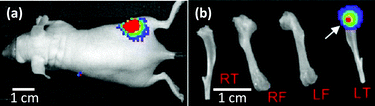

Fig. 2 Bioluminescence images of established breast cancer metastasis. (a) In vivo bioluminescence image of a mouse with breast cancer metastasis to bone (in colours). (b) Ex vivo bioluminescence image of the dissected hind limbs of the mouse in (a) (RF: right femur; RT: right tibia; LF: left femur; LT: left tibia). The bioluminescent signal (in colours, arrow) indicates the LT contains breast cancer metastases at the proximal end.

Dissected subcutaneous tumours (Fig. 1b and c) and hind limbs (both femurs and tibias) (Fig. 3a–c) were placed in phosphate buffered saline (PBS) (Lonza, US) at 4 °C. Both types of specimens were split using a razor blade and immobilised in a petri-dish using a two-component dental impression putty (Provil Novo Light, Kulzer, UK), immediately before mechanical measurements. Care was taken to maintain hydration of the exposed sample surface during the entire process.

Fig. 3 Illustrative optical images of the breast cancer metastasis model. (a) An example optical image of the bone surface (femur) from a tumour-free mouse in situ on the AFM. The region of interest in this study is the metaphysis (outlined by dashed line) located just below the growth plate (arrows), which is predominantly colonised by metastatic cancer cells. (b) Conventional and (c) corresponding in situ fluorescent images of an example bone containing breast cancer metastases, collected in situ on the AFM. The metastatic tumour (MT) differs from the surrounding tissues in colour in the conventional image (outlined by dashed line in b). The more accurate tumour region is identified from the green fluorescence protein (GFP) expressed by the cancer cells in MT (outlined by dashed line in c). The bone metaphysis region surrounding the MT was only accessed at distances greater than 200 μm from the fluorescent tumour edge (outlined by dash-dotted lines in b and c) in AFM measurements to avoid involving any cancer cells.

Force–indentation and creep analyses by AFM

Both elastic and viscoelastic properties of different cancer models were determined from force–indentation (F–δ) and creep curves obtained by atomic force microscopy (AFM), using the method described previously.²¹ AFM measurements were performed on a Nanowizard III system (JPK, Germany) with an extended z piezo range (100 μm), combined with an inverted optical microscope (Eclipse Ti, Nikon, Japan) and a custom built top view optical microscope (broadband and fluorescent imaging, excitation: 445/45 nm, emission: 525/39 nm). Details of the long-range Z scanner and top view optics are provided in Methods of ESI.† Rectangular cantilevers (MLCT-Bio-DC, cantilever B with nominal spring constant of 0.02 N m⁻¹) (Bruker, USA) with a 25 μm diameter polystyrene microsphere (Sigma Aldrich, USA) glued to the free end were used in all AFM measurements, after passivation with 10 mg mL⁻¹ bovine serum albumin (BSA), (Sigma Aldrich, USA). The elastic modulus of polystyrene spheres is at GPa level,²³ and thus fulfils the assumption of the probe being infinitely stiff in traditional contact mechanical models in this study (i.e. the deformation of the polystyrene probe can be neglected), where it was used for extremely soft biological samples on a soft cantilever. The spring constant and deflection sensitivity of each cantilever was calibrated prior to each measurement.²⁴

Measurements were performed at 36 to 37 °C. SCTs and bones with metastases remained in PBS and MDA-MB-231^luc/GFP cells in culture medium throughout the measurements. AFM data on a single sample (i.e. one piece of SCT or bone, or one petri-dish of MDA-MB-231^luc/GFP cells) could typically be collected in 2 to 3 h. All tissue measurements were completed no longer than 12 hours post-cull.

In situ optical images aided targeting the area of analysis. For tissues, F–δ curves were acquired at randomly selected positions within different regions of interest, including whole metaphysis of non-tumour bearing bone (Fig. 3a), MT (Fig. 3b and c, dashed region), bone metaphysis surrounding the tumour at a distance greater than 200 μm (Fig. 3b and c, dash-dotted region) and SCT (Fig. 1b and c). For MDA-MB-231^luc/GFP cells in petri-dishes, F–δ curves were acquired on top of the nuclei (Fig. 1a). The trigger force was 0.5 nN and the approach speed 5 μm s⁻¹. Subsequently, curves with 3 s dwell under constant force (0.5 nN), i.e. creep curves, were also acquired from the same position. Representative F–δ and creep curves obtained from a MT and a MDA-MB-231^luc/GFP cell are shown in Fig. S1.† For both F–δ and creep curves, a minimum of 3 measurements were taken at each location.

Raw data were exported as .txt format using JPK Data Processing and imported into customised algorithms in MATLAB for all subsequent analyses. As described previously,²¹F–δ curves were fitted to a Hertz–Sneddon (H–S) model²⁵ to acquire the Young's modulus (E_H–S) assuming a virtual contact point, and creep curves were fitted to a Kelvin–Voigt (K-V) model²⁶ to extract the Young's modulus (E_K–V) and viscosity (η). Results were obtained from the mean value of repeated measurements at each position and those with low fit quality (R² < 0.9) were discarded.

Statistics

The maximum number of positions that could be measured within each region of interest was limited, due to controlled measurement time (to maintain the tissues’ stability) and possible sample tilt or curvature (that may cause fouling of the cantilever and cantilever holder). Normally 5 to 10 randomly selected positions within each region of interest of tissues were measured. These positions covered the major area of each region, as evenly as possible, to minimise the impact of selections of these positions on the resultant mechanical heterogeneity. In addition, measurements were taken on multiple samples from multiple animals to improve the statistical reliability. Measurements of MT and its surrounding bone metaphysis were attempted on the same 19 bones resected from 16 tumour-bearing mice. Acquiring valid data within both regions on the same specimen occasionally failed due to large sample tilt or curvature. Resultant data of MT and the surrounding metaphysis were collected at 126 positions from 16 bones and 107 positions from 15 bones respectively. Data from bones w/o tumour were acquired at 192 positions from 21 bones of 11 non-tumour bearing mice. Data from SCT were collected at 209 positions from 13 sections of 6 tumours established in 5 mice and data for MDA-MB-231^luc/GFP cells from 95 cells in 7 petri-dishes. The mechanical properties of each measured position per cell were determined from the mean value of the analysed results of repeated force curves taken at each location (≥3 repeats). The analysed results of each force curve with low fitting quality (i.e. R² < 0.9) were discarded. The N numbers (i.e. number of positions per cells with well-fitted results) of data obtained from H–S model (i.e. E_H–S) are: (i) MT: 117, (ii) SCT: 186, (iii) MDA-MB-231: 95, (iv) bone surrounding tumour: 86, (v) bone w/o tumour: 154. The N numbers of data obtained from the K–V model (i.e. E_K–V and η) are: (i) MT: 118, (ii) SCT: 198, (iii) MDA-MB-231: 93, (iv) bone surrounding tumour: 96, (v) bone w/o tumour: 143.

Statistical analyses were performed using OriginPro software. A normality test was applied to all distributions prior to any further analysis. Data were analysed by the Kruskal–Wallis test for comparison between different groups. A statistically significant difference was defined as p < 0.05.

Results

AFM reveals extremely low elastic modulus and viscosity in bone metastases

Breast cancer bone metastases were established in a commonly used in vivo mouse model.^15,20 As illustrated in Fig. 3, metastatic tumour foci develop in close proximity to trabecular bone structures in the metaphysis region of the long bones (tibia and femur) 3–4 weeks after intra-cardiac injection of MDA-MB-231^luc/GFP breast cancer cells. To probe the mechanical profile of the metastatic tumour (MT), we applied point force (F) vs. indentation (δ) and creep measurements by AFM, as described in our previous study characterizing the micro-mechanical properties of tumour-free bones.²¹ This is a robust method for measuring mechanical properties of complex tissue, provided sufficient biological and technical repeats are utilized. AFM measurements were applied to the surfaces of split fresh bones ex vivo, at randomly selected positions (in total 126 positions from 16 bone samples) within the tumour area (Fig. 3b and c). The Young's modulus E_H–S was obtained from Hertz–Sneddon (H–S) model fits to the F–δ curves. The viscoelastic properties, including the Young's modulus E_K–V and viscosity η, were obtained from Kelvin–Voigt (K–V) model fits to the indentation change (Δδ) vs. creep time (t) curves.

Features associated with plastic deformation (including yield points, plateaus) were rarely observed from the F–δ curves. The Δδ–t curves from 93% of all measured positions were fitted well by the K–V model (R² > 0.9). This demonstrates the MT in bone is viscoelastic and acts like a Kelvin–Voigt solid.

Histograms of E_H–S, E_K–V and η of the MT are shown in Fig. 4 (note the logarithmic scale of the horizontal axes), all show non-normal distributions. The median values of E_H–S, E_K–V and η are 5.2 Pa, 28 Pa and 17 Pa s, while the mean values are 17 Pa, 65 Pa and 25 Pa s, respectively (n = 117 for E_H–S; n = 118 for E_K–V and η). These data indicate that overall, the MT is extremely compliant (i.e. has both low elastic modulus and low viscosity).

Fig. 4 Histograms of the mechanical properties of the metastatic breast tumour in bone (MT) measured by AFM. The Young's modulus E_H–S was calculated from the Hertz–Sneddon model fitting to the force–indentation (F–δ) curves measured at randomly selected positions within regions of interest. The Young's modulus E_K–V and viscosity η were obtained from the Kelvin–Voigt model fits to the creep curves measured at the same positions as the F–δ curves. Each count of E_H–S, E_K–V and η in the histograms is the mean value of individual fits to all force curves (≥3 repeats) taken at one position. Data were collected at n = 126 positions from 19 bones from 16 tumour bearing mice. Results from low quality fittings (i.e. R² < 0.9) have been discarded (∼7% of all measurements).

The distributions of both E_H–S and E_K–V range over 2 orders of magnitude, while the width of η distribution is slightly narrower (approximately 83% of data points lying within 1 order of magnitude). This reveals mechanical heterogeneity across the whole of the MT. By comparing the distributions of the median/mean values of each sample, it is clear that the mechanical heterogeneity exists within the MT and does not solely reflect variations between the individual samples (see ESI, Fig. S2†). In contrast to findings from primary breast tumours,¹⁰ the distributions of all three mechanical parameters lack any apparent second peaks. This is in agreement with the single peak of stiffness distribution determined from lung metastasis observed in the same study.¹⁰ Furthermore, histological sections (Fig. 5) from this bone metastasis model show no focal regions of tumour fibrosis (collagen deposition), a common feature of primary human breast tumours that may contribute to the peak at higher stiffness observed/determined in the mechanical distribution of the primary tumour.

Fig. 5 Histology of breast cancer metastases. Examples of (a) Goldner's trichrome stained histological section and (b) tartrate-resistant acid phosphatase stained higher magnification histological image of breast cancer metastases in bones. The metastatic tumours (MT) are outlined as dashed regions. Images adapted with permission,²⁷ Copyright 2012 Springer Nature.

The creep time τ is defined as the time for the strain to decay to 1/e of its total change. We calculated the creep time by τ = 3η/E_K–V for each measured position. The resultant τ ranges between 0.3 and 13.7 s and the median value is 1.8 s. Acting like a Kelvin–Voigt solid, the MT is predominantly a viscous liquid at short time scales (t ≪ τ) and an elastic solid at long time scales.

Taken together, our findings demonstrate that AFM can be used to determine the mechanical properties of highly complex tissues like bone metastases, and reveal that metastatic breast tumours in bone have extremely low elastic modulus and viscosity.

The microenvironment in which a tumour grows has significant impact on its mechanical properties

Over the past decades, the role of the multiple components of the microenvironment in tumour development and response to therapy has been increasingly recognized. As a result, ‘the hallmarks of cancer’ have been expanded to include interactions with the tumour microenvironment.²⁸ The environment in which the tumour grows is thus likely influencing its characteristics, including the mechanical properties.²⁹ Cancer researchers using different models (e.g. in vitro cultures of cancer cell lines, in vivo tumour cell growth) do not always use orthotopic transplantation for the tumour i.e. tumour growth in the normal site/tissue of origin. The mechanical contribution from the tumour microenvironment in cancer models implanted in a non-orthotopic site, compared to the appropriate host microenvironment, has not been well documented. We therefore used our AFM protocol to quantify the mechanical properties of breast tumours grown in different microenvironments, by comparing MDA-MB-231^luc/GFP cells growing as bone metastases (i.e. MT, measured at 126 positions from 16 bones), as non-orthotopic tumours (i.e. subcutaneous tumour established from MDA-MB-231^luc/GFP implantation as shown in Fig. 1b and c, measured at 209 positions from 6 tumours) or in 2D cultures (i.e. isolated MDA-MB-231^luc/GFP cells in a petri-dish as shown in Fig. 1a, measured on 95 cells from 7 petri-dishes).

E _H–S, E_K–V and η measured on the MT, the subcutaneous tumour (SCT) and the MDA-MB-231^luc/GFP cells in 2D culture are represented in Fig. 6a, and demonstrate a highly significant difference between the three models (p < 0.001). The corresponding histograms are shown in Fig. 6b and S3.† The median values of E_H–S, E_K–V and η are (i) MT: 5.2 Pa, 28 Pa and 17 Pa s, (ii) SCT: 11 Pa, 60 Pa and 26 Pa s, (iii) MDA-MB-231^luc/GFP cells: 152 Pa, 559 Pa and 168 Pa s. The mean values of E_H–S, E_K–V and η are (i) MT: 17 Pa, 65 Pa and 25 Pa s, (ii) SCT: 26 Pa, 145 Pa and 52 Pa s, (iii) MDA-MB-231^luc/GFP cells: 204 Pa, 766 Pa and 205 Pa s (n = 117, 186 and 95 for E_H–S of MT, SCT and MDA-MB-231 cells; n = 118, 198 and 93 for E_K–V and η of MT, SCT and MDA-MB-231 cells).

Fig. 6 Comparisons of mechanical properties measured from different cancer models. (a) Statistical comparisons of the Young's moduli E_H–S, E_K–V and viscosity η of metastatic breast tumour in bone (MT, data are identical to those in Fig. 4), subcutaneous tumour (SCT) and MDA-MB-231^luc/GFP cells grown in 2D cultures in petri-dishes (***: p < 0.001). Data were analysed using the same method as in Fig. 4, and collected from biological and technical repeats (MT: n = 126 positions from 19 bones of 16 mice; SCT: n = 209 positions from 8 tumours established in 6 mice; MDA-MB-231: n = 95 cells cultured in 7 petri-dishes). The central box spans the lower to upper quartile of the data. The solid line inside the box represents the median and whiskers represent the lower and upper extremes. The mean values are indicated by dashed lines. Note the logarithmic scale of the y axes. Results from low quality fittings (i.e. R² < 0.9) were discarded (∼7%, 11% and none of all measurements for E_H–S of MT, SCT and MDA-MB-231 cells; ∼7%, 5% and 2% of all measurements for E_K–V and η of MT, SCT and MDA-MB-231 cells). (b) Histograms of the E_H–S, E_K–V and η of the MT, SCT and MDA-MB-231^luc/GFP cells, correspond to data in (a). Each count of E_H–S, E_K–V and η in the histograms is the mean value of individual fits to all force curves (≥3 repeats) taken at one position or on one cell. Bars in each histogram were narrowed down and shifted (i.e. a group of 3 subset bars, in order of MT, SCT and MDA-MB-231, has the same bin size in reality that equals the total width of 3 bars in the x-axis scale) to avoid stacking of columns. Note the logarithmic scale of the x axes. Individual histograms are shown in the ESI.†

It should be noted that all measured mechanical properties of MDA-MB-231^luc/GFP cells grown in 2D culture have more than an order of magnitude higher peak values in the histograms, when compared to those of 3D explanted tumours (i.e. both MT and SCT). In contrast to a previous study demonstrating that isolated tumour epithelial cells are softer than the tumour epithelium measured in situ,³⁰ our results indicate cancer cells are significantly more compliant in a bone tissue environment when compared to isolated 2D cultured cells. The indentation depth of our in vitro cultured cancer cells (<640 nm for cells with median E_H–S or above) is significantly smaller than the cell dimensions (the reported cell size in suspension is 18.9 ± 0.4 μm (ref. 31)). In a previous study³² we found the height of the nuclear region of attached cells varied between two micrometres to around ten micrometres. The correction due to finite sample thickness³³ moderately reduced the modulus measured on MDA-MB-231 cells, but did not have significant impact on the statistical comparison to tissue mechanics (see ESI, Fig. S4†). Meanwhile, the width between upper and lower quartiles of the elastic moduli is narrower in isolated cancer cells, but the width of viscosity is similar. This suggests that in 3D tumours other components (e.g. extracellular matrix) contribute to an increased heterogeneity of the elasticity.

It is interesting that the shapes of E_H–S, E_K–V and η distributions are almost identical between SCT and MT. However, where MT has lower mean and median values of the three parameters quantified, this was statistically significant (Fig. 6a) when compared to SCT. These data indicate that the metastatic niche in bone significantly enhances the tumour compliance, even though it does not significantly affect the degree of tumour heterogeneity.

Immunofluorescent staining of the extracellular matrices (ECM) commonly associated with breast cancer metastases in bone (i.e. Collagen I, Collagen IV and Laminin) was used to identify ECM proteins on tissues we had characterized using AFM (see ESI, Fig. S5†). This evaluation aimed to determine if the differential mechanical measurements were associated with different ECM deposition in the respective tissues. There was an abundance of all three extracellular components in the SCT when compared to the MT, though statistical significance was only identified for Collagen I and Laminin. Therefore, increasing ECM deposition is positively correlated with the measured E_H–S, E_K–V and η of tumour, which is in agreement with findings from previous studies.^29,30,34 More direct quantitative correlation between the local distribution of ECM components and the local mechanical heterogeneity remained as a challenge, because the immunofluorescent study required post-AFM cryo-sectioning, staining and imaging by advanced microscopy (i.e. it cannot be performed simultaneously on the current optical setup combined with AFM). Meanwhile, many other ECM molecules in addition to the three tested in this study may also contribute to the mechanical properties of a tumour. Future studies using more advanced optical-AFM combination to acquire fluorescent images of a range of cellular/acellular components and the accurate position of AFM indentations in situ will be helpful to reveal the relationship between the ECM components and tumour mechanics in greater detail.

Overall these data demonstrate that metastatic breast tumours in bone are significantly more compliant than both 3D subcutaneous breast tumours and 2D breast cancer cells in vitro, supporting the notion that the microenvironment in which the tumour grows, impacts on the resultant mechanical properties.

Does the tumour alter the mechanical properties of the surrounding bone microenvironment?

The breast tumour growth in bone is associated with increased bone resorption, resulting in lytic lesions and weakening of the bone, termed cancer-induced bone disease (CIBD).¹³ Although the detrimental effects of CIBD on calcified bone are widely studied, there is limited knowledge on how the presence of a tumour mechanically influences the surrounding microenvironment, including not only calcified bone but also multiple types of cells and extracellular matrices. Our mouse model of breast cancer bone metastasis also allowed mechanical characterization of the relatively intact microenvironment surrounding the MT.

We focused on the bone metaphysis region (bone surrounding tumour, measured at 107 random positions from 15 bones). To assess the normal tissues without any cancer cells, this region was characterized at distances greater than 200 μm from the fluorescent tumour edge (Fig. 3b and c, dash-dotted region). In addition, the same mechanical measurements were made in the bone metaphysis from non-tumour bearing mice (Fig. 3a) acting as a negative control (bone w/o tumour, measured at 192 random positions from 21 bones), to reveal the mechanical impact of tumours on the bone metastatic niche. All measurements were collected at randomly selected positions within the bone metaphysis region, including both bone tissues and bone marrow.

Statistical comparisons of E_H–S, E_K–V and η measured on the MT, bone surrounding tumour and bone w/o tumour are shown in Fig. 7a. The corresponding histograms are shown in Fig. 7b and S3.† The median values of E_H–S, E_K–V and η are (i) MT: 5.2 Pa, 28 Pa and 17 Pa s, (ii) bone surrounding tumour: 17 Pa, 84 Pa and 34 Pa s, (iii) bone w/o tumour: 25 Pa, 100 Pa and 41 Pa s. The mean values of E_H–S, E_K–V and η are (i) MT: 17 Pa, 65 Pa and 25 Pa s, (ii) bone surrounding tumour: 75 Pa, 140 Pa and 79 Pa s, (iii) bone w/o tumour: 165 Pa, 452 Pa and 108 Pa s (n = 117, 86 and 154 for E_H–S of MT, bone surrounding tumour and bone w/o tumour; n = 118, 96 and 143 for E_K–V and η of MT, bone surrounding tumour and bone w/o tumour).

Fig. 7 The mechanical comparisons between the metastatic tumour and the surrounding tissue microenvironment. (a) Statistical comparisons of the Young's moduli E_H–S, E_K–V and viscosity η of metastatic breast tumour in bone (MT, data are identical to those in Fig. 4), bone metaphysis surrounding tumour (BM w/tumour, as in Fig. 1f and g) and bone metaphysis from tumour-free mice (BM w/o tumour) (***: p < 0.001; n.s.: no significance). Data were analysed using the same method as in Fig. 4, and collected from biological and technical repeats (MT: n = 126 positions from 19 bones of 16 tumour bearing mice; BM w/tumour: n = 107 positions from the same 19 bones as used for MT; BM w/o tumour: n = 192 positions from 22 bones of 11 non-tumour bearing mice). The central box spans the lower to upper quartile of the data. The solid line inside the box represents the median and whiskers represent the lower and upper extremes. The mean values are indicated by dashed lines. Note the logarithmic scale of the y axes. Results from low quality fittings (i.e. R² < 0.9) were discarded (∼7%, 20% and 20% of all measurements for E_H–S of MT, bone surrounding tumour and bone w/o tumour; ∼7%, 10% and 25% of all measurements for E_K–V and η of MT, bone surrounding tumour and bone w/o tumour). (b) Histograms of the E_H–S, E_K–V and η of the MT, BM w/tumour and BM w/o tumour, correspond to data in (a). Each count of E_H–S, E_K–V and η in the histograms is the mean value of individual fits to all force curves (≥3 repeats) taken at one position. Bars in each histogram were narrowed down and shifted (i.e. a group of 3 subset bars, in order of MT, BM w/tumour and BM w/o tumour, has the same bin size in reality that equals the total width of 3 bars in the x-axis scale) to avoid stacking of columns. Note the logarithmic scale of the x axes. Individual histograms are shown in the ESI.†

All the tissues measured demonstrate a high level of compliance, however the MT is significantly more compliant than both bone surrounding tumour and bone w/o tumour (p < 0.001). The widths between upper and lower quartiles of all MT mechanical parameters are narrower than those of the surrounding bone metaphysis. This is consistent with previous published data using primary tumours, where regions rich in cancer cells were more compliant and less heterogeneous than the surrounding normal tissues.^10,35

As previously described, we investigated whether differences in the biomechanical properties between MT and the surrounding bone environment were due to differences in extracellular matrix composition. Immunofluorescent staining of the extracellular components was quantified and compared between MT and the non-tumour sites in the tumour bearing bone metaphysis (see ESI, Fig. S5†). No significant difference was observed in the amount of Collagen I, Collagen IV and Laminin between the different samples. This reveals that the mechanical distinction between MT and its tissue environment is unlikely to result from the ECM proteins evaluated in this study. However, different cell types and other extracellular components may still contribute to the differences observed and should be explored in future studies.

Interestingly, the shapes of E_H–S, E_K–V and η distributions are relatively similar between bone surrounding tumour and bone w/o tumour. No statistically significant differences are observed from the overall distributions, though the mean values of E_H–S and E_K–V are greater for the bone w/o tumour compared to the bone surrounding tumour (most likely resulting from the low number of discrete data points at the higher extreme). We find no evidence that the presence of a tumour in bone significantly influences the mechanical properties of the remote (>200 μm from tumour) microenvironment, even though the impact within a shorter range remains unknown.

Discussion

We have developed a robust AFM based method²¹ and successfully used this to quantify the mechanical properties of relatively intact breast cancer bone metastases from an in vivo mouse model.^15,20 Our results show that the MT possesses an extremely low elastic modulus (down to a few Pa) and viscosity (down to a few Pa s), even when compared to the highly compliant healthy murine bone soft tissue.²¹ The resultant elastic modulus is several orders of magnitude lower than that measured at the macroscopic scale,⁸ and is likely more relevant to cellular processes.

Although widely used to study molecular mechanisms of cancer development, in vitro cultures of cancer cell lines have often been criticized as being over-simplified cancer models. Consisting of a single cell-type grown in 2D, these cell models do not represent the complex, multicellular 3D in vivo tumour environment. It is thus essential to quantify any differences between the mechanical properties of 3D in vivo/ex vivo tumours and the relevant 2D in vitro cell model, in order to improve research models and hence increase our understanding of the mechanical processes involved in tumour progression. The challenge is exacerbated by the wide variation in Young's moduli determined from the same in vitro cell lines published by different laboratories,^5,36–38 making a direct comparison of the properties measured in the current study difficult. Due to likely variations in the same cell-line (e.g. following genetic manipulation and clonal selection), we quantified the mechanical properties of isolated MDA-MB-231^luc/GFP cells (the same cell line used to establish the bone metastases and the subcutaneous tumours in mice) in a petri-dish under the same experimental conditions as used for the tumours (e.g. same temperature, same AFM settings). The median E_H–S, E_K–V and η of MDA-MB-231^luc/GFP cells is increased when compared to the MT by 29, 20 and 10 times respectively. This demonstrates the cancer cells are significantly stiffer in a 2D in vitro culture than when the same cell line is grown in 3D at a metastatic site. This should be taken into account in future studies using 2D in vitro cancer models and highlights the need for methods to perform mechanical analysis in complex tissues. There are several potential mechanisms that may contribute to the significant difference in the mechanical properties between 2D cultured cells and fresh tissues, in addition to the effect of finite thickness as discussed previously. Firstly, measurements of cultured cells in this study were constantly performed on top of the nuclei. This leads to a higher Young's modulus compared to measurements made on the cytoplasmic area, as reported in a previous study (157.70 ± 78.55 Pa on top of the nuclei and 103.42 ± 89.45 Pa on the cytoskeleton region).³⁹ Due to this effect, the reported modulus values on cultured cells may be artificially high, but it is unlikely that this accounts for the observed difference between cultured cells and tissue. Secondly, tissues contain large amounts of extracellular components (Fig. S5†) that single cultured cells lack. Therefore, it is likely that a proportion of the data points acquired on tissue were not probing cells, but extracellular material. This could significantly decrease the resultant modulus. Last but not least, a recent study has reported that AFM indentation can push cells into soft substrates.⁴⁰ Consequently, the resultant moduli are influenced by the properties of the soft components under the cells, and thus are significantly lower than the moduli of the cells themselves. This is likely happening in tissues, where cells sit in soft extracellular matrices. These mechanisms suggest that extracellular components play a significant role in the mechanical properties measured on tissue.

Moreover, we characterized both orthotopic (i.e. MT) and non-orthotopic (i.e. SCT) tumour models to determine any differential mechanical properties between different implantation sites and whether an appropriate breast metastatic niche (e.g. bone) possesses additional mechanical cues. Although the bone niche does not affect the degree of tumour heterogeneity, MT has a significantly reduced elastic modulus and viscosity when compared to SCT. This can be explained by several potential mechanisms. The first possibility is that cancer cells can significantly alter their mechanics, including the extracellular components, when growing in different environments. This is supported by published reports demonstrating that orthotopic breast cancer xenografts have greater elasticity and viscosity compared to tumours associated with the nervous system.²⁹ Secondly, metastases are potentially associated with stiffness selection. Previous studies using both 2D in vitro cell models⁴¹ and tumour tissue models^34,42 suggest that more compliant cancer cells and primary tumours are associated with enhanced tumour progression and extensive metastases. Therefore, it is possible that the MT in bone develops from a more compliant subpopulation present within the injected cancer cells. This potential mechanism may not work in isolation but be associated with other mechanisms, because the minimum elastic moduli and viscosity of isolated MDA-MB-231^luc/GFP cells measured in this study is higher than the majority (i.e. upper quartile) of those of MT. Finally, yet importantly, the surrounding tissue microenvironment in the bone niche may also alter the mechanical properties of cancer cells that have reached bone, via physical and/or biochemical interactions.

By comparing the mechanical properties of MT and its surrounding bone microenvironment, we conclude that MT outgrowth favors tissue microenvironments that are less compliant (i.e. stiffer and more viscous) and more mechanically heterogeneous than tumour tissues. This offers a clear benchmark for designing more rationalized in vitro cancer research models and designing mechanical interventions as anti-cancer drugs/treatment, as suggested in a recent study on metastatic colorectal cancer to the liver.⁴³ In addition, the mechanical properties of the bone surrounding tumour (>200 μm away from the tumour margin) show no significant difference compared to the bone w/o tumour. This implies that MT does not mechanically alter the tissue microenvironment at this distance, but we cannot exclude that the microenvironment at the tumour–bone interface may be affected. These findings are in agreement with those of a previous study using the same in vivo model, where we identified significant changes in bone cell numbers (osteoblasts and osteoclasts) only in the areas of bone that were in direct contact with the tumour.²⁷ It will therefore be important to map the local mechanical architecture at a range shorter than ∼200 μm from the tumour/bone tissue interface in future studies.

Conclusions

In this study, we have combined in vivo models of breast cancer spread to bone with AFM and shown that this approach provides valuable information about the mechanical properties of the breast cancer metastases together with its surrounding bone microenvironment as nearly intact complex tissues. By comparing to non-orthotopic tumour, isolated cancer cells and bone w/o tumour, we have established clear benchmarks of the mechanical relationship between the metastasis and its microenvironment, which are fundamental for design of future studies. We expect that this methodology can be used to increase our understanding of the mechanism of cancer metastasis, as well as how this may be targeted through disruption of the mechanical interactions with the bone microenvironment.

Author contributions

XC designed the study, performed the experiments, analysed and interpreted the data, and prepared the manuscript. RH prepared the biological samples, interpreted the data and contributed to manuscript preparation. NM designed and constructed the top-view optics and extended z-stage, interpreted the data and contributed to manuscript preparation. RJH improved the theoretical model, interpreted the data and contributed to manuscript preparation. IH, NJB and JKH designed the study, interpreted the data, contributed to manuscript preparation and directed the project.

Conflicts of interest

There are no conflicts to declare.
