The TiO₂-μ implant residual is more toxic than the Al₂O₃-n implant residual via blocking LAP and inducing macrophage polarization

Abstract

Medical device residuals cause harmful effects and diseases in the human body, such as Particle Disease (PD), but the biological interaction of different types of particles is unclear. In this study, after a biological interaction screen between different particles, we aimed to explore the mechanism of the biological interaction between different types of particles, and the effect of a proteasome inhibitor on PD. Our studies showed that the titanium oxide microscale particle (Ti-μ) was more toxic than the aluminum oxide nanoscale particle (Al-n). Al-n activated LAP, attenuated the macrophage M1 polarization, inhibited the activator of the NF-κB pathway, and blocked the secretion of inflammatory factors and apoptosis in vitro, and also prevented the inflammation tissue disorder and aseptic loosening in vivo induced by Ti-μ. What is more, Bortezomib blocked apoptosis, secretion of inflammatory factors and the activation of the NF-κB pathway induced by TiO₂ micro particles. Al-n-induced autophagy could play the function in the efficient clearance of dying cells by phagocytosis, and serves in dampening M1 polarization-related pro-inflammatory responses. While the Ti alloy medical implant and devices are applied worldwide, the toxicity of Ti-μ and its interaction with Al-n could be considered in the implant design, and Bortezomib was a potential therapeutic for PD.

---

1. Introduction

Medical devices induce particle residuals, such as the Ti alloy implant, which is applied worldwide, and causes harmful effects and diseases in the human body, such as particle disease (PD). Joint replacement surgery is needed in a large number of patients, especially as the global population continues to age. However, most joint replacements end in loosening in different time-frame longevity. About 75% cases of joint replacement failure are due to aseptic loosening, and mixed implant residuals play an extremely important role in this process. Titanium alloy, aluminum oxide (Al₂O₃), and polymethyl methacrylate (PMMA) are now widely used in implant materials, materials for drug delivery, composite biomaterials, and tissue engineering.^1,2 The recent application of these materials as biomaterials was inevitable, considering their outstanding mechanical property.^1–4 However, the particles produced during their use could lead to irreversible aseptic loosening via participating in the initiation and development of osteolysis around the prosthesis.⁵

Both direct and indirect mechanisms of the granule-induced osteolysis may involve aggravation of periprosthetic bone resorption with the production of pro-inflammatory cytokines. Most metal wear debris, once it is engulfed by macrophages in the canonical phagocytosis process, would trigger the initiation of inflammation and activate the T cell-mediated immune response.⁶ There is no clear consensus about which types of wear particles are more toxic, especially in the micro or nano scale, but there is a basic consensus that metal fragments are more proinflammatory in one's body than polymer fragments and ceramic fragments.^7,8

Homeostasis of the bone is under the control of a balance between bone resorption by osteoclasts and bone formation by osteoblasts.^9–11 Different kinds of particles could evoke the expression of inflammatory cytokines from different signaling pathways.^12–14 It has been reported that particles, such as titanium alloy, PMMA and polyethylene (PE), could give rise to inflammatory osteolysis primarily via the activation of the nuclear factor kappa-B (NF-κB) and mitogen-activated protein kinase (MAPK) pathways, which are vital for the differentiation and maturation of osteoclast precursors (monocytes or macrophages).^14,15 PMMA particles initiated an intense inflammatory reaction by macrophages, and enhanced the formation and activity of osteoclast via activating the NF-κB signal pathway. Compared with the proinflammatory induction by titanium granule, the expression of Toll-like receptors (TLRs), intracellular adapters and osteolytic cytokines induced by ceramic particles in macrophages was lower. Meanwhile, the osteolysis induced in the skull was also lower.¹⁶ For example, titanium alloy particles could stimulate inflammation, such as tumor necrosis fact-alpha (TNF-α) and interleukin 1 beta (IL-β) expression in tissues around the aseptic loosening prosthesis.¹⁷ What is more, TNF-α (rather than IL-1β) showed a stronger effect on the induction of macrophage M1 polarization.^18,19 However, the biological interaction of different particle is unclear.

The ubiquitin-proteasome system is vital for the activation of the NF-κB pathway, and in this process, the ubiquitin E3 ligase is needed. Beta—transducin repeat—containing proteins (β-TRCP), as an ubiquitin E3 ligase, is an important positive regulator of the NF-κB pathway, while cylindromatosis (CYLD), as a deubiquitinase, is a negative regulator of the NF-κB signaling pathway.^20–22 Our primary study reported that β-TRCP induced CYLD degradation in the RAW264.7 mouse leukemic monocyte macrophage cell line, which was the negative regulator of the nuclear factor-κB ligand (RANKL) pathway, and took part in osteoclast differentiation.²¹ Many molecular processes involved in the biochemical and biological defenses are related to the NF-κB pathway.^13,23–25 It was reported that the omega-3 (v3) fatty acid, docosahexaenoic acid (DHA), suppressed inflammasome activation by inhibiting the nuclear translocation of NF-κB, which limited inflammasome activity in bone marrow-derived macrophages (BMDMs).²³ What is more, there was a direct depression of transcription factor NF-κB with increased caspase 3, which was an important regulator of apoptosis and cell death.²⁶

As a potential regulator of inflammation, LC3-associated phagocytosis (LAP) is a novel pathway of non-canonical autophagy and an autophagosome-independent process, which utilizes components of the canonical autophagy machinery in phagosome membranes.^27,28 LAP is able to attenuate autoimmunity via dampening of pro-inflammatory signals upon engulfment of dying cells and prevention of autoantigen presentation to other immune cells.^27–29 Animals deficient in the LAP pathway have a propensity to develop autoimmunity.³⁰ Recently, it was reported that in the macrophage cell line RAW264.7, inhibition of autophagy significantly promoted the expression of NF-κB-dependent TNFα/IL-1β under inflammatory stimulation.³¹

Unfortunately, limited nonoperative treatment is available for inflammation and aseptic loosening caused by PD. So far, the effective treatment for granular-induced osteolysis is limited to surgical revision. So, on the one hand, a further understanding of the biological interactions between different particles and a well-designed implant are a vital strategy to prevent PD. On the other hand, identifying drugs that inhibit granule-induced osteolysis remains a major challenge. Targeting the activity of NF-κB could be a potential tactic to rescue osteolysis in macrophages, in which NF-kB signaling could be activated by wear particles.^8,32 The proteasome inhibitor Bortezomib (BTZ) is the first approved proteasome inhibitor by FDA for clinical application, and it has been tested as a treatment for inflammation.^8,22,33,34 At a low dose (<0.5 nM), it does not induce cell apoptosis, but prevents cell apoptosis. Our previous study had also proved this dose-dependent manner of BTZ in the treatment of periodontal disease. Therefore, we used macrophages in vitro and a mouse calvarial model in vivo to evaluate the effect of LAP and BTZ on the prevention of inflammation and aseptic loosening induced by different particles and the biological interaction between different particles, especially titanium alloy and aluminum particle.

2. Materials and methods

2.1 Particle characterization

Commercially pure particles were obtained from Sigma-Aldrich and from Mitsui Chemicals. They were labeled as follows in this study. Ti-μ: Titanium oxide microparticle (TiO₂, #224227, Sigma-Aldrich); Ti-n: Titanium oxide nanoparticle, (TiO₂, #718647, Sigma-Aldrich); Al-μ: Alumium oxide microparticle (Al₂O₃, #265497, Sigma-Aldrich); Al-n: Aluminum oxide nanoparticle (Al₂O₃, #544833, Sigma-Aldrich); P-s: Ultra-high Molecular Weight Polyethylene (UHMWPE) particle (#434272, Sigma-Aldrich) and P-l: UHMWPE particle (#340 M, Mitsui Chemicals). The samples were sterilized by γ-ray (Zhongjin Irradiation Chengdu Co., Ltd), as described in our previous study.^1,8

Transmission electron microscopy (TEM) measurements were performed to characterize the particles. The particles were suspended in ultrapure water by ultrasonic vibration, transferred to the copper mesh stage, dried overnight and observed by a TEM (Hitachi 7500) at 80 keV.

Fourier-transform infrared (FT-IR) spectroscopy analysis was performed with a FT-IR Spectrometer (Thermo Fisher Scientific, Madison, USA). The FTIR spectra of Ti-μ, Ti-n, Al-μ, Al-n, P-l and P-s were collected from 4000 to 400 cm⁻¹ with a resolution of 0.5 cm⁻¹ using the KBr disk technique.

2.2 Cell culture

The RAW 264.7 mouse monocyte/macrophages cell line was obtained from the Shanghai Institute of Cell Biology (Chinese Academy of Sciences, Shanghai, China). RAW 264.7 cells were incubated at 37 °C in a humidified atmosphere (5% CO₂, 95% air) in α-DMEM (Thermo Fisher, DMEM, High Glucose, HEPES, no. 12430062) consisting of 10% (v/v) fetal bovine serum (Natocor, SFBE) and antibiotics gained from Beyotime Biotechnology (Jiangsu, China).

2.3 Flow cytometry

The flow cytometry assay was performed with an Apoptosis and Necrosis Assay Kit (C1056, Beyotime Biotechnology, Shanghai, China), which contained Hoechst and propidium iodide (PI) for double-color detection method. In brief, RAW264.7 cells (5 × 10⁴ cells per ml) were treated with different concentrations of pure or a mix of different kinds of particles for 72 h for bio-activity screens. The screens are Screen A: Ti-μ (5 μm) and Al-n (50 nm), Screen B: Ti-n (21 nm) and Al-μ (10 μm), Screen C: Ti-n (21 nm) and Al-n (50 nm), Screen D: Ti-μ (5 μm) and Al-μ (10 μm), Screen E: Ti-n (21 nm) and P-l (155 μm), Screen F:Ti-n (21 nm) and P-s (40–48 μm), Screen G: Ti-μ (5 μm) and P-l (155 μm), and Screen H: Ti-μ (5 μm) and P-s (40–48 μm).

Screen A groups: Control, Ti-μ 10, Ti-μ 50, Ti-μ 10 + 0.5 nM BTZ, Al-n 10, Al-n 50, Al-n 10 + 0.5 nM BTZ, Ti-μ + Al-n 10 (3 : 1), Ti-μ + Al-n 10 (1 : 1), Ti-μ + Al-n 10 (1 : 3), Ti-μ + Al-n 20 (1 : 1), Ti-μ + Al-n 20 (1 : 1) + 0.5 nM BTZ; Screen B groups: Control, Ti-n 10, Ti-n 10 + 0.5 nM BTZ, Ti-n + Al-μ 10 (1 : 1), Ti-μ + Al-n 10 (1 : 1) + 0.5 nM BTZ, Ti-n + Al-μ 20 (1 : 1), Ti-μ + Al-n 20 (1 : 1) + 0.5 nM BTZ; Screen C groups: Control, Ti-n 10, Ti-n 10 + 0.5 nM BTZ, Al-n 10, Al-n 10 + 0.5 nM BTZ, Ti-n + Al-n 20 (1 : 1), Ti-μ + Al-n 20 (1 : 1) + 0.5 nM BTZ, Ti-n + Al-n 10 (1 : 1), Ti-μ + Al-n 10 (1 : 1) + 0.5 nM BTZ; Screen D groups: Control, Ti-μ 10, Ti-μ 10 + 0.5 nM BTZ, Ti-n + Al-μ 10 (1 : 1), Ti-μ + Al-n 10 (1 : 1) + 0.5 nM BTZ, Ti-n + Al-μ 20 (1 : 1), Ti-μ + Al-n 20 (1 : 1) + 0.5 nM BTZ; Screen E groups: Control, Ti-n 50, P-l 50, Ti-n 10, P-l 10, Ti-n 10 + 0.5 nM BTZ, P-l 10 + 0.5 nM BTZ, Ti-n + P-l 10 (1 : 1) + 0.5 nM BTZ, Ti-n + P-l 20 (1 : 1) + 0.5 nM BTZ, Ti-n + P-l 20 (1 : 1), Ti-n + P-l 10 (3 : 1), Ti-n + P-l 10 (1 : 1), Ti-n + P-l 10 (1 : 3); Screen F groups: Control, Ti-n 50, P-s 50, Ti-n 10, P-s 10, Ti-n 10 + 0.5 nM BTZ, P-s 10 + 0.5 nM BTZ, Ti-n + P-s 10 (1 : 1) + 0.5 nM BTZ, Ti-n + P-s 20 (1 : 1) + 0.5 nM BTZ, Ti-n + P-s 20 (1 : 1), Ti-n + P-s 10 (3 : 1), Ti-n + P-s 10 (1 : 1), Ti-n + P-s 10 (1 : 3); Screen G groups: Control, Ti-μ 10, P-l 10, Ti-μ 10 + 0.5 nM BTZ, P-l 10 + 0.5 nM BTZ, Ti-μ 50, P-l 50, Ti-μ + P-l 20 (1 : 1) + 0.5 nM BTZ, Ti-μ + P-l 20 (1 : 1), Ti-μ + P-l 10 (3 : 1), Ti-μ + P-l 10 (1 : 1), Ti-μ + P-l 10 (1 : 3), Ti-μ + P-l 10 (1 : 1) + 0.5 nM BTZ; Screen H groups: Control, Ti-μ 10, P-s 10, Ti-μ 50, P-s 50, Ti-μ 10 + 0.5 nM BTZ, P-s 10 + 0.5 nM BTZ, Ti-μ + P-s 10 (3 : 1), Ti-μ + P-s 10 (1 : 1), Ti-μ + P-s 10 (1 : 3), Ti-μ + P-s 10 (1 : 1) + 0.5 nM BTZ, Ti-μ + P-s 20 (1 : 1),Ti-μ + P-s 20 (1 : 1) + 0.5 nM BTZ. (μg ml⁻¹).

After stimulation by particles for 72 h in 6-well plates, the cells were washed twice with PBS (Phosphate buffered saline) to remove the co-cultured particles and trypsinized. The cells were washed twice again with PBS, suspended in a centrifugal tube and mixed with 5 μl Hoechst 33342 staining solution and 5 μl propidium iodide (PI) staining solution. The cells were incubated at 4 °C for 30 minutes in the dark. Red and blue fluorescence were detected by flow cytometry.

2.4 Cell viability

Cells were treated with different concentrations of pure or a mix of Ti-μ (5 μm) and Al-n (50 nm) particles for 72 h. Groups are the Control, Ti-μ 10 μg ml⁻¹, Ti-μ 10 μg/ml + 0.5 nM BTZ, Al-n 10 μg ml⁻¹, Al-n 10 μg/ml + 0.5 nM BTZ, Ti-μ + Al-n 10 μg ml⁻¹ (1 : 1), Ti-μ + Al-n 10 μg ml⁻¹ (1 : 1) + 0.5 nM BTZ, Ti-μ + Al-n 20 μg ml⁻¹ (1 : 1), Ti-μ + Al-n 20 μg ml⁻¹ (1 : 1) + 0.5 nM BTZ. Then, the cells were incubated at 37 °C with 0.5 mg ml⁻¹ MTT for 4 h. To dissolve the formazan crystals, dimethyl sulfoxide was added in the culture medium. The supernatant of each sample after centrifugation was transferred to 96-well plates for 4 h. Then, a micro plate reader was used to measure the corresponding absorbance at a wavelength of 570 nm. Bortezomib (PS-341) was purchased from Selleck Chemicals (Houston, TX, USA), and stored at a concentration of 1 M in sterile saline solution at −80 °C.

2.5 Cellular immunofluorescence

Laser confocal plates were soaked in PBS, and then fixed in 4% paraformaldehyde. They were then soaked in PBS with 0.5% Triton X-100 at room temperature for 20 minutes, dried and sealed, and then incubated overnight at 4 °C with the first antibody LC3B. Subsequently, they were incubated with the fluorescent second antibody by dripping with DAPI for 5 minutes, and then the nucleus was stained. The liquid seal of the anti-fluorescence quenching agent was then observed under a fluorescence microscope.

2.6 RT-PCR analysis

RAW 264.7 cell samples were challenged with particles (Ti-μ (5 μm) and Al-n (50 nm)) and/or 0.5 nM BTZ in a six-well plate for 72 h. The total RNA was isolated by total mRNA extraction kit (Tiangen Biotechnology, Beijing, China), according to the manufacturer's instructions and reverse transcribed to cDNA. Subsequently, cDNA was used for real time quantitative PCR performed with a RT-PCR kit (Tiangen Biotechnology, Beijing, China) on the CFX Connect PCR instrument (BIO-RAD, USA). Relative expression values of the target gene were analyzed, and the housekeeping gene was used as a quantitative control for the RNA level. PCR primers (TNFα F: TGTCTCAGCCTCTTCTCATTCCT, TNFαR: GGTTTGCTACGACGTGGGCTACAG; β-actin F:GTGGGCCGCCCTAGGCACCAG, β-actin R:CTCTTTGATGTCACGCACGATTTC) were synthesized at Sanon Biotechnology (Shanghai, China).

2.7 Western blotting analysis

After stimulation (Ti-μ (5 μm) and Al-n (50 nm)), lysates were lysed in cold RIPA buffer with protease inhibitors (Beyotime, Shanghai, China) to extract proteins. Then, the lysates were centrifuged at 4 °C and boiled. The protein concentration in the lysates from each sample was detected with a BCA Protein Assay Kit (Beyotime Biotechnology, P0012). Equal amounts of protein extracted (25 μg) were separated by gel electrophoresis (Beyotime Biotechnology, Jiangsu, China), and then shifted onto a polyvinylidene difluoride (PVDF) membrane (Amersham Hybond, A10083114). After incubating with antibodies, the membranes were developed with the enhanced chemiluminescence (ECL) detection kit (Thermo, 34096). At last, the semi-quantitative analysis was performed using the National Institutes of Health (NIH) Image J.

2.8 Mouse model of the particle-induced aseptic bone loosening

We established a mouse calvarial osteolysis model, as previously reported, to detect the effect of Al₂O₃ and BTZ on osteolysis induced by Ti particles.^8,35 All animal experiments were strictly conducted in accordance with guidelines and procedures authorized by the Animal Care and Use Committee of Chongqing Medical University. Briefly, 25 healthy C57BL/6 mice (male, 6–8 weeks old, 19–23 g) were randomly divided into five groups (5 animals per group): Control group, Ti-μ particle group, Al-n particles group, Ti-μ + Al-n particles group, Ti-μ + Al-n particles + BTZ administrated group. After abdominal anesthesia by 3% pentobarbital sodium, the hair was shaved and a 1 cm length incision was made along the mid-line by sharp dissection, and the periosteum over the calvarium was exposed. With blunt separation of the cranial periosteum, the surface of the cranial bones was exposed. Using a periosteal elevator and hemostatic forceps, a 1 cm × 1 cm area around the mid-line crossing the front and bregma bone in the cranium of the mouse was obtained in every mouse, as the schematic diagram of the animal models shown (ESI, Fig. 1†). In the Ti-μ particle group, 10 mg TiO₂ particles were embedded around the middle suture. In the Al-n particles group, 10 mg Al₂O₃ particles were embedded around the middle suture. In the Ti-μ + Al-n particles group and Ti-μ + Al-n particles + BTZ groups, 5 mg TiO₂ particles and 5 mg Al₂O₃ particles were embedded around the middle suture. For the mixture group, the particles were mixed by a vortex for 30 seconds. Particles were embedded on the surface of the bone at the middle calvaria suture before closing the incision. In the control group, the same surgery was performed in mice just without particle embedding. Two days after inserting the particles for the control and experimental groups, the mice were locally subcutaneously injected with PBS or/and the safe concentration (0.1 nM) of BTZ. The injections were at each middle point of the edges of the surgical square area to make sure the drug covered the whole surgical area (three injections per week). The animal experiment lasted 14 days, according to our previous study.^8,30,53

At the fixed time, all mice were executed. Specimens of the skull in each group were scanned using micro-CT. Subsequently, a region of interest (ROI) of 1.5 × 1.5 mm in the surgical area was selected, and the trabecular thickness (Th), trabecular spacing (SP) and bone volume/total volume (BV/TV) of each sample were calculated for quantitative analysis. In the surgical area, the soft tissue was harvested, fixed, dehydrated, embedded in paraffin and stored at 20 °C. The paraffin specimens were sliced horizontally to obtain 7 micron thick sections. Then, the sections were treated with hematoxylin–eosin (HE), and the expression of Casepase-3, IL-6, RANKL and others in the tissue sections were analyzed by immunohistochemical staining.

2.9 Statistical analysis

Statistical analyses were performed by the one-way analysis of variance (One-way ANOVA). The data were expressed as the mean ± S.D., and a value of p < 0.05 or p < 0.01 was considered statistically significant in this study.

3. Results

3.1 Particle characterization

As shown in Fig. 1, the Ti-μ, Ti-n, Al-μ, Al-n, and P-s particles were observed by TEM (Fig. 1A1–A4 and A6) and P-l was photographed with an optical microscope (A5). The sizes of the particles are shown in Fig. 1A; Ti-μ was 5 μm, Ti-n was 21 nm, Al-μ was 10 μm, Al-n was 50 nm, P-l was 155 μm and P-s was from 40 μm to 48 μm.

Fig. 1 Particle characterization. A: The Ti-μ (Titanium oxide (TiO₂) microparticle), Ti-n (Titanium oxide (TiO₂) nanoparticle), Al-μ (Alumium oxide (Al₂O₃) microparticle), Al-n (Aluminum oxide (Al₂O₃) nanoparticle), P-s (Ultra-high Molecular Weight Polyethylene (UHMWPE)) particles were observed by TEM (A1–A4, and A6) and P-l: UHMWPE was photographed with an optical microscope (A5). (A1: bar = 5 μm; A2 and A4: bar = 100 nm; A3: bar = 200 nm; A5: bar = 100 μm and A6: bar = 10 μm). B: Fourier transform infrared spectroscopy (FTIS) results of different particles are shown in B1 (Ti-μ), B2 (Ti-n), B3 (Al-μ), B4 (Al-n), B5 (P-l) and B6 (P-s). The FTIR spectra were collected from 4000 to 400 cm⁻¹ with a resolution of 0.5 cm⁻¹. The characteristic infrared spectrum of TiO₂ could be found at 830 cm⁻¹ and 920 cm⁻¹, an absorption band at 500–900 cm⁻¹ for Al₂O₃ and peaks at 2920 cm⁻¹ and 2850 cm⁻¹ for UHMWPE.

The FT-IR result showed that lattice vibrations of 830 and 920 cm⁻¹ were detected in the TiO₂ particles (Fig. 1B1 and B2); an absorption band at 500–900 cm⁻¹ without any fine structure could be the characteristic infrared spectrum of Al₂O₃ (Fig. 1B3 and B4); the peaks at 2920 cm⁻¹ and 2850 cm⁻¹ of the UHMWPE correspond to the asymmetric and symmetric stretching modes of C–H, respectively, while the peak at 1470 cm⁻¹ is related to the in-plane bending vibration of C–H, and the 730 cm⁻¹ represented the methylene rocking vibrations (Fig. 1B5 and B6), and these characteristic bands of the particles agreed with previous studies.^36–38

3.2 Ti-μ showed a more severe cytotoxicity than Al-n in flow cytometry experiment

In order to further understand the biological interaction of the different particles, we performed biological screens of the cell reaction after the macrophage cells were exposed to different pure or mixed particles. While Hoechst 33342 could penetrate the cell membrane, the fluorescence of the apoptotic cells was higher than that of the normal cells due to chromatin condensing when apoptosis occurs. PI could not penetrate the cell membrane, and could not stain normal or apoptotic cells with intact cell membranes. However, PI could stain necrotic cells, in which the integrity of the cell membrane was lost.

As shown in the flow cytometry results (Fig. 2A and ESI Fig. 2†), TiO₂ and UHMWPE were more toxic than the Al₂O₃ particles. After TiO₂ particles were mixed with UHMWPE particles (ESI Fig. 2†), the rates of apoptosis and necrotic cells decreased significantly. BTZ and Al₂O₃ could effectively inhibit the cell apoptosis and necrosis induced by TiO₂ particles (Fig. 2A–D). The apoptotic and necrosis rates of the cells exposed to Ti-μ decreased after being co-cultured with Al-n granules (Fig. 2A and E), and further decreased after BTZ administration. When they were treated with BTZ at a low dose (0.5 nM), the drop of the apoptotic and necrosis rates in the Ti-μ group was more obvious than that in the Al-n group, which indicated better biocompatibility in the Al-n group (Fig. 2A and C). What is more, the apoptotic and necrosis rate induced by TiO₂ was more obviously reduced by Al-n (Fig. 2A and C) than Al-μ (Fig. 2B and D). So, we detected the biological effect of Al-n on Ti-μ in the following assays in order to offer solid data for implant design.

Fig. 2 Ti-μ showed more severe cytotoxicity than Al-n in the flow cytometry experiment. A–D: The biological screens of the proportion of normal, apoptosis, and necrosis cells after co-culturing with or without Ti, Al particles and 0.5 μmol ml⁻¹ BTZ for 3 days in a flow cytometry assay. (Ti-μ: 5 μm; Ti-n: 21 nm; Al-μ: 10 μm; Al-n: 50 nm). E: Apoptosis and necrosis of RAW264.7 cells after co-culturing with or without Ti-μ, Al-n and 0.5 μmol ml⁻¹ BTZ for 3 days in a flow cytometry assay. (Ti-μ10 (10 μg ml⁻¹ of Ti-μ particles), Al-n10 (10 μg ml⁻¹ of Al-n particles), Ti-μ + Al-n 10 (10 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1) and Ti-μ + Al-n 20 (20 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1) with or without BTZ (0.5 nmol ml⁻¹)).

3.3 The decreased cell viability induced by Ti-μ could be prevented by Al-n and BTZ

In order to detect the effect of BTZ and the interaction of different particles on cell viability, we took pictures in a light microscope and performed the MTT test. Fig. 3 and ESI Fig. 2† showed that the cell viability of macrophage RAW264.7 after exposure to particles declined slightly in all TiO₂ groups. BTZ and Al-n could prevent the toxicity induced by Ti-μ. Light microscopic examination (Fig. 3A) showed that the cell number decreased especially in the Ti-μ groups. After adding Al-n and/or BTZ to the Ti-μ groups, the cell number increased significantly. Cells in the Ti-μ group showed a phagocytosis phenomenon, especially in a high concentration at 50 μg ml⁻¹ of Ti-μ (Fig. 3A). At the same time, the cells appeared as fragments of lysis. After being co-cultured with BTZ, the cell viability of RAW264.7 got a significant improvement compared with the groups without BTZ treatment including Ti-μ, Al-n and the mixed group (Fig. 3B) (*p < 0.05). While there was a significant difference of cell activity that could be found between the pure Ti-μ and pure Al-n group, this result also indicated that Al-n had lower cytotocixity than the Ti-μ group.

Fig. 3 The decreased cell viability induced by Ti-μ could be prevented by Al-n and BTZ. A: Cells co-cultured with or without Ti-μ, Al-n particles and 0.5 μmol ml⁻¹ BTZ for 3 days. (Bar = 0.1 mm. Group: control, Ti-μ (10 μg ml⁻¹), Al-n (10 μg ml⁻¹), 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), 20 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), Ti-μ (50 μg ml⁻¹) and Al-n (50 μg ml⁻¹) with or without 0.5 nmol ml⁻¹ BTZ). (Bar = 200 μm). B: Cell morphology after co-cultured with or without Ti-μ or Al-n particles for 3 days (Bar = 0.1 mm. Group: Ti-μ 10 μg ml⁻¹, Ti-μ 50 μg ml⁻¹, Al-n 10 μg ml⁻¹, Al-n 50 μg ml⁻¹). (Bar = 100 μm).

3.4 Al-n induced an obvious LC3-associated phagocytosis (LAP) process in the macrophage

As an important indicator of autophagy, LC-3 could significantly promote the LAP of RAW264.7 cells. We analyzed the LC-3 expression by challenging cells with different sizes of TiO₂ and Al₂O₃ particles via immunofluorescence assays and western blot (WB) experiments. In immunofluorescence assays, LC-3 expression was higher in the Al-n group and mixture group than the Ti-μ group and control group (Fig. 4). While the RAW264.7 knockdown and knockout cell lines were too fragile to suffer both drug purification of the cell line and particle stimulation, we utilized BTZ as an inhibitor to block the NF-κB signaling pathway. The BTZ further increased the LC-3 level in the mixture groups compared with the Ti-μ + Al-n group, but the LC-3 level was still lower than the Al-n group (Fig. 4). These results indicated that both Al-n and BTZ could evoke the expression of LC-3 rather than Ti-μ.

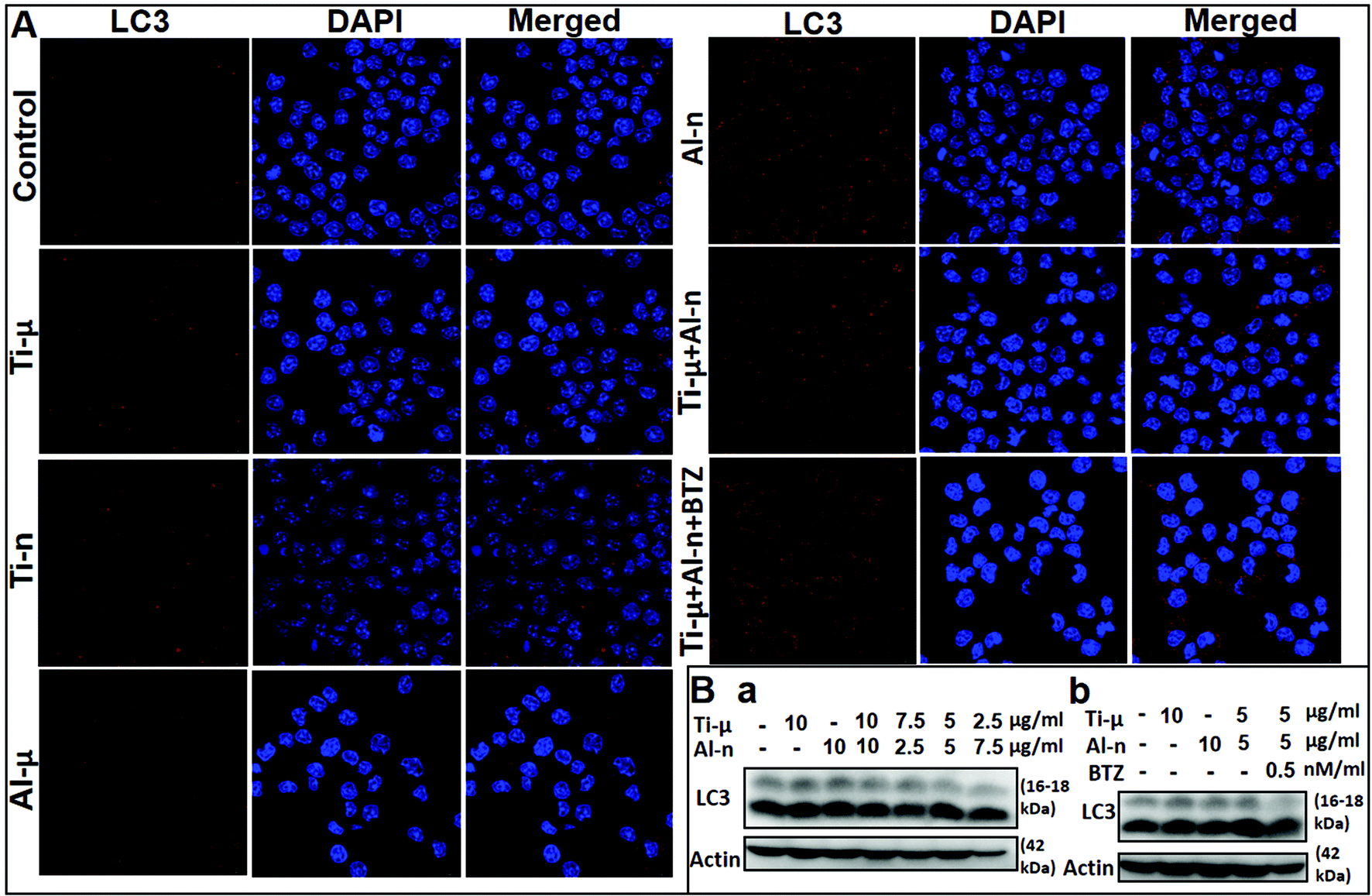

Fig. 4 The expression of LC3 in macrophages (the murine monocytic cell line RAW264.7). A: RAW264.7 cells were challenged with different size particles of Ti and Al for 3 days and were tested by immunofluorescence assays. (Group: control, Ti-μ (10 μg ml⁻¹ of Ti-μ particles), Al-μ (10 μg ml⁻¹ of Al-μ particles), Ti-n (10 μg ml⁻¹ of Ti-n particles), Al-n (10 μg ml⁻¹ of Al-n particles), Ti-μ + Al-n (10 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1) and Ti-μ + Al-n + BTZ (10 μg ml⁻¹ of Ti-μ mixed with Al-n and 0.5 μmol ml⁻¹ BTZ, Ti-μ : Al-n = 1 : 1). B: Western Blot analysis of whole cell lysatesderived from RAW264.7 cells incubated with or without particle. (B-a group: control, 10 μg ml⁻¹ of Ti-μ particles, 10 μg ml⁻¹ of Al-n particles, 20 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 3 : 1), 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 3), and 10 μg ml⁻¹ of Ti-μ mixed with Al-n and 0.5 μmol ml⁻¹ BTZ (Ti-μ : Al-n = 1 : 1); B-b group: control, 10 μg ml⁻¹ of Ti-μ particles, 10 μg ml⁻¹ of Al-n particles, 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), and 10 μg ml⁻¹ of Ti-μ mixed with Al-n and 0.5 μmol ml⁻¹ BTZ (Ti-μ : Al-n = 1 : 1).

3.5 Al-n particles prevented the macrophage M1 polarization-related inflammation via inhibition of the activation of the NF-κB signaling pathway

In order to further explore the effect of TiO₂ and Al₂O₃ on the macrophage M1 polarization-related inflammation, we performed a mRNA screen of the TNF-α and IL-1β expression of the macrophage under the stimulation of different concentrations of different scale TiO₂ and Al₂O₃ particles (Fig. 5A and B, ESI Fig. 4A and B†). The screen results showed that both micro and nano scale particles of Al-n evoked a higher expression level of IL-1β compared with the expression of TNF-α at different concentrations. In contrast, Ti-μ promoted a higher level of TNF-α expression compared to IL-1β. While TNF-α could induce the macrophage for M1 polarization and evoke the inflammation reaction and IL-1β could promote the macrophage M2 polarization, these results indicated that Al-n prevented the Ti-μ-induced inflammation in a macrophage M1-related manner.

Fig. 5 Al-n and BTZ prevented the inflammation induced by Ti-μ via inhibiting the activation of the NF-κB signaling pathway. A: A mRNA screen of TNF-α and IL-1β expression of macrophages under the stimulation of different concentrations of Al-n particles. B: A mRNA screen of TNF-α and IL-1β expression of macrophages under the stimulation of different concentrations of Ti-μ particles. C: WB (Western Blot) analysis of whole cell lysates (WCL) derived from RAW264.7 cells incubated with or without particles (Groups: control, Ti-μ (10 μg ml⁻¹ of Ti-μ particles), Al-n (10 μg ml⁻¹ of Al-n particles), 3 : 1 (10 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 3 : 1), 1 : 1 (10 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1), 1 : 3 (10 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 3), and TA20 (20 μg ml⁻¹ of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1) for 72 hours. NF-κB activation was assessed by examining the expression of β-TRCP, and CYLD was tested. D and E: The expression of IL-1β and TNF-α after exposure to Ti-μ and Al-n particles. (Groups: control, Ti-μ (10 μg ml⁻¹ of Ti-μ particles), Al-n (10 μg ml⁻¹ of Al-n particles), 10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), and 10 μg ml⁻¹ of Ti-μ mixed with Al-n co-cultured with 0.5 μmol ml⁻¹ BTZ (Ti-μ : Al-n = 1 : 1)). F: Western Blot (WB) analysis of cell lysates derived from RAW264.7 cells incubated with or without particles and BTZ for 72 hours (Groups: Control, Ti-μ 10 (10 μg ml⁻¹ of Ti-μ particles), Al-n 10 (10 μg ml⁻¹ of Al-n particles), TA10 (10 μg ml⁻¹ of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1)), and TA10 + BTZ (10 μg ml⁻¹ of Ti-μ mixed with Al-n co-cultured with 0.5 μmol ml⁻¹ BTZ (Ti-μ : Al-n = 1 : 1))). WCL was analyzed with antibodies against TRCP, CYLD, TNF-α and β-actin.

While the expression of TNF-α and IL-1β was under the control of the NF-κB signaling pathway, we detected β-TRCP, the activator of the NF-κB signaling pathway, and CYLD, the inhibitor of the NF-κB signaling pathway, under the stimulation of Ti-μ particles and Al-n particles. In mixture groups (Fig. 5C and ESI Fig. 4†), the expression of β-TRCP was elevated by Ti-μ particles and decreased by Al-n particles in a concentration-dependent manner. However, the whole cell protein level was not significant changed (ESI Fig. 5†). The expression of TNF-α was also higher in the Ti-μ group than in the Al-n group. The expression of TNF-α in the mixed group was decreased by the Al-n particle in a concentration-dependent manner (Fig. 5F). While the β-TRCP knockout and knockdown macrophage cell line was too fragile to suffer both drug purification of cell line and particle stimulation, we again applied BTZ as the NF-κB signaling pathway inhibitor to have a double check of the effect of the NF-κB signaling pathway on the M1 polarization inflammation. Al-n could elevate the expression of IL-1β (Fig. 5E). Both Al-n and BTZ reduced the activity of β-TRCP increased by Ti-μ (Fig. 5F). Al-n and BTZ also both prevented mRNA and protein expression of the inflammatory TNF-α (Fig. 5E and F). These results indicated that the biological interaction of Ti-μ and Al-n occurred via the activator of the NF-κB signaling pathway, while β-TRCP was a key regulator of the NF-κB signaling pathway.

CYLD is one of the most well-researched deubiquitinating enzymes, which inhibited the NF-κB signal pathway. In this study, the expression of CYLD in single particle groups was activated at a higher level in the Al-n group than the Ti-μ group (Fig. 5C). In the mixture groups, when the Ti-μ and Al-n particles mixture was at a higher amount (20 μg ml⁻¹), it triggered the overexpression of CYLD. Furthermore, the TNF-α and β-TRCP exhibited a higher expression level in the Ti-μ group (Fig. 5C and F). When the concentration of Al-n increased in the mixture, the inflammation was at a lower level with a low level of CYLD. When the mixture group was co-cultured with BTZ, the BTZ could block the activity of the NF-κB pathway and the expression of CYLD was absolutely weak. It indicated that when the inflammation was in a high level, it could trigger the feedback regulation of CYLD in the NF-κB pathway. All of these results indicated that Al-n particles prevented the macrophage M1 polarization-related inflammation induced by Ti-μ particles via preventing the activation of the NF-κB signaling pathway. These results agree with Fig. 4. Al-n evoked LC-3 expression, and autophage activation could play the function in the efficient clearance of dying cells by macrophages, and serves in dampening the M1 polarization-related pro-inflammatory responses.

3.6 Al-n particle and BTZ prevented inflammation and tissue broken in soft tissue induced by Ti-μ particle

Compared with the Al-n groups, the in vivo study also showed that the Ti-μ group was more toxic, as the in vitro experiments showed. The HE staining assay exhibited more serious damage to the tissue structure in the Ti-μ group compared to other groups. For example, the integrity of the epithelium was broken, and the connective tissue fibers were disordered (Fig. 6A). HE staining also revealed that the obvious inflammatory infiltration of lymphocytes and macrophages, as well as multinucleated osteoclasts, existed in the soft tissue of the surgical area in the granule – stimulated mice, especially in the Ti-μ group. Al-n and BTZ could alleviate the toxicity of Ti-μ.

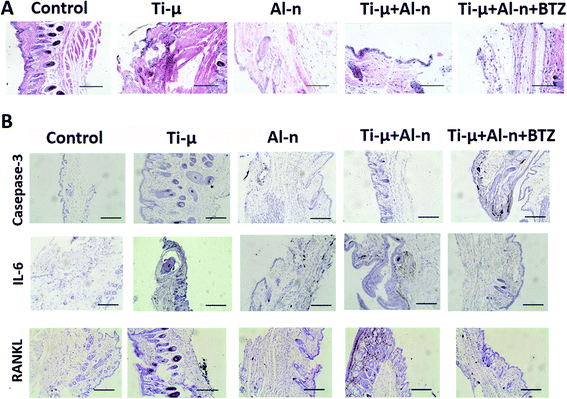

Fig. 6 Al-n particle and BTZ prevented inflammation and tissue broken in soft tissue induced by Ti-μ particles via blocking the activation of NF-κβ signaling. A: HE of soft tissue harvested from C57BL/6 mice in groups: control; Ti-μ: 10 mg of Ti-μ particles; Al-n: 10 mg of Al-n particles; 10 mg of Ti-μ mixed with Al-n, Ti-μ : Al-n = 1 : 1; 10 mg of Ti-μ mixed with Al-n co-cultured with 120 μL BTZ every two days, Ti-μ : Al-n = 1 : 1. (Bar = 0.1 mm). B: Immunohistochemistry of soft tissue samples that were harvested from C57BL/6 mice (Groups: control, Ti-μ (10 mg of Ti-μ particles), Al-n (10 mg of Al-n particles), 10 mg of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), and 10 mg of Ti-μ mixed with Al-n administrated with 120 μL BTZ locally every two days (Ti-μ : Al-n = 1 : 1)) were tested with antibodies: Casepase-3, IL-6, RANKL. (Bar = 0.1 mm).

3.7 Al-n and BTZ blocked the activation of NF-κβ signaling induced by the Ti-μ particle in vivo

Compared with Ti-μ, Al-n and BTZ could decrease the expression of inflammatory cytokines in the particle mixing group (Fig. 6B). RANKL could preserve the survival of mature osteoclasts and restore their bone resorptive functions. In our animal models (Fig. 6B), the presence of Ti-μ granules resulted in inflammation and tissue disorder. RANKL exhibited a higher expression in the Ti-μ group compared with the Al-n group. In the mixture group, RANKL showed a lower level of activation compared with the Ti-μ group. Again, BTZ could block its expression in the mixture group. In addition, the toxicity of Ti-μ could be inferred from the higher expression of Casepase3 in the Ti-μ group compared with the other groups. Al-n could decrease the toxicity in the mixture group, and BTZ showed the same effect as Al-n. The inflammatory cytokine, such as IL-6, also expressed at a lower level in the control and Al-n groups, while they had a higher expression level in the Ti-μ group. We could get the conclusion again that these bone resorption-related signaling pathway and inflammatory factors were evoked by Ti-μ particles, and prevented by Al-n particles and BTZ.

3.8 Aseptic bone loosening induced by Ti-μ was prevented by the Al-n particle and administrated BTZ in the mouse model

Bone resorption was increased by Ti-μ particles and prevented by Al-n particles and BTZ, which was confirmed by CT analysis (Fig. 7). As the micro-CT data (Fig. 7A–C) show, the trabecular spacing (SP) increased significantly in the Ti-μ group compared with the other group in a quantitative analysis (Fig. 7A) (p < 0.01). The SP decreased in the Al-n group, the mixture group and the BTZ administration group (p < 0.01). The trabecular thickness (Th) showed more serious damage in the Ti-μ group compared with the other groups and increased in the Al-n group, mixture group and BTZ administration group (p < 0.01). The BV/TV was significantly higher in the Al-n group than the Ti-μ group. BV/TV decreased in the Ti-μ group compared to the control group, but this indicator significantly increased in the Ti-μ + Al-n group. As the result shows above (Fig. 2), Ti-μ induced the macrophage apoptosis, and this aseptic bone loosening induced by Ti-μ could be due to the reduced phagocytosis of the macrophages and the imbalance of the osteoblast and osteoclast around the implantation, and the response of the osteoblast was in progress in our other project. All of these agreed with the soft tissue results and in vitro results, and could be obviously observed in the 3D reconstruction version (Fig. 7B and C).

Fig. 7 Aseptic bone loosening induced by Ti-μ was prevented by Al-n particles, and BTZ was administrated in mouse model. A: The trabecular thickness and porosity percentage in a region of interest (ROI) of 1.5 × 1.5 mm in the surgical area of the cranium harvested from C57BL/6 mice (groups: control, Ti-μ (10 mg of Ti-μ particles), Al-n (10 mg of Al-n particles), 10 mg of Ti-μ mixed with Al-n (Ti-μ : Al-n = 1 : 1), and 10 mg of Ti-μ mixed with Al-n administrated with 120 μL BTZ locally every two days (Ti-μ : Al-n = 1 : 1)) were measured and statistical analysed. (*P < 0.05 and **P < 0.01). B: 3D reconstruction of the porosity images of the ROI of 1.5 × 1.5 mm in each group. C: 3D reconstruction of the mouse calvaria in each group. (SP: trabecular spacing, TH: trabecular thickness, BV/TV: bone volume/total volume).

4. Discussion

The implant particle residual causes harmful effects and diseases, such as PD, while it is inevitable to apply Ti as a biomaterial considering its outstanding mechanical property.^1–4 In this study, after a biological screen of different particles (Fig. 1), we found that Al-n particles could prevent the toxicity induced by Ti-μ particles (Fig. 2 and 3). In further studies, our results showed that Al-n induced an obvious LC3-Associated Phagocytosis (LAP) process, rather than Ti-μ (Fig. 4). Al-n particles activated LAP and IL-1β expression and blocked the NF-κB signaling activation, which resulted in decreasing the inflammatory factor expression and preventing macrophage M1 polarization-related inflammation (Fig. 4 and 5), and prevented soft tissue inflammation and bone loss induced by Ti-μ in the micro-CT, hematoxylin–eosin (HE) and immunohistochemistry experiments in vivo (Fig. 6 and 7). The BTZ exhibited a therapeutic effectiveness for PD in vitro and in vivo (Fig. 2–7).

Wear particles could cause irreversible aseptic prosthesis loosening, and play a pathological role in the occurrence and development of periprosthetic osteolysis.^5,7,16,39 According to the American Society of Testing Materials (ASTM), particles should be categorized to the micrometer (1–10 μm), sub-micrometer (0.2–1 μm) and nanometer (0.01–0.2 μm) scale, but its implant friction process, pro-inflammatory process and clinical analysis found that it is far more complicated than this.⁴⁰ In the United States, more than more than 600 000 knee arthroplasties and 285 000 total hip arthroplasties (THA) are performed each year.⁴¹ Nowadays, different bearing surfaces are utilized in clinical practice, and could be classified into hard-on-hard surfaces and hard-on-soft surfaces, such as ceramic-on-ceramic, metal-on-metal, metal-on-ceramic, metal-on-polymer and other examples.^41,42 The implant wear debris could be found in peri-implant tissues, and the diameter of wear particles are different from material to material, such as the microscale (10 μm) and nanoparticles of the Ti alloy (<50 nm),^3,43,44 microscale (0.1–7 μm) and nanoscale (5–90 nm) of ceramic particles,^45–47 and microparticle and submicroparticles (0.1–0.5 μm, 1–10 μm, or even 100 μm) of polymers.^48,49 So, the particles of different materials that could be found in the peri-implant tissue were not of the same size. In this study, we set a large and a small diameter for each material to cover a big range of scale for each material to represent the particles that could be found in the peri-implant tissue (Fig. 1).

In the global aging era, a further understanding of the biological interaction between particles for better implant design and drug therapy for those senior people who could not suffer from a secondary replacement surgery is the vital strategy to fight again particle disease. Most orthopedic implant failures are due to aseptic loosening caused by granular stimulation, and treatment options are mostly surgical revision. Studies are trying to understand the cellular and molecular biologic processes involved in the particle–pharmacy interaction of particles disease, and to find a potential therapy.^7,8,50,51 With the flow-cytometric analysis, we performed biological screens, and they showed that TiO₂ and UHMWPE were more toxic than Al₂O₃ particles (Fig. 2 and ESI Fig. 2†).

Osteoclasts are the unique cells involved in bone resorption, which originate from the myeloid cells of the monocyte/macrophage lineage to maintain bone homeostasis.^9–11 LC3-associated phagocytosis (LAP) is a non-canonical autophage and an autophagosome-independent process.^27,29 It has the function in the efficient clearance of dying cells by macrophages, and serves in dampening pro-inflammatory responses. Recently, it was reported that inhibition of autophagy significantly elevated the expression of NF-κB-dependent TNFα/IL-1β in S. aureus-infected macrophages, RAW264.7.^30,31 However, the effect of the particle and biological interaction of different particles on the LAP were unclear. In our immunofluorescence assays, LC-3 expression was higher in the Al-n group and mixture group than the Ti-μ and control groups (Fig. 4). A flow cytometry experiment (Fig. 2) showed that Ti-μ induced a higher property of apoptosis and necrosis cells. LAP could inhibit the autoinflammatory response to dying cells.³⁰ Our results indicated that there was a biological interaction among different particles. What is more, it suggested that Al-n activated LAP and efficiently engulfed the dying cells in macrophages, and prevented inflammation induced by Ti-μ.

β-TRCP is a member of the F-box protein family and the SCF (Skpl-Cullinl-F-box type ubiquitin ligase) E3 key components. It is the activator of the NF-κB signaling pathway through recognition and ubiquitination of specific phosphorylated substrates, such as IKB, thereby regulating the cell growth, differentiation, apoptosis and the occurrence of tumors. TNF-α is an important inflammatory factor in the NF-κB signaling pathway.^51–53 TNF-α could significantly promote the M1 polarization of the macrophage, which is characterized by the expression of high levels of proinflammatory cytokines. In contrast, IL-1β is more likely to induce macrophage M2 polarization, which plays a function toward the anti-inflammatory responses.^18,19,54 In this study, we verified that both micro- and nanoscale TiO₂ particles induced a higher level of TNF-α compared with the IL-1β level. In contrast, Al₂O₃ evoked a higher level of IL-1β compared with the TNF-α level in a concentration-dependent manner (Fig. 5 and ESI Fig. 4†).

CYLD is one of the most well-researched deubiquitinating enzymes that inhibits the NF-κB signal pathway.^50,55,56 CYLD in single particle groups was activated at a higher level in the Al-n group than Ti-μ group (Fig. 5). This might contribute to the feedback effect of CYLD as an inhibitor of the NF-κB signaling pathway, and this feedback effect was first reported by our previous study.⁵⁵ In the mixture groups, the feedback effect was confirmed wherein a higher amount (20 μg ml⁻¹) of the Ti-μ and Al-n particles mixture triggered the overexpression of CYLD (Fig. 5C). Furthermore, the TNF-α and β-TRCP exhibited a higher expression level in the Ti-μ group (Fig. 5F). It suggested that when the concentration of Al-n increased in the mixture, the inflammation was at a lower level. The feedback effect could not be triggered, and the CYLD decreased in a concentration-depending manner of Al-n in the mixture groups. All of these results indicated that Al-n activated the LAP and prevented the inflammation induced by Ti-μ not only via activation of β-TRCP/NF-κB, but also via the inhibitor of CYLD/NF-κB. When the inflammation was in a high level, the feedback circle of CYLD would work.

Recently, BTZ was considered as a therapy for inflammation and its dose-dependent manner was reported by studies.^22,34 At a low dose, BTZ could prevent cells from apoptosis rather than induce cell apoptosis. Our previous study showed that BTZ inhibited inflammation of the periodontal ligament cell and periodontal tissues.³² In this study, while the knockdown and knockout macrophage cell line was too fragile to suffer drug cell line purification and particle stimulation, such as knockout β-TRCP cell line, BTZ was applied as a therapeutic drug and an inhibitor for the NF-κB signaling. BTZ and Al-n could effectively inhibit the cell apoptosis (Fig. 2 and 3), increased the cell viability weakened by Ti-μ particles, evoked the autophage process and LC3 expression reduced by Ti-μ (Fig. 4), and attenuated the M1-related inflammatory expression induced by Ti-μ (Fig. 5). After cells were treated with BTZ, their β-TRCP and TNF-α expression decreased. It suggested that BTZ mainly prevented inflammation and apoptosis by inhibiting β-TRCP. In the mixture groups when the cells were under a low level of inflammation, the feedback loop of the CYLD effect was not fully activated (Fig. 5). All of these data indicated that Al-n particles prevented the macrophage M1 polarization-related inflammation induced by Ti-μ particles via NF-κB signaling pathway.

It has been reported that after exposure to RANKL-RANK, the signaling pathway related to the bone resorption is activated, such as the NF-κB signaling pathway.^50,57 RANKL could also preserve the survival of mature osteoclasts and restore their bone resorptive functions. In this study, the presence of Ti-μ granules resulted in inflammation tissue disorder (Fig. 6A) and bone resorption. This bone resorption-related signaling pathway and inflammatory factors were evoked by Ti-μ particles, and prevented by Al-n particles and BTZ (Fig. 6B). The same result could be obtained by CT analysis (Fig. 7). With immunohistochemistry, we further found that Al-n and BTZ played a role through casepase3 to prevent bone resorption induced by Ti-μ, which agreed with the phagocytosis phenomenon and cell fragments of lysis shown in Fig. 3.

It is inevitable to use the Ti alloy as a bulk implant material, a particle-enforced composite material, or a drug delivery material, considering its outstanding mechanical property.^1,2 However, the particle toxicity released after long-term use is reported. In this manuscript, it is interesting and novel to find that Al-n particles induce LC3-Associated phagocytosis, which could play the function in the efficient clearance of dying cells by macrophages. It also serves in dampening M1 polarization-related pro-inflammatory responses and aseptic loosening induced by Ti-μ particles via NF-κB pathway, as the mimic mechanism shows (ESI Fig. 6†). So, the outstanding mechanic character and the potential toxicity of microscale TiO₂ particles and the activating LAP character of nanoscale Al₂O₃ particles should both be considered in implant design and in the strategy of materials selection. When the mechanical components of the implant has a high requirement of mechanic character, the Ti alloy should be applied. When the mechanical components of the implant need a high requirement of biological character, the Al alloy should be proposed. Additionally, Bortezomib was a potential therapeutic drug for particle disease in senior patients, rather than joint replacement surgery.

5. Conclusions

The Ti-μ implant particle residual was more toxic than the Al-n implant particle residual. Al-n prevented particle disease induced by Ti-μ via evoking the LAP process, and blocking the activation of NF-κB pathway and macrophage M1 polarization-related inflammation. Al-n and BTZ could significantly reduce the inflammation and aseptic absorption induced by Ti-μ particles via occupying the inflammation receptor, blocking the cell toxicity, NF-κB activation, M1 polarization-related inflammatory factors expression and apoptosis, and via initiating autophagy process. While Ti alloy implant is applied worldwide, its toxicity should be considered. The biological interaction of Ti-μ and Al-n in this study could be fully utilized during implant design, and Bortezomib should be a potential therapeutic drug for particle disease in senior patients rather than joint replacement surgery.

Ethical statement

All animal procedures were performed in accordance with the Guidelines for Care and Use of Laboratory Animals of Chongqing Medical University, and approved by the Animal Ethics Committee of Chongqing Medical University.

Author contributions

Prof. Xiaomian Wu contributed to the conceptualization; Prof. Xiaomian Wu, Prof. Xiaolei Hu, Prof. Ling Xu, Prof. Jiao Huang, Prof. Feng Deng, and Prof. Ping Ji contributed to the resources, funding acquisition, project administration and supervision; Prof. Xiaomian Wu, Prof. Xiaolei Hu, Xuewei Fu, Prof. Ling Xu, Prof. Ping Ji, Prof. Feng Deng, Zhiwei Zhang, and Prof. Jiao Huang contributed to the methodology, data curation, investigation, software, formal analysis, original draft writing and writing – review; Prof. Xiaomian Wu and Prof. Xiaolei Hu contributed to the visualization, revision and writing – editing.

Conflicts of interest

The authors declare no conflict of interests among the authors.

Acknowledgements

This research was supported by the National Natural Science Foundation of China (31400808), Natural Science Foundation of Chongqing, China (cstc2020jcyj-msxmX0321), and Overseas Returnees Innovation and Entrepreneurship Support Program of Chongqing (cx2019095) to Xiaomian Wu. This study was also supported by the National Natural Science Foundation of China (21402018, 81570979 and 31871464). We also thank Quangao Du for assistance with mRNA screening of inflammatory responses, Zhiqiang Yang for assistance with animal experiment, and Baoming Zhang for assistance with TEM and FTIR analyses.
