Immobilising molecular Ru complexes on a protective ultrathin oxide layer of p-Si electrodes towards photoelectrochemical CO₂ reduction

Abstract

Photoelectrochemical CO₂ reduction is a promising approach for renewable fuel generation and to reduce greenhouse gas emissions. Owing to their synthetic tunability, molecular catalysts for the CO₂ reduction reaction can give rise to high product selectivity. In this context, a Ru^II complex [Ru(HO-tpy)(6-mbpy)(NCCH₃)]²⁺ (HO-tpy = 4′-hydroxy-2,2′:6′,2′′-terpyridine; 6-mbpy = 6-methyl-2,2′-bipyridine) was immobilised on a thin SiO_x layer of a p-Si electrode that was decorated with a bromide-terminated molecular layer. Following the characterisation of the assembled photocathodes by X-ray photoelectron spectroscopy and ellipsometry, PEC experiments demonstrate electron transfer from the p-Si to the Ru complex through the native oxide layer under illumination and a cathodic bias. A state-of-the-art photovoltage of 570 mV was determined by comparison with an analogous n-type Si assembly. While the photovoltage of the modified photocathode is promising for future photoelectrochemical CO₂ reduction and the p-Si/SiO_x junction seems to be unchanged during the PEC experiments, a fast desorption of the molecular Ru complex was observed. An in-depth investigation of the cathode degradation by comparison with reference materials highlights the role of the hydroxyl functionality of the Ru complex to ensure its grafting on the substrate. In contrast, no essential role for the bromide function on the Si substrate designed to engage with the hydroxyl group of the Ru complex in an S_N2-type reaction could be established.

---

Introduction

Limiting anthropogenic CO₂ emissions from fossil fuel combustion would contain climate change and contribute to stabilising the global mean temperature. Consequently, converting CO₂ emissions into a renewable alternative energy source with sunlight as the energy input is a promising alternative to diminish atmospheric CO₂ concentration and lower its impact.^1,2

The development of molecular catalysts for the CO₂-reduction reaction (CO₂RR) and the conversion of CO₂ into fuels has been widely studied^3–12 to circumvent the formation of the highly energetic radical anion CO₂*⁻, the product of one-electron reduction of CO₂.^3–5 Molecular catalysts lower the activation energy barriers and facilitate the (photo)electrochemical formation of various fuels. The fine tuning of molecular catalysts by synthetic modifications permits the selective reduction of CO₂¹³ and has the potential to outcompete H₂ evolution which occurs at similar electrochemical potentials.

Although molecular catalysts can present higher selectivity in the CO₂RR than solid-state catalysts, their degradation in solution is frequently problematic. Thus, their immobilisation onto various solid supports to afford heterogeneous electro/photocatalytic devices has moved into the centre of interest.^14–23 Heterogenisation of molecular catalysts on photoelectrodes would combine the advantages of homogeneous catalysts with high CO₂RR selectivity with those of heterogeneous systems that simplify product isolation and catalyst recycling.^4,9,12,14,16 This approach can also render water-insoluble molecular catalysts useable in aqueous devices.

Silicon is a low-cost narrow band gap (1.1 eV) semiconductor that can harvest light from a large part of the solar spectrum. Since the first use of a heavily-doped p-Si photocathode for H₂ evolution by Candea et al. in 1976, p-Si has been an attractive candidate for the assembly of photoelectrodes.^24–28 Recently, examples of silicon-based photocathodes modified by molecular catalysts have been developed for proton reduction^29–34 and the CO₂RR.^4,16,19,35 Some of these studies have been carried out by grafting the molecular catalyst directly onto freshly etched Si.^30,36,37 However, silicon surface functionalisation remains sensitive to oxidation and requires the strict exclusion of air and moisture during assembly and when performing catalysis.^36–38

Without specific etching procedures, silicon surfaces present a native silicon oxide layer that is suggested to bring advantages to the photocathode. Indeed, the presence of a thin insulative layer would improve the open-circuit potential compared to a silicon–coating interface by avoiding current leakage of the majority carrier flow (holes on p-Si) that goes in the opposite direction to the minority carrier flow (electrons for p-Si), towards the anode. Moreover, native silicon oxide layers thinner than 3 nm are permeable to minority carriers by tunnelling (electrons for p-Si).^39,40 Additionally, silicon oxide is thermodynamically stable at a wide pH range and would provide a stable supportive substrate.⁴¹ Therefore, the immobilisation of molecular complexes onto native silicon oxide could be defined as an MIS (Metal–Insulator–Semiconductor) inspired junction in which the complex layer plays a similar role to the metal in that it acts as a charge extraction layer combined with potential catalytic features. We envisaged that the presence of the insulative oxide layer would still allow a significant photovoltage for the CO₂RR and potentially limit the back-electron transfer after catalyst reduction at the surface.

Recently, we and others have developed a family of Ru-based CO₂RR catalysts, [Ru(tpy)(bpy)(NCCH₃)] (tpy = 2,2′:6′, 2′′-terpyridine and bpy = 2,2′-bipyridine), that present a high CO₂-to-CO selectivity.^42–45 The presence of a methyl group at the bipyridine facilitates the dissociation of the acetonitrile ligand upon one-electron reduction and promotes the electrochemical CO₂RR via a low-overpotential ECE mechanism. The methyl group was also included in the present study, and we report a new member of this catalyst family, [Ru(HO-tpy)(6-mbpy)(NCCH₃)]²⁺ (1) (HO-tpy = 4′-hydroxy-2,2′:6′,2′′-terpyridine and 6-mbpy = 6-methyl-2,2′-bipyridine), that contains a hydroxyl group for grafting on native silicon oxide coated p-Si flat electrodes. The silicon based molecular junctions were prepared in a bottom-up approach. First, a bromine-terminated reactive layer was grafted on flat p-Si/SiO_x through a siloxane linkage. Subsequently, this decorated surface was reacted with (1) bearing the complementary hydroxyl function for an ether linkage. The structural characterisation of the assembly was performed by X-ray photoelectron spectroscopy (XPS) and ellipsometry. The electrochemical properties of the assembly were investigated by cyclic voltammetry while the stability of the adducts under the photoelectrochemistry (PEC) conditions was explored by XPS.

Synthesis and characterisation of (1)

The complex [Ru(HO-tpy)(6-mbpy)(NCCH₃)]²⁺ (1) bears a hydroxyl group in the 4′ position of the terpyridyl moiety that is envisaged to engage in ether bond formation with the bromide-terminated supportive layer described below. Complex (1) was synthesised by adapting literature procedures (Fig. 1).^43,46,47 As a key step, the ruthenium dimer (3) that was formed from the reduction of (4) in the presence of triethylamine could be easily separated from unidentified impurities by simple filtration.^46,48 Complex (3) is a dark purple-black solid which upon reaction with 6-mbpy gives rise to (2). The indirect pathway via (3) allows easier purification of (2) by chromatography on alumina than the direct synthesis of (2) from (4).

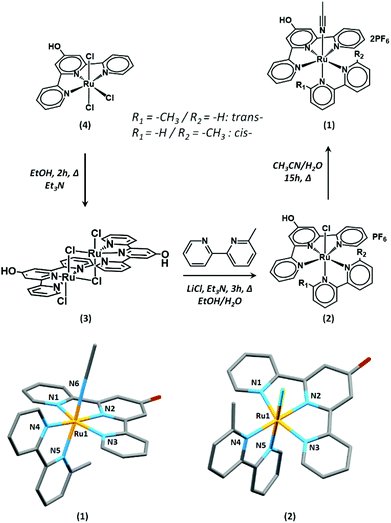

Fig. 1 Synthetic scheme for the preparation of (1) and single-crystal solid-state structures of trans-(1) (bottom left) and cis-(2) (bottom right). All atoms are displayed as capped sticks, and H atoms and non-coordinating Cl⁻ and PF₆⁻ counterions have been omitted for clarity.

As reported by Johnson et al., the asymmetric 6-methyl-2,2′-bipyridine ligand leads to the formation of cis- and trans-isomers.⁴³ Both isomers of (1) could be observed by ¹H NMR spectroscopy, with the trans-isomer being the major component (Fig. S1†). The trans-isomers of this family of complexes have been shown to promote the CO₂RR at a lower overpotential than the cis-isomers. Due to the difficulties in their separation and potential interconversions, the subsequent study was conducted on a mixture of cis- and trans-isomers of (1).

High-resolution mass spectrometry in the positive mode attests the formation of complex (1). The main signal at m/z: 260.5384 (calc. 260.5389) corresponds to the dication (1) with the loss of the acetonitrile ligand. The assignment of all other peaks is presented in the Experimental section.

Single crystals of (1) and (2) suitable for X-ray diffraction analysis were obtained by vapor diffusion of diethyl ether into a concentrated acetonitrile solution of (1) and by layering a CD₃Cl solution of (2) with aqueous conc. HCl, respectively. The asymmetric unit of (2) contains a single complex, while that of (1) contains two non-equivalent complexes. In both (1) and (2), the Ru centers exhibit a six-coordinate, distorted octahedral geometry (Fig. 1). The HO-tpy ligand occupies a meridional plane and the 6-mbpy and chloride or CH₃CN co-ligands satisfy the metal coordination sphere. The 6-mbpy ligands exist both in the cis- and trans- conformations with respect to the chloride and CH₃CN ligands in the solid-state, resulting in a positional disorder in the solid-state structures. The bond lengths in (1) are comparable to those of the related complexes. The average Ru–N_terpy distance of 2.040(3) Å is within the range of the previously reported examples (1.958–2.083 Å), while the average Ru–N_bipy length of 2.086(8) Å are slightly elongated (2.019–2.085 Å).^49–51 Unfortunately, very low intensity data were obtained from single crystals of (2), which did not allow for the structure to be discussed beyond connectivity information. Further details of both structures are provided in the ESI.† The average C–O bond length of 1.333(6)–1.351(7) Å in (1) is consistent with that of a protonated oxygen atom as previously reported for related complexes.⁴⁷

Cyclic voltammetry in solution

In order to verify the redox properties of (1) prior to surface anchorage, the complex was studied by cyclic voltammetry (CV) in the homogeneous phase (0.1 M TBAPF₆ in CH₃CN). As visible in Fig. 2, several cathodic features can be observed between −1.78 and −2.26 V (all potentials are given vs. Fc^+/0). The first reductive process is an irreversible wave at E_pc = −1.78 V. Its attenuation on the second consecutive scan at ν = 200 mV s⁻¹ and its disappearance in the presence of 1.1 equivalents of (ⁱPr)₂EtN (DIPEA, Fig. 2 left) suggest that this process is a ligand-based reduction with concomitant deprotonation. Indeed, Fujita and co-workers recently reported the absence of the most anodic reduction wave on the second scan or after the chemical deprotonation of the hydroxyl-modified polypyridyl-Ru complexes similar to (1).⁵² They assigned this phenomenon to a ligand-based reduction that is accompanied by the loss of a proton. Tanaka and co-workers also reported a comparable behaviour in the presence of Et₃N.⁵³

Fig. 2 Cyclic voltammograms of (1) (1 mM). Left: in the absence and presence of 1.1 equivalent of (ⁱPr)₂EtN under Ar. Right: under CO₂ (dashed line) compared to the response under Ar (solid line). All experiments were done in 0.1 M TBAPF₆ in CH₃CN, ν = 200 mV s⁻¹.

Upon the addition of (ⁱPr)₂EtN, a new wave appears at E_pc = −1.86 V (Fig. 2, left) that is attributed to the reduction of an ammonium cation formed by the deprotonation of (1). This assignment is based on the work by Tanaka and co-workers, who reported the reduction of Et₃N-H⁺ formed by the deprotonation of a complex similar to that of (1) at E = −1.75 V vs. Ag^+/0.⁵³

Irrespective of the presence of (ⁱPr)₂EtN, a second irreversible reduction can be observed at E_pc = −1.95 V which can be attributed to the reduction of the deprotonated complex (1) (Fig. 2, left). As a result of the negative charge, this reduction is cathodically shifted compared to that of the mother complex (5) (Chart 1) that lacks the hydroxyl group (Fig. S3†).^53,54 The introduction of the hydroxyl function on (1) is compatible with the CO₂RR as current enhancement can be observed at E_pc = −1.95 V when the CV is conducted under CO₂ (Fig. 2, right).

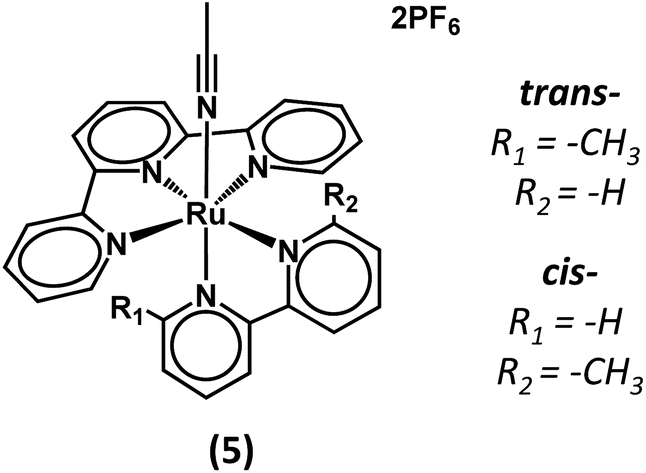

Chart 1 Representation of complex (5).

Having proven that the catalytic activity of the complex is not greatly altered by the presence of the hydroxyl group, the grafting of (1) was pursued.

Immobilisation on silicon substrate

The immobilisation of (1) onto silicon wafers followed a two-step process. For the work presented herein, we decided to take advantage of the native oxide layer that covers the silicon wafers. This thin oxide layer is envisaged to protect the underlying semiconductor, while acting as a tunnelling barrier for charge extraction by (1).

In the first step, a supportive molecular layer of 3-bromopropyltrimethoxysilane (Br-PTMS) was installed onto the native silicon oxide (p-Si/SiO_x/Br, Fig. 3). The second step included the anchorage of complex (1) on the modified surface to afford p-Si/SiO_x/[Ru]. The bromide groups are complementary to the hydroxyl group of (1) for ether bond formation via an S_N2 reaction in the presence of (ⁱPr)₂EtN.

Fig. 3 Representation of the grafting steps to achieve p-Si/SiO_x/Br and p-Si/SiO_x/[Ru] (Key: Ru (orange), N (blue), O (red), and C (grey)).

Halide terminated monolayers have previously been shown to engage in S_N2 substitution reactions with strong nucleophiles such as azide, thiocyanate, or alkoxide anions.^55–58 Fryxell et al. have shown that such S_N2 reactivity is decreased when the halide is positioned at the terminus of highly ordered monolayers that are obtained with long carbon chains as the rigidity of such monolayers blocks the attack of the incoming nucleophile at the halide-carbon.^59,60 To guarantee the flexibility of the monolayer and allow for a successful S_N2 coupling, we chose to immobilise the short carbon chain Br-PTMS onto p-Si/SiO_x substrates. Moreover, we conducted the grafting under an ambient atmosphere and high concentration to lead to a potential disorganised and flexible molecular supportive layer.^61,62

The S_N2 coupling of an alcohol decorated–Ru complex with a flexible Cl-terminated trialkoxysilane layer has previously been performed on SiO_x solid supports by thermal activation.^57,58 It is well known that the formation of robust monodentate alcohol monolayers on SiO_x requires a thermal activation.^61,63 Therefore, to favour the S_N2 coupling and limit a potential direct interaction of (1) with SiO_x, we chose to perform the coupling at room temperature in the presence of an activating base. The poorly nucleophilic and sterically hindered base DIPEA was chosen for the S_N2 reaction to avoid the potential formation of an ammonium layer on the Br-terminated p-Si/SiO_x/Br layer.^64,65 DIPEA (pK_a = 10.75) is sufficiently basic to deprotonate (1), the hydroxyl group of which is expected to have a similar pK_a as [Ru(tpy)(HO-tpy)]²⁺ (pK_a = 5.85).^47,66

The thickness of the native SiO_x layer was determined by ellipsometry before grafting with Br-PTMS and was found to range between 12 and 17 Å from Si wafer to wafer. The p-Si/SiO_x/Br surfaces were obtained by grafting Br-PTMS using 0.1 M solutions in dry toluene overnight on a clean native silicon oxide surface p-Si/SiO_x (Fig. 3). The ellipsometry measurements showed a slight increase in thickness of 8–9 Å, consistent with the deposition of a molecular layer with a theoretical thickness close to 6 Å for an ideally organised monolayer (Fig. 3).

The XP spectra of the substrate did not feature any signals that could be assigned to the bromide from the molecular layer (Fig. S4†). However, this behaviour is not surprising and has been observed before by Sato et al., who demonstrated the degradation of 3-chloro- and 3-bromomethoxysilane layers on silicon oxide during XPS measurements.⁶⁷ In analogy, we assigned the absence of a Br3d (5/2) contribution in the XP spectrum to C–Br bond degradation during the measurement. Nevertheless, the thickness increase as determined by ellipsometry indicates the successful formation p-Si/SiO_x/Br which was thus submitted to grafting with (1).

The p-Si/SiO_x/Br coated surfaces were placed in a solution of (1) in the presence of 2.5 equivalents of DIPEA in dry acetonitrile for 4 days at room temperature under ambient conditions.⁶⁸ After a thorough rinsing step with acetonitrile, the p-Si/SiO_x/[Ru] surfaces were characterised by ellipsometry and XPS.

The thickness of (1)-modified surfaces was expected to be 30–35 Å (Fig. 3). In agreement with these theoretical values, the experimental thicknesses varied from 28 to 39 Å, thus indicating the successful formation of p-Si/SiO_x/[Ru].

XPS measurements were performed to further confirm the composition of the p-Si/SiO_x/[Ru] electrodes. All constitutive elements of (1) were detected by XPS (Table 1) and the high-resolution spectra of the C1s, Ru3d, and N1s regions are displayed in Fig. 4. A unique contribution is observed in the N1s region at 399.9 eV. The C1s and Ru3d regions feature a contribution at 280.9 eV attributed to Ru3d (5/2). The photopeak at higher binding energy encompasses the C1s and Ru3d (3/2) contributions. The latter was set at 285.1 eV in agreement with the Ru3d (5/2) contribution (see the ESI†). Two C1s contributions correspond to the C–H and C–C bonds from the alkyl chain and the inherent C1s contamination at 284.6 eV and the C–N, C=C and C–O bonds from the complex at 285.5 eV. The atomic percentage of N/Ru shows a ratio of 5.9 N atoms for 1 Ru atom, consistent with the presence of intact (1) at the surface (Table 1). No significant nitrogen contribution is present in the spectrum of a control experiment of p-Si/SiO_x/Br after 4 days in a 2.5 mM DIPEA solution in acetonitrile and in the absence of (1) (Fig. S5†), thus proving the absence of any potential DIPEA-based quaternary ammonium ions.^64,65

Fig. 4 High-resolution XP spectra of the C1s, Ru3d, and N1s regions of a p-Si/SiO_x/[Ru] electrode (calibrated against Si2p at 99.4 eV).

Table 1 Atomic composition of p-Si/SiO_x/[Ru] electrodes determined from XPS measurements

Additional post-coupling procedures^a		Atomic ratio N/Ru	Binding energies/eV (ref. Si 99.4 eV)
			C	N	Br^b
a All procedures were preceded and followed by copious rinsing with acetonitrile. b Values determined from the survey spectrum.
1	None	5.9	280.9	399.9	68.4
2	Sonication in CH3CN (5 min)	5.9	281.1	400.0	68.8
3	Sonication in TBAPF6 0.1 M in CH3CN (5 min)	6.1	281.2	400.3	68.1
4	TBAPF6 1 M in CH3CN (20 min)	5.6	281.0	399.0	68.6

---

Interestingly, the survey spectrum of p-Si/SiO_x/[Ru] also shows a Br3d contribution between 68.1 and 68.8 eV that is different from the typical range for C–Br bonds at 70.6 and 71.6 eV, and that is assigned to a bromide anion (Table 1, entries 1–4).⁶⁰ Bromide is the leaving group in the S_N2 reaction and may be trapped as a counter ion to the Ru complex. Alternatively, bromide may also result from the decomposition of unreacted C–Br bonds during the XPS scan as described above but may be trapped under the layer of (1) on p-Si/SiO_x/[Ru].

To assess the robustness of the modified photocathodes prior to the PEC experiments, the p-Si/SiO_x/[Ru] electrodes were exposed to several treatment procedures (Table 1), using the Ru3d : N1s ratio as determined by XPS as stability markers. The electrodes are stable to sonication in acetonitrile (5 min), even in the presence of TBAPF₆ (0.1 M), and the Ru3d (5/2) and N1s photopeaks retain the 1 : 6 ratio as expected for (1) (Table 1, entries 2 & 3; Fig. S6 and S7†). The p-Si/SiO_x/[Ru] electrodes are also stable under the conditions of the PEC experiments (1 M TBAPF₆ in acetonitrile), and no substantial desorption of (1) is observed (Table 1, entry 4; Fig. S6†).

Photoelectrochemistry study

The CVs of p-Si/SiO_x/[Ru] were recorded under one sun illumination (Fig. 5). Compared to the p-Si/SiO_x and p-Si/SiO_x/Br reference electrodes, a significant photocurrent with a cathodic peak potential at E_pc = −1.58 V is observed for p-Si/SiO_x/[Ru] (Fig. 5a). This effect can be explained by the presence of (1) at the native oxide and an effect of potential DIPEA traces is dismissed (Fig. S8†). The p-Si/SiO_x/[Ru] electrode can be described as an MIS junction where complex (1) extracts the electrons photogenerated in the bulk of the p-Si semiconductor.⁴¹ The thin silicon oxide layer does not block the electron transfer but acts merely as a tunnelling barrier for charge extraction.^41,69 The reduction of (1) at p-Si/SiO_x can be explained by the Fermi level pinning enhanced by the presence of a high density of interfacial traps at p-Si/SiO_x^70,71 or by the unpinning of the band edges of p-Si with the formation of an inversion layer making the p-Si electrode behave as a metal electrode under an applied bias and illumination.^41,72 To determine the effect of doping in p-Si/SiO_x/[Ru] upon illumination, an analogous conductive n⁺-Si/SiO_x/[Ru] electrode was prepared in a procedure analogous to that described for p-Si/SiO_x/[Ru]. Comparing the CVs of n⁺-Si/SiO_x/[Ru] and p-Si/SiO_x/[Ru] shows a photovoltage of ca. +570 mV at J = 100 μA cm⁻² (Fig. 5b). This photovoltage is similar to that observed for the reduction of [Re((^tBu)₂bpy)(CO)₃Cl] (530 mV) and [Fe₂(μ-bdt)(CO)₆] (500 mV; bdt = benzene-1,2-dithiolate) in a homogeneous solution at an illuminated p-Si electrode.^73,74 In terms of molecular acceptors that are anchored on p-Si, Rose and co-workers observed photovoltages varying from +200 to +235 mV for a nickel catalysed proton reduction scheme.³⁶ A table with reported photovoltages obtained for molecular species at illuminated p-Si is included in the ESI (Table S4†).

Fig. 5 Cyclic voltammograms of (a) p-Si/SiO_x, p-Si/SiO_x/Br, and p-Si/SiO_x/[Ru]; (b) p-Si/SiO_x/[Ru] (solid line), and n⁺-Si/SiO_x/[Ru] (dashed line); and (c) p-Si/SiO_x/[Ru] in the dark (0) and under one sun illumination (1–3) (TBAPF₆ 1 M in CH₃CN, ν = 1 V s⁻¹) under an Ar atmosphere.

Consecutive cathodic scans of p-Si/SiO_x/[Ru] result in the rapid disappearance of the photocurrent (Fig. 5c). The XPS measurements of p-Si/SiO_x/[Ru] after the PEC experiment revealed the disappearance of all N1s and Ru3d (5/2) contributions, while they were very prominent prior to the PEC experiment (Fig. 6). The absence of these contributions indicates a loss of the entire complex during the PEC study. In contrast, the Si2p region of the XP spectrum remained unchanged, highlighting the stability of the SiO_x layer during the PEC experiments (Fig. 7).⁴¹ The propensity of Si/SiO_x/[Ru] to drive the photoelectrochemical reduction of CO₂ was probed by conducting the CV in a CO₂-saturated electrolyte solution under one-sun illumination. Unfortunately, no significant photocurrent increase was observed relative to that of p-Si/SiO_x/[Ru] under argon (Fig. S9†). Such a current enhancement would be expected for CO₂RR activity at p-Si/SiO_x/[Ru] during PEC measurements in analogy to the observations with the homogeneous complex (1) under CO₂-staturated conditions. Its absence is most likely due to the rapid detachment of (1) from the photoelectrode under an applied bias. Johnson et al. have demonstrated that CO₂ fixation on the analogous complex (5) (Chart 1) is preceded at least by one reduction step. Therefore, it is very likely that p-Si/SiO_x/[Ru] is not stable after the first reduction even under CO₂-saturated conditions and that CO₂ fixation by the immobilised complex is not ensured at the interface.

Fig. 6 High-resolution XPS of C1s/Ru3d and the N1s regions of p-Si/SiO_x/[Ru] before (a and b), and after (c and d) the PEC experiments.

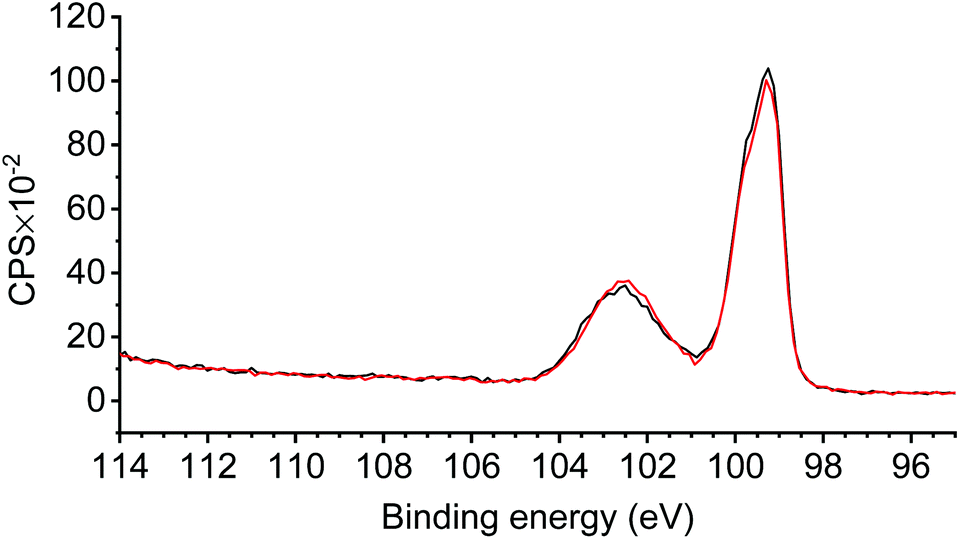

Fig. 7 High-resolution XPS of the Si2p region of p-Si/SiO_x/[Ru] before (black) and after (red) the PEC experiments.

Discussion

From the PEC experiments, it is clear that the immobilised molecular layers are sensitive to the application of a bias. Consequently, it is legitimate to question the efficiency of the S_N2 coupling reaction, even though all the XPS data prior to PEC confirm the presence of (1). To shine more light on the nature of the bond between (1) and the underlying substrate, different control experiments were performed, in particular, to delineate the role of the bromide and the hydroxyl functional groups.

If the immobilisation of (1) proceeds through ether linkage formation as envisaged, removing either of the functional groups should decrease the grafting yield dramatically. Therefore, an n-propyltrimethoxysilane (n-PTMS) modified surface p-Si/SiO_x/CH₃ was prepared in analogy to the procedure described for p-Si/SiO_x/Br and exposed to a 1 mM solution of (1) in the presence of DIPEA (2.5 mM). Although the modified supporting substrate was lacking bromide, significant Ru and N contributions were observed on the XP spectra of the modified substrate (Table 2, entry 2; and Fig. S10†). These results indicate the immobilisation of (1) even in the absence of a terminal bromide. The presence of (1) on p-Si/SiO_x/CH₃ might be due to the interaction between the hydroxyl function of (1) and the residual Si–O–R (R = Me or H, if hydrolysed) bonds that did not react with the oxide surface.^61,63 In addition, the decreased N : Ru ratio of 5 : 1 may suggest different anchorage modes of (1) on p-Si/SiO_x/CH₃ than on p-Si/SiO_x/Br, and in some cases, a ligand may be replaced by Si–O–R of the supportive layer. The control experiment shows that the bromide function does not play an essential role in the immobilisation of (1).

Table 2 Atomic composition of p-Si/SiO_x/[Ru] electrodes determined from XPS measurements

	Supportive layer	Complex	Ratios N/Ru	Binding energies/eV
				C	N
All samples were subjected to sonication (5 min) in 0.1 M TBAPF6 in CH3CN, and preceded and followed by copious rinsing with CH3CN after coupling the substrate in 1 mM of complex and 2.5 mM of DIPEA in CH3CN at RT for 4 days. PTMS: propyltrimethoxysilane. Binding energy values are referenced to Si 2p at 99.4 eV.
1	Br-PTMS	4	6.1	281.2	400.3
2	n-PTMS	4	5.2	281.0	399.9
3	SiOx	4	5.9	281.3	400.2
4	Br-PTMS	5	—	—	—

---

Next, we investigated the possible interaction of (1) with a non-modified p-Si/SiO_x. Thus, a bare p-Si/SiO_x substrate was placed in a 1 mM solution of (1) in the presence of DIPEA. Surprisingly, Ru3d and N1s contributions were also observed in this case, even after sonication in an electrolytic solution (Table 2, entry 3; Fig. S11†). Their presence demonstrates that a strong interaction occurs even between the bare surface and (1).

In summary, these control experiments exclude the necessity to have a bromide group present on the substrate for immobilisation of (1). In order to elucidate the role of the hydroxyl group on (1) for immobilisation, p-Si/SiO_x/Br was sensitised with complex (5) that is lacking the hydroxyl group (Table 2).⁴³ The high-resolution XP spectra of the resulting material did not show any contribution of the Ru3d and N1s regions (Table 2, entry 4; Fig. S12†). The absence of Ru and N signals indicates that without the hydroxyl moiety, no interaction occurs between the terminal bromide or the potential pendant Si–O bonds. This experiment clearly highlights the crucial role of the hydroxyl group of (1) to ensure immobilisation onto p-Si/SiO_x/Br.

Conclusions

In summary, we presented the immobilisation of the complex [Ru(HO-tpy)(6-mbpy)(NCCH₃)]²⁺ (1) on a p-Si based electrode through a molecular bottom-up approach. The presence of a thin insulative native oxide layer, which is intended to minimise back electron transfer, allows efficient charge extraction giving rise to a state-of-the-art photovoltage of +570 mV. The overall architecture can be compared to an MIS junction in which complex (1) takes the role of a metal layer. The study illustrates the possibility of using p-Si to diminish the overpotential that is needed for CO₂ reduction by (1). Furthermore, the underlying supportive photocathode p-Si/SiO₂ architecture is not altered by the applied potential. Despite these encouraging photoelectrochemistry results, severe desorption of complex (1) from the photocathode was observed upon applying the potential, thereby preventing further in-depth photoelectrochemical CO₂ reduction studies. In other words, the detachment of (1) is faster than any catalytic CO₂RR, which could thus not be demonstrated for p-Si/SiO_x/[Ru]. Although the exact interactions that are responsible for the anchorage of (1) onto p-Si/SiO_x/Br remained unclear, the necessity of (1) to bear a hydroxyl group for anchorage was clearly demonstrated. The challenge remains to produce more robust photocathodes to ensure efficient catalytic devices.

Experimental

Instrumentation

NMR spectra were recorded using a JEOL (400YH Magnet) 400 MHz spectrometer at 293 K in CD₃CN. Chemical shifts (δ) are quoted as parts per million (ppm) and the coupling constants J are reported in Hz. All ¹H NMR spectra are referenced to the solvent residual signal (δ = 1.94 ppm). HR-NSI-MS analyses were performed at the Organisch Chemisches Institut WWU Münster.

Crystallography measurements were performed using graphite-monochromatised Mo K_α radiation at 170 K using a Bruker D8 APEX-II equipped with a CCD camera. The structure was solved by direct methods (SHELXT-2014),⁷⁵ and refined by full-matrix least-squares techniques against F² (SHELXL-2018)⁷⁶ in Olex2 ⁷⁷ The non-hydrogen atoms were refined with anisotropic displacement parameters. The H atoms of the CH₂/CH groups were refined with common isotropic displacement parameters for the H atoms of the same group and idealised geometry. The H atoms of the methyl groups were refined with common isotropic displacement parameters for the H atoms of the same group and idealised staggered geometry. CCDC 2059979 and 2059980† contain the supplementary crystallographic data for this paper.

Ellipsometry measurements were recorded using a J.A. Woollam Co. RC2-XI spectroscopic ellipsometer equipped with a 75 W Xenon Arc lamp. The measurement angles were 60, 65 and 70°. Data fitting was assured by using the Complete EASE software using a Cauchy model (A = 1.450 and B = 0.010) on the silicon surface. The molecular layer thickness was determined by subtraction of the oxide thickness measured before the chemical modification.

XPS measurements were performed using a PHI Quantera SXH spectrometer with a monochromatic Al Kα source (hν = 1486.6 eV) operated with a 25 W electron beam power and a beam diameter of 100 μm. The spectra were collected with a 112 eV pass energy at a take-off angle of 45°. The binding energies were referred to the Si2p binding energy calibrated at 99.4 eV. The spectra were analysed by using the Casa XPS v 2.3.22PR1.0 software (Casa Software Ltd, UK) and all the elemental peak intensities were corrected by Scofield factors (Table S3†).

Homogeneous electrochemical studies were performed on an Autolab PGSTAT100 controlled by the GPES 4.9 software using a standard three-electrode set-up with glassy carbon as the working electrode. Photoelectrochemical studies were performed on an Autolab PGSTAT204 controlled by the NOVA software using a three-electrode set-up with a custom Teflon cell (Pine Instrument) equipped with a quartz window. The modified silicon surfaces were used as the working electrodes. The electrical contact of the silicon surfaces consisted of a drop of gallium-indium eutectic covered by a conductive copper tape (Electron Microscopy Science) in contact with a stainless-steel back-contact. All electrochemical set-up encompassed an Ag/Ag⁺ (0.01 M AgNO₃ in CH₃CN, calibrated against Fc⁺/Fc potential) nonaqueous reference electrode and a glassy carbon rod auxiliary electrode.

The modified silicon surfaces were illuminated by a solar simulator (SS-F5-3A Enlitech) equipped with a 300 W Xe light source and an AM 1.5G spectral correction filter and calibrated towards an NREL-traceable silicon solar cell (Ref SRC-2020-SRC-00124 Enlitech).

Synthesis

All chemicals were purchased from commercial sources and used as received. The boron p-doped silicon (111) wafers of thickness 265 μM and a resistivity of 0.3–0.5 Ω cm were ordered from Łukasiewicz ITME. Acetonitrile was dried by distillation over calcium hydride before electrochemical studies and surface preparation. [(4′-Hydroxy-2,2′:6′,2′′-terpyridyl)(trichloro)ruthenium(III)] and [(2,2′:6′,2′′-terpyridyl)(6-methyl-2,2′-bipyridyl)acetonitrile ruthenium(II)] hexafluorophosphate have been synthesised according to the literature procedure.^43,47 [Bis-((4′-hydroxy-2,2′:6′,2′′-terpyridyl)(chloro)ruthenium) dichloride] synthesis was adapted from the literature and led to a dark purple powder that was used without further characterisation.^46,47

Synthesis of [(4′-hydroxy-2,2′:6′,2′′-terpyridyl)(6-methyl-2,2′-bipyridyl)acetonitrile ruthenium(II)] hexafluorophosphate (1). [Bis-((4′-hydroxy-2,2′:6′,2′′-terpyridyl)(chloro)ruthenium) dichloride] (261.5 mg, 0.303 mmol) and lithium chloride (53.3 mg, 1.26 mmol) were placed under an inert atmosphere and solubilised by a beforehand purged ethanol/water mixture (21/7 mL). The suspension was purged 5 min after the addition of triethylamine (170 μL, 1.22 mmol) and 6-methyl-2,2′-bipyridine (110 μL, 0.704 mmol). The reaction was heated to 90 °C for 3 hours before 3 drops of HCl 37% were added to the cooled mixture. The products precipitated upon the addition of saturated ammonium hexafluorophosphate aqueous solution to the concentrated mixture. Finally, purification by column chromatography on alumina using LiCl saturated dichloromethane/ethanol/water (8/1/1) as eluent led to [(4′-hydroxy-2,2′:6′,2′′-terpyridyl)(6-methyl-2,2′-bipyridyl)chloro ruthenium(II)] hexafluorophosphate (37%).⁷⁸

[(4′-Hydroxy-2,2′:6′,2′′-terpyridyl)(6-methyl-2,2′-bipyridyl)chlororuthenium(II)] hexafluorophosphate (39.0 mg, 0.056 mmol) was placed in a acetonitrile/water (3/1) (40/10 mL) mixture at 90 °C overnight. The solution was concentrated under reduced pressure and cooled down. A red-orange precipitate appeared after the addition of an excess of saturated ammonium hexafluorophosphate aqueous solution. The solid was filtered off, thoroughly washed with cold water and copiously rinsed with diethyl ether to obtain 41 mg of (1) (86%).

¹H NMR (400 MHz, CD₃CN): δ = 8.40 (d, J = 8.02 Hz, 1H), 8.28 (m, 3H), 8.15 (t, J = 7.82 Hz, 1H), 7.95 (m, 4H), 7.87 (d, J = 7.82 Hz,1H), 7.76 (m, 3H), 7.45 (d, J = 5.57 Hz, 1H), 7.31(m, 2H), 7.10 (t, J = 6.35 Hz, 1H), 3.08 (s, 3H), 2.00 (s, 3H).

NSI-MS(+): m/z: 260.5384 ([M − 2PF₆ − ACN]²⁺; calc. 260.5389); 281.0514 ([M − 2PF₆]²⁺; calc. 281.0522); 281.0514 ([M − 2PF₆]²⁺; calc. 281.0522); 520.0696 ([M − 2PF₆ − ACN − H⁺]⁺; calc. 520.0706); 540.0757 ([M − 2PF₆ − ACN + H₂O + H⁺]⁺; calc. 540.0968); 561.0959 ([M − 2PF₆ − H⁺]⁺; calc. 561.0971); 707.0680 ([M − PF₆]⁺; calc. 707.0691).

Surface preparation

Pieces of ca. 1 × 1 cm were cut from a p-Si wafer. Prior to coating, the surfaces were washed with water and then with isopropanol which was followed by sonication (5 min) in isopropanol. After another iso-propanol rinsing, a 5 min sonication in dichloromethane was performed which was followed by a final rinsing step using dichloromethane. Final cleaning was performed in piranha solution for 15 min to eliminate traces of organic residues. Caution: piranha solution is a very corrosive mixture and thorough precaution must be considered when handled. This was followed by a copious washing step with water and 5 min sonication in water, followed by water rinsing and drying under an Ar flow. All the grafting processes were performed in the dark.

p-Si/SiO_x/Br preparation

The freshly cleaned surfaces were placed overnight at room temperature in a 0.1 M solution of 3-bromopropyltrimethoxysilane in dry toluene in air. The coated surfaces were thoroughly rinsed with toluene and dried under an Ar flow.

p-Si/SiO_x/[Ru] preparation

The freshly prepared p-Si/SiO_x/Br were placed for 4 days at room temperature in 0.001 M [Ru]-(3) solution in acetonitrile in the presence of 2.5 eq. of DIPEA. The surfaces were then copiously rinsed with acetonitrile (10 mL for each substrate) and dried with an Ar flow. If needed, they were kept under an Ar atmosphere before further characterisation.

Author contributions

Maxime Laurans: original draft writing, synthesis and characterisation, surface modification, PEC study, and XPS study. Jordann A. L. Wells: crystal structures and writing (review and editing). Sascha Ott: supervision, conceptualisation, funding, and writing (review and editing).
