Exotic nuclear spin behavior in dendritic macromolecules

Abstract

Dendrimers are a class of branched, highly symmetric macromolecules that have been shown to be useful for a vast number of different applications. Potential uses as fluorescence sensors, in catalysis and perhaps most importantly in medical applications as drug delivery systems or cytotoxica have been proposed. Herein we report on an exotic behaviour of the nuclear spins in a dendritic macromolecule in the presence of different paramagnetic ions. We show that the stability of the long lived nuclear singlet state, is affected by the presence of Cu(II), whereas other ions did not have any influence at all. This effect could not be observed in the case of a simple tripeptide, in which the nuclear singlet stability was influenced by all investigated paramagnetic ions, a potentially useful effect in the development of Cu(II) selective probes. By adding a fluorescent marker to our molecule we could show that the nuclear singlet multimer (NUSIMER) is taken up by living cells. Furthermore we were able to show that nuclear singlet state NMR can be used to investigate the NUSIMER in the presence of living cells, showing that an application in in vivo NMR can be feasible.

---

Introduction

Dendrimers are large, centrosymmetric, highly branched macromolecules that can be easily modified at the end of each branch by different means of chemical synthesis.¹ Since the first report on dendritic structures,² dendrimers quickly raised the interest of researchers in different fields and a large number of different possible applications have been proposed, ranging from the use as effective filtering systems³ over the use as chemical sensors^4,5 to chemical catalysis.^6,7 In the latter two cases, the high number of terminal functional groups in dendrimers drastically increases the effectiveness in the respective applications, since they allow for a large number of active residues to be condensed in one molecule and thus in the same area. Apart from the aforementioned possibilities, dendrimers have been investigated especially in the field of medical research. Cavities in the dendritic structures allow for the use as drug delivery systems by encapsulating different compounds.^8,9 Additionally, dendrimer based cytotoxica have been introduced by attaching small cytotoxic compounds to dendrimers, again accumulating a high number of active compounds in the same place.^10–12

A fairly recent proposal for the use of dendrimers are nuclear singlet multimers (NUSIMERs).¹³ This approach makes use of the accumulation of up to 128 equivalent residues at the branches of a poly(amidoamide) dendrimer of the 5th generation (G5-PAMAM) in combination with nuclear singlet state NMR. A nuclear spin singlet state requires two spin-12 nuclei coupling with each other. While the triplet state with a total spin of 1, can be observed in regular NMR experiments, the singlet state with a total spin of 0 is NMR silent.¹⁴ Nuclear singlet states have been shown to have lifetimes often exceeding the spin–lattice relaxation T₁. This particular property allows for the transfer of magnetization from the triplet state to the singlet state, in which the spin order can be stored and, at a later point, retrieved again.^14–44 A combination of the transfer of magnetization to singlet state order and back with a singlet filter allows for selective observation of just the proton pair in which a singlet state has been populated, thus eliminating all background signal, including the solvent signal.^13,44,45 For a better understanding of the behaviour of the nuclear spins, this phenomenon has been thoroughly investigated in perfect environments, such as low viscosity, perdeuterated solvents³⁴ or under the exclusion of oxygen in order to minimize singlet leakage and thus extending the singlet state lifetime.^15,21,33 The fact that the equilibration time between the NMR silent nuclear singlet state and the NMR active triplet state (T_s) oftentimes exceeds T₁^20–23 leads to the possibility to analyze dynamics and has already been used to probe structures of proteins and to investigate drug binding as well as diffusion phenomena^{41–44,46,47} or even the selective detection of different amino acids in the same protein in vitro.⁴⁸ However, most of those experiments have been carried out in deuterated solvents, degassed samples or with partially deuterated compounds as well. In few studies it could be shown that long-lived nuclear singlet states can be used in vitro in non-deuterated solvents and in near physiological conditions,^13,44 or even in vivo in magnetic resonance spectroscopy to filter metabolic signals.⁴⁹ In the latter example it could be shown that singlet filtering is possible in MRI experiments. Especially in this context, the inherently low sensitivity of NMR can be somewhat overcome by the accumulation of a large number of chemically equivalent proton pairs in the same molecule, for which the use of dendrimers is exceptionally well suited. The fact that dendritic structures have been shown to be a valid concept in the development of probes, lead us to investigate the possibilities to use dendritic structures to probe for paramagnetic ions and furthermore explore possibilities to use NUSIMERs in in-cell experiments.

General concept

A nuclear singlet multimer (NUSIMER) G5-PAMAM-GGA-NH₂, is a poly(amidoamide) dendrimer of the 5th generation (G5-PAMAM) which has been modified by attaching the glycin–glycin–alanin tripeptide (GGA) (1) to it to obtain a macromolecule (2) that contains up to 128 proton pairs per molecule with the same chemical shift dispersion in which a nuclear singlet state can be populated¹³ (Fig. 1). Due to the high density of chemically equivalent proton pairs in which a singlet state can be populated, the use of NUSIMERs can greatly increase the sensitivity and NUSIMERs can be detected at low concentrations in reasonably quick experiments. The presence of amide and amine functions within the structure as well as at the end of each branch, makes them excellent candidates for the interaction with metal ions and thus the potential use as probes for metal ions.

Fig. 1 (A) Structure of the tripeptide (GGA) (1) with accessible proton singlet states indicated in blue and structure of the fluorescent tag Atto488. (B) Modification of G5-PAMAM-GGA-NH₂ (2) by addition of Atto488 leads to G5-PAMAM-GGA-Atto488 (3).

In a first set of experiments we investigated the effect of paramagnetic metal ions on T₁⁻¹ and T_s⁻¹ in (1) and (2) to assess the possibility to use NUSIMERs to sense certain ions. In an investigation of the effect of some paramagnetic ions on T₁ and T_s in a simple glycine–alanine dipeptide, it has been shown that the singlet state is less sensitive to paramagnetic relaxation than the conventional nuclear magnetization.⁴⁰ This property can be useful in increasing the specificity compared to the standard NMR experiment. Metal ions play a pivotal role in many biological processes. Especially Cu(II) has gained some attention, since high Cu(II) concentrations are associated with the formation of Aβ-plaques which can be found in Alzheimer's disease patients.⁵⁰ Furthermore, we investigated the effect of Fe(III), Gd(III), Mn(II) and Zn(II) on T₁⁻¹ and T_s⁻¹.

To further explore the possibility to use NUSIMERs for the detection of said ions in a biological environment, we decided to investigate, if NUSIMERs can be viable for in vivo experiments in cells. In order to be able to trace the NUSIMER, compound (2) has been modified by attaching a fluorescent tag (Atto488) to it to obtain G5-PAMAM-GGA-Atto488 (3) (Fig. 1).

Results and discussion

Influence of paramagnetic metal ions on T₁⁻¹ and T_s⁻¹

In order to simulate the environment most likely to be relevant in potential in vivo applications, samples of (2) have been prepared in aqueous HEPES buffered solutions (10 mM) and have been titrated with Gd(III), Mn(II), Fe(III), Cu(II) and Zn(II) respectively (experiments conducted at 600 MHz). Zn(II) is diamagnetic but also an important disease marker and was hence included in our investigation. After each addition of the respective ions T₁⁻¹ and T_s⁻¹ have been determined (T₁⁻¹ plots are provided in the ESI†). We performed the same experiments with (1) to correlate the obtained data (Fig. 2).

Fig. 2 Equilibration rates T_s⁻¹ of GGA (12.8 mM) (1) (black) and G5-PAMAM-GGA-NH₂ (100 μM) (2) (red) in HEPES buffered H₂O at 600 MHz depending on the concentration of different paramagnetic ions Gd(III) (a), Mn(II) (b), Zn(II) (c), Cu(II) (d) and Fe(III) (e). An effect of Cu(II) on T_s in the dendrimer is apparent in (d). This effect cannot be seen for the other ions within the error. The effect of Fe(III) on T_s in the tripeptide (e) can be explained by the interaction of HEPES with Fe(III) (f). Error margins are standard deviations of 3 separate measurements with 8 scans each.

For (1) we observed changes in T₁⁻¹ and T_s⁻¹ in a similar relation in the presence of paramagnetic ions as has been shown before.⁴⁰ Notably, in the case of (1) in combination with Fe(III) we observed an effect on T₁⁻¹ and T_s⁻¹ which can be explained by the slow complexation of Fe(III) by the HEPES buffer. The complexation of Fe(III) by different Goods buffers has been reported previously.⁵¹ We investigated this complexation more thoroughly by determining T₁ and T_s in a sample of (1) in HEPES buffer at different times after the addition of Fe(III) (150 μM). We could observe a slow increase in T₁ and T_s respectively (Fig. 2f). To show that this is an effect of the buffer as well as exclude any effect of the buffer in all cases, we investigated the observed phenomena in unbuffered D₂O solutions of the paramagnetic ions, whereby the pD remained unchanged and independent of the ion concentration. These investigations have been conducted at a lower magnetic field (300 MHz) to exclude field dependency effects. We found that T₁⁻¹ and T_s⁻¹ of the peptides and dendrimer investigated display a similar behavior as in the buffer, with Fe(III) following the expected behavior as it does not form a complex (Fig. 3a). In case of (2) we could not observe any effect on either T_s⁻¹ or T₁⁻¹ except in the case of Cu(II) (Fig. 2d). This effect of Cu(II) is especially apparent at concentrations between 200 μM and 400 μM, which are the concentrations reported to be found in Aβ aggregates as well.⁵⁰ If one closely examines the effect of copper on T_s⁻¹, an increase in the singlet stability rate is experienced at first which reaches a minimum at 150 μM copper concentration. If the copper concentration is further increased, T_s⁻¹ decreases as well. For copper we investigated if we can exclude effects of the buffer or if we, similarily to iron, see an interaction of buffer with the ions. Upon addition of copper to the dendrimer we observe in D₂O that T_s⁻¹ starts subceeding the initial value found in the dendrimer, when no ions had been added. We did not observe this behavior if T₁⁻¹ is investigated. T₁⁻¹ increases with copper concentration and reaches a plateau and did not go down again within the error over the investigated range.

Fig. 3 Equilibration rates T_s⁻¹ of (1) (12.8 mM) (black) and (2) (100 μM) (red) in D₂O at 300 MHz depending on different concentrations of Fe(III) (a), Gd(III) (b), Mn(II) (c) and Cu(II) (d). Error margins are the standard deviation of 3 different measurements.

We tried to confirm this behaviour at a higher magnetic field and observed a similar effect in D₂O at 600 MHz, although T_s⁻¹ did not subceed the initial value. The same effect could be observed for T₁⁻¹ (Fig. 4).

Fig. 4 Equilibration rates T_s⁻¹ (black) and T₁⁻¹ (red) of (2) (100 μM) in D₂O depending on different concentrations of Cu(II) at 600 MHz. Error margins are the standard deviation of 3 different measurements.

For an explanation of the effect of Cu(II) on T_s⁻¹ we propose a direct influence of the ions on the constitution of (2). In dendrimers, typically three possible mechanisms are considered how ions can influence the constitution. They can interact with the chains, be incorporated into the center of the dendrimer and may be influenced by electrostatic repulsion of charged parts of the dendrimer and ions.^52–55 Once copper is added, we observe complexation of Cu(II) to the amide functions at first. This interaction of Cu(II) with the amide functions is confirmed in UV/vis experiments (see ESI†). At a certain copper concentration, a saturation of the amide functions at the outer sphere seems to occur. With a further increase in copper concentration we hypothesize that the chain mobility further increases whereby no further copper ions have an effect on the singlet state equilibration. As a result, T_s⁻¹ would become shorter due to an ongoing decrease in correlation time. A similar behaviour has been described for the interaction of the inner branches of a poly(amidoamide) dendrimer of the 4th generation with Cu(II).⁵⁶

In order to verify this hypothesis, we performed diffusion-ordered spectroscopy (DOSY) measurements to analyze the change of chain mobility at increasing copper concentrations and how T₁⁻¹ and T_s⁻¹ are influenced. A first result that we found is that the diffusion coefficient (D) of the glycine protons in the dendrimer increases linearly with the copper concentration (Fig. 5a). At the same time T_s⁻¹ in the dendrimers increases sharply and then starts to decrease again. This effect, can be observed at 150 μM Cu(II) in T_s⁻¹ whereby a plateau is reached for T₁⁻¹ at similar concentrations within the error. The increase in Cu(II) concentration did not show any effect on the diffusion coefficient of the water signal (data shown in the ESI†), showing that no change in viscosity takes place. Thus a contribution of a possible viscosity change can be excluded, as can be an effect of the buffer or the solvent, due to the effect not being observed in the case of the tripeptide GGA in buffered and unbuffered solutions (see ESI†).

Fig. 5 (a) Diffusion coefficient (D) at different Cu(II) concentrations as determined via DOSY NMR spectroscopy. The effect on the diffusion coefficient is 3 × 10⁻¹⁴ m² s⁻¹. (b) EPR spectra of Cu(II) (500 μM) in the presence of GGA (black) and Cu(II) (500 μM). (c) EPR spectrum of Cu(II) (500 μM) in the presence of G5-PAMAM (black) and simulated spectrum (red). (d) EPR spectrum of Cu(II) (500 μM) in the presence of (2) (black) and simulated spectrum (red). The spectra have been recorded at 30 K in a mixture of D₂O and glycerol (1 : 2).

To further investigate the kind of interaction between Cu(II) and (2), we recorded electron paramagnetic resonance (EPR) spectra of Cu(II) (500 μM), GGA in the presence of Cu(II) (500 μM), G5-PAMAM with 500 μM Cu(II) as well as (2) with 500 μM Cu(II) (Fig. 5). Additionally, simulations of the experimental spectra have been performed.

In a first experiment the EPR spectrum of Cu(II), or rather hexaaqua-d₁₂ Cu(II), in D₂O was recorded as a reference spectrum. This spectrum showed to be identical to the obtained spectrum of Cu(II) in D₂O in the presence of GGA, indicating that no complexation of Cu(II) by GGA takes place (Fig. 5b). This observation has also been confirmed by UV/VIS measurements (see ESI†). The measurements for Cu(II) in the presence of G5-PAMAM and (2) (Fig. 5c and d) display different spectra not only to the one of hexaaqua Cu(II), with a g_z of 2.4, but also to one another. Performed simulations indicated a ligation by the nitrogen atoms of the dendrimer and the Cu(II) with a g_z at around 2.25 which is significantly different than the one of the hexaaqua complex of Cu(II) and characteristic for Cu(II)–N complexes.^57–60 In both cases the shape of the EPR spectra were independent of the Cu(II) concentration. The simulations point towards a tetragonal symmetry around the Cu(II) in the presence of G5-PAMAM, with equal g_x and g_y, whereas in the presence of (2) a rhombic symmetry is obtained from the simulation where g_x, g_y and g_z are all different from one another. It is, however, likely that the experimental spectra contain contributions from different Cu(II) complexes as has been shown to be the case in the presence of G4-PAMAM.⁵⁶ The parameters obtained from the simulations are shown in the ESI.†

We herein propose a model in which, upon the first addition of Cu(II) to the dendrimer, a coordination of Cu(II) to the terminal amino functions as well as a coordination to the amide functions of the tripeptide residues occurs. This leads to an increase in the diffusion coefficient of the glycine residues and thus to an increased chain mobility. However upon further addition of Cu(II) the chain mobility of the tripeptide residues further increases and a decrease in T_s⁻¹ takes place. The first increase in T_s⁻¹ is likely induced by the binding of copper to the amide functions of the tripeptide resdiues and the thus increased proximity to the glycine protons. The subsequent decrease in T_s⁻¹ then can be attributed to the further increasing mobility of the protons. The decrease in T_s⁻¹ is likely due to a difference in the distance dependency of T₁⁻¹ and T_s⁻¹ of the dipole–dipole relaxation (r₆ for T₁⁻¹ and r₈ for T_s⁻¹)⁶¹ which might indicate a saturation of the outer sphere of the dendrimer with Cu(II) which then does only allow further Cu(II) to have an effect on T₁⁻¹ since it cannot get any closer to the relevant protons. Any further Cu(II) is likely incorporated into the dendritic core, an effect that has been made use of e.g. in dendrimer entrapped nanoparticles.^52,62

At the point of the incorporation of Cu(II) into the dendritic core, a decrease in hydrodynamic radius of the dendrimers is likely to occur. Due to the difference in chain mobility a direct correlation of the diffusion coefficient determined by DOSY NMR and the hydrodynamic radius is challenging.⁶³ For further insight into a possible change in size of the dendrimers, dynamic light scattering (DLS) measurements have been performed (see ESI†). The size of G5-PAMAM-GGA was thus determined to be around 3.5 nm which is in the order of magnitude of the determined size of G5-PAMAM.⁵⁵ However no significant change in particle size upon the addition of Cu(II) could be determined. This indicates that Cu(II) at low concentrations, mainly interacts with the outer branches of the dendrimer, influencing their mobility, while the impact on the particle size seems to be minimal, if at all present.

The binding hypothesis is supported by the observation of a change in color upon the addition of (2) to a solution of Cu(II)Cl₂ from a nearly colorless light blue to a considerably darker blue (see Fig. S24 in the ESI†). As dendrimers represent a complex system, the proposed mechanism above may serve as another step to support ongoing work on solving the structures of dendritic molecules. As already described above, this change is observed by UV/vis spectroscopy showing a change in absorption bands typically associated with amide bonds in proteins upon addition of Cu(II) to a solution of (2). We did not observe this change in the case of Gd(III), Mn(II) and Fe(III) (See Fig. S12–S23 in the ESI†).

Assessment of NUSIMERs as potential bioprobes

The observed selective effect of Cu(II) on T₁⁻¹ and T_s⁻¹ gives rise to a possible application of the NUSIMERs as Cu(II) probes, especially, but not limited to, the detection of Cu(II) in cells or tissue. This is especially interesting due to the central role of Cu(II) in the formation of Aβ plaques. We would like to note that changes in T_s are already sensed below 100 μM copper concentrations which is well in the region in what is found in extracellular Aβ plaques. In order to test the viability of future tissue experiments, we performed additional measurements of a solution of (2) in an agarose gel which simulates the consistency of brain matter.⁶⁴ In this case, two experiments have been performed: In both cases, the dendrimers were measured at a concentration of 10 μM in gel which consisted of a HEPES (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid) buffered solution. One of the samples additionally contained 50 μM of Cu(II). Relaxation rate experiments gave a T₁⁻¹ of 0.016 s⁻¹ and a T_s⁻¹ of 2.42 ± 0.06 s for the sample without Cu(II) and T₁⁻¹ of 2.32 s⁻¹ and a T_s⁻¹ of 0.69 s⁻¹ for the sample with Cu(II). These findings indicate that the same effect thoroughly studied in 100 μM concentrations in D₂O can be observed in lower concentrations in a high viscosity environment and in the presence of buffered H₂O solutions. T_s⁻¹ appears thereby to be less sensitive to the presence of copper than T₁⁻¹. Those findings strongly indicate that detection of Cu(II) using NUSIMERs is possible in tissue.

In order to evaluate the possibility to use NUSIMERs in cell experiments, we introduced a fluorescence tag (Atto488) to (2) to obtain the fluorescently labelled NURSIMER (3). We found an average of 5 fluorescence tags per molecule. At first, we have studied the molecular parameters T₁⁻¹ and T_s⁻¹ of (3) in D₂O and protonated phosphate saline buffer (PBS) to assess the viability for cell experiments (Table 1). We have discovered that (3) does not display a change in T_s⁻¹ in protonated buffer with respect to the parent structure (2). In all cases, the equilibration rate T_s⁻¹ is shorter than T₁⁻¹ and therefore represents an excellent starting point not just to filter signals but also to probe molecular dynamics in biological systems. Table 1 summarizes the results.

Table 1 Summary of detected longitudinal relaxation rates (T₁⁻¹) and singlet–triplet equilibration rates (T_s⁻¹) of the macromolecules. Solvents have not been degassed prior to measurements

Compound	Solvent	T 1 ^−1 [s^−1]	T s ^−1 [s^−1]
G5-PAMAM-GGA-NH2 (2)	D2O	2.04 ± 0.04	0.14 ± 0.01
G5-PAMAM-GGA-NH2 (2)	PBS	2.85 ± 0.09	0.6 ± 0.06
G5-PAMAM-GGA-Atto488 (3)	D2O	1.4 ± 0.04	0.32 ± 0.03
G5-PAMAM-GGA-Atto488 (3)	PBS	1.54 ± 0.09	0.55 ± 0.01

---

The observation that a long-lived state can be populated even in aqueous buffered solutions encouraged us to further investigate this behavior in the presence of cells by using fluorescence microscopy and the detection of long-lived states. At first, we have successfully tested the uptake of (3) into living human RAMOS B-cell line, in aldehyde-fixed COS-7 fibroblast cells, and in primary rat hippocampal neurons (see ESI†).⁶⁵ Those first results included the population of a nuclear singlet state in the presence of lysed RAMOS cells in PBS buffered solutions. In another experiment RAMOS B-cells and COS-7 fibroblasts have been co-incubated with (3) as well as Dextran coupled to Alexa647 to determine if (3) are endocytosed in the same fashion as this classical endocytosis marker (Fig. 6).⁶⁶

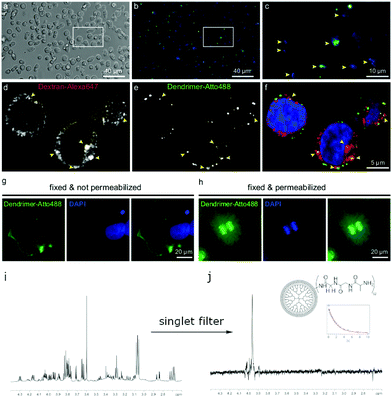

Fig. 6 Different cells and conditions exposed to dendrimers conjugated to Atto488. (a–c) Living human B cell line (RAMOS) exposed to 10 μg mL⁻¹ of Atto488 fluorescent dendrimers (3). (a) Transmission light image at low magnification. (b) Epifluorescence image of (a). (c) Magnification from the white rectangle on (a) and (b). Yellow arrowheads show fluorescent dendrimers in the cells. (d–f) Confocal images of RAMOS cells after live co-incubation with (3) and Dextran coupled to Alexa647. Yellow arrowheads indicate co-localization of signals within the optical slide in the confocal (100× objective and pinhole set to airy 1). (g–h) Paraformaldehyde fixed COS-7 cells were exposed to (3) with or without the permeabilization of their cellular membranes. (g) (3) stays mostly on the plasma membrane of cells. (h) Permeabilized cells allow the entrance of (3) concentrating in nuclear chromosomes, but also found within the cell cytoplasm/membranes. DAPI stains DNA. (i) Thermal NMR-spectrum of (3) in the presence of RAMOS cells. (j) Singlet filtered spectrum of the same sample. The insert displays the experimentally determined decay in T_s.

From the obtained images the internalization of (3) into the cells as well as the localization in the nucleus and the cell membranes could be shown. For subsequent NMR studies, we have focused on B-cells since they are cells growing in suspension. We supplied (3) to a pellet of cells and measured T_s. The performed NMR experiments on the B-cells after addition of (3) showed close to no change in T_s which indicates that (3) is stable in the presence of cells. Upon cell lysis, more macromolecules tend to bind to the cell membranes and nuclei. We confirmed this behavior by investigating COS-7 fibroblasts. An observed broadening of the NMR-signal of (3) supports the binding hypothesis. Despite the broadening, the signal observation of (3) in the presence of lysed cells was possible using a singlet NMR sequence⁴⁵ with an additional singlet filter.⁶⁷ This filtering experiment allows for direct observation of the glycine protons in (3) while suppressing other proton signals from cell membranes and water with a limit of detection of 6 μM concentrations of (3) in a single scan at 900 MHz. After extensive washing of the lysed cells, we have still observed (3) due to the possibility of populating singlet states. Additionally, we confirmed the binding by observing an orange coloring of the cells and solid state NMR experiments (see ESI†). Further experiments on cytosol of B-cells spiked with (3) after lysis and removal of cell membranes showed the stability: we observed no change of the lineshape of (3) and in the measured T_s over a period of several hours. As in the previous experiments, the glycine signal can solely be obtained while suppressing other signals (see Fig. S6, ESI†).

Conclusion

In conclusion we observed a unique behaviour of the molecular parameters T₁ and T_s in NUSIMERs in the presence of different paramagnetic metal ions. Unexpectedly, the presence of Fe(III), Mn(II) and even Gd(III) did not have any effect on neither T₁ nor T_s, which is a behaviour that, to the best of our knowledge, has not been observed so far. Furthermore we were able to observe a unique effect of the presence of Cu(II) on T₁ and T_s, displaying a sharp decrease in both parameters at low Cu(II) concentrations followed by an increase at around 150 μM Cu(II). We propose an interaction between the terminal tripeptides of the NUSIMERs and Cu(II) to be responsible for this observation. The effect of the paramagnetic relaxation competes with a change in the mobility of the tripeptides at the outer sphere of the dendrimers which occurs upon addition of Cu(II). Based on this observed effect we explored the possibility to use NUSIMERs in an biological environment and evaluate the viability to use NUSIMERs as Cu(II) probes. We succeeded in attaching a fluorescence tag to the NUSIMERs and observing the uptake in different cells by fluorescence spectroscopy. Using the NUSIMER G5-PAMAM-GGA-Atto488, we were also able to eliminate any background signal using singlet NMR spectroscopy in the presence of cells. This is especially promising, because it opens up the possibility to branch out into Cu(II) detection in cells or even in vivo, which could in the future lead to a non-invasive technique for early diagnostics of neurodegenerative diseases. This prospect seems especially possible since it has recently be shown, that singlet filtering can be applied in MRI.⁴⁹ Our described experiments could in general serve as an approach to design new molecular probes using nuclear spin singlet states.
