Quantum chemical assessment of the molecular area corresponding to the onset of the LE–LC phase transition for amphiphilic 2D monolayers at the air/water interface

Abstract

An approach for the assessment of the area per surfactant molecule in a monolayer at the onset of the LE–LC phase transition (A_c) is proposed based on the quantum chemical approach and a thermodynamic model for amphiphilic monolayers, which takes into account the nonideality of the mixing entropy. The values of the Gibbs’ clusterization energy for small surfactant associates, as well as the geometric parameters of the monolayer unit cells, were used, previously calculated using the semiempirical PM3 method for eight classes of amphiphilic compounds: saturated and ethoxylated alcohols, saturated and unsaturated cis-carboxylic acids, α-hydroxylic and α-aminoacids, N-acyl-substituted alanine and dialkyl-substituted melamine. The obtained A_c values are in satisfactory agreement with the available experimental data. This allows using the proposed approach for prognostic purposes in the cases where there are no corresponding π–A isotherms for necessary surfactants, but there are calculated thermodynamic and structural parameters of its clusterization.

---

Introduction

Interest in studying the nonionic surfactant behavior at different interfaces is dictated by the variety of the properties of their films and the possibility of their changing. A wide range of experimental techniques and instrumental capabilities made it possible to reveal the regularities of 2D aggregate formation of amphiphilic compounds on different surfaces depending on various external conditions (temperature, pH, and the presence of organic and inorganic ions). Attention to the properties of Langmuir monolayers is also due to attempts to represent the structure of biological membranes through a combination of individual monolayers, which shows Langmuir monolayers as interesting objects for research in the framework of membrane biophysics and biosensors. The possibility of transferring surfactant monolayers to numerous solid surfaces with the multilayer formation made it possible to design optical, anticorrosive, and antifriction coatings with predetermined properties.

A large number of studies have been devoted to describing the aggregation process of surfactant molecules into a monolayer.¹ Even at the first stage of the study of monolayers it was shown that molecules are characterized by three possible aggregate states: gaseous, liquid, and solid. Later, four types of films were identified and characterized in detail: gaseous, gaseous-expanded, liquid-expanded, and condensed.² Over time the classification has enlarged due to the detailed description of individual states of the films.^3,4 The existence of different monolayer phases was concluded from the surface pressure–molecular area (π–A) isotherms. The π–A isotherms show a sharp break, when a main phase transition from a fluid (gaseous (G), liquid-expanded (LE)) to the condensed (liquid-condensed (LC), solid (S)) phases takes place. These parts of the π–A isotherms represent the transition region to the condensed phase and are decisive for the features of the condensed monolayer phases.

The fluid/condensed transitions were considered thermodynamically in the framework of a quasi-chemical approach. The quasi-chemical monomer/aggregate equilibrium model based on a combination of the generalized Volmer's equation and the equation of state for the case of monomers and large aggregates (area A < A_c) was developed and frequently used to describe the π–A isotherms of various amphiphilic monolayers.^5,6 In any case, the amphiphilic nature of surfactants determines the complexity of the behavior of their monolayers at the water surface. The formation of one or another monolayer type depends on the competition of the CH⋯HC interactions between hydrocarbon chains and the polar interaction of head groups (hydrogen bonding network, chiral interaction, etc.).

For almost two decades ago we proposed and successfully tested a quantum chemical model for assessment of the thermodynamic parameters of surfactant clusterization. Within the framework of this model more than ten classes of nonionic surfactants were considered, for which the following were determined: threshold chain lengths, which allow the formation of condensed monolayers, the “temperature effect” of clusterization, the geometric parameters of the unit cells of monolayers, the peculiarities of the dendritic film formation, and the effect of the clusterization process on the pK_a value.^7–10 The calculated values of the thermodynamic parameters of clusterization based on the quantum chemical approach are in qualitative agreement with the results of a thermodynamic theory, based on the use of the Volmer-type equation for the phase transition gaseous monolayer – liquid-expanded monolayer.⁵ Taking into account the nonideality of the mixing entropy for monomers and clusters in the fluid-condensed transition region makes it possible to describe this region of the π–A isotherm.⁶ Calculation of the Gibbs’ energy of clusterization per monomer in this theory is associated with parameters such as A_c, that is the molecular area which corresponds to the onset of the phase transition on the experimentally obtained π–A isotherm, and ω_(Cl) – the area per monomer in a cluster, the value of which is set based on the best agreement with the given isotherm. In this regard the question arises whether it is possible to solve the inverse problem: to estimate the area per monomer molecule at the onset of the phase transition in the monolayer using the available calculated values of the Gibbs’ clusterization energy (ΔG^Cl/m) per surfactant molecule. It is the purpose of the present work to estimate A_c on the basis of the values ΔG^Cl/m and ω_(Cl) assessed within the semiempirical quantum chemical method PM3 using the thermodynamic model additionally taking into account the nonideality of the mixing entropy.^11,12

Theoretical models

There are two theories used in this paper for the calculation of A_c and its comparison with the existing experimental data. The equation of state for the surfactant monolayer is represented as the generalized Volmer's equation that describes the multicomponent insoluble monolayer.¹³ It is valid for the bimodal distribution of aggregates (large clusters and monomers) and accounts for nonideal entropy of mixing of molecules with different sizes on the basis of the Flory–Huggins theory.^14,15 The formula for it was obtained from ref. 16, so here we will not discuss this point in detail. This equation was used for fitting the experimental π–A isotherms and finding several parameters like ω_(Cl) (the area per monomer in a cluster), A_c (molecular area corresponding to the onset of the phase transition) and m (the number of monomers in the aggregate during the phase transition) for the considered surfactant monolayers. The further calculation of the thermodynamic parameters of clusterization within the described thermodynamic theory is based on the experimentally obtained temperature dependences of ω_(Cl) and A_c. The theoretical calculations and justifications for this are described in detail in ref. 11 using the quasi-chemical model of 2D aggregation.¹² According to the quasi-chemical model the corresponding equilibrium constant K_m = exp(mμ⁰₁ − μ⁰_m)/RT is proportional to the area per surfactant molecule A_c during aggregation. Here, μ_m and μ₁ are the chemical potentials of the cluster and monomer, m is the number of monomers in the cluster, and μ_m = mμ₁. In this case, the chemical potentials of the monomers in the cluster (μ_1(m)) and outside it (μ₁) are equal. Taking into account that this equality leads to the constancy of the surface concentration of free monomers in the region of the phase transition Γ₁ = Γ_c = constant and assuming with a certain degree of error that the areas per monomer in the cluster and outside it are also equal, we can obtain an expression for A_c in the 2D aggregation process:One can see that as A_c> ω_(Cl) the exponent of (μ⁰₁ − μ⁰_1(m))/RT > 1. This means that the standard chemical potential of free monomers exceeds that within the aggregates, and therefore the difference μ⁰₁ − μ⁰_1(m) is always positive, so that the aggregation process, and thus the condensation, is possible. Since, by definition, the expression μ⁰_1(m) − μ⁰₁ is the standard Gibbs’ energy of clusterization per monomer, the last equation is transformed as follows:

ΔG^Cl/m = RT ln(ω_(Cl)/A_c) (2)

where values of ΔG^Cl/m are obtained at different temperatures, which makes it possible thereafter to calculate the enthalpy and entropy of clusterization using the Gibbs–Helmholtz equation. The thermodynamic data obtained in such a way are assumed as experimental and used for comparison with those calculated within the quantum chemical approach described below.

The quantum chemical model for the calculation of the thermodynamic parameters of surfactant clusterization is based on the following key points obtained on the basis of an analysis of numerous experimental and theoretical data on surfactant film formation (cf. ref. 7 for example):

– the fundamental contribution to the clusterization process is made by intermolecular CH⋯HC-interactions between the methylene groups of the hydrocarbon chains of interacting molecules;

– taking into account CH⋯HC interactions realizing only between two alkyl groups of molecular chains located opposite to each other due to the rapid decrease in the energy of these interactions (inversely proportional to the sixth power of the distance);

– intermolecular CH⋯HC-interactions are pairwise additive;

– the thermodynamic parameters of clusterization of the studied surfactants are calculated using the supramolecular approximation as the difference between the thermodynamic parameters of aggregate formation and the corresponding number of thermodynamic parameters of the monomers comprised in the cluster (for example, ΔH^Cl_T,m = ΔH⁰_T − m·ΔH⁰_T,mon, ΔS^Cl_T,m = S⁰_T − m·S⁰_T,mon, and ΔG^Cl_T,m = ΔH^Cl_T,m − T·ΔS^Cl_T,m, where ΔH⁰_T and S⁰_T are the enthalpy and entropy of the corresponding clusters at temperature T, ΔH⁰_T,mon and S⁰_T,mon are the enthalpy and entropy of the corresponding monomers at the same temperature T, and m is the number of monomers in the cluster.);

– an additive scheme is constructed on the basis of the direct calculation data for the thermodynamic parameters of formation and clusterization of small surfactant clusters; it represents the values of the required parameters as the total contributions of CH⋯HC interactions realized in the cluster and the interactions between the hydrophilic parts of surfactant molecules;

– the interface is taken into account implicitly through its orienting and stretching action.

According to our model, the expression for the clusterization Gibbs’ energy per monomer molecule of the clusters of the substituted alkanes has a linear form (see, for instance ref. 7):

ΔG^Cl/m = V_i + U_i·K_a/m, (3)

where the values of the coefficients V_i and U_i depend on the surfactant class, temperature and cluster structure; K_a/m is the number of intermolecular CH⋯HC interactions per monomer realized in the cluster, which depends on the hydrocarbon chain length (n) of the surfactant and the structural features of the clusters.

Thus, having the values ΔG^Cl/m obtained as a result of quantum chemical calculations, and using eqn (2) of the thermodynamic model described above, it is possible to estimate the area per surfactant molecule during the LE–LC phase transition.

The calculated values of ΔG^Cl/m for the surfactant associates were estimated in the Mopac2000 software package within the framework of the PM3 quantum chemical semiempirical method. As shown in a number of our studies, it allows predicting with a sufficient degree of accuracy the threshold length of the surfactant alkyl chain at which the formation of condensed monolayers is possible, as well as estimating the geometric parameters of the unit cell of the regarded films. This enables using this method in the present work as well.

Results and discussion

Structures of surfactant associates

In the present work we consider eight classes of nonionic surfactants: saturated and ethoxylated alcohols, saturated and cis-unsaturated carboxylic acids, α-hydroxylic and α-amino acids, N-acyl-substituted alanine, and dialkyl-substituted melamine. Their structural and thermodynamic parameters of clusterization were estimated within the framework of the PM3 method. For individual representatives of these classes of compounds there are experimental π–A isotherms obtained at different temperatures, which make it possible to evaluate the thermodynamics of aggregation according to the thermodynamic model.^5,6 Almost all of the surfactant classes under consideration have an oblique unit cell of the condensed monolayers with the exception of surfactants with a minimum size of hydrophilic groups: ethoxylated alcohols with a hexagonal structure, as well as saturated alcohols and carboxylic acids, for which the formation of monolayers with hexagonal and oblique elementary cells is practically isoenergetic.^17,18

As shown in previous studies,^18–20 mostly trimers are the basic units for clusterization of surfactants with a hexagonal unit cell of the monolayer. While during the formation of an oblique monolayer the LE–LC phase transition occurs on the basis of surfactant dimers.²¹ This is schematically illustrated in Fig. 1 and 2 by the example of aliphatic alcohols. Here, the corresponding unit cells are highlighted in green, the arrows show the conditional direction from the carbon atom to one of the hydrogen atoms in the CH₂ fragment for clarity of the differences in the method of molecular packing in a monolayer. The area per monomer molecule in the film can be calculated using the distances between the surfactant molecules in the unit cell of a monolayer using the formula as it was done by Ivanova and co-workers in ref. 22:

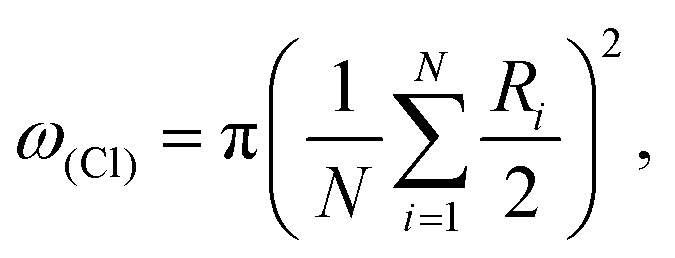

where R_i is the distance between neighboring molecules in a cluster; for an oblique cell these are the two sides of the parallelogram and its diagonal, and for a hexagonal one – the lengths of the sides of the triangle in the basic trimer (N = 3).

Fig. 1 Scheme of the formation of hexagonal films of aliphatic alcohols.

Fig. 2 Scheme of the formation of oblique films of aliphatic alcohols.

The calculated values of ω_(Cl) for the considered surfactants are given in Table 1. It is to be noted that the experimental values of ω_(Cl) for comparison with the calculated ones were obtained on the basis of the available data from grazing incidence X-ray diffraction (GIXD) studies of amphiphilic monolayers. The geometrical parameters of the unit cells of monolayers, obtained as result of X-ray structural analysis, make it possible to calculate the value of ω_(Cl) using eqn (4).

Table 1 The area per molecule at the onset of the LE–LC phase transition (A_c) and the area per molecule in the cluster (ω_(Cl))

Chain length	A c, Å^2		ω (Cl), Å^2		m
	Calc.	Exptl	Calc.	Exptl	Calc.	Exptl
a The structure of the unit cell of the monolayer is hexagonal. b The structure of the unit cell of the monolayer is oblique; *, **, and *** monolayers are built on the basis of 1, 3 and 5 conformers, respectively.
Saturated alcohols
C14	31.3 (25 °C)^b	40.2 (25 °C)	14.60 (hex.)	17.1 (hex.)^29,30	3	3.16 (20 °C)
	31.8 (40 °C)^a	35.6 (30 °C)			2
C16	47.4 (25 °C)^b	33.0 (40 °C)	19.13 (obl.)		2	2.75 (25 °C)^19
	28.6 (40 °C)^b	29.5 (45 °C)
Ethoxylated alcohols (CnE1)
C14	38.5 (25 °C)	54.3 (5 °C)	14.60 (hex.)	— (hex.)	3	3^31
Carboxylic acids
C14	26.6 (25 °C)^b	30.0 (20 °C)	14.60 (hex.)	19.8–20.2^32	3	2–3^34
	22.8 (25 °C)^b		19.13(obl.)	20.0 (hex.)^33
C20	27.6 (25 °C)^a				2
cis-Unsaturated carboxylic acids
C19	29.9 (25 °C)	30.0 (25 °C) for C22	23.23 (obl.)	23.4 (hex.)^35	2	2^36
C20	26.0 (25 °C)	25.0 (25 °C) for C24
α-Hydroxylic acids
C16	36.2 (25 °C)**	36.5 (30 °C)	26.11*	19.5–21.4 (obl.) for enantiomeric compounds with 9.11.12-positions of OH group^37,38	2	1.625 (30 °C)
		31.3 (35 °C)				1.48 (35 °C)
		28.7 (45 °C)				1.38 (45 °C)^21
C18	29.4 (40 °C)*	38.0 (36 °C)	25.36** (obl.)	20.8 (hex.) for racemic ones with 2-position^39		2.0 (36 °C)
		34.0 (41 °C)				1.76 (41 °C)
		31.2 (44 °C)				1.52 (44 °C)^21
α-Amino acids
C13	32.7 (5 °C)**	—	28.57*	30.1 (obl.)^40	2	—
	38.3 (5 °C)***		29.05**
C15	29.6 (25 °C)*		31.09*** (obl.)
	31.2 (25 °C)**
	35.3 (25 °C)***
N-Acyl-substituted alanine
C16	34.9 (20 °C)	52.0 (20 °C)	30.63 (obl.)	31.2 (obl.)^41	2	1.9–2.2
C18	37.2 (20 °C)	40.0 (26 °C) for C14				(20–32 °C)^42
	32.6 (25 °C)
Dialkyl-substituted melamine
C10	55.1 (25 °C)	49.8 (25 °C)	51.24 (obl.)	20.6 (obl.)^43	1	0.91(25 °C)^44–46

---

The calculated values on the basis of the PM3 method and the experimental values of the area per surfactant molecule in the cluster are in fairly good agreement with each other. The available discrepancies are in average about 2.5 Ų, which corresponds to no more than 15%, in particular for alcohols. It is to be noted that for the hexagonal packing of monolayers of alcohols and carboxylic acids the calculated value of ω_(Cl) turned out to be lower than the cross-sectional area of the hydrocarbon chain (∼16.8 Ų), which can be explained by some overestimation of the energy of CH⋯HC interactions and, accordingly, the underestimation of the length of this bond in the PM3 method by an average of 0.5 Å in comparison with other methods.^23–28

It should be noted that in the case of hydroxylic acids the available experimental data concern only compounds with an OH group in the 9, 11, and 12 positions, while for the compounds with an alcohol group in the second position there are no such data. From ref. 37 and 38 it should be noted that in the case of the α-position of the hydroxyl group in the carboxylic acid molecule both functional groups – carboxylic and hydroxylic – behave as one hydrophilic part of the molecule, which determines some structural features of the resulting monolayers. In this case it is possible (with some error) to focus on the structural parameters of α-amino acid monolayers, since the hydrophilic part of α-hydroxylic acids is only 3% smaller in area than that of α-amino acids. Then it can be assumed that ω_(Cl) for α-hydroxylic acids will be practically the same as for α-amino acids.

The second point that requires discussion is disubstituted melamine. The available data of X-ray diffraction analysis show that the in-plane molecule area A_xy for them is in the order of 19–20 Ų,⁴³ which practically coincides with the cross-sectional area of one hydrocarbon chain of 20.62 Ų. Then, for the entire compact dialkylmelamine molecule this value should be at least doubled without taking into account the length of the intramolecular CH⋯HC bonds between the alkyl chains of the substituted melamine. Taking into account these intramolecular bonds the area per molecule of dialkyl-substituted melamine increases by about half the cross-sectional area of one hydrocarbon chain and will be about 50 Ų. The same conclusion follows from the geometric parameters of the unit cell: a = 4.4 Å and b = 5.0 Å, and the angle between them is θ = 116.4°.⁴³ Such parameters are realized only if we consider the dialkyl-substituted melamine dimer, which has four hydrocarbon chains arranged in a parallelogram in cross-section. The value of ω_(Cl) for this class of surfactants was calculated by us on the basis of dialkylmelamine tetramers optimized in the PM3 method.⁴⁶

It can be seen that with an increase in the volume of the hydrophilic part of the surfactant, the value of ω_(Cl) increases. Moreover, in the case that the film formation with oblique and hexagonal unit cells is possible for a surfactant, the smallest area per molecule falls on the latter structure. The obtained values of ω_(Cl) also agree with the regularities of the geometric parameters of unit cells revealed in our previous work.⁴⁷ It was shown that an increase in the linear dimensions of the hydrophilic parts of amphiphilic molecules leads to a more tilted orientation of molecules in the condensed monolayer due to the steric hindrances in the orientation of voluminous functional groups opposite to each other.

Thermodynamic parameters of surfactant associates

In our work devoted to the study of the thermodynamics of surfactant clusterization,⁷ enthalpy, entropy, and Gibbs’ energy of amphiphilic clusterization were estimated using the additive scheme. For this purpose, the formation thermodynamic parameters of the monomers and also the small associates (as a rule, dimers, trimers, tetramers, and hexamers) were calculated using the supermolecule approximation. After that the required thermodynamic clusterization parameter was calculated as the difference between the corresponding formation values for the associates and m molecules of monomers. It should be noted that the thermodynamic model^11,12 makes it possible to estimate the value of aggregation number m, i.e. we can say on the basis of which the LE–LC phase transition of small associates occurs. Analysis of the available experimental data on the considered surfactant classes^{19,21,31,34,36,42,44–46} have shown that for monolayers with a hexagonal unit cell m ≈ 3, and for films with oblique one – m ≈ 2, with the exception for disubstituted melamine, for which this phase transition realizes on the basis of monomers. This is quite understandable, since the dialkyl-substituted melamine molecule itself has two hydrocarbon chains, participating in the formation of intramolecular CH⋯HC interactions. Thus, according to the clusterization thermodynamics, the dialkyl-substituted melamine monomer acts as a dimer of other surfactant classes with one hydrocarbon chain.

With a temperature increase, a larger number of small aggregates dissociate. In the case of surfactants with aggregation number m > 2–3, the temperature increase leads to a decrease of m and prevailing number of dimers instead of trimers participating in the phase transition. In this regard, here we use the values of the Gibbs’ clusterization energy of dimers and trimers to calculate A_c according to eqn (2). In this case this equation involves the ΔG^Cl values per monomer of the corresponding associate. The values ΔG^Cl/m calculated using the PM3 method and estimated from the experimental π–A isotherms for small surfactant clusters are given in Table 2. As already mentioned, the PM3 method overestimates the energy of intermolecular CH⋯HC interactions.⁴⁸ This leads to the fact that the clusterization Gibbs’ energy per monomer of associates and films of amphiphilic compounds is almost two times higher than the corresponding value estimated on the basis of experimental data using the theoretical model, described in ref. 5. In addition, in the work devoted to the assessment of the pK_a value of carboxylic acid monolayers,¹⁰ it was also shown that the calculated values ΔG^Cl/m obtained by the PM3 method should be halved to obtain adequate pK_a values consistent with the available experiment. In this regard for A_c calculation the ΔG^Cl/m values estimated on the basis of quantum chemical calculations were halved and are listed in Table 2 in the “calculation with correction” column.

Table 2 Gibbs’ clusterization energy per monomer of small surfactant associates

Cluster type (number of carbon atoms in the chain)	ΔG^Cl/m, kJ mol^−1
	Calculation without correction	Calculation with correction	Experiment
Saturated alcohols
Dimer, s:			C13: −0.93 (25 °C)^17
C14	−2.44 (25 °C)	−1.22 (25 °C)
C16	−4.50 (25 °C);	−2.25 (25 °C);
	−2.10 (40 °C)	−1.05 (40 °C)
Trimer 2 (C14)	−4.05 (40 °C)	−2.02 (40 °C)
Ethoxylated alcohols
Trimer 1 (C14)	−4.43 (5 °C)	−2.21 (5 °C)	—
Carboxylic acids
Trimer 1 (C14)	−2.98 (25 °C)	−1.49 (25 °C)	C13: −0.7
Trimer 2 (C14)	−2.22 (25 °C)	−1.11 (25 °C)	C14: −1.2
Dimer (C14)	−1.49 (25 °C)	−0.74 (25 °C)	C15: −1.7
			C16: −2.2^17
cis-Unsaturated carboxylic acids
Dimer, p:			C22: −(0.75–1.5)
C19	−1.25 (25 °C)	−0.62 (25 °C)	(4–12 °C)
C20	−0.55 (25 °C)	−0.27 (25 °C)	C24: −(1.1–2.0)
Dimer, s (C20)	−1.25 (25 °C)	−0.62 (25 °C)	(20–27 °C)^36
α-Hydroxylic acids
Dimer 3, s (C16)	−1.77 (25 °C)	−0.88 (25 °C)	C16: −(0.53–0.76)
			(30–40 °C)
Dimer 1, p (C18)	−0.62 (40 °C)	−0.31 (40 °C)	C18: −(0.58–0.76)
			(36–44 °C)^21
α-Amino acids
Dimer 1, p (C15)	−0.17 (25 °C)	−0.08 (25 °C)	—
Dimer 3, p
C13	−0.55 (5 °C)	−0.27 (5 °C)
C15	−0.36 (25 °C)	−0.18 (25 °C)
Dimer 5, p
C13	−0.97 (5 °C)	−0.48 (5 °C)
C15	−0.63 (25 °C)	−0.31 (25 °C)
N-Acyl-substituted alanine
Dimer, p (C16)	−0.63 (20 °C)	−0.31 (20 °C)	C14: −(0.59–0.99)
Dimer, s (C18)	−0.95 (20 °C)	−0.47 (20 °C)	(20–32 °C)^42
	−0.31 (25 °C)	−0.15 (25 °C)
Dialkyl-substituted melamine
Monolayer (C10)	−0.36 (25 °C)	−0.18 (25 °C)	−5.2 for C11^46

---

It should also be noted that for the classes of amphiphilic compounds presented here, we previously considered several stable conformations of monomers, on the basis of which associates were subsequently constructed and their thermodynamic parameters were estimated.^{17–21,34,42,46} They, in turn, were used in the additive scheme to assess the thermodynamics of the formation of the corresponding 2D films. Here we present the thermodynamic and structural parameters of the formation of small clusters for the surfactant conformers most energetically favorable for each class. They served as structural units of the corresponding most energetically favorable monolayers, the clusterization thresholds of which are consistent with the available experimental data for the compounds under consideration. The only exceptions are α-hydroxylic and α-amino-substituted carboxylic acids, for which two (conformers 1 and 3) and three conformations (conformers 1, 3, and 5), respectively, were taken into account. Among them, the most energetically favorable films are monolayers based on the third and first monomers of the substituted acids, respectively. It should be also mentioned that for dialkyl-substituted melamine the given value ΔG^Cl/m refers to the formation of a 2D monolayer (not a small cluster), since the experiment has shown that the aggregation number for this class of surfactants m is equal to 0.91.⁴⁶ It shows that the LE–LC phase transition occurs on the basis on monomers. The fact that the value of m is slightly smaller than unity indicates a small amount of monomers during the phase transition, in which alkyl chains are isolated, i.e., there are no intramolecular CH⋯HC interactions in the monomer.

The calculated values ΔG^Cl/m with correction were compared with the corresponding values estimated on the basis of the experimentally obtained π–A isotherms. It can be seen from Table 2 that for almost all regarded classes of amphiphilic compounds, the corrected values ΔG^Cl/m are in good agreement with the available experimental values with the exception of dialkyl-substituted melamines. The experiment was carried out considering a compound with eleven carbon atoms in an alkyl chain.

Analysis of A_c values for surfactant monolayers

The obtained calculated values of A_c are summarized in the second column of Table 1. As can be seen, the calculated data agree with the experimental data. For aliphatic alcohols the best agreement of the data is characteristic for the case when the film is formed on the basis of dimers with the oblique unit cell structure. However, if we extrapolate the A_c data for tetradecanol at a temperature of 40 °C, then we can determine the error in the A_c estimation during the formation of the hexagonal structure of a 2D film. It will be only 7% worse than for the above-described oblique monolayer structure. Among the considered amphiphilic compounds, the largest error in the assessment of A_c is 30% for ethoxylated alcohols (C_nE₁) and N-acyl derivatives of alanine – 30%. This can be apparently explained by the bulky hydrophilic part of the N-acyl-alanine molecule and the flexibility of C_nE₁ molecules, which leads to a large number of possible conformations realizing in a monolayer and having different surface coverage areas, which are extremely difficult to take into account during quantum chemical modelling. Among the regarded amphiphilic compounds there are no experimental data for comparison only with α-amino acids. However, as mentioned earlier, their hydrophilic part occupies a slightly larger area than that of α-hydroxylic acids, and both surfactant classes have the same oblique structure of monolayers. In this regard, it can be assumed that the A_c values for α-substituted acids will be practically the same, which can be seen from Table 1.

It should be noted that experimental data on A_c are available only for several representatives of the homologous series of the surfactant classes. Therefore, the obtained calculated data have prognostic character. However, they reflect adequately the experimental trend for the LE–LC transition that with an increase in temperature the area per surfactant molecule of a fixed alkyl chain length decreases, and vice versa, with an increase in the surfactant chain length at a fixed temperature, the value of A_c increases. This is consistent with the “temperature effect” of clusterization, registered experimentally^49–51 and described on the basis of quantum chemical calculations.⁵² This is due to the fact that lengthening the hydrocarbon chain of the surfactant by two CH₂-fragments is equivalent to a decrease in the temperature of the clusterization process by 10–20°.⁵³ It is known that an increase in temperature leads to a more intense thermal motion of molecules. Therefore, for the phase transition to occur in Langmuir monolayers greater compression is required and, accordingly, a smaller area of the surfactant molecules for their subsequent association. This in turn is due to the implementation of CH⋯HC interactions between the alkyl substituents of the hydrophobic parts of the surfactant and vice versa, a larger number of CH⋯HC interactions are realized between longer-chain amphiphilic molecules. They provide a negative contribution to the clusterization Gibbs’ energy, which ensures monolayer formation at a higher temperature and, correspondingly, at a higher value of area per molecule at the onset of the LE–LC phase transition.

Conclusions

In the present work an approach is proposed to estimate the A_c area per surfactant molecule at the beginning of the liquid-expanded–liquid-condensed (LE/LC) monolayer phase transition. This approach is based on the use of two schemes: a quantum chemical model for determining the thermodynamic and structural parameters of surfactant clusterization and a thermodynamic model for the behavior of amphiphilic monolayers by taking into account the nonideality of the mixing entropy. The clusterization Gibbs’ energy of small surfactant clusters, as well as the structural parameters of the monolayer unit cells calculated in the quantum chemical semiempirical PM3 method, was used to estimate A_c within the thermodynamic model. The calculation showed that

(1) the assessed values of the area per monomer in a cluster ω_(Cl) and A_c are in satisfactory agreement with the available experimental data of GIXD studies and π–A isotherms, and the root-mean-square error of the A_c estimated for eight classes of surfactants under consideration was 18%,

(2) with an increase in the temperature, the A_c for a surfactant with a given alkyl chain length decreases, and, conversely, with an increase in the surfactant chain length at a fixed temperature, the value of A_c increases.

The proposed approach has a predictive value, since it allows one to estimate the value of A_c for amphiphilic compounds for which there are no experimental dependences of surface pressure on the area per molecule using the calculated thermodynamic and structural parameters of clusterization.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

D. V. acknowledges the versatile assistance by Prof. Hans-Jürgen Butt (director of the Max Planck Institute of Polymer Research). The authors acknowledge the contribution of Dr V. B. Fainerman (SINTERFACE Technologies) to the theoretical processing of experimental data. Open Access funding provided by the Max Planck Society.

References

1. N. K. Adam, The Physics and Chemistry of Surfaces, Clarendon Press, Oxford, 1938, p. 396.
2. G. L. Gaines, Jr., Insoluble Monolayers at Liquid - Gas Interfaces, Interscience, New-York, 1966, p. 386.
3. W. D. Harkins, The Physical Chemistry of Surface Films, Reinhold Pbl., New-York, 1952, p. 413.
4. D. Dervichian, The Chemistry of Fats and Other Lipids, Intr. Press, London, 1954, vol. 2, p. 193.
5. V. B. Fainerman and D. Vollhardt, J. Phys. Chem. B, 1999, 103, 145–150.
6. V. B. Fainerman and D. Vollhardt, J. Phys. Chem. B, 2008, 112, 1477–1481.
7. Yu. B. Vysotsky, E. S. Kartashynska, E. A. Belyaeva, V. B. Fainerman, D. Vollhardt and R. Miller, in Computational Methods for Complex Liquid-Fluid Interfaces, ed. M. Karbaschi, R. Miller and M. T. Rahni, CRC Press, 2016, pp. 199–249.
8. Yu. B. Vysotsky, E. S. Fomina, V. B. Fainerman, D. Vollhardt and R. Miller, Phys. Chem. Chem. Phys., 2013, 15, 11623–11628.
9. Yu. B. Vysotsky, E. S. Kartashynska, E. A. Belyaeva, D. Vollhardt, V. B. Fainerman and R. Miller, J. Phys. Chem. C, 2015, 119, 18404–18413.
10. Yu. B. Vysotsky, E. S. Kartashynska, D. Vollhardt and V. B. Fainerman, J. Phys. Chem. C, 2020, 124, 13809–13818.
11. D. Vollhardt, V. B. Fainerman and S. Siegel, J. Phys. Chem. B, 2000, 104, 4115–4121.
12. V. B. Fainerman, D. Vollhardt and V. Melzer, J. Phys. Chem., 1996, 100, 15478–15482.
13. V. B. Fainerman and D. Vollhardt, J. Phys. Chem. B, 1999, 103, 145–150.
14. P. J. Flory, J. Chem. Phys., 1941, 9, 660–661.
15. P. J. Flory, J. Chem. Phys., 1942, 10, 51–61.
16. V. B. Fainerman, E. H. Lucassen-Reynders and R. Miller, Adv. Colloid Interface Sci., 2003, 106, 237–259.
17. Yu. B. Vysotsky, V. S. Bryantsev, V. B. Fainerman and D. Vollhardt, J. Phys. Chem. B, 2002, 106, 11285–11294.
18. E. S. Fomina, Yu. B. Vysotsky, E. A. Belyaeva, D. Vollhardt, V. B. Fainerman and R. Miller, J. Phys. Chem. C, 2014, 118, 4122–4130.
19. E. S. Kartashynska, Y. B. Vysotsky, E. A. Belyaeva, V. B. Fainerman, D. Vollhardt and R. Miller, Phys. Chem. Chem. Phys., 2014, 16, 25129–25142.
20. Yu. B. Vysotsky, E. A. Belyaeva, E. S. Fomina, D. Vollhardt, V. B. Fainerman and R. Miller, Phys. Chem. Chem. Phys., 2014, 16, 3187–3199.
21. E. S. Fomina, Yu. B. Vysotsky, D. Vollhardt, V. B. Fainerman and R. Miller, Soft Matter, 2013, 9, 7601–7616.
22. A. Ivanova, A. Tadjer, N. Tyutyukov and B. Radoev, J. Phys. Chem. A, 2005, 109, 1692–1702.
23. N. K. V. Monteiro and C. L. Firme, J. Phys. Chem. A, 2014, 118, 1730–1740.
24. A. Goursot, T. Mineva, R. Kevorkyantz and D. Talbi, J. Chem. Theory Comput., 2007, 3, 755–763.
25. J. Echeverrıa, G. Aullon, D. Danovich, S. Shaik and S. Alvarez, Nat. Chem., 2011, 3, 323–330.
26. M. Dubecky, P. Jurecka, R. Derrian, P. Hobza, M. Otyepka and L. Mitas, J. Chem. Theory Comput., 2013, 9, 4287–4292.
27. R. S. Paton and J. M. Goodman, J. Chem. Inf. Model., 2009, 49, 944–955.
28. D. J. Wolstenholme and T. S. Cameron, J. Phys. Chem. A, 2006, 110, 8970–8978.
29. D. Vollhardt and V. B. Fainerman, Adv. Colloid Interface Sci., 2010, 154, 1–19.
30. J. Majewski, R. Popovitz-Biro, W. G. Bouwman, K. Kjaer, J. Als-Nielsen, M. Lahav and L. Leiserowitz, Chem. – Eur. J., 1995, 1, 304–311.
31. S. I. Karakashev, A. V. Nguyen and J. D. Miller, Adv. Polym. Sci., 2008, 218, 25–55.
32. K. Kjaer, J. Als-Nielsen, C. A. Helm, P. Tippman-Krayer and H. Möhwald, J. Phys. Chem., 1989, 93, 3200–3206.
33. I. R. Peterson, G. Brezesinski, B. Struth and E. Scalas, J. Phys. Chem. B, 1998, 102, 9437–9442.
34. Yu. B. Vysotsky, D. V. Muratov, F. Boldyreva, V. B. Fainerman, D. Vollhardt and R. Miller, J. Phys. Chem. B, 2006, 110, 4717–4730.
35. D. Vollhardt, J. Phys. Chem. C, 2007, 111, 6805–6812.
36. Yu. B. Vysotsky, E. A. Belyaeva, D. Vollhardt, E. V. Aksenenko and R. Miller, J. Phys. Chem. B, 2009, 113, 4347–4359.
37. D. Vollhardt, S. Siegel and D. A. Cadenhead, Langmuir, 2004, 20, 7670–7677.
38. D. Vollhardt, S. Siegel and D. A. Cadenhead, J. Phys. Chem. B, 2004, 108, 17448–17456.
39. G. Weidemann, G. Brezesinski, D. Vollhardt and H. Möhwald, Langmuir, 1998, 14, 6485–6492.
40. I. Weissbuch, M. Berfeld, W. Bouwman, K. Kjaer, J. Als-Nielsen, M. Lahav and L. Leiserowitz, J. Am. Chem. Soc., 1997, 119, 933–942.
41. N. Nandi and D. Vollhardt, Chem. Rev., 2003, 103, 4033–4075.
42. E. S. Kartashynska, Yu. B. Vysotsky, V. B. Fainerman, D. Vollhardt and R. Miller, Colloids Surf., A, 2018, 546, 346–359.
43. D. Vollhardt, V. B. Fainerman and F. Liu, J. Phys. Chem. B, 2005, 109, 11706–11711.
44. D. Vollhardt, F. Liu, R. Rudert and W. He, J. Phys. Chem. B, 2005, 109, 10849–10857.
45. N. M. Kovalchuk, D. Vollhardt, V. B. Fainerman and E. V. Aksenenko, J. Phys. Chem. B, 2007, 111, 8283–8289.
46. Yu. B. Vysotsky, A. A. Shved, E. A. Belyaeva, E. V. Aksenenko, V. B. Fainerman, D. Vollhardt and R. Miller, J. Phys. Chem. B, 2009, 113, 13235–13248.
47. Yu. B. Vysotsky, E. S. Kartashynska, E. A. Belyaeva, D. Vollhardt, V. B. Fainerman and R. Miller, J. Phys. Chem. C, 2015, 119, 5523–5533.
48. G. I. Csonka, J. C. Angyan and G. I. Csonka, THEOCHEM, 1997, 393, 31–38.
49. M. K. Durbin, M. C. Shih, A. Malik, P. Zschack and P. Dutta, Colloids Surf., A, 1995, 102, 173–179.
50. N. Islam and T. Kato, J. Colloid Interface Sci., 2006, 294, 288–294.
51. K. S. Birdi, Self-assembly monolayer structures of lipids and macromolecules at interfaces, Springer, New-York, 1999, p. 387.
52. Yu. B. Vysotsky, E. S. Fomina, E. A. Belyaeva, D. Vollhardt, V. B. Fainerman and R. Miller, J. Phys. Chem. B, 2012, 116, 8996–9006.
53. A. M. Bibo and I. R. Peterson, Adv. Mater., 1990, 2, 309–311.

---
