Stabilization of multiply-charged atomic clusters in the gas phase has been a topic of great interest not only because of their potential applications as weakly-coordinating anions, but also for their ability to promote unusual reactions and serve as building blocks of materials. Recent experiments have shown that, after removing one terminal ligand from the closo-dodecacyano-borate, B12(CN)122−, the cluster can strongly bind an argon atom at room temperature. Bearing this in mind, here, we have developed more than a dozen highly stable tri- and tetra-anions using density functional theory (DFT) calculations with hybrid functional (B3LYP) and semi-empirical dispersion corrections. The interactions between the clusters and noble gas atoms, including Ne, Ar and Kr, are studied. The resulting super-electrophilic sites embedded in these charged clusters can bind noble gas atoms with binding energies up to 0.7 eV. This study enriches the database of highly-charged clusters and provides a viable design rule for super-electrophiles that can strongly bind noble gas atoms.
Applications of the mono- and di-anions in the synthesis of halogen-free electrolytes for Li, Na, and Mg batteries have since been discussed, both theoretically and experimentally.12–14 Mayer et al.9 have demonstrated yet another important functionality of the di-anions, such as B12(CN)122−. Upon removal of one CN moiety from the cluster, they found that the exposed B atom in the B12 cage becomes electron deficient and positively charged. The exposed B can then interact with Ar atom through both charge transfer and covalent bonding with a binding energy of 0.61 eV. Recently, Meenakshi and Ghanty15,16 showed that the use of electronegative ligands as well as replacement of one B atom by Be in the cluster can further enhance the binding energy of noble gas atoms. Experiment has been carried out on binding Ne atoms using the same procedure.17 Here, by density functional calculations with hybrid functional (B3LYP) and semi-empirical dispersion corrections, we have developed a number of stable tri-anions using a set of linearly configured ligand clusters and found that the species can interact with noble gas atoms (Ng) strongly.
(1) |
EAi = Ei−1 − Ei | (2) |
We start with BeB11(CN)123− and replace one of the CN moieties with one of the ligands, including C2, NB, O2, OS, S2, NCN, NBS, OBeO, OBeS, OMgO, C2S, SC2S, NB2N and O3B2, to form new stable tri-anions. The optimized geometries of these tri-anions are given in Fig. 1. Their basic properties such as the molar volume, ionic radius, multiplicity (M), binding energies of successive electrons, EAi, and the total energy gain by adding all the extra electrons, V (eV) are given in Table 1. For each of them, the ground state configuration is identified by comparing the energies of all possible structural isomers with non-equivalent CN ligand relative to the Be site substituted by the linear mono-anion, as shown in Table S2 of ESI.† No general rule is found to identify which site is preferred for the ground state. Previously, there were only 5 stable gas-phase tri-anions that have been reported. These include BeB11(CN)123−, BeB11(BO)123− and BeB11(SCN)123− whose EA3 are 2.65, 1.30 and 0.59 eV, respectively.10 In addition, two stable tri-anions without beryllium (Be) insertion into the boron cage were also found in the previous study, including B12(CN)10(C2)23− and B12(CN)10(OBeS)23− with EA3 of 0.92 and 1.43 eV, respectively.18 Compared to these, the new stable tri-anions in the current study all show 1 μB magnetic moment in their ground states and have similar sizes as well as similar values of EA3. Among them, BeB11(CN)11(OMgO)3− and BeB11(CN)11(O3Be2)3− exhibit the largest EA3 values of 2.40 and 2.16 eV, respectively, which are comparable to that of BeB11(CN)123−. It is noted that, whenever p-electrons are involved in the bonding, the terminal groups become tilted when attached to the boron site.12

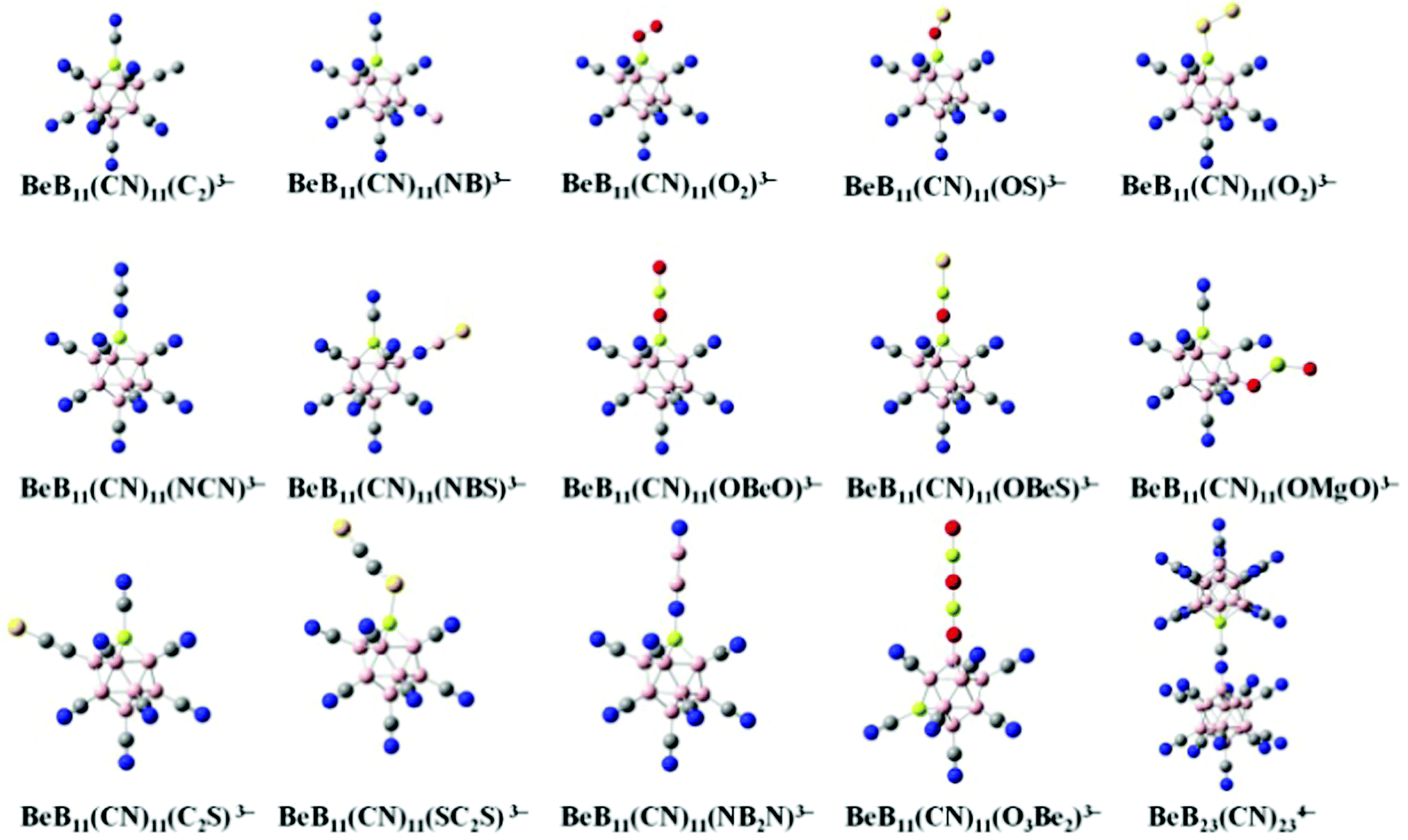

Fig. 1 Optimized structures of the new gas-phase tri-anions that are stabilized by replacing one of the CN ligands in BeB11(CN)123− with selected mono-anions shown in Fig. S1 and Table S1 of ESI.† The basic properties of these tri-anions are given in Table 1. Boron atoms are in pink, carbon in grey, nitrogen in blue, beryllium in light yellow, oxygen in red, sulfur in yellow and magnesium in yellow green. |
Tri-anion | MV | R | M | EA1 | EA2 | EA3 | V |
---|---|---|---|---|---|---|---|
BeB11(CN)123− | 317.125 | 6.11 | 1 | 8.44 | 4.76 | 2.65 | 15.85 |
BeB11(CN)11(C2)3− | 313.16 | 6.11 | 2 | 4.75 | 4.36 | 0.55 | 9.66 |
BeB11(CN)11(NB)3− | 364.04 | 6.11 | 2 | 8.67 | 3.28 | 1.86 | 13.17 |
BeB11(CN)11(O2)3− | 251.17 | 5.89 | 2 | 7.78 | 4.55 | 1.03 | 13.36 |
BeB11(CN)11(OS)3− | 307.94 | 6.24 | 2 | 6.98 | 3.95 | 0.13 | 11.06 |
BeB11(CN)11(S2)3− | 398.62 | 6.90 | 2 | 7.70 | 3.99 | 0.50 | 12.19 |
BeB11(CN)11(NCN)3− | 324.15 | 6.69 | 2 | 6.03 | 3.85 | 1.31 | 11.19 |
BeB11(CN)11(NBS)3− | 369.33 | 6.94 | 2 | 5.61 | 3.98 | 0.58 | 10.17 |
BeB11(CN)11(OBeO)3− | 331.34 | 6.83 | 2 | 9.12 | 3.23 | 1.87 | 14.22 |
BeB11(CN)11(OBeS)3− | 382.18 | 7.29 | 2 | 11.01 | 0.84 | 1.62 | 13.47 |
BeB11(CN)11(OMgO)3− | 325.84 | 6.71 | 2 | 9.09 | 2.83 | 2.40 | 14.32 |
BeB11(CN)11(C2S)3− | 250.01 | 6.92 | 2 | 7.64 | 3.77 | 0.60 | 12.01 |
BeB11(CN)11(SC2S)3− | 366.61 | 7.54 | 2 | 7.42 | 3.93 | 0.61 | 11.96 |
BeB11(CN)11(NB2N)3− | 410.55 | 7.55 | 2 | 8.61 | 3.80 | 1.76 | 14.17 |
BeB11(CN)11(O3Be2)3− | 322.39 | 8.04 | 2 | 9.30 | 3.17 | 2.16 | 14.63 |
Tetra-anion | MV | R | M | EA1 | EA2 | EA3 | EA4 | V |
---|---|---|---|---|---|---|---|---|
BeB23(CN)234− | 586.46 | 9.92 | 2 | 9.10 | 6.32 | 4.08 | 0.94 | 20.44 |
Besides the stable tri-anions, a stable gas-phase tetra-anion BeB23(CN)234− is also developed. As demonstrated by Fang and Jena, it is possible to stabilize a tetra-anion by assembling a stable mono-anion and a stable tri-anion.11 First, removal of one CN ligand from the stable di-anion B12(CN)122− results in a stable mono-anion, B12(CN)11−, with an EA1 value of 8.49 eV. Combining this to the known tri-anion BeB11(CN)123−, the tetra-anion BeB23(CN)234− is formed as shown in Fig. 2. The basic properties of this tetra-anion are given in Table 1. It has a large EA4 value of 0.94 eV, only second to the tetra-anion Be2B22(CN)234− which has the highest EA4 value of 1.48 eV11 known so far.
The results of tri- and tetra-anions in Table 1 can be well described by a phenomenological model in which each additional electron is in a bound state of a general 3D potential well.11 According to this model, the key quantities to stabilize a multiply-charged cluster are the V value and the cluster radius (r). A plot of V vs. 1/r2 for the studied clusters is given in Fig. 3, showing that the all the data points associated with the tri- and tetra-anions lie above a threshold line
Vn = an/r2 + V0, | (3) |
Fig. 3 Calculated V vs. 1/r2 data (eqn (1)) for the stable gas-phase tri- (black) and tetra- (red) anions developed in this study (solid square) and from previous studies in ref. 11 (open square). The threshold lines (eqn (3)) for the tri- (black dashed line) and tetra- (red dashed line) anions are given. |
We have studied the potential of the newly developed tri- and tetra-anions to bind Ng atoms. For demonstration, we chose the tetra-anion BeB23(CN)234− and the tri-anion BeB11(CN)11(OMgO)3− which has the largest EA3 value of all the tri-anions in this study. After removing one CN ligand from BeB11(CN)11(OMgO)3−, the ground-state of BeB11(CN)10(OMgO)2− is the one in which the Be site is exposed (see Fig. S2A of ESI†). Fig. 4A shows the optimized structures of the ground states [BeB11(CN)10(OMgO)–Ng]2− (Ng = Ne, Ar, Kr). As given in Table 2, the exposed Be site is highly electron-deficient. There is significant charge transfer from the Ng atoms to the cluster when the two binds. The ground-state configuration of BeB23(CN)223− corresponds to the one in which the B site adjacent to Be is exposed (see Fig. S2B of ESI†). The optimized structures of [BeB23(CN)22–Ng]3− (Ng = Ne, Ar, Kr) are shown in Fig. 4B. As listed in Table 2, there is also significant charge transfer from the Ng atoms to the cluster when the two binds. The charge transfer of 0.34e out of Ar is comparable to that (0.41e) in the case of [B12(CN)11–Ar]−.9 The binding energies between the Be site and the Ng atoms are considered quite large, especially for the case of [BeB23(CN)22–Ng]3−, where the binding energies are higher than those in the case of [BeB11(CN)11–Ng]2−,17 as shown in Table 2.
BL (Å) | q Be | q Ng | BE (eV) | |
---|---|---|---|---|
[BeB11(CN)10(OMgO)–Ng]2− | ||||
Ne | 1.942 | 1.051 | 0.106 | 0.14 |
Ar | 2.177 | 0.853 | 0.264 | 0.22 |
Kr | 2.258 | 0.755 | 0.346 | 0.27 |
[BeB23(CN)22–Ng]3− | ||||
Ne | 2.003 | 0.433 | 0.114 | 0.40 (0.14) |
Ar | 2.166 | 0.185 | 0.343 | 0.59 (0.47) |
Kr | 2.193 | 0.024 | 0.489 | 0.71 (0.57) |
To understand the nature of the chemical bonding between Ng and the cluster, we conducted energy decomposition analysis on Ar–Be in [BeB11(CN)10(OMgO)–Ar]2−. It is found that, out of the total interaction energy of ΔE (−3.42 kcal mol−1), the repulsion (ΔErep = 29.52 kcal mol−1) and polarization (ΔEpol = −13.03 kcal mol−1) terms are dominant, indicating increasing orbital overlap as well as significant changes in the orbital shape when Ar interacts with Be in the cluster. The dispersion energy (ΔEdisp = −5.17 kcal mol−1) also contributes significantly to the total interaction energy. Thus, the Ar–Be interaction can be characterized as a mixture of ionic and covalent bonding as well as the interaction between polarized electron clouds, which is similar to the cases of [BeB11(CN)11Ng]2− dianions.15 Although the energy decomposition analysis of Ar–B in [BeB23(CN)22–Ar]3− is computationally prohibitive due to its large size, it is expected that chemical bonding will have a similar nature as found in the above cases.
In conclusion, using a set of stable mono-anions with linear configuration as the terminal groups in boron-based polyhedral clusters, we have developed more than a dozen of tri-anions (in the “−3” charge state) with compact sizes that are stable in the gas phase. In addition, a stable gas-phase tetra-anion (in the “−4” charge state) is also found by assembling one stable mono-anion together with another stable tri-anion. It is found that the relationship between the electron-holding ability of these tri- and tetra-anions (quantified by V in eqn (1)) and their sizes (quantified by their radii) are consistent with the phenomenological model of electronic bound states in a general 3D potential well.11 Further studies show that these stable clusters can serve as super-electrophiles, strongly interacting with noble gas atoms via chemical bonding.
