Impact of the particle mixing state on the hygroscopicity of internally mixed sodium chloride–ammonium sulfate single droplets: a theoretical and experimental study

Abstract

Sodium chloride (NaCl) is the main constituent of sea-salt aerosols. During atmospheric transport, sea-salt aerosols can interact with gases and other particles including secondary aerosols containing ammonium sulfate ((NH₄)₂SO₄). This paper reports on the deliquescence relative humidity (DRH) of internally mixed sodium chloride–ammonium sulfate (NaCl/(NH₄)₂SO₄) coarse particles by means of an acoustic levitation system fitted with a confocal Raman microscope (CRM). The chemical composition and physical state of individual levitated particles of different initial NaCl mole fractions were monitored during the deliquescence cycle by CRM. Experimental results were compared to the data predicted by the thermodynamic model E-AIM (Extended-Aerosol Inorganics Model). We demonstrated that NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O are formed in recrystallized particles and coexist with NaCl and (NH₄)₂SO₄. All these products are randomly distributed within the particles. Deliquescence curves described two or three-stage phase transitions depending on the initial composition of the droplet. Significant discrepancies between the model and the laboratory experiments were observed for NaCl mole fractions varying between 0.40 and 0.77 due to a divergence between the predicted and the truly present products in the particles’ solid fraction during the humidification cycle.

---

1. Introduction

Sea-salt aerosols represent one of the most important natural aerosols in the atmosphere and are mainly composed of sodium chloride (NaCl).^1,2 During their transport in the atmosphere, particularly in areas under anthropogenic influence, sea-salt aerosols can interact with gases and other particles including secondary aerosols containing ammonium sulfate ((NH₄)₂SO₄), which is a predominant inorganic component of atmospheric aerosols.³ NaCl and (NH₄)₂SO₄ both are hygroscopic compounds and particles containing these inorganic salts can uptake water depending on the relative humidity (RH) of the surrounding medium. Such atmospheric particles change size by water uptake or water loss and their physical–chemical properties are constantly altered. In addition, the amount of soluble and insoluble material in an aerosol particle is variable during hydration–drying processes. The constantly evolving ratio of soluble to insoluble material as a function of ambient RH is an important factor driving aerosol–cloud interactions. Soluble species are commonly found in the accumulation (0.1 μm < particle size diameter < 2.5 μm) and coarse (2.5 μm < particle size diameter < 10 μm) modes. Those species include sulfuric and nitric acids, sodium and ammonium salts, and some secondary organic species. Moreover, some soluble species such as sea-salt aerosols can also be present in particles with diameter lower than 1 μm, intimately mixed with ammonium salts.^4,5 Aerosol hygroscopicity and chemical composition were shown to play an important role in cloud droplet activation. In 2016, Väisänen et al.⁶ estimated the hygroscopicity-dependent activation properties of aerosols and revealed that highly hygroscopic particles are more efficient in cloud droplet formation. Other authors showed that in-cloud processing increased the hygroscopicity of the aerosol particles significantly.^7–9 In addition, the study of hygroscopic properties of atmospheric aerosols is also fundamental to understand aerodynamic properties, optical properties and chemical reactivity. On the other hand, aerosols are complex and one-compound particles are far from being realistic. Therefore, consideration of multi-component aerosols is essential to understand atmospheric processes because aerosol hygroscopicity depends on the mixing state of the particles.^10,11 The solid to aqueous phase transformation is known as the deliquescence relative humidity (DRH). DRH at a given temperature refers to the water activity of a single electrolyte solution that is in equilibrium with its salt precipitate.¹² Thus, at a given temperature, solid-aqueous transition of single-component particles occurs at a characteristic RH. However, the complexity of the deliquescence transition increases with the number of hygroscopic components in the particle.¹³ In addition, the distribution of chemical species within a particle can be spatially heterogeneous. This adds another level of complexity and illustrates the necessity to understand how the hygroscopic behavior of particles depends on their internal physical and chemical mixing states.¹⁴

Hygroscopic properties of particles containing solely NaCl or (NH₄)₂SO₄ are very well known.^15–23 Several authors have been interested in the hygroscopic properties of aerosols containing NaCl or (NH₄)₂SO₄ mixed with other inorganic salts. For example, Ge et al.²⁴ were interested in the deliquescence of NaCl/KCl, NaCl/NaNO₃, and (NH₄)₂SO₄/NH₄NO₃ mixtures. The (NH₄)₂SO₄/NH₄NO₃ system was very complex and experimental reports were not consistent with predictions. Nonetheless, recently, Wu et al.²⁰ achieved the study of the hygroscopic properties of the (NH₄)₂SO₄/NH₄NO₃ mixture and clarified the phase diagram by detection of the products by means of Raman spectroscopy. In another study, Rosenoern et al.²⁵ evidenced that the hygroscopic growth of particles initially containing (NH₄)₂SO₄ and H₂SO₄ was influenced by repeated RH cycles. The hygroscopic properties of mixed NaCl/NaNO₃ have also been studied by other authors by using optical microscopy and scanning electron microscopy coupled to energy dispersive X-ray spectroscopy (SEM/EDX),¹⁶ and laser trapping coupled with Raman spectroscopy.²⁶ Similarly, Fong et al.²⁷ studied the mutual deliquescence relative humidity (MDRH) of NH₄Cl/NaCl, NH₄Cl/(NH₄)₂SO₄ and NaCl/NaBr mixtures. MDRH values were in agreement with those predicted by the Extended Aerosol Inorganics Model (E-AIM),²⁸ a program for modelling gas/liquid/solid equilibrium in chemical systems of interest to atmospheric chemistry, with the exception of the NaCl/NaBr system due to the formation of hydrated salts or complexes. On the other hand, several studies have reported the hygroscopic properties of particles containing NaCl or (NH₄)₂SO₄ mixed with organic compounds.^29–35

In 1995, Potukuchi and Wexler³⁶ developed an equilibrium model to identify the solid-aqueous phase transformations and studied the system containing chlorine (Cl⁻), sodium (Na⁺), ammonium (NH₄⁺) and sulfate (SO₄²⁻) ions. The model predicted the solid composition and deliquescence transitions as a function of the mole fractions. Conversely, few works have been devoted to the experimental study of mixed NaCl/(NH₄)₂SO₄ particles, with only partial deliquescence reported and no possibility to determine the composition of the particle.^37,38

In this work, DRH of internally mixed (NaCl) and ammonium sulfate ((NH₄)₂SO₄) coarse particles are measured using an acoustic levitation system coupled to a confocal Raman microscope (CRM). The experimental setup allows to mimic airborne particles with a droplet held in suspension using an acoustic levitator to prevent the interaction with a contacting surface and to characterize the local chemical composition during a physicochemical process. To our knowledge, this is the first laboratory study that (i) identifies the products resulting from the recombination of Na⁺, Cl⁻, NH₄⁺ and SO₄²⁻ ions in levitated single particles with different initial compositions and (ii) directly observes their behavior during multiple deliquescence cycles. The experimentally observed phase transitions were compared to the DRH values calculated using the Extended Aerosol Inorganics Model (E-AIM).

2. Experimental methods

2.1 Sample preparation

Solid sodium chloride (NaCl, Aldrich, 99.99% purity), ammonium sulfate ((NH₄)₂SO₄), (Aldrich, 99.99% purity) and ultrapure deionized water (Milli-Q™, 18 MΩ) were used to prepare the 1.0 M stock solutions. Solutions with NaCl mole fractions (xNaCl) ranging from 0 to 1 were prepared by volumetric mixing of the pure NaCl and (NH₄)₂SO₄ stock solutions. The pH of the freshly prepared solutions was checked by pH strips.

2.2. Study of the morphology and the chemical composition of the levitated single particles

Chemical compositions of levitated single particles were studied by means of the acoustic levitation experimental setup coupled with a confocal Raman microscope (CRM) previously described in details.³⁹ Briefly, it consists in an ultrasonic levitator (APOS BA 10, Tec5, Germany) inside a home-made cell that allows modification of the environmental conditions (RH and T) inside the cell interfaced with a CRM for in situ imaging and spectral analysis of the suspended particle.

For the spectroscopic studies, we use a visible micro-Raman confocal spectrometer LabRam (Horiba Scientific, S.A.), equipped with a He–Ne laser of 633 nm (power on the sample = 6 mW), a 1800 g mm⁻¹ diffraction grating, a Synapse 1024 × 256 charge-coupled device (CCD) detector, an Olympus BX40 microscope and a high-resolution video camera (Basler Ace NIR, 2048 × 2048 pixels) adapted to the optical Raman microscope.

Optical images and spectroscopic analysis of the particles were achieved by means of an Olympus 50× long working distance objective (WD 10.6 mm, N.A 0.5). The laser spot diameter is calculated around 1.5 μm and the depth of the laser focus is about 14 μm with a Δz limit around ±3 μm. Spectral resolution is calculated to be around of 3 cm⁻¹. Raman spectra were collected at room temperature (23 °C) and at variable RH ranging from 10 to 90%, in the 100–3900 cm⁻¹ range with an acquisition time of 30 s for each spectrum. Relative humidity was generated and controlled by a RH Controller (Serv’instrumentation) giving a relative humidity accuracy of ±0.9%. The environmental conditions (RH and T) within the cell were verified using a SENSIRION (Model SHT85) sensor with uncertainties of ±0.1 °C and ±1.5% RH. A schematic diagram of the experimental setup is shown in Fig. S1 in the ESI.†

2.3 Investigation of the deliquescence behavior of mixed NaCl/(NH₄)₂SO₄ particles

The deliquescence experiments, for all solutions containing a specific NaCl mole fraction, were conducted by generating a spray of fine droplets out of a medical nebulizer (Omrom MicroAIR U22, Japan) and trapping a droplet into the acoustic field as described in previous works.^39,40 In the present study, aqueous droplets ranging from 60 to 160 μm were trapped at room temperature (23 °C) and at RH around 80%. After stabilization inside the acoustic field, droplets were dried by means of a N₂ flow until reaching a RH of 10% where particles were completely solidified and free water Raman signals were absent from the spectra. Deliquescence cycles were performed three times on fresh droplets for each fraction by slowly increasing the RH inside the cell. Changes in the 2D-projected area of the particle were monitored by optical images collected through the Raman microscope. After each deliquescence process, particles were recrystallized to compare the initial and final 2D-projected areas. The particle images were processed using ImageJ software.⁴¹ Multicomponent aerosol surrogate particles in the coarse size range were examined for physical–chemical effects of hygroscopic ageing. Several previous works have demonstrated that DRH values of particles larger than 100 nm are not affected by initial size of the particles.^{6,7,10,15,16,42,43} The growth factor (GF) of the particles during humidification was calculated from the ratio between the 2D projected area of the humidified particle (A) and the projected area of the dried particle (A₀). The uncertainties linked to the projected area measurements are about 1 pixel corresponding to 0.26 μm. The mutual deliquescence relative humidities (MDRH) and the deliquescence relative humidities (DRH) were deduced from the plots of the GF as a function of the RH (herein humidograms).

Deliquescence behaviour of several mixtures of NaCl and (NH₄)₂SO₄, with NaCl mole fractions varying between 0 and 1, was simulated by using the online available Extended AIM Aerosol Inorganic Model III (E-AIM-III).⁴⁴ Simulations were first performed for the RH range varying between 1.0 and 99.9%. A set of 100 points was calculated in this range, given a RH variation close to 1%. Afterwards, 100 points were again calculated in the 65 to 85% RH limited range to achieve a RH scale of 0.2%. Indeed, a finer variation of RH allows the deduction of all the deliquescence points. No limitation in the formation of solids or partitioning of trace gases was imposed. Additionally, we have combined E-AIM model results with the phase transition contours developed by Potukuchi and Wexler,³⁶ to anticipate the chemical composition and concentration of the species within the solid fraction of the particle. Input parameters used with E-AIM-III model are listed in Table S1 in the ESI.†

3. Results and discussion

3.1. Deliquescence relative humidity behavior of mixed NaCl/(NH₄)₂SO₄ particles

We investigated the deliquescent behavior of single particles prepared from 13 aqueous solutions containing different proportions of NaCl and (NH₄)₂SO₄: xNaCl = 0, 0.1, 0.2, 0.27, 0.36, 0.4, 0.5, 0.55, 0.6, 0.67, 0.77, 0.89 and 1. The ratios of the projected area A/A₀ obtained from the optical images were measured as a function of the relative humidity inside the chamber during humidification processes. Fig. 1 illustrates (a) the changes in the optical images of a levitated NaCl/(NH₄)₂SO₄ particle containing a NaCl mole fraction of 0.55 as a function of the relative humidity and (b) the deliquescence growth curve of this levitated NaCl/(NH₄)₂SO₄ particle. Changes in the optical images and humidograms for selected NaCl mole fractions (0.1, 0.2, 0.27, 0.36, 0.4, 0.5, 0.6, 0.67, 0.77 and 0.89) are shown in Fig. S2 in the ESI.†Table 1 summarizes the RH values of the experimental deliquescence transitions that were deduced from the humidogram curves. We have observed three deliquescence transitions identified here respectively as MDRH₁ (first mutual deliquescence relative humidity), MDRH₂ (second mutual deliquescence relative humidity) and DRH (total deliquescence relative humidity). At the beginning of humidification, particles remain solid until reaching a typical RH where a partial deliquescence occurs. At this point, identified as MDRH₁, particles consist of both, a solid and an aqueous phase. The aqueous fraction consists of a saturated solution of salts, which corresponds to the eutonic point. A second partial deliquescence transition is observed before the total deliquescence (MDRH₂). At MDRH₂ a second fraction of the solid phase is solubilized. Hence, a second fraction of a saturated solution of salts is combined with the first saturated solution, but a solid fraction still remains into the particle. Finally, complete solubilization is achieved at a typical RH value identified as DRH, with the particle consisting only of the aqueous phase and composition is equal to the initial particle composition (see Fig. S3 in the ESI†).

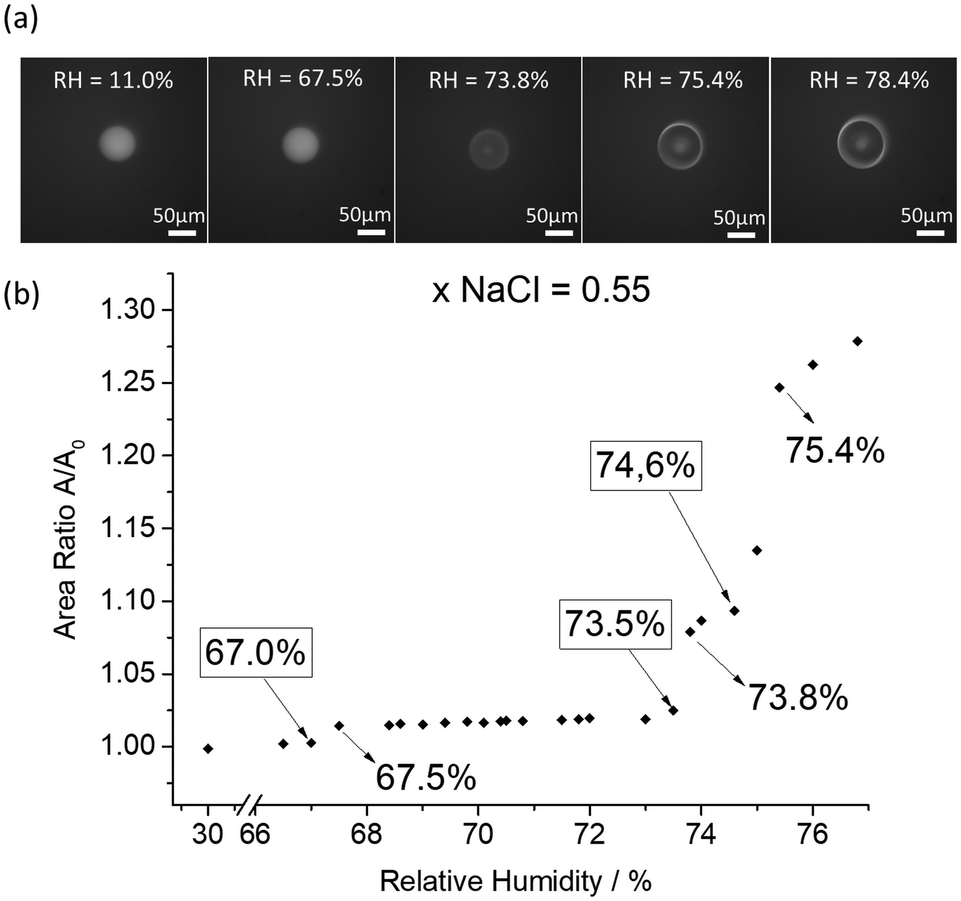

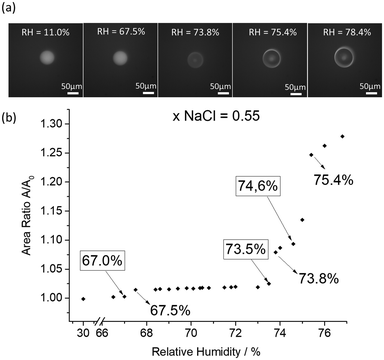

Fig. 1 (a) Optical images and (b) humidogram of a representative mixed single particle of NaCl/(NH₄)₂SO₄ containing a NaCl mole fraction of 0.55.

Table 1 Relative humidities corresponding to the first and second transitions (MDRH₁, MDRH₂) and to the total deliquescence (DRH) of mixed NaCl/(NH₄)₂SO₄ particles, ranging from 60 to 160 μm projected diameter, for different NaCl mole fractions

xNaCl	MDRH1	MDRH2	DRH
a eut: eutonic composition.N.o: not observed experimentally.
0	—	—	79.9 ± 0.2
0.1	69.2 ± 0.2	74.8 ± 0.3	78.4 ± 0.2
0.2	68.2 ± 0.2	74.0 ± 0.2	76.1 ± 0.3
0.27	69.0 ± 0.4	eut^a	74.0 ± 0.3
0.36	68.3 ± 0.2	72.5 ± 0.4	75.3 ± 0.9
0.4	69.1 ± 0.2	70.5 ± 0.3	74.2 ± 0.3
0.5	67.6 ± 0.2	72.2 ± 0.2	75.2 ± 0.3
0.55	68.0 ± 0.7	73.3 ± 0.2	74.7 ± 0.2
0.6	67.5 ± 0.2	n.o	75.0 ± 0.3
0.67	68.3 ± 0.2	71.0 ± 0.2	72.3 ± 0.2
0.77	67.3 ± 0.4	n.o	73.1 ± 0.2
0.89	67.6 ± 0.4	—	73.0 ± 0.8
1	—	—	75.6 ± 0.2

---

Reported RH corresponds to the average value of three measurement cycles on fresh particles and the uncertainties correspond to the standard deviation of the measurements.

DRH of pure NaCl (xNaCl = 1) and pure (NH₄)₂SO₄ (xNaCl = 0) were first studied on single levitated particles. As expected, both compounds presented only one deliquescence transition at 75.6 ± 0.2% for pure NaCl and 79.9 ± 0.2% for pure (NH₄)₂SO₄, these DRH values being in agreement with those determined by previous studies.^13,16,20,45

For the mixed NaCl/(NH₄)₂SO₄ particles, two or three deliquescence transitions were observed depending on the considered NaCl mole fraction. A three-stage deliquescence curve means that three or more hygroscopic compounds coexist in the particle. In binary simple mixtures, where no new compounds are formed in solid phase, deliquescence curves depict two stages (MDRH₁ and DRH) with exception of eutonic composition for which only one transition occurs.^26,46

First transitions (MDRH₁) were not constant for all the considered fractions and varied between 67.3 and 69.2%, compatible with the observations of Cohen and coworkers (1987)³⁸ that measured the water activity of three fractions of NaCl/(NH₄)₂SO₄ mixed particles (xNaCl = 0.33, 0.50, 0.66) and determined that partial deliquescence occurred between 65 and 68%. In the first transition, which corresponds to the first mutual deliquescence relative humidity (MDRH₁), the aerosol consists of a solid fraction in equilibrium with an aqueous solution. Optical images did not evidence changes in the morphology of the particles. Hence, the MDRH₁ transitions were mainly deduced from the humidograms.

Second transitions, corresponding to the second mutual deliquescence relative humidities (MDRH₂), were observed to vary between 70.5 and 74.9%. As expected, the values were lower than the DRH of pure NaCl and (NH₄)₂SO₄. At MDRH₂, an additional portion of the solid particle is solubilized. The aerosol droplet consists of a smaller solid fraction than in MDRH₁, which was in equilibrium with a more abundant aqueous phase. An exception was confirmed for the 0.27NaCl mole fraction that corresponds to a pseudo eutonic composition, in which all the remained solid fraction is solubilized. This second transition was also not observed experimentally for the 0.6 and 0.77NaCl mole fractions, although we attributed this to the proximity of the MDRH₁ and MDRH₂ values that complicates their experimental determination. For 0.89NaCl mole fraction, only two transitions were observed, in agreement with the E-AIM model. The third transition corresponded to the total deliquescence (DRH) of the particles where the species are completely solubilized. The experimental MDRH₁, MDRH₂ and DRH for each NaCl mole fraction are reported on the phase diagram (see Fig. 7 in Section 3.3) together with values obtained by the E-AIM model. The variation of the composition of the particles during humidification will be detailed in Section 3.3.

3.2. Determination of the chemical composition of mixed single particles of NaCl/(NH₄)₂SO₄ during deliquescence processes

NaCl and (NH₄)₂SO₄ salts dissociate in water into their ions: chloride (Cl⁻), sodium (Na⁺), ammonium (NH₄⁺) and sulfate (SO₄²⁻). pH of the samples varies between 4.6 and 7.0. The contribution of the conjugated acid–base species, HSO₄⁻ and NH₃, are neglected for pH values ranging between 2.9 and 8.3 where the SO₄²⁻ and NH₄⁺ species are predominant (pK_a NH₄⁺/NH₃ = 9.3 at 25 °C; pK_a HSO₄⁻/SO₄²⁻ = 1.9 at 25 °C). After each deliquescence cycle, particles were recrystallized and sizes of the dried particles, before and after deliquescence cycles, were compared to detect some evaporation of the products. Thus, gas phase species were neglected because sizes of the particles were unchanged during our laboratory experiments.

When a droplet containing these four ions dries up, ions are recombined forming again NaCl and (NH₄)₂SO₄ but also new species like NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O as described in eqn (1)–(5). Thus, the deliquescence evolution of such particles results from the contribution of all these species formed after solidification. Reactions are supposed total on dehydration with formation of all the five compounds. A major quantity of NaCl or (NH₄)₂SO₄ is expected in NaCl or (NH₄)₂SO₄ rich particles, an important contribution of the other products is expected in intermediate proportions.

Na⁺_(aq) + Cl⁻_(aq) = NaCl_(s) (1)

2NH₄⁺_(aq) + SO₄²⁻_(aq) = (NH₄)₂SO_4(s) (2)

NH₄⁺_(aq) + Cl⁻_(aq) = NH₄Cl_(s) (3)

2Na⁺_(aq) + SO₄²⁻_(aq) = Na₂SO_4(s) (4)

NH₄⁺_(aq) + Na⁺_(aq) + SO₄²⁻_(aq) + 2H₂O_(l) = NH₄NaSO₄·2H₂O_(s) (5)

In this work, the chemical composition of levitated single particles was measured on-line with CRM during humidification processes. Even if NaCl does not have Raman active vibrations, Raman spectra of the solid species (NH₄)₂SO₄, NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O are well known and their specific vibrations make characterization unambiguous.^47–49 Fig. S4 of the ESI,† shows the Raman spectra of the pure compounds (NH₄)₂SO₄, NH₄Cl, Na₂SO₄ collected in our laboratory and used as references. For NH₄NaSO₄·2H₂O, we used the Raman spectra reported in previous works.^47,50,51

The Raman spectrum of solid (NH₄)₂SO₄ is dominated by the sulfate symmetric stretching mode centered at 976 cm⁻¹. The other vibration modes are weak and are centered on 452, 612 and 624 cm⁻¹ for the sulfate bending modes, 1065 and 1082 cm⁻¹ for the sulfate antisymmetric stretching modes, 1414, 1662 and 1692 cm⁻¹ for the ammonium ion bending modes, and 3129 and 3296 cm⁻¹ for the ammonium ion stretching modes. Sulfate symmetric stretching mode is generally the most intense signature in sulfate containing compounds and it can be used to identify and monitor a sulfate product in a mixture.

At room temperature and atmospheric pressure, Na₂SO₄ can be formed in its crystalline forms III and V and as the hydrated form Na₂SO₄·10H₂O. It is well known that at room temperature phase V is the most stable phase of Na₂SO₄. However, the metastable phase III can grow from aqueous solutions and then be transformed into phase V⁵² or also be formed by crystallization of single droplets and transformed into a stable phase V during the deliquescent process.⁵³ Both crystalline phases have characteristic Raman signatures, mainly the symmetric stretching mode of the sulfate around 996 and 993 cm⁻¹ for the phases III and V respectively.^47,54

Regarding to Na₂SO₄·10H₂O, its Raman spectrum is also well known. Its most intense and characteristic signature is the symmetric stretching mode of the sulfate around 989 cm⁻¹.⁵⁵ However, no band around 989 cm⁻¹ was observed for any molar composition. In the model developed by Potukuchi and Wexler,³⁶ Na₂SO₄·10H₂O is predicted to be formed in systems containing high proportions of Na⁺ and SO₄²⁻ ions and low proportions of Cl⁻ and NH₄⁺ ions, which is not compatible with our experiments. Additionally, Vargas-Jentzsch and co-workers⁴⁷ observed the formation of Na₂SO₄ (III and V) and NH₄NaSO₄·2H₂O from the solid-state reactions between (NH₄)₂SO₄ and Na₂CO₃·H₂O at 70% RH and room temperature. No Na₂SO₄·10H₂O was evidenced. Therefore, we discarded the presence of Na₂SO₄·10H₂O in our experiments in contradiction to the hypothesis of Cohen et al.³⁸ who supposed that water remaining in the solid particle after drying would be related to the decahydrated Na₂SO₄.

Finally, the double salt NH₄NaSO₄·2H₂O was identified by the symmetric stretching mode of sulfate around 982 cm⁻¹ and the O–H stretching mode of crystalline water near to 3500 cm⁻¹. NH₄Cl is mainly characterized by the sharp bands at 1402 and 1708 cm⁻¹ that correspond to the bending modes of NH₄ and the N–H stretching mode at 3050 cm⁻¹.

On the other hand, in our CRM configuration, spot diameter of the focused laser beam within material is around 1.5 μm and depth of the laser focus is near to 14 μm. Levitated particles exceed these values and Raman signatures are recorded at the focal point. Therefore, detection of products depends on the local microenvironment and the arrangement of the compounds into the particle. Hence, we have performed Raman spectra from different locations on the particle surfaces. Several particles of different mole fractions were studied. Fig. 2 illustrates the heterogeneous distribution on a recrystallized single particle containing a NaCl mole fraction of 0.67. Raman bands were normalized according to the 976 cm⁻¹ band. The relative intensities of the bands of the different products vary with the focal point. This result means that all compounds are randomly distributed within the particles. The quantification of each compound is highly depending on the particle orientation and the focal point. Therefore, Raman spectra are only used to detect the presence or absence of the compounds and not to quantify their concentrations.

Fig. 2 Raman spectra showing the heterogeneous distribution of the products after recrystallization of a particle initially containing a mixture of NaCl/(NH₄)₂SO₄ (xNaCl = 0.67).

We have also used the E-AIM inorganic model to calculate the aerosol composition of the solid and the aqueous fractions during the humidification process. The model gives the molar composition by ion in the aqueous phase. Thus, remaining solid fraction is deduced from the difference between initial molar composition and the solubilized mole fraction. From the ion concentration analysis, in aqueous and in solid phases, and from the correlation between stoichiometric ratio of the ions into the species, the compounds present in each transition can be proposed. Tables S1–S4 of the ESI,† show the concentration of the ions, at different hydration levels for simulated particles initially containing 0.1, 0.36, 0.55 and 0.67NaCl mole fractions respectively. Chemical species in solid and aqueous phase and their concentration were proposed.

0.1NaCl mole fraction. Fig. 3(a) shows the Raman spectra of one representative particle upon hydration. Absence of free water in the dried particle was verified by controlling the characteristic broad Raman band of water between 3100 and 3600 cm⁻¹. Fig. 3(b) illustrates the spectral region of the sulfate symmetric stretching mode. At 21% RH, solid (NH₄)₂SO₄, identified by its characteristic ν_as(SO₄²⁻) band at 976 cm⁻¹, dominated the Raman spectra as expected. Additionally, very weak peaks around at 996 and 1706 cm⁻¹, attributed to Na₂SO₄(III) and NH₄Cl respectively, were randomly observed in different experiments on fresh particles or on the same particle after successive recrystallizations. A weak shaped band around 3500 cm⁻¹ was also observed and suggested the formation of NH₄NaSO₄·2H₂O (see Fig. S5 of the ESI†). Sulfate band of this double salt, expected around 982 cm⁻¹, was overlapped by the strong sulfate band of (NH₄)₂SO₄ and can be observed by a spectral deconvolution treatment.

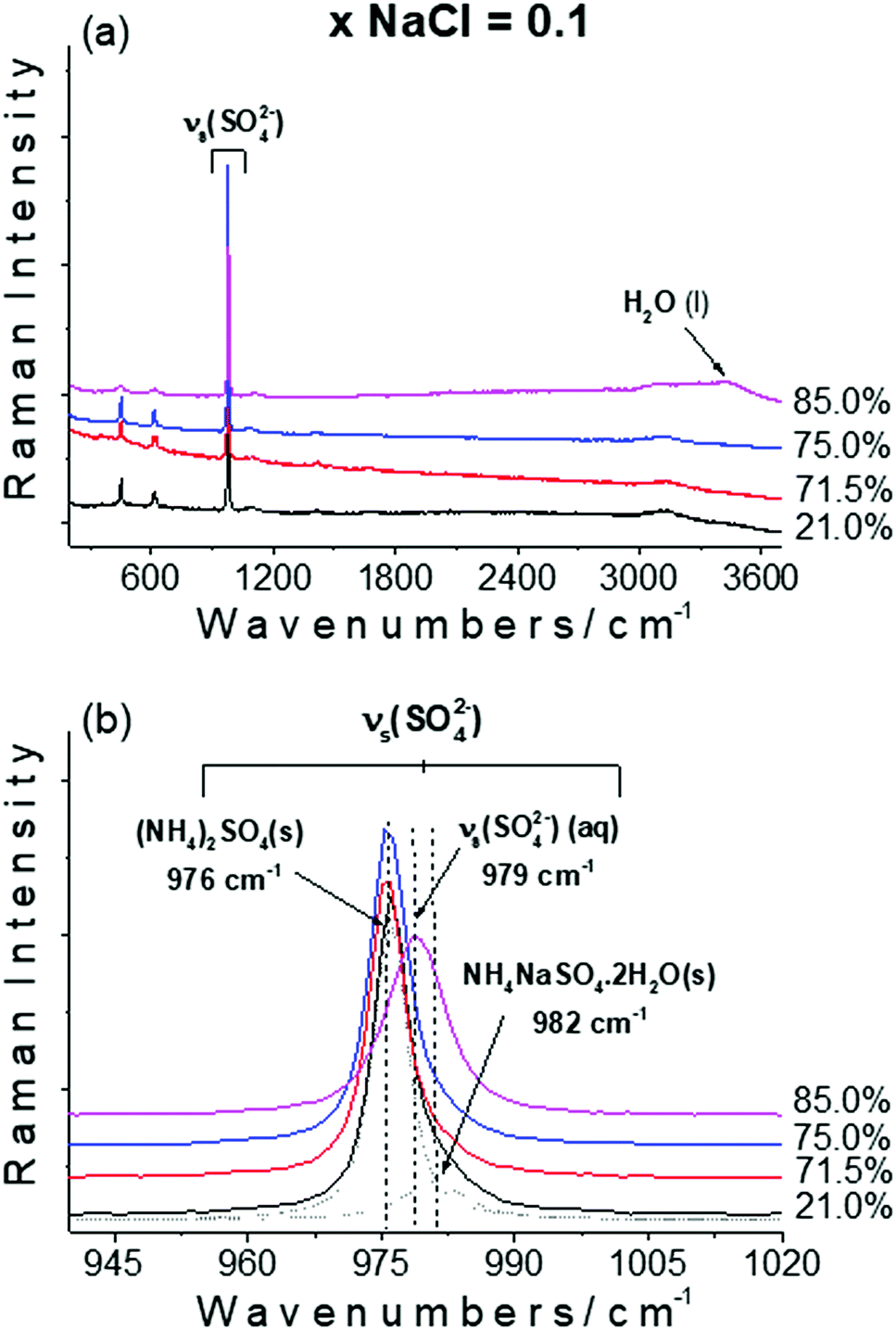

Fig. 3 Raman spectra of mixed NaCl/(NH₄)₂SO₄ single particles for 0.1 mole fractions of NaCl for representative RH. (a) In the 200–3700 cm⁻¹ spectral range, (b) in the sulfate symmetric stretching mode region. Grey dotted lines show the deconvoluted curves from 21% RH spectrum.

To perform the E-AIM calculation, ionic composition of a 0.100 NaCl mole fraction was set to contain 1.800 mol of NH₄⁺, 0.900 mol of SO₄²⁻, 0.100 mol of Na⁺ and Cl⁻. Based on Potukuchi and Wexler's phase transition contours, these ionic concentrations could be interpreted as solid compound concentrations. Thus, dried particle would be composed of 0.1 mol of NH₄Cl (10.0%), 0.1 mol of NH₄NaSO₄·2H₂O (10.0%) and 0.8 mol of (NH₄)₂SO₄ (80.0%) as shown in Table S2 of the ESI.† Conversely, few quantities of Na₂SO₄ were evidenced in the Raman spectra. Even if it is not possible to detect NaCl in our experiments, we cannot discard its presence in the particle.

Calculated deliquescence curve predicted three deliquescence transitions (MDRH₁, MDRH₂ and DRH). The fourth ions should remain in the solid state until RH of 69.4% (MDRH₁), where a fraction of the solid species is solubilized. After MDRH₁, solid fraction composition would be reduced to 0.060 mol of Na⁺, 1.570 mol of NH₄⁺ and 0.815 mol of SO₄²⁻ which could fit with 0.060 mol of NH₄NaSO₄·2H₂O (7.4%) and 0.755 mol of (NH₄)₂SO₄ (92.6%). Subsequently, eutonic aqueous phase at MDRH₁ would be composed of 0.040, 0.100, 0.230 and 0.085 mol of Na⁺, Cl⁻, NH₄⁺ and SO₄²⁻ respectively. Therefore, chloride ions were expected to solubilize completely at MDRH₁, while sodium, sulfate and ammonium ions were only partially solubilized. Hence, no solid species containing Cl⁻, such as NaCl and NH₄Cl, should be present in the solid fraction of the particle after the first deliquescence transition. Particle Raman spectra were collected just after the first deliquescence transition (MDRH₁), which occurred at around 69.2 ± 0.2% (E-AIM = 69.4%). Spectra showed the absence of NH₄Cl consistently with the calculations. We assumed that if some NaCl was initially present in the solid particle, it was also completely dissolved at MDRH₁ in agreement with calculations where no solid chlorine species is expected after the first transition. A small quantity of NH₄NaSO₄·2H₂O was expected to remain in the solid fraction after MDRH₁, however, we did not evidence its characteristic Raman features on the spectra. Raman signatures could be covered by the noise. Thus, only (NH₄)₂SO₄ and Na₂SO₄ were clearly evidenced in the solid fraction. The aqueous fraction was then formed by solubilization of NaCl, NH₄Cl, NH₄NaSO₄·2H₂O and some quantity of (NH₄)₂SO₄. Characteristic broad Raman band of water around 3400 cm⁻¹ was not evidenced at MDRH₁ as would expected after solubilization of a fraction of the solid particle. Furthermore, as water has a weak Raman signal, a very thin film of water on the particle surface could explain its absence from the spectrum.

Second deliquescence transition was predicted to occur at 73.8% and observed experimentally at about 74.8 ± 0.3%. After MDRH₂, solid fraction would be composed of 1.26 mol of NH₄⁺ and 0.630 mol of SO₄²⁻, which is consistent with a single component, the (NH₄)₂SO₄ (0.630 mol). Accordingly, 0.125 mol of (NH₄)₂SO₄ and 0.060 mol of NH₄NaSO₄·2H₂O would dissolve at MDRH₂. Raman studies confirmed the presence of only (NH₄)₂SO₄ in the solid fraction after the second deliquescence transition. Therefore, no Na-containing species was detected in the solid particle after the MDRH₂ in agreement with the E-AIM model.

As predicted, complete deliquescence (DRH) occurred at around 78.4 ± 0.2%. Raman spectra showed only the signatures of aqueous NH₄⁺ and SO₄²⁻ ions. In addition, OH stretching vibration modes of free water (broadband near to 3400 cm⁻¹) were observed to increase in the Raman spectra, as expected for an aqueous droplet. Table 2 summarizes the solid chemical species observed during humidification process.

Table 2 Chemical species in single particles prepared by mixing NaCl and (NH₄)₂SO₄ (xNaCl = 0.1, 0.36, 0.55 and 0.67). Solid species in particles before and after deliquescence transitions (MDRH₁ and MDRH₂). Comparison between solid species observed by Raman spectroscopy (main Raman bands are indicated in parentheses) and deduced from E-AIM model

x(NaCl) = 0.1	Dried particle		MDRH1		MDRH2
	E-AIM (%)	Raman	E-AIM (%)	Raman	E-AIM (%)	Raman
a Few quantities.NRA: non-Raman active.
(NH4)2SO4	80.0	Detected (976 cm^−1)	92.6	Detected (976 cm^−1)	100.0	Detected (976 cm^−1)
NH4Cl	10.0	Detected (1706 cm^−1)	0.0	—	0.0	—
NH4NaSO4·H2O	10.0	Detected^a (3500 cm^−1)	7.4	—	0.0	—
Na2SO4	0.0	Detected^a (996 cm^−1)	0.0	Detected^a (996 cm^−1)	0.0	—
NaCl	0.0	NRA	0.0	NRA	0.0	NRA
x(NaCl) = 0.36
(NH4)2SO4	28.0	Detected (976 cm^−1)	35.1	Detected (976 cm^−1)	0.0	Detected (976 cm^−1)
NH4Cl	36.0	Detected (1706 cm^−1)	0.0	Detected (1706 cm^−1)	0.0	Detected (1706 cm^−1)
NH4NaSO4·H2O	36.0	Detected (3500 cm^−1)	64.9	Detected (3500 cm^−1)	100.0	Detected (3500 cm^−1)
Na2SO4	0.0	Detected (996 cm^−1)	0.0	Detected (996 cm^−1)	0.0	—
NaCl	0.0	NRA	0.0	NRA	0.0	NRA
x(NaCl) = 0.55
(NH4)2SO4	0.0	Detected (976 cm^−1)	0.0	Detected (976 cm^−1)	0.0	—
NH4Cl	45.0	Detected (1706 cm^−1)	44.5	Detected (1706 cm^−1)	0.0	Detected (1706 cm^−1)
NH4NaSO4·H2O	45.0	Detected (3500 cm^−1)	55.5	Detected (3500 cm^−1)	100.0	Detected (3500 cm^−1)
Na2SO4	0.0	Detected (996 cm^−1)	0.0	Detected (996, 992 cm^−1)	0.0	—
NaCl	10.0	NRA	0.0	NRA	0.0	NRA
x(NaCl) = 0.67
(NH4)2SO4	0.0	Detected (976 cm^−1)	0.0	Detected (976 cm^−1)	0.0	—
NH4Cl	56.0	Detected (1706 cm^−1)	57.3	Detected (1706 cm^−1)	0.0	Detected (1706 cm^−1)
NH4NaSO4·H2O	9.5	Detected (3500 cm^−1)	9.3	—	60.8	—
Na2SO4	23.5	Detected (996, 992 cm^−1)	24.4	Detected (992 cm^−1)	39.2	Detected (992 cm^−1)
NaCl	11.0	NRA	9.3	NRA	0.0	NRA

---

0.36NaCl mole fraction. Raman spectra as a function of RH obtained for one of the trapped particles are presented in Fig. 4(a). The spectral region of the sulfate symmetric stretching mode is presented in Fig. 4(b). One can note the absence of free water on the dried solid particles. (NH₄)₂SO₄, NH₄Cl, Na₂SO₄(III) and NH₄NaSO₄·2H₂O were evidenced by their characteristic Raman signatures. As expected, formation of the new species by combination of Na⁺ and Cl⁻ ions with NH₄⁺ and SO₄²⁻ ions seemed to increase. Ionic composition of the dried solid particle deduced from E-AIM model was interpreted by using Potukuchi and Wexler's phase transition contour. It is expected to be composed of 0.280 mol of (NH₄)₂SO₄ (28.0%), 0.360 mol of NH₄Cl (36.0%) and 0.360 mol of NH₄NaSO₄·2H₂O (36.0%) as described in Table S3 of the ESI.† All these compounds were evidenced experimentally in the solid particles by their Raman spectra before increasing RH inside the levitation cell. Nonetheless, Na₂SO₄ was also detected experimentally by its Raman signatures. Also, we do not dismiss the presence of some quantities of NaCl, even if it is not possible to confirm by Raman spectroscopy.

Fig. 4 Raman spectra of mixed NaCl/(NH₄)₂SO₄ single particles for 0.36 mole fractions of NaCl for representative RH. (a) In the 200–3700 cm⁻¹ spectral range, (b) in the sulfate symmetric stretching mode region. Grey dotted lines show the deconvoluted curves from 18% RH spectrum.

E-AIM simulation on 0.36NaCl mole fraction revealed a three-stage deliquescence behavior: MDRH₁, MDRH₂ and DRH. MDRH₁ was observed at 68.3 ± 0.2% (E-AIM = 69.4%). E-AIM model anticipates that all Cl⁻ ions should dissolve at that point with only 0.117 mol of (NH₄)₂SO₄ (35.1%) and 0.216 mol of NH₄NaSO₄·2H₂O (64.9%) remaining in solid phase. Thus, all the NH₄Cl should be completely dissolved, together with part of (NH₄)₂SO₄, and NH₄NaSO₄·2H₂O. Consequently, the aqueous fraction (eutonic composition) should have the same ionic composition than the 0.1NaCl mole fraction (0.144 mol of Na⁺, 0.360 mol of Cl⁻, 0.830 mol of NH₄⁺ and 0.307 mol of SO₄²⁻). Nonetheless, all the products, except NaCl, were experimentally detected within the solid fraction after the first deliquescent point using the Raman spectra. This inconsistency confirms the complexity of the mixture and one could suppose some gaps in the model. Experimental evidences suggest that aqueous phase at MDRH₁ was produced by solubilization of some (NH₄)₂SO₄, a few quantity of NH₄Cl. Again, one could assume that all NaCl was solubilized. Characteristic broad Raman band of water around 3400 cm⁻¹ was not evidenced at MDRH₁. Liquid Water might be present on aerosol surfaces but in such low quantities that Raman spectra was unable to detect it.

MDRH₂, initially expected around 71.5% (E-AIM), occurred near to 72.5 ± 0.4%. (NH₄)₂SO₄, NH₄Cl and NH₄NaSO₄·2H₂O were identified in the solid fraction by their characteristic Raman signatures. On the contrary, E-AIM model predicted no-chloride products within solid particle where only NH₄NaSO₄·2H₂O would remain. In addition, intensities of solid (NH₄)₂SO₄ and NH₄Cl decreased in comparison to intensities observed at MDRH₁. Therefore, aqueous fraction is produced after solubilization of Na₂SO₄ and some quantities of (NH₄)₂SO₄ and NH₄Cl.

Total deliquescence occurred experimentally at 75.3 ± 0.9% (E-AIM = 75.6%). Only the signatures of aqueous NH₄⁺ and SO₄²⁻ ions in addition to liquid water signature were observed in the Raman spectra. No characteristic Raman signal from solid species was detected. Table 2 summarizes the solid chemical species observed during humidification process.

0.55NaCl mole fraction. Dried solid particles were monitored by Raman and liquid water signature was not evidenced (see Fig. 5). Taking into account the E-AIM model and the Potukuchi and Wexler's phase transition contour, initial dried solid particle would be composed of 0.100 mol of NaCl (10.0%), 0.450 mol of NH₄Cl (45.0%), and 0.450 mol of NH₄NaSO₄·2H₂O (45.0%) as presented in Table S4 of the ESI.† However, not only NH₄Cl and NH₄NaSO₄·2H₂O but also (NH₄)₂SO₄ and Na₂SO₄(III) were evidenced into the solid particle by their characteristic Raman signatures. NaCl was also presumed to coexist with these salts. Raman spectra showed a relative increase in the intensities of the characteristic Raman signatures of NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O. Fig. 5(a) shows the Raman spectra, when increasing RH, obtained for one of the studied particles containing 0.55NaCl mole fraction. The spectral region of the sulfate symmetric stretching mode is presented in Fig. 5(b).

Fig. 5 Raman spectra of mixed NaCl/(NH₄)₂SO₄ single particles for 0.55 mole fractions of NaCl for representative RH. (a) In the 200–3700 cm⁻¹ spectral range, (b) in the sulfate symmetric stretching mode region. Grey dotted lines show the deconvoluted curves from 26% RH spectrum.

The first transition occurred about 68.0 ± 0.7% (E-AIM = 68.4%) and Raman spectra showed that all the compounds, initially detected in the dried particle, remained in the solid fraction and only a slight decrease of NH₄Cl and (NH₄)₂SO₄ Raman band intensities was observed. In addition, a new Raman band, around 992 cm⁻¹, appeared in the spectra and was identified as the orthorhombic phase V of crystalline Na₂SO₄. This transformation was already documented as a result of the increase in RH during hydration cycle.⁵³ Characteristic broad Raman band of water around 3400 cm⁻¹ was not evidenced at MDRH₁. E-AIM model, to the contrary, predicted a solid fraction composed of 0.385 mol of Na⁺, 0.309 mol of Cl⁻, 0.694 mol of NH₄⁺ and 0.385 mol of SO₄²⁻ that fit with 0.309 mol of NH₄Cl (44.5%) and 0.385 mol of NH₄NaSO₄·2H₂O (55.5%) after MDRH₁.

RH in the cell reach MDRH₂ around 73.3 ± 0.2%. According to E-AIM model, MDRH₂ was expected around 70.2% and only NH₄NaSO₄·2H₂O would remain in the solid phase. In fact, after MDRH₂, Raman Spectra revealed the presence of NH₄Cl in addition to NH₄NaSO₄·2H₂O in the solid phase. Consequently, the discrepancy between experimental and calculated MDRH₂ values could be explained by the difference in the solid species truly present in the particle after MDRH₁ and those predicted by the model.

Finally, when RH reached 74.7 ± 0.2% the particle was completely deliquesced (DRH). This value was slightly lower than the value predicted by E-AIM (75.8%). Only the bands corresponding to aqueous species were detected in Raman spectra. In addition, optical images showed a completely transparent droplet. Table 2 summarizes the solid chemical species observed during humidification process.

0.67NaCl mole fraction. Raman spectra as a function of RH obtained for one of the trapped particles are presented in Fig. 6(a). The spectral region of the sulfate symmetric stretching mode is presented in Fig. 6(b). Raman spectra on dried solid particles did not show liquid water. According to the E-AIM model and the Potukuchi and Wexler's phase transition contour, the initial dried solid particles are expected to contain 0.110 mol of NaCl (11.0%), 0.560 mol of NH₄Cl (56.0%), 0.235 mol of Na₂SO₄ (23.5%) and 0.095 mol of NH₄NaSO₄·2H₂O (9.5%) as shown in Table S5 in the ESI.† No (NH₄)₂SO₄ is expected to remain in dried particle. However, solid (NH₄)₂SO₄, NH₄Cl, Na₂SO₄ (III and V) and NH₄NaSO₄·2H₂O were evidenced by their characteristic Raman signatures. Likewise, some NaCl remaining in solid phase is not discarded but cannot be observed in the Raman spectra during the humidification process.

Fig. 6 Raman spectra of mixed NaCl/(NH₄)₂SO₄ single particles for 0.67 mole fractions of NaCl for representative RH. (a) In the 200–3700 cm⁻¹ spectral range, (b) in the sulfate symmetric stretching mode region. Grey dotted lines show the deconvoluted curves from 24% RH spectrum.

The first deliquescence transition (MDRH₁) was observed at 68.3 ± 0.2% (E-AIM = 67.7%). Raman spectra evidenced that (NH₄)₂SO₄(s) and NH₄Cl(s) Raman intensities decreased and Na₂SO₄(III) was converted into Na₂SO₄(V). In contrast, characteristic Raman signature of solid NH₄NaSO₄·2H₂O disappeared from the spectrum. Thus, we assume that aqueous fraction was obtained by solubilization of NH₄NaSO₄·2H₂O, NaCl and few quantities of (NH₄)₂SO₄ and NH₄Cl. Consequently, after MDRH₁, a quantity of (NH₄)₂SO₄, NH₄Cl and Na₂SO₄ remained in solid state. Characteristic broad Raman band of water around 3400 cm⁻¹ was not evidenced at MDRH₁.

In contrast, E-AIM model predicted a solid phase composed of 9.3% of NH₄NaSO₄·2H₂O (0.090 mol) together with 9.3% of NaCl (0.090 mol), 57.3% of NH₄Cl (0.550 mol) and 24.4% of Na₂SO₄ (0.235 mol). Indeed, the aqueous phase is predicted to be composed of 0.020 mol of Na⁺, 0.030 mol of Cl⁻, 0.020 mol of NH₄⁺ and 0.005 mol of SO₄²⁻, which was interpreted as the solubilization of 0.020 mol of NaCl, 0.010 mol of NH₄Cl and 0.005 mol of NH₄NaSO₄·2H₂O.

A second deliquescence transition (MDRH₂) was observed around 71.0 ± 0.2%, far from the RH predicted by the E-AIM model (68.4%). Raman spectra of the particles indicated the presence of NH₄Cl and Na₂SO₄(V) in solid state. The relative intensities of the Raman bands of NH₄Cl decreased, but its presence in the solid phase after the MDRH₂ is irrefutable. Additionally, solid (NH₄)₂SO₄ disappeared completely or the intensity of its sulfate symmetric stretching vibration (its most intense band) was very low and hidden by the noise. Consequently, aqueous phase was formed by solubilization of (NH₄)₂SO₄ and part of NH₄Cl. As mentioned, E-AIM predicted a RH value very different from the value found experimentally. In fact, E-AIM model predicted that no chlorine containing compounds remained in solid phase after the second DRH transition, and that the solid fraction would be composed of 0.207 mol of Na⁺, 0.090 mol of NH₄⁺ and 0.148 mol of SO₄²⁻, interpreted as 0.090 mol of NH₄NaSO₄·2H₂O (60.8%) and 0.058 mol of Na₂SO₄ (39.2%) as described in Table S5 of the ESI.† However, contrary to the predictions, we observed that NH₄NaSO₄·2H₂O was solubilized in the first DRH transition and NH₄Cl was still present after MDRH₂, which could explain the clear disagreement with the model.

Finally, total deliquescence (DRH) was observed around 72.3 ± 0.2% of RH (E-AIM = 73.0%). Only the bands corresponding to aqueous species were detected in Raman spectra. In addition, optical images showed completely transparent droplets. Table 2 summarizes the solid chemical species observed during humidification process.

3.3. Deliquescence phase diagram of mixed NaCl/((NH₄)₂SO₄) particles

Fig. 7 shows the MDRH₁, MDRH₂ and DRH values obtained experimentally in levitation experiments for 13 mixtures of NaCl and ((NH₄)₂SO₄) as a function of the NaCl mole fraction. DRH values, obtained by E-AIM model for several proportions of NaCl and (NH₄)₂SO₄ are also reported in Fig. 7. The simulated diagrams describe two or three transitions, depending on the NaCl mole fraction. Experimental data are observed to follow moderately the transition patterns for (NH₃)₂SO₄ (xNaCl < 0.28) and NaCl rich particles (xNaCl > 0.87).

Fig. 7 Deliquescence phase diagram of mixed NaCl/(NH₄)₂SO₄ particles as a function of the NaCl mole fraction. Comparison of the E-AIM model results (dashed lines) with our experimental data (scatter). MDRH₁ (black) and MDRH₂ (red) refers to the first and second transitions before the total deliquescence, DRH (blue).

MDRH₁, corresponding to eutonic mixture, is not predicted to be constant for all mixtures and takes three values depending on the NaCl mole fractions: 69.4% from 0.01 to 0.49, 68.5% from 0.50 to 0.66 and 67.7% from 0.67 to 0.99. The experimental MDRH₁ values also tend to be slightly lower than predicted and decrease with xNaCl. A lower MDRH₁ value could suggest that particles are slightly more hygroscopic than expected. Thermodynamically, in a system containing two salts, the MDRH remains constant. It is independent of the mixing ratio because water activity governs the phase transition of mixed salts at the eutonic point.^16,46 Consequently, variability in the MDRH₁ values found by E-AIM model is explained by the absence of one or more species in the initial solid particle as described in Tables S1–S4 of the ESI.† In our results, MDRH₁ behavior is irregular and fluctuated between 69.2 and 67.3%. For the four studied mixtures, Raman spectra evidence the coexistence of (NH₄)₂SO₄, NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O. We cannot discard that some NaCl is also present in the crystallized particle. However, if all the products are present in the dried particles, MDRH₁ value should remain constant in our experiments for all the fractions because only variable mixing ratio is expected. This contradiction could be due to the physical and chemical heterogeneity and the internal mixing state of the products within the particles. In consequence, water uptake and other properties are variable and non-uniform due to a complex chemical mixing state in the single particles. In addition, as suggested by Rosenoern et al.²⁵ the presence of a nanocrystalline morphology would also modify the particle hygroscopic behaviour. Thus, we hypothesize that aqueous solution formed at MDRH₁ would result from a contribution of a number of local microenvironments as a consequence of the complex internal mixing state and structural heterogeneities at the single particle scale.

Experimental MDRH₂ transitions are in relatively good agreement with modeled curve for xNaCl values lower than 0.4. In a binary system, the second deliquescence transition (total deliquescence) depends only on the solid salt still present after the first transition. However, in a more complex system, other deliquescence transitions can be observed before the total deliquescence. In our case, a second deliquescence relative humidity was observed for several compositions. Nonetheless, its trend appears to be continuous when xNaCl is lower than 0.27 and becomes irregular for higher fractions. E-AIM model predicts that MDRH₂ remains constant at 73.8% for NaCl mole fraction lower than 0.28 and then decreases gradually between 0.29 and 0.40NaCl mole fraction until reaching 69.5%. Between 0.41 and 0.75NaCl mole fraction, modeled MDRH₂ shows a discrete evolution first increasing until reaching a RH of 70.6% for xNaCl = 0.55 and then decreasing until reaching a RH of 67.9% for xNaCl > 0.7. Experimental results are in agreement with the pattern of the model and show a maximum RH value at xNaCl = 0.55. Nevertheless, experimental MDRH₂ values are observed higher than predicted ones. Such a disagreement can be explained by the difference between the products predicted to remain in solid fraction after MDRH₂ and these truly present in the levitated particle, as for example NH₄Cl that should have been solubilized at MDRH₂ but was detected in the solid fraction after this transition. Finally, MDRH₂ is expected to increase gradually from xNaCl = 0.75 until combination with the DRH curve for the 0.87 mole fraction. No MDRH₂ transition was observed experimentally for xNaCl = 0.77. However, MDRH₂ seems to occur very close to MDRH₁ with a difference of only 0.8% RH according to E-AIM predictions. Thus, both transitions could be overlapped.

Concerning the DRH curve, the model reproduces very well the experimental values for (NH₄)₂SO₄ rich particles (xNaCl < 0.36) and NaCl rich particles (xNaCl > 0.77). Simulated DRH started at 80.3%, as expected for pure (NH₃)₂SO₄, and then DRH decreased progressively until reaching 74.3% (xNaCl ≤ 0.28). For NaCl mole fractions greater than 0.87, the predicted DRH values increase progressively until reaching 75.3%, in agreement with the simulated DRH value of pure NaCl. For particle chemical compositions ranging from 0.28 to 0.87NaCl mole fractions, the modeled curve is characterized by an irregular pattern describing a maximum RH value of 76.3%. Experimental DRH values were observed lower than those obtained by the model for compositions ranging from 0.40 to 0.67NaCl mole fractions, probably due to the products present in the solid phase.

The simulated diagram also shows some specific mole fractions (0.27, 0.40 and 0.87) that resemble eutonic points of complex mixtures where two transitions merged into one and only two transitions occur. Experimentally, we studied 0.27 and 0.40NaCl mole fractions. However, only 0.27NaCl mole fraction presents two transitions corresponding to MDRH₁ and DRH (69.0 ± 0.4% and 74.0 ± 0.3% respectively). For 0.40NaCl mole fraction, we observe three transitions in disagreement with the model (MDRH₁ = 69.1 ± 0.2%, MDRH₂ = 70.5 ± 0.3%, DRH = 74.2 ± 0.3%). In contrast, we observe only two transitions for the 0.60 and 0.77NaCl mole fractions (MDRH₁ and MDRH₂ expected to be too close), in disagreement with the model that predicted three transitions. In this case, experimentally both transitions could not be distinguished with our setup (MDRH₁ = 67.3 ± 0.4%, MDRH₂ = not observed, DRH = 73.1 ± 0.2%). We suppose that the difference between MDRH₁ and MDRH₂ would be lower than RH accuracy of the RH controller (±0.9%). Even if E-AIM simulation predicts that MDRH₁ and MDRH₂ values are also expected to be very close for the 0.60NaCl mole fraction (MDRH₁ = 68.5%, MDRH₂ = 69.3%), the trend of the experimental data could suppose that MDRH₂ would be closer to DRH (75.0 ± 0.3%) than MDRH₁. However, it was not possible to observe this transition in our experiments. Thus, our results do not allow to evaluate if this hypothetical transition occurs too close to the first or the last transition point or if it does not occur at all.

4. Conclusions

Sea-salt aerosols represent one of the largest natural aerosol species present in the atmosphere, with sodium chloride (NaCl) as their main constituent. During their transport in the atmosphere, sea salt aerosols can interact with gases and other particles including secondary organic aerosols containing ammonium sulfate ((NH₄)₂SO₄). We have studied the deliquescence relative humidity of internally mixed NaCl and ammonium sulfate ((NH₄)₂SO₄) on coarse particles by means of an acoustic levitation system to mimic airborne particles and prevent the interaction with a contacting surface. To our knowledge, this is the first experimental work to observe and characterize the products resulting from the recombination of Na⁺, Cl⁻, NH₄⁺ and SO₄²⁻ on levitated single particles with different initial compositions and to study their behavior during deliquescence cycles.

Deliquescence behavior of individual particles with variable initial composition was studied by optical microscopy and chemical composition was followed by confocal Raman microscopy (CRM). Additionally, experimental results were compared with those obtained with the thermodynamic model E-AIM (Extended Aerosol Inorganic Model) and the Potukuchi and Wexler's phase transition contour. Solid single particles obtained after drying levitated droplets, containing initially different proportions of the two titled compounds, showed a complex mixing state as a function of RH. Thus, we have confirmed, by means of Raman spectra, the coexistence of four solid salts within the dry particle: (NH₄)₂SO₄, NH₄Cl, Na₂SO₄ and NH₄NaSO₄·2H₂O. As NaCl is not active in Raman, we assumed that NaCl was also present in the recrystallized droplets. Accordingly, samples are better described as multiphasic systems than as a binary system. Particles containing 0.1, 0.36, 0.55 and 0.67NaCl mole fractions were studied by CRM during the deliquescence process. Raman spectra evidenced unambiguously the presence of solid compounds that were not anticipated by the E-AIM model and the Potukuchi and Wexler's phase transition contour after each transition.

Deliquescence phase diagram was built experimentally by performing multiple deliquescence cycles of numerous mixtures with composition varying between 0.0 and 1.0NaCl mole fractions. Humidograms showed two or three transitions depending on the initial molar composition which is representative for complex systems. Experimental phase diagram showed several differences with the one built from the E-AIM model. For NaCl rich particles (xNaCl > 0.77) and (NH₄)₂SO₄ rich particles (xNaCl < 0.40) description made by the model is acceptable. However, for intermediate mixtures (0.40 < xNaCl < 0.77), experimental results disagree with the model due to a difference between predicted products remained in solid state after the transitions and the products truly present in the solid particle. Thus, our results show the difficulty of accurate modeling of humidification processes when the complexity of the aerosol chemical composition increases.

The study of the hygroscopicity and the chemical composition of complex aerosols in laboratory, without the influence of a contacting surface, is essential to understand the physicochemical processes of the aerosols during their transport in the atmosphere and their consequences on clouds and climate. A complex interplay between initial particle mixing state and variable RH was shown to greatly influence compositional and structural evolution of particles during atmospheric ageing. The results presented in this work are of importance in atmospheric chemistry because they contribute to a better understanding of the complex physicochemical changes of real aged sea-salts aerosols. Furthermore, current experimental methods available to link the diversity of particle chemistry and physical phase state to differences in the hygroscopic behavior of aerosols are relatively scarce. Owing to findings of such experimental work, aerosol thermodynamics models could be improved to produce more refined data about water uptake, phase transitions and the ability of individual particles to grow into cloud droplets as a function of the mixing state.

Author contributions

Conceptualization, M. C., S. C. and Y. T.; data curation Y. T., D. E.-H., M. C., formal analysis, Y. A. T., D. E.-H, F. B., S. S., M. C., S. C.; funding acquisition, M. C, S. C., I. C., N. V.; investigation, D. E.-H., F. B, S. S., Y. A. T., M. C., S. C.; methodology, Y. A. T., M. C, S. C.; project administration, M. C., S. C., I. C.; resources, M. C. M. M.; supervision, M. C., S. C. I. C.; validation, Y. A. T., M. C, S. C.; visualization, Y. A. T., M. C., S. C.; writing – original draft, Y. A. T.; writing – review & editing, M. C., S. C., I. C., N. V., Y. A. T.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was supported by funds from Labex CaPPA WP-2 and the CPER research project CLIMIBIO. The CaPPA project (Chemical and Physical Properties of the Atmosphere) is funded by the French National Research Agency (ANR) through the PIA (Programme d'Investissement d'Avenir) under contract “ANR-11-LABX-0005-01”. The authors thank the French Ministère de l'Enseignement Supérieur et de la Recherche, the Hauts-de-France Region and the European Funds for Regional Economic Development for their financial support to this project. M. C., N. V. and S. C. thanks the Université de Lille and the Institut de Recherches Pluridisciplinaires en Sciences de l’Environnement (IREPSE Fed 4129) for financial support.
