Cooperativity in micellar solubilization

Abstract

Sudden onset of solubilization is observed widely around or below the critical micelle concentration (CMC) of surfactants. It has also been reported that micellization is induced by the solutes even below CMC and the solubilized solute increases the aggregation number of the surfactant. These observations suggest enhanced cooperativity in micellization upon solubilization. Recently, we have developed a rigorous statistical thermodynamic theory of cooperative solubilization. Its application to hydrotropy revealed the mechanism of cooperative hydrotropy: hydrotrope self-association enhanced by solutes. Here we generalize our previous cooperative solubilization theory to surfactants. We have shown that the well-known experimental observations, such as the reduction of CMC in the presence of the solutes and the increase of aggregation number, are the manifestations of cooperative solubilization. Thus, the surfactant self-association enhanced by a solute is the driving force of cooperativity and a part of a universal cooperative solubilization mechanism common to hydrotropes and surfactants at low concentrations.

---

1. Introduction

Low solubility is a major hindrance to formulation processes.¹ Adding cosolvents, hydrotropes^2–4 and surfactants^4–11 can dramatically increase solubility. Traditionally, solubilization by hydrotropes, which are mainly short amphiphilic molecules that do not form micelles, was attributed to hydrotrope self-association based on an analogy between the minimum hydrotrope concentration (MHC, the onset of solubilization) and the critical micelle concentration (CMC).^12,13 However, our rigorous statistical thermodynamic approach has shown that bulk-phase hydrotrope self-association reduces solubilization efficiency, contrary to the traditional hypothesis.^14,15 The non-specific accumulation of hydrotropes around a solute was identified as the driving force for solubilization,^4,14–16 and the enhancement of hydrotrope association around a solute as the origin of MHC.^11,17–19 This mechanism has been confirmed directly by experiments.²⁰

This new view of hydrotropy necessitates a renewed look at solubilization by surfactants. Since our statistical thermodynamic approach to hydrotropy made no assumptions other than the basic principles of statistical thermodynamics,^21–24 it should apply to surfactants as well. However, micellar solubilization uses a different theoretical framework, such as the molar solubilization ratio and micelle-water partition coefficient,^8,10 to quantify solubilization. A statistical thermodynamic interpretation of these quantities has been established.^25,26 However, despite our previous attempts,^4,11,25–27 there is still a significant gap between the two different approaches.

The remaining gap is the mechanism of cooperative solubilization by surfactants. Here, cooperative solubilization refers to the effects of solubilized solutes to enhance the cooperativity in micellization, such as the solute-induced micellization below CMC and the increase of the aggregation number. Sudden, sharp onset of solubilization at CMC has been observed very commonly,^5,7,8,10,28 yet no statistical thermodynamic approach to cooperative solubilization was available before ours.^4,11,17–19 This article aims to reveal the mechanisms of cooperative solubilization by surfactants, namely, the interactions that give rise to the initial onset of solubility increase at low surfactant concentrations.

Previously, we have identified the following solubilization mechanisms for hydrotropes:^{4,11,17,19,27}

(1) the accumulation of solubilizer around a solute and

(2) solubilizer self-association enhanced by a solute at the onset of solubilization.

In this paper, we will show that (1) and (2) manifest also in micellar solubilization through the following scenarios:

I. association of solutes with micelles;

II. increase in surfactant aggregation number;

III. induced micellization by solutes below CMC

All I–III have been reported widely in the surfactant literature.^5,7,8 They will be shown to drive cooperative solubilization as the micellar counterpart of (1) and (2) for hydrotropes.

Although we describe a universal mechanism for the solubilization phenomena around CMC, we are not suggesting that its application is universal. For example, our focus on equilibrium (phase) solubility means that the pathways of the solubilization process in a kinetic sense^29–33 are out of the scope of this paper. And we make no attempt here to describe the complexities of the phenomena relating to microemulsions with their large solubilization capacities that are associated with especially low interfacial tensions and complex curvature behaviour in domains of formulation space above a larger critical microemulsion concentration (or the second CMC)^34–36 and, typically, in the presence of larger amounts of solutes/oils.^37–43

Rather the contrast is with other approaches in the conventional domain around CMC, such as continuum^44,45 or activity models.⁴⁶ Although these models can successfully predict the micelle-water partition coefficient of solutes,⁴⁷ neither can capture the change of solution structure responsible for solubilization. Our aim, therefore, is to understand the cooperative solubilization on a molecular basis, taking advantage of the assumption-free, model-free and rigorous foundation.

2. Fluctuation theory for solubilization by surfactants

Let us first generalize our statistical thermodynamics of solubilization, which was limited previously to dilute solutes,^4,14–16,48 to any solute concentrations. Consider a mixture consisting of water (species 1) and solubilizer (species 2). The “solubilizer” includes cosolvents, hydrotropes, and surfactants. Our central question is twofold: (i) how the solubility c_u of solute (species u) depends on solubilizer concentration, c₂, and (ii) what the mechanism of solubilization is on a microscopic basis. From the principles of classical statistical thermodynamics alone, the following relationship can be derived for any solute concentrations (Appendix A) under phase equilibrium for soluteswhere G_ij is Kirkwood–Buff integral^14–16 between the species i and j defined in terms of the correlation between N_i (the number of species i) and N_j (of species j), aswhere V is the volume and 〈 〉 signifies an ensemble average and the deviation δN_i = N_i − 〈N_i〉 was introduced. Note that the right-hand side of eqn (2.1a) was previously derived at c_u → 0,^14–16 which has now been generalized to finite solute concentrations in Appendices A and B. This means our previous analyses of hydrotropy^4,14–16,48 and the entrainer effect in supercritical CO₂⁴⁹ were limited to dilute solutes simply because G₂₁ and G₂₂ were calculated using the physical properties of binary solutions.

Based on our eqn (2.1), we can generalize our previous conclusion: solubilization is driven by the preferential solute-solubilizer interaction (over solute–water interaction), G_u2 − G_u1, but its efficacy is reduced by the self-association of solubilizer, G₂₂ − G₂₁. Here, G₂₂ − G₂₁ in a ternary mixture (water-solubilizer-solute) must be used, rather than that in the bulk solvent.^4,14–16,48 (Note: see Appendix B for the difference between G₂₂ and G_u,22, the driving force of cooperative solubilization.^11,17,19)

Now we apply eqn (2.1) to surfactants. The focus of this paper is to understand the onset of solubilization at low surfactant concentration around the CMC, which has been commonly observed.^5,7,8,10,28 Previously, the efficacy reduction for surfactants was shown to be negligible based on the order of magnitude analysis, namely, 1 + c₂(G₂₂ − G₂₁) ≃ 1; the magnitude of micelle–micelle co-volume, which makes G₂₂ large and negative, cannot override the low micelle concentration c₂ in eqn (2.1a).¹¹ This is equivalent to the common practice of adopting the dilute ideal activity coefficient for surfactants.^8,50,51 Furthermore, G_u1 in eqn (2.1a), which can be calculated from the partial molar volume of the solute, is shown to be negligible compared to G_u2.¹¹ Combining all above, we obtain

Here, it is useful to have several different perspectives at hand to interpret experiments by eqn (2.1). In addition to the Kirkwood–Buff integrals,^14–16 the excess number and number correlation will also be useful in surfactant solubilization, through which eqn (2.2) can be rewritten as

where N_ij is the excess number of j around i. There are two equivalent definitions of the excess number, both of which will be useful. The first is the solute–surfactant number correlation, defined in terms of N_u (the number of solutes) and N₂ (of surfactants), asThe excess number is thus the solute–surfactant number correlation per solute, 〈δN_uδN₂〉/〈N_u〉. The second definition of N_u2, via the inhomogeneous solvation theory,^11,52,53 is the increment of surfactant number induced by a probe solute,namely, the excess number N_u2 is the difference between 〈N₂〉_u (the number of surfactants in the presence of a solute molecule fixed at the origin) and 〈N₂〉 (the number of surfactants in the bulk with the same volume).^11,17,19 (Note that there may be more solutes in the system other than the probe solute.) Such an increment in the number of surfactants comes from the vicinity of the probe solute.⁵⁴ Therefore, a local subsystem around a probe solute, which is large enough to contain all the surfactant number increment, is a convenient tool.⁵⁴ Therefore,

N_u2 = 〈N₂〉_u − 〈N₂〉 = 〈n₂〉_u − 〈n₂〉 (2.3d)

where n₂ is the number of surfactants in the local subsystem. Thus, we have established a link between solubilization and solute–surfactant correlation (or the excess number of surfactants) viaeqn (2.3d). We emphasize that the solute–solute correlation is absent in eqn (2.3a), because of the equilibrium condition for solute dissolution (i.e., under constant μ_u). See Appendix A for details.

The theory of solubilization presented here is based directly on the principles of statistical thermodynamics and involves no model assumptions. It is valid at any solute concentrations. Indeed, the statistical thermodynamic foundation presented in our previous papers for a dilute solute in a two-component mixture^11,17,19,55 can be generalized without any modifications, except for changing a “two-component mixture” to a “three-component mixture” in specifying the ensemble, as shown in Appendix C. We have introduced the solute–surfactant number correlation and the surfactant number increment in a local subsystem around a probe solute as the tools to interpret experimental data.

3. Mechanism of micellar solubilization around CMC

Here we analyze the conventional measures of solubilization by surfactants based on our general statistical thermodynamic theory. The molar solubilization ratio, κ,^7,8,10 defined as

c_u = c⁰_u + κ(c₂ − c^cmc₂) (3.1a)

where c_u is the solubility of the solute and c⁰_u is that at CMC (c^cmc₂).^10,56,57 The solute's partition coefficient between micelle and water, K_M, has been introduced in the context of rewriting eqn (3.1a) as^4,25We have already enumerated the problems arising from interpreting K_M as though it were a partition coefficient between bulk water and the micelle pseudo phase, especially in light of the multiplicity of solubilization location.^4,58 The true microscopic interpretation of K_M can be obtained by the help of statistical thermodynamics. Combining eqn (2.3) and (3.1b), we obtain²⁵Eqn (3.2) establishes a link between K_M and solute–surfactant excess number. Assuming K_M as a constant, we obtain the following clear interpretation for K_M:

K_M = G^cmc_u2 (3.2b)

However, note that the values of log K_M vary between 1 to 7,^47,59,60 hence, at typical c₂ used for solubilization (i.e., ∼10¹ mM) neither K_M(c₂ − c^cmc₂) nor 1 is negligible in the denominator of eqn (3.2a). Combining eqn (3.2a) with eqn (2.3c), we obtain,which will be used as the basis of our discussion.

In principle, a substance added to water can either increase or decrease the solubility of the solute. These cases correspond to the signs of K_M. and N_u2. Here, the added substance is called “solubilizer” when it facilitates the dissolution of the solute with K_M > 0 and N_u2 > 0. It was noted in Appendix A of ref. 26 that K_M can be considered a partition coefficient when K_M > 0 and the spatial integral constituting N_u2 or G_u2 converges within the region occupied by the micellar aggregates. If the solubilizer does not form distinct aggregates, the pseudophase model cannot be adopted for K_M. Still, eqn (3.2) is an exact expression and is applicable even when the formation of distinct aggregates is not observed or further when K_M < 0, which, in fact, means that the dissolution of the solute is suppressed by the added substance. What eqn (3.3) signifies can be illustrated in Fig. 1, which shows the change of naphthalene solubility (c_u) with the concentration of sodium cholate (c₂) measured by Mukerjee and Cardinal.⁶¹ Note that there is an onset of solubilization. We have calculated its gradient, , by fitting the experimental data to a function (see Appendix D). Fig. 2 shows a drastic increase in N_u2 is seen at low c₂. The larger the N_u2 value, the more significant the solubilization.

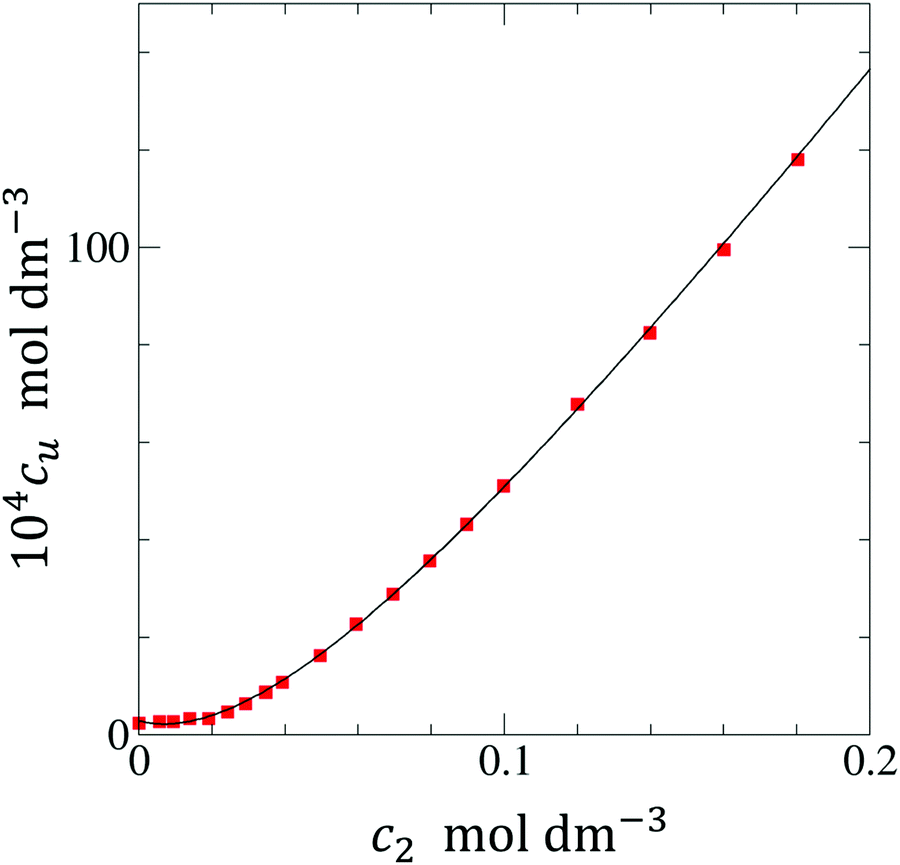

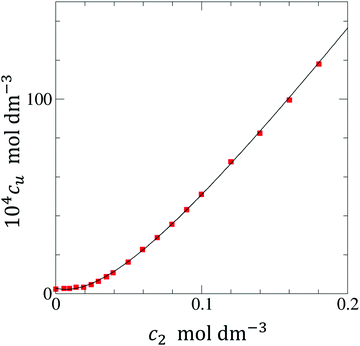

Fig. 1 The experimental solubility (red square) of naphthalene (10⁴c_u) against sodium cholate concentration (c₂) taken from Mukerjee and Cardinal.⁶¹ The fitting function and parameters are given in Appendix D.

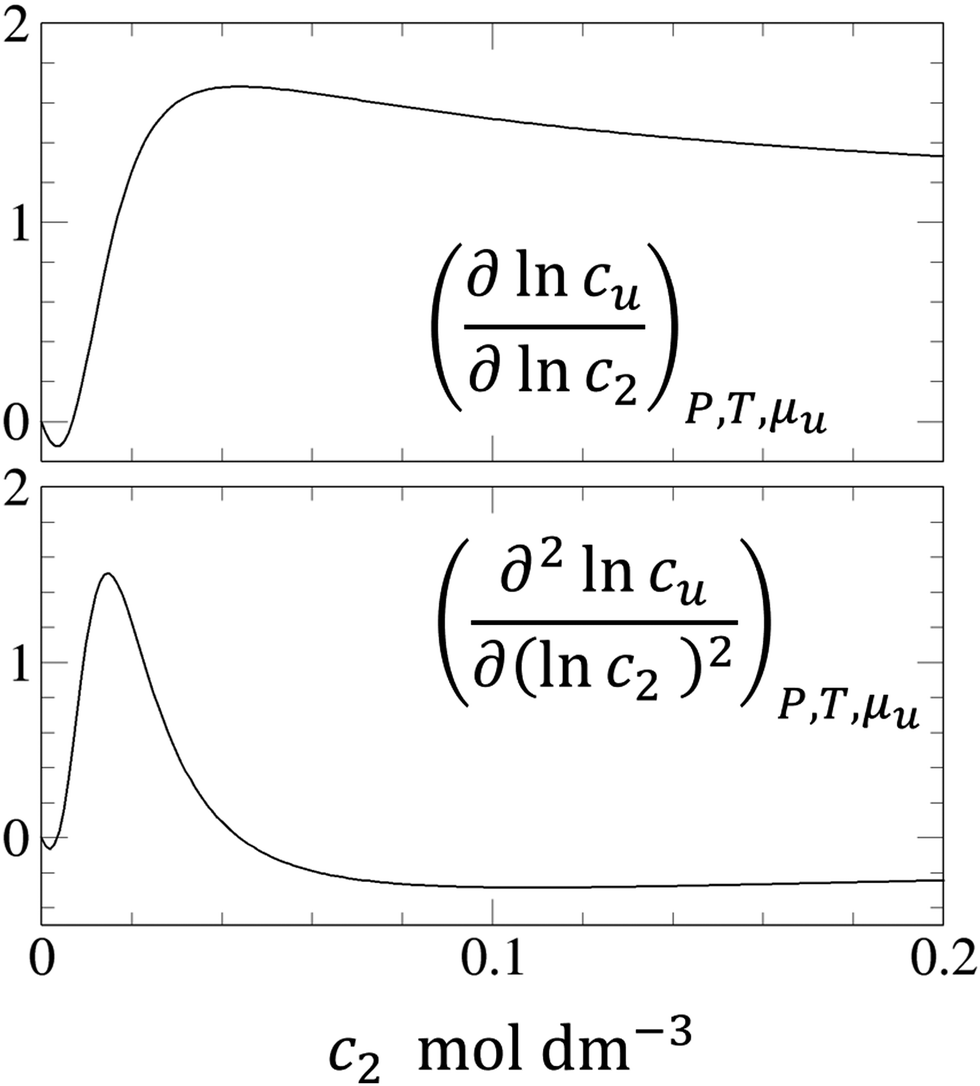

Fig. 2 (top) and (bottom) calculated from the fitting function (Appendix D) of naphthalene solubilization by sodium cholate shown in Fig. 1.⁶¹

Now we clarify the factors contributing to micellar solubilization based on eqn (3.3). Regardless of the location of solutes, solutes and surfactants associate.^5,8,50,62 This can be viewed as the increment in the number of surfactants in the local subsystem 〈n₂〉_u compared to the bulk 〈n₂〉 or as a strong number correlation between solute and surfactants 〈δn_uδn₂〉 in eqn (3.3). The latter perspective is particularly useful in view of multiple solutes being contained within a micelle.^59,60

When the local subsystem is introduced for the micellar region, n₂ corresponds to the aggregation number. Consequently, the positive N_u2 or K_M means that the aggregation number is increased around the fixed solute. According to eqn (3.3), a sudden increase of c_u at a certain c₂ is related to the enhancement of the aggregation number or micellar size at that c₂. It has long been known that a solute, or often called a solubilizate, “usually increases the sizes of micelles not only by the incorporation of the solubilizate itself but also by causing an increase in the average number of surfactant molecules in the micelles”.⁵ Indeed, the sphere-to-rod transition is often induced by solutes,^5,62,63 and the solubilization of the molecules promotes the axial growth of the micelles,⁷ with a subsequent doubling in solubilization power.^64,65 These classical observations agree, for example, with a static light scattering of the solubilized bis-diazo dye by TTAB;⁶⁶ a 30- to 50-fold increase in the TTAB aggregation number was observed when the dye was solubilized,⁶⁶ consistent with increased viscosity.^5,66 Indomethacin, when solubilized by polysorbate 80 in water-sorbitol mixtures, increased micellar weight due not only to indomethacin inclusion but also to increased aggregation number.⁶⁷

Solubilization of aliphatic hydrocarbon by rod-like micelles, in particular, has been challenging to understand in relation to the change of micellar size and shape.⁶⁸ A shortening of the rod with a minor change in aggregation number has been observed at low solute concentration.^43,69,70 In this case, the location of hydrocarbon solutes at the micellar core^43,68–71 gives rise to a large solute–surfactant correlation function, leading to a large G_u2 and leads viaeqn (2.3b) to solubilization.

Thus, the solute-induced increase in micellar size, viewed with our statistical thermodynamic foundation, is an important factor for solubilization. This is consistent with greater stability of larger micelles when solutes are incorporated into micelles^5,72 and also with increased solubilization, in the presence of salts, by ionic surfactants, in which an increase of micelle size is observed with the enhanced solubilization effect.^8,10 Our statistical thermodynamic theory can also rationalize the solubilization of aliphatic solutes by rod-like micelles. Statistical thermodynamics has identified the mechanism of solubilization: micelle-solute interaction and the change of micellar size and stability caused by solutes.

4. Cooperative solubilization and CMC reduction by solutes

A sharp increase in the solubility of hydrophobic solutes has been observed frequently around CMC^5,7,8,10 and sometimes below CMC.^5,73,74 Such cooperative solubilization has been considered to be related to the micellization process.⁵ This kind of cooperativity is usually treated in connection to the equilibrium of association (micellization). A more general framework needs to be established, though, to examine the hydrotropic actions in a unified manner, including those that do not exhibit sharp transitions to association states. We have recently established a rigorous statistical thermodynamic theory of cooperative solubilization^11,17 and also developed a model to reproduce a sigmoidal solubility curve.¹⁸ We have applied these theories successfully to hydrotropic solubilization, yet the theory, being general, is not restricted to hydrotropes; it can be applied to micelles as well. Here we show that the enhanced micellization by solutes, which has long been observed,^{5,7,73,75–77} is closely connected to the cooperative solubilization by micelles.

To this end, how solute-solubilizer correlation depends on solubilizer activity plays a key role.^11,17 Using only the fundamental principles of statistical thermodynamics,^11,17 the following formula, derived previously at c_u → 0, can be generalized to any solute concentrations (Appendix B):

Now we simplify eqn (4.1) using surfactant-specific experimental conditions. Firstly, surfactant concentration is much lower than water, i.e., 〈n₂〉 ≪ 〈n₁〉, which means that the second term of eqn (4.1) is negligible. Secondly, due to the dilute ideal solution condition for surfactants,⁸ which has been justified also from the fluctuation theory,¹¹ we can replace the derivative by ln a₂ with ln c₂. Under these conditions, eqn (2.3) and (4.1) can be combined to yield

where the right-hand side of eqn (4.2a) signifies the increase of surfactant-surfactant correlation which accompanies the introduction of a fixed probe solute molecule, namely from the value in the bulk solution 〈δn₂δn₂〉 to that in the inhomogeneous solution 〈δn₂δn₂〉_u. Using the relationship between inhomogeneous and homogeneous ensemble averages, , where X is a physical quantity,^52,53,78 we can express eqn (4.2a) also aswhere 〈δn_uδn₂δn₂〉 is the solute–surfactant–surfactant number correlation.

The interpretation of eqn (4.2) can be illustrated again by the solubilization of naphthalene by sodium cholate.⁶¹ Around the sudden onset of solubilization, a peak of the second-order derivative, , is observed in Fig. 2. According to eqn (4.2), this peak is caused by the enhanced surfactant-surfactant number fluctuation in the presence of a solute 〈δn₂δn₂〉_u compared to that in the bulk phase 〈δn₂δn₂〉. Even though the precise location of the peak is dependent sensitively on the fitting function, the peak at c₂ = 1.5 × 10⁻² M is consistent with one of the “apparent CMC” values (1.6 × 10⁻² M) estimated by Mukerjee and Cardinal from the same solubilization data as in Fig. 1.⁶¹

The physical meaning of eqn (4.2) becomes clearer viaeqn (2.1b), applied to both inhomogeneous and homogeneous local subsystems,^11,17,54 as

where G_u,22 is the surfactant-surfactant Kirkwood–Buff integral in the presence of a probe solute and v is the volume of the local subsystem.^11,17,54 The right-hand side of eqn (4.3) signifies the increase in the self-association of the species 2 (in this case, surfactant) induced by a probe solute.^11,17,54 Thus, a sharp peak of indicates the enhancement of surfactant self-association and micellization.

This statistical thermodynamic scenario is consistent with the well-known observations in surfactant science since the 1940s. The CMCs measured via solubilized probe dyes tend to be lower than the values from other methods.⁷⁵ Such a discrepancy was attributed to micelle formation below CMC induced by the probe dye,⁷³ which has been confirmed in many systems.^5,7,76,77,79 This is equivalent to the onset of solubilization lower than the bulk-phase CMC⁷⁴ from a perspective of the cooperative solubilization theory (eqn (4.2) and (4.3)). In a wider context, hydrophobic molecules, when added to surfactants, are observed to reduce CMC.^8,80–82 How CMC depends on solute concentration has been measured and compiled.⁷⁹ Assisted by thermodynamics, such a measurement has become one of the standard approaches to calculating the micelle-water partition coefficient.^7,79 Thus, the evidence abounds for the enhancement of micellization by solutes being the driving force for the cooperative onset of solubilization at CMC.

The enhancement of solubilizer self-association by solutes is a mechanism common to solubilization by hydrotropes and surfactants alike. The sub-CMC solubilization of hydrophobic solutes by surfactants^83,84 also exhibits a sudden onset of solubilization with the appearance of large aggregates,^83,84 consistent with the cooperative hydrotropy theory.^11,17–19 Note that “enhancement” does not exclude the possibility of surfactant-surfactant interaction in pre-existing micelles; the key is its enhancement around a solute molecule. Thus, the enhancement of aggregation by solutes seems to be a universal statistical thermodynamic mechanism of cooperative solubilization onset at low concentrations.

5. Connection to micellization models

Here we present simple thermodynamic approaches to illustrate how the experimental observations, such as an increase of micellar size around a solute (Section 3) and the reduction of CMC or the “induced micellization”^5,73 (Section 4), contribute to cooperative solubilization. The theory presented in Sections 2–4 is general and rigorous and without any assumptions. Here, in contrast, we introduce some model assumptions, such as (i) monomer–micelle equilibrium and (ii) micellization as complex formation. Note that these assumptions are introduced at the cost of the Kirkwood–Buff integrals with the exceptions of the simplest cases.

Monomer–micelle equilibrium

We assume that a surfactant takes two different states: monomeric and micellar states,^8,51,85–88 denoted here by mon and mic. Under the equilibrium condition μ^mon₂ = μ^mic₂ = μ₂, the molarity-based equilibrium constant, , can be introduced statistical thermodynamically⁸⁹ without any assumptions on the activity coefficient (Appendix E). This model can be applied in two different ways. The first case considers the effect of surfactants on phase solubility, i.e., dμ_u = 0. Under this condition, the surfactant-surfactant Kirkwood–Buff integrals in the monomeric and micellar states, G^mon₂₂ and G^mic₂₂ can be introduced (Appendix E). How solubility depends on surfactant chemical potential, μ₂, can then be expressed asNoting that since μ₂ increases with surfactant concentration, the solubility c_u increases with the surfactant concentration when (i) the self-association in the micellar state is stronger than in the monomeric state, i.e., c^mic₂(G^mic₂₂ − G^mic₂₁) > c^mon₂(G^mon₂₂ − G^mon₂₁), and simultaneously that (ii) solute induces micellization, i.e., .

The second case considers when a small quantity of solutes is added to the surfactant solution (without the phase equilibrium for solutes). In this case, we can introduce the change of solute–surfactant Kirkwood–Buff integral accompanying micellization, ΔG_2u, shown in Appendix E, as

The enhancement of micellization by solute addition, , reported in experimental literature as the lowering of CMC,^8,80–82 is linked to ΔG_2u > 0, signifying a stronger solute–surfactant interaction in the micellar state than in the monomer state.

Micellization as complex formation

Here we model micelle formation as the complexation of m surfactant and n solute molecules, with the equilibrium condition,

μ_m = mμ^mon₂ + nμ_u (5.3)

where μ_m and μ^mon₂ are the chemical potentials of the micelle and the monomeric (unassociated) surfactant molecule, respectively. We keep m and n constant. Because of the statistical thermodynamic approach,⁸⁹ there is no need to introduce any assumptions on activity coefficients as the mass action models (Appendix E).^86–88 However, introducing the equilibrium condition (eqn (5.3)) involving the species u and 2 makes it impossible to determine the Kirkwood–Buff integrals between the species. Since the equilibrium condition (eqn (5.3)) is assumed to be satisfied at any c_u, its c_u-derivative, under the phase equilibrium dμ_u = 0, leads to the following result (Appendix E):

The contribution that stabilize a micelle over m surfactants is identified in eqn (5.4) as the solute-induced changes in the reduction of unassociated monomer concentration, . This contribution is in agreement with the discussion in Section 3 for micellization enhancement in the presence of solutes. They contribute to stabilizing the micelle (i.e., a complex involving m surfactant molecules) over the surfactant monomers. This corresponds to the enhancement of surfactant-surfactant interaction by solutes.

Thus, the simple thermodynamic models for micellization have captured the factors that lead to cooperative solubilization. They have shown that the enhancement of micellar stability, as well as surfactant self-association, leads to solubilization. This approach, based on combining thermodynamic models with a general statistical thermodynamic framework, can be extended by adopting more precise models of micellization^{9,76,85,90,91} for a more precise description of the cooperative solubilization mechanism.

Higher surfactant and solute concentrations

This paper has focused on the cooperative onset of solubility at low surfactant and solute concentrations around the CMC. Here we comment briefly on solubilization at higher concentrations. An apparent disagreement with the theory here comes from the observation of a decrease in aggregation size after a specific solute concentration.^43,71 However, the driving force for solubilization is not the aggregation size but is the solute–surfactant distribution function being large enough to make the Kirkwood–Buff integral positive (eqn (2.2)), which is possible even when the aggregation size is smaller.

Eqn (2.1) is a rigorous statistical thermodynamic relationship for three component systems valid at any concentrations of solute and surfactant.^34–36,41 However, as we go to more complex systems above the critical microemulsion concentration (second CMC), extra terms to describe the multiple surfactants, co-surfactants, and salts^8,40,92 become necessary, for which the multiple component version of eqn (2.1) must be used.^4,54,55,93 Because of the notable success of model-based approaches,^94–96 especially the HLD-NAC by Acosta and coworkers.^29,38,39,97 it seems likely that to capture the fluctuating nature of molecular interactions, the models and the rigorous theory can be combined. Such an approach has been demonstrated to be fruitful in the study of other complex solutions.^49,98–100

6. Conclusion

We have established a universal mechanism for cooperative solubilization: enhanced self-association of solubilizers in the presence of a solute. This mechanism, originally proposed for hydrotropes,^11,17–19 is at work also for surfactants. We have arrived at this conclusion through a generalization of our solubilization theory^{4,11,14,15,17–19,48} beyond dilute solutes and combining it with experimental evidence from surfactant literature. We have shown that the experimental reports on (i) the incorporation of solutes into micelles, (ii) enlargement of micelles, and (iii) the reduction of CMC by solutes are the evidence for this universal mechanism. The hydrophobic solubilization at sub-CMC concentrations also exhibits enhanced surfactant self-association. Thus, a universal statistical thermodynamic framework governs the initial onset of solubilization by cosolvents, hydrotropes, and surfactants at their low concentrations.

Conflicts of interest

There are no conflicts to declare.

Appendix A

Here we derive eqn (2.1a) under constant temperature and pressure. The chemical potential of a solute, , whose centre-of-mass is fixed at origin, can be expressed aswhere μ_i is the chemical potential of the species i. 〈N_i〉_u and 〈N_i〉 express the ensemble average of the numbers of the species i in the presence and absence of a fixed solute, respectively.¹¹ Using the definition of the Kirkwood–Buff integral (eqn (2.1b)), eqn (A.1) is rewritten aswhere c_i = 〈N_j〉/V is the bulk number density of the species i.

To express how the solvation free energy of a solute, , is affected by the addition of surfactants, we use the Gibbs–Duhem equation^11,55

c_udμ_u + c₁dμ₁ + c₂dμ₂ = 0 (A.3)

to eliminate dμ₁ from eqn (A.2) using eqn (A.3), which yieldsWe then consider an equilibrium between a solute in its pure phase μ^o_u and in solution μ_u. Since μ^o_u only depends on T and P, μ_u = μ^o_u is a constant. Therefore,

dμ_u = 0 (A.5)

Because of eqn (A.5), the solute–solute correlation (i.e., the last term of eqn (A.4)) does not affect solubilization. Note that the solute–solute correlations affect indirectly by modifying G_u1 and G_u2. We also use the well-known relationship between and μ_u,⁵⁵

Combining eqn (A.4)–(A.6), we obtain

kT d ln c_u = c₂(G_u2 − G_u1)dμ₂ (A.7)

which leads to eqn (2.1), when combined with^14,21,23 (see Appendix B).

Appendix B

Our first task here is to proveunder a finite solute concentration c_u, as long as the equilibrium condition, dμ_u = 0 (eqn (A.5)), is satisfied. Under constant temperature and pressure, analogous to eqn (A.2), we can derive the following equation for :together with the relationship equivalent to eqn (A.6)Because of the equilibrium condition for the solute, dμ_u = 0. Under this condition, combining eqn (B.2) and (B.3) yieldsUsing the Gibbs–Duhem equation (eqn (A.3)) under the equilibrium condition, dμ_u = 0, eqn (B.4) can be rewritten asEqn (B.1) can be derived straightforwardly from eqn (B.5).

Note that G₂₂ is different from G_u,22, which is the driving force of cooperative solubilization. This can be best illustrated by calculating the Kirkwood–Buff integral from a distance distribution from a probe solubilizer. G₂₂ is calculated regardless of the presence of solutes in the vicinity of the probe surfactant, whereas in the case of G_u,22, a probe surfactant is in the vicinity of a solute. G_u,22 converges to G₂₂ far from the solute.

Our second task is to justify eqn (4.1). This is the generalization of our previous result (eqn (35) of ref. 11), derived under c_u → 0, to finite c_u. We start from the following grand canonical expression (see Appendix B of ref. 11, which can be generalized straightforwardly to any three component mixtures in Appendix C of this paper) valid for homogeneous and inhomogeneous systems:

where β = 1/kT in which k is the Boltzmann constant. Differentiating eqn (B.6) for the homogeneous and inhomogeneous systems yieldsEqn (B.7) is a generalization of our previous discussion (eqn (B.9) of ref. 11). The difference is the presence of the i = u term in eqn (B.7). This term, however, is zero because of the phase equilibrium condition, dμ_u = 0 (eqn (A.5)). We therefore obtainThis can be used in conjunction with the combination of eqn (A.3) and (A.5),to derive eqn (4.1).

Appendix C

Here we derive the following relationship between the grand partition functions and the pseudo chemical potential (i.e., the chemical potential of a solute whose centre-of-mass position is fixed), :where Ξ(T,V,μ_u,μ₁,μ₂) is the grand partition function of a three-component solution consisting of species 1, 2, and u, and Ξ_u(T,V,μ_u,μ₁,μ₂) is the grand partition function of an inhomogeneous solution, which contains a solute with its centre-of-mass position fixed, in addition to the homogeneous solution. Our derivation is parallel to Section 3.1 of ref. 101.

By the definition of μ_u*, i.e., in the grand canonical ensemble,¹⁰¹ our goal, eqn (C.1), can be rewritten as

where Λ_u is the momentum partition function of the species u. To prove eqn (C.2), let us start from the definition of the grand partition function,¹⁰²where Q is the canonical partition function and λ_i = e^βμ_i is the fugacity of the species i. The key to derivation is to calculate 〈N_u〉 which appears in eqn (C.2), as

The next step is to relate eqn (C.4) to fix one of the solute molecules. We denote the resulting partition function by the subscript u. As a preparation, we write down the canonical partition function explicitly as the product of the momentum and coordinate partition functions, P(T,N_u,N₁,N₂) and Z(T,V,N_u,N₁,N₂), as

Q(T,V,N_u,N₁,N₂) = P(T,N_u,N₁,N₂)Z(T,V,N_u,N₁,N₂) (C.5)

where

P(T,N_u,N₁,N₂) =Λ_u^−3N_uΛ₁^−3N₁Λ₂^−3N₂ (C.6a)

with q_i, the intramolecular partition function of the species i, U, the potential function of the system, and X, the configuration of each molecule. Fixing a solute molecule leads to losing Λ_u⁻³, namely,

P_u(T,N_u − 1,N₁,N₂) =Λ_u³P(T,N_u,N₁,N₂) (C.7a)

and to the loss of particle identity and volume integral for the fixed solute, as¹⁰¹Substituting eqn (C.5) and (C.7) into eqn (C.4) yieldsThe right-hand side of eqn (C.8) can be simplified asBy the definition of fugacity, eqn (C.9) is identical to eqn (C.2), which we intended to prove.

We emphasize that the concentration of the solute in eqn (C.1) is finite. In our previous papers, our formalism was limited to the homogenous solution containing the species 1 and 2 only, with a fixed solute incorporated into the inhomogeneous solution.^11,17,19 However, this Appendix has shown that our previous results can be generalized straightway to the system with solutes with any concentrations.

Appendix D

Here we detail the calculation procedures for Fig. 1. Firstly, the experimental data on the surfactant concentration (c₂, in molar) dependence of naphthalene solubility (10⁴c_u, in molar) was fitted to a functionwhere A = 12 787, B = −149.2, C = 2.85 and D = 12.74 were obtained via regression. Substituting eqn (D.1) into eqn (2.3a), we obtainFurther differentiation of eqn (D.2) yields

Appendix E

Here we employ thermodynamic models to investigate the mechanism of cooperative solubilization by micelles. Our first model is based on an equilibrium of a surfactant molecule between a micellar state and a monomer state, μ^mon₂ = μ^mic₂ = μ₂. Both chemical potentials are linked to the pseudo-chemical potentials, and , as⁸⁹Combining eqn (E.1) with the equilibrium condition, we obtain the following expression for the transfer free energy of a surfactant from the monomeric state to the micellar state, , as⁸⁹

Using the pseudo-chemical potentials makes it unnecessary to consider the activity coefficients of the monomer and micelle based on self-association.⁸⁶ Now we consider how free energy change, , depend on concentrations.^24,103,104 To do so, let us start from eqn (A.4) with the exchange of indexes u and 2 as our starting point, namely,

Eqn (E.3) applies to both states, mic and mon.

We will use eqn (E.3) for the two different experimental conditions. The first is under the phase solubility equilibrium, dμ_u = 0, which yields

From eqn (E.4), we obtainFrom eqn (E.5), the following form was used as eqn (5.1) in the main text.

The second application of eqn (E.3) is with dμ₂ = 0. Under this condition, we obtain

Under the dilute ideal solution condition for the solute, eqn (E.7) can be simplified as

Applying eqn (E.8) for the monomer and micellar states of a surfactant, we obtain,

Here, the contribution from ΔG₂₁ can be neglected, because the volume change of micellization, which is linked to ΔG₂₁via ΔV₂ = −ΔG₂₁,²⁴ is negligibly small, evidenced by a weak pressure dependence of CMC.¹⁰⁵Eqn (E.9) was used as eqn (5.2) in the main text.

Our second model is the complexation of m surfactants and n solutes, with eqn (5.3) as the equilibrium condition. Both m and n are constants. Under the phase solubility equilibrium dμ_u = 0, the c_u-derivative of eqn (5.3) yields

To derive eqn (E.10) from (5.3), we have introduced the pseudo-chemical potentials, and , viawhere c_m and c^mon₂ are the molar concentrations and Λ_m and Λ₂ are the thermal de Broglie wavelengths of the micelle and surfactant monomer, respectively.⁸⁹ We aim to quantify the effect of solute addition on micellar stability. The concentration of micelles, c_m, is expressed as

mc_m = c₂ − c^mon₂ (E.12)

where c₂ is the total surfactant concentration. Let us evaluate the first term in the right-hand side of eqn (E.10) around c₂ = c^cmc₂, which yieldswhere mc^cmc_m= c^mon₂ at CMC was used. Combining eqn (E.11) and (E.13) yieldswhich was used as eqn (5.3) in the main text.

Note added after first publication

This article replaces the version published on 30 Mar 2021, which contained proofing errors in eqn (D.2), eqn (E.14) and the definition below eqn (E.13).

Acknowledgements

We thank Steven Abbott for stimulating discussions, encouragements, and a careful reading of our manuscript at various stages. This paper is dedicated to him on the occasion of his 70th birthday. N. M. is grateful to the Grant-in-Aid for Scientific Research (No. JP19H04206) from the Japan Society for the Promotion of Science and by the Elements Strategy Initiative for Catalysts and Batteries (No. JPMXP0112101003) and the Fugaku Supercomputing Project from the Ministry of Education, Culture, Sports, Science, and Technology.
