A dicoordinate gold(I)–ethylene complex

Abstract

The use of the exceptionally bulky tris-2-(4,4′-di-tert-butylbiphenylyl)phosphine ligand allows the isolation and complete characterization of the first dicoordinate gold(I)–ethylene adduct, filling a missing fundamental piece on the organometallic chemistry of gold. Besides, the bonding situation of this species has been investigated by means of state-of-the-art Density Functional Theory (DFT) calculations indicating that π-backdonation plays a minor role compared with tricoordinate analogues.

---

Homogenous gold catalysis has become one of the most powerful tools in organic synthesis due to the prowess of Au(I) towards the electrophilic activation of unsaturated hydrocarbons.¹ π-Complexes of gold are generally proposed as key intermediates in the functionalisation of alkenes, alkynes, dienes or allenes in a wide range of catalytic processes, including hydrogenation, hydroamination, oxidation, diarylation, heteroarylation or cycloadditions.² Thus, the isolation of gold π-complexes holds an intrinsic interest associated with their catalytic relevance and has provided valuable insight during recent years.³

Cationic, dicoordinate gold(I) π-complexes of substituted alkenes, stabilized by monodentate N-heterocyclic carbenes (NHCs)⁴ or phosphines,⁵ have been isolated and characterized. However, despite significant synthetic efforts, dicoordinate ethylene complexes remain unknown.⁶ Only by using N- and P-based bidentate ligands the related tricoordinate gold(I) π-ethylene adducts (Fig. 1)⁷ have been detected and characterized. Nonetheless, despite the growing interest for bidentate ligands in gold(I) chemistry,⁸ these species do not represent key intermediates in gold catalysis. The increased backdonation from Au to the ethylene π*(C=C) orbital in tricoordinate species is prevented in the so far elusive dicoordinate gold(I)–ethylene adducts, which have remained an unsolved synthetic challenge.

Fig. 1 Structurally authenticated gold(I) ethylene complexes, all based on tricoordinate gold, and the first dicoordinate gold(I) ethylene complex reported herein.

In addition to the synthesis of highly active gold catalysts,⁹ the use of sterically shielding ligands has become a successful strategy to stabilize exotic gold(I) species.¹⁰ In this regard, our group has recently capitalized on the use of sterically demanding phosphine ligands to access unusual Au(I) structures, including the isolation of bridged cationic digold complexes¹¹ and the reactivity of gold species as FLP constituents¹² and in C–C bond formation processes.¹³ In this study, we have employed the ligand tris-2-(4,4′-di-tert-butylbiphenylyl)phosphine (1),¹⁴ previously reported by the group of Straub, which allowed us to isolate and structurally characterize the first dicoordinate gold(I)–ethylene complex. This species can be regarded as the simplest model reported to date for the isolobal ethenium cation (C₂H₅⁺).¹⁵

Treatment of [AuCl(THT)] (THT = tetrahydrothiophene) with phosphine 1^10c forms the air-stable, neutral phosphine chloride complex 2 (96% yield). Single-crystal X-ray diffraction analysis (Fig. S27, ESI†) confirmed that the ortho-aryl groups of the phosphine ligand are directed towards the gold atom, ensuing great steric protection around it. The percent buried volume (%V_Bur)¹⁶ of the phosphine yielded a large parameter of 67.0 (Fig. S28, ESI†), which is notably higher than other bulky NHC¹⁷ and phosphine¹⁸ ligands.

To access an electrophilic [P–Au]⁺ fragment amenable to ethylene coordination, complex 2 was reacted with AgSbF₆ as a halogen abstractor in dichloromethane. Although chloride capture was not achieved, a new species was detected by ³¹P{¹H} NMR spectroscopy at 4.6 ppm (3 in Scheme 1; cf.³¹P{¹H} δ 9.5 ppm for 2). X-Ray diffraction analysis revealed the formation of the unusual trimetallic complex 3 bearing two bridging Ag centres between the Au and Cl atoms (Fig. 2). The flexibility of the cavity around gold allows for allocating the two silver atoms which are further stabilized by two π-interactions for each metal site with the ortho-aryl rings (d_AgC ≈ 2.5–2.7 Å). Related bimetallic species are assumed to be intermediates during metathesis reactions with silver salts, though we could not detect any hint of AgCl precipitation.¹⁹ Alternatively, when the reaction was performed under ethylene atmosphere at −30 °C, instantaneous precipitation of AgCl was observed. Monitoring the reaction by ³¹P{¹H} NMR spectroscopy revealed quantitative formation of a new gold(I) species resonating at 13.1 ppm (Scheme 1). Filtering the reaction mixture through a short pad of Celite afforded the pure gold(I)–ethylene complex 4, which is surprisingly stable in solution at room temperature under inert atmosphere and showed only slow decomposition during solvent evaporation and in the solid-state. Its ¹H and ¹³C{¹H} NMR spectra display a new set of well-defined signals indicative of ethylene coordination to gold, including a distinctive AA′BB′ pattern in the ¹H NMR spectrum at 3.79 and 3.66 ppm (Fig. S11, ESI†).

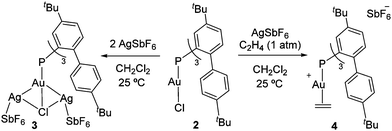

Scheme 1 Synthesis of trimetallic gold–disilver complex 3 and gold(I)–ethylene adduct 4.

Fig. 2 ORTEPs of 3 (one of two independent molecules), 4 and 6 (polymeric structure due to co-crystallisation with silver; C8′/C9′ (−x, 1 − y, −z) and C28/C29′ (1 − x, 1 − y, 1 − z) are at equivalent positions). Counteranion, solvent molecules and hydrogen atoms are excluded for clarity, while tert-butyl groups and one biaryl fragment are represented in wireframe format. Thermal ellipsoids are set at 50% probability. Selected bond lengths (Å) and angles (°): compound 3, P1–Au1, 2.246(4); Au1–Ag1, 2.8212(15); Au1–Ag2, 2.8015(16); Au1–Cl1, 2.316(4); Ag1–Cl1, 2.735(5); Ag2–Cl1, 2.712(5); Ag1–C29, 2.549(15); Ag2–C12, 2.584(18); Ag1–C52, 2.709(16); Ag2–C49, 2.600(18); Ag01–Au1–Ag2, 103.78(6); Cl1–Au1–Ag1, 63.43(12); C29–Ag1–Au1, 94.0(4); C52–Ag1–Au1, 83.7(3); compound 4 (two independent molecules per asymmetric unit), P1–Au1, 2.2811(8), 2.2830(11); Au1–C61, 2.197(8), 2.2197(7); Au1–C62, 2.218(8), 2.214(8); P1–Au1–C61, 165.3(4), 169.8(3); P1–Au1–C62, 165.7(3), 169.8(3). Compound 6, P1–Au1, 2.2952(15); Au1–C61, 1.954(8); C61–O1, 1.075(9); P1–Au1–C61, 176.6(2).

The aforementioned ¹H NMR signals are considerably shifted from those in free ethylene (5.43 ppm), which contrasts with the minimal variation of their corresponding ¹³C{¹H} NMR resonances (δ = 110.2 (²J_CP = 9 Hz); cf. ethylene: δ = 116.8 ppm). A comparable upfield ¹H NMR shift has been observed in tricoordinate gold(I) ethylene adducts, which induce some metallacyclic character on the coordinated ethylene as a result of significant Au → ethylene π-backdonation.⁶ However, considering the limited Au → ethylene π-backdonation in 4 (vide infra), we attribute the marked upfield shift to the close proximity of the coordinated ethylene molecule to three ortho-aryl groups of the phosphine, becoming susceptible of a substantial aromatic ring current effect (see ESI†).

Two different types of single crystals suitable for X-ray diffraction analysis were obtained by slow evaporation of pentane into concentrated dichloromethane solutions of complex 4. The two structures present the gold centre in a linear environment with an ethylene molecule coordinating gold in an η² fashion (Fig. 2 and Fig. S29, ESI†). While one molecular structure corresponds to the expected gold(I)–ethylene adduct 4 (Fig. 2), the other presents a dimeric structure with a bridging {Ag₂(C₂H₄)(μ-H₂O)₂}²⁺ motif (4′); Fig. S29, ESI†) due to silver traces that were not completely removed during the reaction work-up. Since the ethylene molecule is somewhat disordered in 4, we discuss its geometric parameters on the silver-containing structure 4′, which is in perfect agreement with the computed geometry. The Au–C bond lengths (2.216(6) and 2.235(6) Å) are noticeably longer than those described for gold(I)–ethylene adducts bearing bidentate ligands (cf. Au–C lengths in Bourissou's systems in Fig. 1 span from 2.141 to 2.175 Å),⁷ but similar to cationic dicoordinate gold(I) π-complexes with other alkenes.⁵ The C=C double bond is slightly shorter than that of free ethylene (1.263(10) Å vs. 1.313 Å, respectively)²⁰ and significantly shorter compared to the described tricoordinate gold(I) ethylene complexes (cf. 1.365(15) and 1.387(5) Å in Bourissou's compounds), indicative of poor Au → ethylene π-backdonation. In addition, both molecular structures showed that the ortho-aryl groups of the phosphine ligand are in relatively close proximity to the coordinated ethylene molecule, reinforcing the idea of a significant aromatic ring current effect affecting the ¹H resonance frequency of the bound C₂H₄.

Through the years, the interest in the bonding between ethylene and cationic gold(I) has sparked several computational studies on the matter.²¹ These suggest that, although the interaction is mainly electrostatic, the orbital component can be rationalized in terms of the Dewar–Chatt–Duncanson model.²² To gain insight into the bonding situation of 4, DFT calculations were carried out at the dispersion corrected ZORA-BP86-D3/TZVP//BP86-D3/def2-SVP level (see computational details in the ESI†). For comparison, we also analysed the bonding in the related gold(I)–ethylene complexes [(Ph₃P)Au(C₂H₄)]⁺ (A) and [(NHC)Au(C₂H₄)]⁺ (B, NHC = 1,3-bis(2,6-dimethylphenyl)imidazol-2-ylidene) by means of the EDA-NOCV method. From the data in Table S3 (ESI†), it is confirmed that the main contribution to the bonding between the transition metal fragment and ethylene not only in 4 but also in A and B comes from the electrostatic attractions, which contribute ca. 56–59% to the total interaction. In all cases, two main orbital interactions dominate the total ΔE_orb term, namely the σ-donation from the doubly-occupied π(CH₂=CH₂) molecular orbital to the vacant σ*(Au–P/C) orbital (denoted as ρ₁, Fig. 3) and the π-backdonation from an occupied d_π(Au) atomic orbital to the π*(CH₂=CH₂) (denoted as ρ₂). Our calculations indicate that the latter interaction is nearly half as strong as the former, thus supporting the above commented conclusion based on structural grounds on the weak Au → ethylene π-backdonation in 4.

Fig. 3 Contour plots of NOCV deformation densities Δρ and associated energies ΔE(ρ) in 4. Electron-density charge flows in the direction red → blue.

The lability of the gold(I)–ethylene bond in complex 4 was also evaluated by several exchange experiments. First, 2D exchange spectroscopy (EXSY) experiments in CD₂Cl₂ evidenced chemical exchange between coordinated and free ethylene within the NMR time scale (Fig. S13, ESI†). An Eyring analysis in the temperature interval from −20 °C to 30 °C (Fig. S24, ESI†) provided the kinetic parameters ΔH^‡ = 6.7 kcal mol⁻¹ and ΔS^‡ = −38.1 cal K⁻¹ mol⁻¹ corresponding to a for ethylene exchange of 18.0 kcal mol⁻¹, which surpasses prior estimations based on bulkier olefins^5a and thus supports the notion of a remarkable kinetic stabilisation provided by the cavity-shaped phosphine.²³ In fact, the large negative value of the entropic factor denotes an associative exchange mechanism, somewhat hindered by the shielding nature of the three ortho-aryl substituents. We decided to examine this process also by computational means and found a transition state for the associative process at 17.4 kcal mol⁻¹ leading to a tricoordinate intermediate [P*Au(C₂H₄)₂]⁺ at 12.7 kcal mol⁻¹, in excellent agreement with our experimental studies. We further examined the lability of the gold–ethylene bond by reacting complex 4 with MeCN and CO to form the corresponding gold(I)–acetonitrile (5) and carbonyl (6) adducts, respectively. NMR exchange experiments revealed an affinity trend of MeCN > CO > ethylene (Scheme S1 and Fig. S25, ESI†).

Compounds 5 and 6 were fully characterized by NMR spectroscopy and X-ray diffraction techniques (Fig. 2 and ESI† for more details). The IR spectrum of 6 displays a strong absorption band at 2169 cm⁻¹ which corresponds to the CO stretch. This value is relatively higher than free CO (υ_CO = 2143 cm⁻¹) but slightly lower to related cationic NHC (2197 cm⁻¹)^24b and phosphine (υ_CO = 2185 cm⁻¹)^24a Au(I)–CO complexes. The bonding situation of 6 strongly resembles that of 4, i.e. the electrostatic term dominates the total interaction between the gold(I)-fragment and CO (Table S3, ESI†). At variance, the strength of the Au → π*(CO) π-backdonation is nearly identical to the OC → Au σ-donation, which is not surprising due to the much higher π-acceptor nature of the CO ligand as compared to CH₂=CH₂.

In summary, we have synthesized and structurally characterized the first dicoordinate gold(I)–ethylene complex, thus filling a long-sought gap in the organometallic chemistry of Au(I). Exchange experiments demonstrate that the cavity provided by the extremely bulky phosphine ligand kinetically stabilizes the coordination of ethylene. Analysis of the bonding interactions by means of the EDA-NOCV method supports a major electrostatic (i.e. ionic) component and a minor role for π-backdonation in a linear coordination environment, which is markedly different to the situation found in related tricoordinate gold(I)–ethylene adducts.⁷ These results provide valuable insights for the underdeveloped functionalisation of ethylene mediated by gold.²⁵

This work was supported by the European Research Council (ERC Starting Grant, CoopCat, Project 756575) and the Spanish Ministry of Science and Innovation (Projects PID2019-110856GA-I00, PID2019-106184GB-I00, RED2018-102387-T and FJC2018-035514-I (M. N.)). M. N. and J. J. M. acknowledge Junta de Andalucía for postdoctoral program (ref. DOC_00149 and DOC_00153).

Conflicts of interest

There are no conflicts to declare.

Notes and references

1. (a) J. H. Teles, S. Brode and M. Chabanas, Angew. Chem., Int. Ed., 1998, 37, 1415; (b) A. S. K. Hashmi, L. Schwarz, J.-H. Choi and T. M. Frost, Angew. Chem., Int. Ed., 2000, 39, 2285; (c) A. S. K. Hashmi, Gold Bull., 2004, 37, 51; (d) L. M. Slaughter, Homogeneous Gold Catalysis, Springer, 2015; (e) T. Wang and A. S. K. Hashmi, Chem. Rev., 2021, 121, 8948; (f) D. Campeau, D. F. L. Rayo, A. Mansour, K. Muratov and F. Gagosz, Chem. Rev., 2021, 121, 8756.
2. (a) A. Fürstner, Chem. Soc. Rev., 2009, 38, 3208; (b) M. Rudolph and A. S. K. Hashmi, Chem. Soc. Rev., 2012, 41, 2448; (c) I. Braun, A. M. Asiri and A. S. K. Hashmi, ACS Catal., 2013, 3, 1902; (d) E. Soriano and I. Fernández, Chem. Soc. Rev., 2014, 43, 3041; (e) R. Dorel and A. M. Echavarren, Chem. Rev., 2015, 115, 9028; (f) C. J. V. Halliday and M. Lynam, Dalton Trans., 2016, 45, 12611; (g) D. Pflästerer and A. S. K. Hashmi, Chem. Soc. Rev., 2016, 45, 1331.
3. (a) H. V. R. Dias, M. Fianchini, T. R. Cundari and C. F. Campana, Angew. Chem., Int. Ed., 2008, 47, 556; (b) H. Schmidbaur and A. Schier, Organometallics, 2010, 29, 2; (c) T. N. Hooper, M. Green and C. A. Russell, Chem. Commun., 2010, 46, 2131; (d) M. A. Cinellu, Modern Gold Catalyzed Synthesis, Wiley-VCH, Weinheim, 2012, p. 175; (e) A. Grirrane, H. Garcia, A. Corma and E. Álvarez, Chem. – Eur. J., 2013, 19, 12239; (f) R. E. M. Brooner and R. A. Widenhoefer, Angew. Chem., Int. Ed., 2013, 52, 11714; (g) T. Lauterbach, A. A. Asiri and A. S. K. Hashmi, Adv. Organomet. Chem., 2014, 62, 261; (h) A. S. K. Hashmi, T. Lauterbach, P. Nösel, M. H. Vilhelmsen, M. Rudolph and F. Rominger., Chem. – Eur. J., 2013, 19, 1058; (i) A. C. Jones., Top. Curr. Chem., 2015, 357, 133.
4. (a) D. Zuccaccia, L. Belpassi, F. Tarantelli and A. Macchioni, J. Am. Chem. Soc., 2009, 131, 3170; (b) P. de Frémont, N. Marion and S. P. Nolan, J. Organomet. Chem., 2009, 694, 551.
5. (a) T. J. Brown, M. G. Dickens and R. A. Widenhoefer, Chem. Commun., 2009, 6451; (b) T. N. Hooper, M. Green, J. E. McGrady, J. R. Patel and C. A. Russell, Chem. Commun., 2009, 3877; (c) P. Motloch, J. Blahut, I. Cisarova and J. Roithová, J. Organomet. Chem., 2017, 848, 114; (d) C. Griebel, D. D. Hodges, B. R. Yager, F. L. Liu, W. Zhow, K. J. Makaravage, Y. Zhu, S. G. Norman, R. Lan, C. S. Day and A. C. Jones, Organometallics, 2020, 39, 2665.
6. (a) S. M. Lang, T. M. Bernhardt, R. N. Barnett and U. Landman, Angew. Chem., Int. Ed., 2010, 49, 980; (b) S. M. Lang, T. M. Bernhardt, J. M. Bakker, B. Yoon and U. Landman, J. Phys.: Condens. Matter, 2018, 30, 504001; (c) R. B. Metz, G. Altinay, O. Kostko and M. Ahmed, J. Phys. Chem. A, 2019, 123, 2194.
7. (a) H. V. R. Dias, Angew. Chem., Int. Ed., 2007, 46, 7814; (b) J. A. Flores and H. V. R. Dias, Inorg. Chem., 2008, 47, 4448; (c) K. Klimovica, K. Krischbaum and O. Daugulis, Organometallics, 2016, 35, 2938; (d) M. J. Harper, C. J. Arthur, J. Crosby, E. J. Emmett, R. L. Falconer, A. J. Fensham-Smith, P. J. Gates, T. Leman, J. E. McGrady, J. Bower and C. A. Russell, J. Am. Chem. Soc., 2018, 140, 4440; (e) Y. Yang, P. Antoni, M. Zimmer, K. Sekine, F. F. Mulks, L. Hu, L. Zhang, M. Rudolph, F. Rominger and A. S. K. Hashmi, Angew. Chem., Int. Ed., 2019, 58, 5129; (f) M. Navarro, A. Toledo, S. Mallet-Ladeira, E. D. Sosa-Carrizo, K. Miqueu and D. Bourissou, Chem. Sci., 2020, 11, 2750; (g) J. Wu, A. Noonikara-Poyil, A. Muñoz-Castro and H. V. R. Dias, Chem. Commun., 2021, 57, 978.
8. (a) M. Joost, A. Zeineddine, L. Estévez, S. Mallet-Ladeira, K. Miqueu, A. Amgoune and D. Bourissou, J. Am. Chem. Soc., 2014, 136, 14654; (b) A. Zeineddine, L. Éstevez, S. Mallet-Ladeira, K. Miqueu, A. Amgoune and D. Bourissou, Nat. Commun., 2017, 8, 565; (c) M. Navarro, A. Toledo, M. Joost, A. Amgoune, S. Mallet-Ladeira and D. Bourissou, Chem. Commun., 2019, 55, 7974.
9. (a) S. G. Weber, D. Zahner, F. Rominger and B. F. Straub, ChemCatChem, 2013, 5, 2330; (b) M. C. B. Jaimes, C. R. N. Böhling, J. M. Serrano-Becerra and A. S. K. Hashmi, Angew. Chem., Int. Ed., 2013, 52, 7963; (c) M. C. B. Jaimes, F. Rominger, M. M. Pereira, R. M. B. Carrilho, S. A. C. Carabineiro and A. S. K. Hashmi, Chem. Commun., 2014, 50, 4937.
10. (a) E. Y. Tsui, P. Müller and J. P. Sadighi, Angew. Chem., Int. Ed., 2008, 47, 8937; (b) T. J. Robilotto, J. Basca, T. G. Gray and J. P. Sadighi, Angew. Chem., Int. Ed., 2012, 51, 12077; (c) M. W. Hussong, F. Rominger, P. Krämer and B. F. Straub, Angew. Chem., Int. Ed., 2014, 53, 9372.
11. M. F. Espada, J. Campos, J. López-Serrano, M. L. Poveda and E. Carmona, Angew. Chem., Int. Ed., 2015, 54, 15379.
12. (a) J. Campos, J. Am. Chem. Soc., 2017, 139, 2944; (b) S. Arndt, M. Rudolph and A. S. K. Hashmi, Gold Bull., 2017, 50, 267.
13. J. Miranda-Pizarro, Z. Luo, J. J. Moreno, D. A. Dickie, J. Campos and B. Gunnoe, J. Am. Chem. Soc., 2021, 143, 2509.
14. J. Keller, C. Schlierf, C. Nolte, P. Mayer and B. F. Straub, Synthesis, 2006, 354.
15. A. M. Ricks, G. E. Douberly, P. V. R. Schleyer and M. A. Duncan, Chem. Phys. Lett., 2009, 480, 17.
16. L. Falivene, R. Credendino, A. Poater, A. Petta, L. Serra, R. Oliva, V. Scarano and L. Cavallo, Organometallics, 2016, 35, 2286.
17. (a) A. Gómez-Suárez, R. S. Ramón, O. Songis, A. M. Z. Slawin, C. S. J. Cazin and S. P. Nolan, Organometallics, 2011, 30, 5463; (b) A. Cervantes-Reyes, F. Rominger, M. Rudolph and A. S. K. Hashmi, Chem. – Eur. J., 2019, 25, 11745; (c) A. Cervantes-Reyes, F. Rominger, M. Rudolph and A. S. K. Hashmi, Adv. Synth. Catal., 2020, 362, 2523.
18. L. Ortega-Moreno, M. Fernández-Espada, J. J. Moreno, C. Navarro-Gilabert, J. Campos, S. Conejero, J. López-Serrano, C. Maya, R. Peloso and E. Carmona, Polyhedron, 2016, 116, 170.
19. S. G. Weber, F. Rominger and B. F. Straub, Eur. J. Inorg. Chem., 2012, 2863.
20. G. J. H. Nes and A. Vos, Acta Crystallogr., Sect. B: Struct. Crystallogr. Cryst. Chem., 1979, 35, 2593.
21. (a) T. Ziegler and A. Rauk, Inorg. Chem., 1979, 18, 1558; (b) M. S. Nechaev, V. M. Rayón and G. Frenking, J. Phys. Chem. A, 2004, 108, 3134; (c) N. J. Barnett, L. V. Slipchenko and M. S. Gordon, J. Phys. Chem. A, 2009, 113, 7474; (d) J. T. York, J. Phys. Chem. A, 2016, 120, 6064.
22. (a) M. J. S. Dewar, Bull. Soc. Chim. Fr., 1951, 18, C79; (b) J. Chatt and L. A. Duncanson, J. Chem. Soc., 1953, 2939.
23. For comparison, attempts to prepare [PPh₃Au(C₂H₄)]⁺ led to immediate decomposition and formation of [(PPh₃)2Au]⁺ and Au(0).
24. (a) H. V. R. Dias, C. Dash, M. Yousufuddin, M. A. Celik and G. Frenking, Inorg. Chem., 2011, 50, 4253; (b) C. Dash, P. Kroll, M. Yousufuddin and H. V. R. Dias, Chem. Commun., 2011, 47, 4478.
25. Z. Zhang, S. D. Lee and R. A. Widenhoefer, J. Am. Chem. Soc., 2009, 131, 5372.

---

Footnotes

† Electronic supplementary information (ESI) available: Experimental details and analytical data, NMR data and X-ray crystallographic data. CCDC 2078523–2078528. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/d1cc02769g

‡ These authors contributed equally to this work.

---
