Tuning extreme anisotropic thermal expansion in 1D coordination polymers through metal selection and solid solutions

Abstract

The thermal expansion behaviour of a series of 1D coordination polymers has been investigated. Variation of the metal centre allows tuning of the thermal expansion behaviour from colossal positive volumetric to extreme anomalous thermal expansion. Preparation of solid solutions increased the magnitude of the anomalous thermal expansion further, producing two species displaying supercolossal anisotropic thermal expansion (ZnCoCP^HTα_Y2 = −712 MK⁻¹, α_Y3 = 1632 MK⁻¹ and ZnCdCP^HTα_Y2 = −711 MK⁻¹, α_Y3 = 1216 MK⁻¹).

---

Owing to increased thermal motion of their constituent atoms, solids usually expand upon heating;^1–3 this is known as positive thermal expansion (PTE).^1,3,4 However, some materials display anomalous thermal expansion behaviour, including negative and zero thermal expansion (NTE and ZTE, respectively), exceptional magnitudes of PTE, as well as extreme anisotropy.^1,3 Anisotropic thermal expansion is characterised by significantly different linear thermal expansion coefficients for the individual principal axes.¹ Although anisotropy is expected for materials that do not possess cubic symmetry, extreme anisotropy is uncommon. There have been relatively few reports of anomalous thermal expansion behaviour,^4–7 but such materials are of great interest in materials science owing to possible applications in optical devices, semiconductor materials and space exploration vehicles.^1,2,8,9 Furthermore, controlled tuning of the thermal expansion behaviour of solids is desirable for tailoring materials to specific applications.^1,7,8,10

Previous studies on thermal expansion of crystalline solids have explored molecular crystals, co-crystals and mineral-type compounds.^3,11–13 However, recent interest in extended materials such as metal–organic frameworks, coordination polymers (CPs), and covalent and hydrogen bonded frameworks have inspired new avenues of investigation.^10,14–16 Flexible one dimensional CPs have received little attention in this regard, but may prove to be excellent candidates for studies of solid-state dynamics.

Recent studies have shown that compounds with “wine-rack” or “lattice-fence” solid-state packing often exhibit anomalous thermal expansion (Fig. 1a–c)^3,5,7,10,17 as a consequence of hinging and twisting around the metal nodes.^3,5,10 We have also seen that solid solutions show promise for tuning thermal expansion.^7,9,18 Here we describe the thermal expansion behaviour of a series of isotypical¹⁹ CPs and their solid solutions, which all employ packing reminiscent of ideal “wine-rack” or “lattice-fence” motifs (Fig. 1d).

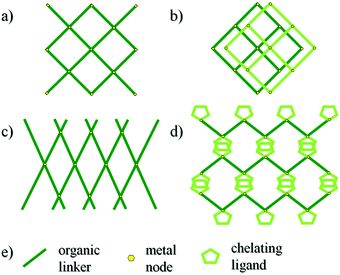

Fig. 1 Simplified packing motifs commonly associated with anomalous thermal expansion behaviour, including (a) wine-rack, (b) interpenetrated/offset-layered square-lattice and (c) lattice-fence packing. A simplified depiction of the similar packing motif generated by the 1D materials in this study is shown in (d). Note that, although it appears that the 1D strands in (d) run parallel to the plane of the page, they traverse it.

Four CPs with the general formula [M(bpdc)(bpy)·2DMF]_n (MCP, M = Zn, Ni, Co and Cd) were prepared solvothermally from a solution of metal nitrate, 4,4′-biphenyldicarboxylic acid (bpdc) and 2,2′-bipyridine (bpy) in N,N-dimethylformamide (DMF). ZnCP was the first of these to be characterised structurally, but the low-temperature (100 K) single-crystal X-ray diffraction (SCXRD) data were of poorer quality than we had expected (Fig. S8, ESI†). SCXRD at 270 K (the crystals lose solvent at room temperature) yielded better data (Fig. S8, ESI†), but notably different unit-cell parameters relative to those at 100 K. Differential scanning calorimetry (DSC) revealed that this discrepancy is due to a subtle phase transition, which occurs with an onset temperature of 250–240 K upon cooling (Fig. S17, ESI†). Comparison of the high- and low-temperature crystal structures of ZnCP (ZnCP^HT and ZnCP^LT, respectively) reveals that the space group (P2₁/n) remains unchanged and that, although highly reminiscent of one another, their corresponding unit-cell parameters differ by more than can be expected for normal thermal expansion (Table S1, ESI†). Nevertheless, the two crystal structures can be considered isotypical.¹⁹

ZnCP^HT is comprised of infinite 1D “zigzag” chains (∠Zn⋯Zn⋯Zn = 125.34(3)°) that propagate along [602]. Successive metal nodes are linked by means of chelating bpdc ligands (disordered over two positions with site occupancies of 0.53 and 0.47). Each metal centre is also bound to a chelating bpy ligand (disordered over two positions with site occupancies of 0.67 and 0.33), resulting in an overall highly distorted octahedral coordination environment. The 1D strands interdigitate via offset π⋯π interactions between bpy moieties of adjacent CP strands. This arrangement produces 1D guest-accessible channels that propagate along [100] and that contain DMF guest molecules (Fig. 2 and Fig. S10, ESI†). We have explored the transient porosity²⁰ of ZnCP as part of a separate study,²¹ and a view along the 1D channels serves as a convenient frame of reference with respect to comparing the crystal structures.

Fig. 2 Packing of the high-temperature phases (270 K) of all CPs described in this study, viewed along [100]. In all cases both ligands are disordered over two positions. The minor component of disorder for each ligand is shown in yellow. The approximate atom-to-atom dimensions are indicated for each CP. Both metal atoms are shown in the representations of the solid solutions, but may be superimposed. Guest molecules and hydrogen atoms have been omitted for clarity. Note that the red arrow runs approximately along the b axis and the purple arrow approximately along the c axis.

The phase transition from ZnCP^HT to ZnCP^LT (based on the crystal structures determined at 270 and 100 K, respectively) involves a relatively minor structural rearrangement. The connectivity of ZnCP^HT is maintained in ZnCP^LT, and the disorder of the ligands remains similar (50 : 50 and 62 : 38 for bpdc and bpy, respectively). However, after the phase change the zigzag angle is markedly different. These changes lead to slight distortion of the 1D channel, with lengthening along [010] and shortening along [001] (Fig. 2 and Fig. S9 and S14, ESI†).

The phase change experienced by ZnCP upon cooling is due to an abrupt decrease in the M⋯M⋯M zigzag angle from 123.89(3)° at 250 K to 121.66(3)° at 240 K (Fig. S16 and Table S13, ESI†). This is accompanied by elongation of the channels along [010], with concomitant narrowing along the vector perpendicular to (001) (cf.Fig. 2 and Fig. S8, ESI†). These changes are manifested as elongation of the crystallographic a and b axes, a small increase in the β angle, and shortening of the c axis (Fig. S13, ESI†).

Determination of unit-cell parameters at 10 K intervals from 270 to 100 K shows that both phases of ZnCP undergo dramatic anisotropic thermal expansion (Fig. S14, ESI†). Respectively, the linear thermal expansion coefficients²²α_y1, α_y2 and α_y3 for ZnCP^HT are 100, −462 and 882 MK⁻¹, while those for ZnCP^LT are 69, −57 and 275 MK⁻¹. The matrices relating the principal axes to the unit-cell axes are given in Fig. S25, S26 and S39 of the ESI.† Taken together, the linear thermal expansion coefficients of ZnCP^HT represent some of the most extreme anisotropic values recorded to date for any known crystalline materials (Table S17, ESI†). Moreover, both phases also undergo colossal (α > 100 MK⁻¹) volumetric PTE (α_V = 575 and 292 MK⁻¹, respectively). Since the 1D channels propagate along [100] (Fig. 2), we can infer that most of the thermal expansion anisotropy is due to distortion of the host around the channels. In ZnCP^HT the expansion coefficient approximately along [100] (i.e., α_Y1) is relatively modest, while that along [010] (i.e., α_Y2) is highly negative. The expansion coefficient normal to (001) is very highly positive in both cases. These observations comport with gradual narrowing (see ESI†) of the zigzag angle with decreasing temperature, as also occurs abruptly during the phase transition.

Previously we^23,24 and others^3,6,25–27 were successful in tuning the thermal expansion behaviour of structural analogues by modulating their composition. In this context we explored metal node substitution for facile modification of the coordination geometries about various metal centres; a series of MCP analogues was prepared with M = Ni, Co and Cd. Using SCXRD, we established that all of these materials are isotypes¹⁹ of ZnCP (Fig. 2 and Table S1, ESI†). They also undergo subtle low temperature phase transitions in the ranges 250–240, 260–250 and 200–190 K, respectively (Fig. S14, ESI†).

Multiple attempts were made to determine successive crystal structures across the phase change with slow cooling. However, in all cases the crystals fractured during the transition, thus yielding poor quality diffraction data from which it was only possible to determine unit cell parameters, the space group and estimates of M⋯M⋯M angles (with the exception of CoCP).

Upon cooling, the changes in the unit-cell parameters of NiCP across the phase change are similar to those of ZnCP, with expansion along [010] and concomitant contraction along [001]. Moreover, the M⋯M⋯M zigzag angle in NiCP also narrows across the phase change (from 123.31(3)° at 250 K to 116.38(3)° at 240 K, Table S13 and Fig. S16b, ESI†). Interestingly, in the cases of CoCP and CdCP, cooling across the phase-change results in shortening of the b axis and narrowing of the β angle, with elongation of the c axis (Fig. S14, ESI†). Therefore, with regard to these parameters, the phase changes in CoCP and CdCP are inversely related to those of ZnCP and NiCP. This is also reflected in the increase of the M⋯M⋯M zigzag angle in CdCP from 140.24(1)° at 200 K to 145.29(1)° at 190 K (Table S13 and Fig. S16, ESI†). The phase change temperatures for CoCP and CdCP are significantly different (ca. 260 and 200 K, respectively).

Variable-temperature unit-cell determinations for CdCP were carried out as for ZnCP. Owing to facile desolvation and relatively high phase-change temperatures of CoCP^HT and NiCP^HT (both ca. 250 K), an environmental solvent cell was used for unit cell determinations in the range 280 to 310 K (see ESI†). NiCP^HT exhibits colossal linear PTE along Y2 and Y3, while CoCP^HT exhibits linear NTE along Y3 (Fig. 3 and Fig. S27, Table S14, ESI†). Both exhibit colossal volumetric PTE (α_V = 371 MK⁻¹ for NiCP^HT and 239 MK⁻¹CoCP^HT). In CoCP^HT both linear PTE and NTE occur in the ac plane between adjacent 1D strands. The magnitudes of thermal expansion (both linear and volumetric) of NiCP^HT and CoCP^HT are substantially lower than that of ZnCP. Both phases of CdCP exhibit extreme anisotropic thermal expansion (Fig. 3 and Fig. S40, Table S16, ESI†), similar to ZnCP (CdCP^HTα_Y2 = 778 MK⁻¹, α_Y3 = −389 MK⁻¹ and α_V = 531 MK⁻¹).

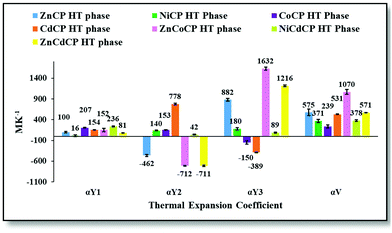

Fig. 3 Thermal expansion coefficients for the high-temperature phases of the CPs. Error bars and specific values are indicated.

Tuning of thermal expansion behaviour in metal containing materials may also be achieved by the preparation of solid solutions.^7–9,18,28 Three solid solutions were prepared by the addition of equimolar amounts of two metal nitrates to the crystallisation solution (MM′CP, MM′ = ZnCo, ZnCd, NiCd). However, energy dispersive X-ray analysis showed that each of the resulting materials contains substantially different amounts of metal ions (Table S18, ESI†). All of the solid solutions have similar packing arrangements and phase change behaviour to those observed for ZnCP. As expected, the structure of ZnCoCP ([Zn_0.92Co_0.08(bpdc)(bpy)·2DMF]_n) and ZnCdCP ([Zn_0.92Cd_0.08(bpdc)(bpy)·2DMF]_n) are most similar to that of ZnCP; the packing is likely directed by the major metal component. This holds true for both the HT and LT phases of these materials. The structure of NiCdCP^HT ([Ni_0.83Cd_0.17(bpdc)(bpy)·2DMF]_n) is also closer to that of NiCP^HT. However, owing to the notable difference in packing between NiCP^LT and CdCP^LT (Fig. S9, ESI†), NiCdCP^LT adopts an intermediate packing arrangement, which is similar to that of the other solid solutions.

Variable-temperature unit-cell determinations were carried out to determine the thermal behaviour of the solid solutions. With regard to changes in their unit-cell parameters, all three solid solutions exhibit phase-change behaviour similar to that of ZnCP, albeit at different onset temperatures. ZnCoCP^HT exhibits colossal linear NTE along Y2 (α_Y2 = −712 MK⁻¹) and supercolossal (an order of magnitude larger than colossal)²⁹ PTE along Y3 (α_Y3 = 1632 MK⁻¹). ZnCoCP^HT also displays supercolossal volumetric PTE (α_V = 1070 MK⁻¹, Fig. 3 and Table S16, ESI†). Both α_V and the degree of anisotropy are far greater for ZnCoCP^HT than for ZnCP^HT or CoCP^HT, and both Y2 and Y3 are nearly twice those for ZnCP^HT and many times larger than for CoCP^HT. Interestingly, the thermal expansion behaviour of ZnCoCP^LT is more similar to that of CoCP^LT; it undergoes linear ZTE along Y2 and PTE along the other principal axes (Table S16 and Fig. S40, ESI†), resulting in colossal volumetric PTE.

The thermal expansion of ZnCdCP^HT is analogous to that of the ZnCoCP^HT (Fig. 3 and Table S16, ESI†). Similarly, to ZnCoCP^HT the linear NTE along Y2 is colossal and the PTE along Y3 is supercolossal (α_Y2 = −711 MK⁻¹, α_Y3 = 1216 MK⁻¹). However, its volumetric PTE is colossal (α_V = 571 MK⁻¹). The orientations of the principal axes and thus the mechanism for thermal expansion in ZnCdCP^HT are analogous to those of ZnCoCP^HT (Fig. S39, ESI†). The linear thermal expansion behaviour of NiCdCP^HT differs from that of both NiCP^HT and CdCP^HT (Fig. 3); the magnitudes of the coefficients along Y2 and Y3 for NiCdCP^HT are notably smaller than those for NiCP^HT and CdCP^HT.

During the course of this study we noted a discrepancy between the unit-cell parameters at 100 K obtained after incremental cooling (periodic unit-cell determinations) and flash-cooling the crystal (rapid cooling from ambient to 100 K)–see Tables S3–S9, S14 (ESI†). The thermal expansion behaviour appears to be attenuated when the crystal is flash-cooled. This observation was further investigated by means of differential scanning calorimetry at different cooling rates and in triplicate, which supports the assertion that higher cooling rates lead to attenuation of the phase-change (see ESI†).

All of the CPs display interesting thermal expansion behaviour, ranging from colossal volumetric PTE to supercolossal linear thermal expansion. Their thermal expansion coefficients are comparable to the highest reported values for anisotropic thermal expansion (Table 1 and Table S17, ESI†). An overview of reports of colossal (and supercolossal) anisotropic thermal expansion is presented in Table 1 and a more comprehensive survey of the literature is given in Table S17 (ESI†). Almost all of the materials in this study exceed reports of both linear and volumetric thermal expansion in 1D CPs (Table S17, ESI†). The only material exceeding (dramatically) the values reported here requires a spin-crossover transition to effect exceptional thermal expansion of a 2D framework.⁷ It is interesting to note that the best performing materials in this study (ZnCoCP^HT and ZnCdCP^HT) and two of the four best performing materials in the literature are all solid solutions. Therefore, solid solutions should be considered a viable method of increasing the thermal expansion properties of a given class of material.

Table 1 Examples of extreme anisotropic thermal expansion

Material	α Y1 (MK^−1)	α Y2 (MK^−1)	α Y3 (MK^−1)	α V (MK^−1)	Ref.
CA-Pyz	−1375	196	1524	245	29
[Zn2(fu-L^1)2dabco]n	−380	1161	14.6	837	6
[Fe0.84Ni0.16(bpac) (Au(CN)2)2]·2EtOH	−3200	5200	1500	3200	7
(Mn0.95Ni0.05)CoGe	−1804	1265	46	−624	18
ZnCoCP^HT	152	−712	1632	1070	This work
ZnCdCP^HT	81	−711	1216	570	This work

---

We thank the National Research Foundation (NRF) of South Africa for financial support and the Central Analytical Facilities at Stellenbosch University for EDX analyses.

Conflicts of interest

There are no conflicts to declare.

Notes and references

1. J. Chen, L. Hu, J. Deng and X. Xing, Chem. Soc. Rev., 2015, 44, 3522–3567.
2. K. Takenaka, Sci. Technol. Adv. Mater., 2012, 13, 013001.
3. Z. Liu, Q. Gao, J. Chen, J. Deng, K. Lin and X. Xing, Chem. Commun., 2018, 54, 5164–5176.
4. D. Das, T. Jacobs and L. J. Barbour, Nat. Mater., 2010, 9, 36–39.
5. W. Cai and A. Katrusiak, Nat. Commun., 2014, 5, 4337.
6. S. Henke, A. Schneemann and R. A. Fischer, Adv. Funct. Mater., 2013, 23, 5990–5996.
7. B. R. Mullaney, L. Goux-Capes, D. J. Price, G. Chastanet, J.-F. Létard and C. J. Kepert, Nat. Commun., 2017, 8, 1053.
8. J. Chen, Q. Gao, A. Sanson, X. Jiang, Q. Huang, A. Carnera, C. G. Rodriguez, L. Olivi, L. Wang, L. Hu, K. Lin, Y. Ren, Z. Lin, C. Wang, L. Gu, J. Deng, J. P. Attfield and X. Xing, Nat. Commun., 2017, 8, 14441.
9. H. Yamamoto, T. Imai, Y. Sakai and M. Azuma, Angew. Chem., Int. Ed., 2018, 57, 8170–8173.
10. L. D. Devries, P. M. Barron, E. P. Hurley, C. Hu and W. Choe, J. Am. Chem. Soc., 2011, 133, 14848–14851.
11. T. A. Mary, J. S. Evans, T. Vogt and A. W. Sleight, Science, 1996, 272, 90–92.
12. J. S. O. Evans, Z. Hu, J. D. Jorgensen, D. N. Argyriou, S. Short and A. W. Sleight, Science, 1997, 275, 61–65.
13. A. L. Goodwin, M. Calleja, M. J. Conterio, M. T. Dove, J. S. O. Evans, D. A. Keen, L. Peters and M. G. Tucker, Science, 2008, 319, 794–797.
14. J. P. Zhang, P. Q. Liao, H. L. Zhou, R. B. Lin and X. M. Chen, Chem. Soc. Rev., 2014, 43, 5789–5814.
15. Z. Chang, D. H. Yang, J. Xu, T. L. Hu and X. H. Bu, Adv. Mater., 2015, 27, 5432–5441.
16. S. R. Batten, N. R. Champness, X. Chen, J. Garcia-Martinez, S. Kitagawa, L. Ohrstrom, M. O’Keeffe, M. Paik Suh and J. Reedijk, CrystEngComm, 2012, 14, 3001–3004.
17. S. J. Hunt, M. J. Cliffe, J. A. Hill, A. B. Cairns, N. P. Funnell and A. L. Goodwin, CrystEngComm, 2015, 17, 361–369.
18. Q. Ren, W. Hutchison, J. Wang, A. Studer, G. Wang, H. Zhou, J. Ma and S. J. Campbell, ACS Appl. Mater. Interfaces, 2019, 11, 17531–17538.
19. L. J. Barbour, D. Das, T. Jacobs, G. O. Lloyd and V. J. Smith, in Supramolecular Chemistry: from Molecules to Nanomaterials, ed. P. A. Gale and J. W. Steed, John Wiley & Sons, Ltd., Hoboken, 2012.
20. L. J. Barbour, Chem. Commun., 2006, 1163.
21. L. M. van Wyk and L. J. Barbour, Cryst. Growth Des., 2021, 21, 3056–3062.
22. M. J. Cliffe and A. L. Goodwin, J. Appl. Crystallogr., 2012, 45, 1321–1329.
23. I. Grobler, V. J. Smith, P. M. Bhatt, S. A. Herbert and L. J. Barbour, J. Am. Chem. Soc., 2013, 135, 6411–6414.
24. E. R. Engel, V. J. Smith, C. X. Bezuidenhout and L. J. Barbour, Chem. Mater., 2016, 28, 5073–5079.
25. L. Hu, J. Chen, J. Xu, N. Wang, F. Han, Y. Ren, Z. Pan, Y. Rong, R. Huang, J. Deng, L. Li and X. Xing, J. Am. Chem. Soc., 2016, 138, 14530–14533.
26. J. S. Ovens and D. B. Leznoff, Inorg. Chem., 2017, 56, 7332–7343.
27. H. L. Zhou, R. B. Lin, C. T. He, Y. B. Zhang, N. Feng, Q. Wang, F. Deng, J. P. Zhang and X. M. Chen, Nat. Commun., 2013, 4, 1–8.
28. H.-L. Zhou, J.-P. Zhang and X.-M. Chen, Front. Chem., 2018, 6, 1–7.
29. H. Liu, M. J. Gutmann, H. T. Stokes, B. J. Campbell, I. R. Evans and J. S. O. Evans, Chem. Mater., 2019, 31, 4514–4523.

---

Footnote

† Electronic supplementary information (ESI) available: Synthetic procedure, TGA, additional figures, SCXRD, PXRD, DSC and PAS results. CCDC 1940578, 2036084–2036096. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/d1cc01717a

---
