Towards a traceable enhancement factor in surface-enhanced Raman spectroscopy

Abstract

The enhancement factor (EF) is an essential parameter in the field of surface-enhanced Raman spectroscopy (SERS), indicating the magnification of the Raman signal of molecules interacting with the surface of plasmonic nanostructures. The calculation of EF requires a careful evaluation of both the signal intensities and the number of molecules in SERS and normal Raman conditions. The determination of the surface density of molecules adsorbed on the plasmonic substrate is a challenging task, but essential for the estimation of the number of SERS-active molecules. This paper describes the determination of EF using 7-mercapto-4-methylcoumarin (MMC) as the probe molecule on gold-coated silicon nanowires, integrating SERS and normal Raman spectroscopy with X-ray fluorescence (RF-XRF) data that provide a reference-free quantitative measurement of the molecular surface density. In addition, the surface coverage of MMC on the substrate is modelled by molecular mechanics (MM) and molecular dynamics (MD) simulations.

---

1 Introduction

Surface-enhanced Raman spectroscopy (SERS) is a vibrational spectroscopic technique belonging to the vast category of plasmon-enhanced molecular spectroscopies (PEMS). The intensity of the fingerprint Raman spectrum of a molecule is amplified by strong local electromagnetic fields on a plasmonic substrate and, to a minor extent, by chemical interaction with its surface.¹ Since its discovery in 1974, SERS has attracted remarkable interest concerning both the fundamental mechanism governing the amplification of Raman scattering and its applications from materials science to biomedicine. Currently, the engineering of electromagnetic hot spots at sub-nanometric spatial resolution^2–7 allows SERS quantification capability down to the single-molecule regime.

The enhancement factor (EF) is the key parameter for the assessment of SERS substrate performances. A great effort has been addressed to the definition of EF.^8–10Eqn (1) reports the most commonly employed definition:

where the signal intensities measured in SERS and normal Raman (NR) are I_SERS and I_NR, respectively. N_SERS and N_NR represent the number of probed molecules contributing to SERS and normal Raman signals. Over the years, the SERS community chased increasing enhancement capabilities and EFs with values as high as 10¹⁴ were reported.¹¹ The methods for the determination of I_SERS and I_NR and the estimation of N_NR are well-accepted.¹⁰ In contrast, N_SERS represents a critical parameter that depends on the adsorption behaviour of the analytes and the structural characteristics of the substrate.¹⁰ According to ref. 10, N_SERS contains several contributions as reported in eqn (2):

N_SERS = μ_M·μ_mol·A_M·A_eff (2)

where μ_M is the number of SERS-active nanostructures per unit area on the substrate, μ_mol is the surface density of the molecules adsorbed on the metal, A_M is the metallic surface area of an individual nanostructure and A_eff is the effective area of the confocal scattering volume of the probing laser. Among these contributions, the determination of μ_mol is particularly challenging.¹⁰ In the especially favourable case of electroactive analytes, a direct evaluation of the molecular surface coverage can be performed through electrochemical methods.^12,13 However, in general, the evaluation of μ_mol is based on geometrical assumptions with little or no information concerning the adopted model.^14–22 This is due to the lack of suitable analytical techniques offering traceable molecular quantification thus, in turn, preventing inter-laboratory comparability that is essential to push the progress of SERS applications.^8,9,23,24

This work reports on the determination of EF for the model system consisting of 7-mercapto-4-methylcoumarin (MMC) as the probe molecule on gold-coated silicon nanowires, by combining SERS and normal Raman measurements with reference-free X-ray fluorescence (RF-XRF) to estimate the molecular surface density. The surface coverage of MMC on the substrate is further modelled by molecular mechanics (MM) and molecular dynamics (MD) simulations. A comparison among the EFs so calculated with those estimated using different approaches is also carried out, thus clearly highlighting the extremely high sensitivity of EF to the μ_mol parameter.

2 Results and discussion

2.1 Structure of the SERS substrate

A three-dimensional SERS substrate was fabricated by a combination of nanospheres lithography (NSL) and metal-assisted chemical etching (MACE) leading to high-aspect-ratio silicon nanowires ordered over large areas. Then, the nanowires were coated with gold by e-beam evaporation to form plasmonic caps on their tops as shown in Fig. 1a. The morphology of the nanowires was characterized by scanning electron microscopy (SEM), obtaining diameter of (155 ± 15) nm, lateral spacing of (250 ± 4) nm, and height of the top gold cap of (100 ± 9) nm. The top-view SEM micrographs were processed to identify the single objects and to determine the number of nanowires per unit area, μ_M = 14.8 μm⁻², useful for N_SERS calculation through eqn (2). The nanowires presented an aspect ratio of 10 : 1 and exhibited high flexibility forming bundles and generating hot spots at the tip-to-tip sites.^19,20,25Fig. 1b shows a SEM micrograph of the substrate where some hot spots are highlighted with white circles.

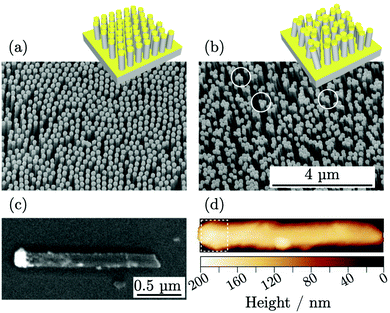

Fig. 1 (a) SEM micrograph of the SERS substrate consisting of an ordered matrix of three-dimensional gold-coated nanowires. (b) The nanowires, bending and forming bundles and hot spots at the tip-to-tip sites, are highlighted by the white circles. (c) SEM micrograph of a single nanowire lying horizontally. (d) AFM topographic map of the nanowire used to determine the gold surface area in the top cap (highlighted by the white dashed line).

Atomic force microscopy (AFM) was used to characterize the metallic surface area A_M on single nanowires spread horizontally on the solid substrate as shown in Fig. 1d. The analysis was limited to the apical part of the nanowires coated with gold, visible in the SEM image in Fig. 1c. Few metallic nanoparticles located on the length of the nanowires were observed but were not accounted for in the metallic surface area evaluation. The surface area for single nanowire, contributing to eqn (2), was estimated A_M = (0.52 ± 0.09) μm².

2.2 SERS experiment

For the SERS experiment, thanks to the specific interaction of MMC molecules with Au surface, the substrate with standing nanowires was incubated in a solution of MMC in ethanol for 120 minutes and then the unbounded MMC was removed by rinsing the substrate with ethanol. Finally, the nanowires were induced to bend by soaking the substrate in water and letting it evaporate so as to trap the molecules inside the hot spots regions.²⁵Fig. 2a shows a graphical scheme of the bending gold-coated nanowires covered with MMC.

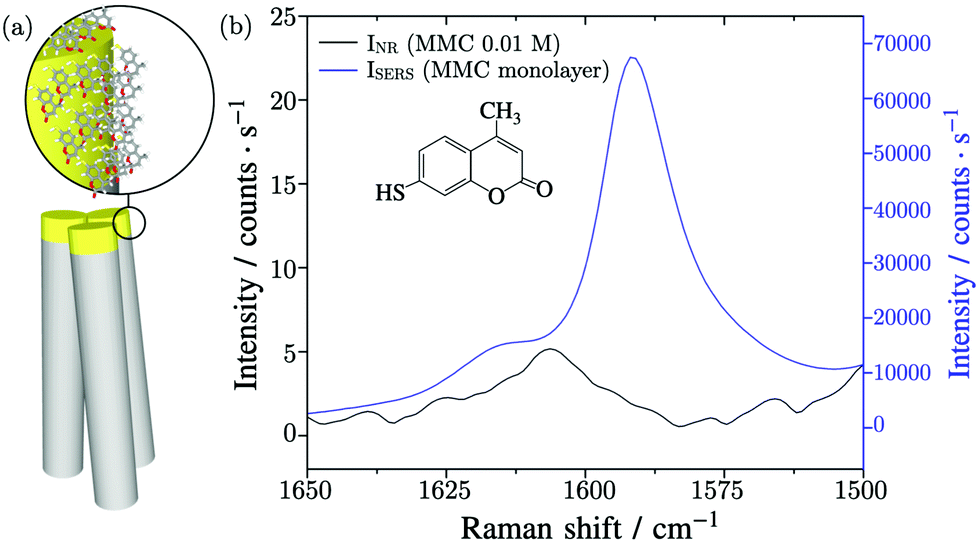

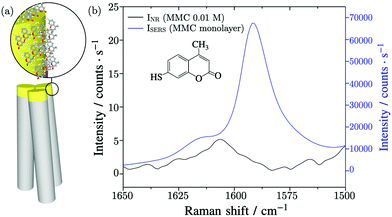

Fig. 2 (a) Graphical scheme of a bundle of nanowires where the gold-coated parts are covered with a layer of MMC probe molecules. (b) Normal Raman spectrum of MMC 0.01 M solution and SERS spectrum of MMC collected on the SERS substrate, acquired with 780 nm excitation laser, 8 mW laser power, 20 × LWD objective.

The substrate was probed with a 780 nm laser beam focalized on the tips of the nanowires by a 20 × long working distance microscope (LWD) objective. Under these conditions, the effective area of the excitation volume,¹⁰ included in eqn (2), was calculated to be A_eff = 4.4 μm² and includes 65.1 nanowires. The vibrational peak of MMC at 1593 cm⁻¹, assigned to the conjugated –C=C– symmetric stretching, was measured to find the value of I_SERS = (6.6 ± 0.7) × 10⁴ counts per s, as shown in Fig. 2b. The intensity of the normal Raman signal, obtained by performing the measurements in a MMC solution with a concentration c_NR = 10 mM, was I_NR = (5.2 ± 0.3) counts per s, as shown in Fig. 2b. Normally, the Raman intensity of a signal is calculated as the sum of the counts under a given band in the spectrum, however, in this case the nearby signals limit this approach, because their fitting and deconvolution add variability and subjectivity in the peak analysis and determination of the peak integral. In this study, the peak height was employed instead because the ratio of the same band, varying by a proportionality factor in the two conditions (SERS and non-amplified Raman), is calculated in the EF. The number of Raman active molecules contributing to I_NR was calculated as N_NR = c_NR·V = (2.2 ± 0.1) × 10⁹, where V is the value of the laser–probe interaction volume V = (364 ± 20) μm³, determined experimentally through the dimension of the focal depth^26,27 (further details in the ESI file†).

Then, the determination of the number of molecules contributing to the SERS signal requires the molecular surface density μ_mol. This quantity was estimated by different approaches.

2.3 Determination of the molecular surface density by geometrical considerations

Various geometrical assumptions are carried out in literature to estimate the number of molecules contributing to the SERS signal, considering in general the molecules adsorbed in a monolayer or submonolayer. To test the reliability of such an approach, we evaluated the monolayer density with some simple geometrical models. First, using the tabulated molecular weight and density of MMC, we computed the molar volume V_mol = (148 ± 3) × 10¹² μm³ mol⁻¹ and the volume of a single molecule V_MMC = V_mol/N_A = (2.45 ± 0.05) × 10⁻¹⁰ μm³, where N_A is the Avogadro constant. Considering the molecules as spherical objects, as the simplest approximation, their circular area projected on the surface was estimated A_MMC = (4.7 ± 0.1) × 10⁻⁷ μm⁻² (Fig. S2a, ESI†) and the surface density, i.e., the reciprocal of A_MMC, resulted in μ_MMC/geom1 = (2.1 ± 0.1) × 10⁶ μm⁻². This is the maximum surface density that can be obtained when no specific information about the molecular shape and orientation in space is available, and a sphere is used to roughly approximate the actual molecular hindrance.

A second geometrical model considered the MMC molecule, with an end-to-end length of 0.73 nm, freely rotating around the thiol group bound to the gold surface (Fig. S2b, ESI†). In this way, a single molecule spans an area of 1.7 × 10⁻⁶ μm² leading to a density of μ_MMC/geom2 = 0.6 × 10⁶ μm⁻². An alternative description was based on an ordered arrangement of MMC molecules, as close as possible given the gold–gold distances on the Au(111) surface and a reasonable estimate of atomic van der Waals radii. This approach, illustrated in the ESI file,† leads to maximum densities of μ_MMC/geom3 = 3.6 × 10⁶ μm⁻² or μ_MMC/geom4 = 5.0 × 10⁶ μm⁻², depending on the lateral or vertical arrangements assumed by the MMC in the monolayer, respectively (see the ESI file†).

2.4 Determination of the molecular layer density by MM and MD simulations

To gain more insights into the MMC layer structure and interactions, we performed molecular mechanics (MM) and molecular dynamics (MD) theoretical simulations, based on suitable force fields, as described in the Experimental details section. To evaluate the most plausible density, several monolayers were optimized, with N MMC molecules anchored to the gold surface, with N = 1, 9, 18, 24, 27 (Fig. 3a–c). The nature of the S–Au chemical bond in this kind of interface is still debated. Most models assume that the thiol hydrogen is lost giving rise to a covalent sulphur–gold bond,²⁸ while others propose that the thiol group is undissociated and a donor–acceptor bond is formed between –SH and Au.²⁹ Here, we adopt the former model, so that the MMC molecules lose their thiol hydrogen homolytically before anchoring to the surface.

Fig. 3 Results of the MM optimizations. Structure of the monolayers with (a) 1, (b) 9 and (c) 23 MMC molecules on the gold surface unit. Four repeated units are shown for each system, and hydrogen atoms are not displayed for clarity. Yellow, S; green, C; red, O; light brown, Au. (d) Plot of the MM potential energies with respect to the bare surface and N isolated MMC molecules, at different monolayer densities.

The MM energies, referred to the bare surface and N isolated molecules, are plotted in Fig. 3d with respect to the molecular layer density. The minimum energy is found for μ_MMC/simul = 4.3 × 10⁶ μm⁻², corresponding to a monolayer of 23 molecules packed on the model surface. During the optimization of the monolayers with 24 or 27 MMC molecules, one or three molecules were expelled from the organic layer, respectively, returning to the most favourable density. Clearly, above the density μ_MMC/simul, the intermolecular repulsion in the crowded monolayer prevails on the MMC/surface attractive interaction. This result was refined by adding kinetic energy contributions, with MD runs at 298 K performed on all the previously optimized monolayers, to verify whether the thermal motions could induce some other MMC to leave the surface. All the monolayers, however, were found stable at this temperature, as no molecules were detached from the surface during the 3 ns simulations. Then the most stable monolayer density is expected to be 4.3 × 10⁶ μm⁻². It is worth noting that this value is only slightly lower than the maximum density (μ_MMC/geom4) obtained by considering only geometrical restraints in an ordered packing of MMC, as mentioned above.

2.5 Determination of the molecular surface density by X-ray fluorescence

The experimental quantification of the surface density of MMC was performed by the reference-free X-ray fluorescence to target the sulphur atom present in the molecules. RF-XRF offers a well-established tool which requires little or no sample preparation, for non-destructive and quantitative characterization of virtually any material for the determination of the elemental composition, layer thickness, mass deposition and contamination.³⁰ With the atomic fundamental parameters (FPs) method proposed by Sherman,³¹ the sulphur K fluorescence line photon count P_S,K can be converted to its mass per unit area σ_S, expressed in g cm⁻². This can be obtained by using the physical modelling of the characteristic fluorescence radiation emitted by the sample while including atomic FPs^32–34 and physically-calibrated instrumentation. The calculation for σ_S is reported in eqn (3):where the FPs are the fluorescence yield ω_S,K = 0.08038 of the K shell of sulphur, which gives the probability of radiative de-excitation, and the partial photoionization cross-section τ_S,K(E₀) = 1901.26 cm² g⁻¹,³⁵ which gives the probability that an incident X-ray photon of energy E₀ = 2.5 keV removes one of the K-shell electrons. Eqn (3) also includes the physically calibrated instrumental parameters which are, the efficiency of the radiometrically calibrated fluorescence detector ε_(ES,K) = 0.988 at the energy of the sulphur fluorescence line E_S,K and the normalisation factor accounting for the angle of incidence, the incident photon flux ϕ₀ and the solid angle of detection Ω/4π.³⁴ The adimensional factor k = (10.2 ± 0.3) is the ratio between the effective area offered to the molecules to be absorbed to and the flat area in the absence of a nanostructure. It rescales the mass deposition by considering that the detected fluorescence radiation originated from a three-dimensional region rather than a flat one.

The RF-XRF measurements were performed on the substrate without MMC (NW_bg) and on the substrate on which I_SERS was measured. The latter substrate was named NW_MMC. NW_bg was used to measure the background content of sulphur that has to be subtracted to the signal of NW_MMC. The two substrates were probed with monochromatised synchrotron radiation, as schematically represented in Fig. 4a, to excite their fluorescence radiation (Fig. 4b). The content of sulphur per unit area on NW_MMC is σ_S(NW_MMC) = (3.9 ± 0.5) × 10⁻⁸ g cm⁻², while the background content evaluated on the non-functionalized substrate was σ_S(NW_bg) = (0.60 ± 0.08) × 10⁻⁸ g cm⁻². Thus, the amount of sulphur per unit area results σ_S = (3.3 ± 0.5) × 10⁻⁸ g cm⁻². Absorption effects within the Si nanowires and the thin Au layer were considered to be negligible. From σ_S, the number of sulphur atoms per unit area can be derived from the following relation μ_S = σ_S·N_A/w_S, where w_S is the atomic weight of sulphur and N_A is the Avogadro constant. Given that to each atom of sulphur there corresponds one molecule of MMC, μ_S is equal to μ_MMC/XRF = (6.1 ± 1.0) × 10⁶ μm⁻².

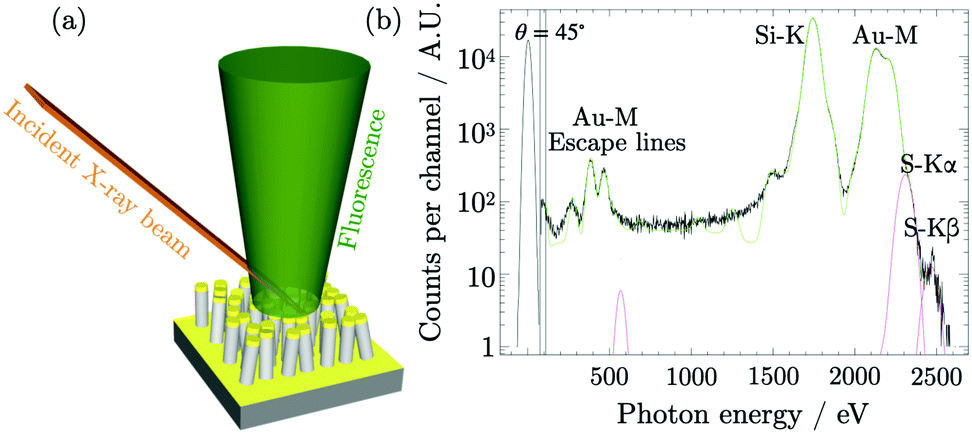

Fig. 4 (a) Schematic representation of the RF-XRF measurement where the incident X-ray beam excites the fluorescence radiation. (b) Deconvoluted fluorescence spectrum, from which the photon count for sulphur K fluorescence lines is extracted and converted to a sulphur mass per unit area, related to the presence of MMC probe molecules.

The XRF elemental specificity to target the sulphur present in MMC along the nanostructure and quantitatively measure its mass per unit area, which was related to the surface density of MMC molecules. The thiols in MMC are bound preferentially to the gold surface and it is common to assume that any unbound excess is removed from the silicon surface by rinsing the substrate. This assumption could be further verified by performing the quantification of MMC on silicon nanostructures prepared without the gold features. However, the residual MMC on silicon, if any, was neglected. The values of the molecular surface density obtained with different geometrical methods, reported in Table 1, exhibited large differences with respect to μ_MMC/XRF, varying from 1.2 to 10 times its value. Among the geometrical calculations, it is possible to observe that the packing density of vertically arranged molecules is larger than the density of rotating molecules by a factor 8.4, marking the largest difference among the geometrical results.

Table 1 Table comparing the values of the molecular surface density μ_MMC, the number of SERS molecules and the enhancement factor for the same substrate calculated by four different geometrical calculations, theoretical simulations and RF-XRF experimental measurement

	μ MMC [μm^−2]	N SERS	EF
Geom. calc. 1 circular area	(2.1 ± 0.1) × 10^6	(0.7 ± 0.2) × 10^8	(3.9 ± 1.0) × 10^5
Geom. calc. 2 rotating molecule	0.6 × 10^6	(0.20 ± 0.04) × 10^8	(14 ± 3) × 10^5
Geom. calc. 3 lateral arrangement	3.6 × 10^6	(1.2 ± 0.3) × 10^8	(2.3 ± 0.5) × 10^5
Geom. calc. 4 vertical arrangement	5 × 10^6	(1.7 ± 0.4) × 10^8	(1.7 ± 0.4) × 10^5
Theoretical simulations	4.3 × 10^6	(1.4 ± 0.3) × 10^8	(1.9 ± 0.5) × 10^5
RF-XRF	(6.1 ± 1.0) × 10^6	(2.0 ± 0.5) × 10^8	(1.4 ± 0.4) × 10^5

---

The MD simulations could be used to interpret these values. Both the assumptions leading to μ_MMC/geom1 and μ_MMC/geom2 correspond to energetically inefficient configurations of submonolayer coverage where the molecules are isolated, respectively laying flat on the gold surface and rotating around the anchor group. On the other hand, the density μ_MMC/geom3 and μ_MMC/geom4 correspond to a closely packed monolayer of molecules with the same occupancy but different spatial arrangement, laterally or vertically oriented molecules, respectively. The value of μ_MMC/geom4 corresponds to the maximum theoretical density of the molecules monolayer. The surface density μ_MMC/simul, obtained from theoretical simulations including the lateral interaction of the molecules, corresponds to a compact self-assembled monolayer (SAM) presenting strong interactions and average orientation which is intermediate between the vertical and lateral alignments.

2.6 Calculation of the enhancement factor

The calculation of the EF requires the value of N_SERS as in eqn (2), for which the surface area of the gold caps was used together with the nanostructure density, effective laser excitation area and MMC surface density μ_MMC determined by the different approaches. The outcomes are reported in Table 1. It was then possible to evaluate the enhancement factor by combining the signal intensities and number of molecules as in the eqn (1), these values are also reported in Table 1. The comparison among the resulting EFs is independent of the surface area. Different estimations of the molecular surface density affected the calculation of N_SERS and, consequently, the enhancement factor resulting in significant variability of its value. The value of the EF_geom1 and EF_geom2 are not comparable within the uncertainty with each other, neither with the EF_geom3 and EF_geom4 nor with EF_simul and EF_XRF. The largest difference among the reported values is seen as a consequence of the assumptions of the sub-monolayer coverage. The RF-XRF experimental measurements led to the estimation of a compact monolayer coverage of MMC on gold and to EF_XRF, in agreement with EF_simul within the uncertainty, thus supported by molecular dynamics computational calculations. For the compact monolayer EF_geom3 and EF_geom4 were found comparable with each other within the uncertainty, because corresponding to the same assumption on the occupancy of the MMC molecule but different spatial arrangement. Of these two, the EF calculated in the case of vertically-arranged molecules (geom4) in a compact monolayer is comparable within the uncertainty with both EF_simul and EF_XRF. The quite large relative uncertainty associated with EF_XRF should be read as an inclusive estimation of all the relevant contributions to the uncertainty budget rather than as a lack of precision. A complete description of the derivation and uncertainty budget analysis for these quantities is reported in the ESI file.†

The proposed RF-XRF method constitutes a suitable solution for the experimental determination of the molecular surface density which is performed with fully calibrated instrumental setup and physical traceability to the International System of Units. This solid method fills the absence of experimental analytical techniques supporting the calculation of the SERS enhancement factor.

3 Conclusions

In summary, we proposed reference-free X-ray fluorescence as a viable experimental methodology to evaluate the surface density of molecules adsorbed on a surface. This absolute quantitative information is fundamental to estimate the number of active molecules contributing to the enhanced Raman signal on a plasmonic substrate and, for this reason, strongly impacts the estimation of the enhancement factor. Despite relying on a specialized synchrotron radiation facility with radiometrically calibrated instrumentation, RF-XRF could be extended to commonly available XRF laboratory setup with the use of proper reference standards, so that an accurate molecular quantification could be widely implemented. This analytical methodology for the quantification of SERS-active adsorbates complies with the necessity to obtain a more reliable EF evaluation with high accuracy. It could be extended to other molecules or common analytes for SERS, independently of the presence of a thiol group. In fact, RF-XRF could be used to quantify any substance in which a convenient target element, with atomic number higher than 5, could be identified. In addition to this, we stress the importance to include a thorough uncertainty analysis in the characterization of the EF as well as the complete description of the experimental or theoretical adopted methods.³⁶ Reporting the relevant parameters systematically and adopting standardized methodologies would promote the comparison among different nanostructured systems and boosting the applicability and progress of SERS.

4 Experimental details

4.1 SERS substrate: fabrication and characterisation

The details on the fabrication protocol are reported in ref. 37. The SEM measurements, performed with FEI Inspect F field emission gun SEM (FEG-SEM), and uncertainty evaluation were carried out in comparison to a calibrated reference standard.³⁸ The AFM height micrographs were acquired with a Bruker Multimode V AFM in tapping mode with resonance frequency of 88.8 kHz. The micrographs were analysed by Gwyddion freeware.³⁹ The surface area was extracted by means of a built-in statistical tool. Additional details on the surface area characterization are reported in the ESI file.†

4.2 SERS experiment

For the preparation of the SERS experiment, the substrate was incubated in a 1 mM solution of MMC (Sigma-Aldrich 63759 7-Mercapto-4-methylcoumarin) in ethanol for 120 minutes. For normal Raman measurements, a concentration c_NR of 10 mM concentration was used to prepare the analyte solution. The Raman spectra were acquired using a Thermo Scientific DXR xi Raman Imaging confocal microscope, where the excitation laser source was chosen at 780 nm with a power of 8 mW. The exposure time was set to 1 s for 20 scans.

4.3 Reference-free XRF experiments

The RF-XRF characterization was performed at the laboratory of Physikalische-Technische Bundesanstalt (PTB), the German national metrology institute, with a dedicated beamline at BESSY II electron storage ring, a third-generation synchrotron radiation source. A thorough description of the experimental setup used at PTB can be found in ref. 40, while a scheme of the adopted experimental condition is visible in Fig. S6 in the ESI.† The employed beamline⁴¹ is equipped with a four crystals monochromator (FCM) which allows varying the energy of the incident beam from 1.75 keV to 10.5 keV. To quantify the amount of sulphur, the low-divergence monochromatic incident X-ray beam was set to have energy E₀ = 2.5 keV, larger than the X-ray absorption edge for sulphur K shell 2.472 keV. The instrumental setup, contained in an ultra-high vacuum (UHV) chamber, was equipped with both calibrated and other photodiodes used to perform the alignment procedure and to measure some characteristics of the incoming beam, including the full-width at half maximum beam width equal to (361 ± 18) μm and the photon flux ϕ₀ = (4.5 ± 0.1) × 10⁸ photons per s. The sample was mounted on a manipulator and moved along three translational axes and one rotational axis, varying the angle of incidence θ between the beam and the sample surface in the range from 27.5 and 45 with a step width of 0.5. The zero angle motor position θ₀, at which the beam is parallel to the sample surface, was measured for each sample. The emitted fluorescence was detected utilizing an energy-dispersive silicon drift detector (SDD), mounted at 90 with respect to the incident beam and fully calibrated. The solid angle of detection Ω/4π was equal to 0.01134sr in the angular range of the measurement. The knowledge of the detector response functions and detection efficiency at different energies⁴² allowed the XRF spectral deconvolution, reported in Fig. 4b, to obtain the photon counts for the elemental fluorescence lines. The vicinity of the strong Au–M peak does not influence the sulphur peak deconvolution since it is adjusted for the peak height, rather than position and shape, reducing the degree of freedom and making it more reliable.

4.4 Theoretical simulations

A model of the gold substrate was prepared with CRYSTAL17 code by cleaving a three layers thick (111) surface out of the bulk structure and by optimizing the top layer at the DFT level with PW91 functional. During the molecular mechanics (MM) and molecular dynamics (MD) simulations an 8 × 8 supercell was used, comprising 91 gold atoms per layer. The force field (FF) parameters were checked, and fitted when necessary, against ab initio model calculations, as detailed in the ESI file.† During the MM energy minimizations, the geometry of the gold slab was kept fixed. MD calculations were performed with NVT ensemble at 298 K with 0.5 fs time step, and included 1 ns equilibration and 3 ns production runs.

Authors contributions

E. C. prepared the samples, L. M., A. S., A. M. G. conducted the SERS experiments, F. C. conducted the AFM measurements, P. H., Y. K. and E. C. conducted the XRF experiments, D. M., A. Z. and M. C. conducted the theoretical simulations, E. C., L. M., P. H. and Y. K. performed data analysis, all authors contributed to writing the manuscript, F. F. L., M. L., M. C., A. M. R., N. D. L., B. B. and L. B. provided research infrastructure support and revised the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The project 16ENV07 AEROMET has received funding from the EMPIR programme co-financed by the Participating States and from the European Unions Horizon 2020 research and innovation programme. Part of this work has been carried out in the framework of the EMPIR Researcher Mobility Grant 16ENV07-RMG1. Part of this work has been carried out at Nanofacility Piemonte INRiM, a laboratory supported by the “Compagnia di San Paolo” Foundation.
