Huge enhancement of Sm²⁺ emission via Eu²⁺ energy transfer in a SrB₄O₇ pressure sensor

Abstract

Taking advantage of the excellent pressure-sensing properties of the Sm²⁺ ion in the SrB₄O₇ crystal, we demonstrate an enormous enhancement of about 60 times in the emission intensity of Sm²⁺ ions when Eu²⁺ ions are also incorporated into the crystalline structure. This enhancement is induced by the energy transfer from Eu²⁺ to Sm²⁺ ions. The spectral position of the ultra-narrow and most intense ⁵D₀ → ⁷F₀ emission line in the material was correlated with pressure and successfully calibrated up to about 58 GPa. The material exhibits favorable pressure-sensing features, i.e. dλ/dp ≈ 0.29 nm GPa⁻¹, negligible temperature-dependent shift, narrow and well-separated emission lines, and a strong luminescence signal. The samples also exhibit multicolor tunable luminescence from orange-red to amaranth, and to warm-white light, depending on the excitation wavelength used and dopant content in the matrix, allowing their potential application in white light emitting diode (LED) devices.

---

Introduction

Pressure shapes stars and planets, continents and oceans, and affects all aspects of our lives.¹ Pressure also has a crucial influence on the physicochemical properties of materials. Compression of materials under high-pressure conditions has been widely utilized for the study of pressure-induced changes of physicochemical characteristics of substances, formations of new phases or materials under extreme conditions, spectroscopic and structural variation of the chemical compounds, etc.^2–10 When trying to mimic these processes for scientific and industrial purposes in the laboratory using a high pressure anvil cell, a quick and precise determination of pressure is of paramount importance and, thanks to the transparency of diamonds and other gems in the visible range, optical pressure calibrants are often used.¹¹

In the case of a static high pressure experiment, the combination of a sample with a variety of hydrostatic pressure transmitting media (PTM) is a typical assemblage for diamond anvil cell (DAC) system, using the calibration of the line shift of the fluorescence at around 694 nm of Cr³⁺ ion in ruby, i.e. dλ/dp ≈ 0.35 nm GPa⁻¹, for the pressure determination.^12–15 However, due to the pressure-induced solidification of most of the commonly used PTMs and the subsequent loss of hydrostaticity in the sample's chamber,^15–18 a large error occurs in the ruby spectral data analysis that significantly reduces the accuracy of the pressure determination under very high pressure conditions. This is because of the relatively broad (≈0.8 nm at ambient condition) emission bands of ruby and the strong overlapping of the ruby peaks (R₁ and R₂) under non-hydrostatic, high-pressure conditions. Moreover, the fluorescence line shift of ruby is strongly temperature-dependent, i.e. dλ/dT ≈ 0.007 nm K⁻¹, which limits its pressure-sensing capability to the low-temperature range.

The SrB₄O₇:Sm²⁺ compound has been reported in many works as a splendid alternative to ruby as pressure gauge,^18–21 thanks to its favorable features such as: (I) an isolated, narrow (≈0.2 nm) and intense ⁵D₀ → ⁷F₀ emission band (0–0 line) located at around 685 nm; (II) a large pressure-induced shift of the 0–0 line (≈0.25 nm GPa⁻¹), comparable to that of Cr³⁺ in ruby, (III) a negligible temperature coefficient (10⁻⁴ nm K⁻¹), and (IV) excellent thermal, chemical and structural stabilities. However, despite these benefits, and as it also happens to ruby, the inevitable decrease of Sm²⁺ luminescence intensity under pressure may limit the measurable pressure range and also may diminish the sensing accuracy.

The divalent lanthanide (Ln) ions are interesting luminescent centers because of the smaller energy gap between the 4fⁿ ground and the first excited 4fⁿ⁻¹5d configurations compared to the Ln³⁺ ions.^22–29 This smaller energy difference increases the mixing of wavefunctions of the different configurations, i.e. increasing the 5d state opposite parity character of the 4f wavefunctions, that shorten the lifetime and increases the intensity of the luminescence of Ln²⁺ ions.³⁰ The divalent europium ion (Eu²⁺) has many advantages, such as intense broad excitation and emission bands corresponding to the allowed 4f⁶5d ↔ 4f⁷ transitions, relatively low reduction potential, relatively high stability, etc.^31–35 Thanks to the large absorption in the UV region of Eu²⁺ in many host materials, this ion may exhibit excellent sensitization effects to other lanthanide ions.^36–40 According to energy transfer (ET) mechanism,^41–43 such a process occurring from sensitizer (Eu²⁺) to activator ions can effectively enhance emission of the luminophore. A host material based on the SrB₄O₇ crystal structure is a good choice for effective combination of sensitizing properties of Eu²⁺ ions with the targeted Sm²⁺ activator ions, to enhance luminescence performance of the system. This is because SrB₄O₇ host reveals excellent stabilization of both Eu²⁺ and Sm²⁺, even at high temperature in an oxidizing atmosphere. Moreover, the similar ionic radii of the dopant and host ions (R_Eu²⁺ = 1.39 Å, R_Sm²⁺ = 1.41 Å and R_Sr²⁺ = 1.40 Å) provide less lattice distortion of the synthesized crystals.^44–47

Many works have focused on the synthesis of different compounds doped with Sm²⁺ and other trivalent lanthanide ions, i.e. Ce³⁺, Er³⁺, Tm³⁺, etc., and their use for pressure sensing applications.^{25,26,48–53} However, there are no reports concerning signal enhancement of pressure sensors via the ET processes from Eu²⁺ to other Ln^2+/3+ ions, which may significantly increase the emission intensity of various co-doped optical sensors, working under high pressure conditions. Herein, we report a huge enhancement of about 60 times in the emission intensity of Sm²⁺ caused by the Eu²⁺ → Sm²⁺ ET in the co-doped SrB₄O₇ compound synthesized by a simple solid-state method in air, and its application as a well-calibrated and accurate optical pressure sensor, which can work simultaneously under extreme conditions of pressure and temperature. In addition, we also demonstrate multi-color tunable emission from orange-red to warm white, depending on the concentration of Sm²⁺ and Eu²⁺ ions in the host and the excitation wavelength used.

Results and discussions

Structural and morphological properties

Information concerning the raw material used, synthesis and characterization are available in the ESI.† The powder X-ray diffraction (XRD) patterns (Fig. S1 in ESI†) of the SrB₄O₇:0.01Sm²⁺,xEu²⁺ (x = 0, 0.005, 0.01, 0.03, 0.05, 0.07 and 0.09) micro-particles fit well with the reference patterns (card no. 071-2191) from the ICDD standards database: orthorhombic SrB₄O₇ phase with space group Pmn2₁. The graphical representation of crystal structure is shown in Fig. 1a, where it is indicated that only one Sr²⁺ site exists in the structure of SrB₄O₇ host occupying a nonahedron (coordination number: 9) with local point symmetry C_2v, and the cell parameters are: a = 4.431(4) Å, b = 10.707(10) Å, c = 4.237(4) Å, V = 200.810 ų.

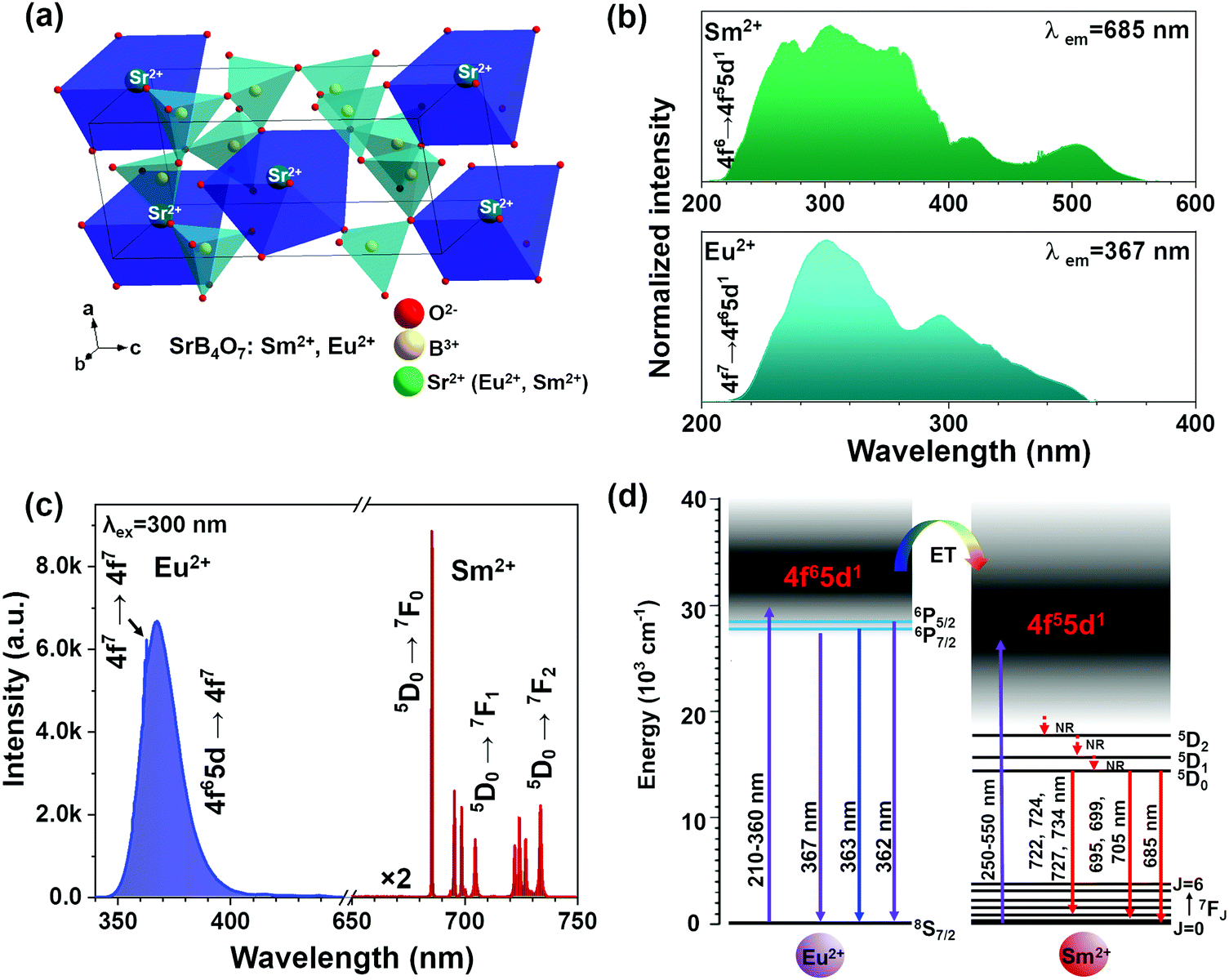

Fig. 1 (a) Graphical representation of the crystal structure of orthorhombic SrB₄O₇ matrix (Pmn2₁ space group). (b) The excitation spectra monitoring the emission at 685 nm for Sm²⁺ (top) and λ_em = 367 nm for Eu²⁺ (bottom) and (c) the emission spectrum at λ_ex = 300 nm of the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ compound. (d) Simplified energy level diagram for the Sm²⁺ and Eu²⁺ ions and emission processes in the co-doped SrB₄O₇ system with the possible Eu²⁺ → Sm²⁺ ET process.

The morphology of the synthesized products was inspected by a scanning electron microscopy (SEM), and the representative SEM images of SrB₄O₇:0.01Sm²⁺,xEu²⁺ samples (x = 0, 0.01, 0.03, 0.05) are shown in Fig. S2 (ESI†). The synthesized products are composed of irregular, nearly-spherical micro-particles (typical of inorganic borates), whose sizes range from approximately ∼0.2 to 2.0 μm. With increasing content of Eu²⁺, from 0 to 5 mol% (x = 0–0.05), the particle sizes vary slightly, which can be attributed to the similar ionic radii between the host and dopant ions.^54–56 In Fig. S2e–k (ESI†), the representative elemental mapping results and the EDX spectrum of the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ compound revealed that the obtained phosphor consist of Sr, B, O, Eu and Sm, and these elements are uniformly distributed in the prepared product over the whole particle volume.

Optical properties at ambient conditions

The photoluminescence (PL) emission and excitation spectra, as well as luminescence decay curves, of the samples obtained were recorded under the same experimental conditions, and were corrected for the apparatus response. In Fig. 1b, the excitation spectra are given for the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ compound recorded monitoring the emission at 685 nm for Sm²⁺ (top) and 367 nm for Eu²⁺ (bottom). It was found that the excitation spectra of both Sm²⁺ and Eu²⁺ consist of two overlapped broad peaks with maxima at around ≈250 nm and ≈300 nm, which are due to the splitting of 5d orbital into the t_2g and e_g components.⁵⁷ Upon UV light excitation at 300 nm (the highest peak in excitation spectra of Sm²⁺ in Fig. 1b), the PL emission spectrum of the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ compound was examined. As shown in Fig. 1c, the emission spectrum consists of UV-violet and red bands. In the UV-violet region, the detected emission band can be deconvoluted into two peaks, i.e. the characteristic 4f⁶5d → 4f⁷ transition of Eu²⁺ centered at 367 nm (broad band) and the rarely observed 4f⁷–4f⁷ line-type (narrow) transitions of Eu²⁺ centered at ≈362.1 and ≈362.7 nm.^58–61 On the other hand, the red emissions of Sm²⁺, located in the range of ≈680–750 nm, correspond to ⁵D₀ → ⁷F₀ (685.4 nm), ⁵D₀ → ⁷F₁ (695.4, 698.6, 704.6 nm), ⁵D₀ → ⁷F₂ (722.1, 724.2, 727.0 and 733.5 nm) and they are associated with 4f⁶–4f⁶ intra-configurational transitions of Sm²⁺ ions. It is clearly seen that the ⁵D₀ → ⁷F₀ transition of Sm²⁺ exhibits its characteristic isolated, narrow and intense singlet band located at 685.4 nm. In the case of inevitable broadening of emission peaks under high pressure conditions, such a characteristic intensive, singlet and narrow 0–0 line of Sm²⁺ in a co-doped SrB₄O₇, reveals its superiority for high-pressure measurements, in comparison with the emissions bands of other transition metal ions (e.g. Mn⁴⁺, Ce³⁺, Er³⁺).^53,62–64 This is attributed to the fact that the lowest emitting level and the ground state of the Sm²⁺ ion are singlets, i.e. non-degenerated multiplets with a total angular quantum momentum (J number) equal to zero. In addition, the ⁵D₀ → ⁷F₁ band presents three sharp peaks, while the ⁵D₀ → ⁷F₂ band presents only four out of five peaks. Hence, all the observed Sm²⁺ bands are split in a maximum of 2J + 1 Stark components, which further confirms only one Sm²⁺ local symmetry site (local point symmetry C_2v) existing in the SrB₄O₇ structure.

To better comprehend the feasible ET process and the luminescence mechanisms governing the generation of UV-violet and red emissions, the simplified energy level diagram of Eu²⁺ and Sm²⁺ ions is illustrated in Fig. 1d. With the excitation of UV light (from 210 to 360 nm), the Eu²⁺ ions can be excited from their ground ⁸S_7/2 level to the excited 4f⁶5d¹, as well as ⁶P_5/2 and ⁶P_7/2 levels, and then radiatively relax to the ground state, accompanied with a broad UV-violet emission (5d → 4f) overlapping with line-type emission (4f⁷ → 4f⁷) of Eu²⁺. Meanwhile, the Sm²⁺ ions populating the ⁷F₀ ground state can be excited to the 4f⁵5d¹ first excited configuration of Sm²⁺ when pumping at λ_ex = 250–550 nm. Afterward, non-radiative (NR) decays occur, populating the lowest excited level ⁵D₀, finally leading to a series of radiative ⁵D₀ → ⁷F_J transitions, giving rise to the characteristic narrow bands of the red emission of Sm²⁺ ions. We assume that there is an energy transfer (ET) process between the Eu²⁺ and Sm²⁺ ions in the SrB₄O₇ host, which will be discussed in detail in the following paragraphs.

In order to explore the influence of Eu²⁺ ion concentration on the emission properties of the synthesized samples, the emission spectra exciting at λ_ex = 300 nm of the samples as a function of the Eu²⁺ ion content are shown in Fig. 2a. It is clearly seen that all the emission spectra consist of UV-violet emission bands of Eu²⁺ ions and red emission lines from Sm²⁺ ions, except of the sample without Eu²⁺ ions (SrB₄O₇:0.01Sm²⁺) that only shows Sm²⁺ emission lines. With increasing the Eu²⁺ ion content from 0.5 to 9 mol% (x = 0.05–0.9), the shape of emission peaks scarcely varies, whereas the emission intensity and the Eu²⁺/Sm²⁺ band intensity ratios are greatly dependent on the Eu²⁺ doping content. In the UV-violet region, the emission intensity of Eu²⁺ maintains an upward tendency with increasing the Eu²⁺ doping content from 0 to 9 mol%. For detailed investigation of the sensitization effect of Eu²⁺ in the synthesized samples, the magnified emission spectra of the Sm²⁺: 0–0 line (in a narrow range) as a function of the Eu²⁺ doping content are shown in Fig. 2b. As disclosed, the Sm²⁺ emission intensity of the samples is highly dependent on the Eu²⁺ concentration and the best enhancement occurs for x = 0.03 (inset in Fig. 2b). Based on the integrated emission intensity of Sm²⁺ in the SrB₄O₇:0.01Sm²⁺,xEu²⁺ samples (see Table S1 in ESI†), it is clearly seen that the addition of even 0.5 mol% of Eu²⁺ results in the ≈16-times enhancement in emission intensity of Sm²⁺ compared to the sample without Eu²⁺ ions. As the Eu²⁺ content further increases, the enhancement demonstrates an upward tendency, exhibiting its optimal value, i.e. about 60 times enhancement, with 3 mol% of Eu²⁺. Afterwards, the emission intensity of Sm²⁺ ions starts to decrease when the doping concentration is over 3 mol%, probably due to the concentration quenching effects. Such a large increase in the intensity of Sm²⁺ emission in this material may be attributed to the ET phenomenon, occurring from Eu²⁺ to Sm²⁺ ions.

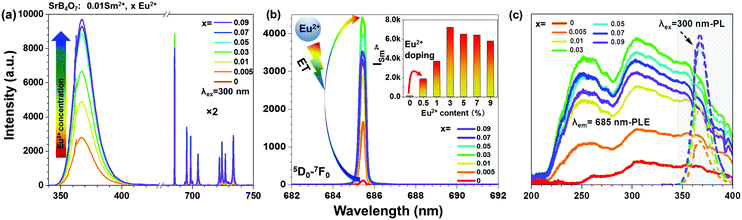

Fig. 2 (a) Emission spectra of the SrB₄O₇:0.01Sm²⁺,xEu²⁺ (x = 0, 0.005, 0.01, 0.03, 0.05, 0.07 and 0.09) compounds, using λ_ex = 300 nm at ambient condition. (b) Magnified emission spectra showing the 0–0 line of Sm²⁺ as a function of Eu²⁺ content x. (c) Excitation spectra for Sm²⁺ ions monitoring the emission at 685 nm (solid lines) and their overlapping part (shaded area) with Eu²⁺ emission (dashed lines) of the samples.

For the sake of studying the possible ET process from the Eu²⁺–Sm²⁺ ions, the emission spectra recorded at λ_ex = 300 nm (Eu²⁺) and the excitation spectra at λ_em = 685 (Sm²⁺) of SrB₄O₇:0.01Sm²⁺,xEu²⁺ (x = 0–0.09) are shown in Fig. 2c, emphasizing their overlapping parts. It can be clearly seen that all the obtained samples have a very broad excitation band from 200 to over 400 nm, with the highest peak at around 300 nm, associated with Sm²⁺ ions that overlaps the Eu²⁺ emission band, located in the range from 345 to 400 nm. In fact, Eu²⁺ begins to emit even at lower wavelengths, however, due to the technical reasons, i.e. the necessity of using a long-pass (350 nm) filter, this emission is partially cutoff. The overlapping area indicates the resonant channel for ET from Eu²⁺ to Sm²⁺ ions, which occurs in the Sm²⁺–Eu²⁺ co-doped SrB₄O₇ system, leading to the enhancement of Sm²⁺ emission.⁶⁵

The Commission Internationale de I’Eclairage (CIE) chromaticity diagram for the SrB₄O₇:0.01Sm²⁺,xEu²⁺ (x = 0–0.09) samples and the corresponding photographs of the samples under irradiation with a 254 nm UV lamp are shown in Fig. 3a. All the samples obtained are white powders in daylight. The presented colors in the CIE diagram (based on the emission spectra characteristics) agree with the luminescence photographs. As disclosed, the samples obtained exhibit multi-color tunable emission from orange-red to warm white, depending on the Eu²⁺ content in the phosphor. The corresponding emission spectra excited at 254 nm are shown in Fig. 3b. Moreover, as shown in Fig. 3c and d, the emission color of the best-enhanced sample (SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺) can also be tuned depending on the excitation wavelength used. Noteworthy, the determined color coordinates of the Sm²⁺–Eu²⁺ co-doped SrB₄O₇ are very close to the white illumination (0.310, 0.316), e.g. 0.322, 0.306 (9 mol% of Eu²⁺) and 0.330, 0.325 (3 mol% of Eu²⁺), indicating that the phosphors obtained have potential application in white LED. All determined color coordinates as a function of the Eu²⁺ doping concentration and the excitation wavelength used are shown in Tables S2 and S3 in ESI,† respectively.

Fig. 3 (a) CIE chromaticity diagram and luminescence images of the SrB₄O₇:0.01Sm²⁺,xEu²⁺ (x = 0–0.09) phosphors, excited at 254 nm, and (b) the corresponding emission spectra. (c) CIE chromaticity diagram of SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ as a function of representative excitation wavelengths, and (d) the corresponding emission spectra.

Optical properties at high pressure

To investigate the pressure-sensing abilities of Sm²⁺ in the Eu²⁺ co-doped SrB₄O₇ material, the best-enhanced sample, i.e. SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺, was used in high-pressure measurements from ambient pressure up to about 58 GPa. The experimental setup used for the measurements of high-pressure luminescence is schematically presented in Fig. 4a. Due to technical reasons (availability of a high-power, focusable light source), the sample was excited at 280 nm, which is close to the optimal excitation wavelength. Technical details concerning measurements under high-pressure and sample preparation for DAC are presented in ESI.†

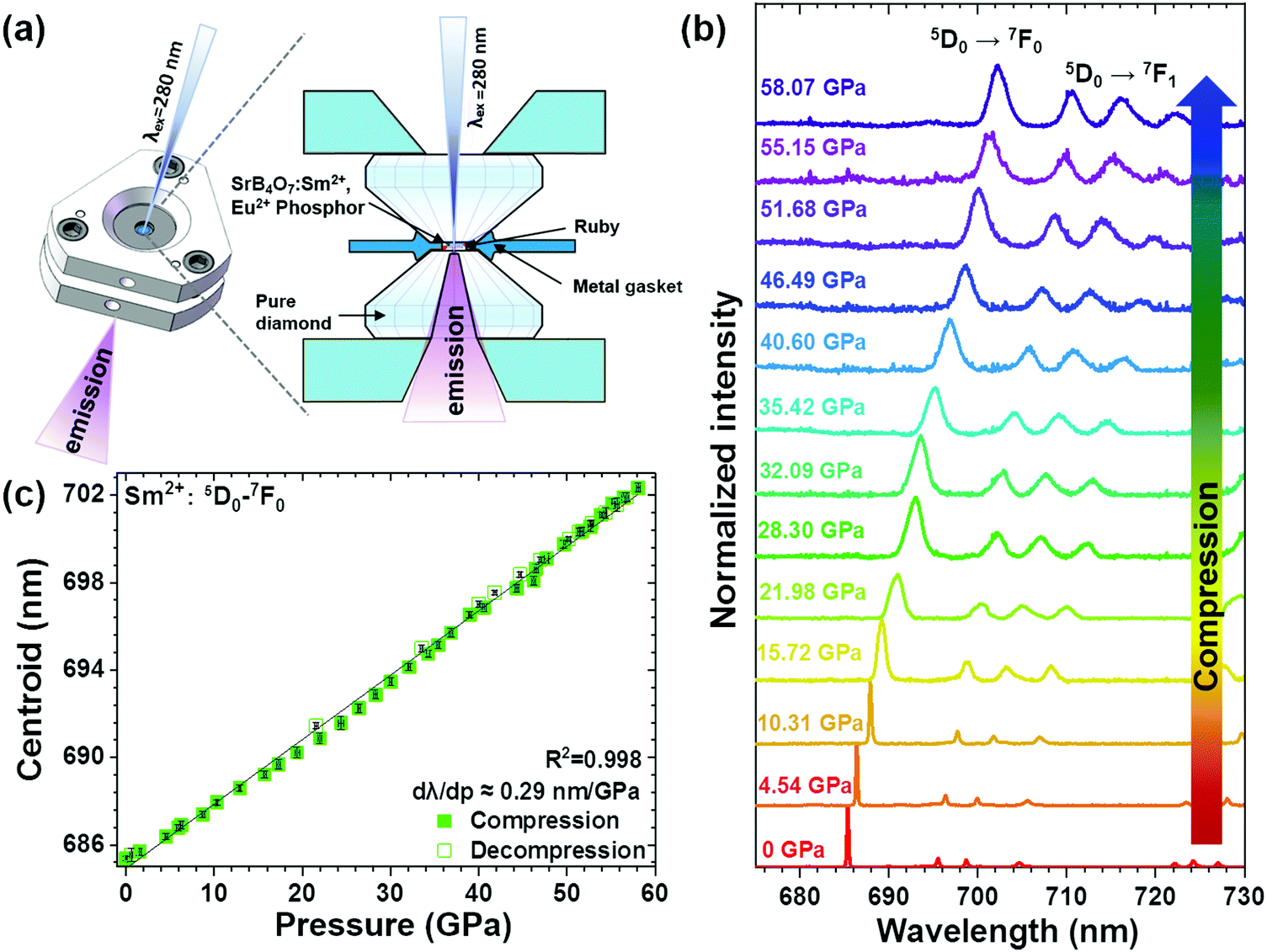

Fig. 4 (a) Schematic configuration of the setup used for high-pressure luminescence measurements. (b) The normalized emission spectra of the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ material as a function of pressure; λ_ex = 280 nm. (c) Spectral positions (peak centroids) of the ⁵D₀ → ⁷F₀ emission peak as a function of pressure. The filled symbols represent the compression and the empty ones decompression data.

The normalized emission spectra of the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ material under pressure are shown in Fig. 4b. It can be clearly seen that, when the pressure increases, the red-shifts of the ⁵D₀ → ⁷F₀ and ⁵D₀ → ⁷F₁ emission peaks are observed. These shifts to lower energies under pressure are caused by an overall contraction of the 4f^N ground configuration leading to a reduction in the energy difference between the ground state and the excited state of the ^2S+1L_J multiplets.^11,51 This phenomenon is related to decreasing coulomb and spin–orbit interactions under pressure, and it is called nephelauxetic effect,⁶⁶ which can be accounted by a reduction of the free-ion parameters due to the increasing covalent character of the lanthanide–oxygen bonds, when interatomic distances decrease along with decreasing volume. Superimposed on the reduction in multiplets splitting, there is an increase in the splitting of the multiplets, ascribed to an increase of the crystal field interaction between the 4f electron of the lanthanide ion and the valence electrons of the oxygen anions of the first coordination shell, when interatomic distances decrease with pressure.¹⁰ This can be clearly observed in the splitting of the ⁵D₀ → ⁷F₁ emission peaks that increases from ≈9.2 nm (≈188 cm⁻¹) at ambient pressure to ≈11.8 nm (≈230 cm⁻¹) at 58.07 GPa. The emission spectra for all recorded pressure values are shown in Fig. S3(a–c) (ESI†).

The calibration curve for the spectral position of the Sm²⁺ 0–0 line as a function of pressure, in the compression and decompression cycles is presented in Fig. 4c. The peak centroid reversibly shifts from about 685.4 nm at ambient pressure to 702.3 nm at 58.07 GPa, which can be well fitted (R² = 0.998) to a linear function. The calculated shift rate for this band is dλ/dT ≈ 0.29 nm GPa⁻¹, which is close to the shifts of the SrB₄O₇:Sm²⁺ reported previously^18–21,45 and also to that reported for ruby.^12,15 All the exact dλ/dP values, and the initial and final spectral positions of the peak centroids (⁵D₀ → ⁷F₀ and ⁵D₀ → ⁷F₁ transitions) are presented in Table S4 in ESI.† The 0–0 line of Sm²⁺ in the SrB₄O₇:Eu²⁺–Sm²⁺ material is almost temperature-independent showing a relatively low thermal-quenching effect of dλ/dT ≈ −2.8 × 10⁻⁴ nm K⁻¹, as reported for SrB₄O₇:Sm²⁺ in several papers,^18–21,45 which we additionally confirmed for our compound (see Fig. S4 in ESI†). The low thermal-quenching effect presented, i.e. ≈75% of the initial emission intensity at 420 K (working temperature of LED devices), is beneficial not only for pressure sensing, but also for potential use in lighting applications.^67,68

The broadening of the ⁵D₀ → ⁷F₀ and ⁵D₀ → ⁷F₁ band profiles together with the increase in pressure (volume reduction) is clearly seen in the presented emission spectra (Fig. 4b). At ambient conditions, the 0–0 line is extremely narrow, i.e. the full width at half maximum Γ ≈ 0.23 nm. It keeps an upward tendency with increasing pressure (see Fig. S3d, ESI†) and increases to ≈1.81 nm at 26.42 GPa, which is mainly due to the increasing non-hydrostaticity of the pressure transmitting medium used. Then, this peak undertakes a slower broadening, up to ≈2.27 nm at 58.07 GPa, with an average dΓ/dP ≈ 14.5 × 10⁻³ nm GPa⁻¹.

Confirmation of ET from Eu²⁺ to Sm²⁺ in co-doped SrB₄O₇

In order to fully confirm the ET from Eu²⁺ to Sm²⁺, a series of SrB₄O₇ doped with a constant amount of Eu²⁺ and varied content of Sm²⁺ were synthesized. As shown in Fig. S5a (ESI†), the XRD patterns of the SrB₄O₇:ySm²⁺,0.05Eu²⁺ (y = 0.005, 0.01, 0.02, 0.03 and 0.05) micro-particles indicated that all phosphors were successfully synthesized. In Fig. S5b (ESI†), the emission spectra are shown for the excitation wavelength λ_ex = 254 nm, indicating a gradual increase in the Sm²⁺ emission intensity and a deterioration of Eu²⁺ emission, as the Sm²⁺ doping content increases. In the inset in Fig. S5(b) (ESI†), the integrated emission intensity ratio of Sm²⁺/Eu²⁺ as a function of Sm²⁺ concentration shows an upward tendency. The CIE diagram for the synthesized phosphors at λ_ex = 254 nm, i.e. the comparison of the emission color between different doping content of Sm²⁺ is shown in Fig. S5c (ESI†). The colors presented in this CIE diagram agree with the luminescence photographs. The corresponding color coordinates are listed in Table S5 (ESI†). Accordingly, the corresponding emission color can be tuned from orange-red to amaranth depending on the Sm²⁺ content in the SrB₄O₇:ySm²⁺,0.05Eu²⁺ samples.

The photoluminescence decay curves of the as-prepared SrB₄O₇:ySm²⁺,0.05Eu²⁺ (y = 0.005–0.05) samples are presented in Fig. S5d (ESI†). The luminescence decay curves of these phosphors were recorded at λ_em = 367 nm for the Eu²⁺ ion after the excitation at 300 nm. The decay curves of Eu²⁺ emission show a non-exponential character (due to the high doping concentration). However, to analyze the tendency of luminescence lifetimes as a function of Sm²⁺ content, and confirm the Eu²⁺ → Sm²⁺ ET phenomenon, the decay profiles were fitted (R² > 0.999) to the bi-exponential function:

I = A₁ exp(−x/τ₁) + A₂ exp(−x/τ₂) (1)

where I is the luminescence intensity at time x, A is the amplitude, and τ is the emission lifetime. It is indicated that, in the recorded decay profiles, there are at least two components (τ₁ and τ₂), which are associated with the ET process from Eu²⁺ to Sm²⁺ in the crystal lattice. The determined emission lifetime values of Eu²⁺ ion as a function of Sm²⁺ content are presented in Table 1. Clearly, the average lifetime (τ) of Eu²⁺ decreases monotonically from 2.388 to 1.649 μs as the content of Sm²⁺ increases, which further confirms the efficient ET from Eu²⁺ to Sm²⁺ occurring in the Sm²⁺–Eu²⁺ co-doped SrB₄O₇ system, in which the Eu²⁺ ions act as sensitizers and the Sm²⁺ ions act as activators. Additionally, the luminescence decay curves for all Stark sublevels of ⁵D₀ → ⁷F₀, ⁵D₀ → ⁷F₁ and ⁵D₀ → ⁷F₂ transitions of Sm²⁺ ions, in the SrB₄O₇:0.01Sm²⁺,0.03Eu²⁺ system were measured and analyzed (see Fig. S6 in the ESI†). As shown in Table S6 in the ESI,† all the determined luminescence lifetimes for Sm²⁺ are similar, i.e. around 4 ms, because for all bands the emission occurs from the same excited state (⁵D₀).

Table 1 Determined decay times for the Eu²⁺ 4f⁶5d¹ → 4f⁷ transition in the SrB₄O₇:ySm²⁺,0.05Eu²⁺ (y = 0.005, 0.01, 0.02, 0.03 and 0.05) compounds synthesized

Sample (% Sm^2+)	Eu^2+ (4f^65d^1 → 4f^7)
	τ 1 (μs)	A 1 (%)	τ2 (μs)	A 2 (%)	τ (μs)	R ^2
0.5	0.668 ± 0.006	0.117	2.616 ± 0.002	0.883	2.388	>0.999
1	0.570 ± 0.006	0.142	2.500 ± 0.004	0.858	2.226	>0.999
2	0.559 ± 0.002	0.189	2.326 ± 0.002	0.811	1.992	>0.999
3	0.461 ± 0.002	0.249	2.227 ± 0.002	0.751	1.787	>0.999
5	0.398 ± 0.002	0.272	2.117 ± 0.003	0.728	1.649	>0.999

---

Conclusions

Incorporating Eu²⁺ ions into the crystal structure of the commonly used optical pressure sensor SrB₄O₇:Sm²⁺ (temperature-independent gauge), we have demonstrated a huge enhancement of about 60 times on the Sm²⁺ emission, induced by energy transfer processes from Eu²⁺ to Sm²⁺ in the co-doped material. The samples obtained exhibit color-tunable luminescence from orange-red to amaranth, and to warm white depending on the Sm²⁺ and Eu²⁺ concentrations in the matrix and the excitation wavelength. The most intense and extremely narrow (≈0.2 nm) 0–0 line of the Sm²⁺ (around 685 nm) in the best-enhanced sample (SrB₄O₇: 1 mol% Sm²⁺, 3 mol% Eu²⁺) was correlated with pressure and successfully calibrated up to about 58 GPa. The emission line used for pressure sensing exhibit a large and linear red-shift under pressure, i.e. dλ/dp ≈ 0.29 nm GPa⁻¹, a negligible temperature-induced band-shift and relatively low thermal quenching of luminescence. The energy transfer processes from Eu²⁺ to Sm²⁺ ions were confirmed by luminescence spectroscopy. Such favorable features can significantly extend the measurable pressure range, along with very high accuracy of pressure determination, even under high temperature conditions, and the material can be applied in white light emitting diode (LED) devices.
