Correction: Transient coarsening and the motility of optically heated Janus colloids in a binary liquid mixture

Abstract

Correction for ‘Transient coarsening and the motility of optically heated Janus colloids in a binary liquid mixture’ by Juan Ruben Gomez-Solano et al., Soft Matter, 2020, DOI: 10.1039/d0sm00964d.

---

There is a missing Appendix in the original article. Additionally, the Appendix titled ‘Diffusive model' in the original article is incorrectly labelled as Appendix A; this should be Appendix B. Appendix A is as below:

A Determination of the local temperature

In order to determine the local temperature of the gold-coated side of the particle under green illumination, we take advantage of the visibility of the fluid droplet formed around the particle surface when heated above T_c = 31.9 °C. First, we set the temperature of both the binary mixture and the Janus particle to T₀ = 28 °C by means of a thermostat in contact with the sample cell. This is the temperature at which all experiments described in the present paper are performed. Next, we apply green illumination to the particle (intensity I = 2 μW μm⁻²), which is sufficient to observe the coarsening patterns investigated here, until the final steady-state droplet is formed, as shown in Fig. 14(a). This value of I corresponds to the intensity of the incident green light reported in the main text. By keeping T₀ constant, we slowly decrease the light intensity I. In this way, the absolute temperature of the golden cap, T₀ + ΔT, also decreases, thereby decreasing the size of the resulting droplet, see Fig. 14(b) and (c). On the other hand, the unknown temperature rise of the cap (with respect to T₀) due to light absorption depends linearly on I, i.e., ΔT = kI, where k is a constant which depends on the particle size and the thickness of the gold cap. The value of I at which the droplet completely disappears corresponds to a local temperature of the golden cap at the critical value, i.e., T₀ + ΔT = T_c. We find that this occurs at I = 1 μW μm⁻², as shown in Fig. 14(d), from which we infer that k = 3.9 °C μW⁻¹ μm², thus leading to a local temperature rise of ΔT = 7.8 °C at I = 2 μW μm⁻².

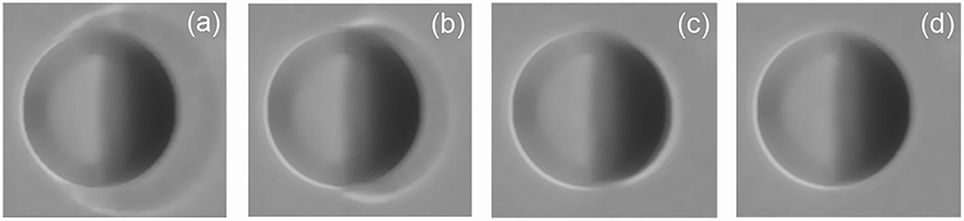

Fig. 14 Snapshots of the steady-state concentration profiles of the PnP–water mixture around a spherical Janus colloid (hydrophilic gold cap) under various illumination intensities: (a) I = 2.0 μW μm⁻², b) I = 1.7 μW μm⁻², c) I = 1.3 μW μm⁻², and d) I = 1.0 μW μm⁻². In all cases, the sample cell is kept at T₀ = 28 °C by means of a thermostat.

Additionally, the authors note the description for some of the symbols and their colours are incorrect within Section 3.1.4. Any expression of (blue squares in Fig. 4(a)) should be (black squares in Fig. 4(a)), any expression of (black squares in Fig. 4(b)) should be (black diamonds in Fig. 4(b)) and any expression of (red squares in Fig. 7(b)) should be (black squares in Fig. 7(b)).

Furthermore, in Section 3.2.2, in the last paragraph, T = −1 should be [scr T, script letter T]₁ = −1.

The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.

---
