Directional-dependent pockets drive columnar–columnar coexistence

Álvaro González García *ab, Remco Tuinier *b, Gijsbertus de With b and Alejandro Cuetos c
aLaboratory of Physical Chemistry, Department of Chemical Engineering and Chemistry, Eindhoven University of Technology, The Netherlands. E-mail: a.gonzalez.garcia@tue.nl
bVan’t Hoff Laboratory for Physical and Colloid Chemistry, Department of Chemistry & Debye Institute, Utrecht University, The Netherlands. E-mail: r.tuinier@tue.nl
cDepartment of Physical, Chemical and Natural Systems, Universidad Pablo Olavide, 41013 Sevilla, Spain

Received 4th May 2020 , Accepted 15th June 2020

First published on 19th June 2020


Abstract

The rational design of materials requires a fundamental understanding of the mechanisms driving their self-assembly. This may be particularly challenging in highly dense and shape-asymmetric systems. Here we show how the addition of tiny non-adsorbing spheres (depletants) to a dense system of hard disc-like particles (discotics) leads to coexistence between two distinct, highly dense (liquid)-crystalline columnar phases. This coexistence emerges due to the directional-dependent free-volume pockets for depletants. Theoretical results are confirmed by simulations explicitly accounting for the binary mixture of interest. We define the stability limits of this columnar–columnar coexistence and quantify the directional-dependent depletant partitioning.


Compartmentalization, the distribution of components over different domains, occurs at multiple length scales. Competition for space, which grants access to resources of different kinds, leads to the emergence of patterns, for example, in the canopies of trees,1 in crowds of humans,2 and in predator-prey fish schools.3 Inside a prokaryotic cell, the shape and size of organelles influences their final distribution;4 this effect is termed macromolecular crowding.5 Therefore, understanding the fundamentals underlying the simple question ‘what goes where’ is paramount in the rational design of materials. In this Communication, we extend the concept of geometrical free volume fractions6 to highly dense systems containing disc-like (discotic) particles in the presence of tiny non-adsorbing spheres. For the reader who is interested in more details we refer to the ESI and will provide our Mathematica7 scripts upon a reasonable request.

Size and shape asymmetry play a crucial role in the distribution of compounds in multi-component systems:3 small compounds only fit in the free volume pockets available in between the larger ones. The partitioning of non-adsorbing components (depletants) leads to a depletion zone around the bigger entities, where the depletant concentration is lower than in the bulk. This depletion zone relates to the excluded volume between the species:8 the space inaccessible to a second particle due to the presence of the first one.9 In a mixture of anisotropic particles and non-adsorbing spheres interacting solely via excluded volume, the spheres induce attraction patches between the anisotropic particles due to their optimal entropic gain upon maximun overlap of the depletion zones.10 Colloidal systems have been proposed as candidates to isolate the role of excluded volume in highly size- and shape-asymmetric, dense environments.11–13 The role of entropy in self-assembly, termed shape-entropy,14,15 has received substantial attention via controlled theoretical,16 simulational,17,18 and experimental19,20 studies. Discotic colloids are widespread in natural and human-made products spanning from blood,21 laquer coatings,22 clays,23 paints,24 cosmetics,25 and nacre-mimetic materials26 to coloration-change mechanisms.27 In many of these examples, discotics are not the only compound present. Thus, a better understanding of partitioning in simple discotic–depletant mixtures will provide guidelines towards a smarter material design. Here, we quantify the distribution of tiny non-adsorbing spheres in dense discotic systems. To this end, we developed a geometrical free-volume theory (FVT) whose predictions are confirmed via direct coexistence Monte Carlo simulations accounting for the binary mixture.

We focus on the columnar phase of discotics, containing a one-dimensional stacking of hexagonally-arranged particles.28,29 The system parameters are the disc aspect ratio (i.e., the relative thickness of the platelet) ΛL/D, where L is the platelet's thickness and D is its diameter, and the relative size of the depletant, q ≡ 2δ/D, where δ is the radius of the depletant [Fig. 1(a)]. We consider a system (S) with volume V containing Nc discotics with volume vc at volume fraction ϕc = (Ncvc)/V. The depletant volume fraction is ϕd = (Ndvd)/V, where Nd is the number of depletants with volume vd in S. We consider depletants as penetrable hard spheres (PHSs):30 they do not interact with each other but are hard for the discotics. Theoretically, we account for platelets as hard cylinders;31 in simulations we consider oblate hard spherocylinders (OHSCs).29,32 We apply free volume theory (FVT,33 see ESI) to discotic–depletant mixtures. This FVT accounts for the partitioning of depletants over the different phases present in the system.34 Unless otherwise indicated, we focus on Λ = 0.1 and q = 0.01.


image file: d0sm00802h-f1.tif

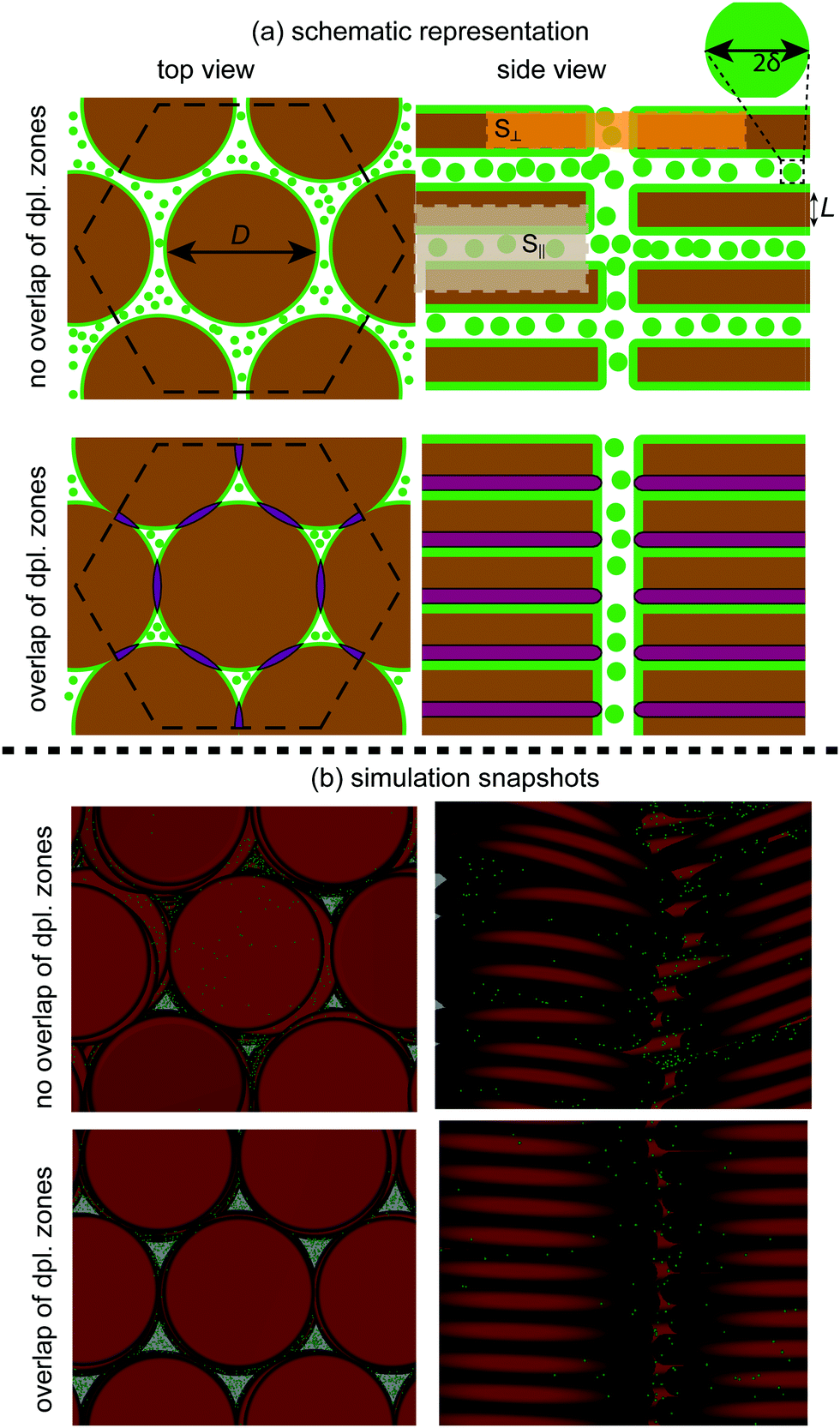

Fig. 1 Top panels: Representation of the inter- and intra-columnar depletion zone overlaps (purple) present when discotics (brown) are mixed with tiny depletants (green); q ≡ 2δ/D = 0.05. Depletion zones around platelets indicated in green. The effective small systems for depletants in the inter-columnar (S) and intra-columnar (S) directions are shown as orange and grey boxes. Bottom panels: Snapshots of discotic–depletant mixtures in the intra- and inter-columnar directions; ΛL/D = 0.1, q = 0.01.

In Fig. 2, the free volume fraction for depletants in the columnar phase αC is presented. Contrary to common FVT, this function is calculated on geometrical grounds by analyzing the overlap of the depletion zones within the columnar unit cell. If there is no overlap of the depletion zones, αC is the volume unoccupied by the depletion zones and discotics over the system volume. Overlap of depletion zones leads to an increase in αC. This overlap occurs either in the intra-r or in the inter-r columnar direction [Fig. 1(a)]. Overlap of depletion zones in r occurs at lower ϕc than in r.35 The kink point in αC at ϕc ≈ 0.77 marks the lowest discotic volume fraction ϕc at which depletion zone overlap in r occurs. Due to the low q-value considered, for ϕc<ϕc the αC-value calculated using the geometrical method proposed here or via the commonly applied scaled particle theory (SPT)34 almost overlap. However, the SPT-derived αC underestimates the pockets for tiny depletants in the discotic columnar phase for ϕc > ϕc: the partitioning of depletants is biased towards the low-density discotic phases when using an SPT-derived αC.


image file: d0sm00802h-f2.tif
Fig. 2 Free volume fraction for depletants in the discotic columnar phase αC with increasing ϕc; Λ = 0.1 and q = 0.01. Black curve is the expression used in the calculation of the binodals, orange and purple curves are the free volume fraction in the intra- and inter-columnar directions, and grey curve corresponds to weighted arithmetic mean. Dashed grey curve is the scaled particle theory (SPT) result for αC.31 Arrows indicate the ϕc at which the overlap of the depletion zones in the intra- and inter-columnar directions occurs.

The geometrically-based αC enables quantification of the distribution of depletants into two effective small systems: (1) in r, between the flat faces of the platelets; (2) in r, from the sides of the platelets [Fig. 1(a)]. There is always room for depletants in r (αC > 0 ∀ ϕc), whilst αC vanishes upon the overlap of the depletion zones between the flat faces of the discotics (in r, αC = 0 ∀ ϕc > ϕc). A weighted arithmetic mean of the three small systems in r and of the nine ones present in r leads to a free volume fraction close to the geometrical αC-value. The amount of small systems present in each direction is the number of depletant-mediated discotic–discotic interactions [Fig. 1(a)].

In Fig. 3(a), we present a theoretical (equilibrium) phase diagram. All possible depletant-free phases are observed at different discotic ϕc and depletant ϕd volume fractions: isotropic (I), nematic (N), and columnar (C). Phase separation upon depletant addition is driven by partitioning of depletants and discotics over the different phases.33 For the specified {Λ,q}, columnar–columnar (C1–C2) coexistence is revealed. The overall phase diagram topology and the order of the triple phase coexistences with increasing ϕd (N–C1–C2 and I–N–C2) is in agreement with previous results.31 This C1–C2 is reminiscent of the solid–solid coexistence found in hard spheres (HSs) interacting via short-range (direct) attraction.36–38 Here, the directionality of the attraction patches10,39 induced by the disc-like shape drives the C1–C2 coexistence. Consequently, in the lower-density columnar phase (C1) there is no overlap of the depletion zones: pockets for depletants are available in both r and r. However, in the higher-density columnar state (C2) depletion zones overlap between the flat faces of the platelets (in r), and the only pockets in the system are in r.


image file: d0sm00802h-f3.tif
Fig. 3 (a) Phase diagram of discotics (L/D ≡ Λ = 0[thin space (1/6-em)]:[thin space (1/6-em)]1) mixed with tiny depletants (2δ/Dq = 0[thin space (1/6-em)]:[thin space (1/6-em)]01) (tie-lines in orange). Orange stars are Monte Carlo simulations accounting for the binary mixture; tie-lines in black. Data and snapshots in (b–e) correspond to the points of the solid black tie-line. (b and c) Distribution functions in the inter- (b) g and intra- (c) g columnar directions. Dashed curves: C1 phase; solid curves: C2 phase. The superscript 00 denotes correlation between particles in the same column, and 01 refers to correlation between particles in adjacent columns. (d–f) Simulation snapshots of discotics (brown) and depletants (green). (d) Snapshot from the (1100) plane of a direct-coexistence simulation. (e and f) Snapshots from the (0001) plane of the depletants present in the C1 (e) and C2 (f) phases.

The maximum depletion attraction WmaxAOV between discotics when q → 0 scales as WmaxAOV ∝ − ϕRdq−2, stronger than between HSs (WmaxAOV ∝ − ϕRdq−1). Here, ϕRd is the depletant bulk concentration (see ESI). The tendency of flat faces to align is enhanced by the presence of the depletants. Furthermore, the theoretically-predicted C1–C2 coexistence terminates at ϕc = ϕc with ϕd ≈ 0, manifesting the two effective systems that tiny depletants access in the columnar phase. This vanishing depletant concentration at the C1–C2 critical point (CP) contrasts with the finite value obtained for solid–solid coexistence between HSs:6 there is no directionality for the pockets present in the HS solid. Next, the stability of this C1–C2 coexistence is tested against Monte Carlo (MC) simulations.

In Fig. 3(a), two equilibrium C1–C2 phase coexistences from direct coexistence MC computer simulations are also shown. As far as we are aware, this is the first time that direct-coexistence in highly dense discotic systems is simulated explicitly accounting for a binary mixture (OHSCs and PHSs); see ESI, for simulation details and further results. A snapshot of an equilibrium direct C1–C2 coexistence of the binary mixture is shown in Fig. 3(d). The close-packing fraction for OHSCs with Λ = 0.1 is ϕcpc ≈ 0.88,32 which partially explains the lower ϕc-values on the C2-branch of the simulations. Due to their rounded edges, the stacking of OHSCs in the columnar phase differs from that of hard cylinders.32 Besides this offset in the C2 branch, MC results and FVT predicted tie-lines are in remarkable agreement. Snapshots of the different plate-depletant mixtures [Fig. 1(b), and 3(e), (f)] show that the depletant partitioning is in line with theoretical predictions. More importantly, the MC simulations show that C1–C2 coexistence exists and is stable against fluctuations.

Next, we pay attention to discotic–discotic and discotic–depletant distribution functions g from the MC simulations [Fig. 3(b) and (c)]. The discotic–depletant distribution function in the inter-columnar direction r is the most insightful [gc–d]. For the C2 phase, gc–d ≈ 0 for r ≲ 0.5D: there are barely any depletants present in the intra-columnar direction in C2. On the contrary, there is a rather constant distribution of depletants on the top and bottom of the discotic flat faces in the C1 phase: gc–d ≈ 0.4 for r ≲ 0.5D. The first peak at r ≈ 0.5D of gc–d, present both in C1 and C2, corresponds to the doughnut-like pockets. The second and third peaks of gc–d indicate that depletants are present in the interstices of both columnar phases. Furthermore, the g-value of these peaks is significantly higher in the C2 phase than in the C1 phase: the lack of pockets in r in C2 leads to the accumulation of depletants in the interstices. In r, the discotic–discotic distribution gc–c shows peaks corresponding to the hexagonal (two-dimensional) arrangement.

Discotic–discotic distributions in the intra-columnar direction r are solid-like in C2 and more fluid-like in C1 [Fig. 3(c)]. We deduce from the discotic–discotic and discotic–depletant distributions that: (i) the C1 phase is liquid crystalline, whereas C2 is crystalline;29 and (ii) depletants distribute according to the pockets present. In C1, pockets are available both in r and r. Opposite to this, in C2 pockets are only in the interstices (i.e., in r).

From our theoretical and simulation approaches we quantify how depletants partition in r and r within each phase [Fig. 4(a)]. We define the partition coefficient of depletants in the columnar phase as:


KC = ϕd/ϕd.(1)
This coefficient along the C1–C2 binodal from simulations is similar as predicted from theory. From simulations KC is computed from gc–d (ESI). The genuinely fluid-like nature in r accounted for in simulations for the C1 phase partially explains the deviation from theory at ϕc far from the CP.


image file: d0sm00802h-f4.tif

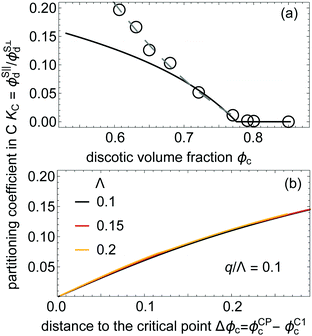

Fig. 4 (a) Partition coefficients of depletants in the different columnar directions, KC = ϕS‖d/ϕS⊥d, along the C1–C2 coexistence binodal for {Λ,q} = {0.1,0.01}. Circles correspond to simulations; dashed gray curve guides the eye. (b) KC along the low-density columnar phase C1 at fixed q/Λ; distance to the critical point is ΔϕcϕCPcϕc(in C1).

This C1–C2 coexistence is not unique to {Λ,q} = {0.1,0.01}. From theoretical predictions, KC < 1: ϕS,⊥d > ϕS,‖dϕc for any {Λ,q} (ESI). In the denser columnar state C2, ϕS,‖d ≈ 0. Therefore, KC ≈ 0 ∀ ϕc > ϕc (above the C1–C2 critical point). Hence, we focus on KC only in C1. In Fig. 4(b) it can be appreciated that at fixed q/Λ, KC along the C1–C2 binodal barely depends on Λ or on the nature of the triple-point (N–C1–C2 or I–C1–C2, see ESI). The size of the effective system in r follows from the ratio of the depletant diameter to the thickness of the discotic, q/Λ. At fixed q, KC increases with increasing Λ: the thicker discotics, the larger the small system size in r. Thus, for smaller q the directionality of the pockets is enhanced and the C1–C2 coexistence spans over larger phase space (ESI).

It is possible to assess the triple (I–N–C, N–C1–C2, and I–C1–C2) and critical C1–C2 points at any {Λ,q}.31 This provides a stability overview of the C1–C2 coexistence [Fig. 5(a)]. The C1–C2 coexistence is found for a wide range of {Λ,q}-values. The depletant-free triple point sets the reference from which the N–C1–C2 and I–C1–C2 critical-end point (CEP) curves span. The CEP marks a critical point in coexistence with a distinctive third phase;40 hence, it constitutes a powerful tool to identify the stability limit of the C1–C2 phase coexistence.6,31 A quadruple I–N–C1–C2 curve marks the transition from stable N–C1–C2 to I–C1–C2.31 Such quadruple coexistence in a two-component system is possible due to the extra field parameters Λ and q. In fact, already for the depletant-free discotic system an I–N–C coexistence is present32,35 because Λ provides an extra field parameter; for hard spheres only two-phase fluid-solid coexistence emerges. A soft re-entrant behavior of the I–C1–C2 at fixed Λ is revealed.


image file: d0sm00802h-f5.tif
Fig. 5 (a) Columnar coexistence overview in terms Λ and q/Λ = 2δ/L. (b) Partitioning coefficient of depletants in the nematic (solid curve) or isotropic (dotted curve) phase relative to the columnar phase at the critical end point (CEP).

For the N–(C1C2) CEP curve, qcep/Λ ≈ 0.4 ∀ Λ ≲ 0.12, with qcep the maximum depletant size at which C1–C2 coexistence is stable. For the I–(C1C2) CEP, qcep/Λ decreases with Λ, qcep/Λ ≈ 0.4 for Λ ≈ 0.12 and qcep/Λ ≈ 0.3 for Λ ≈ 0.23. To understand the dependencies with Λ of the N–C1–C2 and of the I–C1–C2 CEPs, the partitioning coefficient of depletants in phase k (with k = {I,N}) relative to the columnar phase is defined:


Kk = ϕkd/ϕCd.(2)
As more depletants fit in the isotropic than in the nematic phase, a higher concentration of depletants is present in the columnar phases when a N–C1–C2 triple point occurs as compared to the I–C1–C2 case. Hence KN is lower than KI.

A simple model to understand the partitioning of tiny non-adsorbed compounds (depletants) in dense discotic systems was developed and tested against Monte Carlo simulations explicitly accounting for the binary mixture. The tiny depletants can distribute over two distinct regions, corresponding to the intra- and inter-columnar directions. Partitioning of tiny depletants in the intra-columnar direction leads to columnar–columnar coexistence, whose critical point occurs precisely at the discotic concentration at which depletants do not fit into the intra-columnar direction. A geometrically-derived free volume fraction for depletants allows understanding of not only how non-adsorbing compounds distribute in dense systems, but also the stability limits of this columnar–columnar coexistence. By considering compounds which interact solely via excluded volume interactions, the role of entropy in concentrated and highly size- and shape-asymmetric mixtures is identified. If polydispersity could be accounted for, we expect the quadruple curves to broaden as there are more possibilities for the partitioning of the depletants, but the already large simulation equilibration times would dramatically increase. We note also that we are currently working on one-to-one comparisons between FVT and experimental results for anisotropic particles, therefore moving towards a real application of the ideal FVT concepts.41

In summary, geometrical free volume fractions are a powerful tool for understanding partitioning over directional-dependent pockets in dense systems. The conceptual power of these geometrical free volume concepts has been recently exposed by applying the core of the idea here exposed to crowd control in public spaces following the new WHO regulations.42 Moreover, we expect this geometrical free volume to deliver further interesting insights, for example in crowded biological environments (the cell) and in photonics. Further developments could include particle interactions beyond their excluded volume, polydispersity effects, and the presence of an external field (e.g., gravity or electric fields). However, quantifying what goes where is a natural first step.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Á. G. G. and A. C. thank Prof. A. Patti for the meeting organized at Manchester University in June 2018. Prof. Lekkerkerker and the SPC-TGM participants are thanked for discussions. AC thanks the Spanish Ministerio de Ciencia Innovación y Universidades and FEDER (PGC2018-097151-B-I00) for funding and C3UPO for HPC facilities.

References

  1. S. X. Meng, M. Rudnicki, V. J. Lieffers, D. E. B. Reid and U. Silins, J. Ecol., 2006, 94, 681–686 CrossRef.
  2. J. L. Silverberg, M. Bierbaum, J. P. Sethna and I. Cohen, Phys. Rev. Lett., 2013, 110(22), 228701 CrossRef PubMed.
  3. L. Sapir and D. Harries, Bunsen-Mag., 2017, 19, 152–162 Search PubMed.
  4. M. Hoppert and F. Mayer, Am. Sci., 1999, 87, 518–525 CrossRef.
  5. A. P. Minton, J. Cell Sci., 2006, 119, 2863–2869 CrossRef CAS PubMed.
  6. Á. González García, J. Opdam, R. Tuinier and M. Vis, Chem. Phys. Lett., 2018, 709, 16–20 CrossRef.
  7. W. R. Inc., Mathematica, Version [12.1], https://www.wolfram.com/mathematica, Champaign, IL, 2020.
  8. Á. González García, H. H. Wensink, H. N. W. Lekkerkerker and R. Tuinier, Sci. Rep., 2017, 7, 17058 CrossRef PubMed.
  9. M. Baus and C. F. Tejero, Equilibrium Statistical Physics, Springer, Berlin, Heidelberg, 1st edn, 2008 Search PubMed.
  10. A. V. Petukhov, R. Tuinier and G. J. Vroege, Curr. Opin. Colloid Interface Sci., 2017, 30, 54–61 CrossRef CAS.
  11. T. Sentjabrskaja, E. Zaccarelli, C. De Michele, F. Sciortino, P. Tartaglia, T. Voigtmann, S. U. Egelhaaf and M. Laurati, Nat. Commun., 2016, 7, 11133 CrossRef CAS PubMed.
  12. P. Struntz and M. Weiss, Phys. Chem. Chem. Phys., 2018, 20, 28910–28919 RSC.
  13. N. Gnan and E. Zaccarelli, Nat. Phys., 2019, 15, 683–688 Search PubMed.
  14. G. van Anders, D. Klotsa, N. K. Ahmed, M. Engel and S. C. Glotzer, Proc. Natl. Acad. Sci. U. S. A., 2014, 111, E4812–E4821 CrossRef CAS PubMed.
  15. G. van Anders, N. K. Ahmed, R. Smith, M. Engel and S. C. Glotzer, ACS Nano, 2014, 8, 931–940 CrossRef CAS PubMed.
  16. E. Bianchi, R. Blaak and C. N. Likos, Phys. Chem. Chem. Phys., 2011, 13, 6397–6410 RSC.
  17. F. Gámez, R. D. Acemel and A. Cuetos, Mol. Phys., 2013, 111, 3136–3146 CrossRef.
  18. M. Dijkstra, Entropy-Driven Phase Transitions in Colloids: From spheres to anisotropic particles, John Wiley & Sons, Ltd, 2014, ch. 2, pp. 35–71 Search PubMed.
  19. D. J. Kraft, R. Ni, F. Smallenburg, M. Hermes, K. Yoon, D. A. Weitz, A. van Blaaderen, J. Groenewold, M. Dijkstra and W. K. Kegel, Proc. Natl. Acad. Sci. U. S. A., 2012, 109, 10787–10792 CrossRef CAS PubMed.
  20. B. G. P. van Ravensteijn, M. Kamp, A. van Blaaderen and W. K. Kegel, Chem. Mater., 2013, 25, 4348–4353 CrossRef CAS.
  21. T. Ye, N. Phan-Thien and C. T. Lim, J. Biomech., 2016, 49, 2255–2266 CrossRef PubMed.
  22. J. Mui, J. Ngo and B. Kim, Nanomaterials, 2016, 6(5), 90 CrossRef PubMed.
  23. L. Bailey, H. N. W. Lekkerkerker and G. C. Maitland, Soft Matter, 2015, 11, 222–236 RSC.
  24. T. Tadros, Colloids in Paints, John Wiley & Sons, Ltd, 2011 Search PubMed.
  25. T. Tadros, Colloids in Cosmetics and Personal Care, John Wiley & Sons, Ltd, 2011 Search PubMed.
  26. P. Das, J.-M. Malho, K. Rahimi, F. H. Schacher, B. Wang, D. E. Demco and A. Walther, Nat. Commun., 2015, 6, 5967 CrossRef PubMed.
  27. J. Sun, B. Bhushan and J. Tong, RSC Adv., 2013, 3, 14862–14889 RSC.
  28. H. H. Wensink, Phys. Rev. Lett., 2004, 93, 157801 CrossRef CAS.
  29. A. Cuetos and B. Martínez-Haya, J. Chem. Phys., 2008, 129, 214706 CrossRef PubMed.
  30. A. Vrij, Pure Appl. Chem., 1976, 48, 471–483 CAS.
  31. Á. González García, R. Tuinier, J. V. Maring, J. Opdam, H. H. Wensink and H. N. W. Lekkerkerker, Mol. Phys., 2018, 116, 2757–2772 CrossRef.
  32. M. Marechal, A. Cuetos, B. Martínez-Haya and M. Dijkstra, J. Chem. Phys., 2011, 134, 094501 CrossRef PubMed.
  33. H. N. W. Lekkerkerker, Colloids Surf., 1990, 51, 419–426 CrossRef CAS.
  34. H. N. W. Lekkerkerker and R. Tuinier, Colloids and the Depletion Interaction, Springer, Heidelberg, 2011 Search PubMed.
  35. H. H. Wensink and H. N. W. Lekkerkerker, Mol. Phys., 2009, 107, 2111–2118 CrossRef CAS.
  36. C. F. Tejero, A. Daanoun, H. N. W. Lekkerkerker and M. Baus, Phys. Rev. Lett., 1994, 73, 752–755 CrossRef CAS PubMed.
  37. P. G. Bolhuis, M. Hagen and D. Frenkel, Phys. Rev. E: Stat. Phys., Plasmas, Fluids, Relat. Interdiscip. Top., 1994, 50, 4880 CrossRef CAS PubMed.
  38. G. Foffi, G. D. McCullagh, A. Lawlor, E. Zaccarelli, K. A. Dawson, F. Sciortino, P. Tartaglia, D. Pini and G. Stell, Phys. Rev. E: Stat., Nonlinear, Soft Matter Phys., 2002, 65, 031407 CrossRef PubMed.
  39. S. C. Glotzer and M. J. Solomon, Nat. Mater., 2007, 6, 557–562 CrossRef.
  40. J. Lang and B. Widom, Phys. A, 1975, 81, 190–213 CrossRef.
  41. F. Dekker, Á. González García and A. P. Philipse, Eur. Phys. J. E, 2020, 43, 38,  DOI:10.1140/epje/i2020-11962-y.
  42. Á. González García, J. L. Martin R and C. Alessio, Crowd Control in Plazas Constrained to Social Distancing, https://arxiv.org/abs/2005.07038.

Footnote

Electronic supplementary information (ESI) available: Further theoretical and simulation details. See DOI: 10.1039/d0sm00802h
