Magnetic ion oxidation state dependent magnetoelectric coupling strength in Fe doped BCT ceramics

Abstract

Polycrystalline samples of Ba_0.96Ca_0.04Ti_0.91Fe_0.09O₃ were prepared using a conventional solid state reaction route with different Fe starting precursors (Fe₂O₃, Fe₃O₄). The Rietveld refined XRD data confirmed the phase purity and tetragonal crystal structure of both the samples. The average grain size measured using SEM was ≈0.40 μm in both the samples. XPS analysis confirmed the presence of only Fe²⁺ and both Fe²⁺/Fe³⁺ in Fe₂O₃ and Fe₃O₄ doped BCT samples. The P_r and M_r values have been measured to be 1.34 μC cm⁻², 2.88 μC cm⁻² and 0.0015 emu g⁻¹ and 0.135 emu g⁻¹ in Fe₂O₃ and Fe₃O₄ doped BCT samples, respectively. The Fe₃O₄ doped samples exhibit much better M-E coupling (≈22%) as compared to Fe₂O₃ (≈7%) doped BCT samples. The results obtained hence suggest that Fe₃O₄ doping in BCT is better suited for multiferroic applications.

---

1 Introduction

In the past few decades, multiferroic materials having multiple coexisting ferroic properties (ferroelectricity, anti/ferromagnetism etc) have been extensively researched. The research in this field is still being extensively pursued. These materials have potential applications in fields like data storage, multiple-state memory devices and spintronics.^1–3 The interaction between different ferroic orders may allow the control of magnetic/electric polarization using external electric/magnetic fields. This coupling between different ferroic orders is of great potential for various practical applications especially in the field of spintronics, low energy consumption and memory devices.^4–7 However, naturally occurring multiferroic materials are rare. Therefore practically these multiferroic materials are fabricated by (a) doping of magnetic ions in otherwise ferroelectric material or (b) by making a composite of a ferromagnetic and a ferroelectric material.⁸ Among a number of magnetic ion doped multiferroic materials, lead based perovskite materials have drawn considerable attention due to their high dielectric and piezoelectric coefficients. However, due to toxic nature of lead based compounds, research is being increasingly focussed to synthesize environment friendly alternatives like BiFeO₃, TbMnO₃ and BaTiO₃ based single phased multiferroic materials.⁹

BaTiO₃ (BT) which also has perovskite structure is a potential alternative for lead free multiferroics. BT and BT-based solid solutions exhibit large piezoelectric response, have high dielectric constant and thus find utility in almost all the aforementioned technologies. The experimental and theoretical studies both support the feasibility of multiferroicity in transition metal (Mn, Fe, Cr, etc) doped BT.^10–16 Effect of transition metal doping in BT is well documented in the literature. However, it has been observed that small amount of transition metal (TM) doping in BT results in a change in crystal structure from tetragonal to hexagonal (non-ferroelectric). Ca substituted BT (BCT) has been reported to inhibit the hexagonal phase formation. Additionally, it also helps to broaden the temperature dependence of the dielectric constant and provide large piezoelectric response, thus significantly enhancing the performance of BT based ceramics.^16,17 However, investigations on multiferroicity in magnetic ion doped BCT are very limited. Keswani et al.¹⁸ reported the multiferroic properties of Ba_0.92Ca_0.08Ti_(1−x)Fe_xO₃ with Fe content varying from 0–5 wt% (sintered at 1240 °C for 5 h). They reported phase transformation into orthorhombic structure at 5% Fe concentration. They reported their best room temperature P_r, M_s and H_c values to be 2.13 μC cm⁻², 1.2175 emu g⁻¹ and 13.11 Oe in 5% Fe substituted samples. Sharma et al.¹⁹ reported the multiferroic properties Ba_0.92Ca_0.08Ti_(1−3x/4)Fe_xO₃ for x varying from 0.00 to 0.02 (in samples sintered at 1350 °C for 4 h). They reported an increase in P_r from 7.295 μC cm⁻² to 9.359 μC cm⁻² as x varies from 0.00 to 0.02. However, the magnetic results were not that encouraging. Moreover, the coupling between magnetic and ferroelectric orders has not yet been explored in these systems. Thus, Fe doped BCT ceramic needs to be explored further for improvement in multiferroic properties. Since the oxidation state of magnetic ions greatly impacts the multiferroic properties of the ceramic samples, it is hence crucial to compare the multiferroic properties of magnetic ion doped BCT samples in which the same magnetic ion is in different oxidation states. In this regards, we report synthesis of Fe doped BCT samples using Fe₃O₄ and Fe₂O₃ (Fe = 0.09 wt%) magnetic ion precursors. The structural, microstructural, ferroelectric and magnetic properties have been analysed in detail. From the application point of view, magneto-PE measurements have also been reported.

2 Experimental procedure

Ba_0.96Ca_0.04Ti_0.91Fe_0.09O₃ ceramics were synthesised using conventional solid state reaction route method using Fe₂O₃ (named BCTF2) and Fe₃O₄ (BCTF3) as different Fe starting precursors. The stoichiometrically weighed raw materials (BaCO₃, CaCO₃, TiO₂, Fe₃O₄ and Fe₂O₃ (99.9% from pure Sigma Aldrich)) were ball milled for 48 h in acetone medium and calcined at 1000 °C for 12 hours. The PVA (2 wt%) was added to the calcined powders for pellet formation (1 mm thickness and 10 mm diameter). The pellets were then sintered at 1260 °C for 3 hours.

The XRD data was recorded using SHIMADZU (MAXima XRD-7000) equipped with CuKα anode (λ = 1.5405 Å). FESEM micrographs were recorded using Carl Zeiss “Supra 55” operating at 10 kV. Automatic ferroelectric loop tracer (from Marine India) was used for P–E measurements (at 50 Hz). The magnetic measurements were carried out using Vibrating Sample Magnetometer (VSM) EZ9 from Microsense and Quantum Design made PPMS. The X-ray Photoelectron Spectra (XPS) data was measured using Thermofisher scientific (Model-Nexsa base).

2.1. Microstructural characterizations

The raw and refined XRD diffractograms of BCTF2 and BCTF3 samples are shown in Fig. 1a and b. The samples are well crystallised as is indicated by the presence of sharp and high intensity diffraction peaks. The signature splitting of the diffraction peak at 2θ ≈ 45° provides initial evidence of the tetragonal structure of these samples. A comparative analysis of experimental and reference data (ICSD 98-000-3900) reveals that all the diffraction peaks can be assigned to a single tetragonal unit cell (space group P4mm). No secondary phase could be detected in both the samples. Rietveld analysis of the diffraction data was further carried out using Fullprof Suite 2015 software to determine various structural parameters of these samples.²⁰ The initial structural model for carrying out Rietveld refinement was assumed to be same as given in the reference data file ICSD 98-000-3900, for both the samples. The Ba/Ca, Ti/Fe, O1 and O2 were placed at the Wyckoff sites 1a (0, 0, 0), 1b (1/2, 1/2, 1/2 ± δz), 1b (1/2, 1/2, 0 ± δz) and 2c (1/2, 0, 1/2 ± δz), respectively. Here, δ indicates that the position co-ordinate is to be refined. The ‘z’ coordinate was thus kept fixed for Ba/Ca while it was refined for Ti/Fe, O1 and O2. The lattice parameters of the selected phase and isotropic thermal parameters for various elements were also refined. The site occupancy parameters of various elements were set according to the stoichiometric calculation and were not refined. Peak profile and the background were modelled using a Thomson–Cox–Hasting pseudo-Voigt function and a sixth order polynomial, respectively. All the refinable parameters were successively refined (one at a time) till the discrepancy factors got minimised. The structural, discrepancy and other parameters obtained at the end of the refinement process have been listed in Table 1. The table clearly shows a GOF value of 1.28 and 1.31 for BCTF2 and BCTF3 samples, respectively. The very low values of GOF indicate a very good match between experimental data and the data generated using the structural model. The low GOF values hence validate the correctness of the initial structural model for both the samples. Further, the lattice parameters of both the samples are nearly same. This was expected because both the samples were substituted with Fe precursors having different Fe oxidation states only. The c/a ratio was hence found to be ≈1.005 in both the samples. In contrast to the reported transition from tetragonal to orthorhombic phase in Ba_0.92Ca_0.08Ti_(1−x)Fe_xO₃ system (x = 0.05, sintered at 1240 °C for 5 h) by Keswani et al., we do not observe any such transition. The system continues to be in tetragonal phase up to x = 0.09 (sintered at 1260 °C for 3 h). As there is no significant difference in sintering temperature, the phase transition observed by Keswani et al.¹⁸ might be due to higher Ca substitution (8%) as compared to 4% Ca substitution in our samples.

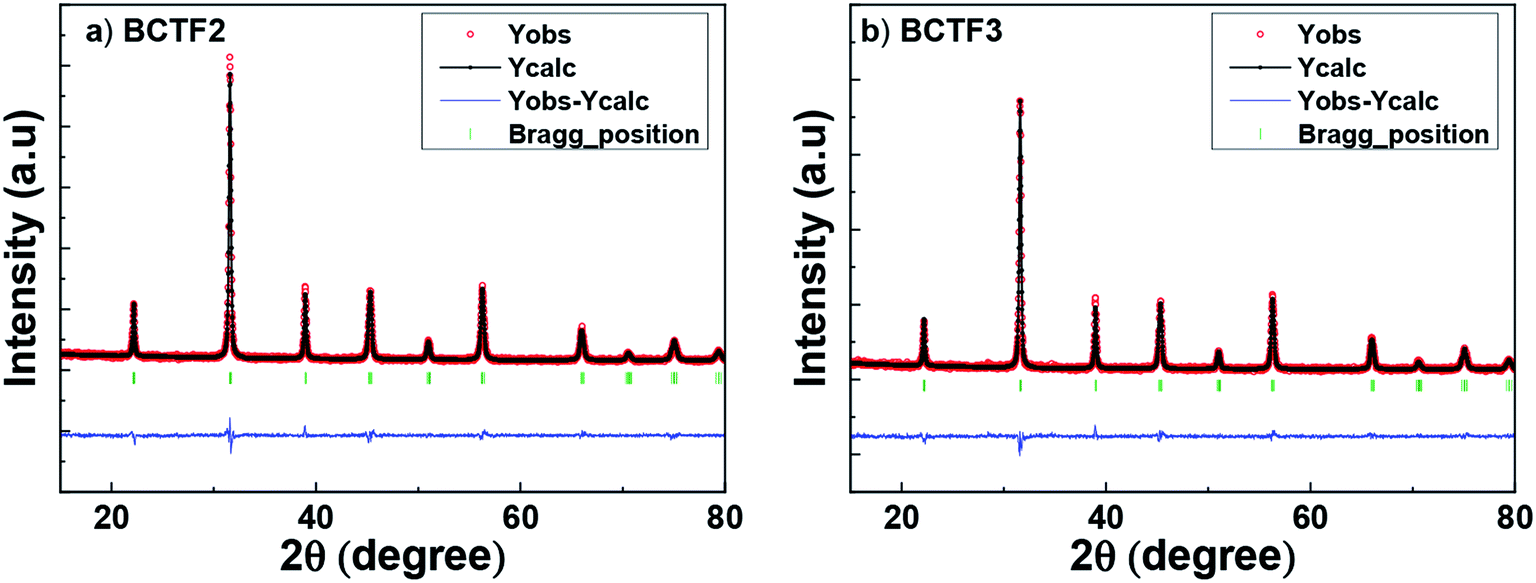

Fig. 1 -The raw and Rietveld refined XRD data of (a) BCTF2 and (b) BCTF3 samples, respectively.

Table 1 The lattice parameters, agreement indices of BCTF2 and BCTF3 samples obtained from Rietveld refinement

Sample	Cell parameter (Å)	Position coordinates				Biso	R-Factors
		Atom sites	X	Y	Z
BCTF2	a = 3.99	Ba/Ca	0.000	0.000	0.000	0.581	Rp = 6.01
	c = 4.01	Ti/Fe	0.500	0.500	0.518	0.722	Rwp =7.59
	c/a = 1.005	O1	0.000	0.500	0.471	0.626	Rexp = 6.67
		O2	0.500	0.500	0.971	0.777	GOF = 1.29
BCTF3	a = 3.99	Ba/Ca	0.000	0.000	0.000	0.655	Rp = 6.46
	c = 4.01	Ti/Fe	0.500	0.500	0.520	0.571	Rwp =8.11
	c/a = 1.005	O1	0.000	0.500	0.465	0.834	Rexp = 7.12
		O2	0.500	0.500	0.965	0.789	GOF = 1.30

---

The Fig. 2a and b shows the FESEM images of BCTF2 and BCTF3 samples recorded at 30k×. Both the samples show the presence of a single type, small sized, isolated as well as agglomerated and random shaped grains. These samples also exhibit porosity as is evident by the presence of number of voids. The average grain size (calculated using Image J software) of BCTF2 and BCTF3 samples is ≈0.38 μm and 0.42 μm, respectively. The statistical distribution of grain size in both the samples is shown as histogram in Fig. 2.

Fig. 2 The SEM micrographs of (a) BCTF2, (b) BCTF3 and statistical distribution of grain size of (c) BCTF2 and (d) BCTF3 samples, respectively.

In order to determine the impact of different starting precursors on the oxidation state of Fe in BCTF2 & BCTF3 samples, XPS analysis was carried out. The XPS core level spectra were collected from the surface of the samples for all the elements. However, only Fe core level spectra are shown in Fig. 3a and b as the magnetic and ferroelectric properties of these samples are dependent upon the oxidation state of Fe. The deconvolution (in the 703–719 eV range) was hence carried out accordingly. The peak at lower binding energy has been associated to Fe²⁺ oxidation state in compliance with literature.²¹ This peak is present in the both the samples. An additional peak corresponds to Fe³⁺ is only present in BCTF3 samples. A shake up satellite peak was observed in both the samples. The peaks have been duly marked in Fig. 3. The XPS analysis hence confirms the presence of only Fe²⁺ ions in BCTF2 sample and Fe²⁺, Fe³⁺ ions in BCTF3 sample. The relative concentration of Fe²⁺ and Fe³⁺ (from area under the peak) in BCTF3 sample was found out to be nearly 1 : 1.64. As per charge balancing requirements, presence of Fe²⁺ states only is expected to result in higher concentration of oxygen vacancies as compared to simultaneous presence of Fe²⁺ and Fe³⁺. As oxygen vacancies contribute to the flow of leakage current, the BCTF2 sample is expected to have higher conductivity (hence lower P_r) as compared to BCTF3 sample. This is also observed (also to be discussed in ferroelectric properties section). As BCTF3 sample shows simultaneous presence of multivalent Fe states, the magnetic properties of BCTF3 sample are also expected to be better than BCTF2 samples because of enhanced contribution of double exchange. The observed difference in the XPS spectra of these two samples might be due to the difference in the melting points of Fe₂O₃ (1565 °C) and Fe₃O₄ (1597 °C).²² As we sintered these samples at 1260 °C, further oxidation (to Fe⁴⁺) is hence not expected. Keswani et al. reported the presence of only Fe³⁺ (≈709.76) in Fe₂O₃ doped BCT samples sintered at 1240 °C for five hours.¹⁸ Guo et al. reported the presence of Fe³⁺ (≈710.7 eV), Fe⁴⁺ (≈712.6 eV) and a satellite peak at 718.4 eV in Fe₃O₄ doped BT samples sintered at 1223 °C for 24 hours.²³ However, in our samples (sintered at 1260 °C for three hours) we observed peaks at ≈708.9 eV, 710.6 eV and a broad peak at 714.5 eV (in BCTF3 sample) which we associated with Fe²⁺, Fe³⁺ and combined satellite peak corresponding to Fe²⁺ and Fe³⁺ in accordance with XPS handbook.²¹ Note that we and Guo et al. observe Fe³⁺ peak at ≈710.6 eV.

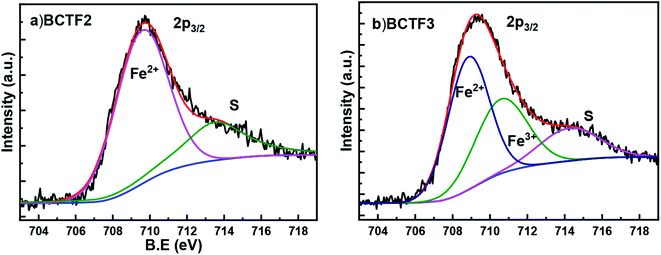

Fig. 3 The deconvoluted 2p_3/2 spectrum of Fe in (a) BCTF2 and (b) BCTF3 samples, respectively.

2.2. Ferroelectric properties

The room temperature P–E loops of the BCTF2 and BCTF3 samples are shown in Fig. 4. It is clear from the figure that BCTF3 sample exhibits better ferroelectric behaviour as compared to the BCTF2 sample. None of the samples exhibits ‘square’ P–E loops which are expected in ferroelectric materials in which electric dipoles exhibit abrupt reversal of orientation with change in the direction of applied electric field. The roundish shape of P–E loops (more in BCTF2) of these samples indicates a sluggish response of their electric dipoles to external electric field.²⁴ The measured remnant polarisation (P_↓(r)) values are 1.34 μC cm⁻² and 2.88 μC cm⁻² for BCTF2 and BCTF3 samples, respectively. The electric polarization in a given material generally varies with factors such as c/a ratio, grain size and flow of leakage current. The P_r values of both these samples (c/a ≈ 1.005) are smaller in comparison to the pure BaTiO₃ (c/a = 1.01, ref.). This can be directly attributed primarily to smaller tetragonal distortion (c/a ≈ 1.005) of our samples as compared to BaTiO₃ (BT). Also, Fe is known to enhance leakage current^1,25,26 when substituted in ferroelectrics. This can also be additionally responsible for lower observed P_r as compared to BT. However, among the BCTF2 and BCTF3 samples, BCTF2 exhibits lower P_r. Both of these samples have got equivalent c/a ratio (≈1.005), similar grain size (≈0.40 μm) and have equal Fe concentration. Thus, the variation of P_r in these samples is not associated with c/a ratio and grain size. This may rather be due to creation of a greater number of oxygen vacancies when Fe²⁺ replaces Ti⁴⁺ in BCTF2 sample as compared to Fe²⁺ and Fe³⁺ in BCTF3 sample as confirmed by XPS studies. It should be noted that the BCTF3 sample has lower room temperature dc conductivity (1.59 × 10⁻⁶ S cm⁻¹) as compared to BCTF2 sample (4.23 × 10⁻⁵ S cm⁻¹), implying lower value of leakage current (hence higher P_r) in BCTF3 sample. Thus, higher conductivity of BCTF2 sample precludes the measurement of P_r as compared to the BCTF3 sample. Additionally, contribution to P_r in BCTF3 sample can come from ferroelectricity driven by charge ordering due to simultaneous presence of both Fe²⁺ and Fe³⁺ oxidation states in this sample.^27,28 The presence of multivalent Fe states leads to electron trapping between the two Fe sites. This trapped electron ends up creating double exchange as well as polaronic-type distortion which act together to form a vibrionic localized electronic state. This vibrionic state results in bond centred type charge ordering which is also known as Zenor polaron state.²⁹ The ferroelectricity driven by charge ordering has already been reported in a number of materials such as Pr_1−xCa_xMnO₃, LuFe₂O₄ etc.²⁷ The increase in P_r value with Fe substitution have already been reported in BCT system. However, our BCTF3 sample exhibit better ferroelectric properties and higher P_r value as compared to the value reported by Keswani et al.¹⁸ even at 9% Fe substitution. However, the higher P_r value reported by Sharma et al.¹⁹ may be due to higher sintering temperature (1350 °C) and lower Fe concentration.

Fig. 4 The room temperature P–E loops of BCTF2 and BCTF3 samples, respectively.

2.3. Magnetic properties

The room temperature M–H plots of the BCTF2 and BCTF3 samples are shown in Fig. 5a and b. The graphs elucidates that both the sample exhibit magnetic behaviour. However, the BCTF3 sample displays better magnetic behaviour as is indicated by its clearer hysteresis loop as compared to the BCTF2 sample. The magnetization of BCTF2 sample displays almost linear behaviour in the higher magnetic field region where as the magnetization of the BCTF3 sample appears to approach a certain saturation value. This is again indicative of the strong nature of magnetic ordering in the BCTF3 sample as compared to BCTF2 sample. The room temperature remnant magnetization (M_r) was observed to be 0.0015 emu g⁻¹ and 0.135 emu g⁻¹ for the BCTF2 and BCTF3 samples, respectively. As per Goodenough–Kanamori rules, half-filled (e.g. Fe³⁺) and more than half filled (e.g. Fe²⁺) transition metal d-orbitals favour antiferromagnetic super exchange interaction between two Fe ions via oxygen anion.³⁰ Also, recall that, the XPS data had shown the presence of Fe²⁺ only and both Fe²⁺ and Fe³⁺ ions in BCTF2 and BCTF3 samples. The Fe doping level used in the present case is equivalent to what are typically used in dilute magnetic semiconductors (DMS). In DMS and dilute magnetic oxide systems, the magnetic interactions are generally described using either Zener model³¹ or RKKY interactions.³² For these mechanisms to be dominant, the material must have high electrical conductivity (≈20 × 10⁻³ S cm⁻¹) and hence high free carrier concentration.^33–39 Please note that the conductivity of BCTF3 and BCTF2 samples is ≈1.59 × 10⁻⁶ S cm⁻¹ and 4.23 × 10⁻⁵ S cm⁻¹. The T_c values reported in various high carrier density DMS system's are generally ≤300 K. Thus, RKKY interaction does not seem to be the feasible mechanism because of lower electrical conductivity and high T_c (≈650 K) of our samples. Dugaev et al. also proposed a mechanism of ferromagnetism in DMS at low charge density.⁴⁰ However, this mechanism also predicts T_c values ≈ 100 K and is therefore ruled out. Coey et al. proposed another model (generally referred to as DIBE model) for dilute ferromagnetic oxides having T_c much larger than 300 K.⁴¹ The model is applicable to systems which have transition metal (TM) dopant concentration lower than the percolation threshold and the saturation magnetic moment per TM ion is greater than the spin only moment. As per Coey, in such systems, (a) super-exchange cannot be invoked, (b) rarely does superexchange systems have net moment per TM ion greater than 1 μ_B, and (c) though double exchange can in principle produce large moments but mixed valence (which is central to existence of double exchange) is not a common feature of such dilute systems. The saturation moment per Fe ion in our BCTF2 and BCTF3 samples have been determined to be ≈0.02 μ_B and 0.61 μ_B. Also, the percolation threshold values for Fe²⁺ and Fe²⁺/Fe³⁺ (40 : 60 ratio) doping in BCT have been calculated to be ≈5.15 at% and 6.76 at%. Note that, (a) the saturation moments observed in our samples are much lower than spin only moments, (b) the doping level is above the percolation threshold and (c) we are observing multiple Fe states in BCTF3 sample. Hence, these arguments rule out the applicability of DIBE model and favour the presence of superexchange and double exchange in our respective samples. F-centre exchange (FCM) is also invoked in literature to explain strong ferromagnetism and high T_c in TM doped oxide systems (above percolation threshold).⁴² This mechanism relies on indirect exchange between two Fe³⁺ ions via electron trapped at oxygen vacancy site. Clearly this does not seem to be a feasible mechanism in our case owing to weak magnetic behaviour of BCTF2 sample and multiple Fe states in BCTF3 sample. Hence, in view of the discussions presented above we believe that super exchange and double exchange to be the mechanisms responsible for the observed magnetic behaviour of BCTF2 and BCTF3 samples. It should be noted that Guo et al. invoked double exchange between Fe³⁺/Fe⁴⁺ ions in Fe doped BT (Fe varying from 10–60 at%). However, (a) they have used very high Fe doping concentration and (b) reported the presence of Fe₃O₄ impurity phase (≈0.5 mol%) at high Fe concentrations. The double exchange interaction is well reported in oxide systems such as Fe₃O₄ in which mixed oxidation state exists.^43–45 In order to further study the nature of magnetic ordering in these samples, zero field cooled and field cooled (ZFC/FC) measurements were carried out. The ZFC/FC curves (below room temperature) of both the samples are shown in Fig. 6a and b. No discontinuity or inflection point is observed in the M–T data in this range. This clearly indicates (a) the absence of magnetic phase transition in both the samples in this temperature range and (b) that the samples exhibit a transition from magnetically ordered state to magnetically disordered state well above the room temperature. Further, the low temperature ZFC/FC curves do not superimpose each other and exhibit bifurcation at a temperature which is usually referred to as irreversibility temperature (T_irr). The T_irr has been observed to be ≈200 K and ≈300 K in BCTF2 and BCTF3 samples, respectively. It should be noted that non-superimposition of ZFC/FC curves is reported in a number of systems.^46–52 The non-superimposition of ZFC/FC curves is usually attributed to (a) coexistence of ferromagnetic and antiferromagnetic phases caused by magnetic frustration, (b) dominating effect of magnetic anisotropy and (c) spin glass behaviour.^53–56 In our samples, we believe that the divergence of ZFC and FC curves is most likely to be due to the spin glass behaviour. Further, the non-overlapping of ZFC/FC data in both the samples suggest that there is no true long range magnetic order. This type of behaviour is well reported in number of magnetically doped bulk and thin film perovskites such as SrTiFeO₃, BaTiFeO₃, BaTiCoO₃ and BaZrFeO₃.⁴³ Further, the magnetization vs. temperature (M–T) analysis were carried out in high temperature range (330 K–1000 K) for BCTF3 sample and is shown in Fig. 7. The graph clearly shows the magnetic transition at ≈650 K. The transition temperature observed in our sample is lower than the transition temperature reported for Fe₃O₄ (850 K) and Fe₂O₃ (1000 K).¹³ This clearly rules out the possibility of presence of Fe₃O₄ and Fe₂O₃ clusters. Hence the magnetic properties of our sample (BCTF3) are intrinsic in nature and not due to the presence of impurity magnetic phases.

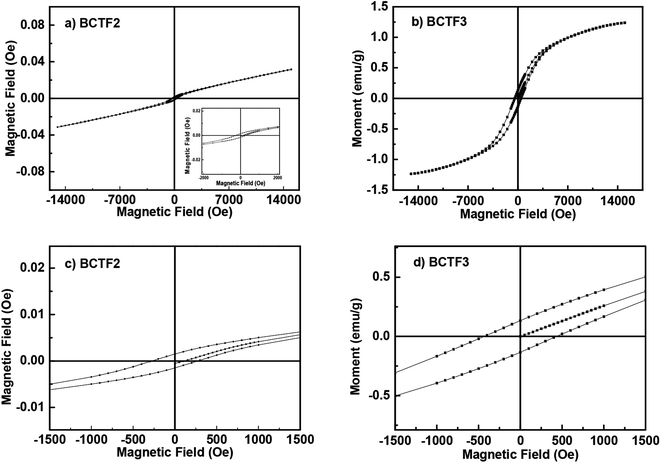

Fig. 5 The room temperature M–H plots of (a) BCTF2, (b) BCTF3 samples and magnified M–H plots (c) BCTF2 and (d) BCTF3 samples, respectively.

Fig. 6 The low temperature ZFC/FC data of (a) BCTF2 and (b) BCTF3 samples, respectively.

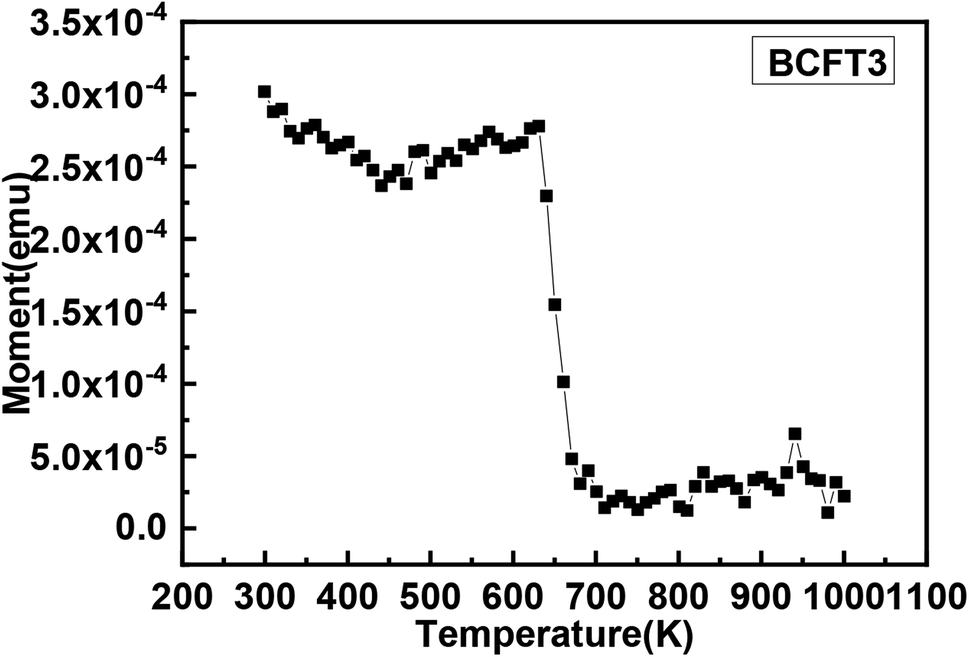

Fig. 7 The high temperature M vs. T data of BCTF3 sample.

2.4. Magneto-electric properties

The investigation of coupling between the electric and magnetic orders in our samples was carried out by performing P–E measurements in the absence and presence of magnetic field. In this regard, the samples were first poled using a magnetic field strength of 1 T for 30 minutes. The P–E loops recorded in the absence (unpoled) and presence (poled) of magnetic field for BCTF2 and BCTF3 samples are shown in Fig. 8. It is clear from the graph that the poled and unpoled P–E loops of BCTF2 sample nearly overlap each other while the poled and unpoled P–E loops of BCTF3 sample shows a significant change. This indicates better M–E coupling in the BCTF3 sample as compared to BCTF2 sample. The values of P_r for both the samples have been listed in Table 2. The table clearly shows that the poled loops of the BCTF3 samples shows an enhancement in the P_r value. Higher P_r in case of poled samples indicates positive M–E coupling in both the samples. The strength of M–E coupling is generally measured as [P_r(H) − P_r(0)/P_r(0)] × 100 where, P_r(H) corresponds to P_r measured at 1 T after poling and P_r(0) corresponds to P_r measured in the absence of magnetic field without poling. The strength of M–E coupling was found to be ≈21.8% and ≈6.71% in case of BCTF3 and BCTF2 samples, respectively. The ME coupling in these samples may be due to reorientation of spin magnetic moments by external magnetic field which induces strain in the material due to magnetostrictive effects. This strain in turn gets coupled with already existing ferroelectric order in the material thereby changing ferroelectric polarization.^4,6,7 The better ME response in the BCTF3 sample may be due to its better magnetic properties as compared to BCTF2 sample. Due to better magnetic properties of BCTF3 sample, magnetostrictive effects are stronger which in turn have further stronger effect on already existing ferroelectric orders.

Fig. 8 The room temperature without field and poled P–E loops of (a) BCTF2 and (b) BCTF3 samples, respectively.

Table 2 The unpoled, poled remnant polarization values and calculated ME coupling strength of BCTF2 and BCTF3 samples

Sample	Unpoled remnant polarization (Pr(0)) (μC cm^−2)	Poled remnant polarization (Pr(H)) (μC cm^−2)	ME strength
BCTF2	1.34	1.43	6.71%
BCTF3	2.88	3.51	21.8%

---

3 Conclusion

Ba_0.96Ca_0.04Ti_0.91Fe_0.09O₃ samples were successfully prepared using solid state reaction route using different starting Fe precursors (Fe₂O₃, Fe₃O₄). The XRD analysis shows that both the samples crystallize in tetragonal structure with no additional impurity phase. No significant change in the either surface morphology or grain size has been observed with change in precursor material. The XPS analysis confirmed the presence of Fe in multiple oxidation states in BCTF3 sample. Better ferroelectric properties of BCTF3 sample have been attributed to electron trapping in different Fe states which results in bond centered charge ordering thereby enhancing ferroelectric character. Weaker magnetic behavior of BCTF2 sample has been explained to be due to super exchange which results in antiferromagnetic coupling between Fe²⁺ ions. The better magnetic properties of BCTF3 sample are due to presence of multivalent Fe states which results in double exchange interaction. The better ME coupling in BCTF3 sample is due to presence of stronger magnetic interaction which promotes stronger magnetostrictive effects and hence better coupling with ferroelectric order.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors gratefully acknowledge UGC, New Delhi (F.30-115/2015(BSR)) and UGC-BSR (Aanchal) for providing financial assistance. The authors also acknowledge Centre for Emerging Life Sciences, GNDU, Amritsar and Dr R. J. Choudhary, UGC-DAE consortium Indore for help in various characterisations.
