Effect of NH₃ and HCOOH on the H₂O₂ + HO → HO₂ + H₂O reaction in the troposphere: competition between the one-step and stepwise mechanisms

Abstract

The H₂O₂ + HO → HO₂ + H₂O reaction is an important reservoir for both radicals of HO and HO₂ catalyzing the destruction of O₃. Here, this reaction assisted by NH₃ and HCOOH catalysts was explored using the CCSD(T)-F12a/cc-pVDZ-F12//M06-2X/aug-cc-pVTZ method and canonical variational transition state theory with small curvature tunneling. Two possible sets of mechanisms, (i) one-step routes and (ii) stepwise processes, are possible. Our results show that in the presence of both NH₃ and HCOOH catalysts under relevant atmospheric temperature, mechanism (i) is favored both energetically and kinetically than the corresponding mechanism (ii). At 298 K, the relative rate for mechanism (i) in the presence of NH₃ (10, 2900 ppbv) and HCOOH (10 ppbv) is respectively 3–5 and 2–4 orders of magnitude lower than that of the water-catalyzed reaction. This is due to a comparatively lower concentration of NH₃ and HCOOH than H₂O which indicates the positive water effect under atmospheric conditions. Although NH₃ and HCOOH catalysts play a negligible role in the reservoir for both radicals of HO and HO₂ catalyzing the destruction of O₃, the current study provides a comprehensive example of how acidic and basic catalysts assisted the gas-phase reactions.

---

1. Introduction

Hydrogen peroxide (H₂O₂) is of great importance not only because it is involved in various biological and atmospheric processes,¹ but it's also one of the major sources of hydroxyl (HO) and hydroperoxyl (HO₂) radicals which play an important role in combustions and atmospheric chemical processes.¹ Hydroxyl radical (HO) plays an important role in maintaining the balance of atmospheric composition and forming reactive peroxides.^2,3 Also, from the standpoint of degradation ability,^4,5 HO radicals can react with one ozone molecule to produce molecular oxygen and the HO₂ radicals in the upper atmosphere. As an important reaction in HO_x chemistry, the H₂O₂ + HO reaction shown in eqn (1) can determine the consumption of HO radicals in HO_x chain reactions. Meanwhile, this reaction is also an important reservoir^5,6 for both radicals of HO and HO₂ catalyzing the destruction of ozone (O₃).

H₂O₂ + HO → HO₂ + H₂O (1)

It is obvious from previous reports that the H₂O₂ + HO reaction has been extensively studied both experimentally^7–12 and theoretically.^10,13–15 In terms of experiments, for the gas-phase reaction of H₂O₂ + HO, Vakhtin et al.¹⁶ obtained its rate coefficient (1.78 ± 0.19) × 10⁻¹² cm³ per molecule per s at 296 K through the laser-induced resonance fluorescence technology. Similar to the report of Vakhtin et al.,¹⁶ NASA/JPL¹⁷ evaluation suggested the rate coefficient for the H₂O₂ + HO reaction between 200 and 300 K was 1.8 × 10⁻¹² cm³ per molecule per s. In addition, the results obtained by the experimental group^18,19 revealed that the rate coefficients for the H₂O₂ + HO reaction have positive temperature dependence within different temperature ranges. From the theoretical point of view, Francisco's group²⁰ has studied the mechanism of H₂O₂ + HO reaction at the CCSD(T)/CBS//MP2/aug-cc-pVDZ level, and their calculated rate coefficient was 1.56 × 10⁻¹² cm³ per molecule per s at 298 K, which was in good agreement with the experimental results reported by Vaghjiani and coworkers.¹⁰ Then, a water-assisted H₂O₂ + HO reaction has been reported by Francisco's group. Their calculations show that the rate coefficient for the H₂O₂ + HO reaction with H₂O was 4.09 × 10⁻¹² cm³ per molecule per s at 298 K, which was 2.6 times larger than the value of the unassisted reaction. Subsequently, the reactions of H₂O₂⋯(H₂O)_n (n = 1–3) + HO and H₂O₂ + HO⋯(H₂O)_n (n = 1–3) have been investigated by our group,²¹ where the catalytic effect of (H₂O)_n (n = 1–3) is mainly taken from the contribution of H₂O, and in H₂O-assisted reaction, one-step process occurring through cage-like hydrogen bonding network complex and the transition state is kinetically favorable. However, this effort has focused only on the process of H₂O₂ + HO reaction without and with water. As far as we know, the effect of NH₃ and HCOOH on H₂O₂ + HO → HO₂ + H₂O reaction has not been elucidated in the literature yet.

As the most abundant of all alkaline gases, the concentration of NH₃ was found to be 10 ppm in dairy farms and 30 ppb in a polluted ambient atmosphere.^22–25 Meanwhile, NH₃ has similar efficiency as H₂O in catalyzing many hydrogen abstraction reactions.^26–30 Based on the fact that the possibility of the NH₃-catalytic effect on the H₂O₂ + HO → HO₂ + H₂O reaction has been investigated theoretically in this work. Also, owing to the significant abundance of HCOOH in the atmosphere, HCOOH can also be an effective catalyst like H₂O and NH₃. It has been proved in previous investigations that HCOOH can decrease the energy significantly for several atmospheric hydrogen abstraction reactions.^31–37 Thus, it is also necessary to study the possible catalytic effect of HCOOH on the H₂O₂ + HO reaction.

In the present work, the effect of NH₃ and HCOOH on the H₂O₂ + HO → HO₂ + H₂O reaction has been investigated from both energetic and kinetic aspects, which was organized in two ways. Firstly, the roles of NH₃ and HCOOH in the H₂O₂ + HO → HO₂ + H₂O reaction have been studied by both stepwise mechanism and one-step process. Then, the relative impacts of NH₃ and HCOOH and their competition with H₂O have been investigated by considering the dependence of rate coefficient on temperature and catalyst concentrations. Through our research, we expect to provide significant theoretical guidance for further revealing of the H₂O₂ + HO → HO₂ + H₂O reaction assisted by acidic, neutral and basic catalysts in the actual atmospheric environment.

2. Computational methods

2.1 Electronic structure calculation

The electronic structure calculations have been carried out by the Gaussian 09 program.³⁸ Geometries of all the species including reactants, pre-reactive complexes, transition states, post-reactive complexes, and products were optimized at the M06-2X/aug-cc-pVTZ level. The corresponding frequencies of the optimized geometries were computed at the same level to prove the characteristics of the transition states with one imaginary frequency and the stationary points possess all real frequencies. The minimum energy paths (MEPs) were obtained by intrinsic reaction coordinate (IRC)^39–41 calculations at the same level which confirms TSs, reactants, and products. IRC calculations also confirmed the presence of pre- and post-reactive complexes at the entry and exit site of reaction path.

To improve the accuracy of the energetics, using M06-2X/aug-cc-pVTZ optimized geometries, single-point energy was calculated using ORCA⁴² at the CCSD(T)-F12a/cc-pVDZ-F12 level,^43–45 and the scaled ZPEs were added to them. The scaling factor employed to adjust the ZPEs was 0.9490.⁴⁶ The reliability of CCSD(T)-F12a/cc-pVDZ-F12 method was further tested by the single point energies of H₂O₂ + HO → HO₂ + H₂O reaction at the W3X-L and W2X⁴⁷ using MRCC^48,49 program packages. It is noted that quantitative barrier heights^47,50–53 for complex atmospheric reactions can be obtained using W3X-L, where the accuracy of W2X and W3X-L can respectively reach for the all-electron scalar-relativistic CCSD(T)/CBS and CCSD(Q)/CBS. Here, the calculated results showed that the unsigned error of CCSD(T)-F12a/cc-pVDZ-F12 is less than 0.5 kcal mol⁻¹ (Table S1†), when compared with W3X-L results. Therefore, the affordable CCSD(T)-F12a/cc-pVDZ-F12 method is chosen to do single point energy calculations for the H₂O₂ + HO → HO₂ + H₂O reaction assisted by NH₃ and HCOOH.

2.2 Chemical kinetics calculations

H₂O₂ + HO → HO₂ + H₂O reaction assisted by catalyst X (X = NH₃ and HCOOH) can be regarded as a sequential bimolecular reaction shown in eqn (2).In eqn (2), the dimer H₂O₂⋯HO is assumed to be less important than H₂O₂⋯X and HO⋯X, due to the small concentration of H₂O₂ and HO radicals. So, the sequential bimolecular route would first occur through the formation of a bimolecular complex BC (X⋯H₂O₂ or HO⋯X), and then bimolecular complex combines with the other reactant (HO or H₂O₂) to form the trimolecular complex TC (HO⋯X⋯H₂O₂). Subsequently, the trimolecular complex undergoes a unimolecular reaction via the corresponding TS to form the products. Assuming a steady-state approximation, trimolecular complex TC is in equilibrium with bimolecular complex BC and reactant (H₂O₂ or HO), the bimolecular rate coefficient (k_b) for the reaction between BC and reactant (H₂O₂ or HO) can be written as eqn (3) and calculated by employing Polyrate 8.2 program⁵⁴ coupled with the steady-state approximation.Here assuming k₋₂ is much larger than k_uni, k_b of eqn (3) can be simplified as eqn (4).

k_b = K_eq2 × k_uni (4)

This kinetic model is reasonably correct at the high-pressure limit. In eqn (4), the equilibrium constant K_eq2 can be written in eqn (5), while the rate coefficient constant (k_uni) from trimolecular complex to the products can be minimized by varying the transition state dividing surface along the reaction coordinate to get the CVT rate coefficients given by eqn (6) and (7):^55–58

k^CVT(T) = min_sk^GT(T, 〈s〉) = k^GT[T,s^CVT(T)] (7)

where Q_TC, Q_BC and Q_R in eqn (5) is respectively the total partition function of the trimolecular complex TC, bimolecular complex BC and reactant (HO or H₂O₂); E_TC, E_BC and E_R is respectively the energy of trimolecular complex TC, bimolecular complex BC and reactant (HO or H₂O₂). k^GT(T,s) in eqn (6) and k^CVT(T) in eqn (7) is respectively the rate coefficient of generalized and canonical variational transition state theory. Γ is the small curvature tunneling (SCT)^59,60 correction, L^≠ is the reaction path degeneracy, h is the Planck's constant, k_B is the Boltzmann constant, V_MEP(s) is the classical barrier height and Q^≠_TS is the total partition functions for the transition state. It should be noted that K_eq2 calculated here has been successfully performed in calculating the complexes^61–65 of H₂O⋯VOC, H₂O⋯HCHO, H₂O⋯CH₃COCH₃, H₂O⋯CH₂NH, H₂O⋯HO₂, H₂O⋯SO₂, and H₂O⋯NO₂. In this work, we do not consider the effects of partial pressure on the formation of these complexes because there are no experimental data to show that the equilibrium constants of these complexes are determined by pressure.

The equilibrium constant for the formation of the bimolecular complex (K_eq1) can also be calculated using corresponding partition functions and energies (obtained from electronic structure calculations) as eqn (8)

where Q_BC and Q_R are the total partition functions of the bimolecular complex and reactants, respectively; E_BC and E_R are the energies of bimolecular complex and reactants, respectively. From the above, the rate (v) of the sequential bimolecular reaction can be written as:

v = K_eq1 × K_eq2 × k_uni × [X] × [HO] × [H₂O₂] (9)

Here, v is considered as a measure of the relative efficiencies of the different catalysts under atmospheric conditions.

3. Results and discussions

3.1 Reactants

In the presence of catalyst X, the H₂O₂ + HO + X reaction going through a termolecular reaction has a much lower probability than the sequential bimolecular reaction. In this work, the sequential bimolecular reaction is that, initially, the H₂O₂ + HO + X reaction goes through a two-body complex between catalyst X and one of the two reactants (H₂O₂ or HO) and then the two-body complex will react with the other reactant. It should be noted that, because of the small concentration of H₂O₂ and HO radicals, the concentration of dimer H₂O₂⋯HO is much lower as compared to the dimers of H₂O₂⋯X and HO⋯X. Thus, H₂O₂⋯HO complex can be neglected and it is not taken into account here. Such investigations have been studied in similar investigations,^52,66–70 where the dimer between the two reactants has not been involved in X assisted reactions. Above step is followed since it is very necessary to first identify the stable binary complexes of H₂O₂⋯X and HO⋯X. To achieve this aim, we performed a stable global minimum searching of geometrical configurations using Tsinghua Global Minimum (TGMin) program^71,72 to search out variety geometrical configurations of H₂O₂⋯X and HO⋯X complexes firstly. Secondly initial structures obtained for these binary complexes were selected for geometry optimization using the M06-2X/6-31+G(d,p) level. Then, the structures within 5.0 kcal mol⁻¹ of the global minimum were re-optimized by M06-2X/aug-cc-pVTZ level. The optimized structures for the most stable H₂O₂⋯X and HO⋯X complexes have been shown in Fig. 1. As displayed in Fig. 1, the stable binary H₂O₂⋯NH₃ complex shows a five-membered ring with two hydrogen bonds (H4⋯N, 1.85 Å; H1⋯O2, 2.67 Å) involved. Its stabilization energy is 6.6 kcal mol⁻¹ relative to the separate reactants of H₂O₂ and NH₃, and is respectively stabilized by 1.1 and 6.6 kcal mol⁻¹ than the other two binary complexes of HO⋯NH₃ and NH₃⋯HO. Binary complexes of H₂O₂⋯HCOOH and HO⋯HCOOH were formed with stabilization energies of 10.1 and 4.9 kcal mol⁻¹, respectively. The energy difference between these two complexes can be explained in terms of ring size formed within their structures. The former complex is formed with a seven-membered ring structure, while the latter complex forms a six-membered ring structure.

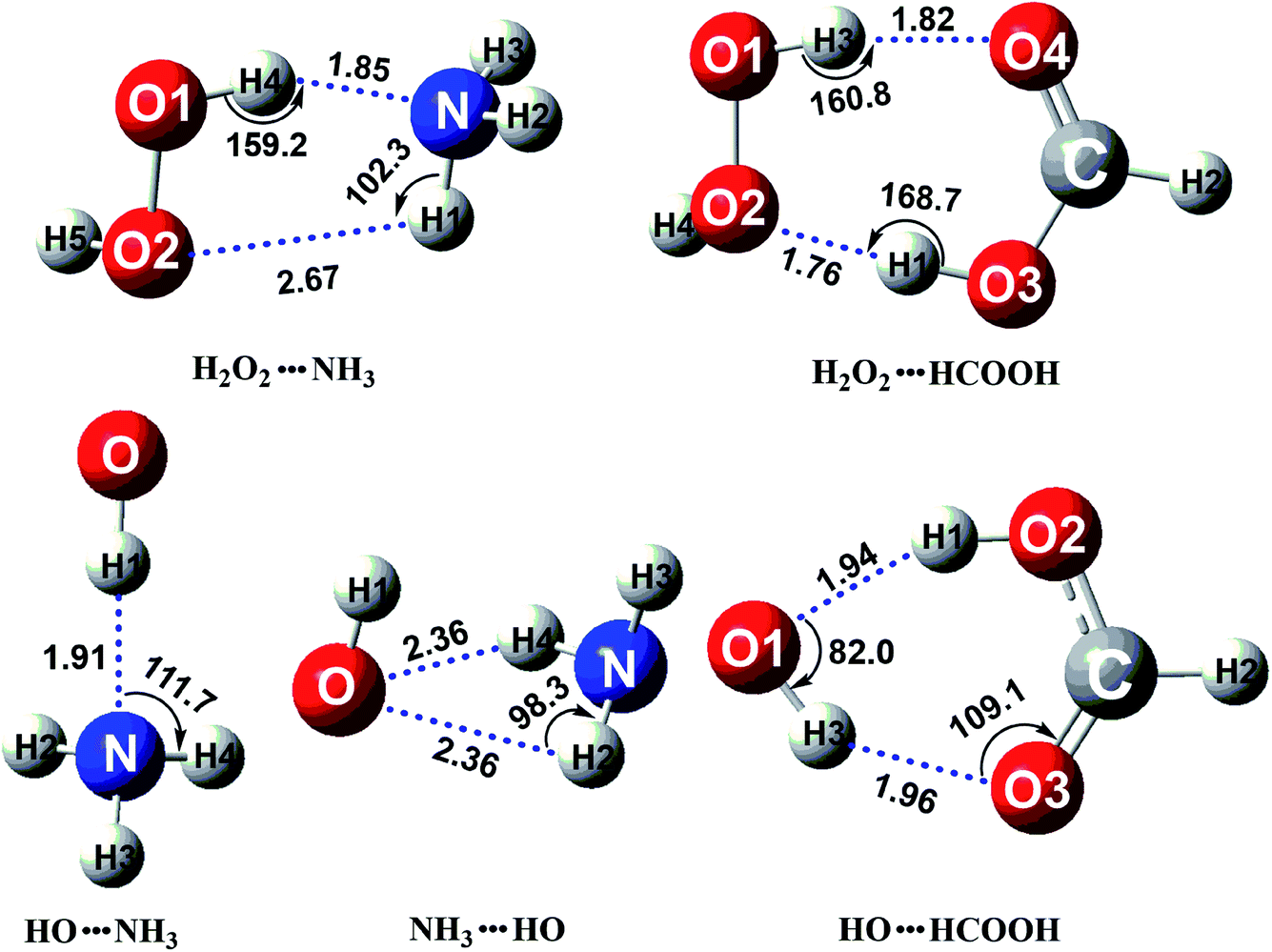

Fig. 1 The optimized structures for the most stable complex of H₂O₂ (or HO) with catalyst X (X = NH₃ and HCOOH) at the CCSD(T)-F12a/cc-pVDZ-F12//M06-2X/aug-cc-pVTZ level.

3.2 Mechanism and kinetic for NH₃-assisted reaction

Depending on the type of the binary complex discussed above, three different binary mechanisms, labelled as H₂O₂⋯NH₃ + HO, HO⋯NH₃ + H₂O₂, and NH₃⋯HO + H₂O₂, were obtained (as illustrated in Fig. 2). Among the three NH₃ assisted H₂O₂ + HO → HO₂ + H₂O reactions, one proceeds through both one-step and stepwise mechanisms and the other two occur-only through a one-step mechanism. The relative energies to the separate reactants in the presence of NH₃ are given in Table S5.†

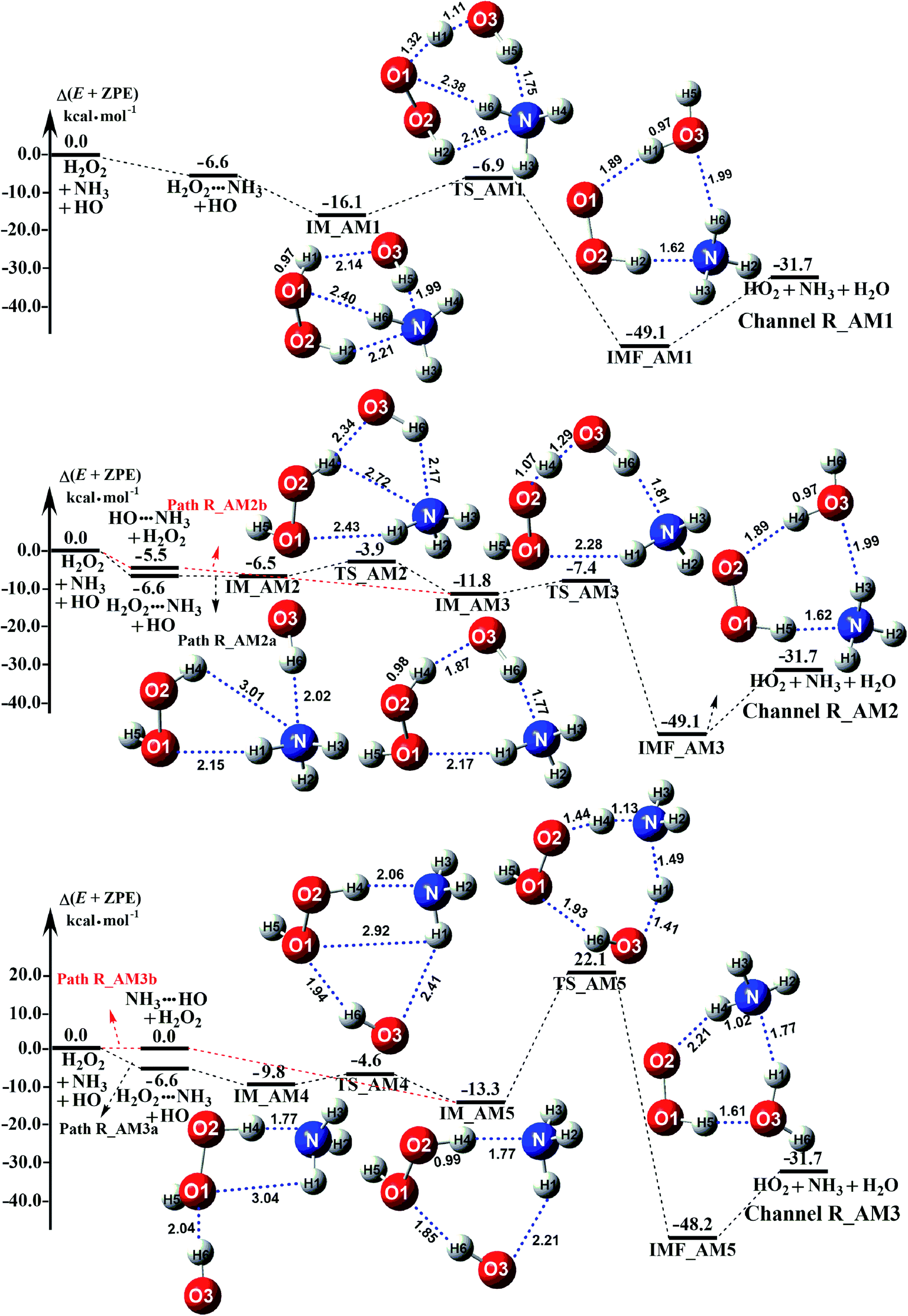

Fig. 2 Schematic potential energy diagrams for NH₃ catalyzed H₂O₂ + HO → HO₂ + H₂O reaction at the CCSD(T)-F12a/cc-pVDZ-F12//M06-2X/aug-cc-pVTZ level.

As for Channel R_AM1, the reaction starting with H₂O₂⋯NH₃ + HO reactants leads to a termolecular hydrogen bond complex IM_AM1 with a binding energy of 9.5 kcal mol⁻¹ relatives to the separate H₂O₂⋯NH₃ + HO reactants. Because of the geometry, additional two hydrogen bonds (N⋯H5, 1.99 Å; O3⋯H1, 2.14 Å) were formed in complex IM_AM1 as compared to H₂O₂⋯NH₃ complex. This leads to complex IM_WM1 shows a quasi-planar cage-like hydrogen bonding network structure. Starting from complex IM_AM1, Channel R_AM1 proceeds through the transition state TS_AM1 where the O atom of HO radical extracts one H atom of H₂O₂ moiety in H₂O₂⋯NH₃ complex. As illustrated in Fig. 2(a), TS_AM1 has a computed barrier of 9.2 kcal mol⁻¹ relatives to complex IM_AM1. This barrier height is much lower than that for H₂O₂ + HO → HO₂ + H₂O reaction without catalyst X, which has an energy barrier of 14.1 kcal mol⁻¹ as compared to corresponding pre-reactive complex IM1 (Table S5†). Similarity, compared with the reaction without X, the computed free energy barrier (ΔG, 298 K) of the transition state TS_AM1 to the complex IM_AM1 is reduced to 9.6 kcal mol⁻¹ from 14.1 kcal mol⁻¹. Differently from complex IM_AM1 and transition state TS_AM1, post-reactive complex IMF_AM1 shows a planar structure with its stabilization energy of 42.5 kcal mol⁻¹ relatives to H₂O₂⋯NH₃ + HO reactants.

As for Channel R_AM2, when NH₃ has introduced into the H₂O₂ + HO → HO₂ + H₂O reaction, two kinds of entrance channels, H₂O₂⋯NH₃ + HO (Path R_AM2a) and HO⋯NH₃ + H₂O₂ (Path R_AM2b), have been displayed in Fig. 2(b). When binary complex H₂O₂⋯NH₃ and HO play as reactants, the reaction occurs in stepwise route, which is similar to H₂O catalyzed reactions^{21,28,62,73,74} of HO₂ + HO, HO₂ + HS, H₂O₂ + HO, HO₂ + Cl, and HO₂ + NH₂, as well as NH₃-catalyzed HO₂ + Cl reaction.²⁸ The first step begins with pre-reactive complex IM_AM2, which transforms into seven-membered ring complex IM_AM3 through transition state TS_AM2 by a ring enlargement. It is noted that complex IM_AM3 has a binding energy of 11.8 kcal mol⁻¹, larger by 5.3 kcal mol⁻¹ that of complex IM_AM2. At the same time, the barrier height of the ring enlargement is only 2.6 kcal mol⁻¹, revealing that this elementary step can occur easily both thermodynamically and kinetically. In the second step, the IM_AM3 complex undergoes a direct hydrogen abstraction by the O atom of HO moiety abstracting one H atom of H₂O₂ moiety. This elementary step overcomes a barrier height of 4.4 kcal mol⁻¹, which is higher by 1.8 kcal mol⁻¹ than the corresponding barrier height for the step of ring enlargement. This reveals that the second step is the rate-determining step. When HO⋯NH₃ and H₂O₂ act as reactants, the reaction occurs in one elementary step, which is similar to the H₂O₂ + HO → HO₂ + H₂O reaction in the absence of a catalyst. Starting from HO⋯NH₃ + H₂O₂ reactants, Path R_AM2b starts with pre-reactive complex IM_AM3 and proceeds through the transition state TS_AM3 to from the post-reactive complex IMF_AM3, which has been discussed above. To check the competition between H₂O₂⋯NH₃ + HO and HO⋯NH₃ + H₂O₂ in Channel R_AM2, the rate via the routes of H₂O₂⋯NH₃ + HO (Path R_AM2a) and HO⋯NH₃ + H₂O₂ (Path R_AM2b) is respectively given in eqn (10) and (11).

where K_eq1a and K_eq1b respectively denote the equilibrium constant for the formation of H₂O₂⋯NH₃ and HO⋯NH₃; k_{R_AM2a} and k_{R_AM2b} respectively denote the bimolecular rate constant of Path R_AM2a and Path R_AM2b. The calculated rate ratio for v_{R_AM2a}/v_{R_AM2b} reveals that the entrance of HO⋯NH₃ and H₂O₂ is more important than that of H₂O₂⋯NH₃ and HO with the ratio of v_{R_AM2a}/v_{R_AM2b} is 5.99 × 10⁻⁶ to 2.36 × 10⁻⁵ between 280 and 320 K (Table 1). As a result, Channel R_AM2 occurs mainly through HO⋯NH₃ + H₂O₂ reactants. Similarity, the NH₃⋯HO + H₂O₂ reaction (Path R_AM3b) only has been taken into account in Channel R_AM3, and the reaction starting from H₂O₂⋯NH₃ + HO reactants (Path R_AM3a) has been neglected because the ratio of v_{R_AM3a}/v_{R_AM3b} listed in Table 1 is 3.45 × 10⁻³ to 7.24 × 10⁻³ between 280 and 320 K.

Table 1 The bimolecular rate coefficients (cm³ per molecules per s) and rate ratio for NH₃ catalyzed H₂O₂ + HO → HO₂ + H₂O reaction within the temperature range of 280–320 K

T/K	kR_AM1	kR_AM2a	kR_AM2b	vR_AM2a/vR_AM2b	kR_AM3a	kR_AM3b	vR_AM3a/vR_AM3b	vR_AM2b/vR_AM3b	vR_AM1/vR_AM2b
280	1.35 × 10^−10	2.06 × 10^−16	5.91 × 10^−11	5.99 × 10^−6	2.49 × 10^−34	3.54 × 10^−28	3.45 × 10^−3	4.75 × 10^20	3.95
290	1.13 × 10^−10	2.54 × 10^−16	4.68 × 10^−11	8.77 × 10^−6	4.98 × 10^−34	3.92 × 10^−28	4.24 × 10^−3	2.46 × 10^20	3.91
298	9.95 × 10^−11	2.98 × 10^−16	3.93 × 10^−11	1.17 × 10^−5	8.84 × 10^−34	4.47 × 10^−28	4.93 × 10^−3	1.42 × 10^20	3.92
300	9.64 × 10^−11	3.09 × 10^−16	3.75 × 10^−11	1.25 × 10^−5	1.02 × 10^−33	4.63 × 10^−28	5.14 × 10^−3	1.24 × 10^20	3.91
310	8.39 × 10^−11	3.70 × 10^−16	3.06 × 10^−11	1.74 × 10^−5	2.14 × 10^−33	5.81 × 10^−28	6.14 × 10^−3	6.09 × 10^19	3.94
320	7.43 × 10^−11	4.38 × 10^−16	2.55 × 10^−11	2.36 × 10^−5	4.58 × 10^−33	7.69 × 10^−28	7.24 × 10^−3	2.93 × 10^19	4.01

---

Regarding Channel R_AM3 starting from NH₃⋯HO + H₂O₂ reactants, seven-membered ring complex IM_AM5 proceeded through transition state TS_AM5 to from post-reactive complex IMF_AM5 with the barrier height of 35.4 kcal mol⁻¹. It is noted that the barrier height of Channel R_AM3 is 31.0 kcal mol⁻¹ higher than the corresponding barrier height value involved in Channel R_AM2, while the computed free energy barrier (ΔG, 298 K) of Channel R_AM3 is higher by 32.9 kcal mol⁻¹ than that of Channel R_AM2. Such energy difference between Channels R_AM2 and R_AM3 is possibly due to that Channel R_AM2 involves a direct hydrogen abstraction, whereas double hydrogen transfers were involved in Channel R_AM3. This mechanism discrepancy between Channels R_AM2 and R_AM3 is consistent with water-catalyzed H₂O₂ + HO → HO₂ + H₂O reaction.²¹ Hence, double hydrogen transfers mechanisms are considered to be much less probable than the direct hydrogen abstraction mechanism with the mechanism from the IM_AM5 complex being the most unlikely due to the high energy barrier. As a result, the double hydrogen transfer mechanism has not been involved in the HCOOH-catalyzed reaction below. Furthermore, the calculated rate ratio for v_{R_AM1}/v_{R_AM2b} reveals that Channel R_AM1 is more important than that of Channel R_AM2 with the ratio of v_{R_AM1}/v_{R_AM2b} is 3.95–4.01 between 280 and 320 K (Table 1).

3.3 Mechanism and kinetic for HCOOH-assisted reaction

The potential energy surfaces of the reaction channels in the presence of HCOOH for H₂O₂ + H₂O formations occurring through Channels R_FA1 and R_FA2 have been displayed in Fig. 3. As for Channel R_FA1 starting from H₂O₂⋯HCOOH + HO reactants, the route begins with the formation of the complex IM_FA1. Complex IM_FA1 forms a hydrogen-bonded configuration with a binding energy of 5.9 kcal mol⁻¹ as compared to H₂O₂⋯HCOOH + HO reactants. The structure of IM_FA1 resembles that of H₂O₂⋯HCOOH complex with additional two hydrogen bonds (H3⋯O5, 1.98 Å; O1⋯H4, 1.99 Å) formed between HO and H₂O₂⋯HCOOH complex. Starting from IM_FA1 complex, the O atom of HO radical directly abstracts the H4 of H₂O₂ moiety in H₂O₂⋯HCOOH complex, overcoming transition state TS_FA1 with an energy of 0.6 kcal mol⁻¹ with respect to H₂O₂⋯HCOOH + HO reactants. The barrier height of Channel R_FA1 is 6.5 kcal mol⁻¹, which is lower by 7.6 kcal mol⁻¹ than the similar route in the absence of a catalyst. Meanwhile, the computed free energy barrier (ΔG, 298 K) is reduced to 7.2 kcal mol⁻¹ from 14.1 kcal mol⁻¹ in the bare H₂O₂ + HO reaction. This indicates that HCOOH in Channel R_FA1 plays a positive catalytic role in the H₂O₂ + HO → HO₂ + H₂O reaction by reducing the energy barrier.

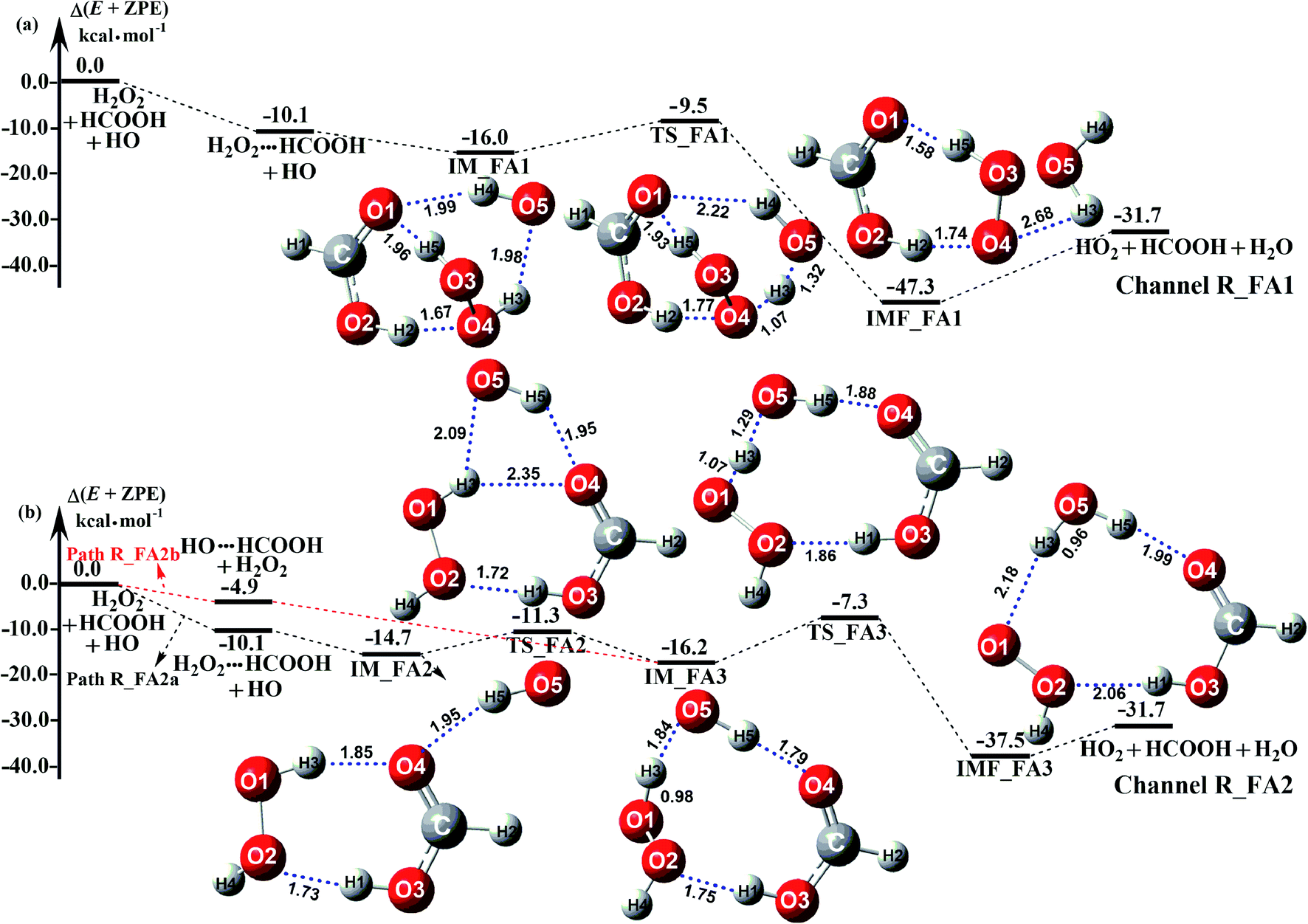

Fig. 3 Schematic potential energy diagrams for favorable channels of HCOOH catalyzed H₂O₂ + HO → HO₂ + H₂O reaction at the CCSD(T)-F12a/cc-pVDZ-F12//M06-2X/aug-cc-pVTZ level.

Because of relative energy, Channel R_FA2 occurring through the H₂O₂⋯HCOOH + HO reactants is more favorable than that starting from HO⋯HCOOH + H₂O₂ reactants. Given the relative concentration, the concentration of binary complex of H₂O₂⋯HCOOH (2.10 molecules per cm³) is much higher than that of the binary complex of HO⋯HCOOH (4.17 × 10⁻⁵ molecules per cm³). However, as listed in Table 2, the ratio (v_{R_FA2a}/v_{R_FA2b}) between H₂O₂⋯HCOOH + HO (Path R_FA2a) and HO⋯HCOOH + H₂O₂ reaction (Path R_FA2b) in Channel R_FA2 is 0.02–0.03 between 280 and 320 K. The above facts reveal that for Channel R_FA2, the interaction between HO⋯HCOOH + H₂O₂ would be more favorable than the action via H₂O₂⋯HCOOH + HO route. As for Path R_FA2b, beginning with the HO⋯HCOOH + H₂O₂ reactants, the reaction involves the formation of pre-reactive complex IM_FA3 with the binding energy of 11.3 kcal mol⁻¹ as compared to HO⋯HCOOH + H₂O₂ reactants. In the viewpoint of geometrical structure, IM_FA3 shows a nine-membered ring with three hydrogen bonds (H3⋯O5, 1.84 Å; O4⋯H5, 1.79 Å; O2⋯H1, 1.75 Å) involved. After complex IM_FA3, Path R_FA2 occurs through transition state TS_FA3 where the O atom of HO radical abstracts the H atom of H₂O₂ followed by the elongation of the H5⋯O4 and H1⋯O2 bonds respectively by 0.09 Å and 0.11 Å. TS_FA3, as illustrated in Fig. 3, has a computed energy barrier of 8.9 kcal mol⁻¹ relatives to complex IM_FA3, lying at 7.3 kcal mol⁻¹ below the separate reactants of H₂O₂ + HO + HCOOH. This barrier height is much lower than the H₂O₂ + HO → HO₂ + H₂O reaction, whose energy barrier is determined to be 14.1 kcal mol⁻¹. Similarity, the computed free energy barrier (ΔG, 298 K) is reduced to 8.9 kcal mol⁻¹ from 14.1 kcal mol⁻¹ in the bare H₂O₂ + HO reaction. This indicates that HCOOH in Channel R_FA2 also plays a positive catalytic role in reducing the energy barrier of the H₂O₂ + HO → HO₂ + H₂O reaction.

Table 2 The bimolecular rate coefficients (cm³ per molecules per s) and rate ratio for HCOOH catalyzed H₂O₂ + HO → HO₂ + H₂O reaction within the temperature range of 280–320 K

T/K	kR_FA1	kR_FA2a	kR_FA2b	vR_FA2a/vR_FA2b	vR_FA1/vR_FA2b
280	9.50 × 10^−11	3.95 × 10^−13	1.86 × 10^−8	0.02	5.24
290	7.32 × 10^−11	3.87 × 10^−13	1.09 × 10^−8	0.02	4.64
298	6.07 × 10^−11	3.82 × 10^−13	7.29 × 10^−9	0.03	4.19
300	5.81 × 10^−11	3.81 × 10^−13	6.64 × 10^−9	0.03	4.10
310	4.67 × 10^−11	3.78 × 10^−13	4.20 × 10^−9	0.03	3.65
320	3.83 × 10^−11	3.79 × 10^−13	2.76 × 10^−9	0.03	3.30

---

As a result of the above, HCOOH-assisted H₂O₂ + HO → HO₂ + H₂O reaction mainly occurs through H₂O₂⋯HCOOH + HO reaction (Path R_FA1) and HO⋯HCOOH + H₂O₂ reaction (Path R_FA2b) by one-step route. Moreover, one-step route occurring through HO⋯HCOOH + H₂O₂ reaction is more competitive than H₂O₂⋯HCOOH + HO reaction with the ratio of v_{R_FA1}/v_{R_FA2b} is 5.24–3.30 between 280 and 320 K (Table 2).

3.4 Relative impact of NH₃ and HCOOH in troposphere

From the mechanism and kinetic discussed above, X-assisted H₂O₂ + HO → HO₂ + H₂O reaction mainly proceeds through the H₂O₂⋯X + HO reaction by one-step mechanism. Here, the relative rates for NH₃ and HCOOH to H₂O have been calculated to get a realistic diagram of the relative impact of the NH₃ and HCOOH in the troposphere. To achieve this aim, one-step reaction mechanism of H₂O₂ + HO → HO₂ + H₂O reaction assisted by H₂O at the CCSD(T)-F12a/cc-pVDZ-F12//M06-2X/aug-cc-pVTZ level has been shown in Fig. S1,† while its rate coefficient within the temperature range of 213–320 K is listed in Table S6.† Thus, the relative rate for NH₃ to H₂O as well as the relative rate for HCOOH as compared to H₂O is respectively given in eqn (12) and (13).where K_eq1a, K_eq1d, and K_eq1f respectively denote the equilibrium constant for the formation of H₂O₂⋯NH₃, H₂O₂⋯HCOOH and H₂O₂⋯H₂O; k_{R_AM1}, k_{R_FA1} and k_{R_WM} respectively denote the bimolecular rate coefficient for the favorable one-step mechanism in H₂O₂ + HO → HO₂ + H₂O reaction assisted by NH₃, HCOOH and H₂O. [NH₃], [HCOOH] and [H₂O] are the concentration of NH₃, HCOOH and H₂O, which was obtained from previous report values.^{55,64,65,70,75}

The relative rates for v_{R_AM1}/v_{R_WM} and v_{R_FA1}/v_{R_WM} within the temperature range of 280–320 K are given in Table 3. As seen in Table 3, when the concentrations of H₂O at 100% (2.60 × 10¹⁷ molecule per cm³ to 2.30 × 10¹⁸ molecule per cm³)⁷⁶ RH and NH₃ at 10 ppbv (2.60 × 10¹¹ molecule per cm³ to 2.30 × 10¹¹ molecule per cm³),^22–24 the calculated v_{R_AM1}/v_{R_WM} value is below 2.47 × 10⁻³ to 9.40 × 10⁻⁵ within the temperature range of 280–320 K. Moreover, when the concentration of NH₃ at 2900 ppbv (7.60 × 10¹³ molecule per cm³ to 6.70 × 10¹³ molecule per cm³),²⁵ the calculated v_{R_AM1}/v_{R_WM} is still below 0.72–2.74 × 10⁻². This reveals that the H₂O₂ + HO → HO₂ + H₂O reaction with NH₃ cannot compete with the reaction in the presence of H₂O. Similarity, when the concentration of HCOOH at 2.60 × 10¹¹ molecule per cm³ to 2.30 × 10¹¹ molecule per cm³,⁷⁷ the calculated v_{R_FA1}/v_{R_WM} value is 2.44 × 10⁻² to 3.05 × 10⁻⁴ within the temperature range of 280–320 K, indicating that the H₂O₂ + HO → HO₂ + H₂O reaction with HCOOH also cannot compete with the corresponding reaction in the presence of H₂O.

Table 3 The pseudo-first-order rate coefficients (cm³ per molecules per s) for H₂O, NH₃ and HCOOH catalyzed H₂O₂ + HO → HO₂ + H₂O reaction within the temperature range of 280–320 K

T/K	(100% RH)	(10 ppbv)	(2900 ppbv)	(high 10 ppbv)
280	2.13 × 10^−17	5.25 × 10^−20	1.53 × 10^−17	5.19 × 10^−19
290	3.29 × 10^−17	3.20 × 10^−20	9.35 × 10^−18	2.34 × 10^−19
298	4.63 × 10^−17	2.29 × 10^−20	6.50 × 10^−18	1.27 × 10^−19
300	5.01 × 10^−17	2.02 × 10^−20	5.99 × 10^−18	1.12 × 10^−19
310	7.54 × 10^−17	1.39 × 10^−20	3.99 × 10^−18	5.82 × 10^−20
320	1.01 × 10^−16	9.49 × 10^−21	2.76 × 10^−18	3.07 × 10^−20

---

T/K	vR_AM1 (10 ppbv)/vR_WM (100% RH)	vR_AM1 (2900 ppbv)/vR_WM (100% RH)	vR_FA1 (high)/vR_WM (100% RH)
280	2.47 × 10^−3	0.72	2.44 × 10^−2
290	9.73 × 10^−4	0.28	7.13 × 10^−3
298	4.94 × 10^−4	0.14	2.75 × 10^−3
300	4.04 × 10^−4	0.12	2.23 × 10^−3
310	1.84 × 10^−4	5.29 × 10^−2	7.72 × 10^−4
320	9.40 × 10^−5	2.74 × 10^−2	3.05 × 10^−4

---

4. Summary and conclusions

The effect of catalyst X (X = NH₃ and HCOOH) on the H₂O₂ + HO → HO₂ + H₂O reaction was investigated by using quantum chemical calculations and canonical variational transition state theory with small curvature tunneling correction. Two kinds of acid–base catalyzed mechanism, namely one-step route and stepwise processes, were found in the reaction assisted by catalyst X. As for the one-step route, the reaction proceeded through similar direct hydrogen abstraction with the reaction without catalyst X. We found one-step mechanism that is promoted by a low energy barrier, was respectively predicted to take place at a bimolecular rate coefficient of 9.95 × 10⁻¹¹ cm³ per molecule per s (NH₃-assisted reaction) and 6.07 × 10⁻¹¹ cm³ per molecule per s (HCOOH-assisted reaction) at 298 K, and is very closed to the rate coefficient for the reaction without catalyst X. Stepwise processes here were explored by direct hydrogen abstraction and double hydrogen abstraction transfer mechanism, and were found to be kinetically more favorable via direct hydrogen abstraction. However, this hydrogen abstraction in a stepwise route is essentially less important than the hydrogen abstraction in a one-step mechanism.

Within the temperature ranging from 280 K to 320 K, the pseudo-first-order rate coefficient for one-step mechanism in the presence of NH₃ (10 ppbv) and HCOOH (10 ppbv) is only 5.25 × 10⁻²⁰ to 9.49 × 10⁻²¹ cm³ per molecule per s and 5.19 × 10⁻¹⁹ to 3.07 × 10⁻²⁰ cm³ per molecule per s, respectively. This was largely decreased by 3–5 and 2–4 orders of magnitude than the reaction assisted by H₂O in which the positive water effect is significant under atmospheric conditions. This catalytic difference between catalyst X and H₂O is possibly due to a much lower concentration of NH₃ and HCOOH relative to H₂O. Despite the fact that H₂O₂ + HO → HO₂ + H₂O reaction with catalyst X is not so efficient to shift the overall HO₂ + H₂O formation rate, the present study provides a comprehensive model of how acidic and basic catalysts assisted the gas-phase reactions.
