Graphene and silicene quantum dots for nanomedical diagnostics

Abstract

In the present work, the prominent effects of edge functionalization, size variation and base material on the structural, electronic and optical properties of diamond shaped graphene and silicene quantum dots are investigated. Three functional groups, namely (–CH₃, –OH and –COOH) are investigated using the first principles calculations based on the density functional, time-dependent density functional and many-body perturbation theories. Both the HOMO–LUMO energy gap, the optical absorption and the photoluminescence are clearly modulated upon functionalization compared to the H-passivated counterparts. Besides the functional group, the geometric distortion induced in some QDs also influences their optical features ranging from near ultra-violet to near infra-red. All these results indicate that edge-functionalizations provide a favorable key factor for adjusting the optoelectronic properties of quantum dots for a wide variety of nanomedical applications, including in vitro and in vivo bioimaging in medical diagnostics and therapy.

---

Introduction

For several decades, a variety of powerful and long-term fluorescent dyes have acquired tremendous interest, owing to their ability to label and track biological molecules within living cells.¹ Small molecules and proteins, such as green fluorescent proteins (GFP), have been proven to be prominent organic fluorophores under incident light in the blue to ultraviolet range.² However, GFPs present a restrictive drawback in long-term bioimaging because of their low stability against photobleaching due to interactions with surrounding molecules.³

Semiconductor quantum dots (SCQDs) constitute an ideal alternative to conventional organic dyes thanks to their excellent photostability and high fluorescence quantum efficiency.^4,5 Furthermore, these fluorescent probes can be easily prepared and controlled through chemical methods.⁶ However, the cytotoxicity of SCQDs, due to the toxic heavy-metal elements they contain, in addition to their poor solubility, preclude their use in biomedical applications.^7,8 To overcome this biosafety issue, special interest has been devoted to carbon-based fluorescent nanoparticles.

The discovery of carbon quantum dots, diamond nanocrystals, fluorescent carbon nanotubes and fullerene nanoparticles, is of great interest especially for biomedical research because of their high brightness, significant photobleaching resistance, and low cytotoxicity among other attributes.⁹ Using hydrothermal cutting of pre-oxidized graphene sheets, graphene quantum dots (CQDs) were fabricated for the first time in 2010.¹⁰ They are graphene fragments of nanometric size where charge carriers are confined in three dimensions of space. CQDs combining graphene performance and quantum dot behaviour, offer unusual optoelectronic properties resulting from quantum confinement and edge effects.¹¹

CQDs are environmentally friendly and suitable for biomedical applications like in vivo and in vitro bioimaging, biosensing, drug and gene delivery, DNA cleavage, and cancer therapy.^12,13 They are also used in electronic devices such as photodetectors, capacitors, phototransistors and in renewable energy resources.^14–16 To adapt and modify CQD properties such as the photoluminescence behaviour, for desired and specific applications, different successful processes have been reported. For example total or partial substitution, adsorption, decoration or chemical functionalization of the edges, size variation and application of the electrical field are all effective methods to control the stability of quantum dots and tune their electronic and optical properties.^17–20

Variation of size, shape and zigzag/armchair edge configuration in hexagonal CQDs influences gap energy, excitonic binding energy and singlet-triplet energy splitting which results in the potential photoluminescence required for optoelectronic and photovoltaic devices.²¹ Si-atoms substituting C-atoms in diamond shaped quantum dots (DSQDs) strongly altered the chemical stability, optoelectronic behavior and excitonic character of pyrene, leading to a wide variety of properties for promising nanoelectronic and nanomedical applications.²² Furthermore, rectangular CQDs were found to be sensitive to the amount and position of substituents as well as to the application of an external electric field dealing with prominent optical absorption ranging from near infra-red (NIR) to UV, making these types of QDs emergent candidates for solar cell applications.²³

Theoretical studies have also revealed the significant effect of the type of edge-functionalization and the amount of functional groups in tailoring the optoelectronic properties and photoluminescence behavior of CQDs.²⁴ Upon partial edge-functionalization, the absorption and fluorescence spectra of CQDs are slightly shifted towards lower energies, while a large red-shift occurs for the fully functionalized edges.²⁵ Notably, competition between frontier orbital hybridization and charge transfer clearly affects the energy gap and the exciton-binding energy of coronene structures.²⁶ In NH₂ edge-functionalized CQDs, p-orbital hybridization between the C and N atoms at the peripheral sites induces the formation of new energy levels in the form of an interband within the energy gap, yielding tunable PLs for novel optoelectronic devices.²⁷ Additionally, the edge and surface functionalization of the CQDs with oxygen-containing groups leads to a remarkable change in the electronic gap and absorption spectra.²⁸

Experimentally, size-controllable amine-functionalized CQDs show low cytotoxicity and high biocompatibility, in addition to prominent multicolored fluorescence and antimycoplasma properties.²⁹ Likewise, the optical properties have also been tuned by the contour functionalization in green fluorescent CQDs synthesized using a single-step large scale synthesis through acidic treatment of the graphite powder.³⁰ Furthermore, fluorine functionalized CQDs provide a protective shell leading to significant photo- and pH stability, high fluorescence, low cytotoxicity and favorable biocompatibility.³¹ Therefore, fluorinated GQDs are suitable for long-term and real-time cellular imaging. Interestingly, edge functional groups enhance the solubility of GQDs in water and label cells more efficiently.³²

The present paper suggests exploring a class of suitable, multicolored fluorescent DSGQDs and DSSiQDs for biomedical purposes. To do so, first-principle computational methods, namely density function theory (DFT) and many-body perturbation theory (MBPT), were carried out in order to reveal the effect of the molecular edge-functionalization and size on the structural and optoelectronic behavior of the systems. It is shown that the highest occupied molecular orbital (HOMO)– lowest unoccupied molecular orbital (LUMO) energy gap of all functionalized structures undergoes a change with respect to the H-passivated QDs. Among the studied functional groups, –COOH proves to be favourable for the adjustment of the optoelectronic features of the QDs due to the considerable role of the C=O double bond. Additionally, some substituents induced distortion in the corresponding QDs, leading to absorption and photoluminescence ranging from UV to NIR. The inclusion of many body effects via GW approximation has resulted in a crucial correction of the DFT results, especially for the case of the OH functionalized CQDs owing to the large capacity of this molecular group to remove charge carriers from the C and Si skeleton. Consequently, this reduces the screening and thus improves the electron–electron interaction. Moreover, singlet–triplet energy splitting values are found to be significant seeing the large overlap of electron and hole wave functions, which opens up broad opportunities for their use in optoelectronic and nanomedical applications. Finally, the organic nature and biological properties of these QDs can facilitate their transport across organs and tissues and enhance their uptake by living cells.

The document is organized as follows: details on the ab initio calculations are given in the first section. The second section presents the energetic stability, as well as a description of the electronic and optical properties, of edge-functionalized DSQDs. Finally, we summarize and conclude our main findings.

1. Computational methods

First-principles calculations based on DFT have been carried out using the Quantum Espresso simulation package³³ employing the generalized gradient approximation GGA-DFT of the Perdew–Burke–Ernzerhof (PBE) exchange-correlation functional.³⁴ Norm-conserving pseudopotentials and a plane-wave basis set with a kinetic energy cutoff of 60 Ry were used. Due to the 0-dimensional nature of QDs, all calculations were performed only at Gamma point of the Briouillin zone.

The significant quantum confinement effect and the small size of our systems result in decreased screening which enhances the Coulomb interaction between charge carriers, namely electrons and holes. Consequently, excitonic effects become significant so that ground state calculations are no longer reliable to investigate the optoelectronic properties. For that reason, many-body interactions are taken into account in our study. Using the GW approximation, the quasiparticle (QP) corrections to GGA eigenvalues were estimated by solving the following equation:³⁵

E^QP_nk = E^QP_KS + 〈ψ_nk|Σ(E^QP_nk) − V^KS_xc|ψ_nk〉

where E^QP_KS and ψ_nk are the Kohn–Sham (KS) energy and wavefunction, respectively, Σ(E^QP_nk) is the self-energy operator and V^KS_xc is the exchange-correlation potential.

The excitonic properties were explored by solving the Bethe–Salpeter equation (BSE):³⁶

where A^S_νck and Ω^S are the exciton amplitudes and the excitation energies, respectively, and Ξ_e–h is the electron–hole interaction kernel. Similar to the case of DFT calculations, only the gamma point was involved in the QP calculations. A total number of 600 bands was used to build the Green function and dielectric matrix for all structures.

We also determine the effective mass M_eff and the Bohr radius of the exciton given by:

where R_H is the Rydberg energy, ε_r is the dielectric constant, m₀ is the electron rest mass and a_H is the Bohr radius of hydrogen atom. Furthermore, the photoluminescence as well as the overlap integral between frontier molecular orbitals (FMO) are studied using the time-dependent (TDDFT) procedure within the B3LYP hybrid exchange-correlation density functional approximation.³⁷ The H–L overlap extent was calculated using the overlap integral function of Multifin.³⁸

2. Results and discussion

This section presents the numerical results obtained from ab initio calculations on the effect of size variation and edge-functionalization on the optoelectronic properties of pristine graphene and pure silicene quantum dots. The goal is to tune the various features of these nanostructures in order to increase their suitability for biomedical applications.

Structural properties

Two different sizes of diamond shaped graphene and silicene quantum dots are studied. These nanostructures contain a mixture of zigzag edges and armchair corners. The molecular structures of QDs edge-functionalized with the functional groups H, methyl (CH₃), hydroxyl (OH) and carboxyl (COOH) are plotted in Fig. 1. With their small size and organic nature, these three molecular substituents provide the QDs with biological and biosafety compatibility. Notice also that in each structure, only the hydrogen passivated to the four seam atoms, namely the atoms connecting the zigzag edges to the armchair corners, are replaced in order to obtain a significant adjustment of the investigated property.^22,39

Fig. 1 Molecular structures of edge-functionalized CQDs and SiQDs with H, CH₃, OH and COOH. Yellow, cyan, purple and red spheres represent carbon, silicon, hydrogen and oxygen atoms, respectively.

Hydrogen passivated C-QDs and Si-QDs, that were successfully fabricated and studied theoretically, are included for comparison.^22,39–42 The insight into the molecular geometry of the edge-hydrogenated configurations shows that the hybridization is strongly dependent on the atom type. More precisely, the C–C bond angles range between 118° and 123° for edge-hydrogenated CQDs revealing that carbon atoms are sp²-hybridized. Consequently, CQDs maintain the perfect geometry of pyrene. Likewise, SiQDs decorated with CH₃ and COOH substituents maintain the same buckled geometry of a silicene sheet, with Si–Si bond angles ranging between 115° and 120°, which reflects the sp²–sp³ hybridization of Si atoms. However, the situation is different for hydroxylated SiQDs that exhibit a slight distortion at decorated zigzag edges, illustrated by a considerable decrement in the summit bond angle of 105.46° and 103.47° for hydroxylated Si₁₆H₁₀ and Si₃₀H₁₄ with respect to 117.4° and 117.05° found in small and large sized pristine SiQDs.^43–45 It is worth noting that, like pyrene, dibenzo-coronene, C₃₀H₁₄, has a point group D_2h that is changed to the C_2h symmetry in its Si analog Si₃₀H₁₄.

Larger sizes C- and Si-QDs are not considered in this work since they present the least interesting properties compared to the two aforementioned sizes. In addition, for bioimaging applications, small size structures are more desirable for use as fluorescent tags on living cells and tissues because large size QDs affect organ functions.^15,46,47

To examine the energy stability of QDs, we determined the harmonic frequencies as depicted in Fig. 2 for the two cases of methylated and carboxylated C₃₀H₁₄–CH₃ and C₃₀H₁₄–OH, and as shown in Table 1 for all structures. The absence of imaginary frequencies confirms that the edge-functionalized QDs are all energetically stable. The lowest value of 8.94 cm⁻¹ is observed for Si₃₀H₁₄–COOH. The highest frequency of 3787.84 cm⁻¹ corresponds to Si₁₆H₁₀–OH. The stability of these nanostructures is attributed to the large charge transfer and the ionic bonds between the C/Si skeleton and functional groups.

Fig. 2 Vibrational spectra of methylated and carboxylated C₃₀H₁₄ QDs.

Table 1 Calculated parameters for edge-functionalized QDs: dihedral angles D and D′, electrophilicity ω and the charge transfer to molecular groups. E^GGA_g and E^GW_g are respectively the HOMO–LUMO energy gap obtained by GGA and GW approximations

	Structures	α(1,2,3)	β(4,5,6)	ω	Charge	Ef	Frequency range	E^GGAg	E^GWg
H	C16H10	120.42	120.42	4.91	—	—	101.07–3204.49	2.61	6.63
	C30H14	120.76	120.76	9.17	—	—	47.47–3203.81	1.32	4.28
	Si16H10	117.4	117.4	14.60	—	—	27.21–2230.11	1.05	3.55
	Si30H14	117.05	117.05	23.85	—	—	12.12–2228.90	0.506	2.38
CH3	C16H10	123.05	123.05	4.56	−0.051	−5.406	64.85–3218.2	2.32	6.05
	C30H14	123.09	123.09	8.68	−0.054	−0.781	36.75–3201.61	1.20	4.02
	Si16H10	119.72	119.72	11.29	−0.106	−4.475	23.59–3137.25	1.05	3.49
	Si30H14	119.96		22.78	−0.102	−3.218	10.65–3138.06	0.507	2.39
OH	C16H10	120.66	120.66	3.38	−0.237	−12.038	69.61–3762.14	2.31	6.08
	C30H14	120.79	120.79	7.15	−0.232	−2.849	37.23–3759.88	1.19	4.05
	Si16H10	105.46	105.46	14.08	−0.231	−14.974	21.88–3787.84	0.84	3.26
	Si30H14	103.47	103.47	18.57	−0.231	−13.726	10.7–3786.27	0.55	2.46
COOH	C16H10	122.94	122.94	10.99	−0.078	−8.593	13.18–3700.35	2.01	5.46
	C30H14	123.04	123.04	17.18	−0.093	−0.420	24.43–3698.48	1.06	3.78
	Si16H10	116.14	116.14	17.55	−0.149	−6.942	17.32–3617.59	0.92	3.32
	Si30H14	116.28	116.28	28.25	−0.15	−5.670	8.94–3617.67	0.46	2.32

---

Electronic properties

The energy gap, that is the difference between the LUMO and the HOMO, is given in Table 1. The ground state calculations performed within the GGA-DFT approach reveal that the H–L (HOMO–LUMO) gap values are sensitive to the edge-functionalization.

The functional groups on the diamond-shaped CQD edges, lower the H–L gap in good agreement with their analogs, (i) hexagonal CQDs decorated with –CH₃, –NH₂, –OH, –F, –CHO, –COOH, –COCH₃ and –COOH (ref. 26) and, (ii) C₁₂₃H₃₈ QDs functionalized with oxygen containing groups.²⁸ Accordingly, upon functionalization, the H–L gap drops by 9.1–23.14% for CQDs since –CH₃ functionalized structures possess the highest H–L gap while the lowest gap is that of –COOH. For SiQDs, carboxylation resulted in decreasing the H–L gap due to the existence of the C=O double bonds in the –COOH molecules. Besides, in hydroxylated and methylated SiQDs, a small down shift of the H–L gap value is observed only for Si₁₆H₁₀–OH.

Furthermore, the H–L gap behaviour, that is linked to the type of the functional group, depends strongly on the base material and the size of QDs. Graphene QDs are the most affected systems due to the high electronegativity of carbon atoms compared to silicon. Additionally and regardless of the base material, the smaller the structure the stronger the impact of the studied functional groups. This finding is mainly related to the strong quantum confinement existing in small configurations. It follows that the edge-functionalization is a prominent factor to tailor the H–L gap of the studied systems, especially for hydrogen passivated C-QDs that exhibit a large H–L gap which limits their use in several optical applications. For Si-QD, the control of the H–L energy gap through edge-functionalization opens up the prospect of a novel range of emergent nanomedical applications that require small energy gap values.

To get more insight into this behaviour, we analyse the electron charge density of molecular frontier orbitals plotted in Fig. 3 and 4. In small and large sized CQDs, there is no charge transfer between carbon atoms located along the large diagonal of each structure while a charge transfer occurs especially between hydrogen and carbon atoms in zigzag edges. It follows that both HOMO and LUMO isosurfaces spread in zigzag edges and armchair corners including molecular functional groups and excluding the backbone atoms of QD skeletons. The large hybridization of HOMO and LUMO levels results in the reduction of the H–L gap in accordance with C₁₂₃ QDs functionalized using oxygen containing groups.²⁸ Additionally, it is clear that the HOMO and LUMO levels of both –CH₃ and –OH edge-functionalized structures shift toward higher energies with respect to pyrene, while they shift toward lower energies in COOH–CQDs. This finding can be assigned to the presence of the double bond in the COOH functional group.²⁶

Fig. 3 HOMO and LUMO electron charge density distribution describing edge-functionalized CQDs.

Fig. 4 HOMO and LUMO electron charge density distribution describing edge-functionalized SiQDs.

Likewise, smaller SiQDs exhibit a significant hybridization of HOMO and LUMO energies explaining the reduction in energy gap values. Interestingly, in Si₁₆H₁₀–OH, the contribution of –OH to the LUMO is almost absent compared to carbon and the two hydrogen atoms of the large diagonal. It follows a small shift increase in LUMO energy level with respect to Si₁₆H₁₀. For HOMO, a remarkable increase of its energy level arises from the prominent contribution of H-passivated edges and –OH molecules. Therefore, this structure exhibits the largest drop in the electronic gap followed by Si₁₆H₁₀–CH₃ and Si₁₆H₁₀–COOH. This difference can be attributed to the slight distortion caused by functionalization⁴⁸ since the presence of the –OH group deals with a little distortion in Si₁₆H₁₀–OH armchair corners with respect to Si₁₆H₁₀ as reported previously. Larger sized Si₃₀H₁₄ have also shown a large hybridization of frontier molecular orbitals as depicted in Fig. 4. The spacial distribution of HOMO and LUMO is fully localized in the edges including functional groups which led to the enhancement of H–L gap in –CH₃ and –OH SiQDs. Additionally, the contribution originating from C=O is pronounced which confirms a decrease in the corresponding gap value.

It is worth noting that the obtained results using DFT-GGA formalism sound very useful and offer a favorable description of the investigated QDs electronic behaviour. However, optoelectronic and nanomedical applications require going beyond the ground state properties by carrying out further calculations employing GW approximations. The inclusion of many-body effects results in significant enhancement of the DFT-GGA gap values as shown in Table 1. Applying QP corrections, the gaps range from 2.718 eV to 4.022 eV for graphene structures and between 1.868 and 2.503 eV for silicene ones. The DFT-GGA energy gaps of pristine as well as edge-functionalized CQDs were enhanced by 36.73–39.36% for small structures and 28.04–30.84% for larger ones. Much smaller percentages are found for SiQDs since the GGA–H–L energy gap values were increased by 25.84–30.0% for small configurations and by 19.61–22.37% for larger systems. These prominent corrections ensure the significant enhancement of energy gap brought by e–e correlation.

Furthermore, unlike SiQDs that keep the same order, the variation order of DFT-GGA gaps is changed for CQDs upon employing the GW approach as shown in Table 2. This can be explained by the fact that some functional groups, like the –OH one, act like electron acceptors and withdraw electrons from carbon atoms. This impacts the charge transfer and reduces the QDs surface electrons. It results in decreasing the screening and enhancing electron–electron interactions. Consequently, the QP corrections as well as the GW energy gap increases.

Table 2 The variation order of DFT-GGA and GW energy gap values depending on the functional group type

	GW	GGA
C16H10	Eg(OH) > Eg(CH3) > Eg(COOH)	Eg(CH3) > Eg(OH) > Eg(COOH)
C30H14	Eg(OH) > Eg(CH3) > Eg(COOH)	Eg(CH3) > Eg(OH) > Eg(COOH)
Si16H10	Eg(CH3) > Eg(COOH) > Eg(OH)	Eg(CH3) > Eg(COOH) > Eg(OH)
Si30H14	Eg(OH) > Eg(CH3) > Eg(COOH)	Eg(OH) > Eg(CH3) > Eg(COOH)

---

To examine the stability and chemical reactivity of QDs, we compute electrophilicity index ω given in terms of E_LUMO and E_HOMO as follows:⁵⁰

As listed in Table 1, the edge-functionalization decreases the electrophilicity index in all diamond shaped QDs, except for the graphene ones decorated with COOH molecules. This infers that –COOH enhances the reactivity of the corresponding QDs while OH and CH₃ make the systems more stable and less reactive.

Finally, different parameters like size, base material, distortion of the structures, substituents and also charge transfer collaborate together to modulate the structural and electronic behaviour of the QDs resulting in a broad class of CQDs and SiQDs, where each structure is distinguished by intrinsic features and different characteristics.

Optical properties

To explore the effects of many-body interactions and excitonic effects on the optical properties of edge-functionalized QDs, Fig. 5 displays the absorption spectra in the absence and the presence of e–h interactions, within GW + RPA and GW + BSE levels, respectively. It results in the inclusion of excitonic effects which induces crucial modification on the peak position and the intensity of the first bright exciton. All curves undergo a red-shift toward lower energies.

Fig. 5 Absorption spectra corresponding to CQDs and SiQDs at BSE-GW and RPA-GW theory levels.

As listed in Table 3 and displayed in Fig. 6, TDDFT calculations show similar absorption behaviour as the BSE results. More precisely, the optical gap values of both methods sound close and the absorption spectra also exhibits the same features.

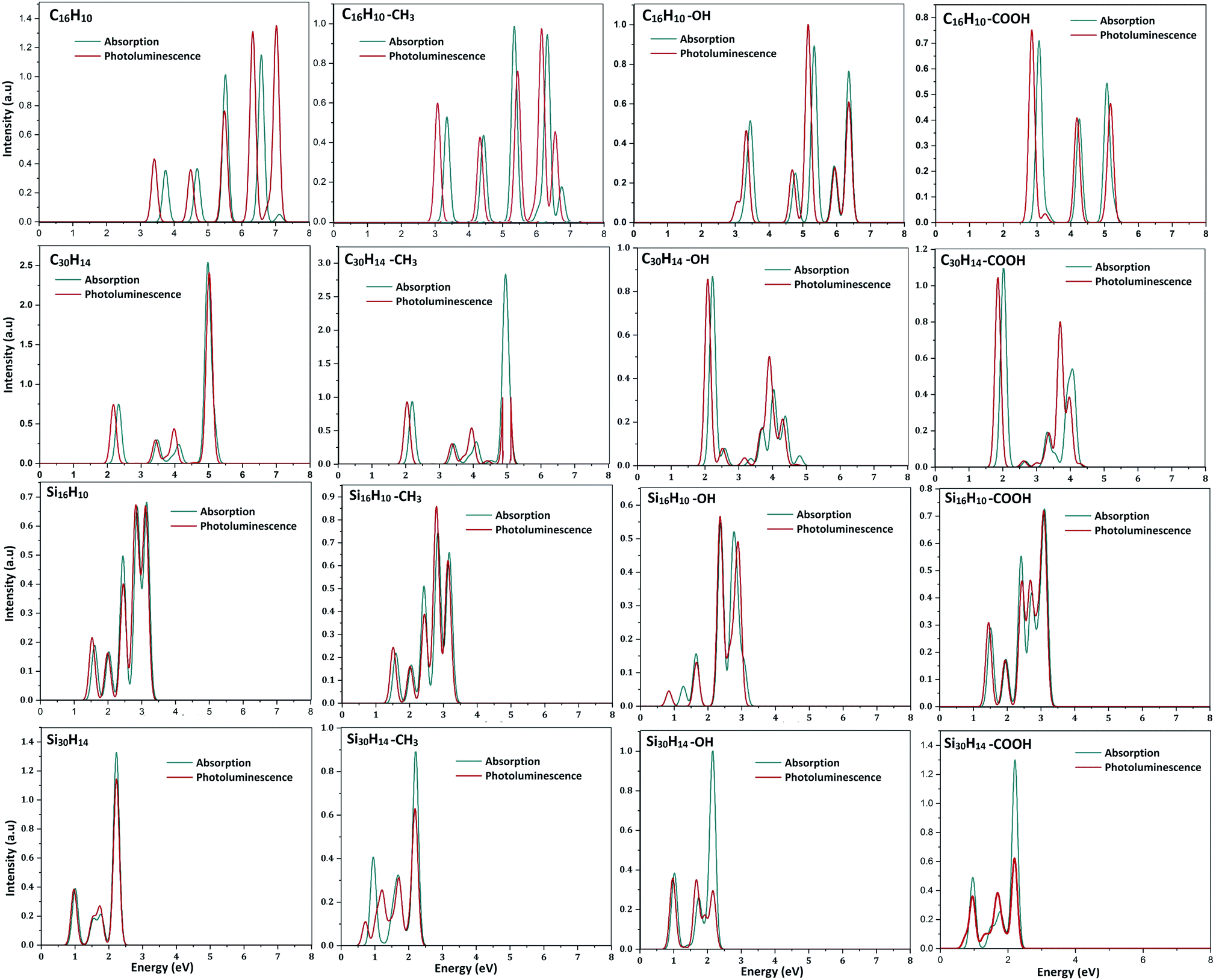

Fig. 6 Absorption and photoluminescence spectra of pristine and edge-functionalized QDs obtained via TDDFT method.

Table 3 The first bright exciton index I^b_X and the TDDFT calculated parameters: E^abs_opt and E^em_opt represent the absorption and emission energies in (eV), λ^abs and λ^em are the corresponding absorption and emission wavelengths in (nm). The Stokes shift is in eV

	Structures	I^bX	Ef	E^absopt	λ^abs	E^emopt	λ^em	Stokes shift
H	C16H10	1		3.746	331.00	3.412	363.4	0.334
	C30H14	3		2.334	531.20	2.179	568.9	0.155
	Si16H10	3		1.606	771.80	1.532	809.2	0.074
	Si30H14	9		1.003	1235.8	0.970	1278.0	0.033
CH3	C16H10	2	−5.406	3.382	366.60	3.088	401.5	0.294
	C30H14	3	3.781	2.190	566.10	2.038	608.2	0.152
	Si16H10	3	−4.475	1.594	777.90	1.511	820.4	0.083
	Si30H14	3	−3.218	0.953	1300.9	0.719	1724.0	0.234
OH	C16H10	3	−12.038	3.310	374.60	3.059	405.3	0.251
	C30H14	3	−2.849	2.223	557.70	2.081	595.8	0.142
	Si16H10	4	−14.974	1.277	970.60	0.844	1469.5	0.433
	Si30H14	2	−13.726	0.892	1389.5	0.716	1730.8	0.176
COOH	C16H10	9	−8.593	3.059	405.30	2.845	435.8	0.214
	C30H14	5	0.420	1.996	621.30	1.657	748.1	0.339
	Si16H10	3	−6.942	1.510	820.90	1.449	855.4	0.061
	Si30H14	3	−5.670	0.961	1290.5	0.745	1663.4	0.216

---

In parallel, the photoluminescence spectra depicted in Fig. 6 show a slight shift compared to the absorption curves. This is confirmed through the Stokes shift reported in Table 3 that measures the difference in energy between the absorption and emission peak maxima corresponding to the same electronic transition. Obviously, graphene configurations exhibit significant photoluminescence compared to silicene structures. The wavelengths vary from the near ultra-violet (NUV) to NIR regions of the solar spectrum, reflecting the diversity in their light colors and optical properties. The results obtained for pyrene are in good agreement with experimental measurements.^51,52

It is worth noting that the anisotropic behaviour of the optical properties of QDs observed in ref. 39 and 49 disappear under the edges functionalization with OH, CH₃ and COOH. Therefore, the optical results, listed in Table 4, including absorption curves, exciton binding energy, Bohr radius and effective mass, do not depend on the light polarization direction. Thus, we only report the results corresponding to the X-direction.

Table 4 Calculated parameters for edge-functionalized QDs: E^X_b is the first bright exciton binding energy and E^X_opt corresponds to the optical gap. All the energies are in eV. The absorption wavelength λ_abs is given in nm, the radius of the exciton R^X in Å, the effective mass M^X_e–h in m₀, the singlet–triplet energy splitting Δ^X_S–T and the frontier orbitals overlap I_H/L. The parameters E^X_b, E^X_opt, M^X_e–h, R^X and λ_abs are calculated via GW + BSE for the incident light polarized along the X-direction

	Structures	E^Xb	M^Xe–h	R^X	E^Xopt	λabs	Δ^XS–T	IH/L	ε	Transitions
H	C16H10	3.21	0.268	2.104	3.42	362.53	1.27	0.90	1.067	H → L (0.67), H−1 → L+1 (−0.21)
	C30H14	1.81	0.203	3.218	2.47	501.96	1.62	0.908	1.237	H → L (0.69), H−1 → L+1 (−0.15), H−2 → L+2 (−0.11)
	Si16H10	1.99	0.229	2.892	1.56	794.77	0.66	0.871	1.253	H → L (0.66), H−1 → L+1 (−0.22)
	Si30H14	1.15	0.219	3.894	1.22	1016.26	0.63	0.887	1.610	H → L (0.69), H−1 → L+1 (−0.17), H−2 → L+2 (−0.12)
CH3	C16H10	2.33	0.198	2.875	3.72	333.29	1.76	0.894	1.076	H → L (0.69), H−1 → L+1 (−0.17)
	C30H14	1.65	0.121	4.370	2.37	523.14	1.62	0.909	1.000	H → L (0.70), H−1 → L+1 (−0.13), H−3 → L+2 (−0.10)
	Si16H10	2.07	0.219	2.687	1.41	879.32	0.85	0.867	1.296	H−1 → L (0.35), H → L+1 (0.60)
	Si30H14	1.59	0.500	2.191	0.80	1549.80	0.76	0.892	2.069	H → L (0.18), H → L+1 (0.67)
OH	C16H10	2.31	0.196	2.903	3.77	328.87	1.78	0.886	1.075	H−1 → L (0.21), H → L+1 (0.67)
	C30H14	1.71	0.202	3.322	2.34	529.84	1.60	0.901	1.269	H→L (0.70), H−1→L+1 (−0.13), H−2 → L+2 (−0.10)
	Si16H10	1.91	0.233	2.928	1.35	918.40	0.78	0.748	1.289	H → L (−0.71)
	Si30H14	1.80	0.254	2.886	0.66	1878.54	0.45	0.876	1.387	H → L+2 (0.70)
COOH	C16H10	1.65	0.142	4.032	3.81	325.42	2.03	0.866	1.083	H → L (0.69), H−1 → L+1 (−0.13)
	C30H14	1.57	0.203	3.456	2.21	561.01	1.56	0.882	1.328	H−1 → L (0.70)
	Si16H10	1.95	0.254	2.772	1.37	904.99	0.88	0.865	1.333	H → L (0.68), H−1 → L+1 (−0.19)
	Si30H14	1.52	0.249	2.109	0.81	1530.67	0.80	0.802	2.249	H→L (0.70), H−1→L+1 (−0.16), H−2 → L+2 (0.11)

---

On the other hand, the functionalizations remarkably tune the optical gap and consequently effect the exciton binding energy (E^X_b) leading to the production of changeable absorption colors ranging from the NUV to the NIR. A first examination reveals that CQDs exhibit considerable E^X_b compared to SiQDs and that small size structures possess the largest E^X_b values. In the case of CQDs, a considerable drop in E^X_b value is obtained through COOH functionalization. This finding is attributed to the large exciton indices that are 9 and 5 for C₁₆H₁₀–COOH and C₃₀H₁₄–COOH, respectively, compared with the 1 and 3 indices found for their H-passivated analogs listed in Table 3. In the case of small SiQDs, the E^X_b value undergoes a slight decrease upon OH and COOH functionalization. This is due to the increase of exciton index from 3 for Si₁₆H₁₀ to 4 for Si₁₆H₁₀–OH. On the other hand, functionalization of large SiQDs results in shifting-up E^X_b, especially for Si₃₀H₁₄–OH since the exciton index varies from 9 for Si₃₀H₁₄ to 3. It follows that the optical gap values lead to the absorption of NUV light by the three small edge-functionalized C₁₆H₁₀ configurations while larger functionalized C₃₀H₁₄ can absorb green light. Similarly, the optical gap values of SiQDs are shifted-down upon edge-functionalization revealing NIR behaviour with different wavelength values. Therefore, we obtain QD structures with a wide range of photoluminescence emission colors from visible to NIR, which are recommended for a variety of biomedical applications. In particular, the short-wavelength excitation and emission of QDs, makes it very difficult to detect the luminescent signal in deep human organs and living cells for early disease diagnosis.⁵³ Consequently, the NIR SiQDs seem to be good candidates for injection in vivo to label internal organs like the heart and the liver, while CQDs can be used as in vitro bioimaging agents or in vivo superficial cells and tissues like the skin.

Further insight into the excitonic character of the studied QDs is given by the analysis of the electron probability distribution plotted in Fig. 7 and data reported in Table 4. Clearly, methylated and hydroxylated C₁₆H₁₀ as well as C₃₀H₁₄ maintain the same behaviour as their counterparts pyrene and dibenzo-coronene. Indeed, the electron distribution associated with the first bright exciton is localized along the whole structures with a slight distribution observed on oxygen atoms in hydroxylated C₃₀H₁₄. In the carboxylated configurations, the exciton distribution is mainly localized on –COOH molecules for C₁₆H₁₀ and along the carbon–skeleton with a small amount localized on COOH functionals for C₃₀H₁₄. In the case of SiQDs, the electron distribution is localized along the whole structure excluding CH₃ molecule for Si₃₀H₁₄ that shows the smaller Bohr radius R^X, given in Å, compared to its pristine counterpart.

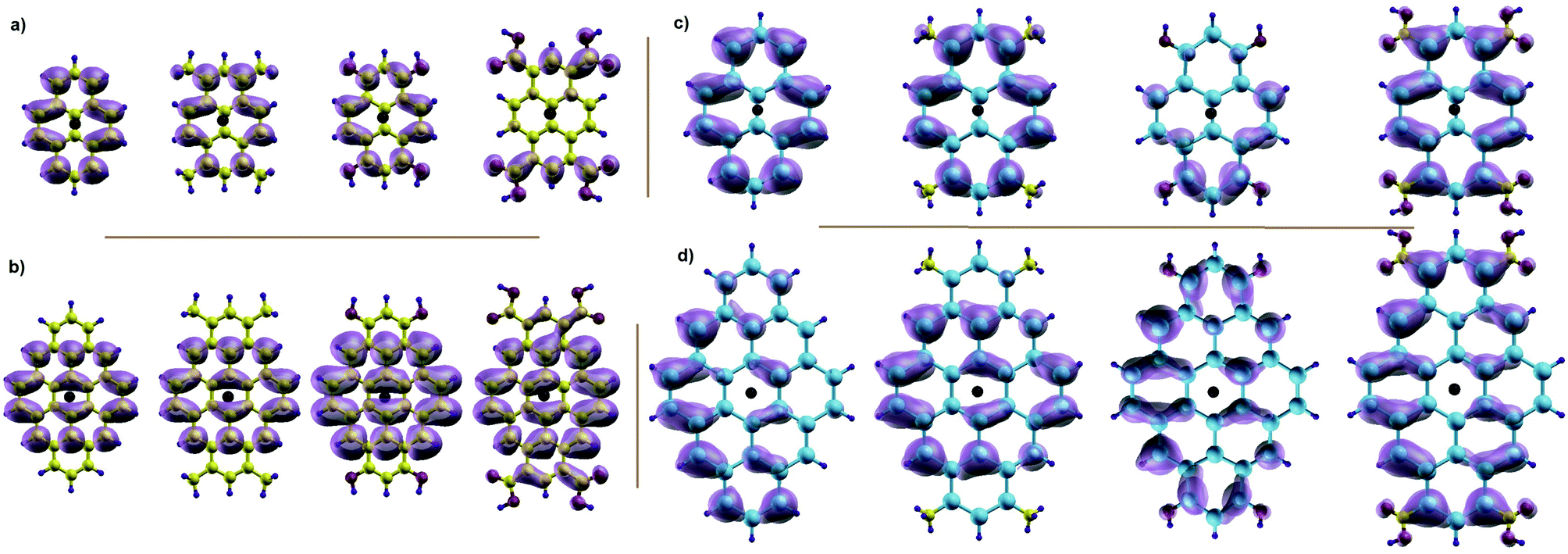

Fig. 7 Spatial distribution of the exciton along the X-direction. The hole is represented by the black dot.

Due to the spin–orbit coupling, the mixture of the triplet states with the singlets strongly effects the photoluminescent character of QDs. To highlight the photophysical process that might occur in our edge-functionalized nanostructures, singlet–triplet energy splitting Δ_S–T was determined and is listed in Table 4. The Δ_S–T values sound significant due to the large overlap between electron and hole wave functions I_H/L. They range from 0.76 to 1.76 for methylated configurations and from 0.02 to 1.78 eV in hydroxylated structures. Furthermore, the carboxylated QDs show the highest splitting values ranging from 0.80 to 2.03 eV. More precisely, thermally activated delayed fluorescence (TADF) characterizes C₃₀H₁₄–OH which exhibits very small splitting (Δ_S–T < 0.37 eV).⁵⁴ Conventional fluorescence occurs in all edge-functionalized SiQDs where splitting values range between 0.5 and 1 eV. For large splitting values, the triplet–triplet annihilation (TTA) process takes place in methylated and hydroxylated C₁₆H₁₀ with E_T1/E_S1 > 0.5 eV. Whereas singlet fission takes place in methylated C₃₀H₁₄ as well as carboxylated C₁₆H₁₀ and C₃₀H₁₄ where E_T1/E_S1 < 0.5 eV. Where E_T1 and E_S1 are the energies of the first triplet and singlet excited states, respectively.⁵⁴ Similar to structures characterized by TADF, such as metal–organic complexes, donor–acceptor molecules or TTA photophysical processes, the studied CQDs can be used as organic light emitting diodes⁵⁵ or as in vivo biosensors and bioimaging devices.⁵⁶ Whereas, systems with SF processes are broadly employed to fabricate solar cells.⁵⁷

Finally, the functionalization represents a helpful means to control and modulate the exchange splitting of excitons paving the way for the construction of novel QDs with desired optoelectronic and photoluminescence properties for nanomedical use.

3. Conclusion

In the present work, we have studied the optoelectronic properties of egde-functionalized CQDs and SiQDs using –CH₃, –OH and –COOH molecular substituents. It is found that the functional group type, the size variation and the base material present crucial key factors for tailoring the QDs properties. In particular, the competition between the edge functionalization and the geometry distortion result in some QDs showing considerable influence on their H–L gap, their charge transfer, their optical behavior and their excitonic binding energy with respect to their H-passivated counterparts. Moreover, the large overlap observed in the investigated QDs originates from the significant exciton exchange splitting values. Consequently, it reduces the potential non-radiative transition between singlet and triplet excited states and increases the chances of photophysical processes. Finally, the photoluminescence obtained via TDDFT calculations, that ranges from NUV to visible for CQDs and that occupies a broad range in the NIR for SiQDs, reveals the potential use of edge-functionalized QDs as emergent candidates for nanomedical applications such as in vitro and in vivo bioimaging.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

L. B. Drissi would like to acknowledge “Académie Hassan II des Sciences et Techniques-Morocco” for financial support. She also acknowledges Alexander von Humboldt Foundation for financial support via the Georg Forster Research Fellowship for experienced scientists (ref. 3 and 4 – MAR 1202992).
