Visible-light-driven photocontrol of the Trp-cage protein fold by a diazocine cross-linker

Abstract

Diazocines are characterized by extraordinary photochemical properties rendering them of particular interest for switching the conformation of biomolecules with visible light. Current developments afford synthetic access to unprecedented diazocine derivatives promising particular opportunities in photocontrol of proteins and biological systems. In this work, the well-established approach of photocontrolling the secondary structure of α-helices was exploited using a diazocine to reversibly fold and unfold the tertiary structure of a small protein. The protein of choice was the globulary folded Trp-cage, a widely used model system for the elucidation of protein folding pathways. A specifically designed, short and rigid dicarboxy-functionalized diazocine-based cross-linker was attached to two solvent-exposed side chains at the α-helix of the miniprotein through the use of a primary amine-selective active ester. This cross-linking strategy is orthogonal to the common cysteine-based chemistry. The cross-linked Trp-cage was successfully photoisomerized and exhibited a strong correlation between protein fold and diazocine isomeric state. As determined by NMR spectroscopy, the cis-isomer stabilized the fold, while the trans-isomer led to complete protein unfolding. The successful switching of the protein fold in principle demonstrates the ability to control protein function, as the activity depends on their structural integrity.

---

Introduction

Biological systems comprise a complex network of biochemical interactions, e.g. signal transduction cascades, of very diverse compounds including small molecules (second messengers, metabolites), peptides (hormones), and proteins (enzymes, receptors). The ability to control the biological activities of peptides or proteins with high spatio-temporal resolution is a powerful tool to elucidate the mechanisms, kinetics and sequence of these biochemical pathways.^1–4 Visible light is a perfect trigger as it transfers a desired amount of energy with the required spatial and temporal resolution, does not contaminate the sample, is non-toxic and has a high penetration depth (except through blood-supported tissue). Consequently, irradiation-induced configurational changes of incorporated light-sensitive chromophores have been used to control the three-dimensional structure of peptides and proteins.^1–4

By far the most frequently used photoswitches are azobenzenes.^1–4 Upon irradiation, they undergo reversible isomerization between two states of significantly different geometries (Fig. 1, top). The thermodynamically stable extended trans-configuration can be converted to the shorter, bent cis-isomer with high yields upon irradiation with ultraviolet (UV) light. Due to its planarity, trans-azobenzene exhibits a tendency to aggregate when incorporated into peptides.^5,6 Additionally, it may influence condensation and melting of DNA when equipped with positive charges.^7–9 Therefore, most peptide or protein switching applications^10–19 make use of a water soluble sulfonic acid-substituted azobenzene.²⁰ However, even this cross-linker may lead to aggregation when incorporated into a peptide¹⁰ or can unintendedly interfere with the protein fold due to interactions of the sulfonic acid moieties with guanidinium groups of arginine.¹⁵

Fig. 1 cis–trans-Isomerization of azobenzene (top) and diazocine (bottom).

Compared to azobenzenes, diazocines show a reversed switchability (Fig. 1, bottom): the ethylene bridge stabilizes the bent and bulky cis-configuration rendering it the thermodynamically stable isomer.^21–24trans-Diazocine is not planar, but adopts a twist or chair conformation. It is therefore not prone to π–π-stacking. Diazocines also display improved photochemical properties in organic solvents when compared to azobenzenes.^21,22 These include a better separation of absorption bands and exceptionally high quantum yields resulting in higher switching efficiencies, i.e. better isomer ratios in the photostationary states (PSS).^21,22,24 Importantly, switching in both directions can be achieved with visible light, which is essential for applications in biological systems. Recent developments in the synthesis of diazocines now render them almost as easily accessible as azobenzenes.^25–27

If carefully designed and attached to a protein, the relatively subtle structural change of the molecular switch affects the fold of the much larger biomacromolecule. Photocontrolling the biological function of α-helical peptides by reversibly allowing or preventing formation of their secondary structure is already well-established and has been applied to DNA recognition,^10–12,14 protein–protein interactions^{5,6,12–14,16–19} or RNA binding.¹⁵ These examples make use of cross-linking the respective peptide using an azobenzene moiety with both attachment points at the same side of the α-helix. In contrast to azobenzene, a diazocine was applied only once to achieve photocontrol over a simple α-helical peptide in a study by Woolley et al.²⁸

The cis-configuration of an azobenzene or diazocine stabilizes the helical backbone conformation when the cross-linker is connected to residues i, i + 4^13,19 or i, i + 7^{5,6,10,12–19} while switching to its trans-isomer prevents formation of the secondary structure. In contrast, connected to residues i, i + 11 the trans-cross-linker would stabilize the α-helical fold, which in turn adapts a disordered state upon isomerization to the contracted cis-state of the cross-linker.^11,13,28

Either of these approaches is useful to switch single, bioactive helices. A question of greater interest is whether they could be used to control the tertiary structure and thus function of cooperatively folded proteins. α-Helices are central and essential elements of the fold, particularly in small globular proteins or domains. Examples are the apoptosis-regulating Bcl-family of proteins,^29,30 the engrailed homeodomain transcription factor,^31,32 the KIX domain of CBP,³³ the ribonuclease T₁,³⁴ the villin headpiece subdomain³⁵ or the Trp-cage.^36,37 In these, a solvent-exposed α-helix is of particular importance for establishing a network of tertiary contacts. Reversibly preventing the formation of secondary structure in these domains would be expected to result in their unfolding. This will perturb the integrity of the entire protein or protein complex which can be used as a tool to control their function.

The Trp-cage miniprotein^36,37 displays typical protein properties³⁸ despite its length of only 20 residues. It comprises three elements of secondary structure, i.e. an N-terminal α-helix, a short 3₁₀-helix and a polyproline II (PPII) helix. The eponymous encapsulation of a central tryptophan residue is driven by hydrophobic interactions and additionally stabilized by hydrogen bonds and a salt bridge. The highly stable and well characterized mutant ‘TC10b’ exhibits characteristics of folding cooperativity including reversible, sigmoidal thermal unfolding curves with a T_m above 55 °C.³⁷ Because of its protein-typical features yet small size the Trp-cage is a well-established model system for the experimental^{36,37,39–44} and theoretical^{37,40,45–48} elucidation of protein folding pathways with the aim to deduce general mechanisms applicable to larger proteins.

In this work, the Trp-cage was chosen to evaluate the hypothesis that folding of a surface-exposed α-helix reversibly influences the complete tertiary structure of a protein. Here, we describe the design, synthesis and characterization of a Trp-cage miniprotein conjugated with a diazocine-based cross-linker (Fig. 2). The cross-linker was conjugated with the protein through the use of an active ester which constitutes an adequate alternative to the common cysteine-based chemistry. We set out to reversibly fold and unfold the Trp-cage through visible-light-driven photocontrol of its α-helix. This approach explores the application of diazocines in aqueous environments and their use in achieving photocontrol of proteins.

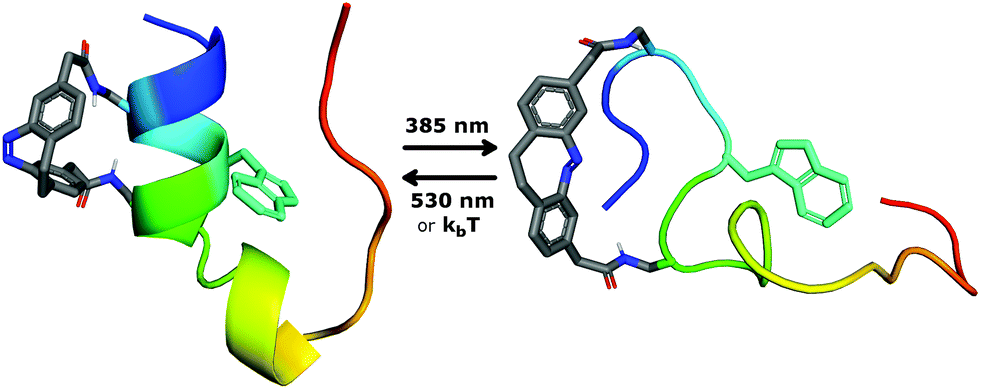

Fig. 2 The switchable Trp-cage (switch cage) was designed to exhibit a stable fold in the dark or under irradiation with green light (530 nm) when the diazocine cross-linker is present in its cis-configuration. Upon irradiation with violet light (385 nm) the diazocine is converted to the trans-isomer which prevents formation of the helix and in turn disrupts the tertiary structure.

Results and discussion

The Trp-cage

Due to its small size, most residues in the Trp-cage significantly contribute to the fold stability which limits the options for attaching the cross-linker. Moreover, the short α-helix of the Trp-cage only allows cross-linking to residues i, i + 4 or i, i + 7. Residues 4 and 8 (i, i + 4) of TC10b seemed most suitable for conjugation because they are solvent exposed and contribute relatively little to the fold stability.³⁷ Incidentally, Markiewicz and co-workers came to the same conclusion when investigating the folding dynamics of the Trp-cage using a rigid, non-switchable cross-linker.⁴⁰

In our hands,⁴⁹ the use of primary-amine-selective active esters in peptide conjugation reactions has proven superior to the usually employed cysteine-based cross-linking chemistry.^1,3,28,40 In order to enable selective cross-linking, residues Ala4 and Lys8 of TC10b were mutated to L-2,3-diaminopropionic acid (Dpr, Γ)‡ and the N-terminus was acetylated resulting in a Trp-cage named TC(4,8). Dpr was chosen over lysine because it has a drastically reduced side chain length and flexibility, which is necessary to efficiently couple the geometric properties of the diazocine with the fold state of the Trp-cage.

TC(4,8) was synthesized via Fmoc-based solid phase peptide synthesis. It was confirmed to exhibit the Trp-cage fold as evidenced by CD and two-dimensional (2D) ¹H-NMR spectroscopy. However, with a T_m of (31.6 ± 2.7) °C the fold stability of TC(4,8) was reduced compared to TC10b (∼55 °C). This destabilization can be ascribed to the repulsion between the positively charged amines of Dpr4 and Dpr8. It leads to the presence of unfolded by-forms of the Trp-cage (Fig. S5†).

The cross-linking strategy

The diazocine-based cross-linker 1 (Scheme 1) was designed to match the distance between the amino side chains of Dpr4 and Dpr8 (i, i + 4) of the folded Trp-cage. The chosen design is based on an “unfolding-upon-extension/folding-upon-contraction” switching mechanism where the short, contracted cis-diazocine supports the stable fold of the protein. Upon switching to the extended trans-state of cross-linker formation of the Trp-cage fold is prevented (Fig. 2). This concept is in contrast to the diazocine-based photoswitchable α-helix by Woolley and co-workers, which relies on an i, i + 11 approach (folding-upon-extension/unfolding-upon-contraction).²⁸

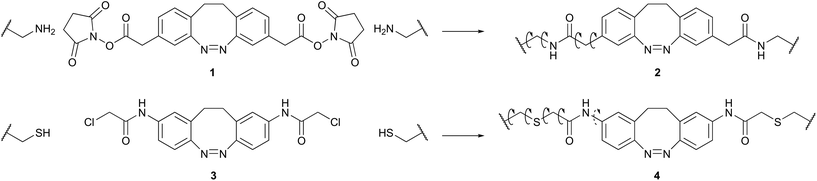

Scheme 1 Comparison of the primary amine-reactive cross-linker (1) presented in this work with the thiol-reactive cross-linker (3) by Woolley et al. Curved arrows indicate rotational degrees of freedom of single bonds of the cross-linker incorporated into a peptide or protein (2 and 4). The dashed arrow indicates reduced rotational freedom due to partial double bond character.

When incorporated into the protein, advantages of cross-linkage 2 over the cysteine-dependent diazocine cross-linkage 4 by Woolley and co-workers²⁸ include reduced length and flexibility (decreased number of rotable bonds) in the cis- as well as in the trans-configuration (Scheme 1). Furthermore, methylene groups in 2 serve as spacers between the diazocine moiety and the amide groups. This should preserve the excellent photochemical properties of the parent diazocine.²⁵

In order to validate the proposed cross-linking strategy, molecular dynamics (MD) simulations of the uncross-linked TC(4,8) and of the hypothetical amidated diazocine 5 (cis-5 and trans-5) were performed (Fig. 3). The distance between the cross-linker attachment points at TC(4,8), i.e. N^γ of Dpr4 and N^γ of Dpr8 was measured during the simulation. Similarly, the cis- and trans-isomer of the amidated diazocine 5 were constructed in silico to assess the accessible N–N′-distance of the cross-linker during the simulations.

Fig. 3 The histograms of the switchable Trp-cage ‘cis-SC_a’ (open), the uncross-linked Trp-cage ‘TC(4,8)’ (red), as well as the diazocines cis-5 (gray) and trans-5 (blue) result from an MD simulation over a period of 100 ns for each displayed molecule. Each simulation resulted in 1000 structures from which the indicated N–N′-distances were measured and plotted with a bin-size of 0.1 Å.

The side chain amines (N^γ) of TC(4,8) are always less than 9.8 Å apart. With an accessible distance range of 9.8 Å to 15.2 Å trans-5 does not match this distance. On the other hand, cis-5 displays a large variance in its N–N′-distance covering a range between 3.3 Å and 13.1 Å that largely overlaps with the attachment point distances in TC(4,8). Finally, a model of the peptide-cross-linker-conjugate (cis-SC_a, Fig. 3) was constructed and its MD simulation resulted in a narrow distribution of N^γ_Dpr4–N^γ_Dpr8-distances between 5.6 Å and 7.0 Å. Thus, MD simulations indicated that the trans-cross-linker would prevent a stable fold when conjugated with the Trp-cage while the cis-diazocine supports a stable fold. Importantly, both observations confirm the concept.

The linear five step synthesis of the cross-linker 1 (Scheme 2) was based on a previously published oxidative C–C coupling and reductive azo cyclization.^25,26 Initially, the carboxylic acid functional group of 3-nitro-4-methyl-phenylacetic acid (6) was protected with an 4-methyl-2,6,7-trioxa-bicyclo[2.2.2]octane-1-yl (OBO) protecting group. This protection according to Corey and Raju⁵⁰ started with an esterification with 3-methyl-3-oxetanemethanole (7) followed by a BF₃·Et₂O-catalysed rearrangement yielding the desired orthoester 9. Potassium butoxide was used as a non-nucleophilic base to selectively deprotonate the toluene α protons of 9. By addition of bromine as an oxidizing agent, the anions were converted into radicals and C–C-bond formation led to the desired dinitro dimer 10. In the ensuing reductive azo cyclization, 10 was reduced with Ba(OH)₂/Zn to a hydrazine intermediate and subsequently oxidized with CuCl₂ and air. During work-up, the orthoester was hydrolysed to the open ester 11, which was cleaved with Cs₂CO₃. Without purification, the resulting free carboxylic acid was converted with 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) and N-hydroxysuccinimide (NHS) into the active ester 1.

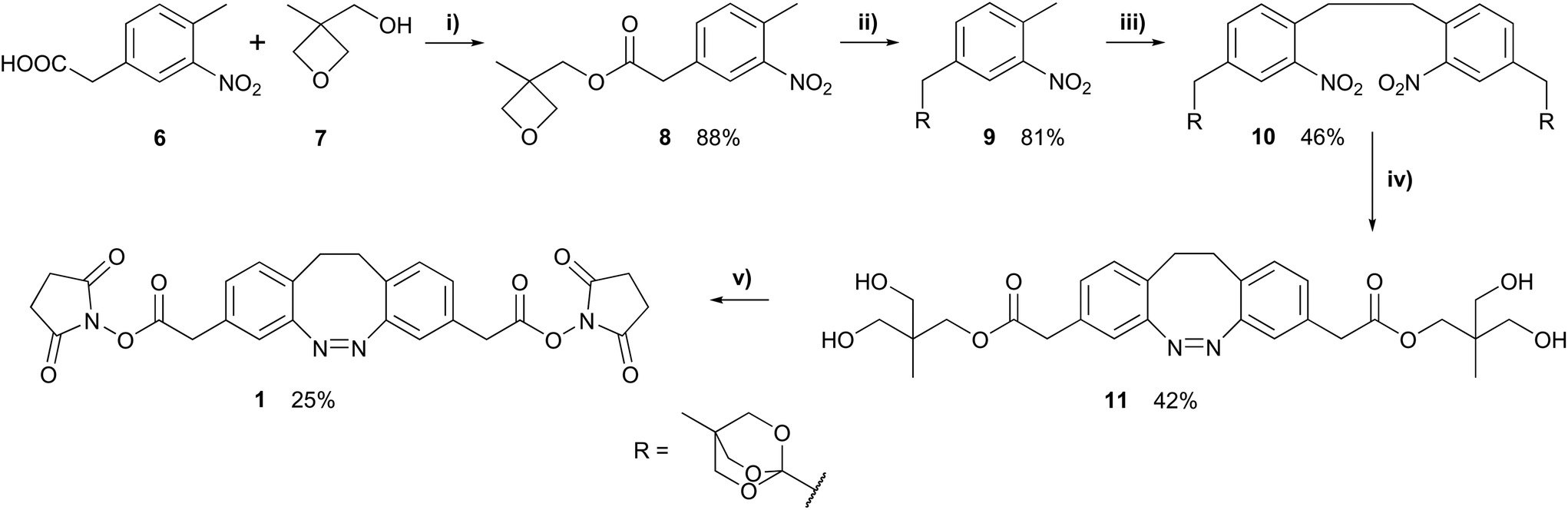

Scheme 2 Reaction conditions: (i) N,N′-Dicyclohexylcarbodiimide (DCC), 4-dimethylaminopyridine (DMAP), dichloromethane (DCM); (ii) BF₃·Et₂O, triethylamine (TEA), DCM; (iii) tBuOK, Br₂, tetrahydrofuran (THF); (iv) 1. Zn, Ba(OH)₂ H₂O/EtOH; 2. CuCl₂/O₂, NaOH/MeOH; (v) 1. Cs₂CO₃, MeOH, H₂O; 2. 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC), N-hydroxysuccinimide (NHS), N,N′-dimethylformamide (DMF).

The PSS of diazocine 11 was determined at 385 nm in MeOH or MeCN at 298 K (Fig. S23†). With 78% and 82% trans-isomer, respectively, 11 largely retains the outstanding properties of the parent diazocine (87% trans-isomer²⁵ at 385 nm in MeCN). In addition to its use in bio- and organic chemistry the dicarboxy-diazocine can therefore be applied as a monomer of polyamides or polyesters in photo- and mechanoresponsive materials.

The folded cis-switch cage

Conjugation of TC(4,8) with cross-linker 1 was carried out in high dilution in dimethylsulfoxide (DMSO) by means of a double syringe pump and resulted in the photo-switchable Trp-cage that we designate ‘switch cage’ (SC; Fig. 2).

Dark-adapted cis-SC shows all characteristics of a stable Trp-cage fold as evidenced by NMR chemical shift deviations (CSDs; Table S4†), number and intensity of nuclear Overhauser enhancement (NOE) cross-peaks and CD spectroscopy (Fig. 4). As expected, conjugation with the cis-diazocine markedly increases the stability of the fold reaching a T_m of (48.5 ± 1.4) °C compared to TC(4,8) ((31.6 ± 2.7) °C; Fig. 4a).

Fig. 4 (a) The mean residue molar ellipticity [θ]MR at 222 nm of TC(4,8) (red triangles) and cis-SC (black circles) is plotted over the temperature. A sigmoidal Boltzman function was fitted to each plot to obtain the midpoint of thermal unfolding (melting temperature, T_m). Details regarding the fitted function can be obtained from the ESI.† (b) The CD spectrum of cis-SC (black circles) displays two minima at 206 nm and 222 nm indicative of an α-helix. TC(4,8) (red triangles) appears to have a lower helical propensity as the minimum at 222 nm is less pronounced. Compared to the spectrum of cis-SC, the spectrum of the switch cage after having reached the PSS at 385 nm (blue squares) indicates significantly reduced helical propensity.

The Trp6 indole NH proton (H^ε1) is a particularly valuable indicator for the existence of the hydrophobic cluster, as its resonance frequency is not overlapping with other signals. Most importantly, it lies in the centre of the fold and its chemical shift deviation from the random coil chemical shift (∼10.2 ppm ^51,52) correlates with the stability of the Trp-cage. Interestingly, the indole region of the ¹H-NMR spectrum indicates two folded species of cis-SC (cis-SC_a: 9.728 ppm, cis-SC_b: 9.757 ppm; Fig. 5, top). In fact, there is a second set of resonances for the spin systems of many, but not all residues and the diazocine moiety. NMR chemical shifts and NOE cross-peaks confirm that the major (cis-SC_a) and the minor (cis-SC_b) form both comprise the correctly folded protein and differ only in the orientation of the cross-linker (Fig. 6). The two diastereomers are the result of conjugating the prochiral diazocine moiety with the chiral protein. The cis-cross-linker is incorporated so that either its ethylene bridge (cis-SC_a, Fig. 6, left) or its azo-group (cis-SC_b, Fig. 6, right) is oriented towards residue Leu7. NOE spectroscopy (NOESY) indicates that the ethylene bridge side of the diazocine is in close vicinity to H^β2/β3 and H^δ1/δ2 of Leu7 in cis-SC_a. Similarly, the orientation of the cross-linker in cis-SC_b was also derived from the NOESY data. Notably, cis-SC_a is the main form with an approximately 3-fold higher population than its diastereomer cis-SC_b.

Fig. 5 The 1D ¹H-NMR spectra of cis-SC in its dark adapted state (top) and after having reached the PSS at 385 nm (bottom) are shown. In the expansion of the spectrum at the top the two folded species cis-SC_a and cis-SC_b are indicated by the two singlets of the Trp6 H^ε1 at 9.728 ppm and 9.757 ppm. The expansion of the important indole region between 10.3 ppm and 9.5 ppm clearly shows the rise of an unfolded species indicated by the intense singlet at 10.089 nm (bottom).

Fig. 6 The two different possible orientations of the cross-linker produce the two diasteromers cis-SC_a (left) and cis-SC_b (right). Structural models of the Trp-cage are shown in cartoon mode with the Trp6 side chain in the center of the molecule. The side chain of Leu7 is shown in grey in stick representation omitting hydrogens for clarity.

Switching from cis-SC to trans-SC

Irradiation with light at the wavelength of 385 nm produces a photo stationary state (PSS) with approximately 46% trans-SC and 54% cis-SC (Table S6†). At first glance, this ratio appears to be low for a diazocine, but few conversion ratios of diazocines in water have been published. For instance, Woolley and colleagues²⁸ provided information on the PSS of their diazocine only in DMSO. In fact, the PSS of the switch cage compares well with the few published PSSs of diazocine derivatives in aqueous solution that range between 16% and 60% of trans-isomer.^53–56 Although the conditions differ in pH, buffer and DMSO content, it appears that the PSSs of ethylene bridged diazocines§ in aqueous environment are generally lower than the PSS of the parent diazocine^21,22 in organic solvents (>90% trans-species in n-hexane). In addition to the solvent effect, in cis-SC the folding free energy of the Trp-cage has to be overcome in order to unfold the miniprotein upon cis → trans-isomerization which also may lower the PSS.

After irradiation with light at 385 nm, new resonances are observed in the NMR spectra (Fig. 5) belonging to the trans-species of the switch cage (trans-SC). It was not possible to assign many atoms of trans-SC, as their resonances overlap with those of cis-SC_a and cis-SC_b. Moreover, the unfolded nature of trans-SC prohibits the assignment due to overlap of intramolecular proton signals and resulting equivocal inter-residual NOEs. Despite these difficulties it was possible to determine the folding state of trans-SC.

A first evidence, that trans-SC is unfolded and assumes a random coil conformation is provided by the chemical shift of its Trp6 indole NH proton (H^ε1) at 10.089 ppm (Fig. 5, bottom). This is very close to the random coil shift (∼10.2 ppm ^51,52) indicating the absence of the hydrophobic cluster of the folded state. Moreover, at 298 K the Trp6 H^ε1 of cis-SC_a shows coupling through space to H^β2, H^β3, H^γ and the backbone H^N of Arg16 as well as H^α and H^δ of Pro18 and H^δ2/δ3 of Pro19 (Fig. 7). In contrast, the Trp6 H^ε1 of trans-SC displays only one extremely weak NOE cross-peak (3.498 ppm). Even at 278 K, a temperature that favours folding and which enables long measurements due to slow trans → cis isomerization, no further NOE cross-peaks are observable in the trans-SC NOE spectrum.

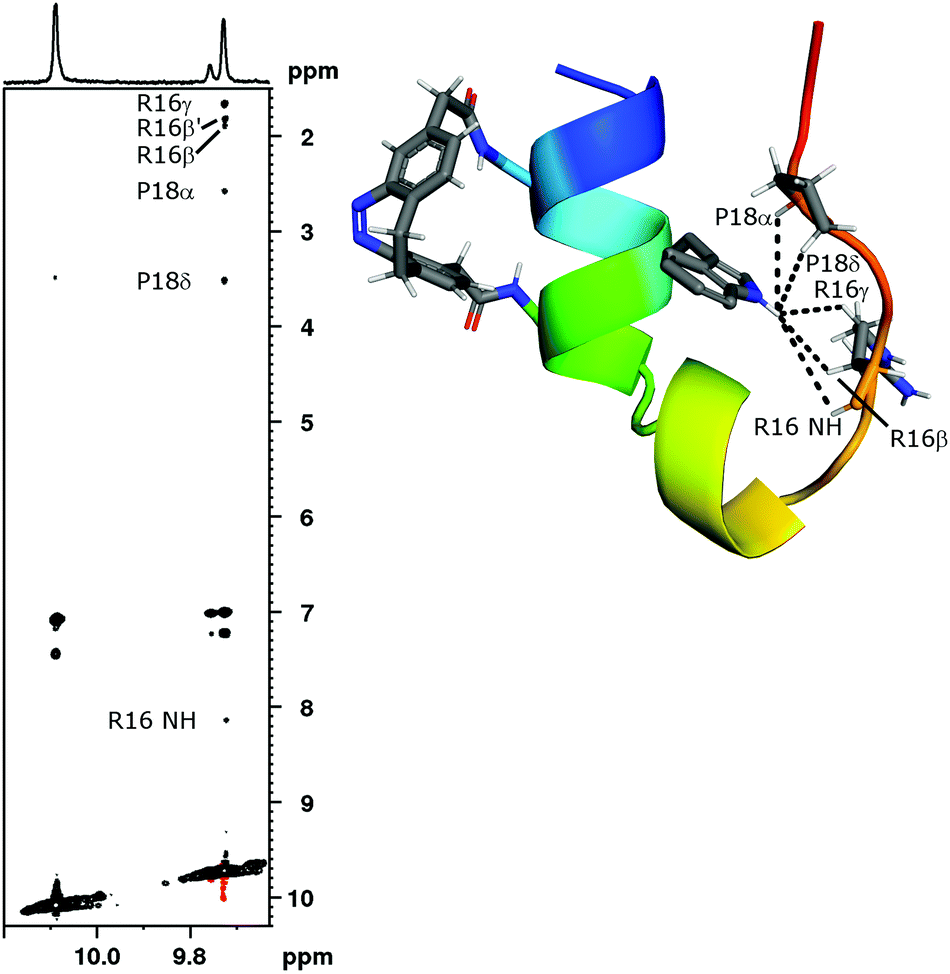

Fig. 7 The ¹H,¹H-NOESY of the switch cage after irradiation to the PSS at 385 nm was recorded at 298 K. The expansion shows the indole region of cis-SC_a (F2: 9.728 ppm), cis-SC_b (F2: 9.757 ppm) and trans-SC (F2: 10.089 ppm). The six inter-residual cross-peaks in the vertical direction of cis-SC_a evidence a stable tertiary structure. The NOE signals highlighted in the expansion are depicted in the model structure of cis-SC_a. In contrast to cis-SC_a, only one unassigned cross-peak is observed for the indole proton of trans-SC (F2: 10.098 ppm, F1: 3.485 ppm). The NOEs between 7.0 ppm and 7.5 ppm are intra-residual cross-peaks with the neighbouring aromatic protons. For cis-SC_b inter-residual NOEs are not visible in this depiction due to low population.

In addition to NMR spectroscopy, CD spectroscopy also provides evidence that trans-SC is completely unfolded. The mean residue molar ellipticity [θMR] at 222 nm in the dark-adapted state amounts to −12 017° M⁻¹ m⁻¹, which is reduced to −6725° M⁻¹ m⁻¹ in the PSS at 385 nm (Fig. 4b). This corresponds to a reduction by 44% which is in the same range as the cis → trans-conversion ratio in the PSS indicating complete unfolding of the α-helix and thus absence of secondary and tertiary structure in trans-SC.

The lack of α-helicity as evidenced by CD-spectroscopy, the Trp6 H^ε1 chemical shift and the disappearance of inter-residual NOE cross-peaks upon switching to the trans-state unambiguously demonstrate that the switch cage is entirely unfolded in its trans-state. Conversely, the switch cage is nearly quantitatively folded in the presence of the cis-linker. Thus, the folding state of the protein is completely coupled to the isomeric state of the cross-linker.

Switching from trans-SC to cis-SC

Irradiation with light at the wavelength of 530 nm provides almost complete conversion to cis-SC (Fig. S16†). Moreover, the NMR-spectrum of cis-SC recorded immediately after irradiation to its PSS at 530 nm is indistinguishable from that of dark-adapted cis-SC.

The thermal trans → cis relaxation process of the switch cage was observed by ¹H-NMR spectroscopy and quantified by integration of selected peaks of the protein or the diazocine moiety (Table S5 and Fig. S14, S15†) after irradiation to the PSS at 385 nm. At 298 K in the dark, this process requires 39 h after which trans-SC is not quantifiable anymore (Fig. S16†). It follows first order kinetics with a half-live of (6.2 ± 0.3) h (Table S6†). Within the error of measurement, differences in the determined relaxation rates for diazocine signals and protein signals (Trp6 H^ε1) are insignificant. Further, the relaxation of trans-SC to cis-SC_a and to cis-SC_b is equally fast. Together, this is an additional demonstration of the strict coupling between the isomeric state of the diazocine and the folding state of the Trp-cage.

Throughout the entire study, the same sample was used for all spectroscopic measurements. In consequence, it was subjected to multiple switching cycles without showing any sign of photobleaching or other material fatigue. Furthermore, aggregation was never observed, not even in the PSS at 385 nm, when approximately half of the population of the switch cage was unfolded exposing the hydrophobic core and the trans-diazocine to the solvent. This emphasizes the reversibility of the switching process and the photochemical stability of the switch cage.

The relationship between cis-SC_a and cis-SC_b

Regardless of the wavelength or intensity of incident light (day-light-adapted, dark-adapted, PSS at 385 nm, PSS at 530 nm), the two diastereomers cis-SC_a and cis-SC_b have always been observed in a ratio of 3 : 1. While often indicative of a thermodynamic reaction control, the apparently constant ratio of cis-SC_a to cis-SC_b in photoreactions appears surprising at first. The parent cis-diazocine 1 is prochiral and converts upon radiation at 385 nm equally fast into two enantiomeric trans-forms, that are believed to comprise an equilibrium of twist- and chair-conformations.⁵⁷ These forms convert back to cis-diazocine equally well.

In the chiral context of the protein, however, irradiation results in multiple possible cis–trans-isomerizations (Scheme S1†) between diastereomeric states. Unhindered interconversion would lead to the expectation of a 1 : 1 product ratio of cis-SC_a and cis-SC_b. The observed uneven cis-SC_a/cis-SC_b ratio thus suggest that the conversion rates between the states differ between diastereomers implying a form of chiral induction by the protein moiety.

Although it is possible that the conversion from either trans-diastereomer occurs faster to the cis-SC_a diastereomer, a chiral induction in the trans-state appears unlikely since the protein moiety is unfolded and should have very limited influence on the conversion kinetics. In the cis-states, however, the environment of the chromophore differs significantly for example with closer protein-diazocine contacts in cis-SC_a. These structural differences might slow the photoconversion of cis-SC_a sterically or energetically whereas cis-SC_b more rapidly isomerizes to either trans-isomer. Accordingly, this chiral induction could lead to the observed bias in the photostationary states.

Conclusions

The present study aimed to reversibly fold and unfold the Trp-cage upon irradiation with visible light of different wavelengths. Since the elongation of the diazocine during cis → trans-isomerization induces unfolding, the switching approach presented in this work is described as “unfolding-upon-extension/folding-upon-contraction”. This goal was achieved through the conjugation of an N-terminally acetylated Trp-cage mutant ‘TC(4,8)’ bearing L-2,3-diaminopropionic acid (Dpr, Γ)‡ in positions 4 and 8. A diazocine-based, primary amine-selective cross-linker (1) was designed to match the distance between the N^γ of both Dpr-residues in its cis-state. Upon cross-linking, the fold of the resulting photoswitchable Tpr-cage (switch cage, SC) is stabilized significantly compared to the uncross-linked peptide. Irradiation with light of the wavelength 385 nm produces a PSS of approximately 46% trans-SC. This isomerization is completely reversed upon irradiation with light at 530 nm or through thermal relaxation. Most importantly, in the trans-state, secondary and tertiary structuring is completely abolished. As predicted, pulling apart only one helical turn between residues 4 and 8 destroys the entire helical structure and in consequence unfolds the hydrophobic cluster.

With these features, the switch cage may serve as a valuable tool for the analysis of the Trp-cage folding pathway adding visible light as an alternative trigger to the previously used T-jump^39,41 in IR or fluorescence spectroscopy. The reversibility of the switching process enables multiple switching cycles and thus facilitates multiple and repeated observations of folding and unfolding kinetics.

In this study, a dicarboxy-functionalized diazocine was furbished with selective reactivity towards primary amines by introduction of NHS-active ester moieties. This cross-linking strategy adds a valuable alternative to current methods to conjugate the chromophore with the protein. The NHS-ester cross-linking chemistry is orthogonal to the common cysteine-based chemistry.⁵⁸ When incorporated into the protein (cf.Scheme 1), the presented diazocine cross-linker is shorter and more rigid than the chloroacetamide-functionalized diazocine.²⁸

The active ester cross-linking strategy is especially interesting for synthetic peptides and proteins, as next to lysine several amino group-bearing homologues exist that can be used to tailor length and flexibility of the cyclized product. Particularly short and rigid cross-linkages are obtained when the shortest lysine-homologue Dpr is utilized. The cross-linker 1 may also be incorporated via naturally occurring lysine residues or a free N-terminus, but this would limit its application to “folding-upon-extension/unfolding-upon-contraction”-approaches due to the high flexibility of the lysine side chains.

In conclusion, we were able to reversibly fold and unfold the secondary and tertiary structure of the Trp-cage miniprotein upon irradiation with visible light. Most importantly the present study shows that it is generally possible to reversibly fold and unfold a single, solvent-exposed α-helix in a small, but stable protein resulting in photocontrol of the entire fold. This strengthens our beliefs that this approach is applicable to larger proteins or protein domains.
