Actuated plasmonic nanohole arrays for sensing and optical spectroscopy applications

Abstract

Herein, we report a new approach to rapidly actuate the plasmonic characteristics of thin gold films perforated with nanohole arrays that are coupled with arrays of gold nanoparticles. The near-field interaction between the localized and propagating surface plasmon modes supported by the structure was actively modulated by changing the distance between the nanoholes and nanoparticles and varying the refractive index symmetry of the structure. This approach was applied by using a thin responsive hydrogel cushion, which swelled and collapsed by a temperature stimulus. The detailed experimental study of the changes and interplay of localized and propagating surface plasmons was complemented by numerical simulations. We demonstrate that the interrogation and excitation of the optical resonance to these modes allow the label-free SPR observation of the binding of biomolecules, and is applicable for in situ SERS studies of low molecular weight molecules attached in the gap between the nanoholes and nanoparticles.

---

Metallic nanohole arrays (NHAs) have attracted increasing attention after Ebbesen's observation of the extraordinary optical transmission¹ assigned to surface plasmon-mediated light tunneling through periodically arranged subwavelength pores. Subsequently, NHA structures have been employed in diverse application areas including optical filters,^2,3 amplification of weak spectroscopy signals such as fluorescence^4,5 and Raman scattering,^6–9 second-harmonic generation,¹⁰ and particularly sensing. To date, NHA-based sensors have been utilized for the direct optical probing of proteins,^11,12–14 exosomes,¹⁵ viruses,^16,17 bacteria,¹⁸ and even cancer cells^19,20 and organelles.²¹ Moreover, NHA have enabled studies on lipid membranes that span over the holes²² and allowed the facile incorporation of membrane proteins for interaction studies with drug candidates.^16,23

NHA structures enable the electromagnetic field to be strongly confined inside subwavelength nanoholes²⁴ due to the excitation of two types of surface plasmon modes, propagating surface plasmons (PSPs, also referred to as surface plasmon polaritons) traveling along the metal surface and localized surface plasmons (LSPs), which occur at the sharp edges of the holes. The coupling to these modes can be tailored for specific purposes by controlling the structure geometry, including hole shape, diameter, and lateral periodic or quasi-periodic spacing.²⁵ In addition, a more complex spectrum of supported plasmonic modes can be utilized by combining complementary geometries that support LSP modes at similar wavelengths based on Babinet's principle.²⁶ When the NHA geometry approaches that of complementary metallic nanoparticle (NP) arrays, additional LSP resonance is introduced, which can near-field couple with the NHA.²⁷ Moreover, NHA structures that comprise stacks of periodically perforated metallic films²⁸ and NHA + NP structure with a defined lateral offset of NPs with respect to the nanohole center²⁹ have been investigated. Herein, we report a new approach to rapidly actuate the plasmonic characteristics of thin gold films perforated with nanohole arrays by thermo-responsive hydrogel and demonstrate its utilization to sensing with flow-through format SPR and SERS readout.³⁰ It is worth noting that arranging the metallic nanoholes and nanoparticles in periodic arrays also decreases the damping of plasmonic modes by their diffraction coupling through the formation of the so-called surface lattice resonances.³¹

Perforated metal layer structures with NHA have been recently prepared using a range of lithography processes. In top-down approaches, a variety of geometries become accessible using focused ion beam milling (FIB) and electron beam lithography (EBL).^32,33 Nanoimprint lithography and template stripping³⁴ are used to partially alleviate the limited throughput of EBL and FIB by the replication of the NHA structure from pre-fabricated templates. Alternatively, NHAs were also prepared using bottom-up approaches, mostly relying on the self-organization of colloid particles.³⁵ Using sub-monolayer surface coverage of colloids, the colloid particles are used as a mask for the preparation of sparse and disordered nanoholes, while dense monolayers of colloids are employed to create well-ordered nanohole geometries.^28,29,36 This approach allows the pattern period, Λ, to be controlled by the size of the colloid particles and the hole diameter, D, can be independently adjusted via isotropic etching of the assembled particles before metal deposition. This technique was further extended for the preparation of nanoholes on cavities,³⁷ and a lift-off approach of the NHA membrane was also adopted for its subsequent transfer to more complex structures with multiple stacked patterned metallic layers.²⁸

Typically, NHAs used for sensing applications are prepared via stripping-based techniques or lithographic methods directly on a non-permeable solid support, which is loaded to a microfluidic device.^38,39 However, the liquid sample to be analyzed is flowed over the perforated NHA surface with closed-ended pores, where the liquid flow velocity is equal to zero, and consequently, the transport of molecules to and inside the pores is dominantly driven by slow diffusion.^40,41 Thus, to overcome this limitation, there a flow-through assay format has been developed, in which the analyte solution is transported internally across the nanoporous film.^8,16,41,42 However, these experiments typically rely on the structure of the NHA prepared on thin nitride membranes, which requires multiple lithography steps and complicates their application in sensing experiments.

The present study demonstrates a new type of NHA + NP structure, which is supported by a thermo-responsive hydrogel cushion. It is made from an N-isopropylacrylamide hydrogel material that can expand and contract in an aqueous environment, thereby actuating the plasmonic properties of metallic nanostructures.^43–45 In this architecture, the hydrogel cushion accommodates arrays of gold NPs, which are located below the NHA and their mutual distance, g, can be on demand actuated (Fig. 1). Herein, we investigate the spectra of supported PSP and LSP modes and their spectral detuning by temperature-induced reversible swelling and collapsing of a hydrogel cushion. In addition, the hydrogel can serve as a three-dimensional binding matrix for the immobilization of bio-functional molecules and the applicability of the structure for SPR (surface plasmon resonance) and SERS (surface-enhanced Raman scattering) detection is demonstrated with the use of plasmonic modes that probe the open pores, through which aqueous samples can be actively flowed.

Fig. 1 (a) Schematics of plasmonic nanostructure composed of periodic nanohole arrays (NHA) coupled with arrays of nanoparticles (NP) by the use of responsive hydrogel cushion implemented by materials with the chemical structure shown in (b).

Results and discussion

We developed a method to prepare a nanostructure geometry that combines thin gold films perforated with NHA and arrays of gold NP, which are suspended in a thin layer of a poly(N-isopropyl acrylamide) (pNIPAAm)-based hydrogel. It serves as a responsive cushion, which responds to temperature changes since pNIPAAm exhibits a lower critical solution temperature (LCST) of 32 °C. Below its LCST, it is hydrophilic, and it contains large amounts of water in its polymer network structure. When the temperature increases above its LCST, it abruptly collapses by expelling water. In the nanostructure geometry (Fig. 1a), the pNIPAAm-based hydrogel cushion was allowed to swell and collapse via the diffusion of water through the NHA pores and its volume changes were utilized for active control of the distance, g, between NHA and NP. In addition, the hydrogel was made from a terpolymer that carries pendant groups attached to its backbone, enabling its post-modification with bio-functional molecules (Fig. 1b) for application in optical spectroscopy and biosensors.⁴⁶ It is worth noting that this thermo-responsive hydrogel cushion allowed the controlled opening and closing of the nanohole arrays of pores, and switching to the open state was accompanied by the rapid diffusion of water, which drags contained biomolecules through the pores, where a plasmonic hotspot occurs. The spectrum of plasmonic modes probing the pores of the structure and their near field coupling was investigated in detail, as follows.

Preparation of NHA + NP structure with hydrogel cushion

The NHA + NP structure featuring actively tunable plasmonic properties was prepared by a combination of UV nanoimprint lithography (UV-NIL) and template-stripping (Fig. 2a). Arrays of nanopillars cast to the transparent OrmoStamp material were used as a template. AFM observation of the structure topography showed that the arrays of nanopillars exhibited a diameter of D = 100 nm, height of 100 nm, and they were arranged in rectangular arrays with a set period of Λ = 460 nm (Fig. 2b). The arrays of OrmoStamp nanopillars were then activated by UV-ozone treatment and modified with perfluoro-silane using vapor deposition to reduce their surface energy. Subsequently, the nanopillars with a perfluoro-silane anti-adhesive layer were coated by a gold layer with a thickness of h = 50 nm. SEM observation (Fig. 2c) revealed that the gold deposition led to the formation of a continuous layer, which is protruded by the nanopillars and their top is capped by gold that is not connected to the bottom continuous gold layer. Afterward, the outer gold surface was modified by a self-assembled monolayer of photo-active benzophenone-disulfide, and subsequently coated with a pNIPAAm-based terpolymer layer. This terpolymer contains the same photo-reactive benzophenone groups in its backbone (see Fig. 1b) and upon irradiation with UV light these chains were simultaneously covalently crosslinked and attached to the gold via the benzophenone-disulfide linker. Then, the outer surface of the crosslinked pNIPAAm-based polymer was pressed against a glass substrate with a soft adhesive layer (Ostemer resin pre-cured with UV light), which was subsequently thermally cured overnight at a temperature of 50 °C. Finally, the assembly was stripped at the OrmoStamp–gold interface (treated with anti-adhesive layer) to yield a structure with a thin gold film perforated by NHA, which were attached to the pNIPAAm-based crosslinked polymer networks and underneath comprised of embedded gold NPs spatially separated from the perforated continuous gold film. The AFM topography image in Fig. 2d shows that the pores exhibit the same diameter, D, as the nanopillars and the SEM image of an edge of the structure in Fig. 2e confirms that under the NHA, arrays of gold NPs are present (which were stripped from the top of the OrmoStamp pillars). It is worth noting that the distortions of the surface that are visible in Fig. 2e are a result of breaking the sample to obtain the cross-section image.

Fig. 2 (a) Schematic of the preparation steps of the investigated NHA + NP nanostructure, (b) AFM image of the template with arrays of nanopillars cast to OrmoStamp, (c) SEM image after coating of the template with a 50 nm thick gold layer, (d) AFM image of the topography of the stripped surface with gold NHA, and (e) SEM image of a broken edge of the NHA + NP structure tethered to a solid surface via the responsive pNIPAAm-based polymer. All scale bars are 1 μm in length.

Optical observation of plasmonic modes

The spectra of the LSP and PSP modes supported by the prepared nanostructure were investigated via optical transmission measurements. To distinguish between the diffraction coupling to the dispersive PSP modes (traveling along the gold film) and non-dispersive LSP resonances (supported by the pores in the NHA + NP nanostructure), transmission spectra were measured via collimated beam impinging on the NHA + NP structure at angles in the range of θ = 0° to 25°. The transmitted beam emitted from a halogen light bulb was then analyzed with a spectrometer in the wavelength range of λ = 500–850 nm. Firstly, the wavelength-angular dependence of the transmission was measured for a structure that was dry and in contact with air (with a refractive index of n_s = 1). As presented in Fig. 3a, the acquired spectrum shows that the excitation of non-dispersive resonance is manifested as a dip centered at a wavelength of λ_A = 600 nm. Moreover, an additional dispersive mode occurs, and its excitation is associated with the dip in the transmission spectrum at λ^d_C = 750 nm, which splits when the angle of incidence, θ, deviates from zero. Secondly, the structure was clamped to a flow-cell and water (with a refractive index of n_s = 1.33) was flowed over its surface, which was kept at a temperature of T = 40 °C. This temperature is above the LCST of pNIPAAm, and thus this material exhibits hydrophobic properties, preventing the diffusion of water into the polymer networks through the NHA pores. Since the refractive index of the dielectric above the structure n_s increased, a new dispersive dip resonance centered at a wavelength of λ^d_B = 650 nm appeared, while the resonance features λ_A and λ^d_C changed negligibly (Fig. 3b). Thirdly, the structure in contact with water was cooled to T = 22 °C, which is below the LCST of pNIPAAm. Then, a strong blueshift in the λ_A and λ^d_C resonances occurred in the transmission spectrum, and also much weaker spectral shift of λ^d_B accompanied by a decrease in coupling efficiency at this wavelength (Fig. 3c). These observations indicate that the resonances at λ_A and λ^d_C are associated with the coupling to the surface plasmon modes that confine the electromagnetic field in the inner side of the structure in contact with the pNIPAAm-based hydrogel (with a refractive index of n_h = 1.47 at T = 22 °C and n_h = 1.37 at T = 40 °C, see ESI, Fig. S1†). The resonance λ^d_B probes the upper part of the structure in contact with water (n_s = 1.33), which changes its refractive index with temperature much less than pNIPAAm. Since the resonances at λ^d_B and λ^d_C are dispersive, they can be attributed to the PSP modes travelling at the upper or bottom interface of the gold film, respectively. The non-dispersive nature of the λ_A resonance indicates it can be ascribed to the LSP mode.

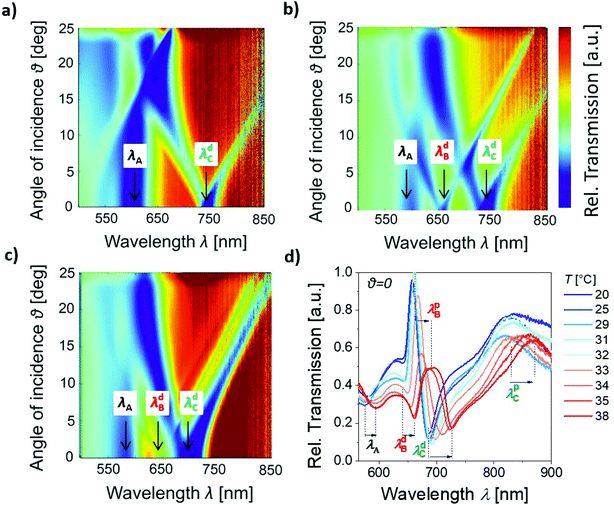

Fig. 3 Measured dependence of wavelength transmission spectra on angle of incidence, θ, for the NHA + NP structure in contact with (a) air (n_s = 1 and n_h = 1.48), (b) for the collapsed state of the pNIPAAm-based cushion that is in contact with water at T = 40 °C (n_s = 1.33 and n_h = 1.48), and (c) for the swollen state of pNIPAAm cushion in water at T = 22 °C (n_s = 1.33 and n_h = 1.37). (d) Comparison of the wavelength transmission spectra for θ and NHA + NP structure in contact with water at varying temperature, T. The transmission spectra were normalized with that measured for the flat structure without the perforated Au film.

A more detailed dependence of the transmission spectra on temperature T was investigated for the normal angle of incidence θ = 0 (Fig. 3d). The spectra were measured using a different light source (supercontinuum laser) in order to extend the wavelength range to 900 nm, which allowed us to observe an additional feature manifested as a transmission peak at λ^p_C = 810 nm. Moreover, this showed more clearly that close to λ^d_B, a peak appeared at a wavelength λ^p_B. It is worth noting that the measured transmission spectra were normalized with that obtained for a flat 50 nm thick gold film, which exhibited a rapidly decreasing transmission with wavelength in the red and near infrared region of the spectrum. Therefore, the measurement of absolute transmission values was not possible, and thus only relative values are presented. In addition, the spectral positions of the resonances in Fig. 3a, b and d slightly differ since they were measured with different (although fabricated under identical conditions) NHA + NP nanostructures.

Identification of plasmonic modes aided by simulations

The five observed resonant features in the measured transmission spectra were identified using numerical finite difference time domain (FDTD) simulations. This model was employed to calculate the absorption wavelength spectra and near-field distribution of the electromagnetic field occurring in the structure upon a plane wave normally impinging at its surface. The simulations of the absorption spectra allowed us to distinguish the resonant excitation of the LSP and PSP modes (which is accompanied with damping) from other features occurring in the transmission spectrum, which are related to the interference between multiple specular and non-specular diffracted beams and their falling after the horizon in the superstrate or substrate. As shown in Fig. 4a (blue curve), we initially analyzed a structure composed of only arrays of cylindrically shaped nanoparticles (NPs with a height of h = 50 nm, average diameter of D = 100–120 nm, and period of Λ = 460 nm) embedded between dielectrics with the refractive indices of n_h = 1.47 and n_s = 1.33. The simulated spectrum reveals that the resonance associated with the coupling to LSP on the arrays of NPs is manifested as a strong absorption peak at a wavelength of about 707 nm. The complementary NHA structure was composed of a 50 nm thick gold film that was perforated with arrays of cylindrical nanoholes exhibiting the same diameter D and sandwiched between the same dielectrics with refractive indices of n_h = 1.47 and n_s = 1.33. The absorption spectrum in Fig. 4a (red curve) shows three resonances located at the wavelengths of λ_A = 630 nm, λ_B = 676 nm, and λ_C = 774 nm. At these wavelengths, the near-field distribution of the electric field amplitude |E| (normalized with that of the incidence plane wave |E₀|) was simulated, as can be observed in the right part of Fig. 4a. These plots reveal that the resonance at wavelength λ_A exhibits the characteristics of the dipolar LSP mode, which confines the field inside the nanohole. The resonance at the longer wavelength λ_B shows a more delocalized field profile on the top interface of the gold film with the superstrate n_s = 1.33, which confirms it is due to first-order diffraction coupling to the traveling PSP mode at this surface. The resonance at the NIR wavelength λ_C is accompanied with the confinement of the electric field at the bottom gold layer interface with the dielectric n_h = 1.47, which peaks at the mouth of the pore and its distribution suggests the main origin corresponds to the first-order diffraction coupling to the PSPs traveling along the bottom gold film surface. It should be noted that these simulations were carried out for the mouth of the nanopores filled by a dielectric with a refractive index n_s since the fabrication procedure involving stripping from arrays of nanopillars suggests this geometry (see Fig. 2a).

Fig. 4 Simulation-based investigation of the spectrum of supported plasmonic modes: absorption spectra obtained for normally incident beam at (a) structure with a thin gold film perforated with arrays of nanoholes (NHA), with arrays of cylindrical nanoparticles (NP), and for the combined geometry (NHA + NP) with superstrate refractive indices n_s = 1 and 1.33 and substrate refractive index n_h = 1.47. (b) Absorption spectrum simulated for the NHA + NP geometry for superstrate refractive indices n_s = 1 and 1.33. The substrate refractive index was of n_h = 1.47, gap distance between NP and NHA was of g = 50 nm, period of Λ = 460 nm, diameter averaged between D = 100–120 nm, and height of h = 50 nm. The cross-section of spatial distribution of the electric field amplitude was simulated for the plasmonic modes as indicated in the inset.

The simulations in Fig. 4b (brown curve) reveal that the short wavelength resonance was blue-shifted to λ_A = 621 nm, the middle resonance blue-shifted to λ_A = 672 nm, and the long-wavelength resonance red-shifted to λ_C = 813 nm after the coupling of the nanohole arrays with the cylindrical nanoparticle arrays (NHA + NP). In these simulations, the gap distance between the bottom edge of the nanopore and the upper surface of the cylindrically shaped nanoparticle was set to g = 50 nm, which corresponds to the difference between the nanopillar height of 100 nm and the thickness of the gold layer of h = 50 nm (see Fig. 1 and 2). When the refractive index of the superstrate decreased from n_s = 1.33 (representing water) to n_s = 1 (representing air), the middle-wavelength resonance disappeared, as shown in Fig. 4b (green curve). This observation agrees with the measurements presented in Fig. 3 and confirms that the middle resonance occurs due to the first-order diffractive coupling to the PSP mode at the outer gold layer surface, which is the most sensitive to variations in refractive index on the upper interface (superstrate n_s). In addition, this refractive index decrease led to a slight blue shift in λ_A and λ_C since the field distribution corresponding to these resonances also partially probe the dielectric n_s. The spatial profile of the near field-enhanced electric field amplitude in the right part of Fig. 4b shows that the presence of gold disk nanoparticles slightly perturbed the nanohole LSP resonance at λ_A as the field is dragged to the bottom part of the disk nanoparticle. The resonance at λ_B due to the PSPs traveling on the top interface only weakly couples with the disk nanoparticles, contrary to the bottom PSP mode λ_C, which exhibits a field distribution with a more pronounced confinement in the gap.

Interestingly, the simulations predicted that only three plasmonic modes are supported in the investigated wavelength range (Fig. 4b, brown curve) when the geometry of NHA (with three plasmonic modes, black curve Fig. 4a) and NP arrays (with one mode, blue curve in Fig. 4a) are combined to yield the experimentally investigated structure NHA + NP. However, five features were identified in the experimental transmission data presented Fig. 3, which is greater than the number of predicted plasmonic modes. The discrepancy between the simulated absorption spectra and experimentally measured specular transmission can be explained by the Fano shape of the two measured transmission resonances. The middle wavelength peak at λ^p_B and dip at λ^d_B can be attributed to the excitation of a single PSP mode at the interface of the structure with superstrate n_s and its asymmetric shape can be ascribed to the interference with additional waves generated by the structure in a broader wavelength range (previously observed for related plasmonic nanostructure by simulations³). Similarly, the long wavelength peak at λ^p_C and dip at λ^d_C can be attributed to the excitation of the PSP mode at the opposite interface of the structure with superstrate n_h.

In the next step, we performed more detailed simulations to reveal the spectral detuning of the resonances by the refractive index changes of the bottom dielectric n_h and distance g between the gold NPs and NHA. These simulations represent the expected effect of the swelling and collapsing of the pNIPAAm-based hydrogel cushion. In general, an increase in swelling is assumed to be accompanied with a prolongation of distance g, a decrease in polymer volume content, and consequently a decrease in the refractive index n_h. Fig. 5a and b show that the refractive index n_h gradually increased from 1.38 to 1.46 and distance g varied between 50 and 100 nm, respectively. The increase in the substrate refractive index n_h led to a redshift for all three resonances (Fig. 5a), which is consistent with the experimental data presented in Fig. 3d. For small changes in the refractive index, the variations in the resonant wavelengths can be assumed to be linear, and accordingly, the determined refractive index sensitivity of δλ_B/δn_h = 190 nm RIU⁻¹ and δλ_C/δn_h = 390 nm RIU⁻¹ were obtained from the simulated data. These values are in the range reported for another SPR sensor configuration, which utilizes grating coupling to PSP modes.⁴⁷ The lower sensitivity of δλ_A/δn_h = 90 nm RIU⁻¹ for the LSP mode is also in accordance with the previous observations on LSPR.⁴⁴ Similarly, the refractive index sensitivity of the three plasmon modes to a change in the refractive index of the superstrate n_s was determined to be δλ_A/δn_s = 137 nm RIU⁻¹, δλ_B/δn_s = 260 nm RIU⁻¹ and δλ_C/δn_s = 83 nm RIU⁻¹ according to the data presented in Fig. S2.† Apparently, the highest sensitivity is observed for the mode at λ_B, which is ascribed to the PSP at the outer interface, where the field is dominantly confined.

Fig. 5 Simulated absorption spectra for the structure NHA + NP for varying: (a) refractive index of substrate n_h and (b) distance g between NHA and NP. From these spectra, the spectral shift of three resonant features were determined for changes in (c) n_h and (d) g. The superstrate refractive index was set to n_s = 1.33, the substrate refractive index for (b) and (d) was n_h = 1.47, gap distance between NP and NHA for (a) and (c) was set as g = 50 nm, period was Λ = 460 nm, average diameter between D = 100–120 nm, and height h = 50 nm.

The simulated spectra for varying gap distances g are presented in Fig. 5b. They show more complex behavior and the resonances λ_A and λ_B are weakly blue-shifted with a decrease in distance g, while λ_C is strongly red-shifted. These changes exhibit non-linear behavior, and for the shorter distances of g, they are more pronounced than for the longer distances of g. Therefore, this observation can be attributed to the near-field coupling between the gold NPs and NHA, which is particularly pronounced for the resonance λ_C with its field tightly confined in the gap (see right part of Fig. 4b). Interestingly, for the long distance g, an increase in the absorption close to the wavelength of 700 nm occurred, which may be due to the re-occurrence of the LSP resonance supported by gold NP arrays not coupled with NHA, as presented in Fig. 4a.

Actuating of plasmonic modes

The swelling and collapsing of the pNIPAAm-based hydrogel cushion by varying the temperature around its LCST were further exploited for actuating the plasmonic modes supported by the prepared structure NHA + NP. In this experiment, we varied temperature in the range of T = 20–38 °C and tracked the resonant positions of all the identified spectral features, including the transmission dip at λ_A = 577 nm due to the LSP in the nanoholes, spectral dip at λ^d_B = 641 nm and peak at λ^p_B = 658 nm, which are ascribed to the Fano resonance of the PSPs on the top NHA surface, and spectral dip at λ^d_C = 684 nm and peak at a wavelength of λ^p_C = 825 nm attributed to the Fano resonance of PSP at the bottom NHA surface coupled with arrays of NPs (measured at temperature T = 20 °C). The obtained response was measured with time upon a step-wise increase and decrease in temperature T according to the analysis of the spectra presented in Fig. 3d. The obtained time kinetics in Fig. 6 show that the changes are reversible. The features presented in Fig. 6a show a gradual increase in spectral position with an increase in temperature T. The Fano resonance features λ^d_B and λ^p_B exhibit similar shifts and the maximum change of about 20 nm occurred when the temperature increased from T = 22 °C to 38 °C. The highest slope in the shift occurred close to the LCST of pNIPAAm of 32 °C. At a higher temperature, it was not possible to track the spectral shift in the peak due to the fact that it became weakly pronounced. The spectral dip λ^d_C showed the same trend and exhibited a stronger maximum shift of 40 nm for the temperature increase from T = 22 °C to 38 °C.

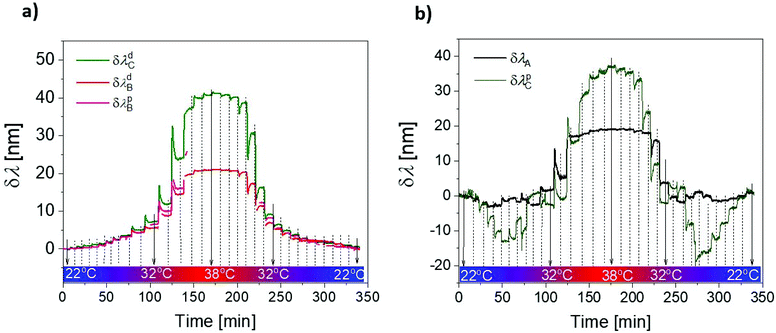

Fig. 6 Dependence of spectral position of plasmonic features plotted as function of time for different temperatures in the range of T = 22 °C to T = 38 °C: (a) gradual variation in the spectral positions of dips λ^d_B and λ^d_C and peak at λ^p_B and (b) anomalous variations in the spectral positions of dip λ_A and peak λ^p_C.

Interestingly, the dependence of λ_A and λ^p_C shows different behavior. When the temperature increased above T = 22 °C, an initial decrease in the resonance λ_A occurred followed by an increase with a local maximum at T = 29 °C, then it decreased again, and above the LCST of pNIPAAm, it rapidly increased and shifted by about 20 nm. The peak position λ^p_C showed a complementary trend and it strongly decreased by 15 nm when the temperature increased from 22 °C to 27 °C, and then it increased with the local maximum at 30 °C, and when passing the LCST it rapidly redshifted by 38 nm. These anomalous dependencies can be explained by the competing effect of the near-field coupling (which is dominantly controlled by distance g and exhibit non-linear dependence, as shown in Fig. 5d) and refractive index change, which shifts the resonance linearly (see Fig. 5c). The anomalous changes occurred below the LCST of pNIPAAm, which indicates that distance g is not directly proportional to the swelling degree of the hydrogel cushion layer, and other effects such as filling the pores with the swelling polymer networks can occur.

Local probing of molecular binding events

To explore the potential of the developed hybrid nanostructure for applications in sensing, we employed the plasmonic resonances for local probing of molecular binding events at specific parts. In the first experiment, we directly monitored the binding of biomolecules in the pNIPAAm-based hydrogel cushion from the associated refractive index changes. These changes detuned the SPR wavelengths, where the excitation of the modes probing different the sub-parts of the structure occurred. After the stripping of the structure, the outer gold surface and the mouth of the pores were passivated by the thiol SAM with oligoethylene glycol (OEG) groups. Then, the pNIPAAm-based hydrogel cushion was post-modified in situ by covalent coupling of mouse immunoglobulin G, mIgG. The spectral positions of the resonances at λ_A and λ^d_C were monitored by tracking their spectral detuning upon the surface reactions, as can be seen in Fig. 7a. These two resonances were selected since they probe different parts of the structure and are well pronounced in the transmission spectrum. To activate the carboxylic groups within the hydrogel cushion, they were reacted with EDC/TFPS and then a solution with mIgG was flowed over the surface in the time range of 45 to 120 min. After rinsing with a buffer at time 120 min, resonance λ^d_C shifted by 6 nm due to the covalent coupling of mIgG, while resonance λ_A showed a much weaker shift of about 0.5 nm. This observation proves that the mIgG molecules could diffuse through the pores and bind to the bottom swollen hydrogel (probed at λ^d_C), while they do not attach to the pores (probed at λ_A). Then, a series of PBS solutions with sucrose dissolved at a concentration of 2%, 4% and 8% was flowed over the surface to change the bulk refractive index by 2.8, 5.6 and 11.2 × 10⁻³ RIU, respectively. These low molecular weight molecules did not interact with the structure but freely diffused into the pNIPAAm-based hydrogel, and thus changed the refractive index on both sides of superstrate n_s and substrate hydrogel cushion n_h. From the measured shifts in λ_A and λ^d_C, the sensitivity of these resonances was determined to be dλ_A/d_n = 218 nm RIU⁻¹ and dλ^d_C/d_n 454 nm RIU⁻¹, respectively. These values are close to the predicted sum of the sensitivities dλ/dn_s and dλ/dn_h and support the fact that the refractive index changes at both interfaces of the permeable thin gold film.

Fig. 7 (a) Probing of covalent coupling of immunoglobulin G molecules (IgG) to pNIPAAm hydrogel polymer networks with the plasmonic modes centred at λ_A and λ^d_C. (b) SERS spectra measured before and after post-modification of the stripped area of gold with 4-MBA, as measured with a laser wavelength of 785 nm. The structure NHA + NP was swollen in water. (c) Comparison of the acquired Raman spectra from the top (dry NHA + NP structure) and bottom (swollen and dry NHA + NP structure).

In the second experiment, we tested the structure as a substrate for SERS detection. Accordingly, we probed the upper and bottom interfaces by a laser beam focused from the superstrate or substrate side by a lens with a numerical aperture of 0.5. The laser beam had a wavelength of λ = 785 nm, which is close to the resonance observed at λ^p_C associated with the confinement of the incident field in the gap between the NHA and NP (see Fig. 4b). In this experiment, we directly used a structure that was stripped and compared the acquired Raman (Stokes shifted) spectra with that acquired for the same structure in which the upper gold surface and the pore mouth were modified with a Raman-active 4-MBA monolayer (see schematic in Fig. 1b). The results presented in Fig. 7b show a series of Raman peaks in the spectral range of 800–1800 cm⁻¹ for the pristine stripped structure that was probed from the bottom substrate through the pNIPAAm-based cushion. These peaks can be ascribed to the benzophenone molecules at the inner gold interface since their spectral positions are close to that reported in previous works.⁴⁸ After modifying the pore mouth and the upper gold interface with 4-MBA, two additional peaks appeared at 1071 cm⁻¹ (aromatic ring breathing, symmetric C–H in-plane bending, and C–S stretching) and 1581 cm⁻¹ (aromatic ring C–C stretching, asymmetric C–H in-plane bending). These spectral positions are close to that observed previously for this molecule.^48,49

Finally, a comparison of the Raman peak intensity was carried out for probing from the top (through the superstrate) and from the bottom (through the pNIPAAm cushion substrate). As can be seen in Fig. 7c, the Raman peaks were observed only for the probing from the bottom, where the mode at λ^p_C could be efficiently excited with the laser beam at the wavelength of 785 nm. In addition, the spectral tuning of this mode by collapsing and swelling the structure led to variations in the Raman peak intensity. An increase in the Raman peak intensity by about 45% occurred by collapsing the structure (by drying) with respect to the geometry when the hydrogel cushion was swollen in water. This can be attributed to the potentially stronger field intensity enhancement in the gap between the nanopores in the NHA and the bottom metallic nanoparticles as well as the shift in the resonance at λ^p_C to its optimized spectral position with respect to the excitation wavelength and Raman scattered peaks, which was observed to provide most efficient SERS.^50–55

Conclusions

We developed a new approach for the preparation of a hybrid plasmonic nanostructure that can be actuated and consists of arrays of nanoholes in a thin gold film, which is connected to arrays of gold nanoparticles by a responsive hydrogel cushion attached to a solid substrate. We explored the spectrum of the plasmonic modes supported by the structure and identified their origin due to the resonant excitation of three localized surface plasmons (confined in the nanopores and at the surface of the nanoparticles) and diffractive coupling to propagating surface plasmons (traveling along the top and bottom interfaces of the thin gold film). By swelling and collapsing the hydrogel cushion, the characteristics of these modes could be changed on-demand and the field confinement as well as resonant wavelength (up to 50 nm shifts) could be actively actuated. Among the modes, the near-field coupling between the nanoparticles and nanoholes was observed, and the simulations predicted that it leads to strong confinement of the electromagnetic field in the respective gap in the near-infrared part of the spectrum. This is particularly attractive for biosensing applications, as demonstrated by SPR observation of the attachment of 160 kDa IgG molecules inside the structure and SERS measurement of low molecular weight Raman active 4-MBA molecules immobilized in the pore mouth. In addition, this structure offers a unique opportunity to open and close the pores by swelling and collapsing the hydrogel cushion. Accordingly, the pores can be switched between the dead-end geometry and open state when water molecules are actively driven through the pores, dragging dissolved biomolecules across the plasmonic hotspot by diffusion.

Experimental

Materials

OrmoStamp® resin was purchased from Micro Resist Technology GmbH (Germany). Ostemer 322 Crystal Clear was purchased from Mercene Labs AB (Sweden). Polydimethylsiloxane Sylgard 184 (PDMS) was obtained from Dow Corning (USA). Trichloro(1H,1H,2H,2H-perfluorooctyl)silane (perfluoro-silane), dimethyl sulfoxide (DMSO) and 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) were obtained from Sigma Aldrich (Germany). (11-Mercaptoundecyl)triethylene glycol (PEG-thiol, SPT-0011) was purchased from SensoPath Technologies Inc. (USA). The pNIPAAm-based terpolymer composed of N-isopropylacrylamide, methacrylic acid, and 4-methacryloyloxybenzophenone (in a ratio of 94 : 5 : 1), benzophenone-disulfide and 4-sulfotetrafluorophenol (TFPS) were synthesized in our laboratory, as previously reported.^56,57 IgG from mouse serum (mIgG, I 5381) and Tween 20 (P9416) were purchased from Sigma Aldrich (Austria), and phosphate-buffered saline (PBS) and sodium acetate were obtained from VWR Chemicals (Austria). Goat anti-mouse IgG (a-mIgG, A11375) was acquired from Life Technologies, (Eugene OR, US).

UV-nanoimprint lithography

A template structure bearing arrays of nanopillars was fabricated from a silicon master that carried 1 cm² rectangular arrays of nanoholes with a diameter of D = 90 nm, depth 260 nm, and period Λ = 460 nm, fabricated by Temicon GmbH (Germany). 200 μL of OrmoPrime was spun on a clean BK7 glass substrate at 4000 rpm for 60 s and hard-baked at 150 °C for 5 min. The BK7 substrate coated with OrmoPrime was contacted with the silicon master using a drop of OrmoStamp and kept still for 10 min to spread over the structure and fill the pores. The OrmoStamp was cured using UV light at λ = 365 nm with the irradiation dose of 1 J cm⁻² (UV lamp Bio-Link 365, Vilber Lourmat). Then, the silicon master was carefully detached, leaving the BK7 substrate with an imprinted pattern of nanopillars in the OrmoStamp resin. The fabricated arrays of nanopillars were treated with UV-ozone for 5 min to remove the excess OrmoStamp and activate the surface for silanization. An anti-adhesive layer was deposited on the OrmoStamp structure under an argon atmosphere using 13 μL of trichloro(1H,1H,2H,2H-perfluorooctyl)silane in a desiccator (volume 5.8 L) heated to T = 250 °C for 20 min. A 50 nm thin layer of gold was deposited on the arrays of nanopillars, serving as a template, by vacuum thermal evaporation (HHV AUTO 306 from HHV Ltd) at a deposition rate of 2 Å s⁻¹ in a vacuum greater than 10⁻⁶ mbar. Each sample consisted of a nanostructured region and a flat region for reference in the optical measurements.

Deposition of the responsive polymer

The OrmoStamp arrays of nanopillars coated with 50 nm of gold were incubated overnight in a 1 mM solution of benzophenone-disulfide in DMSO to form a self-assembled monolayer serving as a linker. Then, this structure was coated with a uniform layer of pNIPAAm-based terpolymer by spin-coating 3 wt% ethanolic solution of the polymer at a spin rate of 2000 rpm for 1 min. The layer of the pNIPAAm-based terpolymer was dried overnight under vacuum at 50 °C yielding, a thickness of 230 nm. The resulting polymer film was crosslinked via the benzophenone moieties by UV light at λ = 365 nm with an irradiation dose of 10 J cm⁻².

Template stripping

A drop of Ostemer epoxy was spread on clean BK7 glass by contacting it with a flat piece of PDMS and irradiating it with UV-light at λ = 365 nm (2 J cm⁻²). The PDMS block was peeled-off leaving a glass substrate with a flat layer of pre-cured Ostemer epoxy on its top. Then, the Ostemer surface was pressed against the template coated with the crosslinked pNIPAAm-based film and incubated overnight at 50 °C to allow its attachment to the pNIPAAm-based surface via its epoxy groups. Due to the pre-curing step, the Ostemer did not penetrate the pNIPAAm polymer network layer. Finally, the BK7 substrate with a layer of Ostemer was used to strip off the pNIPAAm-based film with the layer of gold from the template modified with the thin anti-adhesive layer.

Morphological characterization

Atomic force microscopy (AFM) measurements of the patterned structures in air were performed in tapping mode using PPP-NCHR-50 tips (Nanosensors, Switzerland) and a PicoPlus instrument (Molecular Imaging, Agilent Technologies, USA). In addition, a scanning electron microscope (Zeiss Supra 40 VP (Carl Zeiss Microscopy GmbH, Germany) was used for imaging of the longitudinal and cross-section interfaces of the nanostructures at an electron high tension of EHT = 5 kV. The height, diameter and lateral spacing of the nanoscale features were determined using the Gwyddion free software (version 2.47 from gwyddion.net).

Optical configuration for angular-wavelength transmission measurement

Transmission optical spectra were acquired using a polychromatic light beam emitted from a halogen lamp (LSH102 LOT-Oriel, Germany), which was coupled to a multimode optical fiber and collimated with a lens. It was made incident at the structure and the transmitted beam was collected by a lens to another multimode optical fiber and delivered to a spectrometer (HR4000, Ocean Optics, USA). The obtained transmission spectra were normalized with that obtained on a reference flat 50 nm thick gold film. A flow-cell with a Peltier element⁵⁸ connected to a controller from Wavelength Electronics Inc. (USA) was clamped against the investigated structure to control the temperature of the liquid flowed over its surface. Deionized water was flowed by employing a peristaltic pump from Ismatec (Switzerland). The investigated structure with a flow cell was mounted on a rotation stage driven by a stepper motor from Huber GmbH (Germany) to control the angle of incident light, θ. Transmission spectra were recorded using the in-house developed Labview software and processed using a dedicated Python script.

Tracking of resonant wavelengths

Polychromatic light emitted from a supercontinuum laser source (WhiteLaser Micro, Fianium, UK) was collimated and the beam was expanded and spectrally filtered by a long-pass filter. The beam was made incident at a normal angle on the structure mounted in the temperature-stabilized flow cell. The transmitted beam was collected by a GRIN lens to a multimode fiber and delivered to the input of a spectrometer (S2000, Ocean Optics, USA). The acquired transmission spectra were normalized to that measured for a reference flat gold film (thickness of 50 nm) and analyzed using the SPR UP software developed at the Institute of Photonics and Electronics, Czech Academy of Sciences.

Finite-difference time-domain simulations

FDTD simulations were performed using the Lumerical FDTD Solutions software. The geometry of the nanoparticle arrays was described using Cartesian coordinates with the x- and y-axis in the plane and the z-axis perpendicular to the plane of the arrays. Infinite arrays were considered in the simulations by choosing periodic boundary conditions (symmetric or anti-symmetric) along the x- and y-axis and using perfectly matched layers (PML) above and below the structure. For the field profile simulations, the simulation mesh was set to 2 nm over the volume of the unit cell. A transmission monitor was placed 0.4 μm below the nanoparticle arrays and a 2D monitor in the xz-plane was employed for simulating the near field distribution of the electric field intensity. The structure was illuminated by a normally incident plane wave with its polarization set along the x-direction. The optical constants for Au were taken from the CRC Optical Data Tables (450–950 nm). To consider the deviations in the experimental geometry from the (idealized) simulated geometry, the diameter D was varied in the range of 100–120 nm and the respective optical response was averaged.

Immunoassay experiment

The substrate carrying the NHA + NP structure was clamped against a transparent flow-cell and loaded in an optical system for tracking of the SPR dips or peaks in the transmission spectrum. A polychromatic optical beam was made incident at a normal angle of incidence of θ = 0° at the structure, and by analysis of the transmitted light spectrum, the variations in the resonant wavelengths were monitored with time. These variations were determined by fitting the acquired spectrum with a polynomial function, as reported previously,⁴⁷ and which allowed the spectral shifts of the dip or peak features to be measured with the accuracy of 0.1–0.01 nm, depending on the coupling strength and noise in the transmission spectrum. Firstly, the baseline in the resonant wavelength kinetics was established upon a flow of PBS for 20 min. Then, a mixture of EDC/TFPS dissolved in water at concentrations 75 and 21 mg mL⁻¹, respectively, was flowed over the structure for 10 min to activate the carboxylic moieties of the pNIPAAm hydrogel. The surface was quickly rinsed with pH 5 acetate buffer and reacted with a solution of 50 μg mL⁻¹ mouse IgG in the same buffer for 60 min to covalently attach the mIgG molecules to the polymer chains. Finally, the structure was rinsed with PBS, followed by the flow of PBS spiked with 2%, 4% and 8% sucrose (Δn = 2.8 × 10⁻³, 5.6 × 10⁻³ and 11.2 × 10⁻³ RIU, respectively).

SERS experiments

The NHA + NP structure was incubated overnight in 1 mM ethanolic solution of 4-mercaptobenzoic acid to form a self-assembled monolayer of SERS-active molecules. Prior to the experiment, the structure was rinsed with ethanol and dried. The SERS experiments were performed using an Xplora Raman microspectrometer (Horiba Scientific, France) with a ×50 long working distance objective (numerical aperture of 0.5). The laser beam at λ = 785 nm was focused at the investigated NHA + NP structure. The spectrum was accumulated for 20 s.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

DK acknowledges funding from the European Union's Horizon 2020 research and innovation programme under grant agreement no. 642787, Marie Sklodowska-Curie Innovative Training Network BIOGEL. SF, JS, JD, JH and UJ were supported by European Union's Horizon 2020 research and innovation programme under grant agreement no. 633937, project ULTRAPLACAD. PV, ML, and MDLC are grateful for the financing from the project jointly funded by Agence Nationale de la Recherche (ANR) and Austrian Science Fund (FWF) under the grant agreements ANR-15-CE29-0026 and I 2647, respectively. SF and JD received support by the Austrian Research Promotion Agency (FFG) with grant agreement no. 861578 (ERANET project PLABAN). JS and JH acknowledge financial support from the Czech Science Foundation, grant agreement #19-02739S. The Raman analysis was performed at the Vibrational Spectroscopy platform of the IMMM, Université du le Mans.
