Materials that are composed of atomically dispersed platinum group metal (PGM) atoms on coinage metal surfaces show remarkable catalytic performance in a number of chemical reactions. On these single atom alloy (SAA) surfaces, the isolated PGM atoms exhibit unique reactivity features owing to their distinctive, and often limited, interactions with the surrounding coinage metal atoms. In this work, we use density functional theory to investigate the reactivity of numerous SAA(100) and (111) surfaces, focusing on typically structure-sensitive reactions, which include the direct dissociations of NO, CO2 and N2. Our results suggest that the structure-sensitivity of these three reactions is considerably reduced on SAA surfaces as compared to pure platinum group metal surfaces (Rh, Pt, Pd and Ni). Additionally, we examine the reactivity of small Rh and Ni ensembles doped on Cu(100) and (111) facets. We determine that Ni–Ni dimers and Ni trimers outperform the studied SAAs in the activation of NO, C
O and N
N bonds, and are also capable of performing facile association reactions. This work can guide future theoretical and surface science studies on SAAs, as well as the development of highly dilute alloys, which can efficiently catalyse chemistries of industrial significance.
Surface science and catalysis studies underline the excellent catalytic properties of SAAs for a number of chemistries, such as hydrogenation and dehydrogenation reactions,2,4–6 C–H activation,7,8 C–C coupling,9 and catalytic oxidations.10 Remarkably, studies by Zhang et al.11 have unveiled that Pt/Cu SAA catalysts exhibit an unprecedented catalytic performance (i.e. extremely high activity, selectivity and stability) during the hydrogenolysis of glycerol to 1,2-propanediol; we note that the activation of pertinent reactions usually requires the presence of large PGM metal ensembles on the alloy surface.12 Accordingly, the work of Zhang et al.11 is a testament to the unique catalytic properties offered by isolated reactive atoms doped on less reactive host materials.13 In addition, very recent studies by Furukawa and co-workers highlight that Pd/Cu SAA nanoparticles supported on Al2O3 are exceptional catalysts for the catalytic NO reduction by CO.14 The latter reaction is crucial for stripping out harmful gases from catalytic converters.15 In particular, the authors demonstrated that on a Pd/Cu SAA catalyst, NO was fully converted to N2 at low temperatures (e.g. 200 °C) and, remarkably, this occurred without the formation of other undesired products such as N2O.14
The extraordinary catalytic performance of SAAs is ascribed to the distinctive electronic structure of the isolated dopant atom amid the host metal atoms. Photoemission spectroscopy and density functional theory (DFT) show that, for a number of SAA surfaces, the d band of the doped atom is very narrow, resembling that of a gas phase metal atom.16,17 This electronic characteristic is attributed to the occasionally limited electronic interactions between the dopant atom and its coordination environment, and brings about the high reactivity of SAAs.16 Furthermore, calculations performed by our group suggested that CO exhibits very similar binding strengths on the top dopant site of two low-index SAA surfaces, (100) and (111),18 which are the most commonly exposed surfaces on face-centred cubic metals.19 This finding implies that adsorbate binding is not affected by the geometry of the host (at least for CO), and gives rise to questions of far-reaching significance for future surface science and theoretical investigations: are isolated dopant atoms on flat (111) and (100) surfaces equivalent in terms of reactivity? Do dopant atoms on different flat facets have comparable electronic structures? Could typically structure-sensitive reactions (e.g. NN,20 C
O,21 N
O (ref. 22) bond-breaking) exhibit similar behaviour on the two aforementioned flat surfaces?
To shed light on these questions, we have employed periodic DFT and investigate the catalytic activity of numerous single atom and pure metal (100) and (111) surfaces toward a number of structure-sensitive reactions that include the dissociations of CO2, N2 and NO. Although these dissociations are used as prototypical reactions in our work, they are ubiquitous steps in chemistries of fundamental importance (e.g. NO reduction reaction, CH3OH synthesis, NH3 synthesis).
According to our data, the reactivity of the more open (100) SAA facet is higher as compared to the reactivity of the (111) SAA facet. This observation is also corroborated by our computed density of states (DOS) projected onto the d states of the single atom. However, we observe that the investigated reactions show a noticeably lower structure-sensitivity on the SAA surfaces than that observed on pure PGM metal surfaces. This is a finding that may have a great impact upon the search of optimum SAA catalysts, as it indicates that surface science studies on a flat facet may yield valid conclusions for a different flat facet, not under investigation. Besides SAA surfaces, we also study the reactivity of highly dilute Ni/Cu and Rh/Cu alloy surfaces, whereon Ni and Rh atoms form small ensembles (Ni–Ni and Rh–Rh dimers, and Ni trimers). We find that Ni/Cu binary alloys are remarkably competent in activating chemical bonds, while being capable of performing facile association reactions (e.g. N + N → N2). Therefore, we underline that Ni/Cu dilute alloys may be promising catalytic materials for a number of applications (e.g. NO reduction by CO and CH3OH synthesis).
![]() | (1) |
![]() | (2) |
The transition states (TSs) of the elementary reactions studied, were located using the dimer method,33 and vibrational frequency analyses verified that each TS found was a first-order saddle point on the potential energy surface. The activation barrier (Ea) and the reaction energy (ΔErxn) of an elementary step are found from eqn (3) and (4), respectively.
Ea = ETS − EIS, | (3) |
ΔErxn = EFS − EIS, | (4) |
Finally, the presented d projected DOS were computed using LOBSTER version 3.2.0,34–37 and the reported d-band centres were calculated as the first moment of the obtained d DOS:38
![]() | (5) |
Herein, we further investigate and compare the reactivity of SAA(100) and (111) surfaces by calculating the adsorption energy of other common adsorbates thereon. We compute and report the adsorption energies of N2, NO and O on the top dopant site of Cu-, Ag- and Au-based SAA(100) and (111) surfaces, with Pt, Pd, Rh and Ni as dopants. With regard to the most stable adsorption structure of the adsorbates under investigation, our DFT calculations show that both N2 and NO prefer to adsorb in an upright linear configuration, with N being closer to the alloy surface for the latter species (i.e. the dopant atom) – (see Tables S5 and S6 in the ESI†).

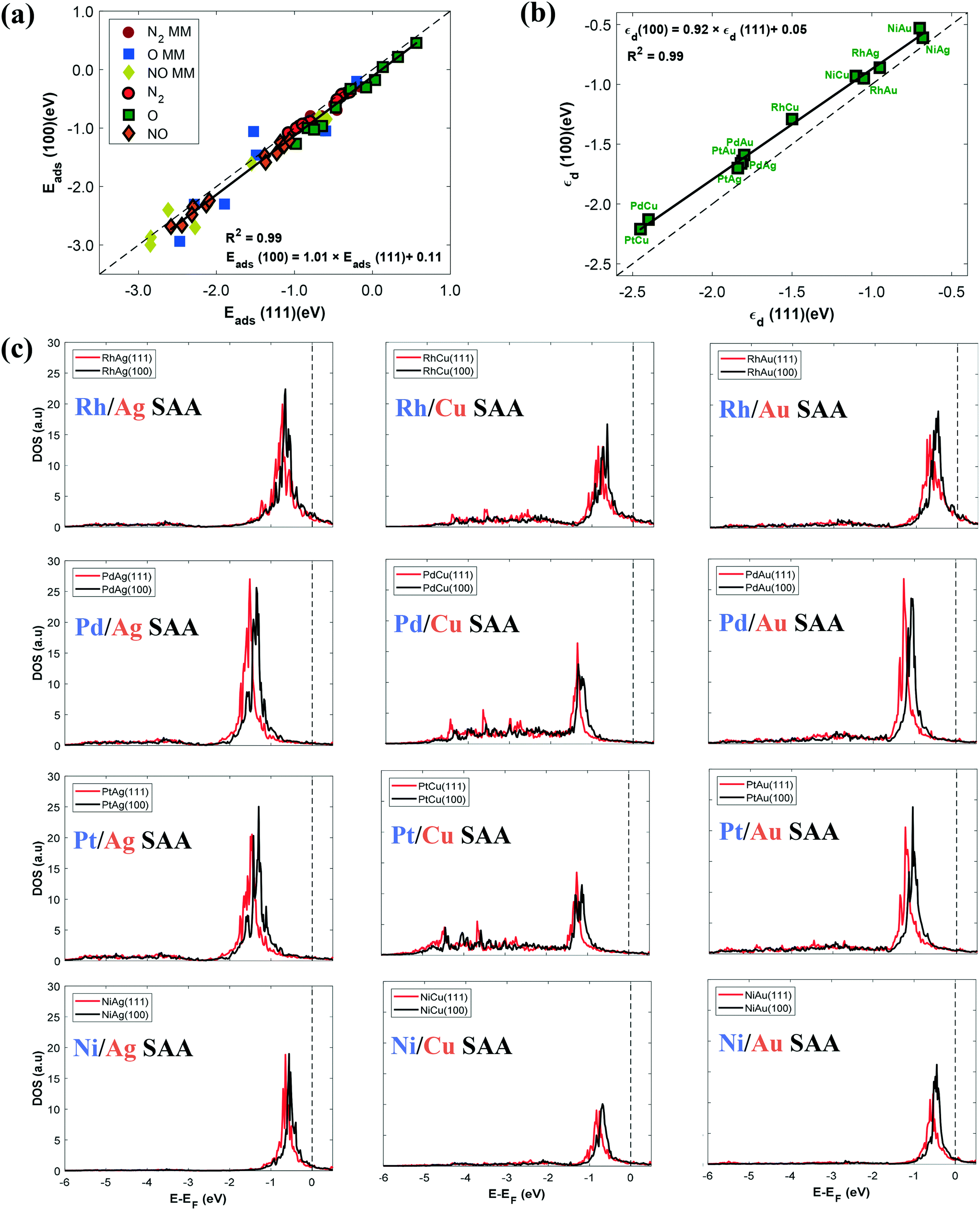

Fig. 1(a) shows a parity between the computed adsorption energies of the three adspecies on the (111) and (100) SAA surfaces. For greater clarity, we do not show which alloy corresponds to which point in the plot, but a full list of the adsorption energy values is provided in section IX of the ESI.† A first observation is that there is a strong correlation between Eads(111) and Eads(100) for the SAA surfaces, with the vast majority of the plot points lying close to the parity line (Fig. 1(a)). We also observe that the binding strength is systematically stronger on the more open SAA(100) surfaces than on the SAA(111) surfaces, by ca. 0.10 eV on average (Fig. 1(a)). As noted earlier, one may expect a small electronic interaction between the PGM atom and its coordination environment.16 Yet, the narrow dopant–host interactions do not rule out the transfer of charge between these two types of surface species.16 Consequently, the observed disparate reactivity in Fig. 1(a) may be the result of dopant–host charge transfer, which occurs to a different extent on the SAA(100) and (111) surfaces, given their different geometry.
The reactivity of pure metal and alloy surfaces is conventionally explained by the position of the d band centre (εd) relative to the Fermi level: the higher the d band centre the higher the reactivity of a catalytic surface.38 In an effort to better understand the generally higher reactivity of the SAA(100) facet as compared to the SAA(111) facet, we proceed by computing the d band centres of the isolated PGM atoms on the examined SAA surfaces (Fig. 1(b)). Interestingly, our results reveal a strong correlation between εd(100) and εd(111). In addition, we observe that εd(100) are always at higher energy than εd(111), suggesting that the d band model can rationalise the disparate reactivity exhibited by different SAA facets. On the contrary, we realise that the same model cannot explain the reactivity of different SAA surfaces that belong to the same facet. In particular, we note that there exists a poor correlation between the adsorption energies of the investigated adspecies (i.e. Eads(O), Eads(N2) and Eads(NO)) and the d band centres of the PGM for a specific facet (see Fig. S3 in the ESI†).
Next, we study the electronic structure of the dopant on the two low-index surfaces. To this end, we present the corresponding d projected DOS plots for a number of dopant atoms on coinage metal surfaces (Fig. 1(c)). As observed in Fig. 1(c), the d band of the single atom exhibits very sharp features close to the Fermi level for all Au- and Ag-based SAA surfaces for both low-index facets.31 Conversely, Cu-based SAA surfaces deviate, to some extent, from this behaviour, probably because of a better electron density mixing between the dopant and Cu atoms (Fig. 1(c)).31 We also note that the DOS plots of SAA(100) surfaces are shifted slightly closer to the Fermi level as compared to those of SAA(111) surfaces (Fig. 1(c)). This shift in d DOS is consistent with the data displayed in Fig. 1(b), and implies a higher electron density available close to the Fermi level for the PGM atoms on SAA(100). The end result is an enhanced interaction between the SAA(100) dopants and the adsorbate species (Fig. 1(a)).
To verify the reliability of our calculations, we first compare our results to data reported in the literature. The direct dissociation of NO is underscored as a crucial step for the NO reduction with CO. According to theoretical and experimental studies, under some circumstances this reaction step can be the rate determining step (RDS) of the NO + CO reaction.44,45 Among the commonly employed pure metal catalysts in three-way catalytic converters (i.e. Rh, Pt and Pd), Rh is the only metal that is capable of activating the NO bond at low temperatures.41 This observation is in line with our DFT calculations, which show that the activation barriers for the NO dissociation reaction over Rh surfaces (i.e. Ea = 0.44 eV and 1.42 eV for Rh(100) and Rh(111), respectively) are considerably lower than those over Pd and Pt surfaces (Ea = 1.44 eV, 2.25 eV, 0.81 eV and 2.05 eV for Pd(100), Pd(111), Pt(100) and Pt(111), respectively) – (Fig. 2(a)). Based on our simulations, the initial state of this reaction involves a nitric oxide molecule, which is adsorbed in an upright linear configuration with the N atom closer to a hollow site (3-fold and 4-fold for (111) and (100) surfaces, respectively) – (see Fig. S14 and S15†). The only exception to that is Rh(100), where we find that a different adsorption configuration, with NO almost parallel to the surface, is thermodynamically more stable than the upright linear adsorption structure. This is consistent with previous theoretical studies;46 in addition, our computed NO dissociation barriers on Rh(100), Rh(111), Pd(100) surfaces are consistent with activation barriers reported in previous theoretical and experimental works.41,47–51
Regarding the dissociation of CO2 on Cu(100), we compute Ea = 0.95 eV, namely a value which is in excellent agreement with the experimentally determined value by Chorkendorff and co-workers of Ea = 0.96 ± 0.05 eV.52 We also note that there is also an excellent match between our calculated Ea for Ni(100) and Rh(100) surfaces and those reported by Liu et al. (Fig. 2(c)).42 Furthermore, in Fig. S5 of the ESI,† we provide the activation barriers for the reverse reaction (i.e. CO oxidation to CO2). Our data, in line with other studies, suggest that the catalytic CO oxidation is very facile on pure metal Ag and Au surfaces,53,54 while relatively low activation barriers are calculated for Cu(111) and Cu(100) surfaces (0.48 eV and 0.73 eV, respectively) – (Fig. S5†).
An important observation in Fig. 2(a)–(c) is that all three dissociation reactions are, in most of the cases, more facile on (100) SAA and pure metal surfaces than on the corresponding (111) surfaces. Indeed, according to Liu and Hu,55 one should, in general, expect more facile bond activation on more open surfaces and on those containing under-coordinated sites (e.g. steps and kinks). This is not true, however, for association reactions, which often show little or no structure-sensitivity.55 In our results, the structure-sensitivity of reactions that involve NO, C
O and N
N bond-breaking is clear for PGM surfaces (i.e. Pt, Pd, Rh and Ni), for which there is a significant scatter in the data (Fig. 2(a)–(c)). By contrast, the dissociation barrier differences between the (111) and (100) SAA surfaces are relatively small, and noticeably less accentuated in comparison to monometallic PGM surfaces (Fig. 2(a)–(c)). The same is true for coinage metal surfaces as well.
In order to quantify the average difference between the computed kinetic barriers on the two low-index surfaces, we define the following metric, :
k ∈ {SAAs, PGMs, Coinage Metals, All Pure Metal Surfaces} | (6) |
Table 1 summarises values of for the dissociations of NO, CO2 and N2. We note that
and
show similar values for the three dissociation reactions, and an average
of just 0.11 eV (Table 1). Along these lines, bond scission processes seem to exhibit low structure sensitivity on both pure coinage and SAA low-index surfaces.
On the other hand, we find that the deviation between Ea(100) and Ea(111) for PGM surfaces () is, on average, larger by ca. 0.38 eV than that for SAA surfaces. Accordingly, it appears that a significant “part of the structure-sensitivity” of dissociation reactions is diminished on SAA surfaces as compared to the PGM surfaces, and this is an important observation from a surface science standpoint. The “retained structure-sensitivity” of SAAs can be ascribed to two factors: (i) the slightly different electronic d-band structure of the dopant on SAA(100) and (111) (see Fig. 1(b) and (c)), and (ii) geometric effects that arise as a result of the extended nature of the TS structure. Indeed, the TS geometries for the N2 and NO dissociations are quite extended, and involve mainly mixed metal sites (see Fig. 3 for SAA(100) surfaces, Fig. S6, S7 and S12 in the ESI†).56 Yet, the scission of the C
O bond of CO2 appears to happen closer to the top dopant site, hence the relatively small
for this reaction (see Fig. 3, Table 1 and Fig. S9 in the ESI†).
Finally, the group all pure metals (Table 1) includes all the pure metal surfaces (i.e. PGM and coinage metals). Although this group contains the coinage metal surfaces which do not exhibit pronounced structure sensitivity for the bond cleavage reactions, we compute values that are always larger than
and an average
over the three reactions of ca. 0.23 eV.
Yet, our simulations show that the computed kinetic barriers on pure metal Ni and Rh surfaces are always lower than those of the Ni/Cu and Rh/Cu SAA surfaces (Fig. 2(a)–(c)). For example, the activation barriers for the direct dissociation of NO on Rh(111) and (100) surfaces are 1.42 eV and 0.44 eV, respectively, while on Ni/Cu(111) and (100) SAA surfaces are 1.47 eV and 1.07 eV (Fig. 2(a)). Along the same lines, the dissociation of CO2 appears to be more facile on Rh(100) (Ea = 0.28 eV) than on Ni/Cu(100) (Ea = 0.64 eV) – (Fig. 2(b)). Finally, the same trend holds true for the dissociation of N2 for which our computed barriers for SAA surfaces are very large (i.e. Ea > 3.0 eV), and large for pure metal surfaces (i.e. Ea > 2.0 eV) – (Fig. 2(c)).
In an effort to circumvent the “kinetic barrier gap” between SAA and pure metal surfaces, we proceed by investigating the reactivity of small PGM “ensembles” (i.e. dimers and trimers), on Cu surfaces. PGM ensembles embedded on coinage host surfaces have recently drawn the attention of the catalysis community. For example, Wang et al.57 demonstrated that Pd–Pd dimers on a Au host matrix exhibit optimal catalytic performance during the electroreduction of CO2. Qiu et al.58 proposed that Co trimers and tetramers on a Cu host are highly active and selective for the synthesis of CH3OH via the hydrogenation of CO2. Kim and Henkelman argued that only ensembles of more than three Pd atoms can catalyse the oxidation of CO on Pd/Au alloys.59 Finally, recent ab initio Monte Carlo and machine learning studies reveal that the size and geometry of dopant ensembles can be tuned under reactive conditions, thereby providing the means for tailoring the catalytic performance of dilute alloys.60,61 Herein, we focus our attention on Ni and Rh ensembles on a Cu host (i.e. Ni–Ni dimers and Ni trimers, which will be denoted as Ni2Cu and Ni3Cu, and Rh dimers Rh2Cu) – (Fig. 2(d)). This is because Ni/Cu and Rh/Cu SAA surfaces demonstrate the highest capability of activating chemical bonds (Fig. 2(a)–(c)), and because Ni/Cu alloys are composed of relatively inexpensive metals and are therefore attractive from a practical standpoint. Regarding the Rh/Cu dilute alloys, we focus on the performance of Rh–Rh dimers on Cu, as previous works indicate that the SAA phase on Rh/Cu exhibits high thermodynamic stability under both vacuum and reactive conditions.61 Along these lines, we assume negligible formation of clusters larger than Rh–Rh dimers at low concentration of Rh over these surfaces.
Our data suggests that the kinetic barriers for NO or CO2 dissociation on Rh–Rh dimers are comparable to or higher than those on the Rh/Cu SAA surfaces (Fig. 2(a) and (b)). On the contrary, the breaking of NO, C
O and N
N bonds is easier on Ni ensembles than on isolated dopant atoms on coinage metals (Fig. 2(a)–(c)). Therefore, the presence of small Ni aggregates on the catalytic surface appears to be beneficial for the catalytic activity toward dissociation reactions. Remarkably, we realise that Ni2Cu, Ni3Cu surfaces perform almost equivalently to commonly employed PGMs in catalysis, such as Ni, Pt and Rh (Fig. 2(a)–(c)). For the direct dissociation of NO, which is a key reaction step for the NO + CO reaction,44 Ni2Cu(111) and Ni3Cu(111) demonstrate moderate kinetic barriers of 1.30 eV and 1.37 eV, respectively. These barriers are lower than the corresponding barriers for Rh(111) (Ea = 1.42 eV) as well as than those for Pd(111), and Pt(111) (Ea = 2.25 eV and 2.08 eV, respectively) – (Fig. 2(a)). Additionally, the desorption energies of NO from Ni dimers and trimers are larger (within the range of 2.7–3.1 eV for both low-index surfaces; see Table S1†) than the corresponding NO dissociation kinetic barriers, indicating a high probability for NO dissociation over Ni ensembles. This dissociation probability will also be large on the Ni(111) surface (where we find Ea = 1.29 eV and a desorption energy of NO of 2.84 eV; see Table S1†), but not that large for pure Cu(111) whereon the NO dissociation barrier (Ea = 1.56 eV) is almost identical to the corresponding desorption barrier (1.55 eV). Finally, it should be mentioned that on the (100) surface the lowest kinetic barrier is observed for Rh(100) – (Ea = 0.44 eV), justifying the extensive use of Rh in catalytic converters.
Moreover, the cleavage of the CO bond is quite facile on Ni3Cu and Ni2Cu surfaces (Ea < 0.5 eV for both Ni ensemble surfaces). Regarding their pure metal counterparts, our calculations imply that the desorption of CO2 will be preferred to its dissociation over Ni(111), Cu(111) and Cu(100) (see Tables S2 and S3 in the ESI†). Remarkably, the same is not true for Ni–Ni dimers and trimers, where we compute CO2 desorption energies that are larger than the CO2 dissociation barriers on these surfaces (see Table S4 in the ESI†). Accordingly, we conclude that CO2 dissociation will be generally favoured against CO2 desorption over that Ni ensemble surfaces. The only exception to that is the Ni2Cu(111) surface for which the dissociation and desorption energies are 0.47 eV and 0.37 eV, respectively.
The better efficiency of Ni2Cu and Ni3Cu in cleaving chemical bonds compared to the Ni/Cu SAA, can be rationalised by the electronic structure of these systems (Fig. 4). Based on the IS and TS structures of the examined dissociation reactions, we realise that, with the exception of the Ni3Cu(111) surface, the adsorbate species mainly interact with mixed sites on the Ni/Cu surfaces (i.e. sites that are surrounded by both Cu and Ni atoms) – (see Fig. 3, and S8, S10 and S13 in the ESI†). These mixed sites, whereon the bond breaking occurs, are composed of three and four surface atoms for (111) and (100) dilute alloy surfaces, respectively, and are displayed in the insets on the right of Fig. 4 for the Ni/Cu dilute alloy and SAA surfaces.
Also shown in Fig. 4(a) and (b) are the d DOS projected onto the atoms of the mixed active sites of SAA and dilute alloy surfaces. Almost all DOS plots exhibit bimodality; the first peak on the right (between 0 eV and −1.3 eV) is related to the d states of the embedded Ni atoms, while the broader peak on the left (between −1.5 eV and −4.5 eV) corresponds to the d states of Cu atoms (Fig. 4(a) and (b)). On the other hand, the Ni3Cu(111) surface is hardly bimodal, and this stems from the fact that the active site for the dissociation thereon is composed only of Ni atoms (Fig. 4(a)).
Importantly, we observe that the right DOS peaks of Ni3Cu and Ni2Cu exhibit higher intensity and are closer to the Fermi level than the corresponding peaks of the two SAA low-index surfaces (Fig. 4). Along these lines, one may expect that electron back-donation from the mixed active site of the former surfaces to the antibonding orbitals of the adsorbates will be more pronounced compared to that on the Ni/Cu SAA surfaces. Charge transfer in this direction leads to the formation of dissociation precursors (e.g. CO2δ− during CO2 dissociation),42 and thus is a crucial process in bond breaking reactions. This observation explains the generally higher efficiency of small Ni ensembles (i.e. dimers and trimers) than isolated Ni atoms in activating chemical bonds (Fig. 2(a)–(c)).
In general, the barrier of an association reaction (e.g. A* + B* ↔ AB*) can be decomposed into terms that are associated with the geometric and electronic effects on the kinetic barrier as follows:62
![]() | (7) |
The chemisorption energies in eqn (7) are strongly related to the local electronic environment (i.e. the position of the d band centre) of the surface whereon the reactant species are bound to. These terms may be considerably different for chemisorption on under-coordinated sites (e.g. steps, kinks) than for chemisorption on flat surfaces (e.g. sites on the (111) surface), and quantify the contribution of the electronic effects to the association barrier.55 Importantly, a large number of association reactions, including these examined here, exhibit early TSs. In such cases, the IS structure closely resembles the TS structure (e.g. see panels in Fig. 3 in the reverse order), thereby rendering ETSA and ETSB similar to EISA and EISB, respectively. On this basis, it is generally true that the contribution of electronic effects to the structure sensitivity of association reactions is small,55 but not necessarily negligible.
Furthermore, the contribution of the geometric effects to Easa is described by ETSint and EISint,55 which quantify the interactions between the two reactants in the TS and in the IS. These interactions arise as a result of: (i) bonding competition effects,64 and (ii) the direct Pauli repulsion between the reactant species.62 The former effects are important when the reactants are bonded to the same metal atom in the TS and/or IS structures.62 A good example is the activation of CH4 over a Pt/Ag(111) SAA surface, where CH3 and the activated H adatom share the top Pt site in the TS.32 Accordingly, we expect that bonding competition effects will be alleviated for the NO, N2 and CO2 formation reactions on Rh, Cu, Ni, Rh2Cu Ni2Cu and Ni3Cu(100) and (111) surfaces, for which in the TS and IS, the reactants are located in different hollow sites and are not competing for the same metal top site (see Fig. S8, S10 and S13–S18†).
Regarding the direct Pauli repulsions, we note that these effects are important when the distance between the reactant species is less than 2.5 Å.62 Within this range of distance there will be a direct overlap between the wavefunctions of the reactants.65Fig. 5, panels (a) and (b) summarise these distances (dA–B) for the three studied reactions on dilute and pure metal surfaces for the TS and IS structures, respectively. It is noted that for all the ISs dA–B > 2.5 Å, while for all the TSs the opposite is true and in the vast majority of the cases dA–B < 2.0. Therefore, the magnitude of direct Pauli repulsions in the IS will be small, and EISint in eqn (7) will be approximately zero.55,62 Conversely, Pauli repulsions will be significant in the TSs and the magnitude of a computed association barrier will be heavily dependent on ETSint
Our computed barriers for the formation of N2, NO and CO2 are shown in Fig. 6(a)–(c) from where we note that these association reactions exhibit significant structure-sensitivity (Fig. 6(a)). This behaviour can be loosely attributed to the fact that, in many cases, the reaction intermediate species reside in high coordination sites (i.e. threefold and fourfold sites) – (Fig. 5(c)–(h)).66 The lowest structure-sensitivity is seen for the oxidation of CO, where CO and O in the TS are always bound to low coordination sites (i.e. top and bridge sites) – (Fig. 5(e) and (h)).66 Importantly, for all the association reactions, we observe that the Cu and dilute alloy surfaces follow the same trend by which the computed barriers on the (111) surfaces are lower than those of the corresponding (100) surfaces. The exact opposite trend is observed for Rh surfaces (Fig. 6(a)–(c)). These trends are associated with the extent of the direct Pauli repulsions between the reactants in the TS on these surfaces (we discuss this in the following paragraphs).
Particular attention is paid to the formation of N2 as this reaction is a crucial elementary step for the NO reduction by CO because of the following reasons: (i) this association reaction frees up active sites that can catalyse subsequent surface reactions, and (ii) it is the RDS of the NO + CO reaction at high temperatures.44 The IS of this reaction involves two N adatoms on hollow sites, whilst in the FS, N2 is vertically adsorbed on a top site (see Fig. S13, S16 and S17†).22,67 In order to verify the reliability of our data, we compare our computed kinetic barrier on Rh(111) – (Ea = 1.84 eV) to the value reported by Ishikawa and Tateyama for the same reaction pathway of N2 formation (Ea = 1.78 eV),44 and we find a reasonable agreement.
Our simulations show that the N2 association reaction proceeds with similar kinetic barriers on the Rh2Cu(100), Ni ensemble (100) – (i.e. Ni2Cu & Ni3Cu), Cu(100) and Rh(100) surfaces (Fig. 6(a)). These barriers are large, being within the range of 1.5–2.0 eV, and the lowest values are observed for Rh(100) and Ni2Cu(100) (1.50 eV and 1.57 eV, respectively) – (Fig. 6(a)). We also find a very large association barrier on Ni(100) (Ea = 2.82 eV), whereon the formation of N2 will be an extremely rare event.
Interestingly, the formation of N2 is dramatically more facile on Ni ensembles, Rh–Rh dimers and Cu(111) surfaces as compared to the Rh(111) and Ni(111) surfaces. For example, the kinetic barrier for the Ni2Cu(111) surface (Ea = 0.62 eV) is lower than that for Rh(111) (Ea = 1.85 eV) by 1.23 eV and that for Ni(111) (Ea = 1.54 eV) by 0.92 eV (Fig. 6(a)). This observation, along with the ability of Ni ensembles to dissociate the NO bond, and the relatively low CO oxidation barriers of Cu surfaces (Fig. 6(c)), make us envision a bifunctional Ni/Cu alloy suitable for the reduction of NO. On this alloy catalyst, Cu atoms will be the active sites for the oxidation of CO,68 while Ni ensembles will provide the sites for the N
O bond cleavage and the formation of N2.
As pointed out earlier, an interesting observation is that the kinetic barrier for the formation of N2 for Rh(100) is lower than that for Rh(111) – (i.e. Ea(111) > Ea(100)), while the opposite trend is true for the rest of the examined surfaces (i.e. Ea(111) < Ea(100)) – (Fig. 6(a)). This is true for the other association reactions as well (Fig. 6(b) and (c)), namely bond formation is more facile on the most densely packed dilute alloy (111) surfaces (Ni2Cu, Ni3Cu and Rh2Cu).
According to our previous discussion the preponderant contribution to the computed association barriers stems from the direct Pauli repulsion between the reactants in the TS. Qualitative insights into the magnitude of the Pauli repulsion can be provided by the local DOS of the reactant species in the TS position.62 To this end, we analyse the N 2p-projected DOS of a single N atom adsorbed on the same position as in the TS structure for the following four surfaces: Ni2Cu(111), Ni2Cu(100), Rh(111) and Rh(100) – (Fig. 6(b) and (c)). The former two surfaces are representative of the Ea(111) < Ea(100) trend, while the latter two follow the Ea(111) > Ea(100) trend. Our DFT calculations show that the TS position for the N atom is near a bridge site for Rh(100), Rh(111) and Ni2Cu(111) surfaces and near a mixed 4-fold site for Ni2Cu(100) – (Fig. 5(c) and (f)).
The DOS plots are displayed in Fig. 6(d) and (e), and the main difference between the DOS curves is observed in the region between −7.0 eV and −5.0 eV; this is the region where the p orbitals of the N adatom mix with the d states of the catalytic surface (i.e. the p–d bonding region).62 We realise that the 2p-projected DOS in the p–d bonding region of the Ni2Cu(100) surface has much higher intensity and appears more localised than on the Ni2Cu(111) surface (Fig. 6(d)). Therefore, we expect a larger Pauli repulsion between the N adatoms on Ni2Cu(100) than on Ni2Cu(111), thereby explaining the large difference in the computed barriers (Ea = 1.57 eV and 0.62 eV for Ni2Cu(100) and Ni2Cu(111), respectively). Similarly, the N 2p-projected DOS for Rh(111) and Rh(100) show an overall higher density of states in the p–d bonding region for the former surface than for the latter (the total areas below the DOS curves in the p–d bonding region are 1.62 for Rh(111) and 1.35 for Rh(100); Fig. 6(e)). However, in this case the intensity of the peaks is similar (Fig. 6(e)), and consequently there is no dramatic difference in the barriers exhibited by the two surfaces (Ea = 1.85 eV and 1.50 eV for Rh(111) and Rh(100), respectively).
The observed trends for the formation of NO can be rationalised along the same lines as for the formation of N2. We find that for the former reaction Ea(100) > Ea(111) on the three dilute alloy surfaces, and that the TS structures on both Ni2Cu(111) and Ni2Cu(100) facets involve an O adatom on a mixed bridge site (Fig. 5(g)). By analysing the 2p-projected DOS of the O adatom in the mixed bridge sites of the two aforementioned surfaces, we note that the DOS peaks in the p–d bonding area are similar in terms of intensity and width (Fig. 6(f)). This may be an indication that the observed differences between the barriers of the NO formation on (111) and (100) dilute alloy surfaces arise largely from the disparate electronic structure of the N atoms on these surfaces (Fig. 6(d)), and not from both reactants. Accordingly, the barrier differences between the (111) and (100) surfaces for the association of NO are much smaller than that for the formation of N2 (Fig. 6(a) and (b)). Finally, Fig. 6(g) shows the 2p-projected DOS of an O adatom on Rh(111) and Rh(100) surfaces. The O DOS on Rh(111) exhibit a higher intensity and are more localised than the DOS for Rh(100), thereby explaining the Ea(100) < Ea(111) trend in Fig. 6(b).
As a final remark, regardless of the showcased capability of Ni ensembles to perform facile N2 formation and NO bond scission, we acknowledge that further studies are required to establish Ni/Cu dilute alloys as promising NO reduction catalysts. In particular, additional reaction steps that take place during the NO + CO reaction have to be examined (e.g. the formation of N2O).69–71 Moreover, in the presence of CO, the formation of harmful Ni(CO)4 species is a common problem for Ni-based catalysts, and this would also have to be taken into account. Finally, kinetic Monte Carlo simulations, which account for adsorbate–adsorbate interactions,72–76 should be performed in order to unveil phenomena occurring at the mesoscale. This will also enable an accurate comparison between the Ni/Cu dilute alloy and currently employed metals in catalytic converters (Pd, Pt and Rh). Ongoing research activities in our lab are dedicated to these additional considerations.
Our work focused on the reactivity of numerous SAA(100) and SAA(111) surfaces. By means of adsorption and TS calculations, we demonstrated that the reactivity of isolated PGM atoms doped on these two low-index coinage facets is, to some extent, dissimilar. This disparity in reactivity is mainly attributed to the distinct electronic structure demonstrated by dopant atoms when exposed to different coordination environments. Remarkably, however, our results underscore that (dissociation) reactions that exhibit significant structure-sensitivity on PGM surfaces, appear to a large extent structure-insensitive when they take place on (111) and (100) SAA and coinage metal surfaces. This is a result with far-reaching implications for future single-crystal and catalysis studies where the activation of chemical bonds is of central importance. In more precise terms, this result implies that works over the (111) SAA facet may give insight into the behaviour of the (100) SAA facet, and vice versa, thereby accelerating the development and design of optimal SAA catalysts. From a catalysis standpoint, the reduced structure-sensitivity of reactions on SAA surfaces may eliminate the need for precise engineering of the structure and geometry of catalytic nanoparticles.
Finally, we have examined the reactivity of small Ni and Rh ensembles (i.e. Rh–Rh dimers, Ni–Ni dimers and Ni trimers) on a Cu host toward the cleavage of NO, C
O and N
N chemical bonds. The Ni ensembles show increased capability in activating the aforementioned chemical bonds as compared to the SAA surfaces studied herein. By contrast, small Rh ensembles offer no significant benefit as compared to isolated Rh atoms on Cu. Importantly, the performance of Ni2Cu and Ni3Cu surfaces with respect to association and dissociation reactions was found similar (or even better in some cases) to those of well-established pure metals in heterogeneous catalysis (e.g. Rh, Pt and Pd), thereby underlining the potential of these materials for the catalysis of important reactions.
