Carlos
Rodríguez-Abreu
*ab,
Yury V.
Kolen'ko
c,
Kirill
Kovnir
de,
Margarita
Sanchez-Dominguez
f,
Rekha Goswami
Shrestha
g,
Partha
Bairi
h,
Katsuhiko
Ariga
gi and
Lok Kumar
Shrestha
*g
aInstituto de Química Avanzada de Cataluña, Consejo Superior de Investigaciones Científicas (IQAC-CSIC), Jordi Girona 18-26, 08034 Barcelona, Spain. E-mail: carlos.rodriguez@iqac.csic.es
bCIBER de Bioingeniería, Biomateriales y Nanomedicina (CIBER-BBN), Jordi Girona 18-26, 08034 Barcelona, Spain
cInternational Iberian Nanotechnology Laboratory (INL), Av. Mestre José Veiga, Braga, 4715-330, Portugal
dDepartment of Chemistry, Iowa State University, Ames, Iowa 50011, USA
eAmes Laboratory, U.S. Department of Energy, Ames, Iowa 50011, USA
fCentro de Investigación en Materiales Avanzados (CIMAV, S.C.), Unidad Monterrey, Apodaca, Nuevo León 66628, Mexico
gInternational Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Tsukuba 305-0044, Ibaraki, Japan. E-mail: SHRESTHA.Lokkumar@nims.go.jp
hDepartment of Physics, Jadavpur University, Kolkata 700032, India
iGraduate School of Frontier Sciences, The University of Tokyo, 5-1-5 Kashiwanoha, Kashiwa, Chiba 277-8561, Japan
First published on 3rd October 2020
Ionic self-assembly is a simple yet powerful method to obtain robust nanostructures. Herewith, we use mixtures of oppositely-charged porphyrins that can act as mesogens to form chromonic liquid crystals in water, i.e., molecular stacks with orientational (nematic) or positional (hexagonal) order. Electrostatic locking coupled with π–π interactions between aromatic groups within the stacks, together with inter-stack hydrogen bonding induce formation of all-organic crystalline nanofibers with high aspect ratio (a few tenths of nanometers in width but several tenths of micrometers in length) and that display branching. The nanofibers prepared from metal-free porphyrin units feature interesting optical properties, including an absorption spectrum that is different from the simple sum of the individual spectra of the components, which is attributed to a striking aggregation-induced chromism. When in contact with some polar organic solvents the materials become fluorescent, as a result of disaggregation. In a proof-of-concept, the obtained self-assembled one-dimensional (1D) materials were carbonized (yield ca. 60%) to produce nitrogen-doped carbon nanofibers that can be used as active electrode materials for energy storage applications.
Molecular self-assembly is driven by weak interactions such as hydrogen-bonding, hydrophobic effects, electrostatics, van der Waals and π–π interactions, and certain building blocks allow for multiple interactions. Porphyrin are examples of such blocks and are associated to chromophores found in Nature that play an important role in biological functions, such as photosynthesis, molecular recognition and catalysis.2,3 These molecules can also hold different metals in the macrocycle via complexation with the pyrrole nitrogens; some of these porphyrin–metal complexes are found in nature and are biologically relevant (e.g. heme porphyrin). Porphyrin–metal complexes can also generate composite nanostructures.4
Semiconducting properties derived from aromaticity of porphyrins are of particular interest, and impart significant electron mobility, especially in stacked structures. Because of the aforementioned optoelectronic properties, self-assembled porphyrin nanomaterials have potential applications in photocatalysis, dye-sensitised solar cells, photodynamic therapy, hydrogen production, sensors, carbon dioxide reduction, and electrocatalysts for fuel cells, among others.5–9
Chromonic liquid crystals are a class of self-assembled structures formed in a solvent (usually aqueous) by planar molecular building blocks that tend to arrange into columns similar to thermotropic discotic liquid crystals. Chromonic assembly is driven by π–π interactions between the aromatic moieties. Porphyrins, being polyaromatic and planar with peripheral polar groups, have the structural characteristics required to form chromonic liquid crystals. In fact, thermotropic and lyotropic mesophases of the nematic and hexagonal type have been reported for some nonionic and ionic porphyrins.10,11 Chromonic liquid crystals can also be formed by a variety of molecules, notably dyes such as cyanines, xanthenes,12 azo compounds and perylenes. Among them, the dye sunset yellow is one of the most studied chromonic mesogens.13
Chromonic assemblies are soft materials and therefore fragile under certain conditions. To make them more robust, it is necessary to fix the structure. One strategy is their coassembly with inorganic species via sol–gel to form mesostructured oxides.14–17 Another possibility would be to use additional intermolecular interactions for fixation. In this regard, ionic self-assembly is a useful technique for the synthesis of nanomaterials, which consists in the coupling of structurally different ionic building blocks (charged tectons) by electrostatic interactions.18–20
There are several reports on ionic self-assembly of porphyrins, that result in the formation of nanorods,21,22 nanofibers,4 nanotubes,23 nanosheets,24 branched structures25 and other morphologies.26 However, to our knowledge, carboxy substituted porphyrins have not been used as anionic tectons in the assemblies. They are of interest since carboxy groups are present in natural porphyrins. Moreover, the carboxy group can improve selectivity in biotargeting and also facilitate binding and functionalization.
Nanostructured carbon is, in many cases, produced in several steps. A typical procedure is based on the use of a hard template such as mesoporous silica (in turn produced via surfactant templating) that is impregnated with a carbon precursor to be finally carbonized.16 It would then be interesting to produce directly carbon nanofibers from a self-assembled carbon precursor without the need of a hard template intermediate. In this regard, chromonics have an inherent ability to form 1D structures, that are useful in a plethora of applications,27–29 but literature on the direct carbonization of chromonic ionic assemblies is scarce. Moreover, the fabrication of 1D materials via self-assembly may have advantages in terms of e.g. costs and potential of scaling up as compared to other methods such as electrospinning or the use of porous alumina templates.30
Herein we present a report on the ionic self-assembly of chromonic mesogens in water, in which π–π stacking interactions also play a role. Our objective was to demonstrate that chromonic mesogens can serve as building blocks for the preparation of organic and carbon 1D materials with novel properties; the possibility of designing chromonic tectons with different architectures opens perspectives for the control of the materials’ dimensions. For that, we first explore and describe the mesomorphic chromonic behavior of a carboxy-substituted porphyrin, and then the mixtures of this anionic porphyrin with a cationic one (both free-base or metal free) are studied using a variety of characterization techniques. The formation of carbon fibers from the ionic assemblies is also presented to demonstrate the use of the fibers as hard templates and their potential applications in electrochemical supercapacitance are explored. This work builds on previous publications on porphyrin assembly2,26 to provide new insights, with the support of multiple instrumentation, on the formation of lyotropic liquid crystals in these systems and the fixation of such as liquid crystalline structures into 1D materials via ionic interactions. Moreover, to our knowledge this constitutes one of the few examples of the use of porphyrin-based 1D materials produced via wet chemistry as templates for the synthesis of carbon nanofibers.
SAXS measurements on dispersions were performed in the beamline NCD11 at ALBA Synchrotron Barcelona (Spain). The energy of the incident beam was 12.6 keV (λ = 0.995 Å). Samples were placed in wax-sealed quartz capillaries (Hilgenberg, Germany) with an outside diameter of 1.5 mm and wall thickness of 0.01 mm. The scattered X-rays were detected on a Pilatus 1 M detector (Dectris). Data on each sample were collected over 60 s.
Materials were also characterized by powder X-ray diffraction (XRD, Rigaku RINT2000), Raman spectroscopy (Jobin-Yvon T64000), scanning electron microscopy (SEM, Hitachi S-4800, operated at 10 kV), and transmission electron microscopy (TEM, JEOL Model JEM-2100F operated at 200 kV). A theta probe spectrometer (Thermo Electron Co. Germany) was used for the X-ray photoelectron spectroscopy (XPS) measurements. The instrument is equipped with a monochromatic Al-Kα radiation source (photon energy 15 keV, energy resolution ≤0.47 eV, space resolution ≤15 μm). C 1s, O 1s, and N 1s core-level XPS spectra were recorded in 0.05 eV steps. A built-in electron flood gun prevented sample charging. The Avantage™ software was used to deconvolute the XPS spectra. Data were fitted with line width and height as free parameters. Thermogravimetric analysis (TGA) was performed for the evaluation of thermal stability of carbon samples. The TGA measurements were performed on the Hitachi HT-Seiko 6300 instrument while heating samples from 30 to 1000 °C under argon atmosphere (temperature ramp 10 °C min−1). Nitrogen adsorption/desorption isotherm was recorded at 77.35 K on Quantachrome Autosorb-iQ2, and specific surface area, pore size distribution and pore volumes were estimated. Surface characterization of the samples was carried out in an atomic force microscope from Asylum Research, model MFP3D-SA, employing the Tapping mode technique (AC mode) in air. Samples were scanned in areas of 20 × 20 μm, 5 × 5 μm, 2.5 × 2.5 μm, 2 × 2 μm, 1.5 × 1.5 μm and 1 × 1 μm, in a speed interval from 0.20 to 0.50 Hz. A rectangular cantilever (AC240TS-R3) was used, with a nominal first resonance frequency of 70 kHz, a nominal spring constant of 2 N m−1 and a nominal radius of curvature of 7 nm.
The structure of the liquid crystals formed by TCPPNa was analyzed by SAXS/WAXS. At 30 wt% TCPPNa in water (Fig. 2a), the SAXS/WAXS pattern shows an inflexion point at ca. 2 nm−1 and a broad peak at ca. 5 nm−1, corresponding to correlation lengths between aggregates inside the nematic phase (which was identified by polarized optical microscopy); the absence of sharp peaks is typical in this phase, since it displays orientational but not positional order. There is also a peak at 16 nm−1, equivalent to a Bragg distance of 0.4 nm, which is ascribed to the stacking distance between TCPPNa molecules. This relatively short distance would suggest π–π interactions and cofacial arrangement along the column axis.
![]() | ||

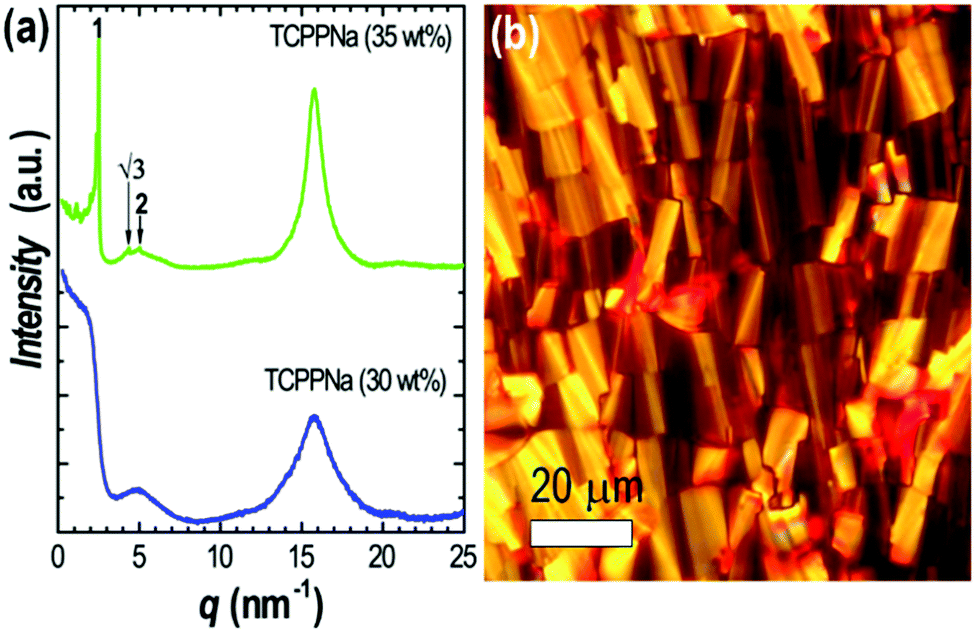

Fig. 2 (a) SAXS/WAXS patterns of TCPPNa at 30 and 35 wt% in water, and (b) polarized optical microscope image of liquid crystal at 35 wt% in water. |
Upon increasing TCPPNa concentration to 35 wt% (Fig. 2a), a sharp and strong peak appears at ca. 2.5 nm−1; two weaker peaks are also observable at ca. √3 and 2 position ratios relative to the strongest peak (marked by arrows), indicating the presence of a hexagonal (columnar) phase, which agrees with the fan-like optical texture of the sample (Fig. 2b). Again, the stacking distance peak (at ca. 16 nm−1) is noticeable at this concentration.
The hexagonal phase can be viewed as formed by aligned molecular columns. The diameter of such columns (D) can be approximately estimated assuming cylindrical shape by D = 2d(2ϕ/(π√3))0.5, where ϕ is the volume fraction of TCPPNa, and d = 2π/q is the Bragg spacing, calculated from the scattering vector q of the first, strongest peak. If a density of ca. 1.5 nm is assigned to TCPPNa, then D = 1.6 nm, close to the size of a single TCPPNa molecule.31 This suggests that the hexagonal phase is formed by aligned, one-molecule-width porphyrin columns. SAXS measurements at higher temperatures indicated that the hexagonal phase with 35 wt% TPCPPNa is stable at least up to 80 °C, showing no appreciable change in the unit cell parameter.

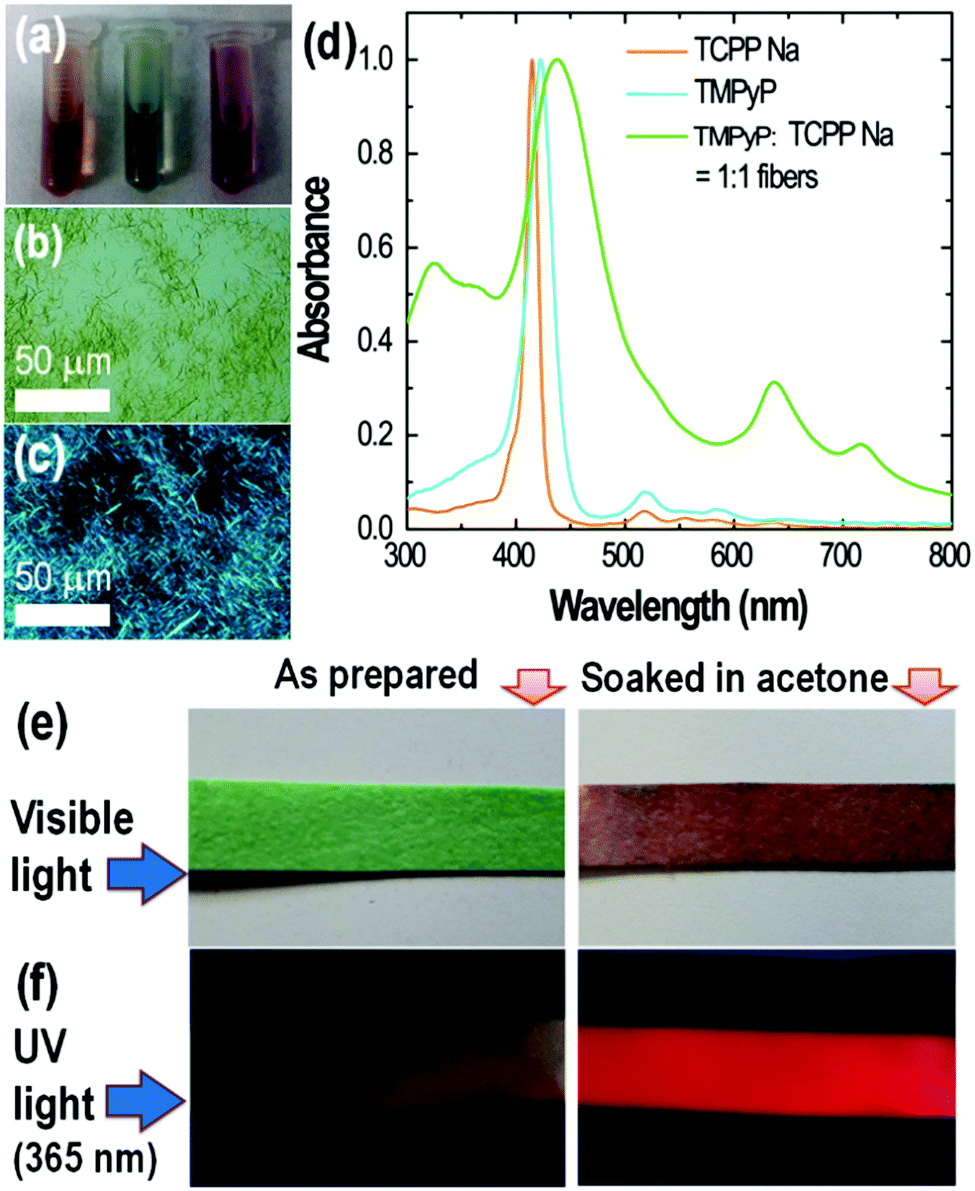

The Soret bands of TCPPNa and TMPyP are at 415 and 423 nm, respectively. Upon mixing and assembly, there is broadening and splitting of the band into a blue-shifted one at 330 nm and a red shifted one at 438 nm. This has been reported as a signature of molecular coupling in ionic self-assemblies with strong electronic interaction.8 Also, new Q-bands at 635 and 715 nm appear, i.e. different from the Q bands of TCPPNa and TMPyP. The features of the absorption spectrum of the fibers could be attributed to the presence of H and J-aggregates,23,37 with possible contribution of resonance light scattering additional to absorption at long wavelengths.24
The formed fibers were stable when redispersed in acidic (pH = 2) and alkaline (pH = 12) media, and also at high ionic strength (e.g., 20 g L−1 or 0.34 M NaCl), but were disrupted by certain organic polar solvents. Accordingly, if a filter paper with embedded fibers (i.e., by immersion in the aqueous fiber dispersion following by drying) is soaked in acetone, the fibers are disrupted into their building porphyrin blocks and the color changes from green to dark red-brownish (Fig. 3e and f). Ionic assembly results in quenching of the fluorescence relative to that of TCPPNa and TMPyP tectons in water.38–40 Therefore, the filter paper with embedded TMPyP–TCPPNa fibers is not fluorescent, but turns luminescent under UV-light after soaking in acetone (Fig. 3f), indicating that the fibers are disrupted and the photoluminescence of TCPPNa and TMPyP is somehow recovered.38,41 Some applications of this solvatochromic effect and disaggregation-induced fluorescence could be foreseen in sensing of volatile organic compounds and other substances.42,43
In order to get more insight into the structure of the TMPyP–TCPPNa fibers in aqueous dispersion, SAXS measurements were carried out (Fig. S2, ESI†). At low angles, the data can be fitted to a power law I(q) ∝ q−f where f is the fractal dimension. For the samples of TMPyP–TCPPNa fibers, f = 2.6, which implies a mass fractal object. A similar value (2.2) was found for carbon nanotubes,44 and it was interpreted as scattering from branched rope clusters, which is somehow in agreement with the microscopy observations described below.
We next analyzed the surface morphology of the TMPyP–TCPPNa fibers by scanning electron microscopy (SEM). As can be seen in Fig. 4a–d, self-assembly leads to the formation of nanofibers with multiple branches (shelf-like), as previously reported for certain porphyrin systems.25 The nanofibers, that can reach several tenths of micrometers in length, are constituted by bundles of molecular belts or tapes of around 30 nm in width. The fibers are also formed at much lower concentrations (10−5–10−4 M) of the precursor porphyrin solutions (Fig. S3, ESI†). Self-assembled TMPyP–TCPPNa fibers were also observed by transmission electron microscopy (TEM, Fig. 4e and Fig. S4a–d, ESI†). HRTEM images (Fig. 4f and Fig. S4e, f, ESI†) show aligned stripes inside the fibers (lattice fringes), with a width of ca. 1 nm, similar to the size of one porphyrin molecule. This indicates that the fibers are crystalline, as confirmed by X-ray diffraction (XRD, Fig. S5, ESI†) and spot type selected area electron diffraction (inset in Fig. 4f). The results suggest a hierarchical organization mechanism (see Scheme 2). We speculate that the porphyrin molecules first stack face-to-face via π–π interactions to form columns with monomolecular cross section. Then, these columns bundle to form the fibers, probably by hydrogen bonding although electrostatics can also play a role.2,45,46 This mechanism would be analogous to the assembly in the hexagonal chromonic liquid crystals described above. However, additional studies are needed to properly assess the contributions of each type of interactions in the self-assembly process.
Mazur et al. have carried out comprehensive crystallographic analyses of porphyrin self-assembled 1D structures.25,45,47 Indexing of the most of the diffraction peaks in the powder XRD pattern shown in Fig. S5 (ESI†) was possible in different unit cells. First it was attempted in the cell similar to one reported by Mazur et al. such indexing resulted in an orthorhombic primitive cell with unit cell parameters a = 30.60(5) Å, b = 22.32(2) Å, and c = 7.963(5) Å. An indexing with higher figure-of-merit was obtained in the cell with half of the volume as compared to one reported by Mazur: an orthorhombic primitive cell with a = 18.00(1) Å, b = 17.72(3) Å, and c = 8.830(7) Å. Alternatively, primitive tetragonal cell with volume similar to that of Mazur's cell volume can describe all the peaks: a = 17.69(1) Å, c = 17.92(2) Å. At this stage, powder XRD data is not sufficient to get a definitive answer regarding true symmetry and unit cell dimensions of the studied compounds, and a single crystal diffraction experiment is required.
XPS survey spectra, core level C 1s, O 1s, and N 1s with deconvoluted peaks (Fig. S6, ESI†) confirm that the surface of the assembled 1D fibers mainly contain C, O, and N elements. The N 1s signals observed at 401, 399 and 397 eV can be assigned to pyridinium, pyrrole and imine nitrogens, respectively. The ratios of the areas corresponding to the deconvoluted peaks are close to 1:
1
:
1, suggesting that the TMPyP
:
TCPPNa molar ratio in the fibers is close to one, similar to native solution.
XRD of the carbon fibers (Fig. 6a) showed two very broad peaks at 2θ of 25° and 44° indicating a graphite-like structure similar to the one observed in some multiwall carbon nanotubes or other graphitic carbons.48 The Raman scattering spectrum of the resultant carbon fibers displays two main peaks at 1331 and 1573 cm−1, corresponding to D (disordered) and G (graphitic) bands of carbon materials (Fig. 6b).49,50 Intensity ratio of G and D band, IG/IDca. 1.03 confirms the graphitic structure, which contribute to high conductivity of the carbon fibers. A broad band at ca. 2900 cm−1 (2D band, also known as G′) is interpreted as an overtone of D, and in the present case is weaker and broader than in highly ordered graphitic samples.51
![]() | ||
Fig. 6 (a) XRD pattern, (b) Raman scattering spectrum, (c) XPS survey and XPS core level C 1s (d) and N 1s (e) spectra of the carbon fibers. Deconvoluted peaks are also included in (d) and (e). |
XPS survey spectrum shows C, O, and N as the major elements in the carbon fibers demonstrating that the high-temperature heat-treatment of the TMPyP–TCPPNa fibers results in the formation of heteroatoms (N and O) doped carbon fibers, which is desired in several applications such as in high-performance supercapacitance, electrocatalysis and photocatalysts. As it can be seen in Fig. 6d, XPS C 1s spectrum could be deconvoluted into four peaks centered at 284.2, 285.9, 285.8, and 287.7 eV, respectively corresponding to the C–C (sp3), CC (sp2), C–N (sp3), and O–C
O bonding states of carbon.52 Similarly, XPS core level N 1s peaks could be deconvoluted into four peaks corresponding to pyrrolic (399.2 eV, weak), pyridinic (398.2 eV), graphitic (401.1 eV) and oxidized nitrogen (402.2 eV).53 XPS core level O 1s spectrum with deconvoluted peaks are presented in Fig. S10 (ESI†). From the XPS spectra the N/C ratio in the carbon fibers was estimated to be 0.065.
N2 adsorption/desorption isotherm of the carbon fiber (Fig. S11a, ESI†) displays mixed type-I/type-IV behavior typical of microporous materials with partial mesopores framework structure.53 The pore size distributions estimated by Barrett–Joyner–Halenda (BJH) method (Fig. S11b, ESI†) and density functional theory (DFT) method (Fig. S11c, ESI†) show peaks at 3.09 and 1.38 nm. The specific surface area and total pore volume were respectively ca. 194.2 m2 g−1 and 0.313 cm3 g−1. Usually, graphitization upon heat treatment is detrimental to surface area because structural defects are reduced.54

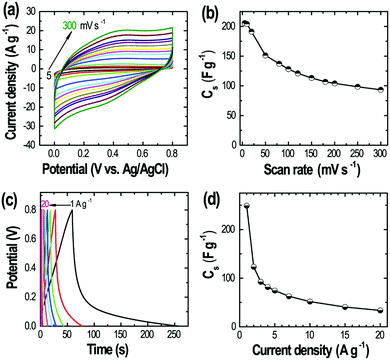

We further investigate supercapacitive properties of the derived C fibers. The electrode showed quasi-rectangular CV profiles over a wider range of scan rates from 5 to 300 mV s−1 (Fig. 7a) indicating the electrical double-layer capacitive behavior. The specific capacitance was ca. 205.6 F g−1 at 5 mV s−1. The carbon fiber electrode showed relatively good capacitance retention at fast sweep of 300 mV s−1 sustaining about 45.4% initial capacitance (Fig. 7b). Galvanostatic charge–discharge measurements performed at different current densities from 1 to 20 A g−1 (Fig. 7c) also confirm the supercapacitive behavior giving specific capacitance of 249.2 F g−1 at 1 A g−1 (Fig. 7d), which is higher than that of the commercial activated carbons and comparable to that of the high surface area nanoporous activated carbons derived from different biomass.42,46 The electrochemical (CV and CD) measurements demonstrate that the heteroatoms-doped carbon fiber obtained from the direct carbonization of the TMPyP–TCPPNa fibers could be a promising materials for energy storage applications. However, it is necessary a further improvement of surface textural properties including surface area and porosity by the chemical activation method with dehydrating agents such as potassium hydroxide or zinc chloride.

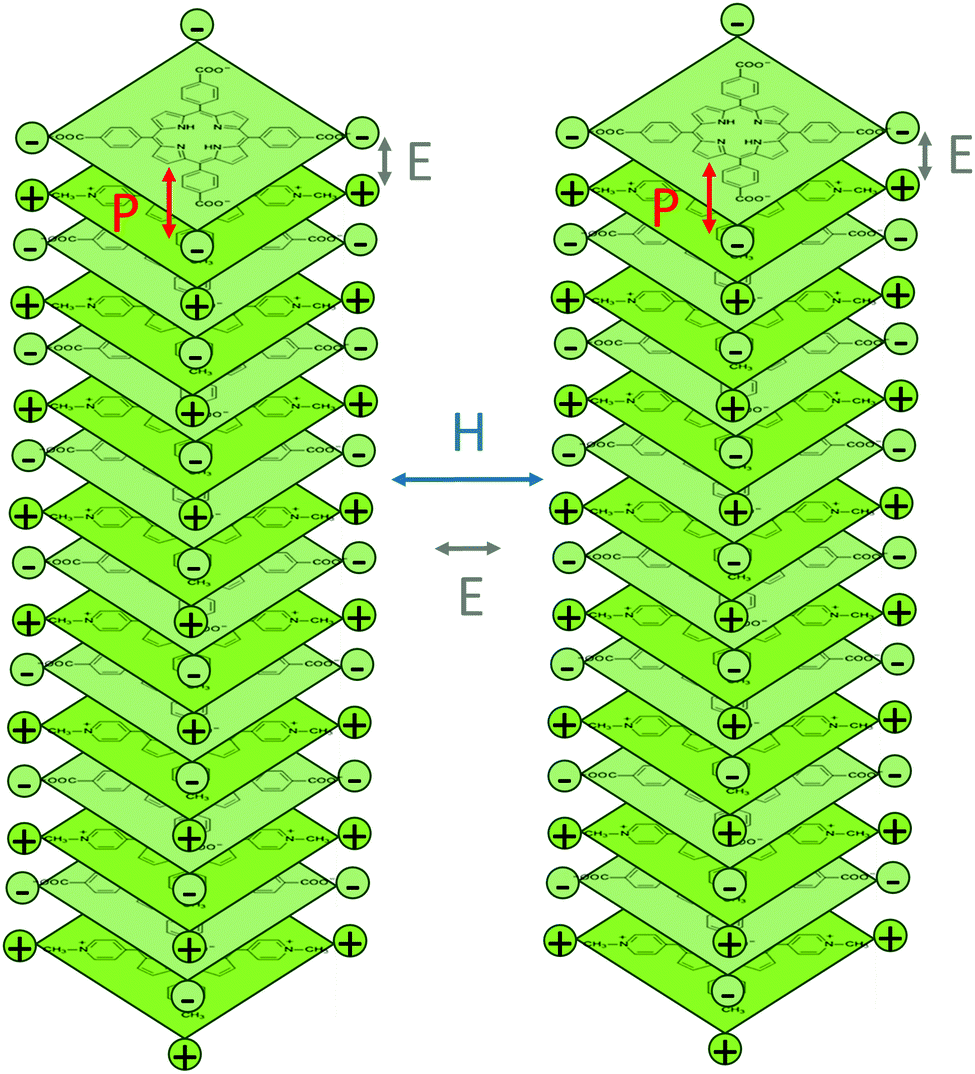

The 1D materials studied here are formed from equimolar mixtures of oppositely charged porphyrin tectons; this equimolarity appears to be preserved within the 1D materials, as suggested by XPS. SAXS measurements in the aqueous assemblies confirms that anionic porphyrin can stack face to face to form one-molecule-width columns. But electrostatics and hydrogen bonding induce these columns to bundle so that thicker but still crystalline fibers are formed. The ionic self-assembly strategy presented herein have also been tested for a variety of porphyrin tectons both metallized and non-metallized (free-base), the main variation being the core metal (Cu, Ni, Ag, and Zn)4 and the peripheral groups, which mainly consist of ammonium as cations and sulfonate as anions. These peripheral groups determine the pH-dependent protonation states. In this respect, Mazur et al.25 obtained shelf-like porphyrin assemblies from tetra(4-aminophenyl)porphyrin (TAPP), and tetra(4-sulfonatophenyl)porphyrin (TSPP) under acidic pH for porphyrin ion charges of 2+ and 2−. They attributed the morphology to crystal splitting during initial oriented attachment growth followed by Ostwald ripening. In the present case, shelf-like structures are also produced although the charges are 4+ and 4− at the pH of the experiments. The morphology of the porphyrin assemblies is strongly dependent on precipitation conditions (e.g., solvent).26 For example, the ion pair of TMPyP and TSPP45 (quite close to the one studied herein) produced straight, non-branched fibers, a morphology quite different to the one reported herein. The reason can be probably found in the use of additional solvents during precipitation. An aromatic donor–acceptor interaction was suggested for that pair, which might be also the case for the present TMPyP–TCPPNa pair.
As for the optical properties, the appearance of new and broad absorption bands at long wavelengths that cause the striking changes in optical properties upon assembly have been marked as a signature of coherent coupling of the transition dipoles, similar to the case of TSPP–Sn(IV) meso-tetra(4-pyridyl)porphyrin dichloride,23 which also showed almost complete fluorescence quenching upon assembly. Notably, a ion pair TMPyP:TSPP similar to the one studied here does not show any new absorption bands upon ionic assembly, pointing to weaker electronic interaction and absence of delocalized states for photoexcitation.2
Although the original fiber-like morphology of the porphyrin precursors was preserved after carbonization, we did not observe ordered graphene layers as those obtained by Müllen et al. from discotic molecules.58 This could be attributed to both the method of carbonization and the chemical structure of the precursors. The obtained 1D carbons are nitrogen-doped by an endogenous source and this impacts the observed supercapacitor properties, which could be improved if the specific surface area is increased by introducing additional microporosity. Besides the simplicity of preparation, another advantage of using the present TMPyP–TCPPNa fibers as carbon precursors is that their aqueous dispersions can be formulated as inks that can be printed or patterned on substrates directly and subjected to carbonization.
Footnote |
† Electronic supplementary information (ESI) available: Atomic force microscopy (AFM) image of fibers, SEM, TEM and HR-TEM images of the fibers before and after pyrolysis, additional XPS data, XRD patterns, TG/DTA data and N2 sorption data (PDF). See DOI: 10.1039/d0cp04348f |
