Materials chemistry of triplet dynamic nuclear polarization

Koki Nishimura a, Hironori Kouno a, Yusuke Kawashima a, Kana Orihashi a, Saiya Fujiwara a, Kenichiro Tateishi b, Tomohiro Uesaka b, Nobuo Kimizuka a and Nobuhiro Yanai *ac
aDepartment of Chemistry and Biochemistry, Graduate School of Engineering, Center for Molecular Systems (CMS), Kyushu University, 744 Moto-oka, Nishi-ku, Fukuoka 819-0395, Japan. E-mail: yanai@mail.cstm.kyushu-u.ac.jp
bCluster for Pioneering Research, RIKEN, RIKEN Nishina Center for Accelerator-Based Science, 2-1 Hirosawa, Wako, Saitama 351-0198, Japan
cPRESTO, JST, Honcho 4-1-8, Kawaguchi, Saitama 332-0012, Japan

Received 27th March 2020 , Accepted 1st May 2020

First published on 1st May 2020


Dynamic nuclear polarization with photo-excited triplet electrons (triplet-DNP) has the potential to enhance the sensitivity of nuclear magnetic resonance (NMR) and magnetic resonance imaging (MRI) at a moderate temperature. While many efforts have been devoted to achieving a large nuclear polarization based on triplet-DNP, the application of triplet-DNP has been limited to nuclear physics experiments. The recent introduction of materials chemistry into the field of triplet-DNP has achieved air-stable and water-soluble polarizing agents as well as the hyperpolarization of nanomaterials with a large surface area such as nanoporous metal–organic frameworks (MOFs) and nanocrystal dispersion in water. This Feature Article overviews the recently-emerged materials chemistry of triplet-DNP that paves new paths towards unprecedented biological and medical applications.


image file: d0cc02258f-p1.tif

Koki Nishimura

Koki Nishimura graduated from Ariake National Institute of Technology in 2018 with a Bachelor's degree. He received his Master's degree from Kyushu University under the supervision of Prof. Nobuo Kimizuka and Prof. Nobuhiro Yanai in 2020 and is pursuing his PhD. His research interest focuses on NMR spectroscopy with new hyperpolarization techniques.

image file: d0cc02258f-p2.tif

Hironori Kouno

Hironori Kouno received his PhD in Engineering from Kyushu University in 2020 under the supervision of Prof. Nobuo Kimizuka and Prof. Nobuhiro Yanai in the Department of Chemistry and Biochemistry, Kyushu University. His current research focuses on the development of novel triplet polarizing agents for aqueous triplet dynamic nuclear polarization (triplet-DNP). His research interests also include the physical properties of photo-excited triplet states and related functional materials.

image file: d0cc02258f-p3.tif

Kenichiro Tateishi

Kenichiro Tateishi received his PhD in the development of room-temperature hyperpolarization using triplet-DNP in 2013 under the supervision of Prof. Masahiro Kitagawa at Osaka University. He is a postdoctoral researcher at RIKEN. His current research focuses on the development of microwave systems and the application of the triplet-DNP technique to NMR spectroscopy and magnetic resonance imaging.

image file: d0cc02258f-p4.tif

Tomohiro Uesaka

Tomohiro Uesaka received his PhD in Physics from the University of Tokyo in 1997 for his work on polarization correlation measurement for the deuteron-3He scattering at an intermediate energy. His current research focuses are the development of the triplet-DNP technique and its applications to a wide range of research fields, such as a polarized target in particle and nuclear physics, NMR spectroscopy, and magnetic resonance imaging. In parallel, he is leading research activities in nuclear physics at the RIKEN RI Beam Factory.

image file: d0cc02258f-p5.tif

Nobuo Kimizuka

Nobuo Kimizuka received his PhD in excitonic chromophore interactions in molecular self-assemblies in 1990 under the supervision of Prof. Toyoki Kunitake at Kyushu University. After working as a postdoctoral researcher with Prof. Helmut Ringsdorf at Mainz University, he was promoted to an associate professor in 1992 and a full professor in 2000. He is currently the director of the Center for Molecular Systems, Kyushu University (CMS). His work encompasses the synthesis, structure, property, and functions of molecular self-assemblies and nanomaterials with recent focuses on photon energy conversion via excited triplets and singlets in organized molecular systems, supramolecular solar thermal fuels, and soft ionics.

image file: d0cc02258f-p6.tif

Nobuhiro Yanai

Nobuhiro Yanai is an associate professor in the Department of Chemistry and Biochemistry at Kyushu University, Japan. He earned his PhD in guest properties in metal–organic frameworks (MOFs)/porous coordination polymers (PCPs) from Kyoto University in 2011 under the supervision of Prof. Susumu Kitagawa and Prof. Takashi Uemura. He was a postdoctoral fellow with Prof. Steve Granick at the University of Illinois at Urbana-Champaign, experiencing colloid and soft matter sciences. He joined Kyushu University in 2012. His current research focuses on the functional chemistry of photo-excited triplet state to develop new materials for photon upconversion and dynamic nuclear polarization.


1. Introduction

Nuclear magnetic resonance (NMR) spectroscopy and magnetic resonance imaging (MRI) are powerful analysis techniques which have been applied in various fields such as physics, chemistry, biology, and medicine.1–5 NMR measurements provide rich information regarding chemical structures, molecular dynamics, and morphologies. MRI is indispensable in modern medical diagnosis. However, the biggest disadvantage of NMR and MRI is their poor sensitivity that requires a high concentration of analytes and a long integration time. The sensitivity of NMR depends on the polarization P defined as follows:

image file: d0cc02258f-t1.tif(1)
where Nα and Nβ are the number of spins in the α and β states, respectively, γ is the gyromagnetic ratio of a nucleus or an electron, ħ is the Planck constant, B0 is the strength of the external magnetic field, k is the Boltzmann constant, and T is the temperature. The energy gap of nuclear spins between the nuclear α and β states is generally lower than 5 μeV under ambient conditions, which means a spin polarization of less than 0.01%.

One of the simplest ways to improve the sensitivity of NMR is by increasing the static magnetic field (B0), however, the upper limit has almost been reached using superconducting techniques, and the instrumental cost when using giant magnets limits the accessibility to this method.6,7 To overcome this situation, various techniques to make a biased non-equilibrium nuclear spin state, so-called hyperpolarization, have been developed such as spin-exchange optical pumping (SEOP),8–11 parahydrogen induced hyperpolarization (PHIP),12–16 signal amplification by reversible exchange (SABRE)17–20 and dynamic nuclear polarization (DNP).21–32 In SEOP, electron spin polarization in alkali metals, produced via spin-selective excitation by circularly polarised light, is utilized to hyperpolarize noble gases (3He and 129Xe) for developing MRI contrast agents.33–36 PHIP and SABRE transfer the polarization of parahydrogen to the 1H or 13C spins of target molecules by a hydrogenation reaction or temporary complexation.37–40 Details of these techniques are well documented in recent reviews.41–46

DNP is based on polarization transfer from electron spins to nuclear spins. Due to the larger gyromagnetic ratio of an electron than that of a nucleus, the thermal-equilibrium polarization of electron spins is ca. 660 and 2600 times larger than those of 1H and 13C spins, respectively, at room temperature. At cryogenic temperatures (<4 K), the electron spin polarization reaches 100% (eqn (1)). Ardenkjær-Larsen et al. invented the dissolution-DNP (d-DNP) technique where highly sensitive NMR spectroscopy can be achieved by polarization transfer from electron spins of paramagnetic radicals to nuclear spins of target compounds below 4 K, followed by quick dissolution of the frozen sample and transfer to an NMR spectrometer.21 This d-DNP method has successfully hyperpolarized a variety of biologically-relevant compounds and come on the stage of the clinical trial of cancer imaging.47–52 On the other hand, the use of cryogenic conditions remains a big challenge of d-DNP, which inevitably increases the instrumental costs and limits direct hyperpolarization in living systems. There is another DNP method using permanent paramagnetic species in solution, known as Overhauser-DNP.53–57 While it allows the hyperpolarization of various substances in solution, the polarization enhancement is theoretically limited to 660 times for 1H spins in thermal equilibrium (eqn (1)).

To overcome these challenges of DNP, the use of non-equilibrium polarization of electron spins can be promising for room-temperature hyperpolarization.58–60 One of the methods based on this concept is DNP using photo-excited triplet electrons as a polarization source (triplet-DNP, Fig. 1).61–80 The triplet state has three degenerated sublevels, and the degeneracy is removed by zero-field and Zeeman splitting. Polarized triplet electrons are generated by a population of a specific sublevel via spin-selective intersystem crossing (ISC). Then, the high polarization of triplet electron spins is transferred to nuclear spins by integrated solid effect (ISE) with microwave irradiation under magnetic field sweep. Thanks to the temperature-insensitive non-equilibrium polarization of photo-excited triplets,79,81 it is possible to achieve a high polarization even at room temperature. Wenckebach and coworkers reported the first room-temperature triplet-DNP with a large 1H signal enhancement of 5500.61 After optimizing experimental and sample conditions, Tateishi et al. achieved a significantly high 1H spin polarization of 34% with an enhancement of 250[thin space (1/6-em)]000 at room temperature.79


image file: d0cc02258f-f1.tif
Fig. 1 Typical scheme of triplet-DNP. Photoexcitation of the polarizing agent is followed by spin-selective intersystem crossing (ISC). The resulting large electron spin polarization is transferred to nuclear spin polarization through an integrated solid effect (ISE).

Despite its great potential, the application of triplet-DNP has been limited to nuclear physics experiments such as polarized targets. The triplet-DNP process has been developed and optimized in the field of physics,82–88 in which the matrix has been limited to dense solids of aromatic compounds, and pentacene has been the only option of the polarizing agent.61–80,84 We propose that the introduction of materials chemistry to triplet-DNP makes it applicable to biology and medical fields (Fig. 2). By increasing the surface area of the polarization matrices such as nanoporous materials and nanoparticles, there would be more chances to transfer nuclear polarization to target biologically-relevant molecules. The development of non-pentacene polarizing agents with high air-stability and water solubility would allow direct doping of polarizing agents into water and other biological substances.


image file: d0cc02258f-f2.tif
Fig. 2 Schematic representation of the basic concept of this Feature Article. The basic physics of triplet-DNP has been developed and applied to nuclear physics experiments. The introduction of materials chemistry to triplet-DNP would make triplet-DNP more accessible by utilizing nanoporous materials and nanocrystals and more feasible by developing air-stable and water-soluble polarizing agents, paving a way towards biological applications.

In this Feature Article, we start with a summary of the history and mechanism of triplet-DNP and then discuss the recent advancements and prospects of triplet-DNP from the viewpoint of materials chemistry.

2. Background of triplet-DNP

Brief history of triplet-DNP

Polarization transfer from photo-excited triplet electron spins to nuclear spins was first reported by Hausser et al. in an anthracene single crystal.89 In the following early days, polarization transfer was observed without using microwaves by applying a magnetic field in the anti-level crossing region or by relaxation during triplet exciton diffusion.90–94 Microwave-induced polarization transfer from photo-excited triplet electron spins to nuclear spins was demonstrated by Deimling et al. for the first time, but the enhancement factor was quite small (10).95 In 1990, Wenckebach and coworkers developed a more efficient polarization transfer method with concomitant application of microwave irradiation and magnetic field sweep (ISE) to achieve a 5500-fold enhancement of 1H polarization, which was the first demonstration of 1H polarization enhancement beyond the theoretical limit of 660 with paramagnetic radicals.61 After that, the enhancement factor was further increased by several groups’ efforts to optimize the experimental and sample conditions.63–73 Finally, the 1H polarization reached 80% at 25 K in a pentacene-doped naphthalene single crystal88 and 34% at room temperature in a pentacene-doped p-terphenyl-d4 single crystal.79 The deuteration of pentacene and matrix molecules increases the polarization enhancement by suppressing nuclear spin–lattice relaxation. Highly polarized single crystals were used as polarized targets.82–88

While the polarization enhancement based on triplet-DNP has successfully reached the level of practical applications, it requires the precise alignment of a single crystal, and biologically-relevant molecules cannot be accommodated in the single crystal. Based on these fundamental developments of triplet-DNP in physics, it's the turn of chemistry to make it useful in biological applications.

Energy level and population of triplet sublevels

The basic principles and methods of triplet-DNP are summarized well in a book written by Takeda.96 We extract the minimum components here for the sake of readers by taking the pentacene-doped p-terphenyl crystal as an example.

The triplet state has three sublevels, and the different population among these sublevels can be used as the polarization source. In the absence of a magnetic field, the energy levels of the three sublevels are determined by the zero-field splitting (ZFS) interaction (image file: d0cc02258f-t2.tif) that originates from the dipole–dipole interaction between the two electron spins in the triplet state. ZFS Hamiltonian image file: d0cc02258f-t3.tif is written by using a spin operator S (S = 1) as


image file: d0cc02258f-t4.tif(2)
where D and E are the ZFS parameters. In the absence of the external field, ZFS Hamiltonian is diagonalized in a basis set {|X〉, |Y〉, |Z〉} defined as

image file: d0cc02258f-t5.tif(3.1)

image file: d0cc02258f-t6.tif(3.2)

|Z〉 = |0〉,(3.3)
where {|+1〉, |0〉, |−1〉} are the eigenstates of SZ. In the course of the transition from the S1 state to the Tn state by ISC, the spin–orbit coupling selectively populates a specific triplet sublevel. For the benchmark polarizing agent pentacene, the populations over the triplet substates |X〉, |Y〉, and |Z〉 are reported to be 0.76, 0.16, and 0.08, respectively.62,81,98

Under an external magnetic field, the triplet energy levels are further affected by Zeeman interaction (image file: d0cc02258f-t7.tif), and the total Hamiltonian is given by


image file: d0cc02258f-t8.tif(4)
where ω0 is the electron resonance frequency. Using the {|X〉, |Y〉, |Z〉} basis set, the total Hamiltonian can be expressed in the matrix form as

image file: d0cc02258f-t9.tif(5)
where Θ and Φ represent the orientation of the external field with respect to the principal axis system of the ZFS tensor (Fig. 3a). The energy levels of the triplet state {E−1,E0,E+1} are obtained as eigenvalues of this Hamiltonian. When the populations (wX,wY,wZ) of the zero field are known, the populations (w+1,w0,w−1) of the high field can be obtained as

image file: d0cc02258f-t10.tif(6)
where cκλ denotes the κλ element of the unitary matrix which diagonalizes the Hamiltonian. In the case of the high field where the effect of ZFS can be negligible, the populations approach

image file: d0cc02258f-t11.tif(7.1)

image file: d0cc02258f-t12.tif(7.2)

image file: d0cc02258f-t13.tif(7.3)
where B0 is the vector of the external magnetic field. In the case of pentacene, the polarization between w0 and w+1 is maximized to 73% when B0X according to imbalanced populations (w+1,w0,w−1) = (0.12,0.76,0.12).65


image file: d0cc02258f-f3.tif
Fig. 3 (a) Principal axes of the ZFS interaction of the photo-excited pentacene triplet. The standard convention for assigning the labels X, Y and Z to the molecular axes is such that |Z〉 is the level with the largest separation from the center of gravity, |X〉 with the second largest separation, and |Y〉 is in the middle.97 (b) Triplet energy levels of pentacene when B0X (left), B0Y (centre), and B0Z (right). The arrows show the transitions of absorption and emission induced by X-band (∼9 GHz) microwave irradiation.

In a polycrystalline powder, the polarizing agents are randomly oriented, and its EPR spectrum is obtained as the sum of spectra with all angles Θ and Φ. It is possible to selectively use the polarizing agent in a specific orientation by tuning the magnetic field and microwave frequency for polarization transfer. When pentacene is used as the polarizing agent, the most efficient hyperpolarization can be achieved by using the condition in which the long axis is parallel to the external magnetic field (B0X, Fig. 4).


image file: d0cc02258f-f4.tif
Fig. 4 EPR spectrum of photo-excited pentacene doped in p-terphenyl crystalline powder. The absorption and emission peaks originating from specifically-oriented pentacene molecules are marked by solid lines (B0X: orange, B0Y: blue, B0Z: green).

Polarization transfer and buildup

The polarization transfer from triplet electron spins to neighboring nuclear (typically 1H) spins through ISE is achieved by microwave irradiation under magnetic field sweep. Due to the large (660 times) difference in the gyromagnetic ratio γ between the electron and the nucleus, it is necessary to tune the electron spin precession frequency in the rotating frame by applying a microwave to match the nuclear spin precession frequency in the laboratory frame (Fig. 5a). When these two frequencies match, the electrons and nuclei can exchange their spin states, i.e. the polarization transfer takes place.
image file: d0cc02258f-f5.tif
Fig. 5 (a) Precession of the proton spin magnetization vector in the laboratory frame (left) and electron spin in the rotating frame (right). When ωH becomes equal to ωe, the polarization transfer occurred most efficiently (Hartmann–Hahn matching condition). (b) Scheme of the triplet-DNP sequence. The pulsed photoexcitation is followed by microwave irradiation and magnetic field sweep, which is repeated before the NMR measurement. By the adiabatic magnetic field sweep, all the spin packets in the swept range can participate in the polarization transfer through ISE.

In the laboratory frame, the electron spins precess around the external magnetic field B0 with the Larmor frequency ωe0 represented as


ωe0 = −γeB0,(8)
where γe is the gyromagnetic ratio of the electron spin. When a microwave with the frequency ωmw is irradiated, the electron spins precess with the frequency ωe = γeBeff in the rotating frame around an effective magnetic field Beff represented as

image file: d0cc02258f-t14.tif(9)
where ΔB is the offset originating from the frequency difference between ωe0 and ωmwB = (ωe0ωmw)/γe), and B1 is the rotational magnetic field applied vertically to the external field B0. In the rotating frame, B1 behaves as a static magnetic field vertical to ΔB, and its strength is determined by the power of the applied microwave.

On the other hand, proton spins are off-resonant with the microwave and precess with a frequency ωH = −γHB0 in the laboratory frame. By choosing ΔB and B1, the frequency ωe can be changed to become equal to ωH, the so-called Hartmann–Hahn matching condition


γHB0 = γeBeff,(10)
in which electrons and nuclei can exchange the spin states with each other like resonance between pendulums connected by springs. The springs in the coupled pendulums correspond to the “flip-flop” term of the dipolar interaction in the spin systems.

Since the EPR linewidth is broadened by hyperfine coupling (and different molecular orientations in a polycrystalline powder), it is impossible to satisfy the Hartmann–Hahn condition for all spin packets simultaneously. To solve this issue, Wenckebach and coworkers applied the ISE technique that uses external magnetic field sweep over the full EPR linewidth under continuous microwave irradiation (Fig. 5b).61 All the electron spin packets in the swept range can participate in the polarization transfer. The field sweep rate has to be sufficiently slow compared with the effective precession frequency to satisfy the adiabatic condition. The lifetime of photo-excited triplet electron polarization should be long enough (> a few microseconds) to satisfy the adiabatic condition.

The polarization transfer is followed by the diffusion of nuclear (1H) spin polarization. The spin diffusion occurs through the “flip-flop” term of the dipolar interaction of homonuclear spins. In typical samples with a lot of protons, the spin diffusion is faster than the DNP repetition rate, and the buildup rate of proton polarization is independent of the spin diffusion rate. The time evolution of proton polarization P can be calculated from the DNP repetition rate R and the spin–lattice relaxation rate as


image file: d0cc02258f-t15.tif(11)
where η is the fraction of the triplet electron spins in the two triplet sublevels involved in the polarization transfer, ξ is the exchange probability, ρe and ρH are the densities of electron and proton spins, respectively, Pe is the polarization of electron spins, T1′ is the spin–lattice relaxation time of 1H under laser irradiation, and Pth is the polarization of proton spins in thermal equilibrium that is negligibly small compared with P. Tateishi et al. noticed that the triplet electrons of the polarizing agent induce the spin–lattice relaxation of neighboring 1H spins through the perturbation of the local field of the 1H spins.79 Therefore, T1′ includes two components, 1H spin–lattice relaxation time without laser irradiation (T1) and that in the presence of photo-excited triplet electrons (T1e), which is given as

image file: d0cc02258f-t16.tif(12)
The solution of eqn (11) is given by

image file: d0cc02258f-t17.tif(13)
where Tb is the buildup time constant. The maximum polarization is obtained as

image file: d0cc02258f-t18.tif(14)
Therefore, a long T1 value is crucial to achieve a high nuclear polarization.64,69,70,79

Experimental setup of triplet-DNP

Here we take our experimental setup of triplet-DNP as an example (Fig. 6). Triplet-DNP is carried out using a Ku-band cylindrical resonator with a window for laser irradiation and a coil for magnetic field sweep at a magnetic field generated by an electromagnet. The external magnetic field B0 is set at around 0.67 T, in which the 1H and triplet electron spins of pentacene resonate at ca. 28 MHz and 17.7 GHz, respectively. A sample is placed in Pyrex/quartz/sapphire tubes and set in the cavity. A pulsed laser was used for the excitation of the polarizing agent. For pentacene, the typical wavelength, pulse width, pulse energy, and repetition rate are 500–600 nm, >100 ns, >0.1 mJ, and 10–1000 Hz, respectively. A microwave is generated and amplified using a pulsed TWTA (traveling wave tube amplifier) up to 2 kW (Hartmann–Hahn condition can be satisfied at ∼50 W). A triangular wave for field sweep is produced with a function generator and amplified with an OPamp. After triplet-DNP, the polarized sample is shuttled into an NMR coil positioned above the resonator, which is tuned for 1H. Timing control of the ISE sequence and NMR detection are performed with an OPENCORE NMR spectrometer.99
image file: d0cc02258f-f6.tif
Fig. 6 Scheme of the setup of triplet-DNP. PA is the power amplifier, MW osc is the microwave oscillator, FG is the function generator, trig. is the TTL trigger signal, and LNA is the low noise amplifier.

3. Nanomaterials for in situ triplet-DNP

While the advantage of triplet-DNP is its high working temperature compared with radical-based DNP, the polarizable matrix (host material) had been limited to dense molecular crystals such as p-terphenyl and naphthalene at room temperature. This is mainly because the polarizing agent had been limited to pentacene and only these molecular crystals can accommodate pentacene molecules without aggregation. Besides, the use of dense molecular crystals was necessary to suppress molecular motions for the long spin–lattice relaxation time T1. Unfortunately, most of the biologically-relevant substances and water cannot be accommodated in the dense crystals to be polarized. To overcome this situation, our group has proposed the concept of “increasing the surface area” while maintaining the structural rigidity of the matrix. This new concept would realize the polarization transfer from rigid matrices to target compounds through the optimization of the interaction between the matrix and the target at their interface, towards our final goal of in situ triplet-DNP at room temperature.

Metal–organic frameworks (MOFs) as nanoporous matrices

One of our strategies of increasing the surface area is to use nanoporous materials with great accessibility for polarizing targets. Among various nanoporous materials, we chose metal–organic frameworks (MOFs) since they offer not only rigid crystalline structures but also significant structural and functional tunability that should be beneficial to optimize the host–guest interaction and to establish design guidelines for polarization transfer to various guest molecules of interest. Note that recent pioneering works on low-temperature radical-based DNP have shown the potential benefits of porous materials to polarize some guest molecules,100–108 but there was no example of room-temperature DNP using porous matrices.

For the proof-of-concept, we have reported the first example of triplet-DNP of a prototypical diamagnetic Zn2+-based MOF, [Zn(MeIM)2]n (ZIF-8; MeIM = 2-methylimidazolate).109 We synthesized a novel polarizing agent by modifying the typical polarizing agent pentacene with metal-coordinating carboxylate moieties (4,4′-(pentacene-6,13-diyl)dibenzoic acid (PDBA), Fig. 7b) for its introduction into MOFs. The PDBA molecules were successfully accommodated during the crystallization of ZIF-8 in methanol in the presence of NaOH at room temperature. The fact that a nonionic pentacene derivative 6,13-diphenylpentacene (DPP) was not incorporated into ZIF-8 suggests the important role of the coordination of carboxylate moieties to Zn2+ ions of ZIF-8 for the accommodation of PDBA. Since the aggregation of the polarizing agent induces the relaxation of electron spin polarization, the crystallization condition was optimized to achieve good dispersibility of PDBA in ZIF-8, which was confirmed by UV-Vis and fluorescence measurements.


image file: d0cc02258f-f7.tif
Fig. 7 (a) Schematic illustration of triplet-DNP in MOFs accommodating polarizing agents. (b) Synthetic scheme and photograph of ZIF-8⊃PDBA. (c) 1H spin–lattice relaxation (T1) data of ZIF-8 (black) and D-ZIF-8 (red) acquired with the saturation-recovery sequence. Adopted with permission from ref. 109. Copyright 2018 American Chemical Society.

It was found that the partial deuteration of ligands successfully elongates the 1H T1 value of the MOF. The 1H T1 value of ZIF-8 was estimated to be 31 ± 0.1 s at room temperature (Fig. 7c). We assumed that the rotation of methyl groups in ZIF-8 caused the spin–lattice relaxation to decrease the 1H T1 value and synthesized a partially deuterated ligand to construct methyl-deuterated ZIF-8 (denoted as D-ZIF-8). As expected, D-ZIF-8 successfully showed a longer 1H T1 value of 53 ± 1.0 s. The inclusion amount of PDBA inside D-ZIF-8 was optimized based on the intensity of the time-resolved EPR signal of the photoexcited triples. Note that the 1H T1 value of ZIFs was not significantly affected by the incorporated 0.036 mol% of PDBA.

The transfer of spin polarization from the photoexcited triplet electrons of PDBA to the 1H nuclei of D-ZIF-8 was carried out with the ISE sequence. The PDBA molecules inside D-ZIF-8 were photoexcited by a pulsed 589 nm laser (500 Hz), followed by microwave irradiation (18.1 GHz) and field sweep (±100 G). The duration of microwave irradiation (10 μs) was optimized based on the enhancement of the 1H NMR signal intensity. After repeating this process to accumulate the spin polarization, 1H NMR spectra were immediately measured. The 1H NMR signal intensity of D-ZIF-8 containing polarizing agents showed a large enhancement factor of 58, and the signal-to-noise ratio of 1H NMR spectra was significantly improved by the triplet-DNP process (Fig. 8a and b). The triplet-DNP process was also carried out at a lower temperature (220 K), which is relevant to the adsorption of the 129Xe gas probe. As a result, 85 and 102 times enhancements were achieved compared to the thermal equilibrium at 220 K and room temperature, respectively. A longer build-up time constant Tb of 13 s at 220 K compared with that at room temperature (8.5 s) indicates that the increase in the 1H NMR signal enhancement at the lower temperature is mainly due to the reduced molecular mobility and the prolonged 1H T1. Note that the pentacene derivative PDBA in D-ZIF-8 was found to be not stable during repeated long-term laser irradiation. This problem would be solved by using diaza-substituted polarizing agents with improved stability as described in a later section. The above results proved the new concept of using MOFs as ‘porous’ and ‘rigid’ hosts for triplet-DNP, and the polarization transfer from MOFs to guest molecules of interest is an obvious next step. Given the structural and functional diversity, we believe that MOFs will serve as an applicable room-temperature hyperpolarization system for a wide range of target molecules.


image file: d0cc02258f-f8.tif
Fig. 8 (a) 1H NMR signals of D-ZIF-8⊃PDBA in thermal equilibrium (300 scans every 3 min) and after triplet-DNP (ISE sequence for 50 s and 1 scan) at room temperature and 220 K. (b) 1H polarization build-up curve of D-ZIF-8⊃PDBA at room temperature and 220 K. Adopted with permission from ref. 109. Copyright 2018 American Chemical Society.

Triplet-DNP of nanocrystals dispersed in water

The application of triplet-DNP had been limited to the solid state. This is mainly because the effective ISE and the accumulation of spin polarization through spin diffusion require solid crystals with a long spin–lattice relaxation time T1. Besides, paramagnetic oxygen molecules severely quench the photo-excited triplet state. Therefore, it was not clear whether it is possible to achieve triplet-DNP in water containing dissolved oxygen molecules.

Our group has demonstrated the first example of triplet-DNP in water by downsizing conventional bulk crystals to nanocrystals (Fig. 9a).110 This was also the first example of triplet-DNP of nanosized crystals. As a proof-of-concept, pentacene and p-terphenyl were used as the benchmark polarizing agent and crystalline matrix, respectively (Fig. 9b). A stable nanocrystal dispersion in water was obtained using a simple ball-milling process. Bulk p-terphenyl crystals doped with 0.5 mol% pentacene in an aqueous solution of cetyltrimethylammonium bromide (CTAB) were ball-milled for 3 hours to provide a purple milky suspension (Fig. 9b). The size of the obtained particles was around 100 nm (Fig. 9c and d). The good colloidal stability was achieved by the surface coverage of nanoparticles with the cationic CTAB surfactant. The maintenance of good crystallinity after the ball-milling process was confirmed by the unchanged powder X-ray diffraction (PXRD) peak width.


image file: d0cc02258f-f9.tif
Fig. 9 (a) Schematic representation of downsizing bulk crystals to nanocrystals for triplet-DNP in water. (b) Chemical structures of pentacene (polarizing agent) and p-terphenyl (crystalline matrix). Bulk crystals of p-terphenyl doped with 0.5 mol% pentacene were ball-milled in an aqueous solution of CTAB (1.4 mM), resulting in an aqueous dispersion of nanocrystals. (c) SEM image of the nanocrystals. (d) DLS profile of the aqueous dispersion of nanocrystals. Adopted with permission from ref. 110. Copyright 2019 The Royal Society of Chemistry.

Importantly, the triplet state of pentacene is well protected in the dense p-terphenyl crystal structure from oxygen quenching even in the form of nanosized crystals (Fig. 10b). Transient absorption measurements show that the triplet lifetime of pentacene in the nanocrystals is identical to that in the bulk crystals, showing the good oxygen blocking ability of the p-terphenyl nanocrystals (Fig. 10a).


image file: d0cc02258f-f10.tif
Fig. 10 (a) Transient absorption intensity of bulk p-terphenyl crystals doped with 0.5 mol% pentacene (black) and the aqueous dispersion of p-terphenyl nanocrystals doped with 0.5 mol% pentacene (red). (b) Schematic illustration of oxygen blocking in the nanocrystals. The photo-excited triplet state of pentacene is protected from oxygen quenching, thanks to the dense matrix structure. (c) 1H NMR spectra (0.676 T) of the aqueous dispersion of p-terphenyl nanocrystals doped with 0.5 mol% pentacene in thermal equilibrium and after the triplet-DNP process for different durations at room temperature in air. (d) 1H polarization build-up curve of the aqueous dispersion of p-terphenyl nanocrystals doped with 0.5 mol% pentacene at 0.676 T and room temperature. The broken line is a fitting curve with the following equation: A[1 − exp(−t/Tb)]. Adopted with permission from ref. 110. Copyright 2019 The Royal Society of Chemistry.

In-water triplet-DNP was demonstrated by applying the ISE sequence to the aqueous dispersion of the nanocrystals under ambient conditions. After a pulsed laser excitation at 532 nm, the electron spin polarization was transferred to 1H spins by microwave irradiation (17.7 GHz, <300 W) under a magnetic field sweep (676 mT ± 30 mT), and the triplet-DNP process was repeated for a certain duration before the 1H-NMR measurements. Without the triplet-DNP process, only a sharp NMR peak from the water was observed due to the weak and broad signal of nanocrystals (Fig. 10c). Significantly, the intensity of the broad peak from nanocrystals gradually increased by elongating the triplet-DNP duration, and the enhancement factor reached over 360 times (0.083%, Fig. 10d). The future optimization of the nanocrystal surface structure would enable polarization transfer from the nanocrystals to the surrounding water molecules, leading to selective hyperpolarization of the solvent-exposed residues of proteins through proton exchange under ambient conditions.

4. Dissolution triplet-DNP

Dissolution-DNP using radical electrons is currently the most powerful method to achieve the hyperpolarized state in a solution for NMR and MRI applications. However, the radical-based dissolution-DNP requires a cryogenic temperature (∼1 K) and a high magnetic field (>3 T) with a superconducting magnet. The implementation of the dissolution process to room-temperature triplet-DNP at a low magnetic field (<1 T) can be a complementary low-cost hyperpolarization method for wide use.

Negoro et al. reported the first example of dissolution triplet-DNP by doping pentacene into a water-soluble crystalline matrix, benzoic acid.111 To elongate the 1H spin–lattice relaxation time T1 and to suppress the proton relaxation induced by triplet electrons, partially-deuterated benzoic acid (BA-d1) and fully deuterated pentacene-d14 were used. For a powder sample of BA-d1 doped with 0.04 mol % pentacene-d14, a 1H spin polarization of 0.8% was achieved after performing the triplet-DNP process for 10 min at room temperature. By injecting a 1 M hot deuterated solution of sodium carbonate to the hyperpolarized powder, a broad NMR signal of the solid powder turned into a sharp peak (Fig. 11a). Interestingly, the areas of these broad and sharp NMR spectra were almost the same, suggesting the retention of polarization during the dissolution process.


image file: d0cc02258f-f11.tif

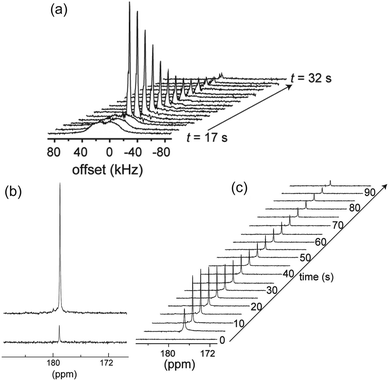

Fig. 11 (a) 1H NMR spectra of BA-d1 in dissolution triplet-DNP. A hot aqueous solution was injected 20 s after triplet-DNP, while the 1H magnetization was measured with 15° pulses repeatedly at intervals of 1 s. Time t is the interval from just finishing triplet-DNP to the NMR measurement. (b) Solution 13C NMR spectra at 11.7 T of BA1d in thermal equilibrium (bottom, 64 times accumulation) and after dissolution triplet-DNP (top). (c) Time-resolved enhanced solution 13C NMR spectra of BA1d. Adopted with permission from ref. 111 and 112. Copyright 2018 American Chemical Society, 2019 Elsevier.

Kagawa et al. have extended the dissolution triplet-DNP to high-field 13C NMR by using [carboxy-13C]benzoic acid-d (BA1d) as the crystalline matrix.112 After triplet-DNP of the pentacene-doped BA1d powder, the high polarization of 1H spins was transferred to 13C spins by ramped amplitude cross-polarization (RAMP-CP) at 0.39 T. The 13C-polarized sample was manually shuttled to an 11.7 T superconducting magnet and dissolved by a hot sodium hydroxide solution in D2O. As a result, a highly enhanced 13C MMR signal of BA1d was observed, and the enhancement factor was estimated to be 220, corresponding to the 13C polarization of 0.22% (Fig. 11b). Reflecting the long relaxation time of the carboxyl 13C spin in BA1d (48 s), the enhanced 13C NMR signal was observed for more than 1 min (Fig. 11c).

While the high polarization of benzoic acid was successfully obtained, it was difficult to extend the same strategy to other water-soluble compounds due to the poor dispersibility of pentacene. To overcome this limitation, Kagawa et al. have proposed a strategy of making eutectic mixtures of benzoic acid and another target compound such as salicylic acid, nicotinic acid, and 2-naphthoic acid.113 Pentacene was successfully doped in the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 mixture of benzoic acid-d6 and one of the target compounds (salicylic acid-d2, nicotinic acid-d1, or 2-naphthoic acid). Triplet-DNP of the pentacene-doped mixtures resulted in high 1H polarizations of 1.2%, 0.33%, and 0.36% for salicylic acid-d2, nicotinic acid-d1, and 2-naphthoic acid, respectively. Using 13C-labeled target compounds, the enhanced 1H polarization of the mixtures was transferred to 13C spins using the RAMP-CP sequence. While no 13C signals were obtained in thermal equilibrium at 0.39 T, enhanced 13C signals were observed after the triplet-DNP and RAMP-CP processes (Fig. 12).


image file: d0cc02258f-f12.tif
Fig. 12 Enhanced 13C NMR spectra of mixtures of benzoic acid-d6 and (a) [carboxy-13C]salicylic acid, (b) [carboxy-13C]nicotinic acid, and (c) 2-naphthoic acid-13C6 by triplet-DNP and RAMP-CP at 0.39 T and room temperature. Adopted with permission from ref. 113. Copyright 2018 American Chemical Society.

Despite these initial successes, the variety of polarizable compounds by dissolution triplet-DNP is still limited to benzoic acid and its eutectic mixtures due to the strong hydrophobic and aggregation nature of pentacene. Benzoic acid is rather exceptional since the hydrogen-bonded benzoic acid dimer has a similar size and shape to pentacene and thus can accommodate pentacene without aggregation in its crystal structure.114 Besides, the degradation of pentacene under long-time photoexcitation was also observed.113 We envisage that the applicability of dissolution triplet-DNP would be significantly widened by the development of non-pentacene derivatives with better solubility and stability as mentioned below.

5. Novel polarizing agents

Since the first demonstration of effective room-temperature triplet-DNP by Wenckebach et al. in 1990, pentacene has been the only and best polarizing agent for triplet-DNP. This is partly because pentacene has high electron polarization, its electron polarization (transient EPR) lifetime is long enough for polarization transfer, and its triplet (transient absorption) lifetime is not too long to induce nuclear spin–lattice relaxation. Besides, the polarizing agent should be doped without aggregation in crystalline matrices with a long 1H T1 value such as p-terphenyl and naphthalene. Pentacene has the ideal molecular shape and size for this purpose since one pentacene molecule can be substituted with one p-terphenyl molecule or two naphthalene molecules in their crystal structures. Therefore, it is reasonable to use pentacene for the application of triplet-DNP in nuclear physics experiments using large single crystals.

However, pentacene is far from ideal when it comes to biological applications. Pentacene decomposes within a few minutes in solution under ambient conditions and its dispersibility is extremely low in water and biologically-relevant hydrophilic substances. Furthermore, the photo-stability of pentacene is not enough for prolonged pulse excitation in some matrices.109,113 The development of polarizing agents with better stability and solubility is crucial to expand the scope of triplet-DNP.

Pentacene derivatives with improved solubility

The solubility issue of pentacene can be circumvented by using substituted pentacene derivatives. For example, PDBA could be introduced into D-ZIF-8 thanks to its good solubility in organic solvents (Fig. 7b).109 Tateishi et al. have reported the first demonstration of triplet-DNP in the glass state of an organic solvent by using the pentacene derivative DPP (Fig. 13a).115 DPP is soluble in common organic solvents such as chloroform, DMSO, toluene, and alcohols. DPP was dissolved in ethanol-d6, and subsequently 20 wt% of water was added. The obtained solution was solidified by brewing cold N2 gas. Time-resolved EPR measurements of DPP in ethanol-d6/water glass at 120 K showed that the zero-field splitting parameters and polarization of DPP were similar to those of pentacene.65,79,116 The triplet-DNP process was carried out for 0.1 mM DPP in the glass of ethanol-d6[thin space (1/6-em)]:[thin space (1/6-em)]water = 80[thin space (1/6-em)]:[thin space (1/6-em)]20 (w/w) at 90 K, resulting in the 81 times enhancement of the water 1H signal (Fig. 13c). This moderate polarization was attributed to the short T1 value (0.60 s (45%) and 8.8 s (55%)) of the glass matrix as well as the low DPP concentration for preventing the sample from heating under laser and microwave irradiation. Both build-up and relaxation curves cannot fit with the mono-exponential function and can fit with the bi-exponential function (Fig. 13c and d). This implies that the sample condition gradually changed upon the generation of heat due to the laser and microwave irradiation.
image file: d0cc02258f-f13.tif
Fig. 13 (a) Structure of 6,13-diphenylpentacene (DPP). (b) Time dependence of absorption intensity at 594 nm. The sample was exposed to ambient light and air. (c) Build-up curve of the 1H signal in the glass of ethanol-d6[thin space (1/6-em)]:[thin space (1/6-em)]water = 80[thin space (1/6-em)]:[thin space (1/6-em)]20 (w/w) doped with 0.1 mM DPP at 90 K and 0.6673 T. Inset: The 1H NMR spectra of the polarized and thermally-equilibrated sample. (d) T1 measurement by changing the interval from triplet-DNP to the NMR measurement. The data are fit with bi/mono-exponential functions (solid/dashed lines). Adopted with permission from ref. 115. Copyright 2019 The Royal Society of Chemistry.

Although the solubility was significantly improved by the functionalization of pentacene, the stability issue still remains. In the ambient light and air, DPP was decomposed with a half-lifetime of 15 min (Fig. 13b). During the sample preparation (dissolution of DPP and solidification of the solution by cooling) of ∼5 min, ∼20% of DPP was decomposed. A new molecular design can solve this problem as mentioned below.

Non-pentacene polarizing agents with improved air-stability

Pentacene and its derivatives suffer from their poor stability in air. To overcome this issue, our group has reported air-stable polarizing agents with high polarization ability comparable to pentacene for the first time.116 The new and simple molecular design, aza-substituted acenes, was demonstrated to be promising by taking 6,13-diazapentacene (DAP) and 5,12-diazatetracene (DAT) as examples. The introduction of electron-withdrawing nitrogen atoms to pentacene and tetracene reduces both the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels, as confirmed by density functional theory (DFT) calculations (Fig. 14a). The lower HOMO and LUMO energy levels of DAP and DAT suggest their higher stability under ambient conditions by suppressing photooxidation in the ground and excited states. The stability of the triplet polarizing agents was experimentally verified by measuring the time-dependent UV-vis absorption spectra of DAP and DAT in THF under ambient conditions (Fig. 14b and c). The diaza-substitution significantly suppressed the decomposition of DAP and DAT compared with pentacene and tetracene, respectively.
image file: d0cc02258f-f14.tif
Fig. 14 (a) HOMO and LUMO energy levels of pentacene, DAP, tetracene, and DAT at the B3LYP/6-31G(d) level. (b) Time dependence of optical density (O.D.) at the absorption peak of pentacene (575 nm) and DAP (640 nm) in THF under air-saturated and ambient light conditions. (c) Time dependence of optical density (O.D.) at the absorption peak of tetracene (473.5 nm) and DAT (500 nm) in THF under the air-saturated and ambient light conditions. Adopted with permission from ref. 116. Copyright 2019 American Chemical Society.

Remarkably, the potential of DAP and DAT as triplet polarizing agents was found to be comparable to pentacene. 0.05 mol% of each polarizing agent was doped in host crystalline powders of p-terphenyl. Time-resolved EPR measurements showed that the spin polarizations in the triplet excited state of DAP (49%) and DAT (66%) are comparable to that of pentacene (73%). The main components of EPR decay time were 18, 3.1, and 11 μs for pentacene, DAP, and DAT, respectively. After triplet-DNP, the high 1H spin polarizations of 0.22% and 0.19% were obtained for DAP- and DAT-doped p-terphenyl, respectively, which were comparable to that of pentacene-doped p-terphenyl (0.21%) under identical experimental conditions (Fig. 15). The long polarization lifetime of pentacene had been considered to be a requisite for the efficient polarization transfer, but importantly a few μs of polarization lifetime was revealed to be long enough from the triplet-DNP experiments using DAP. This finding motivates further exploration of new polarizing agents even other than the acene family.


image file: d0cc02258f-f15.tif

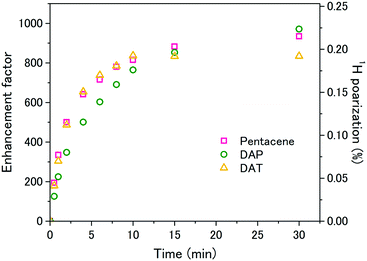

Fig. 15 1H polarization buildup curves of p-terphenyl crystalline powders doped with 0.05 mol % of pentacene (pink, 0.676 T), DAP (green, 0.678 T), and DAT (yellow, 0.682 T) at room temperature using an 18.2 GHz cylindrical resonator. The sweep width of the magnetic field for polarization transfer was ±30 mT. Adopted with permission from ref. 116. Copyright 2019 American Chemical Society.

Water-soluble triplet polarizing agents

Water is a ubiquitous polarization source; the water hyperpolarization can be transferred to biomolecules such as amino acids, peptides, and proteins through proton exchange, as demonstrated in radical-based dissolution-DNP.117–120 The key to achieving the water hyperpolarization at a higher temperature is to utilize the long T1 value of 1H in crystalline ice over 5 minutes. However, there have been no reports on water-soluble polarizing agents, and the use of an ethanol-d6/water mixture with a short T1 value < 10 s was required for dissolving the pentacene derivative DPP.115

Our group has reported the first example of a water-soluble triplet polarizing agent as well as the first demonstration of triplet-DNP of crystalline ice.121 By taking advantage of the high air-stability of DAT, a novel water-soluble triplet polarizing agent DAT-4COOH with four carboxylic acid groups was synthesized (Fig. 16). Spectroscopic studies showed that a sodium salt of DAT-4COOH (DAT-4COONa) aggregates in crystalline ice at 140 K. In stark contrast, an ion pair of DAT-4COOH with a hydrophilic and bulky cation MEEA (Fig. 16)122 could be dispersed in crystalline ice without aggregation. DAT modified with a fewer number (two) of carboxylic acid moieties (DAT-2COOH) could not be dispersed in ice even after forming the ion complex with MEEA, indicating that it is important to introduce enough numbers of ion pairs to prevent chromophore aggregation. The absence of a significant effect on photo-excited triplet polarization by the hydrophilic modification of DAT was confirmed by time-resolved EPR measurements. DAT-4COOH/MEEA in water at 140 K showed similar zero-field splitting parameters and relative zero-field populations to those of DAT in p-terphenyl.


image file: d0cc02258f-f16.tif
Fig. 16 Schematic illustration of aggregation-free dispersion of the ion pair between DAT-4COOH and MEEA for triplet-DNP of crystalline ice. DAT-4COONa aggregates in crystalline ice. Adopted with permission from ref. 121. Copyright 2020 the Royal Society of Chemistry.

The triplet-DNP process was carried out for water doped with DAT-4COOH/MEEA at 140 K and 0.664 T. An enhancement factor of 23 was obtained for the 1H NMR signal of water after the triplet-DNP sequence for 65 min (Fig. 17). Importantly, the long build-up time clearly indicated that the 1H hyperpolarization was accumulated in crystalline ice with a long T1 value.115 The moderate polarization enhancement might be due to the disorder of ice crystals around the DAT-4COOH/MEEA ion pair that induces the relaxation of nuclear polarization. In addition, the quantum yield of triplet formation through ISC was found to be lower than 23% for DAT-4COOH/MEEA in ice at 77 K. While further improvement of the enhancement factor is necessary towards the actual NMR and MRI applications, the first example of triplet-DNP of crystalline water was achieved by molecularly dispersing the water-soluble polarizing agent with the help of a bulky hydrophilic counter cation.


image file: d0cc02258f-f17.tif
Fig. 17 Build-up curve of the 1H NMR signal of DAT-4COOH/MEEA in water at 140 K and 0.664 T. The sweep width of the magnetic field for polarization transfer was ±30 mT. The broken line is a fitting curve with the following equation: A[1 − exp(−t/Tb)]. Adopted with permission from ref. 121. Copyright 2020 the Royal Society of Chemistry.

6. Conclusion and outlook

New possibilities of triplet-DNP have emerged by the recent introduction of materials chemistry. While the significantly high nuclear polarization had been achieved by triplet-DNP of the large single crystal, its application has been limited to nuclear physics experiments. The development of the new materials chemistry concepts overviewed here, such as nanoporous MOFs, nanocrystals, dissolution triplet-DNP, and air-stable and water-soluble polarizing agents, would maximize the potential of triplet-DNP at room temperature under a low magnetic field, paving new ways towards biological and medical applications.

To make triplet-DNP more accessible, nanostructured materials with a large surface area such as nanoporous MOFs and nanocrystals were utilized. These nanomaterials were successfully hyperpolarized by triplet-DNP at room temperature, thanks to the relatively long T1 values of the rigid structures. While the enhancement factor of these nanomaterials needs to be improved, these materials have the potential to achieve unconventional in situ triplet-DNP systems. MOFs are expected to transfer their hyperpolarization to guest target compounds and release hyperpolarized molecules. Based on this hyperpolarization nanospace concept, a continuous supply of a hyperpolarized solution is anticipated (Fig. 18). If the polarization transfer from nanocrystals to surrounding water is successful, in vivo triplet-DNP of biomolecules such as metabolites, lipids, peptides, and proteins through proton exchange with hyperpolarized water becomes reality (Fig. 18).


image file: d0cc02258f-f18.tif
Fig. 18 Schematic illustration of the triplet-DNP research stages toward biological applications. Recently, material development has been reported and researchers engaged in the polarization transfer step. When the polarization transfer step is attained, the way to practical applications, such as in cell NMR and MRI, is opened.

Dissolution triplet-DNP at room temperature has an advantage in terms of instrumental cost compared with the common radical-based dissolution-DNP. Biologically relevant molecules such as benzoic acid and nicotinic acid were hyperpolarized without gyrotron and cryogen. At this moment the successful examples of dissolution triplet-DNP have been limited to benzoic acid and its eutectic mixtures mainly due to the poor dispersibility of pentacene. By combining the recent advances of novel polarizing agents with better solubility and stability, the variety of target compounds would be significantly expanded (Fig. 18).

We envisage that further development of the materials chemistry of triplet-DNP will provide innovative technologies and new sciences. Low-cost room-temperature triplet-DNP instruments may be installed at local hospitals in the future for highly sensitive MRI. The unprecedented polarization enhancement by in vivo triplet-DNP would offer new scientific advancements in the understanding of protein dynamics and metabolic processes. In addition, we see the emergence of a new field of chemistry as a key component in applying quantum physics to biological problems, and we call it quantum bio-chemistry.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was partly supported by the JST-PRESTO program on “Creation of Life Science Basis by Using Quantum Technology” (grant number: JPMJPR18GB), JSPS KAKENHI (grant numbers: JP17H04799, JP16H06513, and JP17J04506), the Nakatani Foundation, the Shinnihon Foundation of Advanced Medical Treatment Research, the RIKEN Cluster for Science, Technology and Innovation Hub (RCSTI), and the RIKEN Pioneering Project “Dynamic Structural Biology”.
