Janus bis(NHCs) tuned by heteroatom-bridge oxidation states

Abstract

Synthesis of the first tricyclic bis(carbenes) with facially opposed imidazole-2-ylidenes and two linking phosphorus centres in different oxidation states is presented using a modular, high-yield synthetic route. The formation of homo bimetallic coinage metal complexes provides a glimpse on their potential use.

---

N-Heterocyclic carbenes (NHCs) I were proposed as transient species more than a half century ago,¹ but it was Arduengo^2a who achieved the breakthrough of synthesizing the first stable cyclic carbene, following closely on the first isolable carbene stabilized by P^III.^2b This achievement initiated an impressive development in imidazole-2-ylidene chemistry (Fig. 1), and beyond.³ More recently, NHC chemistry became sophisticated enough to build ligands possessing structural diversities and catalytic functionalities,⁴ applicable in coordination chemistry,⁵ homogeneous catalysis,⁶ and organocatalysis.⁷ Modification of electronic properties of NHCs, became a primary issue and various concepts were followed, i.e., N-substituent design or annellation with the imidazole ring,⁸ but also to exert electronic influence⁹via NHC backbone substituents.¹⁰

Fig. 1 Mono NHCs I and II, Bielawski bis(NHCs) III and E-bridged bis(NHCs) IV–VI (E = main group element).

In case of the latter, the initial focus was on mono-NHCs bearing substituents derived from heteroatoms such as Cl,¹¹ O,¹² N,¹³ Si,¹⁴ B,¹⁵ and P.¹⁶ In contrast, knowledge about [a,d]benzannulated “ditopic” Janus bis(NHCs) III, first reported by Bielawski et al.¹⁷ remains scarce. Coordination properties were investigated by Peris and used to build novel organometallic architectures.¹⁸ Hahn and co-workers created molecular squares and quadrilaterals in supramolecular assemblies.¹⁹ Mono-NHCs I and flexible bis(NHCs) IV having phosphorus as heteroatom bound to the backbone and possessing different oxidation states were studied,^16,20 but rigid, heteroatom-linked bis(NHCs) such as V and VI (Fig. 1) are almost unknown.^20c This is surprising as the incorporation of hetero-atoms would not just enable unprecedented chemical diversity but also a functional entity that could be redox active and/or possess further, different donor centres. The recent report on tricyclic 1,4-dihydro-1,4-diphosphinines²¹ bearing dithione functionalities constituted an interesting conceptional starting point for the synthesis of P-functional bis(NHCs).

Herein, synthesis of the first tricyclic P^V/V- and P^III/III-bridged bis(imidazole-2-ylidenes) and their use to form dinuclear coinage metal(I) complexes is reported. Structural and electronic properties of the free ligands and their bimetallic complexes are discussed using combined DFT and CV results.

As our initial studies of the oxidative desulfurization of tricyclic 1,4-dihydro-1,4-diphosphinine dithiones failed, we considered synthesizing and employing the corresponding diselones. The tricyclic P^III/III-bridged diselone 1 was obtained as cis/trans mixture (1 : 0.7) in good yields after work-up using previously published protocols.^21,22 In this case we could also separate the cis and trans isomers using low-temperature column chromatography, thus being able to fully characterize 1^cis and, hence, assigning the ³¹P resonance signal at 0.91 ppm to the cis, and at 3.75 ppm to the trans isomer. 1^cis was also structurally confirmed (see ESI†). Starting from 1^cis/trans and using 10 eq. of H₂O₂ in dichloromethane, the isomeric P^V/V-bridged bis(imidazolium) salts (1 : 0.9) were formed via oxidative deselenization,²³ and immediate treatment with BaCl₂·2H₂O led to the chloride salts 2^cis/trans (Scheme 1). The oxidation of the P^III/III to P^V/V centres was revealed by ³¹P resonances of δ = −6.2 (cis) and −5.6 (trans). Formation of the P^V/V bis(imidazolium) derivative 2^cis/trans was confirmed by various analytical methods and an XRD structure (see ESI†).

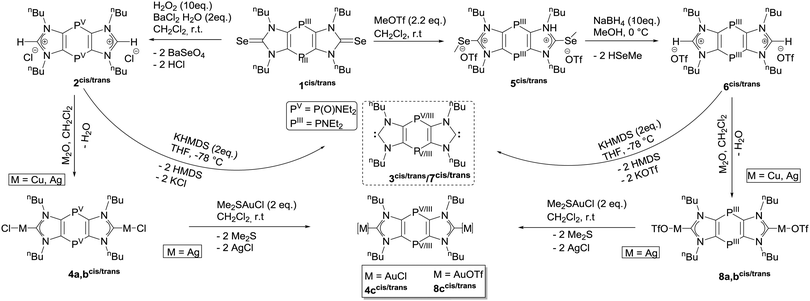

Scheme 1 Synthesis of P^V/V/P^III/III bridged bis(imidazolium) salt 2^cis/trans/6^cis/trans, P^V/V/P^III/III bis(NHC) 3^cis/trans/7^cis/trans and their coinage metal(I) complexes 4a–c^cis/trans/8a–c^cis/trans.

Tricyclic P^V/V-bridged bis(imidazolium) salts 2^cis/trans were converted into P^V/V-bis(NHCs) 3^cis/trans (1 : 0.2) in overall 88% yield by deprotonation using two eq. of KHMDS in THF (Scheme 1). The ³¹P{H} NMR spectrum of 3^cis/trans revealed resonances at −2.4 (cis) and −1.2 (trans) ppm, only slightly downfield shifted compared to 2^cis/trans. The absence of C²-proton resonances in the ¹H NMR spectrum and the typical downfield shift of the C²-carbon resonances at 225.0 ppm¹⁷ in the ¹³C{¹H} NMR spectrum of 3^cis/trans provided firm NMR spectroscopic evidence for the biscarbenes (for further details see ESI†).

The molecular structure of 3^trans (Fig. 2) possesses an N1–C3–N2 bond angle of 102.4(11)°, slightly more acute than in (imidazole-2-ylidenes) I (R = Ad or tBu, 104.4° or 104.8°).²⁴

Fig. 2 Molecular structure of compound 3^trans (ellipsoids at the 50% probability level); hydrogen atoms are omitted for clarity. Selected bond lengths [Å] and angles [°]: C3–N1 1.368(17), C3–N2 1.367(17), N2–C1 1.397(16), N1–C2 1.396(16), C1–C2 1.368(17), C1–P 1.792(13), P–O 1.477(9), P–N3 1.645(11); N1–C3–N2 102.4(11),C1–P–C2¹ 101.1(6).

M06-2X/6-31+G* DFT calculations on 3′^{cis/trans 25} indicate a 0.5 kcal mol⁻¹ preference for the trans isomer. For both isomers (3′^cis/trans), the π-type LUMO (Fig. 4) is delocalized over the central ring and the HOMO (ε = −6.17 eV) for the trans isomer and ε = −6.19 eV for the cis isomer are antibonding combinations of the two weakly coupled (Fig. S55 of the ESI†) in-plane carbene lone pairs (Fig. 4). In accordance with the acute bond angle, they have strong s-character (51.7% at B3LYP/6-31+G**//M06-2X/6-31+G*, comparable to 53.0% in PH₃, see Fig. 4). To assess the stability of the tricyclic carbenes, we investigated the isodesmic reaction: R′R′′C: + CH₄ → R′R′′CH₄ + CH₂ for 3′^cis/trans.²⁶ For (N-methyl)imidazole-2-ylidene, 111.5 kcal mol⁻¹, for 3′^cis 113.3, and for 3′^trans 111.7 kcal mol⁻¹ stabilization was obtained.

The NICS(0) values of the imidazole units are −10.5 for the cis and −10.9 for the trans isomer, indicating slightly reduced aromaticity compared to the parent imidazole-2-ylidene (NICS(0) = −11.3) middle ring is about nonaromatic as indicated by the small positive NICS(0) values (0.5 for 3′^cis and 0.1 for 3′^trans). Also the 89.9(cis) / 94.1(trans) measured ⁷⁷Se chemical shift of derivative 3^cis/trans = Se, is somewhat more negative than for 1,3-diisopropyl-imidazole-2-selone (−3 ppm), and comparable to 1,3-dipp-imidazole-2-selone (87.0 ppm).²⁷

The P^V/V-bridged bis(imidazolium) salts 2^cis/trans reacted in dichloromethane with one eq. of M₂O (M = Cu, Ag) led to P^V/V-bridged bis(NHC complexes) 4a–b^cis/trans while 4c^cis/trans was synthesized by metal exchange reaction with complex 4b^cis/trans. All complexes 4a–c^cis/trans were obtained as white powders and were fully characterized (see ESI† and Table 1). The molecular structure of 4c^trans from XRD (Fig. 3) shows an almost perfect colinear arrangement of the two C²–Au1 bonds of different molecules. The C²–Au1–Cl1 axis seem to deviate only slightly from linearity (cf.ref. 11) and the trans-parallel orientation of two molecules of complex 4c^trans molecules indicate intermolecular aurophilic interactions in the solid state. Similar to the parent system, the trans isomer of the Cu complex 4a′ is calculated (at M06-2X/6-31+G*) to be more stable by 0.4 kcal mol⁻¹, which holds true for all the metal complexes (Cu, Ag and Au).

Table 1 ³¹P{¹H} and ¹³C{¹H} NMR data as well as isomer ratios for 2^cis/trans, 6^cis/trans, 3^cis/trans and 7^cis/trans

	δ(^31P)/ppm (CD2Cl2)	δ(^13C)/ppm (CD2Cl2)^c	Ratio^d
a In case of 3^cis/trans, C6D6. b 7^cis/trans, THF-d8. c C^2 carbon. d (cis/trans) ratios.
2^cis/trans	−6.2 (cis), −5.9 (trans)	146.5 (d, ^3JP,C = 12.8 Hz)	1 : 0.9
6^cis/trans	5.4 (cis), 5.8 (trans)	141.0 (s)	1 : 0.3
3^cis/trans	−2.4 (cis), −1.2 (trans)	225.0 (t, ^3JP,C = 2.7 Hz)	1 : 0.7
7^cis/trans	6.7(cis), 7.0 (trans)	220.2 (t, ^3JP,C = 2.4 Hz)	1 : 0.2

---

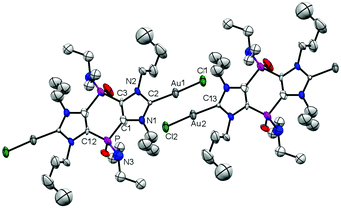

Fig. 3 Molecular structure of compound 4c^trans (ellipsoids at the 50% probability level) and hydrogen atoms are omitted for clarity (see ESI†).

It was obvious that the same protocol could not be used to access free P^III/III-bridged bis(NHCs). Therefore, an initial two-fold Se-methylation of 1^cis/trans was considered.^20a The salt 5^cis/trans was easily obtained (84%, ratio 1 : 0.33) if 2 eq. of trifluoromethyl sulfonate (MeOTf) were used; for further details see ESI.† Subsequent use of 5^cis/trans and 5 eq. of Na[BH₄] in methanol resulted in the formation of P^III/III-bridged bis(imidazolium) salts 6^cis/trans which could be isolated as an orange liquid (61%, 1 : 0.3) and were fully characterized; for selected NMR data, see Table 1.

The facile access to 6^cis/trans prompted us to target the P^III/III-bridged bis(NHC) 7^cis/trans using 2 eq. of KHMDS in THF. The ³¹P{¹H} NMR spectrum of the reaction mixture shows a slight downfield shift for the resonances of the new product 7^cis/trans.

As for 3′^cis/trans the energy difference between the two isomers of 7′^cis/trans is small (0.8 kcal mol⁻¹), however, in case of 7′ the cis isomer is the more stable one. The inversion barrier of the phosphorus is high (44.2 kcal mol⁻¹), thus isomerization cannot be expected at room temperature. The stabilization energy of 7′ (111.1 kcal mol⁻¹ for cis and 109.2 kcal mol⁻¹ for trans) is also close to those of the parent imidazole-2-ylidene and 3′.²⁶ The aromaticity of the imidazole ring decreased somewhat according to the NICS(0) values (−9.2 for cis and −9.5 for trans) compared to 3′^cis/trans (see NICS(1) values in the ESI†). On the other hand the aromatic character of the middle ring increased slightly, which was indicated by the negative (although small) NICS(0) values (−0.5 for 7′^cis and −0.9 for 7′^trans). Oxidation of P^III centers was shown to increase antiaromaticity in phospholes,²⁸ due to the increased involvement of σ* orbitals, which are significantly lower in energy for the P^V system.²⁹ Though the shape and the localization of HOMO and the LUMO of 7′^cis/trans are similar to 3′^cis/trans, their energy levels are somewhat stabilized (see Fig. 4). Interestingly, the stabilization of the LUMO of 3′^cis/trans with respect to 7′^cis/trans has little effect on the electron acceptor property of the NHC since the carbene atoms are not involved in the LUMO.

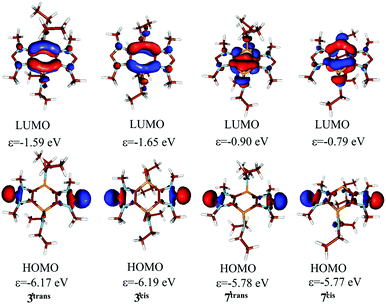

Fig. 4 Kohn–Sham frontier orbitals of 3′ and 7′ and their energies at B3LYP/6-31+G*//M06-2X/6-31+G* level of theory.

Indeed, the 35.9 (cis)/37.9 (trans) ⁷⁷Se chemical shift of 7^cis/trans is closer to that of 1,3-diisopropyl-imidazole-2-selone (−3 ppm), than in case of 3^cis/trans (89.9/94.1 ppm – see above) showing that the P(V) substitution increases somewhat the electron acceptor ability of the carbene; however, still within the known range of imidazole-2-ylidenes.²⁷

To examine the different coordination sites of bis(NHC) 7^cis/trans, reactions with coinage metals were undertaken. Thus, salts 6^cis/trans were treated with M₂O (M = Cu, Ag) which resulted in the clean formation of P^III/III-bridged bis(NHC) complexes 8a–b^cis/trans (Table S2, ESI†). 8c was obtained by metal exchange reaction using dimethyl sulfide gold(I) chloride. From the ³¹P{¹H} NMR spectra of the reaction solutions it became immediately apparent that the strategy was successful and no binding had occurred to the P^III/III centers as their resonance signals just slightly changed compared to 6^cis/trans. The formation of the M–C² bond is in good agreement with the calculated Kohn–Sham orbitals as the lone pairs of the phosphorus do not have any contribution to the HOMO of 7^cis/trans (Fig. 4). The highfield shift of the C² carbon resonances in the ¹³C{¹H} NMR spectra indicate clearly the C² binding of the metal(I) centers and, hence, formation of complexes 8a–c^cis/trans; the latter were also confirmed via pos. and neg. ESI-MS experiments (see also ESI†).

The donor properties of dicarbenes 3^cis/trans and 7^cis/trans were investigated by voltammetry. All undergo facile oxidation processes that are strongly solvent-dependent as noted previously in other cases of mono-NHCs.³⁰ Cyclic voltammograms (CVs) measured on gold ceramic screen printed electrodes display for 3^cis/transE^a_p1 = −0.16 V vs. Fc^+/0 (Fc = ferrocene) in CH₂Cl₂ and −0.45 V in THF and for 7^cis/transE^a_p1 = −0.30; E^c_p1 = −0.42 V; ΔE = 120 mV; E_m = −0.36 V. The return peak is not observed when scanning further positive and all species display multiple oxidations up to the solvent limits. For 7^cis/transE^a_p1 = −0.61 V in THF. There is no evidence of differentiation of the CV peaks between the cis and trans isomers. Cobaltocenium (Cc) in the form of [Cc][PF₆] was a suitable internal standard in CH₂Cl₂. Both the low first and multiple further oxidations are supported by the DFT calculations (high-energy HOMOs with carbene-C δ character and several other occupied orbitals close to the HOMOs). Moreover, the more facile oxidation of 7^cis/trans is in good agreement with the ∼0.4 eV higher computed energy of the HOMOs of 7′^cis/transversus3′^cis/trans.

The first examples of Janus heteroatom-bridged bis-(NHCs) with variable oxidation states of the bridging atoms are reported. The (P^III)₂ bridge induces a more basic carbene center and moreover opens the possibility of exploiting a tetratopic ligand; the latter may also hold for the (P^V)₂ bridged bis(NHC). This multigram synthetic approach may allow for the introduction of other p-block bridging elements to further expand the potential for Janus-type bis(NHC) ligands in coordination chemistry. But it may also stimulate the rapidly developing field of NHC main group element adduct chemistry.³¹

We are grateful to the University of Bonn for financial support. L. N. and R. T. B. are grateful for the Alexander von Humboldt Stiftung for the re-invitation, L. N. for the NKFIH OTKA NN 113772 and R. T. B. to NSERC-Canada.

Conflicts of interest

There are no conflicts of interest.
