Heteroepitaxy of GaP on silicon for efficient and cost-effective photoelectrochemical water splitting

Abstract

Photoelectrochemical production of hydrogen by using sunlight to split water offers a sustainable approach for clean energy generation. III–V semiconductors have shown the highest efficiencies for photoelectrochemical water splitting but the prohibitive cost of commercial single-crystalline GaP wafers limit practical use and large-scale application. Here, we report a high-quality GaP photocathode directly grown on a silicon substrate by solid-source molecular beam epitaxy. The photocathode can be stabilized under acidic electrolyte 1 M HClO₄ (pH 0) by combining an amorphous TiO₂ layer coated with a molybdenum sulphide MoS₂ hydrogen evolution catalyst by atomic layer deposition (ALD). Under simulated AM 1.5G solar illumination, the Si/GaP photocathode yielded a maximum photocurrent density of 0.95 (mA cm⁻²) with a proton reduction onset potential of 467 mV versus the reversible hydrogen electrode. The average faradaic efficiency of the Si/GaP photocathode was measured to be over 73.4 ± 20.2% for over 100 minutes. The photoelectrochemical studies for the Si/GaP photocathode show the potential for widespread deployment of cost-effective photoelectrodes for hydrogen generation.

---

Introduction

Photoelectrochemical water splitting is a promising and sustainable approach for clean energy generation by using sunlight to simultaneously generate hydrogen (H₂) and oxygen (O₂).^1–3 Based on the free energy required to split water, a semiconductor must have a sufficient energy bandgap greater than 1.23 eV and suitable band edges that straddle the redox potentials for water splitting.^4,5 Recent studies of solar hydrogen technologies show that the cost of hydrogen production can be reduced by decreasing the cost of photoelectrodes combined with enhancing their efficiencies.^6–8 However, the development of low cost, efficient, and stable semiconductor photoelectrodes is still a great challenge. For instance, wide bandgap metal-oxides, such as TiO₂ and SrTiO₃, absorb a small part of the solar spectrum and therefore only low solar-to-hydrogen (STH) conversion efficiency can be achieved.^9,10 On the other hand, group III–V semiconductors are efficient photoelectrodes for PEC water splitting owing to their superior optical properties and appropriate band gaps in the visible range, but their performance over time is limited by photocorrosion in alkaline or acidic electrolytes.^11–14 Importantly, the relatively high cost of III–V materials can not meet the demands for large-scale hydrogen production. III–V semiconductors are generally grown on native III–V substrates, which are a few orders of magnitude more expensive than silicon substrates. Given the dominant role of Si in the photovoltaic industry and possibility for III–V/Si tandem PEC cells, hetero-integration of III–V semiconductors and Si is an attractive approach for cost-effective and efficient PEC cells.

A silicon substrate is not typically used for heteroepitaxy of III–V semiconductors due to the lattice mismatch and incompatible thermal expansion coefficients, which leads to a high density of threading dislocations. Recently, some III–V semiconductors, such as gallium phosphide (GaP), have been shown to overcome these obstacles due to the low lattice mismatch between GaP and Si (0.36% at room temperature).¹⁵ Furthermore, GaP is an attractive photocathode for PEC water splitting due to a high conduction band energy and a suitable band gap (2.25 eV), which can provide a maximum photocurrent density of 10 (mA cm⁻²) under one sun solar illumination.¹⁶ In particular, a few studies on GaP photocathodes and photoanodes have been carried out.^14,17–19 For example, a GaP photocathode has shown a high open circuit voltage of 710 mV versus reversible hydrogen electrode (RHE) when using it in a heterojunction with a n-TiO₂ layer in an acidic aqueous solution under one sun illumination.¹⁷ Distinct improvements in the performance of GaP photocathodes have also been shown by using Pt-modified GaP nanowires (NWs) grown on commercial single-crystalline GaP wafers.¹⁴ In spite of the relatively high performance, prior work on GaP photocathodes has primarily focused on commercial single-crystal wafers, which limits the practical use due to their prohibitive cost. In this work, a high-quality GaP photocathode is directly grown on a silicon substrate by solid-source molecular beam epitaxy (MBE). Under one sun illumination, the GaP photocathode on Si shows a high photocurrent density of 0.95 (mA cm⁻²) and onset potential of 0.467 V, respectively. Furthermore, with an amorphous TiO₂ protection layer and MoS₂ catalysts, the GaP photocathode shows the addition of high stability for 3 h under continuous simulated solar light illumination in aqueous solution HClO₄ (pH 0). The faradaic efficiency of the Si/GaP photocathode averages over 73.4 ± 20.2% for over 100 minutes, which is closely comparable to that of a GaP photocathode on commercial single-crystalline substrate. Both the good efficiency and stability of the Si/GaP photocathodes confirm the advantages of the hetero-integrated III–V/Si system.

Results and discussion

Heteroepitaxy and photoelectrochemical behavior of GaP on Si

In this work, GaP thin films were directly grown on silicon substrates by molecular beam epitaxy. Fig. 1a shows a cross-sectional transmission electron microscopy (TEM) image of the Si/GaP interface. A sharp interface with no antiphase boundary was observed. An atomic force microscopy (AFM) image of the GaP film grown on a silicon substrate is shown in Fig. 1b. The AFM image shows a very flat surface with a root mean square roughness as low as 0.39 nm. A large-scale AFM image also confirms that the GaP film is highly smooth and free of APDs, as shown in ESI Fig. S1.† A cross-sectional scanning TEM image of the Si/GaP heterostructure over a large area at low magnification is shown in Fig. 1c. Although a high density of threading dislocations was generated at the Si/GaP interface, only a small number of dislocations propagated towards the upper part of the GaP film. The threading dislocation density in the upper GaP layer is estimated to be only ∼1–3 × 10⁶ cm⁻² by TEM measurements, despite no dislocation filter layers being used in the buffer. This value is in agreement with the pit density measured from a 10 μm × 10 μm AFM image (ESI Fig. S2†).

Fig. 1 (a) Cross-sectional HRTEM image of the Si/GaP interface. The scale bar is 5 nm. (b) Atomic force microscopy image shows very low surface roughness. The scale bar is 200 nm and the Z-scale is 3 nm. (c) High-angle annular dark-field (HAADF) STEM image of the GaP epilayer grown on a Si substrate. The scale bar is 2 μm. (d) X-ray diffraction of the GaP film grown on a Si substrate. (e) Photoluminescence spectra of a GaP wafer (black curve) and the GaP film (red curve) grown directly on a Si substrate at room temperature.

Symmetric (004) X-ray ω–2θ scans of the GaP film grown on Si were performed. Fig. 1d shows the ω–2θ curves for the Si (004) and GaP (004) reflections, respectively. The GaP (004) peak shows a full width at half maximum (FWHM) as narrow as 162 arcsec. The FWHM is directly related to the dislocation density, and the low value of the FWHM indicates a low density of dislocations. The optical properties of a single-crystalline GaP wafer (black curve) and the GaP film grown directly on Si substrate (red curve) were further studied using photoluminescence (PL) spectroscopy, as shown in Fig. 1f. Similar to the GaP wafer, the broad PL peak of the Si/GaP film can be fitted with two peaks (ESI Fig. S3†). The primary emission peaks for both the GaP wafer and the Si/GaP film were located at approximately ∼600 nm (2.1 eV), which corresponds to the emission from dopant states close to the band edge.²⁰ A weak peak was observed at around 550 nm (2.25 eV), which matches the primary indirect energy gap of GaP. The Si/GaP film remains about 50% of the PL intensity for the peak at 600 nm and nearly unchanged PL intensity at 550 nm, compared with the single-crystalline GaP wafer. The reduced PL at 600 nm of the Si/GaP sample maybe due to a lower doping concentration in the GaP film grown on Si. On the other hand, the nearly unchanged emission intensity at 550 nm indicates the good optical properties of the Si/GaP film.

Photoelectrochemical performance of GaP photocathodes on Si

It is commonly known that III–V semiconductors, e.g. GaP, are readily susceptible to corrosion in aqueous solution during PEC water splitting.^{11,14,17–19} Therefore, it is important to have a suitable protection layer as well as a catalyst to accelerate the charge transfer to the semiconductor/electrolyte interface, which reduces photocorrosion and surface recombination.²¹ In previous studies have shown that amorphous leaky titanium dioxide (TiO₂) film grown by atomic layer deposition (ALD) to protect photoelectrodes (e.g. photocathode and photoanode) because it provides a favorable surface energy band bending, allowing for electrons transfer to electrolyte.^{11,12,17,22–24} Therefore, in this study, a 10 nm amorphous TiO₂ thin film was deposited by ALD onto the Si/GaP photocathode surface and a p-type single-crystalline GaP reference photocathode, respectively. The TiO₂ layer is used as a protective layer to prevent photocorrosion of the GaP absorber during the PEC test. In addition, Pt was deposited into the surfaces of both GaP photocathodes as an efficient catalyst for the hydrogen evolution reaction (HER) to enhance PEC hydrogen production as shown in Fig. 2a. Both the cross-sectional scanning TEM (STEM) image and energy dispersive X-ray spectroscopy (EDS) mapping show a well-defined amorphous TiO₂ layer deposited onto the GaP surface (Fig. 2b and ESI Fig. S4 and S5†). The STEM and EDS measurements also confirm a 10 nm thick Pt co-catalyst layer deposited by sputtering onto the TiO₂ protection layers of the GaP-on-Si photocathode and the single-crystalline GaP reference photocathode. The two photocathodes are denoted as Si/GaP–TiO₂–Pt and GaP–TiO₂–Pt. Both photocathodes were measured by linear sweep voltammetry scanning in 1 M HClO₄ electrolyte (pH 0) under one sun irradiation for photoelectrochemical water splitting. Detailed description for all materials and measurements used in this study are giving in the Experimental section.

Fig. 2 Structural, chemical profiling of the Si/GaP–TiO₂–Pt photocathode, and PEC measurements. (a) Cross-sectional STEM image Si/GaP–TiO₂–Pt photocathode (scale bar 20 nm). (b) Energy Dispersive X-ray Spectroscopy (EDS) mapping shows the individual layer thickness associated with the Ti, O, Ga, P, and Pt elements (scale bar 20 nm). (c) Photocurrent density–potential (J–V) curves (scan rate is 50 mV s⁻¹) of GaP–TiO₂–Pt (red line) and Si/GaP–TiO₂–Pt (blue line) photocathodes in 1 M HClO₄ under one sun illumination. (d) Incident photon-to-current conversion efficiency (IPCE) of GaP–TiO₂–Pt (red line) and Si/GaP–TiO₂–Pt (blue line) photocathodes in 1 M HClO₄ at −0.8 V versus RHE.

The photocurrent density (J) versus potential (V) for the GaP photocathodes are shown in Fig. 2c. Under one sun AM 1.5G illumination, the Si/GaP–TiO₂–Pt photocathode shows a saturated photocurrent density of 0.96 (mA cm⁻²) at −0.80 V versus reversible hydrogen electrode (RHE) and onset potential of approximately 0.477 V versus RHE. In comparison, the GaP–TiO₂–Pt reference photocathode showed a saturated photocurrent of 1.74 (mA cm⁻²) at −0.80 V versus RHE with an onset potential at 0.487 V versus RHE. The incident photon-to-current conversion efficiency (IPCE) was evaluated for the GaP photocathodes at −0.80 V versus RHE, as shown in Fig. 2d. The IPCE values of the Si/GaP–TiO₂–Pt and GaP–TiO₂–Pt photocathodes are 18.3% and 36.2% at 400 nm, respectively. The reduced IPCE for the Si/GaP–TiO₂–Pt photocathode is due to a lower electron diffusion length in the GaP film on Si, which is in agreement with the J–V measurements. In the range 450–500 nm, the IPCE of both photocathodes drops sharply due to the weak absorption in indirect bandgap GaP (∼2.26 eV). The slightly reduced onset potential of the Si/GaP–TiO₂–Pt photocathode compared to that of the GaP reference photocathode is attributed to the observable crystal defects such as threading dislocations. Nonetheless, the penalty paid to reduce the cost is minor; the reduction in onset potential is only 10 mV and the photocurrent density remains about 55.2% of that of the photocathode reference. Further optimization of growth conditions, e.g. using dislocation filter layers, may lead to further reduction of defects and improvements to the photocathode performance.

Structural modification of GaP with MoS₂ co-catalyst

Earth-abundant catalysts such as molybdenum sulphide (MoS₂) are promising alternatives to precious metals such as platinum, ruthenium, and iridium. Moreover, MoS₂ has shown a high activity for hydrogen evolution reaction in strong acid conditions.^21,25 Therefore, to demonstrate the potential for further cost reduction, TiO₂ and MoS₂ thin layers were deposited by ALD onto the Si/GaP photocathode and single-crystalline GaP reference photocathode as the surface protection layer and co-catalyst layer, respectively, as described in the Methods section. The two new photocathodes based on the Si/GaP and single-crystalline GaP reference photocathodes are denoted as Si/GaP–TiO₂–MoS₂ and GaP–TiO₂–MoS₂, respectively. The structural properties of the MoS₂ modified surface were analysed by STEM and EDS, as shown in Fig. 3a. The cross-sectional STEM images of the GaP–TiO₂–MoS₂ interfaces show well-defined junctions between the layers (ESI Fig. S6†). The individual layers are also well resolved from the EDS mapping in Fig. 3b, indicating good layer compactness and little intermixing at the interface. Compared with the Pt layer, the MoS₂ is not as dense but thicker with a larger surface area. The MoS₂ layer was about 20 nm thick and consisted of needle-like features protruding from the flat and uniform TiO₂ layer. As shown in Fig. 3b and ESI Fig. S7,† the corresponding EDS mapping and line-profiling graph also provides quantitative evidence for the composition of the individual layers as well as their thickness (20 nm MoS₂ and 10 nm TiO₂).

Fig. 3 Structural, chemical profiling of the Si/GaP–TiO₂–MoS₂ photocathode, and PEC measurements. (a) Cross-sectional STEM image Si/GaP–TiO₂–MoS₂ photocathode (scale bar 20 nm). (b) EDS line profiling coupled with spectral component matching and the mapping shows the individual layer thickness associated with the Ti, O, Ga, P, Mo, and S elements (scale bar 20 nm). (c) Photocurrent density–potential (J–V) curves (scan rate is 50 mV s⁻¹) of GaP–TiO₂–Pt (red line), Si/GaP–TiO₂–Pt (blue line), Si/GaP–TiO₂–MoS₂ (green line), and GaP–TiO₂–MoS₂ (black line) photocathodes in 1 M HClO₄ under one sun illumination. (d) Incident photon-to-current conversion efficiency (IPCE) of GaP–TiO₂–Pt (red line), Si/GaP–TiO₂–Pt (blue line), Si/GaP–TiO₂–MoS₂ (green line), and GaP–TiO₂–MoS₂ (black line) photocathodes in 1 M HClO₄ at −0.8 V versus RHE. Faradaic efficiency of H₂ production measured with a Clark H₂ sensor in a gas-tight 3-electrode photoelectrochemical cell under illumination and constant potential. (e) FE of the Si/GaP–TiO₂–MoS₂ photoelectrode held at −0.39 V vs. RHE. (f) FE of the GaP–TiO₂–Pt photoelectrode held at −0.09 V vs. RHE.

As shown in Fig. 3c, the Si/GaP–TiO₂–MoS₂ photocathode exhibited a photocurrent onset potential of 0.46 V versus RHE and a saturated photocurrent density of 0.95 mA cm⁻². In contrast, the MoS₂-modified GaP reference photocathode has an onset potential of about 0.657 V versus RHE and saturated photocurrent density of 1.53 mA cm⁻². As shown in Fig. 3d, the incident photon-to-current efficiency (IPCE) at 400 nm was 34.1% for the GaP–TiO₂–MoS₂ photoelectrode and 23.8% for Si/GaP–TiO₂–MoS₂. The IPCE of all photocathodes decrease towards longer wavelengths (>550 nm). Again, by using MoS₂ co-catalyst instead of Pt co-catalyst, the performance of the GaP photocathode grown on Si substrate is still remarkable, with comparable onset potential photocurrent density compared to the state-of-the-art GaP photocathodes.^17–19,26 More importantly, GaP photocathodes grown on Si substrates with low-cost co-catalysts show a promising approach towards cost-effective hydrogen generation. To gain further insight into the PEC performance of the Si/GaP–TiO₂–MoS₂ photocathode, hydrogen production for both photocathodes was measured over 100 min by chronoamperometry under illumination in a gas-tight photoelectrode cell using a Clark electrode sensor (ESI Fig. S8 and S9†). As shown in Fig. 3e, the Si/GaP–TiO₂–MoS₂ reached a calculated faradaic efficiency (FE) of 73.4 ± 20.2% after a ∼25 min induction period (ESI Fig. S10†). Fig. 3f shows that the GaP–TiO₂–Pt photocathode reached a FE of 105.4 ± 8.7% after a much longer induction period of 90 min (ESI Fig. S10†). Part of the initially lower FE might be due to a delay in equilibration of the H₂ concentration in solution and gas phases. Note that the Clark sensor was positioned in the gas phase. Another delay might have been caused by an activation time of the catalyst layers. The measurements were set at a constant potential, and the ‘noisy’ photocurrent and H₂ production in Fig. 3e and f originate from accumulation of gas bubbles at the photocathode surface and sequentially sudden release of gas bubbles (ESI Fig. S11†).

GaP photocathodes stability

The stability of GaP photocathodes was evaluated for hydrogen evolution under one sun AM1.5 simulated solar illumination, as shown in Fig. 4a and b. These electrodes are configured with a constant potential controlled at zero V versus RHE in HClO₄ (pH 0) electrolyte. As shown in Fig. 4a, for the initial stability of the electrodes evaluated, all the photocathodes exhibited rather good stability of photocurrents over the first 30 min (Fig. 4a). However, for the GaP photocathodes with Pt co-catalysts, both Si/GaP–TiO₂–Pt and GaP–TiO₂–Pt photoelectrode already exhibited some photocurrent decay, which may be attributed to removal of Pt catalyst from the surface. Long-term stability of all photocathodes were measured at 0 V versus RHE for 3 h, as shown in Fig. 4b. The photocurrent density of the Si/GaP–TiO₂–MoS₂ photocathode is stable at −0.89 mA cm⁻² for 3 h under continuous simulated solar light illumination, which is attributed to the high activity MoS₂ for hydrogen evolution reaction in strong acidic conditions. On the contrary, the photocurrent density for Pt-modified GaP photocathodes, both Si/GaP–TiO₂–Pt and GaP–TiO₂–Pt, gradually dropped from 1.4 mA cm⁻² to 0.8 mA cm⁻² and from 0.6 mA cm⁻² to 0.48 mA cm⁻² respectively, which is attributed to the failure of the TiO₂ protection layer and significant photocorrosion of the electrode due to possible removal of Pt catalysts from the surface.

Fig. 4 (a) Photoelectrochemical stability measurements of a various GaP photocathodes for 30 min photocurrent density–time (J–t) plots held at 0 V versus RHE in in 1 M HClO₄ under one sun illumination. (b) Photoelectrochemical long stability measurements of a various GaP photocathodes for 3 h held at 0 V versus RHE in 1 M HClO₄ under 1 sun illumination. SEM images of the photoelectrodes after reliability test (>3 h). (c) Si/GaP–TiO₂–MoS₂ and (d) Si/GaP–TiO₂–Pt (scale bar 20 μm). AFM surface morphology the photoelectrodes after reliability test (>3 h). (e) Si/GaP–TiO₂–MoS₂ and (f) Si/GaP–TiO₂–Pt.

To compare the degree of photocorrosion of two GaP photocathodes grown on Si substrates, the surface morphology was studied by SEM, as shown in Fig. 4c and d. The SEM images of the surfaces of the MoS₂-modified GaP and Pt-modified GaP photocathodes show distinct differences in morphology after the stability test. Both photocathodes show some pits on the surface indicating photocorrosion, however, the MoS₂-modified surface shows fewer surface pits compare to the Pt-modified surface. The pits also appear to be more elongated and deeper on the Pt-modified GaP surface, suggesting severe photocorrosion (ESI Fig. S12†). AFM images of both photocathodes after stability testing are shown in Fig. 4e and f. The surface roughness of the Pt-modified electrode is significantly worse than that of the MoS₂-modified electrode. The Z-scales of the AFM images in Fig. 4e and f are 30 nm and 800 nm, respectively, and the RMS roughness of the Pt-modified GaP electrode measured over a 20 μm × 20 μm area is over one order of magnitude higher than that of the MoS₂-modified electrode (ESI Fig. S13†). Additionally, the pit depth on the MoS₂-modified electrode is only about 30 nm while it can be over 500 nm on the Pt-modified GaP surface, confirming distinct improvement in stability using MoS₂ co-catalysts (ESI Fig. S13†).

X-ray photoelectron spectroscopy (XPS) was performed to determine the surface composition and chemical state of the Si/GaP photocathodes, as shown in Fig. 5. Before PEC testing of the Si/GaP–TiO₂–MoS₂ photocathode, only peaks for Mo, S, and O were seen as expected due to the MoS₂ overlayer (Fig. 5a–d). The deconvolution of the Mo 3d peaks produced two sets of doublets, with the primary Mo 3d_5/2 peak centred at 229.0 eV and corresponding to Mo⁴⁺ associated with MoS₂. The secondary 3d_5/2 peak was centred at 230.9 eV and belongs to Mo⁴⁺ and is ascribed to surface oxidation. The S 2p region showed an overlapping doublet separated by 1.16 eV with the 2p_3/2 peak at 162.1 eV corresponding to MoS₂. After PEC analysis, MoS₂ still remained on the surface. Similar to the spectra before PEC testing, Mo 3d_5/2 peaks were observed at 228.7 eV (Mo⁴⁺, Mo–S) and 230.0 eV (Mo⁴⁺, Mo–O) with an S 2p_3/2 peak observed at 161.7 eV (S²⁻, S–Mo). Due to the robust nature of the MoS₂ layer, no signals were observed for Ti, Ga and P. The surface composition and chemical state of the Si/GaP–TiO₂–Pt photocathode are shown in Fig. 5e–h. Before PEC test, peaks were only observed for Pt 4f with no signals being seen for Ti, O, Ga and P. This is expected due to the dense nature of the Pt surface layer. The Pt 4f doublet was deconvoluted using an asymmetric line shape to give the Pt 4f_7/2 peak centre at 71.0 eV corresponding to metallic Pt. After PEC test, no Pt peaks was seen suggesting complete degradation of the metallic layer in the acidic solution. Surprisingly, no Ti was observed suggesting that the TiO₂ layer was also degraded. An oxygen signal was see observed, but this is thought to be due to the surface oxidation of Ga in the GaP. The Ga 2p_3/2 peak was centred at 1117.7 eV corresponding to Ga in the 3+ oxidation state. For P 2p, two sets of doublets were observed, with one 2p_3/2 at 129.0 eV that belongs to P in the 3-state bound to Ga while a smaller transition at 133.1 eV corresponds to 5+ oxidation state that belongs to the metal phosphate form. In the end, the MoS₂-modified the GaP photocathode grown on Si substrate shows no change in the surface and composition from SEM and XPS.

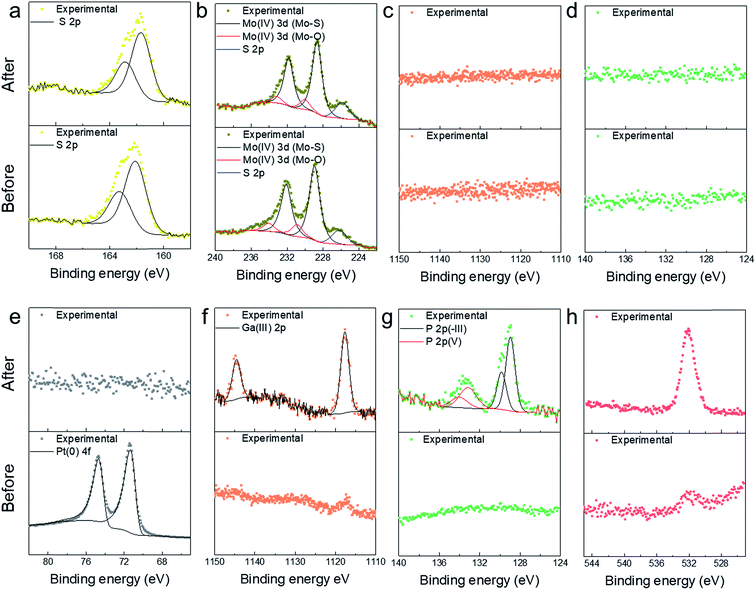

Fig. 5 (a–d) XPS measurements of the Si/GaP–TiO₂–MoS₂ photocathode before (bottom column) and after (top column) the photoelectrochemical stability measurement. Before testing, the structure contains Mo 3d and 2p corresponding to MoS₂. There is no presence of Ga or P peaks before testing. After testing, the composition and chemical state remain very similar. There is still no presence of Ga and P peaks after testing, as shown in (c) and (d). (e–h) XPS measurements of the Si/GaP–TiO₂–Pt photocathode before (bottom column) and after (top column) the photoelectrochemical stability measurement. Before testing, the surface contains Pt 4f, corresponding to Pt. There is no presence of Ga and P peaks before testing. After testing, Pt peak is no longer present, and this indicates the complete removal of Pt catalyst. Ga and P peaks clear appear after testing, as shown in (f) and (g). A peak corresponding to O 1s also becomes more dominant but no Ti peak remains observable after testing, confirming the removal of the Pt catalyst layer and TiO₂ protection layer.

Conclusions

In conclusion, we have demonstrated the hetero-integration of a high-quality GaP thin film on a silicon substrate by molecular beam epitaxy. Despite some performance penalty, the GaP-on-Si photocathode, along with an earth-abundant MoS₂ co-catalyst, shows great promise in reducing the cost of photocathodes based on GaP for hydrogen production. Additionally, the Si/GaP–TiO₂–MoS₂ photocathode exhibited a high stability for 3 h under continuous simulated solar light illumination at HClO₄ (pH 0), exceeding that of the Pt-modified GaP photocathode. The high stability and cost-effective GaP photocathode grown on Si substrate without the use of noble metal HER catalysts are promising for low-cost, high efficiency, and stable PEC water splitting devices.

Experimental section

MBE growth

GaP thin films were directly grown on silicon substrates by a solid-source Veeco Gen 930 molecular beam epitaxy system. Phosphorus-doped Si (100) wafers with 4° offcut to the [011] plane were used for the heteroepitaxy. Prior to epitaxy growth, the wafers were thermally annealed at 900 °C for five min to remove the silicon native oxide and form double atomic steps on silicon surface to avoid the formation of antiphase domains (APDs). After high temperature thermal treatment of the substrates, a 5 nm GaP nucleation layer was deposited by migration enhanced epitaxy at a low growth temperature of 440 °C. Fig. 1a shows a cross-sectional transmission electron microscopy (TEM) image of the Si/GaP interface. A sharp interface with no antiphase boundary was observed. Two layers of low temperature GaP were then grown at 440 °C, 500 °C for 20 nm and 100 nm, respectively. Finally, a 4 μm p-doped GaP layer was grown at 580 °C.

Fabrication of GaP photocathodes

For single-crystalline reference GaP photocathode, Ti/Au (50/100 nm) metals were deposited on the back side of the GaP sample by thermal evaporation as a metal electrode to collecting holes generated from the photoelectrode. The contact metals were alloyed at 400 °C for 10 s by rapid thermal annealing to form a good ohmic contact. The GaP photocathode grown on Si substrate was fabricated by etching down the GaP top layer on the side and depositing Ti/Au (50/100 nm) metals on the exposed GaP bottom layer. Before the PEC experiments, the electrodes were attached by a copper wire using silver paste and covered by insulating epoxy.

Photoelectrochemical measurement

The photoelectrochemical performance of all p-GaP photocathodes was evaluated in a three-electrode configuration in 1 M perchloric acid HClO₄ (pH 0) including the working electrodes, silver/silver chloride (Ag/AgCl) as reference electrode, and a Pt coil as counter electrode without any sacrificial agent. A 200 W Xe arc lamp (66477-200HXF-R1 Mercury-Xenon) was used as a light source with AM 1.5G filter to one sun based on the AM 1.5G standard. The illumination intensity was calibrated using a silicon reference cell with a power meter (Thorlabs, Model PM100A). The measured potentials vs. the Ag/AgCl were converted to the reversible hydrogen electrode (RHE) scale using the following equation:

V_RHE = V_Ag/Agcl + 0.059 × pH + V⁰_Ag/Agcl

where V_Ag/Agcl the potential is experimentally measured vs. Ag/AgCl reference electrode, and V⁰_Ag/Agcl is the standard potential of Ag/AgCl at 25 °C (0.1976 V vs. RHE). Before PEC experiments, the electrolyte was purged by Ar for 30 min. All linear sweep voltammetry measurements with a scan rate of 50 mV s⁻¹ was performed under both dark and illumination conditions using Ivium CompactStat. The incident photon-to-current conversion efficiency (IPCE) measurement at each wavelength for photocathodes was measured using the same three-electrode setup equipped with a monochromator at −0.80 V versus (RHE).

Hydrogen measurements

Hydrogen was detected in the gas phase using a Clark electrode (Unisense, Denmark) while the photoelectrode was held at a constant potential and 1 sun illumination in a gas-tight photoelectrochemical (PEC) cell consisting of the GaP working electrode, a Ag/AgCl (sat'd KCl) reference electrode and a Pt mesh counter electrode immersed in 0.1 M H₂SO₄ (pH 1.1) (ESI Fig. S7†). Prior to gas measurements the PEC cell was purged with nitrogen (99.999% pure, BOC) such that the oxygen sensor (Unisense, Denmark) showed a sufficiently low voltage indicative of only trace amounts. Then the N₂ flow was cut, the cell sealed and after 5 minutes the chronoamperometric measurement under illumination started. After the H₂ measurement, a calibration of the Clark electrode was carried out injecting known volumes of H₂ into the same PEC reactor using a gas-tight syringe. The faradaic efficiency (FE) was calculated according to FE = nNF/Q where n is the number of moles H₂, N is the number of electrons in the reaction (= 2 for proton reduction), F is the faradaic constant (= 96 485 C mol⁻¹) and Q is the charge passed through the working electrode (calculated from the current produced in the chronoamperometry measurement).

Atomic layer deposition of TiO₂

Atomic layer deposition of amorphous TiO₂ thin films on Si/GaP substrate was obtained by a home built ALD system using titanium isopropoxide (TTIP) as metal precursor and water as precursor.²⁷ TTIP was kept at room temperature (25 °C) while water was kept at 5 °C. The deposition temperature was maintained to 150 °C. Each ALD cycle consisted of a 2 s TTIP pulse, a 1 min argon purge, then followed by a 2 s water pulse and a 3 min argon purge. The gas flow rate was set to 70 standard cubic centimetres per minute (sccm). The growth rate of ALD process through this system was approximately 0.4 Å per cycle.

Atomic layer deposition of MoS₂

The MoS₂ layer was also deposited by ALD system using MoCl₅ and H₂S mixed gas (4 mol%, with N₂ gas) as molybdenum and sulfur precursor, respectively. MoCl₅ was kept at 70 °C and injected with Ar (50 sccm) carrier gas. H₂S mixed gas was injected with a flow rate of 30 sccm without carrier gas. Each ALD cycle consisted of 0.2 s MoCl₅ pulse and 0.2 s H₂S pulse separated by 15 s of Ar purge step. Deposition temperature was kept at 250 °C and the growth rate was approximately 0.6–0.7 Å per cycle.

Sputtering of platinum

Platinum catalysts were deposited using a sputter deposition system with a background pressure below 5 × 10⁻⁸ Torr. Deposition conditions were as follows: power 75 W, target voltage 436 V, and 4 target current 0.15 A. The growth rate was 4 nm min⁻¹.

Material characterization

For cross-sectional TEM imaging of the thick GaP structures on Si, samples were prepared using mechanical polishing followed by ion-milling in a Fischione 1010 ion mill. An FEI Titan 80-300S TEM at 300 kV, fitted with a CEOS image corrector, was used to perform the observations. The high-resolution scanning TEM (STEM) images of the surface protection layer and catalysts were obtained using a Hitachi HD2700 TEM operated at 200 kV in bright field modes. Energy Dispersive X-ray Spectroscopy (EDS) data was acquired a Bruker Quantax system. The STEM sample was prepared by FEI FIB200 focused ion beam and thinned to electron transparency. Scanning electron microscopy (SEM) analysis was carried out using a Hitachi S-4800 SEM at 3 kV accelerating voltage. The AFM images were acquired with a Vecco Dimension V Scanning Probe Microscope with tapping mode at atmospheric pressure with a Si cantilever with 10 nm of radius. X-ray Photoelectron Spectroscopy (XPS) measurements were performed with a Thermo monochromated aluminium k-alfa photoelectron spectrometer, using monochromic Al-Kα radiation (1486.7 eV). Survey scans were collected in the range of 0–1300 eV. High resolution peaks were used for the principal peaks of Ga, P, Ti, O, Mo, S, and Pt. The area underneath these bands is an indication of the concentration of element within the region of analysis (spot size 400 μm). Data was analysed with CasaXPS software.
