Metal–organic framework-derived CeO₂–ZnO catalysts for C₃H₆-SCR of NO: an in situ DRIFTS study

Abstract

Metal–organic framework (MOF)-based derivatives have attracted an increasing interest in various research fields. Here, we synthesized CeO₂–ZnO catalysts through the complete thermal decomposition of the Ce/MOF-5 precursor. The catalysts were characterized using XRD, FTIR, TG-DSC, SEM and H₂-TPR. It is found that the as-prepared CeO₂–ZnO is favorable for strengthening the interaction between Ce⁴⁺ and Zn²⁺. A significant improvement in the catalytic performance for C₃H₆-SCR of NO was found over the Ce-doped catalysts with the highest N₂ yield of 69.1% achieved over 5% CeO₂–ZnO. In situ DRIFTS and NO-TPD experiments demonstrated the formation of monodentate nitrates, bidentate nitrates, chelating nitrite, nitro compounds, nitrosyl and C_xH_yO_z species (enolic species and acetate) on the surface, followed by the formation of hydrocarbonate or carbonate as intermediates to directly generate N₂, CO₂ and H₂O.

---

1. Introduction

It is particularly notorious that the sheer quantity of gasoline and diesel powered vehicles grows with each passing day. The nitrogen oxides (NO_x) from automobile exhaust gases have aroused significant concern among the public and government officials because these gases can cause a great threat to the environment and public health, including the greenhouse effect, acidification, photochemical smog, and ozone depletion.^1,2 Owing to the ground-breaking work of Iwamoto et al., hydrocarbon-selective catalytic reduction (HC-SCR) has become a promising technology for clearing NO_x away from the automobile exhausts, taking into account the cost and gas components, as well as the hydrocarbons coexisting with NO in the exhaust streams.^3,4 Different kinds of hydrocarbons have been employed to improve the performance of HC-SCR, including propene,⁵ methane,⁶ ethanol,⁷ ethylene,⁸ and propane.⁹ More importantly, catalysts are the core of this catalytic technology. Thus, huge efforts are dedicated to develop catalysts by both the academic community and catalyst manufacturers.

Metal–organic frameworks (MOFs) are a kind of crystalline porous materials with a periodic network structure formed by the self-assembly of inorganic metals (metal ions or clusters) and bridged organic ligands.^10–14 On account of their low-density structures, tunable cavities, high surface area, tailorable chemistry and facile synthesis,^10,11 MOFs are good candidates for applications in gas separation and storage, as well as catalysis.^12–14 Recently, researchers gradually shifted their focus from MOFs to MOF derivatives.^15,16 During the calcination process, MOFs are completely decomposed and gradually converted to metal oxides from the outer to inner part. Small cavities and open channels within the MOF-derived metal oxides provide pathways for the reactant species to diffuse in and out, thus enabling these metal oxides to be suitable candidates for catalysts or catalyst supports. By way of illustration, Ce–MOF was used to prepare the CeO₂ catalyst for toluene combustion,¹⁶ and Cu-based MOFs were applied as the precursors to attain carbon-based catalysts for low-temperature DeNO_x.¹⁵ Therefore, the development of efficient functional MOF-derived metal oxides for further exploration of their practical applications has great significance.¹⁷ More importantly, the composite materials usually exhibit excellent performances for environmental catalytic reactions. For example, Yang et al. prepared different functional composites and studied their outstanding performance of catalytic oxidative desulfurization and atrazine degradation.^18,19

Cerium oxide is an extensively used promoter or catalyst support for the SCR reaction due to its superior oxygen storage capability and excellent redox properties.¹⁵ The oxygen vacancies are produced during the electron transfer between Ce³⁺ and Ce⁴⁺. The reduction of Ce⁴⁺ to Ce³⁺ and enhanced oxygen transfer could facilitate the oxidation process of NO to NO₂, leading to excellent HC-SCR performance.²⁰ In addition, it can not only highly disperse the metals but also strengthen the thermal stability in reaction with other metal oxides.²¹

In the present study, we synthesized ZnO and CeO₂–ZnO catalysts through the complete thermal decomposition of MOF-5 and Ce/MOF-5 precursor, and then compared their activity in HC-SCR. C₃H₆ was used as the reducing agent due to it being the major hydrocarbon component during the process of automobile exhaust emissions. First, the crystal structure, morphology and textural properties of the samples were investigated via XRD, TG-DSC, SEM, FTIR and H₂-TPR. Second, the adsorption and activation abilities of NO were studied using temperature-programmed desorption (TPD). In addition, the in situ DRIFTS experiments were performed to illuminate the C₃H₆-SCR process as well as the possible reaction pathways.

2. Experimental

2.1. Materials

All of the reactants are of analytical grade and were used without further purification. Zn(NO₃)₂·6H₂O and Ce(NO₃)₂·6H₂O were purchased from Sinopharm Chemical Reagent Co., Ltd. 1,4-Benzenedicarboxylic acid (H₂BDC), N,N-dimethylformamide (DMF) and dichloromethane (CH₂Cl₂) were purchased from Macklin.

2.2. Catalyst preparation

MOF-5 was prepared by the solvothermal method according to the following procedures. First, 9.360 g Zn(NO₃)₂·6H₂O and 2.540 g H₂BDC were dissolved in 190 ml N,N-dimethylformamide (DMF), and the resulting suspension was sonicated for 30 min. Second, the mixture was transferred into a 250 ml Teflon-lined stainless steel reactor. Then, the autoclave was placed into an oven at 120 °C for 24 h to obtain the white crystals. Subsequently, they were repetitively washed with N,N-dimethylformamide (DMF) and dichloromethane (CH₂Cl₂). Finally, the homogeneous material obtained was oven-dried at 120 °C for 12 h.

An impregnation technique was used to synthesize Ce/MOF-5. Namely, the predetermined amount of cerium nitrate (Ce(NO₃)₂·6H₂O) and MOF-5 precursor were dissolved in ethyl alcohol and the mixed solution was sonicated for 30 min. Afterward, the mixture was left to equilibrate at room temperature for 24 h. Finally, the product was dried at 100 °C for 12 h, followed by calcination at 600 °C for 2 h under air to obtain the CeO₂–ZnO catalysts, and were denoted as 1% CeO₂–ZnO, 3% CeO₂–ZnO, 5% CeO₂–ZnO, and 10% CeO₂–ZnO.

2.3. Catalysts characterization

In the present study, we adopted a series of methods to evaluate the crystal structure, morphology, thermal stability, reducibility and adsorption properties of the catalysts. XRD patterns were gained on the Empyrean (PANalytical B.V.) using Cu Kα radiation and the X-ray tube was operated under 40 kV and 40 mA. All the as-synthesized samples were scanned over the 2θ range between 5° and 80° at a scan speed of 10° min⁻¹. The surface morphology of all the samples was characterized by SEM (S-4800, Japan). Thermogravimetric and differential scanning calorimetry (TG-DSC) analysis curves were obtained using a STA409pc (NETZSCH German) synchronous thermal analyzer. The samples were heated from 30 °C to 700 °C at a rate of 5 °C min⁻¹ under a flow of nitrogen at 40 ml min⁻¹. Hydrogen temperature-programmed reduction (H₂-TPR) and NO temperature-programmed desorption (NO-TPD) were performed on a Chembet PULSAR TPR/TPD chemisorption analyzer loaded with 50 mg samples. Prior to the reduction, the sample was pretreated under pure He atmosphere at 350 °C for 30 min for the sake of removing the absorbent (e.g., H₂O). In the case of H₂-TPR, the sample began from room temperature to 800 °C under an H₂ stream at a rate of 10 °C min⁻¹. For NO-TPD, the sample was treated in a flow of NO at 100 °C for 60 min, followed by heating from 100 °C to 300 °C for desorption at a rate of 10 °C min⁻¹. Fourier transform infrared spectroscopy (FT-IR) was performed on a VERTEX German infrared spectrometer with the KBr pellet technique at room temperature. Spectra were collected in the range of 4000–400 cm⁻¹ at a resolution of 4 cm⁻¹.

2.4. Catalytic performance test

The C₃H₆-SCR catalytic tests were performed in a fixed-bed quartz tube reactor. Prior to an experiment, a catalyst (200 mg) was pretreated at 300 °C for 1 h in an Ar stream, and the activity measurement was carried out from 150 °C to 350 °C at a heating rate of 10 °C min⁻¹. The reaction conditions were as follows: 1000 ppm NO, 1000 ppm C₃H₆, 5 vol% O₂ and Ar as balance; the total gas flow rate was 100 ml min⁻¹ and the GHSV was 30 000 h⁻¹. The concentrations of N₂ in the effluent gas were analyzed on-line using a gas chromatograph. The conversion of NO to N₂ was calculated as follows:

NO conversion to N₂ = 2[N₂]_out/[NO]_in × 100% (1)

2.5. In situ DRIFTS measurements

NO and C₃H₆ adsorption on the catalysts were recorded using a FT-IR spectrometer (VERTEX German). Concentrations of the reactants were 1000 ppm of NO, 1000 ppm of C₃H₆, 5 vol% oxygen. The sample (20 mg) was mounted in a quartz DRIFTS cell and activated by calcination in Ar stream (30 ml min⁻¹) at 300 °C for 30 min before introducing the reaction mixtures, followed by cooling to the desired temperature, and then the spectrum was collected and used as the background. All spectra were recorded at a resolution of 4 cm⁻¹ (number of scans, 32) in the range of 4000–400 cm⁻¹.

3. Results and discussion

3.1. Physical and texture characterizations

From the X-ray diffraction profiles, we can identify the transformation in the phase texture on the MOF-5, MOF-5-derived ZnO and CeO₂–ZnO samples. Fig. 1(a) exhibits the previous diffraction peaks for MOF-5; the 2θ angles of 6.85°, 9.62°, 13.69°, 15.39° correspond to the (200), (220), (400), (420) planes.¹¹ A sharp peak appeared at 6.85°, which proved that we successfully synthesized the MOF-5 materials with high crystallinity.¹¹ From the MOF-5-derived composite characterization, it can be observed that the primary structure of the framework collapsed and the characteristic diffraction peaks completely disappeared, with the main peaks of the wurtzite ZnO structure appearing at 31.7° (100), 34.4° (002), 36.3° (101), 47.4° (102), 56.6° (110), 62.8° (103), 67.9° (112) and 69.1° (201) (JCPDS No. 36-1451).²² The sample with Ce loading also displays an additional XRD peak corresponding to the structure of CeO₂, indicating that the doped-Ce species exists in the form of CeO₂ (Fig. 1(b)).

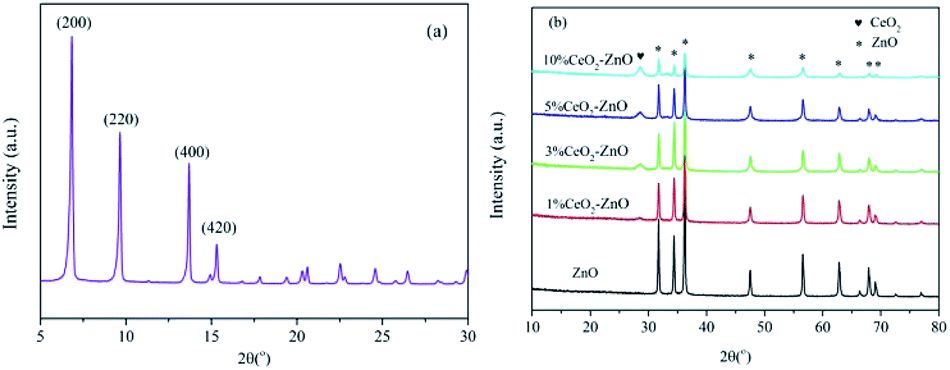

Fig. 1 XRD pattern of (a) MOF-5 and (b) ZnO and CeO₂–ZnO.

The thermogravimetric and differential scanning calorimetry (TG-DSC) curves of the fresh MOF-5 are shown in Fig. 2. Three noticeable weight loss events were evident. The continuous weight loss of about 4% at the temperature range between 50 °C and 100 °C was caused by the evaporation of water from the surface of the sample. The second major loss in the temperature range of 150–320 °C was about 27%, which was related to the evaporation and decomposition of residual organic components (DMF).²³ The most prominent weight loss appeared at a temperature over 420 °C, and the weight loss rapidly reached almost 60%, demonstrating that the MOF-5 framework had collapsed. According to the previous study, for MOF-5, the breakdown of the carboxylic bridges between the benzene rings and Zn₄O clusters results in the decomposition of the organic ligand molecules to form CO₂ and benzene.¹¹ The DSC curve also shows a sharp exothermic peak between 420 °C and 485 °C with a maximum peak temperature at 480 °C due to the decomposition of the organic components. The decomposition process was completed after 550 °C. The evidence from the thermogravimetric analysis verified that the MOF-5 crystal transformed into ZnO completely above 550 °C. In view of these results, we chose 600 °C as the calcination temperature to attain the oxides.

Fig. 2 TG profile for the MOF-5 precursor.

The FTIR spectra of the as-prepared MOF-5-derived ZnO and CeO₂–ZnO catalysts are shown in Fig. 3. A significant peak at 430 cm⁻¹ may be attributed to the Zn–O stretching vibrations.²³ The band at 1620 cm⁻¹ is ascribed to the bond stretching of the carboxyl (O=C–OH) functional groups on the surface of the samples.²⁴

Fig. 3 FT-IR spectra of ZnO and CeO₂–ZnO catalysts.

3.2. Morphology

Scanning electron microscopy is a technique that enables the study of the microstructure of nanoparticles. The scanning electron micrographs of MOF-5, and the MOF-5-derived ZnO and CeO₂–ZnO catalysts are presented in Fig. 4. The MOF-5 samples clearly exhibit the cubic morphology with smooth facets and the particle size ranged from 200 nm to 500 nm (Fig. 4(a)). After thermal treatment at 600 °C, the MOF-5-derived ZnO and CeO₂–ZnO catalysts (Fig. 4(b) and (c)) mainly maintain the cubic structure, but the edge becomes smooth and the surface appears porous. In addition, compared to MOF-5, the particle sizes of the ZnO and CeO₂–ZnO catalysts show a slight decrease. During the heat-treatment of MOF-5 and Ce/MOF-5, as expected, they gradually decompose with time, resulting in the smaller and porous particles with cubic structure.

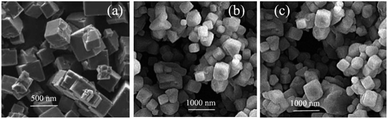

Fig. 4 SEM images of (a) MOF-5, (b) ZnO and (c) CeO₂–ZnO.

3.3. H₂-TPR measurements

H₂-TPR analysis was performed to determine the reducibility of the MOF-5-derived ZnO and CeO₂–ZnO catalysts. As shown in Fig. 5, one obvious hydrogen consumption peak centered at 600 °C exists in each sample. Compared with the ZnO catalyst, the CeO₂–ZnO catalyst presented an obvious shift towards lower temperatures with the increasing amount of Ce, suggesting that the redox properties of the catalysts were enhanced by the interaction between CeO₂ and ZnO. The enhanced redox properties could lead to a better dispersion, promoting oxygen mobility and the oxidation process of NO to NO₂.

Fig. 5 H₂-TPR spectra of the ZnO and CeO₂–ZnO catalysts.

3.4. Catalytic test

The N₂ yield as a function of temperature over the MOF-5-derived ZnO and CeO₂–ZnO catalysts is shown in Fig. 6. The MOF-5-derived ZnO achieved the maximum N₂ yield of 31.5% at 250 °C, while the activity of the Ce-doped catalysts was enhanced significantly, though the temperature corresponding to the maximum N₂ yield shifted to a higher temperature at 270 °C. Among the tested catalysts, 3% CeO₂–ZnO and 5% CeO₂–ZnO exhibited outstanding catalytic performances, with a maximum N₂ yield of 68.3% and 69.1%, respectively. The unsatisfactory performance of the 10% CeO₂–ZnO catalyst (55.7%) may be attributed to the agglomeration of excess Ce.

Fig. 6 N₂ yield as a function of temperature for the ZnO and CeO₂–ZnO catalysts.

3.5. NO-TPD measurements

To evaluate the NO adsorption ability of the as-synthesized catalyst, NO-TPD measurements were conducted to explore the interaction between NO and the samples (Fig. 7). For the MOF-5-derived ZnO catalyst, two NO desorption peaks at 176 and 219 °C could be observed. The two peaks shifted to higher temperatures after Ce was added to the catalysts, indicating that Ce can largely strengthen the bonding of NO with the catalyst surface. Moreover, the intensities of the two NO desorption peaks enhanced after the addition, which indicated that adding Ce can result in the redistribution of the adsorbed NO_x species, thus facilitating the NO oxidation. It is worth noting that the promotion effect enhanced very slowly after Ce loading, reaching over 10%. This might be caused by agglomeration of the excess Ce.

Fig. 7 NO-TPD profiles of the ZnO and CeO₂–ZnO catalysts.

3.6. DRIFTS studies

3.6.1. Adsorption of NO followed by C₃H₆/O₂ over time. In order to investigate the surface reactions and intermediates, a series of in situ DRIFTS experiments were performed. Fig. 8 shows the in situ DRIFTS spectra obtained after exposure to 1000 ppm NO and 5% O₂ in Ar, followed by 1000 ppm C₃H₆ and 5 vol% O₂ in Ar at 250 °C. In the case of the MOF-5-derived ZnO catalyst (Fig. 8(a)), NO and O₂ flushing at 250 °C produced several bands. The bands at 1122 cm⁻¹ and 1582 cm⁻¹ are attributed to the bidentate nitrates,^25,26 which are formed when the NO molecules bridge two adjacent oxygen atoms.²⁵ In addition, the nitrosyl (adsorbed NO) (1845 cm⁻¹ and 1900 cm⁻¹),^27,28 hydroxyl group (3705 cm⁻¹ and 3738 cm⁻¹),^27,28 and gas phase CO₂ (2355 cm⁻¹)²⁹ also appeared. Upon switching to C₃H₆ and O₂, the surface bidentate nitrates decreased slightly with time, while the other bands remained unchanged.

Fig. 8 In situ DRIFTS of (a) ZnO, (b) 1% CeO₂–ZnO, (c) 3% CeO₂–ZnO (d) 5% CeO₂–ZnO (e) 10% CeO₂–ZnO exposed to the SCR reaction at 250 °C for various times under NO + O₂ adsorption and during C₃H₆ interaction with the NO + O₂ gas mixture.

In the case of the 1% CeO₂–ZnO catalyst (Fig. 8(b)), the formation of monodentate nitrate, chelating nitrite and gas-phase NO (1028 cm⁻¹, 1180 cm⁻¹ and 1634 cm⁻¹, respectively) occurred on the surface after 10 min and was slightly enhanced with increasing time. Switching to the C₃H₆/O₂ mixture, several new bands were detected. The bands at 1666 cm⁻¹ and 1444 cm⁻¹ are assigned to the enolic species (RCH=CH–O⁻) and acetic acid, respectively.^27,28 The IR bands centered at 2950 cm⁻¹ and 3091 cm⁻¹ are attributed to the asymmetric and symmetric CH stretch (vCH) of the CH₃ group, which were proposed by Efstathiou et al. to indicate the –CH₃ adsorbed species produced from the interaction of C₃H₆ with the catalyst surface.³⁰ In addition, a large amount of gas phase CO₂ was observed at 2343 cm⁻¹ and 2358 cm⁻¹.

For the 3% CeO₂–ZnO catalyst (Fig. 8(c)), NO/O₂ flushing after 1 min produced the monodentate nitrate (at 1028 and 1137 cm⁻¹), chelating nitrite (at 1160 and 1189 cm⁻¹), nitrosyl (at 1845 cm⁻¹ and 1910 cm⁻¹), and gas-phase NO (at 1634 cm⁻¹), indicating that the 3% CeO₂–ZnO catalyst exhibited better adsorption performance in comparison with the 1% CeO₂–ZnO catalyst. In addition, the peaks at 2343 and 2358 cm⁻¹ belong to the gas phase CO₂ and are attributed to the C=O bonds on the carbon surface. The intensities of these peaks were markedly increased by prolonging the adsorption time. Similar to the 1% CeO₂–ZnO catalyst, the chelating nitrite and nitrosyl group clearly decreased after purging with C₃H₆/O₂, accompanied by an appearance of the enolic species (1666 cm⁻¹) and acetate (1443 cm⁻¹) over 3% CeO₂–ZnO.

In the case of the 5% CeO₂–ZnO catalyst (Fig. 8(d)), excluding the similar characteristic peaks with the 1% CeO₂–ZnO and 3% CeO₂–ZnO catalysts, several new bands such as the bidentate nitrate (1569 and 1540 cm⁻¹) and nitro compounds (1280 cm⁻¹) were observed at the same time, suggesting the enhanced adsorption ability of NO on the 5% CeO₂–ZnO catalyst. For 10% CeO₂–ZnO (Fig. 8(e)), the peaks were significantly weakened, revealing that the doping amount of cerium should be appropriate for the ceria–zinc mixed oxides.

On the basis of these facts, we can reach the following conclusion. The nitrates (monodentate nitrates, bidentate nitrates), chelating nitrite, nitro compounds and nitrosyl groups are formed on the surface of the catalysts from the interaction of NO and O₂. After introducing C₃H₆, these species decreased or diminished, accompanied by hydrocarbonate, enolic species and acetate. In addition, significant amounts of gas phase CO₂ and H₂O (the products of C₃H₆ oxidation) were also observed. All of the bands were significantly enhanced by adding ceria.

3.6.2. Adsorption of C₃H₆/O₂ followed by NO at 250 °C on the 5% CeO₂–ZnO catalyst. To determine the adsorption and activation of C₃H₆ in the presence of O₂ and to study the reactivity of the adsorbed NO_x species, a mixture of C₃H₆ and O₂, followed by NO were flowed over the catalysts at 250 °C. The DRIFTS spectra of the ZnO catalyst were not apparent here; thus, we selected the 5% CeO₂–ZnO catalyst for the DRIFTS measurements. As observed in Fig. 9, after purging with C₃H₆/O₂, the C–H bending mode of the –CH₃ group for the adsorbed hydrocarbonate could be observed by the band at 1440 cm⁻¹. The –CH stretching vibrations (2953 cm⁻¹ and 3101 cm⁻¹) were assigned to the unsaturated hydrocarbon fragments. In addition, the bands for C_xH_yO_z (at 1636 cm⁻¹) and C₃H₆ in the gas phase (at 1666 cm⁻¹) were recorded.

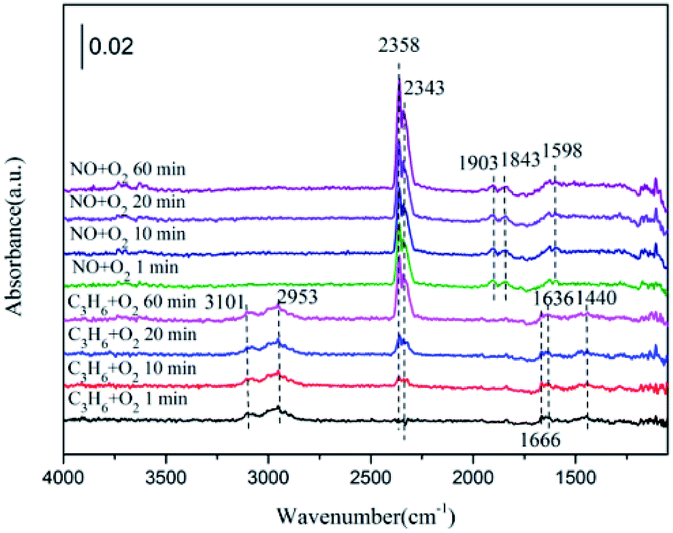

Fig. 9 In situ DRIFTS of 5% CeO₂–ZnO exposed to the SCR reaction at 250 °C for various times under C₃H₆ + O₂ adsorption and during NO + O₂ interaction with the C₃H₆ + O₂ gas mixture.

Exposure to NO resulted in the surface C_xH_yO_z, hydrocarbonate and C₃H₆ gas fade away, combined with an enhancement in the bidentate nitrate (at 1598 cm⁻¹) and nitrosyl (at 1845 cm⁻¹ and 1910 cm⁻¹) species. More importantly, the formation of CO₂ (2358 and 2343 cm⁻¹) was increased by the flow of NO. The C_xH_yO_z amounts decreased by the reaction with NO, although the hydrocarbonate species were more likely to decompose directly to CO₂ and O₂.

3.6.3. Co-adsorption of C₃H₆ + O₂ with different O₂ content. It is reported that oxygenated hydrocarbon formation is crucial to the production of the C_xH_yO_z species, which are considered to be important intermediates for HC-SCR.³¹ In order to understand the reactivity of the partially oxidized species from C₃H₆ due to different O₂ content, the in situ DRIFTS spectra of 5% CeO₂–ZnO exposed to C₃H₆ + O₂ with different O₂ content after 30 min are recorded. A similar changing trend was observed in Fig. 10. Spectral features from the hydrocarbon fragment (1442, 2881, 2953 and 3101 cm⁻¹), surface C_xH_yO_z (1636 cm⁻¹) and gas-phase C₃H₆ (1666 cm⁻¹) emerged. With increasing the O₂ content, the intensities of all the peaks significantly increased. This fact indicates that the adsorption and activation of C₃H₆ could be promoted as the O₂ content increased. It is worth noting that the promotion effect was enhanced very slowly as the O₂ content reached 10 vol%. This result implies that the excess O₂ cannot accelerate the C₃H₆ activation and adsorption any more.

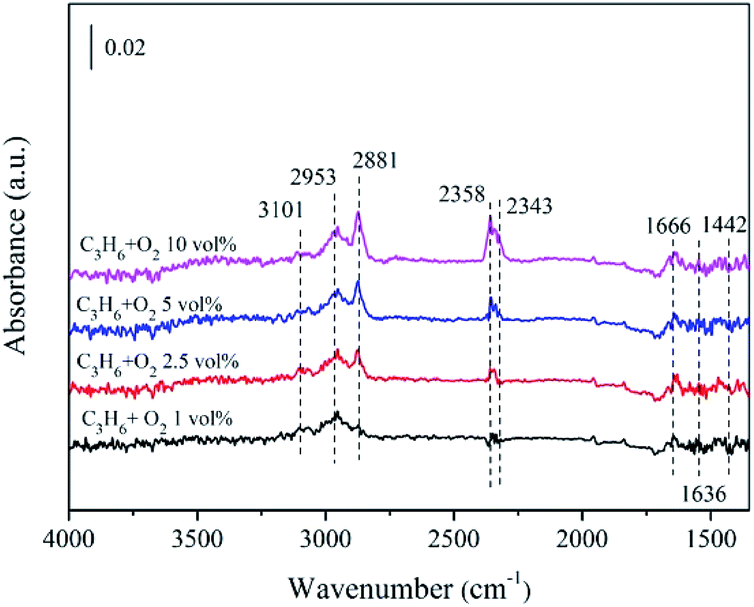

Fig. 10 In situ DRIFTS of 5% CeO₂–ZnO exposed to C₃H₆ + O₂ with different O₂ content after 30 min.

3.7. Reaction pathway

Many literature reports have confirmed that NO reduction undergoes different reaction pathways, depending on the type of hydrocarbon reductants and SCR catalysts, along with the reaction temperature.³² In general, two schemes are proposed for the process. One is known as the “decomposition” mechanism, involving the dissociation and adsorption of NO on the metal active sites, followed by the recombination of the adsorbed N to generate the gas-phase N₂. The other is the “reduction” mechanism, which consists of complex surface interactions between the adsorbed NO_x and surface hydrocarbon fragments.^33,34

In this study, the reaction mechanism of the HC-SCR over the MOF-5-derived CeO₂–ZnO catalysts conforms to the “reduction” mechanism scheme. It can be understood through an analysis of the adsorbed species by means of in situ DRIFTS. The scheme of reaction mechanism is shown in Fig. 11. First, during the adsorption and subsequent oxidation of NO process, the nitrates (monodentate nitrates, bidentate nitrates), chelating nitrite, nitro compounds and nitrosyl are generated on the active sites (Ce⁴⁺ and Zn²⁺). In addition, an abundance of C_xH_yO_z (enolic species and acetate) is formed and activated on the active sites (Ce⁴⁺ or Zn²⁺). Subsequently, in the typical C₃H₆-SCR, the two kinds of surface species above are able to react with each other through the formation of a hydrocarbonate or carbonate species, and then directly produce N₂, CO₂ and H₂O. Based on our present study, these results demonstrate that the Ce addition has a significant positive effect on the formation of more adsorbed NO_x species due to the increase in the available active sites, and contributes to the improvement in the C₃H₆-SCR activity.

Fig. 11 Proposed reaction mechanism of NO_x reduction by propene over CeO₂–ZnO catalysts.

4. Conclusions

In summary, the MOF-based derivative x% CeO₂–ZnO (x = 1, 3, 5, 10) catalysts were facilely synthesized using a complete thermal decomposition of the Ce/MOF-5 precursor. Combined with XRD, FTIR, TG-DSC, SEM and H₂-TPR experiments, it was found that the as-prepared CeO₂–ZnO catalysts were favorable for strengthening the interaction between Ce⁴⁺ and Zn²⁺ and exhibited excellent catalytic performance for the C₃H₆-SCR of NO. A significant improvement in the catalytic activity was found over the Ce-doped catalysts with the highest N₂ yield of 69.1% achieved over 5% CeO₂–ZnO. In situ DRIFTS and NO-TPD experiments demonstrated the formation of monodentate nitrates, bidentate nitrates, chelating nitrite, nitro compounds, nitrosyl and C_xH_yO_z species (enolic species and acetate) on the surface, and the additional formation of hydrocarbonate or carbonate as intermediates to directly generate N₂, CO₂ and H₂O. Thus, this research highlights new perspectives on the application of MOF materials in the field of deNO_x.
