A flexible Ti₃C₂T_x (MXene)/paper membrane for efficient oil/water separation

Abstract

The scalable fabrication of flexible membranes for efficient oil/water separation is in high demand but still significantly underdeveloped. Here, we present a flexible membrane using Ti₃C₂T_x (MXene) as the functional layer on conventional print paper as the substrate. With a simple coating process using MXene ink, we developed a highly hydrophilic and oleophobic membrane with an underwater oil contact angle of 137°. Such a simple membrane shows outstanding flexibility and robustness, and demonstrates a facile approach for membrane scale-up using MXene ink on low-cost print paper. The membrane shows high separation efficiency for oil/water emulsions, of over 99%, and a high water permeation flux of over 450 L per m² per h per bar. We demonstrate the excellent anti-fouling property of this membrane by cleaning the membranes without chemicals. These low-cost, highly efficient, anti-fouling membranes can provide new opportunities for industrial oil/water separation applications.

---

1. Introduction

A large quantity of oily wastewater is produced on a daily basis from various oil industries, including production, refineries, shipping facilities, etc.¹ Technologies for treating oily wastewater are in great demand. Conventional technologies, including gravity settlement, hydrocyclone and air flotation, are not effective in separating emulsified oil/water mixtures, due to the small sizes of the oil droplets in these emulsions.² Membrane separation technologies, based on a “size sieving” mechanism, possess great potential in separating tiny oil droplets from water. However, most commercial membrane materials, like polyvinylidene fluoride (PVDF), polysulfone (PS), polypropylene (PP), or polytetrafluoroethylene (PTFE) are not hydrophilic, and thus suffer from serious membrane fouling issues, which inevitably cause a quick decline in permeation flux and separation efficiency.^3–9 This drawback leads to the limited adoption of these commercial membranes for treating large amounts of oily wastewater. Therefore, the development of new membranes with highly hydrophilic, underwater oleophobic and anti-fouling properties is crucial and in great demand for efficient oil/water separation in industry.^10–14

With advances in nanomaterials and nanotechnology, new nanocomposites have been suggested to improve the effectiveness of oil/water separation membranes by adjusting the surface chemistry, roughness, and pore size.^4–8,15 Recently, a number of fabrication methods, such as surface grafting,^16–18 biomimetic adhesion,^19–21 and surface mineralization,^20,22,23 have been adopted to fabricate superwetting membranes with a hydrophilic (water-favoring) and underwater oleophobic (oil-repellent) layer on some substrates for oil/water separation. Several carbon-based nanocomposite membranes demonstrate promising efficiency in separation performance and anti-fouling property for various oil-in-water emulsion systems.^24–26 However, these newly-developed membranes are not suitable for scalable production due to their complexity and high-cost chemical preparation and membrane fabrication processes.

MXenes are a class of 2D nanomaterials from a large family of transition metal carbides, nitrides and carbonitrides.²⁷ Titanium carbide (Ti₃C₂T_x), where T_x denotes surface terminal groups (–OH, –O, and/or F), is the most widely studied member of the MXene family in water purification and environmental remediation applications due to its high surface area, hydrophilicity, surface functionality, abundance, facile scale-up synthesis, and environmentally benign characteristics.^28–30 MXenes have been also used extensively in water treatment applications, including water purification membranes,^31–33 heavy metal removal,^34,35 capacitive deionization,³⁶ and antimicrobial coatings.^37–39

In this study, a new concept is explored to produce membranes with a simple and low-cost process by coating 2D Ti₃C₂T_x (MXene) on commercial print paper, to achieve efficient separation of emulsified oil/water mixtures. These new membranes are produced by simple coating of Ti₃C₂T_x MXene ink on commercial print paper as the substrate. These hydrophilic and densely packed 2D MXene nanoflakes will act as a functional layer for the efficient separation of emulsified oils, while the print paper substrate provides mechanical flexibility and strength. This very simple and yet novel membrane exhibits a good lifetime with less membrane fouling propensity and an easy membrane cleanup protocol. Moreover, the new concept demonstrates a simple and economic way for scalable fabrication of paper-based membranes for efficient separation of oil/water emulsions.

2. Methods

2.1. Materials

The commercial white print papers and sunflower oil that were used in this study were purchased locally. Hexane, silicone oil and petroleum ether were procured from VWR Chemicals (Radnor, PA, USA), Merck Millipore (Billerica, MA, USA) and Sigma-Aldrich (St. Louis, MO, USA), respectively. Ti₃AlC₂ (MAX) was purchased from Y-Carbon, Ltd., Ukraine. Other reagents are of analytical grade and were used as received. In all experiments, deionized (DI) water was used.

2.2. Synthesis of MXene

Ti₃C₂T_x MXene was prepared from the MAX (Ti₃AlC₂) phase using 12 M lithium fluoride (LiF)/9 M hydrochloric acid (HCl) solution, following methods in the literature. The etching mixture was prepared by adding 0.8 g of LiF to 10 mL of 9 M HCl solution under continuous stirring for a period of five minutes. 0.5 g of Ti₃AlC₂ was added in small portions into the etching solution and kept under stirring for 24 h at room temperature to produce multi-layered (ML)-Ti₃C₂T_x. The synthesized material was centrifuged at 3500 rpm for five minutes and washed using deionized (DI) water in order to adjust the pH to within the range 4–5. The ML-Ti₃C₂T_x solution was then probe sonicated in degassed water for one hour under inert conditions (using argon gas) at room temperature to produce delaminated (DL) Ti₃C₂T_x. The resulting solution was then centrifuged at 3500 rpm for 30 min and, finally, the supernatant was collected and freeze-dried and stored for preparation of the composite membrane.

2.3. Preparation of the composite membrane

MXene ink suspension at a concentration of 2 mg mL⁻¹ was prepared by homogeneously dispersing the DL-MXene nanoflakes in deionized water using probe sonication for five minutes. The stock ink was then further diluted as per the required MXene mass loadings for membrane coating. The composite membrane was prepared by depositing the solution on commercial white print papers using a vacuum-assisted filtration setup.

2.4. Oil-in-water emulsion preparation

A stable 1% v/v oil-in-water emulsion was prepared as per the protocol described by Wang et al.⁴⁰ 10 mL of oil (e.g. sunflower oil, diesel, hexane, petroleum ether or silicon oil) was sonicated in 90 mL of deionized water for a period of five minutes using an 8510E-DTH ultrasonic bath (Danbury, CT, USA). The well-dispersed emulsion was then further diluted with 900 mL of deionized water to achieve a final concentration of 1% v/v. The prepared emulsion was stable over a long period, as no precipitation was observed even after several months.

2.5. Characterization

Surface and cross-sectional morphologies of the MXene-based composite membrane were studied using an FEI Quanta 400 (Hillsboro, OR, United States) environmental scanning electron microscope (ESEM). For imaging the cross-section, the composite membranes were cryo-fractured in liquid nitrogen. Transmission electronic microscopy (TEM) images of the MXene flakes were recorded using a bright field transmission electron microscope (TEM) (FEI Tecnai G2 TF20 UT). The samples were dispersed in water and mounted on a lacey carbon formvar coated Cu grid. The surface roughness of the composite membranes was characterized using an atomic force microscope (AFM, Bruker, USA). The water contact angle (WCA) and underwater oil contact angle (OCA) on the surface of the membranes were measured at room temperature using an advanced contact angle (CA) goniometer (Rame-hart model 500, Succasunna, NJ, USA). The WCA and hydrophilicity of the membranes were studied by analyzing the spreading process of water into the membranes where a high-speed camera with a speed of 100 frames/second was used to record the spreading process. As for the OCA measurement, the membranes were first immersed in distilled water. Oil droplets of 14 μL were then released from the bottom and allowed to rise to the surface of an MXene membrane immersed underwater. For all the contact angle measurements, an average of five measurements for two membrane samples was reported. The mechanical strength of the membranes was investigated at room temperature using a burst tester (TruBurst4, Halifax, England, UK). Circular membranes with testing areas of 7.3 cm² and a clamp pressure of 50 kPa were used in this study. The MXene-based membranes were deformed until the breakage point using compressed air operated at a constant pressure rate of 0.5 kPa s⁻¹. The deflection of the membrane center was recorded as a function of applied differential pressure.

2.6. Filtration performance testing

The oil/water separation efficiencies of the MXene-based composite membranes were evaluated using a glass filtration apparatus with an effective membrane area of 1.77 cm². The net trans-membrane pressure was maintained at 50 kPa using a diaphragm vacuum pump. Operating flux was calculated by measuring the volume of permeate passing through the membrane at a fixed filtration time. The oil content in the resulting permeate was measured using a total organic carbon analyzer (TOC-L, Shimadzu, Japan).

3. Results and discussions

The hierarchy of the deposited MXene nanoflakes on the print paper substrate is illustrated in Fig. 1(a). The delaminated nanoflakes are stacked on the substrate, forming overlapping lamellar sheets that resulted in interlaced porous nanostructures. These stacks are expected to create multi-channel passages for water to flow through the membrane. The TEM image of Ti₃C₂T_x MXene is exhibited in Fig. 1(b). In this figure, it can be observed that Ti₃C₂T_x MXene can be exfoliated to a single sheet/few sheets, showing that the exfoliation process was effective.⁴¹ The average sheet diameter can vary between 400 and 600 nm. Fig. 1(c) highlights the flexibility of the synthesized composite membrane. The stacked structures of the MXene film enable the composite membrane to be folded without any cracking or disintegration. Surface morphological investigations of the composite membrane before and after MXene coating using SEM are shown in Fig. 1(d–f). It can be observed that the cellulose framework of print paper in Fig. 1(d) was evenly wrapped and covered by MXene nanoflakes, showing a more compact structure and continuous surface, as clearly shown in Fig. 1(e and f). Cross-section SEM images clearly show the enlarged interplanar spacing of the stacked DL-MXene nanoflakes. The thickness of MXene film on the print paper substrate was 1.2 μm (inset, Fig. 1(f)).

Fig. 1 (a) Schematic illustration of the deposited MXene nanoflakes on the polymeric fibers of commercial print paper. (b) TEM image of delaminated Ti₃C₂T_x MXene. (c) Digital photograph demonstrating the flexibility of the MXene based composite membrane. (d) SEM image of substrate print paper. (e and f) Cross section SEM images of the MXene-based composite membranes at various magnification levels. The inset in (f) shows the layer-by-layer structure of MXene nanoflakes.

XRD patterns of Ti₃C₂T_x MXene are shown in the ESI.† The sharp and intense peak located at 2θ values of 7.2 can be assigned to the (002) plane of Ti₃C₂T_x MXene. Other characteristic diffraction peaks at (004), (006), (008), and (0010) confirm the successful etching of aluminum layers from MAX and the delamination of multilayered MXene.

AFM analyses, shown Fig. 2, indicate that the print paper substrate had a root-mean-squared roughness (R_q) of 914 nm. With the deposition of MXene nanoflakes on print paper via vacuum filtration, the R_q decreased to 200 nm, suggesting the loss of microscale roughness for the print paper support. Lower surface roughness indicates a lower membrane fouling tendency after coating with MXene.

Fig. 2 Surface roughness comparison between the print paper substrate and the composite membrane.

The hydrophilicity profile of the composite membrane over the time is described in Fig. 3(a). The water contact angle swiftly decreased to zero within two seconds of water droplet dispersion on the surface of the composite membrane, thus highlighting the excellent hydrophilicity of the composite membrane. The rapid water wetting phenomenon could be due to MXene's high affinity towards hydroxyl groups and the presence of interlaced porous nanoflakes that promote water passage.³¹ The underwater oil contact angle, OCA, for the composite membrane, as shown in Fig. 3(b) was approximately 137° when tested using a sunflower oil droplet. This shows the great underwater oleophobicity properties of the MXene composite membrane.

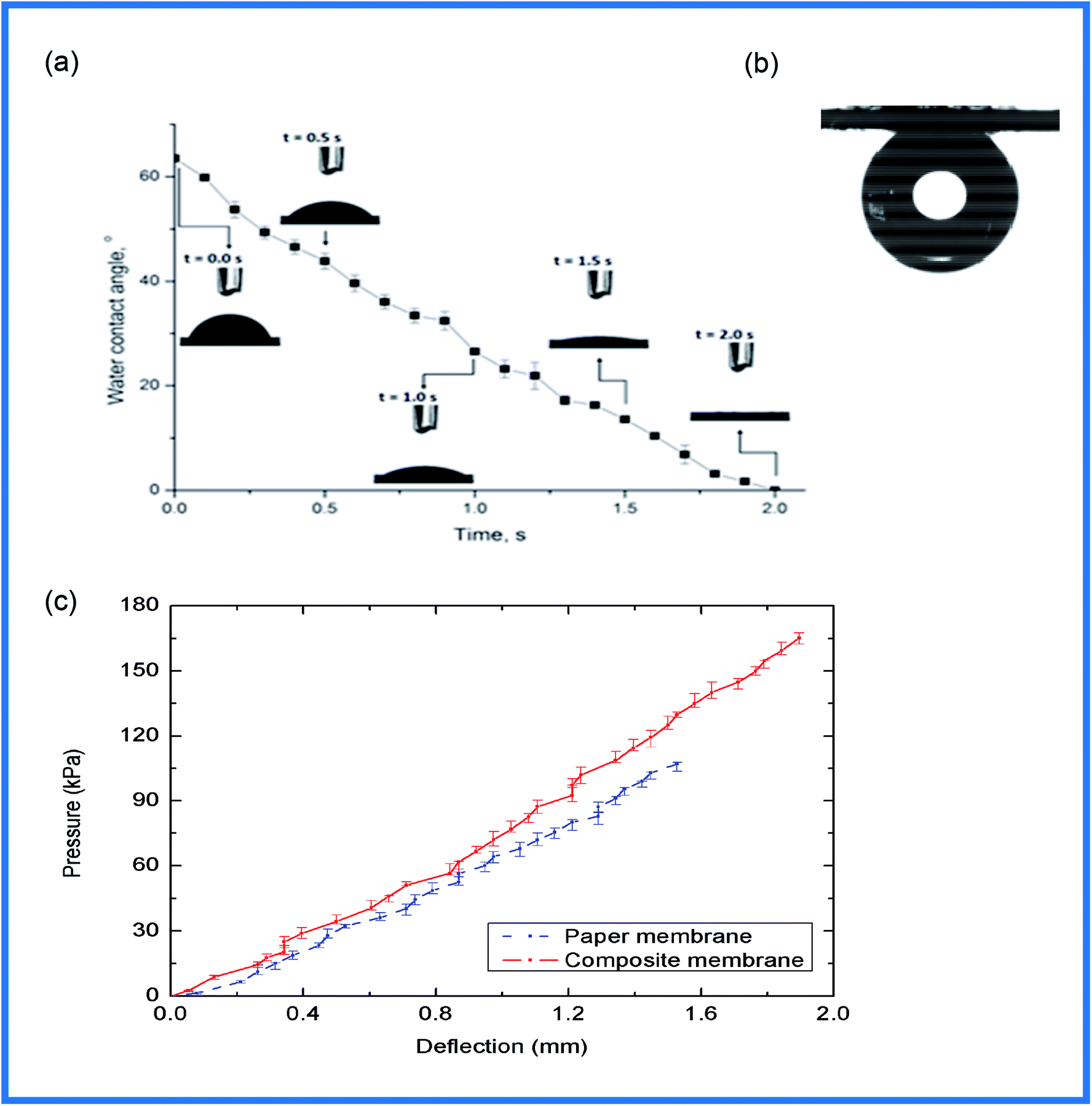

Fig. 3 (a) Rapid decrease in water contact angle observed in the composite membrane. (b) Underwater contact angle image indicating the underwater oleophobicity properties of the membrane. (c) Pressure–deflection curves of the MXene-based composite membrane.

Fig. 3(b) compares the mechanical strength of the MXene-based composite membrane versus the print paper substrate, which confirms that the composite membrane possesses better mechanical strength and ductility due to its higher breakage pressure and deflection. The breakage pressure increased from 107.0 kPa to 165.1 kPa when the print paper was coated with delaminated MXene, which represents an increase of 54.3%. Similarly, the breakage deflection increased by 24.2% in the MXene-based composite membrane. The enhanced mechanical property of the MXene-based composite membrane is attributed to its more compact structure, resulting from the integration of MXene nanoflakes with cellulose papers that can also be observed from Fig. 1(f). The higher fracture response during mechanical loading could be due to effective interaction between the MXene nanoflakes and cellulose microfibers that benefited stress transfer and hence delayed the failure of the composite membrane.⁴²

The performances of the MXene-based composite membrane in separating oil-in-water emulsion were evaluated by measuring the oil content in the permeate and operating flux. The composite membrane was optimized by varying the mass loadings of MXene deposited on the print paper. For this optimization test, the emulsified oil solution was prepared from sunflower oil due to its high viscosity.^43–45 The oil droplet size distribution of the emulsified sunflower oil ranged from 1 to 18 μm with a mean droplet size of 3.92 μm. Additional details on the oil droplet size distribution can be obtained in the ESI.† From Fig. 4, it can be observed that both permeation flux and oil content in the filtrates were inversely proportional to the mass loadings of MXene. The poor oil rejection rate of the porous commercial paper substrate without MXene loading was unsurprising, despite displaying a maximum flux of 2717.6 L per m² per h per bar. By increasing the mass loading of MXene from 0.1 mg to 0.8 mg, the flux of the composite membrane decreased fivefold from 1019.1 to 203.8 L per m² per h per bar. The oil rejection ratio in the filtrate improved by 98.5% as the oil content in the filtrate dropped from 102.5 ppm to 1.6 ppm. By comparing the morphologies in Fig. 1(d) and (f), it can be confirmed that higher MXene loading leads to a more compact structure and a denser selective layer that in return reduce the flux and increase the permeate quality. In addition, the excellent hydrophilicity and underwater oleophobicity, as well as the interlaced porous structures of the composite membrane, contribute to the enhanced oil rejection rate. As the MXene loading was increased to 0.4 mg, the oil content in the permeate dropped below the requirement enacted by the US Environmental Protection Agency (USEPA) that permits the discharge of oil and grease in wastewater to a maximum of 42 ppm for any one day and a daily average lower than 26 ppm for 30 consecutive days. The corresponding flux and permeate quality at 0.4 mg of MXene loading were 543.5 L per m² per h per bar and 11.8 ppm. Further additions of MXene loadings (higher than 0.4 mg) lead to poorer water permeate flux. For subsequent studies, the MXene composite membranes were prepared using a mass loading of 0.4 mg MXene as an optimal composite.

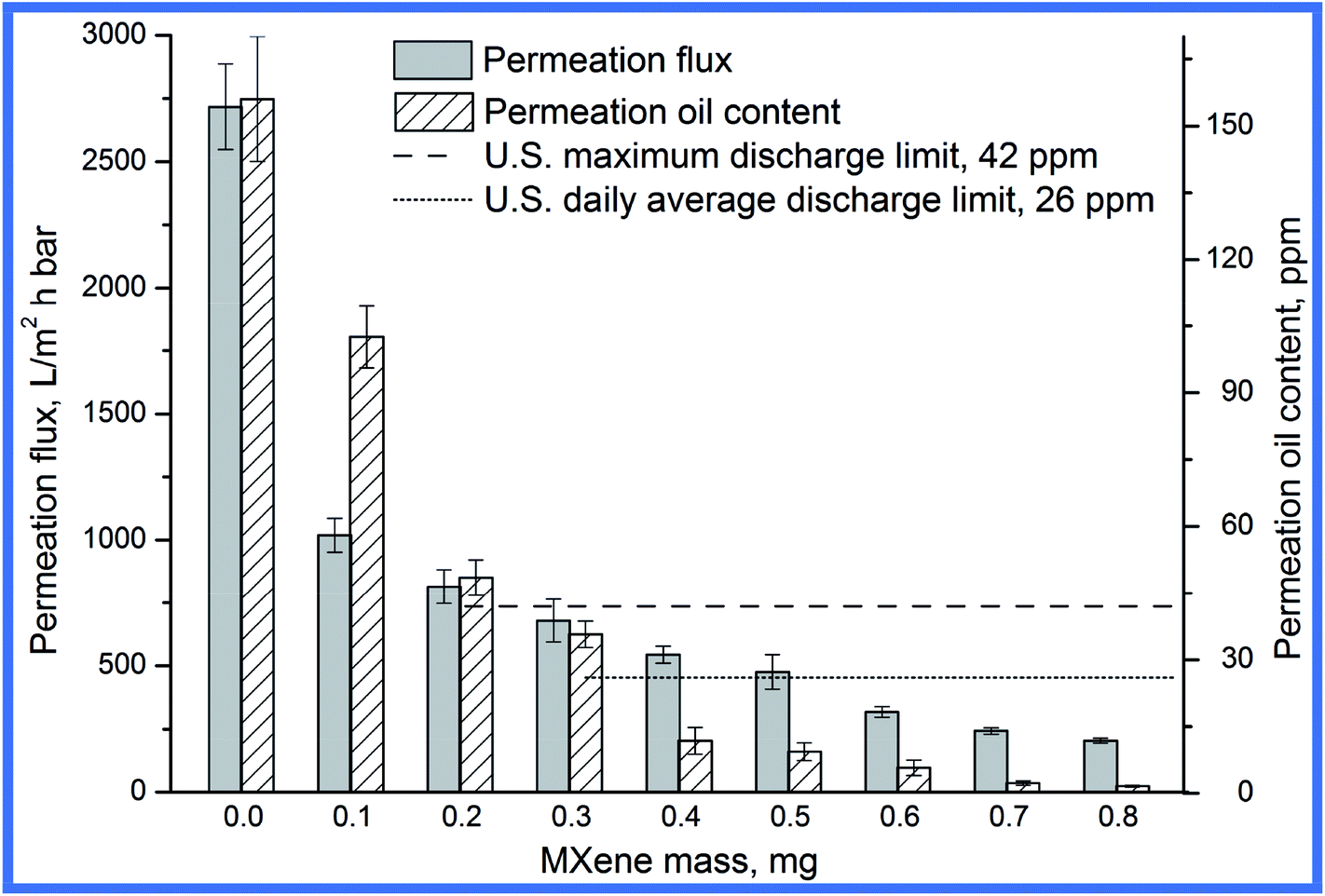

Fig. 4 Permeation fluxes and oil content in the filtrates of sunflower-oil-in-water emulsions filtrated by composite membranes prepared using different mass loadings of MXene.

The optimized MXene composite membranes that were prepared using a mass loading of 0.4 mg were also tested with four other different types of oil-in-water emulsion: namely (i) diesel, (ii) silicone oil, (iii) petroleum ether, and (iv) hexane. Fig. 5 shows the filtrate oil content and corresponding flux of the MXene composite membrane when challenged with these emulsions. The permeate flux ranges between 543.5 L per m² per h per bar and 682.3 L per m² per h per bar, where the highest flux was recorded for hexane, followed by petroleum ether, silicone oil, diesel and sunflower oil in a decreasing trend. As for the oil content in the filtrate, the levels for all the emulsions were less than 12 ppm, which is way below the allowable daily average limit of 26 ppm set by USEPA. It is worth mentioning that these high oil rejection ratios were achieved in a single pass with a low operating pressure of only 0.5 bar. Such separation performance is very attractive from the energy consumption perspective, since conventional oil/water membrane technologies operate at a higher transmembrane pressure.⁴⁶ The excellent permeation is most likely due to the synergy between hydrophilicity, underwater oleophobicity and the low oil-adhesion property of the membrane surface induced by the integration of MXene nanoflakes, as well as the interconnected porous structure.

Fig. 5 Permeation fluxes and oil contents in the filtrates of five oil-in-water emulsions filtrated by the MXene based composite membrane.

The capability of an oil/water separation membrane to produce consistent water flux and permeate quality is of utmost importance for practical applications. In this study, we have investigated the reusability/recyclability of the MXene-based composite membrane in separating oil-in-water emulsion for several operating cycles. The membrane was flushed with hot water at the end of each filtration cycle to recover the flux. It can be observed in Fig. 6 that the operating flux of the composite membrane decreased only marginally after eight cycles of filtration. As for the oil separation efficiency, the oil content in the permeate was consistently lower than 11 ppm throughout all the filtration cycles, hence demonstrating an oil rejection efficiency of more than 99%. At the end of the eighth cycle, the operating flux and permeate oil content of the MXene composite membrane were 472.1 L m⁻² h⁻¹ and 7.5 ppm, respectively. Surprisingly, even with commercial filter paper as substrate, the membrane remained intact with no sign of degradation even after 8 cycles of operation/washing steps. This is most likely due to high mechanical stability imposed by MXene film. Nevertheless, other substrates should be tested in the future to assure the long-term durability of the membranes. These results revealed that the MXene-based composite membrane featured excellent recyclability with anti-fouling property for emulsified oil-in-water separation, attributed to its high hydrophilicity and underwater oleophobicity properties. These favorable characteristics greatly mitigate fouling by facilitating the formation of a water layer that prevents direct interaction between the oil phase and the membrane surface during the separation process.^47,48

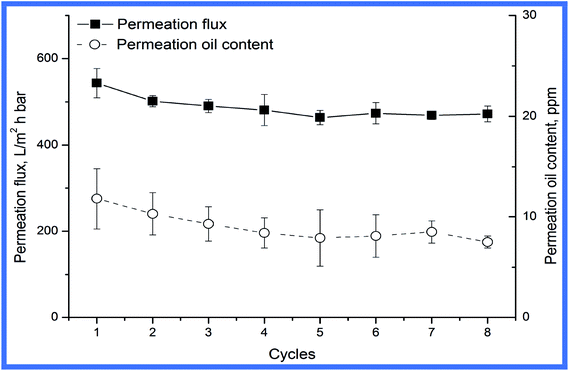

Fig. 6 Flux and permeate oil content of the MXene composite membrane over a period of eight operating cycles.

4. Conclusion

In conclusion, we have demonstrated the fabrication of an efficient oil/water separating membrane through a simple and scalable coating process by coating 2D MXene ink onto everyday print paper. The print paper functions as a substrate to provide mechanical flexibility and strength, and the hydrophilic MXene layer functions as a selective layer to effectively separate emulsified oil from water. The new membrane demonstrated over 99% oil rejection efficiency while maintaining a high operating flux of 472.1 L m⁻² h⁻¹ after 8 consecutive cycles. Such MXene/paper-based membranes are flexible, robust and anti-fouling, and are excellent for oily wastewater treatment in various industries.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors acknowledge the financial support of Qatar National Research Fund (A member of Qatar Foundation) through the NPRP grants # NPRP9-254-2-120. The authors would like to thank C. Johnson at the Centralized Research Facilities of Drexel University for the TEM analyses.
