Relation between superheated temperature and cooling rate for deep supercooled niobium melt

Hui Sun*a, Zengyun Jiana, Bingqing Jiangb, Junfeng Xua and Tiantian Zhanga
aSchool of Materials Science and Chemical Engineering, Xi'an Technological University, Xi'an, Shaanxi 710021, China. E-mail: shsszy@126.com
bSchool of Mechatronic Engineering, Xi'an Technological University, Xi'an, Shaanxi 710021, China

Received 12th December 2018 , Accepted 7th February 2019

First published on 18th February 2019


Abstract

Research into the conditions for forming uniform melt-free crystal sites and the effect of the melt state on solidification behaviors is theoretically significant and has valuable applications. However, there are no quantitative data on these aspects due to rigorous experimental requirements. In this study, the variation of the melt structure at different superheating temperatures and the cooling rate during the deep solidification of cold niobium melt was investigated by a large-scale molecular dynamics simulation method. The solid/liquid coexistence method, the radial distribution function, an energy–temperature analysis, the average energy, an atomic cluster analysis, and a visualization analysis were adopted to analyze the variations in microstructure transitions. The temperature vs. undercooling plots of Nb melt at different superheating temperatures suggested that the metal melt structure should be classified into three regions (regions 1 and 2, each with different melt structures that vary with temperature, and region 3, whose melt structure does not change with temperature); the critical cooling rate of the crystal–amorphous transition was 1.0 × 1012.5 K s−1 and the solidification undercooling increased with increasing superheating temperature until maximal undercooling was obtained. Simultaneously, it was found that the maximal undercooling occurred at ∼0.432Tm (Tm is the melting point) and the maximal superheating occurred at ∼1.216Tm.


Introduction

It is of great significance to study the variation in melt structures with temperature in the deep undercooling of metal melt for understanding the mechanism of metal solidification and facilitating the process.1–7 The macroscopic properties of metals are mainly determined by their microstructure, while the solid structure of materials is closely related to the microstructure of their liquid matrix; therefore, the solid structure of a material is closely related to the microstructure of its parent liquid.8,9 Materials scientists have been researching the correlation between the liquid structure and its corresponding solid structure; however, this has not yet been established due to the uncertainty of the liquid metal structure and many difficulties associated with the determination.10–12 Due to the high melting points of niobium and its alloy,13 niobium is classified as a rare refractory metal in terms of its physical and chemical properties, resource development, and production. Nb has good ductility, thermal conductivity, corrosion resistance, heat resistance, and excellent machining performance, along with a low neutron capture cross section, good physiological resistance, and biocompatibility. Therefore, it is widely used in the steel, superconducting material, aerospace, atomic energy, and electronic industries; medical treatment; and other key fields. High-purity Nb is highly suitable for use in a nuclear reactor,14 as the cladding material of nuclear fuel, to form an alloy with nuclear fuel, and as the structural material of the heat exchanger in a nuclear reactor. Nb is widely used in the aerospace industry to manufacture aero-engine components, gas turbine blades, injection engines, gas turbine engines, rocket components, turbochargers, and heat-resistant burners. To develop and utilize the excellent properties of Nb and its alloys, the solidification process and the correlation between the structure and properties of Nb and its alloys must be studied. Therefore, it is of great significance to study the solidification of metallic Nb for further applications and popularization of the metal and its alloys.

The deep undercooling of molten metal is governed by many factors, such as superheated temperature, cooling rate, and holding time. Lin et al.15 performed a simulation study to elucidate the effects of different cooling rates during the solidification of liquid Zn, and found that the glass transition temperature was decreased with decreasing cooling rate. Hou16 studied the effect of different initial temperatures on the microstructure of metallic Na during solidification, and found a nonlinear relationship between the crystallization temperature of Na metal melt and the initial temperature. By using molecular dynamics simulation, Jian et al.17 studied the changes in the microstructure of Al-11.6% Si alloy at different heating temperatures and heat preservation times. Li et al.18 used molecular dynamics simulations to study the process of rapid solidification in TiAl and found that the amorphous phase can be obtained when the cooling rate was not less than 0.02 K ps−1. Geng et al.19 studied the relationship between the solidification interface and temperature and reported that when the critical superheating temperature was higher than the initial temperature, the stability of the solidification interface decreased with increasing temperature. On the other hand, when the critical superheating temperature was lower than the initial temperature, the stability of the solidification interface of the metal melt decreased with increasing temperature. Si et al.20 simulated the influence of the initial temperature on the solidification process of an Al–Cu alloy and found that the homogeneous nucleation subcooling of the solidified alloy increased with increasing initial temperature. Hou et al.21 studied the effect of the cooling rate on the solidification process of liquid aluminum by a large-scale molecular dynamics method. Han et al.22 aimed to achieve deep insight into the phenomenon of phase transformation. Pure copper was taken as an example, the correlation between phase selection of crystal or glass and cooling rate was investigated.

Nb metal has wide application scope; however, it has been challenging to study the evolution and solidification of its liquid microstructure under experimental conditions. Herein we used molecular dynamics simulation to study the microstructure evolution of Nb melt during solidification at different cooling rates and superheating temperatures. The critical cooling rate of Nb metal melt was calculated using the classical nucleation theory (CNT).23 Finally, the melt type after solidification of the Nb metal melt was analyzed. The solid–liquid coexistence technique, an energy–temperature (ET) curve, the radial distribution function (RDF),24 and atomic cluster and visualization analyses were used to study the microstructure of the solidified Nb melt. The atomic structure was characterized using the Ovito software. To record the different types of atomic structure, the change law of microstructure was analyzed under different conditions.

Computational details

In this study, the solidification process of Nb melt was simulated using the Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) software.25 The cubic primitive cell containing 31[thin space (1/6-em)]250 Nb atoms was studied under three-dimensional periodic boundary conditions and by using the EAM potential reported by Fellinger26 in 2010 and the Nosé–Hoover hot bath control temperature and pressure control method.27,28 The numerical integration adopts the Verlet algorithm in the form of velocity, the time step being 0.002 ps. According to the macroscopic constraint condition, the isothermal isobaric NPT ensemble was used for simulation studies.

First, the influence of different cooling rates on the homogeneous nucleation undercooling of metal Nb was investigated. The simulation process was as follows. Crystalline Nb atoms (31[thin space (1/6-em)]250 in number) were heated to 3250 K by running 100[thin space (1/6-em)]000 steps and then relaxed over 400[thin space (1/6-em)]000 steps to achieve a balanced state. Then, the melt was quenched to 50 K using different cooling rates: 1.0 × 1010.5, 1.0 × 1011.0, 1.0 × 1011.5, 1.0 × 1012.0, 1.0 × 1012.5, 1.0 × 1013.0, 1.0 × 1013.1, 1.0 × 1013.5, 1.0 × 1014.0, 1.0 × 1015.0, and 1.0 × 1016.0 K s−1 for 100[thin space (1/6-em)]000 steps. Finally, the radial analysis, average energy calculation, atomic cluster analysis, and visualization analysis were performed.

Second, the influences of different initial temperatures on the undercooling of the homogeneous nucleation and the structure were investigated. The simulation process can be described as follows. Nb with a BCC structure was heated to different desired superheating temperatures: 3040, 3050, 3054, 3058, 3060, 3065, 3075, 3125, 3135, 3140, 3175, 3195, 3210, 3221, 3234, 3240, 3260, 3274, 3300, 3320, 3343, 3345, 3350, 3364, 3375, 3400, 3410, 3416, 3420, 3427, 3437, 3450, 3500, 3546, 3570, 3610, 3670, 3700, and 3760 K over 100[thin space (1/6-em)]000 steps, and the temperature was held over 400[thin space (1/6-em)]000 steps to ensure gradual Nb melting. Then, the system was quenched to 50 K at a cooling rate of 1.0 × 1012.0 K s−1. Finally, the potential energy curves were analyzed to determine the solidification undercooling, and the influences of different superheating temperatures on the undercooling of homogeneous nucleation were investigated.

Results and discussion

Verification of the veracity of potential function

In this study, the solid/liquid coexistence method proposed by Morris et al.29 was mainly used to obtain the melting point of the system. If the initial temperature set by the system is higher than the actual melting temperature of the metal, part of the solid phase in the system will melt away and the kinetic energy of some atoms in the system will be converted into potential energy, following which the temperature of the system will inevitably decrease. If the initial temperature of the system is lower than the actual melting temperature of the metal, the partial liquid phase will solidify. The latent heat of crystallization is generated, following which part of the atomic potential energy in the entire system is converted into kinetic energy, and the temperature of the system increases. Therefore, the initial temperature of the system is higher or lower than the melting temperature of the system in a certain range. In such an NVT ensemble, the system will reach dynamic equilibrium, and the equilibrium temperature of the system will approach the melting point of the melt.

The crystalline atoms were analyzed by the potential function proposed by Fellinger in 2010. The temperature is plotted as a function of time for Nb melt in Fig. 1. According to the potential function proposed by Fellinger in 2010, the simulation system contains 31[thin space (1/6-em)]250 crystalline Nb atoms, for which the temperature is plotted against the time, with the time step (Fig. 2). It can be seen from the diagram that the temperature of the system fluctuates in the vicinity of a certain temperature value with the passage of time, that is, the simulated melting point of the system is 2750 K. The actual theoretical melting point of metal Nb is 2741 K. The simulated melting point is higher than the experimental value primarily because the melting of the metal usually begins with surface pre-melting, and the temperature of surface pre-melting is lower than the thermodynamic melting point. The simulated melting point is only 0.328% higher than the actual melting point, which proves the feasibility of the method and the correctness of the potential function.


image file: c8ra10189b-f1.tif
Fig. 1 VMD diagram with the melting point of niobium determined via the solid/liquid coexistence method.

image file: c8ra10189b-f2.tif
Fig. 2 Melting point of Nb melt using EAM potential function proposed by Michael Fellinger.

Verification of initial liquid equilibrium

The initial liquid structure has a direct effect on the subsequent solidification process. The time required to reach the equilibrium state varies with the number of atoms in the simulation system. In order to verify whether the initial liquid structure of the simulation system is in the equilibrium state, we used 6750 and 31[thin space (1/6-em)]250 Nb atoms, respectively, as the research objects. The molten Nb was transformed to liquid in 100[thin space (1/6-em)]000 steps at 3250 K, and relaxed in 400[thin space (1/6-em)]000 steps. The final state of the model was verified by comprehensive analysis of the RDF and ET curve. At 3250 K, the radial distribution function curves (Fig. 3) of the Nb melts are the same even when the number of atoms is different, which indicates that the liquid structure of the two systems with different atom number is the same. Thus, the simulated Nb melt is in the equilibrium state.
image file: c8ra10189b-f3.tif
Fig. 3 Radial distribution function for liquid Nb at different atomic number system.

The ET curve of molten metal Nb after melting relaxation (Fig. 4) shows that the energy and temperature of the system fluctuate greatly when melting commences; however, with the passage of time, the fluctuation decreases gradually, and the system tends to be stable. This is because when the system is heated to 3250 K, the equilibrium state of the system is destroyed, the temperature and energy increase rapidly, the atoms are disordered, and the melting entropy increases with time. The chaotic atoms slowly find a new equilibrium state, and the temperature and energy in the system gradually reduce, finally tending to certain values; thus, the stable structure of the initial state is obtained.


image file: c8ra10189b-f4.tif
Fig. 4 Total energy per atom and temperature vs. time steps of Nb metal after relaxation.

Effect of cooling rate on nucleation undercooling

Average energy. At an initial temperature of 3250 K, the cooling rates are different (1.0 × 1011, 1.0 × 1011.5, 1.0 × 1012, 1.0 × 1012.5, 1.0 × 1013, 1.0 × 1013.5, 1.0 × 1014, 1.0 × 1015, and 1.0 × 1016 K s−1). The molten metal Nb was cooled to 50 K at 1.0 × 1016 K s−1, and the ET curve during solidification was plotted (Fig. 5). When the cooling rate is 1.0 × 1013, 1.0 × 1013.1, 1.0 × 1013.5, 1.0 × 1014, 1.0 × 1015, or 1.0 × 1016 K s−1, there is no obvious change in the curve. When the cooling rate is 1.0 × 1011, 1.0 × 1011.5, 1.0 × 1012, or 1.0 × 1012.5 K s−1, there is an obvious inflection point for temperature in the curve of the system; the slope increases, the potential energy decreases suddenly, and the energy distinctly changes with the temperature. This is mainly because changes in the system occur in accordance with the principle of minimum energy, and the free energy of the solid state of the system is relatively stable. When the free energy of the melt is less than that of the liquid and the cooling rate is too high, the Nb of the melt directly forms an amorphous structure.
image file: c8ra10189b-f5.tif
Fig. 5 Total energy per atom vs. temperature for Nb melt cooled to 50 K at different cooling rates.
Analysis of RDF. The final structure of the Nb system cooled from 3250 K to 50 K at different cooling rates was analyzed by the RDF, which is shown in Fig. 6. It can be seen that when the cooling rate is 1.0 × 1010.5 and 1.0 × 1011 K s−1, the curve has a typical solid structure, implies that the solidification structures are crystalline. The Nb melt has a typical crystal structure after cooling and solidification. With increasing cooling rate, the top of each peak on the curve is flat, and the peak passivates and decreases gradually. At cooling rates of 1.0 × 1011.5, 1.0 × 1012, and 1.0 × 1012.5 K s−1, the splitting of the second peak is gradually relaxed; hence, the solidified structure is a mixture of crystalline and amorphous phases. When the cooling rate exceeds 1.0 × 1013 K s−1, the second peak on the curve almost disappears without cleavage, and the microstructure of the molten metal Nb after cooling and solidification is entirely amorphous.
image file: c8ra10189b-f6.tif
Fig. 6 g(r) curve of Nb solidified under different cooling rates.
Calculation of homogeneous nucleation undercooling. From the initial temperature of 3250 K, the molten metal Nb with an atomic number of 31[thin space (1/6-em)]250 cooled to 50 K at cooling rates of 1.0 × 1011, 1.0 × 1011.5, 1.0 × 1012.0, and 1.0 × 1012.5K s−1. The relationship between energy and temperature during solidification was analyzed (Fig. 7). The whole curve shows that the energy of the system decreases with decreasing temperature, and the energy catastrophe point appears at all four different cooling rates; further, the higher the cooling rate, the lower the temperature of the sudden change point.
image file: c8ra10189b-f7.tif
Fig. 7 Total energy per atom vs. temperature of the Nb melt under different cooling rates.

The undercooling degree of the Nb melt cooled to 50 K at different cooling rates is shown in Table 1. The nucleation temperature of Nb melt decreases gradually when the cooling rate increases to 50 K, and its undercooling value increases gradually. Furthermore, the effect of cooling rate on the undercooling of the Nb melt is obvious, and the undercooling degree increases with increasing cooling rate.

Table 1 Undercooling of Nb melt cooled to 50 K under different cooling rates
Rc (K s−1) Tm (K) T (K) ΔT (K)
1.0 × 1011.0 2750 1696.51 1053.49
1.0 × 1011.5 2750 1647.03 1102.97
1.0 × 1012.0 2750 1609.40 1140.60
1.0 × 1012.5 2750 1537.44 1212.56


The change in cooling rate (Rc) and undercooling (ΔT) can be explained by the CNT,


image file: c8ra10189b-t1.tif(1)

image file: c8ra10189b-t2.tif(2)

In the equation, Av = 1041±1 m−3 s−1 represents the fixed ratio of homogenous nucleation, and ΔGA is the interfacial diffusion activation energy, which can be regarded as fixed. σ is the interface energy and ΔHv is the potential energy of metal crystallization. The physical and chemical parameters of Nb are listed in Table 2.

Table 2 Physical and chemical parameters of niobium
Parameter Value
Vm/m−3 mol−1 1.22 × 10−5 (ref. 30)
Tm/K 2740 (ref. 30)
ΔGA/J mol−1 1.4933 × 104 (ref. 31)
ΔHv/J m−3 2.2049 × 109 (ref. 30)
σ/J m−2 0.237


The reliability of the results obtained using molecular dynamics simulations alone is weak; therefore, the method of homogenous nucleation undercooling which considers the solid/liquid interface energy was considered to verify the reliability of the simulation results. Fig. 8 compares the simulated and calculated results. The solid lines indicate the relationship between the undercooling calculated from CNT and the cooling rate, while the blue lines show the change in the undercooling with different cooling rates. Thus, the results of theoretical computation fit those of the simulation well, proving the high reliability.


image file: c8ra10189b-f8.tif

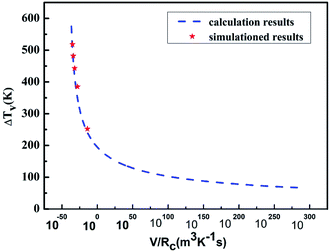

Fig. 8 Comparison between the classical nucleation theoretical calculation result and the simulated results by author.
Atomic cluster analysis. Fig. 9 shows the percentage dependences of various crystalline units at different cooling rates. It can be seen that in the supercooled liquids, at cooling rates lower than 1.0 × 1012.5 K s−1, there are few ICOs, whereas for other cooling rates, ICOs do not exist. During the liquid–solid transition processes, the number of BCC structures is almost constant. When the cooling rate exceeds 1.0 × 1012.5 K s−1, with increasing cooling rate, the FCC structure first increases and then decreases, the BCC structure decreases gradually, and the HCP structure increases. Among these, the number of FCC structures is fewer than that of BCC, and the proportion of ICOs in the system slightly changes. This implies that there is competition between the amorphous and crystalline clusters during the solidification process, and it appears only below the liquid–solid transition temperature.
image file: c8ra10189b-f9.tif
Fig. 9 Percentage dependences of various crystalline units at different cooling rates.
Visualization analysis. To observe and analyze the microstructure of the Nb melt clearly, we used Ovito software to visualize it under the periodic boundary condition. The atomic configuration images at different cooling rates are intuitively shown in Fig. 10. When the cooling rate is 1.0 × 1011.0 K s−1, the number of atoms in the HCP structure decreases sharply, while the number of atoms in the BCC structure increases. At cooling rates of 1.0 × 1011.0, 1.0 × 1011.5, 1.0 × 1012.0, and 1.0 × 1012.5 K s−1, the atomic structure is mainly the BCC structure. On the other hand, at cooling rates of 1.0 × 1013, 1.0 × 1013.1, 1.0 × 1013.5, 1.0 × 1014, 1.0 × 1015, and 1.0 × 1016 K s−1, with increasing cooling rate, the number of atoms in the HCP structure increases, the number of atoms in the BCC and FCC structures decreases, and the atomic chaos increases. Fig. 9(b–e) shows that a lower cooling rate will provide more diffusion time, and thus, the atoms will have more time to move to the equilibrium position in the experimental value. This explains the more orderly atomic arrangement. On the other hand, in Fig. 9(f–k), the atomic arrangement is disordered. This indicates high cooling rates and slower atomic migration, which result in the formation of an amorphous structure. Combined with the above discussion, it can be stated that the crystalline structure is not a perfectly ordered lattice due to the high cooling rate, and thus, the atoms do not have enough time to rearrange themselves into a perfect position.
image file: c8ra10189b-f10.tif
Fig. 10 Atomic configurations of Nb melt under different cooling rates (blue represents BCC structure, green represents FCC structure, and red represents HCP structure).

Analysis of the internal energy and atomic configuration reveals that the threshold cooling rate is 1.0 × 1012.5 K s−1: crystallization will occur at cooling rates lower than 1.0 × 1012.5 K s−1 and amorphous structures will be obtained at cooling rates higher than 1.0 × 1012.5 K s−1.

Effect of superheating temperature on undercooling

Analysis of energy–temperature (ET analysis). Firstly, 31[thin space (1/6-em)]250 crystalline Nb atoms were run for 100[thin space (1/6-em)]000 steps at 3040, 3050, 3054, 3058, 3060, 3065, 3075, 3125, 3135, 3140, 3175, 3195, 3210, 3221, 3234, 3240, 3260, 3274, 3300, 3320, 3343, 3345, 3350, 3364, 3375, 3400, 3410, 3416, 3420, 3427, 3437, 3450, 3500, 3546, 3570, 3610, 3670, 3700, and 3760 K, respectively, so that the entire system is in a molten state. Then, the entire system was relaxed for 400[thin space (1/6-em)]000 steps to allow the simulated system to reach the equilibrium state. Next, at a cooling rate of 1.0 × 1012 K s−1, the temperature was decreased to 50 K, and the time step of heat preservation relaxation was introduced. By analyzing the ET curve, the relationship between the energy of metal Nb melt and temperature was analyzed (Fig. 11).
image file: c8ra10189b-f11.tif
Fig. 11 Potential energy per atom vs. temperature of Nb melt under different superheating temperatures.

It can be seen from Fig. 11 that the energy of the system decreases with a decrease in temperature at different initial temperatures. At superheating temperatures of 3040, 3050, 3135, 3140, 3240, 3300, 3345, 3416, and 3670 K, the total energy of the system does not change with temperature and the system solidifies into crystals. When the superheating temperature increases from 3040 K to 3670 K, the inflection point temperature decreases gradually, indicating that the crystallization temperature of the melt decreases with an increase in the initial temperature. At superheating temperatures of 3345, 3416, and 3670 K, the system changes spontaneously to a stable low-energy state, and the energy of the system decreases with decreasing temperature. During this decrease, the slope of the curve at a certain inflection point increases instantaneously, and the energy decreases sharply. It can be seen from the graphs and Table 3 that when the superheating temperature is high enough, the crystallization temperature indicated by the inflection point does not change, and its nucleation undercooling reaches a fixed value.

Table 3 Undercooling (ΔT) of Nb melt from superheating temperature to 50 K
Rc (K s−1) TS (K) Tm (K) T (K) ΔT (K)
1.0 × 1012.0 3040 2750 1646 1104
1.0 × 1012.0 3050 2750 1640 1110
1.0 × 1012.0 3135 2750 1631 1119
1.0 × 1012.0 3140 2750 1630 1120
1.0 × 1012.0 3240 2750 1624 1126
1.0 × 1012.0 3300 2750 1601 1149
1.0 × 1012.0 3338 2750 1561 1189
1.0 × 1012.0 3345 2750 1561 1189
1.0 × 1012.0 3369 2750 1561 1189
1.0 × 1012.0 3416 2750 1561 1189
1.0 × 1012.0 3670 2750 1561 1189


To more clearly and intuitively reflect the variation trend of the melt superheating temperature and the nucleation undercooling degree, Fig. 12 was plotted. It can be seen from the plot that the free energy of the system increases gradually with an increase in temperature due to the appearance of a crystal embryo during cooling crystallization of the molten metal Nb. At the same time, the appearance of a crystal embryo increases the system chaos and entropy, and the free energy decreases gradually. At this time, with an increase in superheating temperature, the supercooling degree tends to become stable after increasing and finally reaches a fixed value; thus, the system is in an equilibrium state, and the fixed value is the system's nucleation undercooling temperature of 1189 K.


image file: c8ra10189b-f12.tif
Fig. 12 Temperature vs. undercooling of Nb melt at different superheating temperatures.

When the superheating temperature of the melt is in region I and II, the undercooling degree of the melt nucleation increases with an increase in the heating temperature; however, the change curve is discontinuous, which indicates that the melt structure in these two regions varies with temperature. Moreover, the discontinuity of the curve indicates that the melt structures of region I and II are different, and the boundary temperature of regions I and II can be regarded as the melting temperature of the residual crystal particles. Although there are no residual crystal particles in the melt of region II, there should be atomic clusters. The change in the supercooling degree of the melt in this region with the superheating temperature is a reflection of the change in the size and structure of the atomic clusters with the superheating temperature. When the melt is in region III, the supercooling degree at different superheating temperatures is a constant, which indicates that the temperature does not change in region III.

Atomic cluster analysis and visualization analysis. To observe and analyze the microstructure of Nb melt under different superheating temperatures, the atomic number distribution and atomic configuration images at different superheating temperatures were obtained and are intuitively shown in Fig. 13 and 14. It can be seen that the BCC structure has the largest number of atoms at different superheating temperatures, while the number of atoms in the FCC and HCP structures constitutes only a small part. As the superheating temperature increases, the number of atoms in each structure does not change significantly. The BCC structure atoms are evenly distributed in each structure, in which the atoms of the FCC and HCP structures are mixed and distributed. Generally, the three atomic structure distributions and the number of structural atoms are substantially unchanged. Therefore, when the cooling rate is the same, the initial temperature has little effect on the atomic structure after solidification and the number of structural atoms; however, as the temperature increases, the degree of chaos of each structural atom increases.
image file: c8ra10189b-f13.tif
Fig. 13 Atom number vs. superheating temperature under the same Rc (1.0 × 1012.0 K s−1).

image file: c8ra10189b-f14.tif
Fig. 14 Atomic configurations of Nb melt under different superheating temperatures (blue represents BCC structure, green represents FCC structure, and red represents HCP structure).

Conclusions

The simulation of the solidification of a Nb melt at different cooling rates shows that the superheating temperature and supercooled liquid have little influence on the solidification structure of Nb melt, and the effect is only apparent below the liquid–solid transition temperature. When Rc ≥ 1.0 × 1013.0 K s−1, an amorphous structure is preferably formed, while at Rc ≤ 1.0 × 1012.5 K s−1, a crystalline structure is preferably formed. Furthermore, when 1.0 × 1012.5 K s−1Rc ≤ 1.0 × 1013.0 K s−1, crystal and amorphous structures coexist in the solidification structure of the Nb melt.

The solidification undercooling of the Nb melt increased with cooling rate and can be explained by the classical nucleation theory. Further, the solidification undercooling increased with initial superheating temperature until the maximal undercooling was attained. It was found that the maximal undercoolings are close to 0.432Tm, and the maximal superheats are close to 1.216Tm. The findings of this study will serve as a foundation for further research on the relationship between the melt temperature and nucleation supercooling.
