Mono epoxidation of α,ω-dienes using NBS in a water-soluble cavitand

Abstract

Water-soluble host molecules offer a range of environments to their guests. Polar functions of guests are exposed to the medium while hydrophobic groups are generally buried in the containers and hidden from reagents in solution. Here, we apply these preferences to convert α,ω-dienes to epoxy alkenes using cavitands as reaction vessels. Reaction of one end of a diene with NBS in water gives a bromohydrin that binds in the cavitand with the hydroxyl exposed and the remaining alkene buried. Treatment with base converts the bromohydrin to an epoxide. The reaction sequence provided up to 84% yields of monoepoxides from symmetrical dienes separated by 4 to 10 methylene groups. With 1,4-diisopropenyl benzene, a nearly quantitative yield of the monoepoxide was obtained. The application should be general for converting symmetrical hydrophobic guests to unsymmetrical, amphiphilic ones.

---

Container molecules are widely applied in studies of molecular recognition and reactivity in confined spaces. Their use as reaction vessels^1–11 and sensors^12–15 is well-developed, but as blocking groups, less so: Gibb¹⁶ introduced the concept for intermolecular competition between encapsulated isomeric esters, and Fujita¹⁷ recently applied it to intramolecular competition between olefin sites in epoxidation. The key feature of water-soluble containers¹⁸ is an open end where hydrophilic groups are exposed to the aqueous medium; the hydrophobic interiors of the cavities house nonpolar functions. In this study we use cavitand containers^19,20 that have been modified for water solubility^21,22 (Fig. 1). They are readily synthesized by chemical methods and used as hosts in a variety of applications.²³ α,ω-Difunctional compounds with long hydrophobic chains assume folded conformations in such cavitands: if the functions are hydrophilic, they remain exposed to the aqueous medium; if the functions are hydrophobic, they move to compete for the cavitand's interior. We describe here the reactions of α,ω-dienes sequestered by cavitand 1 in aqueous (D₂O) solution. Hydrophobic forces drive the dienes into the cavitand and the guest moves rapidly between conformations that best fill the space.²⁴ Reaction at one end of the diene desymmetrizes the guest's polarity and fixes its position in the cavitand's space.

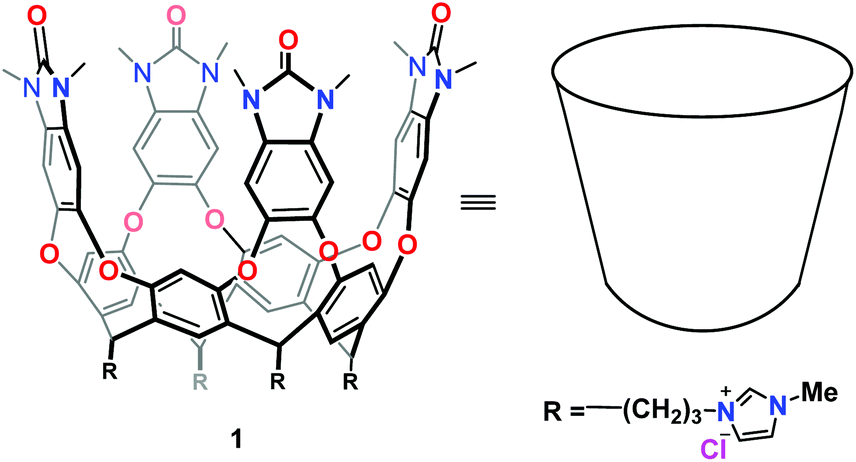

Fig. 1 Chemical structure and schematic cartoon of the water-soluble cavitand.

The partial ¹H NMR spectra of α,ω-long chain dienes (C₈ to C₁₄) and 1,4-diisopropenyl benzene are shown in Fig. 2. Brief sonication of these α,ω-dienes (1.4 mM) with 1 (1.4 mM) in water (D₂O) gave stoichiometric host–guest complexes. The ¹H NMR signals of the guest showed characteristic upfield-shifts caused by the shielding of the aromatic panels of the host. The typical upfield shifts (−Δδ) experienced by nuclei in 1 are given in ESI (see Fig. S1†).

Fig. 2 (a) Partial ¹H NMR (600 MHz, D₂O, 298 K) spectra of the complexes formed between 1 and 2a–g. (b) Partial spectrum of 1,4-diisopropenyl benzene (3) binding with 1 and a cartoon of the host–guest complex.

The conformation of linear guests inside the cavitand 1 is not fixed but moves on rapidly on the NMR chemical shift timescale. The motion may be “yo-yo” like between two J-shaped conformations or the rapid tumbling of a coiled conformation. The former is more likely for longer guests and the latter for shorter ones. In any case, the two ends of the dienes rapidly exchange positions from near the top of the cavitand to near its bottom (see Fig. S14†). The binding pattern of longer chains complies with our previous reports.²⁵ The aromatic 1,4-disubsituted diene 3 (Fig. 2b) showed a position in which one –C(CH₃)=CH₂ group is fixed deep inside the cavity. The Δδ for one CH₃ is observed −4.47 ppm, near the maximum value (see Fig. S15 and S16†). The guest hydrogen signals were observed to be broad, perhaps due to some restricted motion.

We used 1 as a chaperone to synthesize monoepoxides of dienes 2c–2f (C₁₀–C₁₃) and 3via electrophilic addition of NBS. As shown in Scheme 1, epoxides form via bromohydrin intermediates INT-1 and INT-2.^26–29 Host–guest complexes were formed by sonication of an NMR tube containing diene and cavitand (1.4 mm) for two hours followed by addition of NBS (1 eq.). As shown in Fig. 3, the signals of 2e disappeared while the product intermediate bromohydrin increased with time. After complete conversion of the diene, aqueous (D₂O) K₂CO₃ (0.5 eq.) was added. The conversion to 4e appeared after a reaction time of 6 hours. Comparison with authentic monoepoxide in 1 (top trace of Fig. 3a) indicated nearly no formation of guest by-products. The NMR signals of monoepoxide C₁₂ in 1 ranged from 2.61 ppm to −2.57 ppm. This signal pattern is consistent with a fixed arrangement of the guest in the cavitand. The epoxide group is exposed, the –CH₂–HC=CH₂ end is buried and the allyl hydrogens are deepest in the cavity.

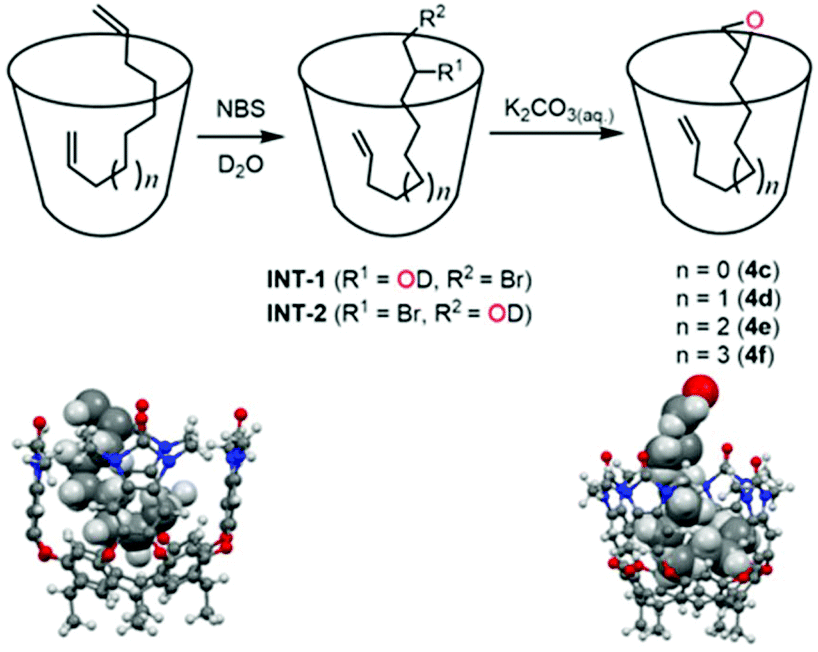

Scheme 1 Top: Cartoons of the epoxidation process with NBS and base with cavitand 1 in aqueous medium. Bottom: Modeled complexes of α,ω-diene (C₁₀) (left) and its monoepoxide in a J-shaped conformation (right).

Fig. 3 Top (a): Partial ¹H NMR (600 MHz, D₂O, 298 K) spectra of α,ω-diene (C₁₂) 2e in 1 recorded after addition of NBS (50 mM, 14 μL). (a) After 3 h of sonication at 25 °C with DMSO-d₆ used as co-solvent; (b) 14 μL of NBS, 12 h, 50 °C; (c) sample b, 7 μL (50 mM) of K₂CO_3(aq), 12 h, 50 °C; (d) authentic 2-(dec-9-en-1-yl)oxirane (4e) in cavitand 1. Bottom (b): Cartoon of the conversion of (C₁₂) to mono epoxide 4e with assignments of the product methylene signals.

Parallel results were obtained with the other linear aliphatic dienes (Fig. S18–S24†). All authentic monoepoxides were synthesized by using m-CPBA (0.5 eq.) in DCM (see ESI†). This provides monoepoxides in organic solvents but the yields and selectivity are lower. The product conformations were confirmed by 2D COSY studies (see Fig. S25–S28†). The formation of the bromohydrin intermediate was unambiguously confirmed by comparison with an authentic standard in the cavitand (see Fig. S29†). The fixed conformation of the complex having the –CH=CH₂ end buried prevents further electrophilic reactions with the aqueous NBS.

Addition of another 0.2 equivalents of NBS to the reaction mixture after 6 h did not result in changes of the integral peaks in the spectra. Only compounds with longer lipophilic chains such as compounds 4e and 4f showed small amounts of impurities (10%) in their reactions with excess NBS (see Fig. S30†). This results confirmed that the terminal –CH=CH₂ group of the buried end is protected by the cavitand and inaccessible to reagents. The product yields were calculated by ¹H NMR using dimethyl sulfone (DMS) as an internal standard. The yields observed were 84, 70, 64, and 57% for 2c, 2d, 2e and 2f, respectively (see Fig. S32–S35†).

The reaction of an aromatic 1,4-substituted diene 3 in 1 also gave the respective mono oxidized product as shown in Scheme 2. Again, one of the double bonds binds and is protected by cavitand (Fig. 4); the exposed double bond reacts with NBS and provides monoepoxide 5 in D₂O. Without cavitand 1, this monoepoxide cannot be obtained selectively in organic solvents. The usual products are mono- and di-aldehydes due to acid catalysed rearrangements.

Scheme 2 Monofunctionalization of a 1,4-disubstituted aromatic diene 3 in cavitand 1.

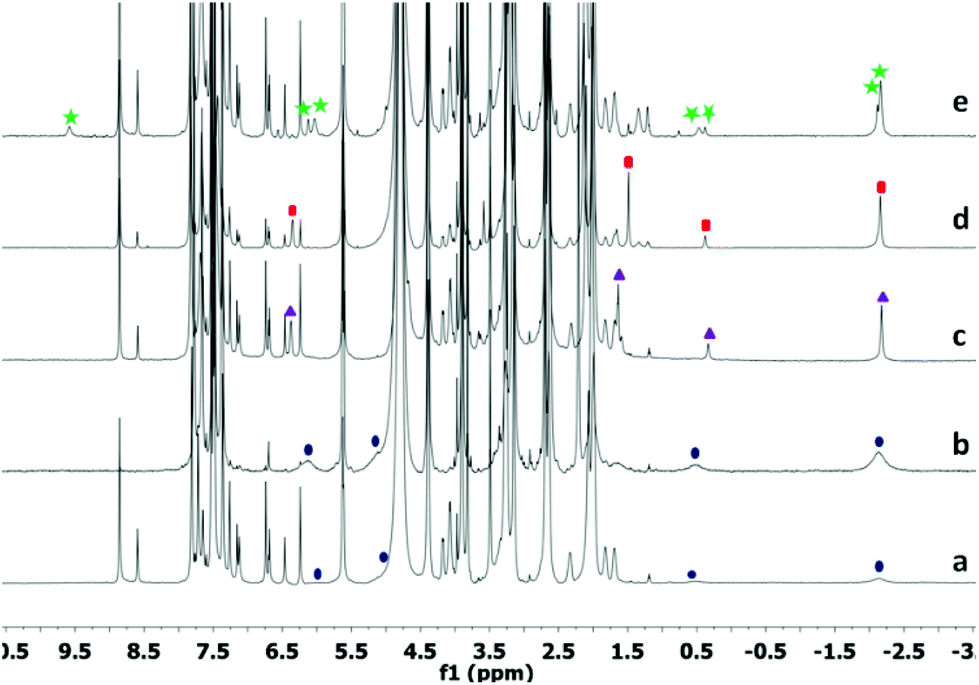

Fig. 4 Full ¹H NMR spectra of 3 in 1. (a) 2 : 1 host/guest complex of 3 in 1; (b) 1 : 1 host/guest complex; (c) reaction of sample a with NBS, stirred 2 h and stirred with K₂CO_3(aq.) at 50 °C for 2 h; (d) authentic mono epoxide 5; (e) authentic aldehyde 6.

In the cavitand, aldehyde formation was not observed within 1 h as it was confirmed by binding the authentic aldehyde 6. Generally, aldehyde 6 in 1 gives two set of peaks related to hydrated and free aldehyde forms (see Fig. 4 top trace of ¹H NMR). Only a trace of conversion to mono-aldehyde was observed from epoxide in 1 after few hours (8 h) (see Fig. S37†). The nearly quantitative NMR yield was calculated using hexamethylcyclotrisiloxane as internal standard (see Fig. S38†).

Unbiased control experiments are difficult to perform without the cavitand because most of the long chain dienes are practically insoluble in water. Therefore, without cavitand 1 the control experiments were performed with a solvent mixture of acetonitrile-d₃ in D₂O (25% v/v) and DMSO-d₆ (3.6%). In these experiments, faster epoxidation reactions were observed and gave mixtures of products while using 1 equiv. of NBS (Fig. S39 and S40†). The ratio of mono, di-epoxide and starting diene were calculated by GC as 35, 45 and 18% respectively (see Fig. S41–S45†). Prolonged reaction times with 1 equiv. of NBS, the ratio remained the same as 1 h. Excess of NBS gave impurities and di-epoxides. This result highlights the striking ability of the cavitand to suppress the second electrophilic addition. In the case of aromatic compound, the formation monoepoxide or aldehyde was confirmed by gas chromatography by comparing with authentic mixtures obtained from the reaction with m-CPBA in dichloromethane (see Fig. S46–S49†). After 12 h of reaction without cavitand, control experiments with NBS (1 equiv.) gave starting diene 3, mono aldehyde 6 and di-aldehyde with the ratio of 48, 4, 38% respectively (see Fig. S50†).

In conventional solutions, the monofunctionalizations of symmetrical compounds give statistical mixtures of products if the functional sites are remote and act independently. In water-soluble cavitands as reaction vessels, we have reported a few mono functionalizations such as hydrolysis of long-chain diesters,³⁰ the synthesis of macrocyclic ureas,²⁴ the Staudinger reactions of diazides³¹ and monohydrolysis of long chain α,ω-dibromides.³² Many other organic reactions do not proceed well in aqueous medium due to the insolubility of reagents or catalysts.³³ In such cases, the cavitand helps the dissolution of insoluble guests by complex formation. Cavitands may even act as enzyme mimics that can bind guests in conformations that channel reactions along pathways that fit the shape of the cavity.^34–37 The present application uses differences in polarity to achieve the product selectivity and while the cavitand is used stoichiometrically, the desired products can be isolated by mere extraction.
