A general low-temperature synthesis route to polyanionic vanadium phosphate fluoride cathode materials: AVPO₄F (A = Li, Na, K) and Na₃V₂(PO₄)₂F₃

Abstract

Phosphate fluoride-based cathode materials attract great interest for secondary batteries as they offer a very rich crystal chemistry that allows one to finely tune the electrochemical properties. Among them, tavorite-LiVPO₄F exhibits the highest theoretical energy density (655 W h kg⁻¹) and is therefore strongly investigated in the field. However, the solid-state reactions reported for the synthesis of this material generally lead to a partial oxidation of the compound and the formation of side-products due to the evaporation of fluorine occurring at elevated temperature. Herein, we show that the use of a new liquid-phase fluorolytic route allows to tackle this issue and leads to phase-pure LiVPO₄F at a low temperature of 240 °C. By slightly changing the synthesis parameters, we generalized this soft chemistry method to the related Na₃V₂(PO₄)₂F₃ and (Na,K)VPO₄F cathode materials that are also highly relevant for battery applications. The obtained materials exhibit good electrochemical performance, with almost full capacity reached at low rates. The versatility of the reported synthesis is therefore worth exploring for other polyanionic systems.

---

Introduction

Since the first report of the olivine-type LiFePO₄ material by Goodenough and coworkers in 1997,¹ three-dimensional frameworks based on the phosphate polyanion have attracted much attention in the battery community.² As such, phosphate fluoride-based cathode materials are of great interest as they can combine the benefits of both their anionic species. The presence of highly covalent (PO₄)³⁻ groups provides them with a high structural stability and the inductive effect^3,4 induced by both F⁻ and (PO₄)³⁻ anions increases the potential of the transition metal ion redox couple. Different structural families of lithium, sodium and potassium transition metal phosphate–fluorides have been reported, such as AMPO₄F,^5,6 A₂MPO₄F,⁷ A₃M₂(PO₄)₂F₃,⁸ and A₅M(PO₄)₂F₂⁹ (in which A is an alkaline metal and M a transition metal), and their electrochemical performance has been investigated in the last two decades.

Thanks to their very attractive working voltage (typically around 4 V in half cells) and decent theoretical capacity values (higher than 125 mA h g⁻¹), vanadium-based phosphate fluorides (Li, Na, K)VPO₄F^10–12 and Na₃V₂(PO₄)₂F₃^13,14 have been highly investigated in the literature. Among them, tavorite-type LiVPO₄F displays a high V⁴⁺/V³⁺ redox potential (≈4.2 V vs. Li⁺/Li). Combined with a theoretical specific capacity of 156 mA h g⁻¹, this leads to an energy density value of 655 W h kg⁻¹vs. Li, which makes it very competitive with the already commercialized lithium iron phosphate (586 W h kg⁻¹vs. Li for LiFePO₄).¹⁵

However, synthesizing pure LiVPO₄F is challenging. Typically, a carbothermal reduction (CTR) reaction is used,¹⁰ involving two successive heat treatments. First, a carbon powder is used as a reductive agent to obtain a VPO₄/C composite material from a V⁵⁺ precursor (generally V₂O₅) at elevated temperature (typically ≥600 °C). Then, this product is reacted with LiF to obtain LiVPO₄F/C, at high temperature, once again (≥600 °C in general). This second step is critical, as many parameters such as the amount of carbon in VPO₄/C, the atmosphere, the heating time and the cooling rate must be precisely controlled to prevent the partial oxidation of the material in LiVPO₄F_1−xO_x and the formation of impurities such as Li₃V₂(PO₄)₃^16,17 and V₂O₃.¹⁷ Other synthetic routes deriving from the CTR method have been reported using, for instance, oxalic acid^18,19 or hydrogen²⁰ as a reducing agent. Recently, Kim et al.²¹ reported for the first time a one-step synthesis of phase-pure LiVPO₄F. To do so, they used polytetrafluoroethylene (PTFE) as an additional fluorine source to compensate its evaporation during the heat treatment, which is known to occur according to reaction (1):^16,22

3LiVPO₄F → Li₃V₂(PO₄)₃ + VF₃(g) (1)

Nevertheless, a heat treatment at high temperature (≥600 °C) under controlled inert conditions was still needed to obtain a phase pure material.

Another way to avoid the evaporation of volatile fluorine compounds during the synthesis of LiVPO₄F is to use a “chimie douce” approach in a liquid medium, which can also offer the opportunity to better control the growth and morphology of the obtained particles, in comparison to solid-state routes. As such, the fluorolytic sol–gel route is a synthesis method that relies on the dissolution (or dispersion) of metal-ion precursors in a nonaqueous solvent (typically an alcohol), followed by the addition of hydrogen fluoride (HF) and heating of the solution. It can be generalized by the reaction (2):

MX_n + nHF → MF_n + nHX (2)

In which M is a transition metal of oxidation state n, and X is an alkoxide,²³ chloride,^24,25 nitrate,²⁶etc. This synthesis route has been successfully used to obtain various binary systems and, recently, more complex ternary and quaternary metal fluorides.²⁷

Current efforts are made by our group toward the extension of this method to fluorine-containing battery-type materials.^28–30 In this framework, we recently reported and discussed the fluorolytic sol–gel chemistry of polyanionic LiFePO₄F and Li₂CoPO₄F materials.³⁰ In the continuity of this work, we report herein a new straightforward one-pot solvothermal synthesis to phase-pure crystalline LiVPO₄F at mild temperature (240 °C), thus suppressing the need for energy-consuming heat treatments at elevated temperatures under a controlled atmosphere. The obtained phase pure compound was characterized as a Li-ion cathode material and displays good electrochemical performance, reaching almost full theoretical capacity at low rate (147 mA h g⁻¹ at C/10), without any carbon-coating at the surface of the particles that is usually achieved with the carbothermal route. While the emphasis of this paper is on the tavorite-LiVPO₄F material, we also show that, by varying the synthesis conditions and the precursors, this new route can easily be generalized to the related sodiated and potassiated compounds NaVPO₄F, Na₃V₂(PO₄)₂F₃, and KVPO₄F which are of great interest for sodium and potassium-ion batteries.^11–13,31

Experimental

Reagents

Vanadium trichloride (VCl₃, 99%), lithium methoxide (CH₃OLi, >98%), sodium ethoxide (C₂H₅ONa, >96%) and potassium ethoxide (C₂H₅OK, >95%) were purchased from Alfa Aesar. Anhydrous benzyl alcohol (C₆H₅CH₂OH, >99.8%) and crystalline phosphoric acid (H₃PO₄, 99.999%) were obtained from Sigma-Aldrich. All reagents were used without further purification.

Synthesis of LiVPO₄F material

The fluorolytic sol–gel synthesis route used to obtain LiVPO₄F is adapted from our previous work on lithium iron/cobalt phosphate fluoride.³⁰ Typically, vanadium trichloride, lithium methoxide and phosphoric acid (with a 1 : 1 : 1 molar ratio) were dissolved at 80 °C in benzyl alcohol to obtain a 0.2 M solution. Then, this latter was fluorinated by carefully adding a stoichiometric amount of a 20 M methanolic hydrofluoric acid (HF) solution, changing its color from dark violet to green. The mixture was subsequently stirred for a few minutes before being transferred into a Teflon-lined autoclave that was heated in a furnace at 240 °C for 12 h. To avoid the oxidation of V³⁺ during the synthesis, all steps were performed under argon by using a glovebox or Schlenk-line techniques. Increasing the duration of the heat treatment only induces a slight increase of the particle size.

The obtained green powder was centrifuged and repeatedly resuspended in ultrapure water and ethanol. After a last resuspension in acetone, the material was dried at 65 °C for a few hours.

Similar results were obtained using vanadium acetylacetonate as a V(III) source.

Synthesis of KVPO₄F material

KVPO₄F was obtained using the same synthetic method as for LiVPO₄F, but by replacing lithium methoxide by potassium ethoxide. The autoclave was heated at 240 °C for 24 h.

Synthesis of Na₃V₂(PO₄)₂F₃ and NaVPO₄F materials

Both sodiated compounds were obtained using a similar route as for LiVPO₄F. The lithium methoxide precursor was replaced by sodium ethoxide, and the ratios Na : V : P : F were adjusted to 3 : 2 : 2 : 3 and 1 : 1 : 1 : 1, for Na₃V₂(PO₄)₂F₃ and NaVPO₄F, respectively.

However, we found that in the case of NaVPO₄F synthesis, the tetragonal Na₃V₂(PO₄)₂F₃ phase was firstly crystallizing, prior to being progressively converted into the tavorite-type NaVPO₄F, as already observed by Boivin et al.¹¹ In this paper, the studied Na₃V₂(PO₄)₂F₃ and NaVPO₄F materials were obtained at 240 °C after 12 h and 72 h of solvothermal treatment, respectively.

Characterization

X-ray diffraction (XRD) patterns were acquired in transmission geometry using a STOE Stadi MP diffractometer equipped with a Dectris Mythen 1K linear silicon strip detector and a Ge(111) double-crystal monochromator with a Mo Kα₁ radiation source (λ = 0.7093 Å).

Le Bail refinements were made with the FullProf software.

Transmission Electron Microscopy (TEM) measurements were carried out using a FEI TALOS 200S equipped with a field emission gun and operated at 200 kV. A suspension of the desired material in absolute ethanol was prepared and a drop was deposited on a holey carbon-coated copper grid.

Energy dispersive X-ray spectroscopy (EDX) was recorded with build in SuperX EDS detector.

Fourier-transform infrared spectroscopy (FTIR) was carried out using a Thermo Scientific Nicolet iS5 FTIR Spectrometer in attenuated total reflection (ATR) configuration with a germanium crystal, in the range 4000–600 cm⁻¹.

Electrochemical measurements

The working electrodes were made by mixing the desired active material with carbon black (Super C65, Timcal) in a 7 : 2 ratio at 400 rpm for 30 minutes using a planetary ball-mill (Pulverisette 7, Fritsch). The obtained black powder was then mixed with polyvinylidene fluoride (PVDF) in anhydrous N-methylpyrrolidone (NMP, Sigma-Aldrich, 99.5%) with a weight ratio of 9 : 1. The resulting slurry was subsequently casted onto an Al-foil using a doctor blade apparatus before being dried at 70 °C. After a cold-laminating step, disk-shaped electrodes of 18 mm diameter were cut and dried overnight at 120 °C under vacuum using a Büchi glass oven. The mass loading of all electrodes was comprised between 2 and 5 mg cm⁻².

Coin cells were then assembled in an argon-filled glove box using the vanadium phosphate fluoride compound as a working electrode material and a lithium (or sodium) foil (Alfa Aesar, 99.9%) as both counter and reference electrodes. For lithium-based half-cells, a 1 M LiPF₆ (ABCR, 99.9% battery grade) solution in a mix of ethylene carbonate (ABCR, 99.9%), propylene carbonate (ABCR, 99.9%,) and dimethyl carbonate (ABCR, 99.9%) with 1 : 1 : 1 volume ratio was used as the electrolyte, while a 1 M NaClO₄ solution in PC was used for their sodium counterparts. In both cases, a glass fiber filter (Whatman) served as a separator.

Galvanostatic cycling was carried out at room temperature at different C-rates using a CT2001A battery cycler (Landt Instruments). A current density of 1C corresponds to the insertion/deinsertion of 1 alkali ion in 1 hour for (Li, Na, K)VPO₄F, and of 2 Na for Na₃V₂(PO₄)₂F₃ (theoretical capacity of 128 mA h g⁻¹). The potential ranges used in this work were 2.5–4.6 V and 2.0–4.7 V vs. Li⁺/Li for LiVPO₄F and KVPO₄F, respectively. Na-ion half-cells were cycled from 2.5 to 4.5 V and 2.3 to 4.4 V vs. Na⁺/Na for NaVPO₄F and Na₃V₂(PO₄)₂F₃, respectively.

Results and discussion

LiVPO₄F: fluorolytic sol–gel synthesis, structure and morphology

By adapting the synthesis conditions from our study of LiFePO₄F,³⁰ we successfully obtained phase-pure tavorite-LiVPO₄F via a fluorolytic sol–gel route^32,33 involving a solvothermal treatment for 12 h at 240 °C. As discussed in our previous work,³⁰ H₃PO₄ is known to possess a strong complexing behavior towards metal cations.³⁴ It tends therefore to quickly react with metal alkoxides and other metal precursors,³⁵ to form M–O–P rather than M–O–M bonds. As such, during the synthesis of LiFePO₄F, a poorly crystalline iron phosphate material was formed before the growth of the desired phosphate fluoride phase. Herein, we found that the lithium vanadium phosphate fluoride precursor solution was in fact a very stable sol and no precipitation could be observed, even after few days of storage and a thorough centrifugation step. After a solvothermal treatment of the sol, green aggregates of LiVPO₄F powder embedded in a highly viscous translucent gel are obtained.

The X-ray diffractogram (XRD) of the synthesized material and the schematic representation of its crystallographic structure are presented in Fig. 1a and b. The well-known tavorite framework, which is characteristic of many A_xMPO₄(OH, F) materials (in which A = Li, Na and M is typically a transition metal), consists in alternately tilted corner-sharing V³⁺O₄F₂ octahedra in the [101] direction, which share common fluorine atoms. These VO₄F₂ chains are linked to each other by corner-sharing PO₄ tetrahedra, forming large (>3 Å wide) interconnecting channels along the [100] and [010] directions. Tavorite-type materials have been reported to be fast one-dimensional lithium ion conductors (along the [111] direction) by Mueller and colleagues,³⁶ which makes them highly relevant as Li-ion battery cathode materials.

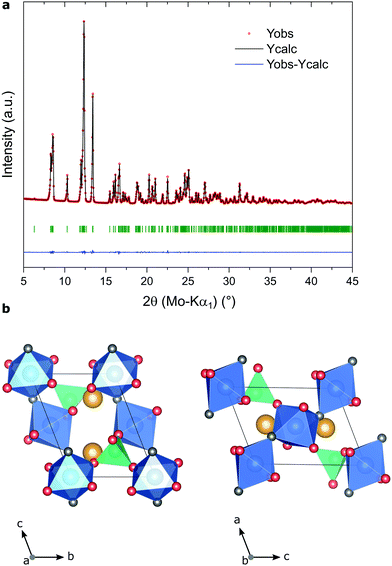

Fig. 1 (a) Comparison of the experimental (open circles) and calculated (black line) XRD patterns for LiVPO₄F, using a full-pattern matching (Le Bail) refinement in space group P1̄. The positions of the Bragg reflections (green markers) and the difference curve (blue line) are also shown. (b) Projections of the tavorite structure of LiVPO₄F along the [100] and [010] directions. VO₄F₂ octahedra are represented in blue, PO₄ tetrahedra in turquoise, and lithium atoms in yellow.

The XRD of the synthesized compound shows well-defined and intense peaks, indicating its high crystallinity. Le Bail refinements were performed in the P1̄ space group (tavorite-type structure) and the lattice parameters (a = 5.1699(1) Å, b = 5.3176(1) Å, c = 7.4729(1) Å, α = 112.645(1)°, β = 112.390(1)°, γ = 82.124(1)°) are similar to those reported by Ellis et al.³⁷ An average crystallite size of 200 nm was calculated from the (1̄1̄1) and (1̄11) planes (at 10.35° and 13.45°, respectively). No impurity peak is detectable in the diffractogram, whereas the generation of side-products such as Li₃V₂(PO₄)₃ or V₂O₃ is commonly reported for the solid-state synthesis of LiVPO₄F, as discussed in the introduction section.

The transmission electron micrographs (Fig. 2a and b) show that the obtained material consists of agglomerates of well-faceted particles in the size range from few hundreds of nanometers to few micrometers. The HRTEM image (Fig. 2c) demonstrates the high crystallinity of the obtained material, which agrees well with the XRD results. Its power spectrum (Fig. 2d) can be attributed to the expected LiVPO₄F phase oriented along the [1̄00] zone axis. However, one should note that many reflections are possible for this structure and an orientation along the [1̄10] zone axis is also a possibility. The atomic V : P : F ratio was determined by EDX and is close to the theoretical 1 : 1 : 1 value (1.0 : 1.04 : 0.98).

Fig. 2 TEM characterization of the obtained LiVPO₄F material. (a and b) TEM images; (c) HRTEM image and (d) its corresponding power spectrum.

The name “tavorite” originally comes from a natural mineral of chemical formula LiFePO₄OH.^38,39 This material is well known to be isostructural to its fluorinated counterpart,⁴⁰ with only a slight variation in the lattice parameters. In a recent paper, Boivin et al.⁴¹ showed that it is also the case for the vanadium-related material, and successfully synthesized a LiVPO₄OH tavorite compound via a hydrothermal route. Additionally, the related V⁴⁺-containing LiVPO₄O⁴² and LiVPO₄F_1−xO_x^43,44 materials can also crystallize in the same crystalline structure. Therefore, to check the absence of any (OH)⁻ group and of the oxidized phase in the obtained compound, a FTIR spectrum has been acquired and is shown in Fig. S1 (ESI†). The main absorption bands around 900–1200 cm⁻¹ correspond to (PO₄)³⁻ groups.⁴⁵ Interestingly, the O–H stretching signal (around 3000–3300 cm⁻¹) is absent, which supports the expected fully fluorinated composition of LiVPO₄F. This is one of the main advantages of using non-hydrolytic sol–gel chemistry: materials can be synthesized without intermediate hydroxyl groups thanks to aprotic condensation reactions.⁴⁶ Additionally, vanadyl-type defects (V⁴⁺ = O), that should exhibit a stretching band around 875 cm⁻¹ in the FTIR spectrum are not detected. Such a contribution of vanadyl defects has been detected by Boivin et al.⁴³ even for a material they thought would be pure LiVPO₄F. The fact that this feature is absent in our FTIR spectrum demonstrates the purity of our material and, therefore, also supports the LiVPO₄F stoichiometry and V(III) oxidation state. We attribute such a behavior to the low-temperature non-hydrolytic synthetic route and the reducing properties of benzyl alcohol. Both could help preventing the oxidation of the vanadium⁴⁷ that usually occurs in the material due to the heat treatments at high temperature that are employed during its synthesis.

Motivated by our previous success to synthesize the related tavorite LiFePO₄F material in a few minutes by a microwave-assisted solvothermal route, we tried to apply this approach to LiVPO₄F as well. To this end, we transferred 2.5 mL of the precursor solution in a 10 mL silicon carbide vial and applied microwave heating at 240 °C using an Anton Paar Monowave 300 equipment. We found that the crystallization of LiVPO₄F is somehow much slower than its iron-containing counterpart. Indeed, after 40 min of microwave heating, a much less crystalline tavorite phase is formed, as demonstrated in the diffractogram in Fig. S2 (ESI†). However, one can note that no other crystalline phase was detected after such a short heating treatment, suggesting that LiVPO₄F particles nucleate and grow directly, without forming any intermediate phase. To maximize the electrochemical performance, we chose the material with the highest crystallinity to manufacture the electrodes.

Electrochemical properties of LiVPO₄F

Typical galvanostatic and differential capacity curves of LiVPO₄F at C/10 rate are displayed in Fig. 3a and b. The charging process corresponds to the extraction of lithium from the structure of the compound, inducing an oxidation of V³⁺ to V⁴⁺ in the material. Two plateaus are visible on the electrochemical profiles, centered around 4.18 and 4.30 V vs. Li⁺/Li, respectively. On the other hand, only one plateau is visible at 4.21 V vs. Li⁺/Li during the discharge of the compound. This electrochemical profile is fully consistent with previous reports on LiVPO₄F material^{10,17,21,37,43} and it is attributed to the formation of a Li_0.67VPO₄F intermediate phase, which only occurs during the delithiation step (LiVPO₄F → Li_0.67VPO₄F → VPO₄F), as demonstrated by Ateba Mba et al.¹⁷ This unusual asymmetrical electrochemical behavior is however not fully understood yet. In addition to these plateaus, a broad contribution can be seen between 3.7 and 4.0 V vs. Li⁺/Li. We attribute this feature to a partial amorphization of LiVPO₄F, induced by the ball-milling step that was performed prior to manufacturing the electrodes, as we already demonstrated for tavorite LiFePO₄F material synthesized using a similar route.³⁰ In total, a high discharge capacity of 147 mA h g⁻¹ is obtained, corresponding to the insertion of 0.94 Li⁺ per formula unit, (i.e. almost full capacity). The charge capacity (161 mA h g⁻¹), however, exceeds the theoretical one, which is attributed to a partial oxidation of the electrolyte occurring at high potential.

Fig. 3 Typical galvanostatic cycling curve of LiVPO₄F material synthesized via a fluorolytic sol–gel route (a) and its corresponding differential capacity profile (b).

The galvanostatic curves and the corresponding capacity values of the LiVPO₄F compound at various C-rates are depicted in Fig. 4a and b. The electrochemical behavior of the material at C/5 is very close to that at C/10 rate, with a specific capacity of 138 mA h g⁻¹. However, its performance quickly decreases at higher rates, with capacity values of 102 mA h g⁻¹ at C/2 and only 49 mA h g⁻¹ retained at 1C rate. The low rate capability of the material can be attributed, at least partly, to the absence of carbon-coating on the LiVPO₄F particles, which is inherent to our synthetic route. Nevertheless, low-temperature wet-chemistry routes, like the one reported herein, allow the introduction of carbon-based materials directly into the solution, which can lead to the formation of carbon-containing composite materials that could greatly enhance the high-rate electrochemical performance. This optimization part was, however, not the scope of this work but would certainly be beneficial to the rate capability of our LiVPO₄F material. Additionally, one should note that such a behavior is not unusual and has even been reported for carbon-coated LiVPO₄F electrodes.⁴⁸ Indeed, previous studies reveal a high disparity in the rate capability obtained for this material. The reason for this is still under debate and some hypotheses involving the quality of the carbon-coating, the particle size and the vanadyl-type (V⁴⁺ = O) “defects” in the structure were proposed.^21,48 Boivin et al.⁴⁸ recently synthesized LiVPO₄(F, O) materials with different fluorine/oxygen compositions, therefore inducing various amounts of vanadyl “defects” in the same crystallographic structure, and compared their electrochemical performance. They concluded that the introduction of a small amount of V⁴⁺ in the material is beneficial to its high rate behavior, whereas Kim et al.,²¹ on the contrary, attribute the high rate capability exhibited by their LiVPO₄F material to its high purity.

Fig. 4 (a) Typical galvanostatic curves of LiVPO₄F obtained at different C-rates; (b) corresponding evolution of the discharge capacities and coulombic efficiency of the material as a function of the cycle number.

To get additional insight about the vanadyl-type defects content of our material, we decided to focus on the low-voltage parts of the galvanostatic curves, as proposed by Boivin et al.⁴⁸ Indeed, both LiVPO₄F and LiVPO₄O materials are electrochemically active in the low-voltage range, but exhibit completely different behavior. The reduction of LiV³⁺PO₄F in Li₂V²⁺PO₄F is known to occur at 1.8 V vs. Li⁺/Li,³⁷ whereas the insertion of Li⁺ in LiVPO₄O is accompanied by various phase transitions at 2.45, 2.21 and 2.04 V vs. Li⁺/Li.⁴⁹ Studying the insertion of Li⁺ in our LiVPO₄F material allows therefore to indirectly probe its purity. The galvanostatic and differential capacity curves of a LiVPO₄F electrode in the low-voltage range are depicted in Fig. 5a and b. Unlike what could be expected for a pure LiVPO₄F material, a small contribution centered around 2.5 V vs. Li⁺/Li can be observed, which is consistent with a partially oxidized LiVPO₄F_1−xO_x material. Such a feature can also be seen when looking closely at the high-voltage region of the electrochemical curves (Fig. 4 and 5a), where a slight decrease of the slope is perceptible from ca. 2.7 V vs. Li⁺/Li during the Li insertion in the material, especially at low rate. The other phase transitions characteristic of Li⁺ insertion/deinsertion in LiVPO₄O are known to generate less capacity (ca. two times less)^17,49 than the first one, and can therefore only be guessed on the curves.

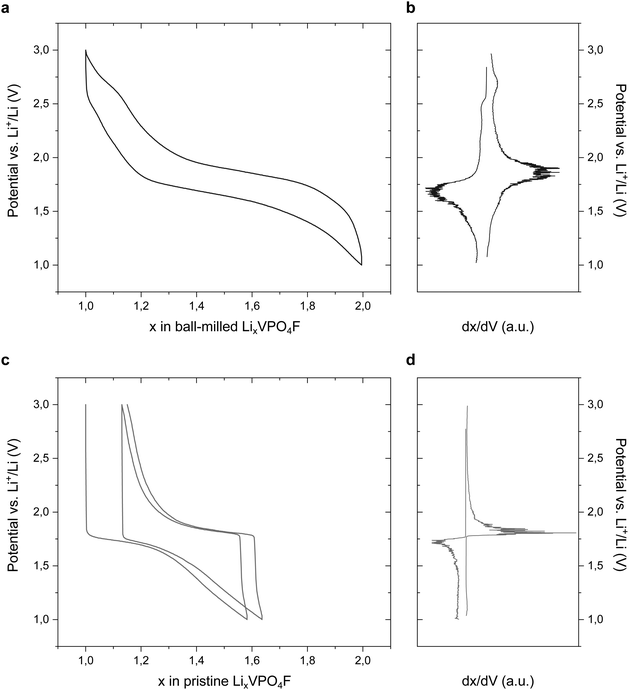

Fig. 5 Galvanostatic profiles and corresponding derivative curves of ball-milled (a and b) and pristine (c and d) LiVPO₄F material, in the low-voltage range at C/10 rate.

The unambiguous partial oxidation of LiVPO₄F in our electrodes came as a surprise to us, as is was not consistent with the results obtained by using FTIR (no vanadyl bond observable) and EDX (ratio Li : V : P : F almost stoichiometric) spectroscopies. However, one should note that prior to making the electrodes, a ball-milling step was performed on a mixture of LiVPO₄F and carbon black (with a 7 : 2 ratio, see the experimental section). Even though this important step was carried out in a recipient closed under argon atmosphere, one could expect a partial oxidation at the surface of the particles during or after this process. Consequently, electrodes were manufactured with the pristine LiVPO₄F material using the same formulation, but without any ball-milling treatment. Galvanostatic cycling was performed in the low voltage region of the material and the obtained results (Fig. 5c and d) are consistent with this hypothesis. Only one plateau centered at 1.8 V vs. Li⁺/Li is visible on the electrochemical profile, which is characteristic of a pure LiVPO₄F material. One can also note the difference in capacity and slope between the ball-milled and the pristine material. The balled-milled sample exhibits a much more sloping profile, which is typical for nanosized materials⁵⁰ and consistent with our recent study of LiFePO₄F.³⁰ The low capacity of the pristine sample as compared to the ball-milled one can be assessed to the insulating character of LiVPO₄F (electronic conductivity of ca. 10⁻¹¹ S cm⁻¹, according to Xiao et al.²⁰) combined to a non-optimized contact between the conductive carbon and the LiVPO₄F particles (absence of carbon coating and ball-milling treatment).

As stated above, the link between the physicochemical properties of LiVPO₄F and its electrochemical performance is still under debate in the community, and the amount of V⁴⁺ in the material seems to be an important parameter. As no vanadyl-defect was detected in our pristine LiVPO₄F material, we also evaluated its power performance in the high-voltage range (Fig. S3a and b, ESI†). Surprisingly, despite a larger particle size and a poor capacity at low rate, the power behavior of the pristine material is much improved compared to the ball-milled sample, with still 63% of the initial capacity sustained at 1C rate, compared to only 32% for the ball-milled material. Further experiments involving the introduction of a tuned amount of vanadyl defects in the structure while conserving the same morphology and synthetic route would however be necessary to definitely assess the reason for these different electrochemical behaviors.

Fluorolytic sol–gel synthesis extended to Na₃V₂(PO₄)₂F₃, NaVPO₄F, and KVPO₄F related materials

The demonstration that LiVPO₄F could be easily synthesized by soft-chemistry approaches encouraged us to try to extend our synthesis route to other related vanadium phosphate fluoride compounds. In this line, by slightly changing the synthesis parameters (i.e. alkaline metal precursor and reaction time, see the experimental section), we successfully obtained Na₃V₂(PO₄)₂F₃, NaVPO₄F and KVPO₄F materials.

Fig. 6 displays the X-ray diffractograms of the obtained powders, and the schematic polyhedral representations of their respective crystal structures. Similar to what was obtained for LiVPO₄F, the patterns of all three samples are pure, single-phase and representative of well crystalline materials. By using Le Bail (full-pattern matching) refinements, we show that the X-ray diffraction peaks of all synthesized compounds could be indexed to their expected frameworks.

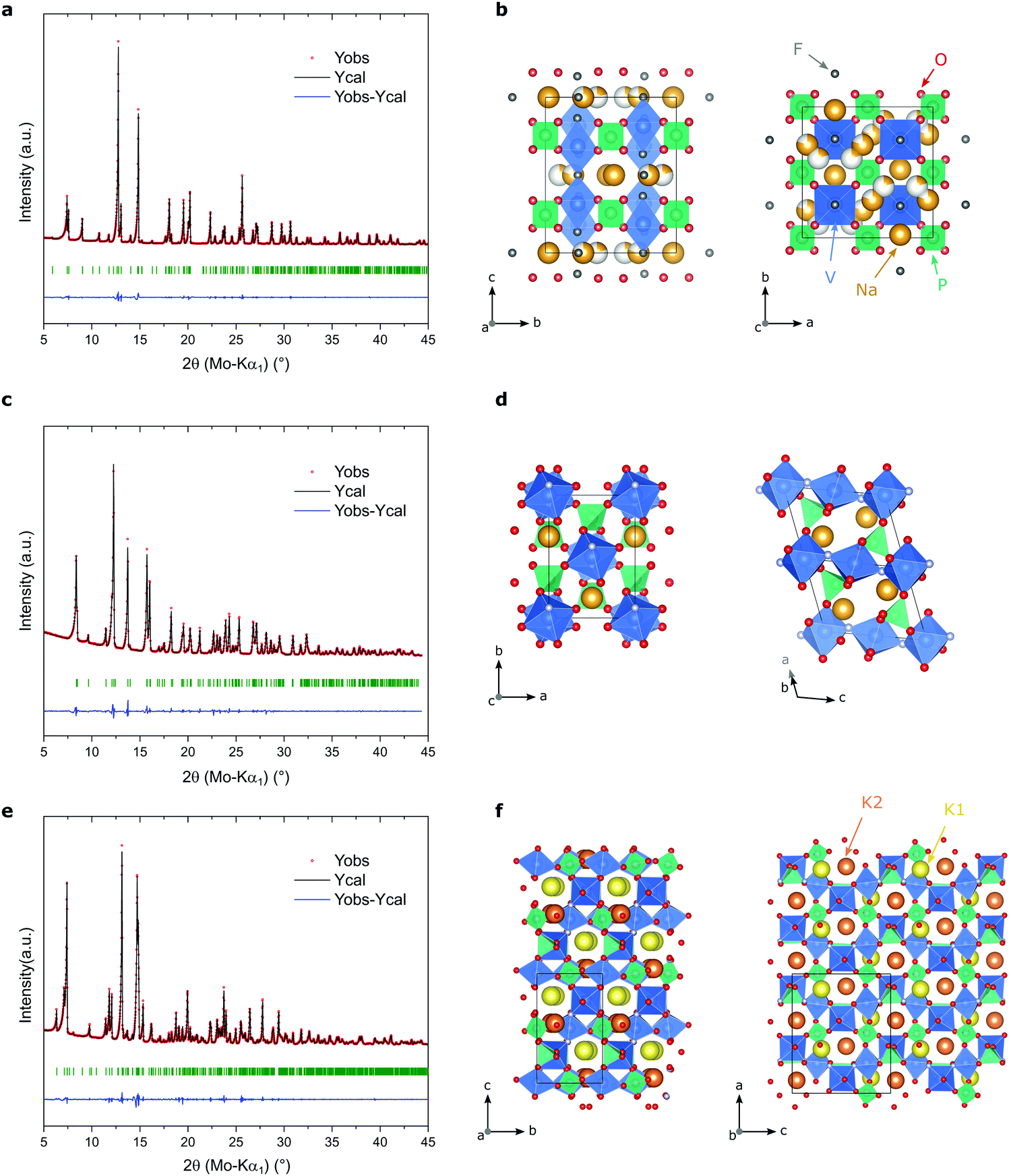

Fig. 6 (a, c and e) Experimental and calculated powder XRD patterns of Na₃V₂(PO₄)₂F₃, NaVPO₄F and KVPO₄F, respectively, using Le Bail refinement. Experimental data (red dots), calculated diffractograms (black lines), difference curves (blue) and Bragg positions (green) are shown. (b, d and f) Schematic representations of the respective crystallographic structures with VO₄F₂ octahedra in blue, PO₄ tetrahedra in turquoise and alkaline metals in yellow/orange.

As such, the lattice parameters of Na₃V₂(PO₄)₂F₃ were refined in the orthorhombic Amam space group, as it was recently demonstrated by Bianchini et al.⁵¹ to be the more accurate than the widely accepted tetragonal P4₂/mnm space group, previously proposed by Le Meins et al.⁸ In this three-dimensional structure (Fig. 6b), vanadium occupies the center of VO₄F₂ octahedra that are bridged together by one fluorine atom, forming bioctahedra V₂O₈F₃ units. These V₂O₈F₃ units are linked by PO₄ tetrahedra, thus creating large tunnels in the [110] and [11̄0] directions where the sodium ions are placed and can quickly migrate, making this material highly relevant for Na-ion battery applications.

The diffractogram of NaVPO₄F was refined in the monoclinic framework (space group C2/c) recently described by Boivin et al.¹¹ As can be seen in Fig. 6d, the structure of NaVPO₄F closely resembles to that of LiVPO₄F (see Fig. 1b for comparison). This tavorite-like framework consists in chains of VO₄F₂ octahedra in the [001] direction that are bridged together by fluorine atoms. The connection between these chains are made by PO₄ tetrahedra, forming channels along the [110] and [1̄10] directions. However, using a simulation method based on the bond valence theory, Boivin and colleagues¹¹ show that the diffusion of sodium ions in this structure is very limited, which explains the low electrochemical performance that they obtained.

KVPO₄F was indexed in the well-known orthorhombic KTP framework, as previously reported.^12,31,52 In this three-dimensional structure, zigzag chains of fluorine-sharing VO₄F₂ octahedra are linked together by PO₄ tetrahedra. Contrary to the other materials reported herein, the fluorine atoms occupy alternatively equatorial and axial positions in the VO₄F₂ octahedra. Potassium ions occupy the tunnels along the [100] and [010] directions, the two different sites being denoted in Fig. 6f as K1 and K2, respectively.

The refined lattice parameters of all the synthesized samples are presented in Table 1 and are in good agreement with previous reports.^11,12,51,52

Table 1 Refined lattice parameters of the synthesized vanadium phosphate fluoride materials

Compound	Space group	a (Å)	b (Å)	c (Å)	α (°)	β (°)	γ (°)	V (Å^3)
LiVPO4F	P1̄	5.1699(1)	5.3176(1)	7.4729(1)	112.645(1)	112.390(1)	82.124(1)	175.30(4)
Na3V2(PO4)2F3	Amam	9.0432(2)	9.0505(2)	10.7686(2)	90	90	90	881.36(4)
NaVPO4F	C2/c	6.5791(2)	8.4417(2)	7.3920(2)	90	117.565(1)	90	363.94(4)
KVPO4F	Pna21	12.8576(3)	6.3982(2)	10.6442(2)	90	90	90	875.66(5)

---

Electrochemistry of Na₃V₂(PO₄)₂F₃, NaVPO₄F, and KVPO₄F material

The electrochemical behavior of the Na and K-containing materials was also characterized and the galvanostatic curves obtained are depicted in Fig. 7 and Fig. S4 (ESI†). As stated in the experimental section, NaVPO₄F and Na₃V₂(PO₄)₂F₃ materials were tested in Na-ion half-cells and KVPO₄F in a Li-ion half-cell, as reported by Fedotov et al.¹² Overall, the galvanostatic profiles of the materials are consistent with previous reports.^11,12,14,53

Fig. 7 Galvanostatic profiles of (a) Na₃V₂(PO₄)₂F₃ at C/10 rate and (c) KVPO₄F at C/5 rate. (b, d) Discharge capacity retention of both materials at different charge/discharge rates.

As reported by Boivin et al.,¹¹ almost no electrochemical activity could be detected in the tavorite-like NaVPO₄F material, even at low C/10 rate (see Fig. S4, ESI†), which is attributed to the very limited Na-ion diffusion in the structure of the material.

On the contrary, at low rate (C/10, see Fig. 7a), a capacity of 120 mA h g⁻¹ is obtained for the Na₃V₂(PO₄)₂F₃ material, corresponding to the deintercalation and reintercalation of almost 2 sodium ions (1.88 Na⁺ per formula unit), occurring around 3.65 and 4.18 V vs. Na⁺/Na. The rate capability of Na₃V₂(PO₄)₂F₃ was evaluated (Fig. 7b) and proves to be lower than previous reports involving carbon-coated or carbon-based composite materials,^14,54 with almost 40% of the initial capacity (at C/10 rate) lost at 1C rate.

The same general observations can be made for the Li-intercalation/deintercalation in K_xVPO₄F. The first charge of the initial KVPO₄F material was performed at C/10 rate up to 4.8 V vs. Li⁺/Li and this potential was kept for 5 h to ensure a full oxidation of the material. As depicted in (Fig. S5, ESI†), two main features can be seen in the galvanostatic curves. A first plateau, centered around 4.05 V (from ca. 3.8 to 4.3 V vs. Li⁺/Li), originates from the deintercalation of K⁺ ions.¹² This reaction leads to a specific capacity of 125 mA h g⁻¹, which translates into ca. 0.95 K⁺ per formula unit. Then, a second plateau occurs from 4.65 V vs. Li⁺/Li and is attributed to the oxidation of the electrolyte. During the discharge, the material displays a very similar response as obtained by Fedotov et al.,¹² with the intercalation of Li⁺ occurring between 4.3 and 3.7 V vs. Li⁺/Li (Fig. S4 (ESI†) and Fig. 7c). As for the other obtained phosphate fluoride materials, the high-rate behavior of (K, Li)VPO₄F (Fig. 7d) is not as good as previous reports, with only 50% of the initial capacity retained at 1C rate. The high capacity loss observed between C/10 and C/5 rate is partially due to the absence of potentiostatic step at 4.8 V vs. Li⁺/Li (performed only during the first cycles at C/10 rate). The poor high-rate performance of the reported KVPO₄F compound should however be mitigated, as previous reports were made on a carbon-coated material¹² and involved the transfer of the oxidized K_xVPO₄F material in a fresh Li⁺-containing electrolyte (at the end of the first charge), a step that wasn’t performed herein.

Conclusion

Soft chemistry routes are highly relevant to the synthesis of battery-type materials as they can allow one to obtain quickly and at low temperature highly crystalline materials with a better controlled morphology, as compared to conventional solid-state methods. We report herein a new one-pot fluorolytic route to various crystalline and phase-pure vanadium phosphate fluoride battery-type materials. The use of such a low temperature (240 °C) solution-based method allowed the prevention of both the evaporation of volatile fluorine compounds and the partial oxidation of V(III) in V(IV) in the samples, issues that are commonly faced by solid-state syntheses. As such, a vanadyl defect-free LiVPO₄F material could be obtained at a mild temperature for the first time and exhibited a high specific capacity of 147 mA h g⁻¹ at C/10 rate. The tuning of the synthesis parameters allowed us to similarly obtain the related NaVPO₄F, Na₃V₂(PO₄)₂F₃ and KVPO₄F materials. While the high-rate performance of the synthesized compounds is below expectations, it could be greatly enhanced by a further optimization with the addition of either a carbon source in the precursor solution or a carbon-coating at the surface of the particles. Indeed, this attribute is inherent to materials synthesized by the widely used solid-state carbothermal route, and proved to considerably improve their power performance.^21,54 Additionally, the demonstrated versatility of the reported fluorolytic synthesis route is worth exploring for other fluorine-containing polyanionic systems that are highly relevant for energy storage applications.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was partially funded by the Deutsche Forschungsgemeinschaft DFG KE 489/21-1 or PI 762/5-1. Andrea Martin is acknowledged for experimental support and fruitful discussions.

References

1. A. K. Padhi, K. S. Nanjundaswamy and J. B. Goodenough, Phospho-olivines as Positive-Electrode Materials for Rechargeable Lithium Batteries, J. Electrochem. Soc., 1997, 144, 1188–1194.
2. C. Masquelier and L. Croguennec, Polyanionic (Phosphates, Silicates, Sulfates) Frameworks as Electrode Materials for Rechargeable Li (or Na) Batteries, Chem. Rev., 2013, 113, 6552–6591.
3. A. Manthiram and J. B. Goodenough, Lithium insertion into Fe₂(MO₄)₃ frameworks: Comparison of M = W with M = Mo, J. Solid State Chem., 1987, 71, 349–360.
4. A. Manthiram and J. B. Goodenough, Lithium insertion into Fe₂(SO₄)₃ frameworks, J. Power Sources, 1989, 26, 403–408.
5. W. H. Baur, Die Kristallstruktur des Edelamblygonits LiAlPO₄(OH, F), Acta Crystallogr., 1959, 12, 988–994.
6. E. L. Belokoneva, O. V. Yakubovich, V. G. Tsirel'son and V. S. Urusov, The refined crystal structure and electronic structure of the nonlinear crystal potassium iron fluorophosphate (KFeFPO₄) – a structural analog of potassium titanium oxide phosphate (KTiOPO₄), Inorg. Mater., 1990, 26, 595–601.
7. O. V. Yakubovich, O. V. Karimova and O. K. Mel'nikov, The Mixed Anionic Framework in the Structure of Na₂{MnF[PO₄]}, Acta Crystallogr., Sect. C: Cryst. Struct. Commun., 1997, 53, 395–397.
8. J. M. Le Meins, M. P. Crosnier-Lopez, A. Hemon-Ribaud and G. Courbion, Phase Transitions in the Na₃M₂(PO₄)₂F₃ Family (M = Al³⁺, V³⁺, Cr³⁺, Fe³⁺, Ga³⁺): Synthesis, Thermal, Structural, and Magnetic Studies, J. Solid State Chem., 1999, 148, 260–277.
9. S. C. Yin, P. S. Herle, A. Higgins, N. J. Taylor, Y. Makimura and L. F. Nazar, Dimensional Reduction:  Synthesis and Structure of Layered Li₅M(PO₄)₂F₂ (M = V, Cr), Chem. Mater., 2006, 18, 1745–1752.
10. J. Barker, M. Y. Saidi and J. L. Swoyer, Electrochemical Insertion Properties of the Novel Lithium Vanadium Fluorophosphate, LiVPO₄F, J. Electrochem. Soc., 2003, 150, A1394–A1398.
11. E. Boivin, J.-N. Chotard, T. Bamine, D. Carlier, P. Serras, V. Palomares, T. Rojo, A. Iadecola, L. Dupont, L. Bourgeois, F. Fauth, C. Masquelier and L. Croguennec, Vanadyl-type defects in Tavorite-like NaVPO₄F: from the average long range structure to local environments, J. Mater. Chem. A, 2017, 5, 25044–25055.
12. S. S. Fedotov, N. R. Khasanova, A. S. Samarin, O. A. Drozhzhin, D. Batuk, O. M. Karakulina, J. Hadermann, A. M. Abakumov and E. V. Antipov, AVPO₄F (A = Li, K): A 4 V Cathode Material for High-Power Rechargeable Batteries, Chem. Mater., 2016, 28, 411–415.
13. R. K. B. Gover, A. Bryan, P. Burns and J. Barker, The electrochemical insertion properties of sodium vanadium fluorophosphate, Na₃V₂(PO₄)₂F₃, Solid State Ionics, 2006, 177, 1495–1500.
14. A. Ponrouch, R. Dedryvère, D. Monti, A. E. Demet, J. M. Ateba Mba, L. Croguennec, C. Masquelier, P. Johansson and M. R. Palacín, Towards high energy density sodium ion batteries through electrolyte optimization, Energy Environ. Sci., 2013, 6, 2361–2369.
15. H. Huang, T. Faulkner, J. Barker and M. Y. Saidi, Lithium metal phosphates, power and automotive applications, J. Power Sources, 2009, 189, 748–751.
16. F. Zhou, X. Zhao and J. R. Dahn, Reactivity of charged LiVPO₄F with 1 M LiPF₆ EC:DEC electrolyte at high temperature as studied by accelerating rate calorimetry, Electrochem. Commun., 2009, 11, 589–591.
17. J.-M. Ateba Mba, C. Masquelier, E. Suard and L. Croguennec, Synthesis and Crystallographic Study of Homeotypic LiVPO₄F and LiVPO₄O, Chem. Mater., 2012, 24, 1223–1234.
18. J. Wang, X. Li, Z. Wang, H. Guo, Y. Zhang, X. Xiong and Z. He, Synthesis and characterization of LiVPO₄F/C using precursor obtained through a soft chemical route with mechanical activation assist, Electrochim. Acta, 2013, 91, 75–81.
19. J.-c. Zheng, B. Zhang and Z.-H. Yang, Novel synthesis of LiVPO₄F cathode material by chemical lithiation and postannealing, J. Power Sources, 2012, 202, 380–383.
20. P. F. Xiao, M. O. Lai and L. Lu, Transport and electrochemical properties of high potential tavorite LiVPO₄F, Solid State Ionics, 2013, 242, 10–19.
21. M. Kim, S. Lee and B. Kang, Fast-Rate Capable Electrode Material with Higher Energy Density than LiFePO₄: 4.2 V LiVPO₄F Synthesized by Scalable Single-Step Solid-State Reaction, Adv. Sci., 2016, 3, 1500366.
22. J. Barker, R. K. B. Gover, P. Burns, A. Bryan, M. Y. Saidi and J. L. Swoyer, Performance Evaluation of Lithium Vanadium Fluorophosphate in Lithium Metal and Lithium-Ion Cells, J. Electrochem. Soc., 2005, 152, A1776–A1779.
23. E. Kemnitz, U. Groß, S. Rüdiger and C. S. Shekar, Amorphous Metal Fluorides with Extraordinary High Surface Areas, Angew. Chem., Int. Ed., 2003, 42, 4251–4254.
24. J. Noack, K. Scheurell, E. Kemnitz, P. Garcia-Juan, H. Rau, M. Lacroix, J. Eicher, B. Lintner, T. Sontheimer, T. Hofmann, J. Hegmann, R. Jahn and P. Löbmann, MgF₂ antireflective coatings by sol–gel processing: film preparation and thermal densification, J. Mater. Chem., 2012, 22, 18535–18541.
25. A. Rehmer, K. Scheurell and E. Kemnitz, Formation of nanoscopic CaF₂via a fluorolytic sol–gel process for antireflective coatings, J. Mater. Chem. C, 2015, 3, 1716–1723.
26. Y. Guo, P. Gaczyński, K.-D. Becker and E. Kemnitz, Sol–Gel Synthesis and Characterisation of Nanoscopic FeF₃-MgF₂ Heterogeneous Catalysts with Bi-Acidic Properties, ChemCatChem, 2013, 5, 2223–2232.
27. A. Rehmer, K. Scheurell, G. Scholz and E. Kemnitz, Sol–Gel-Synthesis of Nanoscopic Complex Metal Fluorides, Nanomaterials, 2017, 7, 362.
28. A. Martin, M.-L. Doublet, E. Kemnitz and N. Pinna, Reversible Sodium and Lithium Insertion in Iron Fluoride Perovskites, Adv. Funct. Mater., 2018, 28, 1802057.
29. T. Krahl, F. M. Winkelmann, A. Martin, N. Pinna and E. Kemnitz, Novel Synthesis of Anhydrous and Hydroxylated CuF₂ Nanoparticles and Their Potential for Lithium Ion Batteries, Chem. – Eur. J., 2018, 24, 7177–7187.
30. N. Goubard-Bretesché, E. Kemnitz and N. Pinna, Fluorolytic Sol–Gel Route and Electrochemical Properties of Polyanionic Transition-Metal Phosphate Fluorides, Chem. – Eur. J., 2019, 25, 6189–6195.
31. K. Chihara, A. Katogi, K. Kubota and S. Komaba, KVPO₄F and KVOPO₄ toward 4 volt-class potassium-ion batteries, Chem. Commun., 2017, 53, 5208–5211.
32. S. Rudiger and E. Kemnitz, The fluorolytic sol–gel route to metal fluorides-a versatile process opening a variety of application fields, Dalton Trans., 2008, 1117–1127.
33. E. Kemnitz and J. Noack, The non-aqueous fluorolytic sol–gel synthesis of nanoscaled metal fluorides, Dalton Trans., 2015, 44, 19411–19431.
34. J. Livage, P. Barboux, M. T. Vandenborre, C. Schmutz and F. Taulelle, Sol–gel synthesis of phosphates, J. Non-Cryst. Solids, 1992, 147–148, 18–23.
35. M.-G. Willinger, G. Clavel, W. Di and N. Pinna, A general soft-chemistry route to metal phosphate nanocrystals, J. Ind. Eng. Chem., 2009, 15, 883–887.
36. T. Mueller, G. Hautier, A. Jain and G. Ceder, Evaluation of Tavorite-Structured Cathode Materials for Lithium-Ion Batteries Using High-Throughput Computing, Chem. Mater., 2011, 23, 3854–3862.
37. B. L. Ellis, T. N. Ramesh, L. J. M. Davis, G. R. Goward and L. F. Nazar, Structure and Electrochemistry of Two-Electron Redox Couples in Lithium Metal Fluorophosphates Based on the Tavorite Structure, Chem. Mater., 2011, 23, 5138–5148.
38. M. L. Lindberg and W. T. Pecora, Tavorite and barbosalite, two new phosphate minerals from Minas Gerais, Brazil, Am. Mineral., 1955, 40, 952–966.
39. N. Marx, L. Croguennec, D. Carlier, A. Wattiaux, F. L. Cras, E. Suard and C. Delmas, The structure of tavorite LiFePO₄(OH) from diffraction and GGA + U studies and its preliminary electrochemical characterization, Dalton Trans., 2010, 39, 5108–5116.
40. T. N. Ramesh, K. T. Lee, B. L. Ellis and L. F. Nazar, Tavorite Lithium Iron Fluorophosphate Cathode Materials: Phase Transition and Electrochemistry of LiFePO₄F – Li₂FePO₄F, Electrochem. Solid-State Lett., 2010, 13, A43–A47.
41. E. Boivin, J.-N. Chotard, M. Ménétrier, L. Bourgeois, T. Bamine, D. Carlier, F. Fauth, E. Suard, C. Masquelier and L. Croguennec, Structural and electrochemical studies of a new Tavorite composition: LiVPO₄OH, J. Mater. Chem. A, 2016, 4, 11030–11045.
42. T. A. Kerr, J. Gaubicher and L. F. Nazar, Highly Reversible Li Insertion at 4 V in ε-  VOPO₄/α-LiVOPO₄ Cathodes, Electrochem. Solid-State Lett., 2000, 3, 460–462.
43. E. Boivin, J.-N. Chotard, M. Ménétrier, L. Bourgeois, T. Bamine, D. Carlier, F. Fauth, C. Masquelier and L. Croguennec, Oxidation under Air of Tavorite LiVPO₄F: Influence of Vanadyl-Type Defects on Its Electrochemical Properties, J. Phys. Chem. C, 2016, 120, 26187–26198.
44. M. Kim, S. Lee and B. Kang, High Energy Density Polyanion Electrode Material: LiVPO₄O_1−xF_x (x ≈ 0.25) with Tavorite Structure, Chem. Mater., 2017, 29, 4690–4699.
45. K. L. Harrison and A. Manthiram, Microwave-Assisted Solvothermal Synthesis and Characterization of Various Polymorphs of LiVOPO₄, Chem. Mater., 2013, 25, 1751–1760.
46. M. Niederberger and N. Pinna, Metal oxide nanoparticles in organic solvents: synthesis, formation, assembly and application, Springer, Dordrecht, 2009.
47. N. Pinna, M. Antonietti and M. Niederberger, A novel nonaqueous route to V₂O₃ and Nb₂O₅ nanocrystals, Colloids Surf., A, 2004, 250, 211–213.
48. E. Boivin, R. David, J.-N. Chotard, T. Bamine, A. Iadecola, L. Bourgeois, E. Suard, F. Fauth, D. Carlier, C. Masquelier and L. Croguennec, LiVPO₄F_1–yO_y Tavorite-Type Compositions: Influence of the Concentration of Vanadyl-Type Defects on the Structure and Electrochemical Performance, Chem. Mater., 2018, 30, 5682–5693.
49. M. Bianchini, J. M. Ateba-Mba, P. Dagault, E. Bogdan, D. Carlier, E. Suard, C. Masquelier and L. Croguennec, Multiple phases in the ε-VPO₄O–LiVPO₄O–Li₂VPO₄O system: a combined solid state electrochemistry and diffraction structural study, J. Mater. Chem. A, 2014, 2, 10182–10192.
50. M. Wagemaker and F. M. Mulder, Properties and Promises of Nanosized Insertion Materials for Li-Ion Batteries, Acc. Chem. Res., 2013, 46, 1206–1215.
51. M. Bianchini, N. Brisset, F. Fauth, F. Weill, E. Elkaim, E. Suard, C. Masquelier and L. Croguennec, Na₃V₂(PO₄)₂F₃ Revisited: A High-Resolution Diffraction Study, Chem. Mater., 2014, 26, 4238–4247.
52. H. Kim, D.-H. Seo, M. Bianchini, R. J. Clément, H. Kim, J. C. Kim, Y. Tian, T. Shi, W.-S. Yoon and G. Ceder, A New Strategy for High-Voltage Cathodes for K-Ion Batteries: Stoichiometric KVPO₄F, Adv. Energy Mater., 2018, 8, 1801591.
53. K. Chihara, A. Kitajou, I. D. Gocheva, S. Okada and J.-I. Yamaki, Cathode properties of Na₃M₂(PO₄)₂F₃ [M = Ti, Fe, V] for sodium-ion batteries, J. Power Sources, 2013, 227, 80–85.
54. C. Zhu, C. Wu, C.-C. Chen, P. Kopold, P. A. van Aken, J. Maier and Y. Yu, A High Power–High Energy Na₃V₂(PO₄)₂F₃ Sodium Cathode: Investigation of Transport Parameters, Rational Design and Realization, Chem. Mater., 2017, 29, 5207–5215.

---
